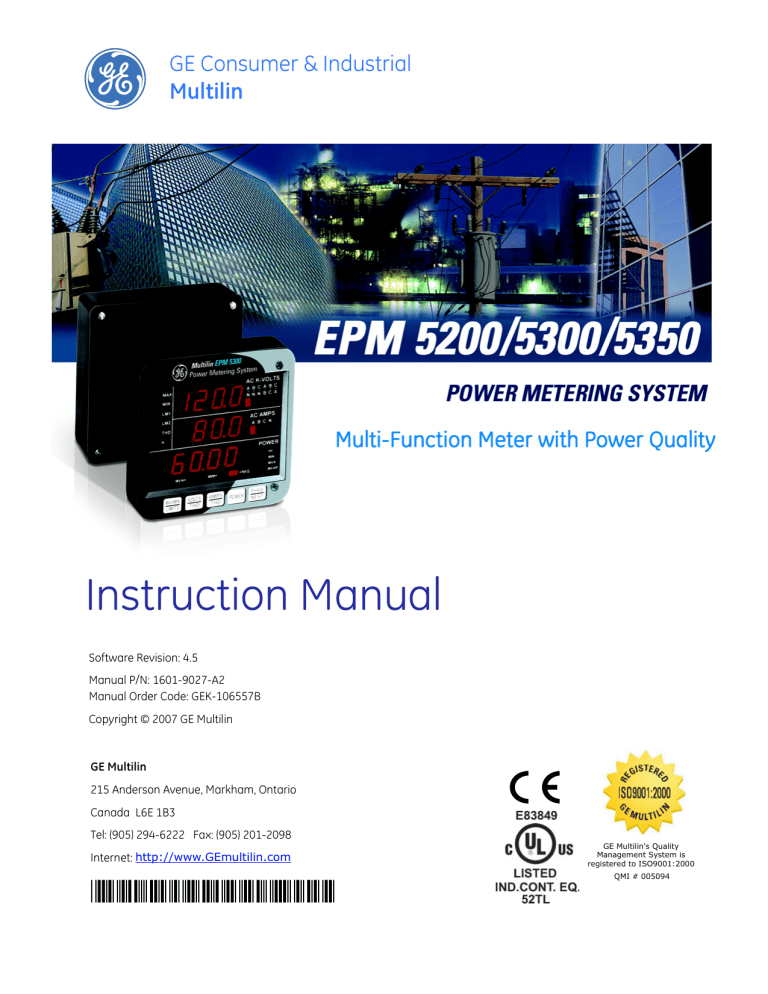

GE Consumer & Industrial

Multilin

EPM 5300 Power Metering System

Chapter 1:

Instruction Manual

Software Revision: 4.5

Manual P/N: 1601-9027-A2

Manual Order Code: GEK-106557B

Copyright © 2007 GE Multilin

GE Multilin

215 Anderson Avenue, Markham, Ontario

Canada L6E 1B3

Tel: (905) 294-6222 Fax: (905) 201-2098

Internet: http://www.GEmultilin.com

*1601-0215-A4*

GE Multilin's Quality

Management System is registered to ISO9001:2000

QMI # 005094

1: AC POWER

MEASUREMENT

2: MECHANICAL

INSTALLATION

3: ELECTRICAL

INSTALLATION

4: COMMUNICATION

INSTALLATION

5: OVERVIEW

TABLE OF CONTENTS

Table of Contents

SINGLE PHASE SYSTEM ................................................................................................................. 1

THREE-PHASE SYSTEM .................................................................................................................. 3

CONSUMPTION, DEMAND AND POOR POWER FACTOR ................................................. 5

WAVEFORM AND HARMONICS .................................................................................................. 6

MECHANICAL INSTALLATION ..................................................................................................... 1

CONNECTING THE CURRENT CIRCUIT .................................................................................... 5

CT CONNECTION ............................................................................................................................. 6

H

ELPFUL

D

EBUGGING

T

OOLS

............................................................................................ 6

CONNECTING THE VOLTAGE CIRCUIT .................................................................................... 7

SELECTING THE VOLTAGE FUSES ............................................................................................. 8

CONNECTION TO THE MAIN POWER SUPPLY ..................................................................... 9

ELECTRICAL CONNECTION INSTALLATION ........................................................................... 10

L

IST OF

C

ONNECTION

D

IAGRAMS

..................................................................................... 10

THE EPM 5300P-S ............................................................................................................................ 14

RELAY, PROTECTION AND PULSE OUTPUT ........................................................................... 16

EPM 5300P R

ELAY

O

VERVIEW

....................................................................................... 16

2 R

ELAYS

& 1 KYZ P

ULSE

O

UTPUT

-NL OPTION ....................................................... 16

S

TANDARD

R

ATE

T

ABLE FOR

W

ATTS

* .............................................................................. 18

KYZ PULSE OUTPUTS: NL2 OPTION ........................................................................................ 19

RS-232C ............................................................................................................................................... 21

RS-485 .................................................................................................................................................. 22

NETWORK OF INSTRUMENTS AND LONG DISTANCE COMMUNICATION .............. 26

M

ODEM

C

ONNECTED TO

C

OMPUTER

(O

RIGINATE

M

ODEM

) ......................................... 27

MODEM

C

ONNECTED TO THE

D

EVICE

(R

EMOTE

M

ODEM

) ............................................. 27

ACCESSING THE POWER FUNCTIONS ..................................................................................... 31

ACCESSING VOLTAGE AND CURRENT PHASES ................................................................... 32

ACCESSING %THD FUNCTIONS ................................................................................................. 33

VIEWING INDIVIDUAL PHASE INDICATION FOR POWER FUNCTIONS ...................... 34

ACCESSING MAX/MIN VALUES ................................................................................................... 35

RESETTING VALUES ......................................................................................................................... 36

U

NPROTECTED

R

ESET

......................................................................................................... 36

P

ROTECTED

R

ESET

............................................................................................................... 37

RESETTING HOUR READINGS ..................................................................................................... 38

ACCESSING THE LM1/LM2 SET LIMITS ................................................................................... 39

VOLTAGE PHASE REVERSAL AND IMBALANCE ................................................................... 40

ACCESS MODES ................................................................................................................................ 41

PRINT OPERATING DATA ............................................................................................................... 42

PRINT PROGRAMMING DATA ...................................................................................................... 43

ACCESSING FIRMWARE VERSION/LED TEST ........................................................................ 44

DISTRIBUTED DIGITAL FAULT RECORDER – INSTRUCTION MANUAL TOC–I

TABLE OF CONTENTS

6: PROGRAMMING

OVERVIEW

GENERAL PROCEDURE .................................................................................................................. 45

SWITCH PACKS ................................................................................................................................. 46

PROGRAMMING MODE DATA ENTRY ....................................................................................... 47

STANDARD NUMERIC DATA ENTRY .......................................................................................... 48

EPM 5200P .......................................................................................................................................... 49 7: EPM 5200P

8: ENTERING

PROGRAMMING MODE

CHECKSUM ERROR—PROTECTIVE SELF-CHECKING ALGORITHMS ............................ 51

PASSWORD ENTRY .......................................................................................................................... 52

9: PROGRAMMING

GROUP 0 - GLOBAL

METER SETUP

GROUP 0, FUNCTION 0—THE INTEGRATION INTERVAL .................................................. 54

GROUP 0, FUNCTION 2 — BAUD RATE ................................................................................... 56

GROUP 0, FUNCTION 3 — SYSTEM CONFIGURATION ...................................................... 57

O

PEN

D

ELTA

S

YSTEM

I

NSTALLATION

P

ROGRAMMING

................................................... 58

S

WITCHING

C

OMMUNICATION

P

ROTOCOLS

, EI-BUS, MODBUS RTU/ASCII, DNP 3.0 59

MODBUS PLUS CAPABILITY ......................................................................................................... 60

P

RINTING

O

PTION

............................................................................................................... 60

GROUP 0, FUNCTION 3—PROGRAMMING PROCEDURE .................................................. 61

RELAY MODE ..................................................................................................................................... 62

GROUP 0, FUNCTIONS 4–5—TIME DELAY FOR RELAYS 1 & 2 (OPTION – NL) ........ 65

GROUP 0, FUNCTION 6—KYZ PARAMETER SELECTION ................................................... 67

H

OW TO

U

SE

KYZ P

ULSE

V

ALUE

T

ABLE FOR

M

ULTIPLICATION

: ................................. 69

H

OW TO

U

SE

KYZ P

ULSE

V

ALUE

T

ABLE FOR

D

IVISION

: ............................................... 70

GROUP 0, FUNCTION 7—NUMBER OF PHASES ................................................................... 72

10: PROGRAMMING

GROUP 1 – VOLTAGE,

AMP AND WATT SCALE

SETTINGS

GROUP 1, FUNCTION 0 .................................................................................................................. 74

V

OLTAGE

F

ULL

S

CALE

: ........................................................................................................ 74

GROUP 1, FUNCTION 1 .................................................................................................................. 77

GROUP 1, FUNCTION 2 .................................................................................................................. 79

11: PROGRAMMING

GROUP 2 - METER

CALIBRATION

CALIBRATION REQUIREMENTS ................................................................................................... 84

GROUP 2, FUNCTIONS 0–2 .......................................................................................................... 85

12: GROUPS 4, 5 AND 6—

SET LIMITS AND

RELAYS

TRIP RELAY .......................................................................................................................................... 90

TIME DELAYS & RELAY MODE ..................................................................................................... 91

GROUP 4: FUNCTIONS 0–3—LM1/LM2 SET LIMITS ........................................................... 92

GROUP 4: PROGRAMMING FORMAT FOR LIMIT CONDITION ........................................ 93

GROUP 5: FUNCTIONS 0–7—LM1/LM2 SET LIMITS ........................................................... 94

GROUP 6: LM1/LM2 SET LIMITS: ................................................................................................ 96

G

ROUP

6: THD S

ET

- L

IMITS

/ R

ELAYS

(F

OR

O

PTION

-

H

) .......................................... 96

GROUP 6: FUNCTIONS 0–5—LM1/LM2 SET LIMITS AND RELAY TRIGGERS FOR OVER/UN-

DER %THD CONDITIONS ..................................................................................... 97

LIMITS OR RELAYS PROGRAMMING PROCEDURE .............................................................. 98

TOC–II DISTRIBUTED DIGITAL FAULT RECORDER – INSTRUCTION MANUAL

TABLE OF CONTENTS

13: PHASE REVERSAL

AND PHASE

IMBALANCE SET

LIMITS/RELAYS

14: EXITING

PROGRAMMING MODE

EXITING PROGRAMMING MODE ................................................................................................ 107

15: PROGRAMMING

QUICK REFERENCE

PHASE REVERSAL AND PHASE IMBALANCE ......................................................................... 101

TRIP RELAY .......................................................................................................................................... 102

GROUP 7, FUNCTION 0—VOLTAGE PHASE REVERSAL DETECTION ........................... 103

GROUP 7, FUNCTION 1—PERCENTAGE VOLTAGE PHASE IMBALANCE .................... 105

16: ETHERNET OPTION

ENTERING THE PROGRAMMING MODE .................................................................................. 109

DATA ENTRY SEQUENCE ............................................................................................................... 110

PROGRAMMING GROUPS ............................................................................................................. 111

G

ROUP

0: G

LOBAL

M

ETER

S

ETUP

.................................................................................... 111

G

ROUP

1: F

ULL

S

CALE

S

ETUP

........................................................................................... 112

G

ROUP

2: C

ALIBRATION

..................................................................................................... 112

G

ROUP

3: C

ALIBRATION

R

ATIOS

....................................................................................... 113

G

ROUP

4: V

OLT

/C

URRENT

L

IMITS

.................................................................................... 113

G

ROUP

5: P

OWER

F

UNCTION

L

IMITS

............................................................................... 113

G

ROUP

6: THD L

IMITS

....................................................................................................... 113

G

ROUP

7: I

MBALANCE

/R

EVERSAL

L

IMITS

........................................................................ 114

G

ROUP

8: DC

OUTPUT

C

ALIBRATION

............................................................................... 114

ETHERNET MODULE ........................................................................................................................ 118

ETHERNET OPTION SETUP ........................................................................................................... 119

D

EFAULT

IP A

DDRESS

....................................................................................................... 119

A

UTO

IP ................................................................................................................................ 119

S

ETTING THE

IP A

DDRESS

.................................................................................................. 120

N

ETWORK

C

ONFIGURATION

.............................................................................................. 120

C

ONFIGURATION

P

ARAMETERS

......................................................................................... 121

DISTRIBUTED DIGITAL FAULT RECORDER – INSTRUCTION MANUAL TOC–III

TABLE OF CONTENTS

TOC–IV DISTRIBUTED DIGITAL FAULT RECORDER – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 1: AC Power

Measurement

AC Power Measurement

The economics of electric power distribution networking dictate several configurations of

AC power transmission. The number of phases and voltage levels characterize these configurations.

1.1

Single Phase System

A single phase system is a basic two-wire system used in low power distribution applications, such as residential communities or offices. Typically, the voltage is 120V AC.

For higher power requirements, such as small commercial facilities, the typical power configuration is two lines of 120V AC opposite in phase (see Figure 1.1 B, below).

This system produces 120 volts from line to neutral for lighting and small appliance use.

The line-to-line voltage is 240V AC, used for higher loads such as water heaters, electric dryers, ranges and machinery.

L i n e

A )

S i n g l e P h a s e

2 W i r e s

N e u t r a l

L i n e 1

B )

S i n g l e P h a s e

3 W i r e s

N e u t r a l

L i n e 2

FIGURE 1–1: Single Phase System: (A) Two-Wire, (B) Three-Wire

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 1–1

SINGLE PHASE SYSTEM CHAPTER 1: AC POWER MEASUREMENT

The power (W) in a single phase system is:

W = E • I • cos

Θ

E = potential, I = current, and cos Θ = phase difference between the potential and the current.

Power in a 120/240V AC system is:

W = (E

Line 1

• I

Line 1

• cos

Θ

) + (E

Line 2

• I

Line 2

• cos

Θ

)

Phase differential between the potential and the current results from a non-resistive load, either reactive or capacitive.

Reactive power (VAR): The additional power consumed that does not produce any work but must be delivered to the load: .

VAR = E

I

⋅ s

in

Θ

This is a measure of the inefficiency of the electrical system.

Apparent power (VA): The total power delivered to the load, and the vector sum of real power and reactive power.

Power Factor (PF): The ratio between real power and apparent power:

Apparent Power (VA)

Reactive

Power

(VAR)

Real Power (W)

FIGURE 1–2: Relationship between apparent, real and reactive power

Ideal power distribution should have a PF of 1. This condition can be met only if no reactive power loads exist. In real life applications, many loads are inductive loads. Often, corrective capacitors are installed to correct Poor Power Factor (see Section 1.3).

1–2 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 1: AC POWER MEASUREMENT THREE-PHASE SYSTEM

1.2

Three-Phase System

A three-phase system delivers higher levels of power for industrial and commercial applications; the three phases correspond to three potential lines. A 120° phase shift exists between the three potential lines.

A typical configuration has either a Delta connection or a Wye connection (see Figure 1.3, below).

In a three-phase system, the voltage levels between the phases and the neutral are uniform and defined by:

E an

=

E bn

=

E cn

=

E ab

3

=

E bc

3

=

E ac

3

A

A

C

B

1) Delta

B

2) Wye

N

C

FIGURE 1–3: Three-Phase System: (1) Delta, (2) Wye

Voltages between the phases vary depending on loading factors and the quality of distribution transformers. The three-phase system is distributed in different voltage levels:

208V AC, 480V AC, 2400V AC, 4160V AC, 6900V AC, 13800V AC, and so on.

Power measurement in a poly phase system is governed by Blondel's Theorem. Blondel’s

Theorem states that in a power distribution network which has N conductors, the number of measurement elements required to determine power is N-1. A typical configuration of poly phase system has either a Delta connection or a Wye connection (see Figure 1.4, below).

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 1–3

THREE-PHASE SYSTEM CHAPTER 1: AC POWER MEASUREMENT

1) Delta

C

A

2) Wye

A

X

B

X

X

B

X

N

P = E I + E I + E I

AN

A BN B CN C

X

C

FIGURE 1–4: Poly Phase System: (1) Delta, (2) Wye

1–4 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 1: AC POWER MEASUREMENT CONSUMPTION, DEMAND AND POOR POWER FACTOR

1.3

Consumption, Demand and Poor Power Factor

CONSUMPTION:

WH = W

×

T

W = instantaneous power T = time in hours

The total electric energy usage over a time period is the consumption of WH.

Typically, the unit in which consumption is specified is the kilowatt-hour (KWH): one thousand watts consumed over one hour. Utilities use the WH equation to determine the overall consumption in a billing period.

DEMAND: Average energy consumed over a specified time interval. The utility determines the interval, typically 15 or 30 minutes. The utility measures the maximum demand over a billing period. This measurement exhibits a deviation from average consumption, causing the utility to provide generating capacity to satisfy a high maximum consumption demand.

The highest average demand is retained in the metering system until the demand level is reset.

POOR POWER FACTOR: Results in reactive power consumption. Transferring reactive power over a distribution network causes energy loss. To force consumers to correct their

Power Factor, utilities monitor reactive power consumption and penalize the user for Poor

Power Factor.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 1–5

WAVEFORM AND HARMONICS CHAPTER 1: AC POWER MEASUREMENT

1.4

Waveform and Harmonics

Ideal power distribution has sinusoidal waveforms on voltages and currents. In real-life applications, where inverters, computers, and motor controls are used, distorted waveforms are generated. These distortions consist of harmonics of the fundamental frequency.

SINUSOIDAL WAVEFORM:

A • sin (

ω ⋅ t)

DISTORTED WAVEFORM:

A • sin(

ω

• t) + A

1

• sin(

ω

1

• t) + A

2

• sin(

ω

2

• t) + A

3

• sin(

ω

3

• t) +

L

TOTAL HARMONIC DISTORTION (THD):

% of THD =

RMS of

RMS

Total of

Harmonic the

Distortion

Fundamenta l

Signal

Signal

×

100

HARMONIC DISTORTION: A destructive force in power distribution systems. It creates safety problems, shortens the life span of distribution transformers, and interferes with the operation of electronic devices. The Futura+ monitors the harmonic distortion to the 31st harmonic. A waveform capture of distorted waveform is also available.

1–6

FIGURE 1–5: % THD GRAPH

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 2: Mechanical

Installation

Mechanical Installation

2.1

Mechanical Installation

These diagrams display the various possible mechanical installations and Communication

Converter installation. The various models use the same hookup and installation.

4.50

SQ.

MAX

MIN

LM1

MAX

THD

K

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR

KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

4.375

SQ.

3.0

0.890

FIGURE 2–1: Standard installation

2.0

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 2–1

MECHANICAL INSTALLATION CHAPTER 2: MECHANICAL INSTALLATION

3.50

3 FOOT CABLE

0.80

MAX

MIN

LM1

LM2

THD

K

AC VOLTS

A

N

B

N

C

N

A

B

B

C

C

A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR

KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

4.375

SQ.

0.890

2.425

4.50

SQ.

(4) 8-32 SCREWS

5.00

0.714

FIGURE 2–2: Installation with K-110 option for limited space conditions

2.45

0.336

SIDE VIEW

(4) 8-32 SCREWS

FIRST PUT (16) PIN

CONNECTOR TOGETHER.

1.6875

0.80

RECOMMENDED

CUTOUT

0.198 DIA.

(2) 8-32 SCREWS WILL

LINE UP WITH 2 PEMS

ON THE BACK PLATE.

4.0 DIA.

3.375

3.375

1.6875

FIGURE 2–3: Standard cutout

BACK VIEW

2–2 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 2: MECHANICAL INSTALLATION

Note

MECHANICAL INSTALLATION

W Port

FIGURE 2–4: Optional Communication Converter or DC Output Module Installation

* Recommended wire gauge is 20 AWG for DC Output or RS-485 options.

Carefully line up the guide screw and 8 pin port connector to prevent pin breakage.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 2–3

MECHANICAL INSTALLATION CHAPTER 2: MECHANICAL INSTALLATION

2–4 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 3: Electrical

Installation

Electrical Installation

3.1

Connecting the Current Circuit

Install the wiring for the current at 600V AC insulation as a minimum. The cable connector should be rated for 6 Amps or greater and have a cross-sectional area of 16 AWG minimum.

Mount the current transformers (CTs) as close as possible to the meter for best accuracy.

The following table illustrates the maximum recommended distances for various CT sizes, assuming the connection is via 16 AWG cable.

Table 3–1:

CT Size and Maximum Distance

CT Size Maximum Distance (CT to Meter)

2.5 VA

5.0 VA

7.5 VA

10.0 VA

15.0 VA

30.0 VA

10 Feet

15 Feet

30 Feet

40 Feet

60 Feet

120 Feet

DO NOT leave secondary of the CT open when primary current is flowing. This causes high voltage that will overheat the secondary of the CT. Use a shorting block on the secondary of the CT.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 3–5

CT CONNECTION CHAPTER 3: ELECTRICAL INSTALLATION

Note

3.2

CT Connection

If the meter is connected directly to the current (up to 10 Amps max.), maintain the exact connection to avoid incorrect polarity.

When the meter is connected using the CTs, you must maintain the correct CT polarities. CT polarities are dependent upon correct connections of CT leads, and upon the direction the

CTs are facing when clamped around conductors. The dot on the CT must face the line side; the corresponding secondary connection must connect to the appropriate input on the meter. Failure to connect CTs properly results in inaccurate power readings. If your meter is not reading power properly, it is more than likely the CT is incorrectly wired.

CTs are shorted if connected to the terminal block model DSP2 or 3 even if it is detached from the meter.

3.2.1

Helpful Debugging Tools

Option 1: Isolating a CT Connection Reversal power reading

If your meter does not read the correct watts after installation, it almost always means that the CT’s have been wired in the wrong polarity. To check the polarity of the CT after the monitor has been installed, look at the single phase WATT readings to see that each of the readings are positive (assuming you are consuming power). If one of the WATT readings is negative, that particular phase CT is reversed.

To check the single phase WATT reading, press the Power button twice while the annunciator is positioned to WATTS. Then press the Phase/Next button to cycle through the phases. After connecting the polarity of the CTs, the WATT and VAR readings should be correct.

Option 2: Isolating a CT Connection Reversal using Voltage Readings

Z KW reading. It should be positive.

Z If negative, reverse the CT wires on terminals 8 and 9.

Z Connect terminal number 6 potential. If KW decreases to about zero, reverse CT wires on terminals 10 and 11.

Z Connect terminal number 7 potential. If KW is one-third of expected reading, reverse CT wires to terminals 12 and 13.

3–6 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 3: ELECTRICAL INSTALLATION CONNECTING THE VOLTAGE CIRCUIT

3.3

Connecting the Voltage Circuit

For proper meter operation, the voltage connection must be maintained. The voltage must correspond to the correct terminal.

The cable required to terminate the voltage sense circuit should have an insulation rating greater than 600V AC and a current rating greater than 0.1 A.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 3–7

SELECTING THE VOLTAGE FUSES CHAPTER 3: ELECTRICAL INSTALLATION

3.4

Selecting the Voltage Fuses

We strongly recommend using fuses on each of the sense voltages and the control power, although connection diagrams do not show them. Use a 1 Amp fuse on each voltage input.

The meter can handle a maximum voltage of 150V phase to neutral. PTs are required for higher voltages. Suffix -G extends the maximum direct voltage to 300V phase to neutral,

600 volt phase to phase.

3–8 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 3: ELECTRICAL INSTALLATION CONNECTION TO THE MAIN POWER SUPPLY

Note

Note

3.5

Connection to the Main Power Supply

The meter requires separate control power to operate. Listed are the five different power supply options and corresponding suffixes.

Table 3–2:

Control Power and Current

CONTROL POWER OPTION SUFFIX CURRENT

120V AC

240V AC

12V DC

24-48V DC

125V AC/DC (universal)

115 A

230 A

D4

D

D2

0.1 AAC

0.05 AAC

0.10 ADC

0.25-0.5 ADC

0.10 AAC or DC

For DC-powered units, polarity should be observed. Connect the negative terminal to L and positive terminal to L1. An earth ground connection to chassis is mandatory for normal operation (terminal three). Do not ground the unit through the negative of the DC supply.

Externally fuse power supply with a slow-blow 3 Amp fuse.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 3–9

ELECTRICAL CONNECTION INSTALLATION CHAPTER 3: ELECTRICAL INSTALLATION

Note

3.6

Electrical Connection Installation

Choose the diagram that best suits your application and maintain the CT polarity. Follow the outlined procedure to verify correct connection.

IMPORTANT: For PT connections only, short terminals 3 and 4.

Note

Note

Connect local ground to terminal 3. This protects the unit from spikes and transients.

• The meter and terminal module DSP3 are factory calibrated together; the serial numbers are matched on both. The DSP3 input module and the meter base MUST

MATCH!

• Mismatching of the meter and DSP3 input module will cause inaccurate readings because calibration ratios are stored in the meter’s memory, not in the DSP3 input module.

3.6.1

List of Connection Diagrams

See phase reversal if a message of CBA appears after installation.

Fig 3-1

Fig 3-2

Fig 3-3

Fig 3-4

Fig 3-5

VI

Three-Phase, Three-Wire System Delta with Direct Voltage and CTs

Three-Phase, Three-Wire Open Delta with two CTs and two PTs

(Open Delta System should only be used if the electrical system is a 3-wire 2

PT OPEN DELTA

Open Delta can be enabled or disabled in Programming GROUP 0,

FUNCTION 3, Chapter 9, section 9.4)

Three-Phase, Three-Wire Open Delta with three CTs and two PTs

Three-Phase, Four-Wire Wye with Direct Voltage and CTs

Three-Phase, Four-Wire Wye with CTs and PTs

Single Phase with CT and PT Connection

VIII Three Phase System

3–10 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 3: ELECTRICAL INSTALLATION

A

LINE

B C

Note

ELECTRICAL CONNECTION INSTALLATION

BACK VIEW

LOAD

CONTROL

POWER

+

-

7

8

9 10 11 12 13

6

5

4

PORT

3

2

L1

1 L

FIGURE 3–1: Three Phase, Three-Wire System Delta with Direct Voltage and CTs

Remember to make sure Open Delta bit is programmed in the meters (See Chapter 9).

LINE

A B C

BACK VIEW

LOAD

POWER

+

-

7

8

9 10 11 12 13

6

5

4

PORT

3

2 L1

1 L

FIGURE 3–2: Three-Phase, Three-Wire Open Delta with two CTs and two PTs

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 3–11

ELECTRICAL CONNECTION INSTALLATION

Note

CHAPTER 3: ELECTRICAL INSTALLATION

Remember to make sure Open Delta bit is programmed in the meter (see section 9.4).

LINE

A B C

BACK VIEW

Note

3–12

POWER

+

-

6

5

4

7

8 9 10 11 12 13

PORT

3

2

L1

1

L

LOAD

FIGURE 3–3: Three-Phase, Three-Wire Open Delta with three CTs and two PTs

Remember to make sure Open Delta bit is programmed in the meter (see Chapter 9).

LINE

N A B C

BACK VIEW

CONTROL

POWER

+

-

7

8

9 10 11 12 13

6

5

4

PORT

3

2 L1

1 L

LOAD

FIGURE 3–4: Three-Phase Four-Wire Wye with Direct Voltage and CTs

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 3: ELECTRICAL INSTALLATION

N A

LINE

B C

ELECTRICAL CONNECTION INSTALLATION

BACK VIEW

LOAD

POWER

+

-

6

5

4

7

8 9 10 11 12 13

3

PORT

2

L1

1

L

FIGURE 3–5: Three Phase Four-Wire Wye with CT and PTs

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 3–13

THE EPM 5300P-S CHAPTER 3: ELECTRICAL INSTALLATION

3.7

The EPM 5300P-S

The EPM 5300P-S is essentially the 5300P, where through the Programming Mode calculations are changed to reflect either Single Phase or Dual Phase readings.

Single Phase—The connection MUST be identical to Diagram VI.

Dual Phase—The connection MUST be identical to Diagram VII.

Program 1 for Single Phase or 2 for Dual Phase in GROUP 0, FUNCTION 7 to remove Three-

Phase indicators from view.

LINE

A

BACK VIEW

LOAD

POWER

+

-

7

8 9 10 11 12 13

6

5

PORT

4

3

2 L1

1 L

FIGURE 3–6: Single Phase with CT and PT Connection

3–14 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 3: ELECTRICAL INSTALLATION

LINE

A

B

THE EPM 5300P-S

BACK VIEW

LOAD

LINE

N A B C

POWER

+

-

5

4

3

7

8 9 10 11 12 13

6

PORT

2 L1

1 L

FIGURE 3–7: Dual-Phase with CTs and PTs

BACK VIEW

Note

CONTROL

POWER

+

-

5

4

7

8 9 10 11 12 13

6

PORT

3

2 L1

1 L

LOAD

FIGURE 3–8: Three-Phase Four-Wire WYE with 2.5 Element

The 2.5 element option must be custom configured from the factory. You must pre-order this configuration.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 3–15

RELAY, PROTECTION AND PULSE OUTPUT CHAPTER 3: ELECTRICAL INSTALLATION

3.8

Relay, Protection and Pulse Output

(This section applies only to the -NL or -NL2 Relay Option.)

3.8.1

EPM 5300P Relay Overview

The EPM 5300P offers dry contact relay output capability. The EPM 5200P only offers KYZ pulse outputs and cannot be configured to trip contacts on events.

FAIL-SAFE MODE: The EPM 5300P -NL option gives the user an adjustable tripping bandwidth. The user specifies a range over which functions, such as frequency, phase relation and voltage, are acceptable. The relay releases during times of normal operation, and engages when functions are outside specified normal levels. The relay can be programmed to engage during normal operating conditions, and release outside specified normal range (particularly when power is lost). This is the fail-safe mode.

HYSTERISIS: The EPM 5300P -NL option also includes adjustable hysterisis. In addition to a time delay on activating any contact, the user may specify a lower level to release the relay, rather than releasing after the initial alarm point. This is ideal during load shedding when an alarm activates at a certain level and the user does not want to turn off the alarm until a much lower, safer level.

SETABLE DELAYS: After reaching the alarm point, a change in relay status may be delayed for 255 seconds. The user also has the option of allowing the device to change relay status without any delay. After the alarm condition passes, the relay can be stopped from returning to a normal condition for a programmable time. Each delay time is independent of one another.

AND/OR LOGIC: If several parameters are assigned to one relay, the user can trip the relay if all functions are out of limit (and programming), or if one function is out of limit (or programming). For example, if limits on Voltage, Kilowatts, and Phase Imbalance are programmed and tied to Relay 1, the user can either trip the relay if one function is out of limit, or if all functions are out of limit.

3.8.2

2 Relays & 1 KYZ Pulse Output -NL OPTION

The EPM 5300P's flexibility accesses a variety of relay options through the Programming

Mode (see programming sections). The relay option package consists of three relays: two can be dedicated to alarm or controlled through communication (or both) and one for KYZ pulse output.

If the relays are controlled through communication, there are two different modes:

• Lock ON: Relay will not be affected by any alarm condition.

• Lock OFF: Relay will not be affected by any alarm condition.

If the relays are used for communication and alarm, there are four different modes:

• Lock ON: Relay stays on regardless of any alarm condition.

• Lock OFF: Relay stays off regardless of any alarm condition.

• Free ON: Relay turns on unless other conditions force it off.

• Free OFF: Relay turns off unless other conditions force it on.

3–16 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 3: ELECTRICAL INSTALLATION

Note

Note

RELAY, PROTECTION AND PULSE OUTPUT

Relay connection (see Figure 3.6, below): Form C relays, rated 250V, 5A–2 each.

KYZ relay output (Form C), rated 200V, 100mA–1 each.

2 3

2 4

2 5

2 0

2 1

2 2

2 6

2 7

2 8

K

Y

Z

N .O .

N .C .

C O M

N .O .

N .C .

C O M

A L A R M # 1

A L A R M # 2

P U L S E

O U T P U T

FIGURE 3–9: Close-up of the Relay and KYZ pulse output on the rear panel.

Note: The relays shown in the figure above are in the NOT energized state.

The instrument detects two levels of alarm for the following functions:

• Voltage: AN, BN, CN, AB, BC, CA

• Current: A, B, C, N

• Over and Reverse Power

• Under PF/KVAR Lead or Lag

• Over KVA

• Voltage Imbalance (One level only)

• Over/Under Frequency

• Voltage Phase Reversals (One level only)

• Over/Under %THD (Available only with option –H)

• Over/Under K-Factor

KYZ RELAYS: Provides pulses for energy management systems or any other type of recording device. These pulses represent accumulated watt-hour, negative watt-hour, or

VA-hour. Accomplish this assignment through the Programming Mode (see programming sections). The pulse value is determined by the decimal increment of the power function assigned to the pulse. The EPM 5200P can be equipped with KYZ pulse outputs.

Unless otherwise specified, standard KYZ setup represents positive watt hour. See table

below for standard rate. The scale factor for wattage (KW or MW) and Full Scale Decimal

Point Placement is selectable in Programming Mode GROUP 1, FUNCTION 2. Follow the

Decimal Point Placement corresponding to the Change in Level. A multiplication or division factor can be programmed. See Programming GROUP 0, FUNCTION 6 for a different rate.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 3–17

RELAY, PROTECTION AND PULSE OUTPUT

3.8.3

Standard Rate Table for Watts*

Decimal Point Placement (Kw/mw)

9999.000

999.900

99.990

9.999

*Units can be Kilowatts or Megawatts.

CHAPTER 3: ELECTRICAL INSTALLATION

Change in Level

1.0 Units W-Hour

0.1 Units W-Hour

0.01 Units W-Hour

0.001 Units W-Hour

3–18 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 3: ELECTRICAL INSTALLATION KYZ PULSE OUTPUTS: NL2 OPTION

Note

Note

3.9

KYZ Pulse Outputs: NL2 Option

The -NL2 option for the meter is equipped with three KYZ outputs. KYZ relays provide pulses for energy management systems or any other type of recording device. These pulses represent accumulated positive watt-hour, negative watt-hour, VA-hour, positive

VAR-hour, or negative VAR-hour. Accomplish this through Programming Mode GROUP 0,

FUNCTION 6. The pulse value is dependent upon the Decimal Point Placement and is determined by the decimal increment of the power function assigned to the pulse. Refer to the situation that applies to the meter setting.

Unless otherwise specified, standard KYZ setup for Pulse Output 0 is positive Watt Hour,

Pulse Output 1 is negative Watt-Hour, and Pulse Output 2 is VA-hour. See table below for standard rate.

With Option R (available only with the EPM 5200P) the setup for Pulse Output 0 is positive

Watt-Hour, Pulse output 1 is positive VAR-hour, and Pulse output 2 is negative VAR-hour.

The scale factor for Wattage (KW or MW) and Full Scale Decimal Point Placement is selectable in Programming Mode GROUP 1, FUNCTION 2. Follow the Decimal Point

Placement corresponding to the Change in Level. A multiplication or division factor can be programmed. See Programming GROUP 0, FUNCTION 6 for a different rate.

Table 3–3: Standard Rate Table for Watts*

DECIMAL POINT PLACEMENT (KW/MW) CHANGE IN LEVEL

9999.0

999.9

99.99

9.999

*Units can be KiloWatts or MegaWatts.

1.0 Units W Hour

0.1 Units W Hour

0.01 Units W Hour

0.001 Units W Hour

2 4

2 5

2 6

2 7

2 8

2 0

2 1

2 2

2 3

Y

Z

K

Y

Z

Z

K

K

Y

P U L S E

O U T P U T 2

P U L S E

O U T P U T 1

P U L S E

O U T P U T 0

Figure 3-1: KYZ Relay Connection for -NL2 Option

KYZ relay output (Form C), rated 200V, 100mA: 3 separate KYZ Outputs (labeled 0 through

2).

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 3–19

KYZ PULSE OUTPUTS: NL2 OPTION CHAPTER 3: ELECTRICAL INSTALLATION

3–20 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 4: Communication

Installation

Communication Installation

Note

4.1

RS-232C

(This section applies to the RS-232C or RS-485.)

All EPM 5300P and 5200P instruments can be equipped with RS-232C or RS-485 communication.

RS-232C communication links a single instrument with a computer or device such as an

RTU or PLC. Its capability is up to 100 feet. A standard 9-pin female serial port connector mounts on the instrument for direct connection to a computer with a 9-pin cable.

BACK VIEW

8 9 10 11 12 13

7

6

5

4

3

2

1

COMMUNICATION

CONVERTER

Model

SF-232DB3

24

25

26

27

28

20

21

22

23

RS-232 COMMUNICATION CONNECTION

CONNECTION FOR DB-9 FEMALE

PIN 2 - RECEIVE OF THE HOST/COMPUTER

PIN 3 - TRANSMIT OF THE HOST/COMPUTER

PIN 5 - GROUND OF THE HOST/COMPUTER

5 4 3 2 1

DETAIL OF DB-9

9 8 7 6

LAPTOP

DB-9 CONNECTOR

A DIRECT PIN-TO-PIN CABLE CAN BE USED.

NO NULL MODEM IS REQUIRED.

FIGURE 4–1: RS-232C Communication Connection Installation

To avoid ground loops, the neutral and safety ground (pin 3) should be connected together at only one point.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 4–21

RS-485 CHAPTER 4: COMMUNICATION INSTALLATION

4.2

RS-485

Each EPM 5300P or 5200P instrument has a unique address up to four digits long. This allows the user to communicate with up to 10,000 instruments. Available standard baud rates are 1200, 2400, 4800, and 9600. To select the proper baud rate, apply the following rules:

The unit operates up to 9600 baud. For a smaller number of instruments over a long distance, use a lower baud rate. Optimal recommended baud rate is 1200 baud, if noisy conditions exist.

RS-485

Communications Port

Model#SF485DB

RS-485 Hookup Diagram (2 wire) Half Duplex

5300P Instruments (rear view)

R

T

R

T

RS-485

UNICOM 2500

(Bottom View Shown)

RS-232

PC

(+) (-)

FIGURE 4–2: 2-Wire RS-485 Communication Connection Installation half duplex

4–22 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 4: COMMUNICATION INSTALLATION RS-485

RS-485 Hookup Diagram (2 wire) Half Duplex (Closed Loop)

5300P Instruments (rear view)

RS-485

Communications Port

Model #SF485DB

UNICOM 2500

(Bottom View Shown)

FIGURE 4–3: 2-Wire RS-485 Communication Connection Installation half duplex (closed loop)

RS-485 Hookup Diagram (2 wire) Half Duplex: Detail View

RS-485

Communications

Port

Model#

SF485DB

G R+ T+ RT-

RS-485

Communications

Port

Model#

SF485DB

G R+ T+ RT-

R

T

T-

R-

T+

R+

Gnd

UNICOM 2500

(Bottom View Shown)

FIGURE 4–4: 2-Wire RS-485 Communication Connection Installation half duplex, detail view

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 4–23

RS-485 CHAPTER 4: COMMUNICATION INSTALLATION

RS-485 Hookup Diagram (4 wire) Full Duplex

5300P Instruments (rear view)

RS-485

Communications Port

Model#SF485DB

Note: This does not represent a twisted pair. It shows the cross-over from R to T between the Unicom and the rest of the bus.

RS-485

UNICOM 2500

(Bottom View Shown)

RS-232

PC

R+ RT+ T-

FIGURE 4–5: 4-Wire RS-485 Communication Connection Installation full duplex

Connecting 4-Wire bus to RS-485 Port:

• Connect the T- wire of the Unicom 2500 to the R- on the RS-485 port

• Connect the R- wire of the Unicom 2500 to the T- on the RS-485 port

• Connect the T+ wire of the Unicom 2500 to the R+ on the RS-485 port

• Connect the R+ wire of the Unicom 2500 to the T+ on the RS-485 port

4–24 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 4: COMMUNICATION INSTALLATION RS-485

RS-485 Hookup Diagram (4 wire) Full Duplex: Detail View

RS-485

Communications

Port

Model#

SF485DB

RS-485

Communications

Port

Model#

SF485DB

T-

R-

T+

R+

Gnd

Note: This does not represent a twisted pair.

It shows the cross-over from R to T between the

Unicom and the rest of the bus.

G R+ T+ RTG R+ T+ RT-

Enlarged view of twisted pair segments

Receive Pair

UNICOM 2500

(Bottom View Shown)

Transmit Pair

FIGURE 4–6: 4-Wire RS-485 Communication Connection Installation full duplex, detail view

Connecting 4-Wire bus to RS-485 Port:

• Connect the T- wire of the Unicom 2500 to the R- on the RS-485 port

• Connect the R- wire of the Unicom 2500 to the T- on the RS-485 port

• Connect the T+ wire of the Unicom 2500 to the R+ on the RS-485 port

• Connect the R+ wire of the Unicom 2500 to the T+ on the RS-485 port

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 4–25

NETWORK OF INSTRUMENTS AND LONG DISTANCE COMMUNICATION CHAPTER 4: COMMUNICATION INSTALLATION

4.3

Network of Instruments and Long Distance Communication

The RS-485 Transceiver is required for a large network of instruments.

• In a two-wire connection, a maximum of 900 instruments can be included in the same network (Figure 4.7)

• In a four-wire connection, a maximum of 3600 instruments can be included in the same network (Figure 4.8).

DEVICE 32 UNITS DEVICE

DEVICE 32 UNITS DEVICE

RS-485

TRANSCEIVER

(Acts as Repeater)

32

TRANSCEIVERS

RS-485

TRANSCEIVER

(Acts as Repeater)

COMPUTER

FIGURE 4–7: 2-Wire RS-485 Communication Installation Connection with Transceiver

4–26

DEVICE 32 UNITS DEVICE

DEVICE 32 UNITS DEVICE

RS-485

TRANSCEIVER

(Acts as Repeater)

32

TRANSCEIVERS

RS-485

TRANSCEIVER

(Acts as Repeater)

COMPUTER

FIGURE 4–8: 4-Wire RS-485 Communication Installation Connection with Transceiver

Use modems (dedicated or dial-up) when the instruments are located at great distances.

However, set the modem to auto answer at the recommended value of 1200 baud rate, if noise conditions exist. Also, flow control must be disabled.

You may want to use a Modem Manager RS485-RS232 Converter

When speaking to most RS-485 or RS-232C based devices, the remote modem must be programmed for the communication to work. This task is often quite complicated because modems are quirky when talking to remote devices. To make this task easier, EIG has

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 4: COMMUNICATION INSTALLATION NETWORK OF INSTRUMENTS AND LONG DISTANCE COMMUNICATION designed a Modem Manager RS-485 to RS-232C converter. This device automatically programs the modem to the proper configuration. Also, if you have poor telephone lines, modem manager acts as a line buffer, making the communication more reliable.

4.3.1

Modem Connected to Computer (Originate Modem)

Programming the Modem

Comply with the modem’s instruction manual and follow these instructions:

Restore modem to factory settings:

This procedure erases all previously programmed settings.

Set modem to display result codes:

The device uses the result codes.

Set modem to verbal result code:

The device uses the verbal codes.

Set modem to ignore DTR signal:

Necessary for the device to ensure connection with originate modem.

Set modem to disable flow control:

Necessary to communicate with remote modem connected to device.

Tell modem to write the new settings to activate profile:

Places these settings into nonvolatile memory; the settings take effect after the modem powers up.

4.3.2

modem Connected to the Device (Remote Modem)

Programming the Modem

Comply with the modem’s instruction manual and follow these instructions:

Restore modem to factory settings:

This procedure erases all previously programmed settings.

Set modem to auto answer on N rings:

Sets the remote modem to answer the call after n rings.

Set modem to Auto Negotiate mode:

Sets the remote to auto negotiate to communicate successfully with EPM 5300P and other devices in the modem.

Set modem to return numeric result codes:

Increases speed connection with EPM 5300P.

Set modem to ignore DTR signal:

Necessary for device to ensure connection with originate modem.

Set modem to disable flow control:

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 4–27

NETWORK OF INSTRUMENTS AND LONG DISTANCE COMMUNICATION CHAPTER 4: COMMUNICATION INSTALLATION

Necessary to communicate with remote modem connected to EPM 5300P.

Tell modem to write the new settings to activate profile:

Places new settings into nonvolatile memory; settings take effect after the modem powers up.

Debugging Communication Problems

If you experience NO communication, check these conditions:

• Is the Baud Rate set correctly (see Part II: Programming Section)?

• Is the Meter Address set correctly (see Part II: Programming Section)?

• Is the correct protocol set? Modbus, DNP 3.0?

• Set the meter for the appropriate protocol for the internal software.

4–28 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 5: Overview

A-N

B-N

C-N

A-B

B-C

C-A

Overview

The EPM 5300P displays 17 instantaneous electrical parameters. Values for each parameter are accessed through the keypad on the meter's front panel (see Figure 5.1).

The EPM 5200P accesses information in the same manner as the 5300P. The key strokes for each model are identical.

Volts

C

N

A

B

Amps Power A, B, C

± KW

± KVAR

KVA

± PF

Freq

± Total KWH

Total KVAH (N/A on EPM 5200P)

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 5–29

CHAPTER 5: OVERVIEW

PRESS MAX/MIN/LIMITS TO

ACCESS MAX, MIN, LM1 OR

LM2 VALUES.

MAX

MIN

LM1

LM2

THD

K

AC VOLTS

A

B

C A B

AC AMPS

A B C N

C

N N N B C A

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

A GLOWING ANNUNCIATOR

INDICATES THE VALUE

CURRENTLY DISPLAYED.

PHASE/NEXT SELECTS THE VOLTAGE AND

AMPERAGE PHASES, AS WELL AS THE POWER

FUNCTIONS.

FIGURE 5–1: The EPM 5300P front panel with display and keypad

5–30 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 5: OVERVIEW

5.1

Accessing the Power Functions

ACCESSING THE POWER FUNCTIONS

Note

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH

FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. Press POWER to select the power category.

The display blanks and all annunciators in the power section glow, confirming selection.

Step 2:

a. Press PHASE/NEXT for the desired power function.

The functions are accessed in a clockwise sequence.

For KWH readings: The first digit on the left of the KWH counter will blank out on the display when rollover at 199999 KWH occurs. The actual value of the first digit can only be viewed through digital communications. Or, reset the KWH counter to zero to avoid confusion.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 5–31

ACCESSING VOLTAGE AND CURRENT PHASES CHAPTER 5: OVERVIEW

5.2

Accessing Voltage and Current Phases

The EPM5300P displays four current measurements (phases A, B, C, and Neutral) and six voltage measurements (phase-to-phase: A-B, B-C, C-A and phase-to-neutral: A-N, B-N,

C-N).

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A

B

C N

POWER

PF

KW

KVA

KVAR

KVAH KWH

FREQ

MAX/MIN

LIMITS

VOLTS

AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Step 1:

a. To select the Amps (or Volts) category, press

AMPS (or VOLTS).

The display blanks and all annunciators in the section glow, confirming selection.

Step 2:

a. Press PHASE/NEXT for the desired phase.

5–32 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 5: OVERVIEW ACCESSING %THD FUNCTIONS

5.3

Accessing %THD Functions

Harmonic Measurement readings are available on the EPM 5300P meter. The EPM 5300P displays 6 parameters of total harmonic distortion. It measures harmonic waveforms and

%THD for voltage phases A-N, B-N and C-N, and current phases A, B and C. Measurement capability reaches the 31 st

harmonic order. All readings are faceplate accessible.

To access %THD:

MAX

MIN

LM1

LM2

THD

K

AC VOLTS

A B C A B

AC AMPS

A

B

C N

C

N N N B C A

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS

AMPS

THD THD

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

THD

K

AC VOLTS

A B C A B

AC AMPS

A B C N

C

N N N B C A

POWER

PF

KW

KVA

KVAR

KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

THD THD

POWER

PHASE

NEXT

Step 1:

a. To access %THD values for a voltage or current phase press VOLTS/THD (or AMPS/THD) twice.

The display blanks and indicates the %THD value momentarily.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 5–33

VIEWING INDIVIDUAL PHASE INDICATION FOR POWER FUNCTIONS CHAPTER 5: OVERVIEW

5.4

Viewing Individual Phase Indication for Power Functions

The EPM 5300P normally displays a three-phase indication for PF, KW, KVAR, KVA readings.

To view the individual phase A, B and C for those power functions follow the procedure below. This procedure is particularly useful for detecting a current transformer (CT) polarity reversal. A CT polarity reversal will result in a low or negative KW indication, while the KVA will be unaffected.

MAX

MIN

LM1

LM2

THD

K

AC VOLTS

A B C A B

AC AMPS

A B C N

C

N N N B C A

POWER

PF

KW

KVA

KVAR

KVAH KWH

FREQ

MAX/MIN

LIMITS

VOLTS AMPS

THD THD

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

THD

K

AC VOLTS

A B C A B

AC AMPS

A B C N

C

N N N B C A

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS

AMPS

THD

THD

POWER

PHASE

NEXT

Step 1:

a. Press POWER to select power readings. Press

PHASE/NEXT to select a specific power function (PF,

KW, KVAR, KVA).

Step 2:

Press and hold the POWER button to scroll through the instantaneous single-phase power readings.

5–34 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 5: OVERVIEW ACCESSING MAX/MIN VALUES

5.5

Accessing Max/Min Values

Max/min values represent the highest and lowest average demand over a user programmable time period known as the Integration Interval. The readings are calculated using a rolling average technique. Each second, a new reading is used to calculate the max/min; the last reading of the interval is dropped off. The highest max during an averaging period is stored until the user resets the max/min. This is similar to amp demand meters. It is commonly referred to as Thermal Demand.

To access a max/min value while displaying a desired measurement, press MAX/MIN/

LIMITS—once for the max value; twice for the min. Examples given below are for voltage and current phases. Use the same procedure for all other parameters.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. To select the Volts category, press

VOLTS.

Step 2:

a. Press PHASE/NEXT for the desired phase.

Step 3:

a. Press MAX/MIN/LIMITS once to view the maximum reading for Volts

C-N.

The display blanks and all annunciators glow, confirming selection.

The display blanks and momentarily indicates the max value.

To access KW, KVAR and PF negative measurements indicating leading current, press

MAX/MIN/LIMITS five times for negative max and six times for negative min.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 5–35

RESETTING VALUES CHAPTER 5: OVERVIEW

Note

5.6

Resetting Values

Use the reset function if a new value is desired. It is available in two different modes.

1.UNPROTECTED MODE: Allows quick and easy resetting of max/min values.

2.PROTECTED MODE: Prevents unauthorized resetting the max/min and totaled power functions.

Even if the unprotected mode is selected during programming, the KWH and negative

KWH are always in protected mode. The following examples are for the max/min.

5.6.1

Unprotected Reset

To reset the min of Amps A:

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH

FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. If not already in the Amps category press AMPS, then PHASE/NEXT until desired phase is indicated.

Step 2:

a. Press MAX/MIN/LIMITS twice to access the min value for Amps A.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 3:

a. While the min value is displayed, press PHASE/NEXT to reset it.

The display blanks; a checkmark appears confirming reset.

Repeat this procedure for each value you wish to reset.

5–36 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 5: OVERVIEW

5.6.2

PROTECTED RESET

RESETTING VALUES

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A

B

C N

KVAH KWH FREQ

POWER

PF

KW

KVA

KVAR

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N

N N

B

C A

AC AMPS

A B C N

KVAH KWH FREQ

POWER

PF

KW

KVA

KVAR

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR

KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. Press MAX/MIN/LIMITS once to access max value; twice to access min value.

Step 2:

a. While the value is display, press PHASE/NEXT to commence protected reset.

The display blanks, three dashes appear in middle display and digits begin scrolling in upper display.

The password is 005.

Step 3:

a. Press PHASE/NEXT each time a password digit appears.

When the correct password is entered, a checkmark appears, confirming reset.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 5–37

RESETTING HOUR READINGS

5.7

Resetting Hour Readings

CHAPTER 5: OVERVIEW

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. Press POWER once.

b. Press PHASE/NEXT for the desired hour function.

This example uses KWH function.

Step 2:

a. Press MAX/MIN/LIMITS once for positive hour reset three times for negative hour reset.

Four question marks appear in lower display.

Step 3:

a. While the question marks are displayed, press

PHASE/NEXT. A password entry is now required.

The password is 005.

b. Press PHASE/NEXT each time a password digit appears.

Checkmarks appear, indicating a successful reset.

5–38 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 5: OVERVIEW ACCESSING THE LM1/LM2 SET LIMITS

5.8

Accessing the LM1/LM2 Set Limits

The EPM 5300P has two manual set limits which monitor the instantaneous readings and warn the user of any abnormal conditions. Each limit detects readings either above or below a set level. The EPM 5200P does not have this feature.

SET LIMITS: Point when the relay changes position, if the EPM 5300P is equipped with the

Relay Option (Suffix -NL).

If a limit is exceeded, only the annunciator for LM1 and/or LM2 flash.

To view the setup of the LM1/LM2 set limits:

Z Press MAX/MIN/LIMITS 2 times. to view the LM1 set limit momentarily.

Z Press MAX/MIN/LIMITS 3 times to view the LM2 set limit momentarily.

To locate readings that exceeded Limit 1:

Z Press MAX/MIN/LIMIT 3 times

Z Press PHASE/NEXT.

The display blanks, the middle display indicates L1, and annunciators for parameters that exceeded Limit 1 illuminate.

To locate readings that exceeded Limit 2:

Z press MAX/MIN/LIMIT 4 times

Z press PHASE/NEXT.

The display blanks, the middle display indicates L2, and annunciators for parameters that exceeded Limit 2 illuminate.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

To access the set limit,

Z press MAX/MIN/LIMITS

• 3 times for LM1

• 4 times for LM2

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 5–39

VOLTAGE PHASE REVERSAL AND IMBALANCE CHAPTER 5: OVERVIEW

5.9

Voltage Phase Reversal and Imbalance

In a three-phase power distribution system, normal phase shift between each line is 120 °.

If the EPM 5300P detects an abnormality, it displays a message of PH. The EPM 5200P does not have this feature.

VOLTAGE PHASE REVERSAL: If there is an incorrect connection, such as mistaking line A for line B, a PH message appears. The correct sequence is a-b-c.

VOLTAGE PHASE IMBALANCE LIMIT: This is detected using the phase imbalance limit in the Programming Mode. The phase imbalance is expressed as a percentage, with 0% indicating a 120

° phase shift between each line. A PH message appears if the limit is exceeded.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR

KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

KVAH KWH FREQ

POWER

PF

KW

KVA

KVAR

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

KVAH KWH FREQ

POWER

PF

KW

KVA

KVAR

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

KVAH KWH FREQ

POWER

PF

KW

KVA

KVAR

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Note

Step 1:

a. Press and hold down

PHASE/NEXT. While holding down PHASE/

NEXT, press AMPS to access the display.

(PH indicates both

Voltage Phase Reversals and Voltage Phase

Imbalances.)

Step 2:

a. Press PHASE/NEXT to select zero.

This display indicates a

Voltage Phase Reversal.

This display indicates a

Voltage Phase Imbalance.

In the event Voltage Phase Reversal and Voltage Phase Imbalance occur simultaneously, the display alternates between the incorrect phase sequence and the exceeded limit percentage. After six seconds the display returns to the normal operating mode.

5–40 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 5: OVERVIEW ACCESS MODES

Note

5.10 Access Modes

The following access commands allow the user to perform specific operations.

3

4

1

2

ACCESS COMMANDS OPERATION

Print Operating Data

Print Programming Data

Enter Programming Mode (see Programming Section)

Firmware Version/LED Test

Print commands 1 and 2 are only available if enabled in the programming mode; they are not recommended when using the multimeter connection RS-485.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 5–41

PRINT OPERATING DATA CHAPTER 5: OVERVIEW

Note

5.11 Print Operating Data

This function sends data to a serial printer, creating a hard copy of the instantaneous and max/min data of all functions and the WH, VAH, and WH counters.

This function applies only if a serial printer is connected to the EPM 5300P via an RS-232C

Communication Converter.

To print the operating data:

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N

N N

B

C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH

KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

KVAH KWH FREQ

POWER

PF

KW

KVA

KVAR

MAX/MIN

LIMITS

VOLTS

AMPS

POWER

PHASE

NEXT

Step 1:

Press and hold PHASE/NEXT.

Press AMPS until a 0 appears in the middle display.

Release both buttons.

Step 2:

a. Press AMPS until a 1 appears..

b. Press PHASE/ NEXT to select.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

111 appears, confirming a successful print command.

5–42 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 5: OVERVIEW PRINT PROGRAMMING DATA

5.12 Print Programming Data

This function sends the programming data (or the meter setup) to a serial printer for verification and quick reference.

To print the programming data:

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

KVAH KWH FREQ

POWER

PF

KW

KVA

KVAR

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Step 1:

Press and hold PHASE/NEXT.

Press AMPS until a 0 appears in the middle display.

Release both buttons.

Step 2:

The display blanks.

a. Press AMPS until a 2 appears.

b. Press PHASE/NEXT to select.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS

AMPS

POWER

PHASE

NEXT

222 appears, confirming a successful print command.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 5–43

ACCESSING FIRMWARE VERSION/LED TEST CHAPTER 5: OVERVIEW

5.13 Accessing Firmware Version/LED Test

The EPM 5300P accesses the firmware version number of the analog and digital microprocessors. It also performs an LED test to check if the LEDs and annunciators are functioning properly.

5–44

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH

FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

KVAH KWH FREQ

POWER

PF

KW

KVA

KVAR

MAX/MIN

LIMITS

VOLTS

AMPS

POWER

PHASE

NEXT

Step 1:

Press and hold PHASE/NEXT.

Press AMPS until a 0 appears in the middle display.

Release both buttons

Step 2:

a. Press AMPS until 4 appears.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 3:

a. Press PHASE/NEXT for the LED test.

All segments and annunciators glow.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 4:

a. Follow Steps 1 and 2, then press MAX/

MIN/LIMITS for the firmware versions.

Firmware versions:

• Upper display—analog processor version

• Middle display—digital processor

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 6: Programming

Overview

Programming Overview

Note

6.1

General Procedure

Programming tasks are arranged into nine major GROUPS. Within each GROUP are the specific meter FUNCTIONS. Outlined is the general approach to alter programming mode values.

Enter the Programming Mode.

Select the desired GROUP.

Once the desired GROUP is selected, select a FUNCTION within the GROUP. For GROUP 0, some functions are further divided into PACKS containing four switches referred to as switches A, B, C, D (left to right).

After the FUNCTION selection, proceed with DATA ENTRY of the new value for the desired parameter.

Proceed to program another location and/or exit the programming mode.

IMPORTANT: The full exiting procedure must be followed to store any new programming.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 6–45

SWITCH PACKS

6.2

Switch Packs

GROUP

FUNCTION

PACK

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

SWITCHES:

A B C D

PREVIOUS

SETTING

NEW ENTRY

CHAPTER 6: PROGRAMMING OVERVIEW

GROUPS, Functions, and Switch PACKS

• GROUPS are the main category.

• Functions are sub categories of GROUPS.

• Switch PACKS are sub categories of FUNCTIONS.

Groups Functions Packs

6–46 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

Note

CHAPTER 6: PROGRAMMING OVERVIEW PROGRAMMING MODE DATA ENTRY

6.3

Programming Mode Data Entry

The EPM 5300P and EPM 5200P programming mode utilizes only three out of the fivekeypad buttons: the MAX/MIN/LIMITS, VOLTS/THD, and AMPS/THD buttons.

MAX/MIN

VOLTS

AMPS

LIMITS

THD THD

POWER

PHASE

NEXT

U

SED FOR

P

ASSWORD

E

NTRY

U

SED FOR

P

ROGRAMMING

The EPM 5200P uses the same keypad strokes and methods. Although the keypad may look slightly different, the keys match the EPM 5300P exactly. In the interest of brevity, all keystrokes and programming functions are shown using the EPM 5300P keyboard.

Button Function

MAX/MIN/LIMITS ADVANCES

VOLTS/THD

AMPS/THD

CHANGES VALUE

STORES

Description

Scrolls GROUPS, FUNCTIONS and advances to exit point from FUNCTION and GROUP level.

Scrolls PACKS, digit counters and changes switch PACK position UP or DOWN.

Activates new data entry and enters or exits from

GROUP or FUNCTION level.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 6–47

STANDARD NUMERIC DATA ENTRY CHAPTER 6: PROGRAMMING OVERVIEW

6.4

Standard Numeric Data Entry

Programmable FUNCTION values are always four digit numerical fields designed to accept any value between 0000 and 9999 (a blank signifies a zero). When entering the value of a

FUNCTION, enter all four digits, leading zeros included. For instance, to enter the number

25, enter 0025.

6–48 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 7: EPM 5200P

EPM 5200P

7.1

EPM 5200P

The EPM 5200P is similar to the regular EPM 5300P with the following exceptions:

1.

The size of the display digits is smaller (0.300” instead of 0.560”).

2.

The following features are not available:

• The energy readings: VA/H, VAR/H.

• The limits: Lim1 and Lim2, and dry contact relay outputs.

• The harmonics readings: %THD and K-factor.

3.

The layout of the keypad is slightly different (although the keys have exactly the same functions).

Volts Power

Amps

Max

Min

Next

Phase

FIGURE 7–1: The Keypad

4.

The unit’s legend values are jumper-selectable: the user, if necessary, needs to open the cover and choose between V and KV, A and KA, Kilo(k) and Mega (M) for power relays.

5.

The annunciators are highlighted one at a time.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 7–49

EPM 5200P

Note

CHAPTER 7: EPM 5200P

The Ethernet model, EPM 5350P, is covered in detail in Chapter 16 of this manual. See p. 40 for a comparison of the three models covered in this manual.

Table 7–1: EPM 5300P vs EPM 5200P vs EPM 5350P

Feature 5300P 5200P 5350P

Voltage 3-Phase

Voltage Accuracy

Current 3-Phase and Neutral

4

0.2%

4

4

0.3%

4

4

0.2%

4

Current Accuracy

Watts, VARS, VA, PF

Watts Accuracy

Frequency

Watt/HR

VAR/HR (Optional)

VA/HR

Harmonics to 31 st

Order

Max/Min Demand

Limits

4

4

4

4

4

4

0.2%

4

0.4%

4

0.3%

4

0.6%

4

4

4

4

4

4

4

4

4

0.2%

4

0.4%

4

Relays and Logic

Pulse Outputs

Digital Communication

Modbus RTU

Modbus ASCII

DNP Protocol

Modbus Plus Capability

Analog Outputs

Modbus TCP

Ethernet

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

7–50 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 8: Entering

Programming Mode

Entering Programming Mode

8.1

Checksum Error—Protective Self-Checking Algorithms

This checksum error is a protective self-checking wealth algorithm designed to alert the user when a procedure has not been correctly followed, ensuring that the meter does not display inaccurate readings.

If the control power is interrupted while in Programming Mode or the user does not completely exit, the meter enters a checksum mode. The max LED flashes. Press AMPS and PHASE/NEXT simultaneously and the unit recovers. Follow the procedure to enter

Programming Mode to check program data. If the data is correct, then exit.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 8–51

PASSWORD ENTRY CHAPTER 8: ENTERING PROGRAMMING MODE

Note

8.2

Password Entry

The EPM 5300P and 5200P are password protected. To enter the Programming Mode, key in the following password: 555.

The password entry may seem awkward at first. It is designed to be difficult to use initially.

This secures unauthorized tampering. After you become familiar with password entry, you will find it quick and easy to accomplish.

The meter will not store any programming unless properly exited (see Chapter 14 to Exit).

Entering Programming Mode:

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH

FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Note

Step 1:

a. Press and hold PHASE/NEXT.

b. While holding PHASE/NEXT,

press AMPS until a number

appears in middle display. Then

release both buttons.

If 3 is not already displayed:

c. Press AMPS until 3 appears.

d. Press PHASE/NEXT to multiply

the 3 to 333.

333 flashes momentarily in

middle display.

Step 2:

Digits begin scrolling in upper

display.

The password is 555.

a. Press PHASE/NEXT each time

the digit 5 appears.

Selected digits appear in middle

display.

Display blanks and PPP flashes

in upper display, confirming a

correctly entered password.

PPP is replaced by 0. and the

meter is now in Programming

Mode, GROUP 0.

You are now in the Programming

Mode. CONGRATULATIONS!

AUTO SCROLLING will automatically show all of the readings on the face of the meter except LIMITS. To enter Auto Scrolling mode, follow the above steps except use the numbers 666 as the password. To exit Auto Scrolling mode, use the same procedure as described above.

8–52 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 9: Programming

Group 0 - Global

Meter Setup

Programming Group 0 - Global Meter Setup

The Global Meter Setup includes FUNCTIONS 0 through 7 that control configuration and basic operation. FUNCTION 3 System Configuration contains Switch PACKS with various options, including Open Delta installation, communications or DC Output setup. Global

Meter Setup is the section in which general features are programmed.

4.

5.

6.

7.

E.

Function

Number

0.

1.

2.

3.

Function

Integration Interval

Meter Address for Communication

Baud Rate for Communication

System Configuration (see Table 9-2)

Relay 1 Set-up / Time delay

Relay 2 Set-up / Time delay

KYZ Parameter Selection

Number of Phases

Exit Programming GROUP 0

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 9–53

GROUP 0, FUNCTION 0—THE INTEGRATION INTERVAL CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP

Note

9.1

Group 0, Function 0—The Integration Interval

INTEGRATION INTERVAL: Time which all instantaneous readings are averaged to obtain a max and min demand. The Integration Interval is entered in seconds. When entering 15 minutes, enter: 0900 seconds. The default value is 900 seconds.

To change the Integration Interval:

Press MAX/MIN/LIMITS at any time to cancel before storing the last digit or switch.

9–54

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming

Mode (see Chp. 8).

b. Press MAX/MIN/LIMITS until 0. appears in upper display.

c. Press AMPS to activate the Group.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Function 00. appears in upper display.

The second 0 indicates Function 0

Lower display indicates current Interval setting.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 2:

a. Press AMPS once to begin Data Entry

Sequence.

The previous value shifts to middle display and four dashes appear in lower display.

b. Press VOLTS for desired number.

c. Press AMPS to store.

Group 0, Function 1 — The Meter Address

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Repeat this procedure until new

Integration Interval is entered.

When complete, middle display blanks and lower display indicates new

Integration Interval.

See Chapter 14 to Exit.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP

Note

GROUP 0, FUNCTION 0—THE INTEGRATION INTERVAL

METER ADDRESS: Identifies the meter when communicating with digital communications.

When numerous meters are at one site, it is essential that each meter have its own address. Otherwise, all meters speak at the same time and communication is useless.

To change the Meter Address:

Press MAX/MIN/LIMITS at any time to cancel before storing the last digit or switch.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH

KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming Mode (see Chp.

8).

b. Press MAX/MIN/LIMITS until 0. appears.

c. Press AMPS to activate the Group.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR

KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 2:

a. Press MAX/MIN/LIMITS until Function 01. appears in upper display.

Lower display indicates the current Meter Address.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N

N N

B

C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 3:

a. Press AMPS once to begin Data Entry Sequence.

The previous value shifts to middle display and

four dashes appear in lower display.

b. Press VOLTS for desired number.

c. Press AMPS to store each digit.

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Repeat this procedure until new Address is entered.

When complete, middle display blanks and lower

display indicates new Address.

See Chapter 14 to Exit.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 9–55

GROUP 0, FUNCTION 2 — BAUD RATE CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP

Note

9.2

Group 0, Function 2 — Baud Rate

BAUD RATE: Speed at which data is transmitted between meter and remote computer or serial printer. The rate programmed into the meter must match the rate used by the remote device. Valid Baud Rates are 1200, 2400, 4800 and 9600.

To change the Baud Rate:

Press MAX/MIN/LIMITS at any time to cancel before storing the last digit or switch.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR

KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming Mode (see Chp. 8).

b. Press MAX/MIN/LIMITS until 0. appears.

c. Press AMPS to activate the Group.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 2:

a. Press MAX/MIN/LIMITS until Function 02. appears in upper display.

Lower display indicates current Baud Rate.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH

FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 3:

a. Press AMPS to begin Data Entry Sequence.

The previous value shifts to middle display and four dashes appear in lower display.

b. Press VOLTS for desired number.

c. Press AMPS to store each digit.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Repeat this procedure until new Communication

Baud Rate is entered.

When complete, middle display blanks and lower display indicates new Baud Rate.

See Chapter 14 to Exit.

9–56 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP GROUP 0, FUNCTION 3 — SYSTEM CONFIGURATION

9.3

Group 0, Function 3 — System Configuration

The System Configuration sets the EPM 5300P’s basic operational parameters. This

Function utilizes Switch PACKS.

FUNCTION 3 contains four different Switch PACKS: 0–3. Each PACK contains four individual

UP/DOWN segments.

• Toggling the segment between UP and DOWN, toggles the switch ON or OFF, or chooses between two options.

• The meter displays one Switch PACK at a time.

Press VOLTS to scroll from PACK to PACK.

GROUP

FUNCTION

PACK

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH FREQ

MAX/MIN

LIMIT

VOLT

AMP

S

POWER

PHASE

NEXT

PREVIOUS

SETTING

NEW

SETTING

Pack Switch

A

0 b c

Reserved

Reserved

Reserved d

Feature

Phase Reversal Limit Detection

Segment Position

UP: Enable

DOWN: Disable

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 9–57

GROUP 0, FUNCTION 3 — SYSTEM CONFIGURATION CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP

1

2

3 a b c d a b c, d a b c d

Non-significant will blank leading zero

Reset Protection

(see Part I: Installation and Operation)

Phase Reversal Rotation Selection

UP: Enable

DOWN: Disable

UP: Enable

DOWN: Disable

UP: CBA Rotation

DOWN: ABC Rotation

UP: Enable

DOWN: Disable

Open Delta Installation

(see Part I: Installation and Operation)

Limit/Relay Control

Trip Relay Computer Control 1

(Relay Control 1 and 2 apply only if Relay

Option -NL was ordered.)

UP: Average

DOWN: Instantaneous

Power Factor Polarity Indicates +

(voltage referenced) or

- (current referenced)

UP: -PF

DOWN: +PF

For EI-BUS protocol: Switch C is DOWN, Switch D is DOWN.

For MODBUS protocol, ASCII framing: Switch C is UP, Switch D is UP.

For MODBUS protocol, RTU framing: Switch C is DOWN Switch D is UP.

For DNP 3.0 protocol: Switch C is UP, Switch D is DOWN.

UP: Enable

DOWN: Disable

Trip Relay Computer Control 2

(Relay Control 1 and 2 apply only if Relay

Option -NL was ordered.)

UP: Enable

DOWN: Disable

RS-232 or RS-485 Communications or

Print

UP: Enable

Communications

DOWN: Enable DC

Output

DC Output

(To operate DC Output, disable PACK 3,

Switch C) or

Print Operating and Programming Data

(To print, set PACK 3 Switches C and D to

UP position.)

UP: Enable DC Output or

Print Communication

DOWN: Disable DC

Output and Print

9.3.1

Open Delta System Installation Programming

A special switch is used to indicate that the electrical system being monitored is a Threephase WYE or Three-Wire Open Delta System using the connection installation (see

Chapter 3). The switch is located in GROUP 0, FUNCTION 3, Pack 1, Switch D.

This switch should be set to UP only if the electrical system is a Three-Wire Delta or

Open Delta, using 2 PTs. Otherwise, the switch should be set to DOWN. Failure to select this switch results in Phase-to-Neutral readings, as well as incorrect power readings, with the 2PT connection.

Special Open Delta Connection Installation should be followed in the Installation and

Operation section (Chapter 3).

9–58 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP

Note

GROUP 0, FUNCTION 3 — SYSTEM CONFIGURATION

9.3.2

Switching Communication Protocols, EI-BUS, MODBUS RTU/ASCII, DNP 3.0

• For EI-BUS protocol: PACK 2, Switch C is DOWN, Switch D is DOWN.

• For MODBUS protocol, ASCII framing: PACK 2, Switch C is UP, Switch D is UP.

• For MODBUS protocol, RTU framing: PACK 2, Switch C is DOWN Switch D is UP.

• For DNP 3.0 protocol: PACK 2, Switch C is UP, Switch D is DOWN.

When programming for MODBUS protocol configuration of LIPA (Long Island

Power Authority) mapping options may be performed through communication.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 9–59

MODBUS PLUS CAPABILITY CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP

9.4

Modbus Plus Capability

When using the MPI Modbus Plus adapter, the meter values should be set to speak to

Modbus RTU with a meter address of 0001 and a baud rate of 9600 baud. The Modbus Plus address is programmed into the MP1 Modbus Plus adapter directly.

9.4.1

Printing Option

To print, access Mode 1 and Mode 2 (see Part I: Installation and Operation). Printing serial options should be disabled when using a multimeter communications connection RS485.

DISABLING PREVENTS:

1.

Printing through the keypad.

2.

Corrupting data at a computer terminal while multiple meters poll.

3.

Corrupting printing commands through communications.

This option connects a serial printer to the RS232 port and prints the data. Disable this feature when the meter is not using an RS232 port (i.e., when RS485 or DC outputs are being used).

9–60 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP GROUP 0, FUNCTION 3—PROGRAMMING PROCEDURE

Note

9.5

Group 0, Function 3—Programming Procedure

To change the System Configuration Switch Settings:

Press MAX/MIN/LIMITS, at any time, to cancel before storing the last digit or switch.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming Mode (see Chp. 8).

b. Press MAX/MIN/LIMITS until 0. appears in upper display.

c. Press AMPS to activate the Group.

Step 2:

a. Press MAX/MIN/LIMITS until Function 03.0 appears in upper display.

Lower display indicates current PACK 0 Switch

Settings.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR

KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Step 3:

a. Press VOLTS until desired PACK appears.

b. Press AMPS to begin Data Entry Sequence.

The previous Switch settings shift to middle display and four dashes appear in lower display.

c. Press VOLTS to toggle the segments up or down for desired setting.

d. Press AMPS to store each setting.

Repeat procedure until new Switch Setting is entered.

The middle display blanks and new Switch Settings are indicated on lower display.

(This example shows enabling of Open Delta Installation switch).

See Chapter 14 to Exit.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 9–61

RELAY MODE CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP

Note

Note

9.6

Relay Mode

Relays are not available for the EPM 5200P.

A

B

Switch

C & D

AND/OR Logic

Relay Control

Description

Reversal Imbalance Control

Segment Position

UP Enable

DOWN Disable

UP AND

DOWN OR see Table 8-4

The Switch PACKS in FUNCTIONS 4 and 5 of programming GROUP 0 control the relay position. Setting the switches in different combinations allows the user to specify the conditions in which the relay will be “SET” or “RESET.” The following table indicates possible configurations.

Switch C

UP

UP

DOWN

DOWN

Switch D

UP

DOWN

UP

DOWN

Description

FAIL-SAFE MODE—The normal or non-event condition is set.

RESET relay on either out of limit condition. Relay acts as a protective switch if power is interrupted. This alerts the user if the meter or the meter power is out.

N/A (Reserved for future features).

N/A (Reserved for future features).

RESET MODE—The normal or non-event condition is reset.

SET relay on either out of limit condition.

DEFINITIONS:

RESET: There is a short between “COM” and “N.C.” (Normally closed)

SET: There is a short between “COM” and “N.O.” (Normally open)

(See Part I: Installation and Operation.)

EXAMPLE 1: Fail-safe mode normally set—non-event condition is set relay

Relay 1 will be “SET” if the instantaneous reading for frequency is between 58 Hz and 62

Hz. When all other conditions exist, the relay will “RESET.”

Under this setup the relay acts as a protective switch.

9–62 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

Note

Note

CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP RELAY MODE

R E S E T

6 2 H z

S E T

5 8 H z

0 H z

R E S E T

N O P O W E R T O T H E U N I T

R E S E T

L 2

L 1

Programming Steps:

Z Enter in GROUP 0, FUNCTION 4, PACK ‘P’, Segment C and D: UP, UP.

Z Enter in GROUP 5, FUNCTION 4, LIMIT 1, Segments B, C, and D:

DOWN, UP, DOWN. Value: 58.00.

Z Enter in GROUP 5, FUNCTION 4, LIMIT 2, Segments B, C, and D: UP,

UP, DOWN. Value: 62.00.

EXAMPLE 2: Normally reset—non-event condition is reset relay

Relay 1 will be “SET” if the instantaneous reading for amps is below 4.00 or above 5.00 amps. Under all other conditions the relay will be “RESET”.

Under this setup the relay will NOT act as a protective switch.

Programming Steps:

Z

Enter in GROUP 0, FUNCTION 4, PACK ‘p’, Segments C and D:

DOWN, DOWN

Z Enter in GROUP 4, FUNCTION 2, LIMIT 1, Segments: B, C, and D: UP,

UP, DOWN. Value: 5.00

Z Enter in GROUP 4, FUNCTION 2, LIMIT 2, Segments: DOWN, UP,

DOWN. Value: 4.00

Group 0—Function Number

04.P

05.P

To change the Relay Mode to either Fail-safe or Reset:

Description

Controls Relay 1

Controls Relay 2 (and 3 if NL4)

Press MAX/MIN/LIMITS at any time to cancel before storing the last digit or switch.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 9–63

RELAY MODE CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming Mode (see Chp. 8).

b. Press MAX/MIN/LIMITS until 0. appears in upper display.

c. Press AMPS to activate the Group.

Step 2:

Press MAX/MIN/LIMITS until 04.P (for Relay 1) or 05.P (for

Relay 2) appears in upper display.

Lower display indicates current setting.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Step 3:

a. Press AMPS to begin Data Entry Sequence.

The previous setting shifts to middle display and four dashes appear in lower display.

b. Press VOLTS for desired switch position.

c. Press AMPS to store each setting.

Repeat this procedure until new switch setting is entered.

When complete, middle display blanks and lower display indicates the programming.

See Chapter 14 to Exit.

9–64 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUPGROUP 0, FUNCTIONS 4–5—TIME DELAY FOR RELAYS 1 & 2 (OPTION – NL)

Note

9.7

Group 0, Functions 4–5—Time Delay for Relays 1 & 2 (Option – NL)

GROUP 0, FUNCTIONS 4–5 sets the time delay for Relays 1 and 2 between 0 and 255 seconds. This allows conditions (example below) to exist for a userspecified time period before the relay or alarm activates. If a time greater than 255 seconds is entered, the meter defaults to the maximum value of 255 seconds.

Example: If Relay 1 is set for 300 amps and the amps increase to 301, the Relay trips only after a programmed delay period. If the meter then measures 299 Amps, the Relay returns to its original position, after the programmed delay.

Relay 1: Located in 04.0 & 04.1.

Relay 2: Located in 05.0 & 05.1.

(Procedures for both relays are the same).

Group and Function Number

04.0

04.1

05.0

05.1

Description

Relay 1: On to Off Delay Time

Relay 1: Off to On Delay Time

Relay 2: On to Off Delay Time

Relay 2: Off to On Delay Time

To change Time Delays:

Press MAX/MIN/LIMITS at any time, to cancel before storing the last digit or Switch

.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 9–65

GROUP 0, FUNCTIONS 4–5—TIME DELAY FOR RELAYS 1 & 2 (OPTION – NL)CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming Mode

(see Chp. 8).

b. Press MAX/MIN/LIMITS until 0. appears in upper display.

c. Press AMPS to activate the Group.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 2:

To program Relay 1:

a. Press MAX/MIN/LIMITS until Function 04.P appears in upper display.

To program Relay 2 and 3:

a. Press MAX/MIN/LIMITS until Function 05.P appears.

b. Press VOLTS once to display 04.0 (On to Off delay time).

c. Press VOLTS twice to display 04.1 (Off to On delay time).

Lower display indicates current Time Delays.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 3:

a. Press AMPS to begin Data Entry Sequence.

The previous value shifts to middle display and four dashes appear in lower display.

b. Press VOLTS until number appears.

c. Press AMPS to store each number.

Repeat this procedure until new Time Delay is entered.

When complete, middle display blanks and lower display indicate the new Time Delay.

See Chapter 14 to Exit.

9–66 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP GROUP 0, FUNCTION 6—KYZ PARAMETER SELECTION

Note

Note

9.8

Group 0, Function 6—KYZ Parameter Selection

FUNCTION 6 applies only if Option -NL or -NL2 was ordered.

OPTION -NL: This option gives the meter 2 Relays and one KYZ pulse. The KYZ pulse can be programmed to the below features.

Select a single parameter from Table 9-5 according to the EPM 5300P model being programmed.

OPTION -NL2: This option offers 3 distinct KYZ pulses instead of Relays.

Only three separate parameters may be selected: FUNCTION 6.0 (KYZ Port 0), FUNCTION

6.1 (KYZ Port 1), and FUNCTION 6.2 (KYZ Port 2). The available parameters vary according to the EPM 5300P model being programmed. For exact port positions see Installation

Sections.

Parameter

0

1

2

3

4

5

Table 9–1: KYZ Parameters

Disable KYZ

Positive Watt Hour KYZ

VA Hour KYZ

Description

Negative Watt Hour KYZ

Positive VAR Hour KYZ

Negative VAR Hour KYZ

APPLICABLE SELECTIONS: 5300P - +WH, -WH, VAH

5300P - +WH, -WH, +VARH, -VARH

To perform the KYZ Parameter Selection:

Press MAX/MIN/LIMITS at any time to cancel before storing the last digit or switch.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 9–67

GROUP 0, FUNCTION 6—KYZ PARAMETER SELECTION CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH

FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A

B

C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming Mode (see Chp. 8).

b. Press MAX/MIN/LIMITS until 0. appears in upper display.

c. Press AMPS to activate the Group.

Step 2:

a. Press MAX/MIN/LIMITS until 06.P appears in upper display.

(Standard Selection is 1).

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH

FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH

FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Step 3:

a. Press VOLTS once and 06.0 appears in

upper display.

Middle display indicates preset value.

Lower display indicates polarity of selected parameter and an annunciator indicates the selected parameter.

Step 4:

a. Press AMPS once to select a different parameter.

b. Press MAX/MIN/LIMITS to increase the parameter number

—or—

c. Press VOLTS to decrease (until desired parameter appears).

d. Press AMPS to store.

A decimal appears in upper level. (Models with -NL

Option, FUNCTION 6 is complete).

9–68 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP GROUP 0, FUNCTION 6—KYZ PARAMETER SELECTION

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Applies to -NL2 Option only:

Step 5:

a. Press VOLTS to proceed to another port (06.1 or 06.2).

Repeat this procedure to change parameters.

See Chapter 14 to Exit.

Note

Selection in 06P

KYZ PULSE VALUE per

Watt HOUR

FSW=9999.

1.0 unit WH Multiply by 1

Multiply by 2

0.5 unit WH

Multiply by 10 0.1 unit WH

Multiply by 20 0.05 unit WH

Divide by 1

Divide by 2

Divide by 10

Divide by 20

1.0 unit WH

2.0 unit WH

10.0 unit WH

20.0 unit WH

Table 9–2: KYZ Pulse Value

KYZ PULSE VALUE per

Watt HOUR

FSW=999.9

KYZ PULSE VALUE per Watt HOUR

FSW=99.99

0.1 unit WH 0.01 unit WH

0.05 unit WH

0.01 unit WH

0.005 unit WH

0.001 unit WH

0.005 unit WH

0.1 unit WH

0.2 unit WH

1.0 unit WH

2.0 unit WH

0.0005 unit WH

0.01 unit WH

0.02 unit WH

0.1 unit WH

0.2 unit WH

KYZ PULSE VALUE per

Watt HOUR

FSW=9.999

0.001 unit WH

0.0005 unit WH

0.0001 unit WH

0.00005 unit WH

0.001 unit WH

0.002 unit WH

0.01 unit WH

0.02 unit WH

The unit WH refers to the counter value on the meter, where the unit equals Kilo or Mega user-defined.

The FSW number is used only for decimal point placement (see Chapter 10).

9.8.1

How to Use KYZ Pulse Value Table for Multiplication:

S

ITUATION

1: FSW=9999.

Selection is Multiply by 2

This means that every .5 unit WH =1 pulse.

Unit=Kilo (see Group 1, Function 2)

Result: For every 1 KWH increment on the counter, the meter will output 2 pulses.

S

ITUATION

2: FSW=999.9

Selection is Multiply by 2

This means that every .05 unit WH=1 pulse.

Unit=Kilo (see Group 1, Function 2)

Result: For every 1 KWH increment on the counter, the meter will output 20 pulses.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 9–69

GROUP 0, FUNCTION 6—KYZ PARAMETER SELECTION CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP

S

ITUATION

3: FSW=99.99

Selection is Multiply by 20

This means that every .0005 unit WH=1 pulse.

Unit=Kilo (see Group 1, Function 2)

Result: For every 1 KWH increment on the counter, the meter will output 2,000 pulses.

S

ITUATION

4: FSW=9.999

Selection is Multiply by 20

Unit=Kilo (see Group 1, Function 2)

This means that every .00005 WH=1 pulse.

Result: For every 1 KWH increment on the counter, the meter will output 20,000 pulses.

9.8.2

How to Use KYZ Pulse Value Table for Division:

S

ITUATION

1: FSW=9999.

Selection is Divide by 10

This means that every 10 unit WH=1 pulse.

Unit=Kilo (see Group 1, Function 2)

Result: For every 10 KWH increment on the counter, the meter will output 1 pulse.

S

ITUATION

3: FSW=99.99

Selection is Divide by 20

This means that every .2 unit WH=1 pulse.

Unit=Kilo (see Group 1, Function 2)

Result: For every 1 KWH increment on the counter, the meter will output 5 pulses.

S

ITUATION

2: FSW=999.9

Selection is Divide by 10

This means that every 1 unit WH=1 pulse.

Unit=Kilo (see Group 1, Function 2)

Result: For every 1 KWH increment on the counter, the meter will output 1 pulse.

S

ITUATION

4: FSW=9.999

Selection is Divide by 20

Unit=Kilo (see Group 1, Function 2)

This means that every .02 WH=1 pulse.

Result: For every 1 KWH increment on the counter, the meter will output 50 pulses.

9–70 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP

To change the KYZ pulse value:

GROUP 0, FUNCTION 6—KYZ PARAMETER SELECTION

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming

Mode, (see Chp. 8).

b. Press MAX/MIN/LIMITS until 0. appears in upper display.

c. Press AMPS to activate the Group.

Step 2:

a. Press MAX/MIN/LIMITS until 06.P appears in upper display.

The lower display indicates multiplication or division factor.

Step 3:

a. Press AMPS to change current setting.

The decimal point next to the 6 disappears.

b. Press MAX/MIN/LIMITS to advance selections. -or-

c. Press VOLTS to reverse.

(Until desired factor appears).

Division is indicated by div

appearing in the middle display.

When middle display is blank, it indicates multiplication.

d. Press AMPS to store.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 9–71

GROUP 0, FUNCTION 7—NUMBER OF PHASES CHAPTER 9: PROGRAMMING GROUP 0 - GLOBAL METER SETUP

Note

Note

9.9

Group 0, Function 7—Number of Phases

E

NTER

1

FOR SINGLE PHASE

/

SINGLE WIRE

.

Enter 2 for single phase/two wire.

Enter 3 for three phase/three or four wire.

*Standard factory set-up is three-phase FOUR-WIRE

Press MAX/MIN/LIMITS at any time to cancel before storing the last digit or switch.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH

KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming

Mode. (Chapter 8)

b. Press MAX/MIN/LIMITS if 0. does not appear.

c. Press AMPS to activate the

Group.

Step 2:

00. appears in upper display.

a. Press MAX/MIN/LIMITS until 07 appears in upper display.

b. Press AMPS to activate the Group.

Step 3:

a. Press VOLTS to select numbers 1, 2 or 3.

b. Press AMPS to store. See Chapter

14 to Exit.

9–72 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

Note

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 10: Programming

Group 1 – Voltage,

Amp And Watt

Scale Settings

Programming Group 1 – Voltage, Amp And Watt Scale Settings

The EPM 5300P and 5200P full scales will already be programmed if the order specified current and voltage transformer ratios. The meter label indicates any full scale setup.

Programming Group 1 contains voltage, amperage and full scale power selection, along with scale factor selection and decimal point placement.

The user can re-scale without removing the EPM 5300P for calibration. The 5300P has been calibrated at standard levels in GROUP 2. Mathematically convert any full scale ratios to those calibrated levels. If a different current or voltage transformer is used, program the primary value of its ratio. If necessary, convert the ratio to a secondary value of five amps standard current (1 amp is a special order) and 120V or 75V nominal voltage (options L only).

Formulas:

Primary

Secondary

x 120

V

Primary

Secondary x 75V

Primary

Secondary x 5A

It may be necessary to convert the full scale to a larger unit. There is a resolution limitation for all full scales of 2000. If a display reading exceeds 2000, it may be unstable and subject to zeroing problems.

Example: The full scale for a CT ratio of 3000/5 should be 03.00 kA.

When changing a PT or CT full scale, calculate the new watts full scale and make any necessary changes. The watts full scale will not auto range.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 10–73

GROUP 1, FUNCTION 0 CHAPTER 10: PROGRAMMING GROUP 1 – VOLTAGE, AMP AND WATT SCALE SETTINGS

Note

10.1 Group 1, Function 0

- FULL SCALE VOLTAGE SETTINGS, SCALE & DECIMAL POINT PLACEMENT -

Table 10–1: Group 1 Programming Format

Group and Function Number Function

10.

11.

Full Scale Selection for Volts

Full Scale Selection for Amps

12.

1E.

Full Scale Selection for Watts

Exit Programming GROUP 1

Tables 10-2 and 10-3 contain Full Scale Settings for typical voltages and currents

(PT and CT arrangements).

Table 10–2: TYPICAL Full Scale Settings for Volts

Secondary PT Values PT Ratio Full Scale

75 V (Suffix 75) L-N MAX 120:1 9.00 KV

120/208 V

120/208 V

120/208 V

1:1 (Direct)

4:1

120:1

120.0

0480 V

014.4 KV

277/480 V (Suffix G)

120/208V

120/208

1:1 (Direct)

600:1

1150:1

0300 V

072.0 KV

138.0 KV

If PT is connected line to line, the full scale can be 14.40 KV. Full scale is 300 V L-N, not 277, because the factory calibration is 300 V. Be sure the table is based on a meter regulation of

2000 A/D counts. Thus, for best accuracy, all settings should be placed within that range.

Note

10.1.1 Voltage Full Scale:

To change the Full Scale Settings:

Press MAX/MIN/LIMITS at any time to cancel before storing the last digit or switch.

10–74 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 10: PROGRAMMING GROUP 1 – VOLTAGE, AMP AND WATT SCALE SETTINGS GROUP 1, FUNCTION 0

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH

FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming Mode (see Chp. 8).

b. Press MAX/MIN/LIMITS until 1. appears in upper

display.

Step 2:

a. Press AMPS to activate GROUP 1.

10. appears in upper display.

Middle display indicates Scale Factor Setting.

Lower display indicates Full Scale for voltage.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Enering the Scale Factor:

Step 3:

a. Press AMPS to begin Data Entry Sequence.

Lower display is replaced with a single dash.

b. Press VOLTS to move the segment UP or

DOWN to set Scale Factor.

UP signifies - Kilovolts

DOWN signifies - Volts

c. Press AMPS to store.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Decimal Point Selection:

Step 4:

a. Press VOLTS to move decimal point.

b. Press AMPS to store.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 10–75

GROUP 1, FUNCTION 0 CHAPTER 10: PROGRAMMING GROUP 1 – VOLTAGE, AMP AND WATT SCALE SETTINGS

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 5:

Middle display indicates present Full Scale for volts.

Four dashes appear in lower display.

Enter the four digit full scale.

a. Press VOLTS to increase the digit number.

b. Press AMPS to store each digit.

Repeat this procedure until desired value is entered.

Lower display indicates new Full Scale Setting.

Middle display indicates Scale Factor.

Group and Function Number (including decimal point) appear in upper display.

See Chapter 14 to exit.

10–76 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 10: PROGRAMMING GROUP 1 – VOLTAGE, AMP AND WATT SCALE SETTINGS GROUP 1, FUNCTION 1

Note

10.2 Group 1, Function 1

- AMPERAGE FULL SCALE -

Table 10–3: Full Scale Settings for Amps

CT Type Full Scale

Direct Input

600/5

05.00 A

0600 A

1000/5

2000/5

3000/5

5000/5

1000 A

2000 A

03.00 KA

05.00 KA

Also note that the meter reads with digital accuracy to a 2000 count range. Thus all CT and

PT full scale settings in the meter should reflect that limitation. The table above shows the proper settings.

To change the Full Scale Settings:

Press MAX/MIN/LIMITS at any time to cancel before storing the last digit or switch.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming Mode

(see Chp. 8).

b. Press MAX/MIN/LIMITS until 1. appears in upper display.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 2:

a. Press AMPS to activate the Group.

b. Press MAX/MIN/LIMITS until 11. appears in upper display.

Middle display indicates Scale Factor Setting.

Lower display indicates Full Scale.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 10–77

GROUP 1, FUNCTION 1 CHAPTER 10: PROGRAMMING GROUP 1 – VOLTAGE, AMP AND WATT SCALE SETTINGS

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Entering the Scale Factor:

Step 3:

a. Press AMPS to begin Data Entry Sequence.

Lower display is replaced with a single dash.

b. Press VOLTS to move the segment UP or DOWN to set

Scale Factor.

UP signifies - Kiloamps.

DOWN signifies - Amps.

c. Press AMPS to store.

Decimal Point Selection:

Step 4:

a. Press VOLTS to move decimal point.

b. Press AMPS to store.

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 5:

The Full Scale for current is indicated in middle

display.

Four dashes appear in lower display.

Enter the four digit full scale.

Press VOLTS until the number appears.

b. Press AMPS to store.

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Repeat this procedure until the value is entered.

Lower display indicates new Full Scale Setting.

Middle display indicates Scale Factor.

Group and Function Number appear (including a

decimal point) in upper display.

10–78 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 10: PROGRAMMING GROUP 1 – VOLTAGE, AMP AND WATT SCALE SETTINGS GROUP 1, FUNCTION 2

Note

Note

10.3 Group 1, Function 2

- SCALE SELECTION AND DECIMAL PLACEMENT FOR WATTS -

Programming GROUP 1 also provides decimal positioning for maximum resolution. The following examples assist in selecting the best decimal position for FUNCTION 2.

Shift the decimal left to increase resolution. Wattage should not exceed a numeral value of 2500. Shift the decimal one position right to decrease resolution.

Full Scale Wattage (FSW) is the product of FSV and FSA. For FSW for three phases multiply the FSW per phase by 3.

Example 1: Full Scale Voltage (FSV)=120 V

Full Scale Amperage (FSA)=5.00 A

FSW (one phase) =120 Vx5.00 A

FSW (one phase)=600 W

FSW (three phase)=600 Wx3 = 1,800 W

Here the FSW is too small a value for a Megawatt meter. FSW in the Kilowatt meter equals

1.800 KW. In FUNCTION 2, four 9s appear. Place the decimal point after the first digit. The user cannot change the four digits. The user can only move the decimal point placement.

Example 2: 480/120 PT, 1000/5 CT

FSV=480 V

FSA=1000 A

FSW (one phase)=480 V ⋅ 1000 A

FSW (one phase)=480,000 W

FSW (three phase)=480,000 W

3 = 1,440,000 W

FSW for a Kilowatt meter equals 1440. KW. FSW for a Megawatt meter equals 1.440 MW. In

FUNCTION 2 place the decimal point after the last digit for a Kilowatt meter and after the first digit for a Megawatt meter. It is important to note which type of bezel labeling you have when making this decision.

Example 3: 14.4 KV/120, 1000/5 CT

FSV=14.40 KV

FSA=1000 A

FSW (one phase)=14,400 Vx1000 A

FSW (one phase)=14,400,000 W

FSW (three phase)=14,440, 000 Wx3 = 43,200,000 W

FSW for a Kilowatt meter equals 43,200 KW. Here the FSW is too large a value for a

Kilowatt meter (the range is 000–2500). FSW for a Megawatt meter equals 043.2 MW. In

FUNCTION 2, place the decimal after the third digit.

In some applications where the load is normally very low, the watts resolution can be increased by moving the decimal point one position left.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 10–79

GROUP 1, FUNCTION 2

Note

CHAPTER 10: PROGRAMMING GROUP 1 – VOLTAGE, AMP AND WATT SCALE SETTINGS

To change the scale factor setting for wattage:

Press MAX/MIN/LIMITS at any time to cancel before storing the last digit or switch.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming Mode (see Chp. 8).

b. Press MAX/MIN/LIMITS until 1. appears in upper

display.

Step 2:

a. Press AMPS to activate the Group.

b. Press MAX/MIN/LIMITS until 12. appears in upper

display.

Middle display indicates current Scale Factor

Setting.

Lower display indicates 9999 (including current

decimal placement).

10–80 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 10: PROGRAMMING GROUP 1 – VOLTAGE, AMP AND WATT SCALE SETTINGS GROUP 1, FUNCTION 2

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Entering the Scale Factor:

Step 3:

a. Press AMPS to begin Data Entry Sequence.

Lower display is replaced with a single dash.

b. Press VOLTS to move the segment

UP signifies - megawatts.

DOWN signifies - kilowatts..

c. Press AMPS to store.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Decimal Point Selection:

Step 4:

Display blanks and 9999 appears in lower display

(including current decimal setting).

a. Press VOLTS to move decimal.

b. Press AMPS to store.

See Chapter 14 to Exit.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 10–81

GROUP 1, FUNCTION 2 CHAPTER 10: PROGRAMMING GROUP 1 – VOLTAGE, AMP AND WATT SCALE SETTINGS

10–82 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 11: Programming

Group 2 - Meter

Calibration

Programming Group 2 - Meter Calibration

WARNING—READ THIS SECTION CAREFULLY BEFORE PROCEEDING:

• Any rescaling, such as a change in a transformer ratio, can be accomplished in

GROUP 1. Calibration is not necessary.

• Meter calibration cannot be performed if the meter is installed for service. The sensing inputs must be connected to a power supply with variable voltage and separate current outputs.

• The calibration procedure requires highly accurate and stable input signals.

Incorrect readings result from improper calibration procedures. If unsure, return unit to the factory for calibration.

• BEFORE calibrating any channel, make a note of its Full Scale Setting (see Chapter

10). Set the Full Scale in accordance with Table 10-2 for calibration. Restore original Full Scale Setting when calibration is completed.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 11–83

CALIBRATION REQUIREMENTS CHAPTER 11: PROGRAMMING GROUP 2 - METER CALIBRATION

Note

11.1 Calibration Requirements

Calibration on the EPM 5300P requires precise inputs of 120 Volts, 5 Amps, and 2.5 Amps.

The EPM 5300P -G model requires precise inputs of 300 Volts, 5 Amps, and 2.5 Amps. If this equipment is unavailable, contact us for assistance.

Table 11–1: Group 2 Programming Format

Group and Function Number Function

20.

High End Calibration—Volts AN, BN, CN

21.

22.

2E.

High End Calibration—Amps A, B, C

Low End Calibration—Amps A, B, C

Exit Programming Group 2

The voltage and current scales are calibrated with the maximum range value 2000 for current, 14.40 for voltage, 300 for option G. The calibration value can be identical to the full scale value in GROUP 1, for better accuracy than the specification. However, if a full scale is ever changed to a higher value than the calibrated value, the value may be less accurate.

Table 11–2: Calibration Source, Full Scale and Value Settings for Calibration

Voltage Range Input Source Group 2 Value

69.3/120V

120/208V

75V

120V L-N

1440

1440

277/480V

5A CT High End

2.5A Low End

300V

5A

2.5A

0300

2000

1000

11–84 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 11: PROGRAMMING GROUP 2 - METER CALIBRATION GROUP 2, FUNCTIONS 0–2

Note

11.2 Group 2, Functions 0–2

- HIGH END CALIBRATION OF VOLTAGE CHANNELS, HIGH AND LOW END

CALIBRATION OF AMPERAGE CHANNELS -

To change the calibration (high end—Functions 0 and 1):

Press MAX/MIN/LIMITS at any time to cancel before storing the last digit or switch.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR

KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming Mode

(see Chp. 8).

b. Press MAX/MIN/LIMITS until 2. appears in

upper display.

c. Press AMPS to activate the Group.

A one-digit password is required to continue.

d. Press VOLTS until 5 appears.

e. Press AMPS to select.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A

B

C N

FREQ

POWER

PF

KW

KVA

KVAR

KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 2:

Refer to Table 11-1 for Function Number that corresponds to the area requiring calibration. Calibration for each area begins with A and then moves to B and C.

a. Press MAX/MIN/LIMITS to change Function number.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 11–85

GROUP 2, FUNCTIONS 0–2 CHAPTER 11: PROGRAMMING GROUP 2 - METER CALIBRATION

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS

AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH

KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Note

Step 3:

a. Press AMPS to activate calibration.

Digits move to middle display.

After a moment, digits appear in lower display also.

Step 4:

a. Press POWER to increase the value and PHASE/NEXT to decrease the value.

Digits in lower display disappear momentarily, then reappear indicating the new value.

b. Press AMPS to store and move to the next phase or

Amp within the group.

See Chapter 14 to Exit.

For Amps Low End (Function 2):

Press MAX/MIN/LIMITS at any time to cancel before storing the last digit or switch.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR

KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

11–86 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 11: PROGRAMMING GROUP 2 - METER CALIBRATION

Step 1:

a. Enter Group Level of Programming Mode

(see Chp. 8).

b. Press MAX/MIN/LIMITS until 2. appears in upper display.

c. Press AMPS to activate the Group.

A one digit password is required to continue.

d. Press VOLTS until 5 appears.

e. Press AMPS to select.

GROUP 2, FUNCTIONS 0–2

Step 2:

a. Press MAX/MIN/LIMITS until 22. appears in upper display.

b. Press AMPS to activate. (Calibration begins with Amps

A, then moves to B and C).

Middle and lower displays blank.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 3:

New value moves to middle display.

Lower display indicates the calibrated reading after

10-15 seconds.

To enter the half scale value in lower display,

a. Press VOLTS to select digits.

b. Press AMPS to store and proceed to B or C within the group.

c. Press MAX/MIN/LIMITS to end calibration procedure.

See Chapter 14 to Exit.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 11–87

GROUP 2, FUNCTIONS 0–2 CHAPTER 11: PROGRAMMING GROUP 2 - METER CALIBRATION

11–88 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 12: Groups 4, 5 and 6—

Set Limits and

Relays

Groups 4, 5 and 6—Set Limits and Relays

The EPM 5300P -NL offers a comprehensive limit and set point functionality. The user can program above or below limits for every reading, including %THD. When a voltage or current measurement exceeds a particular value, the set limit is triggered and alerts the user. Each limit can trigger two internal Form C dry contact relays for alarm or secondary protection.

The EPM 5300P offers two set limit points available for each measured function: LM1 and

LM2. Each limit can be set at any desired level. Note: The EPM 5200P does not have limit setting capability.

LM1 AND LM2 SET LIMITS

120

LM1 is triggered

120

100

80

80

CURRENT

(AMPS)

60

50

40

20

0

40 LM2 is triggered

A B

PHASES

C

FIGURE 12–1: Example of LM1/LM2 Set Limits

LM1 SET TO

TRIGGER ABOVE

100 AMPS.

LM2 SET TO

TRIGGER BELOW

50 AMPS.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 12–89

TRIP RELAY

12.1 Trip Relay

CHAPTER 12: GROUPS 4, 5 AND 6—SET LIMITS AND RELAYS

The EPM 5300P -NL has two relays. These relays are linked through the program to Set

Limits LM1 and LM2. The user can program above or below set limits for every reading.

When a measurement exceeds a particular value, the set limit triggers and alerts the user.

Each relay is programmed to a separate delay time (see Chp. 10).

12–90 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 12: GROUPS 4, 5 AND 6—SET LIMITS AND RELAYS TIME DELAYS & RELAY MODE

Note

12.2 Time Delays & Relay Mode

Time Delay indicates whether a delay exists in the relay changing position. Relay Mode indicates whether the relay will act as a protective switch or not.

The Time Delay and Relay Mode are both located in GROUP 0, FUNCTIONS 4 & 5.

The following groups allow the user to program limits and relays

Group 4: Volts/amps Set Limits / Relays

GROUP 4 contains LM1 and LM2 set limit values for voltage and amperage scales. This allows the user to program limits for the four following functions:

1.

Volts phase-to-neutral

2.

Volts phase-to-phase

3.

Amps A, B, C

4.

Amps neutral

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 12–91

GROUP 4: FUNCTIONS 0–3—LM1/LM2 SET LIMITS CHAPTER 12: GROUPS 4, 5 AND 6—SET LIMITS AND RELAYS

12.3 Group 4: Functions 0–3—LM1/LM2 Set Limits

D E S I G N A T E S G R O U P

N U M B E R .

U S E V O L T S T O

T O G G L E B E T W E E N

L M 1 A N D L M 2 .

T H E L IM IT V A L U E .

M A X

M I N

L M 1

L M 2

A C V O L T S

A B C A B C

N N N B C A

A C A M P S

A B C N

F R E Q

P O W E R

P F

K W

K V A

K V A R K V A H K W H

M A X /M IN

L IM IT S

V O L T S A M P S P O W E R

P H A S E

N E X T

S I N C E T H I S I S G R O U P 4 , F U N C T IO N 0 ,

T H E L M 1 /L M 2 S E T L IM IT S F O R V O L T S

A N , B N & C N A N N U N C I A T O R S G L O W .

F R O M L E F T T O R IG H T : S E T L IM IT

A B O V E /B E L O W , T R I P R E L A Y 1

A N D T R IP R E L A Y 2 .

12–92 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 12: GROUPS 4, 5 AND 6—SET LIMITS AND RELAYS GROUP 4: PROGRAMMING FORMAT FOR LIMIT CONDITION

Note

12.4 Group 4: Programming Format for Limit Condition

Table 12–1: Group 4 Programming Format

Group and Function Number Function

40.

LM1/LM2 Set Limits for Volts AN, BN, CN

41.

42.

43.

4E.

LM1/LM2 Set Limits for Volts AB, BC, CA

LM1/LM2 Set Limits for Amps A, B, C

LM1/LM2 Set Limits for Amps Neutral

Exit Programming GROUP 4

These functions have a two-part entry:

Part 1:

The first switch sets the limit to trip either above or below the Limit Value.

The second switch sets whether Relay 1 will trip when the condition occurs.

The third switch sets whether Relay 2 will trip when the condition occurs.

Part 2:

The second part is the Limit Value.

LM1

LED

ON

LM2

LED

OFF

OFF ON

Table 12–2: Group 4: Functions 0–3

Above/below Relay 1

Digit Up-trigger above value

Digit Down-trigger below value

Digit Up-trigger above value

Digit Down-trigger below value

Digit Up-enabled

Digit Down-disabled

Digit Up-enabled

Digit Down-disabled

Relay 2

Digit Up-enabled

Digit Down-disabled

Digit Up-enabled

Digit Down-disabled

Value

0-9999

0-9999

0-9999

0-9999

LM1

LED

ON

OFF

LM2

LED

OFF

ON

Digit Up

Table 12–3: Group 4: Example for Function 0

Above/below Relay 1

Digit Down

Digit Up

Digit Down

Relay 2

Digit Down

Digit Up

Value

0135

0090

EXAMPLE

: If voltages exceed 135 V, LM1 is triggered and Relay 1 is enabled. If the voltages fall below 90 V, LM2 is triggered and Relay 2 is enabled.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 12–93

GROUP 5: FUNCTIONS 0–7—LM1/LM2 SET LIMITS CHAPTER 12: GROUPS 4, 5 AND 6—SET LIMITS AND RELAYS

12.5 Group 5: Functions 0–7—LM1/LM2 Set Limits

12–94

U S E V O L T S T O

T O G G L E B E T W E E N

L M 1 A N D L M 2 .

T H E L I M I T V A L U E

M A X

M I N

L M 1

L M 2

A C V O L T S

A B C A B C

N N N B C A

A C A M P S

A B C N

F R E Q

P O W E R

P F

K W

K V A

K V A R K V A H K W H

M A X / M I N

L I M I T S

V O L T S

A M P S

P O W E R

P H A S E

N E X T

F R O M L E F T T O R I G H T : S E T L I M I T

A B O V E / B E L O W , T R I P R E L A Y 1

A N D T R I P R E L A Y 2

S I N C E T H I S I S G R O U P 5 , F U N C T I O N 0 ,

T H E K W A N N U N C I A T O R

G L O W S

GROUP 5 contains LM1 and LM2 set limit values for all power functions. This allows the user to program limits for the following functions: Kilowatt, Kilovar, Kilovolt-ampere, Power

Factor, Frequency, negative Kilovar, negative Power Factor, and negative Kilowatt.

Table 12–4: Group 5 Programming Format for Limit Condition

Group and Function Number Function

50.

51.

LM1/LM2 Set Limits for Kilowatt

LM1/LM2 Set Limits for Kilovar

52.

53.

54.

LM1/LM2 Set Limits for Kilovolt-ampere

LM1/LM2 Set Limits for Power Factor

LM1/LM2 Set Limits for Frequency

55.

56.

57.

5E.

LM1/LM2 Set Limits for Negative Kilovar

LM1/LM2 Set Limits Negative Power Factor

LM1/LM2 Set Limits for Negative Kilowatt

Exit Programming GROUP 5

There are 3 switches to set with limits:

1.

Switch 1: Sets the limit to trip either above or below the Limit Value.

2.

Switch 2: Sets whether Relay 1 will trip when the condition occurs.

3.

Switch 3 :Sets whether Relay 2 will trip when the condition occurs.

After the switches are set, the limit value should be programmed (see table in section 12.4).

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 12: GROUPS 4, 5 AND 6—SET LIMITS AND RELAYS GROUP 5: FUNCTIONS 0–7—LM1/LM2 SET LIMITS

LM1

LED

ON

LM2

LED

OFF

OFF ON

Table 12–5: Group 5: Functions 0–7

SWITCH 1

ABOVE/BELOW

SWITCH 2

RELAY 1

Digit Up-trigger above value

Digit Down-trigger below value

Digit Up-enabled

Digit Down-disabled

Digit Up-trigger above value

Digit Down-trigger below value

Digit Up-enabled

Digit Down-disabled

SWITCH 3

RELAY 2

Digit Up-enabled

Digit Down-disabled

Digit Up-enabled

Digit Down-disabled

VALUE

0-9999

0-9999

0-9999

0-9999

LM1

ON

OFF

LM2

OFF

ON

Table 12–6: Group 5: Example for Function 0

SWITCH 1 SWITCH 2 SWITCH 3

Digit Up

Digit Down

Digit Up

Digit Down

Digit Down

Digit Up

VALUE

0120

0090

Thus, if Kilowatts exceed 120 W, LM1 is triggered and Relay 1 is tripped.

If the Kilowatts fall below 90 W, LM2 is triggered and Relay 2 is tripped.

Special Cases

FREQUENCY: FUNCTION 4 contains a permanent decimal after the second digit. The highest and lowest level limits that can be programmed are 99.99 and 00.00, respectively.

POWER FACTOR: FUNCTIONS 3 and 6 contain a permanent decimal after the first digit.

The highest and lowest limits that can be programmed are 1.000 and 0.000, respectively.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 12–95

GROUP 6: LM1/LM2 SET LIMITS:

12.6 Group 6: LM1/LM2 Set Limits:

CHAPTER 12: GROUPS 4, 5 AND 6—SET LIMITS AND RELAYS

12–96

U S E V O L T S T O

T O G G L E B E T W E E N

L M 1 A N D L M 2 .

T H E L I M IT V A L U E .

M A X

M IN

L M 1

L M 2

T H D

A C V O L T S

A B C A B C

N N N B C A

A C A M P S

A B C N

F R E Q

P O W E R

P F

K W

K V A

K V A R K V A H K W H

M A X /M IN

L IM I T S

V O L T S A M P S

P O W E R

P H A S E

N E X T

F R O M L E F T T O R IG H T : S E T L I M IT A B O V E /B E L O W ,

T R IP R E L A Y 1 A N D T R IP R E L A Y 2 .

12.6.1 Group 6: THD Set - Limits / Relays (For Option -h)

GROUP 6 contains LM1 and LM2 set limits for THD. These allows the user to program limits for the following functions: THD Volts AN, BN, CN, Amps A, Amps B, and Amps C.

Table 12–7: Group 6 Programming Format For THD Limit Conditions

Group and Function Number Function

60.

61.

62.

THD Volts AN

THD Volts BN

THD Volts CN

63.

64.

65.

6E.

THD Amps A

THD Amps B

THD Amps C

Exit Programming GROUP 6

LM1

LED

ON off

LM2

LED

OFF on

Table 12–8: Group 6 Functions 0–5

SWITCH 1

ABOVE/BELOW

SWITCH 2

RELAY 1

Digit Up-trigger above level

Digit Down-trigger below level

Digit Up-trigger above level

Digit Down-trigger below level

Digit Up-enabled

Digit Down-disabled

Digit Up-enabled

Digit Down-disabled

SWITCH 3

RELAY 2

Digit Up-enabled

Digit Down-disabled

Digit Up-enabled

Digit Down-disabled

VALUE

0-999.9

0-999.9

0-999.9

0-999.9

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 12: GROUPS 4, 5 AND 6—SET LIMITS AND RELAYSGROUP 6: FUNCTIONS 0–5—LM1/LM2 SET LIMITS AND RELAY TRIGGERS FOR

OVER/UNDER %THD CONDITIONS

12.7 Group 6: Functions 0–5—LM1/LM2 Set Limits and Relay Triggers for Over/

Under %THD Conditions

LM1 LED

ON

OFF

LM2 LED

OFF

ON

Table 12–9: Group 6—Example for Function 0

Switch 1 Above/Below Switch 2 Relay 1 Switch 3 Relay 2 Level

Digit Up

Digit Down

Digit Up

Digit Down

Digit Down

Digit Up

012.0

009.0

So, if THD exceeds 12%, LM1 is triggered and Relay 1 is enabled.

If THD falls below 9%, LM2 is triggered and Relay 2 is enabled.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 12–97

LIMITS OR RELAYS PROGRAMMING PROCEDURE CHAPTER 12: GROUPS 4, 5 AND 6—SET LIMITS AND RELAYS

Note

Note

12.8 Limits or Relays Programming Procedure

The procedure for programming any limit or relay for each group is identical. The example below signifies the exact procedure for programming a Limit/Relay for GROUPS 4–6.

—Group 4 is used as an example.

Press MAX/MIN/LIMITS at any time to cancel before storing the last digit or switch.

GROUP

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR

KVAH

KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming Mode

(see Chp. 8).

b. Press MAX/MIN/LIMITS until 4. appears in upper

display.

c. Press AMPS to activate the Group.

LIMIT

VALUE

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

FUNCTION

RELAY

SWITCHES

Step 2:

a. Press MAX/MIN/LIMITS to select desired Function.

Middle display provides the currently selected value for whether to trip above or below, activate Relay 1 and activate Relay 2.

Left Switch: UP position indicates above tripping value for lower display’s value. DOWN position indicates below tripping.

Middle Switch: UP position sets Relay 1 to trip.

DOWN position doesn’t activate Relay 1 when limit condition exists.

Right Switch: Same as Middle Switch , regarding Relay 2.

b. Press VOLTS to toggle between LM1 and LM2 settings.

The LM1 or LM2 annunciator indicates the limit being displayed.

12–98 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 12: GROUPS 4, 5 AND 6—SET LIMITS AND RELAYS LIMITS OR RELAYS PROGRAMMING PROCEDURE

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 3:

a. Press AMPS once.

Lower display is replaced with three dashes.

Follow this step for DISABLING LIMITS:

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 4:

a. Press AMPS once to Disable the Limit.

The display blanks momentarily, then the disabled settings appears in middle and lower displays.

The Set Above/Below will be set to below.

Trip Relay 1 will be disabled.

Trip Relay 2 will be disabled.

The Setup Level will be set to 0000.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Step 5:

a. Press VOLTS to change current Set Above/Below,

Trip Relay 1, and Trip Relay 2 settings.

This toggles the segments UP (above limit) or DOWN

(below limit).

b. Press AMPS to store.

c. Press VOLTS to toggle the second segment UP (enable

Relay 1) or DOWN (disable Relay 1).

d. Press AMPS to store.

e. Press MAX/MIN/LIMITS to proceed to entering the limit value.

f. Press AMPS to store.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 12–99

LIMITS OR RELAYS PROGRAMMING PROCEDURE CHAPTER 12: GROUPS 4, 5 AND 6—SET LIMITS AND RELAYS

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Step 6:

a. Press VOLTS to scroll through digits.

b. Press AMPS to select.

c. At the last digit, press AMPS twice to store limit programming.

Wait 3 seconds and the display updates with

the new programming value.

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH

FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 7:

a. Press VOLTS to program the other limits and repeat this procedure.

b. Press MAX/MIN/LIMITS TO PROGRAM ANOTHER

Function (refer to Step 2).

See Chapter 14 to Exit.

12–100 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Phase Reversal and Phase Imbalance Set Limits/Relays

Chapter 13: Phase Reversal and Phase

Imbalance Set

Limits/Relays

13.1 Phase Reversal and Phase Imbalance

The set limit alerts the user of an unbalanced or a reversed phase in a Three-phase

System. The EPM 5300P has two options for this purpose. The standard set-up is clockwise

ABC rotation. Counterclockwise CBA rotation can be selected in GROUP 03.1, Switch C UP.

PHASE REVERSAL: Activates when a reversed phase enters the EPM 5300P’s metering system.

PERCENT PHASE IMBALANCE: Activates when the user's preset value percent phase imbalance is exceeded. For example: an unbalanced Three-phase System.

Note: The EPM 5200P does not have this capability.

PHASE IMBALANCE

10%

(%)

Limits Triggered

Limits Not Triggered

10:00 AM 11:00 AM

THREE-PHASE SYSTEM IMBALANCE

FIGURE 13–1: Example of Set Limits

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 13–101

TRIP RELAY CHAPTER 13: PHASE REVERSAL AND PHASE IMBALANCE SET LIMITS/RELAYS

Note

13.2 Trip Relay

All information pertaining to Trip Relays 1 and 2 applies only to a meter with the –NL option.

The unit has two relays linked through the program to LM1 and LM2 Set Limits. The relay outputs can be programmed individually to close when LM1 and/or LM2 is triggered. Each relay has provisions for a separate delay (see Chapter 12).

TRIP RELAY 1

TRIP RELAY 2

LEVEL

ENABLE/DISABLE

Whether to trip Relay 1.

Whether to trip Relay 2.

The level at which the warning mechanism trips percentage of voltage imbalance.

In the event of Phase Reversal, whether to enable or disable Phase Reversal

Detection.

13–102 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 13: PHASE REVERSAL AND PHASE IMBALANCE SET LIMITS/RELAYS

DETECTION

GROUP 7, FUNCTION 0—VOLTAGE PHASE REVERSAL

13.3 Group 7, Function 0—Voltage Phase Reversal Detection

Table 13–1: Group 7 Programming Format

Group and Function Number Function

70.

Voltage Phase Reversal Detection

71.

7E.

Voltage Phase Imbalance

Exit Programming GROUP 7

To change the phase reversal setting:

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming Mode (see Chp. 8).

b. Press MAX/MIN/LIMITS until 7. appears in upper display.

c. Press AMPS to activate the Group.

70. appears in upper display.

Middle display indicates current settings for Trip

Relay 1 and Trip Relay 2.

Lower display indicates current setting for Enable/

Disable Phase Reversal Detection.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 13–103

GROUP 7, FUNCTION 0—VOLTAGE PHASE REVERSAL DETECTION CHAPTER 13: PHASE REVERSAL AND PHASE IMBALANCE SET LIMITS/

RELAYS

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH

FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 2:

a. Press AMPS once.

Lower display is replaced with two dashes.

b. Press VOLTS to toggle the first segment UP (enable

Relay 1) or DOWN (disable Relay 1).

c. Press AMPS to select. (Repeat procedure for second

segment-Relay 2).

Step 3:

Middle display is replaced with current Phase

Reversal Setting.

Lower display is replaced with a single dash.

a. Press VOLTS to toggle the segment UP (enable Phase

Reversal Detection) or DOWN (disable detection).

b. Press AMPS to store.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Middle and Lower display indicate FUNCTION 0 settings.

See Chapter 14 to exit.

13–104 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 13: PHASE REVERSAL AND PHASE IMBALANCE SET LIMITS/RELAYS GROUP 7, FUNCTION 1—PERCENTAGE VOLTAGE PHASE

IMBALANCE

Note

13.4 Group 7, Function 1—Percentage Voltage Phase Imbalance

To change the percentage voltage phase imbalance:

Press MAX/MIN/LIMITS at any time to cancel before storing the last digit or switch.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N

N N

B

C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 1:

a. Enter Group Level of Programming Mode (see Chp. 9).

b. Press MAX/MIN/LIMITS until 7. appears in upper display.

c. Press AMPS to activate the Group.

Step 2:

a. Press MAX/MIN/LIMITS until 71. appears in upper display.

Middle display indicates the Trip Relay 1 and Trip

Relay 2 settings.

Lower display indicates the percentage of Voltage

Phase Imbalance.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 13–105

GROUP 7, FUNCTION 1—PERCENTAGE VOLTAGE PHASE IMBALANCECHAPTER 13: PHASE REVERSAL AND PHASE IMBALANCE SET LIMITS/

RELAYS

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Step 3:

a. Press AMPS to begin Data Entry Sequence.

Lower display is replaced with two dashes.

b. Press VOLTS to toggle the first segment UP (enable

Relay 1) or DOWN (disable Relay 1).

c. Press AMPS to store.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Step 4:

Middle display indicates the current percentage of

Voltage Phase Imbalance.

Four dashes appear in lower display.

a. Press VOLTS to scroll through digits.

b. Press AMPS to select desired digit.

MAX

MIN

LM1

LM2

AC VOLTS

A

B

C A B

C

N N N B C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR

KVAH

KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

Middle and lower displays indicate new settings.

See Chapter 14 to Exit.

13–106 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 14: Exiting

Programming

Mode

Exiting Programming Mode

Note

14.1 Exiting Programming Mode

Steps to exit Programming Mode vary depending on the programming stage.

Exiting the Programming Mode is always necessary to store any new changes and to calculate a new checksum. Failure to exit results in a checksum error: the display blanks and the max LED flashes.

I

F YOU ARE LOCATED IN A

FUNCTION Level—begin at Step 1.

I

F YOU ARE LOCATED IN A

GROUP Level—begin at Step 2.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N

N N

B

C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR

KVAH KWH

MAX/MIN

LIMITS

VOLTS

AMPS

POWER

PHASE

NEXT

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N

N N

B

C A

AC AMPS

A B C N

POWER

PF

KW

KVA

KVAR KVAH KWH FREQ

MAX/MIN

LIMITS

VOLTS AMPS POWER

PHASE

NEXT

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 14–107

EXITING PROGRAMMING MODE CHAPTER 14: EXITING PROGRAMMING MODE

Step 1:

E

XITING FROM

F

UNCTION

L

EVEL

a. Press MAX/MIN/LIMITS until the Group number in upper display is followed by E (for Exit).

The meter returns to Function Level.

Step 1a.:

a. Press AMPS to exit from Function Level to Group

Level.

MAX

MIN

LM1

LM2

AC VOLTS

A B C A B C

N N N B C A

AC AMPS

A B C N

FREQ

POWER

PF

KW

KVA

KVAR KVAH KWH

MAX/MIN

LIMITS

VOLTS AMPS

POWER

PHASE

NEXT

Step 2:

E

XITING FROM

G

ROUP

L

EVEL

a. Press MAX/MIN/LIMITS until E. appears in upper display (for Exit).

b. Press AMPS to exit entirely from Programming Mode.

14–108 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 15: Programming

Quick Reference

Programming Quick Reference

15.1 Entering the Programming Mode

Z Hold PHASE/NEXT key and press AMPS key.

Display blanks and shows either a ‘0’, ‘1’, or ‘3’.

Z If ‘3’ is not displayed, press AMPS key until ‘3’ is displayed.

Z Release AMPS key

Z Press PHASE/NEXT key, while ‘3’ is still displayed.

Display shows ‘333’ momentarily.

Upper display starts counting.

Z Press PHASE/NEXT key when ‘5’ is displayed to register the ‘5’.

Z Repeat step 6 until ‘555’ has been registered.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 15–109

DATA ENTRY SEQUENCE

15.2 Data Entry Sequence

CHAPTER 15: PROGRAMMING QUICK REFERENCE

Z At programmable numerical fields or Switch Pack fields, Press

AMPS key to begin Data Entry Sequence.

The current setting moves to middle row of display and dashes appear in the bottom row.

Z Press VOLTS key to toggle between available choices.

Z When a correct choice is selected, press AMPS key to store.

15–110 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 15: PROGRAMMING QUICK REFERENCE

15.3 Programming Groups

PROGRAMMING GROUPS

1

4

5

2

3

6

7

8

Programming groups

0

Description

Global Meter Setup—Integration Interval, Meter Address,

Communication Setting, Relay Settings

Full Scale Settings. Voltage Full Scale, Current Full Scale and

Power Function Full Scale.

Meter Calibration

Calibration Ratios

Volts and Current Limits

Power Function Limits

THD Limits

Imbalance Reversal Limits

DC Output Calibration

15.3.1 Group 0: Global Meter Setup

00. Interval.

01. Meter Address for Communication.

02. Baud Rate for Communication.

03. System Configuration Switch Packs.

030. Reserved Switches.

031.

A Blank Non Significant Leading Zeros

B Reset Protection

C Phase Reversal Rotation Selection

D Open Delta Configuration

032.

A Instantaneous/Average Limit

B Power Factor Polarity

C Modbus Options

D Protocol Selection

033.

A Computer Control Relay 1

B Computer Control Relay 2

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 15–111

PROGRAMMING GROUPS

C Communication Selection

D DC-Output/Print Control

04. Relay 1 Programming

04P.

A Imb/Rev Selection

B And/or Logic

C Relay Control Selection

D Relay Control Selection

040. ON to OFF delay time

041. OFF to ON delay time

05. Relay 2 Programming 05P.

A Imb/Rev Selection

B Reserved

C Relay Mode Selectio

D Relay Mode Selection

050. ON to OFF delay time

051. OFF to ON delay time

06. KYZ Programming

06P. Pulse Factor Programming

060. KYZ Port 0 Function Mapping

061. KYZ Port 1 Function Mapping

062. KYZ Port 2 Function Mapping

07. Number of Phases

15.3.2 Group 1: Full Scale Setup

10. Volts Full Scale

11. Currents Full Scale

12. Power Full Scale

CHAPTER 15: PROGRAMMING QUICK REFERENCE

15.3.3 Group 2: Calibration

20. Volt AN, BN, CN

21. Amp A, B, C (High End)

22. Amp A, B, C (Low End)

15–112 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 15: PROGRAMMING QUICK REFERENCE

15.3.4 Group 3: Calibration Ratios

30. Volt AN

31. Volt BN

32. Volt CN

33. Amp A (High-End Ratios)

34. Amp B (High-End Ratios)

35. Amp C (High-End Ratios)

36. Amp A (Low-End Ratios)

37. Amp B (Low-End Ratios)

38. Amp C (Low-End Ratios)

15.3.5 Group 4: Volt/Current Limits

40. Volt AN, Volt BN, and Volt CN Limits.

41. Volt AB, Volt BC, and Volt CA Limits.

42. Amp A, Amp B, and Amp C Limits.

43. Amp N Limits.

15.3.6 Group 5: Power Function Limits

50. +Watt Limits

51. +VAR Limits

52. VA Limits

53. +PF Limits

54. Frequency Limits

55. –VAR Limits

56. –PF Limits

57. –Watt Limits

15.3.7 Group 6: THD Limits

60. Volt AN THD Limits

61. Volt BN THD Limits

62. Volt CN THD Limits

63. Amp A THD Limits

64. Amp B THD Limits

65. Amp C THD Limits

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

PROGRAMMING GROUPS

15–113

PROGRAMMING GROUPS

15.3.8 Group 7: Imbalance/Reversal Limits

70. Detect Reversal

71. Imbalance percent Limit

15.3.9 Group 8: DC output Calibration

8P. Switch Packs

8P0.

A 75 Volts Suffix Selection

B 300 Volts Suffix Selection

C Frequency

D 10 Channel Selection

8P1. Power Uni/Bi Directional Selection

A Port 0

B Port 1

C Port 2

D Port 3

8P2. Power Uni/Bi Directional Selection

A Port 4

B Port 5

C Port 6

D Port 7

8P3. Power Uni/Bi Directional Selection

A Port 8

B Port 9

C Reserved

D Reserved

80. DC output Port 0

80F. Parameter Mapping

80L. Low-End Calibration

80H. High-End Calibration

81. DC output Port 1

81F. Parameter Mapping

81L. Low-End Calibration

81H. High-End Calibration

89. DC output Port 9

89F. Parameter Mapping

CHAPTER 15: PROGRAMMING QUICK REFERENCE

15–114 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 15: PROGRAMMING QUICK REFERENCE

89L. Low-End Calibration

89H. High-End Calibration

PROGRAMMING GROUPS

KEY DESIGNATIONS

MAX/MIN/LIMITS

⎯ Scroll Groups

⎯ Scroll Functions

VOLTS

AMPS

⎯ Scroll Packs

⎯ Enter/Exit Group

⎯ Enter/Exit

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 15–115

PROGRAMMING GROUPS CHAPTER 15: PROGRAMMING QUICK REFERENCE

15–116 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

GE Consumer & Industrial

Multilin

EPM 5300 Series Meters

Chapter 16: Ethernet Option

Ethernet Option

The EPM5350P, Meter with the Ethernet Option, has all the components of the standard

Meter PLUS the capability of connecting to multiple devices over Ethernet. The Meter face is the same as the EPM5300P (except for the model number).

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 16–117

ETHERNET MODULE CHAPTER 16: ETHERNET OPTION

16.1 Ethernet Module

The Ethernet connection is made with a small module added to the back of the meter. This small but powerful module has simply an RJ-45 Port and four Status LEDs.

ETHERNET

10 BASE T

RJ-45

MOD.#

SER.#

DG

LK

GREEN 1

RED 3

LED DETAIL

4 GREEN

2 YELLOW

See the Table below for a description of the Status LED functions.

LED

1

2

3

4

Description

Serial Port

(Channel) 1

Status

Serial Port

(Channel) 2

Status

Diagnostics

Network Link

Status

* Non-fatal error

LED Functions

Lights solid green to indicate Channel 1 is IDLE.

Blinks green to indicate Channel 1 is connected to the network and ACTIVE.

Lights solid yellow to indicate Channel 2 is IDLE.

Blinks yellow to indicate Channel 2 is connected to the network and ACTIVE.

(Not used by this device; reserved for future use)

Blinks or lights solid red in combination with the green (Channel 1) LED to indicate DIAGNOSTICS and

ERROR DETECTION.

Red solid, green (Channel 1) blinking:

1x: EPROM checksum error

2x: RAM error

3x: Network controller error

4x: EEPROM checksum error

5x: Duplicated IP address on network*

6x: Software does not match hardware*

Red blinking, green (Channel 1) blinking:

4x: Faulty network connection*

5x: No DCHP response received*

Lights solid green to indicate network port is connected to the network.

16–118 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 16: ETHERNET OPTION ETHERNET OPTION SETUP

Note

16.2 Ethernet Option Setup

This chapter covers the required steps to get the Ethernet Interface on-line and working.

There is only one method used to log into the Ethernet Server and set up the IP address:

• Network Port Login: make a Telnet connection to the network port (9999).

It is important to consider the following points before logging into and configuring the

Ethernet Interface:

• The Ethernet Interface’s IP address must be configured before a network connection is available.

• Only one person at a time may be logged into the network port. This eliminates the possibility of several people trying to configure the Ethernet Interface simultaneously.

16.2.1

Default IP Address

The Ethernet Interface ships with a default IP address set to 0.0.0.0, whish automatically enables DHCP within the Ethernet Interface.

Provided a DHCP server exists on the network, it will supply the Ethernet Interface with an

IP address, gateway address and subnet mask when the Ethernet Interface boots up. If not DHCP server exists, the Ethernet Interface will respond with a diagnostic error: the RED

Diagnostic LED blinks continuously and the GREEN Status LED blinks five times.

16.2.2 AutoIP

Auto IP allows an Ethernet Interface to obtain an address in a network that does not have a DHCP server. (Windows 98 and 2000 also support AutoIP.)

AutoIP assigns a random valid address to the Ethernet Interface in the range of 169.254.x.1 to 169.254.x.1 (x can be between 0 and 255). This range of IP addresses is not to be used over the Internet. If the Ethernet Interface has not been configured manually and cannot find a DHCP server, it automatically chooses an address from the reserved range. The

Ethernet Interface then uses the Address Resolution Protocol (ARP) to send out a request asking if any node is using that address. If another node is using the same address, the

Ethernet Interface assigns another IP address, reboots and repeats the sequence.

AutoIP-enabled Ethernet Interfaces are constantly looking for DHCP servers. If a DHCP server becomes available on the network, the AutoIP-enabled Ethernet Interface switches to the DHCP server-provided address and the unit reboots. If the DHCP server exists but denies the Ethernet Interface an IP address, the Ethernet Interface does not attach to the network, but waits and retries.

AutoIP allows a small network of AutoIP-enabled devices to be set up without any need for a DHCP server or static IP addresses.

AutoIP can be disabled be setting the IP address to 0.0.1.0. The 1 in the third octet is the disabling factor.

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 16–119

Note

ETHERNET OPTION SETUP CHAPTER 16: ETHERNET OPTION

16.2.3

Setting the IP Address

The Ethernet Interface’s IP address must be configured before a network connection is available. If the IP address was not set automatically via DHCP, set it now using a network and the setup (configuration) menu.

Network Port Login

The ARP method is available under UNIX and Windows-based systems. The Ethernet

Interface will set its address from the first directed TCP/IP packet it receives.

ARP on UNIX

On a Unix host, create an entry in the host’s ARP table using the intended IP address and the hardware address of the Ethernet Interface, which is found on the product label.

arp –s 191.12.3.77 00:20:4a:xx:xx:xx

ARP ON WINDOWS

In order for the ARP command to work on Windows, the RP table on the PC must have at least one IP address defined other than its own. If the ARP table is empty, the command will return an error message. Type ARP –A at the DOS command prompt to verify that there is at least one entry in the ARP table.

If the local machine is the only entry, ping another IP address on your network to build a new entry in the ARP table; the IP address must be a host other than the machine on which you are working. Once there is at least one additional entry in the ARP table, use the following command to ARP the IP address to the Ethernet Interface: arp –s 191.12.3.77 00-20-4a-xx-xx-xx

Telnet to Port 1

Now open a Telnet connection to Port 1. The connection will fail quickly (3 seconds). But the Ethernet Interface will temporarily change its IP address to the one designated in this step. telnet 191.12.3.77 1

Telnet to Port 9999

Finally, open a Telnet connection to port 9999 and set all required parameters.

telnet 191.12.3.77 9999

This IP address is temporary and will revert to the default value when the Ethernet

Interface’s power is reset, unless you log into the Ethernet Interface and store the changes permanently.

16.2.4 Network Configuration

Certain parameters must be configured before the Ethernet Interface can function on a network. The Ethernet Interface can be locally or remotely configured using the following procedures:

16–120 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL

CHAPTER 16: ETHERNET OPTION

Note

ETHERNET OPTION SETUP

Use a Telnet connection to configure the unit over the network. The Ethernet Interface’s configuration is stored in nonvolatile memory (NVRam) and is retained without power. The configuration can be changed at any time. The Ethernet Interface performs a reset after the configuration has been changed and stored.

As mentioned above, to configure the Ethernet Interface over the network, establish a

Telnet connection to port 9999. From the Windows Start menu, click Run and type the following command, where x.x.x.x is the IP address and 9999 is the Ethernet Interface’s fixed network configuration port number.

telnet x.x.x.x 9999

Be sure to include a space between the IP address and 9999.

16.2.5

Configuration Parameters

After entering Setup Mode (confirm by pressing Enter), you an configure the parameters by entering one of the numbers on the Change Setup Menu, or you can confirm default values by pressing Enter. Be sure to store new configurations when you are finished. The

Ethernet Interface will then perform a power reset.

Serial Number 5415404 MAC Address 00:20:4A:54:3C:2C

Software Version V01.2 (000719)

Press Enter to go into Setup Mode

1.

Network/IP Settings:

Ethernet Interface Autodetect

IP Address

Default Gateway

Netmask

2.

Serial & Mode Settings:

- 0.0.0.0/DHCP (Customer Configurable)

--- not set --- (Customer Configurable)

--- not set --- (Customer Configurable)

Protocol

Serial Interface

Modbus/RTU, Slave(s) attached (FIXED)

9600,8,N,1,RS232,DB25 (must match meter)

(FIXED)

3.

Modem Control Settings:

DCD Output

CTS Output

Fixed High/Active

Fixed High Active

4.

Advanced Modbus Protocol Settings:

Slave Addr/Unit Id Source

Modbus Serial Broadcasts

Modbus/TCP header (FIXED)

Disabled

Character, Message Timeout 00010 ms, 00500 ms

D) default settings, S) save, Q) quit without save; select command or parameter set (1..4) to change: I

EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL 16–121

ETHERNET OPTION SETUP CHAPTER 16: ETHERNET OPTION

Baud Rate

The Ethernet Interface and attached serial device (the meter) must agree on a speed or baud rate used for the serial connection. Valid baud rates are 1200, 2400, 4800 and 9600

(default). For the EPM 5350P, default settings are 9600 baud rate, 8 data, 1 stop, no

parity, Modbus RTU.

16–122 EPM 5300 SERIES ADVANCED POWER METERS – INSTRUCTION MANUAL
