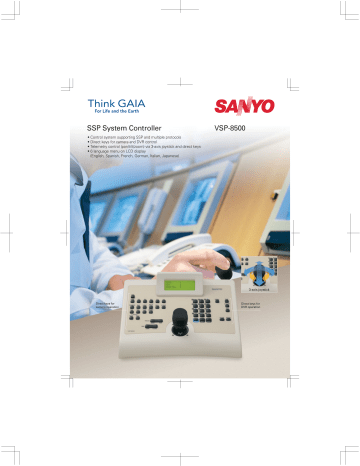

SSP System Controller
VSP-8500
• Control system supporting SSP and multiple protocols
• Direct keys for camera and DVR control
• Telemetry control (pan/tilt/zoom) via 3-axis joystick and direct keys
• 6 language menu on LCD display
(English, Spanish, French, German, Italian, Japanese)
3-axis joystick
Direct keys for
camera operation
Direct keys for
DVR operation
VSP-8500
Best solution for small-to-medium system for camera, DVR, and matrix control
Main Features
Specifications
• Centralized control of small-to-mediumscale system devices from a single
controller
The VSP-8500 controller enables centralized
control of up to 256 units in one system using SANYO’s Security Serial Protocol (SSP)
and other brand name protocols. The VSP8500 simplifies the operation of today’s increasingly complex small- to medium-scale
security systems.
• 4-line backlit menu display
Initial screen
• Realize enhanced effectiveness in your
security environment
The SSP control system forms a state-ofthe-art security environment that utilizes exControl system supporting SSP devices and
isting surveillance cameras and recording
multiple protocols
devices, all controlled via the multifuncCamera connection:
tional VSP-8500. A system linking cameras,
SANYO (SSP, HSSP), PELCO-D, SENSORMATIC,
and other elements to enable user-friendly,
A.D., VCL, ERNITEC, VIDEOTEC (MACRO),
fingertip control of up to 256 devices from a
M. MERCER (Max. 2 protocols within 1 system)
single controller. See SSP Compatible
DVR/Matrix switcher connection:
Devices below for information on the SPP
DVR: SANYO (SSP)
Matrix switcher:
product lineup.
VIDEOTEC (SM328S: 32 inputs & 8 outputs)
• Telemetry control using 3-axis joystick
(Pan/Tilt/Zoom) and direct keys for camera and DVR control
To control digital video recorders and cameras the VSP-8500 controller is equipped
with a 3-axis joystick. It also features camera operation buttons independently positioned on the left, and channel selection
and DVR operation buttons on the right.
The joystick and direct keys guarantee easy
operation from a remote location.
• 3 password levels
Power on password:
Set-up password:
Key lock password:
Rear panel
RS485 (RJ-11) Terminal
B Signal
A Signal
Power supply
connector
(12V DC)
RS-232C
Dip switch (SW)
Use this setting when
using this unit as a system
controller. (OFF)
These switches are used to
set each terminal setting
ON or OFF. (Terminal switch)
At power on
For entering the
controller menu
When key locking
Use this setting when
upgrading the system
on this unit using a PC. (ON)
Camera communication
terminal (TELEMETRY A/B)
Video communication
terminal (VIDEO)
RJ-11 connector (x 3):
Video line: DVR, matrix switcher
Telemetry line (A & B): Camera
VSP-8500
RS-485, RS232C (PC)
42 buttons, 3-axis joystick
4-line backlit display
2400, 4800, 9600, 19200 bps
RJ-11 terminals:
VIDEO x 1, TELEMETRY x 2
No. of connectable devices Total: 256 units in one system
• Controllers: Max. 5 units
• Hard disk digital recorders:
Max. 98 units total
• PTZ camera, CCD camera:
TELEMETRY A max. 127 units
TELEMETRY B max. 127 units
• Matrix switch
(Videotec SM328S): Max. 1 unit
Menu languages
English, Spanish, French, German,
Italian, Japanese
Operating conditions
Temperature: 5˚C to 40˚C
Humidity: 80% or less
Power source (AC adapter) Input voltage:
100 – 240 V AC 50/60Hz
Output voltage: 12 V DC
Dimensions
280 x 101 x 225 mm
[11.0” x 4.0” x 8.9”]
(w/ 3-axis proportional joystick)
Weight
900 g [1.98 lbs.]
Accessories
AC adapter/power cord x 3
• North America: 1
• Europe: 1
• Great Britain: 1
Modular cable x 6
(Cross type: 150 cm)
Communication conversion
connector (screw x 2, double-faced
tape x 1) x 6
Model No.
Communication method
Operating interface
LCD display
Communication speed
Control terminals
NOTE:
Appearance and specifications are subject to change without notice.
Dimensions
101 (4.0”)
[Unit: mm (inch)]
115 (4.5”)
SSP Compatible Devices
43 (1.7”)
4ch Digital Video Recorder
DSR-M810
DSR-M814
1/4" Color CCD High-resolution Vandal-resistant Dome Camera
1ch Digital Video Recorder
with VZU-COM300
DSR-300
VCC-ZM400
VDC-DP7584S / VDC-DP7584+VA-50ST
6ch Digital Video Recorder
1/4" Color CCD High-resolution
Weatherproof AF Zoom Camera
1/4" Color CCD High-resolution Weatherproof Zoom Camera
9ch Digital Video Recorder
VCC-XZ200+VA-20ST
16ch Digital Video Recorder
1/4" Color CCD High-resolution PT Indoor mini Dome Camera
16ch Digital Video Recorder
DSR-3706
DSR-3709
DSR-3716
DSR-5016
VCC-P9574
16ch MPEG-4 Hybrid
Digital Video Recorder
DSR-HB8000
VCC-ZM300A
1/4" Color CCD High-resolution
AF Zoom Camera
VCC-XZ400
1/4" Color CCD High-resolution
AF Speed Dome Camera
VCC-9500
VCC-9600
VCC-9700
VCC-9800
1ch Digital Video Recorder
1/4" Color CCD High-resolution Indoor mini Dome Camera
VCC-P7574S / VCC-P7574+VA-50ST
1/4" Color CCD High-resolution Vandal-resistant PT Dome Camera
VDC-DP9584
Matrix Switcher SM328S
225 (8.9”)
Recorders
Cameras
1/4" Color CCD High-resolution
AF Zoom Camera
280 (11.0”)
94 (3.7”)
(Videotec)
Caution: Please consult the instruction manual to ensure safe and proper operation of the product.
EC00J0303
051
DI Company of SANYO Electric Co., Ltd.
obtained Quality Management System
ISO 9001 and Environmental Management
System ISO 14001 certifications.
Distributed by:
SANYO Electric Co., Ltd.
DI Company
http://www.sanyosecurity.com
©2007 SANYO Printed in Japan 2007.5 MA
