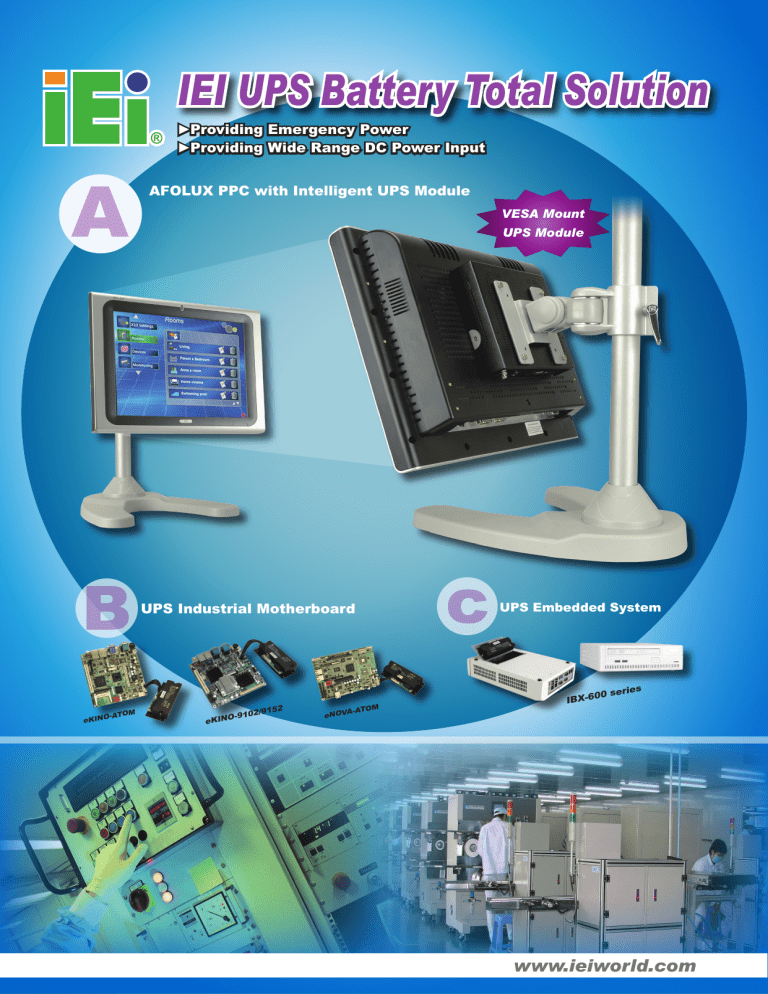

IEI UPS Battery Total Solution
IEI UPS Battery Total Solution
►Providing Emergency Power
►Providing Wide Range DC Power Input
A
B
AFOLUX PPC with Intelligent UPS Module
VESA Mount
UPS Module
UPS Industrial Motherboard
c
UPS Embedded System
ries
00 se
M
O-ATO
eKIN
2
2/915
O-910
eKIN
M
A-ATO
eNOV
IBX-6
www.ieiworld.com
AUPS Applications
power for certain period of time after a power fail has occurred.
IEI AUPS Sub-system Benefit: •• Provides
Continue to provide stable power to equipment during line sags & spikes.
• Absorb power surges & transients.
• Smooth out noisy power sources.
A.Power Bank Solution
AUPS modules act as power input regulator to prevent unstable power input damage and avoid protect against unexpected power loss.
B.Mobile System Solution
AUPS provides backup power for the data sensitive part of movable equipment, allowing charging and battery replacement of the
primary power without shutting down the data terminal.
C.Other Relative Applications
Production Line
Blue Screen
Power
Fail
With AUPS sub-system
The IEI Smart Battery is immediately enabled when
power failed, and provides stable power so the
operator can save important system parameter.
Without AUPS sub-system
System shuts down or hangs-up suddenly and all
data is lost because no backup power is available.
Other Fields:
Network Surveillance
Medical
UPS batter y solution-V1.0
ATM Machine
Portable Equipment
Point of Sale System
What is AUPS?
AUPS modules act as power input regulator to prevent unstable power input damage and avoid protect against unexpected power loss.
e
IEI complete UPS solution equipped with an AUPS
sub-system acts as a simple UPS system and provides
emergency power when the utility power is not available.
IEI motherboard with AUPS sub-system provides wide
range DC power input for regulator function to prevent
unstable power input damage, and avoid unexpectedly
power lost.
What is IEI Complete UPS Solution?
Economy
2. Efficiency
3. Easy Management
4. Emergency power backup
1.
1. Economy
Traditional UPS system is combined by expensive charger circuit, huge battery and many complicated cables.
+
OLD
Expensive charger board
+
=
Complicated cables
Huge battery
UPS
The IEI motherboard integrated with on-board battery charger circuit and a smart battery kit can act as a compact and
simple UPS system. It is the best choice for those who are looking for a highly reliable industrial system with UPS function.
=
+
NEW
• AUPS charger on board
• Wide range DC input
• Full function motherboard
AUPS Battery kits
Compact embedded
system with UPS function
2.Efficiency
AC
Power event
Traditional
UPS
Traditional UPS
70% Power
Efficiency
Power supply
80% efficiency
DC
Only 56% DC power input
DC
90~95% DC power input
AC Plug
IEI AUPS
Sub-system
IEI AUPS
Sub-system
DC in
DC
Power event
IEI on board
DC power module
UPS batter y solution-V1.0
3.Easy Management
Network Remote Management Anywhere
AUPS IP address
Network Remote Management Software
Battery Capacity Status
Power On/OFF
Email Status Report
UPS Status Monitoring
Remote control DC output ON/OFF via web interface.
Intelligent Softwrae Utility
The remote management software utility and application program allows users to easily get the status of the AUPS and to control the
AUPS power functions from anywhere with an Internet connection.
Click ALARM to get each AUPS
status via internet
• STATUS
• Send E-mail
• Board configuration
Network Remote Management Software
UPS batter y solution-V1.0
Battery Monitoring Utility
Monitor The Most Critical Battery Functions on the Local Machine
The battery monitoring utility allows AUPS status monitoring and provides the ability to change the settings
Uninterruptible Power Systems is a significant product that serves as emergency power when you suffer from electric event
DC Input Detection
Battery Status Detection
AUPS STATUS
• STATUS shows DC / Battery power input detection
Battery Type
Battery usage remaining time
Battery capacity bar
Real time information updating
BATTERY STATUS
• BAT.A shows Battery status real time monitoring
IEI smart battery software
• Battery detection
• Battery capacity status
• Battery charge
• DC Input Indicator
• Battery Indicator
• Temperature warning
• Low battery alarm
• Connection port status
LAN CONFIGURATION
DC Input
only
Normal
Icon
Charging
50%
Capacity
50%
Charging
100%
Capacity
100%
• LAN shows system IP Address information
Auto-Scan Connection port
Auto Shutdown
System shuts down condition by
battery capacity setting
SETTING
• SETTING shows Connection Detection port
In addition, the utility software
provide the following functions:
• Current Power source.
• Battery status.
• Charging status.
• Percentage remaining
ABOUT
• shows AUPS Utility information
Meanwhile, IEI also provides AUPS API SDK and command list for customer
programming under DOS or Linux system
AUPS API Content
AUPS API SDK
Inti()
AUPS Close()
WriteCommand()
ReadCommand()
Error Code Definition()
AUPS API SDK/Content
UPS batter y solution-V1.0
AUPS Battery Kits
Connection board
PN:13ZD337-00-101-RS
Connection cable
PN: 32100-186100-RS
Length 180mm
IEI AUPS Battery Kits includes:
Battery screw
PN:44003-030062-RS
M3*6 screw
PN: 44003-020101-RS
M2*10 screw
IEI provides two type AUPS
Battery kits for user to choose.
• Battery pack
Base board
Connection board screw
BAT-LI-2S2P3800 for BATKIT-2S2P3800-R10
Type1: BATKIT-2S2P3800-R10 (7.4V 3800mAH)
BAT-LI-4S2P3800 for BATKIT-4S2P3800-R10
Type2: BATKIT-4S2P3800-R10 (14.8V 3800mAH)
Base board
• Base board
41024-0125C2-00-RS for BATKIT-2S2P3800-R10
41024-0126C2-00-RS for BATKIT-4S2P3800-R10
• Connection board (PN:13ZD337-00-101-RS)
PN: 41024-0125C2-00-RS
• Connection cable (PN: 32100-186100-RS)
PN: 41024-0126C2-00-RS
• Battery screw (PN: 44003-020101-RS)
• Base board screw (PN:44003-030062-RS)
BAT-LI-4SP3800
BAT-LI-2SP3800
BATKIT-2S2P3800-R10
Battery Model Name
BATKIT-4S2P3800-R10
BAT-LI-2S2P3800
BAT-LI-4S2P3800
Li-Ion 2S2P 7.4V
Li-Ion 4S2P 14.8V
7.4V 3800mAH
14.8V, 3800mAH
Maximum charge voltage
8.4V
16.8V
The end of discharging voltage
5.6V
11.2V
Battery type
Battery capacity
Suggestive charging current (Max.)
System continuous discharging
current(Max)
The end of charge condition
2A
2A
7.6A
7.6A
250mA/1Minutes
200mA/1Minutes
Battery charge time ( Power off )
2.5hrs
5hrs
Battery charge time ( Power on )
6.5hrs
13hrs
Discharge protection
Under Voltage Protection / Over Current Protection
Charge protection
Over Voltage Protection / Over Current Protection
Ambient temperature
0°C~40°C
0°C~40°C
Storage temperature
-20°C~60°C
-20°C~60°C
Self-discharge rate
Dimensions
Weight
340uA~440uA
139mm(L) * 47mm(W)*26mm(H)
165mm(L) * 76mm(W)*26mm(H)
236g
450g
Cycle life
Backup
300 charge/discharge cycles
60W/10Minutes
Safety class
Used on
eNOVA-ATOM
eKINO-ATOM
eKINO-9102/9152
Note: Suggest to replace Battery Module every 2 years.
100W/10Minutes
CE,UL,TUV
UPS batter y solution-V1.0
eNOVA-ATOM
eKINO-ATOM
(DC input voltage should be over 18V)
UPS Industrial Motherboard
eKINO-9102/9152
Mini-ITX Motherboard with AUPS sub-system, Intel®
Pentium®M/ Celeron®M CPU, Wide range 9-28VDC input
DC-In 9~28V
IEEE1394a port with bracket to
8pin(1x8) connector
CF card
LVDS
Intel ®910GMLE
DDR2 400
Solder Side
PCIe Mini card
IEEE 1394a
DIO
2 x USB
Intel® ICH6M
Intel® Celeron
®M 1GHz
SATA
PCI-E 1x
KB/MS 5V power
IEEE 1394a
DC-In
COM 1/2
COM 3
VGA
Networking UPS
Management Port by RJ45
GbE
4 x USB2.0
19800-000103-RS
IEI AUPS sub-system Benefit:
● Provides power immediately and
maintains power for certain period
of time.
● Continues to provide stable power
to equipment and absorbs power
surges
● Smooth out noisy power sources. IEI motherboard with AUPS sub-system kits
BATKIT-2S2P3800-R10
BAT-LI-2S2P3800
2S2P 7.4V 3800mAH
Base board
Connection board
Connection cable
Audio
Specifications
Form Factor
Mini ITX
CPU
On board Intel® Celeron® M 1GHz with 512K L2 Cache CPU
Socket479 Intel® Pentium®M/ Celeron®M CPU with 400/533MHz FSB
System Chipset
Intel 910GMLE+ ICH6-M
Intel 915GME+ ICH6-M
BIOS
AMI BIOS
Memory
One 200-pin DDR2 400MHz SDRAM SO-DIMM supported (eKINO-9102 system max. 2GB)
One 200-pin DDR2 400/533MHz SDRAM SO-DIMM supported (eKINO-9152 system max. 2GB)
Ethernet
1 x RTL8111CP PCIe GbE LAN controller
Display Output
VGA Integrated in Intel ® 910GMLE/915GME
24-bits dual-channel LVDS by Intel® 910GMLE/915GME
Graphic
Intel® Graphics Media Accelerator 900
I/O Interfaces
6 x USB2.02 x SATA with 5V DC output
2x RS-232
1x RS-232/422/485
2 x IEEE1394a(1 port by Rear IO, 1 port by CN3)
1 x 6pin box header (2.0mm pitch) for KB/MS
Expansion
1x PCI
1x PCIe mini card
1 x PCIe x1
Digital I/O
8-bit digital I/O, 4-bit input/ 4-bit output
Super IO
ITE IT8718F
Audio
AC'97 with Realtek ALC655 codec
DC connector
2pcs 1x4pin 5V power connector (Major for 2.5" HDD used)
SSD
CompactFlash Type II
WDT
Software programmable supports 1~255 sec. system reset
Power Supply
Maximum input voltage range 9V~28V
Recommend operating input voltage range 12V~24V
1x external DIN 4pin DC jack
1x internal 2x2pin power connector
Power Consumption
[email protected](Intel® Celeron®M 1GHz with 2GB DDR2)
Temperature
Operation: 0°C ~ 40°C with AUPS sub-system
Operation: 0°C ~ 60°C without AUPS sub-system
Humidity
Operation: 5% ~95% non-condensing
Dimensions
170mm x 170mm
Weight
GW: 1100 g / NW: 400g
PCI-E
Features
1. Equipped AUPS sub-system as a simple UPS system
2. IBX600 Series Embedded System
3. Intel® Pentium®M and Celeron®M FSB400/533 MHz CPU
4. Single voltage wide range 9~28VDC input
5. Support DDR2 400/533MHz SO-DIMM Memory up to 2GB
6. Support PCI Express Mini Card
7. VGA, 24 bits LVDS for Dual Display output
8. CF Socket for SSD Storage Expansion
Packing List
1 x eKINO-9102/eKINO-9152 single board computer
1 x KB/MS Y cable (PN:32000-023800-RS)
1 x I/O shielding (P/N:45014-0024C0-00-RS )
1 x Dual USB cable(PN:32000-070301-RS)
2 x SATA 5V power output cable Kits (P/N:32000-123000-RS )
1 x Mini Jumper Pack
1 x Utility CD
1 x QIG (Quick Installation Guide)
Ordering Information
Part No.
CF-479B-RS
Description
Mini-ITX Motherboard with AUPS sub-system, Intel®
Celeron® M 1GHz 512K Cache CPU, 910GMLE, Wide
range 9-28VDC input
Mini-ITX Motherboard with AUPS sub-system, Intel®
Celeron® M 1GHz 512K Cache CPU, 910GMLE, Wide
range 9-28VDC input, CF Card
Mini-ITX Motherboard with AUPS sub-system, Intel®
Pentium®M/ Celeron®M CPU, 915GME, Wide range 928VDC input
Mini-ITX Motherboard with AUPS sub-system, Intel®
Pentium®M/ Celeron®M CPU, 915GME, Wide range 928VDC input, CF Card
Embedded system with UPS function, Intel® Celeron® M
1 GHz 512K cache CPU,910GMLE,1GB DDR2,802.11b/g
wireless, Li-ion Battery(2S2P), 9~28VDC in, 60W adaptor,
white, RoHS
CPU Cooler (50mm x 50mm x 26mm, 50W)
WMPCIE-V01-R10
PCIe Mini card wireless LAN Module
BAT-LI-2S2P3800
2S2P 7.4V 3800mAH SMART BATTERY
BATKIT-2S2P3800-R10
2S2P 7.4V 3800mAH AUPS BATTERY KIT
19800-000103-RS
Single port IEEE1394a Cable
63000-FSP0601AD101C746-RS
60W/12V Power Adaptor 90VAC~260VA, DIN 4 PIN
SAIDE-KIT01-R10
SATA to IDE/CF Converter board
eKINO-9102-1G512-R10
eKINO-9102CF-1G512-R10
eKINO-9152-R10
eKINO-9152CF-R10
IBX-600-9102UPS-R10/CM373/1GB
UPS batter y solution-V1.0
eKINO-ATOM
DIO
Intel® 945GSE
Mini-ITX SBC with AUPS sub-system, Intel® Atom™ N270 1.6GHz,
Wide range 9-28VDC input, VGA/DVI/TV
Network AUPS
Management Port
COM1/2
VGA
Dual GbE
5V output
COM3~4
KB/MS
DC-In
Intel® Atom™
Processor
HDTV
PCI-E
2x SATA
PCIe Mini card
IDE
2 x USB
LVDS
BATKIT-2S2P3800-R10
BAT-LI-2S2P3800
2S2P 7.4V 3800mAH
Base board
Connection board
Connection cable
Intel® ICH7M
Specifications
Form Factor
Mini ITX
CPU
Intel® Atom™ Processor N270 1.6GHz with
533MHz FSB 512K L2 Cache
System Chipset
Intel® 945GSE + Intel® ICH7M
BIOS
AMI BIOS
Memory
One 200-pin 400/533 DDR2 SDRAM SO-DIMM supported
(system max. 2GB)
Ethernet
Dual Realtek PCIe 8111CP GbE Controller
I/O Interface
6 x USB2.0
3 x RS-232
1 x IDE
2 x SATA with 5V DC output
1 x RS-232/422/485
1 x 6pin header for KB/MS
Graphic
On Intel® Graphics Media Accelerator 950 (Intel® GMA 950)
Display Output
VGA integrated in Intel® 945GSE
Support HDTV resolution up to 1080i by component interface
18-bits dual-channel LVDS by Intel® 945GSE
DVI-D support by Silicon image Sil1362
Expansion
1x PCI
1x PCIe mini card
DC connector
2pcs 1x4pin 5V power connector (Major for 2.5" HDD used)
Digital I/O
8-bits digital I/O, 4-bits input/ 4-bits output
Infrared Interface
1x 5pin pin header
SSD
1 x CF Type II
Super IO
ITE IT8718F
Audio
Realtek ALC655 AC'97 Codec
WDT
Software programmable supports 1~255 sec. system reset
Power Supply
Maximum input voltage range 9V~28V
Recommend operating input voltage range 12V~24V
1x external DIN 4pin DC jack
1x internal 2x2pin power connector
Power Consumption
[email protected] (Intel Atom N270 with 1GB DDR2)
Temperature
Operation: 0°C ~ 40°C with AUPS sub-system
Operation: 0°C ~ 60°C without AUPS sub-system
Humidity
Operation: 5% ~95% non-condensing
Dimensions
170mm x 170mm
Weight
GW: 1100g / NW: 400 g
4x USB2.0 Audio
DVI
UPS batter y solution-V1.0
BATKIT-4S2P3800-R10
BAT-LI-4S2P3800
Base board
4S2P 14.8V 3800mAH
Connection board
Connection cable
(DC input voltage should be over 18V)
Features
1. Intel® Atom™ N270 1.6GHz for ultra low voltage fan-less support
2. Wide range 9-28V DC input
3. Equipped with AUPS sub-system acts as a simple UPS system
4. Dual-display supported by VGA + DVI-D, LVDS + VGA, LVDS + DVI-D
5. IBX 600 Embedded System
6. Support 6 x USB2.0, 2 x SATA, 4x COM
Packing List
1 x eKINO-ATOM single board computer
1 x Dual RS-232 cable (P/N: 32200-028401-RS)
2 x SATA 5V power output Cable Kit (P/N: 32000-106100-RS)
1 x I/O shielding (P/N: 45014-0023C0-00-RS)
1 x KB/MS Y cable (PN:32000-023800-RS)
1 x Mini Jumper Pack
1 x Utility CD
1 x QIG (Quick Installation Guide)
Ordering Information
Part No.
WMPCIE-V01-R10
Description
Mini-ITX SBC with AUPS sub-system, Intel®
Atom™ N270 1.6GHz, Wide range 9-28VDC
input, VGA/DVI/TV
Dual USB cable
HDTV Cable Set with S-Video, Composite and
Component Interfaces
PCIe Mini card wireless LAN Module
BATKIT-2S2P3800-R10
2S2P 7.4V 3800mAH AUPS BATTERY KIT
BAT-LI-2S2P3800
2S2P 7.4V 3800mAH SMART BATTERY
BATKIT-4S2P3800-R10
4S2P 14.8V 3800mAH AUPS BATTERY KIT
BAT-LI-4S2P3800
63000FSP0601AD101C746-RS
32200-000009-RS
4S2P 14.8V 3800mAH SMART BATTERY
60W/12V Power Adaptor 90VAC~260VA, DIN
4 PIN
44pin 2.5" IDE cable
eKINO-ATOM-N270-R10
CB-USB02-RS
HDTVCABLESET-01
eNOVA-ATOM
5.25" SBC with AUPS sub-system, Intel® Atom™ N270 1.6GHz,
Wide range 9-28VDC input, Dual PCIe Mini card
DDR2 533
Network UPS Management DIO COM1~4
Port by RJ45
CF Type II
IDE
5V output
Intel® Atom™
Processor
PCI-E
BATKIT-2S2P3800-R10
Dual PCIe
Mini card
Intel® 945GSE
Base board
BAT-LI-2S2P3800
2S2P 7.4V 3800mAH
Connection board
Connection cable
6x USB2.0
LVDS
KB/MS
CRT
HDTV
Intel®
ICH7M
Audio
BATKIT-4S2P3800-R10
Specifications
CPU
Intel® Atom™ Processor N270 1.6GHz with 533MHz FSB 512K L2 Cache
System Chipset
Intel® 945GSE / Intel® ICH7M
BIOS
AMI BIOS
Memory
One 200-pin 400/533 DDR2 SDRAM SO-DIMM supported (system max. 2GB)
Ethernet
Dual Realtek PCIe 8111CP GbE Controller
Graphic
On Intel® Graphics Media Accelerator 950 (Intel® GMA 950)
I/O Interface
3 x RS-232
1 x RS-232/422/485
6 x USB2.0
1 x LPT
2 x SATA with 5V DC output
1 x IDE
1 x 6pin header for KB/MS
Expansion 1 x PC/104+ (ISA+PCI bus)
2 x PCIe mini card
DC connector
2pcs 1x2pin 5V power connector (Major for 2.5" HDD used)
Digital I/O
8-bit digital I/O (4-bit input, 4-bit output)
Infrared Interface
1x 5pin pin header
Super IO
ITE8718F
Display Output Analog CRT Support for CRT Hot plug
Support HDTV by component interface
18-bit dual-channel LVDS Support up to UXGA (1600x 1200)
Audio
AC'97 ALC655 codec
SSD
CF Type II
TPM
1x 20pin pin header
WDT
Software programmable supports 1~255 sec. system reset
Power Supply
Maximum input voltage range 9V~28V
Recommend operating input voltage range 12V~24V
1x internal 2x2pin power connector
Power Consumption
[email protected] (Intel Atom N270 with 1GB DDR2)
Temperature
Operation: 0°C ~ 40°C with AUPS sub-system
Operation: 0°C ~ 60°C without AUPS sub-system
Humidity
Operation: 5% ~ 95%, non-condensing
Dimension
203mm x 146mm
Weight
GW:1000g, NW:400g
BAT-LI-4S2P3800
Base board
4S2P 14.8V 3800mAH
Connection board
Connection cable
(DC input voltage should be over 18V)
Features
1.Intel® Atom™ N270 1.6GHz for ultra low voltage fan-less support
2.Equipped with AUPS sub-system acts as a simple UPS system
3.Support Dual PCIe mini Card for expansion
4.Wide range 9-28V DC input
5.Support LVDS, TV-out, VGA display output
6.CF socket for storage expansion 7.TPM support
Packing List
1 x eNOVA-ATOM Single Board Computer
1 x VGA cable (P/N: 32000-033804-RS)
1 x KB/MS Y cable (P/N: 32000-023800-RS)
1 x Audio cable (P/N: 32000-072100-RS)
4 x RS-232 cable (PN: 32200-000049-RS)
2 x SATA 5V power output Cable Kit (PN:32000-114000-RS)
1 x USB cable (PN:32000-070301-RS)
1 x Mini Jumper Pack
1 x Utility CD
1 x QIG
Ordering Information
Part No.
Description
eNOVA-ATOM-N270-R10
HDTVCABLESET-01
5.25" SBC with AUPS sub-system, Intel® Atom™ N270
1.6GHz, Wide range 9-28VDC input, Dual PCIe Mini
HDTV Cable Set with S-Video, Composite and Component
Interfaces
32100-088600-RS
SATA Power cable
32200-015100-RS
LPT cable
WMPCIE-V01-R10
802.11b+g PCIe mini card wireless LAN module with Atheros
WMUSB-V01-R10
802.11b+g USB embedded module with VIA
TPM-WI01-R10
20-pin WINBOND TPM Module, S/W management Tool
TPM-IN01-R10
20-pin INFINEON TPM Module, S/W management Tool
BATKIT-2S2P3800-R10
2S2P 7.4V 3800mAH AUPS BATTERY KIT
BAT-LI-2S2P3800
2S2P 7.4V 3800mAH SMART BATTERY
BATKIT-4S2P3800-R10
4S2P 16.8V 3800mAH AUPS BATTERY KIT
BAT-LI-4S2P3800
4S2P 14.8V 3800mAH SMART BATTERY
UPS batter y solution-V1.0
UPS Embedded System
IBX-600-ATOM
Mini ITX Intel® Atom™ Solution with AUPS sub-system
Battery Support
Features
1. Intel® Atom™ N270 1.6GHz Mini ITX solution
2. Supports Slim ODD, 2.5” hard drive
3. UPS function by Li-ion battery with easy assembly design
4. Built-in 802.11b/g wireless with PIFA antenna
IEI Smart Battery Monitoring Software.
Can support remote monitoring from RJ-45.
5. 12 VDC ~ 24 VDC wide range input
Specifications
IBX-600-ATOM
Model
IBX-600-ATOMUPS
SBC
eKINO-ATOM
Processor
Intel® AtomTM N270 1.6GHz with 533 FSB
Chipset
Intel® 945GSE + Intel® 82801GBM/ICH7M
System Memory
200-pin 1GB DDR2 SDRAM SO-DIMM
Ethernet
Dual Realtek RTL8111CP GbE controllers
Wireless
built in 802.11b/g wireless, PCIe mini card form factor with USB interface
VGA interface intergrated in 945GSE
DVI -D support by Silicon Image Sil1362
6 x USB 2.0
Display
USB
Serial Port
2x RS-232
Audio
1 x mic in , 1 x speaker out
Storage
Power Input
UPS Function
N/A
1 x slim type ODD, 1 x 2.5” SATA HDD
12 VDC ~ 24 VDC in with 4 pin DC power DIN connector
Ship with 60W power adaptor
7.4V 2S2P 3800mAH Li-Ion smart battery
Chassis Construction
Heavy duty metal with plastic front panel
Operating Temperature
0°C~45°C
Operating shock
0°C~40°C
Half-sine wave shock 3G; 11ms; 3 shocks per axis
MIL-STD-810F 514.5C-1 (HDD)
MIL-STD-810F 514.5C-2 (CompactFlash)
Operating Vibration
Weight (Net/Gross)
2.1 kg / 3.9 kg
Dimensions (DxWxH)
2.8kg / 4.6kg
306.8mm x 209.8mm x 65mm
Mounting
Desktop, wall mount
EMC/Safety
CE, FCC class A
Packing List
1 x QIG
1 x screw set with mini jumper
1 x wall mount kit
1 x power adaptor
1 x power cord
1 x SATA CD-ROM cable
1 x driver & manual CD
4 x foot pad
10
Ordering Information
Part No.
Description
IBX-600-ATOM-R10/N270/1GB
Embedded system, Intel N270 1.6GHz CPU, Intel 945GSE, built in
1GB DDR2 memory, built-in 802.11b/g wireless, 12~24VDC in, with
60W adaptor, white, RoHS
IBX-600-ATOMUPS-R10/N270/1GB
Embedded system with UPS function, Intel N270 1.6GHz CPU,
Intel 945GSE, built in 1GB DDR2 memory, built-in 802.11b/g
wireless, Li-ion Battery(2S2P); 7.4V;3800mAh, 12~24VDC in, with
60W adaptor, white, RoHS
UPS batter y solution-V1.0
IBX-600-9102
Mini ITX Intel® Celeron® M Solution with AUPS sub-system Support
Features
1. Intel® Celeron® M 1.0GHz Mini ITX solution
2. Supports Slim ODD, 2.5” hard drive and CompactFlash and CompactFlash
3. UPS function by Li-ion battery with easy assembly design
4. Built-in 802.11b/g wireless with PIFA antenna
IEI Smart Battery Monitoring Software.
Can support remote monitoring from RJ-45.
5. 12 VDC ~ 24 VDC wide range input
Specifications
Model
IBX-600-9102
IBX-600-9102UPS
SBC
eKINO-9102
Processor
Intel® Celeron® M 1GHz 512K cache with 400 MHz FSB
Chipset
Intel® 910GMLE + Intel® ICH6M
System Memory
200-pin 1GB DDR2 SDRAM SO-DIMM
Ethernet
Realtek RTL8111CP GbE controllers
Wireless
built in 802.11b/g wireless, PCIe mini card form factor with USB interface
Display
VGA interface intergrated in 910GMLE
USB
6 x USB 2.0
Firewire
1 x IEEE 1394
Serial Port
3x RS-232
Audio
1 x mic in , 1 x speaker out
Storage
Power Input
UPS Function
N/A
1 x slim type ODD, 1 x 2.5” SATA HDD, 1 x CompactFlash slot
12 VDC ~ 24 VDC in with 4 pin DC power DIN connector
Ship with 60W power adaptor
7.4V 2S2P 3800mAH Li-Ion smart battery
Chassis Construction
Operating Temperature
Heavy duty metal with plastic front panel
0°C~45°C
Operating shock
Operating Vibration
Weight (Net/Gross)
0°C~40°C
Half-sine wave shock 3G; 11ms; 3 shocks per axis
MIL-STD-810F 514.5C-1 (HDD)
MIL-STD-810F 514.5C-2 (CompactFlash)
2.1 kg / 3.9 kg
Dimensions (DxWxH)
2.8kg / 4.6kg
306.8mm x 209.8mm x 65mm
Mounting
Desktop, wall mount
EMC/Safety
Packing List
1 x QIG
1 x screw set with mini jumper
1 x wall mount kit
1 x power adaptor
1 x power cord
1 x SATA CD-ROM cable
1 x driver & manual CD
4 x foot pad
CE, FCC class A
Ordering Information
Part No.
Description
IBX-600-9102-R10/CM373/1GB
Embedded system, Intel Celeron M 1 GHz 512K cache CPU, Intel
910GMLE, built in 1GB DDR2 memory, built-in 802.11b/g wireless,
12~24VDC in, with 60W adaptor, white, RoHS
IBX-600-9102UPS-R10/CM373/1GB
Embedded system with UPS function, Intel Celeron M 1 GHz
512K cache CPU, Intel 910GMLE, built in 1GB DDR2 memory,
built-in 802.11b/g wireless, Li-ion Battery(2S2P); 7.4V;3800mAh,
12~24VDC in, with 60W adaptor, white, RoHS
UPS batter y solution-V1.0
11
Panel PC with Intelligent UPS Module
Intelligent UPS Module
High Energy Density / Lightweight / Compact DC to DC UPS & Power Module
Protect your panel PC from electrical damage and greatly reduce the risk of losing data.
The UPS module serves as temporary power during a short break in power and allows a safe system shutdown for longer periods of power loss.
D. Networking UPS Management
Port by RJ-45 Ethernet
1.DC 9V~36V input by terminal block
(Only AUPS-A20 / AUPS-B20)
A. Dual Power Input Connector
B. Battery Status USB Console Port
2. (1) Only 12V input by DC jack
(AUPS-A10 / AUPS-B10)
(2) Wide 9V~36V input by DC jack
(AUPS-A20 / AUPS-B20)
Features
• 60W (5A @ 12V) or 100W (8.3A @ 12V) output
• 28Wh or 56Wh, for more than 140 minutes operation time
(dependent on panel PC power requirements)
• Rugged metal enclosure for standard VESA 75/100 mounting
• Web-based, remote network management, no software installation required
• Local PC-based monitoring software for input detection and battery status monitoring
• Auto shut down when battery low
• Remote DC output ON/OFF switch for external switch installation
• Provides stable power to the PC during line sags and spikes and absorbs power surges
and transients, protecting expensive equipment
Dimension
Battery Capacity
Output Power
AUPS-A10-R10
AUPS-A20-R10
AUPS-A10-R10
12V
AUPS-A20-R10
9~36V
150x95x34mm
28 Wh (Watt/H our)
60W ([email protected])
VESA Support
75x75 mm
Model Name
Input Power
AUPS-B10-R10
AUPS-B20-R10
AUPS-B10-R10
12V
AUPS-B20-R10
9~36V
170x150x34mm
56 Wh (Watt/Hour)
100W ([email protected])
75 x 75 mm
100 x 100 mm
C.DC Power button
DC Remote Power button
LED Signal Table
Color
Function
Dark
Light
Blinking
LED 1
Green
Power Input
DC Power Out
DC Power In
LED 2
Yellow
Charger Status
Discharging
Charging
LED 3
Orange
Battery Status
Battery Full
Battery Low
Applications
Provide standard VESA mounting to fit in all kind of situations in any application. The fanless embedded system, IBX-530-ATOM which
only consumes 15 watts, applied with the AUPS-A20-R10 offers reliable wide range DC input, economical power protection and more
than 140 minutes operation time
Embedded System
IBX-530-ATOM
VESA 75/100
Compliance
+
AUPS-A20-R10
12
UPS batter y solution-V1.0
AUPS module Spec
Model Name
VESA Type
Input voltage Uinated/range
AUPS-A10
AUPS-A20
AUPS-B10
AUPS-B20
VESA 75
VESA 75
VESA 75 and 100
VESA 75 and 100
DC +12V
DC +9V~+36V
DC +12V
DC +9V~+36V
1. Adapter is 12V--6A (Load is 60W)
1. Adapter is 12V--9A (Load is 100W)
2. Battery is 6V--12A (Load is 60W)
2. Battery is 12V--9A (Load is 100W)
0.3A (0.2A if Network Management disabled)
500mA
6W
10W
8hrs / 2hrs (Battery empty)
DC +12V +/-5%
6~8.4V DC6 V (exhaustive discharge protection)
12~16.8V DC12 V (exhaustive discharge protection)
0A~5A
0A~8.3A
Input current rated
Input Data
Output Data
Protection
Monitoring
Standby power consumption
Operation with charging current
Operation with charging power consumption
Charging time with system ON/OFF
Output voltage for normal operation
Output voltage for battery operation, approx.
output current
Efficiency(nominal operation)/power lossat
Vin=12V, Iout=80% of full loading
short-circuit protection
89%
93%
95%
94%
Yes
1.Battery low is 10% of Battery capacity
2.Shuntdown 5% of Battery capacity (Default)
3.The end of Battery discharge voltage is 6V
UL, TUV. CE, FCC
Web-based, specification 10/100Mbps with RJ-45 connection, Cat. 5 cable
PC-capable, specification 2.0 with full speed, i.e. 2 Mbit/s. Standard 4-core shielded cable, USB Series "mini B"
connector to DC-UPS
152mm(L) * 96mm(W)*28mm(H)
174mm(L) * 147mm(W)*35mm(H)
1.2kg
1.8kg
DC power input
Battery charging
Bettery discharging
0°C~40°C
-20°C~50°C
Exhaustive discharge protection
EMC / Safety certification
Ethernet interface
USB interface
Dimensions
Weight
Green
LED Indicator Yellow
Orange
Operating Tem.
Environment
Storage Tem.
Physical
Note1: Suggest to connect DC input constantly. Battery will be drained after 14 hours.
Note2: System power consumption + AUPS charging power consumption = Total watts of power source
Battery Module spec
Model Name
AUPS-A10
Battery Model Name
AUPS-A20
BAT-LI-2S2P3800
battery type
Battery capacity
Maximum charge voltage
The end of discharging voltage
Suggestive charging current (Max.)
System continuous discharging current(Max)
The end of charge condition
Discharge protection
Battery Charge protection
Ambient temp
Storage Tem
Self-discharge rate
Dimensions
Weight
Cycle life
Backup
Safety class
Note: Suggest to replace Battery Module every 2 years.
AUPS-B10
AUPS-B20
BAT-LI-4S2P3800
Li-Ion 2S2P 7.4V
Li-Ion 4S2P 14.8V
7.4V 3800mAH
14.8V, 3800mAH
8.4V
16.8V
5.6V
11.2V
2A
2A
7.6A
7.6A
250mA/1Min
200mA/1Min
Under Voltage Protection / Over Current Protection
Over Voltage Protection / Over Current Protection
0°C~40°C
0°C~40°C
-20°C~60°C
-20°C~60°C
340uA~440uA
139mm(L) * 47mm(W)*26mm(H)
165mm(L) * 76mm(W)*26mm(H)
236g
450g
300 charge/discharge cycles
60W/10Min
100W/10Min
CE,UL,TUV
Selection table for UPS modules and mains buffering time
AFOLUX PPC
AUPS-A10
AUPS-A20
AUPS-B10
AUPS-B20
Under 50W solution
AFL-057-LX (15W~20W)
145min
145min
290min
290min
AFL-07A-ATOM (20W~25W)
100min
100min
200min
200min
AFL-08AH-ATOM (25W~30W)
70min
70min
140min
140min
AFL-10A-ATOM (25~30W)
70min
70min
140min
140min
AFL-10A-9103 (40W~45W)
50min
50min
100min
100min
AFL-10A-LX (25W~30W)
70min
70min
140min
140min
AFL-12A-LX (25W~30W)
70min
70min
140min
140min
AFL-12B-CX2 (38W~42W)
50min
50min
100min
100min
AFL-12A-ATOM (25W~30W)
70min
70min
140min
140min
AFL-12B-9103 (45W~48W)
45min
45min
90min
90min
50W ~ 100W solution
AFL-15B-915-CM370 (58W~63W)
-
-
35min
35min
AFL-15C-9652-T7500 (65W~70W)
-
-
30min
30min
AFL-17B-915-CM370 (75W~80W)
-
-
25min
25min
AFL-17C-9652-T7500 (85W~90W)
-
-
20min
20min
AFL-19B-915-CM370 (75W~80W)
-
-
25min
25min
AFL-19C-9652-T7500 (85W~90W)
-
-
20min
20min
BAT-LI-2S2P3800
BAT-LI-4S2P3800
Note: The backup time could be varied on different models or operating temperature.
UPS batter y solution-V1.0
13
AFOLUX All-in-One VESA Mount Panel PC
Small Size
5.6”~7” Compact All-in-One Touch Panel PC
Fanless small size AFOLUX Panel PC is specially focused on interactive control device. Particularly through x86 PC base architecture provides quick developing application software,
time to market, and highly compatible to all kind of OS benefits. User can easily choose.
AFL-056A
AFL-057A
AFL-07A
Applications:
►Door Access Control System
►Car PC
►Home Automation
►Building Control Terminal
5.6” QVGA
5.7” VGA
• QVGA Touch Panel PC
• Fanless Design
Medium Size
7” WVGA
• VGA higher resolution offers more detail
• LED-backlight delivers better image and power
efficiency \Fanless Design
• 16:10 wide screen for better
viewing
8.4”~12.1” Medium All-in-One Touch Panel PC
Middle size AFL Panel PC is specially focused on human and graphic interface control device. From embedded processor to dual core platform, IEI provides various performance level
for different applications and solutions.
AFL-08A
AFL-10A
Light Industrial IP 64 PPCs
AFL-12A
Applications:
►HMI (Human Machine Interface)
►MES
►POS System
►Shop-flow
►Factory Automation
►Parking System
8.4” SVGA
►ATM Machine
10.4” SVGA
• 450 nits high brightness
• Fanless Design
Large Size
12.1” XGA
• Fanless Design
• XGA (1024 x 768) High Resolution
• Fanless Design
• 12.1” Fanless POS System Available
15”~19” Large Size All-in-One Touch Panel PC
Big size AFL Panel PC is specially focused on information display and broadcast devices. With many value added accessories, IEI big size AFL panel PC could be easily applied to
dedicated applications such as POS, KIOSK, and digital signage solutions.
AFL-15A
AFL-19A
AFL-17A
Applications:
►Digital Signage
►Surveillance
►KIOSK
►Gaming
►Vending Machine Control System
►Bus Stop Information Center
15” XGA
17” SXGA
• Intel, AMD and VIA complete platform support
• Fanless POS System Available
• Super expansion capability KIOSK System Available
19” SXGA
• Super expansion capability KIOSK
System Available
• 19" large screen for better viewing
Widescreen
Small Size
Performance Level
Platform
AMD LX800
5.7"
W7"
Industrial
Solution
Industrial
Solution
Industrial
Solution
AFL056A-LX
AFL-057AAFL-07A-LX
LX
VIA CX700M
AFL-07ACX2
Embedded Computing
Single CoreComputing
Medium Size
5.6"
Intel 945GSE
AFL-057A- AFL-07AATOM-R10 ATOM-R10
Intel 915GME /
910GMLE
8.4"
Industrial
Solution
In-wall
application
RFID solution
AFL-08AH-LX
AFL-08AHCX2
ACT-08A-CX2
AFL-08AHATOM-R10
AFL-408AATOM-R10
ACT-08AATOM-R10
AFL-08BATOM-R10
AFL-408BATOM-R10
ACT-08BATOM-R10
ACT-08A-9103
10.2"
10.4"
In-wall
application
Industrial
Solution
Industrial
Solution
AFL-10A-LX
AFL-12A-LX
AFL-10A-CX
AFL-12B-CX
AFL-10A-CX2
AFL-12B-CX2
AFL-W410A- AFL-10AATOM-R10 ATOM-R10
12.1"
AFL-12AATOM-R10
AFL-10A-9103 AFL-12B-9103
In-wall
application
15"
POS
Industrial Solution
application
AFL-12BLXPOS
AFL-15A-CX
AFL-412AATOM-R10
AFL-15AATOM-R10
AFL-15A-915-R11
AFL-15B-915-R11
AFL-315A945-R11
Intel 945G
Intel GME965
Dual CoreComputing
AFL-15C-9652
Intel GM45
AMD 690E
14
KIOSK
application
UPS batter y solution-V1.0
AFL-15B-AM2
3-series KIOSK Panel PC
Feature:
AFL-315A
►15” and 17” TFT LCD with resistive touch screen
►Sophisticated high reflection surface with black or white color
►Multiple functions and connectors built in the one unit system fits all self service solutions
and not only decreases maintenance time but also saves the space considerably
►Versatile mounting solutions and back IO design allows installed in minutes
4-series In-wall Panel PC
Feature:
AFL-4xxA
►7”~15” fanless system with resistive touch screen
►Changeable face plate sticker available to match diverse decoration styles
►In-wall mounting allows easy installation in minutes
Removable
Face Plate
5-series Fanless Dual Core Panel PC
AFL-517A
Feature:
►17” TFT LCD with Intel GM45 chipset and 45nm mobile Core 2 Duo processor support
►High performance fanless with optical drive design
AFL-26A
Feature:
►42” 1366 x 768 HD large screen with anti-reflection tempered glass protection
►WiFi 802.11b/g/n connection
►Built-in Bluetooth technology rids systems of cables and allows wireless connection
to peripheral devices
AFL-642A
RFID Panel PC
Feature:
ACT-08A
►8.4” SVGA intelligent access control terminal
►Integrated RFID reader in front of the panel for MIFARE 13.56 MHz or EM 125 KHz RFID tag
►Built-in 300K pixel camera and digital microphone
►WiFi 802.11 b/g connection
►Bluetooth Connectivity
Widescreen
Widescreen
Large Size
W15"
In-wall
application
POS application
Industrial
Solution
Vertical Market PPCs
6-series Large Screen Panel PC
TV Size
17"
Industrial Solution
KIOSK
application
19"
Fanless dual
cores
Industrial Solution
Fanless dual cores
W19"
26"
42"
65"
Industrial Solution
Industrial Solution
Large size solution
Large size solution
AFL-26A-965-R10
AFL-642A-965-R10
AFL-15A-LXPOS
AFL-17A-CX
AFL-415AATOM-R10
AFL-415AEATOM-R10
AFL-W15AATOM-R10
AFL-19A-CX
AFL-W19A-ATOM-R10
AFL-17D-ATOM-R10
AFL-W19B-ATOM-R10
AFL-17A-915-R11
AAFL-19A-915-R11
AFL-17B-915-R11
AFL-19B-915-R11
AFL-317A945-R11
AFL-17C-9652
AFL-17D-GM45-R10
AFL-17B-AM2
AFL-19C-9652
AFL-517AGM45-R10
AFL-519A-GM45-R10
AFL-19B-AM2
AFL-W19A-GM45-R10
AFL-665A-GM45-R10
AFL-W19B-GM45-R10
AFL-26A-AM2-R10 AFL-642A-AM2-R10
UPS batter y solution-V1.0
15
eKINO-9102/9152
eKINO-ATOM
eNOVA-ATOM
IBX-600 Series
AFOLUX PPC Series
AUPS Series
Headquarters
威強工業電腦股份有限公司 IEI Technology Corp.
America
IEI Technology USA Corp.
No. 29, Jhongsing Rd.,Sijhih City,Taipei County, 221, Taiwan
TEL : +886-2-86916798 FAX : +886-2-66160028
[email protected] www.ieiworld.com
168 University Parkway, Pomona, CA 91768
TEL : +1-909-595-2819 FAX : +1-909-595-2816
[email protected]usa.ieiworld.com www.usa.ieiworld.com
China
威強工業電腦 IEI Technology (Shanghai) Co., Ltd.
上海市閔行區宜山路 1728 號 3 樓.
3F No. 1728 Yi-Shan Road, Min-Hang, ShangHai, China
TEL : +86-21-3462-7799 FAX : +86-21-3462-7798,3462-7797
[email protected] www.ieiworld.com.cn
2008.11
2008.06
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
