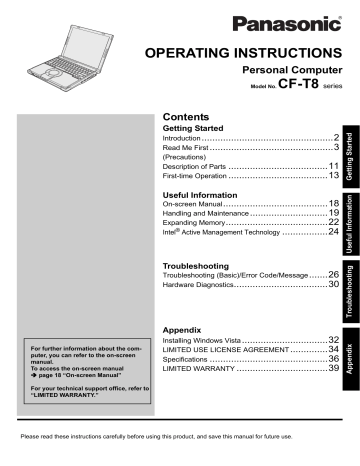

operating instructions

operating instructions

OPERATING INSTRUCTIONS

Personal Computer

Model No.

CF-T8

series

Contents

Getting Started

Introduction

.................................................2

Read Me First

..............................................3

(Precautions)

Description of Parts

First-time Operation

.....................................11

.....................................13

Useful Information

On-screen Manual

.......................................18

Handling and Maintenance

Expanding Memory

.............................19

......................................22

Intel

®

Active Management Technology

.................24

Troubleshooting

Troubleshooting (Basic)/Error Code/Message

Hardware Diagnostics

.......26

...................................30

For further information about the computer, you can refer to the on-screen manual.

To access the on-screen manual page 18 “On-screen Manual”

For your technical support office, refer to

“LIMITED WARRANTY.”

Appendix

Installing Windows Vista

Specifications

LIMITED WARRANTY

................................32

LIMITED USE LICENSE AGREEMENT

..............34

............................................36

..................................39

Please read these instructions carefully before using this product, and save this manual for future use.

2

Introduction

Thank you for purchasing the Panasonic product. For optimum performance and safety, please read these instructions carefully.

„

Terms and illustrations in these instructions

CAUTION

NOTE

:

: Conditions that may result in minor or moderate injury.

Useful and helpful information.

Enter :

Fn + F5 :

Press [Enter] key.

Press and hold [Fn] key, and then press [F5] key.

[start] - [Run] : Click [start], and then click [Run].

Î : Page in these Operating Instructions.

Î : Reference to the on-screen manuals.

z Some illustrations are simplified to help your understanding and may look different from the actual unit.

z If you do not log on as an administrator, you cannot use some functions or cannot display some screens.

z Refer for the latest information about optional products to the catalogs, etc.

z In these instructions, the names and terms are referred as follows.

®

Windows

®

XP Professional Service Pack 2 with Advanced Security Technologies” and “Microsoft

®

• “Microsoft

Windows

®

XP Tablet PC Edition 2005” as “Windows” or “Windows XP”

• “Windows Vista

®

Business with Service Pack 1” as “Windows” or “Windows Vista”

® z The display modes are referred as follows. ( ) indicates the terms in [Intel Graphics Media Accelerator Driver for mobile] screen. To display the screen, right-click the desktop and click [Graphics Properties].

• Internal LCD (Notebook): The computer’s display

• External display (Monitor): External display

• Simultaneous display (Intel (R) Dual Display Clone): The same screen is displayed on the internal LCD and the external display.

• Extended Desktop: The extended working area across the internal LCD and the external display.

„

Disclaimer

Computer specifications and manuals are subject to change without notice. Panasonic Corporation assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.

„

Trademarks

Microsoft

®

, Windows

®

, Windows Vista

®

, IntelliMouse and the Windows logo are registered trademarks of Microsoft

Corporation of the United States and/or other countries.

Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation.

SDHC Logo is a trademark.

Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Panasonic Corporation.

Computrace

®

is a registered trademark of Absolute own companies.

®

Software Corp.

Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective

Read Me First

Models for U.S.A.

<Only for model with a “ ” mark on the bottom of the computer>

Federal Communications Commission Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna.

z Increase the separation between the equipment and receiver.

z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

z Consult the Panasonic Service Center or an experienced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral.

Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2)This device must accept any interference received, including interference that may cause undesired operation.

FCC RF Exposure Warning: z This equipment is provided with PC Card slot that could be used with wireless transmitters, which will be specifically recommended when they become available.

Other third-party wireless transmitters have not been

RF exposure evaluated for use with this computer and may not comply with FCC RF exposure requirements.

<Only for model with wireless LAN/Bluetooth> z This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

z This equipment has been approved for portable operation, and does not require any minimum spacing be provided between antennas and all person’s body.

z This equipment may not be co-located or operated with any other antenna or transmitter.

<Only for model with wireless WAN> z This PC with WWAN transmitter installed, has been approved for mobile operation and to assure compliance with RF exposure requirements, a minimum of 20 cm (8 inches) must be maintained between the WWAN antenna located in top of LCD and all person’s body

(excluding extremities of hands, wrist and feet) during wireless modes of operation.

25-M-3

<Only for model with wireless WAN> z This product is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range.

FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85

GHz bands. These radar stations can cause interference with and /or damage this product.

25-M-W-3

Responsible Party: Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP5 (1-800-527-8675)

FCC Regulation Notice for modem

6-M-1

This equipment contains a FCC approved modem.

1. This equipment complies with CFR47 Part 68 rules.

On the computer is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If required, this information must be provided to the telephone company.

2. An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.

3. The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all area, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.

4. If your telephone equipment cause harm to the telephone network, the telephone company will notify you in advice that temporary discontinuance of service may be required. But if advice notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

5. The telephone company may take changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

6. If trouble is experienced with this equipment, for repair or warranty information, please contact Panasonic

Corporation of North America at DIAL TOLL FREE 1-

800-LAPTOP5 (1-800-527-8675). If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

3

4

Read Me First

7. There are no user serviceable parts contained in this equipment.

8. This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs.

9. The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone fax machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business or other entry, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. In order to program this information into your fax software, you should refer to the manual of the Fax software being used.

10.According to the FCC's electrical safety advisory, we recommend that you may install an AC surge arrestor in the AC outlet to which this equipment is connected.

Telephone companies report that electrical surges, typically lightning transients, are very destructive to customer terminal equipment connected to AC power sources and that this is a major nationwide problem.

“Caution : To reduce the risk of fire, use only No.26 AWG or larger (e.g., 24 AWG) UL listed or CSA certified telecommunication line cord”

“ATTENTION : Pour reduire le risque d’fincendie, utiliser uniquement des conducteurs de telecommunications 26

AWG ou de section superieure (p.ex. 24 AWG) UL

énumérés ou CSA certifié.”

16-M-1

Notice for the products using LCD

This product has a fluorescent lamp that contains mercury. Disposal may be regulated in your community due to environmental considerations.

For disposal or recycling information, please contact your local authorities, or the Electronic Industries Alliance:

<www.eiae.org/>

24-M-1

<For USA-California Only>

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material- special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate/

38-M-1

Safety Precautions

<Only for model with wireless WAN>

The following safety precautions must be observed during all phases of the operation, usage, service or repair of any

Personal Computer or Handheld Computer incorporating Wireless WAN. Manufacturers of the cellular terminal are advised to convey the following safety information to users and operating personnel and to incorporate these guidelines into all manuals supplied with the product. Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Panasonic assumes no liability for customer failure to comply with these precautions.

When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch

Personal Computer or Handheld Computer incorporating Wireless WAN off, if instructed to do so by the guidelines posted in sensitive areas. Medical equipment may be sensitive to RF energy. The operation of cardiac pacemakers, other implanted medical equipment and hearing aids can be affected by interference from Personal Computer or Handheld Computer incorporating Wireless WAN placed close to the device. If in doubt about potential danger, contact the physician or the manufacturer of the device to verify that the equipment is properly shielded. Pacemaker patients are advised to keep their Personal Computer or

Handheld Computer incorporating Wireless WAN away from the pacemaker, while it is on.

Switch off Personal Computer or Handheld Computer incorporating Wireless WAN before boarding an aircraft. Make sure it cannot be switched on inadvertently. The operation of wireless appliances in an aircraft is forbidden to prevent interference with communications systems. Failure to observe these instructions may lead to the suspension or denial of cellular services to the offender, legal action, or both.

Do not operate Personal Computer or Handheld Computer incorporating Wireless WAN in the presence of flammable gases or fumes. Switch off the cellular terminal when you are near petrol stations, fuel depots, chemical plants or where blasting operations are in progress. Operation of any electrical equipment in potentially explosive atmospheres can constitute a safety hazard.

Your Personal Computer or Handheld Computer incorporating Wireless WAN receives and transmits radio frequency energy while switched on. Remember that interference can occur if it is used close to TV sets, radios, computers or inadequately shielded equipment. Follow any special regulations and always switch off

Personal Computer or Handheld Computer incorporating Wireless WAN wherever forbidden, or when you suspect that it may cause interference or danger.

Road safety comes first! Do not use a Personal Computer or Handheld Computer incorporating Wireless

WAN while driving a vehicle. Do not place the computer with Wireless WAN in an area where it could cause personal injury to the driver or passengers. It is recommended to stow the unit in the boot or secure stowage area while driving. Do not place the computer with Wireless WAN in an area over an air bag or in the vicinity where an air bag may deploy. Air bags inflate with great force and if the computer with Wireless WAN is placed in the air bag deployment area may be propelled with great force and cause serious injury to occupants of the vehicle.

IMPORTANT!

Personal Computer or Handheld Computer incorporating Wireless WAN operate using radio signals and cellular networks cannot be guaranteed to connect in all conditions. Therefore, you should never rely solely upon any wireless device for essential communications, for example emergency calls.

Remember, in order to make or receive calls, Personal Computer or Handheld Computer incorporating

Wireless WAN must be switched on and in a service area with adequate cellular signal strength.

Some networks do not allow for emergency calls if certain network services or phone features are in use (e.g. lock functions, fixed dialing etc.). You may need to deactivate those features before you can make an emergency call.

Some networks require that a valid SIM card be properly inserted in Personal Computer or Handheld

Computer incorporating Wireless WAN.

27-1-2

Models for Canada

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved modem unit.

The Industry Canada label is affixed on the modem unit.

EQUIPMENT ATTACHEMENT LIMITATIONS

“NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The

Department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.”

“NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.”

REN: See bottom of the computer

RESTRICTIONS CONCERNANT LE RACCORDEMENT

DE MATÉRIEL

“AVIS: L’étiquette d’Industrie Canada identifie le matériel homologué. Cette étiquette certifie que le matériel est conforme aux normes de protection, d’exploitation et de sécurité des réseaux de télécommunications, comme le prescrivent les documents concernant les exigences techniques relatives au matériel terminal. Le Ministère n’assure toutefois pas que le matériel fonctionnera à la satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est permis de le raccorder aux installations de l’entreprise locale de télécommunication. Le matériel doit également être installé en suivant une méthode acceptée de raccordement.

L’abonné ne doit pas oublier qu’il est possible que la conformité aux conditions énoncées ci-dessus n’empêche pas la dégradation du service dans certaines situations.

Les réparations de matériel homologué doivent être coordonnées par un représentant désigné par le fournisseur.

L’entreprise de télécommunications peut demander à l’utilisateur de débrancher un appareil à la suite de réparations ou de modifications effectuées par l’utilisateur ou à cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous les fils de mise à la terre de la source d’énergie électrique, des lignes téléphoniques et des canalisations d’eau métalliques, s’il y en a, sont raccordés ensemble. Cette précaution est particulièrement importante dans les régions rurales.

Avertissement: L’utilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit avoir recours à un service d’inspection des installations électriques, ou à un électricien, selon le cas.”

“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné à chaque dispositif terminal indique le nombre maximal de terminaux qui peuvent être raccordés à une interface. La terminaison d’une interface téléphonique peut consister en une combinaison de quelques dispositifs, à la seule condition que la somme d’indices d’équivalence de la sonnerie de touts les dispositifs n’excède pas 5.”

IES: Voir sous le fond de l’ordinateur

17-Ca-1

5

Read Me First

6

Canadian ICES-003

This Class B digital apparatus complies with Canadian

ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

7-M-2

<Only for model with wireless LAN/Bluetooth>

Industry Canada

Operation is subject to the following two conditions;

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

30-Ca-1-1

<Only for model with wireless LAN>

This product (local network devices) for the band 5150-

5250 MHz is only indoor usage to reduce potential for harmful interference to co-channel Mobile Satellite systems.

High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 5650-5850

MHz and these radars could cause interference and/or damage to LELAN devices.

30-Ca-2-1

Models for Europe

<Only for model with a “CE” mark on the bottom of the computer>

Declaration of Conformity (DoC)

“Hereby, Panasonic Corporation declares that this Personal Computer is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC.”

Hint:

If you want to get a copy of the original DoC of our above mentioned products, please contact our web address: http://www.doc.panasonic.de

Authorised Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Network connection of Wired Modem.

The terminal equipment is intended for connection to the following public network;

In all the countries of European Economical Area;

- Public Switched Telephony Networks

Technical Features of Wired Modem.

The terminal equipment includes the following features;

- DTMF dialing

- Maximum bitrate receiving mode: 56 kbit/s

- Maximum bitrate sending mode: 33.6 kbit/s

18-E-1

Important Safety Instructions / Importantes Mesures De Sécurité

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

SAVE THESE INSTRUCTIONS

19-E-1

Certaines mesures de sécurité doivent être prises pendant l’utilisation de matérial téléphonique afin de réduire les risques d’incendie, de choc électrique et de blessures.

En voici quelquesunes:

1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à laver, dans un sous-sol humide ou près d’une piscine.

2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil sans fil) pendant un orage électrique. Ceci peut présenter un risque de choc électrique causé par la foudre.

3. Ne pas utiliser l’appareil téléphonique pour signaler une fuite de gaz s’il est situé près de la fuite.

4. Utiliser seulement le cordon d’alimentation et le type de piles indiqués dans ce manual. Ne pas jeter les piles dans le feu: elles peuvent exploser. Se conformer aux règlements pertinents quant à l’élimination des piles.

CONSERVER CES INSTRUCTIONS

19-F-1

Information to the User / Informations destinées aux utilisateurs

<Only for model with wireless LAN/wireless WAN/Bluetooth>

This product and your Health

This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this product however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.

Because this product operates within the guidelines found in radio frequency safety standards and recommendations, we believe this product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of this product may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include: z Using this product on board of airplanes, or z In any other environment where the risk of interference to other devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment

(e.g. airports), you are encouraged to ask for authorization to use this product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interference caused by unauthorized modification of this product.

The correction of interference caused by such unauthorized modification will be the responsibility of the user. We and its authorized resellers or distributors are not liable for damage or violation of government regulations that may arise from failing to comply with these guidelines.

26-M-1

<Uniquement les modèles avec réseau local sans fil, réseau large sans fil et/ou Bluetooth>

Ce produit et votre santé

Ce produit, comme tout autre appareil radio, émet de l’énergie radioélectrique. Toutefois, la quantité d’énergie émise par ce produit est beaucoup moins importante que l’énergie radioélectrique émise par des appareils sans fil tels que les téléphones portables. L’utilisation de ce produit ne comporte aucun risque pour le consommateur du fait que cet appareil opère dans les limites des directives concernant les normes et les recommandations de sécurité sur les fréquences radio.

Ces normes et recommandations reflètent le consensus de la communauté scientifique et résultent de délibérations de jurys et comités de scientifiques qui examinent et interprètent continuellement les nouveautés de la vaste littérature sur les recherches effectuées. Dans certaines situations ou environnements, l’utilisation de ce produit peut être restreinte par le propriétaire du bâtiment ou par les représentants responsables de l’organisation. Ces situations peuvent être les suivantes par exemple : z A bord d’un avion, ou z Dans tout autre environnement où les risques d’interférence sur d’autres appareils ou services sont perçus ou identifiables comme dangereux.

Si vous n’êtes pas sûr de la réglementation applicable à l’utilisation d’appareils sans fil dans une organisation ou un environnement spécifique, (par exemple dans un aéroport) nous vous invitons à demander l’autorisation d’utiliser ce produit avant sa mise en marche.

Informations concernant la réglementation

Nous déclinons toute responsabilité pour toute interférence radio ou télévision causée par des modifications non autorisées apportées à ce produit. La correction d’interférences causées par de telles modifications non autorisées sera la seule responsabilité de son utilisateur. Nousmêmes, les revendeurs officiels et les distributeurs ne sommes pas responsable de tout dégât ou de toute violation des règlements de l’État pouvant découler du non-respect de ces directives.

26-F-1

Lithium Battery / Pile au lithium

Lithium Battery!

This computer contains a lithium battery to enable the date, time, and other data to be stored. The battery should only be exchanged by authorized service personnel.

Warning! A risk of explosion from incorrect installation or misapplication may possibly occur.

15-E-1

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui permet de sauvegarder certaines données, notamment la date et l’heure. La pile ne doit être remplacée que par un technicien qualifié.

Danger ! Risque d’explosion en cas de non respect de cette mise en garde!

15-F-1

7

Read Me First

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

53-M-1

8

Precautions

THIS PRODUCT IS NOT INTENDED FOR USE AS,

OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS,

AIR TRAFFIC CONTROL EQUIPMENT/SYSTEMS,

AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS

MEDICAL DEVICES OR ACCESSORIES

*2

*1

,

, LIFE

SUPPORT SYSTEMS OR OTHER EQUIPMENTS/

DEVICES/SYSTEMS THAT ARE INVOLVED WITH

ENSURING HUMAN LIFE OR SAFETY. PANASONIC

WILL NOT BE RESPONSIBLE FOR ANY LIABILITY

RESULTING FROM THE USE OF THIS PRODUCT

ARISING OUT OF THE FOREGOING USES.

*1

AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems when used during critical

*2 phases of flight (e.g., during takeoff and landing) and/or mounted on to the aircraft. Class1 EFB Systems and 2 EFB Systems are defined by FAA: AC

(Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leaflets) No.36.

As defined by the European Medical Device Directive (MDD) 93/42/EEC. Panasonic cannot guarantee any specifications, technologies, reliability, safety (e.g. Flammability/Smoke/Toxicity/Radio Frequency Emission, etc) requirements related to aviation standards and medical equipment standards that differ from the specifications of our COTS

(Commercial-Off-The-Shelf) products.

If a Malfunction or Trouble Occurs, Immediately Stop

Use

If a Malfunction Occurs, Immediately Unplug the AC

Plug (and the Battery Pack)

• This product is damaged

• Foreign object inside this product

• Smoke emitted

• Unusual smell emitted

• Unusually hot

Continuing to use this product while any of the above conditions are present may result in fire or electric shock.

• If a malfunction or trouble occurs, immediately turn the power off and unplug the AC plug(, and then remove the battery pack). Then contact your technical support office for repair.

Do Not Touch This Product and Cable When It Starts

Thundering

Electric shock may result.

Do Not Connect the AC Adaptor to a Power Source

Other Than a Standard Household AC Outlet

Otherwise, a fire due to overheating may result. Connecting to a DC/AC converter (inverter) may damage the AC adaptor. On an airplane, only connect the AC adaptor/ charger to an AC outlet specifically approved for such use.

Do Not Do Anything That May Damage the AC Cord, the AC Plug, or the AC Adaptor

Do not damage or modify the cord, place it near hot tools, bend, twist, or pull it forcefully, place heavy objects on it, or bundle it tightly.

Continuing to use a damaged cord may result in fire, short circuit, or electric shock.

Do Not Pull or Insert the AC Plug If Your Hands Are

Wet

Electric shock may result.

Clean Dust and Other Debris of the AC Plug Regularly

If dust or other debris accumulates on the plug, humidity, etc. may cause a defect in the insulation, which may result in a fire.

• Pull the plug, and wipe it with a dry cloth.

Pull the plug if the computer is not being used for a long period of time.

Insert the AC Plug Completely

If the plug is not inserted completely, fire due to overheating or electric shock may result.

• Do not use a damaged plug or loose AC outlet.

Do Not Place Containers of Liquid or Metal Objects on

Top of This Product

If water or other liquid spills, or if paper clips, coins, or foreign matter get inside this product, fire or electric shock may result.

• If water spills in the keyboard, refer to page 21. If foreign matter has found its way inside, immediately turn the power off and unplug the AC plug and remove the battery pack. Then contact your technical support office.

Do Not Disassemble This Product

The high-voltage areas inside may give you an electric shock, or foreign matter may enter and result in a fire.

Keep SD Memory Cards Away from Infants and Small

Children

Accidental swallowing will result in bodily injury.

• In the event of accidental swallowing, see a doctor immediately.

Do Not Place This Product on Unstable Surfaces

If balance is lost, this product may fall over or drop, resulting in an injury.

Avoid Stacking

If balance is lost, this product may fall over or drop, resulting in an injury.

Do Not Keep This Product Wherever There is a Lot of

Water, Moisture, Steam, Dust, Oily Vapors, etc.

Otherwise, possibly resulting in fire or electric shock.

Do Not Leave This Product in High Temperature Environment for a Long Period of Time

Leaving this product where it will be exposed to extremely high temperatures such as near fire or in direct sunlight may deform the cabinet and/or cause trouble in the internal parts. Continued use in such a resulting condition may lead to short-circuiting or insulation defects, etc. which may in turn lead to a fire or electric shocks.

Do Not Block the Ventilation Hole

Otherwise, heat will build up inside, possibly resulting in a fire.

Hold the Plug When Unplugging the AC Plug

Pulling on the cord may damage the cord, resulting in a fire or electric shock.

Do Not Move This Product While the AC Plug Is Connected

The AC cord may be damaged, resulting in fire or electric shock.

• If the AC cord is damaged, unplug the AC plug immediately.

Use Only the Specified AC Adaptor With This Product

Using an AC adaptor other than the one supplied (supplied with the unit or one sold seperately as an accessory) may result in a fire.

Do Not Subject the AC Adaptor to Any Strong Impact

Using the AC adaptor after a strong impact such as being dropped may result in electric shock, short circuit, or fire.

Take a Break of 10-15 Minutes Every Hour

Using this product for long periods of time may have detrimental health effects on the eyes or hands.

Do Not Turn the Volume Up to Loud When Using

Headphones

Listening at high volumes that overstimulate the ear for long periods of time may result in loss of hearing.

Use the Modem with a Regular Telephone Line

Connection to an internal phone line (on-premise switches) of a company or business office, etc. or to a digital public phone or use in a country or area not supported by the computer may result in a fire or electric shocks.

Do Not Connect a Telephone Line, or a Network Cable

Other Than the One Specified, into the LAN Port

If the LAN port is connected to a network such as the ones listed below, a fire or electric shock may result.

• Networks other than 1000BASE-T, 100BASE-TX or

10BASE-T

• Phone lines (IP phone (Internet Protocol Telephone),

Telephone lines, internal phone lines (on-premise switches), digital public phones, etc.)

Do Not Use with Exposing the Skin to This Product for a Long Period of Time

Using this product with exposing the skin to the heat source of this product or AC adaptor for a long period of time can cause a low-temperature burn.

z Do not place the computer near a television or radio receiver.

z Keep the computer away from magnets. Data stored on the hard disk may be lost.

z This computer is not intended for the display of images for use in medical diagnosis.

z This computer is not intended for a use with connection of medical equipment for the purpose of medical diagnosis.

z Panasonic shall not be liable for loss of data or other incidental or consequential damages resulting from the use of this product.

9

Read Me First

10

Precautions (Battery Pack)

Do Not Use with Any Other Product

The battery pack is rechargeable and was intended for the specified product. If it is used with a product other than the one for which it was designed, electrolyte leakage, generation of heat, ignition or rupture may result.

Do Not Charge the Battery Using Methods Other Than

Those Specified

If the battery is not charged using one of the specified methods, electrolyte leakage, generation of heat, ignition or rupture may result.

Do Not Throw the Battery Pack into a Fire or Expose It to Excessive Heat

Generation of heat, ignition or rupture may result.

Avoid Extreme Heat (Near the Fire, in Direct Sunlight, for Example)

Electrolyte leakage, generation of heat, ignition or rupture may result.

Do Not Insert Sharp Objects into the Battery Pack,

Expose It to Bumps or Shocks, Disassemble, or Modify It

Electrolyte leakage, generation of heat, ignition or rupture may result.

• If this product is subjected to a strong impact, stop using it immediately.

Do Not Short the Positive (+) and Negative (-) Contacts

Generation of heat, ignition or rupture may result.

• Do not place the battery pack together with articles such as necklaces or hairpins when carrying or storing.

Do Not Use This Product with a Battery Pack Other

Than the One Specified

Use only the specified battery pack (CF-VZSU51W/CF-

VZSU52W) with your product. Use of battery packs other than those manufactured and supplied by Panasonic may present a safety hazard (generation of heat, ignition or rupture).

When the Battery Pack Has Deteriorated, Replace It with a New One

Continued use of a damaged battery pack may result in heat generation, ignition or battery rupture.

Do not touch the terminals on the battery pack. The battery pack may no longer function properly if the contacts are dirty or damaged.

Do not expose the battery pack to water, or allow it to become wet.

If the battery pack will not be used for a long period of time (a month or more), charge or discharge (use) the battery pack until the remaining battery level becomes

30% to 40% and store it in a cool, dry place.

This computer prevents overcharging of the battery by recharging only when the remaining power is less than approx. 95% (when Economy Mode (ECO) is enabled:

75%) of capacity.

The battery pack is not charged when the computer is first purchased. Be sure to charge it before using it for the first time. When the AC adaptor is connected to the computer, charging begins automatically.

Should the battery leak and the fluid get into your eyes, do not rub your eyes. Immediately flush your eyes with clear water and see a doctor for medical treatment as soon as possible.

CAUTION:

Risk of Explosion if Battery is replaced by an Incorrect Type.

Dispose of Used Batteries According to the Instructions.

58-E-1

NOTE

The battery pack may become warm during recharging or normal use. This is completely normal.

Recharging will not commence if internal temperature of the battery pack is outside of the allowable temperature range (0 °C to 55 °C {32 °F to

131 °F}). ( Reference Manual “Battery

Power”) Once the allowable range requirement is satisfied, charging begins automatically. Note that the recharging time varies based on the usage conditions. (Recharging takes longer than usual when the temperature is 10 °C {50 °F} or below.)

In high-temperature environments, the battery takes longer to fully recharge. In low-temperature environments, the battery takes longer to fully recharge and the operating time is shorter. Only use the computer within the allowable temperature range.

The battery pack is a consumable item. If the amount of time the computer can be run by using a particular battery pack becomes dramatically shorter and repeated recharging does not restore its performance, the battery pack should be replaced with a new one.

When transporting a spare battery inside a package, briefcase, etc., it is recommended that it be placed in a plastic bag so that its contacts are protected.

Always power off the computer when it is not in use. Leaving the computer on when the AC adaptor is not connected will exhaust the remaining battery capacity.

A lithium ion battery that is recyclable powers the product you have purchased.

Please call 1-800-8-BATTERY for information on how to recycle this battery.

L’appareil que vous vous êtes procuré est alimenté par une batterie au lithium-ion.

Pour des renseignements sur le recyclage de la batterie, veuillez composer le 1-800-8-BATTERY.

48-M-1

Description of Parts

A

B

C

D

E

F

G

H

I

J

K

L

M

A :Function Key

Î

Reference Manual “Key Combinations”

B :Keyboard

C :Touch Pad

Î Reference Manual “Using the Touch Pad”

D :Bluetooth Antenna

<Only for model with Bluetooth>

Î

Reference Manual “Bluetooth”

E : Wireless LAN Antenna

<Only for model with wireless LAN>

Î

Reference Manual “Wireless LAN”

F : Power Switch

Î page 14

Power Indicator

• Off: Power off/Hibernation

• Green: Power on

• Blinking green: Standby

G :Wireless Switch

Switch the wireless devices to on (right side) or to off

(left side).

<Only for model with wireless LAN/wireless WAN/Bluetooth>

Î Reference Manual “Disabling/Enabling Wireless Communication”

H :LED Indicator

: SD/SDHC Memory Card status

: Caps lock

: Numeric key (NumLk)

: Scroll lock (ScrLk)

: Hard disk drive status

ECO : Economy Mode (ECO) status

Î Reference Manual “Battery Power”

: Battery status

Î Reference Manual “Battery Power”

E

I : LCD/Touchscreen

Î Reference Manual “Using the Touchscreen”

J : Security Lock

You can connect a Kensington cable. Refer to the instruction manual of the cable. The security lock and cable is a theft prevention device. Panasonic Corporation will bear no responsibility in the event of theft.

K :Modem Port

Î Reference Manual “Modem”

L : LAN Port

If the Mini Port Replicator is connected to the computer, connect the LAN cable to the LAN port on the

Mini Port Replicator. You cannot use the LAN port on the computer.

Î Reference Manual “LAN”

M :USB Ports

Î Reference Manual “USB Devices”

11

Description of Parts

12

EXT.

A

B

C

D

E

F

I

G

H

L

M

J

K

A :DC-IN Jack

B :External Display Port

If the Mini Port Replicator is connected to the computer, connect the external display to the external display port on the Mini Port Replicator. You cannot use the external display port on the computer.

Î

Reference Manual “External Display”

C :Mini Port Replicator Connector

Connect the Mini Port Replicator (optional).

Î Reference Manual “Mini Port Replicator”

D :Ventilation Hole

E : PC Card Slot

Î

Reference Manual “PC Cards”

F : SD Memory Card Slot

Î Reference Manual “SD/SDHC Memory Card”

G :Microphone Jack

A condenser microphone can be used. If other types of microphones are used, audio input may not be possible, or malfunctions may occur.

When recording in stereo using a stereo microphone: Click

[start] - [All Programs] - [SoundMAX] - [Control Panel] and select [Microphone], and then select [No Filtering] in [Microphone Enhancements].

When using a monaural microphone with a 2-terminal plug:

Click [start] - [All Programs] - [SoundMAX] - [Control Panel] and select [Microphone], and then select [Voice Recording] in

[Microphone Enhancements]. Otherwise only audio on the left track will be heard when recorded in stereo.

H :Headphone Jack

You can connect headphones or amplified speakers.

When they are connected, audio from the internal speakers is not heard.

I : Battery Pack

Î page 13

Î Reference Manual “Battery Power”

J : Battery Latches

Î page 13

K :Hand Strap

Î page 16

L : RAM Module Slot

Î page 22

M :Speaker

<Only for model with wireless WAN>

Wireless WAN Antenna

SIM Card Slot

First-time Operation

„

Preparation

A

Check and identify the supplied accessories.

If you do not find the described accessories, contact your technical support office.

• AC Adaptor . . . . . . 1 • AC Cord . . . . . . . . .1

• Battery Pack. . . . . 1

Model No: CF-AA1633A

• Soft Cloth . . . . . . . 1 • Stylus . . . . . . . . . . .1

Model No: CF-VZSU51W

• Tether . . . . . . . . . . 1

1

Î Reference Manual

“Using the Touchscreen”

• Operating Instructions (This book) . . . . . . . . . . . . . . . . . . . . . . . . .1

• Product Recovery DVD-ROM Windows Vista

®

Business SP 1 . .1

B

Read the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging

(Î page 34).

Battery

Latches

1 Insert the battery pack.

Slide the battery pack in parallel with the arrow direction and attach it so that the left and right projections on the new battery pack match the dents of the computer.

In case that the projection does not match the dents of the computer, detach the battery pack once, then slide it while pushing it lightly to avoid floating.

z To remove

Slide both the left and right latches to the unlocked position, and push out the battery pack in parallel with the computer.

2

B

A

CAUTION

z Make sure the latches are securely locked. Otherwise the battery pack may fall when you carry the computer.

z Do not touch the terminals of the battery pack and the computer. Doing so can make the terminals dirty or damaged, and may cause malfunction of the battery pack and the computer.

2 Open the display.

Hold the side of the computer with either of your hands and then hold and lift the

(A) part to open the display.

<Only for model with wireless WAN> z

Be careful not to press the SIM card slot cover (B) by mistake.

CAUTION

z Do not open the display wider than necessary (140° or more), and do not apply excessive pressure to the LCD. Do not open or close the computer holding the edge of the LCD segment.

13

14

First-time Operation

3

4

3 Connect your computer to a power outlet.

The battery charging starts automatically.

CAUTION

z

Do not disconnect the AC adaptor and do not switch the wireless switch to on until the first-time operation procedure is completed.

z

When using the computer for the first time, do not connect any peripheral device except the battery pack and AC adaptor.

z

Handling the AC adaptor

• Problems such as sudden voltage drops may arise during periods of thunder and lightning. Since this could adversely affect your computer, an uninterruptible power source (UPS) is highly recommended unless running from the battery pack alone.

4 Turn on the computer.

Slide and hold the power switch for approximately one second until the power indicator lights.

z When the power is turned on, the power indicator lights. But, in the following cases, the power indicator may turn off once immediately after the power is turned on.

• After removing the battery pack and the AC adaptor and setting them again

• After sliding the power switch for four seconds or longer and turning off the power

CAUTION

z Do not slide the power switch repeatedly.

z

The computer will forcibly be turned off if you slide and hold the power switch for four seconds or longer.

z Once you turn off the computer, wait for ten seconds or more before you turn on the computer again.

z Do not perform the following operation until the hard disk drive indicator turns off.

• Connecting or disconnecting the AC adaptor

• Sliding the power switch

• Touching the keyboard, touch pad or touchscreen

• Closing the display z Do not change the Setup Utility until completing step 5. If you do so, Windows setup may not operate properly.

<Only for model with Windows XP Tablet PC Edition> z The input panel is displayed on “Welcome to the Windows XP Setup Wizard”.

Move “Welcome to the Windows XP Setup Wizard” and make sure that the “Welcome to the Windows XP Setup Wizard” and the input panel do not overlap.

5 Setup Windows.

Follow the on-screen instructions.

z The computer will restart after the setup is complete.

To go to the next step, wait until the hard disk drive indicator has turned off.

CAUTION

z

Do not turn off the computer until completing the first-time operation procedure.

z When you set date/time/time zone and click [Next], the screen may not go to the next step for a few minutes. Do not touch the keyboard, touch pad or touchscreen, and wait until the screen changes.

z When using the included stylus, avoid touching the screen with you hands, etc.

This can cause input errors.

z If “An unexpected error has occurred ...” (or a similar message) is displayed, click [OK]. This is not a malfunction.

<Only for model with Windows XP Tablet PC Edition> z At “Welcome to Tablet PC”, you can learn the basic operations of Windows XP

Tablet PC Edition.

6 Create a new account.

Click [start] - [Control Panel] - [User Accounts] - [Create a new account].

CAUTION

z Remember your password. If you forget the password, you cannot use the Windows operation system. Creating a password reset disk beforehand is recommended.

7 Perform the touchscreen calibration.

<Only for model with Windows XP Professional>

A

Click [start] - [All Programs] - [Fujitsu Touch Panel (USB)] - [Touch Screen

Calibration Utility].

B

Touch the 9 “+” target marks sequentially with the stylus, and then press

Enter.

C

Click [Save & Exit].

<Only for model with Windows XP Tablet PC Edition>

A

Click [start] - [Control Panel] - [Other Control Panel Options] - [Tablet Calibration].

B

Touch the 9 “+” target marks sequentially with the stylus.

C

Touch [OK] and restart the computer.

D

Click [start] - [Control Panel] - [Printers and Other Hardware] - [Tablet and

Pen Settings].

E

Select [Landscape] and click [Calibrate] with [Calibration] in [Settings].

F

Touch the 4 “+” target marks sequentially with the stylus.

G

Click [OK].

H

Select [Portrait] and click [Calibrate] with [Calibration] in [Settings].

I

Repeat step F and G above.

Perform steps D - I for each account.

NOTE

z

Regarding Windows XP

You can select the Classic view of Control Panel or the Classic Start menu. You can also change the way a user logs on or off. This manual explains using the Windows XP default setting (not Classic view or Classic Start menu etc.).

z

Windows Update

You can update to the latest patches and service packs for Windows with the following menus.

[start] - [All Programs] - [Windows Update]

Do not apply “Driver Updates” even if a message to update a driver appears. If a driver update is required, contact your technical support office.

z

If the message “Your computer might be at risk” is displayed

Select (red icon) on the notification area and make the appropriate settings. The Windows Security Center regularly gives you notice so that you can make the optimum settings. This is not an error message and you can use the computer. However, making appropriate measures is recommended to reduce the risk of virus and other attacks.

z

PC Information Viewer

This computer periodically records the management information of the hard disk, etc. The maximum data volume for each record is 1024 bytes. This information is only used for estimating the cause when the hard disk goes down by any possibility. They are never sent to outside via network nor used for any other purpose except for the purpose described the above.

To disable the function, add the check mark for [Disable the automatic save function for management information history] in [Hard Disk Status] of PC Information Viewer, and click [OK].

When you disable the function, information on how to use the hard disk of PC Information Popup is not displayed.

Reference Manual “Check the Computer’s Usage Status” and “PC Information Popup”) z

To conserve power, the following power saving methods are set at the time of purchase. (When AC adaptor is connected)

• The screen automatically turns off after 15 minutes of inactivity.

• The computer automatically enters standby

*1

after 20 minutes of inactivity.

*1

Refer to Reference Manual “Standby or Hibernation Functions” about resuming from standby.

z

Power consumption in each mode is as follows. (When AC adaptor is connected)

• When the screen is off Approx. 10 W

• In standby Approx. 2.2 W

• The battery pack is fully charged (or not being charged) and the computer is off Approx. 0.9 W

15

16

First-time Operation

z

Even when the AC adaptor is not connected to the computer, power is consumed (Max. 0.5 W) simply by having the AC adaptor plugged into an AC outlet. (When using with 115 V AC)

z

Note that the computer consumes electricity even when the computer power is off. If the battery pack is fully charged, the battery will be fully discharged in the following period of time:

When using the supplied battery pack (CF-VZSU51W) When using the optional battery pack (CF-VZSU52W)

• In standby: Approx. 3 days (If “Wake Up from wired

LAN” is enabled: 2 days)

*2

• In hibernation: Approx.1.5 months (If “Wake Up from wired LAN” is enabled: 3 days)

*2

• When power is off: Approx. 1.5 months (If “Power

On by wired LAN” is enabled: 3 days)

• In standby: Approx. 1.5 days (If “Wake Up from wired LAN” is enabled: 1 days)

*2

• In hibernation: Approx. 0.7 months (If “Wake Up from wired LAN” is enabled: 1.5 days)

*2

• When power is off: Approx. 0.7 months (If “Power

On by wired LAN” is enabled: 1.5 days)

*2

If “Wake Up from wired LAN” is disabled, the period of time will become slightly longer.

If “Wake Up from wireless LAN” is enabled, the period of time will become shorter.

„

When Starting Up/Shutting Down

z Do not do the following

• Connecting or disconnecting the AC adaptor

• Sliding the power switch

• Touching the keyboard, touch pad, touchscreen or external mouse

• Closing the display

Using the Hand Strap

The hand strap is convenient for computing while standing.

To carry the computer, put your hand between the computer and the hand strap to prevent it from falling, and firmly hold the computer when using it.

Before Using the Stylus

At the time of purchase, the stylus (included) is not attached to the stylus holder (A).

The tether prevents the stylus from falling accidentally. It can be attached to the stylus holder.

Perform the following steps before using the stylus.

1 Attach the tether to the stylus.

A

Tether

Stylus

2 Thread the stylus strap of the tether from (B) in the direction of the arrow.

B

A

3 Pass the stylus through the strap.

4 Fasten the strap to the hook (C).

5 To store the stylus, push the end into (D).

CAUTION

z Do not carry the computer by gripping the stylus holder.

17

18

On-screen Manual

You can access the following manuals on the computer screen after completing the “First-time Operation”.

When you access the on-screen manual for the first time, the License Agreement of the Adobe Reader may be displayed. Read it carefully and select [Accept] to proceed.

„

Reference Manual

The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.

To access the Reference Manual:

Click [start] - [Reference manual].

Contents z Read Me First z Using the Touch Pad z Using the Touchscreen z Display Rotation z Key Combinations z Battery Power z Computing on the Road z Standby or Hibernation Functions z Security Measures z PC Cards z SD/SDHC Memory Card z Mini Port Replicator z External Display z USB Devices z Modem z LAN z Disabling/Enabling Wireless Communication z Wireless LAN z Bluetooth z Setup Utility z Icon Enlarger z Loupe Utility z Troubleshooting (Advanced) z Check the Computer’s Usage Status z PC Information Popup z Protecting Your Computer from

Viruses z Technical Information

„

Important Tips

The Important Tips will provide you with the helpful information about the battery. Read to use the battery pack in the optimum condition to obtain longer operation time.

To access the Important Tips:

Double-click on the desktop.

z Alternatively click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].

„

Hard Disk Handling

The Hard Disk Handling will provide you with the helpful information on how to use the hard disk.

To access the Hard Disk Handling:

Click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Hard Disk Handling].

NOTE

z When Adobe Reader update notice is displayed, we recommend you follow the on-screen procedure to update.

See http://www.adobe.com/ for the latest version of Adobe Reader.

Handling and Maintenance

Operation Environment

z Place the computer on a flat stable surface. Do not place the computer upright. If the computer is exposed to an extremely strong impact, it may become inoperable.

z Temperature: Operation: 5 °C to 35 °C {41 °F to 95 °F}

Storage: -20 °C to 60 °C {- 4 °F to 140 °F}

Humidity: Operation: 30% to 80% RH (No condensation)

Storage: 30% to 90% RH (No condensation)

Even within the above temperature/humidity ranges, using for a long time in an extreme environment will result in the product deterioration and will shorten the product life.

• Be sure to use the computer in an environment with sufficient heat ventilation.

- Avoid using the computer on a highly heat retentive surfaces (e.g., rubber pads and blankets). If possible, use the computer on surfaces that can dissipate heat, such as a steel desk.

- Do not cover the computer with towels, keyboard covers, etc., as this prevents heat dissipation.

- When using the computer, always keep the display open. (Note, however, that closing the display while the computer is in use does not cause generation of heat, ignition, or other malfunctions.) z Do not place the computer in the following areas, otherwise the computer may be damaged.

• Near electronic equipment. Image distortion or noise may occur.

• Near magnets or in magnetic fields.

• In extremely high or low temperature.

z As the computer can become hot during operation, keep it away from items that are sensitive to heat.

Handling Cautions

This computer is designed to minimize shock to parts such as the hard disk drive, but no warranty is provided against any trouble caused by shock. Be extremely careful when handling the computer.

z When carrying the computer:

• Turn off the computer.

• Remove all external devices, cables, cards and other protruding things.

• Do not drop or hit the computer against solid objects.

• Do not leave the display open.

• Do not pick up or hold the computer by the display part.

NG

z When you board an airplane, take the computer with you and never put it in your checked luggage. When using the computer on airplane, follow the airline’s instructions.

z

When carrying a spare battery, put it in a plastic bag to protect its terminals.

z This computer contains a magnet and magnetic products at the locations circled in the illustration at right. Avoid leaving metallic object or magnetic media in contact with these areas.

z

The touch pad is designed to be used with a finger tip. Do not place any object on its surface and do not press down strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).

z Avoid any harmful substances such as oil from getting into the touch pad. The cursor may not work correctly.

z If the computer is being carried in a soft bag with the battery pack removed, avoid undue pressure on the body of the computer in a crowded place, etc., as this may result in damage to the LCD.

Bottom

„

If the computer becomes warm during usage

z Check the following

• If you are not using a wireless LAN, turn the wireless LAN off.

• If the computer becomes warm while the screen saver is displayed, set the screen saver to [Windows XP]. Screen savers that use 3-D images or other complex images increase the CPU utilization rate.

• Use recommended RAM module products. Non-recommended RAM modules may not operate properly, and may cause damage to your computer. z Double-click on the desktop and click [High speed], then click [OK].

• When you set [High speed], rotation of the cooling fan speeds up and the computer can be cooled down. Note that the battery operating time will be shorter.

• When you do not frequently use CPU or the rotation noise of the fan bothers you, set [Standard] or [Low speed] as necessary.

19

20

Handling and Maintenance

„

When using peripheral devices

Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the instruction manuals of the peripheral devices.

z Use the peripheral devices conforming to the computer’s specifications.

z Connect to the connectors in the correct direction.

z If it is hard to insert, do not try forcibly but check the connector’s shape, direction, alignment of pins, etc.

z If screws are included, fasten them securely.

„

Preventing your computer from unauthorized use via wireless LAN/wireless WAN/Bluetooth

<Only for model with wireless LAN/wireless WAN/Bluetooth> z Before using wireless LAN/wireless WAN/Bluetooth, make the appropriate security settings such as data encryption.

<Only for model that supports TPM>

„

Computrace

®

Software

Computrace

®

software tracks your stolen computer.

z Computrace

®

software is not included or installed in this computer.

z Consult Absolute Software Corp. before disposal.

z Refer to the following URL for Computrace service is only available in certain regions.

®

software for installation and available service regions. Note that this http://www.absolute.com

Maintenance

To clean display (LCD)

Use the soft cloth included with the computer (For more information, refer to Reference Manual “Suggestions About

Cleaning the LCD Surface”.)

Cleaning the display while the power is on may cause the computer to malfunction. Also, dirt on the touchscreen is easier to see when the computer is powered off, and so is easier to clean.

To clean the touch pad

Wipe lightly with a gauze or other dry, soft cloth.

To clean areas other than the LCD panel and touch pad

Wet a soft cloth with water or a diluted kitchen cleanser (neutral), wring the cloth out thoroughly, and wipe the dirty area gently. Using a detergent other than a neutral kitchen cleanser (e.g., a weak alkali cleanser) may adversely affect painted surfaces.

CAUTION

z Do not use benzene, thinner, or rubbing alcohol since it may adversely affect the surface causing discoloration, etc.

Do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to the surface.

z Do not apply water or detergent directly to the computer, since liquid may enter inside of the computer and cause malfunction or damage.

If You Spill Water on the Keyboard

Note that repairs resulting from liquids being spilled on the computer are not free of charge, and not covered by warranty.

The keyboard on this computer incorporate a drain system (a moisture protection mechanism) that minimizes the amount of liquid reaching the inside of the computer even if water is spilled on the keyboard.

Any water that comes in contact with the keyboard is drained off through holes in the bottom of the computer, so that virtually no water is left inside the computer. However, this is not a guarantee against damage to the hard disk or other internal parts, or against the loss or deletion of data.

The drain system is incorporated into only the keyboard. It does not apply to any other components.

z If you spill water or any other liquid on the keyboard, even a small amount, be sure to perform the following steps.

Failure to perform these steps may result in damage to the computer. The drain system will not provide complete protection against water entering the computer.

1 Immediately turn off the computer, and remove the AC adaptor.

2 Wipe any water droplets off of the top of the keyboard using a soft, dry cloth.

3 Slowly lift up the computer, keeping it level, and wipe any water coming out of the holes on the bottom using a soft, dry cloth.

If the computer is tilted during this step, liquid may seep inside the computer resulting in damage.

4 Keeping the computer level, move the computer to a dry place.

If the computer is placed back on the wet surface, water may seep inside the computer from the bottom.

5 Remove the battery pack.

6 Be sure to contact your technical support office to have the computer checked for any malfunctions.

21

22

Expanding Memory

Use RAM modules that comply with the specifications below. Using any other module may cause malfunction or result in computer failure.

RAM module specifications:

DDR2 SDRAM, 200 pins, SO-DIMM, 1.8 V, PC2-5300

CAUTION

z Use recommended RAM module products. Do not use non-recommended RAM modules. Non-recommended RAM modules may not operate properly, and may cause damage to your computer. Some non-recommended RAM modules may overheat, causing the cover to warp. Refer to various sources for recommended RAM module.

z RAM modules are extremely sensitive to static electricity. There are cases where static electricity generated by the human body has adversely affected such RAM modules. When inserting or removing a RAM module, do not touch the terminals or internal components, insert objects other than the module, or allow foreign particles to enter. Doing so has been known to cause damage, fire or electric shock.

z Panasonic Corporation will bear no responsibility whatsoever for failures or damage caused by the use of non-recommended RAM modules, or by incorrect installation or removal of such RAM modules. Before installing a RAM module, confirm the product type and the correct installation method.

Preparation

A

Turn off your computer.

• Do not use the standby or hibernation.

B

Disconnect the AC adaptor and remove the battery pack.

C

Remove the screw (A) and the cover on the bottom of the computer.

• Use the appropriate screw driver so as not to strip the thread of screw.

A

Inserting the RAM Module

1 Place the RAM module lightly in parallel with the RAM module slot so that the notch (B) of the RAM module and the protrusion (C) of the RAM module slot is in the same direction.

z

The gold terminals are visible at this point.

z

RAM module is at an angle of 20

°

- 30

°

with the horizontal line.

RAM Module

Slot

B C Gold Terminals

2 Insert the RAM module parallel to the slot firmly until the gold terminals are invisible.

z If it is hard to insert the RAM module, do not try forcibly but check the module’s direction.

3 Press the RAM module down until the right and left hooks (D) lock into place.

z When pressing down the module, the right and left hooks will open slightly and will return after locking.

z If it is hard to press down the RAM module, do not try forcibly but check the module’s direction.

D

4 Set the cover and battery pack back.

NOTE

z If the RAM module is recognized correctly, the total size of this computer’s memory and RAM module memory is displayed on the [Information] menu of the Setup Utility.

If the RAM module is not recognized, turn off the computer and insert it again.

Removing the RAM Module

1 Carefully open the left and right hooks (E).

The RAM module will be raised.

E

2 Carefully remove the RAM module from the slot.

3 Set the cover and battery pack back.

23

24

Intel

®

Active Management Technology (Intel

®

AMT)

<Only for model with Intel

®

AMT>

Intel

®

AMT offers the operational management function and security function through network.

Setting AMT configuration

1 Turn on the computer, and press

F2

or

Del

while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

z If the password is requested, enter the Supervisor Password.

2 If the Supervisor Password is not set, select the [Security] menu, then set Supervisor

Password.

3 Select the [Security] menu, and select [AMT Configuration], and press

Enter

.

4 Select [Intel(R) AMT] and press

Enter

.

5 Select [Enabled] and press

Enter

.

6 Select [Intel(R) ME Setup Prompt] and press

Enter

.

7 Select [Enabled] and press

Enter

.

8 Press

Esc

.

If you do not use the Supervisor Password, clear the Supervisor Password following steps.

A

Select [Set Supervisor Password], and press Enter.

B

Enter the Current Password, and press Enter.

C

Press Enter when the [Create New Password] display is shown.

D

Press Enter when the [Confirm New Password] display is shown.

9 Press

F10

.

At the confirmation message, select [Yes] and press Enter.

The computer will restart.

The following procedures are example. It is different according to your environment. Contact your technical support office.

A

Press Ctrl + P when [Press <CTRL - P> to enter Intel(R) ME Setup] is shown after the [Panasonic] boot screen disappears.

B

Enter “admin” in [Intel(R) ME Password], and press Enter.

C

Enter the New Password in [Intel(R) ME New Password] to change the password, and press Enter.

At confirmation message, enter the password, and press Enter.

Write down new password to remember you password.

The password has the limitation (Î page 25).

D

Select [Intel(R) ME Configuration], and press Enter.

At the confirmation message, press Y.

E

Select [Intel (R) Features Control] and press Enter.

F

Select [Manageability Feature Selection] and press Enter.

G

Select [Intel (R) AMT] and press Enter.

H

Select [Return to Previous Menu] and press Enter.

I

Select [Return to Previous Menu] again and press Enter.

J

Select [Intel(R) AMT Configuration] and press Enter.

K

Select [SOL/IDE-R] and press Enter then, press Enter on the [Caution] screen.

Set all the items to [Enable] on the screen. Change other settings as necessary.

L

Select [Return to Previous Menu] after setup is complete.

Follow the on-screen instructions.

The computer will restart.

CAUTION

z

You can use the following characters to set Intel(R) ME Password.

• Minimum of 8 and maximum of 32 characters are used.

• 1 or more numeric characters are included.

• 1 or more special characters (example: “!” “$”) are included (only characters that can be displayed with the US keyboard).

• Capital letters and small letters are mixed.

10 Installing the driver

A

Click [start] - [Run] and input “c:\util\drivers\amt\MEI\setup.exe”, then click [OK].

Follow the on-screen instructions.

B

Click [start] - [Run] and input “c:\util\drivers\amt\LMS_SOL\setup.exe”, then click [OK].

Follow the on-screen instructions.

Release AMT configuration

1 Turn on the computer, and press

F2

or

Del

while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

z If the password is requested, enter the Supervisor Password.

2 If the Supervisor Password is not set, select the [Security] menu, then set Supervisor

Password.

3 Select the [Security] menu, and select [AMT Configuration], and press

Enter

.

4 Select [Intel(R) AMT] and press

Enter

.

5 Select [Disabled] and press

Enter

.

6 Press

Esc

.

7 Select the [Exit] menu, and select [Save Current Values], and press

Enter

.

At the confirmation message, select [Yes] and press Enter.

8 Select the [Security] menu, and select [AMT Configuration], and press

Enter

.

9 Select [Reset AMT Configuration] and press

Enter

.

At the confirmation message, select [Yes] and press Enter.

The computer will restart.

z If the password is requested, enter the Supervisor Password.

10 Press

Y

when the “Intel(R) ME unconfiguration in progress” message will appear.

The computer will restart.

11 Turn off the computer.

25

26

Troubleshooting (Basic)/Error Code/Message

Troubleshooting (Basic)

Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the

“Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact your technical support office. You can also check the computer’s status in the PC Information Viewer (Î

Manual “Check the Computer’s Usage Status”).

„

Starting Up and Standby and Hibernation Mode

Reference

The computer does not power on/

The power indicator or battery indicator is not lit.

z Connect the AC adaptor.

z Insert a fully charged battery.

z Remove the battery pack and the AC adaptor, then connect them again. z If an additional RAM module has been inserted, remove the RAM module and check to see if the RAM module is the recommended one.

z When the CPU temperature is high, the computer may not start up to prevent overheating of the CPU. Wait until the computer cools down, and then turn the power on again. If the computer does not power on even after cooling down, contact your technical support office.

Windows does not start up.

z Remove all peripheral devices (e.g. USB memory).

z If an additional RAM module has been inserted, remove the RAM module and check to see if the RAM module is the recommended one.

z If the power indicator is lit, slide the power switch for four seconds or longer to turn off, then turn on again.

z Using the following procedure, start up in Safe Mode, and check the error details.

A

Turn on the computer, and when the [Panasonic] boot screen disappears (after entering the password

*1

if one is set) hold down

F8.

B

Release your finger when [Windows Advanced Options Menu] is displayed, and with

Ï or Ð, select [Safe Mode], then press

Enter.

Follow the on-screen instructions.

*1

Supervisor Password or User Password set with the Setup Utility z Press

F9 in the Setup Utility (Î page 29 “To start the Setup Utility”) to return the Setup

Utility settings (excluding the passwords) to the default values. Start the Setup Utility and make the settings again.

You have forgotten the password.

“Remove disks or other media. Press any key to restart” or a similar message appears.

[Executing Battery Recalibration] screen appears.

The computer will not automatically enter standby/ hibernation.

z Supervisor Password or User Password: Contact your technical support office.

z Administrator password:

• If you have a password reset disk, you can reset the administrator password. Set the disk and enter any wrong password, then follow the on-screen instructions and set a new password.

• If you do not have a password reset disk, reinstall (Î Supplementary Instructions for

Windows XP) and set up Windows, and then set a new password.

z A floppy disk is in the floppy disk drive and it does not contain system startup information. Remove the floppy disk and press any key.

z This message may appear with some devices connected to the USB port. Remove the device or set [Legacy USB Support] to [Disabled] in the [Advanced] menu of the Setup Utility.

z If the problem persists after removing the disk, it may be a hard disk failure. Perform the reinstallation and return the hard disk to its condition at the time of purchase (Î Supplementary

Instructions for Windows XP). If the problem persists even after the reinstallation, contact your technical support office.

z The Battery Recalibration was canceled before Windows was shut down last time. To start up Windows, turn off the computer by the power switch, and then turn on.

z If you connect to a network using wireless LAN function, perform access point settings.

Reference Manual “Wireless LAN”) z If you do not use wireless LAN function, turn off wireless LAN function. (Î

ence Manual “Disabling/Enabling Wireless Communication”)

Refer- z Make sure that you are not using any software that regularly accesses the hard disk.

When logging on (e.g., resuming the computer), audio is distorted.

z

Perform the following steps to change the audio settings to prevent audio output.

A

Click [start] - [Control Panel] - [Sounds, Speech, and Audio Devices] - [Sounds and

Audio Devices], and click [Sounds].

B

Set [Windows Logon] and [Windows Logoff] to [(None)].

Cannot resume.

z One of the following operations may have been carried out.

• In standby mode, the AC adaptor or battery pack was disconnected, or a peripheral was connected or disconnected.

• The power switch was slid for four seconds or longer to forcibly turn off the computer.

Slide the power switch to turn on the computer. Data not saved will be lost.

„

Starting Up and Standby and Hibernation Mode

Other startup problems.

z Check to see if there was a disk error.

A

Remove all peripheral devices including an external display.

B

Click [start] - [My Computer] and right-click [Local Disk (C:)], and click [Properties].

C

Click [Tools] - [Check Now].

• A standard user needs to enter an administrator password.

D

Select the option in [Check disk options] and click [Start].

z Start the computer in Safe Mode and check the error details. (

Î page 26 “ Windows does not start up”.)

„

Shutting Down

Windows does not shut down.

z z

Remove all peripheral devices.

Wait one or two minutes. It is not a malfunction.

„

Password

Even after entering the password, a message appears requesting to type it again.

„

Display

When the screen becomes black for a moment.

z z

If

If

lights up, press

lights up, press

NumLk to disable the ten-key mode, and then input.

Caps Lock to disable the Caps Lock mode, and then input.

No display.

The screen is disordered.

The external display does not work normally.

z When you set [Intel video driver power saving function (Intel(R) Display Power Saving Technology)] of Power Saving Utility to [Enable], if you do the following operations, the screen becomes black for a moment, but this is not a malfunction. You can use it.

• Adjust the brightness of the screen with

Fn + F1 / Fn + F2.

• Remove and insert the AC adaptor.

While you are using motion video playback software, benchmark software for graphic, if error screen is displayed or application software does not function normally, set [Intel video driver power saving function (Intel(R) Display Power Saving Technology)] to [Disable].

z The external display is selected. Press

Fn + F3 to switch the display. Wait until the display has been switched completely before pressing

Fn + F3 again.

z The display is turned off by the power-saving function. To resume, do not press the direct selection keys, but press any other key like

Ctrl.

z The computer entered standby or hibernation by the power-saving function. To resume, slide the power switch.

z The screen may become darker. Press

Fn + F2 to make the screen brighter.

z Changing the number of display colors and resolution may affect the screen. Restart the computer.

z The refresh rate of the internal LCD may be 40 hertz. Change the refresh rate of the internal LCD.

A

Click [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver for Mobile].

B

Click [Display Settings].

C

If [Refresh Rate] of the Notebook is [40 Hertz], change to [60 Hertz] and click [OK].

z If the external display does not support the power saving function, it may not work normally when the computer enters the power saving mode. Turn off the external display.

„

Battery

The battery indicator is lights red.

The battery indicator is blinking.

The battery indicator is flashing.

z The battery level is very low (the charge is approx. 9% or less).

z Connect the AC adaptor. You can use the computer when the indicator light is orange. If you do not have an AC adaptor, save your data and power off your computer. After replacing the battery pack with a fully charged one, turn your computer on again.

z If blinking red:

Quickly save your data and power off your computer. Remove the battery pack and disconnect the AC adaptor, then connect them again. If the problem persists, contact your technical support office. The battery pack or charging circuit may be defective.

z If blinking orange:

• Battery cannot be recharged temporarily because the internal temperature of the battery pack is outside the acceptable temperature range for recharging. Your computer can be used normally in this state. Once the range requirement is satisfied, charging begins automatically.

• Software applications and peripheral devices (USB devices, etc.) are consuming too much power. Exit the software applications currently running, and remove all peripherals. Once the range requirement is satisfied, charging begins automatically.

z The battery is recharging.

If [Battery Charging Indicator] in [Main] menu of the Setup Utility is set to [Flashing], the indicator will alternately become lighter and darker.

27

28

Troubleshooting (Basic)/Error Code/Message

„

Touch Pad/Touchscreen

The cursor does not work.

z When using the external mouse, connect it correctly.

z Restart the computer by using the keyboard.

Press , z If the computer does not respond to keyboard commands, read “No response” (Î below).

z Set [Touch Pad] to [Enabled] in the [Main] menu of the Setup Utility.

z The drivers for some mice may disable the touch pad. Check your mouse’s operating instructions.

Cannot input using the touch pad.

Cannot input using the touchscreen.

Cannot input using the touchscreen as the tablet mode.

Cannot point the correct position using the included stylus.

z When mouse drivers are installed (i.e. IntelliMouse), the touchscreen does not work.

Reinstall the touchscreen driver.

<Only for model with Windows XP Professional> z

Set [Touchscreen Mode] to [Auto] or [Touchscreen Mode] in the [Main] menu of the Setup

Utility.

<Only for model with Windows XP Tablet PC Edition> z Set [Touchscreen Mode] to [Tablet Mode] in the [Main] menu of the Setup Utility.

z Perform the touchscreen calibration (Î page 15).

„

Reference Manual

The Reference Manual is not displayed.

z Install Adobe Reader.

A

Log on to Windows as an administrator.

B

Click [start] - [Run] and input “c:\util\reader\setup.exe”, then click [OK].

C

Follow the on-screen instructions.

„

Others

No response.

z Press

Ctrl+Shift+Esc to open Task Manager and close the software application that is not responding.

z An input screen (e.g., password input screen at startup) may be hidden behind another window. Press

Alt+Tab to check.

z Slide the power switch for four seconds or longer to shut down the computer, and then slide the power switch to turn it on. If the application program does not work normally, uninstall and reinstall the program. To uninstall, click [start] - [Control Panel] - [Add or Remove Programs].

Error Code/Message

Follow the instructions below when an error code or message appears. If the problem persists or if the error code/message displayed is not shown here, contact your technical support office.

Error Code/Message

Bad System CMOS

System CMOS

Checksum Error

Solution

An error has occurred in the memory of system settings. This occurs when the memory content is changed by an unexpected program operation, etc.

z

Start the Setup Utility and return the settings to the default values, and then change the settings as necessary.

z If the problem persists, the internal clock battery may need to be replaced. Contact your technical support office.

Invalid Year. System date restored to 01/01/

2008

Error

Hard disk access is prohibited by "Hard

Disk Lock". Please enter the Setup Utility and change the values correctly to permit access.

Press <F2> to enter setup

Reboot and Select proper Boot device or

Insert Boot Media in selected Boot device and press a key

The date and time settings are not correct.

z

Start the Setup Utility and set the correct date and time.

z If the problem persists, the internal clock battery may need to be replaced. Contact your technical support office.

The hard disk access is prohibited.

z z

Start the Setup Utility and select [Disabled] in [Hard Disk Lock] in the [Security] menu.

Write down the error details and press essary.

F2 or Del to start the Setup Utility. Change the settings if nec-

The operating system is not installed in the floppy disk or the hard disk that you are going to boot from.

z If using a floppy disk, change the disk to the one you can use for boot.

z If using the hard disk, check if the hard disk is recognized in [Information] menu of the Setup

Utility. If the hard disk is recognized, perform the reinstallation (Î Supplementary Instructions

for Windows XP). If not, contact your technical support office.

z If a device is connected to the USB port, disconnect the device, or set [Legacy USB Support] to [Disabled] in the [Advanced] menu of the Setup Utility.

Disk error

Press any key to restart

Extended RAM

Module Failed

z The RAM module is not inserted correctly. Turn off the computer, and confirm that the RAM module conforms to the recommended module, and reinsert it.

Standard RAM Failed

z Contact your technical support office.

FAN ERROR

z The cooling fan does not work correctly. Contact your technical support office.

„

To start the Setup Utility

A

Restart the computer.

B

Press F2 or Del while [Panasonic] boot screen is displayed.

29

30

Hardware Diagnostics

If the hardware installed in this computer is not operating properly, you can use the PC-Diagnostic Utility to determine whether or not there is a problem.

If the utility discovers a problem in the hardware, contact your technical support office.

Hardware that can be checked using the PC-Diagnostic Utility

Hardware below can be checked using this utility. (Software cannot be checked.) z CPU z Memory z Hard Disk z Video Controller

*1 z Sound z Modem z LAN z Wireless LAN

*2 z Bluetooth z USB

*3 z PC Card Controller z

SD Card Controller z Keyboard z Touch Pad z Touchscreen

*1

When the PC-Diagnostic Utility is running, a beep will sound, so do not use headphones at this time. (The beep will not sound if mute is using Windows.)

*2

Only for model with wireless LAN

*3

Only for model with Bluetooth z When the video diagnostic check is running, the display may be distorted, and when the audio diagnostic check is running, sounds may be generated from the speaker. These are not malfunctions.

Regarding the PC-Diagnostic Utility

NOTE

z Only for the hard disk, keyboard and touch pad, you can select standard diagnostic check or extended diagnostic check.

When the PC-Diagnostic Utility starts up, it will run the standard diagnostic check. z We recommend that you use the touch pad for operations. When not using the touch pad, you can operate using the internal keyboard instead. Note, however, that the touch pad and internal keyboard may not function temporarily during diagnostic check. If this happens, wait for a moment before operating them.

Operations

Select icon

Click the icon

Complete the PC- Diagnostic Utility and then restart the computer

Touch pad operations

Place the cursor above the icon

Tap or click (right click cannot be used)

Click (close)

Internal keyboard operations

Press Space and then press Î Í Ï Ð

( (close) cannot be selected).

Press Space above the icon.

Press Ctrl + Alt + Del.

z If the touch pad does not operate properly, press Ctrl + Alt + Del to restart the computer, or slide the power switch to turn the power off, and then restart the PC-Diagnostic Utility.

Running the Diagnostic Check

Run this utility using the default settings in the Setup Utility.

If the Setup Utility or other settings will not allow a hardware to be executed, the hardware icon will be displayed in gray.

1 Connect the AC adaptor, and turn on the wireless switch.

During the diagnostic check, do not remove the AC adaptor, or attach any peripheral devices.

2 Turn on or restart the computer, and press

F2

or

Del

while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

z If the password is requested, enter the Supervisor Password.

z If you are using the computer after changing the settings from the status at the time of purchase, we recommend that you make a note of the settings that are changed.

3 Press

F9

.

At the confirmation message, select [Yes] and press Enter.

4 Press

F10

.

At the confirmation message, select [Yes] and press Enter.

The computer will restart.

5 While [Panasonic] boot screen is displayed, press and hold

Ctrl

+

F7

until

Please Wait

appears at the bottom of the display.

When the PC-Diagnostic Utility starts up, it will automatically begin the diagnostic check for all hardware components. z If the password is requested, enter the password.

z The touch pad and the internal keyboard cannot be used until alternating blue and yellow colors are displayed on the left side of the hardware icon (A). z By clicking the icon, you can execute the following operations:

• : Start the diagnostic check from the beginning

A

• : Stop the diagnostic check (You cannot restart the check partway through by clicking )

• : Display help (click the screen or press Space to return to the original diagnostic check screen) z

You can check the status of the diagnostic check by the display color on the left side of the hardware icon (A).

• Aqua: Not running diagnostic check

• Alternating blue and yellow: Currently running diagnostic check. The interval of the alternating colors differs depending on the type of diagnostic check currently running.

During memory diagnostic check, the display may freeze for a long period of time. Wait until the process is complete.

• Green: No problems discovered

• Red: Problems discovered

NOTE

z Using the following procedure, you can run a diagnostic check on a specified hardware component, or run an extended diagnostic check on the hard disk, keyboard and touch pad (You do not need to perform the extended diagnostic check for the keyboard and touch pad in normal use.). The extended diagnostic check on the hard disk is more detailed, and so requires a longer period of time to run.

B e.g. hard disk A

Click to stop the diagnostic check.

B

Click the icon for the hardware that is not to be checked, so that the icon is displayed in gray (B).

When running a check on the hard disk, keyboard or touch pad, clicking the icon once will turn on the extended diagnostic check (“FULL” (C) will be displayed below the icon); click again, and the icon will be displayed in gray (D).

C

C

Click to start the diagnostic check.

D

6 When all the hardware has been checked, confirm the diagnostic check results.

If the display is red and the message “Check Result TEST FAILED” is displayed, you can assume that there is a problem with the computer’s hardware. Confirm which hardware component is displayed as red, and contact your technical support office.

If the display is green and the message “Check Result TEST PASSED” is displayed, the computer’s hardware is operating normally. Continue using the computer as it is. If the computer still does not operate properly, reinstall the software. (Î Supplementary Instructions for Windows XP)

NOTE

z If you run a memory diagnostic check after installing a new RAM module (sold separately) and the message “Check

Result TEST FAILED” is displayed:

Remove the additional RAM module and run the diagnostic check again. If the message “Check Result TEST

FAILED” is still displayed, you can assume that there is a problem with the internal RAM module.

7 After the diagnostic check is complete, click (close), or press

Ctrl

+

Alt

+

Del

to restart the computer.

31

Installing Windows Vista

When you install Windows Vista, the hard disk data will be erased.

Back up important data to other media or an external hard disk before reinstallation.

CAUTION

Do not delete the recovery partition on the hard disk when using

Windows Vista.

This partition contains data to help recover your system.

The disk space in the partition is not available to store data.

Hard disk

Recovery partition

(approximately 2 GB)

Area usable by Windows Vista

32

NOTE

z This computer is provided the license of Windows Vista Business which includes the right to downgrade to Windows

XP Professional.

z To correctly operate “First-time operation for Windows Vista” (ÎStep 15), please download the Operating Instructions for the Windows Vista model before installation.

Preparation

z Prepare the Product Recovery DVD-ROM Windows Vista (included).

z Prepare the CD/DVD drive.

The performance is confirmed by Panasonic CD/DVD drive.

(optional: CF-VDRRT1M, CF-VDRRT2W, CF-VDRRT3W, CF-VDRRT3U) z Remove all peripherals (except for the CD/DVD drive).

z Connect the AC adaptor and do not remove it until installation is complete.

NOTE

z Even if reinstallation is performed, the number of times of DVD’s region code setting will not be reset.

1 Turn off the computer and connect the CD/DVD drive to the computer.

2 Turn on the computer, and press

F2

or

Del

while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

z If the password is requested, enter the Supervisor Password.

3 Write down all of the contents of the Setup Utility and press

F9

.

At the confirmation message, select [Yes] and press Enter.

4 Press

F10

.

At the confirmation message, select [Yes] and press Enter.

The computer will restart.

5 Press

F2

or

Del

while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

z If the password is requested, enter the Supervisor Password.

6 Set the Product Recovery DVD-ROM Windows Vista into the CD/DVD drive.

7 Select the [Exit] menu, then select your CD/DVD drive in [Boot Override].

8 Press

Enter

.

The computer will restart.

9 Click [Reinstall Windows] and click [Next].

The License Agreement screen appears.

10 Click [Yes, I agree to the provisions above and wish to continue!] and click [Next].

11 Select the settings and click [Next].

z [Reinstall Windows to the whole Hard Disk to factory default.]

You will have a single partition.

z [Reinstall Windows to the operating system partition.]

You can keep the partition structure.

This option is only available when using Windows Vista.

12 At the confirmation message, click [YES].

Reinstallation starts automatically. (It will take approximately 30 minutes.) z Do not interrupt reinstallation, for example by turning off the computer. Otherwise reinstallation may become unavailable as Windows may not start up or the data may be corrupted.

13 Remove the Product Recovery DVD-ROM Windows Vista, and then click [OK] to turn off the computer, then remove the CD/DVD drive.

14 Turn on the computer.

z If the password is requested, enter the Supervisor Password.

15 Perform the first-time operation for Windows Vista.

16 Start the Setup Utility and change the settings as necessary.

17 Perform Windows Update.

„

Information about Windows Vista

To download the Operating Instructions for Windows Vista:

Visit the following web site: http://pc-dl.panasonic.co.jp/cgi-bin/itn/toughbook/dl01.cgi

The information about Windows Vista on the Panasonic personal computer

Visit the following web site: http://pc-dl.panasonic.co.jp/itn/support/vistaxpdwg1.html

33

34

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC PRODUCT (“PRODUCT”)

ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH

THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY

DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.

Panasonic Corporation has developed or otherwise obtained the Programs and hereby licenses their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to achieve your intended results, and for the installation, use and results obtained therefrom.

LICENSE

A. Panasonic Corporation hereby grants you a personal, non-transferable and non-exclusive right and license to use the Programs in accordance with the terms and conditions stated in this Agreement. You acknowledge that you are receiving only a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain no title, ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms, concepts, designs and ideas represented by or incorporated in the Programs and related documentation, all of which title, ownership and rights shall remain with Panasonic Corporation or its suppliers.

B. You may use the Programs only on the single Product which was accompanied by the Programs.

C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not distribute or otherwise make the Programs or related documentation available to any third party, by time-sharing or otherwise, without the prior written consent of Panasonic Corporation.

D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation for any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of your use of the Programs on the single Product which was accompanied by the Programs. You shall not modify, or attempt to modify, the Programs.

E. You may transfer the Programs and license them to another party only in connection with your transfer of the single

Product which was accompanied by the Programs to such other party. At the time of such a transfer, you must also transfer all copies, whether in printed or machine readable form, of every Program, and the related documentation, to the same party or destroy any such copies not so transferred.

F. You may not remove any copyright, trademark or other notice or product identification from the Programs and you must reproduce and include any such notice or product identification on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE

THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN

WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PER-

MITTED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate this license at any time by destroying, at your expense, the Programs and related documentation together with all copies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions thereof set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon any such termination, you agree to destroy, at your expense, the Programs and related documentation together with all copies thereof in any form.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND

BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE-

MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,

ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MAT-

TER OF THIS AGREEMENT.

GOVERNMENT RESTRICTED RIGHTS.

The Software is provided with “RESTRICTED RIGHTS.” Use duplication or disclosure by the government is subject to restrictions as set forth in FAR52.227-14 and DFAR252. 227-7013 et seq. or their successors.

Use of the Software by the government constitutes acknowledgement of Intel’s proprietary rights therein.

Contractor or Manufacturer is Intel Corporation, 2200 Mission College Blvd., Santa Clara, CA 95052.

Contrat de licence d’usage limité

Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic (le “Produit”) sont exclusivement concédés en licence à l’utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles cidessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et conditions des présentes.

Panasonic Corporation a mis au point ou obtenu les Logiciels et vous en concède l’utilisation par les présentes. Vous assumez l’entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour obtenir les résultats escomptés, ainsi que de l’installation, de l’utilisation et des résultats obtenus.

Licence

A. Panasonic Corporation vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs d’utiliser les Logiciels conformément aux termes, clauses et conditions de ce contrat. Vous reconnaissez ne recevoir qu’un droit limité d’utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à n’obtenir aucun droit de titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les accompagnant ni vis-à-vis des algorithmes, concepts, dessins, configurations et idées représentés par ou incorporés dans les Logiciels et la documentation les accompagnant, dont les titres, propriété et droits resteront tous

à Panasonic Corporation ou à leurs propriétaires.

B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.

C. Vous et vos employés ou agents êtes requis de protéger la confidentialité des Logiciels. Vous ne pouvez ni distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d’un tiers, par partage de temps ou de quelque autre manière que ce soit, sans l’autorisation écrite préalable de Panasonic Corporation.

D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la documentation les accompagnant pour quelque fin que ce soit, à l’exception d’une (1) copie des Logiciels à des fins de sauvegarde uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est accompagné par les Logiciels.

Vous ne pouvez ni modifier ni tenter de modifier les Logiciels.

E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu’en rapport avec votre cession du

Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette cession, vous devez céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la machine, de tous les Logiciels ainsi que de la documentation les accompagnant, à la même partie ou détruire les copies non cédées.

F. Vous ne pouvez retirer aucune marque de droits d’auteur, marque de commerce ou autre ni aucune identification de produit des Logiciels et vous devez reproduire et inclure toutes ces notices ou identifications de produit sur toutes les copies des Logiciels.

Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs copies, de façon électronique ou mécanique, en tout ou en partie.

Vous ne pouvez utiliser, copier, modifier, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie, à l’exception de ce qui est expressément stipulé dans ce contrat.

Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l’exception de ce qui est autorisé au paragraphe E ci-dessus, votre licence est automatiquement résiliée.

Termes, clauses et conditions

Cette licence n’est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d’une résiliation antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée, avec application immédiate, si les conditions de résiliation définies ailleurs dans ce contrat se sont réalisées ou si vous ne respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez de détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme que ce soit.

Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes, clauses et conditions. Vous reconnaissez en outre qu’ils sont la description complète et exclusive du contrat conclu entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre communication entre nous, relativement à l’objet du présent contrat.

35

36

Specifications

To check CPU speed, memory size and the hard disk drive (HDD) size:

Start the Setup Utility (Î Reference Manual “Setup Utility”) and select [Information] menu.

[Processor Speed]: CPU speed, [Memory Size]: Memory size, [Hard Disk]: Hard disk drive size

„

Main Specifications

Model No.

CPU/

Secondary cache memory

Chip Set

Main Memory

*3

Video Memory

*4

Hard Disk Drive

*5

Display Method

CF-T8EWETZAM CF-T8EWRTZAM vPro™ Technology Intel

®

Centrino

®

2

*1

CF-T8EWETZCM

Intel

®

Core™ 2 Duo Processor Ultra Low Voltage SU9300 (1.20 GHz, 3 MB

*2

L2 cache,

800 MHz FSB)

Mobile Intel

®

GS45 Express chip set

2 GB

*2

, DDR2 SDRAM (4 GB

*2

Max.)

UMA (1024 MB

*2

Max. / 1024 MB

*2

Max. with expanded memory)

160 GB

Internal LCD

External Display

*7

12.1 XGA type (TFT) (1024

×

768 dots)

65,536/16,777,216 colors (1024

×

768 dots)

*6

65,536/16,777,216 colors (800

×

600 dots/1024

×

768 dots/1280

×

768 dots/1280

×

1024 dots/1400

×

1050 dots/1440

×

900 dots/1680

×

1050 dots/1600

×

1200 dots/

1920

×

1080 dots/1920

×

1200 dots)

65,536/16,777,216 colors (800

×

600 dots/1024

×

768 dots)

*6 Simultaneous Display on LCD + External Display

*7

Wireless LAN

Bluetooth

*9

LAN

*10

Modem

Fingerprint Reader

Sound

Security Chip

Card Slots PC Card Slot

Intel

®

WiFi Link 5100

*8

(Î page 37)

Î page 37

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T

-

Data: 56 kbps (V.92) FAX: 14.4 kbps

Î

Supplementary Instructions of Fingerprint Reader

-

WAVE and MIDI playback, Intel

®

Speaker (built in)

High Definition Audio subsystem support, Monaural

TPM (TCG V1.2 compliant)

*11

×

1, Type I or Type II, Allowable current 3.3 V: 400 mA, 5 V: 400 mA

×

1

SD Memory Card Slot

*12

RAM Module Slot

×

1, DDR2 SDRAM, 200-pin, 1.8 V, SO-DIMM, PC2-5300 Compliant

*13

Interface

Keyboard/Pointing Device

Power Supply

AC Adaptor

*16

USB Ports

×

3 (USB2.0

×

3)

*14

/ Modem Port (RJ-11) / LAN Port (RJ-45)

External Display Port: Mini Dsub 15-pin female / Microphone Jack

*15

*10

/

: Miniature jack,

3.5 DIA / Headphone Jack: Miniature jack, 3.5 DIA / Mini Port Replicator connector:

Dedicated 50-pin male

83 keys/Touch Pad/Touchscreen (stylus (included) touch capable)

AC adaptor or Battery pack

Input: 100 V - 240 V AC, 50 Hz/60 Hz

Output: 16 V DC, 3.75 A

Li-ion 10.8 V, 5.8 Ah (typ.), 5.4 Ah (min.)

Approx. 8 hours (Economy Mode (ECO) - Disable)

Battery Pack

Operating Time

*17

Charging Time

*18

Approx. 5 hours (Power off)/Approx. 6.5 hours (Power on)

Power Consumption

*19

Physical Dimensions (W

×

D

×

H)

Approx. 25 W

*20

/ Approx. 60 W (maximum when recharging in the ON state)

272 mm

×

214.3 mm

×

36 mm (at the front)/49.3 mm (at the rear) {10.7 "

1.4 " / 1.9 "} (excluding protrusion)

×

8.4 "

×

Approx. 1.475 kg {3.3 lb.}

Weight

*21

Humidity

Approx. 1.475 kg {3.3 lb.}

Environment Operation Temperature

5

°

C to 35

°

C

Approx. 1.485 kg {3.3 lb.}

30% to 80% RH (No condensation)

Storage Temperature

-20

°

C to 60

°

C

Humidity 30% to 90% RH (No condensation)

Model No.

OS

*22

Pre-installed Software

*22

CF-T8EWETZAM

Microsoft

®

Windows

®

CF-T8EWRTZAM

XP Professional Service Pack 2 with Advanced Security Technologies (NTFS File System)

CF-T8EWETZCM

Microsoft

®

Windows

®

XP Tablet PC

Edition 2005

Microsoft

®

Internet Explorer 6 Service Pack 2 / DirectX 9.0c / Microsoft

Media Player 10 / Microsoft

®

Windows

®

Movie Maker 2.1 / Microsoft

®

Windows

®

®

.NET Framework

3.5 / Adobe Reader / Intel

®

PROSet/Wireless Software / Icon Enlarger / Loupe Utility /

Touch Pad Utility / PC Information Viewer / PC Information Popup / Display Rotation

Tool / Hotkey Settings / Power Saving Utility / FAN Control Utility / Intel

®

Matrix Storage

*23

/ Bluetooth Manager / Wireless Switch Utility / Wireless Connection Disable Utility

Stack for Windows by TOSHIBA

*9

/ Economy Mode (ECO) Setting Utility / Battery

Recalibration Utility / Infineon TPM Professional Package V3.5 SP1

*24

/ Protector Suite

2009

*25

Aptio Setup Utility / Hard Disk Data Erase Utility

*26

/ PC-Diagnostic Utility

*27

„

Wireless LAN <Only for model with wireless LAN>

Data Transfer Rates

IEEE802.11a : 54/48/36/24/18/12/9/6 Mbps (automatically switched)

*28

IEEE802.11b : 11/5.5/2/1 Mbps (automatically switched)

*28

IEEE802.11g : 54/48/36/24/18/12/9/6 Mbps (automatically switched)

*28

IEEE802.11n : (HT20) 144.4/130/117/115.6/104/86.7/78/65/58.5/57.8/52/43.3/39/28.9/26/19.5/14.4/

13/6.5 Mbps (automatically switched)

*28

(HT40) 300/270/243/240/216/180/162/130/120/117/108/104/90/81/78/60/54/52/39/

30/27/26/13 Mbps (automatically switched)

*28

Standard Supported

Transmission Method

Wireless Channels Used

RF Frequency Band

IEEE802.11a / IEEE802.11b / IEEE802.11g / IEEE802.11n(Draft 2.0)

OFDM system, DS-SS system

IEEE802.11a : Channels 36/40/44/48/52/56/60/64/100/104/108/112/116/132/136/140/149/153/157/

161/165

IEEE802.11b/IEEE802.11g : Channels 1 to 11

IEEE802.11n : Channels 1-11/36/40/44/48/52/56/60/64/100/104/108/112/116/132/136/140/149/153/

157/161/165

IEEE802.11a : 5.18 GHz - 5.32 GHz, 5.5 GHz - 5.58 GHz, 5.66 GHz - 5.7 GHz, 5.745 GHz -

5.825 GHz

IEEE802.11b/IEEE802.11g : 2.412 GHz - 2.462 GHz

IEEE802.11n : 2.412 GHz - 2.462 GHz, 5.15 GHz - 5.35 GHz, 5.5 GHz - 5.58 GHz, 5.66 GHz -

5.7 GHz, 5.745 GHz - 5.85 GHz

„

Bluetooth™ <Only for model with Bluetooth>

Bluetooth Version 2.0 + EDR

Transmission Method

Wireless Channels Used

RF Frequency Band

FHSS system

Channels 1 to 79

2.402 GHz - 2.48 GHz

*6

*7

*8

*9

*1

*2

*3

*4

*5

The Intel

®

Active Management Technology (Intel

®

AMT) function must be set before use.

1 MB = 1,048,576 bytes / 1 GB = 1,073,741,824 bytes

You can physically expand the memory up to 4 GB, but the total amount of usable memory available will be less depending on the actual system configuration.

A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video Memory cannot be set by the user.

The size of Video memory is allotted depending on the operating system.

1 GB = 1,000,000,000 bytes. Your operating system or some application software will report as fewer GB.

A 16,777,216 color display is achieved by using the dithering function.

Display may be impossible using some connected external displays.

Only for model with wireless LAN.

Only for model with Bluetooth.

*10

*11

*12

*13

*14

*15

*16

Some devices cannot be used depending on the port type.

Only for model that supports TPM.

For information on TPM, click [start] - [Run] and input

“c:\util\drivers\tpm\README.pdf” and refer to the Installation

Manual of “Trusted Platform Module (TPM)”.

This slot is compatible with High-Speed Mode. Operation has been tested and confirmed using Panasonic SD/SDHC

Memory Cards with a capacity of up to 32 GB.

Operation on other SD equipment is not guaranteed.

Only a RAM module designed for DDR2 (PC2-5300) can be used

(Panasonic : CF-BAK1024U, CF-BAB2048U).

172-pin Micro DIMM used in CF-T5/CF-W5 series cannot be used.

Does not guarantee operation of all USB-compatible peripherals.

Use a condenser-stereo microphone.

<Only for North America>

The AC adaptor is compatible with power sources up to

240 V AC adaptor. This computer is supplied with a 125 V

AC compatible AC cord.

20-M-1-1

37

38

Specifications

*17

*18

*19

*20

Measured using MobileMark™ 2007 (LCD brightness : 60 cd/m

2

).

Varies depending on the usage conditions, or when an optional device is attached.

When Economy Mode (ECO) is enabled, the operating time becomes approximately 20% shorter than when it is disabled.

When using the optional battery pack (CF-VZSU52W), operating time will be almost halved.

Varies depending on the usage conditions, CPU speed, etc.

It may take a long time to charge a fully discharged battery.

When using the optional battery pack (CF-VZSU52W):

Approx. 4 hours (Power off)/Approx. 5 hours (Power on)

Approx. 0.9 W when the battery pack is fully charged (or not being charged) and the computer is off.

<When using with 115 V AC>

Even when the AC adaptor is not connected to the computer, power is consumed (Max. 0.5 W) simply by having the AC adaptor plugged into an AC outlet.

Rated power consumption.

23-E-1

*21

*22

*23

*24

*25

*26

*27

*28

Average value. May differ depending on models.

Operations of this computer are not guaranteed except for the pre-installed OS and the installed OS by using the Product Recovery DVD-ROM (included).

Some parts of the software in the Product Recovery DVD-

ROM may not be installed depending on a model.

Must be installed before use.

Only for model that supports TPM.

Must be installed before use.

Only for model with fingerprint reader.

Must be installed before use.

The Product Recovery DVD-ROM is required.

For startup methods, refer to “Hardware Diagnostics”

(Î page 30).

These are speeds specified in IEEE802.11a+b+g+n standards. Actual speeds may differ.

LIMITED WARRANTY

For U.S.A.

Panasonic Computer Solutions Company - Worldwide Product Warranties

Section 1 - Limited Warranty - Hardware

Panasonic Computer Solutions Company (referred to as “Panasonic”) will repair the products listed below with new or rebuilt parts, free of charge in the U.S.A. or other Panasonic approved location for the period specified below from the date of original purchase in the event of a defect in materials or workmanship. These warranties are extended solely to the original purchaser. A purchase receipt or other proof of date of original purchase will be required before warranty performance is rendered.

• Laptop Computers – 3 Years

• PDRC - LCD and Keyboard Assemblies – 3 Years

• MDWD – Mobile Computer and Wireless Display Assemblies (CF-07/CF-08) - 3 Years

• Hand-held Computers (P1/P2) – 1 Year

• Arbitrator Video Camera – 1 Year

• Arbitrator Recorder Unit – 1 Year

• Arbitrator Remote Control Panel – 1 Year

• Arbitrator Wireless Receiver Unit – 1 Year

• Arbitrator P2 Card(s) (All Sizes) – 1 Year

• Arbitrator Wireless Microphone(s) / Transmitter – 90 Days

• Arbitrator System Component Interconnect Cables – 90 Days

Main Battery

The battery supplied with the product is covered under the warranty for one (1) year from date of purchase, except as excluded in

Section 3. Batteries purchased separately are covered under the warranty for one (1) year from the date of purchase. A battery furnished under the warranty is covered for the remaining period of the one year warranty on the original or purchased battery.

Options and Accessories

The below listed Panasonic brand or supplied options and accessories are covered under this limited warranty for the period specified from the date of purchase or as specifically stated:

• AC Adaptor / Power Cord – 3 Years

• Memory Card (Panasonic Brand) – 3 Years

• Car Mount Docking Station PCB or Complete Vehicle Docking Station – 3 Years

• Port Replicator / I-O Box / Device Cradle (like CF-08) – 3 Years

• Antenna Pass-through Cable – 3 Years

• Backlit or Full-sized keyboard - 3 Years or assumes warranty of the unit in which it is installed

• Integrated Panasonic supplied options and kits including, but not limited to Wireless WAN, Media Bay Drives (Floppy, CD/

DVD), GPS, Bluetooth, Smartcard Reader, and Fingerprint readers – 3 Years or assumes warranty period of the unit in which it is installed provided the integration was performed by Panasonic or an Authorized Options Integrator.

• Hard Drive (separately purchased) – 1 Year

• External USB Drives (CD / DVD / Floppy / Hard Drive) – 1 Year

• Optional Battery – 1 Year

• Battery Charger – 1 Year

• Standard or Digitizer Stylus Pens – 90 Days (physical damage excluded)

Section 2 - Limited Warranty - Software

Panasonic Computer Solutions Company (referred to as “Panasonic”) warrants to you only that the disk(s) or other media on which the Programs are furnished will be free from defects in material and workmanship under normal use for a period of sixty (60) days from the date of delivery thereof to you, as evidenced by your purchase receipt.

This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will meet your requirements or that the operation of the Programs will be uninterrupted or error free. Panasonic shall have no obligation for any defects in the disk(s) or other media on which the Programs are furnished resulting from your storage thereof, or for defects that have been caused by operation of the disk(s) or other media.

Panasonic’s entire liability and your exclusive remedy under this warranty shall be limited to the replacement, in the United States or other Panasonic designated location, of any defective disk or other media which is returned to Panasonic’s Authorized Service Center, together with a copy of the purchase receipt, within the aforesaid warranty period. The customer is responsible for ensuring that all data is backed up and made secure during normal use and before sending a unit for service.

39

40

LIMITED WARRANTY

Section 3 - Limited Warranty Exclusions

Specifically excluded from the warranty are:

• All consumable items; such as screen protection films, logo badges, labels, cleaning cloths, carry cases, manuals, cables, straps, belts, holsters, tethers, and harnesses and any other options and accessories not listed above or covered under a separate warranty.

• Failures related to the product operating system, hard drive image, software setup, software program, virus, other program(s) or file(s) on the hard drive or in any computer memory location.

• Failures due to BIOS settings or changes, as well as any cosmetic or physical damage to the unit.

• Any unit or device with a missing or altered model number or serial number label

• Damage which occurs in shipment

• Failures which are caused by products not supplied by Panasonic

• Failures which result from alteration, accident, misuse, introduction of liquid or other foreign matter into the unit, abuse, neglect, installation, maladjustment of consumer controls, improper maintenance or modification, use not in accordance with product use instructions

• Failures due to service by anyone other than a Panasonic Authorized Service Provider

• Failures caused by improper integration by any company other than Panasonic Configuration and Integration Centers.

• Damage, failure, or loss due to the unit being stolen, lost, misplaced, or used by anyone other than the original purchaser

• Damage that is attributable to acts of God

This warranty only covers failures due to defects in materials or workmanship which occur during normal use.

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CON-

TROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS

*1

*1

. PANASONIC WILL NOT BE RESPONSIBLE

FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.

AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems when used during critical phases of flight (e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB Systems and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leaflets)

No.36

Other Limits and Exclusions: There are no other express warranties except as listed above.

PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES

RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS

AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

For technical support or to arrange for service on your Panasonic computer product, call our toll-free hotline at 1-800-LAPTOP5.

DIAL TOLL FREE: 1-800-LAPTOP5 (1-800-527-8675)

Web Site : www.panasonic.com/toughbook

For Canada

PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, this computer product (excluding software media), when purchased from PCI or from a PCI authorized reseller, to be free from defects in materials and workmanship under normal use, subject to the terms set forth below, during the period of warranty coverage specified.

Scope of Coverage Period of Coverage Type of Failure Coverage

• Laptop Computers (except Battery) and AC Adaptor

• Factory/PCI installed options including Wireless WAN, GPS,

Bluetooth, Fingerprint reader, Backlit keyboard, Memory Card and Media Bay Drives (Floppy, CD/DVD)

• Mobile Wireless Display

• PDRC – LCD and Keyboard Assemblies

• Port Replicator

• Hand-held Computers

• Battery

• Battery charger

• Auto Adaptor

• External USB Drives

• Standard or Digitizer Stylus Pen

• All consumable items including protection film, cleaning cloth, carry case, tether and harness

Three (3) Years from Date of

Original End User Customer

Purchase

One (1) Year from Date of

Original End User Customer

Purchase

Ninety (90) Days from Date of

Original End User Customer

Purchase

No Coverage

Defective Materials or Workmanship

Defective Materials or Workmanship

Defective Materials or Workmanship

Remedy – In the event of a warranty claim, contact PCI’s representatives within the applicable warranty period, identifying the nature of the defect claimed, at 1-800-668-8386 between 9:00 A.M. and 5:00 P.M., Eastern Time Zone, Mon. – Fri. (excluding holidays) for instructions on how to obtain service. A purchase receipt or other proof of date of original purchase is required before warranty service is performed. Defective parts covered by this Limited Warranty will be repaired or replaced with new or comparable rebuilt parts on an exchange basis. Warranty replacement or repair is subject to the terms of this Limited Warranty for the balance of the original period of warranty coverage.

No Coverage – This Limited Warranty does not cover products purchased outside Canada. Neither does it cover damage to, failure of, or defects in a product or accessory through mishandling, improper installation, abnormal use, misuse, neglect, accident, introduction of liquid or other foreign matter into the product, alteration or servicing by anyone not authorized by PCI, or act of God.

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CON-

TROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS

*2

*2

. PANASONIC WILL NOT BE RESPONSIBLE

FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.

AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems when used during critical phases of flight (e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB Systems and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leaflets)

No.36

IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE

Carefully pack the product, preferably in the original carton. Include details of defect claimed and proof of date of original purchase.

No liability is assumed for loss or damage to the product while in transit, if you chose your own transportation carrier.

SOFTWARE MEDIA LIMITED WARRANTY

Coverage – PCI warrants to you, the first end user customer, that the disk(s) or other media on which software program(s) is/are supplied will be free from defects in materials and workmanship under normal use in Canada for a period of sixty (60) days from date of receipt as evidenced by your purchase receipt for your Panasonic Computer product.

THIS IS THE ONLY WARRANTY THAT PCI MAKES RESPECTING THE SOFTWARE MEDIA. PCI does not warrant the software.

Please refer to the software licensor’s written warranty (accompanying the copy of the software) for any software warranty claim.

Claim Procedure – In the event of a defect in material or workmanship in the media during the sixty (60) day warranty period, and you return it, transportation costs prepaid, to Panasonic Canada Inc., Computer Products Marketing, 5770 Ambler Drive, Mississauga, Ontario L4W 2T3, within the warranty period, together with a copy of your purchase receipt, and an explanation of the suspected defect, PCI will replace in Canada the defective disk(s) or other media.

Remedy – PCI’s entire liability, and your only remedy for any breach of this software media warranty is limited to replacement of the media only. It does not cover any other damages, including, but not limited to, loss of use or profit loss, or special, indirect or consequential damages, or other claims, whether or not of similar character.

No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product, or in environmental conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling, modification or attempted modification of the program, or if damaged by accident or act of God. PCI is not responsible for damage to or loss of any program, data or removable storage media.

GENERAL

NO OTHER WARRANTIES – PCI DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH

RESPECT TO THE SOFTWARE, SOFTWARE MEDIA, COMPUTER PRODUCT, OPTIONS AND ACCESSORIES.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES – IN NO EVENT SHALL PCI BE LIABLE FOR ANY SPECIAL, INDIRECT OR

CONSEQUENTIAL DAMAGES ARISING FROM ANY BREACH OF THE LIMITED WARRANTIES SET OUT IN THIS DOCUMENT,

OR FROM THE USE OF THE COMPUTER PRODUCT, INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, BUSINESS,

PROFIT OR GOODWILL.

IN ANY EVENT, PCI’S MAXIMUM LIABILITY FOR ANY BREACH SHALL NOT EXCEED THE AMOUNT ACTUALLY PAID BY YOU

FOR THE COMPUTER PRODUCT.

NO ACTION, REGARDLESS OF ITS BASIS, MAY BE BEGUN AGAINST PCI MORE THAN TWO (2) YEARS AFTER THE CAUSE

OF ACTION AROSE.

Statutory Warranties – Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.

41

GARANTIE LIMITÉE

42

Pour le Canada

GARANTIE LIMITÉE – ORDINATEURS ET PÉRIPHÉRIQUES PANASONIC

Couverture – Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que ce produit informatique (à l’exclusion des supports des logiciels) est, au moment de sa vente par PCI ou d’un revendeur agréé par PCI, exempt de défauts de pièces et de fabrication dans les conditions normales d’utilisation, et ce, pendant la période de couverture de la garantie, sous réserve des modalités décrites ci-dessous.

Éléments couverts

• Ordinateurs blocs-notes (sauf batteries) et adaptateur secteur

• Options installées en usine/par PCI incluant : WAN sans fil,

GPS, Bluetooth, lecteur d’empreintes digitales, clavier rétroéclairé, carte mémoire et lecteurs (disquettes, CD/DVD)

• Écran mobile sans fil

• Ensembles PDRC – ACL et clavier

• Duplicateur de port

• Ordinateurs de poche

• Batterie

• Chargeur de batterie

• Adaptateur pour voiture

• Périphériques USB

Durée de couverture

Trois (3) ans à partir de la date d’achat original.

Un (1) an à partir de la date d’achat original.

Type de couverture

Défauts de pièces et de fabrication

Défauts de pièces et de fabrication

• Stylo pointeur standard ou pour numériseur graphique

• Tous les articles consommables incluant les pellicules protectrices, chiffons de nettoyage, étuis de transport, longes et sangles

Quatre-vingt-dix (90) jours à partir de la date d’achat original.

Aucune couverture

Défauts de pièces et de fabrication

Recours – Pour obtenir des informations sur la marche à suivre dans le cas où une réclamation en vertu de la garantie deviendrait nécessaire, communiquez par téléphone avec un représentant de PCI au 1-800-668-8386, entre 9h00 et 17h00 (heure de l’Est) du lundi au vendredi (sauf les jours fériés), avant l’échéance de la garantie applicable, en prenant soin d’identifier la nature de la défaillance. Un reçu ou toute autre pièce justificative de la date d’achat original sera exigé avant toute réparation. Toute pièce défectueuse couverte par la présente garantie limitée sera réparée ou remplacée par une pièce neuve ou remise à neuf. Le remplacement ou la réparation sera fait conformément aux modalités de la présente garantie limitée pendant la durée restante de la période originale de la garantie.

Produits non couverts – La présente garantie limitée ne couvre pas les produits achetés à l’extérieur du Canada. Elle ne couvre pas non plus les dommages, la défaillance ou les défauts attribuables à une manutention inadéquate, une mauvaise installation, une utilisation anormale ou abusive, de la négligence, un accident, un déversement ou la pénétration d’un objet étranger, une modification, un cas fortuit ou une réparation effectuée par une personne non agréée par PCI.

CE PRODUIT N’EST PAS DESTINÉ À ÊTRE UTILISÉ, EN TOUT OU EN PARTIE, COMME SYSTÈME/ÉQUIPEMENT NUCLÉAIRE,

SYSTÈME/ÉQUIPEMENT DE CONTRÔLE DU TRAFFIC AÉRIEN OU SYSTÈME/ÉQUIPEMENT DE POSTE DE PILOTAGE D’AVION

*3

.

PANASONIC DÉCLINE TOUTE RESPONSABILITÉ CONCERNANT L’UTILISATION DE CE PRODUIT DANS LES CAS SUSMENTIONNÉS.

*3

Les SYSTÈMES/ÉQUIPEMENTS DE POSTE DE PILOTAGE D’AVION sont dotés de systèmes OEPP (organiseur électronique de poste de pilotage) de classe 2 et de classe 1 utilisés pendant des phases critiques de vol (par exemple, pendant le décollage et l’atterrissage) et (ou) montés sur l’avion. Les systèmes OEPP de classe 1 et de classe 2 sont définis par le circulaire d’information FAA : AC (Advisory Circular) 120-76 A ou le feuilet n°36 JAA :JAA TGL (Temporary Guidance Leaflets) No 36.

EXPÉDITION DU PRODUIT POUR SERVICE SOUS GARANTIE

Emballez soigneusement le produit, de préférence dans son emballage d’origine. Joignez une description de la défaillance de même qu’une pièce justificative de la date d’achat. Panasonic Canada Inc. ne peut être tenue responsable pour tout dommage ou perte subi pendant le transport si vous avez choisi le transporteur.

GARANTIE LIMITÉE – SUPPORTS DES LOGICIELS

Couverture – Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que la ou les disquettes ou tout autre support sur lequel le ou les programmes sont fournis sont exempts de défauts de pièces et de fabrication dans des conditions normales d’utilisation au

Canada, et ce, pour une période de soixante (60) jours suivant la date de réception indiquée sur la preuve d’achat.

LA PRÉSENTE GARANTIE EST LA SEULE OFFERTE PAR PCI COUVRANT LES SUPPORTS DE LOGICIELS. PCI ne garantit pas les logiciels. Reportez-vous à la garantie écrite du concédant de licence d’utilisation du logiciel (qui accompagne la copie du logiciel) pour toute réclamation en vertu de la garantie.

Réclamation – marche à suivre – Panasonic Canada Inc. remplacera toute disquette ou support défectueux si l’article en question est retourné, port payé, à son service de Marketing – produits informatiques, 5770 Ambler Drive, Mississauga (Ontario) L4W 2T3, dans les soixante (60) jours suivant la date d’achat original. Joignez à votre envoi une pièce justificative de votre achat et une description du problème.

Recours – La responsabilité de PCI - et votre seul recours - dans le cas de toute défaillance couverte par la garantie sur ce support de logiciel est limitée au seul remplacement du support. Elle ne couvre aucun autre dommage, y compris, mais non exclusivement, la perte d’usage ou de profits, ni aucun dommage spécial, indirect ou consécutif, ni aucune autre réclamation de nature similaire ou autre.

Produits non couverts – La présente garantie limitée ne s’applique pas si la ou les disquettes ou autre support ont été utilisés dans un produit d’une marque autre que Panasonic ou dans des conditions environnementales autres que celles spécifiées par PCI ou le fabricant, ou soumis à une mauvaise utilisation, à la négligence, à une manutention inadéquate ou encore si le programme a été modifié ou subi une tentative de modification ou des dommages attribuables à un accident ou à un cas fortuit. De plus, PCI n’assume aucune responsabilité pour toute perte de, ou tout dommage à, un programme, des données ou un support de sauvegarde amovible.

GÉNÉRALITÉS

PCI NE RECONNAÎT AUCUNE AUTRE GARANTIE, EXPLICITE OU IMPLICITE, Y COMPRIS, MAIS NON EXCLUSIVEMENT, LES

GARANTIES IMPLICITES DE VALEUR COMMERCIALE ET D’UTILITÉ À UNE FIN QUELCONQUE, À L’ÉGARD DU LOGICIEL,

SUPPORTS DE LOGICIELS, PRODUITS INFORMATIQUES, PÉRIPHÉRIQUES ET ACCESSOIRES.

SOUS AUCUNE CIRCONSTANCE PCI NE POURRA ÊTRE TENUE RESPONSABLE DES DOMMAGES SPÉCIAUX, INDIRECTS OU CONSÉCU-

TIFS ATTRIBUABLES À UN MANQUEMENT AUX GARANTIES LIMITÉES DÉCRITES DANS LE PRÉSENT DOCUMENT OU À L’UTILISATION DU

PRODUIT INFORMATIQUE, Y COMPRIS, SANS RESTRICTION, LA PERTE DE DONNÉES, D’AFFAIRES, D’ACHALANDAGE OU DE PROFIT.

DANS TOUS LES CAS, LA RESPONSABILITÉ MAXIMALE DE PCI POUR TOUT MANQUEMENT NE POURRA EXCÉDER LE

PRIX DE VENTE DU PRODUIT INFORMATIQUE.

AUCUNE RÉCLAMATION, SANS ÉGARD À SES MOTIFS, NE POURRA ÊTRE FAITE AUPRÈS DE PCI PLUS DE DEUX (2) ANS

APRÈS LES FAITS INVOQUÉS À LA BASE D’UNE TELLE RÉCLAMATION.

Garantie statutaires – Certaines juridictions interdisent de telles limitations ou exclusions; aussi, pourraient-elles ne pas s’appliquer.

MEMO

43

As an

E

NERGY

S

TAR

®

Partner, Panasonic Corporation has determined that this product meets

E

NERGY

S

TAR

®

guidelines for energy efficiency. By enabling available power management settings, Panasonic computers enter a low-power sleep mode after a period of inactivity, saving the user energy. To learn more about power management, please visit the web site: www.energystar.gov/index.cfm?c=power_mgt.pr_power_management

Outline of the International

E

NERGY

S

TAR

®

Office Equipment Program

The international

E

NERGY

S

TAR

®

Office Equipment Program is an international program that promotes energy saving through the use of computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations.

For information about

E

NERGY

S

TAR

®

, refer to the following web side:

Web Site: www.energystar.gov

22-M-1

Panasonic Computer Solutions Company

3 Panasonic Way, Panazip 2F-5,

Secaucus, NJ 07094

Panasonic Canada Inc.

5770 Ambler Drive Mississauga,

Ontario L4W 2T3

© Panasonic Corporation 2009

Printed in Japan

HS0609-0

DFQW5311ZA
