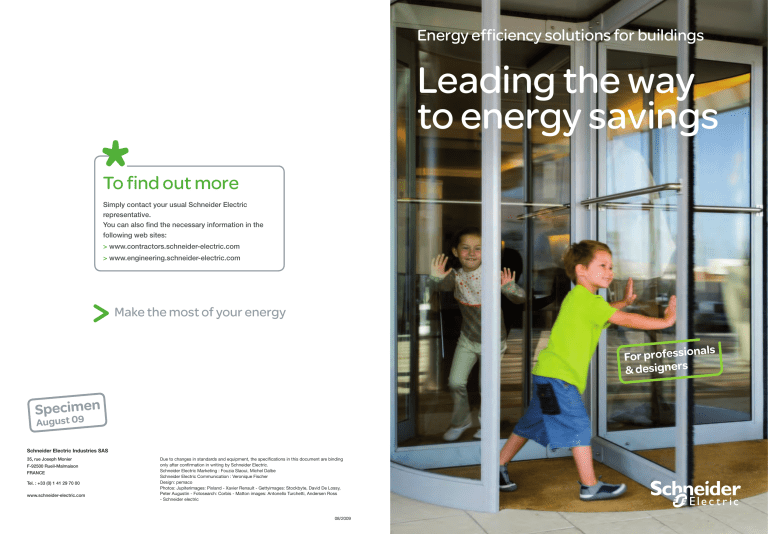

Energy effi ciency solutions for buildings

Leading the way to energy savings

For professionals

& designers

Save energy and reduce your impact on the environment.

Schneider Electric

Energy Effi ciency

Solutions can help you reduce your energy consumption by up to 30%.

Contents

1

2

3

Today’s challenges

Our energy future starts now

4

Energy effi ciency: tighter regulations, new incentives 6

A commitment to energy savings

A more effi cient, smarter, cleaner energy future

Be your customers’ leading energy-effi ciency partner

8

12

Our solutions

Power distribution

HVAC control

Lighting control

Energy monitoring

Building management

Renewable power generation

16

30

40

50

68

90

3

Our energy future starts now

4 x 2

Global energy demand is expected to double by 2050

: 2

At the same time, we must reduce

CO

2

emissions by half if we are to limit the effects of climate change

Today’s challenges

Buildings, a major source of global energy savings

Rising use of heating, air conditioning, lighting, and information technologies has made our buildings increasingly energy hungry. These systems far outstrip other applications as the number-one consumer of electricity. In fact, electricity accounts for up to 50% of CO

2

emissions attributable to residential and commercial buildings.

Under the Kyoto Protocol, industrialized countries have agreed to curb their CO

2

emissions by 5.2% by 2012 and by 75% by 2050. Buildings are today a major source of potential energy savings that can help us meet these targets and protect our environment.

40%

Residential and commercial buildings account for 40% of total global energy consumption

Solutions for all building applications

REN

EW

ABLE

ENERGY

ORING

CO

NTR

OL

NG

OL

HVA

C

CONTR

OL

PO

WER

DIS

UTION

Greater energy effi ciency starts today

If we are to meet our Kyoto targets, we must start today. Boosting energy efficiency is the quickest, cheapest, and cleanest way to reduce both consumption and CO

2

emissions.

Making your building more energy efficient does not necessarily involve costly and disruptive changes to your installation. Based on existing building systems, it is possible to reduce energy consumption by an impressive 30% simply by implementing easy-to-use services and technologies already available—but the time to start is now!

This guide is designed to point designers and other professionals to the right solution for each building’s unique needs. Inside, you will find a comprehensive range of solutions to make your energy safer, more reliable, more efficient, and cleaner.

30%

Reducing our energy consumption by 30% by 2020 would eliminate the need for 1,000 new power plants

Schneider Electric supports the Princess

Elisabeth Antarctica

Station, the world’s fi rst zero-emission research station

5

6

Energy effi ciency: tighter regulations, new incentives

Today’s challenges

New regulations now require energy-effi ciency measures and more energy-effi cient equipment

Energy efficiency is no longer an option. The Kyoto Protocol has spurred governments worldwide to pass legislation to ensure smarter energy use in buildings.

The European Union, for example, made a firm commitment in March 2007 to reduce

CO

2

emissions by 20% by 2020. Part of a package of measures known as “3x20 by 2020”, the reduction will come with a 20% improvement in energy efficiency and a shift in the EU’s energy mix to include 20% renewable energy.

Other countries have adopted a slightly longer timeline and more ambitious targets, aiming for a 50% reduction in CO

2

emissions by 2050.

Reaching these targets will require real change, and governments are stepping up their efforts to legislate, regulate, and set standards to improve energy efficiency.

3 x 20

20%

reduction in CO

2

emissions

20%

improvement in energy effi ciency

20%

energy from renewable resources

High-energy-yield control system

Advanced control system

Standard control system

Control system does not generate energy savings

New legislation, new rules

The new trend toward tighter energy-efficiency legislation started with the Kyoto Protocol.

Laws like the US Energy Policy Act and the

European Union Energy Directive effectively set the rules for our energy future.

Public- and private-sector initiatives

• EU standard EN 15232

This standard is used to estimate the impact of building automation systems on active energy efficiency, stating potential savings on heating and electricity according to the type of building.

Class

A

Class

B

Class

C

Class

D

• LEED

LEED is a green building rating system developed by the US Green Building Council

(USGBC). It provides a suite of standards for environmentally-sustainable building construction and renovation practices.

Since its inception in 1998, LEED has grown to encompass over 50 US states and

30 countries.

Financial incentives

Many governments are using financial incentives or market mechanisms to encourage energy efficiency. These include tax credits, interest-free government loans, partial sales tax exemptions on energy-efficiency equipment and services, subsidized bank loans, and local grants from government agencies and organizations in the private sector.

• White certificates

White certificates are granted for energyefficiency measures. Some governments require all electrical and gas utilities over a certain size to provide proof that they have helped customers reach a particular level of energy savings. Utilities that meet minimum requirements can then sell their surplus certificates to other utilities.

The new regulations will have an impact on all buildings

All buildings—both existing and new—and all energy systems are concerned:

> Lighting

> Electrical distribution

> Heating, ventilation, and air conditioning

> Cooling systems

7

8

A more effi cient, smarter, cleaner energy future

A commitment to energy savings

Energy audit

& measure

Ask any building professional. So-called “passive” energy-efficiency measures like insulation or low-energy-consumption equipment are not enough to meet the challenges our energy future has in store.

Today, it is a building’s net energy consumption that counts: the difference between energy consumed and energy produced.

And, to ensure that the buildings of the future are net energy producers, we must reduce consumption and offset what we do use by producing energy from renewable sources.

We can help you achieve net-producer status, and generate substantial savings by optimizing the

3 pillars of energy-efficiency:

> Reduce consumption by implementing active energy-efficiency solutions

> Produce clean energy from renewable resources

> Optimize consumption by using the latest technologies

We can help you make savings!

Passive Energy Efficiency Active Energy Efficiency

Fix the basics

Low consumption devices, insulation material, power factor correction

Optimise through automation & regulation

HVAC control, lighting control, variable speed drives…

Monitor, maintain, improve

Meters installation, monitoring services,

EE analysis software

9

A commitment to energy savings

How to achieve active energy effi ciency

10%

20%

30%

Start with measurement

You can’t manage what you can’t measure. Measuring is the first essential step in raising awareness and changing habits and behaviours .

Reduce energy consumption

• Use automation and control systems to ensure that you only use the energy you really need

• Add monitoring and maintenance services to achieve lasting improvements

Reduce energy cost

• Use strategies that optimize or reduce energy acquisition and management costs

• Opt for renewable energy like photovoltaics to generate electricity

10

Achieve measurable savings

We use the International Performance

Measurement and Verification Protocol

(IPMVP) to measure and verify the energy savings we promise for our energyefficiency solutions:

• Pre-installation audit: baseline energy consumption data are measured and calculated

• Post-installation audit: baseline data are compared with post-installation consumption data to determine actual savings

Baseline consumption

Energyefficiency solution installed

Reconstitution of consumption without solution

Energy savings

Time

Data gathered prior to installation

Data gathered for comparison with baseline data

Save up to

30%

starting now

by combining robust automation, control, and monitoring of energy use

And secure the savings achieved

by eliminating the following risks

• Unplanned, unmanaged shutdowns of equipment and processes

• Lack of automation and regulation for applications like motors and heating

• Unpredictability of user behaviours

100%

70%

Potential losses

Monitoring and maintenance

Up to

8%

per year is lost without monitoring and maintenance programs

Up to

12%

per year is lost without regulation and control systems

Time

Ensure lasting progress

Implementing energy-efficiency solutions generates immediate results. However, a few additional steps will ensure long-term savings.

• Installing a management system to monitor and analyze data

• Maintaining the installation

• Completing appropriate system upgrades throughout the installation’s lifecycle

• Training personnel on the products and systems installed

Our active energy efficiency solutions include

a range of service levels. Our Energy

Performance Contract, for instance, can help you ensure that the initial savings your solutions generate last well into the future.

11

12

Be your customers’ leading energyeffi ciency partner

A commitment to energy savings

Meet—and exceed—your customers’ expectations

Schneider Electric energy-efficiency solutions provide you with a comprehensive offering designed to meet your customers’ changing needs and boost your sales. When you sell Schneider Electric energyefficiency solutions, you add a new environmental dimension to your technical offering, and become your customers’ trusted energyefficiency expert.

Offer your customers the added value they demand

• Innovative solutions with measurable results

• Substantial energy savings

> Up to 30% energy savings for existing buildings

> The capacity to contribute to meeting Kyoto targets for new buildings

> Lower operating costs

• Recommendations to help your customers comply with regulations and increase the value of their property

• Measures to enhance your customers’ environmentally-friendly image and further their Corporate Social Responsibility strategy

Save energy and stay on budget

• Start with measurement solutions for quick—often immediate—and measurable return on investment

• Offer your customers the right solutions for their budget:

> Without compromising between energy efficiency and budget restrictions

> By offering innovations at a fixed cost

> By promoting incentives for which your customers are eligible

• Present compelling proof of the expected savings to your customers.

Some companies make their energy savings targets public:

Nestlé is aiming for

5%

savings per year from 2005 to 2010

STMicroelectronics is targeting

2.5%

Achieve significant and sustainable savings with Schneider Electric

Your energy manager

Metering, monitoring, control solutions, and cost optimization services

Your energy expert

Consulting, training, and planning and implementation of energy-efficiency solutions

Your green partner

Environmentally-friendly and renewable-energy products

13

14

Our solutions

Power distribution

Shed non-priority loads automatically

Correct your installation’s power factor and reduce energy costs

Reduce power loss by fi ltering harmonics

Design smart to reduce capital expenditures and operating costs

Start saving energy by monitoring your MV network locally

Take advantage of discount MV utility rates without the risk of counterparty power cuts

18

20

22

24

26

28

Lighting control

Building management

HVAC control

Energy monitoring

Power distribution

Renewable power generation

HVAC control

Regulate kitchen exhaust hood speed according to temperature

Regulate cooling-tower water temperature and save energy

Regulate temperature by maintaining air pressure

Reduce your electrical consumption by controlling your HVAC system’s motors

Lighting control

Use KNX presence and daylight detectors for precision lighting control

Automate lighting control using KNX presence daylight detectors

Achieve simple lighting control using natural light and building occupation

Save energy by controlling lighting scenarios for different areas of your building

Energy monitoring

Meet essential energy measurement needs with a simple metering solution

Get essential electrical information for each area of your building

View and monitor the energy used by your lighting installation

Analyze your energy consumption online without a BMS

Manage WAGES in your small to medium-sized building

Manage WAGES in non-critical large industrial buildings

Manage and sub-bill WAGES in large commercial buildings

Analyze energy data to optimize operation of your industrial buildings

Building management

Schedule selected loads simply via your BMS

Monitor and control electrical loads in your retail shopfront

Control lighting and heating at room level with a KNX-based system

Control room lighting, temperature, and blinds automatically

Manage hotel energy consumption according to guestroom occupancy

Reduce hotel electrical consumption and improve comfort with a full KNX system

Combine various control systems to achieve maximum savings

Monitor your building’s power supply and control HVAC, lighting, and blinds

Boost energy effi ciency and increase the availability of your electrical installation

Control and monitor HVAC, lighting, security systems, and energy consumption

Renewable power generation

Use available rooftop space to install and operate solar panels

Boost your “green” image and save photovoltaic energy

Supply a small group of remote, off-grid buildings with electricity

32

34

36

38

42

44

46

48

92

94

96

60

62

64

66

52

54

56

58

78

80

82

84

70

72

74

76

86

88

15

16

When you target your electrical installation, you have the potential to generate substantial savings by

optimizing the three pillars of energy efficiency:

> Measurement

> Optimization of energy consumption

> Sustainable performance for lasting results

The solutions on the following pages can help you turn your power distribution system into a source of savings.

These simple, cost-effective solutions do not require a Building Management System and can help you optimize your installation’s main functions, such as power supply, uninterrupted service, protection, and energy quality.

Additional functions deliver useful information to aid in optimizing your installation and energy consumption.

Choose the solution that’s right for you

> Shed non-priority loads automatically (p. 18)

> Correct your installation’s power factor and reduce energy costs (p. 20)

> Reduce power loss by filtering harmonics (p. 22)

> Design smart to reduce capital expenditures and operating costs (p. 24)

> Start saving energy by monitoring your MV network locally (p. 26)

> Take advantage of discount MV utility rates without the risk of counterparty power cuts (p. 28)

17

18

Power distribution

Application: all buildings

Shed non-priority loads automatically

I want to switch to a more cost-effective contract with my electric utility. I can shed non-critical loads to make sure I stay within my utility rate block, but I can’t afford sudden power cuts.

Design your electrical system around

Compact NSX circuit breakers

Compact NSX circuit breakers allow you to manage reflex load shedding: the automatic shedding of specific loads.

The Compact NSX circuit breaker with integrated

Micrologic 5.2 E electronic trip unit sends the reflex load shedding command. The trip unit measures I, V, P and E, and produces the appropriate alarms. Each alarm is associated with a load shedding trigger setting and a deactivation setting, each with time delay. The reflex load shedding order is sent via the

Compact NSX circuit breaker’s SDx output module.

PT

PD

DT

DD

(t)

PT: Pick-up threshold

PD: Pick-up time delay

DT: Drop-out threshold

DD: Drop-out time delay

Alarm: activation zone (in blue)

Each alarm is associated with a load-shedding trigger setting and a deactivation setting.

For the user

> Save up to

10%

off your energy bills

Subscribe to a more cost-effective utility contract and avoid costly utility rate-block overrun penalties

> Get the most out of your investment

and enjoy greater reliability with the

Compact NSX circuit breaker, integrating both protection and measurement capabilities

> Increase power

availability by preventing overload tripping

Measure Reduce energy consumption Reduce energy costs

Reflex load shedding

Circuit breaker

Compact NSX100N

SDx module

Micrologic 5.2 E trip unit

For professionals

+

Easy design and use

• Limited part numbers for easy selection and ordering

• No need for a current transformer

+

Easy installation and maintenance

• A single reference for the SDx output module

• Easy confi guration via user-friendly

RSU* software, your PC and a maintenance module—available on order as part of the maintenance kit

• Easy testing using the LSU* software, your PC, and the maintenance module

* Free download available online at www.

schneider-electric.com

Circuit breaker

C60N

Priority loads contactor

2PCT

Non priority loads

Compact NSX 100-

630 A circuit breaker

The first-ever mouldedcase circuit breaker to include protection, measurement, and communication capabilities in a single unit

Independent, configurable alarm time delays

with flexibility from 1 to 3,000 seconds in a single unit

Micrologic 5.2 E trip unit

with integrated energy measurement— unique on the market

SDx Module

with two outputs and power supply from 24 V to 415 V, AC or DC

19

20

Power distribution

Application:

all commercial buildings

Correct your installation’s power factor and reduce energy costs

I plan to upgrade my electrical installation to meet the new standards. I want to take advantage of the opportunity to reduce my electricity bills and boost the available power without switching to a new utility contract.

Regulate power factor automatically by using a Varset reactive energy compensator

The solution automatically regulates power factor correction according to load fluctuations. The resulting power factor, close to 1, frees up additional available power, allowing you to add on to your installation. The system is built around a Varlogic power factor controller, which is also available in a Modbus-based communicating version.

Example:

With a utility contract for 250 kVA with an average power factor of 0.7, penalties are charged for consumption over 175 kW

(175 ÷ 0.7 = 250 kVA).

The Varset system includes a bank of 200 kvar capacitors, which are automatically switched on or off depending on the power factor detected. A current detector measures consumption.

The system guarantees a power factor greater than 0.92, regardless of load, raising the actual consumption limit to

230 kW (250 x 0.92=230 kW), or 55kW of available energy.

For the user

> Save up to

10%

on your electricity bills, with

ROI within two years

(actual savings vary depending on local utility penalties)

> Increase your installation’s available power by up to

30%

> Eliminate excessive consumption of reactive energy

> Reduce your carbon footprint

> Boost your installation’s reliability and lifespan by fi ltering harmonics with the

Varset Harmony range

For professionals

+

Easy to install

+

100% factory tested capacitor bank

+

Lifespan of around 15 years

+

Optional harmonics fi ltering

+

SlSvar software

for easy equipment selection and confi guration

+

Communicating

Modbus version

available for remote data transmission

Measure Reduce energy consumption Reduce energy costs

LV network

Circuit breaker

Current transformer

Circuit breaker

Circuit breaker

Circuit breaker

Compact NSX

Capacitor bank

Varset

Varset

• Network voltage: 230 V to 690 V - 50/60 Hz

• Reactive power:

7.5 kvar to 1200 kvar

• Harmony range:

2.7 (135 Hz), 3.8 (190 Hz),

4.3 (215 Hz)

• Standards:

IEC 60439-1, IEC 61921,

EN 60439-1

• Automatically regulated forced ventilation

• With or without incoming circuit breaker

Power factor correction via

Varlogic controllers

Controls reactive power to obtain the target power factor. Provides installation data and analysis

Monitors and provides data on compensation equipment status

• Easy to use

• Easy to set up; selfconfiguration available

• Intuitive user interface

• Direct, real-time display of main measurement

• Optional communicating version available (Modbus)

21

22

Power distribution

Application:

small to medium-sized buildings

Reduce power loss by fi ltering harmonics

I need to reduce the overall harmonics generated by my factory’s variable speed drives and uninterruptible power supply. My budget is limited, and the solution has to be simple.

Install AccuSine PCS active filtering for your electrical installation

Variable speed drives and uninterruptible power supplies constitute non-linear loads. They use a fundamental sine wave (the same frequency as the network) and generate additional harmonics waves whose frequencies are multiples of the network’s frequency.

The AccuSine PCS active filter constantly generates an equal yet opposite current to the harmonic currents generated by non-linear loads, leaving only the fundamental frequency on the network.

The AccuSine PCS is fed from a specific outgoing feeder. It detects and analyzes the current upline in real time from the non-linear loads and sends out a compensating current via its power line.

The following oscillograms illustrate the total current harmonic distortion (THDI) before and after the installation of the active filter.

For the user

> Harmonic fi ltering reduces power loss

in the upline circuit and equipment

by

10%

> Ensures harmonics of less than

5%

> Reduces overloading and frees up additional useable capacity

> Minimizes system losses and demand power

> Lowers outage risk

> Extends equipment lifetime

> Reduces wire

heating (especially neutral)

Measure Reduce energy consumption Reduce energy costs

Circuit breaker

Masterpact

For professionals

+

Easy to install

+

Compensation automatically adjusted depending on load

+

Easy upgrades and add-ons

+

Optional power factor correction possible

(recommended by utilities)

Circuit breaker

Contactor

Heading

M

3~

Circuit breaker

Circuit breaker

Compact NSX

Circuit breaker

C60N

Current transformer

Circuit breaker

Compact

NSX

Light

Switch

Harmonics compensators

AccuSine PCS

M

3~

Variable speed drive

ATV31

M

3~

Variable speed drive

ATV61

AccuSine PCS

> A simple line up, including

• 50A, 100A and 300A power ratings Universal

Voltage: 208V - 480V, 3 phase 3 wire

• NEMA 1, NEMA 12,

IP30, IP54 enclosure options

• Worldwide offer: Meets

UL, CSA, CE, ABS, C-

Tick standards

> Powerful performance

• Meets all major worldwide harmonic standards;

IEEE-519, G5/4 -1, GB/T

14549, IEC61000-3-2/-

3-4

• Ultra fast response to load changes–within microseconds

• Cancels all harmonics from 2nd to 50th order

• 225% VAR current injection to meet instantaneous load requirements and provide voltage support

> Expandable capabilities

• Parallel up to 10 units with different ratings on one set of current transformers

23

24

Power distribution

Application:

all types of buildings

Design smart to reduce capital expenditures and operating costs

When it comes to having an energy-effi cient electrical installation, the most important thing to me is to minimize power losses while keeping capital expenditures on target.

Use ID-Spec Large software to design the ideal electrical installation for your building and your budget

ID-Spec Large software offers an array of design capabilities unique on the market:

• Assess the actual cost savings generated by energy-efficiency solutions like power factor correction and low loss transformers

• Reduce wiring lengths and diameters for lower materials and installation costs

• Lower capital expenditures by scaling equipment down to optimized use scenarios

• Calculate the percentage of recyclable wiring and busbar trunking materials

• Assess the cost of the electrical system over the entire building lifecycle

ID-Spec Large reports provide compelling data to back up the recommended solutions and can quickly and easily calculate the impact of alternative solutions.

For the user

> Reduce capital expenditures by

10%

by scaling equipment down to optimized use scenarios

> Lower energy consumption by

3% simply by optimizing your electrical equipment

> Avoid utility

penalties through more responsive power consumption

> Reduce raw

materials and installation costs by optimizing wiring lengths and cross section area

Measure Reduce energy consumption Reduce energy costs

For professionals

+

Shorten the design cycle by up to

40%

+

Increase quality

by using a single tool for the whole design process

+

Present hard

data to back up your recommended solution

+

Enhance your

image as an environmentallyconscious professional

+

Produce Bill of Equipment, reports, and

specifi cations with a single tool

At the Design stage, use the power barycenter tool to:

• find out the best equipment locations in the layout

• define the electrical architecture for your project

At the Solution stage

View energy dissipation cost, CO

2

emissions and ROI of power factor correction

Sort components by energy consumption to identify the most efficient choices

Examples

> Food and beverage plant in

Jakarta, Indonesia

ID-Spec Large demonstrated the savings achieved by moving low voltage switchboards to alternative locations:

35%

reduction in power loss for savings of <200K over 15 years

• Amount of cabling reduced by half

ID-Spec Large functions

• Power Summary

• Installation drawings

(CAD layout and single line drawings)

• Automatic equipment selection and sizing

• Automatic electrical installation performance evaluation

• Automatic RFQ specifications

• Budgeting

25

26

Power distribution

Application:

any building with a medium voltage network

Start saving energy by monitoring your MV network locally

I am seeking a simple, cost-effective way to make sure my MV network is functioning properly so I can take actions to reduce energy consumption if necessary.

Use a digital ammeter to display information about your MV network

The solution is based on a cost-effective digital ammeter installed on the front plate of the switchboard. The ammeter provides a constant readout of the MV network’s present and maximum current. Users can find out the current on the MV load breaker switches at a glance.

Amp 21D

L1

L2

L3

For the user

> Easy-to-read information at MV level helps save energy by:

• Allowing you to identify unnecessary loads and take immediate corrective measures

• Telling you which lines are overloaded so that you can rebalance loads on MV and LV transformers

> This solution offers a number of benefi ts compared to traditional analog ammeter systems:

• A single part number (digital ammeter with integrated sensors) for easy selection and ordering

• Enhanced readout accuracy, especially for small currents

• Cost effective

Measure Reduce energy consumption Reduce energy costs

RM6 DIDI

Easergy Amp21D ammeter

RM6 IDI

For professionals

+

Easy, engineering-free design based on a single product

(ammeter with integrated sensors)

+

No training needed

+

Easy to install:

• For the RM6: ammeter and sensors are factory mounted and tested; nothing to do on site

• For the SM6: ammeter is factory mounted and tested; sensors are installed around the MV cables on site and are designed for easy connection to the ammeter

+

Easy rollout:

no on-site confi guration needed

Amp21D ammeter

• 4-digit display

• Self-powered batteryless unit

• Measures current on the switchboard load break switch function

RM6 IDI

RM6 IDI

RM6 IDI

27

28

Power distribution

Application:

any building connected to a MV network

Take advantage of discount

MV utility rates without the risk of counterparty power cuts

To guarantee the lowest possible utility rates,

I have agreed to go off the power grid during peak hours. Therefore, to avoid costly downtime,

I need a back-up power supply that kicks in automatically after just a few seconds.

For the user

Install an Automatic Transfer System

(ATS) to switch the MV connection to a back-up generator

Save energy

Depending on your rate agreement, the utility sends out a signal just before the higher peak rate kicks in or power is cut off.

The ATS receives this signal and:

• Starts the generator

• Turns on the main switch once the generator is ready

• Turns off the generator switch

Power is restored in less than 10 seconds.

Increase power availability

ATS ensures power availability, performing the same functions if voltage loss is detected on the main electrical line, with power generally restored in less than 15 seconds.

• The fault passage indicator (FPI) ensures the ATS is locked if a fault current is detected to avoid cutting off power to a properlyfunctioning line.

> Guarantee lowest possible utility rates

Savings of

10% are achievable in many countries—in some countries, when demand is high and supply is short, the price per kWh can be multiplied by more than 10

> Boost operating

effi ciency with automatic monitoring and guaranteed power availability—

ATS comes with an optional communication module to transmit information to a remote control system

Measure Reduce energy consumption Reduce energy costs

For professionals

+

Factory-tested, preconfi gured design

ATS comes ready to install on an RM6 switchboard in a

T200I box

The T200I automation comes pre-programmed, eliminating sequence errors during set-up

+

More effi cient procurement:

easy-to-order based on existing part numbers

+

Quick, easy installation

• Plug-in connections only

• Kit included for mounting T200I on wall or RM6

+

Simple commissioning:

easy to confi gure service voltage, time delays, and ATS operating modes

+

Maintenance

free: automatic testing and troubleshooting

Examples

> Users save

10%

per year off standard rates by opting for the national utility’s special peak rate in France, for example

RM6 ring main unit

• 24 kV

• includes sensors

• VPIS-VO VD3H relays and motorized switches

Main line

Voltage sensor

VPIS-VO

Voltage detection

VD3H relay

Start order

Voltage sensor

VPIS-VO

G

Fault passage indicator (FPI)

Voltage detection

VD3H relay

Fault passage indicator (FPI)

M

Utility rate management

SCADA

T200I

M

T200I

• Embedded electronics

• Includes ATS

• Specifically designed for the MV network: unlike other solutions on the market, the 10kV insulation for AC supply protects the T200 against over voltages coming from substations

29

30

Depending on your business and type of building, HVAC can account for over 40% of energy consumption.

You can reduce

HVAC energy consumption and sustain optimal consumption levels

by improving the control and management of ventilation, temperatures, and system usage.

You can meet today’s demand for energy efficiency, occupant comfort, and compliance with standards by implementing one or more of the following solutions:

> Install variable speed drives on pumps and fans to adjust energy use to actual need.

> Design control architectures that facilitate operation and interaction of heating, ventilation, air conditioning, and window blinds, zone by zone.

> Choose equipment that improves energy quality by eliminating power surges and reducing harmonics.

Depending on whether you choose simple, standalone control devices, a comprehensive building management system, or a solution somewhere in between,

you can reduce the amount of energy your HVAC system uses by up to 30%.

Choose the solution that’s right for you

> Regulate kitchen exhaust hood speed according to temperature (p. 32)

> Regulate cooling-tower water temperature and save energy (p. 34)

> Regulate temperature by maintaining air pressure (p. 36)

> Reduce your electrical consumption by controlling your HVAC system’s motors (p. 38)

31

32

HVAC control

Application:

commercial kitchens

Regulate kitchen exhaust hood speed according to temperature

My restaurant’s exhaust hood is always running at full speed, even when my cooking equipment isn’t being used. I’d like to fi nd a way to reduce the amount of energy wasted and lower my utility bills.

The solution consists in using variable speed drives (VSD) to adjust exhaust operation to the amount of activity in the kitchen.

Fan speed is controlled according to air temperature.

A sensor inside the exhaust hood detects air temperature, and an Altivar 12 variable speed drive adjusts the exhaust fan motor speed.

The cooler the air, the slower the fan runs, down to a minimum ventilation level. The exhaust hood is automatically turned up or down to meet actual needs, resulting in substantial savings.

An optical smoke sensor can be added to boost the system’s regulation capabilities. This configuration requires an additional control system.

For the user

> Energy savings of

20%

to

50%

, depending on use:

maximum exhaust hood operation is usually limited to just a few hours a day

> Fast ROI,

usually within 18 to

24 months

> Quieter operation

• Lowering fan speed by 20% reduces noise by 20%

• Reducing speed by half virtually eliminates noise

> Lower maintenance costs

Measure Reduce energy consumption Reduce energy costs

For professionals

+

Design

• Simple and economical: the VSD picks up the signal directly from the temperature sensor

• Reduced maintenance: the VSD can be mounted right on the fan, eliminating maintenanceintensive gearboxes

• Easy design and upgrades

+

Installation

• Complies with international standards

• Integrated EMC fi lter

• Simple, beltless system

• Easy installation thanks to plug-andplay design

Installing a VSD can reduce energy consumption

(in grey below) by up to 40% compared to a traditional start/stop motor, reducing total consumption by about

25%.

100%

Flow

50%

Savings

Breakfast Lunch

100% flow with start/stop motor

Savings

Dinner

0%

6am 7 8 9 10 11 12 1pm 2 3 4 5 6 7 8 9 10 11 12 1am 2 3 4 5

Variable speed drive

ATV12

Projects

> United States:

VSDs were installed on 12 exhaust hoods at a university kitchen.

A VSD controls the speed of each exhaust fan via smoke and temperature sensors. The system is expected to generate annual savings of

126,244 kWh.

θ

The Altivar 12

Variable speed drive for small machines and applications with threephase 240 V asynchronous motor 0.18 to 0.75 kW,

120 V single-phase power supply 0.18 to 2.2 kW,

240 V single-phase power supply 0.18 to 4 kW, 240 V three-phase power supply

• Can be configured in its packaging

• Quick start option requiring no adjustment

Intuitive navigation

• Even more compact

• Category 1 EMC filter

• Local control on the front panel

• Modbus serial link

• Resistant to harsh operating environments

• Integration of Standard

(U/f),

• Performance (sensorless flux vector control, or

SVC) and Pump/Fan

(quadratic profile Kn”) control profiles

• High dynamic performance on acceleration as well as on braking

• Excellent speed regulation on machine load surges

33

34

HVAC control

Application:

medium-sized to large buildings with cooling tower

Regulate cooling-tower water temperature and save energy

My cooling tower is a constant concern.

Maintenance needs vary widely depending on the season, and the installation uses too much energy.

I want a solution that will improve yield and reduce costs.

Use speed drives to regulate the tower’s fan and pump

The best way to control air-water exchange in a cooling tower is to use variable speed drives to control the tower’s fan and pump, eliminating additional maintenance-hungry mechanical systems while meeting the tower’s needs. A PLC regulates fan airflow and pump volume via the variable speed drives.

This solution uses up to 50% less energy than direct-start fans and pumps and eases maintenance.

Over a given season, the fan and pump motors must operate at full speed just 2% to 5% of the time—the rest of the time this energy is wasted. Direct-start motors require additional mechanical systems to solve problems like fan blade rotation due to wind, or additional resistance due to freezing.

This solution uses 20% less energy than two-speed motors and also improves maintenance.

While two-speed motors offer a partial solution to energy consumption issues, they do nothing to resolve maintenance issues.

100%

90%

80%

70%

60%

50%

40%

30%

20%

10%

Direct-start motor

Two-speed motor

ATV21 variable speed drive

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

Percent fan speed

For the user

> Reduce energy consumption

> Improve yield

by regulating water temperature

> Lower maintenance requirements,

especially in extreme weather

> Quieter operation

> Low harmonics:

THDI < 30%

> Eliminates inrush current due to motor start-up

Measure Reduce energy consumption Reduce energy costs

Circuit breaker

Compact NSX

Circuit breaker C60

For professionals

+

Simpler

mechanics (no brakes, sensors, or rotation inverters)

+

Facilitates motor

sizing (over-speed and standby modes available)

+

Enhanced process regulation

+

Extends lifetime of mechanical components

+

Facilitates maintenance planning

Cooling tower

Air in

From chiller

Air out

Fan

To chiller

Bus control

ATV21

Variable speed drive

Spray nozzles

Make up water

Pump

Contactor

LC1D

ATV21 speed drive Range dedicated to building HVAC applications.

All essential functions for variable torque pumps and fans applications:

• 3-phases 200/240 V,

380/480 V

• UL Type 1/IP20 and

IP54 up to 75 kW

• Speed range: 1:50

• Overload : 110% - 60 s

• Integrated EMC filters class A or B

• Main communication bus used on the building market: LonWorks,

Metasys N2, BACnet, and

Apologe FLN.

• Conformity to the international standards and certifications : CE,

UL, CSA, C-Tick...

• “Reduced-Capacitance” technology: immediately operational and without harmful effect, harmonics treatment without added artifices: THDI < 30%

35

36

HVAC Control

Application:

all buildings

Regulate temperature by maintaining air pressure

It is diffi cult to make heating and air conditioning systems more energy effi cient without affecting occupant comfort. The fact that

HVAC systems are often set up by fl oor further complicates the situation. I need a fl exible solution that can adapt to fl uctuating occupancy while using only the amount of energy that is actually needed.

Use variable speed drives to regulate air pressure and temperature

Take a chilled-beam heating system, for example. The most energy-efficient solution for this type of heating system would be to add temperature regulation functions via a thermostat, plus pressure regulation in the beam and the room.

The thermostat (T) (see diagram opposite) controls air flow by adjusting the shutters on the intake vent (1). The pressure in the heated beam (2) and the room (3) are kept at constant levels by varying fan speed. The two ATV21 variable speed drives feature an integrated proportional regulation function that allows them to control the fans directly based on information from the pressure sensors (P).

The solution optimizes regulation regardless of fluctuating occupancy patterns. To fine tune energy consumption even further using presence detectors, automatic blind controllers, and timers, a building management system would be required.

In this type of setup, the variable speed drives and sensors would be connected to the BMS via a communication bus.

For the user

> Save up to

20%

off your

energy costs by using independent variable speed drives

> Minimize maintenance and filter clogging

> Quieter operation

> Use up to

50%

less energy by integrating variable speed drives into your building management system

(BMS)

> Regulate temperature within a limited range

> Provide constant ventilation

> Add presence detectors and automation

systems to further optimize the system

Measure Reduce energy consumption Reduce energy costs

For professionals

+

Design

• Eliminates direct starts, so motor size can be decreased

• Simplifi es electrical architecture as all functions are integrated into the variable speed drive

• Eliminates the need for additional anti-harmonics fi lters

• Includes integrated communication bus

+

Installation

• Products are compact in size

• Optional features can be added without increasing product size

• Simple user interface

+

Maintenance

• Local or remote troubleshooting

• Smoother starting increases the lifespan of mechanical components and reduces frequency of maintenance

Room

1

P

2

T

P

3

Circuit breaker C60

Contactor

LC1D

Circuit breaker

Compact NSX

ATV21

Variable speed drive

The Altivar 21 variable speed drive is designed specifically for building systems

• Low harmonics (THDI

< 30%) thanks to C-less technology (with reduced

DC bus capacitors)

• Optional versions with integrated EMC

(electromagnetic compatibility) filters

• Modbus standard on all models

• LonWorks, Metasys N2,

Apogee FLN, and BACnet available as options

37

38

HVAC control

Application:

medium to large size buildings

Reduce your electrical consumption by controlling your HVAC system’s motors

I want to reduce the amount of electricity my

HVAC system uses by installing the most relevant control devices.

Install TeSys U starter-controllers to protect and control constant-load motors and ATV variable speed drives to control variable-load motors

Designed for constant loads, TeSys U intelligent startercontrollers offer control, protection, and measurement functions. When you install TeSys U units, you generate indirect savings by detecting abnormal operation and taking the appropriate corrective measures, and direct savings through lower consumption of the control and protection equipment.

TeSys U electronics are designed to cut consumption four-fold as compared to traditional electro-mechanical solutions.

TeSys U offers protection while constantly measuring motor current so that the following information can be transmitted via the communication module (Modbus, CanOpen, Profibus,

DeviceNet, AsI, or Advantys STB) or by direct display via the multifunction control unit:

• Operating faults, so that corrective measures can be taken quickly

• Overheating, to avoid breakdowns

Designed for variable loads, ATV variable speed drives ensure that consumption is scaled to match motor needs at all times.

Variable speed drives generate significant direct savings over direct-start motors.

For the user

> Reduce electrical consumption by

20%

for variable loads

> Reduce electrical consumption of the protection and control system by

75%

for constant loads

> Save up to

20%

space due to TeSys U compact unit size

> Lower the amount of heat generated by

TeSys U motor start-up by up to

75%

, reducing the need for cooling fans in the enclosure

> ROI in under two years

Measure Reduce energy consumption Reduce energy costs

For professionals

+

Design

• Simple, innovative solution

• TeSys U: fewer part numbers due to modular base with plug-andplay options for easy preparation, selection, and ordering

+

Installation

• Easy upgrades: during installation, each motor can be adjusted to nominal speed; TeSys U can be easily customized without tools or wiring

• Save time: with

TeSys U there is no need for wiring between the contactor and the circuit breaker; it is easy to integrate into the HVAC system via RJ45 Modbus connectors

+

Maintenance

• Plug-and-play makes changing the control unit faster and easier, minimizing downtime

• Access motor settings (heat, overloads, breakdown log) at all times to better avoid breakdowns

• TeSys U: highly modular design reduces spare parts stock tenfold

TeSys U starter-controller

Bus

ATV21

Variable speed drive

TeSys U offers a capacity of up to

32A/15 kW, and consists of

• One 45 mm power base:

- Two ratings, reversing or non-reversing

- Circuit-breaker function

- Built-in interference suppression

• One of a choice of three clip-on units:

- Standard CU for protection against overloads and shortcircuits

- Expandable CU plus alarm and fault differentiation

- Multifunction CU for real-time control of motor load, local or remote troubleshooting, and settings

• One of a choice of three automation control modules:

- Modbus, CanOpen,

AS-Interface

- Profibus DP, Ethernet,

DeviceNet, Fipio,

Interbus S via Advantys

STB

- Simple parallel link

• Two optional 45-mm power functions:

- Limiter-isolator

- Changeover relay

39

40

Lighting control is one of the easiest ways to save on energy costs.

The right lighting control solution slash your lighting costs by 50% compared to traditional systems.

Our lighting control solutions are flexible and designed to ensure occupant comfort.

From small, local devices like timers and occupancy sensors to sophisticated customized solutions based on KNX standards, there is a solution to meet your building’s needs and your budget.

Choose the solution that’s right for you

> Use KNX presence and daylight detectors for precision lighting control (p. 42)

> Automate lighting control using KNX presence and daylight detectors (p. 44)

> Achieve simple lighting control using natural light +and building occupation (p. 46)

> Save energy by controlling lighting scenarios for different areas of your building (p. 48)

41

42

Lighting control

Application:

all commercial buildings

Use KNX presence and daylight detectors for precision lighting control

I want to cut energy use substantially in the main areas of my offi ce building. I also want the fl exibility to expand and reconfi gure the system as needed, without having to rewire.

For the user

> Use up to

35%

less energy by tailoring consumption to occupation patterns (based on reference buildings stated in DIN V18599 resp.

EN 15232)

Use KNX open bus technology to link presence detectors to switching and dimming actuators for flexible, expandable automatic lighting control

The solution entails using presence detectors to activate artificial lighting if and when natural light is below a preset level. Lights are automatically switched off when areas are unoccupied or when there is sufficient natural light.

Push-button or remote controls can be used to set brightness levels (100, 300, or 500 lux, or always off, for instance) and predefined scenarios.

> Reduce installation labour and costs

(compared to a traditional system with the same capabilities)

> Flexible local or centralized switching and on/off indicators

Project

> A Paris bank branch offi ce

(Caisse d’Epargne

Réaumur) took advantage of a renovation to equip three 1,500 square meter fl oors with the system

Measure Reduce energy consumption Reduce energy costs

KNX

ARGUS Presence

KNX push-button

KNX

ARGUS Presence

KNX push-button

System component Lighting control

Presence control Manual control

Lighting control

Presence control Manual control

IR-remote control

Distance 2010

KNX

KNX

Powersupply

KNX

Universaldimming actuator

KNX

Control-unit

0-10 V

For professionals

+

Increased

fl exibility

• Easy to reconfi gure and expand

• Settings can be adjusted at any time and the system expanded without costly demolition or rewiring

• All devices are connected to a common bus line

+

New business opportunities

• KNX solutions are implemented by skilled electricians or integrators

• They offer a broad range of user-friendly and cost-effective functions

230 Volt transformer

Lighting for Entrance, Exhibition and Conference Room

12 V

0-10 V

0-10 V

0-10 V ballast

Fluorescent

Lighting for Offices and Floor

Complies with standards

• KNX ISO IEC 14543

• EN50090 standard

System programmable via a simple PC using ETS software

KNX ARGUS

> Presence detector

• Angle of detection: 360°

• Range: a radius of max.

7 m (at a mounting height of 2.50 m)

• Number of levels: 6

• Number of zones:

136 with 544 switching segments

• Number of movement sensors: 4, separately adjustable

> Light sensor

• Internal light sensor infinitely adjustable from approx. 10 to 2000 Lux

(ETS)

• External light sensor via

KNX

KNX Universal dimming actuator

AC 230 V, 50-60 Hz: for switching and/or dimming incandescent lamps or LV halogen lamps using dimmable wound transformers or electronic transformers

43

44

Lighting control

Application:

all buildings

Automate lighting control using KNX presence and daylight detectors

I want to save energy by automating my school’s classroom lighting. The system also needs to be fl exible and easy to expand and upgrade.

Control room lighting automatically according to occupation and natural light

The solution is built around presence detectors linked to switching actuators, and features a push-button control for use in manual mode. The entire system is connected via KNX open bus to facilitate extensions and upgrades.

Thanks to the presence detectors, lights are automatically switched on when a person enters the room if natural light is below a preset level. Lights are automatically switched off when no movement is detected in the room and the preset time delay has passed.

In manual mode, lights can be switched permanently on or off. Switching the system on in manual mode restarts automatic presence and natural light detection mode.

Measure Reduce energy consumption Reduce energy costs

For the user

> Use up to

20%

less energy by aligning lighting use with room occupation (based on DIN V18599 or

EN 15232 reference buildings)

> Reduce installation costs

and time compared to conventional systems with similar functions

> Enhance occupant comfort

For professionals

+

Flexible for easy upgrades and extensions

• All functions may be set and extended at any time without costly building work

• All devices are connected to a common bus line

+

A source of new business opportunities

• KNX solutions must be installed by skilled electricians or integrators and offer many user-friendly and cost-effi cient functions

+

Lower, more predictable

maintenance costs

• Automated switching cuts down on lighting use, extending the lifetime of light fi xtures

• Replacement scheduling is facilitated because the number of hours of use is known in advance when optional switch actuators with current detection are used

System component

KNX

Powersupply

Manual control

KNX push-button

1-gang plus

KNX ARGUS

180/2.20 m flushmounted presence detector

• Angle of detection: 180°

• Range: 8 m right/left,

12 m to the front

• Mounting height: 2.2 m or 1.1 m with half the range

• Number of levels: 6

• Number of zones: 46

• Number of movement sensors: 2, sectororiented, adjustable

• Sensitivity: infinitely adjustable (ETS or potentiometer)

• Light sensor: infinitely adjustable from approx.

10 Lux to 2000 Lux (ETS or potentiometer)

• Time: adjustable in steps from 1 s to 8 min

(potentiometer) or adjustable from 1 s to

255 hours (ETS)

Lighting control

Presence detection

KNX

Switch actuator REG-K/2x230/16 with manual mode

KNX switch actuator

• Capable of switching two loads independently

• Integrated bus coupler and screw terminals

• For installation on

EN 50022 DIN rails

• 230 V switch output can be operated with a manual switch

• Time delay for each switch output

• Nominal voltage: AC

230 V, 50-60 Hz

• For each switching contact:

- Nominal current: 16 A, cos ϕ = 0.6

- Incandescent lamps:

230 V AC, max. 3600 W

- Halogen lamps: 230 V

AC, max. 2500 W

KNX

Presence detector

ARGUS 180/2.20 m flush-mounted

KNX

- Fluorescent lamps:

230 V AC, max. 2500 VA

- Capacitive load: 230 V

AC, 16 A, max. 200 µF

• Device width: 2.5 modules = 45 mm

• Contents: bus connecting terminal and cable cover

45

46

Lighting control

Application:

any building without a Building Management System and with good natural light

Achieve simple lighting control using natural light and building occupation

I want to reduce the amount of energy used by my building’s lighting by taking advantage of natural light in corridors and areas with large windows. Most importantly, I want to keep lights from being left on all weekend!

A controller is programmed with each area’s occupation patterns. A light sensor allows the lights to be switched on, via the controller, when natural light levels are too low. The system is flexible enough to allow occupants to override the restriction, switching lights on for short periods of time as needed.

Each area is outfitted with the usual light fixtures and push-button on/off switches, and is powered by an electrical circuit controlled by an impulse relay that receives commands from a controller. The controller also includes digital inputs from one or more twilight switches that constantly measure natural light levels.

Depending on the configuration, the controller can either automatically switch lights on in a given area, depending on time of day, or periodically send lights-off commands when natural light is high, or when the programmed occupation time is over. Flexible programming ensures an optimal balance between energy savings and user comfort.

For the user

> Save

10%

off

lighting costs, one of the top three sources of electrical consumption

> Easy-to-control,

independent system does not affect other building systems

Measure Reduce energy consumption Reduce energy costs

For professionals

+

Design

• Fully-confi gurable for a variety of building occupation situations

+

Installation

• Offer the added value of automation

• Impulse relays work with standard wiring

+

Maintenance

• Easy-to-maintain traditional architecture

L

N

DPN

CB

Twilight switch

IC 2000

Programmable controller Zelio

Interface relay

RBN

DPN

CB

On Off

Impulse relay

TLC

DPN

CB

On Off

Impulse relay

TLC

How it works

• Corridor lighting is switched on when employees begin to arrive at 7.30 am.

• There is enough natural light for people to use the area comfortably, so the lights remain switched off until

5.41 pm, when the natural light is no longer suffi cient.

• In the meantime,

Mr Smith switches on the lights in his offi ce when he arrives.

A short time later, at

8.50 am, the lights are switched off automatically due to good natural light.

Mr Smith switches them on again to perform a task at his desk, and the lights remain on for 15 minutes.

• From 4.55 pm on, when natural light is lower, Mr Smith can again leave the lights on as long as he wants.

• At 7 pm, the automatic shut-off kicks in again.

Local push button

Local push button

Zelio Logic smart relay is designed for use in small automated systems

• The number of inputs/ outputs can be:

- 12 or 20 I/O, supplied with a 24 V or c 12 V,

- 10, 12 or 20 I/O, supplied with a 100 to

240 V or c 24 V with clock Programming language

• To improve performance and flexibility, Zelio

Logic modular smart relays can be fitted with communication modules and I/O extension modules to obtain a maximum of 40 I/O

• Programming can be performed: independently, using the buttons on the Zelio

Logic smart relay (ladder language), on a PC using

“Zelio Soft 2” software

RBN Interface: between low voltage and extra low voltage

• Enhanced isolation between circuits (4KV)

• Mini 5mA 5V CA/CC to maxi 2A 250V CA

• Standard IEC 255-100,

IEC 529

IC 2000 Twilight switch

• Adjustable from 2 lux to

2000 lux

• Supplied with wallmounted IP54 light sensor cell

TLC impulse relay with centralized control

47

48

Lighting control

Application:

all commercial buildings

Save energy by controlling lighting scenarios for different areas of your building

I want an easy way to manage different lighting scenarios in different areas of my building and save energy.

Implement remote or manual controls to automatically manage different lighting scenarios

This solution uses KNX network technology to link push-button controls with switching and dimming actuators. Different lighting scenarios configured according to occupancy and use can be activated via KNX push-button controls. Individual KNX actuators may be used to switch or dim lights manually at any time. A remote control provides added practicality.

For the user

> Use up to

10%

less energy than with a traditional installation for a similar-sized room

> Improve occupant comfort and room ambiance

> Control by lighting groups eliminates unnecessary use

Measure Reduce energy consumption Reduce energy costs

KNX push-button

KNX push-button

IR-remote control

Distance 2010

System component Lighting control Lighting control

Manual control

Lighting control

Manual control

KNX

Power supply

KNX

Switch actuator

KNX

Universal dimming actuator

KNX

Universal dimming actuator

Lighting control

KNX

Control-unit

0-10 V

KNX

For professionals

+

Maximum

fl exibility, making adjustments to layout much easier than with traditional systems

+

Requires working with a skilled electrician or planner/

integrator to get maximum userfriendliness and cost-effectiveness ballast/ transformer transformer transformer

0-10 V

0-10 V

0-10 V ballast

4-gang plus pushbutton control with

IR receiver

Push-button control with

8 operating buttons, operating and status display, and labelling field.

The operating display can also be used as an orientation light.

All functions can be controlled via IR remote control. The push-button is pre-programmed for operation with a

Schneider Electric IR remote control. Many other IR remote controls

(e.g. existing TV or CD player remote controls) can be programmed to work with the unit.

KNX software functions: switching, toggling, dimming (single/dualsurface), blind (single/ dual-surface), pulse edge trigger 1-, 2-, 4- or 8-bit telegrams (distinction between short and long operation), pulse edge with 2- byte telegrams

(distinction between short and long operation), 8-bit linear regulator, scene retrieval, scene saving, disable functions.

KNX switch actuator

For independent switching of four loads. With integrated bus coupler and two screw terminals.

For installation on EN

50022 DIN rails. The 230

V switch output can be operated with a manual switch.

• Nominal voltage: AC

230 V, 50-60 Hz

• For each switching contact:

- Nominal current: 16 A, cos ϕ = 0.6

- Incandescent lamps:

230 V AC, max. 3600 W

- Halogen lamps: 230 V

AC, max. 2500 W

- Fluorescent lamps:

230 V AC, max. 2500 VA

- Capacitive load: 230 V

AC, 16 A, max. 200 µF

• Device width: 4 modules

= approx. 72 mm

• Contents: with bus connecting terminal and cable cover

49

50

Measuring energy consumption is one of the keys to understanding how your building works

so you can better exploit potential opportunities for savings.

This section presents two types of simple solutions:

> Measuring electrical consumption directly on your installation’s different devices

> Measuring and transmitting consumption data to a PC or Web server for analysis

Both types of solutions can be implemented without an automated data management and analysis system.

Choose the solution that’s right for you

> Meet essential energy measurement needs with a simple metering solution (p. 52)

> Get essential electrical information for each area of your building (p. 54)

> View and monitor the energy used by your lighting installation (p. 56)

> Analyze your energy consumption online without a BMS (p. 58)

> Manage WAGES in your small to medium-sized building (p. 60)

> Manage WAGES in non-critical large industrial buildings (p. 62)

> Manage and sub-bill WAGES in large commercial buildings (p. 64)

> Analyze energy data to optimize operation of your industrial buildings (p. 66)

51

52

Energy monitoring

Application:

small commercial and industrial buildings

Meet essential energy measurement needs with a simple metering solution

I need a basic energy measurement system that allows me to identify areas where corrective actions could help decrease my building’s energy usage.

Install digital kilowatt-hour meters on selected loads

The solution is based on simple digital kilowatt-hour meters to track energy consumption. Users simply read consumption information directly from the meters’ displays to identify the leading sources of overconsumption for each area of the building.

These cost-effective pulse meters are designed for sub-metering of active energy consumed by a single phase or three-phase electric circuit with or without distributed neutral.

Direct measurement up to 40/63 A is possible. Above 63A, a current transformer must be used. The meters can be connected to a PC or PLC for analysis and reporting.

For the user

> Metering can

reduce energy consumption by up to

10% by raising users’ awareness of consumption habits

> Easiest way to start tracking consumption

> Can be used for sub-billing and cost allocation

Measure Reduce energy consumption Reduce energy costs

Circuit breaker

C60

Circuit breaker

C60

Circuit breaker

C60

Circuit breaker

C60

Circuit breaker

C60

For professionals

+

Easy to install,

even in existing buildings

+

Easy to wire: no current transformer to install

+

Small size for easy installation on compact switchboards

+

Remote measurement possible

+

The bottombottom connection of current inputs facilitates connection to circuit breakers

+

A pulse output can be used to manage a set of meters remotely

Kilowatt-hour meter

ME4zrt

Kilowatt-hour meter

ME3zr

Cafeteria

ME range

>

ME watt-hour meters are designed for singlephase or three-phase circuits, with or without a distributed neutral

• Direct measurement up to 40/63A, up to 6000A with current transformer

• DIN rail mounting

• 5 to 7 digit display

• Possible remote transfer by NO contact

• Complies with:

IEC 62053-21 and

IEC 61557-12 standards

Kilowatt-hour meter

ME1zr

Kilowatt-hour meter

ME1zr

Kilowatt-hour meter

EN40

Refrigerated room

EN range

>

EN40 / EN’clic kilowatt-hour meters measure the active energy consumed by a single-phase circuit

>

Complies with

IEC 61557-12,

IEC 62053-21(class 1)

53

54

Energy monitoring

Application:

small to medium-sized buildings

Get essential electrical information for each area of your building

As facility management contractor, I need a system that can gather, track, and clearly display electrical information for different areas of my building.

Install meters to send information to a PC equipped with PowerView consumption-tracking software

PowerView software is one of the easiest ways to improve a building’s energy efficiency. It is also the perfect foundation for upgrading to more sophisticated systems later on.

The easy-to-use interface displays measurements and the associated curves in real time. Both PM9c and more advanced PM710 meters use a RS485 Modbus protocol.

An EGX100 gateway converts Modbus into Ethernet TCP IP protocol.

Measure Reduce energy consumption Reduce energy costs

For the user

> Savings of up to

10%

with ROI within the first year

> Individual

metering raises occupants’ awareness of consumption

• Power is switched off immediately to unoccupied areas to keep consumption on track

• Power factor is adjusted to ensure optimal efficiency and reduce power-factorrelated penalties

Ethernet

TCPIP

PowerView

Software

For professionals

Mod/bus

+

Installation

• Available as a power-meters-plussoftware bundle

• PowerView software is easy to use

• PM9c, PM710 and EGX100 meters suitable for

LV switchboard installation

• DIN-rail-mounted

PM9c and EGX100 suitable for renovation projects

• PM710 meters same size as old analog ammeters or voltmeters for door mounting

• Factory-calibrated

PM9c meters leave just a few settings to be selected on site

+

Maintenance

• Automatic identifi cation of any new Schneider

Electric meter installed, for fast and easy upgrades

EGX100 gateway

PM710 power meter

PM9C power meter

PowerView software

• Allows up to 32 meters

• Delivers data in spreadsheet format at pre-determined intervals

PM9c and PM710 meters

• Integrated displays with local information useful for maintenance

• PM9c meters measure: real-time and maximum current, voltage, real power, apparent power, real energy, neutral current, reactive energy, and demand readings

• Auxiliary power is

220V AC

RS485

PM9C power meter

PM9C power meter

• PM710 meters take the same measurements as the PM9c plus demand reactive power, demand current, apparent energy, voltage and current harmonics

• Unlike most other meters on the market, the PM9c and PM710 meet EN61557-12 costallocation standards

55

56

Energy monitoring

Application:

small retail buildings

View and monitor the energy used by your lighting installation

I want to get an overview of the different loads in my retail space so that I can identify areas for potential savings.

Install a KNX system to meter and monitor the different loads in your building

The solution is based on EN40p electric meters at the electrical distribution level.

For each KWh used, a given number of pulses are sent from the meter to the KNX binary input.

Consumption data is then transferred to the 10” IP touch panel, where it can be viewed and processed.

The touch panel can also be used to view and control current building states and functions.

For the user

> Reduce energy

consumption by up to

10%

and more: monitoring energy use enables you to identify waste and encourage more energy-effi cient behaviour

> Increase safety

by automating alarms and emergency calls

> Enjoy the

convenience of remote monitoring and control

> Lower installation

costs than traditional systems with similar functions

Measure Reduce energy consumption Reduce energy costs

Visualization System component

KNX

Power supply

IP Touch-panel 10"

Data logging

KNX

KNX

Binary input

Low voltage

Power supply

24V=

L1

L2

L3

N

For professionals

+

Flexible, for easy add-ons and modifi cations:

all equipment is connected via a common bus line allowing you to reconfi gure or expand the installation without costly building work

+

New opportunities for your business:

KNX solutions must be implemented by skilled electricians or integrators and offer an array of user-friendly, costeffective functions

Circuit breaker

EN40P

Electricity meter

Circuit breaker load

EN40P

Electricity meter

Circuit breaker load

The 10”KNX interactive touch panel

is used to display and control building states and functions. It comes pre-installed with

Windows CE for fast, easy data management, web, client/server, and network configuration.

• KNX software configuration via TP VISU

• Display size: 10.4”

(24.4 cm)

• Resolution: 800 x 600 pixels, SVGA

• Display type: TFT, resistive touch

• Colours shown:

> 65,000

• Mains voltage: DC 24 V

• Power consumption:

< 20 W

• RAM: 128 MB

EN40p kilowatt-hour meters

• Single-phase kilowatthour meter with remote transfer of metering impulses (static output)

• Compliance with standard IEC 61557-12,

IEC 62053-21(class 1),

EN50470-3

• Provides direct measurement up to 40A without CT’s, an auxiliary power supply for even greater savings in term of wiring

EN40P

Electricity meter load

57

58

Energy monitoring

Application:

any existing commercial building

Analyze your energy consumption online without a BMS*

*Building Management System

I want to get an accurate view of when lights and other equipment are in use in my building, but I don’t want to invest in a Building

Management System.

Open an EnergyView Online account for one-stop web-based access to your building’s energy information

EnergyView Online (EVO) is a web-hosted remote energy monitoring service that eliminates the need to install servers or software on site. The service can either be linked to existing meters or new PowerLogic meters via an Internet gateway.

Schneider Electric can provide end-to-end services including installing and configuring meters and communication devices.

Once the necessary hardware is installed and configured, data is directly and automatically sent by email to EVO’s secure servers.

Simply log in to your personal EVO account for 24-7 access to at-a-glance information on your building’s energy use:

• Energy load profile

• Normalization

• Rate calculations and comparisons

• Reports

For the user

> Save

2%

to

4%

off

your utility bills by adapting building operations to actual use patterns

> Reduce building operating costs by

2%

to

5% by optimizing equipment use and avoiding unnecessary investments

> Analyse costs and manage

operations in real time without waiting for your utility bill

> Remote system maintenance

> Annual service contracts and priority support

> Expert analysis

and solutions for power quality and energy management

Measure Reduce energy consumption Reduce energy costs

Schneider Electric

EVO service

Ethernet Network

LV Network

For professionals

+

No need to install additional

servers or software

+

Use existing meters or incorporate new

PowerLogic meters

+

Suitable for existing buildings

+

Easy to install and use; on-site start-up and training available

+

Custom solutions to meet your specifi cations

CM3000

EGX400 gateway

ION7650 power meter

ION6200 power meter

PM700 power meter

PM9C power meter

EnergyView Online includes

• Secure access to data from any computer via a web browser

• Pre-configured energy analysis reports in both graph and table formats:

- Load profiles

- Usage history

- Interval data

• Normalization of energy information to compare similar facilities or the same facility for different time periods by:

- Square footage

- Units of production

- Weather

• Estimated energy bills using a revenue-accurate rate engine

• Automated reporting and scheduled daily, weekly, or monthly energy report emails

59

60

Energy monitoring

Application:

small to medium-sized commercial buildings

(1,000 to 5,000 square meters)

Manage WAGES* in your small to medium-sized building

*Water, Air, Gas, Electricity, Steam

I need to be able to identify abnormal or atypical consumption easily and at regular intervals so that I can control the overall fl ow of energy throughout the building.

Gather metering data via an iRio RTU, track consumption and detect problems

The hub of the system is an iRio RTU (Remote Terminal Unit), which picks up metering data from power meters (pulsing contacts or Modbus Serial Line communication) and flow meters

(pulsing contact, Modbus Serial Line communication, or M-Bus open metering communication). The terminal then generates the necessary databases, dashboards, curves, and reports. It also transmits data.

The solution detects problems like flow leakages, overrides, and equipment left on, and then provides preconfigured indicators and curves at set intervals or on demand via a standard web browser as well as a downloadable metering database for indepth analysis.

Additional functions are also available, including an alarm generator for maximum energy consumption overruns, power faults, and abnormal consumption cycles and a load controller for load shedding, automatic shut down, and override limitation.

Energy metering can be provided by a number of meter options depending on budget and performance requirements:

• Compact NSX built-in power meter

• PM9C/200/700 communicating power meters

• Cost-effective EN40/PM9P/ME4zr pulsing power meters

For the user

>

10%

energy savings thanks to usage analysis

• Even greater savings if additional controls like load scheduling, conditioning shedding are implemented

> Reliable industrial

RTU technology ensures information is available

> Cost-effective

• The solution works with pulse metering technology

• Possible small initial rollout to secure quick

ROI can be scaled up later with additional metering

> iRio predeveloped software

modules minimize software development costs

> Web based for easy implementation;

no dedicated workstation required

Measure Reduce energy consumption Reduce energy costs

Internet

Explorer

Power

Incomer

Web

Ethernet modbus TCP/IP

Main Low Voltage Switchboard

Circuit Breaker

Compact NSX

Modbus RS485

Monitoring

Consumption analysis

(dashboards, curves and reports)

CSV data files download

Remote Terminal Unit (RTU) iRIO

For professionals

+

Low software development costs:

iRio comes with pre-developed software modules

+

Powerful customization capabilities:

implement additional control functions if and when required

+

Less time spent

on-site: remote alarm and operation

+

No additional switchboard

cabling: Compact

NSX built-in power meter

Heat meter

Cold meter

M-Bus

M-Bus

Interface

PW60

Water

Water

Gas

Power

Meter

PM9C

Sensitive loads

Basic metering

+

Power Monitoring

Energy

Meter

EN40

Ventilation

Energy

Meter

ME

1/3/4zr

Energy

Meter

EN40

Contactor

CT/LC

Air conditioning

Sub-metering only

Lighting Unmetered loads

(such as power sockets)

Controlled load

(scheduled, conditioned, shedded)

PM range

• PowerLogic large range of power meters offering all the measurement capabilities required to monitor an electrical installation and are backed by the most complete range of monitoring devices and software on the market

• Energy class 1 as defined by IEC 62053-21 and class 0.5 as defined by IEC 62053-22

EN40

• Economical KWh meter for metering active energy consumed by a single phase electric circuit in all

< 10kVA installations

• Class 1 complies with

IEC 62053-21 and IEC

61557-12 (PMD DD)

Class B complies with

EN 50470-3

iRio RTU

Modular system, with integrated web server; sends information by

GSM, GPRS, Ethernet,

RS485; optional additional cards for external inputs and outputs

61

62

Energy monitoring

Application:

non-critical large industrial buildings > 500 kVA

Manage WAGES* in non-critical large industrial buildings

*Water, Air, Gas, Electricity, Steam

I need to make sure my processes are running at maximum effi ciency without generating any shortages. Plus, I want a breakdown of individual energy costs for each workshop.

Combine an iRio RTU, Rio extensions and meters to track workshops consumption

The system is based on an iRio RTU (Remote Terminal Unit), plus

Rio extension modules on the secondary switchboards for each workshop or production line. The terminal and modules pick up metering data from power meters (pulsing contacts or Modbus

Serial Line communication) and flow meters (pulsing contact,

Modbus Serial Line communication, or M-Bus open metering communication). The terminal then generates the necessary databases, dashboards, curves, and reports and transmits data.

The solution provides WAGES consumption information for each workshop or production line, and then provides ratios and curves showing each machine’s or each area’s consumption profile.

The metering database can be downloaded for detailed budgeting and usage optimization needs.

Electric metering can be provided by a number of meter options depending on your distribution architecture and metering performance requirements:

• Masterpact or Compact NSX built-in power meter

• PM9C/200/700 communicating power meters

• Cost-effective EN40/PM9P/ME4zr pulsing power meters

For the user

>

10%

energy savings thanks to usage analysis

• Even greater savings if additional controls are implemented

> More effi cient operation and

maintenance

> Reduced utility fees and penalties

through load shedding

> Reliable industrial

RTU technology

ensures information is available

> Customizable data processing, user interfaces, reports, and controls

> Cost-effective

• The solution works with pulse metering technology

• Possible small initial rollout to secure quick

ROI; can be scaled up later with additional metering

> iRio predeveloped software

modules minimize software development costs

> Web based for easy

implementation; no dedicated workstation required

For professionals

+

Low software development costs:

iRio comes with pre-developed software modules

+

Flexible data acquisition

capabilities (pulse,

Modbus SL, M-Bus) for compatibility with existing meters

+

Powerful customization capabilities:

implement additional control functions if and when required

+

Highly scalable for maximum costeffectiveness

+

Less time spent

on-site: remote alarm and operation

Measure Reduce energy consumption Reduce energy costs

Power

Incomer

Possible integration into:

> Scada PLC

> Manufacturing Execution System (MES)

> Building Management System (BMS)

> Enterprise Energy Management System (EEMS)

Web

Internet

Explorer

Ethernet modbus TCP/IP

Monitoring

Consumption analysis

Main Low Voltage Switchboard

Modbus RS485

Remote Terminal

Unit (RTU) iRIO

Air circuit breaker

Masterpact

M-Bus

Interface

PW60

M-Bus

Power Meter

PM800

Power Meter

PM700

Power Meter

PM700

Power Meter

PM9C

Power Meter

PM9P

Energy Meter

ME1/3/4zr

Energy

Meter

EN40

Contactor LC

Controlled load (scheduled, conditioned, shedded)

Sub-metering + basic power monitoring

Sub-distribution Switchboard

Modbus RS485

Power Meter

PM9C

Power Meter

PM9C

Sub-metering only

Power Meter

PM9P

Energy

Meter

ME

1/3/4zr

Energy

Meter

EN40

Water

Gas

Heat meter

Cold meter

Heat meter

Cold meter

Water

Gas

Heat meter

Cold meter

Contactor CT

Sub-metering + basic power monitoring Sub-metering only Restricted power final loads without sub-metering

Masterpact

• Nominal current 630 to

1600 A

• Breaking performance

42 to 150 kA at

220/415 V AC

• Voltage rating: up to

690 V

• 4 Micrologic control units with metering, energy management and network analysis functions

• Compliance with

IEC 60947-1 and 2,

IEC 68230, UL489, ANSI, and CCC standards

iRIO RTU

• Central unit of Rio modular system features with integrated web server

• Sends information by

GSM, GPRS, Ethernet,

RS485

• Optional additional cards for external inputs and outputs

• iRio RTU PW60 interface accepts M-Bus Protocol of flow meters

63

64

Energy monitoring

Application:

all commercial buildings greater than 5,000 square meters

Manage and sub-bill

WAGES* in large commercial buildings

*Water, Air, Gas, Electricity, Steam

I want to make sure I get the most out of my HVAC and lighting control systems.

I also need reliable consumption data to sub-bill my tenants’ utility use.

Meter key energy points to acquire consumption data and identify abnormal use patterns

Each tenant’s utility use is sub-metered, and the resulting consumption files can be downloaded via a standard web browser for use with an invoicing application.

Ethernet-based architectures are particularly suitable for commercial buildings where IT network connections are generally already available.

The solution is built around an iRio RTU (Remote Terminal Unit) at main switchboard level and Twido PLCs distributed at secondary or final switchboard level.

Metering is provided through power meters using pulsing contacts or Modbus Serial Line communication and flow meters using pulsing contact, Modbus Serial Line communication, or M-Bus open metering communication.

The system ensures data acquisition, processing, and transmission, including database generation, dashboards, curves, and reports.

Electric metering can be provided by a number of meter options depending on your distribution architecture and metering performance requirements:

• Masterpact or Compact NSX built-in power meter

• PM9C/200/700 communicating power meters

• Cost-effective EN40/PM9P/ME4zr pulsing power meters

For the user

>

10%

energy savings through usage analysis

• Even greater savings if additional controls are implemented

> Lower energy consumption

through load scheduling, conditioning, and shedding

> Reliable industrial

RTU technology

ensures information is available

> Cost-effective

• The solution works with low-cost pulse metering technology

• Possible low-cost initial rollout to secure quick ROI; can be scaled up later with additional metering

• iRio pre-developed software modules minimize software development costs

• Uses existing

IT infrastructure

(Ethernet TCP IP)

> Web based for easy

implementation; no dedicated WAGES workstation required

> Ready-to-use data fi les

facilitate sub-billing

For professionals

+

Low software development costs:

iRio comes with pre-developed software modules

+

Powerful customization capabilities:

implement additional control functions if and when required

+

Highly scalable for maximum costeffectiveness

+

Uses existing

IT infrastructure

(Ethernet TCP IP):

no need to install new communication bus

+

Less time spent

on-site: remote alarm and operation

Measure Reduce energy consumption Reduce energy costs

Power

Possible integration into:

> Building Management System (BMS)

> Enterprise Energy Management System (EEMS)

Incomer

Internet

Explorer

Web

Ethernet modbus TCP/IP

Monitoring

Consumption analysis

(dashboards, curves and reports)

CSV data files download

Main Low Voltage Switchboard

Remote Terminal

Unit (RTU) iRIO

Modbus RS485 Load control

Air circuit breaker

Masterpact

M-Bus

Interface

PW60

M-Bus

Power Meter

PM800

Power Meter

PM9C

Power Meter

PM9C

Contactor CT

Controlled load (scheduled, conditioned, shedded)

Sub-metering + basic power monitoring

Sub-distribution Switchboard

Power Meter

PM9C

Power Meter

PM9P

Energy Meter

ME1/3/4zr

Energy

Meter

EN40

Energy Meter

EN40

Lighting feeder

Energy Meter

ME 1/3/4zr

HVAC feeder

(fan coils)

Non metered feeders

(e.g. power sockets)

Sub-billing only

Twido PLC based Ethernet pulse concentrator

Heat meter

Cold meter

Water

Gas

Heat meter

Cold meter

Water

Gas

Heat meter

Cold meter

Masterpact

• Nominal current 630 to

1600 A

• Breaking performance

42 to 150 kA at

220/415 V AC

• Voltage rating: up to

690 V

• 4 Micrologic control units enriched by measurement, energy management and network analysis functions

• Compliance with

IEC 60947-1 and 2,

IEC 68230, UL489, ANSI, and CCC standards

PowerLogic Series

800 Power Meters

• IEC 62053-22 class

0.5S for real energy

• Accurate energy measurement for subbilling and cost allocation

iRIO RTU

• Central unit of modular system features with integrated web server

• Sends information by

GSM, GPRS, Ethernet,

RS485

• Optional additional cards for external inputs and outputs

Twido programmable controller

• Compact base controllers with integrated

Ethernet port

• 100…240 V AC supply or 24V DC

65

66

Energy monitoring

Application:

all large, non-critical industrial buildings (>1,000 kVA)

Analyze energy data to optimize operation of your industrial buildings

I need a complete system to manage my water, air, gas, electricity, and steam (WAGES) consumption and reduce maintenance costs.

Use ION Enterprise software to acquire energy meter and circuit breaker data for complete installation monitoring

The solution delivers the indicators, curves, and trends you need to:

• Identify potential savings

• Pinpoint investment opportunities that can help you use less energy, like lighting, heating or air treatment control systems

• Assess your installation’s performance via status and fault alarms and measurements

ION Enterprise power monitoring and control software features:

• Energy metering (WAGES) and power monitoring data acquisition

(voltage, current, power factor) through:

- SEPAM, Masterpact, and Compact NSX power meters with integrated protection

- PM, CM, and ION power meter ranges

- Remote devices connected via the Internet, Ethernet, wireless, modem, satellite and serial connections

The software controls loads and power sources, peak rate management, and power factor correction.

Advanced data management:

• Load aggregation, multi-site meter aggregation and trending, bill verification, cost allocation and sub-billing

• Trigger on complex conditions, alarming, event logging, power quality analysis and compliance monitoring

Advanced information delivery:

• Web-enabled, local or remote preconfigured and custom reports

• Manual, scheduled or event-triggered reports via email or web

For the user

>

10%

energy savings through consumption tracking

> Covers full WAGES

(water, air, gas, electricity, steam) consumption

> Reduced energy

costs by avoiding higher utility contract fees and penalties through demand response and curtailment programs

> Increase loads and equipment

lifetimes by detecting anomalies on the installation

> Boost reliability of information

by gaining a comprehensive overview of all energy management data via a single system

> Enjoy greater

fl exibility with fully customizable data processing, user interfaces, reports and controls

Measure Reduce energy consumption Reduce energy costs

ION Enterprise software

Internet

Explorer

Power

Incomer

Intranet

Ethernet TCP/IP

Main Low Voltage Switchboard

Air circuit breaker

Masterpact

Power Meter

PM850/870 ECC

Water

For professionals

+

Full Modbus and

OPC connectivity

to third-party meters, sensors and other equipment

+

High interoperability

with thirdparty systems, applications and services such as

BAS, MES and ERP via ODBC, OPC,

XML, FTP, email,

CSV, PQDIF

+

Cost-effective implementation

through preconfi gured reports

+

Optimised

cost through fully scalable hardware, software and system architecture

+

Power meters with built-in

protection deliver switchboard instrumentation without installing dedicated power meters.

Sepam, Masterpact and Compact NSX enable full monitoring across the entire power distribution architecture

Gas

Circuit breaker

Compact NSX

EGX100 gateway

Modbus RS485

Circuit breaker

Compact NSX

Key loads to be monitored:

- Big consumers

- Requiring availability

Circuit breaker

Compact NSX

Power

Meter

PM9C

Contactor CT

Peak shaving, load sub-metering and monitoring

Shedded final loads

Loads to be sub-metered and monitored

Power

Meter

PM9C

PLC based load shedding control unit

Twido based

Contactor

LC

Shedded loads

Sub-distribution Low Voltage Switchboard

PLC based submetering concentrator

Twido based

Energy

Meter

ME 1/3/4zr

Energy

Meter

EN40

Loads to be sub-metered only, not requiring any monitoring

Small loads whithout any sub-metering

ION E V6.0

• Compatible with all

PowerLogic ION-series meters, PowerLogic

PM750 and PM710 meters

• Supports third-party meters, sensors and other equipment through

Modbus protocol or OPC

• Connect to remote devices via Internet,

Ethernet, wireless, modem, satellite, and serial connections

• Integrated metering of all utilities (water, air, gas, electricity, steam)

• Enterprise web portal access to system-wide displays

• Preconfigured and custom reports, report wizard, scheduled distribution via email or web

• Power quality analysis including compliance with international standards

(IEC 61000-4-30,

EN50160)

PM 850

• Easy to install panelmount with only two clips, or DIN rail mount with or without remote display

• Direct-connect voltage inputs, with no need for potential transformers

(PTs) up to 600 VAC

• Intuitive navigation with self-guided, languageselectable menus

• Individual harmonic magnitudes and angles and waveform capture

(PM850 and PM870)

• IEC 62053-22 class

0.5S for real energy

67

68

For many buildings, HVAC and lighting combined account for over 70% of energy use.

You can optimize this major source of energy consumption by installing a powerful, integrated

Building Management System based on open, scalable devices and applications.

In addition to measuring consumption data and transmitting it to automated systems, our Building

Management Systems deliver capabilities like complex data analysis and detailed consumption trend reporting while integrating consumption and installation control features.

These solutions are within reach for all buildings, regardless of type of use, current installation, or budget.

Choose the solution that’s right for you

> Schedule selected loads simply via your BMS (p. 70)

> Monitor and control electrical loads in your retail store (p. 72)

> Control lighting and heating at room level with a KNX-based system (p. 74)

> Control room lighting, temperature, and blinds automatically (p. 76)

> Manage hotel energy consumption according to guestroom occupancy (p. 78)

> Reduce hotel electrical consumption and improve comfort with a full KNX system (p. 80)

> Combine various control systems to achieve maximum savings (p. 82)

> Monitor your building’s power supply and control HVAC, lighting, and blinds (p. 84)

> Boost energy efficiency and increase the availability of your electrical installation (p. 86)

> Control and monitor HVAC, lighting, security systems, and energy consumption (p. 88)

69

70

Building management

Application:

any building with a Building Management System

Schedule selected loads simply via your BMS*

* Building Management System

My business is fl exible enough to schedule certain energy-consuming activities during less expensive off-peak hours. What’s the best way to take advantage of this opportunity?

Integrate a centrally-managed load-shedding system into your BMS

The solution is built around a PC or PLC that controls load shedding. The controller is used to generate load shedding orders based on the electrical variables of the entire electrical installation, taking into account time bands, operating, or even processrelated information. The system communicates with selected

Compact NSX circuit breakers. Power to outgoing loads is cut for a given amount of time, and selected loads are restarted at more optimal times chosen by the controller.

The system is simple, with an IFM Modbus interface between the

PC or PLC and the circuit breakers. The Compact NSX circuit breakers are equipped with Breaker Status Control Module

(BSCM) input/output modules, which are hooked up to the remote control (MTc) that opens and closes the Compact NSX.

For the user

>

10%

lower

electricity bills, with savings proportionate to rates negotiated with the utility

> Get the most of your investment:

the FDM121 switchboard includes, at a cost similar to traditional push-button/ lighting/commutator solutions,

• local circuit breaker open/close command

• local/remote commutator

Measure Reduce energy consumption Reduce energy costs

PC or PLC controller

Existing BMS

Ethernet

For professionals

+

Easy design and use

• Limited part numbers for easy selection and ordering

• Available worldwide

+

Easy installation

• The circuit breaker’s integrated communication capabilities eliminate the need for I/O wiring between the circuit-breaker and the PLC

• RJ 45 connections between the circuit breakers and the communication network

• The FDM121 mounted on a standard cutout on the front panel is easy to install with its RJ 45 connection

+

Easy testing and

confi guration, using your PC installed with RCU* software

* Free download available online at www.

schneider-electric.com

+

Effi cient operation and

maintenance, thanks to the

FDM121’s central and local management capabilities

Circuit Breaker

Compact NSX with remote control (MTc)

Boiler

IFM

Modbus

EGX100 gateway

Front display module

FDM121

BSCM

(Breaker Status

Control Module)

Compact NSX

100-630

Circuit breaker with remote control (MTc)

BSCM (Breaker

Status Control

Module)

I/O module sends circuit breaker O/C status and

O/C commands

FDM121 switchboard display unit

• Local measurement and alarm readings

• Local circuit breaker

O/C command with status display

• Local/remote circuit breaker command management

• Connected to Modbus network via interface module

Ethernet/

Modbus EGX100 communication gateway

71

72

Building management

Application:

all commercial buildings; particularly suitable for retail

Monitor and control electrical loads in your retail shopfront

I need to be able to check the status of the oven, refrigerator and security cameras quickly and easily when I close up my shop.

I want to make sure everything is secure and avoid wasting energy.

Install KNX current sensing switch actuators connected to a touch panel to monitor loads

The touch panel shows the status of the different loads and indicates potential risks—such as the refrigerator, oven, or security system—during shop opening hours.

The system cuts power to specific loads—like an oven left on at night—thus eliminating waste. It also helps to ensure proper operation of the security system by monitoring devices like security cameras and lighting.

A KNX logic module rotates the lighting sources used at night from one night to the next for more even use of light fixtures.

The touch panel provides information on the operating hours and expected lifetime of each fixture, for more efficient maintenance and replacement.

For the user

> Monitoring consumption and identifying unnecessary use can generate savings of up to

10%

and more

> Lower maintenance costs

by rotating lighting sources

> Reduce energy consumption

> Increase safety of people and

property through automatic alarms and emergency calls

> Added

convenience of remote monitoring and control

> Easy upgrades and extensions

Measure Reduce energy consumption Reduce energy costs

IP Touch-panel 10"

KNX push-button

24V=

Low voltage

Power supply

For professionals

+

KNX systems are

easier to design than traditional systems with similar functions

+

Requires working with a skilled electrician or planner/

integrator to get maximum userfriendliness and cost-effectiveness

+

Maximum

fl exibility, making adjustments to layout much easier than with traditional systems

System component

Manual control

Logic control

Visualization

Load control

KNX

Powersupply

KNX

Logic module

Basic Reg-K

Motors

Fridge

Oven

Monitoring

KNX

KNX

Switch actuator

REG-K/8x230/16 with manual mode and current detection ballast

Fluorescent

230 Volt

REG-K/8x230/16 switch actuator with manual mode and current detection

• Capacity to switch eight loads independently

• Integrated current detection on each channel

• Nominal voltage: AC

230 V, 50 - 60 Hz

• Nominal current Per switching contact: 16 A, cos = 0.6

The 10”KNX interactive touch panel

is used to display and control building states and functions. It comes pre-installed with

Windows CE for fast, easy data management, web, client/server, and network configuration

• KNX software configuration via TP VISU

• Display size: 10.4”

(24.4 cm)

• Resolution: 800 x 600 pixels, SVGA

• Display type: TFT, resistive touch

• Colours shown:

> 65,000

• Mains voltage: DC 24 V

• Power consumption:

< 20 W

• RAM: 128 MB

73

74

Building management

Application:

all commercial buildings

Control lighting and heating at room level with a KNX-based system

We are reorganising our offi ce space.

We are looking for a simple, yet fl exible system that will enable us to start saving on heating and lighting right now.

Install a KNX-based room-level control system for lighting and heating

The solution offers an optimum combination of different control levels: presence, brightness, time-dependency for lighting, and temperature.

Settings are adjusted via KNX presence detectors, lighting and heating actuators, binary inputs, and multi-function pushbutton controls. Automatic interaction of sensors and actuators eliminates unpredictable—and costly—human activation and deactivation for increased comfort and safety.

The solution is much more flexible than traditional installations for easy repurposing of office spaces after a reorganization or move.

• Lighting control: the bus system includes a presencedetector and multi-function push-button control.

• Heating control: the multi-function push-button controls room-temperature and switches to standby whenever the room is unoccupied or a window is open.

For the user

> Room automation reduces energy consumption

• According to

EU standard

EN 15232, Class A offi ce buildings must be equipped with room-level controls, which have the greatest impact on energy consumption.

KNX room control solution combines presence- and brightness-controlled lighting with presencecontrolled heating and window monitoring,

for potential energy savings of up

to

35%

> Increased safety with automated alarms and emergency calls

> Easy to upgrade or add on to the system

Measure Reduce energy consumption Reduce energy costs

KNX

ARGUS

Presence sensor

System component Lighting control

KNX multi-function push-button

Temperature control

Manual control KNX

KNX

Powersupply

KNX

Switch actuator

KNX

Binary input module

KNX

Heating actuator

For professionals

+

Saves time on installation:

easier to install than traditional systems with similar functions

+

New opportunities for your business:

KNX solutions must be implemented by skilled electricians or integrators and offer an array of user-friendly, costeffective functions

Window contacts

Thermoel.

valve drives

KNX multi-function push-button with room temperature control unit

Convenient control unit with four operating buttons

Includes room temperature control unit and display for:

- Switching, toggling, dimming, blind control, pulse-edge trigger, alarm functions, cyclical reading of external temperatures, etc.

- Continuous PI control, switching PI control (PWM)

Output: continuous

Type of control: 2step control range 0% to 100% or on/off

KNX heating actuator

For actuation of thermoelectric valve drives for heating or cooling ceilings

Six electronic outputs

Up to four valve drives can be connected to each output

Outputs are either switch activated (1 bit) or PWM signal (1 byte) activated

Each output is overload-protected and short-circuit-protected

For installation on

EN 50022 DIN rails

Reporting connected to all valves, transmission of the largest 1 byte variable value

Nominal voltage:

AC 230 V, 50-60 Hz

Nominal current:

0.05 A, ohmic

Starting current: max. 1.5 A

Minimum load per used output: 1 valve drive

Number of valve drives max. 4 per output

Device width: approximately 72 mm for four modules

KNX binary input module

Switching, dimming or blind control via one or two inputs

Positioning values for blind control (8-bit)

Pulse edges with

1-, 2-, 4-, or 8-bit telegrams

Differentiation between short/long operation

Initialisation telegram

Cyclical transmission

Pulse edges with

2-byte telegrams

8-bit linear regulator

Disable function

Break/make contact

Debounce time

Inputs: 4

75

76

Building management

Application:

all types of buildings

Control room lighting, temperature, and blinds automatically

I want to automatically manage my building’s lighting and air conditioning depending on occupation, orientation, and natural light.

Combine a variety of room-level controls for dramatic cost savings

The solution is built around KNX detectors and fan and blind actuators, which interact automatically, eliminating unpredictable—and costly—human activation and deactivation.

By combining presence and brightness detectors with timers to control lighting, blinds, heating, and air conditioning, you can save dramatically on your energy bills while increasing occupant comfort and safety.

Lights are switched on only when areas are occupied and depending on natural light. Heating and air conditioning are automatically regulated to achieve the desired temperature, switching to standby mode in the event of prolonged absence or if a window is open. Blinds are activated according to room temperature.

For the user

> Save up to

50%

• Combining room climate control, lighting, and blinds in a single fl exible, automated system is the best way to align energy consumption with room use and occupant behavior while eliminating waste

• According to EU standard EN 15232,

Class A offi ce buildings must be equipped with roomlevel controls, which have the greatest impact on energy consumption

• All-in-one solution for optimized room control

• Reduces energy consumption

• Flexible, with centralized or local switching and indicators

• Increased safety with optional automated alarms and emergency calls

• Optional userfriendly remote monitoring and control

• Easy to upgrade or add on to the system

Measure Reduce energy consumption Reduce energy costs

KNX

ARGUS

Presence sensor

KNX multi-function push-button

Remote control

System component Lighting control Temperature control Sunblind control

Manual control KNX

For professionals

+

Saves time on

design (support available) and installation (easier to install than traditional systems with similar functions)

+

Facilitates maintenance

+

More fl exible than traditional

systems; can be changed easily if when tenants move out or when workspaces are reorganized

KNX

Powersupply

KNX

Control-unit

0-10 V

KNX

Fan coil actuator

Heating valve drives

Fan coils

Window contacts

KNX

Blind actuator

Shutters

Blinds

KNX Argus presence detector with lighting control and IR receiver

REG-K/4x24/6 blind actuator with manual mode

• For each blind output:

- Nominal voltage: DC

24 V ±10 %

- Nominal current: 6 A

- Load types: 24 V direct current drives

- Device width: 4 modules

= approx. 72 mm

- Contents: With bus connecting terminal and cable cover

• Angle of detection: 360°

• Range: a radius of max.

7 m (at a mounting height of 2.50 m)

• Number of levels: 6

• Number of zones:

136 with 544 switching segments

• Number of movement sensors: 4, separately adjustable

• Light sensor: internal light sensor infinitely adjustable from approx. 10 Lux to

2,000 Lux (ETS); external light sensor via KNX

For independent control of 4 blinds or roller shutter drives.

The function of the blind channels is freely configurable. All blind outputs can be operated manually using pushbutton operation.

• Integrated bus coupler

• For installation onto DIN rails EN 50022

KNX REG-K fan coil actuator

For heating, ventilation and air conditioning control. For controlling fan convectors with up to three speeds, or threestep motor drives.

• Power supply: 230 V

AC ±10 %, 50/60 Hz

• Power consumption: max. 3 VA

• Outputs: 3 floating contacts (fan coil), 2 semi-conductor switches

(valve connections)

• Switching capacity for valves: 0.5 A, 24V - 230 V

AC

• Additional relay switching capacity: 16 A

• Fan relay switching capacity: 8 A

• Inputs: 2, max. cable length 5 m

77

78

Building management

Application:

four- and five-star hotels

Manage hotel energy consumption according to guestroom occupancy

My hotel’s occupancy rates fl uctuate depending on the time of year, something that is not refl ected in my energy costs. I want a system that will help me keep costs in line with occupancy and boost my hotel’s profi tability.

For the user

Integrate guestroom management into your hotel’s reservation system

Your hotel’s Property Management System (PMS) handles reservations, but it can also provide information about the status of each room: rented, rented and unoccupied, or rented and occupied. When the PMS and the guestroom management system interface, this information can be used to optimize room management and even save guest preferences for automatic customization of settings when the guest checks in.

Schneider Electric offers both guestroom management systems and complete building management systems, and delivers the expertise needed to integrate these systems into third-party

Property Management Systems like Micros Fidelio and Opera.

Information concerning functions like temperature, lighting and electricity—managed at room level—can be monitored and controlled in line with information from the Property Management

System, for instance:

• Unrented: Room is in economy mode. Room lights are turned off.

Room heating or air conditioning is automatically lowered. Window blinds and ventilation are set to maintain optimal conditions while the room is unoccupied.

• Rented and unoccupied: Room is in pre-comfort mode.

Temperature and air quality can be automatically set to a position closer to comfort mode.

• Rented and occupied: All room settings can be adjusted by the guest.

> Reduce energy use by more than

20%

> Opt for simple guestroom management (to lower heating or air conditioning while guests are away from their rooms)

for savings of

10%

; add advanced management of unrented rooms for an additional 10% savings

> Guests retain control of their environment while in their rooms for total comfort and ease of use

For professionals

+

Simple communication between the systems via a gateway ensures easy implementation and integration

Measure Reduce energy consumption Reduce energy costs

Projects

Hilton Americas-Houston becomes one of the world’s most energy-effi cient hotels

For this 24-story facility with 1,200 guest rooms and over 91,000 square feet (84,500 m

2

) of meeting space, Schneider Electric provided a comprehensive Andover Continuum™ building management system with a unique, energysaving guest room control sequence.

Hilton Copenhagen Airport automates

HVAC according to guest check-in and check-out

For this fi ve-star, 382-room hotel, Schneider

Electric focused on fi nding a practical way to key the HVAC system to guest arrivals and departures. The solution used a LonWorks

®

based TAC Vista™ system and integrated

HVAC control with the hotel’s booking system to trigger heating and cooling adjustments when guests check in and out.

76

74

72

70

68

84

82

80

Cooling Setpoint

78

66

Heating Setpoint

64

Unrented

Rented,

Unoccupied

Rented,

Occupied

PMS Gateway

Schneider Electric

Building Management

Software

Open Field Communication Bus

Floor 1: rooms

Floor 2: rooms

Schneider Electric’s open Building

Management System line-up

featuring

Andover Continuum™ and TAC Vista™ enables full integration of all hotel equipment, providing a central point of control and communication with third-party systems

79

80

Building management

Application:

four- and five-star hotels

Reduce hotel electrical consumption and improve comfort with a full KNX system

Energy has become a major expense for my hotel. I would like to reduce costs, but not to the detriment of my guests’ comfort or my own peace of mind—my top priorities.

Install an intelligent guestroom management system to control lighting, HVAC, and blinds

This intelligent system controls lighting, HVAC, and blinds according to guest presence, ensuring maximum comfort via the following functions:

• Advanced control of all room equipment such as lighting, heating, air-conditioning, curtains, and blinds

• Management of hotel functions like do-not-disturb and make-upthe-room orders

• The capacity to communicate with other hotel systems

Energy use is managed automatically according to occupancy, resulting in reduced energy consumption. Of course, HVAC is a top consumer of energy, but so is lighting. Guests are usually only in their hotel rooms for around eight hours per day, therefore, the times when the room is unoccupied represent a major opportunity to save energy without affecting guest comfort.

The solution is based on a KNX/EIB bus system, which connects all the different sensors and actuators inside the room to form an intelligent system.

• Sensors: key card holder, presence detector, thermostat, open/ close windows

• Actuators: lighting control, air conditioning control

• A single, easy-to-use interface, from simple push buttons to user-friendly touch screens

• Automated functions provide additional energy savings and smoother operation, whithout any inconvenience for the guests

For the user

>

10%

energy

savings off each guestroom’s electric bill

• By lowering room temperature by just one degree, you can shave 3% off of your HVAC system’s energy consumption

• Achieve additional savings through smart lighting and blind management

> Ensure greater

comfort and an enhanced experience for your guests

• Install a convenient central point of control

(bedside, for example)

• Provide one-touch access to selected lighting scenarios

• Eliminate the need to turn off each light when leaving the room or going to sleep

Measure Reduce energy consumption Reduce energy costs

Enclosure of

KNX actuators

KNX/EIB bus

For professionals

+

A differentiating design

A skilled electrician or systems integrator must be brought in to install the guestroom management system to ensure maximum user friendliness and cost effectiveness

+

Easy upgrades and add-ons

Thanks to the fl exibility of the bus system, the system can be easily upgraded with new functions during future hotel renovations

Schneider Electric provides a complete range of hotel guestroom products designed to work seamlessly together.

Customer-facing products are designed with ease-of-use in mind

Available in a broad array of stylish finishes to match the interior design of the guestroom

Cover the full range of needs unique to hotel guestroom use

Guestroom thermostat

Card key holder

for installation in room entrance turns room systems on and off when guests enter and leave the room

81

82

Building management

Application:

large commercial buildings (> 5000 m²)

Combine various control systems to achieve maximum savings

We want our new head offi ce to be as energy-effi cient as possible while delivering the level of comfort our employees need. One goal we have is to reduce operating costs and secure green certifi cation for our building.

Install a multi-technique Building

Management System (BMS) to supervise heating, cooling, air conditioning, ventilation, power, elevators, plumbing, access control, lighting, and blinds

The solution is built around a TAC Continuum™ supervision system and subsystems made up of gateways and command-control devices for different applications:

• An SMI system for window blind control

• A DALI system for lighting control

• Xenta controllers for the air conditioning system

• An access control and video surveillance system

Heating is programmed on an hourly basis and setpoints are checked to ensure that building temperature is lowered at night and raised before occupants arrive in the morning. Presence detectors plus automatic lighting shutoff functions with re-start capabilities provide further energy savings even when employees work after normal office hours.

Daylight and presence detectors are used to optimize regulation of lighting and air conditioning in each individual office. Lighting, window blind, and cold beams are managed by system scenarios such as presence, natural light, arrival (first occupant), departure (last occupant), and others.

The solution enables facilities managers to view the status of, monitor, and operate all systems throughout the building, including alarms, temperatures, faults, on/off, and more.

The TAC Continuum system offers a display detailing energy consumption throughout the building, providing the specific information needed to raise occupant awareness of energy consumption and savings.

For the user

> Achieve

30%

energy savings

by controlling the entire installation and raising occupant awareness of consumption

> Pinpoint areas for potential energy savings

> Enhance employee working conditions

> Project a high-tech, environmentallyaware image

Measure Reduce energy consumption Reduce energy costs

Supervision workstation

Router to

IT network

For professionals

+

Reconfi gure workspaces without recabling

+

Enjoy the convenience of standard lighting

(DALI) and motor

(SMI) interfaces

+

Use lighting and ballast status information to help reduce maintenance costs

Power supply

LON

LON network

SMI gateway

Bus

Blinds

DALI gateway

Bus

Lightings

BACnet over TCP-IP network

Router

BACnet/LON

Office network

Router

BACnet/LON

Other technical network

Router

BACnet/LON

CCTV network

Controller

Xenta 110

HVAC

Wall display sensors

Merten Artec

RF receivers

RF remote command

Example of display screens in the Schneider Electric

Headquarters

Example of

Schneider

Electric headquarters

Schneider Electric recently built a new head offi ce just outside Paris,

France. The sixstorey building offers

35,000 square meters of offi ce space for

1,700 employees.

After the November

2008 move-in, the building generated energy savings of

€250,000 over a fi vemonth period—that’s

35% savings off the previous head offi ce’s energy bills.

The LON DALI-

Gateway

can be connected to four DALI control units. Up to

256 devices, divided into 64 DALI groups, can be connected.

The LON SMI

Controller (Gateway)

has four SMI-outputs to control up to

16 SMI-Slaves (motors) each. Up to 64

SMI motors can be controlled.

83

84

Building management

Application:

all commercial and industrial buildings

Monitor your building’s power supply and control HVAC, lighting, and blinds

I want to deliver the level of comfort my building’s occupants expect while limiting energy costs. I also need to ensure that my equipment is available and keep operating and maintenance costs to a minimum.

Install a Building Management System to monitor and control your building’s equipment and provide energy consumption data

Based on the TAC Vista Building Automation and Control System, the solution integrates the best of both power monitoring functions and HVAC, lighting, and blind control capabilities thanks to data acquisition via Xenta 731 multi protocol IP controllers.

The solution provides comprehensive managed energy data covering water, air, gas, electricity, and steam (WAGES) via TAC Xenta 400 I/O modules or additional PM850 digital inputs. Electric metering is provided by the PM meter range and Masterpact and Compact NSX meters with built-in protection.

TAC Xenta 4XX and 3XX controllers run HVAC, lighting and blinds, as well as loads and power sources.

TAC Vista software provides advanced data management, including

• Load aggregation, multi-site meter aggregation and trending, bill verification, cost allocation and sub-billing

• Trigger on complex conditions, alarming, event logging, power quality analysis and compliance monitoring

• Coordinated control functions and complex calculations

Advanced information delivery

• Web-enabled, local or remote preconfigured and custom reports

• Manual, scheduled or event-triggered reports via email or web

• Trend graphing for any parameter measured

• Analysis of efficiency, losses, and capacity

Scalable architecture

• IP-based communication via existing building IT infrastructure

• Internet communication tools for remote or local operation

For the user

Helps achieve

European Building

Automation and Control

System standard

IEC EN15 232 target savings for different controls

> Heating energy savings of around

30%

> Electrical energy savings of around

13%

Measure Reduce energy consumption Reduce energy costs

Building Automation supervision software

TAC Vista

Internet

Explorer

Power

Incomer

Intranet

Air circuit breaker

Masterpact

LonTalk Ethernet TCP/IP

Main Low Voltage Switchboard

Modbus RS485

Power

Meter

PM850/

870 ECC

Multiprotocol

IP controller, gateway and web server

TAC Xenta 731

FTT-10, LonTalk

Controller

TAC Xenta 411/421

Water

For professionals

+

Advanced

TAC tools

deliver increased effi ciency to system integrators and contractors

+

Compatible with all Schneider

Electric metering

devices

+

Powerful

customization for easy implementation of all power control functions

+

Highly scalable system, hardware, and software

architectures for maximum cost effectiveness

+

Remote alarming, reporting,

and operation for reduced on-site presence

Gas

Power Meter

PM9P

Circuit breaker

Compact NSX

Power

Meter

PM9C

Power

Meter

PM9C

Shedded final loads

Contactor CT

Load sub-metering and monitoring

Controller

TAC Xenta 411/421

FTT-10,

LonTalk

Multiprotocol

IP controller, gateway and web server

TAC Xenta 731

Sub-distribution

Low Voltage

Switchboard

Energy

Meter

ME 1/3/4zr

Energy

Meter

EN40

Loads to be sub-metered only, not requiring any monitoring

Multiprotocol IP controller, gateway and web server

TAC Xenta 731

Modbus RS485

Energy

Meter

EN40

Energy

Meter

ME 1/3/4zr

Sub-distribution

Low Voltage

Switchboard

Lighting HVAC loads

(Fan Coils)

Non monitored loads such as power sockets

Sub-metering only

Power

Meter

PM9C

Lighting HVAC loads

(Fan Coils)

Sub-metering only

Power

Meter

PM9C

Non monitored loads such as power sockets

TAC Xenta 731 multiprotocol controllers

provide a broad array of communication capabilities

• Open LonWorks

©

field bus compatible with multivendor equipment:

- Fan coil, cold beam or air handling unit controllers

- Lighting controllers

- Sensors and actuators

• Modbus communication for power monitoring and control

85

86

Building management

Application:

all large critical industrial buildings (>1000 kVA)

Boost energy effi ciency and increase the availability of your electrical installation

How can I save energy in an industrial building where there’s zero tolerance for power cuts?

Combine ION Enterprise power monitoring software and Power SCADA operations and maintenance management software

The solution delivers a detailed analysis of events while optimizing control of your building’s power supply.

ION Enterprise software manages energy-efficiency-related functions

• Comprehensive managed energy information:

> Electric metering through PM and CM meter ranges and Sepam,

Masterpact, and Compact NSX meters with built-in protection

- Electric parameters: voltage, current, frequency, power factor

- Power and energy parameters: apparent, active, reactive

- Power quality

> Load aggregation, trigger on complex conditions, alarming, event logging, trend graphing for any measured parameter, analysis of efficiency, losses and capacity, bill verification, cost allocation, and sub-billing

> Web-enabled, local or remote preconfigured and custom reports; manual, scheduled or event-triggered reporting and distribution via email or web

• Load and power source controls; demand and power factor correction

> Collection of all WAGES (water, air, gas, electricity, steam) metering data through additional meters or directly via Ethernet, from a PLC-SCADA for example

PowerLogic SCADA mainly addresses availability related functions

• Real-time monitoring and control of the entire power installation for even the most complex facilities

• Advanced alarm and shift management functions for smoother maintenance scheduling

• Powerful troubleshooting thanks to precision time stamping accurate to within 1ms

• Advanced communication architectures : hot/warm redundant I/O device configuration, self-healing ring communications and primary and standby server configurations

• Fast manual control operations by clicking on-screen trigger buttons, and remote breaker, protection relay, and other power distribution equipment operation

For the user

> Reduce energy consumption by

10%

by analyzing usage

> Implement additional controls

such as curtailment programs for even greater savings

> Improve availability of your facilities

through faster access to decisioncritical reports and automated multisource controls

> Increase accuracy of monitoring and troubleshooting

with highly-accurate

1ms time stamping capabilities

Measure Reduce energy consumption Reduce energy costs

Internet

Explorer

Power

Incomer

Ethernet TCP/IP

Air circuit breaker

Masterpact

ION Enterprise software

PowerLogic ® SCADA software

Main Low Voltage Switchboard

Genset

Intranet

Water

Energy & Power Quality Meter

ION 7650

Modbus RS485

Power

Meter

PM9C

For professionals

+

Compatible with all Schneider

Electric products,

including

PowerLogic IONseries meters and

PowerLogic PM750 and PM710 meters

+

Connectivity to third-party devices

via Modbus or OPC

+

Powerful customization facilitates implementation of all power control functions

+

Remote alarming, reporting,

and operation for reduced on-site presence

Gas

EGX100 gateway

Circuit breaker

Compact NSX

Circuit breaker

Compact NSX

Modbus RS485

Shedded loads

Contactor

LC

Sub-distribution Low Voltage Switchboard

PLC based submetering concentrator

Twido based

Circuit breaker

Compact NSX

Power

Meter

PM9C

Contactor

LC

Key loads to be monitored:

- Big consumers

- Requiring availability

Peak shaving, load submetering and monitoring

Shedded final loads

Loads sub-metering and monitoring

Energy

Meter

ME 1/3/4zr

Energy

Meter

EN40

Source

Transfer

Switch

Compact

NSX

Source

Transfer

Switch

Controller

UBA BA

UPS

Galaxy 6000

EGX100 gateway

Modbus RS485

Circuit breaker

Compact NSX

Loads to be sub-metered only, not requiring any monitoring

Small loads whithout any sub-metering

Sensitive loads, requiring high availibility level

ION E V6.0 software

• High interoperability with third-party systems, applications, and services such as BAS, MES, and

ERP via ODBC, OPC,

XML, FTP, email, CSV, and PQDIF

• Integrated metering of all utilities (water, air, gas, electricity, steam)

• Enterprise web portal access to system-wide displays

• Power quality analysis including compliance with international standards

(IEC 61000-4-30,

EN50160)

• Windows SQL Server

2005 database, ODBCcompliant, support for multiple distributed servers and clients

Power SCADA software

• Control an entire electrical distribution system with up to 2,000 devices

• Web interfacing

• Library of objects and page templates

• Calculations (MVA,

Power Factor, MWh, etc.)

87

88

Building management

Application:

commercial and industrial buildings

Control and monitor HVAC, lighting, security systems, and energy consumption

I want to reduce capital expenditures and operating costs, while making my building safer, more comfortable, and more energy effi cient. My ideal building management solution would be user-friendly and web-accessible, providing access to the different building systems from a single user interface.

Adopt an intelligent building management system

Our intelligent building management systems (iBMS) deliver reliable and efficient building management and significant energy savings. Built on open, standards-based technology, our iBMS facilitate the integration of building systems into a single network, with easy management from a single software platform—even across multi-site organizations.

A single local or web-based user interface provides a complete view of all systems, including heating, ventilation, air conditioning, lighting, energy consumption, access control, video surveillance, intrusion, fire and smoke detection, electrical distribution, power quality, and monitoring.

We offer various intelligent building management systems and products, including TAC Vista, Satchwell and Andover Continuum.

Our iBMS solutions enable significant energy efficiency through:

• Schedule-based heating, ventilation, cooling, and lighting control

• Occupancy-based environmental controls

• Customizable energy reports and analysis

• Advanced alarm management

• Night setback, night ventilation purge

• Optimal start/stop

• Chiller/boiler plant optimization

• Heating/cooling equipment lockout

• Supply air temperature reset

• Variable Air Volume (VAV) pressure and flow control

• Outside air reduction

• Economizer control

• Electrical demand limits

• Domestic hot water control

For the user

Improve your building and business performance up to

30%

by:

> Lowering energy costs and carbon emissions

> Eliminating unnecessary complexity by using a single software platform for all building controls

> Cutting training, service, maintenance, and administration costs

> Slashing capital expenditures by as much as 25%

> Reducing ongoing operating costs by as much as 36%

Measure Reduce energy consumption Reduce energy costs

TAC Vista 5

• Server

• Web station

TAC Vista 5

• Workstation

Camera

Video badging station

TAC I/NET

Operator station

Mobile phone

PDA

Web user

For professionals

+

Lower installation and ongoing operating costs

+

Streamlined operation, training, administration, maintenance, and service

OPC

TAC Xenta 911

Comunication Device

• LonTalk adapter

TAC Xenta 511

• Web server

• LonTalk adapter

Ethernet TCP/IP

TAC Xenta 700

• Web server

• Controller

• LonTalk adapter

Internet

Network camera

LonWorks IP router

TAC Xenta 401 Series

Programmable controller

TAC Xenta

I/O modules

TAC Xenta 527

• NetPlus router

• Web server

TAC Xenta 913

Integration Device

• BACnet

• Modbus

• Clipsal C-Bus

• LonWorks

• M-Bus

Controller LAN

TAC Xenta 102 AX

Application Specific

Controller

• VAV

LonWorks

STR 250

Room sensor

TAC Xenta 280 Series

Programmable controller

TAC Xenta 100 Series

Application Specific

Controller

• VAV

• Fan Coil

• Heat pump

• Roof top unit

TAC

Xenta 913

Integration

Device

7798

Site controller

TAC Xenta 300 Series

Programmable controller

• TAC Xenta server

• BACnet

• Clipsal C-Bus

• LonWorks

• M-Bus

Access control

• SCU1284 -

4 card readers

Pelco DigitalSentry

Digital Video

Management System

Proximity readers

Intrusion alarm

• SCU1200/80

Intrusion detector/alarms

LonWorks IP router

TAC Xenta 913

Integration Device

• BACnet

• Clipsal C-Bus

• I/NET

• M-Bus

Schneider Electric

Variable speed drive

Our iBMS such as

TAC Vista, Satchwell and Andover

Continuum

offer the most open, scalable and IT-friendly building management system in the industry with unique support for open protocols & interfaces:

• LON

®

, BACnet

®

,

Modbus

®

OPC, ODBC

• Ethernet, TCP/IP

• SQL databases for an Open Database architecture

• ZigBee-ready wireless solution

• SNMP, LDAP, TGML graphics/XML

89

90

Photovoltaic cells—which capture the sun’s energy—are the heart of any solar power system. The intelligence of the system resides in the electrical installation, however.

It is the electrical installation that guarantees that the system works. It allows you to control a source of energy that fluctuates constantly due to changing weather, detect any losses, and correct problems, all with the end goal of supplying highquality energy.

Our photovoltaic solutions respond to technical issues while addressing processes to:

> Guarantee ROI within 10 years

> Streamline projects with convenient productplus-services packages

> Ensure the reliability of the equipment installed

> Simplify operation and optimize operating costs

> Offer innovative functions and services

> Protect the installation by adding remote safety and monitoring systems

Choose the solution that’s right for you

> Use available rooftop space to install and operate solar panels (p. 92)

> Boost your “green” image and save with photovoltaic energy (p. 94)

> Supply a small group of remote, off-grid buildings with electricity (p. 96)

91

92

Renewable power generation

Application:

commercial and farm buildings with roof surfaces < 500 square meters

Use available rooftop space to install and operate solar panels

I want green certifi cation for my farm.

I would like to install rooftop solar panels on one of my outbuildings, but only if it is profi table for the business.

Convert the energy generated by solar panels into alternating current and connect to the three-phase grid

The system consists of photovoltaic panels that produce between 30 kW and 50 kW of electricity by transforming solar energy into direct electric current. This “convert, connect, protect” system is built around prefabricated, interconnected panels:

• Panel strings are interconnected via junction boxes to pool the electricity generated by the photovoltaic installation

• An inverter then converts the direct current produced by the panel strings into alternating current

• Factory-assembled, pre-wired protection units ensure the installation is safe for both people and property.

For the user

> Helps businesses qualify for green certifi cation

> ROI of less than

10 years driven

by selling surplus power back to the grid (in countries where incentives are offered)

> Clear information thanks to SunEzy

inverters, which monitor both the electricity used and sold back to the grid

> Easy to upgrade to a building management system without changing the installation

Measure Reduce energy consumption Reduce energy costs

Projects

South of France: farm building gets rooftop solar panels

The southern-facing rooftop of a farm outbuilding measuring just 147 square meters was the perfect location to install 105 175-watt solar panels covering a total area of 139 square meters.

Because total power was just over 18 kW, a three-phase connection to the grid was installed.

The total cost of the equipment, installation, and hook-up to the grid was

€90,000.

The installation is expected to generate 21,000 kWh per year, sold back to the grid at

€0.60 per kWh, for total annual revenue of more than €12,000.

For professionals

+

Schneider

Electric support

to help you choose the right solution

+

All products,

including panels, cables, and inverters,

provided by a single Schneider

Electric-approved distributor

+

Add on to the installation without making costly changes

+

Meets environmental standards

Schneider

Electric offer

Panel string phase 1

Panel string phase 2

Panel string phase 3

Junction boxe

SunEzy BJ21

Main board

Optional interface network

SunEzy 4000 SunEzy 2800

Protection

SunEzy CP

Inverter DC/AC

SunEzy inverters

• SunEzy inverters cover power from 2 kW to

4.6 kW

• They can be interconnected using

SunEzy junction boxes (up to six strings)

• SunEzy protection systems, which include lightning arresters, ensure the installation is safe

Communication functions are ensured:

• via an LCD display integrated into each inverter

• via a PC installed with the

SunEzy Control software delivered with each inverter; the software offers an array of additional functions to process the data produced by each inverter

- Display settings like power, current, voltage, and frequency in graph format

- Generate reports

SunEzy products comply with the following standards:

• EMC Directive:

EN 50081, EN 50082,

EN 61000-3-2

• Limitation of harmonic current emissions (for currents under 16 A)

• LV (Low Voltage)

Directive: EN 50178

• VDE GS label

93

94

Renewable power generation

Application:

buildings from 100 to 2,000 square meters

Boost your “green” image and save with photovoltaic energy

Our company is known for environmental awareness and advanced technology. We’d like to build on that image and cut energy costs.

Given our available rooftop space, solar panels seem like a the natural choice.

Generate your own electricity with rooftop photovoltaic modules

This solution is designed for three-phase electricity production.

The photovoltaic modules are connected to the grid so you can sell surplus electricity back to the utility—usually at attractive rates—and all of the necessary devices and protective equipment are housed out of sight in a facilities room.

Schneider Electric provides:

• Pre-wired, referenced junction boxes for connection to the photovoltaic generator’s DC output

• Pre-wired, referenced DC disconnection boxes

• Dedicated DC/AC inverters synchronized with the utility grid

• AC protection for connection to the grid

An iRio remote terminal unit monitors and transmits information and tracks electricity production records. It can also be used for display and customer demonstrations, to show in real time the photovoltaic production.

For the user

> Up to

20%

savings

• With incentives and buy-back schemes, solar energy can offset your electricity bill by up to 20%

• ROI is less than

10 years, and often far less (6 to 8 years)

> A smaller environmental

footprint

• Each kWh produced shaves an average of 0.476 kg off your building’s carbon footprint

(average value in

Europe)

> A greener image

• The system gives you the data you need to demonstrate your commitment to the environment

Measure Reduce energy consumption Reduce energy costs

Module array Module array Module array

Junction boxes

Junction boxes

Inverter

SunEzy 600E

Junction boxes

Inverter

SunEzy 600E

Inverter

SunEzy 600E

DC protection enclosure

DC protection enclosure

N2

DC protection enclosure

For professionals

+

Design

• Free, easy-to-use

SunEzy Design software

+

Installation

• Junction boxes and DC disconnection boxes pre-wired according to local standards and rules

• Limited part numbers for easy selection and ordering

+

Maintenance

• SunEzy inverter display for easy testing

• Included SunEzy

Control software for inverter testing from your PC

• DIN-rail-mounted iRio RTU transmits all information and monitors building

PV production

Overview of the monitoring system

N1 L1

AC3-phase protection enclosure

Ph1

Ph2

Ph3

N

Network interface

L2

GSM/GPRS

General public display (optional)

Sensor

(optional)

Site nr.1

Local monitoring

PC (optional)

Site nr.2

Site nr.3

Remote monitoring

Maintenance

N3 L3

Modbus RS485

Platform

Internet

Monitoring by the customer

SunEzy DC/AC inverter from 2kWp to 5.4kWp

• Compact

• Transformerless for high efficiency (94.5%)

• High Maximum Power

Point Tracker (MPPT) efficiency

• 600E performs at

750V/8.5A, with 3 MPPTs

• IP65 pre-wired disconnection enclosures meet local standards and rules

• AC protection enclosures available pre-wired or on-demand

iRio RTU modular communication system

• Integrated web server sends information by GSM,

GPRS, Ethernet, or RS485

• Optional additional cards for external inputs and outputs

SunEzy Design software

• Includes database of photovoltaic modules and

SunEzy inverters

• Recommends optimal

PV generator architecture

• Generates production forecasts depending on location

• Computes cable losses

95

96

Renewable power generation

Application:

off-grid buildings

Supply a small group of remote, off-grid buildings with electricity

We would like to provide electricity to a remote village in Africa. We are looking for the optimzl technical solution at the best price.

Install solar panels to provide the buildings with their own independent energy supply

The system includes:

• Solar panels with a total capacity of a few kWc

• 1 Xantrex XW solar charge controller

• A set of batteries to store several days’ worth of electricity

• 1 Xantrex Trace TR1524 inverter

• Circuit breakers to protect the solar installation and for each building

• 1 GSM-equipped iRio unit for remote management of network operating schedule and monitoring of consumption, batteries, the charger, the solar panels, and the inverter

• Surge protection devices for PC photovoltaic generators and for the AC part of the installation.

For the user

> Totally independent electricity supply

> Local, independent management of the installation

Measure Reduce energy consumption Reduce energy costs

For professionals

+

A single interface for centralized management and monitoring

+

Local people receive maintenance and operation training from

Schneider Electric

Surge arrester

PRD 40R

Charger

XW MPPT

60 A - 150 V

Circuit breaker

C60 HDC 63 A

House 1

Switch

INS 63

Inverter DC/AC

Trace TR1524

230 V 50 Hz

18 cells

Contactor

CT-2P

Kilowatt-hour meter

EN40

Circuit breaker

+ earth fault 300 mA

DPN vigi 16 A

House 20

Circuit breaker

+ earth fault 30 mA

Projects

Madagascar village gets solar energy

In early 2009, solar panels were installed in a mountain village in Madagascar. The village, which counts about 20 houses, was too remote to be connected up to the main grid. The goal was to provide 50 W for each household three hours per day— a total of 1,000 W for the village or 3 kWh per day.

According to a survey conducted after the project was completed, the local population, which helped with the work, was satisfi ed with the results. A team of two local electricians received training from

Schneider Electric

Madagascar. They did the wiring in all of the houses and now handle maintenance and repairs.

20 W 15 W 15 W

Xantrex Trace TR1524 inverter

• Thermal performance allows full output power to 50°C (122°F) without de-rating

• Sophisticated, energysaving multi-stage battery charging algorithm

- Charger turns off once batteries are fully charged, reducing energy bills

- Battery life is prolonged because batteries are not continually held at float voltage

• Power factor corrected

(PFC) charging

- Electrical draw is reduced by up to 30% less AC input current, while delivering the same DC charging current

- Better value and increased savings with maximum available AC power for loads

• Reduced electrical noise and interference with TVs and radios

- Trace Series inverterchargers are FCC Class B compliant with necessary

EMI filtering components

Xantrex XW solar charge controller

• Photovoltaic (PV) charge controller that tracks the electrical maximum power point of a PV array to deliver the maximum available current for charging batteries

PRD 40R - 600 DC 2P

• Surge arrester 600 DC:

2 poles, Imax = 40A,

In = 15A

GSM

Monitoring iRIO

Circuit breaker

C120N 2P

Surge arrester

PRF1 12,5

97

98

Energy effi ciency starts now.

Our energy future depends on it.

Cheaper

Each kWh not consumed equals 3 kWh our power plants don’t need to generate

Demand response programs cost about half of typical electricity costs

Quicker

Today’s energy-efficiency technologies guarantee fast return on investment

Cleaner

“Negawatt” produces zero environmental impact

More secure

Energy efficiency is something we can control at home: it reduces our reliance on imports

Tel.

Fax.

Head Office

01 265 15 15

01 265 18 60

Tel.

Fax.

Al-Madinah Office

04 827 50 05

04 822 36 56

Riyadh Branch

01 291 28 77

01 472 53 35

Tabuk Office

04 424 59 33

04 424 16 33

Jeddah Branch

02 697 77 23

02 697 33 08

Yanbu Office

04 393 11 93

04 392 66 02

Al-Khobar Branch

03 896 09 10

03 896 08 20

Qassim Office

06 326 23 54

06 327 05 48

OGP Branch

03 814 71 77

03 814 71 79

Abha/Khamis Office

07 220 15 18

07 237 19 17

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
