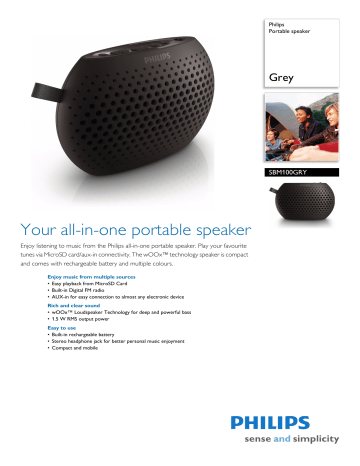

Portable speaker
Your all-in-one portable speaker
Enjoy listening to music from the Philips all-in-one portable speaker. Play your favourite
tunes via MicroSD card/aux-in connectivity. The wOOx™ technology speaker is compact
and comes with rechargeable battery and multiple colours.
Enjoy music from multiple sources
• Easy playback from MicroSD Card
• Built-in Digital FM radio
• AUX-in for easy connection to almost any electronic device
Rich and clear sound
• wOOx™ Loudspeaker Technology for deep and powerful bass
• 1.5 W RMS output power
Easy to use
• Built-in rechargeable battery
• Stereo headphone jack for better personal music enjoyment
• Compact and mobile
Portable speaker
Product dimensions
• Product dimensions (W x H x D):
10.7 x 7.1 x 3.6 cm
• Product dimensions (W x H x D):
4.2 x 2.8 x 1.4 inch
• Weight: 0.104 kg
• Weight: 0.229 lb
Left/Right speakers
• Speaker driver: 1 x wOOx driver, 1 x 1.5" Full
• Driver power range: 0-5 W x 1
• Frequency range: 100 Hz-20 kHz
Audio systems
Sound enhancement: wOOx technology
Audio power amplifier: Class "AB" digital amplifier
Output power in total: 1.5 W RMS (maximum)
Frequency range: 20 Hz-20 kHz
Signal/Noise ratio: > 70 dB
THD: < 1%
Input sensitivity: 600 mV
Audio Playback
• Audio supported format: MP3
• Playback Media: MicroSD card
• Playback mode: Play and Pause, Fast forward and
reverse, Next/previous track search
• Aux in
• Headphone out
• USB charging
• Tuner bands: FM
• USB cable: for charging
• 3.5-mm jack antenna
• Battery type: Built-in lithium
• Music play time: 6 hr
MicroSD card
Simply load the card with the desired content, plug it
into your player – and never have to worry about
running out of entertainment choices again.
Digital FM radio
Digital Radio is, on top of FM analogue transmission,
a new way of broadcasting radio via a network of
terrestrial transmitters. It provides listeners with
more choices and information delivered in clear,
crackle-free sound quality. The technology allows
the receiver to lock on to the strongest signal it can
find. With digital stations there are no frequencies to
remember and sets are tuned by station name, so
there is no returning on the move.
1.5 W RMS output power
This system has 1.5 W RMS total output power.
RMS refers to Root Mean Square, which is a typical
measurement of audio power, or rather, the
electrical power transferred from an audio amplifier
to a loudspeaker, which is measured in watts. The
amount of electrical power delivered to the
loudspeaker and its sensitivity determine the sound
power that is generated. The higher the wattage, the
better the sound power emitted by the speaker.
wOOx™ Loudspeaker Technology
wOOx™ technology is a revolutionary loudspeaker
concept that allows you to hear and feel profoundly
deep bass that is richer than any other audio system.
Special speaker drivers work in harmony with the
wOOx bass radiator, and precise tuning between the
main driver and the tweeter ensures smooth
transitions from low-mid to high frequencies. Dual
suspension and a totally symmetrical sandwich
construction deliver low and precise bass without
noticeable distortion. wOOx produces exceptionally
deep and dynamic bass by using the speaker box full
volume to truly magnify the impact of the music.
Issue date 2013-03-03
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 1.0.5
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 95208
EAN: 69 23410 71796 9
