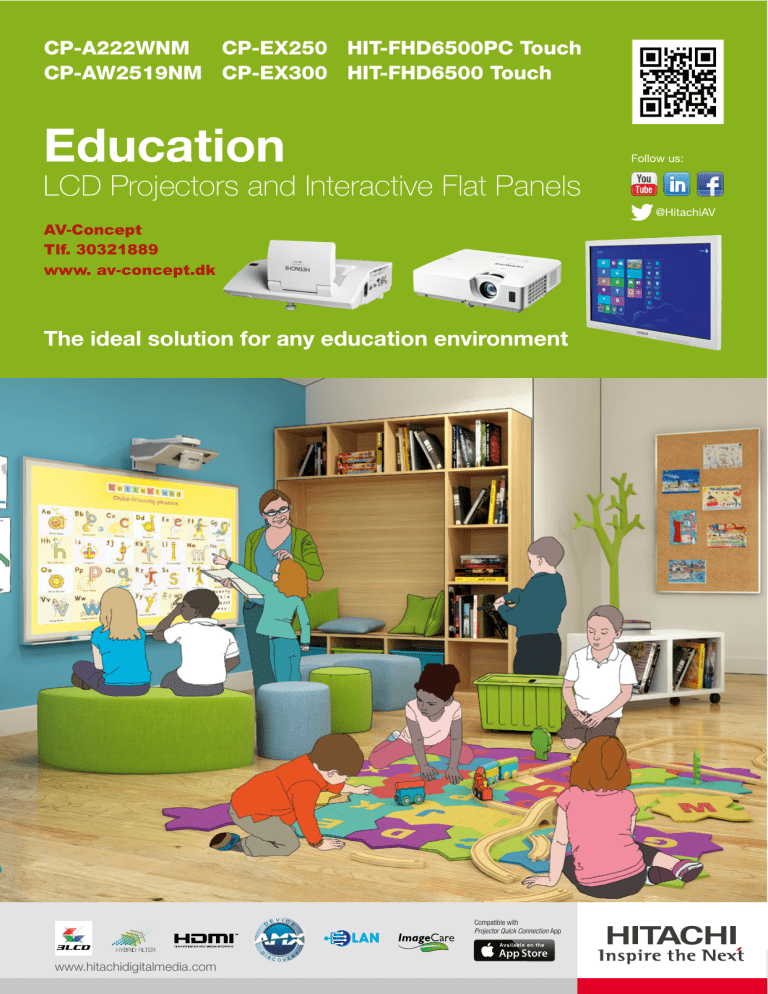

Education - AV
*‡ÓÓÓ7 *‡8Óxä HIT-FHD6500PC Touch
*‡7Óx£™ *‡8Îää HIT-FHD6500 Touch
Education
Follow us:
LCD Projectors and Interactive Flat Panels
@HitachiAV
AV-Concept
Tlf. 30321889
www. av-concept.dk
The ideal solution for any education environment
Compatible with
Projector Quick Connection App
www.hitachidigitalmedia.com
Make the most of your lessons with Hitachi Education Projectors
3 Year
projector and
lamp warranty
As a teacher, you face challenges every day. Challenges that include tight budgets and restricted space – and the need to provide effective lessons that will keep your pupils involved and stimulated. The Hitachi
education projector range can provide solutions to all those challenges –affordable, versatile projectors ready to go to work anywhere – and let you deliver the effective, interactive lessons your classes deserve.
on all Hitachi
Education projectors
Low Total Cost of Ownership
Advanced network features and versatile connectivity
Interactive classroom technology
Eco features based on ImageCare® technology
Messenger function
Centralised management and reporting
ImageCare combines optimal picture performance with maximum energy savings. This technology has been integrated to enhance our existing industryleading eco features. Find out how much money and energy you can save using our Energy Savings Calculator at:
www.hitachidigitalmedia.com/energysavings
Send text to multiple, networked projectors instantly or at a specified
time. This is ideal for projecting daily work schedules, university campus
notifications, school activities or any information that needs to go out
over a large area – fast.
Using a single PC, you can create html reports for all your networked
projectors. This can make maintenance simpler – for example, by logging
any projector that isn’t working or due for maintenance. Manage and
control multiple projectors over your LAN. You can also schedule the
projector to turn on and off automatically. And all of this functionality can
be easily accessed via a web browser.
Interactivity is a valuable classroom asset, but cost and complexity is often a barrier. At Hitachi we identified
the need for a different approach. The new CP-AW2519NM is an innovative solution that delivers interactivity
anywhere there is a flat surface, an existing whiteboard – or even a bare wall.
Saver Mode
Intelligent Eco Mode
The Saver Mode reduces lamp power by 70% compared to Normal Mode,
resulting in considerable energy savings. You can set the time for Saver
Mode from 1 to 30 minutes. If the projected image does not change within
the set time, the Saver Mode is activated.
When Intelligent Eco Mode is selected, the lamp power adjusts according
to screen brightness. Lamp power decreases when the image is dark and
increases when the image is bright. Using Intelligent Eco Mode increases
the contrast ratio of the projector while decreasing the use of electricity.
Classroom 1
Hands on learning
Convert ideas into clear words and images
The CP-AW2519NM incorporates
sensors that detect activity on the
screen area. Together with industry
leading Hitachi Starboard software,
it allows users to annotate and
interact with the material presented.
Instead of simply showing static
images, students and teachers can
interact with on screen material
as never before, for hands-on
interactivity that brings learning to life.
Classroom 2
Classroom 1
Staffroom
Auto
The CP-AW2519NM includes software to
help even young and uncertain students
make the most of interactivity.
The interactive pen automatically converts
freehand shapes into geometric objects
on the projected image. Converting
handwriting into text is simple too, building
confidence.
Manual
Classroom 2
Lamp power 100%
Lamp power reduces down to 65%
70% reduction in lamp power
Lamp power 100%
Long lamp and hybrid filter life*
Now you can benefit from a longer lamp and filter life than ever before.
Using Normal Mode, the lamp and filter life is extended up to 5000
hours* – equivalent to three hours use a day for ten years. A Hitachi
hybrid filter should last as long as the projector lamp. And because
replacement lamps come with a new filter, you can simply replace both
at the same time, making filter cleaning unnecessary. Both the lamp and
filter doors are easily accessible, making maintenance and replacement
of parts simple to do.
Classroom 3
Classroom 3
Staffroom
Classroom 4
Wireless capability*
iOS Connectivity*
The USB wireless adaptor supports all IEEE802.11b/g/n networks and
enables the projector and computer to communicate both directly or via
a wireless network, letting you run presentations or lessons wirelessly
from your laptop.
Using our ‘Projector Quick Connection’ application, users can wirelessly
display documents, images and web pages from their iPad®, iPod touch®
and iPhone® on our CP-A222WNM projector. The application allows users
to control the projector via their iOS devices.
Protractor
Ruler
Compass
Stopwatch
The interactive pen lets you operate a compass, ruler, protractor,
stopwatch and other familiar classroom tools on the projected image,
making lessons easier to understand, and techniques easier for pupils
to follow.
*The CP-EX250 and CP-EX300 have a urethane filter which lasts up to 2000 hour and a lamp life
that lasts up to 6000 hours.
Access point
Outstanding picture quality
Without access point
communication
High picture quality
Blackboard and Whiteboard Modes
Hitachi education projectors bring together innovative features for superior
picture quality. Motion Adaptive Progressive Scan reduces line flicker,
boosting resolution and smoothing moving images. Noise Reduction
boosts clarity. And Hitachi’s unique Equalising Gamma Function helps you
customise gamma and colour balance to suit your preferences.
Projecting onto coloured backgrounds can make images appear dull –
shiny backgrounds can make them uncomfortably bright. With our
Blackboard and Whiteboard modes, you can ensure optimal brightness
whether the screen is black, green or shiny white.
With access point
communication
*Available on the CP-A222WNM only.
If the projector is removed from its installed location, it triggers Hitachi’s
unique Transition Detector. This renders the projector inoperative unless a
password is entered.
Bright scene
Normal
*Our ‘Projector Quick Connection’ application can be downloaded from the App StoreSM. Available
using the following file formats: jpg, bmp, png, gif, PDF, Excel®, Word®, PowerPoint®, Keynote®,
Numbers®, Pages® and Web pages. iOS Connectivity available on the CP-A222WNM only.
Security built-in
Transition Detector
Dark scene
Use familiar tools to create understanding
“We wanted to introduce these interactive technologies throughout the school, so that our
students were more engaged and wanting to be in the classrooms. The teacher is now a facilitator
of learning and the student has more ownership within the learning experience.”
Monique Corcoran, Patterson Lakes Primary School
Flexible design
Pin-Lock
The projector PIN-Lock, ensures only authorised people can use the
projector by entering their unique PIN code. This screen can be branded
for your school or college using the MyScreen function.
Ultimate
Short Throw
50cm*
Whiteboard Mode
80"
(203cm)
screen
Usability
Template function
MyScreen PIN-Lock
This unique Hitachi feature allows you to project lines,
grids and maps onto a whiteboard, blackboard or flip
chart, to make writing and drawing and explaining easier.
PIN-Lock
For physical security, a chain can be
added with ease.
*from lens to screen
Graphs
Maps
Short Throw
92.7cm*
Normal Throw
240cm*
Ultimate Short Throw Technology*
Ultimate Short Throw projectors make installation simple, even in
crowded and compact classrooms. With conventional technology,
extremely short throw distances often results in distortion and poor
image quality. Hitachi’s Ultimate Short Throw projectors achieve
outstanding picture clarity, with perfect fit technology distortions can be
eliminated, even on imperfect walls – ensuring your projector can go to
work anywhere.
Our Ultimate Short Throw projectors have
been continuously developed to make
them a better, more versatile solution to
your classroom needs.
With the bundled wall mount and optional
table top kit you can transform any
existing whiteboard, wall or table top into
an interactive surface.
Security bar
Lines
Ultra
Short Throw
63cm*
*Available on the CP-AW2519NM and CP-A222WNM only.
Hitachi Interactive Flat Panels
HIT-FHD6500PC Touch/HIT-FHD6500 Touch. With these multi-touch displays pupils can do
more than just watch – they can interact with the on-screen content. Let them enjoy providing
answers, showing their understanding and becoming involved in lessons as never before.
Four point multi-touch display for
collaborative learning
LCD component
Backlight
Max. resolution
Max. colours
Brightness/Contrast ratio
Viewing angle (H/V)
Video colour system
Signal (analogue)
Panel life time
Frequency
Input terminals
Digital
Analogue
PLUG & PLAY
Video
Component
Audio
Serial (RS-232C)
USB
Output terminals
Network
OSD
Storage
Speaker
Touch panel
Wireless slot
Audio
Serial (RS-232C)
Digital
For external speaker
RJ-45
Wireless
Detection method
Detection area
Touch accuracy
PC connector
Driver
Touch pen
Power requirement
Operating/storage humidity
Power consumption
Power consumption operating/standby
Dimensions (mm)
Weight
Main accessories
Certification
65" TFT LCD (64.5" (163.8cm) diagonal)
Edge LED backlight
1920 x 1080
16.7 million colours
360 cd/m2/4000:1
178°/178°
480i, 480p, 576p, 720p, 1080i/30, 1080i/50, 1080p/24
VGA, SVGA, XGA, WXGA, Full HD
30,000 hours
60Hz
HDMI x 1 supporting HDCP decoding
VGA x 1 D-Sub 15-pin
DDC2B (VESA) for computer HDMI-1, VGA
No
No
Microphone mini 3.5mm jack x 1, Line out 3.5mm x 1
Main board : Microphone x 1, Headphone x 1
D-Sub 9-pin x 1 for device control
USB x 1 (for external usage of touch screen)
Main board : 2.0 USB x 2
Half mini PCI-E connector for Wi-Fi card x1
Line out (3.5mm mini jack) x 1
D-Sub 9-pin x 1
No
Total 20W speaker support
10/100/1000 Mbps Ethernet with PC option only
802.11 b/g/n with PC option only
Independent from languages, the OSD is iconic
2.5" SATA HDD with PC option only
10W + 10W
Infrared blocking detection method, 4 simultaneous touches
1428.48mm (H) x 803.52mm (V)
±2mm (over 90% Area)
USB 2.0
Win7/8 32/64 bits OS inbox driver and driver for touch
screen calibration
Passive stylus, finger or any IR opaque object
220V~50Hz 1500mA, supporting 100/110Volts
Operating humidity: 90% relative humidity non-condensing
220W/1W/1W
300W/1W/1W
1,562 x 110 x 960
70Kg
Power cable (1450mm), IB, remote controller and battery
(CR2025 3V), HDMI cable (1500mm), Dipole Wi-Fi antenna,
stylus pen, driver DVD
RoHs, CB, S-Mark
Uʜ˜}ʏˆviÊ܈̅ʓˆ˜ˆ“>Ê
maintenance
UÊ
>˜ÊLiÊÜ>ÊœÀÊÌÀœiÞÊ UÊ6iÀÃ>̈iÊVœ˜˜iV̈ۈÌÞ
mounted*1
UÊ
œ“«>̈LiÊ܈̅Ê
“œÃÌÊÜvÌÜ>ÀiÊ
packages*2
2 x USB Type A
UʜÀÊÕÃiʈ˜Ê>ÊÛ>ÀˆiÌÞʜvÊ
applications
The versatility of the Interactive
panel lends itself to a variety of
uses from university libraries to
foyers and lecture theatres to
classrooms.
RJ-45
Microphone jack
Headphone jack
HDMI
USB Type A
D-Sub 9-pin
D-Sub 15-pin
Microphone jack
Line out
(audio out/audio in)
*1 Trolley not included. *2 Check with their software providers for further details.
MODEL
CP-AW2519NM
ULTIMATE INTERACTIVE
OPTICAL
Resolution
Light output (brightness) (Lumens)
Contrast ratio
Lens
Lamp life (Hours)
Diagonal display size
Keystone correction
Distance to width ratio (:1)
FEATURES
Speaker
Basic functions
Picture adjustments
Digital keystone
Advanced features
Outward
Power on & off
Security systems
CP-A222WNM
ULTIMATE SHORT THROW
CONNECTIONS
Digital input
Computer input
Monitor output
Video input
Audio input
Audio ouput
USB Type A/Type B
Wired network
Wireless network
Control
POWER
Power supply
Power consumption/Standby
Replacement lamp/lamp Wattage
PHYSICAL
Dimensions (W x H x D)
Weight
Noise level
Air filter
WARRANTY
Projector warranty/lamp warranty
CP-EX300
WXGA (1280 x 800)
2500 (Bright Mode)/1700 (Normal Mode)
2000:1
Free shaped lens and motorised free shaped mirror
3000 (Bright Mode)/5000 (Normal Mode)*
60~100" (152~254cm)
Fixed, 5.2:-1 upward shift
0.3:1 (fixed)
XGA (1024 x 768)
2200 (Bright Mode)/1500 (Normal Mode)
4000:1
Free shaped lens and motorised free shaped mirror
3000 (Bright Mode)/5000 (Normal Mode)*
60~100" (152~254cm)
Fixed, 6.1:-1 Upward shift
0.3:1 (fixed)
XGA (1024 x 768)
2700 (Bright Mode)/1800 (Normal Mode)
2000:1
Manual focus, manual zoom x 1.2
5000 (Bright Mode)/6000 (Normal Mode)*
30~300” (76~762cm)
Fixed, 6:1 upward shift
1.5 (Wide), 1.8 (Tele)
XGA (1024 x 768)
3200 (Bright Mode)/2100 (Normal Mode)
2000:1
Manual focus, manual zoom x 1.2
5000 (Bright Mode)/6000 (Normal Mode)*
30~300” (76~762cm)
Fixed, 6:1 upward shift
1.5 (Wide), 1.8 (Tele)
10W Mono
Freeze, Magnifying, Blank, Auto adjustment,
Mirror reverse image, Up-side down image,
Auto signal search
Digital Zoom x 1.35, Equalising digital gamma
correction, 2-3 pull down for NTSC, Progressive
Scan, Noise reduction, Aspect selection
4:3/16:9/16:10/14:9/Native, Equalising colour
temperature adjustment, Perfect Fit
Horizontal ±5°, Vertical ±5°
Drawing function (optional wireless pen table needed),
MyScreen, My Memory, My Button by remote control,
Picture Mode (Normal, Cinema, Dynamic, Blackboard,
Whiteboard, Greenboard), Input source naming
(English), Resolution setting, Template, Saving mode,
Audio pass through, Audio sound mixing, Audio out
(standby) and monitor out/selectable source with
menu, Filter timer/selectable interval time,
Stand-by Audio, My Text
10W Mono
Freeze, Magnifying, Blank, Auto adjustment,
Mirror reverse image, Up-side down image,
Auto signal search
Digital Zoom x 1.35, Equalising digital gamma
correction, 2-3 pull down for NTSC, Progressive
Scan, Noise reduction, Aspect selection
4:3/16:9/16:10/14:9/Native, Equalising colour
temperature adjustment, Perfect Fit
Horizontal ±5°, Vertical ±5°
Drawing function (optional wireless tablet TB-1
required), MyScreen, My Memory, My Button by
remote control, My Source, My Text, 8 picture modes,
Source naming (English), Resolution setting, Template,
Saving mode, Audio pass through, Cloning, Audio
sound mixing, Audio out (standby) and monitor out/
selectable source with menu, Eco Mode (Normal, Eco,
Intelligent Eco, Saver), Filter timer/selectable interval
time, PC-less Presentation (JPEG, PNG, BMP, GIF, AVI,
MOV), Stand-by Audio, On screen installation guide,
iOS Connectivity
Easy lamp replace from top, Rear intake air filter
Direct on, Auto off, Auto eco mode
PIN security lock, MyScreen password lock,
Transition detector, My Text password lock, Key lock
(key pad, remote control), Kensington slot,
Security bar, Lens door lock
Configure and control projector via web browser,
failure and warning alerts via e-mail, scheduling,
My Image (still image transfer display), displaying text
data transferred via the network, command control via
network, Crestron RoomView® (not accessible through
wireless adapter), AMX Device Discovery, projector
management via SNMP, PJ Link™, Network Bridge,
Network Presentation (PC still picture transfer),
MAC address on side, USB Display
1W Mono
Freeze, Magnifying, Blank, Auto signal search,
Auto eco mode
1W Mono
Freeze, Magnifying, Blank, Auto signal search,
Auto eco mode
Aspect selection (video, data, HDMI), Equalising digital
gamma correction, Equalising colour temperature
adjustment, 2-3 pull down for NTSC, Mirror reverse
image, Up-side down image, Progressive Scan,
Noise reduction, Overscan
Vertical ±30° ([email protected])
MyScreen, My Memory, My Button, My Text,
My Source, picture modes (normal, cinema, dynamic,
blackboard, whiteboard greenboard, photo, daytime),
Input source naming (English), Resolution setting,
Filter timer, Template, Closed Caption (for NTSC &
component 480i only), Framelock, Eco Mode
(normal, eco, intelligent eco, saver), ImageCare™
Aspect selection (video, data, HDMI), Equalising digital
gamma correction, Equalising colour temperature
adjustment, 2-3 pull down for NTSC, Mirror reverse
image, Up-side down image, Progressive Scan,
Noise reduction, Overscan
Vertical ±30° ([email protected])
MyScreen, My Memory, My Button, My Text,
My Source, picture modes (normal, cinema, dynamic,
blackboard, whiteboard greenboard, photo, daytime),
Input source naming (English), Resolution setting,
Filter timer, Template, Closed Caption (for NTSC &
component 480i only), Framelock, Eco Mode
(normal, eco, intelligent eco, saver), ImageCare™
Easy lamp replace from top, Easy access air filter
Direct on, Auto off
PIN security lock, MyScreen password lock, My Text
password, Key lock (key pad and remote control),
Kensington slot, Security bar
Easy lamp replace from top, Easy access air filter
Direct on, Auto off
PIN security lock, MyScreen password lock, My Text
password, Key lock (key pad and remote control),
Kensington slot, Security bar
–
–
1 x HDMI (HDCP Compliant)
2 x 15-pin Mini D-sub
1 x 15-pin Mini D-sub
1 x 15-pin Mini D-sub
1 x RCA for composite
1 x HDMI (HDCP Compliant)
2 x 15-pin Mini D-sub
1 x 15-pin Mini D-sub
1 x 15-pin Mini D-sub
1 x RCA for composite
1 x pair RCA (L/R)
1 x pair RCA (L/R)
1 x pair RCA (L/R)
No/No
–
–
1 x pair RCA (L/R)
No/No
–
–
1 x 9-pin D-sub for RS-232C control
1 x HDMI (HDCP Compliant)
2 x 15-pin Mini D-sub
1 x 15-pin Mini D-sub
2 x Component D-sub (shared with analogue computer in 1/2)
1 x RCA for composite
1 x Mini-DIN for S-Video
2 x Stereo Mini Jack
1 x pair RCA (L/R), 1 x Microphone Jack
1 x pair RCA (L/R
Yes/Yes
1 x RJ-45
Option, IEEE802.11b/g/n ready (optional wireless
adapter required)
1 x 9-pin D-sub for RS-232C control
1 x 9-pin D-sub for RS-232C control
1 x 9-pin D-sub for RS-232C control
100-120V/220-240V, auto switching
300W/<0.3W
DT01181/210W UHB
100-120V/220-240V, auto switching
300W/<0.35W
DT01381/215W UHB
100-120V/220-240V, auto switching
300W/<0.5W (AC 220-240V)
DT01433/215W UHB
100-120V/220-240V, auto switching
300W/<0.5W (AC 220-240V)
DT01433/215W UHB
345 x 102 x 303mm (excluding feet and extrusions
when mirror is closed)
4.1Kg
34dB (Bright Mode)/28dB (Normal Mode)
Hybrid (Up to 5000 Hours)
345 x 85 x 303mm (excluding feet and extrusions
when mirror is closed)
3.8Kg
34dB (Bright Mode)/28dB (Normal Mode)
Hybrid (Up to 5000 Hours)
320 x 85 x 245mm (excluding feet and extrusions)
320 x 85 x 245mm (excluding feet and extrusions)
2.9Kg
37dB (Bright Mode)/29dB (Normal Mode)
Urethane (Up to 2000 hours)
2.9Kg
37dB (Bright Mode)/29dB (Normal Mode)
Urethane (Up to 2000 hours)
3 years/3 years (5000 Hours)** (Normal Mode)
3 Years/3 Years (5000 Hours)** (Normal Mode)
3 Years/3 Years (2000 Hours)** (Normal Mode)
3 Years/3 Years (2000 Hours)** (Normal Mode)
Easy lamp replace from top, Rear intake air filter
Direct On, Direct Off, Auto eco mode
PIN security lock, MyScreen password lock,
Transition detector, My Text password lock, Key lock
(key pad, remote control), Kensington slot,
Security bar, Lens door lock
Configure and control projector via web browser,
failure and warning alerts via e-mail, scheduling,
My Image, displaying text data transferred via the
network, command control via network, AMX Device
Discovery, projector management via SNMP,
PJ Link™, Network Bridge, content via LAN, MAC
address displayed on the side
Network
CP-EX250
1 x HDMI
2 x 15-pin Mini D-sub
1 x 15-pin Mini D-sub
2 x Component D-sub (shared with analogue RGB)
1 x RCA for composite
1 x Mini-DIN for S-Video
2 x Stereo Mini Jack
1 x pair RCA (L/R), 1 x Microphone Jack
1 x pair RCA (L/R
Yes/Yes
1 x RJ-45
–
CP-AW2519NM
USB Type B
USB Type A
RJ-45 (LAN)
CP-A222WNM
HDMI
Control (RS-232C)
Monitor Out
Microphone
Audio In 1/2
Computer In 2
Computer In 1
S-Video
Composite Video
Audio Out
Audio In 3
USB Type B
2 x USB Type A
RJ-45 (LAN)
S-Video
Composite Video
Audio Out
Audio In 3
CP-EX250/CP-EX300
HDMI
Computer In 2
Computer In 1
Monitor Out
Microphone
Audio In 1/2
Control (RS-232C)
Computer In 1
Computer In 2/Monitor Out
HDMI
Composite Video
Audio In
HITACHI DIGITAL MEDIA, Hitachi Europe Ltd, Whitebrook Park, Lower Cookham Road, Maidenhead, Berkshire SL6 8YA UNITED KINGDOM
Tel: +44 (0)1628 585 000 Fax: +44 (0)1628 585 163 www.hitachidigitalmedia.com
Control (RS-232C)
Audio Out
AV-Concept
Tlf. 30321889
www. av-concept.dk
*The stated lamp and filter life refers to the average life expected in ideal operating conditions with usage in accordance with the manual. The majority of, but not all lamps and filters should achieve this figure. **A free replacement lamp will be issued if the original lamp is less than 3 years old and it
has only been used for less than the hours stated on lamp warranty from the date of first use. Where a lamp fails and a replacement lamp is taken under warranty, the duration of the warranty for the replacement lamp shall be the remainder of the original warranty period only. The warranty is based on
the projectors being used continuosly in ‘Normal Mode’ and in an education environment. The warranty is only valid for 6 months if the projector isn’t being used in an education environment. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC. AMX and the AMX logo, and Device Discovery are all registered trademarks of AMX. Crestron® and RoomView™ are registered trademarks or trademark of Crestron Electronics, Inc. The specification above and photography is for reference only and may be subject to change.
7/13
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
