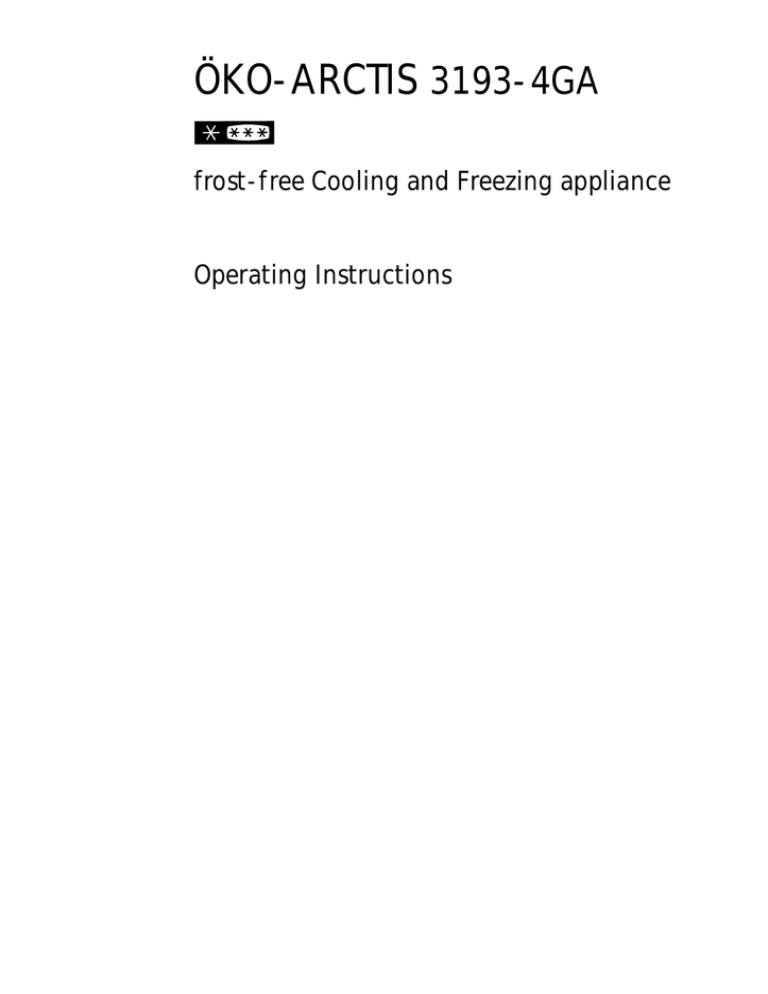

ÖKO-ARCTIS 3193-4GA
frost-free Cooling and Freezing appliance
Operating Instructions
Dear customer,
Before placing your new refrigerator into operation please read these
operating instructions carefully. They contain important information
for safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass them
on to possible new owners of the appliance.
These operating instructions are for use with several technically
comparable models with varying accessories. Please observe the notes
which apply to your model.
Notes which are important for your safety or for the correct
functioning of the appliance are indicated with a warning triangle and/
or the words (Warning!, Caution!, Important!). Please observe the
information carefully.
0 This symbol guides you step by step in the operation of the appliance.
1
3
Additional information regarding operation and practical use of the
appliance appear after this symbol.
2
Tips and information concerning economical and environmentally
sound use of the appliance are marked with the cloverleaf.
Explanations of the technical terminology used in the operating
instructions can be found at the end in the section "Technical
Terminology".
The operating instructions contain instructions for the correction of
possible malfunctions by the user in the section "Something not
working". If you are unable to rectify the fault after reading this
chapter, please contact your local AEG Service Force Centre..
If you require assistance or advice on your appliance, please contact
our Customer Care Department by letter or telephone:
Tel:
Customer Care Department
AEG Domestic Appliances Limited
55-77 High Street
Slough
Berkshire SL 1 1DZ
08705 350350
Printed on paper manufactured with environmentally sound processes.
he who thinks ecologically acts accordingly ...
2
Content
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Environmental Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
The most important characteristic of your appliance . . . . . . . . . . . . . . . 8
Appliance design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Freezer tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick door-opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ON/OFF button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FAST CHILL/-FREEZE button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WARNING OFF button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
9
10
10
10
11
11
12
12
13
13
Prior to initial start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Initial Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Select "Freezing" or "Cooling" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Temperature Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Switch on FAST CHILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Switch on FAST FREEZE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Switching the Appliance Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Control and Information Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
"Open Door"-Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Interruption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Partial/Complete Thaw Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Function Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
18
18
18
19
19
3
Content
Freezing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Freezing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Frozen Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage Goods Symbols/Freezing Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . .
20
20
21
22
22
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
"Long Fresh" Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
"Standard" Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cooling drinks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
23
23
23
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Something not Working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Correcting Malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replace light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjust door contacter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25
25
28
28
Noises during Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Special accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Technical Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Installing and connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remove transport safeguard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The appliance needs ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appliance Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reversing the Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
31
32
32
33
33
34
36
36
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Service & Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4
1 Important
Safety Instructions
These warnings are provided in the interests of your safety. Ensure
that you understand them all before installing or using this
appliance. Your safety is of paramount importance. If you are unsure
about any of the meanings or these warnings contact the Customer
Care Department.
Prior to Installation
• Check the appliance for transport damage. Under no circumstances
should a damaged appliance be installed! In the event of damage,
please contact your retailer.
Installation
• This appliance is heavy. Care should be taken when moving it.
• It is dangerous to alter the specifications or attempt to modify this
product in any way.
• Ensure that the appliance does not stand on the electrical supply
cable. If the supply cable is damaged, it must be replaced by a cable
available from your local Service Force Centre.
• Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
• Parts which heat up should not be exposed. Whenever possible, the
back of the appliance should be close to a wall, but leaving the
required distance for ventilation, as stated in the installation instructions.
• The appliance should be left for 2 hours after installation before it is
turned on, in order to allow the refrigerant to settle.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain
that none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.
5
Important Safety Instructions
Child Safety
• Do not allow children to tamper with the controls or play with the
product.
• There is a risk of suffocation! Keep packaging material away from
children!
During Use
• This appliance is designed for domestic use only, specifically for the
storage of edible foodstuffs only. It is not intended for commercial or
industrial use
• Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers with flammable materials such as,
spray cans, fire extinguisher refill cartridges etc in the appliance.
• Frozen food should not be refrozen once it has thawed out.
• Do not place carbonated or fizzy drinks in the freezer compartment.
• Ice lollies can cause ’frost/freezer burns’ if consumed straight from
the freezer compartment.
• Do not remove items from the freezer compartment if your hands are
damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Bottles and cans must not be placed in the freezer compartment.
They can burst when the contents freeze.
• Manufacturers´ recommended storage times should be adhered to.
Refer to relevant instructions.
Maintenance and Cleaning
• Before cleaning, always switch off the appliance and disconnect from
the electrical supply.
• When unplugging always pull the plug from the mains socket, do not
pull on the cable.
Servicing
• This product should be serviced by an authorised engineer and only
genuine spare parts should be used.
• Under no circumstances should you attempt to repair the appliance
yourself. Repairs carried out by inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Force Centre.
6
Environmental Information
Packaging
All transit packaging materials are environmentally compatible and can
be reused. Wood is un-treated. The plastics can be recycled and are
identified as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the
interior.
>PS< for polystyrene foam, e.g. the pads, which are pure hydrocarbon
compounds and can be recycled.
The carton parts are made from recycled paper. Please dispose of the
packaging with due care for the environment.
Old Appliances
When disposing of your old appliance:
Make the appliance unusable by cutting off the cable and remove any
door catches to ensure small children cannot be trapped inside.
Help to keep your country tidy - use an authorised disposal site.
2
Energy Saving Tips
• Do not install the appliance near cookers, radiators or other sources
of warmth. High ambient temperatures cause longer, more frequent
operation of the compressor.
• Ensure sufficient air circulation and exhaust at the appliance base
and at the back wall of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to
cool first.
• Only leave door open as long as necessary.
• Do not set temperature any colder than necessary.
• Place frozen goods into the refrigerator for thawing. Cold from frozen goods is thus used for cooling in the refrigerator.
• Always keep the condenser at the back of the appliance clean.
• If the interior of the appliance should be used partly, the economy
freezing space divider (special accessory) can be inserted instead of a
freezing tray. This enables additional energy saving.
7
The most important characteristic
of your appliance
• The appliance allows being used as a freezing unit or as a refrigerator
depending on requirement. For this purpose, the operation mode
"Freezing" or the operation mode "Cooling" can be selected on the
appliance.
– In the operation mode "Freezing", the appliance is usable for
freezing and deep-temperature storage with temperatures from
-15 °C up to -24 °C.
– In the operation mode "Cooling", this appliance can be operated as
a "long fresh" cooling unit with temperatures from 0 °C or +2 °C,
whereby a dry interior room climate is attained through the nofrost-technology. The appliance is suitable in the adjustable temperature range of up to +16 °C, but also as a reservoir and drinks
cooler. Naturally, it is also usable as a "normal" refrigerator for the
temperature range of about +5 °C.
• FAST CHILL/FAST FREEZE can be selected depending on purpose and
need.
– The FAST CHILL function is suitable for fast cooling larger quantities in the cooling room, e.g. for drinks or salads during a party.
Thereby, a SET temperature of +2 °C is automatically preset. After
6 hours have expired, the FAST CHILL function is terminated automatically.
– The FAST FREEZE function caters for quick freezing of fresh foodstuffs and protects at the same time the already stored foodstuff
against undesired temperature increase in the freezing room. The
electronics of the appliance recognises automatically, when the
quick freezing mode can be completed, and automatically switches
off the FAST FREEZE function.(Depending upon the quantity to be
frozen after 30 up to maximum 51 hours).
• The no-frost-system enables both the freezing of fresh foodstuff as
well as the storage of readily frozen or cooled foodstuff by cold air. A
vaporiser cools the air in the interior space of the appliance, which is
circulated and uniformly distributed by a ventilator. This uniformly
circulating air-flow caters for a dry climate, low temperature fluctuations and low temperature differences in the entire appliance’s interior room. The moisture in the air condenses as frost on the vaporiser.
The vaporiser thaws full-automatically, as soon as this is necessary.
The melted water is drained off outside to the compressor and evaporates through the heat generated by the latter. Thus, the interior of
the appliance and the stored cooled or frozen foodstuffs always
remain ripe and ice-free. Manual thawing is dispensed of.
8
Appliance design
Front view
(various models)
1
2
3
4
5
6
Freezer tray
Drawers
Evaporator
Interior Illumination
Control Panel
Serial plate
9
Appliance design
Freezer tray
A freezing tray is inserted in the middle of the appliance’s interior
room.
3
Berries, for example, can be pre-frozen on the freezer tray. Advantage:
The berries are not squeezed and maintain their natural form. The frozen berries can then be stored in compartments or drawers packaged in
individual portions.
The freezing tray also serves for accommodating small frozen foodstuffs (e.g. herbal produce), furthermore you can accommodate ice
cube trays.
Quick door-opener
The quick door-opener enables
easy opening through its integrated opening mechanism.
Please observe that both fingers
(A) always interlock in the fold
of door seal, according to the
figure.
Interior Illumination
The illumination switches on automatically when the appliance door is
opened. By closing the appliance door it is automatically switched off.
3
10
If the appliance door remains open for more than 5 minutes, the interior illumination starts to blink and then switches off automatically in
order to save energy.
If directly after opening the door the interior illumination is not glowing although the appliance is in operation (recognisable through the
green mains control indicator), the lamp is defective. Exchanging procedure is described in the "Replace light bulb" chapter.
Appliance design
Control Panel
1
2
3
4
5
Stand-by display (green)
ON/OFF button
Temperature Display
Temperature regulator
Display when FAST CHILL/FAST FREEZE function is switched on
(yellow)
6 FAST CHILL/-FREEZE button
7 Warning Display (red)
8 WARNING OFF button
(See the chapter on "Control and Information System")
ON/OFF button
• Switching on:
By the initial switch on (delivery state) your appliance starts
in the operation mode "Freezing". By renewed switching on,
your appliance restarts in the operation mode, which was
set prior to switching off.
• Switch off:
To switch off, hold the button pressed for approx.5 seconds.
• Switching over between the operation modes "Freezing" and "Cooling":
When the temperature regulator is extended, the appliance allows
being switched over or vice versa by pressing the ON/OFF button (at
least 2 seconds long) from the operation mode "Freezing" into the
operation mode "Cooling".
3
By an extended temperature regulator, your appliance cannot be
switched off.
11
Appliance design
Temperature regulator
For temperature adjustment the temperature regulator must
be freed from its recessed position.
• Briefly pressing on the temperature regulator frees it from
its recessed position.
• Pressing on the temperature regulator returns it to its recessed position.
• SET means:
Temperature regulator extended from the retracted position; Temperature, which should exist in the interior (SET temperature), can be set
in predetermined °C steps (see also the "Temperature Adjustment"
chapter).
• ACTUAL means:
Temperature regulator in the retracted position; Temperature display
shows the temperature momentarily actually prevalent in the interior
of the appliance (ACTUAL temperature).
Temperature Display
The temperature display shows several types of information.
• In normal operation the current freezer compartment temperature is displayed (actual temperature). The temperature
regulator must be in its recessed position.
• During temperature adjustment, a blinking display of the temperature selected at the moment occurs (SET temperature). The temperature regulator must be freed from its recessed position.
• During a mains interruption, the momentary temperature inside the
appliance is displayed flashing (ACTUAL temperature). The temperature display is not illuminated during the mains interruption.
• If, for example, the frozen goods were partially or completely thawed
temporarily due to a lengthy power interruption, the temperature
display alternately indicates:
– the current freezer compartment temperature (ACTUAL temperature)
and
– the highest temperature to which the frozen goods have warmed.
12
• If a malfunction has occurred at the appliance the temperature display alternately indicates:
– the current freezer compartment temperature (ACTUAL temperature) and
– an error message.
The error message is coded (e.g. F1, F2, etc.) and assists the customer service technician in error diagnosis. If the temperature can
no longer be registered, only the error code is displayed.
• In the FAST CHILL function "IC" for intensive cooling appears in the
display when the temperature regulator is extended from its
retracted position.
In the FAST FREEZE function "SF" for super frost appears in the display when the temperature regulator is extended from its retracted
position.
FAST CHILL/-FREEZE button
When FAST CHILL/FAST FREEZE function is switched-on,
the yellow control display near the button illuminates.
• With the FAST CHILL/FAST FREEZE button, the "FAST
FREEZE" function can be switched on if the appliance
is in the "Freezing" operation mode, or in the "FAST
CHILL" function, when the appliance is in the "Cooling"
operation mode.
WARNING OFF button
With the WARNING OFF button, the acoustic warning signal
can be switched off, e.g. the "Open Door" warning when
placing food in or taking food out of the appliance.
Prior to initial start-up
0 Please clean the interior and all parts prior to the initial operation (see
the "Cleaning and Maintenance" chapter).
0 The appliance must be correctly installed in accordance with the
chapter "Installing and Connecting" before it is put into operation for
the first time. Care should be especially taken that the mains voltage
and frequency available correspond with the appliance’s rating plate.
13
Initial Start-Up
0 Insert plug into mains socket.
0 Press ON/OFF button.
The green stand-by display lights up. The temperature display shows
the current freezing room temperature (actual temperature).
The blinking red warning display indicates that the required storage
temperature has not yet been reached.
3
Within 5 minutes after the appliance has been switched on, the electronics initialise a self-test. The compressor does not start until after
completion of the self-test.
3
In the delivery state, your appliance is present in the operation mode
"Freezing".
If the appliance was once in operation, it restarts in the operation
mode, which was set prior to switching off.
Select "Freezing" or "Cooling"
If necessary, switch over the appliance with the following steps
between the operating modes "Freezing" and "Cooling":
0 Press temperature regulator and free it from its recessed position.
0 Hold the ON/OFF button pressed for at least 2 seconds. A peep tone
sounds.
The operation mode, in which your appliance is at the moment, is identifiable if the temperatures can be set above or below 0 °C.
0 Return the temperature regulator again to the retracted position.
0 Set the temperature depending upon the selected operation mode (see
the chapter "Temperature Adjustment").
Attention! If you are using the appliance as a freezing unit: Please wait
prior to putting the foodstuff to be frozen, until the freezing room
temperature has attained -18 °C, or until the red warning display goes
off.
Attention! If you are using this appliance as a cooling unit, after it has
been used as a freezing unit: Please wait until the cooling cabinet temperature has reached 0 °C, before placing food to be cooled inside.
3
14
Temperature Adjustment
0 Press temperature regulator and free it from its recessed position. The
temperature display is switched to a blinking display of the currently
selected SET temperature.
0 Turn temperature regulator to left or right to select the desired SET
temperature. The temperature display immediately indicates the newly
selected adjustment:
Temperature regulator
warmer
colder
Operation mode "Freezing"
-18 °C
up to -15 °C
up to -24 °C
Operation mode "Cooling"
+10 °C
up to +16 °C
up to 0 °C
The following SET temperature settings are possible:
• Operating mode "Freezing": from -15 °C up to -24 °C in 1 °C steps;
• Operation mode "Cooling": the values 0 °C / +2 °C / +4 °C / +5 °C /
+6 °C / +8 °C / +10 °C / +12 °C / +14 °C / +16 °C.
0 Press in the temperature regulator into the retracted position. The
temperature display switches over and shows again the momentarily
prevalent ACTUAL temperature inside the appliance.
Attention! If the operation mode "Cooling" is selected, the ambient
temperature of the room must be at least 2 °C higher than the preset
SET temperature.
0 Please check red warning display and temperature display regularly to
assure maintenance of the storage temperature.
3
Switch on FAST CHILL
(Only possible in operation mode "Cooling")
FAST CHILL function is suitable for fast cooling larger
quantities of foodstuff in a freezing room, e.g. drinks or
salads during a party.
0 Press the FAST CHILL/-FREEZE button.
The yellow control indicator near the FAST CHILL/FAST
FREEZE button illuminates.
15
The FAST CHILL function now caters for intensive cooling. Thereby a SET
temperature of +2 °C is automatically preset. After 6 hours have lapsed,
the FAST CHILL function is independently ended. The originally set SET
temperature is again decisive and the temperature display again displays the momentary freezing-room temperature.
0 You can manually terminate the FAST CHILL function at any time, in
that you press the FAST CHILL/FAST FREEZE button again.
Attention! While the FAST CHILL function is switched on, the temperature regulator should not be driven from the recessed position in
order to avoid an inadvertent adjustment of the originally set SET temperature.
Adjusted SET temperature is not recognisable when the FAST CHILL
function is switched-on! By an extended temperature regulator, "IC" for
intensive cooling appears in the temperature display instead of the SET
temperature.
If you are not sure whether the SET temperature was inadvertently
altered, please verify after termination of the FAST CHILL function.
3
Switch on FAST FREEZE
(Only possible in the operating mode "Freezing")
The FAST FREEZE function caters for fast freezing of
fresh foodstuffs and simultaneously protects the already
stored foodstuffs against undesired temperature rise in
the freezing room.
0 Press the FAST CHILL/-FREEZE button.
The yellow control display near FAST CHILL/FAST FREEZE button
illuminates.
The electronics of the appliance independently recognises when the
quick freezing process can be terminated, and then switches off the
FAST FREEZE function automatically (depending on the quantity to be
frozen after 30 to maximum 51 hours).
0 You can stop the fast freezing process manually at any time by pressing
the FAST CHILL/FAST FREEZE button again.
Attention! While the FAST FREEZE function is switched on, the temperature regulator should not be driven from the recessed position, in
order to avoid an inadvertent adjustment of the originally set SET temperature.
Adjusted SET temperature is not recognisable when FAST CHILL func-
3
16
tion is switched-on! By an extended temperature regulator "SF" for
super-frost appears in the temperature display instead of the SET temperature.
If you are not sure whether the SET temperature was inadvertently
altered, please verify after terminating the FAST FREEZE function.
Switching the Appliance Off
Attention! The appliance can only be switched off basically when the
temperature regulator is in the retracted position.
In order to protect frozen goods, the appliance is guarded against accidental switching off (child-proof).
0 To switch off press and hold the ON/OFF button for about 5 seconds.
A so-called "count down" is started in the temperature display, which
counts backwards from "5" to "0". When "0" is reached the appliance
switches off. Illumination at the temperature display goes off.
3
0
0
0
0
3
If you remove the plug or disconnect the circuit fuse without previously switching off the appliance with the ON/OFF button, an audible
warning signal makes you aware of the power interruption. The warning signal can be temporarily silenced with the WARNING/OFF button,
but it nevertheless sounds again after 2 hours. In this case, connect the
appliance to the mains again and press and hold the ON/OFF button for
about 5 seconds.
If the appliance is to be removed from service for a lengthy period:
Switch appliance off by pressing and holding the ON/OFF button for
about 5 seconds.
Remove the mains plug or switch off or turn out the circuit breaker or
fuse.
It is essential to clean the appliance cabinet interior (see the "Cleaning
and Maintenance" chapter).
Leave door open after defrosting to avoid accumulation of odours.
When put into operation again, the appliance starts in the operation
mode, in which it was set prior to switching off.
17
Control and Information Systems
The control and information systems consist of a temperature display,
an optical warning display and an acoustic warning device.
The system warns of:
– open appliance door;
– power interruption;
– excessive temperature in the freezer compartment (only in the
operation mode "Freezing");
– possible partial or complete thawing of frozen goods;
– functional disturbances at the appliance.
"Open Door"-Warning
The red warning indicator blinks when the door is opened. If the door
remains open longer than approx. 80 seconds, an extra warning tone
sounds. If you need more time for sorting or rearranging frozen foodstuff, you can switch off the 80 seconds warning tone by pressing the
WARNING OFF button.
Power Interruption
If the power supply is interrupted, an audible warning sounds at
20 second intervals. In addition, the current actual temperature in the
freezer compartment is indicated in blinking fashion by the temperature display (2 seconds on, 2 seconds off). After one hour the audible
warning only sounds at 40 second intervals.
The audible warning can be switched off for about 2 hours with the
WARNING OFF button.
In the event of a power interruption, the control and information systems can maintain operation of the temperature display and warning
signal for up to 12 hours.
Temperature Warning
(only in the operating mode ’’Freezing“)
The red warning display blinks and an audible warning sounds, as soon
as the temperature in the freezer compartment climbs to more than
5°C above the selected SET temperature. A rise in temperature of more
than 5°C may be caused by:
– frequent door opening for long periods of time;
– loading with large quantities of warm foods;
– an error with the appliance.
18
Control and Information Systems
The audible warning can be switched off with the WARNING OFF button.
Both warning display and audible warning are automatically switched
off when the actual temperature in the freezer compartment falls to
4°C warmer than the selected SET temperature.
Note:
• The red warning display and the audible warning are inoperable:
– after temperature adjustment, until the selected SET temperature
has been reached (exception: actual temperature exceeds -10°C).
• Only the audible warning is inoperable:
– after the appliance is switched on, and until the selected SET temperature has been reached for the first time;
– when the FAST FREEZE button is depressed.
Partial/Complete Thaw Warning
If frozen goods have been partially or completely thawed (e.g. during a
temporary power interruption), the red warning display blinks.
In addition the temperature display alternately indicates:
– the highest temperature to which the frozen goods have warmed;
– and the current actual temperature in the freezer compartment.
If suspicion of partial or complete thawing exists, please check the
quality of the foods to determine if they can be used.
As soon as the temperature in the freezer compartment has again
fallen below the critical thawing temperature of -4°C, the partial/complete thaw warning can be switched off with the WARNING OFF button.
3
After the appliance has been switched on, the partial/complete thaw
warning remains inoperative until the selected SET temperature has
been reached for the first time.
Function Errors
If the appliance electronics have detected a technical malfunction
which has to be corrected by a customer service technician, both optical and acoustic warnings are activated. In addition the temperature
display alternately indicates:
– an error message (error code F1, F2, etc.) and
– the current freezer compartment temperature (actual temperature).
19
3
An appliance malfunction which is indicated by an error code, must be
corrected by a customer service technician. The acoustic warning can
be switched off for 24 hours with the WARNING OFF button. Cancelling
of the error display is possible by switching the appliance off, which
should however only be undertaken during repair by the customer
service technician.
Freezing
Freezing
Attention!
• Before foods are frozen, the actual temperature in the freezer compartment must be -18°C or colder.
• Please observe indicated freezing capacity on the serial plate. The
freezing capacity represents the maximum amount of fresh goods
that can be frozen within 24 hours. If you freeze goods on several
days, one after the other, freeze amounts equal to 2/3 to 3/4 of the
capacity indicated on the serial plate.
• Thawed foods which have not been processed further (cooked into
meals) may not under any circumstances be frozen a second time.
0 For exploitation of maximum freezing capacity press the FAST FREEZE
button 24 hours prior to freezing, or 4 to 6 hours for smaller quantities.
Yellow display lights up.
The FAST FREEZE button need not be pressed for freezing of small
quantities of up to 3 kg.
0 All foods must be packed air tight prior to freezing, so that they do not
dry out or lose their flavour, and so that no flavour contamination of
other frozen goods occurs.
Caution! Do not touch frozen goods with wet hands. Hands can freeze
to the goods.
0 Place packaged foods in the compartments or drawers. Unfrozen goods
may not come into contact with already frozen goods, otherwise the
frozen goods may start to thaw.
3
3
20
The appliance electronics recognise automatically when the FAST
FREEZE function can be ended, and switch it off automatically. Yellow
display goes out. You can also stop the FAST FREEZE function manually
by pressing the FAST FREEZE button again.
Freezing
• To allow storage of awkward freezing foodstuff, the drawers of the
appliance are individually removable. They can be stacked in the one
lying below.
• The following are suitable for packing foodstuffs to be frozen:
– freezing bags and foils made of polyethylene;
– special tins for frozen food;
– aluminium foil, extra strong.
• The following are suited for sealing bags and wraps:
plastic clips, rubber bands or adhesive tape.
• Press air out of bags and wraps before sealing, because air encourages drying of frozen goods.
• Make flat packages, because these freeze more quickly.
• Do not fill cans for frozen goods to the brim with liquid or paste-like
goods, because liquids expand during freezing.
3
Note for inspection authorities:
Batch plans for the determination of freezing performance or warm-up
time can be requested directly from the manufacturer.
Frozen Storage
Attention! Before initial loading of the freezer compartment with previously frozen goods, the required storage temperature of -18°C must
be reached.
• Load freezer only with packaged frozen goods, so that they do not
dry out or lose their flavour, and so that no flavour contamination of
other frozen goods can occur.
• Please observe maximum storage times and expiry dates of frozen
goods.
2
In so far as possible store frozen goods separately according to type in
compartments and drawers. Some models are provided with index-tabs
which can be attached to compartment doors and drawers. In order to
identify the contents of individual compartments, attach the indextabs so that they cover the storage goods symbols (see section:
"Storage Goods Symbols/Freezing Calendar"). Thus, you will have a better overview, avoid opening the door for a long time and save power.
3
From a food safety point of view, -18 °C is deemed sufficient as cold
storage temperature.
21
Preparation of Ice Cubes
0 Fill ice cube tray (not included with all models) 3/4 full with cold water
and place in the freezer tray or a drawer and allow to freeze.
0 To remove the finished ice cubes twist the ice cube tray or hold under
running water for a short time.
Attention! Do not, under any circumstances, free an ice tray which is
frozen to the appliance with pointed or sharp edged objects. Use a
spoon-handle or similar object.
Storage Goods Symbols/Freezing Calendar
(not included with all models)
• The symbols on the compartment flaps and drawers show
different types of frozen
goods.
• The numbers indicate storage times in months for the appropriate
types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and
pre-treating before freezing. The lower value applies to foods with
high fat content.
• By attaching the included
index-tabs to the compartment flaps and drawers, they
can be marked according to
which type of foods the individual compartments contain.
Cooling
The appliance is suitable, depending upon the preset temperature, for
• "Long Fresh" Cooling
• "Standard" Cooling
• Drinks cooling.
3
22
The drawers of the appliance can be removed individually.
The removal is then especially advantageous if due to its size the foodstuff you want to cool does not fit inside a drawer. You can in this case
stack the drawer below correspondingly higher.
Instead of the drawers, wire shelves can also be pushed in. You can purchase the wire shelves as a special accessory from your retailer.
Cooling
"Long Fresh" Cooling
By selecting the SET temperature of 0 °C or +2 °C this appliance can be
used as a "Long Fresh" cooling unit.
The "Long Fresh" cooling process enables optimum storage conditions
for fresh foodstuff. The foodstuff remains fresh up to three times
longer in comparison to storage in normal refrigerators.
• Commodities suitable for "Long Fresh" cooling are:
– meat and sausages
– fresh poultry
– fresh fish
– milk, butter, curd cheese
– berries, fruits and vegetables
– salads, mushrooms.
• Foodstuff unsuitable for "long fresh" cooling are:
– coldness-sensitive fruits, e.g. bananas, papayas, passion fruits, avocados and citrus fruits;
– coldness-sensitive vegetables, e.g. paprika, cucumber, zucchini,
egg-plants, potatoes and tomatoes;
– Fruits and vegetables, which should still ripe, e.g. pears.
• Pack all foodstuffs prior to "long fresh" cooling. Thus, the aroma, the
moisture and the colour is retained longer.
• The following are suited for packaging:
– Airtight bags and foils made of polyethylene
– Closable plastic containers
– aluminium foil.
"Standard" Cooling
By selecting the SET temperature in the range of +5 °C, this appliance
can be used as a normal refrigerator.
• Foodstuff should always be covered or packed in the cool room, in
order to prevent drying out and odour or taste transmission to other
cooled foodstuffs.
• The following are suited for packaging:
– Airtight bags and foils made of polyethylene
– Plastic container with cover
– Special hoods made of plastic with rubber bandaluminium foil.
Cooling drinks
By selecting the SET-Temperature up to +16 °C, the appliance can perfectly be used as a cooling unit for drinks.
23
Cleaning and Maintenance
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
1
0
0
0
0
Warning!
• The appliance may not be connected to the mains during cleaning.
Danger of electrical shock! Before cleaning switch the appliance off
and remove the plug from the mains, or switch off or turn out the
circuit breaker or fuse.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot
vapours can lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.
• The appliance defrosts automatically. Do not use mechanical or artificial devices to speed up the defrosting process.
Attention!
• Ethereal oils and organic solvents can attack plastic parts, e.g.
– lemon juice or the juice from orange peals;
– butyric acid;
– cleansers which contain acetic acid.
Do not allow such substances to come into contact with appliance
parts.
• Do not use any abrasive cleansers.
Switch the appliance off by pressing and holding the ON/OFF button
for about 5 seconds.
Remove the mains plug or switch off or turn out the circuit breaker or
fuse.
Clean the appliance and the interior accessories with a cloth and
lukewarm water. Commercially available dish washing detergents may
also be used.
After cleaning wipe with fresh water and rub dry.
Accumulation of dust at the condenser increases energy consumption.
For this reason carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.
0 After everything is dry place appliance back into service.
2
24
Something not Working
Correcting Malfunctions
Perhaps a malfunction has been caused by a minor error, which you can
correct yourself with the help of the following instructions. Do not
attempt any further repairs if the following instructions do not help in
each specific case.
1
Warning! Refrigerators/freezers may only be repaired by trained personnel. Repairs carried out by untrained personnel can lead to substantial danger for the user. Please contact your dealer or our customer
service department for repairs.
Malfunction
Appliance does not function, green stand-by display and temperature
display are not lit.
Possible cause
Remedy
Appliance is not switched
on.
Switch appliance on.
Mains plug is not inserted
or is loose.
Insert mains plug.
Fuse has blown or is defec- Check fuse, replace if nective.
essary.
Mains socket is defective.
Mains malfunctions are to
be corrected by an electrician.
Appliance does not function, green stand-by display is not lit, temperature Mains interruption warnis indicated as blinking dis- ing.
play, audible warning
sounds at regular intervals.
Please check to see if the
mains plug is inserted or if
the fuse has blown (see
also section: "Control and
Information Systems").
Partial/Complete Thaw
Warning.
Red warning display blinks,
Frozen goods have been
two temperatures are indiwarmed to such an extent
cated alternately by the
that they have been partemperature display.
tially or completely
thawed.
Please refer to the section
"Control and Information
Systems".
25
Something not Working
Malfunction
Possible cause
Red warning display blinks,
audible warning sounds,
A functions error has
temperature display indi- occurred.
cates an error (F1, F2, etc.).
The appliance is in the
operation mode "Cooling"
instead of "Freezing".
Remedy
Switch the audible warning
off by pressing the WARNING OFF button. Please
make a note of the indicated error and inform the
customer service department. Do not open the
appliance door again.
Switching the appliance in
the operation mode "Freezing". For that, please refer
in the "Select Freezing or
Cooling" chapter.
Temperature is not properly Please refer to the section
adjusted.
"Temperature Adjustment".
The freezer compartment
temperature is insufficient. Door was open for a long
time.
26
Only leave the door open
as long as necessary.
Within the last 24 hours a
large quantity of warm
foods were loaded.
Press FAST FREEZE button.
Appliance is next to a
source of warmth.
Please refer to the section
"Installation Location".
Interior illumination does
not function.
Light bulb is defective.
Please refer in this chapter
under "Replace light bulb" .
If the door remains open
for more than 5 minutes,
the interior illumination
blinks and then switches
off.
This is normal, no error has Please refer to "Interior
occurred.
Illumination".
Interior illumination is not
switched off when door is
closed.
Door contactor is not
properly aligned.
Please refer to "Adjust
Door Contactor" in this
section.
Audible warning "Door
Open" sounds, although
the door is closed.
Door contactor is not
properly aligned.
Please refer to "Adjust
Door Contactor" in this
section.
Something not Working
Malfunction
Possible cause
Remedy
Carefully warm the door
seal with a hand-held hair
dryer at those points which
Large accumulation of
Door is not properly sealed are not airtight (no warmer
frost in the appliance, per- (perhaps after re-hanging than approx. 50°C). At the
same time, shape the
haps also at the door seal. door).
warmed door seal by hand,
so that it is again properly
seated.
Unusual noises.
The compressor does not
start immediately after
pressing the FREEZE button, or after changing the
temperature setting.
Appliance is not level.
Readjust the front levelling
feet.
Appliance is in contact
with wall or other objects.
Push appliance away a
short distance.
A part at the back of the
appliance, e.g. a tube, is in
contact with another
appliance part or the wall.
Bend this part away carefully if necessary.
This is normal, no error has The compressor starts after
occurred.
a period of time.
Within the first 5 minutes
Compressor does not start
after switching the appliafter appliance is switched
ance on, the electronics
on.
initialise a self-test.
The compressor is started
automatically, after the
self-test has been completed.
Only temperatures above
0 °C can be set, although
the appliance should be
used as a freezing unit.
The appliance is in the
operation mode "Cooling".
Selecting the operation
mode "Freezing". For that,
please refer in the "Select
Freezing or Cooling" chapter.
Only temperatures below
0 °C can be set, although
the appliance should be
used as a cooling unit.
Select the operation mode
"Cooling". For that, please
The appliance is in the
operation mode "Freezing". refer in the chapter "Select
Freezing or Cooling".
27
Something not Working
Replace light bulb
Warning! Danger of electrical shock! Before replacing the light bulb
switch appliance off and remove the mains plug, or switch off or turn
out the circuit breaker or fuse.
Light bulb specifications: 220-240 V, max. 15 W, socket: E 14
0 To switch the appliance off press
and hold ON/OFF button for about
5 seconds.
0 Remove mains plug.
0 Replace defective light bulb. The
lamp is situated beneath the
operating panel and when the door
is opened it becomes accessible
from the bottom.
1
Adjust door contacter
If, for example, the illumination is not automatically switched off when
the door is closed, or if the "Open Door" warning signal sounds, the
contacter at the top of the door may need to be readjusted.
0 Loosen phillips head screw and push
contacter towards the inner side of
the door.
0 Re-tighten phillips head screw.
0 Please check,
– if illumination is switched off when
the door is closed
and
– if the audible warning signal sounds
after the door has been open for
about 80 seconds.
If not, readjust contacter again.
28
Noises during Operation
The following noises are characteristic of refrigeration appliances:
• Clicks
Whenever the compressor switches on or off, a click can be heard.
• Humming
As soon as the compressor is in operation, you can hear it humming.
• Bubbling/Splashing
When refrigerant flows into thin tubes, you can hear bubbling or
splashing noises. Even after the compressor has been switched off,
this noise can be heard for a short time.
• Noise
The ventilator generates air flow whereby noise can be emitted.
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured
in accordance with the appropriate standards.
The necessary measures in accordance with appliance safety legislation
regulations (GSG), accident prevention regulations for refrigeration
appliances (VBG 20) and the regulations of the German Society of Electrical Engineers (VDE) were observed in the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
;
This appliance is in accordance with the following EU guidelines:
– 73/23/EWG dated 19 February 1973 - low voltage guidelines.
– 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline.
29
Special accessories
Special accessories are available from your retailer.
• Economy freezing space divider:
If the interior room of the appliance should be used partly, an economy freezing-room divider can be inserted instead of the freezing
tray. This allows for additional energy saving.
• Deposit grid:
Instead of the drawers, wire shelves can be inserted. This is especially
then advantageous, if the appliance is used as a refrigerator or as
drinks cooler.
Technical Terminology
• Refrigerant
Fluids, which are used for refrigeration are called refrigerants. They
have a relatively low boiling point; so low, that the warmth of foods
in the refrigeration appliance can cause them to boil or vaporise.
• Refrigerant circuit
Sealed circulation system, in which the refrigerant is found. The
refrigerant circuit consists for the most part of an evaporator, a compressor, a condenser and tubing.
• Evaporator
The refrigerant is evaporated in the evaporator. This warmth is withdrawn from the appliance interior, which is thus cooled. Like all fluids, refrigerants require warmth in order to be evaporated. For this
reason the evaporator is located in the appliance interior.
• Compressor
The compressor looks like a small bin. It is powered by an electric
motor and is housed at the back in the base of the appliance. It is the
task of the compressor to withdraw vaporous refrigerant from the
evaporator, to compress it and feed it to the condenser.
• Condenser
The condenser is usually in the form of a grid. Compressed refrigerant
from the compressor is liquefied in the condenser. Thus warmth is
released, which is given off into the surrounding air at the surface of
the condenser. The condenser is therefore outside of the appliance,
usually at the back.
30
Installing and connecting
Remove transport safeguard
The appliance as well as interior accessory parts are safeguarded for
transport.
0 Remove tape from left and right of the outside of the door.
3
Tape remnants can be removed with benzene. Wipe off benzene.
0 Remove all tape and pads from the interior of the appliance.
0 Peal off the protective film from the control panel.
0 Remove door seal safeguards from door seal at the inside of the door.
0 With open door remove transport safeguard at door pivot.
31
Installing and connecting
Installation
Installation Location
The appliance should be set up in a well ventilated, dry room.
Energy use and efficient performance of the appliance is affected by
the ambient temperature.
The appliance should therefore
– not be exposed to direct sunlight;
– not be installed next to radiators, cookers or other sources of heat;
– only be installed at a location whose ambient temperature
corresponds to the climate classification, for which the appliance is
designed.
The climate classification can be found on the serial plate, which is
located at the left on the inside of the appliance.
The subsequent table shows which ambient temperature is assigned to
which climate class if the operation mode "Freezing" is selected:
Climate classification
for an ambient temperature of
SN
+10 to +32 °C
N
+16 to +32 °C
ST
+18 to +38 °C
T
+18 to +43 °C
Attention! If the operation mode "Cooling" is selected, the ambient
temperature at the installation place must be at least 2 °C higher than
the preset SET temperature.
If the refrigeration appliance is installed next to another refrigerator or
freezer a clearance of 5 cm at the sides is required, in order to prevent
the formation of condensation on the outside of the appliance.
32
Installing and connecting
The appliance needs ventilation
Air is fed under the door through
the vent slots in the base and is
exhausted upwards along the back
wall. To ensure proper air circulation never cover or alter the vent
openings.
Attention! If the appliance is
installed under, for example, a
hanging cabinet, a clearance of at
least 10 cm between the top of the
appliance and the cabinet above it
must be maintained.
0 Break both wall spacing
elements from the plinth and
insert them into the sockets at
the back side of the appliance,
according to the figure, so that
the required wall gap for the
necessary ventilation at the back
of the appliance is provided for.
Appliance Alignment
0 In order to push the appliance to the final installation place, carefully
press at the top on the door and tilt the appliance backwards a bit. The
weight is thus transferred to the rear rollers on which the appliance can
be pushed easily.
0 The appliance must have a solid, level footing. Please compensate for
unevenness in the floor by turning the two adjustable feet at the front
in or out.
33
Installing and connecting
Reversing the Door
The side at which the door opens can be changed from the right side
(factory adjustment) to the left side, if the installation site requires.
1
0
0
0
0
Warning! When changing the side at which the door opens, the appliance may not be connected to the mains. Remove plug from the mains
beforehand.
Lay the left side of the appliance
onto a soft pad, e.g. rug, blanket
etc.
Turn pivot pin out of lower door
pivot.
Keep the spacing washer between the door and the bearing.
Romove door carefully and set
aside.
Turn the 4 phillips head screws
out of the base and remove the
base.
0 Overturn the plinth’s blind
bearing from left to the right.
0 Unscrew the door bearing and
transfer it to the left.
34
Installing and connecting
0 Refit the plinth and stand the
appliance upright.
0 Put the top eccentric bush on
the left.
0 Put the cover cap and bearing
pin with the spiral spring on the
top of the door.
0 Insert and close the door with
the bearing pin carefully in the
upper eccentric bush.
0 Fit the washer down between
the door and bearing and screw
in the bearing bolt into the
lower door bearing.
0 Remove the 3 hole covering pins.
0 Loosen the 3 screws on the door
handle and move the door
handle towards the right.
0 Insert the hole covering pins on
the left.
35
Installing and connecting
Door Alignment
If necessary, the appliance door can be aligned.
0 First remove the door (see section: "Re-Hanging Door").
0 Using a small screw-driver, lift out the eccentric bearing bushes as
required, above the appliance or below the door, rotate and then press
in according to the figures.
The diagram only shows a right opening door.
For left opening doors please proceed accordingly at the left of the
door at top and/or bottom.
0 Replace the door (see section: "Re-Hanging Door")
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
1
WARNING – THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should these safety measures
not be observed.
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate. The rating plate is
inside, on the left.
The appliance is supplied with a 13 amp plug fitted. In the event of
having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used.
36
Important
The wires in the mains lead are coloured in accordance with the following code:
Green
Green and YellowEarth
& Yellow
BlueNeutral
BrownLive
As the colours of the wires in the
mains lead of this appliance may
not correspond with the coloured
markings indentifying the terminals Blue
Brown
in your plug, proceed as follows:
1. The wire coloured green and yellow must be connected to the terminal marked with the letter „E“ or
Cord Clamp
by the earth symbol or coloured
green and yellow.
2. The wire coloured blue must be connected to the terminal „N“ or
coloured black.
3. The wire coloured brown must be connected to the terminal marked
„L“ or coloured red.
4. Upon completion there must be no cut, or stray strands of wire
present and the cord clamp must be secure over the outer sheat.
1
Warning! A cut-off plug inserted into a 13 amp socket is a serious
safety (shock) hazard. Ensure that the cut-off plug is disposed of safely.
Important
The mains cable may only be changed by a qualified electrician. If your
appliance needs repairing, please contact your local Service Force Centre.
Guarantee Conditions
AEG offer the following guarantee to the first purchaser of this
appliance.
1. The guarantee is valid for 12 months commencing when the
appliance is handed over to the first retail purchaser, which
must be verified by purchase invoice or similar documentation.
The guarantee does not cover commercial use.
2. The guarantee covers all parts or components which fail due to
faulty workmanship or faulty materials. The guarantee does not
cover appliances where defects or poor performance are due to
misuse, accidental damage, neglect, faulty installation,unauthorised
37
Guarantee Conditions
3.
4.
5.
6.
modification or attempted repair, commercial use or failure to
observe requirements and recommendations set out in the
instruction book.
This guarantee does not cover such parts as light bulbs, removable
glassware, dust bags or filters.
Should guarantee repairs be necessary the purchaser must inform
the nearest customer service office (manufacturer´s service or
authorised agent). AEG reserves the right to stipulate the place of
the repair (i. e. the customer´s home, place of installation or AEG
workshop).
The guarantee or free replacement includes both labour and
materials.
Repairs carried out under guarantee do not extend the guarantee
period for the appliance. Parts removed during guarantee repairs
become the property of AEG.
The purchaser´s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your
guarantee moves with you to your new home subject to the following
qualifications:
– The guarantee starts from the date you first purchased your product.
– The guarantee is for the same period and to the same extent for
labour and parts as exist in the new country of use for this brand or
range of products.
– This guarantee relates to you and connot be transferred to another
user.
– Your new home is within the European Community (EC) or European
Free Trade Area.
– The product is installed and used in accordance with our instructions
and is only used domestically, i. e. a normal household.
– The product is installed taking into account regulations in your new
country.
Before you move please contact your nearest Customer Care Centre,
listed below, to give them details of your new home. They will then
ensure that the local Service Organisation is aware of your move and
able to look after you and your appliances.
France
Senlis
+33 (0) 344 62 29 29
Germany
Nürnberg
+49 (0) 911 323 2600
Italy
Pordenone
+39 (0) 1678 47053
Sweden
Stockholm
+46 (0) 8 738 7910
UK
Slough
+44 (0) 1753 219 899
38
Service & Spare Parts
If after carrying out the necessary checks there is still a fault with your
appliance please contact your local AEG Service Force Centre.
In guarantee customers should ensure that the suggested checks
have been made as the engineer will make a charge if the fault is
not a mechanical or electrical breakdown.
Please note that proof of purchase is required for in-guarantee service
calls.
Service & Spare Parts
If you require a service engineer or wish to purchase spare parts,
contact your local AEG Service Force Centre, by telephoning
08705 929 929
Help us to help you
Please determine your type of enquiry before telephoning. When you
contact us we need to know.
1. Your name, address and post code.
2. Your telephone number.
3. Clear and concise details of the fault.
–What is the fault?
–When does the fault occur?
4. The model, production number and product identification number.
5. Date of purchase.
This information can be found on the rating plate, so you have these
numbers to hand we recommend you write them below.
Model .............................................
PNC no...............................................
S no..............................................
If the temperature display should indicate an error (F1, F2, etc.), inform
customer service of the displayed error.
Customer care
For general enquiries regarding your AEG appliance, or for further
information on AEG products please contact our Customer Care
Department
AEG Domestic Appliances Limited
55-77 High Street
Slough
Berkshire SL 1 1DZ
Tel:08705 350350
39
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
H271 282 300– 05 - 0600
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
