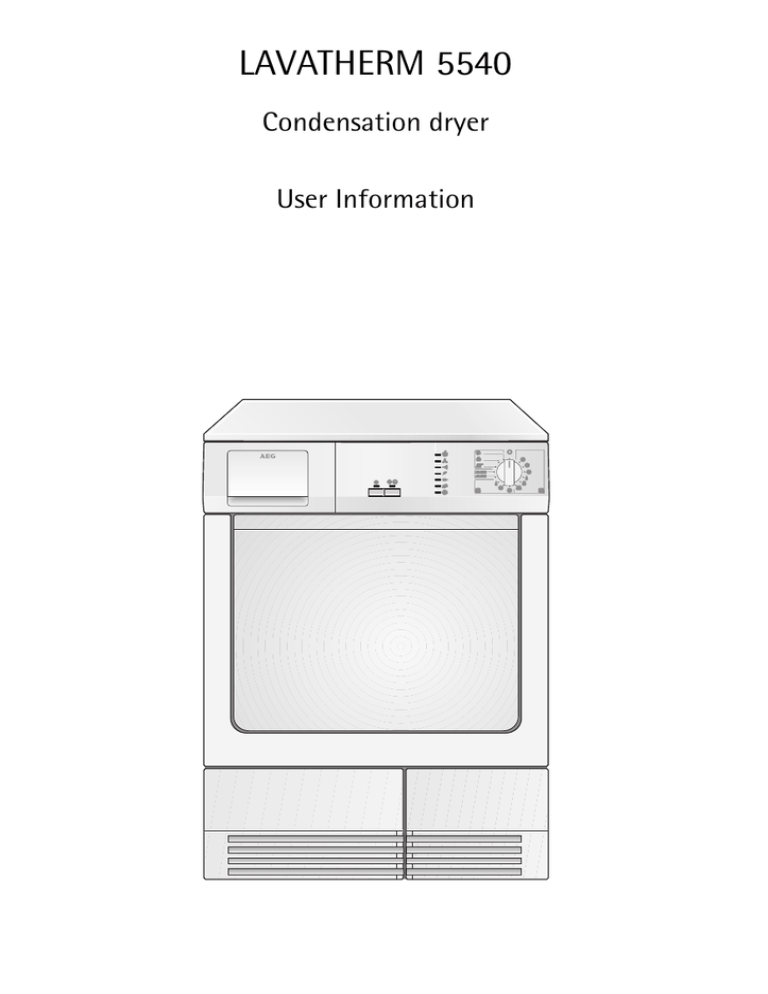

LAVATHERM 5540
Condensation dryer
User Information
Dear customer,
Please read this User Information carefully and keep it to refer to at a
later date.
Pass it on to any subsequent owner of the appliance.
1
3
2
2
The following symbols are used in the text:
Safety instructions
Warning! Notes that concern your personal safety.
Important! Notes that show how to avoid damage to the appliance.
Useful tips and hints
Environmental information
Contents
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Environmental tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Description of machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Operating screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Before the first drying cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Sorting and preparing laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Overview of programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching machine on / switching light on . . . . . . . . . . . . . . . . . . . . . . . . . .
Opening loading door / loading laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting SPECIAL CARE function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Putting in extra items or taking items out before end of programme . . . .
Drying cycle complete / removing laundry . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
12
12
12
13
13
13
14
14
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning fluff filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emptying the condensate tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clean operating screen and housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
15
17
18
19
19
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Troubleshooting by yourself . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Consumption values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3
Installation and connection instructions. . . . . . . . . . . . . . . . .
23
Installation safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Removing transport safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Changing door stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Special accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Guarantee Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
Customer Service Centres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
Service
4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Operating Instructions
1 Safety
Before first starting up
• Note the ”Installation and connection instructions”
• Before first starting up, check the machine for any damage incurred
during transport. Never connect up a damaged machine. If parts are
damaged, contact your supplier.
Intended use
• The dryer is intended for drying standard laundry in domestic applications.
• Conversions or modifications to the dryer are not permitted.
• The laundry must not contain flammable solvents (benzene,
alcohol, stain remover, etc.) . Risk of fire and/or explosion! Laundry
which has come into contact with such substances must be rinsed
thoroughly by hand before drying.
• When using dry-cleaning sets: Only use those products which are declared as suitable for the dryer by the manufacturer.
• Do not place items of laundry in the dryer which contain foam rubber
or materials similar to rubber. Risk of fire!
• Do not place heavily worn laundry items in the dryer. Risk of fire!
• Do not place laundry items with loose fillings (e.g. cushions) in the
dryer. Risk of fire!
• Parts with rigid components (e.g. door mats) may cover the air slots.
Risk of fire! Do not place such items in the dryer.
• Do not overfill the dryer. Risk of fire! Observe max. loading volume of
5 kg.
• Ensure that explosive objects (e.g. cigarette lighters, spray cans, etc.)
do not enter the dryer with the laundry. Risk of fire and/or explosion!
• Clean the micro-fine filter and fine strainer after each drying cycle.
• Clean the heat exchanger regularly.
• With stacked washer and dryer: Do not place objects on the dryer.
These may fall off during operation.
5
Child safety
• Keep packaging away from children. Risk of suffocation!
• Children can often not see the dangers associated with electric machines. Never leave unsupervised children near the dryer.
• Ensure that children and small animals cannot climb into the dryer’s
drum. Risk of death! Keep the dryer door shut whenever it is not being used.
General safety
• Only specialists may undertake repairs on the dryer.
• Never start up the dryer if the mains cable is damaged or if the operating screen, operating plate or base area are damaged so that the inside of the machine is open and accessible.
• Switch off the dryer before all cleaning, care or maintenance work.
Also disconnect the mains plug from the socket or – with permanent
connections – switch off the LS switch in the fuse box and/or fully
unscrew the screwed-in fuse.
• Disconnect the machine from the power supply during long pauses in
operations.
• When removing from the socket, never pull the mains plug by the cable, instead take a hold of the plug.
• Manifold plugs, couplings and extension cables must not be used.
Risk of fire from overheating!
• Do not spray down the dryer with jets of water. Risk of electric shock!
• Do not lean on the open door. The machine may tip over.
• Once the drying cycle has been interrupted, the laundry and drum
may be hot. Risk of burns! Take care when removing the laundry.
6
Disposal
2
2
1
Packaging material
The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at the community waste disposal facilities.
Old appliance
Please dispose of your old appliance in line with the guidelines for disposal in your community.
Warning! Remove mains plug from socket when you have no further
use for the machine. Cut off mains cable and dispose of together with
plug.
Destroy loading door lock. Children cannot then lock themselves in the
machine and put their lives at risk.
2 Environmental tips
• In the dryer, laundry becomes fluffy and soft. Fabric softeners are not
therefore needed when washing.
• Your dryer will function most economically if you:
– always keep the ventilation slots on the base of the dryer unobstructed;
– use the loading volumes specified in the programme overview;
– ensure you have good ventilation in the installation room;
– clean the micro-fine filter and fine strainer after each drying cycle;
– spin the laundry well before drying. Example: Consumption data –
depending on spinning speed – for 5kg of laundry, dried using the
m COTTONS » STORAGE DRY programme.
Pre-draining
Revolutions
per minute
Drying cycle
Residual dampness
Time
in minutes
Energy
in kWh
Costs
in euros1)
in litres
as a %
800
4.2
70
100
3,5
0,53
1200
3.2
53
82
2,8
0,42
1400
3.0
50
80
2,6
0,39
1800
2.5
42
71
2,3
0,35
1) Tariff: 0.15 Euro/kWh
7
Description of machine
Drawer containing
condensate tank
Operating screen
Fine strainer
(lint filter)
Large mesh filter
(lint filter)
Micro-fine filter
(lint filter)
Type plate
Loading door
(interchangeable
stop)
Screwed feet
(with height
adjustment)
Base door
upstream of
heat exchanger
Air slots
Operating screen
Programme selector
Programme progress display
Block of buttons
and displays
8
Maintenance displays
– y HEAT EXCHANGER (clean!)
– o EMPTY WATER (empty!)
– F CLEAN FILTER (clean lint filter!)
Before the first drying cycle
In order to remove any residue which may have been produced during
production, wipe the dryer drum with a damp cloth or undertake a
brief drying cycle (20 MIN) with damp cloths.
Sorting and preparing laundry
Sorting laundry
• Sort by fabric type:
– Cotton/linen for programmes in m COTTONS programme group.
– Mixtures and synthetics for programmes in l EASY CARES programme group.
• Sorting by care label. The care labels mean:
n
m
l
k
Basic drying in tumble
dryer possible
Drying at
normal
temperature
Drying at
reduced temperature
(press & SPECIAL CARE
button!)
Drying in tumble
dryer not possible
• Do not dry new, coloured textiles together with light-coloured laundry items. Textile colours may bleed.
• Do not dry tricot or knitted items with the ¼ EXTRA DRY programme.
Items may become stuck!
• Do not dry wool in the dryer. May become entangled! After air-drying, wool may be dried with the WOOL CARE programme.
Preparing laundry
• To avoid laundry becoming tangled: Close zips, button up coverings
and tie loose bands or ribbons (e.g. of aprons).
• Empty pockets. Remove metallic items (paperclips, safety pins etc).
• Turn items with double-layered fabrics inside out (e.g. with cottonlined anoraks, the cotton layer should be outermost). These fabrics
will then dry better.
9
Programme
max. loading volume
(weight when dry)
& SPECIAL CARE
l EASY CARES
m COTTONS
Overview of programmes
¼
EXTRA DRY
5kg
•
Drying thick or multi-layered textiles,
e.g. terry towelling items, bathing
costumes.
mn
N
INTENSIVE DRY
5kg
•
Drying thick textiles, e.g. terry towelling items, towels.
mn
»
STORAGE DRY
5kg
•
Drying textiles of even thicknesses,
e.g. terry towelling items, knitted
items, towels.
mn
¢
DAMP
5kg
•
For thin textiles which are still to be
ironed, e.g. knitted items, cotton
shirts.
mn
£
HAND IRON
5kg
•
For normal thickness cotton or linen
laundry, e.g. bedding, table linen.
mn
¤
MACHINE DRY
5kg
•
For cotton or linen laundry which are
still to be put through a machine, e.g.
bedding, table linen.
mn
¼
EXTRA DRY
2,5 kg
•
Drying thick or multi-layered textiles,
e.g. pullovers, bedding, table linen.
m l1) n
»
STORAGE DRY
2,5 kg
•
For thin textiles which are not ironed,
e.g. easy care shirts, table linen, baby’s
clothes, socks, corsetry.
m l1)
n
¢
DAMP
2,5 kg
•
For thin textiles which are still to be
ironed, e.g. knitted items, cotton
shirts.
m l1)
n
1) Press the & SPECIAL CARE button!
10
Application/properties
Care
symbols
l
EASY IRON
WOOL CARE
a
REFRESH
& SPECIAL CARE
20 MIN
40 MIN
max. loading volume
(weight when dry)
Programme
1kg
•
For drying individual items of laundry or for
small volumes of less than 1kg.
•
Special programme with anti-crease mechanism for easy care textiles such shirts and
blouses; for minimum ironing effort. The result depends on the type and quality of textiles. (The loading volume corresponds to
approx. 5 to 7 shirts.)
Recommendation: Place textiles in the dryer
straight after spinning. Once dried, immediately remove textiles and place on clothes
hanger.
•
Special programme for briefly treating woollens with warm air after they have been dried
naturally, worn or stored for long periods.
Wool fibres are aligned and the wool becomes
soft and snugly.
Recommendation: Remove textiles immediately after drying.
•
Special programme, lasting around 35 minutes, for refreshing or gently cleaning textiles
with commercially available dry cleaning sets.
(Only use those products which are declared
as suitable for the drier by the manufacturer;
please observe the manufacturer’s instructions
for use.)
1kg
1kg
1kg
Application/properties
Care
symbols
m l1)
n
m l1)
n
1) Press the & SPECIAL CARE button!
11
Drying
Switching machine on / switching light on
Turn the programme selector to any programme. The machine has been
switched on.
Opening loading door / loading laundry
1. Open loading door:
Use force to push against the loading door (push point
2. Load your laundry (do not force it in).
1
)
Caution! Do not jam laundry in between the loading door and rubber
seal.
3. Close loading door securely. Lock must audibly lock.
Selecting the programme
Use the programme selector to set
the programme you require.
12
Selecting SPECIAL CARE function
If required, press the & SPECIAL
CARE button.
& SPECIAL CARE
For especially gentle drying of sensitive fabrics with the l care label
and for temperature-sensitive textiles (e.g. acrylic, viscose). Programme
is executed with reduced heat.
& SPECIAL CARE is only suitable for use with loads of up to 2,5kg!
Starting the programme
Press the
START/PAUSE button. The programme is started.
The programme progress display show drying progress:
D DRYING,
Y COOLING,
E END,
CREASE GUARD.
Changing programme
3
To change a programme which has been selected by mistake once the
programme has started, first turn the programme selector to O OFF
and then reset the programme.
The programme can no longer be changed directly once the programme
has started. If nevertheless there is an attempt to change the programme on the programme knob, the programme progress display and
the maintenance indicators flash. If the & SPECIAL CARE button is
pressed, the corresponding indicator flashes several times. The drying
programme is not however affected by this (laundry protection).
13
Putting in extra items or taking items out before end of
programme
1. Open loading door
1
Warning! Laundry and drum can become hot. Risk of burns!
2. Load or remove laundry items.
3. Close loading securely. Lock must audibly lock.
4. Press the
START/PAUSE button to continue the drying cycle.
Drying cycle complete / removing laundry
3
14
Once the drying cycle is complete, the E END and
displays light up.
CREASE GUARD
The drying cycle is automatically followed by a crease guard phase
which lasts around 30 minutes. The drum rotates in intervals during
this phase. The laundry thereby remains relaxed and free of creases. The
laundry can be removed at any time during the crease guard phase.
(The laundry should be taken out towards the end of the crease guard
phase at the latest to prevent creases from forming.)
1. Open loading door
2. Before removing the laundry, remove lint from the micro-fine filter. It is
best to use a damp hand for this purpose (refer to “Cleaning and maintenance” section).
3. Remove laundry.
4. Turn the programme selector to O OFF.
Important! After each drying cycle
– clean the micro-fine filter and fine strainer,
– drain the condensate tank
(refer to the “Cleaning and maintenance” section).
5. Close loading door.
Cleaning and maintenance
Cleaning fluff filter
1
To ensure that the dryer works perfectly, the fluff filters (micro-fine filter and fine strainer) must be cleaned after every drying cycle.
Caution! Never operate the dryer without fluff filters or with damaged
or blocked fluff filters.
1. Open loading door
2. Use a damp hand to clean the micro-fine filter, which is built into
the lower part of the loading aperture.
3. Push down unlock button on large
mesh filter.
Large mesh filter jumps up.
4. Take out fine strainer.
5. Remove fluff from fine strainer. It
is best to use a damp hand for this
purpose.
15
3
Clean the entire filter area
The strainer area does not have to be cleaned after every drying cycle,
but should be checked regularly and cleaned of fluff if necessary.
6. To do this, grip the top of the large
mesh filter and pull it forwards until it comes loose from the two
brackets.
7. Remove fluff from the entire filter
area. It is best to use a vacuum
cleaner for this purpose.
8. Press both journals of the large
mesh filter into the brackets on the
loading door until they snap into
place.
9. Re-insert fine strainer.
10. Press against the large mesh filter
until it locks into the interlock.
3
16
If the fine strainer is not fitted, the
large mesh filter will not snap into
place and the loading door cannot
be closed.
Emptying the condensate tank
1
Empty condensate tank after every drying cycle.
If the condensate tank is full, an active programme will break off automatically and the o EMPTY WATER display will light up. In order to
continue the programme, the condensate tank must first be emptied.
Warning! The condensate is not suitable for drinking or for preparing
foodstuffs.
1. Pull drawer containing condensate
tank
out all the way.
3
3
2. Pull out condensate tank’s outlet
connections and pour condensate
out into basin or other suitable
container.
3. Slide outlet connections in and refit condensate tank.
If the programme has been interrupted as a result of the condensate tank being full:
Press the
START/PAUSE button to continue the drying cycle.
The condensate tank has a volume of approx. 4 litres. This is sufficient
for around 6kg of laundry which has previously been spun at 800 revolutions/minute.
The condensate can be used as distilled water, e.g. for steam ironing.
However first filter the condensate (e.g. with a coffee filter) to remove
any residue and small pieces of fluff.
17
Cleaning heat exchanger
1
If the y HEAT EXCHANGER display is illuminated, the heat exchanger
needs to be cleaned.
Caution! Operating when the heat exchanger is clogged with lint can
damage the dryer. This also increases energy consumption.
1. Open loading door
2. Open base door. To do this, press
the release button on the bottom
of the loading opening and open
the door to the left.
3. Remove lint from the inside of the
door and the heat exchange chamber.
4. Turn both lock washers inwards.
5. Pull heat exchanger out of base by
the handle.
1
3
Caution! Do not use sharp objects
to clean. The heat exchanger could
develop leaks.
6. Clean heat exchanger.
It is best to use a brush or to rinse
thoroughly with a shower head.
7. Replace heat exchanger and lock
into place (turn both lock washers outwards until they snap into place).
8. Close base door.
1
18
The dryer will not operate if the base door is not closed.
Caution! Never operate the dryer without the heat exchanger.
Cleaning the drum
1
3
Caution! Do not use abrasives or steel wool to clean the drum.
Lime in the water or cleaning agents may form a barely visible lining on
the inside of the drum. The degree to which the laundry has been dried
is then no longer detected reliably. The laundry is damper than expected when removed from the dryer.
Use a standard domestic cleaner (e.g. vinegar-based cleaner) to wipe
down the inside of the drum and drum ribs.
Clean operating screen and housing
1
Caution! Do not use furniture cleaners or aggressive cleaning agents to
clean the machine.
Use a damp cloth to wipe down the operating screen and housing.
What to do if …
Troubleshooting by yourself
If, during operation, the dryer shows an error display (one or more displays flashing on the programme progress display), check first of all
whether you can remedy the problem yourself by means of the table
below. If you cannot solve the problem: Switch the machine off and on
again. Reset programme. Press the
START/PAUSE button.
If the error display is still shown, please contact our after-sales service
and inform them which displays are flashing.
Problem
Possible cause
Remedy
Mains plug is not plugged in Plug in at mains socket. Check
or fuse is not working cor- fuse in fuse box (domestic inrectly.
stallation).
Dryer does not work.
Loading door is open.
Close loading door.
Base door is open.
Close base door.
Have you pressed the
Press the
START/PAUSE
START/PAUSE button? button again.
19
Problem
Possible cause
Remedy
Select a different programme
the next time you dry (see
Wrong programme selected.
“Overview of programmes”
section).
Lint filter clogged.
Clean lint filter.
Heat exchanger clogged
Clean heat exchanger.
Drying results unsatis- with lint.
factory.
Observe recommended loadIncorrect volume of laundry.
ing volumes.
Ventilation slots in base area Uncover ventilation slots in
covered up.
base area.
Residue on inside surface of Clean inside surface of drum
drum or drum ribs.
and drum ribs.
Loading door does not
close.
Fine strainer not in place
Install fine strainer and/or
and/or large mesh filter not snap large mesh filter into
locked in place.
place.
When pressing the
& SPECIAL CARE button, the corresponding
indicator flashes several times.
Washing protection. After
Turn the programme knob to
the start of the programme,
O OFF. Set the programme
the option can no longer be
again.
set.
Programme inactive,
o EMPTY WATER display illuminated.
Condensate tank is full.
Empty condensate tank, then
start programme with
START/PAUSE button.
Drying cycle ends
Select time programme or
Not enough washing loadshortly after prohigher drying level (e.g.
ed or washing loaded is too
gramme starts. E END
N INTENSIVE DRY instead of
dry for selected programme.
display illuminated.
» STORAGE DRY).
Drying cycle lasts an
unusually long time.
Note:
After around 5 hours
the drying cycle ends
automatically (see
„Drying cycle complete“).
20
Lint filter clogged.
Clean lint filter.
Heat exchanger clogged
with lint.
Clean heat exchanger.
& SPECIAL CARE button
& SPECIAL CARE is only suitapressed and load volume too ble for use with loads of up to
big.
2,5kg!
Load volume too big.
Reduce load volume.
Laundry insufficiently predrained.
Laundry must be adequately
pre-drained.
Technical data
5
This appliance conforms with the following EU Directives:
– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending
Directive 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Height x width x depth
85 x 60 x 60 cm
Depth with loading door open
109 cm
Height can be adjusted by
1.5 cm
Weight when empty
Loading volume (depends on programme)
approx. 40kg
1)
max. 5kg
Energy consumption in accordance with IEC 1121 s.
e.
3,5kWh
(5kg of cotton, pre-drained at 800 rpm,
m COTTONS » STORAGE DRY programme)
Scope
Domestic
permissible ambient temperature
+ 5°C to + 35°C
1) Different loading volume data may be needed in some countries as a result of different measuring methods.
21
Consumption values
The consumption values have been established under standard conditions. They may deviate when the machine is operated in domestic circumstances.
Programme
m COTTONS » STORAGE DRY 1)
m COTTONS £ HAND IRON
1)
l EASY CARES » STORAGE DRY
1) pre-drained at 800 rpm
2) pre-drained at 1000 rpm
22
2)
Loading volume
in kg
Energy consumption
in kWh
5
3,5
5
2,8
2,5
1,4
Installation and connection instructions
1 Installation safety instructions
• Before first starting up, all parts of the transport safety equipment
must be removed. The machine may otherwise be damaged.
• Before starting up for the first time, ensure that the nominal voltage
and type of current specified on the machine type plate match the
nominal voltage and type of current at the installation site. The electrical fuses required can also be found on the type plate.
• Always connect the plug into a protection contact socket which has
been installed as specified.
• With permanent connections: A permanent connection may only be
established by an authorised specialist electrician.
• Do not install machine in rooms at risk of frost.
• Do not install on carpets with high piles. Air circulation will be hindered at the ventilation slots.
• Ensure that the machine is not placed on its mains cable.
• Install the machine horizontally.
Removing transport safety equipment
1
Caution! Before first starting up,
all parts of the transport safety
equipment must be removed. Keep
the transport safety equipment for
possible subsequent transport
(moving house).
1. Open loading door
2. Pull off adhesive strips from inside
machine on top of drum.
3. Remove foil hose and polystyrene
padding from the machine.
23
Electrical connection
Details on mains voltage, type of current and the fuses required should
be taken from the type plate. The type plate is fitted near the loading
aperture (see “Machine description” section).
Changing door stop
1
Warning! The door stop may only be changed by a qualified person. If
necessary, please contact our after-sales service or your specialist dealer.
Warning! Before changing the door stop, disconnect the mains plug;
with a permanent connection: fully unscrew or deactivate the fuse.
1. Open loading door
2. Unscrew hinge A from the front of
the machine and take off the loading door.
3. Use a thin screwdriver to pry off
cover plates B and C.
4. Use an appropriate tool and exert
pressure to unfasten locking block D
from the snap-on fixture, take out
and reinsert on the other side, having rotated the block through 180°.
5. Unscrew hinge A from the loading door, rotate through 180°, reinsert
on the opposite side and screw down.
6. Reinsert cover plates B and C on the opposite site having first rotated
them through 180°.
24
7. Unscrew cover plates E from the
front of the machine, rotate
through 180, screw on the opposite
side.
8. Unscrew door lock F, push down
slightly and remove from the front
of the machine.
9. Press snap-in button G in and down,
press cover down slightly and remove from front of the machine.
10. Transfer door lock F to the oppositeside and screw down.
11. Fix cover G on to the other side and
allow the snap-in button to lock in
place.
12. Insert loading door and hinges into
recesses on the front of the machine and screw down.
Note regarding contact protection: The machine is only secure for
operations again once all plastic parts have been inserted.
25
Special accessories
The following special accessories are available from your specialist
dealer:
Intermediate installation kits for stacked washer and
dryer:
These intermediate installation kits can be used to arrange the dryer
and an automatic AEG washing machine (60cm wide, front loading) as
a space-saving washer/dryer stack. The automatic washing machine is
at the bottom and the dryer is at the top.
Two versions can be supplied:
– without stacker plate
– with extractable stacker plate
Installation kit for external condensate drain
Installation kit for direct draining of condensate into a basin, siphon,
gully, etc. The condensate tank then no longer has to be drained, it
must however remain in its intended position in the machine. The
o EMPTY WATER indicator at the end of each program can then be
ignored.
Max. displacement height: 1m from the base of the dryer; max. displacement length: 3m
26
Guarantee Conditions
Belgium
DECLARATION OF GUARANTEE TERMS.
Our appliances are produced with the greatest of care. However, a defect may still occur. Our consumer services department will repair this upon request, either during or after the guarantee period. The service life of the appliance will not, however, be reduced as a result.
This declaration of guarantee terms is based on European Union Directive 99/44/EC and the provisions of the Civil Code. The statutory rights that the consumer has under this legislation are not
affected by this declaration of guarantee terms.
This declaration does not affect the vendor's statutory warranty to the end user. The appliance is
guaranteed within the context of and in adherence with the following terms:
1. In accordance with provisions laid down in paragraphs 2 to 15, we will remedy free of charge any
defect that occurs within 24 months from the date the appliance is delivered to the first end user.
These guarantee terms do not apply in the event of use for professional or equivalent purposes.
2. Performing the guarantee means that the appliance is returned to the condition it was in before
the defect occurred. Defective parts are replaced or repaired. Parts replaced free of charge become
our property.
3. So as to avoid more severe damage, the defect must be brought to our attention immediately.
4. Applying the guarantee is subject to the consumer providing proof of purchase showing the purchase and/or delivery date.
5. The guarantee will not apply if damage caused to delicate parts, such as glass (vitreous ceramic),
synthetic materials and rubber, is the result of inappropriate use.
6. The guarantee cannot be called on for minor faults that do not affect the value or the overall reliability of the appliance.
7. The statutory warranty does not apply when defects are caused by:
• a chemical or electrochemical reaction caused by water,
• abnormal environmental conditions in general,
• unsuitable operating conditions,
• contact with harsh substances.
8. The guarantee does not apply to defects due to transport which have occurred outside of our responsibility. Nor will the guarantee cover those caused by inadequate installation or assembly, lack
of maintenance or failure to respect the assembly instructions or directions for use.
9. Defects that result from repairs or measures carried out by people who are not qualified or expert
or defects that result from the addition of non-original accessories or spare parts are not covered
by the guarantee.
10. Appliances that are easy to transport may be delivered or sent to the consumer services department. Home repairs are only anticipated for bulky appliances or built-in appliances.
11. If the appliances are built-in, built-under, fixed or suspended in such a way that removing and replacing them in the place where they are fitted takes more than half an hour, the costs that result
therefrom will be charged for. Connected damage caused by these removal and replacement operations will be the responsibility of the user.
12. If, during the guarantee period, repairing the same defect repeatedly is not conclusive, or if the repair costs are considered disproportionate, in agreement with the consumer, the defective appliance may be replaced with another appliance of the same value.
In this event, we reserve the right to ask for a financial contribution calculated according to the
length of time it has been used.
13. A repair under guarantee does not mean that the normal guarantee period will be extended nor
that a new guarantee period begins.
14. We give a twelve month guarantee for repairs, limited to the same defect.
15. Except in the event where liability is legally imposed, this declaration of guarantee terms excludes
any compensation for damage outside the appliance for which the consumer wishes to assert his
rights. In the event of legally admitted liability, compensation will not exceed the purchase price
paid for the appliance.
27
These guarantee terms are only valid for appliances purchased and used in Belgium. For exported
appliances, the user must first make sure that they satisfy the technical conditions (e.g.: voltage,
frequency, installation instructions, type of gas, etc.) for the country concerned and that they can
withstand the local climatic and environmental conditions. For appliances purchased abroad, the
user must first ensure that they meet the qualifications required in Belgium. Non-essential or requested adjustments are not covered by the guarantee and are not possible in all cases.
Our consumer services department is always at your disposal, even after the guarantee period has
expired.
Address for our consumer services department:
ELECTROLUX HOME PRODUCTS BELGIUM
Bergensesteenweg, 719 - 1502 LEMBEEK
Tel.: 02.363.04.44
28
Customer Service Centres
Belgium
Electrolux Home Products Belgium
ELECTROLUX SERVICE
Bergensesteenweg 719
1502 Lembeek
E-mail:
[email protected]
Consumer services
Tel.:
02/363.04.44
Fax.:
02/363.04.00
02/363.04.60
29
30
Service
In the event of technical faults, please first check whether you can
remedy the problem yourself with the help of the operating instructions (section “What to do if…”).
If you were not able to remedy the problem yourself, please contact the
Customer Care Department or one of our service partners.
In order to be able to assist you
quickly, we require the following
information:
– Model description
– Product number (PNC)
– Serial number (S No.)
(for numbers see rating plate)
– Type of fault
– Any error messages displayed by
the appliance
So that you have the necessary reference numbers from your appliance
at hand, we recommend that you write them in here:
Model description:
.....................................
PNC:
.....................................
S No:
.....................................
31
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
822 944 402-01-030604-01
Subject to change without notice
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
