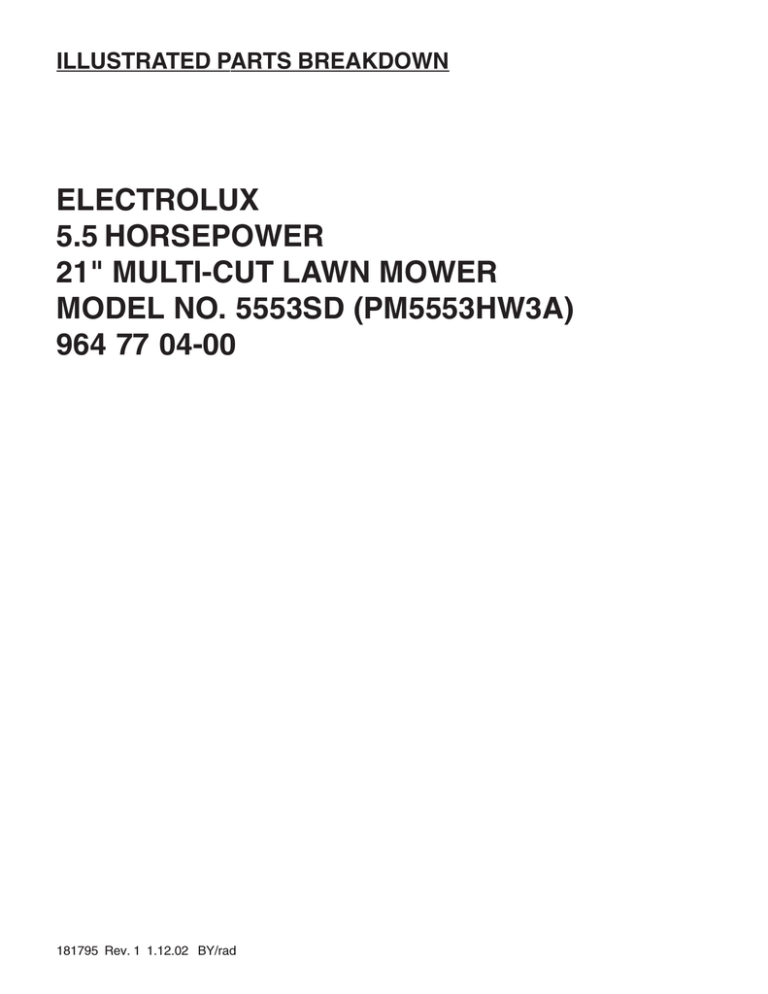

ILLUSTRATED PARTS BREAKDOWN
ELECTROLUX
5.5 HORSEPOWER
21" MULTI-CUT LAWN MOWER
MODEL NO. 5553SD (PM5553HW3A)
964 77 04-00
181795 Rev. 1 1.12.02 BY/rad
ROTARY LAWN MOWER - - MODEL NUMBER 5553SD (PM5553HW3A) PRODUCT NUMBER 964 77 04-00
2
ROTARY LAWN MOWER - - MODEL NUMBER 5553SD (PM5553HW3A) PRODUCT NUMBER 964 77 04-00
KEY
NO.
PART
NO.
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
532 17 80-67
532 15 36-05
532 17 02-87
532 13 08-61
532 13 19-59
532 17 01-46
532 05 17-93
532 06 64-26
532 18 04-79
532 12 84-15
532 18 25-38
532 18 25-39
817 06 04-10
532 12 25-43
532 18 25-44
532 18 00-71
532 18 00-72
532 13 20-04
532 17 95-85
532 17 92-05
532 05 45-83
532 08 45-96
532 08 76-77
---
25
26
27
28
29
532 15 04-06
532 08 39-23
532 18 17-85
532 16 08-28
532 05 71-43
DESCRIPTION
Upper Handle
Lower Handle
Control Bar
Engine Zone Control Cable
Handle Bolt
Handle Knob
Hairpin Cotter
Wire Tie
Rear Door Kit (Incl. Key #16 & 17)
Pop Rivet
Support Bracket LH
Support Bracket RH
Screw 14-20 x 5/8
Handle Bracket Assembly (Left)
Handle Bracket Assembly (Right)
Spring LH
Spring RH
Keps Locknut 1/4-20
Rope Guide
Foot Guard, C.E.
Screw, Tapping 1/4-20 x 1/2
Engine Pulley
Hi-Pro Key #505
Engine, Honda, Model No. GCV160
(order parts from engine manufacturer)
Hex Head Thread Rolling Srew 3/8-16 x 1-1/8
Hex Flange Nut
Wheel
Shoulder Bolt 5/16-18 x .33
Wave Washer
KEY
NO.
30
31
32
33
34
35
36
37
38
43
44
45
46
47
48
49
50
83
84
85
86
87
88
89
90
----
PART
NO.
532 18 25-41
532 17 54-78
532 18 25-37
532 06 31-24
532 18 25-42
532 18 06-24
532 16 59-12
532 15 00-78
819 11 22-06
532 17 50-83
532 18 17-97
532 14 54-94
532 18 00-69
532 17 50-52
532 85 10-74
532 85 02-63
532 85 10-84
532 17 50-66
532 17 57-35
532 17 52-85
532 17 56-50
532 06 36-01
532 17 50-71
532 18 21-59
532 14 49-29
532 16 10-57
532 18 17-92
532 18 17-93
DESCRIPTION
Axle Arm Assembly RR
Selector Knob
Selector Spring
Nut 5/16-18
Axle Arm Assembly LR
Hubcap
Bolt
Thread Cutting Screw w/Sems 5/16-18 x 3/4
Washer
Bottom Belt Cover
Lawn Mower Housing (Incl. Key #10, 11, 12& 45)
Danger Deal
Blade Adapter
Blade 21"
Hardened Washer
Helical Washer 3/8-24 x 1-3/8 Gr. 8
Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
Mulch Door
Hinge Bracket Assembly
Spring
Rod, Hinge
Nut
Clipping Deflector
Throttle Control
Screw
Decal, Self-Propelled, Internal (not shown)
Operator’s Manual, Euro
Operator’s Manual, Scan
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
ROTARY LAWN MOWER - - MODEL NUMBER 5553SD (PM5553HW3A) PRODUCT NUMBER 964 77 04-00
4
ROTARY LAWN MOWER - - MODEL NUMBER 5553SD (PM5553HW3A) PRODUCT NUMBER 964 77 04-00
KEY
NO.
5
1
3
4
5
6
8
9
11
12
13
14
16
18
26
PART
NO.
532 17 43-18
532 75 11-52
532 15 87-55
532 17 54-36
532 15 04-95
532 16 43-78
532 14 52-12
532 18 07-67
812 00 00-58
532 13 70-54
532 18 05-04
532 06 77-25
532 17 01-43
532 17 52-62
DESCRIPTION
Control Cable Assembly
Locknut #10-24
Hex Washer Head Screw 1/4-20 x 2.12
V-Belt
Spring Retainer
Hubcap
Locknut
Wheel & Tire Assembly
E-Ring
Pinion
Dust Cover
Washer 1/2 x 1-1/2 x .134
Selector Knob
Pan Head Tapping Screw #10-24 x 2-3/4
KEY
NO.
28
31
32
35
36
37
38
40
41
54
55
57
PART
NO.
532 18 03-29
532 13 20-10
532 13 70-52
532 15 15-21
532 17 52-58
532 13 70-90
532 06 36-01
532 07 51-92
532 15 15-20
532 18 17-94
532 17 57-39
532 17 50-58
DESCRIPTION
Drive Cover
Hex Flange Nut
Drive Pulley
Wheel Adjuster Assembly (Left)
Gear Case Assembly
Spring
Locknut 1/4-20
Spring
Wheel Adjuster Assembly (Right)
Grassbag Assembly
Driveshaft Cover
Frame
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
ROTARY LAWN MOWER - - MODEL NUMBER PM5553HW3A (5553SD)
PRODUCT NUMBER 964 77 04-00
GEARCASE ASSEMBLY - PART NUMBER 532 17 52-58
KEY
NO.
PART
NO.
1
2
3
4
6
817 49 04-16
532 18 25-40
532 13 70-53
532 05 70-72
532 04 83-73
7
8
9
10
11
12
13
14
15
16
17
18
19
532 07 78-81
532 13 70-51
532 17 52-57
532 05 70-79
532 13 14-84
532 70 03-43
532 08 64-47
532 13 70-50
532 75 04-36
532 75 03-69
812 00 00-03
532 85 08-48
532 12 54-41
DESCRIPTION
Tapping Screw 1/4-20 x 1-1/4
Engagement Bracket
Shifter
Seal
Gear Case Halves Kit
(Includes Key Numbers 4 and 7)
Bearing
Worm Shaft
Drive Shaft
Hardened Washer
Clutch Yoke
Bushing
Plug
Helical Gear
Clutch Jaw
Grease
E-Ring
Hi-Pro Key
Spring Bracket
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
6
