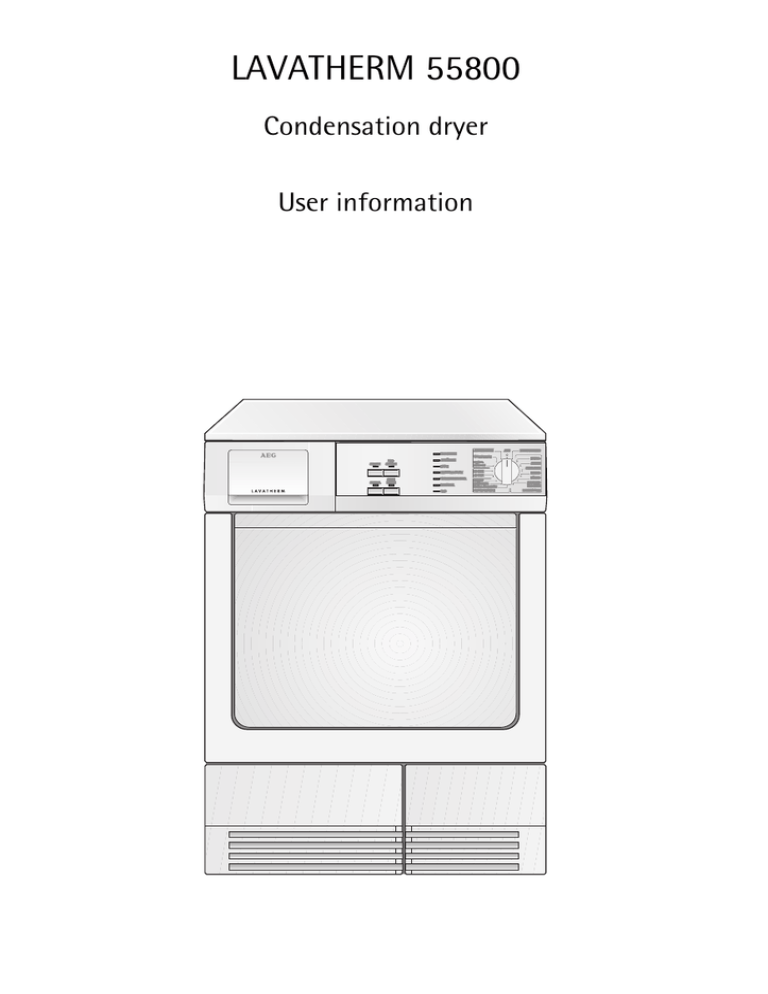

LAVATHERM 55800
Condensation dryer
User information
Dear Customer,
Please read this user information carefully and keep it to refer to later.
Please pass the user information on to any future owner of the appliance.
1
3
2
2
The following symbols are used in the text:
Safety instructions
Warning! Information that affects your personal safety.
Important! Information that prevents damage to the appliance.
Useful tips and hints
Environmental information
Contents
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Environmental tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Description of machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Operating screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Before the first drying cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Sorting and preparing laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Overview of programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching machine on / switching light on . . . . . . . . . . . . . . . . . . . . . . . . . .
Opening loading door / loading laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIAL CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUDIBLE SIGNAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SENSITIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Putting in extra items or taking items out before end of programme . . . .
Drying cycle complete / removing laundry . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
12
12
12
12
12
13
13
13
13
13
14
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning fluff filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emptying the condensate tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clean operating screen and housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
15
16
17
18
18
What to do if…?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Troubleshooting by yourself . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Changing bulb for inside light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Programming options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Consumption values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3
Installation and connection instructions. . . . . . . . . . . . . . . . .
24
Installation safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Removing transport safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Changing door stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Special accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service and Spare Parts
4
29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Operating Instructions
1 Safety
Before first starting up
• Note the ”Installation and connection instructions”
• Before first starting up, check the machine for any damage incurred
during transport. Never connect up a damaged machine. If parts are
damaged, contact your supplier.
Intended use
• The dryer is intended for drying standard laundry in domestic applications.
• Conversions or modifications to the dryer are not permitted.
• The laundry must not contain flammable solvents (benzene,
alcohol, stain remover, etc.) . Risk of fire and/or explosion! Laundry
which has come into contact with such substances must be rinsed
thoroughly by hand before drying.
• When using dry-cleaning sets: Only use those products which are declared as suitable for the dryer by the manufacturer.
• Do not place items of laundry in the dryer which contain foam rubber
or materials similar to rubber. Risk of fire!
• Do not place heavily worn laundry items in the dryer. Risk of fire!
• Do not place laundry items with loose fillings (e.g. cushions) in the
dryer. Risk of fire!
• Parts with rigid components (e.g. door mats) may cover the air slots.
Risk of fire! Do not place such items in the dryer.
• Do not overfill the dryer. Risk of fire! Observe max. loading volume of
6 kg.
• Ensure that explosive objects (e.g. cigarette lighters, spray cans, etc.)
do not enter the dryer with the laundry. Risk of fire and/or explosion!
• Clean the micro-fine filter and fine strainer after each drying cycle.
• Clean the heat exchanger regularly.
• With stacked washer and dryer: Do not place objects on the dryer.
These may fall off during operation.
• The covering bonnet of the bulb for the drum light must be screwed
down tightly.
5
Child safety
• Keep packaging away from children. Risk of suffocation!
• Children can often not see the dangers associated with electric machines. Never leave unsupervised children near the dryer.
• Ensure that children and small animals cannot climb into the dryer’s
drum. Risk of death! Keep the dryer door shut whenever it is not being used.
General safety
• Only specialists may undertake repairs on the dryer.
• Never start up the dryer if the mains cable is damaged or if the operating screen, operating plate or base area are damaged so that the inside of the machine is open and accessible.
• Switch off the dryer before all cleaning, care or maintenance work.
Also disconnect the mains plug from the socket or – with permanent
connections – switch off the LS switch in the fuse box and/or fully
unscrew the screwed-in fuse.
• Disconnect the machine from the power supply during long pauses in
operations.
• When removing from the socket, never pull the mains plug by the cable, instead take a hold of the plug.
• Manifold plugs, couplings and extension cables must not be used.
Risk of fire from overheating!
• Do not spray down the dryer with jets of water. Risk of electric shock!
• Do not lean on the open door. The machine may tip over.
• Once the drying cycle has been interrupted, the laundry and drum
may be hot. Risk of burns! Take care when removing the laundry.
6
Disposal
2
2
1
Packaging material
The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at your local waste disposal facilities.
Old appliance
Please dispose of your old appliance in line with the guidelines for disposal in your area.
Warning! Remove mains plug from socket when you have no further
use for the machine. Cut off mains cable and dispose of together with
plug.
Destroy loading door lock. Children cannot then lock themselves in the
machine and put their lives at risk.
2 Environmental tips
• In the dryer, laundry becomes fluffy and soft. Fabric softeners are not
therefore needed when washing.
• Your dryer will function most economically if you:
– always keep the ventilation slots on the base of the dryer unobstructed;
– use the loading volumes specified in the programme overview;
– ensure you have good ventilation in the installation room;
– clean the micro-fine filter and fine strainer after each drying cycle;
– spin the laundry well before drying. Example: Consumption data –
depending on spinning speed – for 6kg of laundry, dried using the
COTTONS STORAGE DRY programme.
Pre-draining
Revolutions per
minute
Drying cycle
Residual dampness
Required time
in minutes
Energy
in kWh
in litres
as a %
800
4.2
70
130
4.3
1200
3.2
53
110
3.3
1400
3.0
50
105
3.1
1800
2.5
42
90
2.6
7
Description of machine
Drawer containing
condensate tank
Operating screen
Fine strainer
(lint filter)
Lamp for inside
light
Large mesh filter
(lint filter)
Micro-fine filter
(lint filter)
Type plate
Loading door
(interchangeable
stop)
Screwed feet
(with height adjustment)
Base door upstream of heat exchanger
Air slots
Operating screen
Programme selector
Programme progress display
Block of buttons and dis-
8
Maintenance displays
– HEAT EXCHANGER (clean!)
– EMPTY WATER(empty!)
– CLEAN FILTER (clean fluff filter!)
Before the first drying cycle
In order to remove any residue which may have been produced during
production, wipe the dryer drum with a damp cloth or undertake a
brief drying cycle (20 MIN) with damp cloths.
Sorting and preparing laundry
Sorting laundry
• Sort by fabric type:
– Cotton/linen for programmes in COTTONS programme group.
– Mixtures and synthetics for programmes in EASY CARES programme group.
• Sorting by care label. The care labels mean:
n
m
Basic drying in tumble
dryer possible
Drying at
normal
temperature
l
k
Drying at
Drying in tumble
reduced temperature
dryer not possi(press SPECIAL CARE butble
ton!)
• Do not dry new, coloured textiles together with light-coloured laundry items. Textile colours may bleed.
• Do not dry tricot or knitted items with the EXTRA DRY programme.
Items may become stuck!
• Do not dry wool in the dryer. May become entangled! After air-drying, wool may be dried with the WOOL CARE programme.
Preparing laundry
• To avoid laundry becoming tangled: Close zips, button up coverings
and tie loose bands or ribbons (e.g. of aprons).
• Empty pockets. Remove metallic items (paperclips, safety pins etc).
• Turn items with double-layered fabrics inside out (e.g. with cottonlined anoraks, the cotton layer should be outermost). These fabrics
will then dry better.
9
Overview of programmes
max. loading volume
(weight when dry)
SPECIAL CARE1)
AUDIBLE SIGNAL
SENSITIVE 1)
EXTRA DRY
6kg
•
•
•
Drying thick or multi-layered textiles, e.g. terry towelling items,
bathing costumes.
mn
INTENSIVE
DRY
6kg
•
•
•
Drying thick textiles, e.g. terry towelling items, towels.
mn
STORAGE
DRY
6kg
•
•
•
Drying textiles of even thicknesses,
e.g. terry towelling items, knitted
items, towels.
mn
DAMP
6kg
•
•
•
For thin textiles which are still to be
ironed, e.g. knitted items, cotton
shirts.
mn
HAND
IRON
6kg
•
•
•
For normal thickness cotton or linen
laundry, e.g. bedding, table linen.
mn
MACHINE
IRON
6kg
•
•
•
For cotton or linen laundry which
are still to be put through a machine, e.g. bedding, table linen.
mn
EXTRA DRY
3kg
•
•
•
Drying thick or multi-layered textiles, e.g. pullovers, bedding, table
linen.
m l2) n
STORAGE
DRY
3kg
•
•
•
For thin textiles which are not
ironed, e.g. easy care shirts, table
linen, baby’s clothes, socks, corsetry.
m l2)
n
DAMP
3kg
•
•
•
For thin textiles which are still to be
ironed, e.g. knitted items, cotton
shirts.
m l2)
n
COTTONS
Programme
EASY CARES
Additional
functions
Application/properties
1) SPECIAL CARE and SENSITIVE cannot both be selected at the same time.
2) Press the SPECIAL CARE button!
10
Care
symbols
EASY IRON
WOOL CARE
REFRESH
SPECIAL CARE1)
AUDIBLE SIGNAL
SENSITIVE 1)
20 MIN
40 MIN
max. loading volume
(weight when dry)
Programme
Additional
functions
1kg
•
•
-
1kg
1kg
1kg
•
•
•
•
•
•
Application/properties
For drying individual items of laundry
or for small volumes of less than 1kg.
-
Special programme with anti-crease
mechanism for easy care textiles such
shirts and blouses; for minimum ironing effort. The result depends on the
type and quality of textiles. (The loading volume corresponds to approx. 5
to 7 shirts.)
Recommendation: Place textiles in the
dryer straight after spinning. Once
dried, immediately remove textiles and
place on clothes hanger.
-
Special programme for briefly treating woollens with warm air after they
have been dried naturally, worn or
stored for long periods. Wool fibres are
aligned and the wool becomes soft
and snugly.
Recommendation: Remove textiles immediately after drying.
-
Special programme, lasting around 35
minutes, for refreshing or gently
cleaning textiles with commercially
available dry cleaning sets.
(Only use those products which are declared as suitable for the drier by the
manufacturer; please observe the
manufacturer’s instructions for use.)
Care
symbols
m l2)
n
m l2)
n
1) SPECIAL CARE and SENSITIVE cannot both be selected at the same time.
2) Press the SPECIAL CARE button!
11
Drying
Switching machine on / switching light on
Turn the programme selector to any programme or turn it to LIGHT. The
machine has been switched on. When the loading door is opened, the
drum is illuminated.
Opening loading door / loading laundry
1. Open loading door:
Use force to push against the loading door (push point
2. Load your laundry (do not force it in).
)
1
Caution! Do not jam laundry in between the loading door and rubber
seal.
3. Close loading door securely. Lock must audibly lock.
Selecting the programme
Use the programme selector to set
the programme you require. .
Selecting additional functions
If required, press the SPECIAL
CARE, AUDIBLE SIGNAL or SENSITIVE buttons.
SPECIAL CARE
For especially gentle drying of sensitive fabrics with the l care label
and for temperature-sensitive textiles (e.g. acrylic, viscose). Programme is executed with reduced heat.
SPECIAL CARE is only suitable for use with loads of up to 3kg!
12
AUDIBLE SIGNAL
When the drying cycle has finished, an intermittent audible signal will
sound.
SENSITIVE
For gentle drying of frequently-worn textiles. Programme starts on full
heat setting, which is then reduced towards the end of the programme
to ensure gentle care of laundry.
3
SPECIAL CARE and SENSITIVE cannot be selected together.
Starting the programme
Press the START/PAUSE button. The programme is started.
The programme progress display show drying progress.
Changing programme
To change a programme which has been selected by mistake once the
programme has started, first turn the programme selector to OFF and
then reset the programme.
3
The programme can no longer be changed directly once the programme
has started. If nevertheless there is an attempt to change the programme on the programme knob, the programme progress display and
the maintenance indicators flash. If an option button (excluding the
AUDIBLE SIGNAL button) is pressed, the corresponding indicator flashes
several times. The drying programme is not however affected by this
(laundry protection).
Putting in extra items or taking items out before end of
programme
1. Open loading door
1
Warning! Laundry and drum can become hot. Risk of burns!
2. Load or remove laundry items.
3. Close loading securely. Lock must audibly lock.
4. Press the START/PAUSE button to continue the drying cycle.
13
Drying cycle complete / removing laundry
3
14
Once the drying cycle is complete, the END and CREASE GUARD displays light up. If the AUDIBLE SIGNAL button has been pressed, an audible signal sounds intermittently.
The drying cycle is automatically followed by a crease guard phase
which lasts around 30 minutes. The drum rotates in intervals during
this phase. The laundry thereby remains relaxed and free of creases. The
laundry can be removed at any time during the crease guard phase.
(The laundry should be taken out towards the end of the crease guard
phase at the latest to prevent creases from forming.)
1. Open loading door
2. Before removing the laundry, remove lint from the micro-fine filter. It is
best to use a damp hand for this purpose (refer to “Cleaning and maintenance” section).
3. Remove laundry.
4. Turn the programme selector to OFF.
Important! After each drying cycle
– clean the micro-fine filter and fine strainer,
– drain the condensate tank
(refer to the “Cleaning and maintenance” section).
5. Close loading door.
Cleaning and maintenance
Cleaning fluff filter
1
To ensure that the dryer works perfectly, the fluff filters (micro-fine filter and fine strainer) must be cleaned after every drying cycle.
Caution! Never operate the dryer without fluff filters or with damaged
or blocked fluff filters.
1. Open loading door
2. Use a damp hand to clean the micro-fine filter, which is built into
the lower part of the loading aperture.
3. Push down unlock button on large
mesh filter.
Large mesh filter jumps up.
4. Take out fine strainer.
5. Remove fluff from fine strainer. It
is best to use a damp hand for this
purpose.
15
3
Clean the entire filter area
The strainer area does not have to be cleaned after every drying cycle,
but should be checked regularly and cleaned of fluff if necessary.
6. To do this, grip the top of the large
mesh filter and pull it forwards until it comes loose from the two
brackets.
7. Remove fluff from the entire filter
area. It is best to use a vacuum
cleaner for this purpose.
8. Press both journals of the large
mesh filter into the brackets on the
loading door until they snap into
place.
9. Re-insert fine strainer.
10. Press against the large mesh filter
until it locks into the interlock.
3
If the fine strainer is not fitted, the
large mesh filter will not snap into
place and the loading door cannot
be closed.
Emptying the condensate tank
1
16
Empty condensate tank after every drying cycle.
If the condensate tank is full, an active programme will break off automatically and the EMPTY WATER display will light up. In order to continue the programme, the condensate tank must first be emptied.
Warning! The condensate is not suitable for drinking or for preparing
foodstuffs.
1. Pull drawer containing condensate
tank
out all the way.
3
2. Pull out condensate tank’s outlet
connections and pour condensate
out into basin or other suitable
container.
3. Slide outlet connections in and refit condensate tank.
If the programme has been interrupted as a result of the condensate tank being full:
Press the START/PAUSE button to continue the drying cycle.
The condensate tank has a volume of approx. 4 litres. This is sufficient
for around 6kg of laundry which has previously been spun at 800 revolutions/minute.
3
The condensate can be used as distilled water, e.g. for steam ironing.
However first filter the condensate (e.g. with a coffee filter) to remove
any residue and small pieces of fluff.
Cleaning heat exchanger
1
If the HEAT EXCHANGER display is illuminated, the heat exchanger
needs to be cleaned.
Caution! Operating when the heat exchanger is clogged with lint can
damage the dryer. This also increases energy consumption.
1. Open loading door
2. Open base door. To do this, press
the release button on the bottom
of the loading opening and open
the door to the left.
3. Remove lint from the inside of the
door and the heat exchange chamber.
17
4. Turn both lock washers inwards.
5. Pull heat exchanger out of base by
the handle.
1
3
Caution! Do not use sharp objects
to clean. The heat exchanger could
develop leaks.
6. Clean heat exchanger.
It is best to use a brush or to rinse
thoroughly with a shower head.
7. Replace heat exchanger and lock
into place (turn both lock washers outwards until they snap into place).
8. Close base door.
1
The dryer will not operate if the base door is not closed.
Caution! Never operate the dryer without the heat exchanger.
Cleaning the drum
1
3
Caution! Do not use abrasives or steel wool to clean the drum.
Lime in the water or cleaning agents may form a barely visible lining on
the inside of the drum. The degree to which the laundry has been dried
is then no longer detected reliably. The laundry is damper than expected when removed from the dryer.
Use a standard domestic cleaner (e.g. vinegar-based cleaner) to wipe
down the inside of the drum and drum ribs.
Clean operating screen and housing
1
18
Caution! Do not use furniture cleaners or aggressive cleaning agents to
clean the machine.
Use a damp cloth to wipe down the operating screen and housing.
What to do if…?
Troubleshooting by yourself
If, during operation, the dryer shows an error display (one or more displays flashing on the programme progress display), check first of all
whether you can remedy the problem yourself by means of the table
below. If you cannot solve the problem: Switch the machine off and on
again. Reset programme. Press the START/PAUSE button.
If the error display is still shown, please contact our after-sales service
and inform them which displays are flashing.
Problem
Possible cause
Remedy
Mains plug is not plugged in Plug in at mains socket. Check
or fuse is not working cor- fuse in fuse box (domestic inrectly.
stallation).
Dryer does not work.
Loading door is open.
Close loading door.
Base door is open.
Close base door.
Have you pressed the START/ Press the START/PAUSE button
PAUSE button?
again.
Wrong programme selected.
Select a different programme
the next time you dry
(see “Overview of programmes” section).
Lint filter clogged.
Clean lint filter.
Heat exchanger clogged
with lint.
Clean heat exchanger.
Observe recommended loadDrying results unsatis- Incorrect volume of laundry.
ing volumes.
factory.
Ventilation slots in base area Uncover ventilation slots in
covered up.
base area.
Residue on inside surface of Clean inside surface of drum
drum or drum ribs.
and drum ribs.
Conductance of water at installation site differs from
standard setting of machine.
Re-programme standard setting for degree of drying (see
‘Programming options’ section).
Fine strainer not in place
Install fine strainer and/or
Loading door does not
and/or large mesh filter not snap large mesh filter into
close.
locked in place.
place.
19
Problem
When pressing a button, the corresponding
button flashes several
times.
Remedy
Washing protection. After
the start of the programme, Turn the programme knob to
the option can no longer be OFF. Set the programme again.
set.
Programme selector in OFF
position.
Turn programme selector to
LIGHT or to any programme.
Defective lamp.
Replace lamp (see next section).
Programme inactive,
EMPTY WATER display
illuminated.
Condensate tank is full.
Empty condensate tank, then
start programme with START/
PAUSE button.
Drying cycle ends
shortly after programme starts. END
display illuminated.
Select time programme or
Not enough washing loadhigher drying level (e.g. INTENed or washing loaded is too
SIVE DRY instead of STORAGE
dry for selected programme.
DRY).
Drum light does not
work.
Drying cycle lasts an
unusually long time.
Note:
After up to 5 hours the
drying cycle finishes
automatically
(see ”Drying cycle
complete”).
20
Possible cause
Lint filter clogged.
Clean lint filter.
Heat exchanger clogged
with lint.
Clean heat exchanger.
SPECIAL CARE button
SPECIAL CARE is only suitable
pressed and load volume too for use with loads of up to
big.
3kg!
Load volume too big.
Reduce load volume.
Laundry insufficiently predrained.
Laundry must be adequately
pre-drained.
Changing bulb for inside light
1
1
Only use a special bulb which is designed specially for dryers. The special bulb is available from the after-sales service,
ET-Nr. 112 552 000-5.
Warning! Do not use standard bulbs! These develop too much heat and
may damage the machine!
Warning! Before replacing the bulb, disconnect the mains plug; with a
permanent connection: fully unscrew or deactivate the fuse.
1. Unscrew covering bonnet from above bulb (this can be found directly
behind the loading aperture, at the top; refer to “Description of machine” section.)
2. Replace defective bulb.
3. Screw covering bonnet back down.
1
Warning! For reasons associated with safety, the covering bonnet must
be screwed down tightly. If this is not done, the dryer must not be operated.
21
Programming options
Objective
Implementation
1. Turn the programme selector to any programme.
Permanently program
2. Press the AUDIBLE SIGNAL button and hold down for apin the audible signal
prox. 5 seconds.
which reminds you that
A brief signal sounds several times. The AUDIBLE SIGNAL
the programme is comdisplay flashes several times.
plete.
The setting is permanently programmed.
The setting is cancelled as described under 1 and 2.
1. Turn the programme selector to any programme.
2. Press the SENSITIVE and START/PAUSE buttons at the
same time and hold down for approx. 5 seconds.
Adjust detection of deThe current setting is displayed on the programme
gree of drying:
progress display:
If the laundry is slightly
– END display: Setting for drier laundry
drier or slightly damp– COOLING display: Standard setting
er at the end of the
– DRYING display: Setting for damper laundry
programme than with
3. Press the START/PAUSE button until the setting required
the standard setting.
appears on the programme progress display.
4. Turn the programme selector to OFF.
The setting is permanently programmed.
1. Turn the programme selector to any programme.
If the EMPTY WATER
2. Press the SPECIAL CARE and AUDIBLE SIGNAL buttons at
display is to remain
the same time and hold down for approx. 5 seconds. The
permanently deactivatEMPTY WATER display flashes briefly.
ed when using an exThe EMPTY WATER display is permanently deactivated.
ternal condensate
Settings may be cancelled as under 1 and 2, but the EMPTY
drain.
WATER display is briefly illuminated (instead of flashing).
22
Technical data
5
This appliance conforms with the following EU Directives:
– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending
Directive 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Height x width x depth
85 x 60 x 60 cm
Depth with loading door open
109 cm
Height can be adjusted by
1.5 cm
Weight when empty
approx. 40kg
Loading volume (depends on programme) 1)
max. 6kg
Energy consumption in accordance with IEC 1121 s.
e.
4.3kWh
(6kg of cotton, pre-drained at 800 rpm,
COTTONS STORAGE DRY programme)
Scope
Domestic
permissible ambient temperature
+ 5°C to + 35°C
1) Different loading volume data may be needed in some countries as a result of different measuring methods.
Consumption values
The consumption values have been established under standard conditions. They may deviate when the machine is operated in domestic circumstances.
Programme
COTTONS STORAGE DRY 1)
COTTONS HAND IRON
1)
EASY CARES STORAGE DRY
2)
Loading volume
in kg
Energy
consumption
in kWh
6
4.3
6
3.5
3
1.6
1) pre-drained at 800 rpm
2) pre-drained at 1000 rpm
23
Installation and connection instructions
1 Installation safety instructions
• Before first starting up, all parts of the transport safety equipment
must be removed. The machine may otherwise be damaged.
• Before starting up for the first time, ensure that the nominal voltage
and type of current specified on the machine type plate match the
nominal voltage and type of current at the installation site. The electrical fuses required can also be found on the type plate.
• Always connect the plug into a protection contact socket which has
been installed as specified.
• With permanent connections: A permanent connection may only be
established by an authorised specialist electrician.
• Do not install machine in rooms at risk of frost.
• Do not install on carpets with high piles. Air circulation will be hindered at the ventilation slots.
• Ensure that the machine is not placed on its mains cable.
• Install the machine horizontally.
Removing transport safety equipment
1
Caution! Before first starting up,
all parts of the transport safety
equipment must be removed. Keep
the transport safety equipment for
possible subsequent transport
(moving house).
1. Open loading door
2. Pull off adhesive strips from inside
machine on top of drum.
3. Remove foil hose and polystyrene
padding from the machine.
24
Electrical connection
1
1
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
WARNING – THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability should these safety measures
not be observed.
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate.
The appliance is supplied with a 13 amp plug fitted. In the event of
having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1363) fuse must be used.
Should the plug need to be replaced
for any reason, proceed as described
below.
The wires in the mains lead are
coloured in accordance with the
following code:
Green and Yellow:
Earth
Blue:
Neutral
Brown:
Live
• The wire coloured green and yellow
must be connected to the terminal
marked with the letter “E“ or by the
earth symbol E or coloured green and yellow.
• The wire coloured blue must be connected to the terminal “N“ or
coloured black.
• The wire coloured brown must be connected to the terminal marked
“L“ or coloured red.
• Upon completion there must be no cut, or stray strands of wire
present and the cord clamp must be secure over the outer sheath.
WARNING! A cut off plug inserted into a 13 amp socket is a serious
safety (shock) hazard. Ensure that the cut off plug is disposed of safely.
25
Permanent Connection
1
In the case of a permanent connection it is necessary that you install a
double pole switch between the appliance and the electricity supply
(mains), with a minimum gap of 3mm between the switch contacts and
of a type suitable for the required load in compliance with the current
electrical regulations.
The switch must not break the yellow and green earth cable at any
point.
This appliance complies with the requirements laid out in the EEC Directive 76/899.
Voltage 240 V AC: Fuse rating 13amps
See rating plate for further information.
This appliance meets VDE requirements.
Particular regulations of local electricity authorities must be observed.
This appliance conforms to EEC Directive No. 82/499/EWG on radio interference.
WARNING! Repairs to electrical appliances must only be carried out by
trained personnel. Improper repairs may lead to serious risks for the user.
Changing door stop
1
Warning! The door stop may only be changed by a qualified person. If
necessary, please contact our after-sales service or your specialist dealer.
Warning! Before changing the door stop, disconnect the mains plug;
with a permanent connection: fully unscrew or deactivate the fuse.
1. Open loading door
2. Unscrew hinge A from the front of
the machine and take off the loading door.
3. Use a thin screwdriver to pry off
cover plates B and C.
4. Use an appropriate tool and exert
pressure to unfasten locking block D
from the snap-on fixture, take out
and reinsert on the other side, having rotated the block through 180°.
26
5. Unscrew hinge A from the loading door, rotate through 180°, reinsert
on the opposite side and screw down.
6. Reinsert cover plates B and C on the opposite site having first rotated
them through 180°.
7. Unscrew cover plates E from the
front of the machine, rotate
through 180, screw on the opposite
side.
8. Unscrew door lock F, push down
slightly and remove from the front
of the machine.
9. Press snap-in button G in and down,
press cover down slightly and remove from front of the machine.
10. Transfer door lock F to the oppositeside and screw down.
11. Fix cover G on to the other side and
allow the snap-in button to lock in
place.
12. Insert loading door and hinges into
recesses on the front of the machine and screw down.
Note regarding contact protection: The machine is only secure for
operations again once all plastic parts have been inserted.
27
Special accessories
The following special accessories are available from your specialist
dealer:
Intermediate installation kits for stacked washer and
dryer:
These intermediate installation kits can be used to arrange the dryer
and an automatic AEG washing machine (60cm wide, front loading) as
a space-saving washer/dryer stack. The automatic washing machine is
at the bottom and the dryer is at the top.
Two versions can be supplied:
– without stacker plate
– with extractable stacker plate
Installation kit for external condensate drain
Installation kit for direct draining of condensate into a basin, siphon,
gully, etc. The condensate tank then no longer has to be drained, it
must however remain in its intended position in the machine. Refer to
the “Programme options” section for how to deactivate the EMPTY WATER display.
Max. displacement height: 1m from the base of the dryer; max. displacement length: 3m
28
Warranty conditions
Great Britain
Standard guarantee conditions
We, AEG, undertake that if within 12 months of the date of the purchase this AEG appliance or
any part thereof is proved to be defective by reason only of faulty workmanship or materials, we
will, at our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage
on condition that:
• The appliance has been correctly installed and used only on the electricity or gas supply stated
on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the
manufacturer's operating and maintenance instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any
person not authorised by us.
• All service work under this guarantee must be undertaken by a Service Force Centre. Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights.
• Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available
outside these hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are subject
to rental agreements.
• Products of AEG manufacture which are not marketed by AEG.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to
your new home subject to the following qualifications:
• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in
the new country of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your
move and able to look after you and your appliances.
France
Germany
Italy
Sweden
UK
Senlis
Nürnberg
Pordenone
Stockholm
Slough
+33 (0) 3 44 62 29 29
+49 (0) 800 234 7378
+39 (0) 800 117511
+46 (0) 8 672 5360
+44 (0) 1753 219899
29
30
Service and Spare Parts
If the event of your appliance requiring service, or if you wish to purchase spare parts, please contact Service Force by telephoning:
0870 5 929 929
Your telephone call will be automatically routed to the Service Force
Centre covering your post code area.
For the address of your local Service Force Centre and further information about Service Force, please visit the website at
www. serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details
under the heading „What to do if...“
When you contact the Service Force Centre you will need to give the
following details:
1. Your name, address and post code.
2. Your telephone number.
3. Clear and concise details of the fault.
4. The model and serial number of the appliance (found on the rating
plate)
5. The purchase date.
Please note that a valid purchase receipt or guarantee documentation is
required for in-guarantee service
calls.
Customer Care
For general enquiries concerning
your AEG appliance, or for further
information on AEG products please
contact our Customer Care Department by letter or telephone at the
address below or visit our website at www.aeg.co.uk.
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
Berkshire, SL1 1DZ
Tel: 08705 350350 (*)
(*) Calls may be recorded for training purposes
31
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
822 944 411-01-120504-01
Subject to change without notice
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
