ITEM #
MODEL #
High Speed Sandwich Press
PROJECT NAME #
SIS #
AIA#

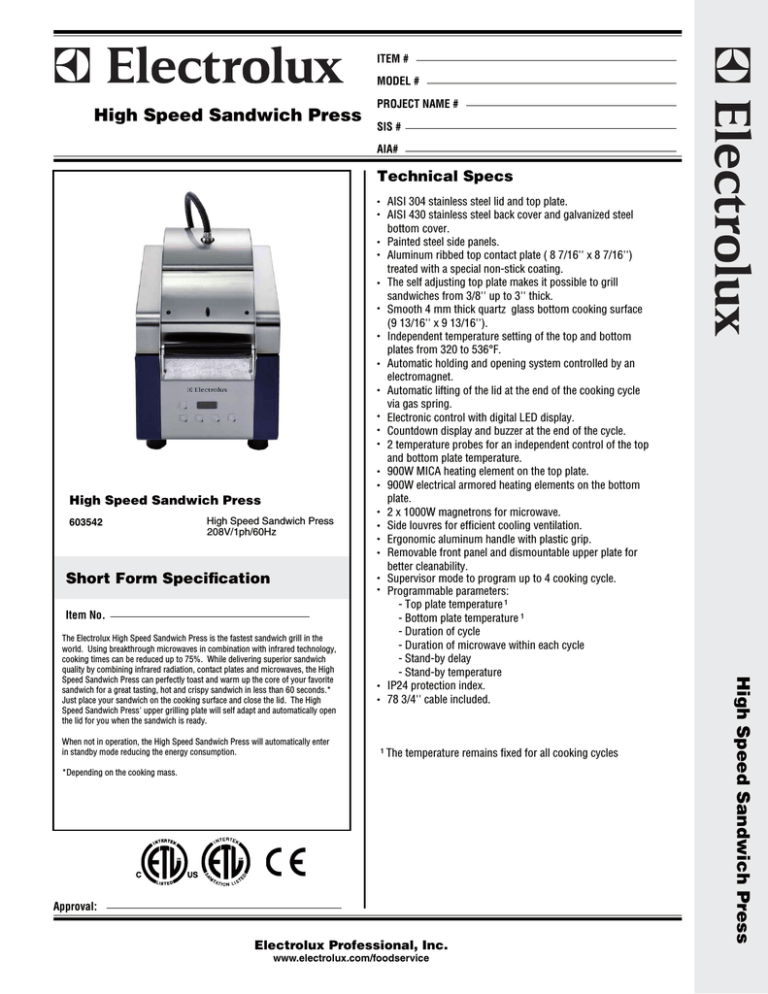

Technical Specs
High Speed Sandwich Press
603542
High Speed Sandwich Press
208V/1ph/60Hz
Short Form Specification
Item No.
When not in operation, the High Speed Sandwich Press will automatically enter
in standby mode reducing the energy consumption.
¹ The temperature remains fixed for all cooking cycles
*Depending on the cooking mass.
Approval:
Electrolux Professional, Inc.
www.electrolux.com/foodservice
High Speed Sandwich Press
The Electrolux High Speed Sandwich Press is the fastest sandwich grill in the
world. Using breakthrough microwaves in combination with infrared technology,
cooking times can be reduced up to 75%. While delivering superior sandwich
quality by combining infrared radiation, contact plates and microwaves, the High
Speed Sandwich Press can perfectly toast and warm up the core of your favorite
sandwich for a great tasting, hot and crispy sandwich in less than 60 seconds.*
Just place your sandwich on the cooking surface and close the lid. The High
Speed Sandwich Press' upper grilling plate will self adapt and automatically open
the lid for you when the sandwich is ready.
• AISI 304 stainless steel lid and top plate.
• AISI 430 stainless steel back cover and galvanized steel
bottom cover.
• Painted steel side panels.
• Aluminum ribbed top contact plate ( 8 7/16'' x 8 7/16'')
treated with a special non-stick coating.
• The self adjusting top plate makes it possible to grill
sandwiches from 3/8'' up to 3'' thick.
• Smooth 4 mm thick quartz glass bottom cooking surface
(9 13/16'' x 9 13/16'').
• Independent temperature setting of the top and bottom
plates from 320 to 536°F.
• Automatic holding and opening system controlled by an
electromagnet.
• Automatic lifting of the lid at the end of the cooking cycle
via gas spring.
• Electronic control with digital LED display.
• Countdown display and buzzer at the end of the cycle.
• 2 temperature probes for an independent control of the top
and bottom plate temperature.
• 900W MICA heating element on the top plate.
• 900W electrical armored heating elements on the bottom
plate.
• 2 x 1000W magnetrons for microwave.
• Side louvres for efficient cooling ventilation.
• Ergonomic aluminum handle with plastic grip.
• Removable front panel and dismountable upper plate for
better cleanability.
• Supervisor mode to program up to 4 cooking cycle.
• Programmable parameters:
- Top plate temperature ¹
- Bottom plate temperature ¹
- Duration of cycle
- Duration of microwave within each cycle
- Stand-by delay
- Stand-by temperature
• IP24 protection index.
• 78 3/4'' cable included.
High Speed Sandwich Press
Supply voltage:
603542(HSPPUS)
Amps
Total installed power:
Top plate power:
Bottom plate power:
Microwave power:
Plug Type
24 4/5''
19 3/8''
Electric
208 V/1ph/60Hz
26
5 kW
0,9 kW
0,9 kW
2 kW
NEMA 6-30P
Installation
Clearance:
6 3/5''
10 1/5''
14 1/5''
- 1''(25 mm) rear
- 8''(200 mm) between units
when placed side by side
Key Information
14 1/5''
24 4/5"x 14 1/5"x 26 3/5"
Net weight:
Shipping weight:
Shipping height:
Shipping width:
Shipping depth:
Shipping volume:
78 lbs
119 lbs
27 3/16"
17 3/4"
30 11/16"
8.5 ft.3
8 7/16" x 8 7/16"
9 13/16" x 9 13/16"
8 7/16" x 8 7/16"
31 1/2''
26 3/5''
23 5/8''
I
External dimensions:
Cooking plate dimensions:
Top plate:
Bottom plate:
Bottom plate - net:
I
18 15/16''
24 4/5''
26 4/8''
I = Electrical connection
High Speed Sandwich Press
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
10/07/09
