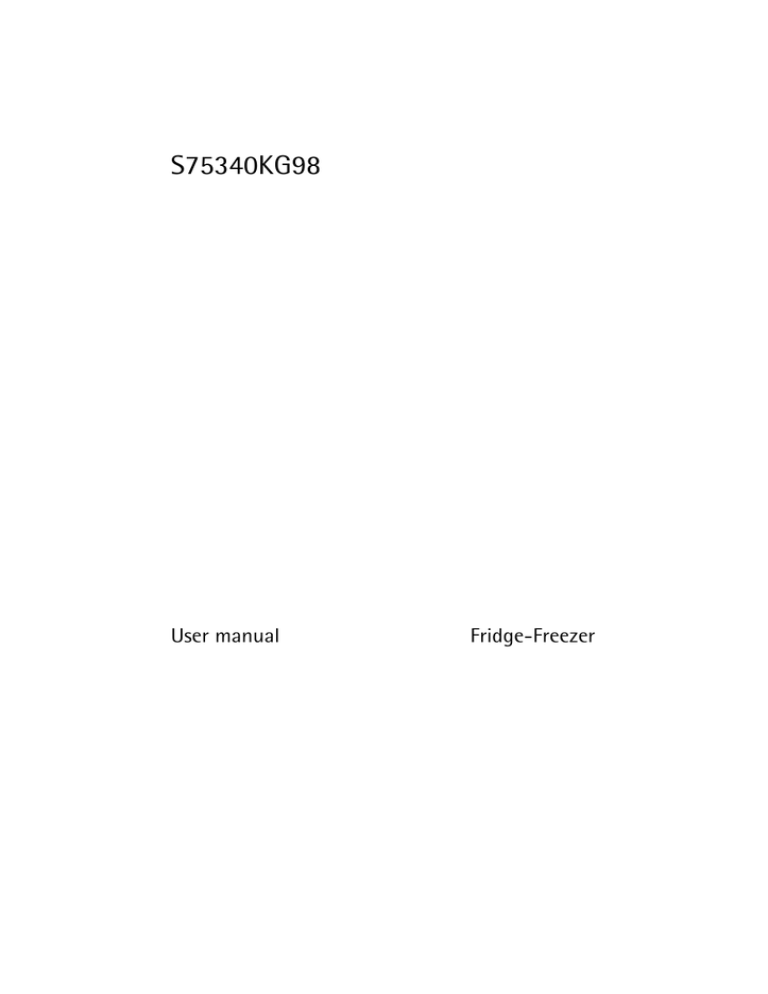

S75340KG98
User manual
Fridge-Freezer
2
Contents
Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Contents
Safety information
Children and vulnerable people safety
General safety
Daily Use
Care and cleaning
Installation
Service
Control panel
Switching on
Switching off
Temperature indicators
Temperature regulation
COOLMATIC function
Holiday function
FROSTMATIC function
High temperature alarm
First use
Cleaning the interior
Daily use
Storage of frozen food
Thawing
Movable shelves
Bottle rack
Vegetable Drawer
Positioning the door shelves
Removal of freezing baskets from the
freezer
2
3
3
4
4
4
5
5
6
6
6
6
7
7
7
8
8
8
8
8
8
9
9
9
10
Helpful hints and tips
Normal Operating Sounds
Hints for energy saving
Hints for fresh food refrigeration
Hints for refrigeration
Hints for freezing
Hints for storage of frozen food
Care and cleaning
Periodic cleaning
Defrosting of the refrigerator
Defrosting of the freezer
What to do if…
Replacing the lamp
Closing the door
Technical data
Installation
Positioning
Location
Electrical Connection
Rear spacers
Levelling
Removing the shelf holders
Door reversibility
Environmental concerns
11
11
11
11
11
11
12
12
12
13
13
13
15
15
15
16
16
16
16
18
18
18
18
21
10
Subject to change without notice
Safety information
In the interest of your safety and to ensure the correct use, before installing and first using
the appliance, read this user manual carefully, including its hints and warnings. To avoid
unnecessary mistakes and accidents, it is important to ensure that all people using the
Safety information
3
appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that
everyone using it through its life will be properly informed on appliance use and safety.
For the safety of life and property keep the precautions of these user's instructions as the
manufacturer is not responsible for damages caused by omission.
Children and vulnerable people safety
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection
cable (as close to the appliance as you can) and remove the door to prevent playing
children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a
spring lock (latch) on the door or lid, be sure to make that spring lock unusable before
you discard the old appliance. This will prevent it from becoming a death trap for a child.
General safety
CAUTION!
Keep ventilation openings clear of obstruction.
• The appliance is intended for keeping foodstuff and/or beverages in a normal household
as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating
appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
During transportation and installation of the appliance, be certain that none of the
components of the refrigerant circuit become damaged.
If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition
– thoroughly ventilate the room in which the appliance is situated
4
Safety information
• It is dangerous to alter the specifications or modify this product in any way. Any damage
to the cord may cause a short-circuit, fire and/or electric shock.
WARNING!
Any electrical component (power cord, plug, compressor) must be replaced by a certified
service agent or qualified service personnel.
1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the
appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of
electric shock or fire.
6. You must not operate the appliance without the lamp cover1) of interior lighting.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/
wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
Daily Use
•
•
•
•
•
Do not put hot pot on the plastic parts in the appliance.
Do not store flammable gas and liquid in the appliance, because they may explode.
Do not place food products directly against the air outlet on the rear wall.2)
Frozen food must not be re-frozen once it has been thawed out.
Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer
to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure
on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug from the
mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean
the drain. If the drain is blocked, water will collect in the bottom of the appliance.
Installation
For electrical connection carefully follow the instructions given in specific paragraphs.
1) If the lamp cover is foreseen
2) If the appliance is Frost Free
Control panel
5
• Unpack the appliance and check if there are damages on it. Do not connect the appliance
if it is damaged. Report possible damages immediately to the place you bought it. In that
case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the
oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching
or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only.3)
Service
• Any electrical work required to do the servicing of the appliance should be carried out
by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare
parts must be used.
Environment Protection
This appliance does not contain gasses which could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The appliance shall not be discarded together
with the urban refuse and rubbish. The insulation foam contains flammable gases: the
appliance shall be disposed according to the applicable regulations to obtain from your
local authorities. Avoid damaging the cooling unit, especially at the rear near the heat
exchanger. The materials used on this appliance marked by the symbol are recyclable.
Control panel
1
1
2
3
4
5
6
7
2
3
4
5
6
7
8
ON/OFF switch
Fridge temperature regulator, + button
Fridge temperature indicator
Fridge temperature regulator, - button
COOLMATIC button
COOLMATIC indicator
Fridge compartment indicator
3) If a water connection is foreseen
9
10
11 12 13
14
15
6
Control panel
8
9
10
11
12
13
14
15
Freezer compartment indicator
FROSTMATIC indicator
FROSTMATIC button
Freezer temperature regulator, + button
Freezer temperature indicator
Freezer temperature regulator, - button
Alarm reset button
Alarm indicator
Switching on
1. Insert the plug into the mains socket.
2. Set ON/OFF switch to ON.
3. The alarm indicator light flashes since the temperature is reached.
The acoustic alarm sounds.
4. Press the alarm reset button to reset the alarm.
Switching off
To switch the entire appliance off:
1. Set ON/OFF switch to OFF.
2. Disconnect the mains plug from the mains socket.
Temperature indicators
The temperature indicators show several information:
• During normal operation, the temperature currently present in the fridge (ACTUAL temperature) is displayed.
• In the freezer the warmest temperature is displayed (ACTUAL temperature). When fully
filled, the warmest zone is normally located at the top in the front area of the freezer.
Depending upon how the section is filled, the temperatures are lower in other areas of
the freezer.
• When the temperature is being adjusted a flashing display indicates the fridge temperature currently set (DESIRED temperature).
When changing the temperature setting wait about 24 hours until the temperature display
has stabilised.
If there is a fault in the appliance the temperature indicator shows:
• a square or a letter in the temperature indicator of the fridge for a fault in the fridge
• a square or a letter in the temperature indicator of the freezer for a fault in the freezer.
Temperature regulation
To operate the appliance, proceed as follows:
1. Set the required temperature by pressing the corresponding temperature regulator. The
temperature indicator will immediately show the changed setting (DESIRED temperature) and the temperature indicator flashes.
2. Each time the temperature regulator is pressed the DESIRED temperature is adjusted
by 1 °C. The DESIRED temperature must be reached within 24 hours.
3. Once the required temperature has been set, after a short period (approx. 5 sec.) the
temperature indicator will show again the current ACTUAL temperature inside the cor-
Control panel
7
responding compartment. The temperature indicator will change from flashing to continuous illumination.
For a correct storage of the food the following temperatures should be set:
• +5 °C in the fridge
• -18 °C in the freezer.
When the setting is changed, the compressor does not start immediately if automatic
defrosting is currently taking place. As the storage temperature within the fridge is reached
quickly you can store food immediately after switching on.
COOLMATIC function
The COOLMATIC function is suited for quick cooling of large quantities of goods in the
refrigerator.
To activate the function, do these steps:
1. Press the COOLMATIC button.
2. The COOLMATIC indicator switches on.
The COOLMATIC function now provides for intensive cooling. A DESIRED temperature of
+2°C is automatically selected.
The COOLMATIC function is ended automatically after a period of 6 hours.
You can deactivate the function at any time:
1. Press the COOLMATIC button.
2. The COOLMATIC indicator switches off.
Holiday function
This function allows you to keep the refrigerator shut and empty during a long holiday
period (e.g. the summer holidays) without the formation of a bad smell.
The fridge compartment must be empty when the holiday function is on.
To activate the function:
1. press continuously the temperature regulator (+ button) until the letter "H" (Holiday)
appears on the temperature indicator. The Holiday function sets the temperature approx +15°C. The refrigerator is in the energy-saving mode.
To deactivate the function:
1. set the required temperature by pressing the fridge temperature regulator.
FROSTMATIC function
The FROSTMATIC function accelerates the freezing of fresh food and, at the same time,
protects foodstuffs already stored from undesirable warming.
To activate the function, do these steps:
1. Press the FROSTMATIC button.
2. The FROSTMATIC indicator switches on.
The FROSTMATIC function is ended automatically after a period of 52 hours.
You can deactivate the function at any time:
1. Press the FROSTMATIC button.
2. The FROSTMATIC indicator switches off.
8
First use
High temperature alarm
In the event of an abnormal temperature rise inside the freezer (e.g. power cut) alarm
indicator light will start to flash and a buzzer will sound.
Push the alarm reset button to stop the buzzer sound, while the alarm indicator light will
continue to flash.
The buzzer will stop automatically when the temperature has returned to normal while the
alarm indicator light will continue to flash.
Press the alarm reset button. The alarm indicator light goes out and at the same time the
freezer temperature indicator show for about 5 seconds the warmest temperature reached
in the freezer compartment.
First use
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories
with lukewarm water and some neutral soap so as to remove the typical smell of a brandnew product, then dry thoroughly.
Do not use detergents or abrasive powders, as these will damage the finish.
Daily use
Storage of frozen food
When first starting-up or after a period out of use, before putting the products in the
compartment let the appliance run at least 2 hours on the higher settings.
In the event of accidental defrosting, for example due to a power failure, if the power has
been off for longer than the value shown in the technical characteristics chart under "rising
time", the defrosted food must be consumed quickly or cooked immediately and then refrozen (after cooling).
Thawing
Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking
will take longer.
Daily use
Movable shelves
The walls of the refrigerator are equipped with a
series of runners so that the shelves can be positioned as desired.
Bottle rack
Place the bottles (with the opening facing front)
in the pre-positioned shelf.
If the shelf is positioned horizontally, place only
closed bottles.
This bottle holder shelf can be tilted in order to
store previously opened bottles. To obtain this result, pull the shelf up so it can rotate upwards and
be placed on the next higher level.
Vegetable Drawer
The drawer is suitable for storing fruit and vegetables.
There is a separator inside the drawer that can be
placed in different positions to allow for the subdivision best suited to personal needs.
There is a grille (if foreseen) on the bottom of the
drawer to separate the fruit and vegetables from
any humidity that may form on the bottom surface.
All parts inside the drawer can be removed for
cleaning purposes
1
2
9
10
Daily use
Positioning the door shelves
To permit storage of food packages of various sizes, the door shelves can be placed at
different heights.
To make these adjustments proceed as follows:
gradually pull the shelf in the direction of the
arrows until it comes free, then reposition as
required.
Removal of freezing baskets from the freezer
2
2
1
1
The freezing baskets have a limit stop to prevent their accidental removal or falling out.
At the time of its removal from the freezer, pull the basket towards yourself and, upon
reaching the end point, remove the basket by tilting its front upwards.
At the time of putting it back, slightly lift the front of the basket to insert it into the
freezer. Once you are over the end points, push the baskets back in their position.
Helpful hints and tips
11
Helpful hints and tips
Normal Operating Sounds
• You may hear a faint gurgling and a bubbling sound when the refrigerant is pumped
through the coils or tubing. This is correct.
• When the compressor is on, the refrigerant is being pumped around and you will hear
a whirring sound and a pulsating noise from the compressor. This is correct.
• The thermic dilatation might cause a sudden cracking noise. It is natural, not dangerous
physical phenomenon. This is correct.
Hints for energy saving
• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing
frost or ice on the evaporator. If this happens, set the Temperature Regulator toward
warmer settings to allow automatic defrosting and so a saving in electricity consumption.
Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour
• position food so that air can circulate freely around it
Hints for refrigeration
Useful hints:
Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable
drawer.
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc..: these should be covered and may be placed on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s)
provided.
Butter and cheese: these should be placed in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be stored in the bottle rack on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.
Hints for freezing
To help you make the most of the freezing process, here are some important hints:
• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating
plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during
this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to
make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are
airtight;
12
Care and cleaning
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding
a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can
possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep
tab of the storage time.
Hints for storage of frozen food
To obtain the best performance from this appliance, you should:
• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the
shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.
Care and cleaning
CAUTION!
Unplug the appliance before carrying out any maintenance operation.
This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must
therefore only be carried out by authorized technicians.
Periodic cleaning
The equipment has to be cleaned regularly:
• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from
debris.
• rinse and dry thoroughly.
Do not pull, move or damage any pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes
to clean the interior as this will damage the surface and leave a strong odour.
Clean the condenser (black grill) and the compressor at the back of the appliance with a
brush or a vacuum cleaner. This operation will improve the performance of the appliance
and save electricity consumption.
Take care of not to damage the cooling system.
Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the
plastics used in this appliance. For this reason it is recommended that the outer casing of
this appliance is only cleaned with warm water with a little washing-up liquid added.
After cleaning, reconnect the equipment to the mains supply.
What to do if…
13
Defrosting of the refrigerator
Frost is automatically eliminated from the evaporator of the refrigerator compartment
every time the motor compressor stops, during normal use. The defrost water drains out
through a trough into a special container at the back of the appliance, over the motor
compressor, where it evaporates.
It is important to periodically clean the defrost
water drain hole in the middle of the refrigerator
compartment channel to prevent the water overflowing and dripping onto the food inside. Use the
special cleaner provided, which you will find already inserted into the drain hole.
Defrosting of the freezer
The freezer compartment of this model, on the other hand, is a "no frost" type. This means
that there is no buildup of frost when it is in operation, neither on the internal walls nor
on the foods.
The absence of frost is due to the continuous circulation of cold air inside the compartment,
driven by an automatically controlled fan.
What to do if…
CAUTION!
Before troubleshooting, disconnect the power supply.
Only a qualified electrician or competent person must do the troubleshooting that is not
in this manual.
There are some sounds during normal use (compressor, refrigerant circulation).
Possible cause
Solution
The appliance is noisy.
Problem
The appliance is not supported
properly.
Check if the appliance stands stable (all the four feet should be on
the floor).
The compressor operates
continually.
The Temperature regulator may
be set incorrectly.
Set a warmer temperature.
The door is not closed correctly. Refer to "Closing the door".
14
What to do if…
Problem
Possible cause
Solution
The door has been opened too
frequently.
Do not keep the door open longer
than necessary.
The product temperature is too
high.
Let the product temperature decrease to room temperature before storage.
The room temperature is too
high.
Decrease the room temperature.
The FROSTMATIC function is
switched on.
Refer to "FROSTMATIC function".
The COOLMATIC function is
switched on.
Refer to "COOLMATIC function".
Water flows on the rear
plate of the refrigerator.
During the automatic defrosting This is correct.
process, frost defrosts on the
rear plate.
Water flows into the refrigerator.
The water outlet is clogged.
Clean the water outlet.
Products prevent that water
flows into the water collector.
Make sure that products do not
touch the rear plate.
Water flows on the
ground.
The melting water outlet does
Attach the melting water outlet
not flow in the evaporative tray to the evaporative tray.
above the compressor.
There is too much frost
and ice.
Products are not wrapped prop- Wrap the products better.
erly.
The door is not closed correctly. Refer to "Closing the door".
The Temperature regulator may
be set incorrectly.
The temperature in the
appliance is too high.
Set a higher temperature.
The door is not closed correctly. Refer to "Closing the door".
The product temperature is too
high.
Let the product temperature decrease to room temperature before storage.
Many products are stored at the Store less products at the same
same time.
time.
The temperature in the
refrigeration is too high.
There is no cold air circulation in Make sure that there is cold air
the appliance.
circulation in the appliance.
The temperature in the
freezer is too high.
Products are too near to each
other.
Store products so that there is
cold air circulation.
The appliance does not
operate.
The appliance is switched off.
Switch on the appliance.
The mains plug is not connected Connect the mains plug to the
to the mains socket correctly.
mains socket correctly.
Technical data
Problem
Possible cause
15
Solution
The appliance has no power.
Connect a different electrical apThere is no voltage in the mains pliance to the mains socket. Consocket.
tact a qualified electrician.
The lamp does not work.
The lamp is in stand-by.
Close and open the door.
The lamp is defective.
Refer to "Replacing the lamp".
As much as the advice does not lead to result, call the nearest brand-mark service.
Replacing the lamp
CAUTION!
Disconnect the plug from the mains socket.
1. Remove the screw from the lamp cover.
2. Pull outwards the hook of the lamp cover.
3. Remove the lamp cover.
4. Replace the lamp with one of the same
power (the maximum power is shown on
the light bulb cover).
5. Install the lamp cover.
6. Tighten the screw to the lamp cover.
7. Connect the plug to the mains socket.
8. Open the door. Make sure that the light
comes on.
1
2
3
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door gaskets. Contact the Service Center.
Technical data
Dimension
Rising Time
Height
1850 mm
Width
595 mm
Depth
632 mm
18 h
The technical information are situated in the rating plate on the internal left side of the
appliance and in the energy label.
16
Installation
Installation
WARNING!
Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.
Positioning
Install this appliance at a location where the ambient temperature corresponds to the
climate class indicated on the rating plate of the appliance:
Climate class
Ambient temperature
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+16°C to + 38°C
T
+16°C to + 43°C
A
B
20 mm
The appliance should be installed well away from
sources of heat such as radiators, boilers, direct
sunlight etc. Ensure that air can circulate freely
around the back of the cabinet. To ensure best
performance, if the appliance is positioned below
an overhanging wall unit, the minimum distance
between the top of the cabinet and the wall unit
must be at least 100 mm . Ideally, however, the
appliance should not be positioned below overhanging wall units. Accurate levelling is ensured
by one or more adjustable feet at the base of the
cabinet.
100 mm
min
Location
WARNING!
It must be possible to disconnect the appliance
from the mains power supply; the plug must therefore be easily accessible after installation.
Electrical Connection
CAUTION!
Any electrical work required to install this appliance should be carried out by a qualified
electrician or competent person.
WARNING!
This appliance must be earthed.
The manufacturer declines any liability should these safety measures not be observed.
Installation
1
5
17
2
3
4
The wires in the mains lead are coloured in accordance with the following code:
1
Green and Yellow:
Earth
3
Brown:
Live
5
Blue:
Neutral
As the colours of the wires in the mains lead of this appliance may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:
1. Connect the wire coloured green and yellow to the terminal marked either with the
letter “E“ or by the earth symbol or coloured green and yellow.
2. Connect the wire coloured blue to the terminal either marked with the letter “N“ or
coloured black.
3. Connect the wire coloured brown to the terminal either marked with the “L“ or coloured
red.
4. Check that no cut, or stray strands of wire is present and the cord clamp 4 is secure
over the outer sheath.
5. Make sure the electricity supply voltage is the same as that indicated on the appliance
rating plate.
6. Switch on the appliance.
The appliance is supplied with a 13 amp plug fitted 2 . In the event of having to change
the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used.
WARNING!
A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that
it is disposed of safely.
18
Installation
Rear spacers
In the bag with the documentation, there are
two spacers which must be fitted as shown in
the figure.
Slacken the screws and insert the spacer under the
screw head, then tighten again the screws.
2
1
3
Levelling
When placing the appliance ensure that it stands
level. This can be achieved by two adjustable feet
at the bottom in front.
Removing the shelf holders
Your appliance is equipped with shelf retainers
that make it possible to secure the shelves during
transportation.
To remove them proceed as follows:
1. Move the shelf holders in the direction of the
arrow (A).
2. Raise the shelf from the rear and push it forward until it is freed (B).
3. Remove the retainers (C).
A
B
C
Door reversibility
WARNING!
Before carrying out any operations, remove the plug from the power socket.
Installation
19
To carry out the following operations, we suggest that this be made with another person
that will keep a firm hold on the doors of the appliance during the operations.
1.
2.
3.
4.
5.
Open the doors. Unscrew the middle
hinge (m2). Remove the plastic spacer
(m1).
Remove the spacer (m6) and move to the
other side of the hinge pivot (m5).
Remove the doors.
Remove the left-hand cover pin of the
middle hinge (m3,m4) and move to the
other side.
Fit the pin of the middle hinge (m5) into
the left-hand hole of the lower door.
m1
m5
m3
6.
7.
m2
m6
m4
Remove using a tool the cover (b1). Unscrew the lower hinge pivot (b2) and the
spacer (b3) and place them on the opposite side.
Re-insert the cover (b1) on the opposite
side.
b1
b2
b3
20
Installation
8.
Reverse the door locking elements
(d2,d3), move to the other side of the
other door and fix by screwing in the
screw (d4).
9. Re-insert the stoppers (d5,d6) on the
other side of the doors.
10. Re-insert the lower door on the lower
hinge pivot (b2).
11. Insert the middle hinge (m2) into the left
drill of the lower door.
d2
d3
d4
d6
d5
12. Unscrew the upper hinge pivot (t1) and
place it on the opposite side.
13. Fit the upper door on the upper door
pivot.
14. Re-insert the upper door on the middle
hinge pivot (m5) slightly tilting both
doors.
15. Re-screw the middle hinge (m2). Do not
forget the plastic spacer (m1).
t1
16. Remove the cover pins (h1). Remove the
cover (h2).
17. Unscrew the handles (h3) and fix them
on the opposite side.
h3
18. Re-insert the cover (h2) and the cover
pins (h1).
Do a final check to make sure that:
h1
• All screws are tightened.
• The magnetic seal adheres to the cabinet.
h2
• The door opens and closes correctly.
If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to
the cabinet. In that case, wait for the natural fitting of the gasket.
In case you do not want to carry out the above mentioned operations, contact the nearest
After Sales Service Force. The After Sales Service specialist will carry out the reversibility of
the doors at your cost.
Environmental concerns
21
Environmental concerns
The symbol
on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it should be taken to the appropriate collection point
for the recycling of electrical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product, please contact
your local council, your household waste disposal service or the shop where you purchased
the product.
22
23
www.electrolux.com
210620752-00-03092009
925033685
To buy accessories, consumables and spare parts at our online shop please visit:
www.electrolux.co.uk
www.electrolux.ie
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
