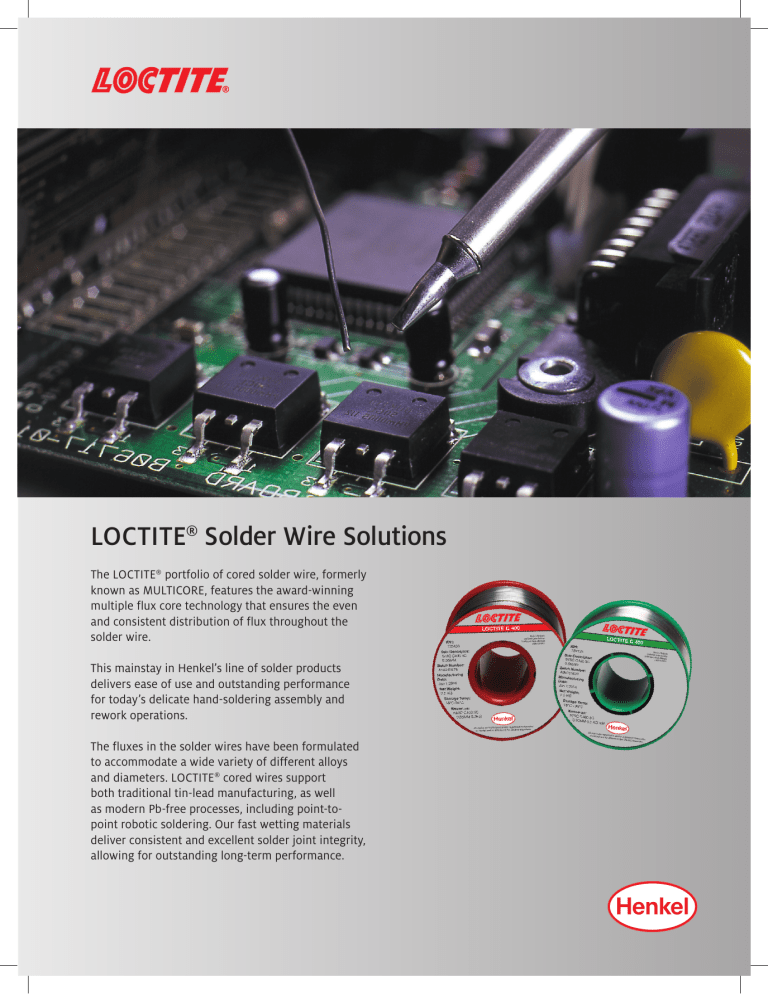

LOCTITE® Solder Wire Solutions

LOCTITE® Solder Wire Solutions
LOCTITE® Solder Wire Solutions
The LOCTITE® portfolio of cored solder wire, formerly
known as MULTICORE, features the award-winning
multiple flux core technology that ensures the even
and consistent distribution of flux throughout the
solder wire.
This mainstay in Henkel’s line of solder products
delivers ease of use and outstanding performance
for today’s delicate hand-soldering assembly and
rework operations.
The fluxes in the solder wires have been formulated
to accommodate a wide variety of different alloys
and diameters. LOCTITE® cored wires support
both traditional tin-lead manufacturing, as well
as modern Pb-free processes, including point-topoint robotic soldering. Our fast wetting materials
deliver consistent and excellent solder joint integrity,
allowing for outstanding long-term performance.
LOCTITE® Solder Wire Solutions
CORED WIRE
Attribute
C 400
C 502
C 511
HYDROX
FLUX
No Clean,
Halogen-free,
Halide-free
No Clean
No Clean
Water Wash
CLASSIFICATION
ROLO
ROM1
ROM1
ORH1
RESIDUES
Clear
Clear
Amber
n/a
Good wetting
on difficult
surfaces
Medium
activity flux for
good wetting
on difficult
surfaces
High activity
flux with
excellent
wetting on
difficult
substrates
High activity
flux with
excellent
wetting on
difficult
substrates
FLUX CONTENT
(APPROX.)
2.20%
2.70%
2.70%
2%
ALLOYS
Suitable for
SnPb and
Pb-free
Suitable for
SnPb and
Pb-free
Suitable for
SnPb and
Pb-free
Suitable for
SnPb and
Pb-free
SOLDERABILITY
Across the Board,
Across
Board,
Around
Ar
ound the Globe.
www.henkel.com/electronics
Henkel Electronic Materials, LLC
14000 Jamboree Road
Irvine, CA 92606
+1.714.368.8000
+1.800.562.8483
AVAILABLE CORED
WIRE DIAMETERS
(mm)
Packaging
0.23
250g
0.25
250g
0.38
250g
0.56
250g
0.70*
250g, 500g
0.81
250g, 500g, 1kg
1.22
250g, 500g, 1kg
1.63
250g, 500g, 1kg
*Available only in Europe
Henkel Europe
Nijverheidsstraat 7
B-2260, Westerlo
Belgium
+32.1457.5611
All marks used are trademarks and/or registered trademarks of Henkel and/or its affiliates in the U.S., Germany and elsewhere.
© 2013 Henkel Corporation. All rights reserved. 11514/LT-6320 (12/13)
Number
of Cores
Flux Content
2
1.0% to 1.2%
3
1.5% to 1.8%
5
2.5% to 3.2%
Henkel Asia
332 Meigui South Road
WaiGaoQiao FTZ
Shanghai 200131 China
+86.21.3898.4800
