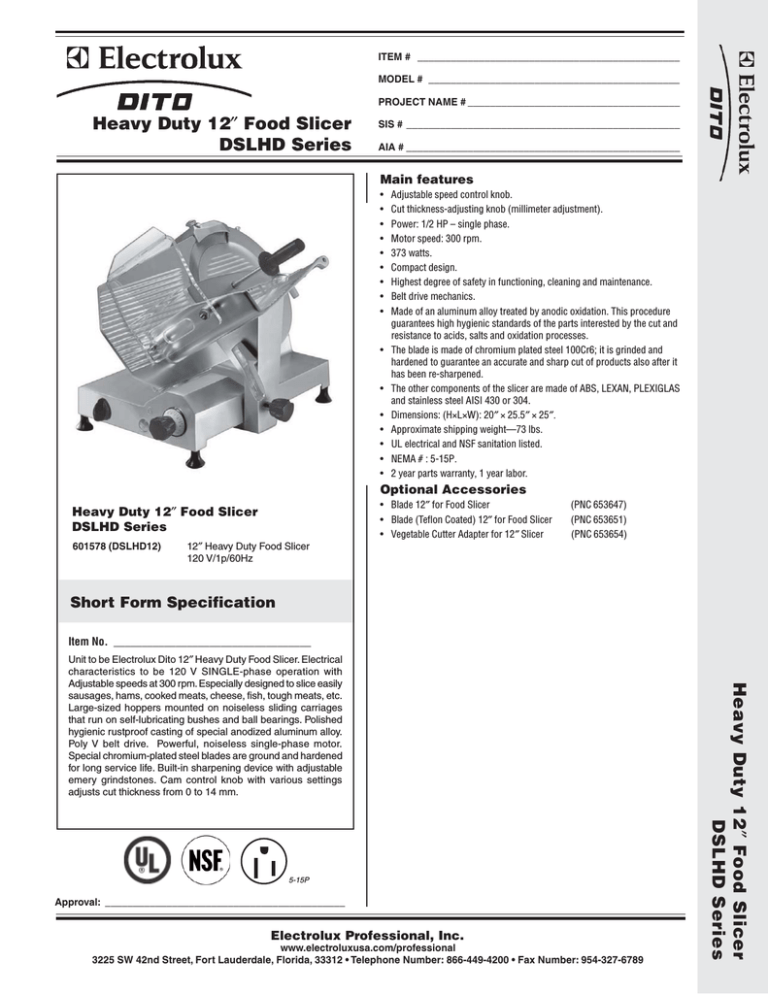

Heavy Duty 12″ Food Slicer
DSLHD Series
SIS # _________________________________________________
AIA # _________________________________________________
Main features
Adjustable speed control knob.
Cut thickness-adjusting knob (millimeter adjustment).
Power: 1/2 HP – single phase.
Motor speed: 300 rpm.
373 watts.
Compact design.
Highest degree of safety in functioning, cleaning and maintenance.
Belt drive mechanics.
Made of an aluminum alloy treated by anodic oxidation. This procedure
guarantees high hygienic standards of the parts interested by the cut and
resistance to acids, salts and oxidation processes.
The blade is made of chromium plated steel 100Cr6; it is grinded and
hardened to guarantee an accurate and sharp cut of products also after it
has been re-sharpened.
The other components of the slicer are made of ABS, LEXAN, PLEXIGLAS
and stainless steel AISI 430 or 304.
Dimensions: (H×L×W): 20″ × 25.5″ × 25″.
Approximate shipping weight—73 lbs.
UL electrical and NSF sanitation listed.
NEMA # : 5-15P.
2 year parts warranty, 1 year labor.
Optional Accessories
• Blade 12″ for Food Slicer
• Blade (Teflon Coated) 12″ for Food Slicer
• Vegetable Cutter Adapter for 12″ Slicer
Heavy Duty 12″ Food Slicer
DSLHD Series
601578 (DSLHD12)
(PNC 653647)
(PNC 653651)
(PNC 653654)
12″ Heavy Duty Food Slicer
120 V/1p/60Hz
Short Form Specification
Item No. ___________________________________
Approval: ___________________________________________
Electrolux Professional, Inc.
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
Heavy Duty 12″ Food Slicer
DSLHD Series
Unit to be Electrolux Dito 12″ Heavy Duty Food Slicer. Electrical
characteristics to be 120 V SINGLE-phase operation with
Adjustable speeds at 300 rpm. Especially designed to slice easily
sausages, hams, cooked meats, cheese, fish, tough meats, etc.
Large-sized hoppers mounted on noiseless sliding carriages
that run on self-lubricating bushes and ball bearings. Polished
hygienic rustproof casting of special anodized aluminum alloy.
Poly V belt drive. Powerful, noiseless single-phase motor.
Special chromium-plated steel blades are ground and hardened
for long service life. Built-in sharpening device with adjustable
emery grindstones. Cam control knob with various settings
adjusts cut thickness from 0 to 14 mm.
Heavy Duty 12″ Food Slicer
DSLHD Series
Front View
Supply voltage:
601578 (DSLHD12)
120 V/1p/60Hz – 3.1A
Key Information
The MECHANICAL SAFETY system includes:
- Blade guard
- Cover
- Meat pusher
- Hand cover on meat hopper
- Meat hopper + finger protection
Top View
The ELECTRICAL SAFETY system includes:
The slicer is equipped with: a micro-switch which stops the
slicer in case the tie rod for blade guard is removed; the microswitch prevents from restarting the slicer if the guard has not
been set in the switch-off position.
Side View
Heavy Duty 12″″ Food Slicer
DSLHD Series
