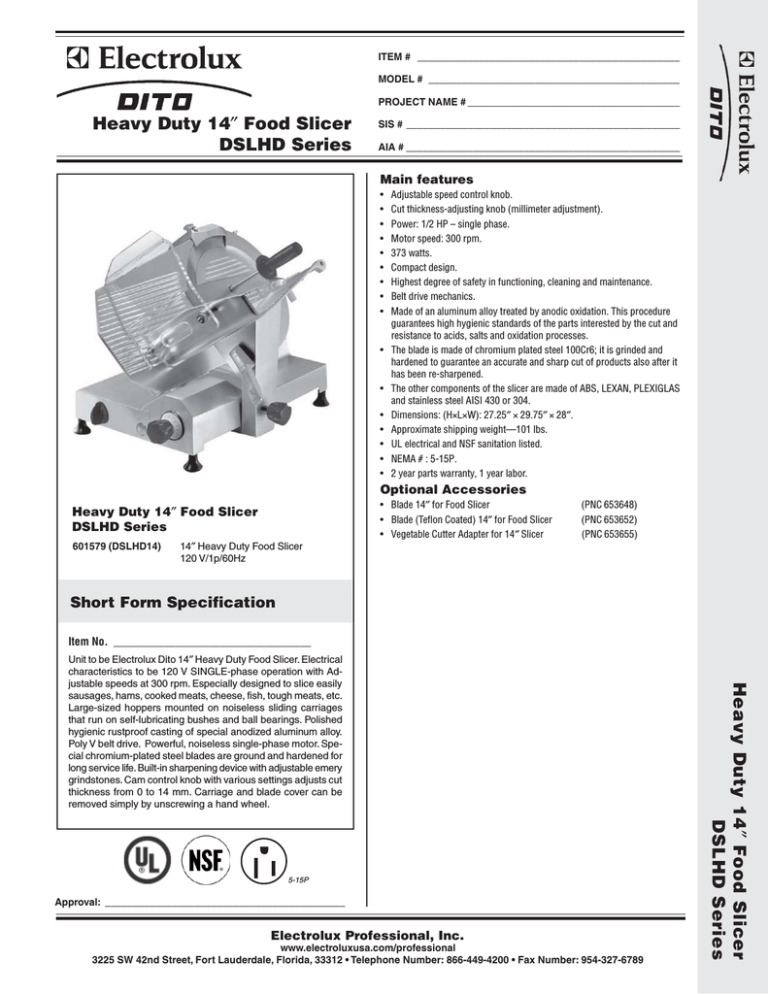

Electrolux | Dito 601579 | User's Manual | Electrolux Dito 601579 User's Manual

ITEM # _______________________________________________
MODEL # _____________________________________________
PROJECT NAME # ______________________________________
Heavy Duty 14″ Food Slicer
DSLHD Series
SIS # _________________________________________________
AIA # _________________________________________________
Main features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Adjustable speed control knob.
Cut thickness-adjusting knob (millimeter adjustment).
Power: 1/2 HP – single phase.
Motor speed: 300 rpm.
373 watts.
Compact design.
Highest degree of safety in functioning, cleaning and maintenance.
Belt drive mechanics.
Made of an aluminum alloy treated by anodic oxidation. This procedure
guarantees high hygienic standards of the parts interested by the cut and
resistance to acids, salts and oxidation processes.
The blade is made of chromium plated steel 100Cr6; it is grinded and
hardened to guarantee an accurate and sharp cut of products also after it
has been re-sharpened.
The other components of the slicer are made of ABS, LEXAN, PLEXIGLAS
and stainless steel AISI 430 or 304.
Dimensions: (H×L×W): 27.25″ × 29.75″ × 28″.
Approximate shipping weight—101 lbs.
UL electrical and NSF sanitation listed.
NEMA # : 5-15P.
2 year parts warranty, 1 year labor.
Optional Accessories
• Blade 14″ for Food Slicer
• Blade (Teflon Coated) 14″ for Food Slicer
• Vegetable Cutter Adapter for 14″ Slicer
Heavy Duty 14″ Food Slicer
DSLHD Series
601579 (DSLHD14)
(PNC 653648)
(PNC 653652)
(PNC 653655)
14″ Heavy Duty Food Slicer
120 V/1p/60Hz
Short Form Specification
Item No. ___________________________________
5-15P
Approval: ___________________________________________
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
Heavy Duty 14″ Food Slicer
DSLHD Series
Unit to be Electrolux Dito 14″ Heavy Duty Food Slicer. Electrical
characteristics to be 120 V SINGLE-phase operation with Adjustable speeds at 300 rpm. Especially designed to slice easily
sausages, hams, cooked meats, cheese, fish, tough meats, etc.
Large-sized hoppers mounted on noiseless sliding carriages
that run on self-lubricating bushes and ball bearings. Polished
hygienic rustproof casting of special anodized aluminum alloy.
Poly V belt drive. Powerful, noiseless single-phase motor. Special chromium-plated steel blades are ground and hardened for
long service life. Built-in sharpening device with adjustable emery
grindstones. Cam control knob with various settings adjusts cut
thickness from 0 to 14 mm. Carriage and blade cover can be
removed simply by unscrewing a hand wheel.
Heavy Duty 14″ Food Slicer
DSLHD Series
Front View
Electric
Supply voltage:
601579 (DSLHD14)
120 V/1p/60Hz – 3.1A
Key Information
The MECHANICAL SAFETY system includes:
- Blade guard
- Cover
- Meat pusher
- Hand cover on meat hopper
- Meat hopper + finger protection
Top View
The ELECTRICAL SAFETY system includes:
The slicer is equipped with: a micro-switch which stops the
slicer in case the tie rod for blade guard is removed; the microswitch prevents from restarting the slicer if the guard has not
been set in the switch-off position.
Side View
Heavy Duty 14″″ Food Slicer
DSLHD Series
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
6-30-09
