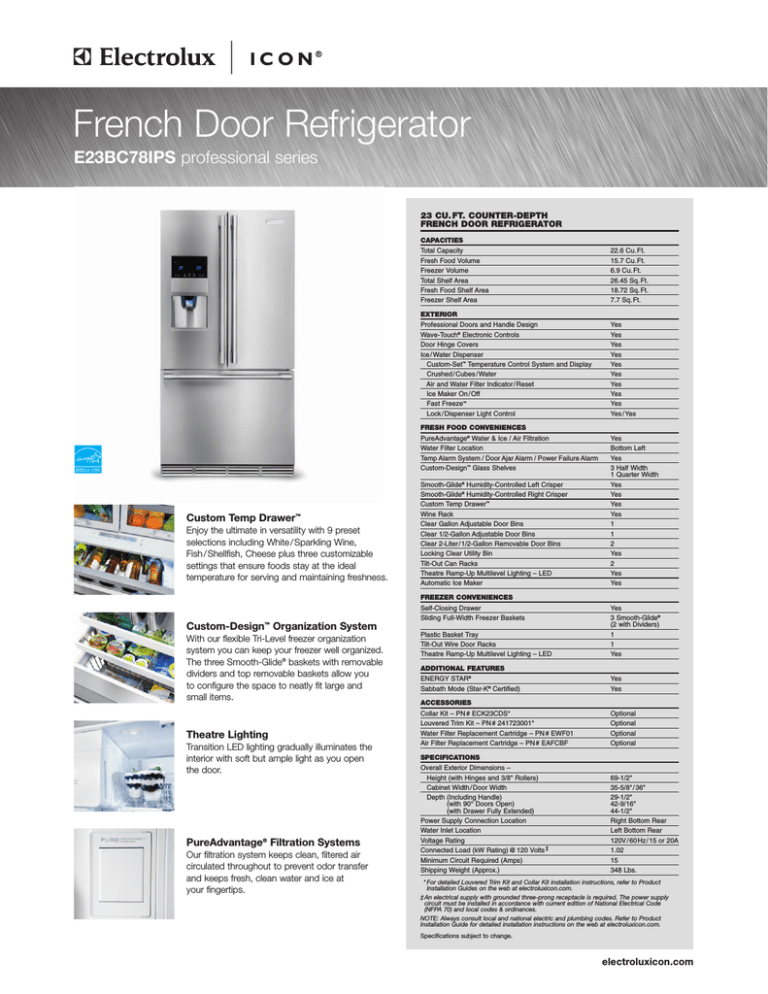

French Door Refrigerator
E23BC78IPS professional series
23 CU. FT. COUNTER-DEPTH
FRENCH DOOR REFRIGERATOR
CAPACITIES
Total Capacity
Fresh Food Volume
Freezer Volume
Total Shelf Area
Fresh Food Shelf Area
Freezer Shelf Area
22.6 Cu. Ft.
15.7 Cu. Ft.
6.9 Cu. Ft.
26.45 Sq. Ft.
18.72 Sq. Ft.
7.7 Sq. Ft.
EXTERIOR
Professional Doors and Handle Design
Wave-Touch® Electronic Controls
Door Hinge Covers
Ice / Water Dispenser
Custom-Set™ Temperature Control System and Display
Crushed / Cubes / Water
Air and Water Filter Indicator / Reset
Ice Maker On / Off
Fast Freeze™
Lock / Dispenser Light Control
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes / Yes
FRESH FOOD CONVENIENCES
PureAdvantage® Water & Ice / Air Filtration
Water Filter Location
Temp Alarm System / Door Ajar Alarm / Power Failure Alarm
Custom-Design™ Glass Shelves
Custom Temp Drawer™
Enjoy the ultimate in versatility with 9 preset
selections including White / Sparkling Wine,
Fish / Shellfish, Cheese plus three customizable
settings that ensure foods stay at the ideal
temperature for serving and maintaining freshness.
Smooth-Glide® Humidity-Controlled Left Crisper
Smooth-Glide® Humidity-Controlled Right Crisper
Custom Temp Drawer™
Wine Rack
Clear Gallon Adjustable Door Bins
Clear 1/2-Gallon Adjustable Door Bins
Clear 2-Liter / 1/2-Gallon Removable Door Bins
Locking Clear Utility Bin
Tilt-Out Can Racks
Theatre Ramp-Up Multilevel Lighting – LED
Automatic Ice Maker
Yes
Bottom Left
Yes
3 Half Width
1 Quarter Width
Yes
Yes
Yes
Yes
1
1
2
Yes
2
Yes
Yes
FREEZER CONVENIENCES
Self-Closing Drawer
Sliding Full-Width Freezer Baskets
Custom-Design Organization System
™
With our flexible Tri-Level freezer organization
system you can keep your freezer well organized.
The three Smooth-Glide® baskets with removable
dividers and top removable baskets allow you
to configure the space to neatly fit large and
small items.
Theatre Lighting
Transition LED lighting gradually illuminates the
interior with soft but ample light as you open
the door.
PureAdvantage® Filtration Systems
Our filtration system keeps clean, filtered air
circulated throughout to prevent odor transfer
and keeps fresh, clean water and ice at
your fingertips.
Plastic Basket Tray
Tilt-Out Wire Door Racks
Theatre Ramp-Up Multilevel Lighting – LED
Yes
3 Smooth-Glide®
(2 with Dividers)
1
1
Yes
ADDITIONAL FEATURES
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Yes
Yes
ACCESSORIES
Collar Kit – PN # ECK23CDS*
Louvered Trim Kit – PN # 241723001*
Water Filter Replacement Cartridge – PN # EWF01
Air Filter Replacement Cartridge – PN # EAFCBF
Optional
Optional
Optional
Optional
SPECIFICATIONS
Overall Exterior Dimensions –
Height (with Hinges and 3/8" Rollers)
Cabinet Width / Door Width
Depth (Including Handle)
(with 90° Doors Open)
(with Drawer Fully Extended)
Power Supply Connection Location
Water Inlet Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts ‡
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
69-1/2"
35-5/8" / 36"
29-1/2"
42-9/16"
44-1/2"
Right Bottom Rear
Left Bottom Rear
120V / 60 Hz / 15 or 20A
1.02
15
348 Lbs.
* For detailed Louvered Trim Kit and Collar Kit installation instructions, refer to Product
Installation Guides on the web at electroluxicon.com.
‡An electrical supply with grounded three-prong receptacle is required. The power supply
circuit must be installed in accordance with current edition of National Electrical Code
(NFPA 70) and local codes & ordinances.
NOTE: Always consult local and national electric and plumbing codes. Refer to Product
Installation Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
electroluxicon.com
French Door Refrigerator
E23BC78IPS professional series
Note: Optional Louvered Trim Kit and Collar Kit available
for French Door Counter-Depth Refrigerator. For
specifications, refer to Louvered Trim Kit (241723001)
Installation page or Collar Kit (ECK23CDS) Installation
page on web.
Counter-Depth French Door Refrigerator Specifications
• Product
Weight – 338 Lbs.
electrical supply with grounded three-prong receptacle is required. The
power supply circuit must be installed in accordance with current edition
of National Electrical Code (NFPA 70) and local codes & ordinances.
• Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
• Connected Load (kW Rating) @ 120 Volts = 1.02 kW
• Amps @ 120 Volts = 8.5 Amps
• Always consult local and national electric & plumbing codes.
• Floor should be level surface of hard material, capable of supporting fully
loaded refrigerator.
• When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer / crisper access and removal. (Absolute 4-1/2" minimum
clearance will ONLY allow for 90° door swing which will provide
drawer / crisper access with restricted removal.)
• To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
• For proper ventilation, front grille MUST remain unobstructed.
• Recess electrical outlet when possible.
• Water recess on rear wall recommended to prevent water line damage.
• Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
• An
• Copper
tubing with 1/4" O.D. recommended for water supply line with
length equal to distance from rear of unit to household water supply line
plus 7 additional feet. Optional Water Supply Installation Kits available.
• Adjustable front rollers to assist with door alignment.
• If optional Collar Kit (PN # ECK23CDS) is to be used, different cutout
dimensions are required. (Refer to Collar Kit ECK23CDS Installation
Specifications page on web.)
• If optional Louvered Trim Kit (PN # 241723001) is to be used, different
cutout dimensions are required. (Refer to Louvered Trim Kit 241723001
Installation Specifications page on web.)
“Built-In Look” Specifications
• Minimum
opening of 70-1/4" H x 36" W x 25" D required to allow for ease
of installation, proper air circulation, and plumbing / electrical connections.
• Remove all wall / floor molding prior to installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Optional Accessories
• Collar
Kit – (PN # ECK23CDS).
Trim Kit – (PN # 241723001).
• PureAdvantage® Water Filter Replacement Cartridge – (PN # EWF01).
• PureAdvantage® Air Filter Replacement Cartridge – (PN # EAFCBF).
• Louvered
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca
E23BC78IPS 04/11
© 2011 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Printed in the U.S.A.
General Installation Guidelines
with Counter-Depth French Door Refrigerator
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at electroluxicon.com.
Front
Top
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca
INSTGDLNS_FDR EI 10/10
© 2010 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Printed in the U.S.A.
Louvered Trim Kit (241723001) Installation
E23BC78IPS, E23BC78ISS, E23BC68JPS, E23BC68JSS
Counter-Depth French Door Refrigerator
Optional Louvered Trim Kit (241723001) Specifications
• To
• Minimum
use Louvered Trim Kit (PN # 241723001), an enclosure is required
around Counter-Depth French Door Refrigerator having an opening of
80-3/4" H x 37-1/4" W with minimum cabinet side panels of 24" D x 3/4" W.
• Minimum 24" depth requires recessed electrical outlet and water line.
• Add maximum of 1/4" to 70-1/4" opening height when installed with
frameless-style overhead cabinets, for door opening clearance.
• Cabinet or soffit above unit must extend out to same depth as
side panels.
width of 7' x 7' clear floor space required for Trim Kit assembly.
Door Refrigerator installation, refer to
model-specific product page and installation guide on web.
• For detailed Counter-Depth French
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca
241723001 INST 10/10
© 2010 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Printed in the U.S.A.
Collar Kit (ECK23CDS) Installation
E23BC78IPS, E23BC78ISS, E23BC68JPS, E23BC68JSS
Counter-Depth French Door Refrigerator
Optional Collar Kit (ECK23CDS) Specifications
• To
•A
use Collar Kit (PN # ECK23CDS), an enclosure is required around
Counter-Depth French Door Refrigerator having an opening of 70-1/4" H x
36-1/8" W with minimum cabinet side panels of 24-1/2" D x 1/2" W.
• Minimum 24-1/2" depth requires recessed electrical outlet and water line.
• Add maximum of 1/4" to 70-1/4" opening height when installed with
frameless-style overhead cabinets, for door opening clearance.
• Cabinet or soffit above unit must extend out to same depth as
side panels.
• To provide additional clearance for overhead cabinet doors when in open
position, allow 1" from underside of cabinet to bottom of cabinet door.
minimum width of 36-1/8" is required for refrigerator installation with
an additional 1/2" or 3/4" added for each side panel.
• If 1/2" side panels are used, then side trim piece and panel will be
even. If 3/4" side panels are used, then 1/4" of side panel will extend
beyond collar trim and must be finished.
• For detailed Counter-Depth French Door Refrigerator installation, refer to
model-specific product page and installation guide on web.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca
ECK23CDS INST_FDR 10/10
© 2010 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Printed in the U.S.A.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
