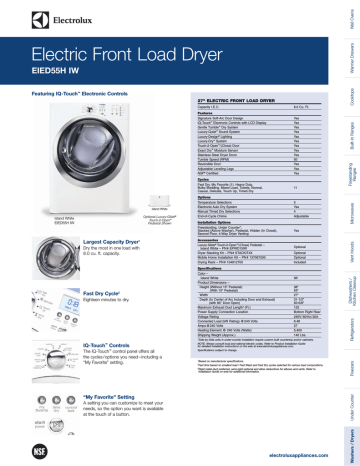

Electrolux EIED55H User's manual
Wall Ovens Warmer Drawers Electric Front Load Dryer Cooktops EIED55H IW Featuring IQ-Touch™ Electronic Controls 27" ELECTRIC FRONT LOAD DRYER Capacity I.E.C. 8.0 Cu. Ft. Yes Yes Yes Yes Yes Yes Yes Yes Yes 50 Yes Yes Yes Cycles Fast Dry, My Favorite (1), Heavy Duty, Bulky / Bedding, Mixed Load, Towels, Normal, Casual, Delicate, Touch Up, Timed Dry Freestanding Ranges Signature Soft-Arc Door Design IQ-Touch™ Electronic Controls with LCD Display Gentle Tumble™ Dry System Luxury-Quiet™ Sound System Luxury-Design® Lighting Luxury-Dry™ System Touch-2-Open™/ (Close) Door Exact Dry™ Moisture Sensor Stainless Steel Dryer Drum Tumble Speed (RPM) Reversible Door Adjustable Leveling Legs NSF® Certified Built-In Ranges Features 11 Optional Luxury-Glide® Touch-2-Open™ Pedestal Shown Island White EIED55H IW Temperature Selections Electronic Auto Dry System Manual Timed Dry Selections End-of-Cycle Chime 5 Yes 4 Adjustable Installation Options Freestanding, Under Counter*, Stacked (Above Washer), Pedestal, Hidden (In Closet), Second Floor, 4-Way Dryer Venting Largest Capacity Dryer1 Dry the most in one load with 8.0 cu. ft. capacity. Yes Accessories Luxury-Glide® Touch-2-Open™/ (Close) Pedestal – Island White – PN # EPWD15IW Dryer Stacking Kit – PN # STACKIT4X Mobile Home Installation Kit – PN # 137067200 Drying Rack – PN # 134912700 Optional Optional Optional Included Vent Hoods Island White Microwaves Options The IQ-Touch™ control panel offers all the cycles / options you need – including a “My Favorite” setting. 1 2 3 Based on manufacturer specifications. Fast time based on smallest load / Fast Wash and Fast Dry cycles selected for various load compositions. Rigid metal duct preferred, semi-rigid optional and allow deductions for elbows and vents. Refer to Installation Guide on web for additional information. Refrigerators *Side-by-Side units in under-counter installation require custom-built countertop and/or cabinetry. NOTE: Always consult local and national electric codes. Refer to Product Installation Guide for detailed installation instructions on the web at www.electroluxappliances.com. Specifications subject to change. Freezers IQ-Touch™ Controls 38" 53" 27" 31-1/2" 50-5/8" 125 Bottom Right Rear 240V / 60 Hz / 30A 6.48 27 5,400 140 Lbs. Under Counter Eighteen minutes to dry. IW “My Favorite” Setting A setting you can customize to meet your needs, so the option you want is available at the touch of a button. electroluxappliances.com Washers / Dryers Fast Dry Cycle2 Color – Island White Product Dimensions – Height (Without 15" Pedestal) (With 15" Pedestal) Width Depth (to Center of Arc Including Door and Exhaust) (with 90° Door Open) Maximum Exhaust Duct Length3 (Ft.) Power Supply Connection Location Voltage Rating Connected Load (kW Rating) @ 240 Volts Amps @ 240 Volts Heating Element @ 240 Volts (Watts) Shipping Weight (Approx.) Dishwashers / Kitchen Cleanup Specifications Electric Front Load Dryer EIED55H IW Electric Dryer Specifications • Product Weight – 130 Lbs. Rating – 240V / 60 Hz / 30 Amps • Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical supply with ground required on separate circuit fused on both sides of line. (Do not use same circuit as washer.) • Connected Load (kW Rating) @ 240 Volts = 6.48 kW • Amps @ 240 Volts = 27 Amps • Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or 4-conductor NEMA 14-30 type SRDT or ST (as required), rated at 240 volt AC minimum, 30 amp power supply cord marked for use with clothes dryers (not supplied). • Grounding through neutral link prohibited in specific applications and certain locales, requiring use of 4-wire system. (For detailed electrical requirements, refer to Product Installation Guide on web.) • Always consult local and national electric codes. • Can be installed alone, with or without optional 15" drawer pedestal, or stacked above matching Electrolux Washer, which requires installation of optional dryer stacking kit. (For installation details, refer to instructions included with optional pedestal or stacking kit or on web.) • Can be built in with matching Electrolux Washer in under-counter, recessed or closet installation. Installations requiring countertop and / or cabinetry will require custom building. (Refer to Built-In Installations on this page for cutout dimensions. For additional installation details, refer to Product Installation Guide on web.) • Voltage • Closet installation requires vented door with 2 unobstructed louvered openings, minimum 60 sq. in. each, located 3" from top and bottom of door. Full-length 120 sq. in. opening also acceptable. Allow 1" clearance between door and fronts of units. • Do NOT install in area exposed to dripping water or outdoor weather conditions, or where gasoline or other flammables, including automobiles, are kept or stored. • Floor MUST be solid with 1" maximum slope. To ensure vibration or movement does not occur, reinforcement of floor may be necessary. Do NOT install on carpeted surface. • Dryer MUST exhaust to outside of building, NOT into any concealed space. • Dryer equipped for 4-way venting and approved for up to 125-footequivalent of duct length, determined by length of run and number of elbows needed. • Exhaust installation requires minimum 4"-diameter rigid or semi-rigid metal duct with approved, unobstructed vent hood having swing-out damper(s). If installing rigid metal duct (preferred), do not exceed MAXIMUM venting run length of 125 ft., allow deductions for elbows and vents. If installing semi-rigid metal duct, do not exceed MAXIMUM venting run length of 8 ft., always allow deductions for elbows and vents (Refer to Product Installation Guide on web for additional information). Do NOT use flexible plastic or metal foil duct and use shortest run possible. • Leveling legs supplied to level dryer properly and reduce excessive noise and vibration. Note: For planning purposes only. Refer to Product Installation Guide on the web at electroluxappliances.com for detailed instructions. Optional Accessories • Drawer Pedestals – Island White (PN # EPWD15IW). Stacking Kit – (PN # STACKIT4X). • Mobile Home Installation Kit – (PN # 137067200). • Dryer Electrolux Major Appliances, N.A. USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca EIED55H 12/11 © 2011 Electrolux Home Products, Inc. High standards of quality at Electrolux Home Products, Inc. mean we are constantly working to improve our products. We reserve the right to change specifications or discontinue models without notice. Printed in the U.S.A.
