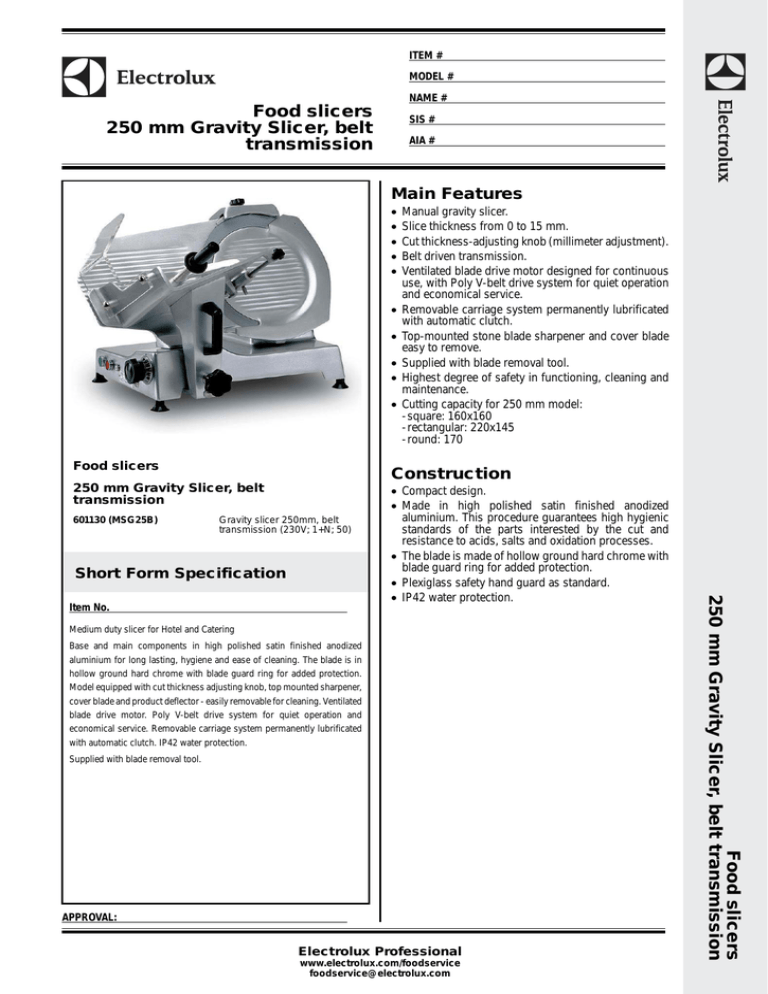

Electrolux | (MSG25B) | User's Manual | Electrolux (MSG25B) User's Manual

ITEM #
MODEL #
NAME #
Food slicers
250 mm Gravity Slicer, belt
transmission
SIS #
AIA #
Main Features
•
•
•
•
•
•
•
•
•
•
Food slicers
Construction
250 mm Gravity Slicer, belt
transmission
601130 (MSG25B)
Manual gravity slicer.
Slice thickness from 0 to 15 mm.
Cut thickness-adjusting knob (millimeter adjustment).
Belt driven transmission.
Ventilated blade drive motor designed for continuous
use, with Poly V-belt drive system for quiet operation
and economical service.
Removable carriage system permanently lubrificated
with automatic clutch.
Top-mounted stone blade sharpener and cover blade
easy to remove.
Supplied with blade removal tool.
Highest degree of safety in functioning, cleaning and
maintenance.
Cutting capacity for 250 mm model:
-square: 160x160
-rectangular: 220x145
-round: 170
Gravity slicer 250mm, belt
transmission (230V; 1+N; 50)
Short Form Specification
Medium duty slicer for Hotel and Catering
Base and main components in high polished satin finished anodized
aluminium for long lasting, hygiene and ease of cleaning. The blade is in
hollow ground hard chrome with blade guard ring for added protection.
Model equipped with cut thickness adjusting knob, top mounted sharpener,
cover blade and product deflector - easily removable for cleaning. Ventilated
blade drive motor. Poly V-belt drive system for quiet operation and
economical service. Removable carriage system permanently lubrificated
with automatic clutch. IP42 water protection.
Supplied with blade removal tool.
APPROVAL:
Electrolux Professional
www.electrolux.com/foodservice
foodservice@electrolux.com
Food slicers
250 mm Gravity Slicer, belt transmission
Item No.
• Compact design.
• Made in high polished satin finished anodized
aluminium. This procedure guarantees high hygienic
standards of the parts interested by the cut and
resistance to acids, salts and oxidation processes.
• The blade is made of hollow ground hard chrome with
blade guard ring for added protection.
• Plexiglass safety hand guard as standard.
• IP42 water protection.
Food slicers
250 mm Gravity Slicer, belt
transmission
Front
Electric
Supply voltage:
601130(MSG25B)
Total Watts:
230 V/1N ph/50 Hz
0.185 kW
Key Information:
External dimensions, Height:
External dimensions, Width:
External dimensions, Depth:
Net weight (kg):
370 mm
510 mm
420 mm
22
Side
EI = Electrical connection
Food slicers
250 mm Gravity Slicer, belt transmission
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2013.04.24
