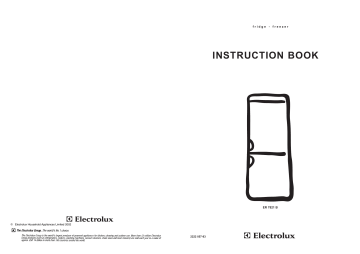

f r i d g e - f r e e z e r

INSTRUCTION BOOK

© Electrolux Household Appliances Limited 2002

2222 057-83

ER 7821 B

IMPORTANT SAFETY INFORMATION

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of safety. You MUST read it carefully before installing or using the appliance.

Installation

¥ This appliance is heavy. Care should be taken when moving it.

¥ It is dangerous to alter the specifications or attempt to modify this product in any way.

¥ Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

Important:

if the supply cable is damaged, it must be replaced by a special cable available from the manufacturer or its service agent.

¥ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

¥ Parts which heat up should not be exposed.

Whenever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.

¥ The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

Child Safety

¥ Do not place carbonated or fizzy drinks in the freezer.

¥ Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

¥ Ice lollies can cause Ôfrost/freezer burnsÕ if consumed straight from the freezer.

¥ ManufacturersÕ storage recommendations should be strictly adhered to. Refer to relevant instructions.

¥ The cooling plate or refrigerated freezer shelves in this appliance contain channels through which the refrigerant passes. If these are punctured this will cause substantial damage to the appliance and result in food loss. DO NOT USE SHARP

INSTRUMENTS to scrape off frost or ice. Under

NO circumstances should solid ice be forced off the lining or shelves. Solid ice should be allowed to thaw, when defrosting the appliance. See

Defrost Instructions.

Maintenance and Cleaning

¥ Do not allow children to tamper with the controls or play with the product.

¥ Keep all packaging well away from children.

General Safety

¥ Switch off and unplug the appliance before carrying out any cleaning or maintenance work.

Servicing

¥

Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.

¥

The appliance must not be located close to radiators or boilers.

¥

Avoid prolonged exposure of the appliance to direct sunlight.

¥

Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

During Use

¥ This product should be serviced by an authorised engineer and only genuine spare parts should be used.

¥ Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local

Electrolux Service Force Centre and always insist on genuine spare parts.

At the end of the

Appliance Life

¥ This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs only.

¥ Frozen food must NOT be re-frozen once it has thawed out.

¥ When disposing of your appliance, use an authorised disposal site.

¥ Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

2

CONTENTS

Instructions for the User

Important Safety Information

Description of the Appliance

Operation

Before use

Setting the temperature

The freezer compartment

Freezing fresh food

Frozen food storage

Thawing

Making ice cubes

Fresh food refrigeration

Normal operating sounds

Positioning the door shelves

Positioning the inner shelves

Health and Safety Guidelines

Maintenance and Cleaning

Internal cleaning

External cleaning

When the appliance is not in use

Changing the light bulb

Defrosting

Something Not Working

Service and Spare Parts

Customer Care

2

4

9

9

9

9

9

9

11

5

5

6

5

5

5

5

6

7

6

6

7

8

12

12

Guarantee Conditions

13

Instructions for the

Installer

Technical Specification

Installation

Positioning

Rear Spacers

Electrical Connection

Door Reversal

14

15

15

15

16

17

2222 057-83

3

DESCRIPTION OF THE APPLIANCE

J

I

H

G

F

E

1 3 - 4 3 3 3 3 10 10 10 10 -

A

B

C

D

A- Thermostat control for fridge and freezer compartments

B- Dairy compartment

C- Storage shelf

D- Bottle storage shelf

E- Freezing/Storage compartments

F- Freezing fresh food compartment

G- Pizza box drawer

H- Salad drawers

I- Glass shelf

J- Wire shelves

4

Door reversal directions

1. Disconnect from the electricity supply.

2. Remove all loose items, including food, store food in a cool place.

3. Gently lay the fridge/freezer on its back with the top held away from the floor by 5-8 cm (2-3 inches) of packing;

4. Remove the feet (2-3)

5. Remove bottom hinge (1).

6. Remove the freezer door by releasing it from the middle hinge (H).

7. Unscrew the middle hinge.

8. Slide out the fridge door from pin (G), unscrew the latter and then screw it down into the hingeblade provided on the opposite side, after having removed the small plugs (I) which should then be fitted on the opposite side.

9. Refit the fridge door and replace the middle hinge to the left hand side.

10.Replace the door and bottom hinge (1) on the opposite side.

11.Refit the feet (2-3) on the opposite side.

12.Unscrew the handles. Refit them on the opposite side after having pierced the plugs with a punch.

Cover the holes left open with the plugs contained in the documentation pack.

Attention

After completion of the door reversing operation, check that the door gasket adheres to the cabinet. If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket or accelerate this process by heating up the part involved with a normal hairdryer on a low setting.

D715 PIED/M

3

H

2

1

G

PR228

Printed on recycled paper

17

Electrical connections

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

WARNING: THIS APPLIANCE MUST BE

EARTHED.

The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted.

Remove the fuse from the cut off plug.

The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged into a 13amp socket in another part of your home.

Important

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

If you fit your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug, proceed as follows:

GREEN & YELLOW

13 AMP. FUSE

The plug moulded onto the lead incorporates a fuse.

For replacement, use a 13amp BSI362 fuse. Only

ASTA or BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the plug.

A replacement cover/carrier must be obtained from your local Electrolux Service Force Centre.

This appliance complies with the E.E.C. Directive

No. 87/308 of 2.6.87 relative to radio interference suppression.

This appliance complies with the following

E.E.C. Directives:

-

73/23 EEC of 19.2.73

(Low Voltage Directive) and subsequent modifications;

-

89/336 EEC of 3.5.89

(Electromagnetic

Compatibility Directive) and subsequent modifications.

Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

BROWN

D207

BLUE

CORD CLAMP

Connect the Green and Yellow (earth) wire to the terminal in the plug which is marked with the letter

ÇEÈ or the earth symbol or coloured green and yellow.

Connect the blue (neutral) wire to the terminal in the plug which is marked with the letter ÇNÈ or coloured black.

Connect the brown (live) wire to the terminal in the plug which is marked with the letter ÇLÈ or coloured red.

16

OPERATION

Before using

Remove all securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0.5 litre of water).

Do not use soap or detergent as the smell may linger. Dry thoroughly.

Setting the temperature

The temperature inside the refrigerator is regulated by a thermostat with 6 temperature positions and one ÇOFFÈ (O) position.

Position 1 = minimum coldness

Position 6 = maximum coldness

Turn the thermostat dial to the required position.

The intermediate position is usually the most suitable (3-4).

The thermostat setting can vary as the temperature inside the refrigeration compartment depends on the following factors:

Ð room temperature

Ð how often the door is opened

Ð how much food is stored

Ð position of the appliance

Important

During prolonged periods of abnormally hot weather, if the thermostat is set on too high a number, the cooling system may operate continuously and the fridge cooling plate may not defrost. Turning the knob to a lower number will cause the automatic defrosting to resume.

Low RomTemperature Switch

To ensure that the appliance is working efficiently when the room temperature drops below 16¡C, the switch mounted next to the thermostat control should be switched on.

No damage can be caused by leaving the switch in this position for any period of time (see page 11 Low room temperature operation).However should the temperature rise above 16¡C remember to turn the switch off again.

A

D710

A - Low Room Temperature Switch

The freezer compartment

The four-star freezer compartment is suitable for storage of commercially frozen food and for freezing fresh foods.

Freezing fresh food

When freezing large amounts of fresh food turn the thermostat to maximum approximately 1 hour prior to freezing.

When the food is frozen return to the normal position.

In any 24 hours you can freeze up to 10 kg. of fresh food.

Place food to be frozen in the upper drawer of the freezer as this is the coldest part.

If you need to store large quantities of food, you can remove the drawer from the appliance and pile the food directly on the cooling shelves, always respecting the load limits where they are stated.

Important

In the event of a power cut the food in the freezer will not be affected if the power cut is short and if the freezer is full. Do not open the door. Should the food begin to thaw, it must be consumed quickly and must not be re-frozen .

DEFROSTED COOKED FOOD MUST NOT BE

REFROZEN.

Frozen food storage

When you first start the freezer or if the freezer has been out of use for some time, we advise you to depress the ambient switch for at least two hours before storing frozen food.

Do not exceed the storage period indicated by the manufacturer.

Finally, do not open the door frequently or leave it open longer than is absolutely necessary.

5

Warning

Do not put carbonated liquids, (fizzy drinks etc.), in the freezer compartment.

Water ices, if consumed immediately after removal from the freezer, can cause low temperature skin burns.

Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or

Òfrost/freezer burnsÓ.

Important

In the event of a power cut the food in the freezer will not be affected if the power cut is short and if the freezer is full. Do not open the door. Should the food begin to thaw, it must be consumed quickly and must not be re-frozen .

Thawing

Food can be thawed in a number of ways, depending on the type of food and the size of the packs.

Meat, fish and fruit should be thawed in the refrigerator compartment and small pieces of meat can even be cooked while still frozen, but you must ensure that it is thoroughly cooked through.

Vegetables should be directly immersed in boiling water; ready-cooked dishes can be placed directly in the oven in their aluminium wrapping.

A microwave oven is particularly suitable for thawing any type of frozen or deep-frozen food: follow the oven instructions, particularly regarding the placement of aluminium wrapping or containers in the oven.

Fresh food refrigeration

To obtain the best performance, do not store warm food or evaporating liquids in the refrigerator; do cover or wrap the food, particularly if it has a strong flavour.

Do not cover the shelves with any protective material, such as paper, cardboard or plastic, which may obstruct the air circulation through them.

To help you use your refrigerator correctly, here are some more useful hints:

Raw meat (beef, pork, lamb & poultry or chicken): wrap in polythene bags and place on top of the salad crispers.

Meat can only be stored safely in this way for one or two days at the most.

Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom salad crispers.

Butter & cheese: these should be placed in special airtight containers or wrapped in aluminium foil or

6 polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Normal Operating Sounds

¥ You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils or tubing at the rear, to the cooling plate/evaporator or to the fixed freezer shelves.

¥ When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring sound or pulsating noise from the compressor.

¥ A thermostat controls the compressor, and you will hear a faint ÕclickÕ when the thermostat cuts in and out.

Making ice cubes

The appliance is provided with one or more trays for ice-cubes trays.

Fill the tray(s) 3/4 full to give the ice space to expand and place them in the freezer compartment.

To release the ice cubes simply give the tray a slight twist.

Do not use sharp or metallic instruments to remove the trays from the freezer.

INSTALLATION

Warning

IF YOU ARE DISCARDING AN OLD APPLIANCE

THAT HAS A LOCK OR CATCH ON THE DOOR,

YOU MUST ENSURE THAT IT IS MADE

UNUSABLE TO PREVENT YOUNG CHILDREN

BEING TRAPPED INSIDE.

Depending upon the position which you choose for your appliance, you may wish to reverse the way in which the door opens. To do this, refer to instructions on ÒDoor reversal directionsÓ paragraph.

Important

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Positioning

This appliance is designed to operate in ambient temperatures between 10¡C (50¡F) and 32¡C (90¡C).

It should be located in a dry atmosphere, out of direct sunlight and away from extreme temperature e.g. not next to a boiler or radiator, or in a very cold room e.g. an outhouse, where the temperatures may fall below 10¡C (50¡F). If these temperatures are exceeded i.e. colder or warmer, then the appliance may not operate correctly.

You should also ensure that air can circulate freely around the back and the top of the cabinet. There must also be at least 100 mm (4Ó) distance between the top of the cabinet and any overhanging kitchen furniture (A). Ideally, the appliance should not be positioned beneath overhanging furniture (B).

There should also be a gap of 25 mm either side of the appliance. Do not obstruct the space underneath. The back of the cabinet may be placed close to the wall but must not touch it. DO NOT install in places with restricted ventilation.

Adjust the level of the appliance by screwing out the adjustable foot, or feet, at the bottom of the cabinet using your fingers.

A

NP002

B

D200

Rear spacers

The plastic bag containing all relevant documentation also contains two spacers to be fitted into special holes in the back of the appliance.

Fit the spacers into the holes, taking care to ensure that the arrow (A) is positioned as shown in the diagram. Then turn them through 45¡ (arrow (A) vertical) until they lock into place.

PR60

45

°

A

15

TECHNICAL SPECIFICATIONS

DIMENSIONS

Height

Width

Depth

POWER SUPPLY VOLTAGE AND FREQUENCY

TOTAL POWER ABSORBED

AVERAGE DAILY UNITS ELECTRICITY *

GROSS CAPACITY

Fridge

Freezer

NET CAPACITY

163 cm

55 cm

60 cm

220-240 V / 50 Hz

110 W

1.17 kWh

167 l

110 l

Freezer 90 l

*

This figure is based on standard test results in accordance with European Standard EN 153.

Actual consumption will depend on how the appliance is used and where it is located.

Positioning the inner shelves

The walls of the refrigerator are equipped with runners so that shelves can be positioned as desired.

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be adjusted in height.

To do this proceed as shown in the diagram.

D040

D758

14 7

HEALTH AND SAFETY GUIDELINES

Because of consumer demand, preservatives have been removed from many pre-prepared foods. This together with the changes in shopping habits to a once-a-week shop, mean that safe handling and storage of food is even more important than ever.

The following tips should help you to ensure that the food in your home is in as perfect condition as possible.

¥ Keep the time between buying chilled food and placing it in your fridge as short as possible. Tests showed that the temperature of 1 litre of orange juice rose to 22¡C in an hour between the supermarket and home. It then took 11 hours to get down to 7¡C in the refrigerator.

¥ Keep the refrigerator door closed as much as possible.

¥ Do not push food together too much, try to allow air to circulate around each item.

¥ Cool cooked food as quickly as possible but do

NOT place in the refrigerator until cool. (Leave food in a cool place in order that it can then be put in the refrigerator as soon as possible).

¥ Do NOT mix raw and cooked meat, they must be in separate containers. Take care not to let the meat juices drip onto other food. If the meat does drip, remove everything and clean thoroughly.

¥ Do not store food uncovered.

¥ The best way to defrost food is to put it in the refrigerator to thaw slowly.

¥ Remove suspect food from your refrigerator and clean (refer to ÒMaintenance and Cleaning).

¥ Never allow spillages to dry and harden.

¥ Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best.

¥ It is important that food is used before its Òbest beforeÓ date.

¥ Store eggs in the egg rack provided in the refrigerator door. Discard any broken or chipped eggs.

¥ Regularly check the refrigerator door seal to ensure that it is clean and free from debris.

¥ Always wash your hands with soapy water and dry them with a clean towel before handling food.

¥ Keep work surfaces clean and avoid cross contamination by not using the same work surface or knife, without washing them thoroughly in between.

¥ The fresh foods to be frozen must be fresh and of the best quality.

¥ The size of each pack should be small enough to ensure that it is used in one go . Small packs freeze more quickly and uniformly and give better results.

8

¥ Frozen food, once thawed, must not be refrozen.

Lean food keeps better and longer than fatty food, salt reduces the storage time.

¥ Wrap the food in polythene or aluminium freezing bags or foil so that they adhere to the food and provide an airtight seal .

¥ Packaging which is swollen or has traces of refrozen water droplets on the pack could indicate that the product has not been kept at a suitable temperature and that it may have lost its original quality. Partially thawed food must not be refrozen, it must be consumed within 24 hours.

Never exceed the storage times indicated.

¥ Never place hot food, bottles or cans of fizzy drink in the freezer as they may explode.

Containers with a lid must not be filled to the brim.

¥ Do not open the door or place extra fresh food in the freezer next to food which is already frozen as this could cause the temperature of the frozen food to rise and its quality and storage life to reduce .

¥ The symbols on the drawers show different types of frozen goods.

The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and pre-treating before freezing.

GUARANTEE CONDITIONS

Standard guarantee conditions

We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.

The appliance has been used for normal domestic purposes only, and in accordance with the manufacturerÕs instructions.

The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.

All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance or defective part replaced shall become the CompanyÕs property.

This guarantee is in addition to your statutory and other legal rights.

Home visits are made between

8.30am and 5.30pm

Monday to Friday. Visits may be available outside these hours in which case a

premium

will be charged.

Exclusions

This guarantee does not cover:

Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.

Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the

European Community (EC) or European Free Trade Area.

Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.

Products of Electrolux manufacture which are not marketed by Electrolux.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

The guarantee starts from the date you first purchased your product.

The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.

This guarantee relates to you and cannot be transferred to another user.

Your new home is within the European Community (EC) or European Free Trade Area.

The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.

The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis +33 (0)3 44 62 20 13

Germany NŸrnberg +49 (0)800 234 7378

Italy

Sweden

UK

Pordenone

Stockholm

Slough

+39 (0)800117511

+46 (0)20 78 77 50

+44 (0)1735 219898

13

During a normal night time period of approximately 8 hours a traditional fridge freezer can normally maintain the frozen food temperature but if the appliance is left for longer period in a low ambient temperature the freezer will defrost .

If, after the above checks, there is still a fault, call your local Service Force Centre.

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Please note that proof of purchase is required for any in-guarantee service call

SERVICE AND SPARE PARTS

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Electrolux Service Force Centre by telephoning:-

0 8 7 0 5 9 2 9 9 2 9

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the heading ÔSomething Not

Working.Õ

2.

3.

4.

When you contact the Service Force Centre you will need to give the following details:

1.

Your name, address and post code

5.

Your telephone number

Clear and concise details of the fault

The model and serial number of the appliance (found on the rating plate)

The purchase date

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

CUSTOMER CARE DEPARTMENT

For general enquiries concerning your Electrolux appliance or for further information on Electrolux products, please contact our Customer Care Department by letter or telephone as follows:-

Customer Care Department

Electrolux

55-77 High Street

Slough

Berkshire

SL1 1DZ

Tel: 08705 950 950 *

* calls to this number may be recorded for training purposes.

12

MAINTENANCE AND CLEANING

Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the

ELECTRICITY supply.

Changing the light bulb

Should the interior light fail to work, first switch off the appliance and disconnect from the electricity supply, then replace the bulb as follows;

Internal cleaning

Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water).

Rinse and dry thoroughly.

NEVER USE DETERGENTS, ABRASIVE

POWDERS, HIGHLY PERFUMED

CLEANING PRODUCTS OR WAX

POLISHES, TO CLEAN THE INTERIOR AS

THESE WILL DAMAGE THE SURFACE AND

LEAVE A STRONG SMELL.

External cleaning

Wash the outer cabinet with warm soapy water. Do

NOT use abrasive products.

An accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

You MUST ensure that the appliance is switched

OFF

Once or twice a year dust the condenser (black grill) and the compressor at the back of the appliance, with a brush or vacuum cleaner, see figure.

D411

Unscrew the light cover and then pull it outward by pressing as shown in the figure. Unscrew the bulb and replace it with a new 15 watt bulb (available from your nearest Service Force Centre).

Replace the light cover by sliding it into its original position and replacing the screw.

Defrosting

Refrigerator

The refrigerator automatically defrosts every time the compressor stops. The water is discharged, via the pipe, into a tray located at the back of the appliance above the compressor, where it evaporates.

CONDENSER

DEFROST

TRAY

COMPRESSOR

D273

When the appliance is not in use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the doors ajar to prevent unpleasant smells.

D037

Important

To avoid defrost water overflowing into the fridge, periodically clean the water discharge hole in the centre of the V shaped drip collector at the back of the refrigerator compartment behind the fruit and vegetable drawer. Use the defrost cleaner provided which you will find already inserted into the discharge hole.

Remember to wash the defrost cleaner in hot soapy water at regular intervals. Dry throughly before replacing.

9

Freezer

When the frost has reached a thickness of up to

4mm it can be removed using the ice scraper provided with the appliance. During this operation it is not necessary to disconnect the appliance from the mains and remove the food. Never use metal tools for this operation.

For complete defrosting (once or twice a year) proceed as follows:

- turn the thermostat dial to the ÇOFFÈ position (O) or disconnect the appliance from the mains.

- Remove any food from inside the freezer and fridge, wrap it in several sheets of newspaper and store in a cool,dry place.

- Leave the door open and insert the ice scraper under the channel in the centre of the lower part of the appliance; place a low-sided container beneath the scraper to collect the water (see fig.).

- Clean and dry thoroughly.

- Replace the scraper in one of the drawers .

- Reconnect the appliance to the mains or reset the thermostat to a functioning position.

- After letting the appliance run for at least half an hour, replace the previously removed food into the compartment.

Important

When defrosting the freezer, the fridge is also controlled by the thermostat and will not be operational during this period. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

Attention!

In the event of a power failure causing the temperature within your freezer to rise, do not refreeze the food without checking its condition.

The following guidelines should assist you.

Ice-cream

: once thawed should be discarded.

Fruits & Vegetables:

if soft should be cooked and used up.

Breads & Cakes

: can be re-frozen without danger.

Shellfish

: should be refrigerated and used up quickly.

Cooked Dishes

: i.e. casseroles should be refrigerated and used up.

Large Pieces of Meat:

can be re-frozen providing there are still ice crystals remaining within them.

Small Joints

: should be cooked and can then be refrozen as cooked dishes.

Chicken

: should also be cooked and re-frozen as a cooked dish.

10

D068/2

SOMETHING NOT WORKING

Important:

If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation a charge will be made, even if the appliance is under guarantee.

Before

contacting your local Service Force Centre, check the following points:

Symptom

No power to the appliance

The light does not come on

The temperature in the fridge or freezer section is too high

The freezer door will not open

The compressor runs continously

Excessive frost and ice has built up

Solution

Check there is power at the socket.

Check there is not a power cut by checking the household lights.

Check the fuse has not blown.

Ensure that the bulb is correctly fitted.

Replace the bulb if it has blown.

Check the door light switch is not jammed.

Check the thermostat control knob in the fridge is turned to the correct setting relative to ambient conditions.

Check the ambient temperature is within the applianceÕs operating limits of 10¡C to 32¡C.

Relocate the appliance if necessary.

Has door just been opened? If so leave for a few minutes to allow the air pressure to equalise.

Adjust the thermostat control knob to give correct temperature control. See ÒSetting the temperatureÓ.

Check that the doors are closed.

Large quantities of food have recently been placed in the cabinet and/or door is frequently opened.

Check that air ventilation is not obstructed.

Ensure the doors are not left open.

Check that nothing is preventing the doors from closing.

Is the door gasket intact and clean.

Has advised periodic defrosting been carried out.

Noise

Water under the salad crispers

Refer to normal operating sounds.

Check the drain hole is not blocked. (see

Maintenance and Cleaning).

Low room temperature operation

During prolonged periods of low room temperatures,ie;10¡C and lower, the compressor on single compressor fridge freezer can remain inoperative during this time .

This is due to the air temperature within the refrigerator compartment being maintained at 6¡C or under thus not calling the thermostat to energise the compressor .

11

Freezer

When the frost has reached a thickness of up to

4mm it can be removed using the ice scraper provided with the appliance. During this operation it is not necessary to disconnect the appliance from the mains and remove the food. Never use metal tools for this operation.

For complete defrosting (once or twice a year) proceed as follows:

- turn the thermostat dial to the ÇOFFÈ position (O) or disconnect the appliance from the mains.

- Remove any food from inside the freezer and fridge, wrap it in several sheets of newspaper and store in a cool,dry place.

- Leave the door open and insert the ice scraper under the channel in the centre of the lower part of the appliance; place a low-sided container beneath the scraper to collect the water (see fig.).

- Clean and dry thoroughly.

- Replace the scraper in one of the drawers .

- Reconnect the appliance to the mains or reset the thermostat to a functioning position.

- After letting the appliance run for at least half an hour, replace the previously removed food into the compartment.

Important

When defrosting the freezer, the fridge is also controlled by the thermostat and will not be operational during this period. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

Attention!

In the event of a power failure causing the temperature within your freezer to rise, do not refreeze the food without checking its condition.

The following guidelines should assist you.

Ice-cream

: once thawed should be discarded.

Fruits & Vegetables:

if soft should be cooked and used up.

Breads & Cakes

: can be re-frozen without danger.

Shellfish

: should be refrigerated and used up quickly.

Cooked Dishes

: i.e. casseroles should be refrigerated and used up.

Large Pieces of Meat:

can be re-frozen providing there are still ice crystals remaining within them.

Small Joints

: should be cooked and can then be refrozen as cooked dishes.

Chicken

: should also be cooked and re-frozen as a cooked dish.

10

D068/2

SOMETHING NOT WORKING

Important:

If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation a charge will be made, even if the appliance is under guarantee.

Before

contacting your local Service Force Centre, check the following points:

Symptom

No power to the appliance

The light does not come on

The temperature in the fridge or freezer section is too high

The freezer door will not open

The compressor runs continously

Excessive frost and ice has built up

Solution

Check there is power at the socket.

Check there is not a power cut by checking the household lights.

Check the fuse has not blown.

Ensure that the bulb is correctly fitted.

Replace the bulb if it has blown.

Check the door light switch is not jammed.

Check the thermostat control knob in the fridge is turned to the correct setting relative to ambient conditions.

Check the ambient temperature is within the applianceÕs operating limits of 10¡C to 32¡C.

Relocate the appliance if necessary.

Has door just been opened? If so leave for a few minutes to allow the air pressure to equalise.

Adjust the thermostat control knob to give correct temperature control. See ÒSetting the temperatureÓ.

Check that the doors are closed.

Large quantities of food have recently been placed in the cabinet and/or door is frequently opened.

Check that air ventilation is not obstructed.

Ensure the doors are not left open.

Check that nothing is preventing the doors from closing.

Is the door gasket intact and clean.

Has advised periodic defrosting been carried out.

Noise

Water under the salad crispers

Refer to normal operating sounds.

Check the drain hole is not blocked. (see

Maintenance and Cleaning).

Low room temperature operation

During prolonged periods of low room temperatures,ie;10¡C and lower, the compressor on single compressor fridge freezer can remain inoperative during this time .

This is due to the air temperature within the refrigerator compartment being maintained at 6¡C or under thus not calling the thermostat to energise the compressor .

11

During a normal night time period of approximately 8 hours a traditional fridge freezer can normally maintain the frozen food temperature but if the appliance is left for longer period in a low ambient temperature the freezer will defrost .

If, after the above checks, there is still a fault, call your local Service Force Centre.

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Please note that proof of purchase is required for any in-guarantee service call

SERVICE AND SPARE PARTS

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Electrolux Service Force Centre by telephoning:-

0 8 7 0 5 9 2 9 9 2 9

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the heading ÔSomething Not

Working.Õ

2.

3.

4.

When you contact the Service Force Centre you will need to give the following details:

1.

Your name, address and post code

5.

Your telephone number

Clear and concise details of the fault

The model and serial number of the appliance (found on the rating plate)

The purchase date

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

CUSTOMER CARE DEPARTMENT

For general enquiries concerning your Electrolux appliance or for further information on Electrolux products, please contact our Customer Care Department by letter or telephone as follows:-

Customer Care Department

Electrolux

55-77 High Street

Slough

Berkshire

SL1 1DZ

Tel: 08705 950 950 *

* calls to this number may be recorded for training purposes.

12

MAINTENANCE AND CLEANING

Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the

ELECTRICITY supply.

Changing the light bulb

Should the interior light fail to work, first switch off the appliance and disconnect from the electricity supply, then replace the bulb as follows;

Internal cleaning

Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water).

Rinse and dry thoroughly.

NEVER USE DETERGENTS, ABRASIVE

POWDERS, HIGHLY PERFUMED

CLEANING PRODUCTS OR WAX

POLISHES, TO CLEAN THE INTERIOR AS

THESE WILL DAMAGE THE SURFACE AND

LEAVE A STRONG SMELL.

External cleaning

Wash the outer cabinet with warm soapy water. Do

NOT use abrasive products.

An accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

You MUST ensure that the appliance is switched

OFF

Once or twice a year dust the condenser (black grill) and the compressor at the back of the appliance, with a brush or vacuum cleaner, see figure.

D411

Unscrew the light cover and then pull it outward by pressing as shown in the figure. Unscrew the bulb and replace it with a new 15 watt bulb (available from your nearest Service Force Centre).

Replace the light cover by sliding it into its original position and replacing the screw.

Defrosting

Refrigerator

The refrigerator automatically defrosts every time the compressor stops. The water is discharged, via the pipe, into a tray located at the back of the appliance above the compressor, where it evaporates.

CONDENSER

DEFROST

TRAY

COMPRESSOR

D273

When the appliance is not in use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the doors ajar to prevent unpleasant smells.

D037

Important

To avoid defrost water overflowing into the fridge, periodically clean the water discharge hole in the centre of the V shaped drip collector at the back of the refrigerator compartment behind the fruit and vegetable drawer. Use the defrost cleaner provided which you will find already inserted into the discharge hole.

Remember to wash the defrost cleaner in hot soapy water at regular intervals. Dry throughly before replacing.

9

HEALTH AND SAFETY GUIDELINES

Because of consumer demand, preservatives have been removed from many pre-prepared foods. This together with the changes in shopping habits to a once-a-week shop, mean that safe handling and storage of food is even more important than ever.

The following tips should help you to ensure that the food in your home is in as perfect condition as possible.

¥ Keep the time between buying chilled food and placing it in your fridge as short as possible. Tests showed that the temperature of 1 litre of orange juice rose to 22¡C in an hour between the supermarket and home. It then took 11 hours to get down to 7¡C in the refrigerator.

¥ Keep the refrigerator door closed as much as possible.

¥ Do not push food together too much, try to allow air to circulate around each item.

¥ Cool cooked food as quickly as possible but do

NOT place in the refrigerator until cool. (Leave food in a cool place in order that it can then be put in the refrigerator as soon as possible).

¥ Do NOT mix raw and cooked meat, they must be in separate containers. Take care not to let the meat juices drip onto other food. If the meat does drip, remove everything and clean thoroughly.

¥ Do not store food uncovered.

¥ The best way to defrost food is to put it in the refrigerator to thaw slowly.

¥ Remove suspect food from your refrigerator and clean (refer to ÒMaintenance and Cleaning).

¥ Never allow spillages to dry and harden.

¥ Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best.

¥ It is important that food is used before its Òbest beforeÓ date.

¥ Store eggs in the egg rack provided in the refrigerator door. Discard any broken or chipped eggs.

¥ Regularly check the refrigerator door seal to ensure that it is clean and free from debris.

¥ Always wash your hands with soapy water and dry them with a clean towel before handling food.

¥ Keep work surfaces clean and avoid cross contamination by not using the same work surface or knife, without washing them thoroughly in between.

¥ The fresh foods to be frozen must be fresh and of the best quality.

¥ The size of each pack should be small enough to ensure that it is used in one go . Small packs freeze more quickly and uniformly and give better results.

8

¥ Frozen food, once thawed, must not be refrozen.

Lean food keeps better and longer than fatty food, salt reduces the storage time.

¥ Wrap the food in polythene or aluminium freezing bags or foil so that they adhere to the food and provide an airtight seal .

¥ Packaging which is swollen or has traces of refrozen water droplets on the pack could indicate that the product has not been kept at a suitable temperature and that it may have lost its original quality. Partially thawed food must not be refrozen, it must be consumed within 24 hours.

Never exceed the storage times indicated.

¥ Never place hot food, bottles or cans of fizzy drink in the freezer as they may explode.

Containers with a lid must not be filled to the brim.

¥ Do not open the door or place extra fresh food in the freezer next to food which is already frozen as this could cause the temperature of the frozen food to rise and its quality and storage life to reduce .

¥ The symbols on the drawers show different types of frozen goods.

The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and pre-treating before freezing.

GUARANTEE CONDITIONS

Standard guarantee conditions

We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.

The appliance has been used for normal domestic purposes only, and in accordance with the manufacturerÕs instructions.

The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.

All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance or defective part replaced shall become the CompanyÕs property.

This guarantee is in addition to your statutory and other legal rights.

Home visits are made between

8.30am and 5.30pm

Monday to Friday. Visits may be available outside these hours in which case a

premium

will be charged.

Exclusions

This guarantee does not cover:

Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.

Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the

European Community (EC) or European Free Trade Area.

Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.

Products of Electrolux manufacture which are not marketed by Electrolux.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

The guarantee starts from the date you first purchased your product.

The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.

This guarantee relates to you and cannot be transferred to another user.

Your new home is within the European Community (EC) or European Free Trade Area.

The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.

The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis +33 (0)3 44 62 20 13

Germany NŸrnberg +49 (0)800 234 7378

Italy

Sweden

UK

Pordenone

Stockholm

Slough

+39 (0)800117511

+46 (0)20 78 77 50

+44 (0)

1753 219898

13

TECHNICAL SPECIFICATIONS

DIMENSIONS

Height

Width

Depth

POWER SUPPLY VOLTAGE AND FREQUENCY

TOTAL POWER ABSORBED

AVERAGE DAILY UNITS ELECTRICITY *

GROSS CAPACITY

Fridge

Freezer

NET CAPACITY

163 cm

55 cm

60 cm

220-240 V / 50 Hz

110 W

1.17 kWh

167 l

110 l

Freezer 90 l

*

This figure is based on standard test results in accordance with European Standard EN 153.

Actual consumption will depend on how the appliance is used and where it is located.

Positioning the inner shelves

The walls of the refrigerator are equipped with runners so that shelves can be positioned as desired.

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be adjusted in height.

To do this proceed as shown in the diagram.

D040

D758

14 7

Warning

Do not put carbonated liquids, (fizzy drinks etc.), in the freezer compartment.

Water ices, if consumed immediately after removal from the freezer, can cause low temperature skin burns.

Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or

Òfrost/freezer burnsÓ.

Important

In the event of a power cut the food in the freezer will not be affected if the power cut is short and if the freezer is full. Do not open the door. Should the food begin to thaw, it must be consumed quickly and must not be re-frozen .

Thawing

Food can be thawed in a number of ways, depending on the type of food and the size of the packs.

Meat, fish and fruit should be thawed in the refrigerator compartment and small pieces of meat can even be cooked while still frozen, but you must ensure that it is thoroughly cooked through.

Vegetables should be directly immersed in boiling water; ready-cooked dishes can be placed directly in the oven in their aluminium wrapping.

A microwave oven is particularly suitable for thawing any type of frozen or deep-frozen food: follow the oven instructions, particularly regarding the placement of aluminium wrapping or containers in the oven.

Fresh food refrigeration

To obtain the best performance, do not store warm food or evaporating liquids in the refrigerator; do cover or wrap the food, particularly if it has a strong flavour.

Do not cover the shelves with any protective material, such as paper, cardboard or plastic, which may obstruct the air circulation through them.

To help you use your refrigerator correctly, here are some more useful hints:

Raw meat (beef, pork, lamb & poultry or chicken): wrap in polythene bags and place on top of the salad crispers.

Meat can only be stored safely in this way for one or two days at the most.

Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom salad crispers.

Butter & cheese: these should be placed in special airtight containers or wrapped in aluminium foil or

6 polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Normal Operating Sounds

¥ You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils or tubing at the rear, to the cooling plate/evaporator or to the fixed freezer shelves.

¥ When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring sound or pulsating noise from the compressor.

¥ A thermostat controls the compressor, and you will hear a faint ÕclickÕ when the thermostat cuts in and out.

Making ice cubes

The appliance is provided with one or more trays for ice-cubes trays.

Fill the tray(s) 3/4 full to give the ice space to expand and place them in the freezer compartment.

To release the ice cubes simply give the tray a slight twist.

Do not use sharp or metallic instruments to remove the trays from the freezer.

INSTALLATION

Warning

IF YOU ARE DISCARDING AN OLD APPLIANCE

THAT HAS A LOCK OR CATCH ON THE DOOR,

YOU MUST ENSURE THAT IT IS MADE

UNUSABLE TO PREVENT YOUNG CHILDREN

BEING TRAPPED INSIDE.

Depending upon the position which you choose for your appliance, you may wish to reverse the way in which the door opens. To do this, refer to instructions on ÒDoor reversal directionsÓ paragraph.

Important

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Positioning

This appliance is designed to operate in ambient temperatures between 10¡C (50¡F) and 32¡C (90¡C).

It should be located in a dry atmosphere, out of direct sunlight and away from extreme temperature e.g. not next to a boiler or radiator, or in a very cold room e.g. an outhouse, where the temperatures may fall below 10¡C (50¡F). If these temperatures are exceeded i.e. colder or warmer, then the appliance may not operate correctly.

You should also ensure that air can circulate freely around the back and the top of the cabinet. There must also be at least 100 mm (4Ó) distance between the top of the cabinet and any overhanging kitchen furniture (A). Ideally, the appliance should not be positioned beneath overhanging furniture (B).

There should also be a gap of 25 mm either side of the appliance. Do not obstruct the space underneath. The back of the cabinet may be placed close to the wall but must not touch it. DO NOT install in places with restricted ventilation.

Adjust the level of the appliance by screwing out the adjustable foot, or feet, at the bottom of the cabinet using your fingers.

A

NP002

B

D200

Rear spacers

The plastic bag containing all relevant documentation also contains two spacers to be fitted into special holes in the back of the appliance.

Fit the spacers into the holes, taking care to ensure that the arrow (A) is positioned as shown in the diagram. Then turn them through 45¡ (arrow (A) vertical) until they lock into place.

PR60

45

°

A

15

Electrical connections

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

WARNING: THIS APPLIANCE MUST BE

EARTHED.

The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted.

Remove the fuse from the cut off plug.

The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged into a 13amp socket in another part of your home.

Important

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

If you fit your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug, proceed as follows:

GREEN & YELLOW

13 AMP. FUSE

The plug moulded onto the lead incorporates a fuse.

For replacement, use a 13amp BSI362 fuse. Only

ASTA or BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the plug.

A replacement cover/carrier must be obtained from your local Electrolux Service Force Centre.

This appliance complies with the E.E.C. Directive

No. 87/308 of 2.6.87 relative to radio interference suppression.

This appliance complies with the following

E.E.C. Directives:

-

73/23 EEC of 19.2.73

(Low Voltage Directive) and subsequent modifications;

-

89/336 EEC of 3.5.89

(Electromagnetic

Compatibility Directive) and subsequent modifications.

Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

BROWN

D207

BLUE

CORD CLAMP

Connect the Green and Yellow (earth) wire to the terminal in the plug which is marked with the letter

ÇEÈ or the earth symbol or coloured green and yellow.

Connect the blue (neutral) wire to the terminal in the plug which is marked with the letter ÇNÈ or coloured black.

Connect the brown (live) wire to the terminal in the plug which is marked with the letter ÇLÈ or coloured red.

16

OPERATION

Before using

Remove all securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0.5 litre of water).

Do not use soap or detergent as the smell may linger. Dry thoroughly.

Setting the temperature

The temperature inside the refrigerator is regulated by a thermostat with 6 temperature positions and one ÇOFFÈ (O) position.

Position 1 = minimum coldness

Position 6 = maximum coldness

Turn the thermostat dial to the required position.

The intermediate position is usually the most suitable (3-4).

The thermostat setting can vary as the temperature inside the refrigeration compartment depends on the following factors:

Ð room temperature

Ð how often the door is opened

Ð how much food is stored

Ð position of the appliance

Important

During prolonged periods of abnormally hot weather, if the thermostat is set on too high a number, the cooling system may operate continuously and the fridge cooling plate may not defrost. Turning the knob to a lower number will cause the automatic defrosting to resume.

Low RomTemperature Switch

To ensure that the appliance is working efficiently when the room temperature drops below 16¡C, the switch mounted next to the thermostat control should be switched on.

No damage can be caused by leaving the switch in this position for any period of time (see page 11 Low room temperature operation).However should the temperature rise above 16¡C remember to turn the switch off again.

A

D710

A - Low Room Temperature Switch

The freezer compartment

The four-star freezer compartment is suitable for storage of commercially frozen food and for freezing fresh foods.

Freezing fresh food

When freezing large amounts of fresh food turn the thermostat to maximum approximately 1 hour prior to freezing.

When the food is frozen return to the normal position.

In any 24 hours you can freeze up to 10 kg. of fresh food.

Place food to be frozen in the upper drawer of the freezer as this is the coldest part.

If you need to store large quantities of food, you can remove the drawer from the appliance and pile the food directly on the cooling shelves, always respecting the load limits where they are stated.

Important

In the event of a power cut the food in the freezer will not be affected if the power cut is short and if the freezer is full. Do not open the door. Should the food begin to thaw, it must be consumed quickly and must not be re-frozen .

DEFROSTED COOKED FOOD MUST NOT BE

REFROZEN.

Frozen food storage

When you first start the freezer or if the freezer has been out of use for some time, we advise you to depress the ambient switch for at least two hours before storing frozen food.

Do not exceed the storage period indicated by the manufacturer.

Finally, do not open the door frequently or leave it open longer than is absolutely necessary.

5

DESCRIPTION OF THE APPLIANCE

J

I

H

G

F

E

1 3 - 4 3 3 3 3 10 10 10 10 -

A

B

C

D

A- Thermostat control for fridge and freezer compartments

B- Dairy compartment

C- Storage shelf

D- Bottle storage shelf

E- Freezing/Storage compartments

F- Freezing fresh food compartment

G- Pizza box drawer

H- Salad drawers

I- Glass shelf

J- Wire shelves

4

Door reversal directions

1. Disconnect from the electricity supply.

2. Remove all loose items, including food, store food in a cool place.

3. Gently lay the fridge/freezer on its back with the top held away from the floor by 5-8 cm (2-3 inches) of packing;

4. Remove the feet (2-3)

5. Remove bottom hinge (1).

6. Remove the freezer door by releasing it from the middle hinge (H).

7. Unscrew the middle hinge.

8. Slide out the fridge door from pin (G), unscrew the latter and then screw it down into the hingeblade provided on the opposite side, after having removed the small plugs (I) which should then be fitted on the opposite side.

9. Refit the fridge door and replace the middle hinge to the left hand side.

10.Replace the door and bottom hinge (1) on the opposite side.

11.Refit the feet (2-3) on the opposite side.

12.Unscrew the handles. Refit them on the opposite side after having pierced the plugs with a punch.

Cover the holes left open with the plugs contained in the documentation pack.

Attention

After completion of the door reversing operation, check that the door gasket adheres to the cabinet. If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket or accelerate this process by heating up the part involved with a normal hairdryer on a low setting.

D715 PIED/M

3

H

2

1

G

PR228

Printed on recycled paper

17

IMPORTANT SAFETY INFORMATION

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of safety. You MUST read it carefully before installing or using the appliance.

Installation

¥ This appliance is heavy. Care should be taken when moving it.

¥ It is dangerous to alter the specifications or attempt to modify this product in any way.

¥ Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

Important:

if the supply cable is damaged, it must be replaced by a special cable available from the manufacturer or its service agent.

¥ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

¥ Parts which heat up should not be exposed.

Whenever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.

¥ The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

Child Safety

¥ Do not place carbonated or fizzy drinks in the freezer.

¥ Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

¥ Ice lollies can cause Ôfrost/freezer burnsÕ if consumed straight from the freezer.

¥ ManufacturersÕ storage recommendations should be strictly adhered to. Refer to relevant instructions.

¥ The cooling plate or refrigerated freezer shelves in this appliance contain channels through which the refrigerant passes. If these are punctured this will cause substantial damage to the appliance and result in food loss. DO NOT USE SHARP

INSTRUMENTS to scrape off frost or ice. Under

NO circumstances should solid ice be forced off the lining or shelves. Solid ice should be allowed to thaw, when defrosting the appliance. See

Defrost Instructions.

Maintenance and Cleaning

¥ Do not allow children to tamper with the controls or play with the product.

¥ Keep all packaging well away from children.

General Safety

¥ Switch off and unplug the appliance before carrying out any cleaning or maintenance work.

Servicing

¥

Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.

¥

The appliance must not be located close to radiators or boilers.

¥

Avoid prolonged exposure of the appliance to direct sunlight.

¥

Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

During Use

¥ This product should be serviced by an authorised engineer and only genuine spare parts should be used.

¥ Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local

Electrolux Service Force Centre and always insist on genuine spare parts.

At the end of the

Appliance Life

¥ This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs only.

¥ Frozen food must NOT be re-frozen once it has thawed out.

¥ When disposing of your appliance, use an authorised disposal site.

¥ Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

2

CONTENTS

Instructions for the User

Important Safety Information

Description of the Appliance

Operation

Before use

Setting the temperature

The freezer compartment

Freezing fresh food

Frozen food storage

Thawing

Making ice cubes

Fresh food refrigeration

Normal operating sounds

Positioning the door shelves

Positioning the inner shelves

Health and Safety Guidelines

Maintenance and Cleaning

Internal cleaning

External cleaning

When the appliance is not in use

Changing the light bulb

Defrosting

Something Not Working

Service and Spare Parts

Customer Care

2

4

9

9

9

9

9

9

11

5

5

6

5

5

5

5

6

7

6

6

7

8

12

12

Guarantee Conditions

13

Instructions for the

Installer

Technical Specification

Installation

Positioning

Rear Spacers

Electrical Connection

Door Reversal

14

15

15

15

16

17

2222 057-83

3

f r i d g e - f r e e z e r

INSTRUCTION BOOK

© Electrolux Household Appliances Limited 2002

2222 057-83

ER 7821 B

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
