fridge - freezer

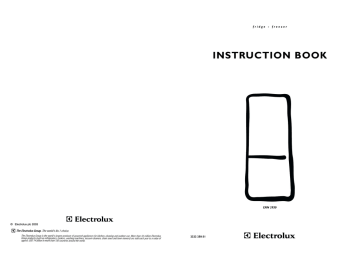

INSTRUCTION BOOK
ERN 2930
© Electrolux plc 2003
2222 258-31
IMPORTANT SAFETY INFORMATION
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
Should adjustment of the furniture door be necessary, use the clearance of slots as required.
At the end of operations, it is necessary to check if
the door of the furniture closes properly.
This information has been provided in the interest of safety. You MUST read it carefully before installing
or using the appliance.
Installation
•
•
•
Do not place carbonated or fizzy drinks in the
freezer.
•
Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
•
Ice lollies can cause ‘frost/freezer burns’ if consumed straight from the freezer.
•
Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant instructions.
•
The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from your
local Service Force Centre.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
The appliance should be left for 2 hours after installation before it is turned on, in order to allow the
refrigerant to settle.
•
•
•
•
•
Child Safety
Frozen food must NOT be re-frozen once it has
thawed out.
•
Do not allow children to tamper with the controls or
play with the product.
Maintenance and Cleaning
•
Keep all packaging well away from children.
•
General Safety
•
This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging must
therefore only be carried out by authorized technicians.
•
Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
The appliance must not be located close to
cookers, radiators or boilers.
Avoid prolonged exposure of the appliance to
direct sunlight.
Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating appliances.
•
•
•
During Use
•
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs.
2
PR168
Fix cover (D) on guide (B) until it clips into place.
B
D
PR167/1
If the appliance is fixed to the side of the kitchen
unit, simply slacken the screws in fixing brackets
(D), move the brackets as shown in the figure and
re-tighten the screws.
Then fit cover (E).
•
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
•
Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Service Force Centre and always insist on genuine spare parts.
E
D734
Switch off and unplug the appliance before carrying out any cleaning or maintenance work.
Servicing
D
After completion of the door reversing operation,
check that the door gasket adheres to the cabinet. If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to the
cabinet. In that case, wait for the natural fitting
of the gasket or accelerate this process by heating up the part involved with a normal hairdryer
on a low setting.
At the end of the
Appliance Life
•
When disposing of your appliance, use an authorised disposal site.
•
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
19
Separate parts A, B, C, D as shown in the figure
CONTENTS
B
A
Instructions for the User
C
D
PR266
50mm
Place guide (A) on the inside part of the furniture
door, in the upper and lower position as shown in the
figure and mark the position of external holes.
Having drilled the holes, fix the guide with the
screws supplied.
A
20 m
m
PR166
Fix cover (C) on guide (A) until it clips into place.
A
C
PR33
Open the appliance door and the furniture door at
90°. Insert the small square (B) into guide (A). Put
together the appliance door and the furniture door
and mark the holes as indicated in the figure.
Remove the squares and drill holes with ø 2 mm at 8
mm from the outer edge of the door. Place the small
square on the guide again and fix it with the screws
supplied.
Important Safety Information
2
Instructions for the
Installer
Operation
4
Technical Specification
13
Before use
4
Installation
14
Setting the temperature
4
Positioning
14
The freezer compartment
4
Electrical Connection
15
Freezing fresh food
4
Frozen food storage
4
Door Reversal
16
Thawing
5
Making ice cubes
5
Fresh food refrigeration
5
Normal operating sounds
5
Movable shelves
6
Positioning the door shelves
6
Bottle holder
6
Hints and Tips
7
Maintenance and Cleaning
8
Internal cleaning
8
External cleaning
8
When the appliance is not in use
8
Changing the light bulb
8
Defrosting
8
Something Not Working
10
Service and Spare Parts
11
Customer Care
11
Guarantee Conditions
12
8mm
A
PR167
18
B
2222 258-31
3
Push appliance into housing until stop strip (A)
touches the kitchen unit.
OPERATION
Before using
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Setting the temperature
The temperature inside the refrigerator and the
freezer is regulated by a single thermostat with 6
temperature positions and an “OFF” (O) position.
Position 1 = minimum coldness
Pay careful attention not to exceed load limit
stated on the side of the upper section (where
applicable).
Caution
In the event of a power cut do not open the door. The
food in the freezer will not be affected if the power
cut is short and if the freezer is full. Should the food
begin to thaw, it must be consumed quickly and must
not be re-frozen .
DEFROSTED COOKED FOOD MUST NOT BE
REFROZEN.
Position 6 = maximum coldness
Turn the thermostat dial to the required position.
Frozen food storage
The intermediate position is usually the most
suitable (3-4).
When first starting-up or after a period of use, before
putting the products in the freezer compartment let
the appliance run for at least two hours on the
coldest setting, then turn the thermostat knob to the
normal opertion position.
The thermostat setting can vary as the temperature
inside the refrigeration compartment depends on the
following factors:
– room temperature
– how often the door is opened
– how much food is stored
– position of the appliance
Important
During prolonged periods of abnormally hot weather,
if the thermostat is set on too high a number, the
cooling system may operate continuously and the
fridge cooling plate may not defrost. Turning the knob
to a lower number will cause the automatic
defrosting to resume.
The freezer compartment
A
D023
Open the door and push the appliance against the
side of the kitchen unit opposite to that of appliance
hinges.
Fasten the appliance with 4 screws provided in the
kit included with the appliance.
Snap ventilation grille (C) and hinge cover (D) into
position
D
D723
C
Do not exceed the storage period indicated by the
manufacturer.
Finally, do not open the door frequently or leave it
open longer than is absolutely necessary.
Important
Press in the joint covers between the appliance and
the kitchen unit.
Do not put carbonated liquids, (fizzy drinks etc.), in
the freezer compartment.
Ice Iollies, if consumed immediately after removal
from the freezer, can cause low temperature skin
burns.
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
“frost/freezer burns”.
D724
The four-star freezer compartment is suitable for
storage of commercially frozen food and for freezing
fresh foods.
Apply covers (B) on joint cover lugs and into hinge
holes.
Freezing fresh food
It is not necessary to adjust the thermostat setting
when freezing fresh food.
In any 24 hours you can freeze up to 4 kg. of fresh
food.
Place food to be frozen in the upper drawer of the
freezer as this is the coldest part.
If large quantities of food are to be stored , remove
all drawers and baskets from the appliance and
place food on cooling shelves.
4
B
D726
17
Instructions for totally built-in
appliances
Door reversal
The appliance is supplied with the right
or left door opening. To change the opening
direction of the door proceed as in the
following instructions before installing it.
1. Unscrew the upper pin and remove the spacer
2. Remove the upper door
Thawing
Fresh food refrigeration
Frozen food, prior to being used, can be thawed in
the fridge or at room temperature depending on the
time available. Small food items may even be cooked
from frozen; in this case cooking will take longer.
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do
cover or wrap the food, particularly if it has a strong
flavour.
Any frozen food which is allowed to thaw accidentally
should either be eaten as soon as possible or thrown
away. Alternatively, if the food is uncooked and has
not been completely defrosted it can be cooked and
then refrozen.
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation through them.
Meat, fish and fruit should be thawed in the
refrigerator compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.
Raw meat (beef, pork, lamb & poultry or chicken):
wrap in polythene bags and place on top of the salad
crispers.
Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.
3. Unscrew the middle hinge and the brackets and
refit them on the opposite side
A microwave oven is particularly suitable for thawing
any type of frozen or deep-frozen food: follow the
oven instructions, particularly regarding the
placement of aluminium wrapping or containers in
the oven.
4. Refit the upper door, the upper pin and the
spacer on the opposite side
Defrosted cooked food must never be refrozen.
To help you use your refrigerator correctly, here are
some more useful hints:
Meat can only be stored safely in this way for
one or two days at the most.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom salad crispers.
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
Normal Operating Sounds
5. Unscrew the lower pin and remove the spacer
and refit them on the opposite side
Making ice cubes
•
You may hear faint gurgling or bubbling sounds
when the refrigerant is pumped through the coils
or tubing at the rear, to the cooling
plate/evaporator or to the fixed freezer shelves.
•
When the compressor is on, the refrigerant is
being pumped round, and you will hear a whirring
sound or pulsating noise from the compressor.
•
A thermostat controls the compressor, and you
will hear a faint ’click’ when the thermostat cuts in
and out.
The appliance is provided with one or more trays for
ice-cubes trays.
Fill the tray(s) 3/4 full to give the ice space to expand
and place them in the freezer compartment.
50 mm
Recess dimensions
Height
(1)
1780 mm
Depth
(2)
550 mm
Width
(3)
560 mm
To ensure adequate ventilation, allow the clearances
shown in figure.
min. 2
200 cm
To release the ice cubes simply give the tray a slight
twist.
Do not use sharp or metallic instruments to remove
the trays from the freezer.
min.
200 cm
2
D567
Furthermore, it is necessary that the cabinet has a
ventilation recess with the following dimensions:
depth
50 mm
width
540 mm
540
50
3
2
1
PR01
16
5
Movable shelves
Electrical connections
The walls of the refrigerator have runners so that the
shelves can be positioned as desired .
For better use of space, the front half-shelves can lie
over the rear ones.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability should
this safety measure not be observed.
D338
Positioning the door shelves
To permit storage of food packages of various sizes,
the door shelves can be adjusted in height.To make
these adjustments proceed as follows:
Gradually pull the shelf in the direction of the arrows
until it comes off, then reposition as required.
For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
A replacement cover/carrier must be obtained from
your local Electrolux Service Force Centre.
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
This appliance complies with the following
E.E.C. Directives:
-
73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
-
89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of a breakdown.
Important
The wires in the mains lead are coloured in
accordance with the following code:
Bottle holder
- Earth
Blue
- Neutral
Brown
- Live
If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not correspond
with the markings identifying the terminals in your
plug, proceed as follows:
GREEN & YELLOW
13 AMP. FUSE
13 AMP
The bottle holder hooked onto one of the internal
shelves can be used to store bottles or cans. To
remove this holder, lift the back of the shelf, press
and pull it out. Slide the holder out and refit the shelf.
Green and Yellow
BROWN
BLUE
D207
CORD CLAMP
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
«E» or the earth symbol
yellow.
or coloured green and
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
The plug moulded onto the lead incorporates a fuse.
6
15
HINTS AND TIPS
INSTALLATION
Warning
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
under “Door reversal”.
Positioning
This appliance should only be installed at a location
where the ambient temperature corresponds to the
climate classification indicated on the rating plate,
which is located at the left on the inside of the
appliance.
The following table shows which ambient
temperature is correct for each climate classification:
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+18°C to + 38°C
T
+18°C to + 43°C
The appliance should be located in a dry
atmosphere, out of direct sunlight and away from
continuous heat and extreme temperature, e.g. not
next to a boiler or radiator, or in a very cold room e.g.
an outhouse. If these temperatures are exceeded i.e.
warmer or colder, then the appliance may not
operate correctly.
For building-in and door reversal instructions please
refer to the relevant instructions on the following
pages.
14
Food Storage
In the Event of a Power Failure
•
To obtain the best results from your appliance,
neither hot foods nor liquids which may
evaporate, should be placed in the larder
compartment.
If there is a power failure during the storage of frozen
foods, keep the door closed. If the temperature within
your freezer should rise do not refreeze the food
without checking it’s condition.
•
Keep the time between buying chilled food and
placing it in your fridge as short as possible.
The following guidelines should assist you.
•
Do not push food together too much, try to allow
air to circulate around each item.
Ice Cream:
•
Do not store food uncovered.
•
Remove suspect food from your refrigerator and
clean, refer to ‘Maintenance and Cleaning’.
•
Ensure that food placed in the freezer is dated
and labelled and used in date order to ensure
that food is consumed at its best.
Important
•
It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.
•
Avoid buying frozen food if you cannot store it
straight away. The use of an insulated container is
advisable. When you arrive home place the frozen
food in the freezer immediately.
The symbols on the drawers show different types
of frozen goods. The numbers indicate storage
times in months for the appropriate types of
frozen goods. Whether the upper or lower value of
the indicated storage time is valid depends on the
quality of the foods and pre-treating before
freezing.
Once thawed should be discarded.
Fruit and Vegetables:
If soft should be cooked and used up.
Bread and Cakes:
Can be refrozen without danger.
Shellfish:
Should be refrigerated and used up quickly.
Cooked Dishes:
i.e. casseroles, should be refrigerated and used up.
Large Pieces of Meat:
Can be re-frozen providing there are ice crystals
remaining within them.
Small Joints:
Should be cooked and then re-frozen as cooked
dishes.
Chicken:
Energy Saving Advice
•
Do not install the cabinet close to sources of
heat, i.e. boiler or radiator.
•
Locate the appliance in a cool well ventilated
room and make sure that the air openings of the
cabinet are not obstructed.
•
Avoid unnecessary frosting in the cabinet by
packing all foodstuffs into airtight packages
before placing them in the freezer.
•
Always leave warm food to cool down to room
temperature before placing in the fridge or
freezer.
•
Food which is to be frozen (when cool) should be
placed in the fridge before being transferred to
the freezer.
•
Thaw frozen food in the fridge. This will ensure
safer defrosting of foods and reduce the work of
the refrigeration unit.
•
Try to avoid keeping the door open for long
periods, or opening the door too frequently as
warm air will enter the cabinet, and cause the
compressor to switch on unnecessarily often.
•
Ensure there are no obstructions preventing the
door from closing properly.
Should be cooked and re-frozen as a fresh dish.
7
MAINTENANCE AND CLEANING
Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.
Internal cleaning
Changing the light bulb
Should the interior light fail to work, first switch off
the appliance and disconnect from the electricity
supply, then replace the bulb as follows;
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the doors ajar
to prevent unpleasant smells.
220-240 V / 50 Hz
TOTAL POWER ABSORBED
120 W
AVERAGE DAILY UNITS ELECTRICITY *
0.87 kWh
Fridge
214 l
Freezer
76 l
Fridge
210 l
Freezer
70 l
NET CAPACITY
D411
Unscrew the light cover and then pull it outward by
pressing as shown in the figure. Unscrew the bulb
and replace it with a new 15 watt bulb (available from
your nearest Service Force Centre).
STAR RATING
Replace the light cover by sliding it into its original
position and replacing the screw.
* This figure is based on standard test results in accordance with European Standard EN 153.
Actual consumption will depend on how the appliance is used and where it is located.
External cleaning
Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance,
with a brush or vacuum cleaner, see figure, as an
accumulation of dust will affect the performance of
the appliance and cause excessive electricity
consumption.
POWER SUPPLY VOLTAGE AND FREQUENCY
GROSS CAPACITY
NEVER USE DETERGENTS, ABRASIVE
POWDERS, HIGHLY PERFUMED
CLEANING PRODUCTS OR WAX
POLISHES, TO CLEAN THE INTERIOR AS
THESE WILL DAMAGE THE SURFACE AND
LEAVE A STRONG ODOUR.
When the appliance is not in use
TECHNICAL SPECIFICATIONS
Defrosting
Refrigerator
The refrigerator automatically defrosts every time the
compressor stops. The water is discharged, via the
pipe, into a tray located at the back of the appliance
above the compressor, where it evaporates.
PR259
D037
Important
To avoid defrost water overflowing into the fridge,
periodically clean the water discharge hole in the
centre of the V shaped drip collector at the back of
the refrigerator compartment behind the fruit and
vegetable drawer. Use the defrost cleaner provided
which you will find already inserted into the
discharge hole.
8
13
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
Remember to wash the defrost cleaner in hot soapy
water at regular intervals. Dry throughly before
replacing.
Freezer
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
instructions.
When the frost has reached a thickness of up to
4mm it can be removed using the ice scraper
provided with the appliance. During this operation it
is not necessary to disconnect the appliance from
the mains and remove the food. Never use metal
tools for this operation.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
For complete defrosting (once or twice a year)
proceed as follows:
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the Company’s property.
-
turn the thermostat control knob to the «OFF»
position (O) or disconnect the appliance from the
mains.
-
Remove any food from inside the freezer and
fridge, wrap it in several sheets of newspaper and
store in a cool,dry place.
-
-
Leave the door open and insert the ice scraper
under the channel in the centre of the lower part
of the appliance; place a low-sided container
beneath the scraper to collect the water.
Clean and dry thoroughly.
-
Replace the scraper in one of the drawers .
-
Reconnect the appliance to the mains or reset
the thermostat control knob to a functioning
position.
-
After letting the appliance run for a least half an
hour, replace the previously removed food into
the compartment.
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
D068
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France
Senlis
+33 (0)3 44 62 20 13
Germany
Nürnberg
+49 (0)800 234 7378
Italy
Pordenone
+39 (0)800117511
Sweden
Stockholm
+46 (0)20 78 77 50
UK
Slough
+44 (0)1753 219898
12
Important
When defrosting the freezer, the fridge is also
controlled by the thermostat and will not be
operational during this period. A temperature rise of
the frozen food packs, during defrosting, may
shorten their safe storage life.
9
SOMETHING NOT WORKING
Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation a charge will be made, even if the appliance is under guarantee.
Before contacting your local Service Force Centre, check the following points:
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local
Electrolux Service Force Centre by telephoning:-
0870 5 929929
Symptom
Solution
No power to the appliance
Check there is power at the socket.
For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk
Check there is not a power cut by checking the
household lights.
Before calling out an engineer, please ensure you have read the details under the heading ‘Something Not
Working?
Check the fuse has not blown.
When you contact the Service Force Centre you will need to give the following details:
Ensure that the bulb is correctly fitted.
1.
Your name, address and post code
2.
Your telephone number
The light does not come on
Replace the bulb if it has blown.
The temperature in the fridge or freezer section is
too high
3.
Clear and concise details of the fault
Check the door light switch is not jammed.
4.
The model and serial number of the appliance (found on the rating plate)
Check the thermostat control knob in the fridge is
turned to the correct setting relative to ambient
conditions.
5.
The purchase date
Check the ambient temperature is within the
appliance’s operating limits, please refer to the
installation section in this instruction book.
Relocate the appliance if necessary.
The freezer door will not open
Has door just been opened? If so leave for a few
minutes to allow the air pressure to equalise.
The compressor runs continously
Adjust the thermostat control knob to give correct
temperature control. See “Setting the temperature”.
Check that the doors are closed.
Large quantities of food have recently been placed in
the cabinet and/or door is frequently opened.
Check that air ventilation is not obstructed.
Excessive frost and ice has built up
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee
service calls.
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your Electrolux appliance or for further information on Electrolux products,
please contact our Customer Care Department by letter or telephone at the address below or visit our website
at www.electrolux.co.uk
Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
08705 950 950 *
Ensure the doors are not left open.
Check that nothing is preventing the doors from
closing.
*
calls to this number may be recorded for training purposes.
Is the door gasket intact and clean.
Noise
Refer to normal operating sounds.
Water under the salad bin
Check the drain hole is not blocked. (see
Maintenance and Cleaning).
If, after the above checks, there is still a fault, call your local Service Force Centre.
In-guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service calls.
10
11
SOMETHING NOT WORKING
Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation a charge will be made, even if the appliance is under guarantee.
Before contacting your local Service Force Centre, check the following points:
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local
Electrolux Service Force Centre by telephoning:-
0870 5 929929
Symptom
Solution
No power to the appliance
Check there is power at the socket.
For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk
Check there is not a power cut by checking the
household lights.
Before calling out an engineer, please ensure you have read the details under the heading ‘Something Not
Working?
Check the fuse has not blown.
When you contact the Service Force Centre you will need to give the following details:
Ensure that the bulb is correctly fitted.
1.
Your name, address and post code
2.
Your telephone number
The light does not come on
Replace the bulb if it has blown.
The temperature in the fridge or freezer section is
too high
3.
Clear and concise details of the fault
Check the door light switch is not jammed.
4.
The model and serial number of the appliance (found on the rating plate)
Check the thermostat control knob in the fridge is
turned to the correct setting relative to ambient
conditions.
5.
The purchase date
Check the ambient temperature is within the
appliance’s operating limits, please refer to the
installation section in this instruction book.
Relocate the appliance if necessary.
The freezer door will not open
Has door just been opened? If so leave for a few
minutes to allow the air pressure to equalise.
The compressor runs continously
Adjust the thermostat control knob to give correct
temperature control. See “Setting the temperature”.
Check that the doors are closed.
Large quantities of food have recently been placed in
the cabinet and/or door is frequently opened.
Check that air ventilation is not obstructed.
Excessive frost and ice has built up
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee
service calls.
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your Electrolux appliance or for further information on Electrolux products,
please contact our Customer Care Department by letter or telephone at the address below or visit our website
at www.electrolux.co.uk
Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
08705 950 950 *
Ensure the doors are not left open.
Check that nothing is preventing the doors from
closing.
*
calls to this number may be recorded for training purposes.
Is the door gasket intact and clean.
Noise
Refer to normal operating sounds.
Water under the salad bin
Check the drain hole is not blocked. (see
Maintenance and Cleaning).
If, after the above checks, there is still a fault, call your local Service Force Centre.
In-guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service calls.
10
11
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
Remember to wash the defrost cleaner in hot soapy
water at regular intervals. Dry throughly before
replacing.
Freezer
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
instructions.
When the frost has reached a thickness of up to
4mm it can be removed using the ice scraper
provided with the appliance. During this operation it
is not necessary to disconnect the appliance from
the mains and remove the food. Never use metal
tools for this operation.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
For complete defrosting (once or twice a year)
proceed as follows:
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the Company’s property.
-
turn the thermostat control knob to the «OFF»
position (O) or disconnect the appliance from the
mains.
-
Remove any food from inside the freezer and
fridge, wrap it in several sheets of newspaper and
store in a cool,dry place.
-
-
Leave the door opena nd insert the ice scraper
under the channel in the centre of the lower part
of the appliance; place a low-sided container
beneath the scraper to collect the water.
Clean and dry thoroughly.
-
Replace the scraper in one of the drawers .
-
Reconnect the appliance to the mains or reset
the thermostat control knob to a functioning
position.
-
After letting the appliance run for a least half an
hour, replace the previously removed food into
the compartment.
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
D068
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France
Senlis
+33 (0)3 44 62 20 13
Germany
Nürnberg
+49 (0)800 234 7378
Italy
Pordenone
+39 (0)800117511
Sweden
Stockholm
+46 (0)20 78 77 50
UK
Slough
+44 (0)1753 219898
12
Important
When defrosting the freezer, the fridge is also
controlled by the thermostat and will not be
operational during this period. A temperature rise of
the frozen food packs, during defrosting, may
shorten their safe storage life.
9
MAINTENANCE AND CLEANING
Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.
Internal cleaning
Changing the light bulb
Should the interior light fail to work, first switch off
the appliance and disconnect from the electricity
supply, then replace the bulb as follows;
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the doors ajar
to prevent unpleasant smells.
220-240 V / 50 Hz
TOTAL POWER ABSORBED
120 W
AVERAGE DAILY UNITS ELECTRICITY *
0.87 kWh
Fridge
214 l
Freezer
76 l
Fridge
210 l
Freezer
70 l
NET CAPACITY
D411
Unscrew the light cover and then pull it outward by
pressing as shown in the figure. Unscrew the bulb
and replace it with a new 15 watt bulb (available from
your nearest Service Force Centre).
STAR RATING
Replace the light cover by sliding it into its original
position and replacing the screw.
* This figure is based on standard test results in accordance with European Standard EN 153.
Actual consumption will depend on how the appliance is used and where it is located.
External cleaning
Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance,
with a brush or vacuum cleaner, see figure, as an
accumulation of dust will affect the performance of
the appliance and cause excessive electricity
consumption.
POWER SUPPLY VOLTAGE AND FREQUENCY
GROSS CAPACITY
NEVER USE DETERGENTS, ABRASIVE
POWDERS, HIGHLY PERFUMED
CLEANING PRODUCTS OR WAX
POLISHES, TO CLEAN THE INTERIOR AS
THESE WILL DAMAGE THE SURFACE AND
LEAVE A STRONG ODOUR.
When the appliance is not in use
TECHNICAL SPECIFICATIONS
Defrosting
Refrigerator
The refrigerator automatically defrosts every time the
compressor stops. The water is discharged, via the
pipe, into a tray located at the back of the appliance
above the compressor, where it evaporates.
PR259
D037
Important
To avoid defrost water overflowing into the fridge,
periodically clean the water discharge hole in the
centre of the V shaped drip collector at the back of
the refrigerator compartment behind the fruit and
vegetable drawer. Use the defrost cleaner provided
which you will find already inserted into the
discharge hole.
8
13
HINTS AND TIPS
INSTALLATION
Warning
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
under “Door reversal”.
Positioning
This appliance should only be installed at a location
where the ambient temperature corresponds to the
climate classification indicated on the rating plate,
which is located at the left on the inside of the
appliance.
The following table shows which ambient
temperature is correct for each climate classification:
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+18°C to + 38°C
T
+18°C to + 43°C
The appliance should be located in a dry
atmosphere, out of direct sunlight and away from
continuous heat and extreme temperature, e.g. not
next to a boiler or radiator, or in a very cold room e.g.
an outhouse. If these temperatures are exceeded i.e.
warmer or colder, then the appliance may not
operate correctly.
For building-in and door reversal instructions please
refer to the relevant instructions on the following
pages.
14
Food Storage
In the Event of a Power Failure
•
To obtain the best results from your appliance,
neither hot foods nor liquids which may
evaporate, should be placed in the larder
compartment.
If there is a power failure during the storage of frozen
foods, keep the door closed. If the temperature within
your freezer should rise do not refreeze the food
without checking it’s condition.
•
Keep the time between buying chilled food and
placing it in your fridge as short as possible.
The following guidelines should assist you.
•
Do not push food together too much, try to allow
air to circulate around each item.
Ice Cream:
•
Do not store food uncovered.
•
Remove suspect food from your refrigerator and
clean, refer to ‘Maintenance and Cleaning’.
•
Ensure that food placed in the freezer is dated
and labelled and used in date order to ensure
that food is consumed at its best.
Important
•
It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.
•
Avoid buying frozen food if you cannot store it
straight away. The use of an insulated container is
advisable. When you arrive home place the frozen
food in the freezer immediately.
The symbols on the drawers show different types
of frozen goods. The numbers indicate storage
times in months for the appropriate types of
frozen goods. Whether the upper or lower value of
the indicated storage time is valid depends on the
quality of the foods and pre-treating before
freezing.
Once thawed should be discarded.
Fruit and Vegetables:
If soft should be cooked and used up.
Bread and Cakes:
Can be refrozen without danger.
Shellfish:
Should be refrigerated and used up quickly.
Cooked Dishes:
i.e. casseroles, should be refrigerated and used up.
Large Pieces of Meat:
Can be re-frozen providing there are ice crystals
remaining within them.
Small Joints:
Should be cooked and then re-frozen as cooked
dishes.
Chicken:
Energy Saving Advice
•
Do not install the cabinet close to sources of
heat, i.e. boiler or radiator.
•
Locate the appliance in a cool well ventilated
room and make sure that the air openings of the
cabinet are not obstructed.
•
Avoid unnecessary frosting in the cabinet by
packing all foodstuffs into airtight packages
before placing them in the freezer.
•
Always leave warm food to cool down to room
temperature before placing in the fridge or
freezer.
•
Food which is to be frozen (when cool) should be
placed in the fridge before being transferred to
the freezer.
•
Thaw frozen food in the fridge. This will ensure
safer defrosting of foods and reduce the work of
the refrigeration unit.
•
Try to avoid keeping the door open for long
periods, or opening the door too frequently as
warm air will enter the cabinet, and cause the
compressor to switch on unnecessarily often.
•
Ensure there are no obstructions preventing the
door from closing properly.
Should be cooked and re-frozen as a fresh dish.
7
Movable shelves
Electrical connections
The walls of the refrigerator have runners so that the
shelves can be positioned as desired .
For better use of space, the front half-shelves can lie
over the rear ones.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability should
this safety measure not be observed.
D338
Positioning the door shelves
To permit storage of food packages of various sizes,
the door shelves can be adjusted in height.To make
these adjustments proceed as follows:
Gradually pull the shelf in the direction of the arrows
until it comes off, then reposition as required.
For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
A replacement cover/carrier must be obtained from
your local Electrolux Service Force Centre.
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
This appliance complies with the following
E.E.C. Directives:
-
73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
-
89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of a breakdown.
Important
The wires in the mains lead are coloured in
accordance with the following code:
Bottle holder
- Earth
Blue
- Neutral
Brown
- Live
If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not correspond
with the markings identifying the terminals in your
plug, proceed as follows:
GREEN & YELLOW
13 AMP. FUSE
13 AMP
The bottle holder hooked onto one of the internal
shelves can be used to store bottles or cans. To
remove this holder, lift the back of the shelf, press
and pull it out. Slide the holder out and refit the shelf.
Green and Yellow
BROWN
BLUE
D207
CORD CLAMP
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
«E» or the earth symbol
yellow.
or coloured green and
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
The plug moulded onto the lead incorporates a fuse.
6
15
Instructions for totally built-in
appliances
Door reversal
The appliance is supplied with the right
or left door opening. To change the opening
direction of the door proceed as in the
following instructions before installing it.
1. Unscrew the upper pin and remove the spacer
2. Remove the upper door
Thawing
Fresh food refrigeration
Frozen food, prior to being used, can be thawed in
the fridge or at room temperature depending on the
time available. Small food items may even be cooked
from frozen; in this case cooking will take longer.
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do
cover or wrap the food, particularly if it has a strong
flavour.
Any frozen food which is allowed to thaw accidentally
should either be eaten as soon as possible or thrown
away. Alternatively, if the food is uncooked and has
not been completely defrosted it can be cooked and
then refrozen.
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation through them.
Meat, fish and fruit should be thawed in the
refrigerator compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.
Raw meat (beef, pork, lamb & poultry or chicken):
wrap in polythene bags and place on top of the salad
crispers.
Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.
3. Unscrew the middle hinge and the brackets and
refit them on the opposite side
A microwave oven is particularly suitable for thawing
any type of frozen or deep-frozen food: follow the
oven instructions, particularly regarding the
placement of aluminium wrapping or containers in
the oven.
4. Refit the upper door, the upper pin and the
spacer on the opposite side
Defrosted cooked food must never be refrozen.
To help you use your refrigerator correctly, here are
some more useful hints:
Meat can only be stored safely in this way for
one or two days at the most.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom salad crispers.
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
Normal Operating Sounds
5. Unscrew the lower pin and remove the spacer
and refit them on the opposite side
Making ice cubes
•
You may hear faint gurgling or bubbling sounds
when the refrigerant is pumped through the coils
or tubing at the rear, to the cooling
plate/evaporator or to the fixed freezer shelves.
•
When the compressor is on, the refrigerant is
being pumped round, and you will hear a whirring
sound or pulsating noise from the compressor.
•
A thermostat controls the compressor, and you
will hear a faint ’click’ when the thermostat cuts in
and out.
The appliance is provided with one or more trays for
ice-cubes trays.
Fill the tray(s) 3/4 full to give the ice space to expand
and place them in the freezer compartment.
50 mm
Recess dimensions
Height
(1)
1780 mm
Depth
(2)
550 mm
Width
(3)
560 mm
To ensure adequate ventilation, allow the clearances
shown in figure.
min. 2
200 cm
To release the ice cubes simply give the tray a slight
twist.
Do not use sharp or metallic instruments to remove
the trays from the freezer.
min.
200 cm
2
D567
Furthermore, it is necessary that the cabinet has a
ventilation recess with the following dimensions:
depth
50 mm
width
540 mm
540
50
3
2
1
PR01
16
5
Push appliance into housing until stop strip (A)
touches the kitchen unit.
OPERATION
Before using
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Setting the temperature
The temperature inside the refrigerator and the
freezer is regulated by a single thermostat with 6
temperature positions and an “OFF” (O) position.
Position 1 = minimum coldness
Pay careful attention not to exceed load limit
stated on the side of the upper section (where
applicable).
Caution
In the event of a power cut do not open the door. The
food in the freezer will not be affected if the power
cut is short and if the freezer is full. Should the food
begin to thaw, it must be consumed quickly and must
not be re-frozen .
DEFROSTED COOKED FOOD MUST NOT BE
REFROZEN.
Position 6 = maximum coldness
Turn the thermostat dial to the required position.
Frozen food storage
The intermediate position is usually the most
suitable (3-4).
When first starting-up or after a period of use, before
putting the products in the freezer compartment let
the appliance run for at least two hours on the
coldest setting, then turn the thermostat knob to the
normal opertion position.
The thermostat setting can vary as the temperature
inside the refrigeration compartment depends on the
following factors:
– room temperature
– how often the door is opened
– how much food is stored
– position of the appliance
Important
During prolonged periods of abnormally hot weather,
if the thermostat is set on too high a number, the
cooling system may operate continuously and the
fridge cooling plate may not defrost. Turning the knob
to a lower number will cause the automatic
defrosting to resume.
The freezer compartment
A
D023
Open the door and push the appliance against the
side of the kitchen unit opposite to that of appliance
hinges.
Fasten the appliance with 4 screws provided in the
kit included with the appliance.
Snap ventilation grille (C) and hinge cover (D) into
position
D
D723
C
Do not exceed the storage period indicated by the
manufacturer.
Finally, do not open the door frequently or leave it
open longer than is absolutely necessary.
Important
Press in the joint covers between the appliance and
the kitchen unit.
Do not put carbonated liquids, (fizzy drinks etc.), in
the freezer compartment.
Ice Iollies, if consumed immediately after removal
from the freezer, can cause low temperature skin
burns.
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
“frost/freezer burns”.
D724
The four-star freezer compartment is suitable for
storage of commercially frozen food and for freezing
fresh foods.
Apply covers (B) on joint cover lugs and into hinge
holes.
Freezing fresh food
It is not necessary to adjust the thermostat setting
when freezing fresh food.
In any 24 hours you can freeze up to 4 kg. of fresh
food.
Place food to be frozen in the upper drawer of the
freezer as this is the coldest part.
If large quantities of food are to be stored , remove
all drawers and baskets from the appliance and
place food on cooling shelves.
4
B
D726
17
Separate parts A, B, C, D as shown in the figure
CONTENTS
B
A
Instructions for the User
C
D
PR266
50mm
Place guide (A) on the inside part of the furniture
door, in the upper and lower position as shown in the
figure and mark the position of external holes.
Having drilled the holes, fix the guide with the
screws supplied.
A
20 m
m
PR166
Fix cover (C) on guide (A) until it clips into place.
A
C
PR33
Open the appliance door and the furniture door at
90°. Insert the small square (B) into guide (A). Put
together the appliance door and the furniture door
and mark the holes as indicated in the figure.
Remove the squares and drill holes with ø 2 mm at 8
mm from the outer edge of the door. Place the small
square on the guide again and fix it with the screws
supplied.
Important Safety Information
2
Instructions for the
Installer
Operation
4
Technical Specification
13
Before use
4
Installation
14
Setting the temperature
4
Positioning
14
The freezer compartment
4
Electrical Connection
15
Freezing fresh food
4
Frozen food storage
4
Door Reversal
16
Thawing
5
Making ice cubes
5
Fresh food refrigeration
5
Normal operating sounds
5
Movable shelves
6
Positioning the door shelves
6
Bottle holder
6
Hints and Tips
7
Maintenance and Cleaning
8
Internal cleaning
8
External cleaning
8
When the appliance is not in use
8
Changing the light bulb
8
Defrosting
8
Something Not Working
10
Service and Spare Parts
11
Customer Care
11
Guarantee Conditions
12
8mm
A
PR167
18
B
2222 258-31
3
IMPORTANT SAFETY INFORMATION
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
Should adjustment of the furniture door be necessary, use the clearance of slots as required.
At the end of operations, it is necessary to check if
the door of the furniture closes properly.
This information has been provided in the interest of safety. You MUST read it carefully before installing
or using the appliance.
Installation
•
•
•
Do not place carbonated or fizzy drinks in the
freezer.
•
Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
•
Ice lollies can cause ‘frost/freezer burns’ if consumed straight from the freezer.
•
Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant instructions.
•
The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from your
local Service Force Centre.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
The appliance should be left for 2 hours after installation before it is turned on, in order to allow the
refrigerant to settle.
•
•
•
•
•
Child Safety
Frozen food must NOT be re-frozen once it has
thawed out.
•
Do not allow children to tamper with the controls or
play with the product.
Maintenance and Cleaning
•
Keep all packaging well away from children.
•
General Safety
•
This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging must
therefore only be carried out by authorized technicians.
•
Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
The appliance must not be located close to
cookers, radiators or boilers.
Avoid prolonged exposure of the appliance to
direct sunlight.
Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating appliances.
•
•
•
During Use
•
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs.
2
PR168
Fix cover (D) on guide (B) until it clips into place.
B
D
PR167/1
If the appliance is fixed to the side of the kitchen
unit, simply slacken the screws in fixing brackets
(D), move the brackets as shown in the figure and
re-tighten the screws.
Then fit cover (E).
•
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
•
Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Service Force Centre and always insist on genuine spare parts.
E
D734
Switch off and unplug the appliance before carrying out any cleaning or maintenance work.
Servicing
D
After completion of the door reversing operation,
check that the door gasket adheres to the cabinet. If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to the
cabinet. In that case, wait for the natural fitting
of the gasket or accelerate this process by heating up the part involved with a normal hairdryer
on a low setting.
At the end of the
Appliance Life
•
When disposing of your appliance, use an authorised disposal site.
•
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
19
fridge - freezer
INSTRUCTION BOOK
ERN 2930
© Electrolux plc 2003
2222 258-31
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
