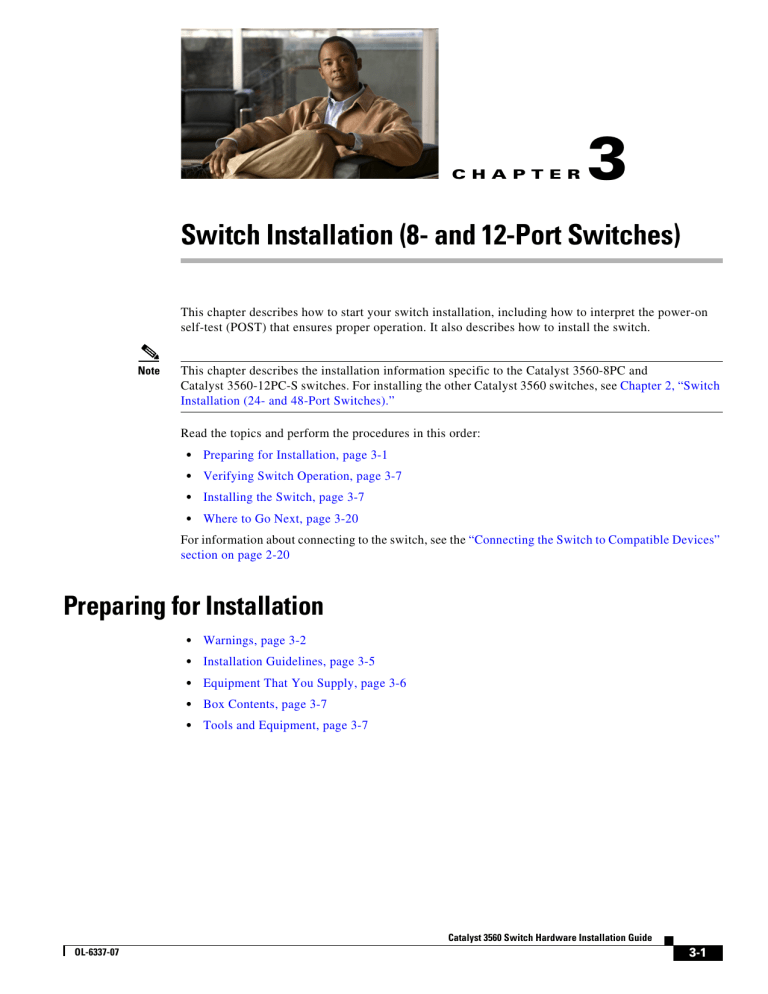

Switch Installation (8- and 12-Port Switches)
C H A P T E R
3
Switch Installation (8- and 12-Port Switches)
This chapter describes how to start your switch installation, including how to interpret the power-on self-test (POST) that ensures proper operation. It also describes how to install the switch.
Note
This chapter describes the installation information specific to the Catalyst 3560-8PC and
Catalyst 3560-12PC-S switches. For installing the other Catalyst 3560 switches, see Chapter 2, “Switch
Installation (24- and 48-Port Switches).”
Read the topics and perform the procedures in this order:
•
Preparing for Installation, page 3-1
•
•
Verifying Switch Operation, page 3-7
Installing the Switch, page 3-7
•
For information about connecting to the switch, see the “Connecting the Switch to Compatible Devices” section on page 2-20
Preparing for Installation
•
•
•
•
•
Installation Guidelines, page 3-5
Equipment That You Supply, page 3-6
Catalyst 3560 Switch Hardware Installation Guide
3-1 OL-6337-07
Chapter 3 Switch Installation (8- and 12-Port Switches)
Preparing for Installation
Warnings
These warnings are translated into several languages in the Regulatory Compliance and Safety
Information for the Catalyst 3560 Switch.
Warning To prevent the switch from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of 113°F (45°C). To prevent airflow restriction, allow at least
3 inches (7.6 cm) of clearance around the ventilation openings. Statement 17B
Warning
Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can
cause serious burns or weld the metal object to the terminals. Statement 43
Warning
Do not stack the chassis on any other equipment. If the chassis falls, it can cause severe bodily injury
and equipment damage. Statement 48
Warning
An exposed wire lead from a DC-input power source can conduct harmful levels of electricity. Be sure that no exposed portion of the DC-input power source wire extends from the terminal block plug.
Statement 122
Warning
Blank faceplates (filler panels) serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate
the system unless all cards and faceplates are in place. Statement 156
Warning
Ethernet cables must be shielded when used in a central office environment. Statement 171
Warning If a redundant power system (RPS) is not connected to the switch, install an RPS connector cover on
the back of the switch. Statement 265
Warning Attach only the following Cisco RPS model to the RPS receptacle:
PWR-RPS2300 / PWR675-AC-RPS-N1 Statement 370
Warning Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people
and damage to the system. Statement 378
3-2
Catalyst 3560 Switch Hardware Installation Guide
OL-6337-07
Chapter 3 Switch Installation (8- and 12-Port Switches)
Preparing for Installation
Warning Do not work on the system or connect or disconnect cables during periods of lightning activity.
Statement 1001
Warning
Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
Warning
Read the installation instructions before connecting the system to the power source. Statement 1004
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that
the protective device is rated not greater than: 5 A Statement 1005
Warning
To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:
• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.
Statement 1006
OL-6337-07
Warning
Class 1 laser product. Statement 1008
Warning
This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.
Statement 1017
Warning The plug-socket combination must be accessible at all times, because it serves as the main
disconnecting device. Statement 1019
Warning A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.
Statement 1022
Catalyst 3560 Switch Hardware Installation Guide
3-3
Chapter 3 Switch Installation (8- and 12-Port Switches)
Preparing for Installation
Warning This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection
authority or an electrician if you are uncertain that suitable grounding is available. Statement 1024
Warning This unit might have more than one power supply connection. All connections must be removed to
de-energize the unit. Statement 1028
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Warning Ultimate disposal of this product should be handled according to all national laws and regulations.
Statement 1040
Warning For connections outside the building where the equipment is installed, the following ports must be connected through an approved network termination unit with integral circuit protection: 10/100/1000
Ethernet. Statement 1044
Warning
When installing or replacing the unit, the ground connection must always be made first and
disconnected last. Statement 1046
Warning
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device.
Statement 1071
Warning
Voltages that present a shock hazard may exist on Power over Ethernet (PoE) circuits if interconnections are made using uninsulated exposed metal contacts, conductors, or terminals.
Avoid using such interconnection methods, unless the exposed metal parts are located within a restricted access location and users and service people who are authorized within the restricted access location are made aware of the hazard. A restricted access area can be accessed only through
the use of a special tool, lock and key or other means of security. Statement 1072
Warning
No user-serviceable parts inside. Do not open. Statement 1073
Warning
Installation of the equipment must comply with local and national electrical codes. Statement 1074
3-4
Catalyst 3560 Switch Hardware Installation Guide
OL-6337-07
Chapter 3 Switch Installation (8- and 12-Port Switches)
Statement 371—Power Cable and AC Adapter
Preparing for Installation
Caution
To comply with the Telcordia GR-1089 Network Equipment Building Systems (NEBS) standard for electromagnetic compatibility and safety, connect the ethernet cables only to intrabuilding or nonexposed wiring or cabling.
Caution
To comply with the Telcordia GR-1089 NEBS standard, PoE or non-PoE 10/100/1000 Ethernet port cables that exit from either the left side or right side of the switch should be routed and tied to the nearest rack metal hardware.
Note
The grounding architecture of this product is DC-isolated (DC-I).
Installation Guidelines
When you determine where to place the switch, be sure to observe these requirements:
•
•
The operating environment is within the ranges listed in Appendix A, “Technical Specifications.”
Airflow around the switch and through the vents is unrestricted. Allow at least 3 inches (7.6 cm) of clearance on all sides and ventilation openings, particularly if you stack the switches or place them side by side.
•
•
You have allowed at least 1.75 inches (4 cm) of clearance above each switch in the rack.
Clearance to front and rear panels is such that
–
–
You can easily read the front-panel indicators.
Access to ports is sufficient for unrestricted cabling.
•
•
•
•
–
The rear-panel power connector is within reach of an AC power receptacle.
Temperature around the unit does not exceed 113°F (45°C).
If the switch is installed in a closed environment or in a multirack assembly, the temperature around it might be greater than normal room temperature.
The heat sinks and the bottom of the switch might be hot to the touch if the switch is operating at its maximum temperature 113°F (45°C) and is in an environment that exceeds normal room temperature (such as in a closet, in a cabinet, or in a closed or multirack assembly).
No other items are placed on the top of the switch.
The switch is not wall-mounted with its front panel facing up or sideways. According to safety regulations, wall-mount the switch with its front panel facing down to prevent airflow restriction and to provide easier access to the cables.
OL-6337-07
Catalyst 3560 Switch Hardware Installation Guide
3-5
Chapter 3 Switch Installation (8- and 12-Port Switches)
Preparing for Installation
•
•
•
•
Cabling is away from sources of electrical noise, such as radios, power lines, and fluorescent lighting fixtures. Make sure the cabling is safely away from other devices that might damage the cables.
For copper Ethernet ports, including 10/100 ports, 10/100/1000 ports, and 1000BASE-T
SFP module ports, cable lengths from the switch to connected devices can be up to 328 feet
(100 meters).
The cables meet the specifications in Table B-1 on page B-4 , which lists the cable specifications for
1000BASE-X and 100BASE-X SFP modules for the Catalyst 3560 switch. Catalyst 3560 switch
SFP ports use both GLC-GE-100XX and GLC-FE-100XX SFP modules.
When you use shorter lengths of single-mode fiber cable, you might need to insert an inline optical attenuator in the link to avoid overloading the receiver.
When the fiber-optic cable span is less than 15.43 miles (25 km), you should insert a 5-decibel (dB) or 10-dB inline optical attenuator between the fiber-optic cable plant and the receiving port on the
1000BASE-ZX SFP module at each end of the link.
Cisco Ethernet Switches are equipped with cooling mechanisms, such as fans and blowers.
However, these fans and blowers can draw dust and other particles, causing contaminant buildup inside the chassis, which can result in a system malfunction.
You must install this equipment in an environment as free as possible from dust and foreign conductive material (such as metal flakes from construction activities).
These standards provide guidelines for acceptable working environments and acceptable levels of suspended particulate matter:
–
Network Equipment Building Systems (NEBS) GR-63-CORE
–
–
National Electrical Manufacturers Association (NEMA) Type 1
International Electrotechnical Commission (IEC) IP-20
This applies to all Cisco Ethernet switches except for this compact model:
–
Catalyst 3560-8PC switch—8 10/100 PoE ports and 1 dual-purpose port (one
10/100/1000BASE-T copper port and one SFP module slot)
Equipment That You Supply
You need this equipment to install the switch:
•
Number-2 Phillips screwdriver
•
Drill with a #27 drill bit (0.144-inch [3.7 mm])
You can order an optional cable guard to secure cables to the front of the switch and to prevent accidental removal. To order a cable guard (CBLGRD-C3560-12PC or CBLGRD-C3560-8PC), contact your Cisco representative.
The switch has security slots in the left and right side panels. You can install an optional cable lock, such as the type that is used to secure a laptop, to secure either or both sides of the switch. Cable locks are available from most computer accessory suppliers.
Installing the switch in a 19-inch rack requires an optional bracket kit that is not included but which you can order, RCKMNT-19-CMPCT=.
If you want to connect a terminal to the switch console port, you need to provide an RJ-45-to-DB-25 female DTE adapter. You can order a kit (part number ACS-DSBUASYN=) with that adapter from
Cisco.
3-6
Catalyst 3560 Switch Hardware Installation Guide
OL-6337-07
Chapter 3 Switch Installation (8- and 12-Port Switches)
Verifying Switch Operation
Box Contents
The switch getting started guide on Cisco.com describes the box contents. If any item is missing or damaged, contact your Cisco representative or reseller for support.
Tools and Equipment
You need to supply a number-2 Phillips screwdriver to rack-mount the switch.
Verifying Switch Operation
Before you install the switch, power it on and verify that it passes POST. See the getting started guide for the steps required to connect a PC to the switch and to run Express Setup. To power on the switch, connect one end of the AC power cord to the AC power connector on the switch, and connect the other end of the power cord to an AC power outlet.
When the switch powers on, it automatically begins the POST, a series of tests that verifies that the switch functions properly. When the switch begins POST, the system LED slowly blinks green. When
POST completes, the system LED blinks amber. If POST fails, the system LED remains amber. If POST completes successfully, the system LED rapidly blinks green.
Call Cisco technical support representative if your switch fails POST.
Powering Off the Switch
After a successful POST, disconnect the power cord from the switch. Install the switch in a rack, on a wall, on a table, or on a shelf as described in the
“Installing the Switch” section on page 3-7 .
Installing the Switch
•
•
•
Desk or Shelf Mounting, page 3-8
Wall-Mounting (with Mounting Screws), page 3-12
•
•
•
Wall-Mounting (with Rack-Mount Brackets), page 3-17
Securing the AC Power Cord, page 3-19
Before installing the switch, review the
“Installation Guidelines” section on page 3-5
.
OL-6337-07
Catalyst 3560 Switch Hardware Installation Guide
3-7
Chapter 3 Switch Installation (8- and 12-Port Switches)
Installing the Switch
Desk or Shelf Mounting
•
•
•
Desk or Shelf Mounting (Unsecured), page 3-8
Desk or Shelf Mounting (Secured), page 3-8
Under the Desk or Shelf Mounting, page 3-9
Desk or Shelf Mounting (Unsecured)
Step 1
Step 2
Locate the adhesive strip with the rubber feet in the accessory kit.
Remove the four rubber feet from the adhesive strip, and attach them to the recessed areas on the bottom of the unit. They prevent the switch from sliding on the desk or shelf.
Step 3
Note
We strongly recommend that you attach the rubber feet. Doing so improves airflow and reduces overheating.
Place the switch on the desk or shelf.
Desk or Shelf Mounting (Secured)
Step 1
Step 2
Locate the screw template. The template is used to align the mounting screw holes and is also a guide for making sure that the screws have proper clearance.
Position the screw template on top of the desk or shelf so that the two side-by-side slots face the front
of the desk or shelf, as shown in Figure 3-1
. This ensures that the power cord faces the rear of the desk or shelf after the switch is installed.
Note
Wait before you attach the screw template to the desk or shelf.
Figure 3-1
3
Installing the Mounting Screws on a Desk or Shelf
2
1
3-8
1
Screw template
3
Desk or shelf
2
Screws
Step 3
Peel the adhesive strip off the bottom of the screw template, and attach it to the top of the desk or shelf.
Catalyst 3560 Switch Hardware Installation Guide
OL-6337-07
Chapter 3 Switch Installation (8- and 12-Port Switches)
Installing the Switch
Step 4
Step 5
Step 6
Step 7
Use a 0.144-inch (3.7 mm) or a #27 drill bit to drill a 1/2-inch (12.7 mm) hole in the three screw template slots.
Insert three screws in the slots on the screw template, and tighten until they touch the top of the screw template.
Remove the screw template from the desk or shelf.
Place the switch on the mounting screws, and slide it forward until it locks in place, as shown in
Figure 3-2 Mounting the Switch on a Desk or Shelf With Mounting Screws
SYST
STAT
DPLX
SPD
PoE
MODE
CONSOLE
1x
2x
3x
4x
5x
6x
7x
8x
Catalyst 3560
SERIES PoE-8
1
1
3
2
1
Slides on this way
3
Desk or shelf
2
Screws
4
Wall
Under the Desk or Shelf Mounting
Step 1
Step 2
Locate the screw template. The template helps to align the mounting screw holes and is a guide to make sure the screws are installed under the desk or shelf with proper clearance.
Position the screw template underneath the desk or shelf so that the two side-by-side slots face the front of the desk or shelf, as shown in
Figure 3-3 . This ensures that the power cord faces the rear of the desk
or shelf after the switch is installed. Wait before you attach the screw template to the desk or shelf.
OL-6337-07
Catalyst 3560 Switch Hardware Installation Guide
3-9
Installing the Switch
Chapter 3 Switch Installation (8- and 12-Port Switches)
Figure 3-3
1
Installing the Mounting Screws Under a Desk or Shelf
5
2
3 4
3
1
Desk or shelf
4
Adhesive
2
Screw template
5
Wall
3
Screws
Step 3
Step 4
Step 5
Step 6
Peel the adhesive strip off the bottom of the screw template, and attach it to the underside of the desk or shelf.
Use a 0.144-inch (3.7 mm) or a #27 drill bit to drill a 1/2 inch (12.7 mm) hole in the three screw template slots.
Insert three screws in the slots on the screw template, and tighten until they touch the top of the screw template.
Remove the screw template from underneath the desk or shelf.
3-10
Catalyst 3560 Switch Hardware Installation Guide
OL-6337-07
Chapter 3 Switch Installation (8- and 12-Port Switches)
Installing the Switch
Step 7
Place the switch onto the mounting screws and slide the switch forward until it locks in place, as shown in
.
Figure 3-4 Mounting the Switch Under a Desk or Shelf
4
1
2
1
SERIES
PoE-8
Catalyst 3560
8x
7x
6x
5x
4x
3x
2x
1x
3
1
Desk or shelf
3
Slides on this way
2
Screws
4
Wall
CONSOLE
SPD
DPLX
SYST
After the switch is mounted on or under the desk or shelf:
1.
(Optional) Secure the AC power cord. See “Securing the AC Power Cord” section on page 3-19
.
2.
3.
4.
Power on the switch. See the
“Verifying Switch Operation” section on page 3-7
.
Connect to a 10/100 or 10/100/1000 port, and run Express Setup. See the Catalyst 3560 Switch
Getting Started Guide for instructions. To use the CLI setup program, see Appendix D,
“Configuring the Switch with the CLI-Based Setup Program.”
Connect to the front-panel ports.
OL-6337-07
Catalyst 3560 Switch Hardware Installation Guide
3-11
Chapter 3 Switch Installation (8- and 12-Port Switches)
Installing the Switch
Wall-Mounting (with Mounting Screws)
Mount the switch with the front panel facing down (as shown in Figure 3-5 on page 3-13 and
.)
Warning Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people
and damage to the system. Statement 378
Caution
Do not wall-mount the switch with its front panel facing up or sideways. According to safety regulations, wall-mount the switch with its front panel facing down to improve airflow and to provide easier access to the cables.
Step 1
Step 2
Locate the screw template. The template is used to align the mounting screw holes.
Position the screw template so that the two side-by-side slots face toward the floor, as shown in
.
For the best support of the switch and cables, make sure the switch is attached securely to a wall stud or to a firmly attached plywood mounting backboard.
Note
Wait before you attach the screw template to the wall.
3-12
Catalyst 3560 Switch Hardware Installation Guide
OL-6337-07
Chapter 3 Switch Installation (8- and 12-Port Switches)
Figure 3-5 Installing the Mounting Screws on a Wall
1
2
Installing the Switch
THIS SIDE A
MOUNTING SURF
ACE
CABLE SIDE ENTR
Y
2
3
2
1
Wall
2
Screws
3
Screw template
Step 3
Step 4
Step 5
Step 6
Step 7
Peel the adhesive strip off the bottom of the screw template.
Attach the screw template to the wall.
Use a 0.144-inch (3.7 mm) or a #27 drill bit to drill a 1/2 inch (12.7 mm) hole in the three screw template slots.
Insert three screws in the slots on the screw template, and tighten until they touch the top of the screw template.
Remove the screw template from the wall.
OL-6337-07
Catalyst 3560 Switch Hardware Installation Guide
3-13
Chapter 3 Switch Installation (8- and 12-Port Switches)
Installing the Switch
Step 8
Place the switch onto the mounting screws and slide it down until it locks in place, as shown in
Figure 3-6 Installing the Switch On a Wall
1
3
2
2
2
1
Switch
3
Slides down
2
Screw
After the switch is mounted on the wall:
1.
(Optional) Secure the AC power cord. See
“Securing the AC Power Cord” section on page 3-19 .
2.
3.
Power on the switch. See the
“Verifying Switch Operation” section on page 3-7 .
Connect to a 10/100 or 10/100/1000 port, and run Express Setup. See the Catalyst 3560 Switch
Getting Started Guide for instructions. To use the CLI setup program, see Appendix D,
“Configuring the Switch with the CLI-Based Setup Program.”
4.
Connect to the front-panel ports.
3-14
Catalyst 3560 Switch Hardware Installation Guide
OL-6337-07
Chapter 3 Switch Installation (8- and 12-Port Switches)
Installing the Switch
Magnet Mounting
Warning
Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people
and damage to the system. Statement 378
Caution
Do not wall-mount the switch with its front panel facing up or sideways. According to safety regulations, magnet-mount the switch with its front panel facing down to improve airflow and to provide easier access to the cables.
Step 1
Place one side of the magnet against the bottom of the switch, as shown in
.
Figure 3-7 Mounting the Switch with a Magnet
1
2
OL-6337-07
3
1
Metal mounting surface
3
Switch front panel
2
Mounting magnet
Step 2
Mount the magnet and switch on a vertical metal surface.
After the switch is attached to the mounting magnet:
1.
2.
(Optional) Secure the AC power cord. See “Securing the AC Power Cord” section on page 3-19
.
Power on the switch. See the
“Verifying Switch Operation” section on page 3-7
.
Catalyst 3560 Switch Hardware Installation Guide
3-15
Installing the Switch
Chapter 3 Switch Installation (8- and 12-Port Switches)
3.
4.
Connect to a 10/100 or 10/100/1000 port, and run Express Setup. See the Catalyst 3560 Switch
Getting Started Guide for instructions. To use the CLI setup program, see Appendix D,
“Configuring the Switch with the CLI-Based Setup Program.”
Connect to the front-panel ports.
Rack-Mounting
Installing the Catalyst 3560-8PC switch or the Catalyst 3560 12-PC-S switch in a 19-inch rack requires a bracket kit that is not included with the switch (RCKMNT-19-CMPCT=).
•
•
Attaching Brackets to the Switch, page 3-16
Mounting the Switch in a 19-Inch Rack, page 3-17
Warning To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:
• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.
Statement 1006
Attaching Brackets to the Switch
shows how to attach a 19-inch bracket to one side of the switch. Follow the same steps to attach the second bracket to the opposite side.
Figure 3-8 Attaching the 19-inch Brackets for Rack-Mounting
SYST
STAT
DPLX
SPD
PoE
MODE
CONSOLE
1x
2x
3x
4x
5x
6x
7x
8x
Catalyst 3560
SERIES PoE-8
1
1
1
Phillips flat-head screws
3-16
Catalyst 3560 Switch Hardware Installation Guide
OL-6337-07
Chapter 3 Switch Installation (8- and 12-Port Switches)
Installing the Switch
Mounting the Switch in a 19-Inch Rack
After the brackets are attached to the switch, insert the switch into the 19-inch rack, and align the bracket in the rack. Use either the 10-32 pan-head screws or the 12-24 pan-slotted screws to secure the switch in the rack, as shown in
Note
We strongly recommend that you allow at least 1.75 inches (4 cm) of clearance above each switch in the rack.
Figure 3-9 Mounting the Switch in a 19-Inch Rack
SYST
STAT
DPLX
SPD
PoE
MODE
CONSOLE
1x
2x
3x
4x
5x
6x
7x
8x
1
Catalyst 2960
Series
1
1
Phillips machine screws
After the switch is mounted in the rack:
1.
(Optional) Secure the AC power cord. See “Securing the AC Power Cord” section on page 3-19
.
2.
3.
4.
Power on the switch. See the
“Verifying Switch Operation” section on page 3-7
.
Connect to a 10/100 or 10/100/1000 port, and run Express Setup. See the Catalyst 3560 Switch
Getting Started Guide for instructions. To use the CLI setup program, see Appendix D,
“Configuring the Switch with the CLI-Based Setup Program.”
Connect to the front-panel ports.
Wall-Mounting (with Rack-Mount Brackets)
Installing the Catalyst 3560-8PC switch or the Catalyst 3560 12-PC-S switch in a 19-inch rack requires a bracket kit that is not included with the switch (RCKMNT-19-CMPCT=).
Step 1
Step 2
Attach a 19-inch bracket to one side of the switch. Follow the same steps to attach the second bracket to the opposite side, as shown in
Mount the switch with the front panel facing down, as shown in
.
For the best support of the switch and cables, make sure the switch is attached securely to wall studs or to a firmly attached plywood mounting backboard.
OL-6337-07
Catalyst 3560 Switch Hardware Installation Guide
3-17
Installing the Switch
Chapter 3 Switch Installation (8- and 12-Port Switches)
Do not wall-mount the switch with its front panel facing up or sideways. According to safety regulations, wall-mount the switch with its front panel facing down to prevent airflow restriction and to provide easier access to the cables.
Figure 3-10 Mounting the Switch on a Wall
1 2
1
Phillips flat-head screws
2
User-supplied screws
After the switch is mounted on the wall:
1.
2.
3.
(Optional) Secure the AC power cord. See
“Securing the AC Power Cord” section on page 3-19
Power on the switch. See the
“Verifying Switch Operation” section on page 3-7 .
4.
Connect to a 10/100 or 10/100/1000 port, and run Express Setup. See the Catalyst 3560 Switch
Getting Started Guide for instructions. To use the CLI setup program, see Appendix D,
“Configuring the Switch with the CLI-Based Setup Program.”
Connect to the front-panel ports.
3-18
Catalyst 3560 Switch Hardware Installation Guide
OL-6337-07
Chapter 3 Switch Installation (8- and 12-Port Switches)
Installing the Switch
Securing the AC Power Cord
The AC power-cord retainer is an optional part (PWR-CLIP-CMP).
Step 1
Step 2
Insert the power-cord retainer wire into the slot on the plastic holder.
Attach the plastic holder onto the switch rear panel with the supplied screw (see
).
Figure 3-11 Insert the Power-Cord Retainer
Step 3
Rotate the wire to the right side of the AC power cord connector, and insert the AC power cord (see
Figure 3-12 Insert the AC Power Cord
Step 4
Place the power cord bushing on the power cord with the opening at the top. The retainer wire only fits into one slot on the bushing. Move the retainer wire into the bushing slot (see
Figure 3-13 Attach the Power-Cord Bushing
OL-6337-07
Step 5
Slide the bushing so that it rests against the power-cord connector, and then rotate the bushing clockwise until the bushing is securely fastened and its opening is on the right side of the power cord (see
Catalyst 3560 Switch Hardware Installation Guide
3-19
Where to Go Next
Figure 3-14 Rotate the Bushing Clockwise
Chapter 3 Switch Installation (8- and 12-Port Switches)
Step 6
Insert the securing clip in the opening of the bushing (see
Figure 3-15 Insert the Securing Clip
After the power cord is correctly secured, it looks like this:
Where to Go Next
If the default configuration is satisfactory, the switch does not need further configuration. You can use any of these management options to change the default configuration:
•
•
Start the device manager, which is in the switch memory, to manage individual switches. The device manager is a web interface that offers quick configuration and monitoring. You can access the device manager from anywhere in your network through a web browser. For more information, see the device manager online help.
Start the Network Assistant application, which is described in the Getting Started with Cisco
Network Assistant guide. Through this GUI, you can configure and monitor a switch cluster or an individual switch.
•
•
Use the CLI from the console to configure the switch as a member of a cluster or as an individual switch. See the Catalyst 3560 Switch Software Configuration Guide and the Catalyst 3560 Switch
Command Reference
on Cisco.com for information on using the CLI with a Catalyst 3560 switch.
Start an SNMP application such as the CiscoView application.
3-20
Catalyst 3560 Switch Hardware Installation Guide
OL-6337-07
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
