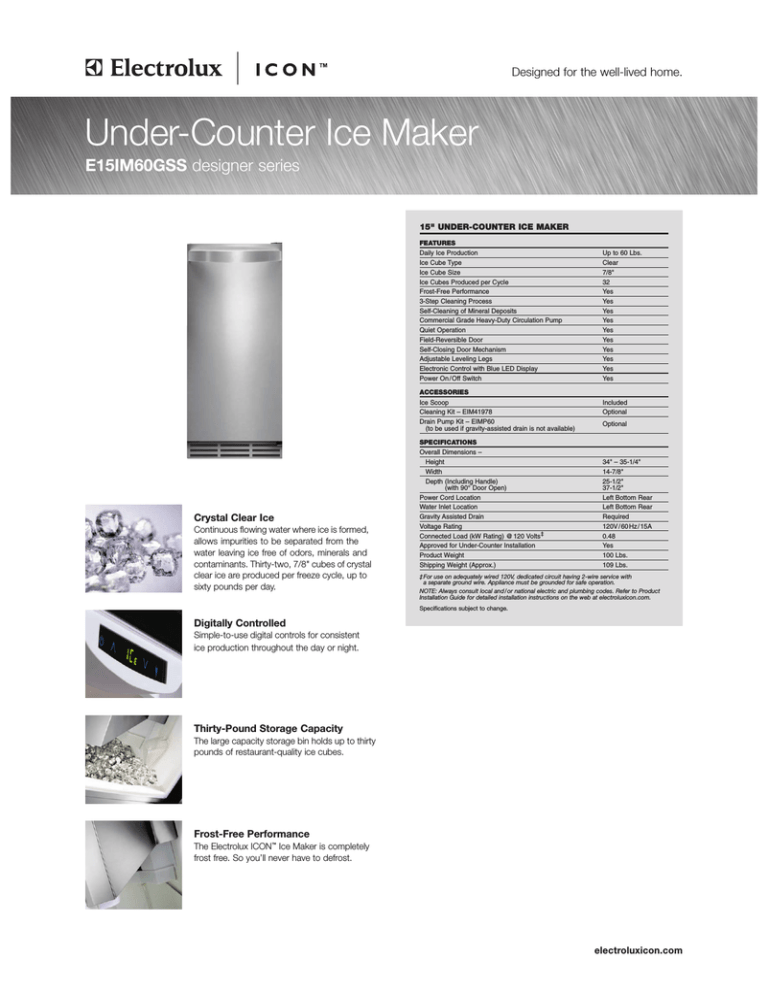

Designed for the well-lived home. Under-Counter Ice Maker E15IM60GSS designer series 15" UNDER-COUNTER ICE MAKER FEATURES Daily Ice Production Ice Cube Type Ice Cube Size Ice Cubes Produced per Cycle Frost-Free Performance 3-Step Cleaning Process Self-Cleaning of Mineral Deposits Commercial Grade Heavy-Duty Circulation Pump Quiet Operation Field-Reversible Door Self-Closing Door Mechanism Adjustable Leveling Legs Electronic Control with Blue LED Display Power On / Off Switch Up to 60 Lbs. Clear 7/8" 32 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes ACCESSORIES Ice Scoop Cleaning Kit – EIM41978 Drain Pump Kit – EIMP60 (to be used if gravity-assisted drain is not available) Included Optional Optional SPECIFICATIONS Crystal Clear Ice Continuous flowing water where ice is formed, allows impurities to be separated from the water leaving ice free of odors, minerals and contaminants. Thirty-two, 7/8" cubes of crystal clear ice are produced per freeze cycle, up to sixty pounds per day. Overall Dimensions – Height Width Depth (Including Handle) (with 90° Door Open) Power Cord Location Water Inlet Location Gravity Assisted Drain Voltage Rating Connected Load (kW Rating) @ 120 Volts ‡ Approved for Under-Counter Installation Product Weight Shipping Weight (Approx.) 34" – 35-1/4" 14-7/8" 25-1/2" 37-1/2" Left Bottom Rear Left Bottom Rear Required 120V / 60 Hz / 15A 0.48 Yes 100 Lbs. 109 Lbs. ‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation. NOTE: Always consult local and / or national electric and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at electroluxicon.com. Specifications subject to change. Digitally Controlled Simple-to-use digital controls for consistent ice production throughout the day or night. Thirty-Pound Storage Capacity The large capacity storage bin holds up to thirty pounds of restaurant-quality ice cubes. Frost-Free Performance The Electrolux ICON™ Ice Maker is completely frost free. So you’ll never have to defrost. electroluxicon.com Under-Counter Ice Maker E15IM60GSS designer series Top Front 7 14 /8" Water supply and drain connections Left 25 1/2" 7 14 /8" 3 /4" 3 23 3/8" /4" 21" 371/2" 34" Adjustable to 351/4" Drain outlet 1 7/8" Water inlet Water outlet Water inlet Power cord 13/4" Door in 90° open position 81/8" 33/8" 65/8" 3 4 /8" 15/8" 2" 73/8" 90° 90° 34 1/4" min. 24" min. Allow 1-1/2" minimum clearance behind unit for electrical, water supply and drain connections. 15 1/8" Under-Counter Ice Maker Specifications • Product Weight – 100 Lbs. Rating – 120V / 60 Hz / 15 Amps • Connected Load (kW Rating) @ 120 Volts = 0.48 kW (For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation.) • Amps @ 120 Volts = 4.0 Amps • Electrical cable supplied. • Water supply and electrical power source required. • Always consult local and /or national electric & plumbing codes. • Can be used freestanding, or built-in under counter. • Does not require additional airspace for top, sides or rear when used in built-in application. Increase unit dimensions by at least 1/4" for recommended rough opening, allowing 1-1/2" minimum clearance in rear for water, drain and electrical connections. • Front grille MUST remain unobstructed for proper ventilation. • Can be installed using gravity drain, or factory-installed /equivalent drain pump. • Drain lines must have 5/8" inside diameter, 1" drop per 48" (1/4" per foot) of run and must not create traps. • Floor drain must be large enough to accommodate drainage from all drains. • Voltage • Recommended water pressure between 15 and 150 pounds per square inch (psi). • Unit MUST be level for proper operation, and positioned on flat surface, capable of supporting entire weight when fully loaded. • Leveling legs supplied to adjust height and level unit. • Can be installed outdoors, out of direct sunlight. Do NOT install behind closed doors. • Do not position unit near any heat source or in direct sunlight to ensure optimum performance. Surrounding air temperature must be at least 50° F but must not exceed 110° F. • Must be positioned to allow for 90° door swing. (Door is field reversible for right- or left-hand opening.) • When installing next to wall where handle may make contact, allow 3" clearance between opened door and wall. Note: For planning purposes only. Refer to Product Installation Guide on the web at electroluxicon.com for detailed instructions. Optional Accessories • Drain Pump Kit – (EIMP60). Kit – (EIM41978). • Cleaning USA • 250 Bobby Jones Expressway • Augusta, GA 30907 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca E15IM60GSS 03/08 © 2008 Electrolux Home Products, Inc. High standards of quality at Electrolux Home Products, Inc. mean we are constantly working to improve our products. We reserve the right to change specifications or discontinue models without notice. Printed in the U.S.A.
