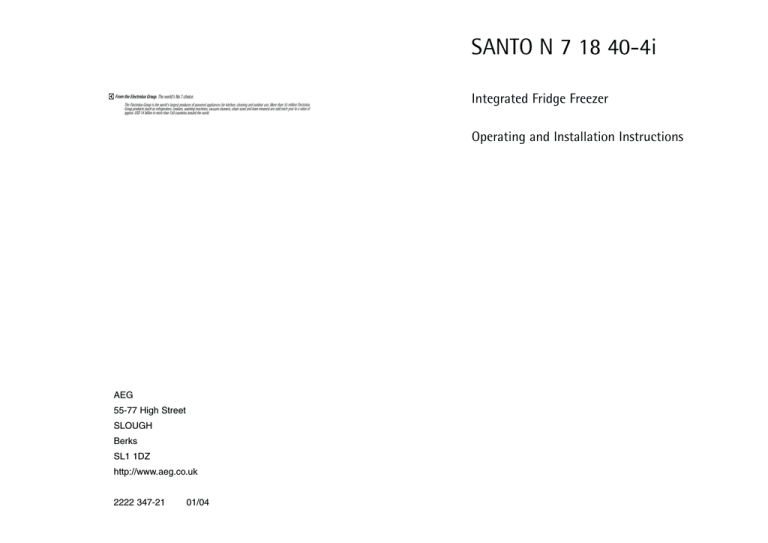

SANTO N 7 18 40-4i
Integrated Fridge Freezer
Operating and Installation Instructions
AEG
55-77 High Street
SLOUGH
Berks
SL1 1DZ
http://www.aeg.co.uk
2222 347-21
01/04
Dear customer,
Before switching on your new refrigerator/freezer on please read these operating instructions carefully. They contain important information for safe
use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass them on
to possible new owners of the appliance.
These operating instructions are for use with several technically comparable
models with varying accessories. Please observe the notes which apply to
your model.
Notes which are important for your safety or for the proper functioning of
the appliance are stressed with a warning triangle and/or with signal words
(Warning!, Important!, Attention!). Please observe the following instructions
carefully.
Additional information regarding operation and practical applications of
the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use of
the appliance are marked with the flower.
In the event of a malfunction, these operating instructions contain information on how to rectify faults yourself, see the “Something Not Working”
section.
For futher assistance contact your local AEG Service Force Centre, see the
chapter “Service and Spare Parts”.
Printed on paper manufactured with environmentally sound processes.
who thinks ecologically acts accordingly ...
2
Contents
Fix cover (D) on guide (B) until it clips
into place.
B
D
PR167/1
If the appliance is fixed to the side of
the kitchen unit, simply slacken the
screws in the fixing brackets (E), move
the brackets as shown in the figure
and re-tighten the screws.
E
E
D735
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured in
accordance with the appropriate standards. The necessary measures in
accordance with appliance safety legislation regulations (GSG), accident
prevention regulations for refrigeration appliances (VBG 20) and the regulations of the German Society of Electrical Engineers (VDE) were observed in
the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU guidelines:
– 73/23/EWG dated 19 February 1973 - low voltage guidelines.
– 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
26
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Disposal of Old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Remove Transport Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Shelf Holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Starting Up and Temperature Regulation . . . . . . . . . . . . . . . . . . . . . . .7
Control Panel of Freezer Compartment . . . . . . . . . . . . . . . . . . . . . . . . .8
Starting Up and Temperature Regulation of Freezer Compartment .8
Quick-freezing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Storage Shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Variable Inner Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Variable Storage Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Fresh Food Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Freezing and Storing Frozen Food . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Ice Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Storage Goods Symbols/ Freezing Calendar . . . . . . . . . . . . . . . . . . . .13
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Switching Off the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Something Not Working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Changing the Light Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Your Appliance Needs Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Reversing the Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Housing Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Instructions for Building-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
3
Safety
Fix cover (C) on guide (A) until it clips
into place.
A
Please read this instruction book before using the appliance and retain for
future reference. These warnings are provided in the interests of your safety, ensure you understand them fully before using the appliance.
Intended Use
• The appliance is intended for use in the home. It is suitable for the cooling, freezing and storing of frozen food, as well as for making ice. If the
appliance is used for purposes other than those intended or used incorrectly, no liability can be accepted by the manufacturer for any damage
that may be caused.
• Alterations or changes to the appliance are not permitted for reasons of
safety.
Prior to Initial Start–up
• Check the appliance for transport damage. Under no circumstance should
a damaged appliance be plugged in! In the event of damage, please contact your retailer.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit
of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that
none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.
C
PR33
Open the appliance door and the furniture door at 90°. Insert the small
square (B) into guide (A). Put together the appliance door and the furniture door and mark the holes as indicated in the figure. Remove the
squares and drill holes with ø 2 mm
at 8 mm from the outer edge of the
door. Place the small square on the
guide again and fix it with the screws
supplied.
8mm
A
PR167
B
Safety of children
• Keep packaging material away from children.
• Please make old appliances unusable prior to disposal. Pull out the mains
plug, cut off the mains cable and remove any locks or catches, to prevent
young children being trapped inside.
• Do not allow children to tamper with the controls or play with the product.
At the end of installation/adjusting, it
is necessary to check if the door of
the furniture closes properly.
Should adjustment of the furniture
door be necessary, use the clearance
of slots.
PR168
4
25
Apply covers (B) into the relevant
holes.
Daily Operation
• Do not operate any electrical appliances in the refrigerator/freezer (e.g.
electric ice cream makers, mixers etc.).
• Before cleaning the appliance, always switch off the appliance and
disconnect from the electricity supply.
• When unplugging always pull the plug from the mains socket, do not pull
on the cable.
Service
B
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or
serious malfunctioning. Contact your local AEG Service Force Centre.
D726
Disposal
Appliance Packaging Information
Separate parts A, B, C, D as shown in
the figure
B
A
C
Disposal of Old Appliances
D
For environmental reasons, refrigeration appliances must be disposed of
properly. This applies to your old appliance, and - at the end of its service
life - to your new appliance as well.
Warning! Before disposing of old appliances make them inoperable.
Remove plug from mains, sever the power cable, remove or destroy any
snap or latch closures, to prevent small children being trapped inside.
• Use an authorised disposal site.
Contact your Local Council or Environmental Health Office to see if there
are facilities in your area to recycle the appliance.
PR266
50mm
Place guide (A) on the inside part of
the furniture door, in the upper and
lower positions as shown in the figure and mark the position of external
holes. Having drilled the holes, fix the
guide with the screws supplied.
All materials are environmentally sound.
The plastics can be recycled and are identified as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed of
at a waste-paper recycling collection location.
A
20 m
m
24
PR166
5
Remove transport packaging
Instructions for building-in
The appliance and the interior fittings are protected for transport.
• Remove all adhesive tape and packing pieces from the interior of the
appliance.
Apply the joint sealing strip as shown
in figure.
Shelf holders
A
Your appliance is equipped with shelf
retainers that make it possible to
secure the shelves during transportation.
To remove them proceed as follows:
Raise the shelf from the back, push it
in the direction of the arrow until it
is freed and remove the retainers.
D765
B
Push appliance into the housing
until stop strip (A) touches the
kitchen unit.
A
Description of the appliance
E
A
B
F
C
G
H
I
J
D
A - Dairy compartment
B - Hanging storage box
C - Can storage shelves
D - Bottle storage shelf
E - Light lamp
F - Glass shelves
G - Glass shelf
H - Salad drawers
I - Control panel
J - Compartment for
freezing fresh food
L - Compartments for
storing frozen food
D023
Open the door and push the appliance
against the side of the kitchen unit opposite to that of appliance hinges.
Fasten the appliance with 4 screws
provided in the kit included with the
appliance. Snap the ventilation grille
(C) and hinge cover (D) into position.
D
L
D723
6
C
23
1.
2.
3.
.
4.
5.
Unscrew the upper pin and remove
the spacer
Remove the upper door
Starting up and temperature regulation
Remove the hinge cover (A).
Unscrew the pins (B) and the spacers
(C) and refit them on the middle hinge of the opposite side. Snap the hinge cover (A).
Refit the upper door, the upper pin
and the spacer on the opposite side
Unscrew the lower pin and remove
the spacer and refit them on the
opposite side
C
B
A
Wash the inside of the appliance with lukewarm water with a little bicarbonate of soda added (5ml to 0,5 litre of water). Do not use soap or detergent as the smell may linger. Dry the appliance thoroughly.
• When the refrigerator compartment door is opened, the internal lighting
is switched on. The temperature control knob is located on the right hand
side of the refrigerator compartment.
Setting “0”: Off.
Setting “1”: Highest temperature, (warmest setting).
Setting “6” (end-stop) : Lowest temperature, (coldest setting).
The exact setting should be chosen keeping in mind that the temperature
inside the refrigerator depends on:
-the quantity of food stored
-how often the door is opened
The temperatures in the refrigerator compartment and freezer compartment cannot be independently regulated.
If you want to freeze fresh food rapidly, select setting “6”, ensuring that the
temperature in the refrigerator compartment does not drop below 0°C. You
should reset the temperature control knob to setting “3” or “4”, if this does
occur.
As soon as the fresh food placed in the freezer has frozen, return the temperature control knob to “3” or “4”.
Important!
High ambient temperatures (e.g. on hot summer days) and a cold setting on
the temperature regulator (position"5" to "6") can cause the compressor to
run continuously.
If this happens, turn the temperature regulator back to a warmer setting
(position "3" to "4"). At this setting the compressor will be switched on and
off as usual and automatic defrosting recommenced.
Housing Dimensions
Height
Depth
Width
22
1780 mm
550 mm
560 mm
7
Control Panel of Freezer Compartment
This appliance should only be installed at a location where the ambient
temperature corresponds to the climate classification indicated on the rating plate, which is located on the inside left of the appliance.
The following table shows which ambient temperature is correct for each
climate classification.
1
2
6
5
A
4
B
Positioning
3
C
D
Climate classification
for an ambient temperature of
SN
+10 to +32 °C
N
+16 to +32 °C
A. Pilot light (green)
B. Thermostat knob
C. Super control light (yellow)
D. Normal/Super push button
The control panel elements are: the thermostat (B) is also the on/off switch for the freezer compartment.
The green pilot light (A), which comes on when the mains voltage is availble. Switch the temperature regulator knob to a number position, the refrigerating unit automatically operates by system control. The yellow pilot
light (C) comes on when the normal/super push botton is pushed.
Important note: if you operate the fast-freeze switch or adjust the temperature regulator, it may happen that your appliance’s refrigeration motor
does not start immediately but only after some time. This does not mean
that your appliance has a fault.
Starting Up and Temperature Regulation of
Freezer Compartment
• Turn the temperature regulator (B) in the direction of “1”. The green
pilot light(A) comes on. The freezer motor starts up.
• Push the Normal/Super push button (D), the yellow light (B) comes on;
Setting “0”: Off.
Setting “1”: Highest temperature, (warmest setting).
Setting “4” (end-stop) : Lowest temperature, (coldest setting).
The exact setting should be chosen keeping in mind that the temperature
inside the appliance depends on:
- the quantity of food stored
- how often the door is opened
- ambient temperature
8
The appliance should be located in a dry atmosphere, out of direct sunlight
and away from continuous heat and extreme temperature, e.g. not next to
a boiler or radiator, or in a very cold room e.g. an outhouse. If these temperatures are exceeded i.e. warmer or colder, then the appliance may not
operate correctly.
For building-in and door reversal instructions please refer to the relevant
instructions on the following pages.
Your appliance needs air
50 mm
For safety reasons, minimum ventilation must be as shown Fig.
Attention: keep ventilation openings
clear of obstruction;
min.
200 cm
2
min.
200 cm2
D567
Reversing the door
The side the door opens can be changed from the right side (factory adjustment) to the left side, if the installation site requires.
Warning! When changing the side the door opens, the appliance must not
be connected to the mains. Remove plug from the mains beforehand.
21
Installation
Quick-freezing
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
WARNING – THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should these safety measures not
be observed.
Before switching on, make sure the electricity supply voltage is the same as
that indicated on the appliance rating plate. The rating plate is inside, on the
left.
The appliance is supplied with a 13 amp plug fitted. In the event of having
to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362)
fuse must be used.
Important!
GREEN & YELLOW
For quick-freezing, push the Normal/Super button (D). The super
control light (C) will then light up.
The Quick-freezing function accelerates the freezing of fresh food
and, at the same time, protects foodstuffs already stored from
undesirable warming.
If this function is not ended manually, the appliance switches off
the Quick-freezing function after 52 hours. The yellow light goes
out.
This function can be ended manually at any time by pressing the
Normal/Super button again. The yellow light goes out.
13 AMP. FUSE
13 AMP
The wires in the mains lead are
coloured in accordance with the following code:
Green and Yellow Earth
Blue
Neutral
Brown
Live
As the colours of the wires in the
BROWN
mains lead of this appliance may not
BLUE
CORD CLAMP
correspond with the coloured markD207
ings identifying the terminals in your
plug, proceed as follows:
The wire coloured green and yellow must be connected to the terminal
marked with the letter “E” or by the earth symbol or coloured green and yellow.
The wire coloured blue must be connected to the terminal marked “N” or
coloured black.
The wire coloured brown must be connected to the terminal marked “L” or
coloured red.
Upon completion there must be no cut, or stray strands of wire present and
the cord clamp must be secure over the outer sheath.
Warning! A cut-off plug inserted into a 13 amp socket is a serious safety
(shock) hazard. Ensure that the cut-off plug is disposed of safely.
1.
2.
3.
4.
20
9
Interior Accessories
Guarantee Conditions
Guarantee Conditions
Storage Shelves
The glass shelf above the fruit and
vegetable compartment should
always remain in position, to ensure
fruit and vegetables stay fresh longer.
The remaining storage shelves can be
adjusted to various heights:
Pull the storage shelf forward until it D338
can be tipped up or down and removed.
To insert at a different height use the same procedure in reverse.
Adjustment for tall goods:
Remove the front half of the two-part vario glass storage shelf and insert it
at a different level. Space is thus gained for storage of tall goods on the
underlying storage shelf.
Variable Inner Door
The door compartments can be pulled up and removed, and inserted at
other positions as needed.
Variable Storage Box
1.
2.
10
Some models are equipped with a variable storage box which is fitted under
a door shelf compartment and can be slid sideways.
The box can be inserted under any
door shelf compartment.
To change the position of the storage box; lift the shelf compartment
with the box upwards and out of the
holders in the door and remove the
retaining bracket out of the guide
under the shelf compartment.
Reverse the above operation to insert
the shelf at a different height.
AEG offer the following guarantee to the first purchaser of this appliance.
1. The guarantee is valid for 12 months commencing when the appliance is handed over to
the first retail purchaser, which must be verified by purchase invoice or similar documentation.
The guarantee does not cover commercial use.
2. The guarantee covers all parts or components which fail due to faulty workmanship or
faulty materials. The guarantee does not cover appliances where defects or poor performance are due to misuse, accidental damage, neglect, faulty installation, unauthorised
modification or attempted repair, commercial use or failure to observe requirements and
recommendations set out in the instruction book.
This guarantee does not cover such parts as light bulbs, removable glassware, or plastic.
3. Should guarantee repairs be necessary the purchaser must inform the nearest Service Force centre (manufacturer’s service or authorised agent). AEG reserves the right to stipulate the place of the repair (i.e. the customer’s home, place of installation or AEG workshop).
4. The guarantee or free replacement includes both labour and materials.
5. Repairs carried out under guarantee do not extend the guarantee period for the appliance. Parts removed during guarantee repairs become the property of AEG.
6. The purchaser’s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you
to your new home subject to the following qualifications:
- The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for labour and parts as exist
in the new country of use for this brand or range of products.
- This guarantee relates to you and cannot be transferred to another user.
- Your new home is within the European Community (EC) or European Free Trade Area.
- The product is installed and used in accordance with our instructions and is only used
domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care Centre, listed below, to give
them details of your new home. They will then ensure that the local Service Organisation is
aware of your move and able to look after you and your appliances.
France
Senlis
+33 (0)3 44 62 29 29
Germany
Nürnberg
+49 (0) 800 234 7378
Italy
Pordenone
+39 (0) 800 117 511
Sweden
Stockholm
+46 (0) 8 672 53 60
UK
Slough
+44 (0) 1753 219899
19
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts, please
contact your local Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post
code area. For address of your local Service Force Centre and further information about Service
Force, please visit the website at www.serviceforce.co.uk.
Before calling out an engineer, please ensure you have read details under the heading “Something Not Working”. When you contact the Service Force Centre you will need to give following
details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the apliance. (found on the rating plate).
5. The purchase date
Please note that a valid purchase receipt or guarantee documentation is required for
in-guarantee service calls.
For Customer Services in the Republic of Ireland please contact us at the address
below:
AEG
Electrolux Group (Irl) Ltd
Long Mile Road
Dublin 12 - Republic of Ireland
Tel: +353 (0) 1 4090751
Email: [email protected]
Fresh Food Refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquid in the refrigeator
• do cover or wrap the food, particularly if it has a strong flavour.
• position food so that air can circuiate freely round it.
Useful hints:
Meat (all types): wrap in polythene bags and place on the glass shelf above
the vegetable drawer(s)
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc: these should be covered and may be placed
on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the
special drawer(s) provided.
Butter and cheese: these should be placed in special airtight containers or
wrapped in aluminium foil or polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be stored in the bottle
rack on the door.
Bananas, potatoes, onions and garlic, if not in airtight containers, must
not be kept in the refrigerator.
Freezing and storing frozen food
Customer Care Department
For general enquiries concerning your AEG appliance or for futher information on AEG
products, please contact our Customer Care Department by letter or telephone at the
address below or visit our website at www.aeg.co.uk.
Customer Care Department
AEG Domestic Appliances
55-77 High Street,
Slough,
Berkshire
You can use your freezer for freezing fresh food yourself.
Important!
• The temperature in the freezer compartment must be –18 °C or colder
before freezing food.
• Please observe the freezing capacity given on the rating plate. The freezing capacity is the maximum quantity of fresh food that can be frozen
within a period of 24 hours. If you wish to freeze food several days in a
row, please observe a maximum capacity of only 2/3 to 3/4 of that on the
rating plate. The quality of the food is best preserved when it is frozen
right through to the core as quickly as possible.
SL1 1DZ
Tel: 08705 350 350*
18
* calls to this number may be recorded for training purposes
11
• Allow warm food to cool down before freezing. The warmth will cause
increased ice formation and increase the power consumption.
• Please note the maximum storage times specified by the manufacturer.
• Thawed foods which have not been processed further (cooked into meals)
may not under any circumstances be frozen a second time.
• Containers with flammable gases or liquids can leak at low temperatures.
There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer. They can burst when
the contents freeze, high carbonate content drinks can even explode!
Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer.
• All foods must be packed air tight prior to freezing, so that they do not
dry out or lose their flavour, and so that no flavour contamination of
other frozen goods occurs.
Important! Do not touch frozen food with wet hands. Your hands could
stick to the food.
1.
2.
3.
To ensure correct air circulation within the freezer during normal use, please do not take out the drawers.
Place the packed food in the drawers. Place food to be frozen in the upper
basket. Unfrozen food must not touch items already frozen, otherwise the
frozen food could begin to defrost.
When freezing fresh food, depress the ambient temperature switch (A) 24
hours before loading the food without modifying the thermostat setting.
The pilot light will come on. At the end of the freezing process, do not forget to depress again the ambient switch in order to avoid an increase of the
power consumption.
Place frozen foods in the drawers sorted by type, as far as possible.
If, after carrying out the necessary checks there is still a fault with your
appliance please contact your local AEG Service Force Centre.
In guarantee customers should ensure that the suggested checks have
been made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service
calls.
Changing the light bulb
1.
2.
3.
4.
5.
6.
7.
Warning! There is a risk of electric shocks! Before changing the light bulb,
switch off the appliance and unplug it, or pull the fuse or the circuit breaker.
Light bulb data: 220-240 V, max. 15 W
To switch off the appliance, turn the
temperature regulator to position
"0".
Unplug the mains plug.
To change the light bulb, undo the
screw.
Press the light bulb cover as shown
and slide it backwards.
Change the defective light bulb.
Refit the light bulb cover and the
screw.
Switch the appliance back on.
Ice pack
There are two ice packs in one drawer of the freezer.
In the event of a power failure or malfunction, the ice pack will lengthen
the amount of time it takes for the frozen food to become too warm by
several hours. The ice pack can only fulfil this task efficiently if it is placed
in the uppermost drawer, at the front, above the frozen food. You can use
the ice pack for cooling cold bags.
12
17
Something Not Working
Preparation of Ice Cubes
If the appliance is not functioning correctly, please carry out the following
checks before contacting your local AEG Service Force Centre.
Warning!
Repairs should only be carried out by qualified service engineers. Repairs
carried out by inexperienced persons may cause injury or serious malfunctioning.
Symptom
Possible Cause
Remedy
Appliance is not switched on
Switch on the appliance.
Mains plug is not plugged in
or is loose.
Insert mains plug.
Appliance does not work.
Fuse has blown or is defective.
Socket is defective.
Appliance cools too much.
Temperature is set too cold.
The food is too warm.
Temperature is not properly
adjusted.
Door was open for an extended period.
A large quantity of warm food
was placed in the appliance
within the last 24 hours.
The appliance is near a heat
source.
Check fuse, replace if necessary.
Mains malfunctions are to be
corrected by an electrician.
Turn the temperature control
knob to a warmer setting.
Please look in the "Initial Start
Up" section.
Open the door only as long as
necessary.
Turn the temperature control
knob to a colder setting.
Please look in the "Installation
location" section.
Please look in the "Changing
Interior lighting does not work. Light bulb is defective.
the Light Bulb" section.
Carefully warm the leaking
sections of the door seal with
a hair dryer (not hotter than
Heavy build up of frost, possi- Door seal is not air tight (posapprox. 50 °C). At the same
bly also on the door seal.
sibly after reversing the door).
time shape the warmed door
seal by hand until it sits correctly.
The compressor does not start
This is normal, no error has
The compressor starts after a
immediately after changing
occurred.
period of time.
the temperature setting.
Water on the floor or on stoSee the "Cleaning and Care"
Water drain hole is blocked.
rage shelves.
section.
16
1.
2.
Fill the ice cube tray 3/4 full with cold water, place it in the freezer compartment and leave to freeze.
To loosen the frozen cubes, either twist the ice cube tray or hold it under
running water for a few seconds.
Important! Never try to free an ice tray that is frozen to the freezer compartment using pointed or sharp edged objects. Use the ice scraper supplied.
Storage Goods Symbols/Freezing Calendar
• The symbols on the drawers show different types of frozen goods.
• The numbers indicate storage times
in months for the appropriate
types of frozen goods. Whether
the upper or lower value of the
indicated storage time is valid
depends on the quality of the
foods and pre-treating before
freezing. The lower value applies to
foods with high fat content.
Defrosting
Refrigerator
Frost is automatically removed from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use.
The defrost water drains out through a trough into a special container at
the back of the appliance, located over the motor compressor, where it
evaporates.
13
We particulary recommend that you periodically clean the defrost-water
drainage outlet, located in the centre of the drainage groove in the refrigerator compartment, to prevent the defrost water form overflowing on to
foods stored in the compartment.
Use the special cleaner provided, which you will find already inserted into
the discharge hole.
Freezer
The inner walls of the freezer are automatically defrosted
Switching off the appliance
1.
2.
3.
4.
To switch off the appliance, turn the temperature regulator to position "0"
or disconnect from the electricity supply.
If the appliance is not going to be used for an extended period:
Remove all refrigerated and deep-frozen packages as well as ice trays.
Remove the mains plug or switch off.
Defrost freezer compartment and clean thoroughly (see section: “Cleaning
and Care”).
Leave the door open to avoid the build up of odours.
Do not allow such substances to come into contact with appliance parts.
• Many proprietary kitchen surface cleaners contain chemicals that can
attack/damage the plastics used in this appliance. For this reason it is
recommended that the outer casing of this appliance is only cleaned with
warm water with a little washing-up liquid added.
1.
Remove frozen food and the food from the refrigerator. Wrap frozen
food in several layers of newspaper. Store it in a cool place, well covered.
2.
Switch the appliance off and remove the plug from the mains, or disconnect from the electricity supply.
3.
Clean the appliance and the interior accessories with lukewarm
water and with a little bicarbonate
of soda added (5ml to 0,5 litre of
water).
4.
Dry the appliance thoroughly.
5.
Check the water drain hole on the
rear wall of the fridge. Clear a
blocked drain hole with the aid of
the drain cleaning tool included
with the appliance.
6.
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories,
should be cleaned regularly.
Warning!
Before carrying out any cleaning or maintenance, disconnect the appliance
from the electricity supply.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, which could cause an electric shock! Hot
vapours can lead to the damage of plastic parts.
• The appliance must be dry before it is switched back on.
Warning!
• Ethereal oils and organic solvents can attack plastic parts, e.g.
– lemon juice or the juice from orange peel,
D037
When everything is dry switch the appliance back on.
Energy Saving Tips
• Do not install the appliance near radiators or other sources of continuous
warmth. High ambient temperatures cause longer, more frequent operation of the compressor.
• Ensure sufficient air circulation at the appliance base and at the back wall
of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to cool
first.
• Do not leave the door open any longer than necessary.
• Do not set temperature any colder than necessary.
• Put frozen food in the fridge to defrost. The cold in the frozen food will
then be used to cool the fridge.
– butyric acid;
– cleansers which contain acetic acid.
14
15
We particulary recommend that you periodically clean the defrost-water
drainage outlet, located in the centre of the drainage groove in the refrigerator compartment, to prevent the defrost water form overflowing on to
foods stored in the compartment.
Use the special cleaner provided, which you will find already inserted into
the discharge hole.
Freezer
The inner walls of the freezer are automatically defrosted
Switching off the appliance
1.
2.
3.
4.
To switch off the appliance, turn the temperature regulator to position "0"
or disconnect from the electricity supply.
If the appliance is not going to be used for an extended period:
Remove all refrigerated and deep-frozen packages as well as ice trays.
Remove the mains plug or switch off.
Defrost freezer compartment and clean thoroughly (see section: “Cleaning
and Care”).
Leave the door open to avoid the build up of odours.
Do not allow such substances to come into contact with appliance parts.
• Many proprietary kitchen surface cleaners contain chemicals that can
attack/damage the plastics used in this appliance. For this reason it is
recommended that the outer casing of this appliance is only cleaned with
warm water with a little washing-up liquid added.
1.
Remove frozen food and the food from the refrigerator. Wrap frozen
food in several layers of newspaper. Store it in a cool place, well covered.
2.
Switch the appliance off and remove the plug from the mains, or disconnect from the electricity supply.
3.
Clean the appliance and the interior accessories with lukewarm
water and with a little bicarbonate
of soda added (5ml to 0,5 litre of
water).
4.
Dry the appliance thoroughly.
5.
Check the water drain hole on the
rear wall of the fridge. Clear a
blocked drain hole with the aid of
the drain cleaning tool included
with the appliance.
6.
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories,
should be cleaned regularly.
Warning!
Before carrying out any cleaning or maintenance, disconnect the appliance
from the electricity supply.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, which could cause an electric shock! Hot
vapours can lead to the damage of plastic parts.
• The appliance must be dry before it is switched back on.
Warning!
• Ethereal oils and organic solvents can attack plastic parts, e.g.
– lemon juice or the juice from orange peel,
D037
When everything is dry switch the appliance back on.
Energy Saving Tips
• Do not install the appliance near radiators or other sources of continuous
warmth. High ambient temperatures cause longer, more frequent operation of the compressor.
• Ensure sufficient air circulation at the appliance base and at the back wall
of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to cool
first.
• Do not leave the door open any longer than necessary.
• Do not set temperature any colder than necessary.
• Put frozen food in the fridge to defrost. The cold in the frozen food will
then be used to cool the fridge.
– butyric acid;
– cleansers which contain acetic acid.
14
15
Something Not Working
Preparation of Ice Cubes
If the appliance is not functioning correctly, please carry out the following
checks before contacting your local AEG Service Force Centre.
Warning!
Repairs should only be carried out by qualified service engineers. Repairs
carried out by inexperienced persons may cause injury or serious malfunctioning.
Symptom
Possible Cause
Remedy
Appliance is not switched on
Switch on the appliance.
Mains plug is not plugged in
or is loose.
Insert mains plug.
Appliance does not work.
Fuse has blown or is defective.
Socket is defective.
Appliance cools too much.
Temperature is set too cold.
The food is too warm.
Temperature is not properly
adjusted.
Door was open for an extended period.
A large quantity of warm food
was placed in the appliance
within the last 24 hours.
The appliance is near a heat
source.
Check fuse, replace if necessary.
Mains malfunctions are to be
corrected by an electrician.
Turn the temperature control
knob to a warmer setting.
Please look in the "Initial Start
Up" section.
Open the door only as long as
necessary.
Turn the temperature control
knob to a colder setting.
Please look in the "Installation
location" section.
Please look in the "Changing
Interior lighting does not work. Light bulb is defective.
the Light Bulb" section.
Carefully warm the leaking
sections of the door seal with
a hair dryer (not hotter than
Heavy build up of frost, possi- Door seal is not air tight (posapprox. 50 °C). At the same
bly also on the door seal.
sibly after reversing the door).
time shape the warmed door
seal by hand until it sits correctly.
The compressor does not start
This is normal, no error has
The compressor starts after a
immediately after changing
occurred.
period of time.
the temperature setting.
Water on the floor or on stoSee the "Cleaning and Care"
Water drain hole is blocked.
rage shelves.
section.
16
1.
2.
Fill the ice cube tray 3/4 full with cold water, place it in the freezer compartment and leave to freeze.
To loosen the frozen cubes, either twist the ice cube tray or hold it under
running water for a few seconds.
Important! Never try to free an ice tray that is frozen to the freezer compartment using pointed or sharp edged objects. Use the ice scraper supplied.
Storage Goods Symbols/Freezing Calendar
• The symbols on the drawers show different types of frozen goods.
• The numbers indicate storage times
in months for the appropriate
types of frozen goods. Whether
the upper or lower value of the
indicated storage time is valid
depends on the quality of the
foods and pre-treating before
freezing. The lower value applies to
foods with high fat content.
Defrosting
Refrigerator
Frost is automatically removed from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use.
The defrost water drains out through a trough into a special container at
the back of the appliance, located over the motor compressor, where it
evaporates.
13
• Allow warm food to cool down before freezing. The warmth will cause
increased ice formation and increase the power consumption.
• Please note the maximum storage times specified by the manufacturer.
• Thawed foods which have not been processed further (cooked into meals)
may not under any circumstances be frozen a second time.
• Containers with flammable gases or liquids can leak at low temperatures.
There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer. They can burst when
the contents freeze, high carbonate content drinks can even explode!
Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer.
• All foods must be packed air tight prior to freezing, so that they do not
dry out or lose their flavour, and so that no flavour contamination of
other frozen goods occurs.
Important! Do not touch frozen food with wet hands. Your hands could
stick to the food.
1.
2.
3.
To ensure correct air circulation within the freezer during normal use, please do not take out the drawers.
Place the packed food in the drawers. Place food to be frozen in the upper
basket. Unfrozen food must not touch items already frozen, otherwise the
frozen food could begin to defrost.
When freezing fresh food, depress the ambient temperature switch (A) 24
hours before loading the food without modifying the thermostat setting.
The pilot light will come on. At the end of the freezing process, do not forget to depress again the ambient switch in order to avoid an increase of the
power consumption.
Place frozen foods in the drawers sorted by type, as far as possible.
If, after carrying out the necessary checks there is still a fault with your
appliance please contact your local AEG Service Force Centre.
In guarantee customers should ensure that the suggested checks have
been made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service
calls.
Changing the light bulb
1.
2.
3.
4.
5.
6.
7.
Warning! There is a risk of electric shocks! Before changing the light bulb,
switch off the appliance and unplug it, or pull the fuse or the circuit breaker.
Light bulb data: 220-240 V, max. 15 W
To switch off the appliance, turn the
temperature regulator to position
"0".
Unplug the mains plug.
To change the light bulb, undo the
screw.
Press the light bulb cover as shown
and slide it backwards.
Change the defective light bulb.
Refit the light bulb cover and the
screw.
Switch the appliance back on.
Ice pack
There are two ice packs in one drawer of the freezer.
In the event of a power failure or malfunction, the ice pack will lengthen
the amount of time it takes for the frozen food to become too warm by
several hours. The ice pack can only fulfil this task efficiently if it is placed
in the uppermost drawer, at the front, above the frozen food. You can use
the ice pack for cooling cold bags.
12
17
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts, please
contact your local Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post
code area. For address of your local Service Force Centre and further information about Service
Force, please visit the website at www.serviceforce.co.uk.
Before calling out an engineer, please ensure you have read details under the heading “Something Not Working”. When you contact the Service Force Centre you will need to give following
details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the apliance. (found on the rating plate).
5. The purchase date
Please note that a valid purchase receipt or guarantee documentation is required for
in-guarantee service calls.
For Customer Services in the Republic of Ireland please contact us at the address
below:
AEG
Electrolux Group (Irl) Ltd
Long Mile Road
Dublin 12 - Republic of Ireland
Tel: +353 (0) 1 4090751
Email: [email protected]
Fresh Food Refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquid in the refrigeator
• do cover or wrap the food, particularly if it has a strong flavour.
• position food so that air can circuiate freely round it.
Useful hints:
Meat (all types): wrap in polythene bags and place on the glass shelf above
the vegetable drawer(s)
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc: these should be covered and may be placed
on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the
special drawer(s) provided.
Butter and cheese: these should be placed in special airtight containers or
wrapped in aluminium foil or polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be stored in the bottle
rack on the door.
Bananas, potatoes, onions and garlic, if not in airtight containers, must
not be kept in the refrigerator.
Freezing and storing frozen food
Customer Care Department
For general enquiries concerning your AEG appliance or for futher information on AEG
products, please contact our Customer Care Department by letter or telephone at the
address below or visit our website at www.aeg.co.uk.
Customer Care Department
AEG Domestic Appliances
55-77 High Street,
Slough,
Berkshire
You can use your freezer for freezing fresh food yourself.
Important!
• The temperature in the freezer compartment must be –18 °C or colder
before freezing food.
• Please observe the freezing capacity given on the rating plate. The freezing capacity is the maximum quantity of fresh food that can be frozen
within a period of 24 hours. If you wish to freeze food several days in a
row, please observe a maximum capacity of only 2/3 to 3/4 of that on the
rating plate. The quality of the food is best preserved when it is frozen
right through to the core as quickly as possible.
SL1 1DZ
Tel: 08705 350 350*
18
* calls to this number may be recorded for training purposes
11
Interior Accessories
Guarantee Conditions
Guarantee Conditions
Storage Shelves
The glass shelf above the fruit and
vegetable compartment should
always remain in position, to ensure
fruit and vegetables stay fresh longer.
The remaining storage shelves can be
adjusted to various heights:
Pull the storage shelf forward until it D338
can be tipped up or down and removed.
To insert at a different height use the same procedure in reverse.
Adjustment for tall goods:
Remove the front half of the two-part vario glass storage shelf and insert it
at a different level. Space is thus gained for storage of tall goods on the
underlying storage shelf.
Variable Inner Door
The door compartments can be pulled up and removed, and inserted at
other positions as needed.
Variable Storage Box
1.
2.
10
Some models are equipped with a variable storage box which is fitted under
a door shelf compartment and can be slid sideways.
The box can be inserted under any
door shelf compartment.
To change the position of the storage box; lift the shelf compartment
with the box upwards and out of the
holders in the door and remove the
retaining bracket out of the guide
under the shelf compartment.
Reverse the above operation to insert
the shelf at a different height.
AEG offer the following guarantee to the first purchaser of this appliance.
1. The guarantee is valid for 12 months commencing when the appliance is handed over to
the first retail purchaser, which must be verified by purchase invoice or similar documentation.
The guarantee does not cover commercial use.
2. The guarantee covers all parts or components which fail due to faulty workmanship or
faulty materials. The guarantee does not cover appliances where defects or poor performance are due to misuse, accidental damage, neglect, faulty installation, unauthorised
modification or attempted repair, commercial use or failure to observe requirements and
recommendations set out in the instruction book.
This guarantee does not cover such parts as light bulbs, removable glassware, or plastic.
3. Should guarantee repairs be necessary the purchaser must inform the nearest Service Force centre (manufacturer’s service or authorised agent). AEG reserves the right to stipulate the place of the repair (i.e. the customer’s home, place of installation or AEG workshop).
4. The guarantee or free replacement includes both labour and materials.
5. Repairs carried out under guarantee do not extend the guarantee period for the appliance. Parts removed during guarantee repairs become the property of AEG.
6. The purchaser’s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you
to your new home subject to the following qualifications:
- The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for labour and parts as exist
in the new country of use for this brand or range of products.
- This guarantee relates to you and cannot be transferred to another user.
- Your new home is within the European Community (EC) or European Free Trade Area.
- The product is installed and used in accordance with our instructions and is only used
domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care Centre, listed below, to give
them details of your new home. They will then ensure that the local Service Organisation is
aware of your move and able to look after you and your appliances.
France
Senlis
+33 (0)3 44 62 29 29
Germany
Nürnberg
+49 (0) 800 234 7378
Italy
Pordenone
+39 (0) 800 117 511
Sweden
Stockholm
+46 (0) 8 672 53 60
UK
Slough
+44 (0) 1753 219899
19
Installation
Quick-freezing
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
WARNING – THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should these safety measures not
be observed.
Before switching on, make sure the electricity supply voltage is the same as
that indicated on the appliance rating plate. The rating plate is inside, on the
left.
The appliance is supplied with a 13 amp plug fitted. In the event of having
to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362)
fuse must be used.
Important!
GREEN & YELLOW
For quick-freezing, push the Normal/Super button (D). The super
control light (C) will then light up.
The Quick-freezing function accelerates the freezing of fresh food
and, at the same time, protects foodstuffs already stored from
undesirable warming.
If this function is not ended manually, the appliance switches off
the Quick-freezing function after 52 hours. The yellow light goes
out.
This function can be ended manually at any time by pressing the
Normal/Super button again. The yellow light goes out.
13 AMP. FUSE
13 AMP
The wires in the mains lead are
coloured in accordance with the following code:
Green and Yellow Earth
Blue
Neutral
Brown
Live
As the colours of the wires in the
BROWN
mains lead of this appliance may not
BLUE
CORD CLAMP
correspond with the coloured markD207
ings identifying the terminals in your
plug, proceed as follows:
The wire coloured green and yellow must be connected to the terminal
marked with the letter “E” or by the earth symbol or coloured green and yellow.
The wire coloured blue must be connected to the terminal marked “N” or
coloured black.
The wire coloured brown must be connected to the terminal marked “L” or
coloured red.
Upon completion there must be no cut, or stray strands of wire present and
the cord clamp must be secure over the outer sheath.
Warning! A cut-off plug inserted into a 13 amp socket is a serious safety
(shock) hazard. Ensure that the cut-off plug is disposed of safely.
1.
2.
3.
4.
20
9
Control Panel of Freezer Compartment
This appliance should only be installed at a location where the ambient
temperature corresponds to the climate classification indicated on the rating plate, which is located on the inside left of the appliance.
The following table shows which ambient temperature is correct for each
climate classification.
1
2
6
5
A
4
B
Positioning
3
C
D
Climate classification
for an ambient temperature of
SN
+10 to +32 °C
N
+16 to +32 °C
A. Pilot light (green)
B. Thermostat knob
C. Super control light (yellow)
D. Normal/Super push button
The control panel elements are: the thermostat (B) is also the on/off switch for the freezer compartment.
The green pilot light (A), which comes on when the mains voltage is availble. Switch the temperature regulator knob to a number position, the refrigerating unit automatically operates by system control. The yellow pilot
light (C) comes on when the normal/super push botton is pushed.
Important note: if you operate the fast-freeze switch or adjust the temperature regulator, it may happen that your appliance’s refrigeration motor
does not start immediately but only after some time. This does not mean
that your appliance has a fault.
Starting Up and Temperature Regulation of
Freezer Compartment
• Turn the temperature regulator (B) in the direction of “1”. The green
pilot light(A) comes on. The freezer motor starts up.
• Push the Normal/Super push button (D), the yellow light (B) comes on;
Setting “0”: Off.
Setting “1”: Highest temperature, (warmest setting).
Setting “4” (end-stop) : Lowest temperature, (coldest setting).
The exact setting should be chosen keeping in mind that the temperature
inside the appliance depends on:
- the quantity of food stored
- how often the door is opened
- ambient temperature
8
The appliance should be located in a dry atmosphere, out of direct sunlight
and away from continuous heat and extreme temperature, e.g. not next to
a boiler or radiator, or in a very cold room e.g. an outhouse. If these temperatures are exceeded i.e. warmer or colder, then the appliance may not
operate correctly.
For building-in and door reversal instructions please refer to the relevant
instructions on the following pages.
Your appliance needs air
50 mm
For safety reasons, minimum ventilation must be as shown Fig.
Attention: keep ventilation openings
clear of obstruction;
min.
200 cm
2
min.
200 cm2
D567
Reversing the door
The side the door opens can be changed from the right side (factory adjustment) to the left side, if the installation site requires.
Warning! When changing the side the door opens, the appliance must not
be connected to the mains. Remove plug from the mains beforehand.
21
1.
2.
3.
.
4.
5.
Unscrew the upper pin and remove
the spacer
Remove the upper door
Starting up and temperature regulation
Remove the hinge cover (A).
Unscrew the pins (B) and the spacers
(C) and refit them on the middle hinge of the opposite side. Snap the hinge cover (A).
Refit the upper door, the upper pin
and the spacer on the opposite side
Unscrew the lower pin and remove
the spacer and refit them on the
opposite side
C
B
A
Wash the inside of the appliance with lukewarm water with a little bicarbonate of soda added (5ml to 0,5 litre of water). Do not use soap or detergent as the smell may linger. Dry the appliance thoroughly.
• When the refrigerator compartment door is opened, the internal lighting
is switched on. The temperature control knob is located on the right hand
side of the refrigerator compartment.
Setting “0”: Off.
Setting “1”: Highest temperature, (warmest setting).
Setting “6” (end-stop) : Lowest temperature, (coldest setting).
The exact setting should be chosen keeping in mind that the temperature
inside the refrigerator depends on:
-the quantity of food stored
-how often the door is opened
The temperatures in the refrigerator compartment and freezer compartment cannot be independently regulated.
If you want to freeze fresh food rapidly, select setting “6”, ensuring that the
temperature in the refrigerator compartment does not drop below 0°C. You
should reset the temperature control knob to setting “3” or “4”, if this does
occur.
As soon as the fresh food placed in the freezer has frozen, return the temperature control knob to “3” or “4”.
Important!
High ambient temperatures (e.g. on hot summer days) and a cold setting on
the temperature regulator (position"5" to "6") can cause the compressor to
run continuously.
If this happens, turn the temperature regulator back to a warmer setting
(position "3" to "4"). At this setting the compressor will be switched on and
off as usual and automatic defrosting recommenced.
Housing Dimensions
Height
Depth
Width
22
1780 mm
550 mm
560 mm
7
Remove transport packaging
Instructions for building-in
The appliance and the interior fittings are protected for transport.
• Remove all adhesive tape and packing pieces from the interior of the
appliance.
Apply the joint sealing strip as shown
in figure.
Shelf holders
A
Your appliance is equipped with shelf
retainers that make it possible to
secure the shelves during transportation.
To remove them proceed as follows:
Raise the shelf from the back, push it
in the direction of the arrow until it
is freed and remove the retainers.
D765
B
Push appliance into the housing
until stop strip (A) touches the
kitchen unit.
A
Description of the appliance
E
A
B
F
C
G
H
I
J
D
A - Dairy compartment
B - Hanging storage box
C - Can storage shelves
D - Bottle storage shelf
E - Light lamp
F - Glass shelves
G - Glass shelf
H - Salad drawers
I - Control panel
J - Compartment for
freezing fresh food
L - Compartments for
storing frozen food
D023
Open the door and push the appliance
against the side of the kitchen unit opposite to that of appliance hinges.
Fasten the appliance with 4 screws
provided in the kit included with the
appliance. Snap the ventilation grille
(C) and hinge cover (D) into position.
D
L
D723
6
C
23
Apply covers (B) into the relevant
holes.
Daily Operation
• Do not operate any electrical appliances in the refrigerator/freezer (e.g.
electric ice cream makers, mixers etc.).
• Before cleaning the appliance, always switch off the appliance and
disconnect from the electricity supply.
• When unplugging always pull the plug from the mains socket, do not pull
on the cable.
Service
B
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or
serious malfunctioning. Contact your local AEG Service Force Centre.
D726
Disposal
Appliance Packaging Information
Separate parts A, B, C, D as shown in
the figure
B
A
C
Disposal of Old Appliances
D
For environmental reasons, refrigeration appliances must be disposed of
properly. This applies to your old appliance, and - at the end of its service
life - to your new appliance as well.
Warning! Before disposing of old appliances make them inoperable.
Remove plug from mains, sever the power cable, remove or destroy any
snap or latch closures, to prevent small children being trapped inside.
• Use an authorised disposal site.
Contact your Local Council or Environmental Health Office to see if there
are facilities in your area to recycle the appliance.
PR266
50mm
Place guide (A) on the inside part of
the furniture door, in the upper and
lower positions as shown in the figure and mark the position of external
holes. Having drilled the holes, fix the
guide with the screws supplied.
All materials are environmentally sound.
The plastics can be recycled and are identified as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed of
at a waste-paper recycling collection location.
A
20 m
m
24
PR166
5
Safety
Fix cover (C) on guide (A) until it clips
into place.
A
Please read this instruction book before using the appliance and retain for
future reference. These warnings are provided in the interests of your safety, ensure you understand them fully before using the appliance.
Intended Use
• The appliance is intended for use in the home. It is suitable for the cooling, freezing and storing of frozen food, as well as for making ice. If the
appliance is used for purposes other than those intended or used incorrectly, no liability can be accepted by the manufacturer for any damage
that may be caused.
• Alterations or changes to the appliance are not permitted for reasons of
safety.
Prior to Initial Start–up
• Check the appliance for transport damage. Under no circumstance should
a damaged appliance be plugged in! In the event of damage, please contact your retailer.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit
of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that
none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.
C
PR33
Open the appliance door and the furniture door at 90°. Insert the small
square (B) into guide (A). Put together the appliance door and the furniture door and mark the holes as indicated in the figure. Remove the
squares and drill holes with ø 2 mm
at 8 mm from the outer edge of the
door. Place the small square on the
guide again and fix it with the screws
supplied.
8mm
A
PR167
B
Safety of children
• Keep packaging material away from children.
• Please make old appliances unusable prior to disposal. Pull out the mains
plug, cut off the mains cable and remove any locks or catches, to prevent
young children being trapped inside.
• Do not allow children to tamper with the controls or play with the product.
At the end of installation/adjusting, it
is necessary to check if the door of
the furniture closes properly.
Should adjustment of the furniture
door be necessary, use the clearance
of slots.
PR168
4
25
Contents
Fix cover (D) on guide (B) until it clips
into place.
B
D
PR167/1
If the appliance is fixed to the side of
the kitchen unit, simply slacken the
screws in the fixing brackets (E), move
the brackets as shown in the figure
and re-tighten the screws.
E
E
D735
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured in
accordance with the appropriate standards. The necessary measures in
accordance with appliance safety legislation regulations (GSG), accident
prevention regulations for refrigeration appliances (VBG 20) and the regulations of the German Society of Electrical Engineers (VDE) were observed in
the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU guidelines:
– 73/23/EWG dated 19 February 1973 - low voltage guidelines.
– 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
26
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Disposal of Old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Remove Transport Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Shelf Holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Starting Up and Temperature Regulation . . . . . . . . . . . . . . . . . . . . . . .7
Control Panel of Freezer Compartment . . . . . . . . . . . . . . . . . . . . . . . . .8
Starting Up and Temperature Regulation of Freezer Compartment .8
Quick-freezing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Storage Shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Variable Inner Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Variable Storage Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Fresh Food Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Freezing and Storing Frozen Food . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Ice Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Storage Goods Symbols/ Freezing Calendar . . . . . . . . . . . . . . . . . . . .13
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Switching Off the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Something Not Working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Changing the Light Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Your Appliance Needs Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Reversing the Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Housing Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Instructions for Building-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
3
Dear customer,
Before switching on your new refrigerator/freezer on please read these operating instructions carefully. They contain important information for safe
use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass them on
to possible new owners of the appliance.
These operating instructions are for use with several technically comparable
models with varying accessories. Please observe the notes which apply to
your model.
Notes which are important for your safety or for the proper functioning of
the appliance are stressed with a warning triangle and/or with signal words
(Warning!, Important!, Attention!). Please observe the following instructions
carefully.
Additional information regarding operation and practical applications of
the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use of
the appliance are marked with the flower.
In the event of a malfunction, these operating instructions contain information on how to rectify faults yourself, see the “Something Not Working”
section.
For futher assistance contact your local AEG Service Force Centre, see the
chapter “Service and Spare Parts”.
Printed on paper manufactured with environmentally sound processes.
who thinks ecologically acts accordingly ...
2
SANTO N 7 18 40-4i
Integrated Fridge Freezer
Operating and Installation Instructions
AEG
55-77 High Street
SLOUGH
Berks
SL1 1DZ
http://www.aeg.co.uk
2222 347-21
01/04
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
