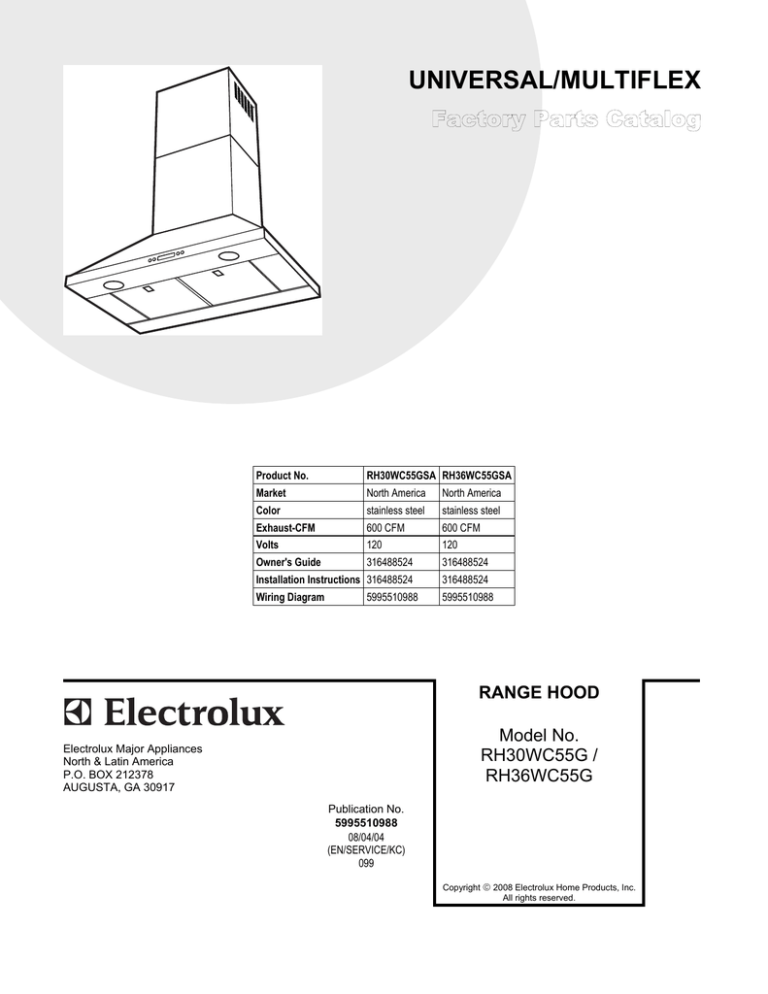

UNIVERSAL/MULTIFLEX
Product No.
RH30WC55GSA RH36WC55GSA
Market
North America
North America
Color
stainless steel
stainless steel
Exhaust-CFM
600 CFM
600 CFM
Volts
120
120
Owner's Guide
316488524
316488524
Installation Instructions 316488524
316488524
Wiring Diagram
5995510988
5995510988
RH30-36WC55G Cover.eps RH30-36WC55G Parts.eps
SE1Q5A.eps
RANGE HOOD
Model No.
RH30WC55G /
RH36WC55G
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995510988
08/04/04
(EN/SERVICE/KC)
099
Copyright © 2008 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995510988
RH30WC55G / RH36WC55G
REPLACEMENT PARTS
04/08
2
RH30WC55G / RH36WC55G
Publication No: 5995510988
REPLACEMENT PARTS
Model Index:
A RH30WC55G (RH30WC55GSA)
B RH36WC55G (RH36WC55GSA)
POS. NO
1
2
3 #
4 #
5 #
6 #
7
8 #
9 #
10 #
PART NO.
5304466264
5304466258
5304464261
5304464262
5304464263
5304466260
5304466263
5304464266
5304464295
5304464296
A
A
A
A
A
A
A
A
A
A
B
B
B
B
B
B
B
B
B
B
DESCRIPTION
Cover, duct, 30/36 inch, chimney
Damper, exhaust
Capacitor
Transformer
Power Board, pcb, w/spacers
Blower Assembly
Screw Kit, assembly
Lampholder, socket, housing
Control Panel, display, LCD
Filter, grease
*
*
*
*
5304464297
5304466746
5304466744
5304466255
A
A
A
A
B
B
B
B
Hardware Kit, installation
Extension Kit, duct, telescopic
Recirculation Kit, chimney/wall
Filter, charcoal, recirculation
# Functional Parts
* Non-Illustrated Parts
3
04/08
Publication No: 5995510988
RH30WC55G / RH36WC55G
WIRING DIAGRAM
04/08
4
