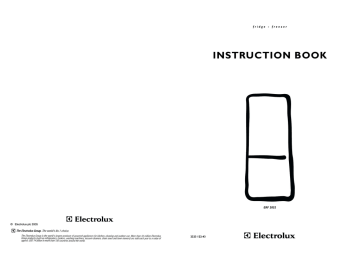

Electrolux U27060 User's manual

Electrolux U27060 User's manual
fridge - freezer
INSTRUCTION BOOK
ERF 2832
© Electrolux plc 2005
2223 122-43
IMPORTANT SAFETY INFORMATION
Fix cover (Hd) on guide (Hb) until it clips into place.
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
Hb
This information has been provided in the interest of safety. You MUST read it carefully before installing
or using the appliance.
Installation
•
Frozen food must NOT be re-frozen once it has
thawed out.
•
•
Do not place carbonated or fizzy drinks in the
freezer.
•
Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
•
Ice lollies can cause ‘frost/freezer burns’ if
consumed straight from the freezer.
•
Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.
•
The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
•
•
•
•
•
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from your
local Service Force Centre.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
Child Safety
•
Do not allow children to tamper with the controls or
play with the product.
Maintenance and Cleaning
•
Keep all packaging well away from children.
•
General Safety
•
•
•
•
•
This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging must
therefore only be carried out by authorized
technicians.
Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
The appliance must not be located close to
cookers, radiators or boilers.
Avoid prolonged exposure of the appliance to
direct sunlight.
Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating
appliances.
During Use
•
2
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs.
Hd
PR167/1
If the appliance is fixed to the side of the kitchen unit,
simply slacken the screws in fixing brackets (E),
move the brackets as shown in the figure and retighten the screws.
E
E
After completion of the door reversing operation,
check that the door gasket adheres to the
cabinet. If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to the
cabinet. In that case, wait for the natural fitting of
the gasket or accelerate this process by heating
up the part involved with a normal hairdryer on a
low setting.
Switch off and unplug the appliance before
carrying out any cleaning or maintenance work.
Servicing
•
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
•
Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Service Force Centre and always insist on
genuine spare parts.
At the end of the Appliance
Life
•
When disposing of your appliance, use an
authorised disposal site.
•
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
19
Disposal of old Appliances
Place guide (Ha) on the inside part of the furniture
door, up and down as shown in the figure and mark
the position of external holes. After having drilled
holes, fix the guide with the screws supplied.
ca. 50 mm
90°
21 m
m
90°
ca. 50 mm
21 m
m
Fix cover (Hc) on guide (Ha) until it clips into place
Ha
The symbol
on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
CONTENTS
Instructions for the User
Important Safety Information
2
Instructions for the
Installer
Operation
4
Technical Specification
13
Before use
4
Installation
14
Control panel - Use of the freezer
4
Positioning
14
Start your appliance
4
Shelf holders
14
Temperature control
4
Electrical Connection
15
Quick-freezing
5
Freezing fresh food
5
Door Reversal
16
Frozen food storage
5
Thawing
5
Making ice cubes
5
Use of the refrigerator-Setting the temperature
6
Fresh food refrigeration
6
Normal operating sounds
6
Movable shelves
7
Positioning the door shelves
7
Hints and Tips
8
Maintenance and Cleaning
9
Internal cleaning
9
When the appliance is not in use
9
Changing the light bulb
9
Should the lining up of the furniture door be
necessary, use the clearance of slots.
External cleaning
9
Defrosting
9
At the end of operations, it is necessary to check if
the door of the furniture closes properly.
Something Not Working
10
Service and Spare Parts
11
Customer Care
11
Guarantee Conditions
12
Hc
PR33
8mm
Open the appliance door and the furniture door at
90°. Insert the small square (Hb) into guide (Ha).
Put together the appliance door and the furniture
door and mark the holes as indicated in the figure. .
Ha
PR167
Hb
8mm
Remove the brackets and mark a distance of 8 mm
from the outer edge of the door where the nail must
be fitted (K).
K
Ha
Place the small square on the guide again and fix it
with the screws supplied.
Hb
PR168
18
3
OPERATION
Fit the appliance in the niche by making sure that it
stands against the interior surface of the unit on the
side where the door hinges of the appliances are
fitted. Insert the appliance until the upper strip butts
up against the unit (1) and make sure that the lower
hinge is in line with the surface of the unit (2).
Before using
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
1
2
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
D023
Control panel
Fasten the appliance with 4 screws provided in the
kit included with the appliance.
(I = short) (P = long)
1
2
6
5
A
A-
Pilot light - Green
B-
Thermostat control knob
C-
Fast freeze light - Amber
D-
Fast freeze switch
4
3
B
I
C
D
P
Control Panel
Temperature control
A. Pilot light
The temperature within the freezer is controlled by
the thermostat situated in the middle of the
appliance.
The operation light is illuminated continuously, to
show that the appliance is on.
To operate the freezer proceed as follows:
B. Thermostat control knob
Position 1 = minimum coldness
Turn the thermostat control knob clockwise to
required setting.
Position 6 = maximum coldness
C. Fast freeze light
Turn the thermostat control knob beyond the «O»
position.
The fast freeze light is illuminated, to show that the
fast freeze function is working.
When you place fresh food in the appliance, press
the fast freeze control switch.
When you first start the fridge-freezer, we suggest
that you turn the thermostat control to a medium
setting. For easier turning of this control, use a small
coin.The internal temperature of the fridge-freezer is
automatically adjusted by the thermostat to ensure
safe food storage.
Start your appliance
However, if the appliance is working in unfavourable
room conditions such as
D. Fast freeze control switch
Allow the appliance to stand for 2 hours after
installation.
Insert the plug into the wall socket. The pilot light (A)
will illuminate to show that the appliance is on.
Turn the thermostat control (B) to a midway setting.
Leave the appliance for approximately 4 hours for
the correct temperature to be reached before placing
food inside.
Apply the sealing strip pushing it between the
refrigerator and the adjacent cabinet.
-
poor ventilation,
-
high temperature,
-
frequent door openings,
D724
Apply covers (C-D) on joint cover lugs and into hinge
holes.
Snap vent grille (B) and hinge cover (E) into
position.
D
C
E
B
Separate parts Ha, Hb, Hc, Hd as shown in the
figure.
Hb
Ha
it may be necessary to select a more suitable
setting.
Hc
To switch off the appliance turn the thermostat
control to position “O” .
Hd
PR266
4
17
Fast-freezing
Instructions for totally built-in
appliances
For fast-freezing, push the fast freeze switch (D). The
fast freeze light (C) will then light up.
The fast-freezing function accelerates the freezing
of fresh food and, at the same time, protects
foodstuffs already stored from undesirable warming.
If this function is not ended manually, the appliance
switches off the fast-freezing function after 52 hours.
The yellow light goes out.
This function can be ended manually at any time by
pressing the fast freeze switch again. The yellow light
goes out.
Door reversal
The appliance is supplied with the right
or left door opening. To change the opening
direction of the door proceed as in the
following instructions before installing it.
1. Unscrew the upper pin and remove the spacer
C
2. Remove the upper door
B
Freezing fresh food
A
3. Remove the hinge cover (A). Unscrew the pins
(B) and the spacers (C) and refit them on the
middle hinge of the opposite side. Snap the hinge
cover (A).
4. Refit the upper door, the upper pin and the
spacer on the opposite side
50 mm
Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.
Do not exceed the storage period indicated by the
manufacturer.
Finally, do not open the door frequently or leave it
open longer than is absolutely necessary.
min.
200 cm
2
Warning
Do not put carbonated liquids, (fizzy drinks etc.), in
the freezer compartment.
D567
Furthermore, it is necessary that the cabinet has a
ventilation recess with the following dimensions:
depth
50 mm
width
540 mm
540
Meat, fish and fruit should be thawed in the
refrigerator compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.
A microwave oven is particularly suitable for thawing
any type of frozen or deep-frozen food: follow the
oven instructions, particularly regarding the
placement of aluminium wrapping or containers in
the oven.
Defrosted cooked food must never be refrozen.
Making ice cubes
The appliance is provided with one or more trays for
ice-cubes trays.
Fill the tray(s) 3/4 full to give the ice space to expand
and place them in the freezer compartment.
To release the ice cubes simply give the tray a slight
twist.
Do not use sharp or metallic instruments to remove
the trays from the freezer.
Ice lollies, if consumed immediately after removal
from the freezer, can cause low temperature skin
burns.
50
3
2
Frozen food, prior to being used, can be thawed in
the fridge or at room temperature depending on the
time available. Small food items may even be cooked
from frozen; in this case cooking will take longer.
Place the food to be frozen in the lower section of
the freezer compartment as this is the coldest part.
When first starting-up or after a period out of use,
before putting the products in the compartment let
the appliance run for at least two hours on the
coldest setting, then turn the thermostat knob to the
normal operating position.
min. 2
200 cm
Thawing
Any frozen food which is allowed to thaw accidentally
should either be eaten as soon as possible or thrown
away. Alternatively, if the food is uncooked and has
not been completely defrosted it can be cooked and
then refrozen.
Frozen food storage
Recess dimensions
Height
(1)
1780 mm
Depth
(2)
550 mm
Width
(3)
560 mm
To ensure adequate ventilation, allow the clearances
shown in figure.
In the event of a power cut the food in the freezer will
not be affected if the power cut is short and if the
freezer is full. Do not open the door. Should the food
begin to thaw, it must be consumed quickly and must
not be re-frozen .
The 4-star compartment is suitable for long term
storage of commercially frozen food and for freezing
fresh food.
To freeze fresh foods it is not necessary to move the
thermostat knob from the normal setting. Push the
fast freeze switch at least 3 hours before loading
food.
In any 24 hours you can freeze up to 4 kg of fresh
food.
To guarantee a good operation of the appliance
during normal use, the drawers should not be
removed.
5. Unscrew the lower pin and remove the spacer
and refit them on the opposite side
Important
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
“frost/freezer burns”.
1
PR01
16
5
Use of the refrigerator
Normal Operating Sounds
The thermostat is valid for both freezer and
refrigerator compartments.
•
Setting the temperature
You may hear faint gurgling or bubbling sounds
when the refrigerant is pumped through the coils
or tubing at the rear, to the cooling
plate/evaporator or to the fixed freezer shelves.
The temperature inside the refrigerator is regulated
by the thermostat with 6 temperature positions and
an “OFF” (O) position.
•
When the compressor is on, the refrigerant is
being pumped round, and you will hear a whirring
sound or pulsating noise from the compressor.
Position 1 = minimum coldness
•
A thermostat controls the compressor, and you
will hear a faint ’click’ when the thermostat cuts in
and out.
Position 6 = maximum coldness
Turn the thermostat dial to the required position.
The intermediate position is usually the most
suitable (3-4).
The thermostat setting can vary as the temperature
inside the refrigeration compartment depends on the
following factors:
– room temperature
Electrical connections
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
A replacement cover/carrier must be obtained from
your local Electrolux Service Force Centre.
The manufacturer declines any liability should
this safety measure not be observed.
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
– how often the door is opened
Important
– how much food is stored
– position of the appliance
Important
During prolonged periods of abnormally hot weather,
if the thermostat is set on too high a number, the
cooling system may operate continuously and the
fridge cooling plate may not defrost. Turning the knob
to a lower number will cause the automatic
defrosting to resume.
Fresh food refrigeration
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
GREEN & YELLOW
-
89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of a breakdown.
BROWN
BLUE
D207
CORD CLAMP
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
Meat can only be stored safely in this way for
one or two days at the most.
«E» or the earth symbol
yellow.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom salad crispers.
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
6
73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
13 AMP. FUSE
Raw meat (beef, pork, lamb & wild fowl): wrap in
polythene bags and place on top of the salad
crispers.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
-
13 AMP
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation through them.
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
This appliance complies with the following
E.E.C. Directives:
If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not correspond
with the markings identifying the terminals in your
plug, proceed as follows:
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do
cover or wrap the food, particularly if it has a strong
flavour.
To help you use your refrigerator correctly, here are
some more useful hints:
The plug moulded onto the lead incorporates a fuse.
For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.
or coloured green and
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
15
INSTALLATION
Movable shelves
The walls of the refrigerator have runners so that the
shelves can be positioned as desired .
For better use of space, the front half-shelves can lie
over the rear ones.
Important
Warning
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.
Positioning the door shelves
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
on “Door reversal directions”.
D338
To permit storage of food packages of various sizes,
the door shelves can be adjusted in height.To make
these adjustments proceed as follows:
Gradually pull the shelf in the direction of the arrows
until it comes off, then reposition as required.
Positioning
This appliance should only be installed at a location
where the ambient temperature corresponds to the
climate classification indicated on the rating plate,
which is located at the left on the inside of the
appliance.
The following table shows which ambient
temperature is correct for each climate classification:
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+18°C to + 38°C
T
+18°C to + 43°C
It should be located in a dry atmosphere, out of
direct sunlight and away from extreme temperature
e.g. not next to a boiler or radiator, or in a very cold
room e.g. an outhouse . If these temperatures are
exceeded i.e. colder or warmer, then the appliance
may not operate correctly.
For building-in and door reversibility, if necessary ,
refer to the relevant instructions in the following
pages.
Shelf holders
Your appliance is equipped with shelf retainers that
make it possible to secure the shelves during
transportation.
A
To remove them proceed as follows:
Raise the shelf from the back, push it in the direction
of the arrow until it is free and remove the retainers.
14
B
7
HINTS AND TIPS
TECHNICAL SPECIFICATIONS
Food Storage
In the Event of a Power Failure
•
If there is a power failure during the storage of frozen
foods, keep the door closed. If the temperature within
your freezer should rise do not refreeze the food
without checking it’s condition. The following guidelines should assist you.
To obtain the best results from your appliance,
neither hot foods nor liquids which may
evaporate, should be placed in the larder
compartment.
•
Keep the time between buying chilled food and
placing it in your fridge as short as possible.
•
Do not push food together too much, try to allow
air to circulate around each item.
•
Do not store uncovered food.
•
Remove suspect food from your refrigerator and
clean, refer to ‘Maintenance and Cleaning’.
•
Ensure that food placed in the freezer is dated
and labelled and used in date order to ensure
that food is consumed at its best.
•
•
Avoid buying frozen food if you cannot store it
straight away. The use of an insulated container is
advisable. When you arrive home place the frozen
food in the freezer immediately.
The symbols on the drawers show different types
of frozen goods. The numbers indicate storage
times in months for the appropriate types of
frozen goods. Whether the upper or lower value of
the indicated storage time is valid depends on the
quality of the foods and pre-treating before
freezing.
Ice Cream:
Once thawed should be discarded.
Fruit and Vegetables:
If soft should be cooked and used up.
Bread and Cakes:
Can be refrozen without danger.
Shellfish:
Should be refrigerated and used up quickly.
Cooked Dishes:
i.e. casseroles, should be refrigerated and used up.
Large Pieces of Meat:
Can be re-frozen providing there are ice crystals
remaining within them.
Small Joints:
Should be cooked and then re-frozen as cooked
dishes.
Chicken:
Should be cooked and re-frozen as a fresh dish.
POWER SUPPLY VOLTAGE AND FREQUENCY
220-240 V / 50 Hz
TOTAL POWER ABSORBED
160 W
AVERAGE DAILY UNITS ELECTRICITY *
0.86 kWh
GROSS CAPACITY
Fridge
214 l
Freezer
68 l
Fridge
210 l
Freezer
55 l
NET CAPACITY
STAR RATING
* This figure is based on standard test results in accordance with European Standard EN 153.
Actual consumption will depend on how the appliance is used and where it is located.
Energy Saving Advice
•
Do not install the cabinet close to sources of
heat, i.e. boiler or radiator.
•
Locate the appliance in a cool well ventilated
room and make sure that the air openings of the
cabinet are not obstructed.
•
Avoid unnecessary frosting in the cabinet by
packing all foodstuffs into airtight packages
before placing them in the freezer.
•
Always leave warm food to cool down to room
temperature before placing in the fridge or
freezer.
•
Food which is to be frozen (when cool) should be
placed in the fridge before being transferred to
the freezer.
•
Thaw frozen food in the fridge. This will ensure
safer defrosting of foods and reduce the work of
the refrigeration unit.
•
Try to avoid keeping the door open for long
periods, or opening the door too frequently as
warm air will enter the cabinet, and cause the
compressor to often switch on unnecessarily.
•
Ensure there are no obstructions preventing the
door from closing properly.
8
13
GUARANTEE CONDITIONS
MAINTENANCE AND CLEANING
Standard guarantee conditions
Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
Internal cleaning
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER USE DETERGENTS, ABRASIVE
POWDERS, HIGHLY PERFUMED
CLEANING PRODUCTS OR WAX
POLISHES, TO CLEAN THE INTERIOR AS
THESE WILL DAMAGE THE SURFACE AND
LEAVE A STRONG ODOUR.
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the Company’s property.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
When the appliance is not in use
Exclusions
This guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the doors ajar
to prevent unpleasant smells.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
External cleaning
Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance,
with a brush or vacuum cleaner, see figure, as an
accumulation of dust will affect the performance of
the appliance and cause excessive electricity
consumption.
press on the rear hook and at the same time slide the
cover in the direction indicated by the arrow.
Unscrew the bulb and replace it with one of the same
power (the maximum power is shown on the light
diffuser) available from your nearest Service Force
Centre.
Replace the light cover by sliding it into its original
position.
Defrosting
Refrigerator
The refrigerator automatically defrosts every time the
compressor stops. The water is discharged, via the
pipe, into a tray located at the back of the appliance
above the compressor, where it evaporates.
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
D037
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
Important
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
PR259
France
Senlis
+33 (0)3 44 62 20 13
Germany
Nürnberg
+49 (0)800 234 7378
Changing the light bulb
Italy
Pordenone
+39 (0)800117511
Sweden
Stockholm
+46 (0)20 78 77 50
UK
Luton
+44 (0)8705 950 950
Should the interior light fail to work, first switch off
the appliance and disconnect from the electricity
supply, then replace the bulb as follows;
To avoid defrost water overflowing into the fridge,
periodically clean the water discharge hole in the
centre of the V shaped drip collector at the back of
the refrigerator compartment behind the fruit and
vegetable drawer. Use the defrost cleaner provided
which you will find already inserted into the
discharge hole.
Remember to wash the defrost cleaner in hot soapy
water at regular intervals. Dry throughly before
replacing.
Freezer
12
Your appliance is frost free, which means there is no
need to manually defrost your appliance as this will
be carried out automatically.
9
SOMETHING NOT WORKING
SERVICE AND SPARE PARTS
Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation a charge will be made, even if the appliance is under guarantee.
Before contacting your local Service Force Centre, check the following points:
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local
Electrolux Service Force Centre by telephoning:-
0870 5 929929
Symptom
Solution
No power to the appliance
Check there is power at the socket.
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
Check there is not a power cut by checking the
household lights.
Check the fuse has not blown.
For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details under the heading ‘Something Not
Working?
When you contact the Service Force Centre you will need to give the following details:
The light does not come on
Ensure that the bulb is correctly fitted.
1.
Your name, address and post code
Replace the bulb if it has blown.
2.
Your telephone number
3.
Clear and concise details of the fault
4.
The model and serial number of the appliance (found on the rating plate)
5.
The purchase date
Check the door light switch is not jammed.
The temperature in the fridge or freezer section is
too high
Check the thermostat control knob mounted is turned
to the correct setting relative to ambient conditions.
Check the ambient temperature is within the
appliance’s operating limits, please refer to the
installation section in this instruction book.
Relocate the appliance if necessary.
The freezer door will not open
Has door just been opened? If so leave for a few
minutes to allow the air pressure to equalise.
The compressor runs continously
Adjust the thermostat control knob to give correct
temperature control. See “Setting the temperature”.
Check that the doors are closed.
Large quantities of food have recently been placed in
the cabinet and/or door is frequently opened.
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee
service calls.
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your Electrolux appliance or for further information on Electrolux products,
please contact our Customer Care Department by letter or telephone at the address below or visit our website
at www.electrolux.co.uk
Customer Care Department
Electrolux Major Appliances
Addington Way
Luton
Check that air ventilation is not obstructed.
Excessive frost and ice has built up
Ensure the doors are not left open.
Check that nothing is preventing the doors from
closing.
Bedfordshire
LU4 9QQ
08705 950 950 *
*
calls to this number may be recorded for training purposes.
Is the door gasket intact and clean.
10
Noise
Refer to normal operating sounds.
Water under the salad bin
Check the drain hole is not blocked. (see
Maintenance and Cleaning).
11
SOMETHING NOT WORKING
SERVICE AND SPARE PARTS
Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation a charge will be made, even if the appliance is under guarantee.
Before contacting your local Service Force Centre, check the following points:
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local
Electrolux Service Force Centre by telephoning:-
0870 5 929929
Symptom
Solution
No power to the appliance
Check there is power at the socket.
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
Check there is not a power cut by checking the
household lights.
Check the fuse has not blown.
For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details under the heading ‘Something Not
Working?
When you contact the Service Force Centre you will need to give the following details:
The light does not come on
Ensure that the bulb is correctly fitted.
1.
Your name, address and post code
Replace the bulb if it has blown.
2.
Your telephone number
3.
Clear and concise details of the fault
4.
The model and serial number of the appliance (found on the rating plate)
5.
The purchase date
Check the door light switch is not jammed.
The temperature in the fridge or freezer section is
too high
Check the thermostat control knob mounted is turned
to the correct setting relative to ambient conditions.
Check the ambient temperature is within the
appliance’s operating limits, please refer to the
installation section in this instruction book.
Relocate the appliance if necessary.
The freezer door will not open
Has door just been opened? If so leave for a few
minutes to allow the air pressure to equalise.
The compressor runs continously
Adjust the thermostat control knob to give correct
temperature control. See “Setting the temperature”.
Check that the doors are closed.
Large quantities of food have recently been placed in
the cabinet and/or door is frequently opened.
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee
service calls.
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your Electrolux appliance or for further information on Electrolux products,
please contact our Customer Care Department by letter or telephone at the address below or visit our website
at www.electrolux.co.uk
Customer Care Department
Electrolux Major Appliances
Addington Way
Luton
Check that air ventilation is not obstructed.
Excessive frost and ice has built up
Ensure the doors are not left open.
Check that nothing is preventing the doors from
closing.
Bedfordshire
LU4 9QQ
08705 950 950 *
*
calls to this number may be recorded for training purposes.
Is the door gasket intact and clean.
10
Noise
Refer to normal operating sounds.
Water under the salad bin
Check the drain hole is not blocked. (see
Maintenance and Cleaning).
11
GUARANTEE CONDITIONS
MAINTENANCE AND CLEANING
Standard guarantee conditions
Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
Internal cleaning
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER USE DETERGENTS, ABRASIVE
POWDERS, HIGHLY PERFUMED
CLEANING PRODUCTS OR WAX
POLISHES, TO CLEAN THE INTERIOR AS
THESE WILL DAMAGE THE SURFACE AND
LEAVE A STRONG ODOUR.
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the Company’s property.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
When the appliance is not in use
Exclusions
This guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the doors ajar
to prevent unpleasant smells.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
External cleaning
Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance,
with a brush or vacuum cleaner, see figure, as an
accumulation of dust will affect the performance of
the appliance and cause excessive electricity
consumption.
press on the rear hook and at the same time slide the
cover in the direction indicated by the arrow.
Unscrew the bulb and replace it with one of the same
power (the maximum power is shown on the light
diffuser) available from your nearest Service Force
Centre.
Replace the light cover by sliding it into its original
position.
Defrosting
Refrigerator
The refrigerator automatically defrosts every time the
compressor stops. The water is discharged, via the
pipe, into a tray located at the back of the appliance
above the compressor, where it evaporates.
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
D037
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
Important
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
PR259
France
Senlis
+33 (0)3 44 62 20 13
Germany
Nürnberg
+49 (0)800 234 7378
Changing the light bulb
Italy
Pordenone
+39 (0)800117511
Sweden
Stockholm
+46 (0)20 78 77 50
UK
Luton
+44 (0)8705 950 950
Should the interior light fail to work, first switch off
the appliance and disconnect from the electricity
supply, then replace the bulb as follows;
To avoid defrost water overflowing into the fridge,
periodically clean the water discharge hole in the
centre of the V shaped drip collector at the back of
the refrigerator compartment behind the fruit and
vegetable drawer. Use the defrost cleaner provided
which you will find already inserted into the
discharge hole.
Remember to wash the defrost cleaner in hot soapy
water at regular intervals. Dry throughly before
replacing.
Freezer
12
Your appliance is frost free, which means there is no
need to manually defrost your appliance as this will
be carried out automatically.
9
HINTS AND TIPS
TECHNICAL SPECIFICATIONS
Food Storage
In the Event of a Power Failure
•
If there is a power failure during the storage of frozen
foods, keep the door closed. If the temperature within
your freezer should rise do not refreeze the food
without checking it’s condition. The following guidelines should assist you.
To obtain the best results from your appliance,
neither hot foods nor liquids which may
evaporate, should be placed in the larder
compartment.
•
Keep the time between buying chilled food and
placing it in your fridge as short as possible.
•
Do not push food together too much, try to allow
air to circulate around each item.
•
Do not store uncovered food.
•
Remove suspect food from your refrigerator and
clean, refer to ‘Maintenance and Cleaning’.
•
Ensure that food placed in the freezer is dated
and labelled and used in date order to ensure
that food is consumed at its best.
•
•
Avoid buying frozen food if you cannot store it
straight away. The use of an insulated container is
advisable. When you arrive home place the frozen
food in the freezer immediately.
The symbols on the drawers show different types
of frozen goods. The numbers indicate storage
times in months for the appropriate types of
frozen goods. Whether the upper or lower value of
the indicated storage time is valid depends on the
quality of the foods and pre-treating before
freezing.
Ice Cream:
Once thawed should be discarded.
Fruit and Vegetables:
If soft should be cooked and used up.
Bread and Cakes:
Can be refrozen without danger.
Shellfish:
Should be refrigerated and used up quickly.
Cooked Dishes:
i.e. casseroles, should be refrigerated and used up.
Large Pieces of Meat:
Can be re-frozen providing there are ice crystals
remaining within them.
Small Joints:
Should be cooked and then re-frozen as cooked
dishes.
Chicken:
Should be cooked and re-frozen as a fresh dish.
POWER SUPPLY VOLTAGE AND FREQUENCY
220-240 V / 50 Hz
TOTAL POWER ABSORBED
160 W
AVERAGE DAILY UNITS ELECTRICITY *
0.86 kWh
GROSS CAPACITY
Fridge
214 l
Freezer
68 l
Fridge
210 l
Freezer
55 l
NET CAPACITY
STAR RATING
* This figure is based on standard test results in accordance with European Standard EN 153.
Actual consumption will depend on how the appliance is used and where it is located.
Energy Saving Advice
•
Do not install the cabinet close to sources of
heat, i.e. boiler or radiator.
•
Locate the appliance in a cool well ventilated
room and make sure that the air openings of the
cabinet are not obstructed.
•
Avoid unnecessary frosting in the cabinet by
packing all foodstuffs into airtight packages
before placing them in the freezer.
•
Always leave warm food to cool down to room
temperature before placing in the fridge or
freezer.
•
Food which is to be frozen (when cool) should be
placed in the fridge before being transferred to
the freezer.
•
Thaw frozen food in the fridge. This will ensure
safer defrosting of foods and reduce the work of
the refrigeration unit.
•
Try to avoid keeping the door open for long
periods, or opening the door too frequently as
warm air will enter the cabinet, and cause the
compressor to often switch on unnecessarily.
•
Ensure there are no obstructions preventing the
door from closing properly.
8
13
INSTALLATION
Movable shelves
The walls of the refrigerator have runners so that the
shelves can be positioned as desired .
For better use of space, the front half-shelves can lie
over the rear ones.
Important
Warning
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.
Positioning the door shelves
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
on “Door reversal directions”.
D338
To permit storage of food packages of various sizes,
the door shelves can be adjusted in height.To make
these adjustments proceed as follows:
Gradually pull the shelf in the direction of the arrows
until it comes off, then reposition as required.
Positioning
This appliance should only be installed at a location
where the ambient temperature corresponds to the
climate classification indicated on the rating plate,
which is located at the left on the inside of the
appliance.
The following table shows which ambient
temperature is correct for each climate classification:
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+18°C to + 38°C
T
+18°C to + 43°C
It should be located in a dry atmosphere, out of
direct sunlight and away from extreme temperature
e.g. not next to a boiler or radiator, or in a very cold
room e.g. an outhouse . If these temperatures are
exceeded i.e. colder or warmer, then the appliance
may not operate correctly.
For building-in and door reversibility, if necessary ,
refer to the relevant instructions in the following
pages.
Shelf holders
Your appliance is equipped with shelf retainers that
make it possible to secure the shelves during
transportation.
A
To remove them proceed as follows:
Raise the shelf from the back, push it in the direction
of the arrow until it is free and remove the retainers.
14
B
7
Use of the refrigerator
Normal Operating Sounds
The thermostat is valid for both freezer and
refrigerator compartments.
•
Setting the temperature
You may hear faint gurgling or bubbling sounds
when the refrigerant is pumped through the coils
or tubing at the rear, to the cooling
plate/evaporator or to the fixed freezer shelves.
The temperature inside the refrigerator is regulated
by the thermostat with 6 temperature positions and
an “OFF” (O) position.
•
When the compressor is on, the refrigerant is
being pumped round, and you will hear a whirring
sound or pulsating noise from the compressor.
Position 1 = minimum coldness
•
A thermostat controls the compressor, and you
will hear a faint ’click’ when the thermostat cuts in
and out.
Position 6 = maximum coldness
Turn the thermostat dial to the required position.
The intermediate position is usually the most
suitable (3-4).
The thermostat setting can vary as the temperature
inside the refrigeration compartment depends on the
following factors:
– room temperature
Electrical connections
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
A replacement cover/carrier must be obtained from
your local Electrolux Service Force Centre.
The manufacturer declines any liability should
this safety measure not be observed.
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
– how often the door is opened
Important
– how much food is stored
– position of the appliance
Important
During prolonged periods of abnormally hot weather,
if the thermostat is set on too high a number, the
cooling system may operate continuously and the
fridge cooling plate may not defrost. Turning the knob
to a lower number will cause the automatic
defrosting to resume.
Fresh food refrigeration
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
GREEN & YELLOW
-
89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of a breakdown.
BROWN
BLUE
D207
CORD CLAMP
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
Meat can only be stored safely in this way for
one or two days at the most.
«E» or the earth symbol
yellow.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom salad crispers.
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
6
73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
13 AMP. FUSE
Raw meat (beef, pork, lamb & wild fowl): wrap in
polythene bags and place on top of the salad
crispers.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
-
13 AMP
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation through them.
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
This appliance complies with the following
E.E.C. Directives:
If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not correspond
with the markings identifying the terminals in your
plug, proceed as follows:
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do
cover or wrap the food, particularly if it has a strong
flavour.
To help you use your refrigerator correctly, here are
some more useful hints:
The plug moulded onto the lead incorporates a fuse.
For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.
or coloured green and
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
15
Fast-freezing
Instructions for totally built-in
appliances
For fast-freezing, push the fast freeze switch (D). The
fast freeze light (C) will then light up.
The fast-freezing function accelerates the freezing
of fresh food and, at the same time, protects
foodstuffs already stored from undesirable warming.
If this function is not ended manually, the appliance
switches off the fast-freezing function after 52 hours.
The yellow light goes out.
This function can be ended manually at any time by
pressing the fast freeze switch again. The yellow light
goes out.
Door reversal
The appliance is supplied with the right
or left door opening. To change the opening
direction of the door proceed as in the
following instructions before installing it.
1. Unscrew the upper pin and remove the spacer
C
2. Remove the upper door
B
Freezing fresh food
A
3. Remove the hinge cover (A). Unscrew the pins
(B) and the spacers (C) and refit them on the
middle hinge of the opposite side. Snap the hinge
cover (A).
4. Refit the upper door, the upper pin and the
spacer on the opposite side
50 mm
Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.
Do not exceed the storage period indicated by the
manufacturer.
Finally, do not open the door frequently or leave it
open longer than is absolutely necessary.
min.
200 cm
2
Warning
Do not put carbonated liquids, (fizzy drinks etc.), in
the freezer compartment.
D567
Furthermore, it is necessary that the cabinet has a
ventilation recess with the following dimensions:
depth
50 mm
width
540 mm
540
Meat, fish and fruit should be thawed in the
refrigerator compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.
A microwave oven is particularly suitable for thawing
any type of frozen or deep-frozen food: follow the
oven instructions, particularly regarding the
placement of aluminium wrapping or containers in
the oven.
Defrosted cooked food must never be refrozen.
Making ice cubes
The appliance is provided with one or more trays for
ice-cubes trays.
Fill the tray(s) 3/4 full to give the ice space to expand
and place them in the freezer compartment.
To release the ice cubes simply give the tray a slight
twist.
Do not use sharp or metallic instruments to remove
the trays from the freezer.
Ice lollies, if consumed immediately after removal
from the freezer, can cause low temperature skin
burns.
50
3
2
Frozen food, prior to being used, can be thawed in
the fridge or at room temperature depending on the
time available. Small food items may even be cooked
from frozen; in this case cooking will take longer.
Place the food to be frozen in the lower section of
the freezer compartment as this is the coldest part.
When first starting-up or after a period out of use,
before putting the products in the compartment let
the appliance run for at least two hours on the
coldest setting, then turn the thermostat knob to the
normal operating position.
min. 2
200 cm
Thawing
Any frozen food which is allowed to thaw accidentally
should either be eaten as soon as possible or thrown
away. Alternatively, if the food is uncooked and has
not been completely defrosted it can be cooked and
then refrozen.
Frozen food storage
Recess dimensions
Height
(1)
1780 mm
Depth
(2)
550 mm
Width
(3)
560 mm
To ensure adequate ventilation, allow the clearances
shown in figure.
In the event of a power cut the food in the freezer will
not be affected if the power cut is short and if the
freezer is full. Do not open the door. Should the food
begin to thaw, it must be consumed quickly and must
not be re-frozen .
The 4-star compartment is suitable for long term
storage of commercially frozen food and for freezing
fresh food.
To freeze fresh foods it is not necessary to move the
thermostat knob from the normal setting. Push the
fast freeze switch at least 3 hours before loading
food.
In any 24 hours you can freeze up to 4 kg of fresh
food.
To guarantee a good operation of the appliance
during normal use, the drawers should not be
removed.
5. Unscrew the lower pin and remove the spacer
and refit them on the opposite side
Important
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
“frost/freezer burns”.
1
PR01
16
5
OPERATION
Fit the appliance in the niche by making sure that it
stands against the interior surface of the unit on the
side where the door hinges of the appliances are
fitted. Insert the appliance until the upper strip butts
up against the unit (1) and make sure that the lower
hinge is in line with the surface of the unit (2).
Before using
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
1
2
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
D023
Control panel
Fasten the appliance with 4 screws provided in the
kit included with the appliance.
(I = short) (P = long)
1
2
6
5
A
A-
Pilot light - Green
B-
Thermostat control knob
C-
Fast freeze light - Amber
D-
Fast freeze switch
4
3
B
I
C
D
P
Control Panel
Temperature control
A. Pilot light
The temperature within the freezer is controlled by
the thermostat situated in the middle of the
appliance.
The operation light is illuminated continuously, to
show that the appliance is on.
To operate the freezer proceed as follows:
B. Thermostat control knob
Position 1 = minimum coldness
Turn the thermostat control knob clockwise to
required setting.
Position 6 = maximum coldness
C. Fast freeze light
Turn the thermostat control knob beyond the «O»
position.
The fast freeze light is illuminated, to show that the
fast freeze function is working.
When you place fresh food in the appliance, press
the fast freeze control switch.
When you first start the fridge-freezer, we suggest
that you turn the thermostat control to a medium
setting. For easier turning of this control, use a small
coin.The internal temperature of the fridge-freezer is
automatically adjusted by the thermostat to ensure
safe food storage.
Start your appliance
However, if the appliance is working in unfavourable
room conditions such as
D. Fast freeze control switch
Allow the appliance to stand for 2 hours after
installation.
Insert the plug into the wall socket. The pilot light (A)
will illuminate to show that the appliance is on.
Turn the thermostat control (B) to a midway setting.
Leave the appliance for approximately 4 hours for
the correct temperature to be reached before placing
food inside.
Apply the sealing strip pushing it between the
refrigerator and the adjacent cabinet.
-
poor ventilation,
-
high temperature,
-
frequent door openings,
D724
Apply covers (C-D) on joint cover lugs and into hinge
holes.
Snap vent grille (B) and hinge cover (E) into
position.
D
C
E
B
Separate parts Ha, Hb, Hc, Hd as shown in the
figure.
Hb
Ha
it may be necessary to select a more suitable
setting.
Hc
To switch off the appliance turn the thermostat
control to position “O” .
Hd
PR266
4
17
Disposal of old Appliances
Place guide (Ha) on the inside part of the furniture
door, up and down as shown in the figure and mark
the position of external holes. After having drilled
holes, fix the guide with the screws supplied.
ca. 50 mm
90°
21 m
m
90°
ca. 50 mm
21 m
m
Fix cover (Hc) on guide (Ha) until it clips into place
Ha
The symbol
on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
CONTENTS
Instructions for the User
Important Safety Information
2
Instructions for the
Installer
Operation
4
Technical Specification
13
Before use
4
Installation
14
Control panel - Use of the freezer
4
Positioning
14
Start your appliance
4
Shelf holders
14
Temperature control
4
Electrical Connection
15
Quick-freezing
5
Freezing fresh food
5
Door Reversal
16
Frozen food storage
5
Thawing
5
Making ice cubes
5
Use of the refrigerator-Setting the temperature
6
Fresh food refrigeration
6
Normal operating sounds
6
Movable shelves
7
Positioning the door shelves
7
Hints and Tips
8
Maintenance and Cleaning
9
Internal cleaning
9
When the appliance is not in use
9
Changing the light bulb
9
Should the lining up of the furniture door be
necessary, use the clearance of slots.
External cleaning
9
Defrosting
9
At the end of operations, it is necessary to check if
the door of the furniture closes properly.
Something Not Working
10
Service and Spare Parts
11
Customer Care
11
Guarantee Conditions
12
Hc
PR33
8mm
Open the appliance door and the furniture door at
90°. Insert the small square (Hb) into guide (Ha).
Put together the appliance door and the furniture
door and mark the holes as indicated in the figure. .
Ha
PR167
Hb
8mm
Remove the brackets and mark a distance of 8 mm
from the outer edge of the door where the nail must
be fitted (K).
K
Ha
Place the small square on the guide again and fix it
with the screws supplied.
Hb
PR168
18
3
IMPORTANT SAFETY INFORMATION
Fix cover (Hd) on guide (Hb) until it clips into place.
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
Hb
This information has been provided in the interest of safety. You MUST read it carefully before installing
or using the appliance.
Installation
•
Frozen food must NOT be re-frozen once it has
thawed out.
•
•
Do not place carbonated or fizzy drinks in the
freezer.
•
Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
•
Ice lollies can cause ‘frost/freezer burns’ if
consumed straight from the freezer.
•
Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.
•
The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
•
•
•
•
•
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from your
local Service Force Centre.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
Child Safety
•
Do not allow children to tamper with the controls or
play with the product.
Maintenance and Cleaning
•
Keep all packaging well away from children.
•
General Safety
•
•
•
•
•
This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging must
therefore only be carried out by authorized
technicians.
Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
The appliance must not be located close to
cookers, radiators or boilers.
Avoid prolonged exposure of the appliance to
direct sunlight.
Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating
appliances.
During Use
•
2
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs.
Hd
PR167/1
If the appliance is fixed to the side of the kitchen unit,
simply slacken the screws in fixing brackets (E),
move the brackets as shown in the figure and retighten the screws.
E
E
After completion of the door reversing operation,
check that the door gasket adheres to the
cabinet. If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to the
cabinet. In that case, wait for the natural fitting of
the gasket or accelerate this process by heating
up the part involved with a normal hairdryer on a
low setting.
Switch off and unplug the appliance before
carrying out any cleaning or maintenance work.
Servicing
•
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
•
Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Service Force Centre and always insist on
genuine spare parts.
At the end of the Appliance
Life
•
When disposing of your appliance, use an
authorised disposal site.
•
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
19
fridge - freezer
INSTRUCTION BOOK
ERF 2832
© Electrolux plc 2005
2223 122-43
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
