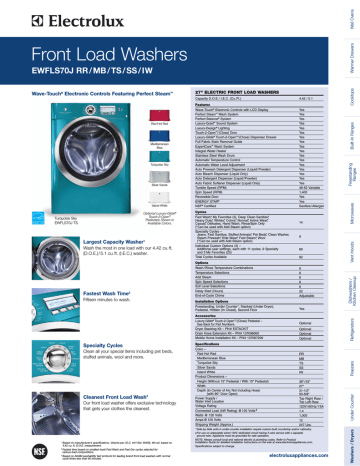

Warmer Drawers
Wall Ovens
Red Hot Red
Mediterranean
Blue
Turquoise Sky
Silver Sands
Island White
Optional Luxury-Glide®
Touch-2-Open™
Pedestals Shown in
Available Colors.
Turquoise Sky
EWFLS70J TS
Largest Capacity Washer1
Wash the most in one load with our 4.42 cu. ft.
(D.O.E.) / 5.1 cu. ft. (I.E.C.) washer.
Wave-Touch® Electronic Controls with LCD Display
Perfect Steam™ Wash System
Perfect Balance® System
Luxury-Quiet™ Sound System
Luxury-Design® Lighting
Touch-2-Open™/ (Close) Door
Luxury-Glide® Touch-2-Open™/ (Close) Dispenser Drawer
Full Fabric Stain Removal Guide
ExpertCare™ Wash System
Integral Water Heater
Stainless Steel Wash Drum
Automatic Temperature Control
Automatic Water Level Adjustment
Auto Prewash Detergent Dispenser (Liquid / Powder)
Auto Bleach Dispenser (Liquid Only)
Auto Detergent Dispenser (Liquid / Powder)
Auto Fabric Softener Dispenser (Liquid Only)
Tumble Speed (RPM)
Spin Speed (RPM)
Reversible Door
ENERGY STAR®
NSF® Certified
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
48-52 Variable
1,400
Yes
Yes
Sanitize/Allergen
Cycles
Fast Wash*, My Favorites (3), Deep Clean Sanitize*,
Heavy Duty*, Whites*, Colors*, Normal*, Active Wear*,
Casual*, Delicates, Hand Wash, Rinse/Spin Only
(*Can be used with Add Steam option)
Specialty Cycles –
Jeans, Fast Sanitize, Stuffed Animals*, Pet Beds*, Clean Washer,
Steam Prewash*, Kids Wear*, Fast Steam*, Wool
(*Can be used with Add Steam option)
Individual Custom Options (3) –
Additional user settings, each with 11 cycles, 9 Specialty
and 3 My Favorites (23)
Total Cycles Available
14
9
69
92
Options
Fastest Wash Time2
Wash / Rinse Temperature Combinations
Temperature Selections
Add Steam
Spin Speed Selections
Soil Level Selections
Delay Start (Hours)
End-of-Cycle Chime
Fifteen minutes to wash.
Installation Options
9
6
8
6
6
22
Adjustable
Freestanding, Under Counter*, Stacked (Under Dryer),
Pedestal, Hidden (In Closet), Second Floor
Cooktops
4.42 / 5.1
Features
Vent Hoods
Capacity D.O.E. / I.E.C. (Cu. Ft.)
Built-In Ranges
27" ELECTRIC FRONT LOAD WASHERS
Dishwashers /
Kitchen Cleanup
Wave-Touch® Electronic Controls Featuring Perfect Steam™
Freestanding
Ranges
EWFLS70J RR / MB / TS / SS / IW
Microwaves
Front Load Washers
Yes
Luxury-Glide® Touch-2-Open™/ (Close) Pedestal –
See Back for Part Numbers
Dryer Stacking Kit – PN # ESTACKIT
Drain Hose Extension Kit – PN # 137098000
Mobile Home Installation Kit – PN # 137067200
Cleanest Front Load Wash3
Our front load washer offers exclusive technology
that gets your clothes the cleanest.
Color –
Red Hot Red
Mediterranean Blue
Turquoise Sky
Silver Sands
Island White
Product Dimensions –
Height (Without 15" Pedestal / With 15" Pedestal)
Width
Depth (to Center of Arc Not Including Hose)
(with 90° Door Open)
Power Supply /
Water Inlet Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts ‡
Watts @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
RR
MB
TS
SS
IW
38" / 53"
27"
31-1/2"
50-5/8"
Top Right Rear /
Top Left Rear
120V / 60 Hz / 15A
1.4
1,000
12
247 Lbs.
*Side-by-Side units in under-counter installation require custom-built countertop and/or cabinetry.
‡ For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
Based on manufacturer’s specifications. Volume per I.E.C. Int’l Std. 60456, 4th ed. based on
4.42 cu. ft. D.O.E. measurement.
2
Fastest time based on smallest load / Fast Wash and Fast Dry cycles selected for
various load compositions.
3
Based on AHAM washability test protocol for leading brand front load washers with normal
cycle times less than 60 minutes.
1
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric & plumbing codes. Refer to Product
Installation Guide for detailed installation instructions on the web at www.electroluxappliances.com.
Specifications subject to change.
electroluxappliances.com
Freezers
Specifications
Under Counter
Clean all your special items including pet beds,
stuffed animals, wool and more.
Optional
Optional
Optional
Washers / Dryers
Specialty Cycles
Optional
Refrigerators
Accessories
Front Load Washers
EWFLS70J RR / MB / TS / SS / IW
Front Load Washer Specifications
• Product
Weight – 237 Lbs.
electrical supply with grounded three-prong receptacle is required. The
power supply circuit must be installed in accordance with current edition
of National Electrical Code (ANSI/NFPA 70) and local codes & ordinances.
(Do not use same circuit as dryer.)
• Voltage Rating – 120V / 60 Hz / 15 Amps
• Amps @ 120 Volts = 12 Amps
• Connected Load (kW Rating) @ 120 Volts = 1.4 kW
• Equipped with 120V 3-wire power supply cord, approx. 60" long.
• Always consult local and national electric & plumbing codes.
• To maximize detergent effectiveness, ambient temperature should
never be below 60° F.
• Can be installed alone, with or without optional 15" drawer pedestal, or
stacked beneath matching Electrolux Dryer, which requires installation of
optional dryer stacking kit. (For installation details, refer to instructions
included with optional pedestal or stacking kit or on web.)
• Can be built in with matching Electrolux Dryer in under-counter, recessed
or closet installation. Installations requiring countertop and / or cabinetry
will require custom building. (Refer to Built-In Installations on this page for
cutout dimensions. For additional installation details, refer to Product
Installation Guide on web.)
• Closet installation requires vented door with 2 unobstructed louvered
openings, minimum 60 sq. in. each, located 3" from top and bottom of
door. Full-length 120 sq. in. opening also acceptable. Allow 1" clearance
between door and fronts of units.
• An
• Do
NOT install in area exposed to dripping water or outdoor weather
conditions, or where gasoline or other flammables, including automobiles,
are kept or stored.
• Floor MUST be solid with 1" maximum slope. To ensure vibration or
movement does not occur, reinforcement of floor may be necessary.
Do NOT install on carpeted surface.
• Leveling legs supplied to level washer properly and reduce excessive
noise and vibration.
• H/C water faucets MUST be installed within 42" of washer’s water inlet
and MUST be 3/4" garden hose type, to connect to 48-1/2" inlet hoses.
• Water pressure MUST be between 30 and 120 psi with NOT more than
10 psi pressure difference between hot and cold.
• Drain required with standpipe diameter of 1-1/4" min. and height of
24" min. / 96" max. above floor, capable of eliminating 17 gallons per
minute. Attached 59" drain hose can reach 79"-high standpipe.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
• Drawer
Pedestals – Red Hot Red (PN # EPWD15RR),
Mediterranean Blue (PN # EPWD15MB),Turquoise Sky (PN # EPWD15TS),
Silver Sands (PN # EPWD15SS), Island White (PN # EPWD15IW).
• Dryer Stacking Kit – (PN # ESTACKIT).
• Drain Hose Extension Kit – (PN # 137098000).
• Mobile Home Installation Kit – (PN # 137067200).
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
EWFLS70J 04/11
© 2011 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Printed in the U.S.A.
