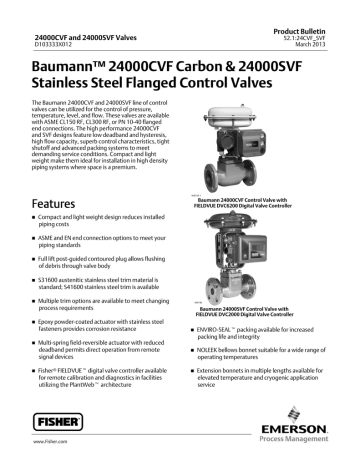

24000CVF and 24000SVF Valves

D103333X012

Product Bulletin

52.1:24CVF_SVF

March 2013

Baumann™ 24000CVF Carbon & 24000SVF

Stainless Steel Flanged Control Valves

The Baumann 24000CVF and 24000SVF line of control valves can be utilized for the control of pressure, temperature, level, and flow. These valves are available with ASME CL150 RF, CL300 RF, or PN 10-40 flanged end connections. The high performance 24000CVF and SVF designs feature low deadband and hysteresis, high flow capacity, superb control characteristics, tight shutoff and advanced packing systems to meet demanding service conditions. Compact and light weight make them ideal for installation in high density piping systems where space is a premium.

Features

Compact and light weight design reduces installed piping costs

ASME and EN end connection options to meet your piping standards

Full lift post-guided contoured plug allows flushing of debris through valve body

S31600 austenitic stainless steel trim material is standard; S41600 stainless steel trim is available

Multiple trim options are available to meet changing process requirements

Epoxy powder-coated actuator with stainless steel fasteners provides corrosion resistance

Multi-spring field-reversible actuator with reduced deadband permits direct operation from remote signal devices

Fisherr FIELDVUEt digital valve controller available for remote calibration and diagnostics in facilities utilizing the PlantWebt architecture

W9745-1

Baumann 24000CVF Control Valve with

FIELDVUE DVC6200 Digital Valve Controller

W9746

Baumann 24000SVF Control Valve with

FIELDVUE DVC2000 Digital Valve Controller

ENVIRO-SEALt packing available for increased packing life and integrity

NOLEEK bellows bonnet suitable for a wide range of operating temperatures

Extension bonnets in multiple lengths available for elevated temperature and cryogenic application service www.Fisher.com

Product Bulletin

52.1:24CVF_SVF

March 2013

Figure 1. Baumann 24000CVF / SVF Control Valve Subassembly

24000CVF and 24000SVF Valves

D103333X012

E1245

2

24000CVF and 24000SVF Valves

D103333X012

Product Bulletin

52.1:24CVF_SVF

March 2013

Table 1. Materials of Construction

Key

No.

Description

1

2

4

5

8

Valve Body, Carbon Steel

Valve Body, Stainless Steel

Seat Ring (For Low Flow Trim, Refer to tables 2 & 3)

Plug (Metal Seat) Cv < 2.5

Plug (Metal Seat) Cv > 4.0

Plug (Soft Seat)

Stem

Bonnet, Carbon Steel (Std)

Bonnet, Stainless Steel (Std)

Bonnet (extended)

(1)

Bonnet (NOLEEK)

(1)

Bonnet Bushing

(2)

Drive Nut (Yoke)

Material

Cast Carbon Steel (ASME SA216 WCC and EN10213 1.0619 Dual Certified)

ASME SA351 CF3M

Standard ASTM A276 S31600/ S31603 Dual Certified /

Optional ASTM A582 S41600 Condition T

ASME SA479 S21800 (standard) / ASTM A582 S41600 Condition T (optional)

ASTM A276 S31600/ S31603(standard) / ASTM A582 S41600 Condition T (optional)

ASTM A276 S31600/ S31603 with PTFE (Polytetrafluoroethylene) insert

ASTM A276 S31600

Cast Carbon Steel (ASME SA216 WCC and EN10213 1.0619 Dual Certified)

ASME SA351 CF3M

ASME SA351 CF3M

ASME SA351 CF3M & ASTM A479 S31600/S31603, Annealed

8a

9

10

11

12

Packing Follower

Stud

Nut

ASTM A276 S44004, HT 56-60 HRC

S30400

ASTM A276 S31600/S31603 Dual Certified

ASME SA193 Grade B8, Class 1

ASME SA194 Grade 8

14

27

49

58

V-Ring Packing (standard)

Packing (optional)

Locknuts

Body Gasket

Travel Indicator

Refer to figure 4, table 4

Refer to figures 5 & 6, tables 5 & 6

Stainless Steel (18-8 SST)

Graphite Grade GHR with S31600 Insert

1. Extension bonnets and NOLEEK bellows bonnets are available with 24000SVF stainless steel valves only.

2. Guide bushing is applicable to 24000CVF carbon steel valve assembly only.

ASME SA240 S30400

3

Product Bulletin

52.1:24CVF_SVF

March 2013

Figure 2. Optional 151 Low Flow Trim Assembly

24000CVF and 24000SVF Valves

D103333X012

Figure 3. Optional 177 Low Flow Trim Assembly

4

E1247

E1246

151 Low Flow Trim

Assembly

The PTFE seat surrounds the valve plug (key 4) to eliminate clearance flow typical of lapped-in metal-to-metal close clearance micro trims. Flow is directed over the valve plug and forced through a single V-notch path as the plug moves above the PTFE seat providing precise and predictable control over its entire travel range. When the V-notch moves below the PTFE seat, CLVI primary shutoff is achieved.

A live-loaded metal collar fully retains the PTFE seat.

The valve plug (key 4) seats against the metal collar providing CL IV secondary shutoff. In addition, the fluid process pressure combines with the actuator seating force to form a hydraulic seal within the fully retained

PTFE seat. Therefore, the higher the process pressure the tighter the shutoff.

Table 2. 151 Low Flow Trim

Key No.

Description

2

(1)

4

(1)

Seat Ring

Plug

Material

ASTM A276 S31600/ S31603

ASME SA479 S21800

Seat Subassembly

Cage

Seat

Collar

ASTM A276 S31600/ S31603

PTFE

ASTM A276 S31600/ S31603

51

(1)

Washer

Insert

ASTM A276 S31600 Cond B

ASTM A276 S31600/ S31603

1. For optional trim materials, consult your Emerson Process Management sales office for price and delivery.

Table 3. 177 Low Flow Trim

Key No.

2

(1)

Description

Seat Ring

Material

ASTM A276 S31600/ S31603

Seat Subassembly

2a

(1)

23

24

25

Gland

Retainer Nut

Insert

ASTM A276 S31600/ S31603

ASTM A276 S31600/ S31603

Reinforced PTFE

4

(1)

26 Housing

Plug

ASTM A276 S31600/ S31603

ASME SA479 S21800

1. For optional trim materials, consult your Emerson Process Management sales office for price and delivery. Baumann 32 actuator requires duel-stops with 177 trim series.

24000CVF and 24000SVF Valves

D103333X012

Figure 4. Standard Spring-Loaded PTFE V-Ring

Packing Kit

Product Bulletin

52.1:24CVF_SVF

March 2013

Figure 6. ENVIRO-SEAL Packing Kit (Optional)

E1240

Table 4. Standard Spring-Loaded PTFE V-Ring

Packing Kit

Key No.

Description Material

6 Spring

14

16

20

Packing Set

Washer

Spacer

ASTM A313 S30200

PTFE (Polytetrafluoroethylene) / PTFE,

25% carbon filled

ASME SA240 S31600

J-2000

(filled-Polytetrafluoroethylene)

Figure 5. Molded Graphite (Flexible Graphite)

Packing Kit (Optional)

E1248

Table 6. ENVIRO-SEAL Packing Kit (Optional)

Key No.

Description Material

13 Bushings

14

17

18

19

Packing Set

Belleville Spring

Bushing

Washer

Carbon Graphite

PTFE (Polytetrafluoroethylene) / PTFE,

25% carbon filled

N06600 Nickel Alloy (ASTM B637

N07718, 40 HRC max)

PEEK (Polyetheretherketone)

Modified PTFE

E1241

Table 5. Molded Graphite (Flexible Graphite) Packing

Kit (Optional)

Key No.

13

Description

Bushings

Material

Carbon - Graphite

14A

14B

Packing Rings

Packing Ring

Graphite

Graphite

Special ENVIRO-SEAL

Packing Note

The ENVIRO-SEAL PTFE packing system is suitable for

100 ppm environmental applications on services up to

51.7 barg (750 psig) and process temperatures ranging from -46 to 232_C (-50 to 450_F).

For non-environmental applications, this packing system offers excellent performance at the same temperature range up to the maximum valve working pressure.

Temperature limits apply to packing arrangements only. Complete valve assembly temperature limits may differ. Refer to appropriate pressure/ temperature ratings.

Reference Fisher Packing Selection Guidelines for

Sliding-Stem Valves, bulletin 59.1:062, D101986X012.

5

Product Bulletin

52.1:24CVF_SVF

March 2013

WARNING

The Baumann NOLEEK valve bonnet assembly is not intended for use in lethal service applications.

The NOLEEK Bellows Bonnet Assembly is reliable and user-friendly. Typical service life is in excess of 250,000 full cycles under 100 psi pressure. The bonnet adds only approximately 5 inches to the height of a standard valve. Operating temperature range is -195 to 399_C (-320 to 750_F).

ONLY AVAILABLE WITH 24000SVF STAINLESS STEEL

VALVES.

24000CVF and 24000SVF Valves

D103333X012

Figure 7. Baumann NOLEEK Bellow Bonnet Assembly

UNLIMITED STEM

ROTATION WITHOUT

TWISTING BELLOWS

BACKUP PACKING

SYSTEM (SEE PACKING

DETAIL ON PAGE 5)

TELL-TALE

CONNECTION

(1/8 NPT)

TIME PROVEN

DOUBLE WALLED

BELLOW MADE

FROM S31600,

RATED FOR UP TO

49.7 BAR (720 PSI)

PRESSURE

BELLOWS HOUSING

Full extension provides heat dissipation, ideal for heat transfer fluids.

E1249

Table 7. Baumann NOLEEK Bellow Bonnet Assembly

Key Number

4

8

21

22

Description

Plug

Bellows Bonnet Sub-Assembly

Plug Retaining Pin

Hex Socket Pipe Plug, 1/8 NPT

Housing

Bellows

Bonnet

Figure 8. Bellows Pressure / Temperature Curve

49.7 barg @ -195_C (720 psig @ -320_F)

48.5 barg @ 93_C (703.25 psig @ 200_F)

Material

Refer to table 1

S31600/S31603

S31603/1.4571 SST

CF3M

S30300

S30400

33.9 barg @ 398_C

(491.6 psig @ 750_F)

TEMPERATURE (_F)

6

24000CVF and 24000SVF Valves

D103333X012

Product Bulletin

52.1:24CVF_SVF

March 2013

Table 8. Cv Values at 100% Plug Opening (Kv = 0.86 x Cv)

VALVE SIZE

NPS

1/2

3/4

1

ORIFICE

DIAMETER inch

0.156

PLUG

TRAVEL inch

0.50

102

Cv

---

151

Cv

0.00013

0.00025

0.0005

0.001

0.002

0.004

0.008

0.015

0.03

0.06

0.10

0.20

0.45

0.25

0.50

0.02, 0.05

0.10, 0.20

---

1/2

3/4

1

1-1/2

2

0.3125

0.375

0.8125

0.8125

0.8125

1.0625

1.25

1.5

1.5

2.0

0.50

0.50

0.50

0.50

0.50

0.50

0.75

0.75

0.75

0.75

---

---

---

---

---

---

---

---

---

---

---

---

---

---

---

---

---

---

---

---

177

Cv

---

PLUG SERIES

577

Cv

---

---

0.0005

0.001, 0.002

0.005, 0.01

0.02, 0.05

---

---

---

---

---

---

---

---

---

---

---

1.0, 1.5 2.5

4, 6

4, 7.5

4, 8.5

13

20

10, 17, 28

10, 17, 28

30

548 / 588

Cv

---

0.22, 0.61

1.0

---

677

Cv

---

---

---

1.5 2.5

4.7, 6.7

4.7, 10

4.7, 10

15.5

10, 20

10, 17, 32.7

10, 17, 32.7

53.7

0.1, 0.2, 0.5

1.0, 2.5

5

5

5

---

20

10, 17

10, 17

30, 50

648 / 688

Cv

---

0.5

1.0

---

1.5

2.5

4, 6

4, 8

4, 9

13

10, 20

10, 17, 28

10, 17, 28

30, 50

Figure 9. Baumann 24000CVF / SVF Trims

102 Linear

Low Flow Trim

151 Modified Equal %

Low Flow Trim

177 Modified Equal %

Low Flow Trim

548 / 577 / 588

Equal % Trim

648 / 677 / 688

Linear Trim

W9747

W9751 W9748 W9749 W9750

7

Product Bulletin

52.1:24CVF_SVF

March 2013

Table 9. ISA Sizing Coefficients

Series Cv Rating

102

151

177

577

0.02

0.05

0.10

0.20

0.00013

0.00025

0.0005

0.001

0.002

0.004

0.008

0.015

0.03

0.06

0.10

0.20

0.45

0.0005

0.001

0.002

0.005

0.01

0.02

0.05

1

1.5

2.5

4

6

7.5

8.5

10

13

17

20

28

30

548/588

0.22

0.61

1

1.5

2.5

4.7

6.7

10

15.5

20

17

32.7

53.7

FL

0.95

0.98

0.95

0.9

0.9

0.98

0.40

0.33

0.42

0.46

0.28

0.4

0.33

0.46

0.46

Fd

0.06

0.09

0.013

0.18

0.35

0.04

0.05

0.06

0.075

0.1

0.11

0.15

0.18

0.22

0.25

0.3

0.4

0.7

24000CVF and 24000SVF Valves

D103333X012

XT

0.76

KC

0.86

0.81

0.76

0.94

0.86

0.68

0.81

0.68

0.73

0.94

0.73

8

24000CVF and 24000SVF Valves

D103333X012

Table 9. ISA Sizing Coefficients (continued)

Series Cv Rating

677

648/688

6

8

9

10

13

0.5

1

1.5

2.5

4

20

28

30

50

2.5

5

10

17

20

0.1

0.2

0.5

1

30

50

Table 10. Technical Specifications

VALVE TYPE

NOMINAL PIPE SIZE

END CONNECTIONS

PRESSURE RATING

FACE-TO-FACE DIMENSIONS

FL

0.9

0.9

Fd

0.08

0.12

0.19

0.27

0.46

0.4

0.33

0.42

0.46

EN

DN 15, 20, 25, 40, & 50

PN 10-40 Flanges per EN 1092-1

PN 40 per EN 1092-1

Consistent with EN 558-1

XT

0.68

0.68

Product Bulletin

52.1:24CVF_SVF

March 2013

KC

0.73

0.73

ASME

NPS 1/2, 3/4, 1, 1-1/2, & 2

CL150 RF or CL300 RF Flanges per

ASME B16.5

CL150 or CL300 per ASME B16.34

Consistent with EN 588-2 (ISA S75.03)

9

Product Bulletin

52.1:24CVF_SVF

March 2013

24000CVF and 24000SVF Valves

D103333X012

Table 11. Temperature Ratings for Packing and Seat Material

(1)

SEATING MATERIAL

PTFE Soft Seat

Reinforced PTFE

151 Trim

577 & 677 Trim

177 Trim

-29 to 177_C (-20 to 350_F)

-73 to 232_C (-100 to 450_F)

-73 to 232_C (-100 to 450_F)

Metal Seat

BONNET STYLE

102, 548, 588, 648, 688 Trim

PACKING

Spring Loaded PTFE

ENVIRO-SEAL

-195 to 537_C (-320 to 1000_F)

TEMPERATURE LIMIT

-73 to 232_C (-100 to 450_F)

-46 to 232_C (-50 to 450_F)

Standard Bonnet

PACKING AND BONNET

COMBINATIONS

Extension Bonnet

(2, 3)

Graphite

Spring Loaded PTFE

ENVIRO-SEAL

Graphite

-73 to 232_C (-100 to 450_F)

-195 to 232_C (-320 to 450_F)

-46 to 232_C (-50 to 450_F)

-195 to 537_C (-320 to 1000_F)

CHARACTERISTIC

Bellows

(2)

NOLEEK Bellows

Equal Percentage or Linear

-195 to 399_C (-320 to 750_F)

1. Temperature limits apply to seating or packing arrangements only. Complete valve assembly temperature limits may differ, refer to appropriate pressure/temperature ratings. For more information on packing selection, reference Fisher Packing Selection Guidelines for Sliding-Stem Valves, Bulletin 59.1:062 (D101986X012).

2. Extension bonnets and NOLEEK bellows bonnets are applicable for the 24000SVF stainless steel body assembly ONLY.

3. PTFE packing can be used in cryogenic service but becomes stiff.

Table 12. Actuator Specifications

TYPE

DIAPHRAGM AREA

32, 54, 70 Multi-Spring Diaphragm (Single Acting)

210, 350, 450 cm

2

/ 32, 54, 70 in

2

32 and 54 Fails Open or Closed (Field Reversible) / 70 Fails Closed ONLY

AIR FAILURE

TRAVEL

AMBIENT TEMPERATURE RANGE

12.7 or 19.1 mm / 0.50 or 0.75 inches

-29_C to 71_C / -20_F to 160_F

2.4 barg / 35 psig

MAXIMUM AIR PRESSURE

DIAPHRAGM MATERIAL

(1)

SPRING CASES

NBR (Nitrile) / TPES (Polyester Thermoplastic)

Steel, Powder Epoxy-Coated with Stainless Steel Fasteners

YOKE

Ductile Iron, Powder Epoxy-Coated

1. Optional reinforced VMQ (Silicone) diaphragm with FKM (Fluorocarbon) O-ring actuator stem seal for high temperature conditions (-29_C to 121_C / -20_F to 250_F) is available with

Baumann 32 and 54 actuators ONLY.

10

24000CVF and 24000SVF Valves

D103333X012

Product Bulletin

52.1:24CVF_SVF

March 2013

Figure 10. Baumann 24000CVF Carbon Steel Flanges, Pressure-Temperature Ratings

E1251-1

900

800

700

750 psig @ -20°F

Class 300

600

500

400

300

200

100

0

-50

290 psig @ -20°F

Class 150

0 50 100

ASME B16.34 A216 WCC

750 psig @ 200°F

260 psig @ 200°F

150 200 250

Temperature (°F)

300

685 psig @ 450°F

185 psig @ 450°F

350 400 450 500

ASME B16.34 A216 WCC

40

30

20

60

50

10

0

-50

51.7 barg @ -29°C

Class 300

19.8 barg @ -29°C

Class 150

0

51.5 barg @ 100°C

17.7 barg @ 100°C

50 100

Temperature (°C)

150

47.1 barg @ 232°C

12.7 barg @ 232°C

200 250

E1252-1

11

Product Bulletin

52.1:24CVF_SVF

March 2013

24000CVF and 24000SVF Valves

Figure 11. Baumann 24000SVF Stainless Steel Flanges, Pressure-Temperature Ratings

ASME B16.34 A351 CF3M

500

400

300

200

100

800

700

600

720 psig @ -320°F

Class 300

275 psig @ -320 F

Class 150

450 psig @ 600°F

365 psig @ 1000°F

140 psig @ 600 F

20 psig @ 1000 F

0

-400 -300 -200 -100 0 100 200 300 400 500 600 700 800 900 1000 1100

Temperature (°F)

E1254-1

ASME B16.34 A351 Gr. CF3M

60

50

40

49.6 barg @ -195°C

Class 300

31.6 barg @ 300°C

25.2 barg @ 538°C

30

20

10

19 barg @ -195°C

Class 150

10.2 barg @ 300°C

1.4 barg @ 538°C

0

-250 -200 -150 -100 -50 0 50 100 150 200 250 300 350 400 450 500 550 600

Temperature (°C)

E1255-1

D103333X012

12

24000CVF and 24000SVF Valves

D103333X012

Product Bulletin

52.1:24CVF_SVF

March 2013

Figure 12. Baumann 24000CVF and 24000SVF Pressure-Temperature Ratings for EN 1092-1

EN1092-1 ASTM A216 WCC

45

40

35

30

25

20

15

10

5

0

-50

40 barg @ 0°C

PN 40

0

31.4 barg @ 232°C

200 50 100

Tem perature (°C)

24000CVF

150

E1253-1

EN 1092-1 ASTM A351 CF3M

25

20

15

10

5

0

-50

45

40

35

30

40 barg @ 0°C

PN 40

50

24.3 barg @ 500°C

450

250

550

E1256-1

150 250

Tem perature (°C)

24000SVF

350

13

Product Bulletin

52.1:24CVF_SVF

March 2013

24000CVF and 24000SVF Valves

D103333X012

Table 13. Allowable Pressure Drops (bar). Do not exceed valve body temperature pressure ratings.

AIR-TO-OPEN ACTION AIR-TO-CLOSE ACTION

ORIFICE

DIA.

(mm)

4.0

6.3

7.9

9.5

PLUG

TRAVEL

(mm)

12.7

12.7

12.7

12.7

ACT

TYPE

32

32

32

32

32

BENCH

RANGE

(barg)

0.3-1.0

0.3-1.0

0.3-1.0

0.3-1.0

0.3-1.0

0.2-1.0 barg SIGNAL

TO ACTUATOR

Max CL

IV

Shutoff

Press.

51.7

51.7

---

31.2

7.79

Max CL

VI

Shutoff

Press.

---

---

28.8

19.2

1.31

WITH POSITIONER

1.38 barg AIR

SUPPLY

Max CL

IV

Shutoff

Press.

Max CL

VI

Shutoff

Press.

51.7

(1)

51.7

(1)

---

---

51.7

(1,2)

---

51.7

(1)

15.6

50.3

9.10

BENCH

RANGE

(barg)

0.2-0.9

0.2-0.9

0.2-0.9

0.2-0.9

0.2-0.9

0.2-1.0 barg SIGNAL

TO ACTUATOR

Max CL

IV

Shutoff

Press.

51.7

51.7

---

31.2

7.79

Max CL

VI

Shutoff

Press.

---

---

28.8

19.2

1.31

WITH POSITIONER

1.38 barg AIR

SUPPLY

Max CL

IV

Shutoff

Press.

Max CL

VI

Shutoff

Press.

51.7

(1,2)

51.7

(1,2)

---

---

---

51.7

(1,2)

27.3

51.7

(1,2)

51.7

(1)

20.8

20.6

27.0

31.8

38.1

50.8

12.7

12.7

19.1

19.1

19.1

1.38

3.52

2.14

5.31

---

---

---

2.41

6.13

3.72

9.24

---

---

---

---

3.45

8.69

5.24

13.1

---

---

19.5

11.8

29.5

---

4.69

11.8

7.17

17.9

0.2-0.9

0.2-0.7

0.2-0.9

0.2-0.7

---

---

---

0.2-0.9

0.2-0.7

0.2-0.9

0.2-0.7

---

---

---

0.2-0.7

0.2-0.9

0.2-0.7

---

0.2-0.9

0.2-0.7

0.2-0.9

0.2-0.7

---

0.2-0.9

0.2-0.7

0.2-0.9

0.2-0.7

---

---

---

---

1.38

3.52

6.69

8.07

13.0

1.10

---

3.65

7.31

12.9

18.9

23.9

23.4

2.48

---

6.07

11.3

19.2

27.6

16.9

11.2

28.9

40.7

4.27

8.96

12.5

16.3

2.83

---

4.27

6.34

9.58

13.0

15.9

4.89

---

7.38

11.1

16.7

22.7

27.7

28.5

6.96

---

10.5

15.7

23.6

32.1

23.4

17.7

35.4

47.2

9.45

14.1

10.7

21.4

---

---

---

1.38

4.55

7.24

---

---

---

---

3.65

9.17

13.9

---

16.3

---

---

---

6.07

13.9

20.5

9.10

---

17.0

28.9

---

4.27

---

9.10

1.38

---

2.14

4.27

7.45

10.1

---

2.14

---

3.72

7.38

12.9

17.7

---

21.4

3.45

---

5.24

10.9

18.3

24.9

15.6

5.93

23.6

35.4

4.19

9.45

3.59

14.3

0.3-1.0

---

0.3-1.0

0.5-0.9

0.7-1.0

0.7-1.0

0.8-1.2

0.3-1.0

---

0.3-1.0

0.5-0.9

0.7-1.0

0.7-1.0

0.8-1.2

0.5-1.0

0.3-1.0

0.5-1.0

0.6-1.0

0.3-1.0

0.5-1.0

0.3-1.0

0.5-1.0

0.6-1.0

0.3-1.0

---

0.3-1.0

0.5-0.9

0.7-1.0

0.7-1.0

54

54

70

70

32

32

54

54

54

70

70

32

32

54

54

54

54

70

54

32

32

32

32

54

54

32

54

54

54

---

---

---

2.41

---

---

---

---

2.34

---

5.52

---

---

---

---

---

4.20

---

8.69

---

---

13.0

5.30

23.0

---

---

6.62

2.0

12.7

4.89

7.03

7.44

10.6

---

---

---

8.55

12.2

19.9

18.5

---

---

---

---

12.1

17.3

18.3

26.3

---

---

39.0

41.4

51.7

(1)

---

16.5

23.6

25.0

35.7

2.0

4.14

4.55

7.72

---

---

---

4.76

8.48

9.17

14.8

---

---

---

---

7.65

12.9

13.9

21.8

---

---

32.5

34.8

51.7

(1)

---

11.4

18.4

19.9

30.5

1. The maximum shutoff pressure when using ENVIRO-SEAL packing is defined by: nP = Table Value - [1112/(Port Diameter)

2

]. These table values should not be modified by this formula and the maximum nP of 51.7 bar should be used for ENVIRO-SEAL packing.

2. The maximum shutoff pressure when using Flexible Graphite packing is defined by: nP = Table Value - [5337/(Port Diameter) and the maximum nP of 51.7 bar should be used for Flexible Graphite packing.

2

]. These table values should not be modified by this formula

14

24000CVF and 24000SVF Valves

D103333X012

Product Bulletin

52.1:24CVF_SVF

March 2013

Table 14. Allowable Pressure Drops (psi). Do not exceed valve body temperature pressure ratings.

AIR-TO-OPEN ACTION AIR-TO-CLOSE ACTION

ORIFICE

DIA. (in)

0.156

0.25

0.3125

0.375

PLUG

TRAVEL

(in)

0.50

0.50

0.50

0.50

ACT

TYPE

32

32

32

32

32

BENCH

RANGE

(psig)

5-15

5-15

5-15

5-15

5-15

3-15 psig SIGNAL TO

ACTUATOR

Max CL

IV

Shutoff

Press.

Max CL

VI

Shutoff

Press.

750

750

---

452

113

---

---

418

278

19

WITH POSITIONER

20 psig AIR SUPPLY

Max CL

IV

Shutoff

Press.

Max CL

VI

Shutoff

Press.

750

(1)

750

(1)

---

750

(1)

226

---

---

750

(1,2)

730

132

BENCH

RANGE

(psig)

3-13

3-13

3-13

3-13

3-13

3-15 psig SIGNAL TO

ACTUATOR

Max CL

IV

Shutoff

Press.

Max CL

VI

Shutoff

Press.

750

750

---

452

113

---

---

418

278

19

WITH POSITIONER

20 psig AIR SUPPLY

Max CL

IV

Shutoff

Press.

Max CL

VI

Shutoff

Press.

750

(1,2)

750

(1,2)

---

750

(1,2)

396

---

---

750

(1,2)

750

(1)

301

0.8125

1.0625

1.25

1.5

2.0

0.50

0.50

0.75

0.75

0.75

77

---

---

---

20

51

31

35

89

54

134

---

---

---

76

190

---

---

259

---

50

126

283

171

428

---

68

171

104

3-13

3-10

3-13

3-10

---

---

---

3-13

3-10

3-13

3-10

---

---

---

3-10

---

3-13

3-10

3-13

3-10

---

---

3-10

3-13

3-10

---

3-13

3-10

3-13

---

---

20

51

97

147

189

16

---

53

106

187

274

347

88

164

278

401

236

340

36

---

245

162

419

591

62

130

81

41

---

62

92

139

189

230

71

---

107

161

242

329

402

152

228

343

466

311

414

101

---

339

257

514

685

137

205

155

---

---

---

20

66

105

---

---

---

---

53

133

201

---

---

88

202

297

132

236

---

---

132

---

248

419

---

62

---

20

---

31

62

108

147

---

35

---

54

107

188

256

---

76

152

266

362

207

311

50

---

226

86

343

514

68

137

52

5-15

---

5-15

7-13

10-14

10-15

12-18

5-15

---

5-15

7-13

10-14

10-15

12-18

7-15

9-15

5-15

---

5-15

7-13

10-14

10-15

7-15

4-15

7-15

9-15

5-15

7-15

4-15

54

54

70

70

32

32

54

54

54

70

70

32

32

54

54

54

54

70

54

54

32

32

32

32

54

32

54

54

54

35

---

---

---

---

---

---

80

---

---

---

---

34

---

---

126

---

---

184

---

---

61

188

77

334

---

---

96

29

71

102

108

154

---

---

---

124

177

188

269

---

---

---

266

381

---

---

518

---

176

251

565

600

750

(1)

---

239

342

363

29

60

66

112

---

---

---

69

123

133

214

---

---

---

202

316

---

---

443

---

111

187

471

505

750

(1)

---

165

267

288

1. The maximum shutoff pressure when using ENVIRO-SEAL packing is defined by: nP = Table Value - [25/(Port Diameter)

2

]. These table values should not be modified by this formula and the maximum nP of 750 psi should be used for ENVIRO-SEAL packing.

2. The maximum shutoff pressure when using Flexible Graphite packing is defined by: nP = Table Value - [120/(Port Diameter) the maximum nP of 750 psi should be used for Flexible Graphite packing.

2

]. These table values should not be modified by this formula and

15

Product Bulletin

52.1:24CVF_SVF

March 2013

24000CVF and 24000SVF Valves

D103333X012

Figure 13. Dimensional Drawings

216

(48.5)

141

(5.5)

94

(3.7)

TOP-MOUNTED

HANDWHEEL

(OPTIONAL)

72

(2.8)

279

(411.0)

127 (5.0)

1/4 NPT

227

(8.9)

276

(10.9)

60

(2.4)

271

(10.7)

333

(413.1)

229

(9.0)

3/4 INCH

SQUARE

B

31 (1.24)

A

24000CVF/SVF FLANGED

WITH BAUMANN 32 ATO

ACTUATOR WITH

HANDWHEEL

216

(48.50)

3660/3661

POSITIONER

(OPTIONAL)

BAUMANN 54 ATO ACTUATOR

WITH HANDWHEEL AND DVC2000

160

(46.3)

163 (6.4)

MAX

BAUMANN 70 ATO

ACTUATOR WITH OPTIONAL

FIELDVUE DIGITAL VALVE

CONTROLLER

160

(46.3)

130

(5.1) MAX

E1257

BAUMANN 32 ACTUATOR

WITH ADJUSTABLE

OPEN / CLOSE DUAL TRAVEL

STOPS

Note: Actuator removal requires 115 mm (4.5 inches) vertical clearance.

BAUMANN 32 ATC / FAIL

OPEN ACTUATOR WITH

HANDWHEEL

BAUMANN 54 ATC / FAIL

OPEN ACTUATOR WITH

HANDWHEEL mm

(inch)

Table 15. Valve Assembly Weights

VALVE SIZE

EN ASME CL150

24000CVF WEIGHTS

CL300

DN NPS kg lb kg lb

15

20

25

40

50

1/2

3/4

1

1-1/2

2

3.1

3.3

4.8

8.3

14.1

6.8

7.3

10.6

18.2

31

3.3

3.4

5.1

8.3

13.8

8.3

10

13.8

24.8

35.3

EN 10-40 kg lb

3.8

4.5

7.7

9.2

6.3

11.3

16

12.6

21.2

33.4

kg

CL150 lb

3.7

4.7

7.2

7.4

6.4

11.4

16.1

11.2

18.3

30.4

24000SVF WEIGHTS

CL300 kg lb

3.5

4.2

5.7

9.6

15.2

8.2

10.3

14

25.2

35.4

5.9

9.8

15.2

EN 10-40 kg lb

3.5

4.3

7.8

9.4

13

21.7

33.4

ACTUATOR WEIGHTS

TYPE

32

54

70

kg

4.5

11.3

15.4

lb

10

25

34

16

24000CVF and 24000SVF Valves

D103333X012

Product Bulletin

52.1:24CVF_SVF

March 2013

Figure 14. Baumann 24000SVF Stainless Steel Control Valves with Extension Bonnets Dimensional Drawing

B

B

B

B

A

STANDARD BONNET

A

NOLEEK BELLOWS BONNET

OR SINGLE EXTENSION

BONNET

A

DOUBLE

EXTENSION BONNET

A

TRIPLE

EXTENSION BONNET

E1258

Table 16. Dimensions

(1, 2)

VALVE SIZE

A

FACE-TO-FACE

EN ASME CL150 CL300 EN 10-40 Standard

DN

15

20

NPS

1/2

3/4

mm inch

184 7.25

184 7.25

mm inch

190 7.5

194 7.62

mm inch

130 5.11

150 5.90

mm inch

79 3.1

79 3.1

25

40

1 184

1-1/2 222

7.25

8.75

197

235

7.75

9.25

160

200

6.30

7.87

84

96

3.3

3.8

50 2 254 10.0

267 10.5

230 9.06

107

1. Actuator requires 115 mm (4.5 inches) vertical clearance.

2. Face-to-face dimension per EN 558-1 and ISA S75.03.

3. Extension and NOLEEK bellows bonnets are available with 24000SVF stainless steel body ONLY.

4.2

Single mm inch

216 8.5

216 8.5

221

234

244

8.7

9.2

9.6

B

BONNET

Extension

(3)

Double mm inch

352 13.9

352 13.9

356

370

381

14.0

14.6

15.0

Triple mm inch

488 19.2

488 19.2

493

505

516

19.4

19.9

20.3

NOLEEK

Bellows

(3) mm inch

226 8.9

226 8.9

229

229

234

9.0

9.0

9.2

17

Product Bulletin

52.1:24CVF_SVF

March 2013

24000CVF and 24000SVF Valves

D103333X012

Table 17. Model Numbering System

24

Actuator

Type

32

(1)

54

Valve Body Plug Series

102

151

Characteristic

Linear / Metal Seat

Modified Equal % / PTFE Seat

Seat

Leakage

IV

VI

Valve Body Material

CVF

SVF

Carbon

Stainless

Steel

70

MV1020

(2)

VA1020

(2)

177

548

577

Modified Equal % / Reinforced PTFE

Equal % / Metal Seat (S41600)

Equal % / PTFE Seat

VI

IV

VI

588

648

677

688

Equal % / Metal Seat (S31600)

Linear / Metal Seat (S41600)

Linear / PTFE Seat

Linear / Metal Seat (S31600)

IV

IV

VI

IV

1. Baumann 32 actuator requires dual stops with 177 trim series.

2. Refer to bulletin 52.1:ECV, Baumann Electronic Modulating Actuators, D103347X012, for details on these electronic actuators.

3. Only available with 24000SVF stainless steel valve bodies.

Bonnet Style

Omit Standard

E

EB

Extended

(3)

Bellows

(3)

18

24000CVF and 24000SVF Valves

D103333X012

Product Bulletin

52.1:24CVF_SVF

March 2013

19

Product Bulletin

52.1:24CVF_SVF

March 2013

24000CVF and 24000SVF Valves

D103333X012

Neither Emerson, Emerson Process Management, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance of any product. Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.

Baumann, Fisher, FIELDVUE, PlantWeb, and ENVIRO-SEAL are marks owned by one of the companies in the Emerson Process Management business unit of

Emerson Electric Co. Emerson Process Management, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their respective owners.

The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such products at any time without notice.

Emerson Process Management

Marshalltown, Iowa 50158 USA

Sorocaba, 18087 Brazil

Chatham, Kent ME4 4QZ UK

Dubai, United Arab Emirates

Singapore 128461 Singapore www.Fisher.com

20

2009, 2013 Fisher Controls International LLC. All rights reserved.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
