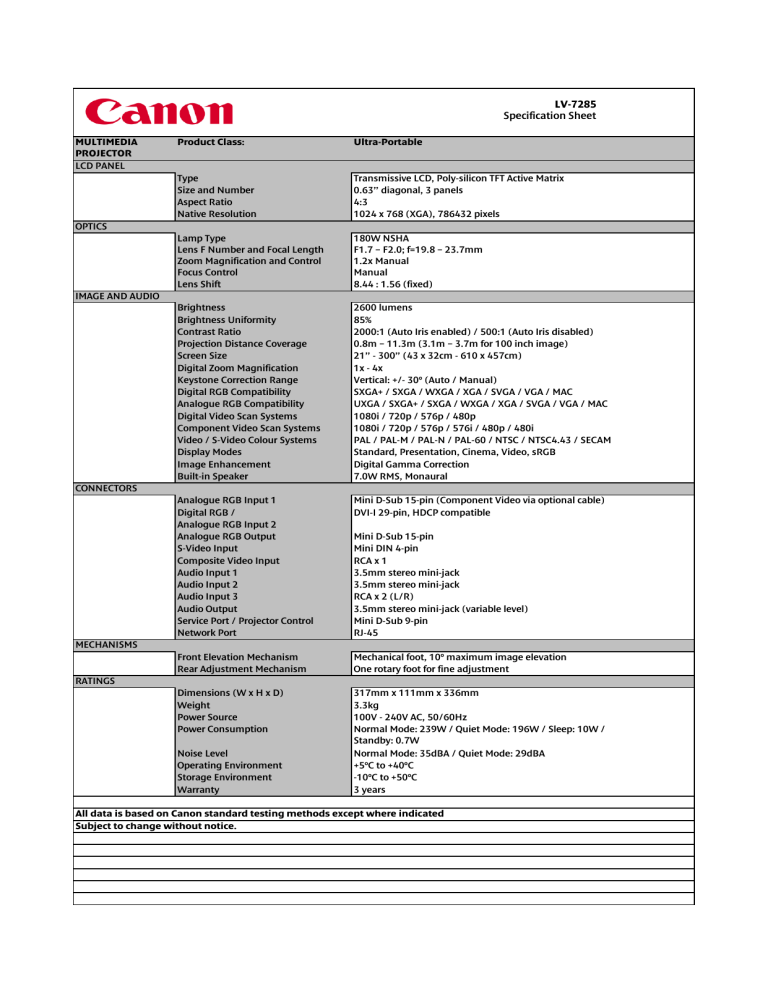

LV-7285 Specification Sheet

LV-7285 Specification Sheet
LV-7285
Specification Sheet
MULTIMEDIA
PROJECTOR
LCD PANEL
Product Class:
Ultra-Portable
Type
Size and Number
Aspect Ratio
Native Resolution
Transmissive LCD, Poly-silicon TFT Active Matrix
0.63” diagonal, 3 panels
4:3
1024 x 768 (XGA), 786432 pixels
Lamp Type
Lens F Number and Focal Length
Zoom Magnification and Control
Focus Control
Lens Shift
180W NSHA
F1.7 – F2.0; f=19.8 – 23.7mm
1.2x Manual
Manual
8.44 : 1.56 (fixed)
Brightness
Brightness Uniformity
Contrast Ratio
Projection Distance Coverage
Screen Size
Digital Zoom Magnification
Keystone Correction Range
Digital RGB Compatibility
Analogue RGB Compatibility
Digital Video Scan Systems
Component Video Scan Systems
Video / S-Video Colour Systems
Display Modes
Image Enhancement
Built-in Speaker
2600 lumens
85%
2000:1 (Auto Iris enabled) / 500:1 (Auto Iris disabled)
0.8m – 11.3m (3.1m – 3.7m for 100 inch image)
21” - 300” (43 x 32cm - 610 x 457cm)
1x - 4x
Vertical: +/- 30° (Auto / Manual)
SXGA+ / SXGA / WXGA / XGA / SVGA / VGA / MAC
UXGA / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA / MAC
1080i / 720p / 576p / 480p
1080i / 720p / 576p / 576i / 480p / 480i
PAL / PAL-M / PAL-N / PAL-60 / NTSC / NTSC4.43 / SECAM
Standard, Presentation, Cinema, Video, sRGB
Digital Gamma Correction
7.0W RMS, Monaural
Analogue RGB Input 1
Digital RGB /
Analogue RGB Input 2
Analogue RGB Output
S-Video Input
Composite Video Input
Audio Input 1
Audio Input 2
Audio Input 3
Audio Output
Service Port / Projector Control
Network Port
Mini D-Sub 15-pin (Component Video via optional cable)
DVI-I 29-pin, HDCP compatible
Front Elevation Mechanism
Rear Adjustment Mechanism
Mechanical foot, 10° maximum image elevation
One rotary foot for fine adjustment
Dimensions (W x H x D)
Weight
Power Source
Power Consumption
317mm x 111mm x 336mm
3.3kg
100V - 240V AC, 50/60Hz
Normal Mode: 239W / Quiet Mode: 196W / Sleep: 10W /
Standby: 0.7W
Normal Mode: 35dBA / Quiet Mode: 29dBA
+5°C to +40°C
-10°C to +50°C
3 years
OPTICS
IMAGE AND AUDIO
CONNECTORS
Mini D-Sub 15-pin
Mini DIN 4-pin
RCA x 1
3.5mm stereo mini-jack
3.5mm stereo mini-jack
RCA x 2 (L/R)
3.5mm stereo mini-jack (variable level)
Mini D-Sub 9-pin
RJ-45
MECHANISMS
RATINGS
Noise Level
Operating Environment
Storage Environment
Warranty
All data is based on Canon standard testing methods except where indicated
Subject to change without notice.
