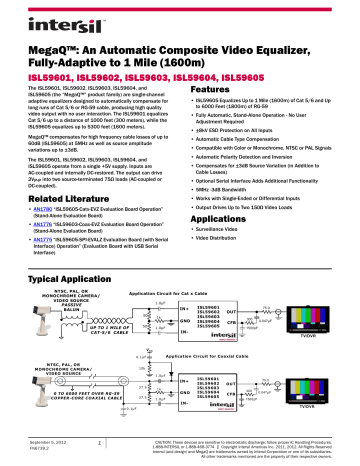

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

MegaQ™: An Automatic Composite Video Equalizer,

Fully-Adaptive to 1 Mile (1600m)

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

The ISL59601, ISL59602, ISL59603, ISL59604, and

ISL59605 (the “MegaQ™” product family) are single-channel adaptive equalizers designed to automatically compensate for long runs of Cat 5/6 or RG-59 cable, producing high quality video output with no user interaction. The ISL59601 equalizes

Cat 5/6 up to a distance of 1000 feet (300 meters), while the

ISL59605 equalizes up to 5300 feet (1600 meters).

Features

• ISL59605 Equalizes Up to 1 Mile (1600m) of Cat 5/6 and Up to 6000 Feet (1800m) of RG-59

• Fully Automatic, Stand-Alone Operation - No User

Adjustment Required

• ±8kV ESD Protection on All Inputs

MegaQ™ compensates for high frequency cable losses of up to

60dB (ISL59605) at 5MHz as well as source amplitude variations up to ±3dB.

• Automatic Cable Type Compensation

• Compatible with Color or Monochrome, NTSC or PAL Signals

• Automatic Polarity Detection and Inversion

The ISL59601, ISL59602, ISL59603, ISL59604, and

ISL59605 operate from a single +5V supply. Inputs are

AC-coupled and internally DC-restored. The output can drive

2V

P-P

into two source-terminated 75Ω loads (AC-coupled or

DC-coupled).

• Compensates for ±3dB Source Variation (in Addition to

Cable Losses)

• Optional Serial Interface Adds Additional Functionality

• 5MHz -3dB Bandwidth

Related Literature

• Works with Single-Ended or Differential Inputs

• AN1780 “ISL59605-Catx-EVZ Evaluation Board Operation”

(Stand-Alone Evaluation Board)

• Output Drives Up to Two 150Ω Video Loads

Applications

• AN1776 “ISL59603-Coax-EVZ Evaluation Board Operation”

(Stand-Alone Evaluation Board)

• Surveillance Video

• Video Distribution

• AN1775 “ISL59605-SPI-EVALZ Evaluation Board (with Serial

Interface) Operation” (Evaluation Board with USB Serial

Interface)

Typical Application

NTSC, PAL, OR

MONOCHROME CAMERA/

VIDEO SOURCE

PASSIVE

BALUN

UP TO 1 MILE OF

CAT-5/6 CABLE

Application Circuit for Cat x Cable

1.0µF

50

50

1k

1.0µF

IN+

GND

IN-

ISL59601

ISL59602

ISL59603

ISL59604

ISL59605

OUT

CFB

75.0

300

1500pF

0.047µF

NTSC, PAL, OR

MONOCHROME CAMERA /

VIDEO SOURCE

0 TO 6000 FEET OVER RG-59

COPPER-CORE COAXIAL CABLE

0.1µF

0.1µF

V

CC

10k

1.0µF

Application Circuit for Coaxial Cable

37.5

37.5

1k

1.0µF

IN+

GND

IN-

ISL59601

ISL59602

ISL59603

ISL59604

ISL59605

OUT

CFB

75.0

300

1500 pF

0.047µF

TV/DVR

TV/DVR

September 5, 2012

FN6739.2

1

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

|

Copyright Intersil Americas Inc. 2011, 2012. All Rights Reserved

Intersil (and design) and MegaQ are trademarks owned by Intersil Corporation or one of its subsidiaries.

All other trademarks mentioned are the property of their respective owners.

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Pin Configuration

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

(20 LD QFN)

TOP VIEW

GND

1

V

DD1

2

IN+

3

GND 4

IN-

5

20 19 18 17 16

THERMAL

PAD

(SOLDER TO GND)

15

V

REF

14 GND

13

VIDEO OUT

12 CFB

11

V

DD2

6 7 8 9 10

Block Diagram

IN+

IN-

CLAMP AND

DIFFERENTIAL TO

SINGLE-ENDED

CONVERTER

V

REF

GEN

EQUALIZER

DIGITAL INTERFACE

LPF

AMP

VIDEO OUT

CFB

2

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Pin Descriptions

PIN NAME PIN NUMBER

INPUTS

3 IN+

5

12

IN-

CFB

DESCRIPTION

High impedance analog input. This is the positive differential video input. Input signals are externally AC-coupled with an external 1.0µF capacitor. See Applications Information section for information regarding input network for Cat x and coax cables.

High impedance analog input. This is the negative differential video input. Input signals are externally AC-coupled with an external 1.0µF capacitor. See Applications Information section for information regarding input network for

Cat x and coax cables.

Analog input. Bypass to ground with a 1500pF capacitor and connect to VIDEO OUT via a 0.047µF capacitor in series with a 300

Ω resistor.

OUTPUTS

13

DIGITAL I/O

7

VIDEO OUT Single-ended video output. The internal AGC sets this level to 2V

P-P

for a nominal 1V

P-P

(pre-cable) video source.

8

9

10

16

EQ_DISABLE Digital Input. Equalizer Disable.

0: Normal Operation

1: Disables the equalizer to allow for insertion of upstream data onto the signal path, e.g. RS-485.

This pin must be asserted high or low. Do not float this pin.

COLOR Digital I/O. Color Indicator/Override.

0: Monochrome

1: Color

When used as an output, this pin indicates whether the incoming signal does or does not have a colorburst. When

used as an input, this pin forces the state machine to into monochrome or color mode. See Figure 49 and associated

text for more information on functionality.

When COLOR is not externally driven, it is an output pin with a 13k (typical) output impedance. It is capable of driving

5V, high-impedance CMOS logic.

Note: The COLOR indicator may be invalid for monochrome signals over greater than ~4800 feet. The device will still equalize properly if this occurs.

INVERT Digital I/O. Polarity Indicator/Override.

0: Nominal Polarity.

1: Inverted Polarity.

When used as an output, this pin indicates the polarity of the incoming signal. When used as an input, this pin

controls whether or not the input signal is inverted in the signal chain. See Figure 48 and associated text for more

information on functionality.

When INVERT is not externally driven, it is an output pin with a 13k (typical) output impedance. It is capable of driving

5V, high-impedance CMOS logic.

In stand-alone mode, toggling this pin high-low-high or low-high-low will make the equalizer reacquire the signal.

LOCKED

FREEZE

Digital Output.

0: Signal is not equalized (or not present).

1: Signal is equalized and settled.

Note: The LOCKED indicator may be invalid for monochrome signals over greater than ~4800 feet. The device will still equalize properly if this occurs.

Digital Input. Freezes equalizer in its current EQ state.

0: Continuous Update

1: Freeze EQ in current state.

For stand-alone operations, connect FREEZE to the LOCKED pin to enter the recommended Lock Until Reset mode.

Tie this pin low if unused.

SERIAL INTERFACE

18

POWER

19

20

2

SEN

SCK

SD

V

DD1

Digital Input. Serial Interface Enable. This pin should be tied to ground when not in use.

Digital Input. Serial Interface Clock Signal. This pin should be tied to ground when not in use.

Digital I/O. Serial Interface Data Signal. This pin should be tied to ground when not in use.

+5V power supply for analog equalizer. Isolate from +5V source with a ferrite bead and bypass to ground with a 0.1µF capacitor in parallel with a 4.7µF capacitor.

3

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Pin Descriptions

(Continued)

PIN NUMBER

11

15

PIN NAME

V

DD2

V

REF

GND

DESCRIPTION

+5V power supply for output amplifier. Bypass to ground with a 0.1µF capacitor.

Internally generated 2.5V reference. Bypass to ground with a low-ESR 0.47µF capacitor. Do not attach anything else to this pin.

Ground 1, 4, 6, 14, 17

THERMAL PAD

EP PAD Solder the exposed thermal PAD to ground for best thermal and electrical performance.

Ordering Information

PART NUMBER

(Notes 1, 2, 3)

ISL59601IRZ

ISL59601IRZ-T7

PART

MARKING

596 01IRZ

596 01IRZ

MAX EQ

LENGTH

1000 feet

1000 feet

TEMP RANGE

(°C)

-40 to +85

-40 to +85

PACKAGE

(Pb-free)

20 Ld QFN (4x4mm)

20 Ld QFN (4x4mm)

PKG.

DWG. #

L20.4x4C

L20.4x4C

ISL59601IRZ-T7A

ISL59602IRZ

ISL59602IRZ-T7

ISL59602IRZ-T7A

ISL59603IRZ

ISL59603IRZ-T7

ISL59603IRZ-T7A

ISL59604IRZ

596 01IRZ

596 02IRZ

596 02IRZ

596 02IRZ

596 03IRZ

596 03IRZ

596 03IRZ

596 04IRZ

1000 feet

2000 feet

2000 feet

2000 feet

3000 feet

3000 feet

3000 feet

4000 feet

-40 to +85

-40 to +85

-40 to +85

-40 to +85

-40 to +85

-40 to +85

-40 to +85

-40 to +85

20 Ld QFN (4x4mm)

20 Ld QFN (4x4mm)

20 Ld QFN (4x4mm)

20 Ld QFN (4x4mm)

20 Ld QFN (4x4mm)

20 Ld QFN (4x4mm)

20 Ld QFN (4x4mm)

20 Ld QFN (4x4mm)

L20.4x4C

L20.4x4C

L20.4x4C

L20.4x4C

L20.4x4C

L20.4x4C

L20.4x4C

L20.4x4C

ISL59604IRZ-T7

ISL59604IRZ-T7A

ISL59605IRZ

ISL59605IRZ-T7

596 04IRZ

596 04IRZ

596 05IRZ

596 05IRZ

4000 feet

4000 feet

5300 feet

5300 feet

-40 to +85

-40 to +85

-40 to +85

-40 to +85

20 Ld QFN (4x4mm)

20 Ld QFN (4x4mm)

20 Ld QFN (4x4mm)

20 Ld QFN (4x4mm)

20 Ld QFN (4x4mm)

L20.4x4C

L20.4x4C

L20.4x4C

L20.4x4C

L20.4x4C

ISL59605IRZ-T7A

ISL59605-Catx-EVZ

ISL59603-Coax-EVZ

ISL59605-SPI-EVALZ

596 05IRZ 5300 feet

Stand-alone (no USB I/O) evaluation board

Stand-alone (no USB I/O) evaluation board

Evaluation board with serial interface

-40 to +85

NOTES:

1. Please refer to TB347 for details on reel specifications.

2. These Intersil Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Intersil Pbfree products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.

3. For Moisture Sensitivity Level (MSL), please see device information page for ISL59601 , ISL59602 , ISL59603 , ISL59604 , ISL59605 . For more information on MSL please see techbrief TB363 .

4

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Table of Contents

Absolute Maximum Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Thermal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Serial Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Serial Timing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Typical Performance Over 1000 Feet of Cat 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Typical Performance Over 2000 Feet of Cat 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Typical Performance Over 3000 Feet of Cat 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Typical Performance Over 4000 Feet of Cat 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Typical Performance Over 5200 Feet of Cat 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Typical Performance Over 1000 Feet of Copper-Core RG-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Typical Performance Over 2000 Feet of Copper-Core RG-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Typical Performance Over 3000 Feet of Copper-Core RG-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Typical Performance Over 4000 Feet of Copper-Core RG-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Typical Performance Over 5000 Feet of Copper-Core RG-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Typical Performance Over 6000 Feet of Copper-Core RG-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

MegaQ™ Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Equalization for Various Cable Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Unshielded Twisted Pair (UTP) App Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Coax Input Circuit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Dual UTP/Coax Input Circuit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Input Multiplexing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Stand-Alone Operation and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Lock Until RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Continuous Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Polarity Detection and Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

The COLOR Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Monochrome Video Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Security Cameras. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Additional Equalization Modes Available With the Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Continuous Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Lock Until RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Lock Until Signal Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Manual Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Serial Interface Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Write Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Read Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Register Listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Bypassing and Layout Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

General PowerPAD Design Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Package Outline Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

5

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Absolute Maximum Ratings

(T

A

= +25°C)

Supply Voltage between V

DD

and GND . . . . . . . . . . . . . . . . . . . . . . . . 5.75V

Maximum Continuous Output Current . . . . . . . . . . . . . . . . . . . . . . . . . 50mA

Maximum Voltage on any Pin . . . . . . . . . . . . . . . . GND - 0.3V to V

DD

ESD Rating

+ 0.3V

Human Body Model (tested per JESD22-A114) . . . . . . . . . . . . . . 8,000V

Machine Model (Tested per JESD22-A115). . . . . . . . . . . . . . . . . . . . 600V

CDM Model (Tested per JESD22-C101) . . . . . . . . . . . . . . . . . . . . . 2,000V

Latch Up (Tested per JESD78; Class II, Level A). . . . . . . . . . . . . . . . . . . . . . . . . 100mA

Thermal Information

Thermal Resistance (Typical)

20 Ld QFN Package (Notes 4, 5) . . . . . . . .

θ

JA

(°C/W)

θ

JC

40

(°C/W)

3.7

Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C

Ambient Operating Temperature . . . . . . . . . . . . . . . . . . . . . -40°C to +85°C

Die Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+150°C

Pb-Free Reflow Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see link below http://www.intersil.com/pbfree/Pb-FreeReflow.asp

CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product reliability and result in failures not covered by warranty.

NOTES:

4.

θ

JA

is measured in free air with the component mounted on a high effective thermal conductivity test board with “direct attach” features. See Tech

Brief TB379 .

5. For

θ

JC

, the “case temp” location is the center of the exposed metal pad on the package underside.

Electrical Specifications

cable length = 0 feet, R

L

V

DD

= V

DD1

= V

DD2

= +5V, source video amplitude before any cable loss = 1V

= 150

Ω (75Ω series + 75Ω load to ground), T

A

P-P, cable type = Cat 5,

= +25°C, exposed die plate = 0V, unless otherwise specified.

Max cable length = 1000 feet for ISL59601, 2000 feet for ISL59602, 3000 feet for ISL59603, 4000 feet for ISL59604, and 5300 feet for

ISL59605.

DESCRIPTION CONDITIONS

MIN

(Note 6)

TYP

MAX

(Note 6)

UNIT PARAMETER

SUPPLY

V

DD

I

S1

I

S2

PSRR

DC

AC PERFORMANCE

BW

DG

DP

V

DD

Operating Range

V

DD1

Supply Current

V

DD2

Supply Current

Power Supply Rejection Ratio

-3dB Bandwidth

Differential Gain

Differential Phase

Full power

Cable length = max,

20IRE Sub Carrier on 100% ramp

Cable length = max,

20IRE Sub Carrier on 100% ramp

4.5

5.0

40

30

60

5

1

1

5.5

60

45

V mA mA dB

MHz

%

°

DC PERFORMANCE

V

BL

Output Blanking/Backporch Level

INPUT CHARACTERISTICS

V

INDIFF_MIN

V

INDIFF_MAX

V

CM-MIN

V

CM-MAX

SNR

Minimum Correctable Peak-to-Peak

Signal Swing

Maximum Correctable Peak-to-Peak

Signal Swing

Min Common Mode Input Voltage

Max Common Mode Input Voltage

Signal-to-Noise Ratio,

NTC-7 weighted filter

Measured at VIDEO OUT pin

Measured at the source-end of cable, before cable losses

Measured at the source-end of cable, before cable losses

EQ = 0 feet

EQ = 1,000 feet

EQ = 2,000 feet

EQ = 3,000 feet

EQ = 4,000 feet

EQ = 5,300 feet

0.82

0.95

0.7

1.4

1

4

-67

-67

-65

-64

-61

-54

1.05

V

V

P-P

V

P-P

V

V dB rms dB rms dB rms dB rms dB rms dB rms

6

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Electrical Specifications

cable length = 0 feet, R

L

V

DD

= V

DD1

= V

DD2

= +5V, source video amplitude before any cable loss = 1V

= 150

Ω (75Ω series + 75Ω load to ground), T

A

P-P, cable type = Cat 5,

= +25°C, exposed die plate = 0V, unless otherwise specified.

Max cable length = 1000 feet for ISL59601, 2000 feet for ISL59602, 3000 feet for ISL59603, 4000 feet for ISL59604, and 5300 feet for

ISL59605. (Continued)

CMRR

PARAMETER DESCRIPTION f

Common-mode Rejection Ratio at

IN

= 100kHz

CONDITIONS

0 feet cable

2,500 feet cable

MIN

(Note 6) TYP

-50

-35

25

MAX

(Note 6) UNIT dB dB

µA I

Clamp

Input Clamp Current

OUTPUT CHARACTERISTICS

A

GC-ACC

AGC Accuracy Accuracy of sync tip amplitude relative to 600mV

±0.5

dB

I

OUT t

EN-EQ t

DIS-EQ

LOGIC CONTROL PINS

V

IH

V

IL

I

LOGIC

Output Drive Current

Enable-to-Equalization On Time

Disable-to-Equalization Off Time

Logic High Level

Logic Low Level

Logic Input Current EQ_DISABLE, FREEZE, SD, SCK,

SEN

INVERT, COLOR

2.0

40

500

500

±10

±500

0.8

V

V

µA mA ns ns

µA

Serial Timing

PARAMETER DESCRIPTION CONDITIONS

MIN

(Note 6)

t

WH t

WL t

RI t

FI t

CS t

LEAD t

SU t

H

Serial Enable Deselect Time

Lead Time

SD, SCK Setup Time

SD, SEN, SCK Hold Time

SCK High Time

SCK Low Time

SD, SEN, SCK Rise Time

SD, SEN, SCK Fall Time

10

10

10

10

100

100

10

10 t

LAG t

V

Lag Time

SCK Rising Edge to SD Data Valid Read Operation

10 f

SCK

SCK Frequency

NOTE:

6. Compliance to datasheet limits is assured by one or more methods: production test, characterization and/or design.

TYP

MAX

(Note 6)

10

5 ns ns ns ns

UNIT ns ns ns ns ns ns

MHz

7

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Serial Timing Diagram

SEN

SCK

SD t

CS t

LEAD

1

1 t

SU

A6

2 t

H

3 t

WH

A5

4

A4 f

SCK

5 t

WL

A3

6

A2

7

A1

8 t

V

A0

9

D7

10

READ OPERATION

D6 t

RI

11

D5

12

D4

13 t

FI

14

D3 D2

15 t

LAG

16

D1 D0 t

CS

SEN

SCK

SD t

LEAD

1 t

SU

0 A6

2 t

H

3 t

WH

A5

4

A4 f

SCK

5 t

WL

A3

6

A2

7

8

9 10 t

RI

11 12 13

A1 A0 D7 D6

WRITE OPERATION

D5 D4 D3

A6:A0 = REGISTER ADDRESS, D7:D0 = DATA TO BE READ/WRITTEN t

FI

14

D2

15 t

LAG

16

D1 D0

8

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Typical Performance Over 1000 Feet of Cat 5

FIGURE 1. TEST PATTERN IMAGE AFTER 1000 FEET OF

UNCOMPENSATED CAT 5

200mV/DIV

FIGURE 2. TEST PATTERN IMAGE AFTER 1000 FEET OF CAT 5

WITH ISL59601 (OR BETTER)

200mV/DIV

10µs/DIV

FIGURE 3. MULTIBURST WAVEFORM AFTER 1000 FEET OF

UNCOMPENSATED CAT 5

10µs/DIV

FIGURE 4. MULTIBURST WAVEFORM AFTER 1000 FEET OF CAT 5

WITH ISL59601 (OR BETTER)

9

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Typical Performance Over 2000 Feet of Cat 5

FIGURE 5. TEST PATTERN IMAGE AFTER 2000 FEET OF

UNCOMPENSATED CAT 5

200mV/DIV

FIGURE 6. TEST PATTERN IMAGE AFTER 2000 FEET OF CAT 5

WITH ISL59602 (OR BETTER)

200mV/DIV

10µs/DIV

FIGURE 7. MULTIBURST WAVEFORM AFTER 2000 FEET OF

UNCOMPENSATED CAT 5

10µs/DIV

FIGURE 8. MULTIBURST WAVEFORM AFTER 2000 FEET OF CAT 5

WITH ISL59602 (OR BETTER)

10

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Typical Performance Over 3000 Feet of Cat 5

FIGURE 9. TEST PATTERN IMAGE AFTER 3000 FEET OF

UNCOMPENSATED CAT 5

200mV/DIV

FIGURE 10. TEST PATTERN IMAGE AFTER 3000 FEET OF CAT 5

WITH ISL59603 (OR BETTER)

200mV/DIV

10µs/DIV

FIGURE 11. MULTIBURST WAVEFORM AFTER 3000 FEET OF

UNCOMPENSATED CAT 5

10µs/DIV

FIGURE 12. MULTIBURST WAVEFORM AFTER 3000 FEET OF CAT 5

WITH ISL59603 (OR BETTER)

11

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Typical Performance Over 4000 Feet of Cat 5

FIGURE 13. TEST PATTERN IMAGE AFTER 4000 FEET OF

UNCOMPENSATED CAT 5

200mV/DIV

FIGURE 14. TEST PATTERN IMAGE AFTER 4000 FEET OF CAT 5

WITH ISL59604 (OR BETTER)

200mV/DIV

10µs/DIV

FIGURE 15. MULTIBURST WAVEFORM AFTER 4000 FEET OF

UNCOMPENSATED CAT 5

10µs/DIV

FIGURE 16. MULTIBURST WAVEFORM AFTER 4000 FEET OF CAT 5

WITH ISL59604 (OR BETTER)

12

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Typical Performance Over 5200 Feet of Cat 5

FIGURE 17. TEST PATTERN IMAGE AFTER 5200 FEET OF

UNCOMPENSATED CAT 5

200mV/DIV

FIGURE 18. TEST PATTERN IMAGE AFTER 5200 FEET OF CAT 5

WITH ISL59605

200mV/DIV

10µs/DIV

FIGURE 19. MULTIBURST WAVEFORM AFTER 5200 FEET OF

UNCOMPENSATED CAT 5

10µs/DIV

FIGURE 20. MULTIBURST WAVEFORM AFTER 5200 FEET OF CAT 5

WITH ISL59605

13

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Typical Performance Over 1000 Feet of Copper-Core RG-59

FIGURE 21. TEST PATTERN IMAGE AFTER 1000 FEET OF

UNCOMPENSATED RG-59 COAX

200mV/DIV

FIGURE 22. TEST PATTERN IMAGE AFTER 1000 FEET OF RG-59

COAX WITH ISL59601 (OR BETTER)

200mV/DIV

10µs/DIV

FIGURE 23. MULTIBURST WAVEFORM AFTER 1000 FEET OF

UNCOMPENSATED RG-59 COAX

10µs/DIV

FIGURE 24. MULTIBURST WAVEFORM AFTER 1000 FEET OF RG-59

COAX WITH ISL59601 (OR BETTER)

14

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Typical Performance Over 2000 Feet of Copper-Core RG-59

FIGURE 25. TEST PATTERN IMAGE AFTER 2000 FEET OF

UNCOMPENSATED RG-59 COAX

200mV/DIV

FIGURE 26. TEST PATTERN IMAGE AFTER 2000 FEET OF RG-59

COAX WITH ISL59602 (OR BETTER)

200mV/DIV

10µs/DIV

FIGURE 27. MULTIBURST WAVEFORM AFTER 2000 FEET OF

UNCOMPENSATED RG-59 COAX

10µs/DIV

FIGURE 28. MULTIBURST WAVEFORM AFTER 2000 FEET OF RG-59

COAX WITH ISL59602 (OR BETTER)

15

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Typical Performance Over 3000 Feet of Copper-Core RG-59

FIGURE 29. TEST PATTERN IMAGE AFTER 3000 FEET OF

UNCOMPENSATED RG-59 COAX

200mV/DIV

FIGURE 30. TEST PATTERN IMAGE AFTER 3000 FEET OF RG-59

COAX WITH ISL59602 (OR BETTER)

200mV/DIV

10µs/DIV

FIGURE 31. MULTIBURST WAVEFORM AFTER 3000 FEET OF

UNCOMPENSATED RG-59 COAX

10µs/DIV

FIGURE 32. MULTIBURST WAVEFORM AFTER 3000 FEET OF RG-59

COAX WITH ISL59602 (OR BETTER)

16

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Typical Performance Over 4000 Feet of Copper-Core RG-59

FIGURE 33. TEST PATTERN IMAGE AFTER 4000 FEET OF

UNCOMPENSATED RG-59 COAX

200mV/DIV

FIGURE 34. TEST PATTERN IMAGE AFTER 4000 FEET OF RG-59

COAX WITH ISL59602 (OR BETTER)

200mV/DIV

10µs/DIV

FIGURE 35. MULTIBURST WAVEFORM AFTER 4000 FEET OF

UNCOMPENSATED RG-59 COAX

10µs/DIV

FIGURE 36. MULTIBURST WAVEFORM AFTER 4000 FEET OF RG-59

COAX WITH ISL59602 (OR BETTER)

17

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Typical Performance Over 5000 Feet of Copper-Core RG-59

FIGURE 37. TEST PATTERN IMAGE AFTER 5000 FEET OF

UNCOMPENSATED RG-59 COAX

200mV/DIV

FIGURE 38. TEST PATTERN IMAGE AFTER 5000 FEET OF RG-59

COAX WITH ISL59603 (OR BETTER)

200mV/DIV

10µs/DIV

FIGURE 39. MULTIBURST WAVEFORM AFTER 5000 FEET OF

UNCOMPENSATED RG-59 COAX

10µs/DIV

FIGURE 40. MULTIBURST WAVEFORM AFTER 5000 FEET OF RG-59

COAX WITH ISL59603 (OR BETTER)

18

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Typical Performance Over 6000 Feet of Copper-Core RG-59

FIGURE 41. TEST PATTERN IMAGE AFTER 6000 FEET OF

UNCOMPENSATED RG-59 COAX

200mV/DIV

FIGURE 42. TEST PATTERN IMAGE AFTER 6000 FEET OF RG-59

COAX WITH ISL59603 (OR BETTER)

200mV/DIV

10µs/DIV

FIGURE 43. MULTIBURST WAVEFORM AFTER 6000 FEET OF

UNCOMPENSATED RG-59 COAX

10µs/DIV

FIGURE 44. MULTIBURST WAVEFORM AFTER 6000 FEET OF RG-59

COAX WITH ISL59603 (OR BETTER)

19

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Functional Description

MegaQ™ Overview

MegaQ™ is a fully automated, stand-alone equalizer for composite video transmitted over UTP (Unshielded Twisted Pair, i.e. Cat 5, Cat 6, etc.) or coaxial (RG-59) cables.

Differential video signals sent over long distances of twisted pair wire exhibit large high frequency attenuation, resulting in loss of high frequency detail/blurring. The exact loss characteristic is a complex function of wire gauge, length, composition, and coupling to adjacent conductors.

The video signal can be restored by applying a filter with the exact inverse transfer function to the far end signal. MegaQ™ is designed to compensate for the losses due to long cables, and incorporates the functionality and flexibility to match a wide variety of cable types and loss characteristics.

While MegaQ™ was designed and optimized for stand-alone operation, with no need for any external control of any kind, it has an optional SPI serial interface with some additional features.

See “Additional Equalization Modes Available With the Serial

Interface” on page 22 for more information on the features and

operation of the serial interface.

Equalization for Various Cable Types

TABLE 1. CABLE TYPES AND LENGTHS

CABLE TYPE

MAXIMUM

LENGTH SUPPORTED

Copper-Core

CAT5/CAT5e

CAT6

Coaxial - RG-59

CAT2/CAT3

(telephone wire)

Belden IMSA Spec 39-2 581718

(3-pair traffic light cable)

5300 feet

5600 feet

6000 feet

3000 feet

5300 feet

Non-Copper-Core*

CAT5/CAT5e CCA

(Copper-Coated Aluminum Core)

2000 feet

Coaxial - RG-59 CCS

(Copper-Coated Steel Core)

1500 feet

*Image quality will be significantly improved over unequalized cable, but there will still be some image smearing due to the high resistance of the core material.

C7

0.1µF

Ferrite Bead –

DC resistance = 1

Ω

,

600

Ω at 100MHz,

100mA DC current rating

+5V

C8 C9

0.1µF 4.7µF

DIFFERENTIAL

VIDEO INPUT+

5V

TVS

Z1

DIFFERENTIAL

VIDEO INPUT-

5V

TVS

Z2

C1

1.0µF

R3

R1

1k

R2

49.9

49.9

C2

1.0µF

IN+

GND

IN-

V

DD

1

TVS = Transient Voltage Suppressor a.k.a. Transorb

SERIAL

INTERFACE

(OPTIONAL)

SEN

SCK

SD

V

DD

2

OUT

CFB

ISL59601

ISL59602

ISL59603

ISL59604

ISL59605

V

REF

EQ_DISABLE

COLOR

INVERT

LOCKED

FREEZE

GND

R6 75.0

VIDEO

OUT

300

C4

R5

1500pF

C5

0.047µF

Internally

Generated

C6

0.47µF

Freezes EQ once lock is achieved.

Tie FREEZE low if not used.

FIGURE 45. APPLICATION CIRCUIT FOR UTP CABLE

20

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Application Information

Unshielded Twisted Pair (UTP) App Circuit

Figure 45 shows the complete schematic for a MegaQ™

equalizer configured for unshielded twisted pair (UTP) cable. The input signal is terminated into the network formed by R1, R2, and R3. C1 and C2 AC-couple the signal into MegaQ™. To protect the front-end circuitry, 5V transorbs (Z1 and Z2) should be used instead of diodes because the signals on either differential input may swing far enough below ground to turn on a diode and distort the video.

On the output side, C5, R5, and C4 form a compensation network, while R6 provides 75Ω source-termination for the video output. MegaQ™ has an native gain of 6dB, so when VIDEO OUT is terminated into 75Ω (the input to a DVR, TV, etc.), R6 and the

75Ω terminator form a 2:1 divider, producing standard video amplitude across the 75Ω terminator.

Coax Input Circuit

Figure 46 shows the input termination recommended for coaxial

cables. The differential termination resistance is now 75Ω to match the characteristic impedance of the RG-59 coax cable. C3 bypasses high-frequency noise on the coax ground line to system ground. This allows the coax ground to be independent of the system at low frequencies (DC to 50/60Hz) to accommodate differences in the ground potential of the remote video source(s).

The coax startup network (D1, R4, C4) prevents a rare start-up condition that can occur when a high average-picture-level (e.g. white screen) video signal is present on the inputs before the power has been applied.

V

CC

C4

0.1µF

D1

10k R4

COAX

Z1

5V

TVS

Z2

5V

TVS

37.5

1.0µF

R1

1k

C1

37.5

R2

R3

C2

1.0µF

C3

0.1µF

IN+

GND

IN-

MegaQ

TM

TVS = Transient Voltage Suppressor a.k.a. Transorb

FIGURE 46. APPLICATION CIRCUIT FOR COAX CABLE

Dual UTP/Coax Input Circuit

If desired, it is also possible to support both UTP and coax cables with the same PCB layout using two SPST switches that are closed when in coax mode (Figure 47). Since UTP requires a

100Ω termination network while coax requires 75Ω, a switch to introduce a shunt 300Ω resistor when in coax mode will change the termination from 100Ω to 75Ω. A second switch is required to engage C3. The addition of the coax startup circuit (D1, R4,

C4) can unbalance the capacitance of the differential pair and degrade the CMRR in UTP applications. This in turn could cause excess noise at long lengths of UTP. In UTP applications, if the output signal is too noisy at long distances, an optional capacitor

Cx may be used to balance the capacitance of the differential inputs. The value of Cx should be determined by calculating how much trace capacitance is added by the coax startup circuit. A typical value for a good layout is ~5pF. Note that only coax or UTP should be connected at any one time - this circuit does not multiplex between them.

C4

0.1µF

V

CC

D1

UTP

IN+

UTP

IN-

COAX

Z1

5V

TVS

300

R5

SW1A

10k

49.9

49.9

5.6pF

Cx*

Z2

5V

TVS

*optional

SW1B

C3

0.1µF

TVS = Transient Voltage Suppressor a.k.a. Transorb

R4

1.0µF

R1

R3

C1

R2

1k

C2

1.0µF

IN+

GND

IN-

Close all switches for

Coax

MegaQ

TM

FIGURE 47. APPLICATION CIRCUIT FOR UTP/COAX CABLE

Input Multiplexing

Placing a semiconductor multiplexer in front of this part may increase high frequency attenuation and noise. However a low-capacitance mechanical relay may be acceptable. Note that changing from one channel to another in Lock Until Reset mode will require a reset (INVERT toggle) to trigger equalization of the

new channel (see “Lock Until RESET” on page 21).

For best performance, do not multiplex the inputs to the equalizer - this can further degrade the signal. Instead, multiplex at the output after equalization has been performed.

Stand-Alone Operation and Configuration

In its default stand-alone configuration, MegaQ™ features two modes of automatic cable equalization: Lock Until Reset and

Continuous Update. Lock Until Reset is the recommended mode for most applications.

LOCK UNTIL RESET

In the Lock Until Reset mode, once MegaQ™ finds the optimum equalization and the LOCKED signal goes high, the equalization is frozen and will not change until either the power is cycled or the INVERT signal is toggled, which initiates a re-equalization of the input signal. Re-equalization is usually only necessary during device/system evaluation - in normal operation MegaQ™ powers-up, acquires and equalizes the signal, and continues to equalize until/unless it is powered-down. If the signal is lost in

Lock Until Reset mode, the LOCKED pin will not go low until/unless the device is reset by toggling the INVERT pin. A reset should only be necessary if the length or type of cable was changed without cycling power.

To enable the Lock Until Reset mode, tie the LOCKED output pin

to the FREEZE input pin as shown in Figure 45 on page 20.

To generate a reset (and trigger a re-equalization), toggle the external INVERT pin to its opposite state for at least 1ms.

Depending on the initial state of INVERT, this would be a high-low-high or low-high-low sequence.

21

FN6739.2

September 5, 2012

CONTINUOUS UPDATE

In the Continuous Update mode, MegaQ™ will continuously try to find the optimum equalization solution. When the equalization has settled for 100 sequential video lines with no changes, the

LOCKED pin will go high. However once lock is achieved, noise and average-picture-level changes may cause the device to unlock, causing some image perturbation while MegaQ™ re-equalizes.

The Continuous Update mode is enabled whenever the FREEZE pin is set to a logic low (grounded).

Polarity Detection and Correction

MegaQ™ features polarity detection and correction, automatically detecting incorrectly-wired input signals and inverting the signal inside the IC as necessary. The detected polarity is indicated by the state of the INVERT pin.

The INVERT pin has 2 modes of operation. It is typically used to indicate whether or not the incoming signal is inverted (the “+” signal on the “-” input and vice-versa). The state of the invert signal is then used to tell the signal processing logic whether or not to invert the signal in the signal path.

A logic high on INVERT indicates that the positive differential input signal is on IN- (pin 5) and the negative differential input signal is on IN+ (pin 3). A logic low indicates nominal polarity.

However the unique design of the INVERT I/O pin (Figure 48) also

allows MegaQ™’s internal inversion detector to be overdriven externally, forcing MegaQ™ to invert or not invert the signal regardless of the state of the inversion detection function. This is not necessary in normal operation, but it may improve performance in particularly noisy environments when the polarity of the signal is guaranteed to be correct.

INVERSION

DETECTION

LOGIC

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

13k

ISL5960x

INVERT

PIN

SIGNAL

PROCESSING

FIGURE 48. INVERT PIN STRUCTURE

The COLOR Pin

The color pin has 2 modes of operation. It is typically used to indicate whether or not the incoming signal has a colorburst or not. The state of the color signal is then used to tell the signal processing logic whether or not it can rely on the presence of a colorburst signal. A logic high indicates a color signal; a logic low indicates monochrome.

COLOR

DETECTION

LOGIC

13k

ISL5960x

COLOR

PIN

SIGNAL

PROCESSING

FIGURE 49. COLOR PIN STRUCTURE

However the unique design of the COLOR I/O pin (Figure 49) also

allows MegaQ™’s internal color detector to be overdriven externally. This is not necessary in normal operation, but it may improve performance in particularly noisy environments when the signal type is predetermined.

Monochrome Video Signals

MegaQ™ will equalize monochrome signals to the same distance as color signals. However due to the high level of noise past

~4800 feet, the COLOR and LOCKED indicators may become invalid for monochrome signals. The device will still equalize properly if this occurs.

Security Cameras

MegaQ™ is ideal for security camera installations.

The automatic adaptive equalizer doesn't need any active silicon on the transmit side of the cable, enabling upgrading of older installations without having to touch the installed camera base, including older monochrome cameras.

MegaQ™ automatically adjusts for wiring polarity errors as well as adjusts for optimum image quality. These features eliminates the need for the installer to make any adjustments.

With an extended equalization range of 5300ft, the ISL59605 enables cameras to be placed in even more remote locations, enabling coverage of up to three square miles from a single monitoring station.

Additional Equalization Modes Available

With the Serial Interface

In addition to the Lock Until Reset and Continuous Update modes, software control of MegaQ™ through the SPI interface adds a Lock Until Signal Loss mode and a Manual Equalization mode.

Note: When controlling MegaQ™ through the SPI interface, the

external FREEZE pin must be tied to ground (logic low). Failure to keep FREEZE at a logic low will prevent the software controls from working properly.

All of the equalization modes are selected via the two “Locking

Mode/Manual Length Enable” register bits, 0x05[1:0].

CONTINUOUS UPDATE

Continuous Update mode is entered by setting address

0x05[1:0] = 00b. Continuous Update behavior is the same as described in the stand-alone mode.

22

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

LOCK UNTIL RESET

Lock Until Reset mode is entered by setting address

0x05[1:0] = 10b. Lock Until Reset behavior is the same as described in the stand-alone mode, with the exception of how to generate a reset.

To generate a reset via software, select Continuous Update mode and then return to Lock Until Reset mode (register 0x05[1:0] =

00b then 10b). Toggling INVERT (either the hardware pin or the software bit) will not cause a reset/re-equalization event.

LOCK UNTIL SIGNAL LOSS

Lock Until Signal Loss mode is entered by setting address

0x05[1:0] = 01b. Lock Until Signal Loss can only be enabled via the SPI interface.

In the Lock Until Signal Loss mode, MegaQ™ will freeze the equalization once the LOCKED pin goes high (in the same way as

Lock Until Reset). Unlike the “Settled” state in the Continuous

Update mode, only a signal loss lasting more than 1ms (typical) will cause MegaQ™ to re-equalize the signal when it returns. In this sense, the Lock Until Signal Loss mode can be considered as halfway between the Continuous Update mode and the Lock Until

Reset mode. The Lock Until Signal Loss mode is useful, for example, when testing or demonstrating a system by plugging in multiple different length cables - it eliminates the need to also generate a reset. To prevent potentially undesired re-equalization, signal losses lasting less than 1ms (typical) do not trigger a re-equalization.

MANUAL LENGTH

Manual Length mode is entered by setting address

0x05[1:0] = 11b. Manual Length mode allows the forcing of specific cable lengths, cable type, DC gains, etc. (see the Register

Listing on the next page). The “Cable Type” bit (0x05 [4]) allows selection between the two most common cable types for security video: Cat 5/6 or steel core RG-59 coaxial. However since many of MegaQ™’s automatic functions and adjustments are disabled in Manual Length mode, performance is almost always worse than what is achieved in any of the automatic modes. For example, automatic polarity correction is disabled so the polarity must be manually set using the INVERT bit. There is no practical reason to ever use Manual Length mode in normal operation.

Serial Interface Protocol

While MegaQ™ is designed to work as a stand-alone equalizer, it does have a serial interface that can be used to control it and monitor its state.

The serial interface is used to read and write the configuration registers. It uses three signals (SCK, SD, and SEN) for programming. The serial clock can operate up to 5MHz

(5Mbits/s). The “Serial Timing Diagram” on page 8 shows the timing of serial I/O.

A transaction begins when the host microcontroller takes SEN

(serial enable) high. The first 8 bits on the SD (serial data) pin are latched by MegaQ™ on the rising edge of SCK (serial clock) to form the address byte. The MSB of the address byte indicates whether the operation is a read (1) or a write (0), and the next seven bits indicate which register is to be read from or written to.

Each read and write operation consists of 16 bits: 8 bits for an

address byte followed by 8 bits of data. See the “Serial Timing

Diagram” on page 8 for more details on using the SPI interface.

TABLE 2. ADDRESS BYTE FORMAT

A6 A5 A4 A3 A2 A1 A0 0 = Write

1 = Read

(MSB) (LSB)

WRITE OPERATION

After the address byte is clocked in, the next 8 bits should contain the data to be sent to the register identified in the address byte.

READ OPERATION

After the rising edge of the 8th clock after the address byte is clocked in, the microcontroller should tristate the SD line so MegaQ™ can begin to output data on the SD pin (from the register identified in the address byte), beginning on the 9th rising edge of SCK. The data should be latched on the falling edge of SCK to allow enough time for the data to

settle. See ““Serial Timing Diagram” on page 8 for more details on how

to read from the registers.

23

FN6739.2

September 5, 2012

0x01

0x02

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Register Listing

ADDRESS

0x00

REGISTER

(DEFAULT VALUE)

Device ID (0x31)

Signal Status (N/A)

Manual Length(0x00)

BIT(S)

3:0

7:4

0

FUNCTION NAME

Device Revision

Device ID

Signal Present

1

2

3

4

5

5:0

DLL Locked

Signal Polarity

Color Detected

Signal Overloaded

Settled

Manual Length

DESCRIPTION

0 = initial silicon, 1 = first revision, etc.

0x3

0: A signal is not present at the input

1: A signal is present at the input

0: DLL is not locked

1: DLL is locked

0: Inverted Polarity

1: Nominal Polarity

This bit is only valid if the INVERT pin is connected as an output. If INVERT is overdriven, this value may not reflect the polarity of the input signal.

0: Signal is monochrome

1: Signal has a colorburst

0: Signal (if present) is within normal range

1: Signal appears to be overloaded

0: EQ is not settled, though DLL may be locked.

1: EQ has stabilized and equalization achieved.

Manual Length Control; 0x0 through 0x3F,

84 feet per bit.

0x0: 0 feet.

0x3F: 5300 feet (Cat 5 mode)

This register sets the EQ setting when MegaQ™ is in manual length mode (reg 0x05[1:0] = 11).

Note that the length in this register is for Cat 5 cable when

“Cable Type” (reg 0x05[4]) equals 0. When “Cable Type” is set to 1 (coax mode), then the length is for steel core coax. In coax mode, the maximum length is 0x14 (~1200 feet) and setting the register higher than this value does not provide any increase in equalization.

24

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Register Listing

(Continued)

ADDRESS

0x03

REGISTER

(DEFAULT VALUE)

Manual DC Gain (0x20)

BIT(S)

5:0

FUNCTION NAME

Manual DC Gain

0x04

0x05

Pin Overrides (0x00)

Equalization Control (0x00)

0

1

2

3

4

5

6

7

1:0

3:2

4

Freeze Select

Freeze Value

Eq-Disable Select

Eq-Disable Value

Color Select

Color Value

Invert Select

Invert Value

Locking Mode/Manual

Length Enable

Noise Filter

Cable Type

DESCRIPTION

0x00: Maximum DC Gain (+3dB)

0x20: Mid-Scale 0dB

0x3F: Minimum DC Gain (-3dB)

This register sets the DC Gain when the device is in manual length mode (reg 0x05[1:0] = 11).

0: Use value of FREEZE pin.

1: Use value in “Freeze Value” bit

If Freeze Select = 1, then:

0: Equalization is not frozen

1: Equalization is frozen at current setting.

If Freeze Select = 0, then this bit is ignored.

0: Use value of EQ_DISABLE pin.

1: Use value in “Eq-Disable Value” bit

If Eq-Disable Select = 1, then:

0: Equalizer is enabled

1: Equalizer is disabled (allows data to be sent upstream over cable pair connected to inputs)

If Eq-Disable Select = 0, then this bit is ignored.

0: Use value of COLOR pin

1: Use value in “Color Value” bit

If Color Select = 1, then

0: Monochrome Mode

1: Color Mode

If Color Select = 0, then this bit is ignored.

0: Use value of INVERT pin.

1: Use value in “Invert Value” bit

If Invert Select = 1, then

0: Incoming signal is not inverted

1: Incoming signal is inverted

If Invert Select = 0, then this bit is ignored.

00 = Continuous Monitoring

01 = Lock Until Signal Loss*

10 = Lock Until Reset

11 = Manual Length**

*Signal must be missing for at least 1ms in order to trigger a re-equalization.

** In Manual Length mode the polarity corrector is disabled and the polarity must be set using the INVERT bit or pin.

Note: The FREEZE pin must be tied to ground/a logic low for this function to work correctly.

00: No Noise Filtering

01: Min Noise Filtering

10 or 11: Max Noise Filtering

Note: Noise Filtering is only available on the ISL59605

0: CAT5/6 Mode

1: Steel Core Coax Mode

This bit is ignored in all modes except Manual Length (reg

0x05[1:0] = 11).

Set to 1 if using copper-coated steel-core coaxial cable and you are in Manual Length.

25

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Bypassing and Layout

Considerations

MegaQ™ requires a dedicated ground plane in order to function properly. For 2-layer boards, pour a quarter-inch ground plane extending around the device on both the top and bottom layers.

Ensure that the ground plane on the bottom layer is a solid plane with no traces cutting through it. Bypass capacitors must be placed as close as possible to the device in order to ensure good performance at longer lengths of equalization. Ensure that the ground connections for the bypass capacitors connect directly to the same uniform ground plane described previously.

General PowerPAD Design Considerations

The thermal pad must be connected to the ground plane for heat

dissipation. Figure 50 is an example of how to use vias to remove

heat from the IC.

FIGURE 50. PCB VIA PATTERN

The thermal pad is electrically connected to GND through the high resistance IC substrate. We recommend you fill the thermal pad area with vias. The via array should be centered in the thermal pad and placed such that the center on center spacing is

3x the via radius. Vias should be small, but large enough to allow solder wicking during reflow. Connect all vias to ground. It is important the vias have a low thermal resistance for efficient heat transfer. Do not use “thermal relief” patterns. It is important to have a solid connection of the plated-through hole to each plane.

Power Dissipation

The maximum power dissipation allowed in a package is

determined according to Equation 1:

PD

MAX

=

T

JMAX

Θ

T

JA

(EQ. 1)

Where:

T

JMAX

= Maximum junction temperature

T

AMAX

= Maximum ambient temperature

Θ

JA

= Thermal resistance of the package

The maximum power dissipation actually produced by an IC is the total quiescent supply current times the total power supply voltage, plus the power in the IC due to the load, or:

for sourcing use Equation 2:

PD

MAX

=

V

S

×

I

SMAX

+

(

V

S

V

OUT

) ×

V

-------------

R

L

(EQ. 2)

for sinking use Equation 3:

PD

MAX

=

V

S

×

I

SMAX

+

(

V

OUT

V

S

) ×

I

LOAD

(EQ. 3)

Where:

V

S

= Supply voltage

I

SMAX

= Maximum quiescent supply current

V

OUT

= Maximum output voltage of the application

R

LOAD

= Load resistance tied to ground

I

LOAD

= Load current

For additional products, see www.intersil.com/product_tree

Intersil products are manufactured, assembled and tested utilizing ISO9000 quality systems as noted in the quality certifications found at www.intersil.com/design/quality

Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.

For information regarding Intersil Corporation and its products, see www.intersil.com

26

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Revision History

The revision history provided is for informational purposes only and is believed to be accurate, but not warranted. Please go to web to make sure you have the latest Rev.

DATE REVISION CHANGE

August 6, 2012

February 4, 2011

FN6739.2 Typical applications circuit diagrams and corresponding text updated to reflect more optimal setup for the device.

Converted to Updated Intersil Template

page 1 - Updated Related Literature by changing titles to match released application notes

Added standard Reference to MIN and MAX columns and Note to Electrical Specifications and Serial Timing Spec

Tables: "Compliance to datasheet limits is assured by one or more methods: production test, characterization and/or design."

page 4 - Updated ordering information by naming Evaluation boards to match Intrepid.

CHANGED I2C to SPI as follows:

page 22 first paragraph and 2nd Note paragraph under "Additional Equalization Modes Available with the Serial

Interface" section from "…MegaQ through the I2C interface…" to "…MegaQ through the SPI interface…"

page 23 "Under Lock Until Signal Loss" section 1st paragraph last sentence "…via the I2C interface."

To: "…via the SPI interface."

November 19, 2010 FN6739.1 Modified both "Typical Application" drawings on page 1 to reflect recommended new termination network.

Modified Figures 45, 46, and 47 to reflect recommended new termination network.

Modified text in "UTP Application Circuit" and "Coax Input Circuit" sections to mention changes to termination network.

Added "Dual UTP/Coax Input Circuit" heading

October 21, 2010 Added superscript TM to all MegaQ and trademark statement, pg 1.

Added ±8kV ESD protection to the Features list

Pg24, Register 0x04 of the Register Listing: Fixed Select and Value locations (were swapped for each pin).

Last two rows should say "Invert", not "INVERT", EXCEPT for "Use the value of INVERT pin

Pg25, address 0x05 of Register listing, 3:2 Noise filter row, change from:

00: No Noise Filtering

01: Min Noise Filtering

1X: Max Noise Filtering to:

00: No Noise Filtering

01: Min Noise Filtering

10 or 11: Max Noise Filtering

Note: Noise Filtering is only available on the ISL59605

October 8, 2010 FN6739.0 Initial Release.

Products

Intersil Corporation is a leader in the design and manufacture of high-performance analog semiconductors. The Company's products address some of the industry's fastest growing markets, such as, flat panel displays, cell phones, handheld products, and notebooks.

Intersil's product families address power management and analog signal processing functions. Go to www.intersil.com/products for a complete list of Intersil product families.

For a complete listing of Applications, Related Documentation and Related Parts, please see the respective device information page on intersil.com: ISL59601 , ISL59602 , ISL59603 , ISL59604 , ISL59605 .

To report errors or suggestions for this datasheet, please go to: www.intersil.com/askourstaff

FITs are available from our website at: http://rel.intersil.com/reports/sear

27

FN6739.2

September 5, 2012

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Package Outline Drawing

L20.4x4C

20 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE

Rev 0, 11/06

4.00

4X 2.0

16X 0.50

A

B

16 20

6

PIN #1 INDEX AREA

6

PIN 1

INDEX AREA

15

1

2 .70 ± 0 . 15

11

(4X)

0.15

10

20X 0.4 ± 0.10

5

6

0.10 M C A B

4

20X 0.25 +0.05 / -0.07

TOP VIEW

( 3. 8 TYP )

( 2. 70 )

0 . 90 ± 0 . 1

SEE DETAIL "X"

0.10

C

C

BASE PLANE

SEATING PLANE

0.08 C

( 20X 0 . 5 )

SIDE VIEW

TYPICAL RECOMMENDED LAND PATTERN

( 20X 0 . 25 )

( 20X 0 . 6)

C 0 . 2 REF

0 . 00 MIN.

0 . 05 MAX.

5

DETAIL "X"

NOTES:

1.

Dimensions are in millimeters.

Dimensions in ( ) for Reference Only.

2.

Dimensioning and tolerancing conform to AMSE Y14.5m-1994.

3.

Unless otherwise specified, tolerance : Decimal ± 0.05

4.

Dimension b applies to the metallized terminal and is measured between 0.15mm and 0.30mm from the terminal tip.

5.

Tiebar shown (if present) is a non-functional feature.

6.

The configuration of the pin #1 identifier is optional, but must be located within the zone indicated. The pin #1 indentifier may be either a mold or mark feature.

28

FN6739.2

September 5, 2012

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Intersil

:

ISL59601IRZ ISL59601IRZ-T7 ISL59601IRZ-T7A ISL59602IRZ ISL59602IRZ-T7 ISL59602IRZ-T7A ISL59603IRZ

ISL59603IRZ-T7 ISL59603IRZ-T7A ISL59604IRZ ISL59604IRZ-T7 ISL59604IRZ-T7A ISL59605IRZ ISL59605IRZ-

T7 ISL59605IRZ-T7A ISL59605-SPI-EVALZ

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
