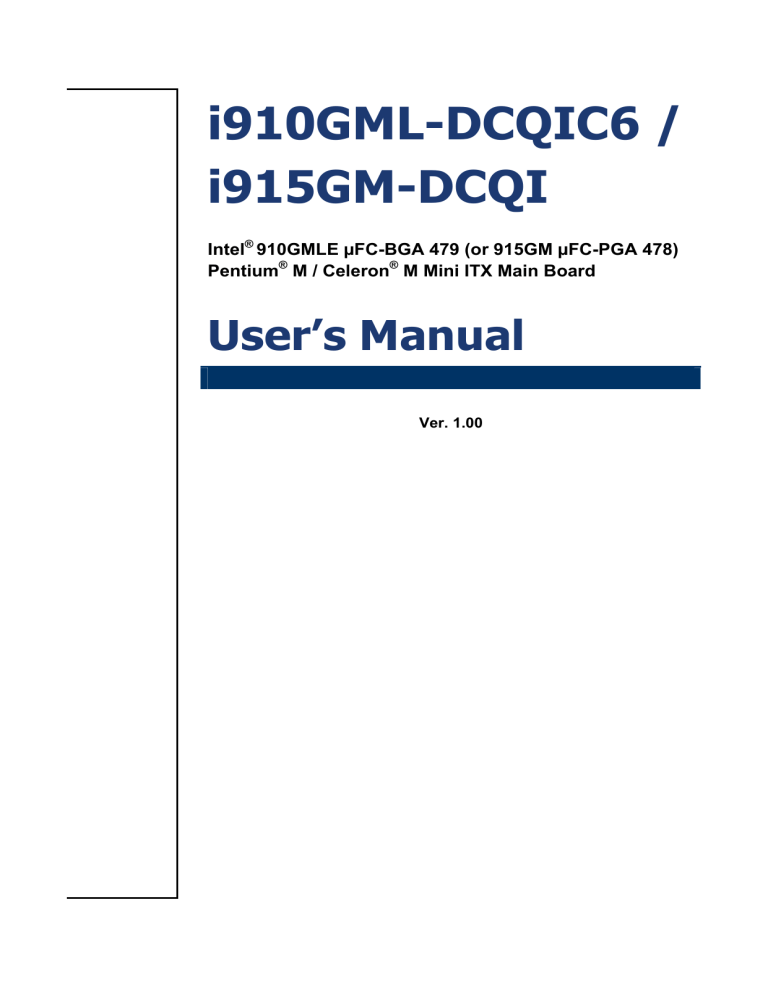

i910GML-DCQI / i915GM-DCQI

i910GML-DCQIC6 / i915GM-DCQI

Intel

®

910GMLE µFC-BGA 479 (or 915GM µFC-PGA 478)

Pentium

®

M / Celeron

®

M Mini ITX Main Board

User’s Manual

Ver. 1.00

i910GML-DCQIC6/ i915GM-DCQI

Contents

Safety Information ..........................................................................................................4

Technical Support ............................................................................................................5

Conventions Used in This Guide ....................................................................................5

Packing List .......................................................................................................................6

Revision History ...............................................................................................................7

Specifications Summary..................................................................................................8

Block Diagram (i910GML-DCQIC6).............................................................................11

Block Diagram (i915GM-DCQI) ...................................................................................12

Production Introduction ...............................................................................................14

1.1

Before you Proceed ................................................................................................14

1.2

Motherboard Overview ............................................................................................15

1.2.1

Placement Direction ....................................................................................................................... 15

1.2.2

Screw Holes ................................................................................................................................... 15

1.3

Motherboard Layout ................................................................................................16

1.3.1

Layout Content List ........................................................................................................................ 17

1.4

Central Processing Unit (CPU) (for i915GM-DCQI only) .........................................19

1.4.1

Installing the CPU........................................................................................................................... 20

1.4.2

Installing the CPU Heatsink and Fan ............................................................................................. 22

1.4.3

Uninstalling the CPU Heatsink and Fan......................................................................................... 24

1.5

System Memory ......................................................................................................25

1.5.1

DIMM Sockets Location ................................................................................................................. 25

1.5.2

Memory Configurations .................................................................................................................. 26

1.5.3

Installing a DDR2 DIMM................................................................................................................. 27

1.5.4

Removing a DDR2 DIMM............................................................................................................... 27

1.6

Expansion Slots ......................................................................................................28

1.6.1

Installing an Expansion Card ......................................................................................................... 28

1.6.2

Configuring an Expansion Card ..................................................................................................... 28

1.6.3

Standard Interrupt Assignments..................................................................................................... 29

1.6.4

PCI Slots ........................................................................................................................................ 29

1.7

Jumpers ..................................................................................................................30

1.7.1

Clear CMOS (CLRRTC1)............................................................................................................... 30

1.7.2

COM Port 1, 2 RI/+5V/+12V Selection (JCOMPWR1)................................................................... 31

1.7.3

COM Port 3, 4 RI/+5V/+12V Selection (JCOMPWR2)................................................................... 31

1.7.4

CPU VCC Voltage Select (VCCA_SEL1)....................................................................................... 32

2

User’s Manual

Contents

1.8

Connectors ..............................................................................................................33

1.8.1

Rear Panel Connectors.................................................................................................................. 33

1.8.2

Amplifier Connector (AMPJ1)......................................................................................................... 35

1.8.3

CPU Fan Connector (CPU_FAN1)................................................................................................. 35

1.8.4

System Fan Connector (SYS_FAN1)............................................................................................. 36

1.8.5

Serial Port Connector 3 (COM3) .................................................................................................... 36

1.8.6

Serial Port Connector 4 (COM4) .................................................................................................... 37

1.8.7

Front Headphone Connector (F_AUDIO1)..................................................................................... 37

1.8.8

System Panel Connector (F_PANEL1) .......................................................................................... 38

1.8.9

USB 2.0 Connector (FRONT_USB1, FRONT_USB2) ................................................................... 39

1.8.10

Primary IDE Connector (IDE1)................................................................................................... 40

1.8.11

ATX Power Connector (JATXPWR1) ........................................................................................ 41

1.8.12

LCD Inverter Connector (JBKLT1)............................................................................................. 42

1.8.13

LVDS Connector (JLVDS1) ....................................................................................................... 42

1.8.14

Digital I/O Connector (JDIO)...................................................................................................... 43

1.8.15

Serial ATA Connector 1 & 2 [Black] (SATA1, SATA2) .............................................................. 43

i910GML-DCQIC6 / i915GM-DCQI 3

i910GML-DCQIC6/ i915GM-DCQI

Safety Information

Electrical safety

z To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. z When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device. z Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged. z Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit. z Make sure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company. z If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

z Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package. z Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately. z To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry. z Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet. z Place the product on a stable surface. z If you encounter technical problems with the product, contact a qualified service technician or your retailer.

The symbol of the crossed out wheeled bin indicates that the product

(electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

4

User’s Manual

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. Visit the Advansus website for FAQ, technical guide, BIOS updates, driver updates, and other information:

http://www.advansus.com.tw/Support/Support.asp

Conventions Used in This Guide

To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when trying to complete a task.

CAUTION: Information to prevent damage to the components when trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

i910GML-DCQIC6 / i915GM-DCQI 5

i910GML-DCQIC6/ i915GM-DCQI

Packing List

Before you begin installing your single board, please make sure that the following materials have been shipped:

9 1 x i910GML-DCQIC6(or i915GM-DCQI) Mini ITX Main board

9 1 x CD-ROM contains the followings:

User’s manual (this manual in PDF file)

Drivers

9 1 x IDE HDD cable (40-pin)

9 2 x COM cable

9 2 x SATA cable (7-pin)

9 1 x Startup Manual

If any of the above items is damaged or missing, please contact your retailer.

6

Revision History

Revision

V 1.0

Revision History

First release for PCB 1.00

User’s Manual

Date

November 25, 2007

i910GML-DCQIC6 / i915GM-DCQI 7

i910GML-DCQIC6/ i915GM-DCQI

Specifications Summary

i910GML-DCQIC6

Features

1

2

3

Onboard Intel uFC-BGA 479

Celeron M 600MHz w/512K 2nd

Level Cache with 90nm process technology

Intel 82910GMLE Express

Chipset

Two 240-pin DIMMs up to 2 GB

DDR2 400 SDRAM

4 DVI, Dual 18-bit LVDS

i915GM-DCQI

Supports Intel µFC-PGA 478 /

µFC-BGA 479 Pentium M / Celeron M with 0.13 µ and 90nm process technology

Intel 82915GME Express Chipset

Two 240-pin DIMMs up to 2 GB

DDR2 400/533 SDRAM

5 Realtek ALC655 5.1 ch. Audio (@ 5Wx2-CH Amplified)

6 Realtek RTL8110SC Gigabit LAN

7 1 PCI (supports 3 PCI Master), Type I/II CF

8 4 COM, 8 USB 2.0, 2 SATA

System

CPU

FSB

BIOS

System Chipset

I/O Chipset

Memory

SSD

Watchdog Timer

H/W Status Monitor

Expansion Slots

Onboard Intel uFC-BGA 479 Celeron M

600MHz w/512K 2nd Level Cache

Supports Intel µFC-PGA 478 /

µFC-BGA 479 Pentium M / Celeron

M with 0.13 µ and 90nm process technology

400/533MHz 400MHz

Award 4 Mb Flash BIOS

Intel 82910GMLE GMCH/82801FBM

ICH6-M

Winbond W83627EHG-A

Two 240-pin DIMM socket supports up to 2 GB DDR2 400 SDRAM

Intel 82915GME GMCH/82801FBM

ICH6-M

Two 240-pin DIMM socket supports up to 2 GB DDR2 400/533 SDRAM

One CompactFlash Type I/II socket

Reset: 1 sec.~255 min. and 1 sec. or 1 min./step

Monitoring CPU temperature and cooling fan status. Auto throttling control when

CPU overheats

One PCI slot (PCI Rev. 2.2 compliant) supports 3 PCI master

8

Specifications Summary

i910GML-DCQIC6

System

S3

SmartFan Control

I/O

S3 Support

YES

MIO

USB

DIO

Internal I/O

Back Panel

User’s Manual i915GM-DCQI

1 xEIDE (Ultra DMA 100), 2 x SATA, 4 x RS-232,1 x K/B, 1 x Mouse, (COM1~4 with Power output)

8 x USB 2.0

16-bit General Purpose I/O for DI and DO

2 x USB connectors support additional 4 USB ports

1 x 20-pin ATX Power connector

1 x IDE 40-pin connector for two devices

2 x COM port header

2 x SATA connectors

1 x Front panel audio connector

1 x Audio amplifier connector

1 x System panel connector

1 x LVDS connector

1 x Inverter Power connector

1 x CPU Fan connector

1 x System Fan connector

1 x Digital IO header

1 x PS/2 Keyboard and 1 x PS/2 Mouse

2 x RS-232

1 x VGA port

1 x DVI port

4 x USB 2.0/1.1

1 x RJ45 Port

5.1 CH Audio I/O (3 jacks)

Display

Display Memory

Resolution

Dual Display

LVDS

DVI

Intel DVMT 3.0 supports up to 128 MB video memory

2048 x 1536 @ 32 bpp (85 Hz)

CRT + LVDS, or CRT + DVI-D

Dual-channel 18-bit LVDS

Chrontel CH7307C DVI transmitter up to 165M pixels/second

i910GML-DCQIC6 / i915GM-DCQI 9

i910GML-DCQIC6/ i915GM-DCQI

Specifications Summary

i910GML-DCQIC6

Audio

Audio Codec

Audio Interface

Audio Amplifier

Realtek ALC655 supports 5.1 ch. Audio

Mic in, Line in,Line out

TPA3005D2 Stereo 5Watt per channel

Ethernet

LAN1

Realtek RTL8110SC Gigabit LAN

Mechanical & Environmental

Power Type

ATX

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Operating Humidity

Size (L x W)

0% ~ 90% relative humidity, non-condensing

6.69" x 6.69" (170 mm x 170 mm)

Weight

0.88 lbs (0.4 Kg)

* Specifications are subject to change without notice.

i915GM-DCQI

10

Block Diagram

(i910GML-DCQIC6)

User’s Manual i910GML-DCQIC6 / i915GM-DCQI 11

i910GML-DCQIC6/ i915GM-DCQI

Block Diagram

(i915GM-DCQI)

12

User’s Manual

This chapter describes the main board features and the new technologies it supports.

1

introduction

i910GML-DCQIC6 / i915GM-DCQI 13

i910GML-DCQIC6/ i915GM-DCQI

Production Introduction

1.1 Before you Proceed

Take note of the following precautions before you install motherboard components or change any motherboard settings. z Unplug the power cord from the wall socket before touching any component. z Use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, before handling components to avoid damaging them due to static electricity z Hold components by the edges to avoid touching the ICs on them. z Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component. z

Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.

14

User’s Manual

1.2 Motherboard Overview

Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Refer to the chassis documentation before installing the motherboard.

Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage motherboard components.

When installing the motherboard, make sure that you place it into the chassis in the correct orientation. The edge with external ports goes to the rear part of the chassis as indicated in the image below.

Place four (4) screws into the holes indicated by circles to secure the motherboard to the chassis.

Do not over tighten the screws! Doing so can damage the motherboard.

Place this side towards the rear of the chassis.

i910GML-DCQIC6 / i915GM-DCQI 15

i910GML-DCQIC6/ i915GM-DCQI

1.3 Motherboard Layout

16

User’s Manual

1.3.1 Layout Content List

Slots

Label Function

DIMMA1

DIMMB1

240-pin DDR2 DIMM slot

240-pin DDR2 DIMM slot

Note Page

N/A

N/A

N/A

N/A

Jumpers

Label

CLRRTC1

Function

Clear CMOS

JCOMPWR1 COM port 1,2 RI/+5V/+12V selection

JCOMPWR2 COM port 3,4 RI/+5V/+12V selection

VCC_SEL1 CPU VCC Voltage Select

Rear Panel Connector

J1

Label

DUALCOM1

Function

PS/2 keyboard and mouse

Serial port connector x 2

VGA_DVI-D1 VGA & DIV port

LAN_USB1

USB2

RJ-45 Ethernet connector x 1

USB connector x 2

USB connector x 2

AUDIO Line-in port, Line-out port,

Microphone port,

Note

3 x 1 header, pitch 2.54mm

5 x 2 header, pitch 2.00mm

5 x 2 header, pitch 2.00mm

3 x 1 header, pitch 2.54mm

6-Channel Audio I/O (3 jacks)

Page

30

31

31

32

Note

6-pin Mini-Din

D-sub 9-pin, male

D-sub 15-pin, female

Page

33,34

33

33,34

33,34

34

34

i910GML-DCQIC6 / i915GM-DCQI 17

i910GML-DCQIC6/ i915GM-DCQI

Internal Connector

Label

AMPJ1

CPU_FAN1

SYS_FAN1

COM3

COM4

F_AUDIO1

F_PANEL1

Function

Amplifier connector

CPU fan connector

System fan connector

Serial port connector 3

Serial port connector 4

Front headphone connector

System panel connector

Note

4 x 1 header, pitch 2.54mm

3 x 1 wafer, pitch 2.54mm

3 x 1 wafer, pitch 2.54mm

5 x 2 header, pitch 2.54mm

5 x 2 header, pitch 2.54mm

5 x 2 header, pitch 2.54mm

5 x 2 header, pitch 2.54mm

FRONT_USB1 USB 2.0 connector

FRONT_USB2 USB 2.0 connector

IDE1

JATXPWR1

Primary IDE connector

ATX power connector

JBKLT1

JLVDS1

JDIO

SATA1

LCD Inverter connector

LVDS connector

5 x 2 header, pitch 2.54mm

5 x 2 header, pitch 2.54mm

20 x 2 header, pitch 2.54mm

10 x 2 header

5 x 1 header, pitch 2.00mm

HIROSE DF13S-40DP-1.25V

Digital I/O connector 10 x 2 header, pitch 2.00mm

Serial ATA connectors [black] 7-pin header

SATA2 Serial ATA connectors [black] 7-pin header

42

42

43

43

39

39

40

41

Page

35

35

36

36

37

37

38

43

18

User’s Manual

1.4 Central Processing Unit (CPU)

(for i915GM-DCQI only)

The motherboard i915GM-DCQI comes with a surface mount 479-pin Zero Insertion Force

(ZIF) socket designed for the Intel® Pentium® M / Celeron M processor (Supports mPGA479M, Micro-FCPGA).

Take one of the marked corner (with gold triangle) on the CPU. This mark should match a specific corner on the socket to ensure correct installation.

z Make sure the AC power is off before you install the CPU. z If installing a dual-core CPU, connect the CPU fan cable to the

CPU_FAN1

connector to ensure system stability.

z Your boxed Intel® Pentium® M / Celeron M processor (supports mPGA479M, Micro-FCPGA) package should come with installation instructions for the CPU, heatsink, and the retention mechanism. If the instructions in this section do not match the

CPU documentation, follow the latter. z

Upon purchase of the motherboard, make sure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. Your place of purchase or local distributor will shoulder the cost of repair only if the damage is shipment/transit-related. z Keep the cap after installing the motherboard. Your place of purchase or local distributor will process Return Merchandise z

Authorization (RMA) requests only if the motherboard comes with the cap on the socket.

The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/ incorrect removal of the PnP cap.

i910GML-DCQIC6 / i915GM-DCQI 19

i910GML-DCQIC6/ i915GM-DCQI

1.4.1 Installing the CPU

1. Locate the CPU socket on the motherboard.

Before installing the CPU, make sure that the socket box is facing towards you.

2. The processor socket comes with a screw to secure the processor, please unlock the screw first.

20

User’s Manual

3. Position the CPU above the socket and the gold triangular mark on the CPU must align with pin 1 of the CPU socket.

4. Carefully insert the CPU into the socket until it fits in place ‘Gold mark’.

5. Turn the screw to the lock position.

The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU.

After installation, make sure to plug-in the ATX power cable to the motherboard.

This motherboard support Celeron M3 series or Pentium M7 series

CP

i910GML-DCQIC6 / i915GM-DCQI 21

i910GML-DCQIC6/ i915GM-DCQI

1.4.2 Installing the CPU Heatsink and Fan

The Intel® Pentium® M / Celeron M processor (supports mPGA479M, Micro-FCPGA) requires a specially designed heatsink and fan assembly to ensure optimum thermal condition and performance. z Install the motherboard to the chassis before you install the CPU fan and heatsink assembly. z When you buy a boxed Intel® processor, the package includes the CPU fan and heatsink assembly. If you buy a CPU separately, make sure that you use only Intel®‑certified multi‑directional heatsink and fan.

If you purchased a separate CPU heatsink and fan assembly, make sure that you have properly applied Thermal Interface Material to the

CPU heatsink or CPU before you install the heatsink and fan assembly.

1. Place the heatsink on top of the installed

CPU, making sure that the two fasteners match the holes on the motherboard.

Orient the heatsink and fan assembly such that the CPU fan cable is closest to the

CPU fan connector.

22

Make sure each fastener is oriented as shown, with the narrow groove directed outward.

User’s Manual

2. Push down two fasteners at a time in a diagonal sequence to secure the heatsink and fan assembly in place.

3. Connect the CPU fan cable to the connector on the motherboard labelled

CPU_FAN1

. z Do not forget to connect the fan cables to the fan connectors.

Insufficient air flow inside the system may damage the motherboard components, and hardware monitoring errors can occur if you fail to plug this connector. z These are not jumpers! DO NOT place jumper caps on the fan connectors.

i910GML-DCQIC6 / i915GM-DCQI 23

i910GML-DCQIC6/ i915GM-DCQI

1.4.3 Uninstalling the CPU Heatsink and Fan

1. Disconnect the CPU fan cable from the connector on the motherboard.

2. Rotate each fastener counterclockwise.

3. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and fan assembly from the motherboard

4. Carefully remove the heatsink and fan assembly from the motherboard.

24

Refer to the documentation in the boxed or stand-alone CPU fan package for detailed information on CPU fan installation.

User’s Manual

1.5 System Memory

1.5.1 DIMM Sockets Location

The motherboard comes with four 240-pin Double Data Rate 2 (DDR2) Dual Inline Memory

Modules (DIMM) sockets.

A DDR2 module has the same physical dimensions as a DDR DIMM but has a 240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are notched differently to prevent installation on a DDR DIMM socket. The following figure illustrates the location of the sockets:

i910GML-DCQIC6 / i915GM-DCQI 25

i910GML-DCQIC6/ i915GM-DCQI

You can install 128 MB, 256 MB, 512 MB, and 1GB DDR2 SDRAM DIMMs into the DIMM sockets using the memory configurations in this section. z Installing DDR2 DIMM other than the recommended configurations may cause memory sizing error or system boot failure. Use any of the recommended configurations. z

Always install DIMMs with the same CAS latency. For optimum compatibility, it is recommended that you obtain memory modules from the same vendor. z

Due to chipset resource allocation, the system may detect less than 1 GB system memory when you installed one 1 GB DDR2 memory modules. z This motherboard does not support memory modules made up of

128 Mb chips or double-sided x16 memory modules.

Make sure that the memory frequency matches the CPU FSB

(Front Side Bus). Refer to the Memory frequency/CPU FSB synchronization table. z Recommended memory configuration

Sockets

Mode

Single-channel

DIMM1

(1) Installed

(2)

- z Memory frequency/CPU FSB synchronization

Installed

CPU FSB DDR 2 DIMM Type Memory Frequency

533MHz DDR2 533MHz

400MHz DDR2 400MHz

26

User’s Manual

1.5.3 Installing a DDR2 DIMM

Make sure to unplug the power supply before adding or removing

DIMMs or other system components. Failure to do so may cause severe damage to both the motherboard and the components.

1. Unlock a DIMM socket by pressing the retaining clips outward

2. Align a DIMM on the socket such that the notch on the DIMM matches the break on the socket.

3. Firmly insert the DIMM into the socket until the retaining clips snap back in place and the DIMM. z A DDR2 DIMM is keyed with a notch so that it fits in only one direction. DO NOT force a DIMM into a socket to avoid damaging the DIMM. z The DDR2 DIMM sockets do not support DDR DIMMs. DO NOT install DDR DIMMs to the DDR2 DIMM socket.

1.5.4 Removing a DDR2 DIMM

1. Simultaneously press the retaining clips outward to unlock the DIMM.

2. Remove the DIMM from the socket.

Support the DIMM lightly with your fingers when pressing the retaining clips. The DIMM might get damaged when it flips out with extra force.

i910GML-DCQIC6 / i915GM-DCQI 27

i910GML-DCQIC6/ i915GM-DCQI

1.6 Expansion Slots

In the future, you may need to install expansion cards. The following sub‑sections describe the slots and the expansion cards that they support.

Make sure to unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

1. Before installing the expansion card, read the documentation that came with it and make the necessary hardware settings for the card.

2. Remove the system unit cover (if your motherboard is already installed in a chassis).

3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later use.

4. Align the card connector with the slot and press firmly until the card is completely seated on the slot.

5. Secure the card to the chassis with the screw you removed earlier.

6. Replace the system cover.

1.6.2 Configuring an Expansion Card

After installing the expansion card, configure it by adjusting the software settings.

1. Turn on the system and change the necessary BIOS settings if any.

2. Assign an IRQ to the card if needed. Refer to the tables on the next page.

3. Install the software drivers for the expansion card.

28

1.6.3 Standard Interrupt Assignments

IRQ Priority Standard Function

2

3

4

5

6

7

- Redirect to IRQ#9

11 IRQ holder for PCI streering*

12 Communications Port (COM1)*

13 IRQ holder for PCI streering*

14 Floppy Disk Controller

15 Printer Port (LPT)*

9

10

11

12

13

14

15

4

5

6

7

IRQ holder for PCI streeing*

IRQ holder for PCI streeing*

IRQ holder for PCI streeing*

PS/2 Compatible Mouse Port*

8

9

Numeric Data Processor

Primary IDE Channel

10 Secondary IDE Channel

* There IRQs are usually available for ISA or PCI device. i910GML-DCQI/i915GM-DCQI has one PCI slots. The PCI slots support cards such as a

LAN card, SCSI card, USB card, and other cards that comply with PCI specifications. The figure shows a LAN card installed on a PCI slot.

User’s Manual i910GML-DCQIC6 / i915GM-DCQI 29

i910GML-DCQIC6/ i915GM-DCQI

1.7 Jumpers

1.7.1 Clear CMOS (CLRRTC1)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC

RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords. To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Remove the onboard battery.

3. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2.

4. Re-install the battery.

5. Plug the power cord and turn ON the computer.

6. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data.

Except when clearing the CMOS, never remove the cap on CLRRTC1 jumper default position. Removing the cap will cause system boot failure!

Normal (Default)

Clear CMOS

30

1.7.2 COM Port 1, 2 RI/+5V/+12V Selection (JCOMPWR1)

Ring (Default)

User’s Manual

+5V

+12V

1.7.3 COM Port 3, 4 RI/+5V/+12V Selection (JCOMPWR2)

Ring (Default)

+5V

+12V i910GML-DCQIC6 / i915GM-DCQI 31

i910GML-DCQIC6/ i915GM-DCQI

1.7.4 CPU VCC Voltage Select (VCCA_SEL1)

1.8V (Default)

1.5V

CPU FSB

Pentium-M 400MHz

Pentium-M 533MHz

VCC Select

1.8V

1.5V

32

User’s Manual

1.8 Connectors

1.8.1 Rear Panel Connectors

No Label Function Description

1 J1 PS/2 mouse connector The standard PS/2 mouse DIN connector is for a PS/2 mouse.

2 DUALCOM1 Serial port connector x 2 D-sub 9-pin, male

4 LAN_USB1 LAN (RJ-45) connector This port allows Gigabit connection to a

Local Area Network (LAN) through a network hub. Refer to the table below for the LAN port LED indications. The optional

10/100 Mbps LAN controller allows 10/100

Mbps connection to a Local Area Network

(LAN) through a network hub.

ACT / LINK LED SPEED LED

Status

OFF

Description

No link

Status

OFF

Orange Linked

Blinking Data activity GREEN

Description

10Mbps connection

1Gbps connection

i910GML-DCQIC6 / i915GM-DCQI 33

i910GML-DCQIC6/ i915GM-DCQI

No Label Function Description

5

6

7 AUDIO1 Microphone port (Pink)

8 LAN_USB1 USB 2.0 connector

9

AUDIO1

AUDIO1

USB2

Line-In port (Light Blue). This port connects a tape, CD, DVD player, or other audio sources.

Line-Out port (Lime) This port connects a headphone or a speaker.

In 4-channel, 6-channel, and 8-channel configuration, the function of this port becomes

Front Speaker Out.

USB 2.0 connector

This port connects a microphone.

These two 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0 devices.

These two 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0 devices.

10 VGA_DVI-D1 VGA port

11 J1 PS/2 KB connector

This 15-pin port is for a VGA monitor or other

VGA-compatible devices.

This port is for a PS/2 keyboard

34

User’s Manual

1.8.3 CPU Fan Connector (CPU_FAN1)

z Do not forget to connect the fan cables to the fan connectors.

Insufficient air flow inside the system may damage the motherboard components, and hardware monitoring errors can occur if you fail to plug this connector. z

These are not jumpers! DO NOT place jumper caps on the fan connectors.

i910GML-DCQIC6 / i915GM-DCQI 35

i910GML-DCQIC6/ i915GM-DCQI

1.8.4 System Fan Connector (SYS_FAN1)

z Do not forget to connect the fan cables to the fan connectors.

Insufficient air flow inside the system may damage the motherboard components, and hardware monitoring errors can occur if you fail to plug this connector. z These are not jumpers! DO NOT place jumper caps on the fan connectors.

1.8.5 Serial Port Connector 3 (COM3)

36

User’s Manual

1.8.6 Serial Port Connector 4 (COM4)

1.8.7 Front Headphone Connector (F_AUDIO1)

This connector is for a chassis-mounted front panel audio I/O module that supports either

HD Audio or legacy AC ‘97 (optional) audio standard. Connect one end of the front panel audio I/O module cable to this connector.

For motherboards with the optional HD Audio feature, we recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard’s high‑definition audio capability.

i910GML-DCQIC6 / i915GM-DCQI 37

i910GML-DCQIC6/ i915GM-DCQI

1.8.8 System Panel Connector (F_PANEL1)

This connector supports several chassis-mounted functions. z System Power LED (2-pin PWRLED)

This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode. z ATX Power Button/Soft-off Button (2-pin PWRSW)

This connector is for the system power button. Pressing the power button turns the system on or puts the system in sleep or soft-off mode depending on the BIOS settings.

Pressing the power switch for more than four seconds while the system is ON turns the system OFF. z Hard Disk Drive Activity LED (2-pin HDLED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The IDE LED lights up or flashes when data is read from or written to the HDD. z Reset Button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.

38

User’s Manual

1.8.9 USB 2.0 Connector (FRONT_USB1, FRONT_USB2)

These connectors are for USB 2.0 ports. Connect the USB/GAME module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specification that supports up to 480

Mbps connection speed.

FRONT_USB1

FRONT_USB2

Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

The USB module is purchased separately.

i910GML-DCQIC6 / i915GM-DCQI 39

i910GML-DCQIC6/ i915GM-DCQI

1.8.10 Primary IDE Connector (IDE1)

This connector is for an Ultra DMA 100/66 signal cable. The Ultra DMA 100/66 signal cable has three connectors: a blue connector for the primary IDE connector on the motherboard, a black connector for an Ultra DMA 100/66 IDE slave device (optical drive/hard disk drive), and a gray connector for an Ultra DMA 100/66 IDE master device (hard disk drive). If you install two hard disk drives, you must configure the second drive as a slave device by setting its jumper accordingly. Refer to the hard disk documentation for the jumper settings. z Pin 20 on the IDE connector is removed to match the covered hole on the Ultra DMA cable connector. This prevents incorrect insertion when you connect the IDE cable. z Use the 80-conductor IDE cable for Ultra DMA 100/66 IDE devices. z Orient the red markings (usually zigzag) on the IDE ribbon cable to Pin 1.

40

User’s Manual

1.8.11 ATX Power Connector (JATXPWR1)

This connector is for an ATX Micro-Fit power supply. The plugs from the power supply are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit.

Important notes on the Motherboard Power Requirements

z Make sure that your ATX 12V power supply can provide 8A on the +12V lead and at least 1A on the +5-volt standby lead

(+5VSB). The minimum recommended wattage is 230W, or

300W for a fully configured system. The system can become unstable and might experience difficulty powering up if the power supply is inadequate. z You must install a PSU with a higher power rating if you intend to install additional devices.

i910GML-DCQIC6 / i915GM-DCQI 41

42 i910GML-DCQIC6/ i915GM-DCQI

1.8.12 LCD Inverter Connector (JBKLT1)

z Signal Description

Signal

VR

Signal Description

Vadj=0.75V ~ 4.25V

(Recommended: 4.7KΩ, > 1/16W)

ENBKL LCD backlight ON/OFF control signal

1.8.13 LVDS Connector (JLVDS1)

User’s Manual

1.8.14 Digital I/O Connector (JDIO)

1.8.15 Serial ATA Connector 1 & 2 [Black] (SATA1, SATA2)

SATA1

SATA2

z Install the Windows® 2000 Service Pack 4 or the Windows® XP

Service Pack1 before using Serial ATA. z

When using the connectors in Standard IDE mode, connect the primary (boot) hard disk drive to the SATA1 connector.

i910GML-DCQIC6 / i915GM-DCQI 43

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
