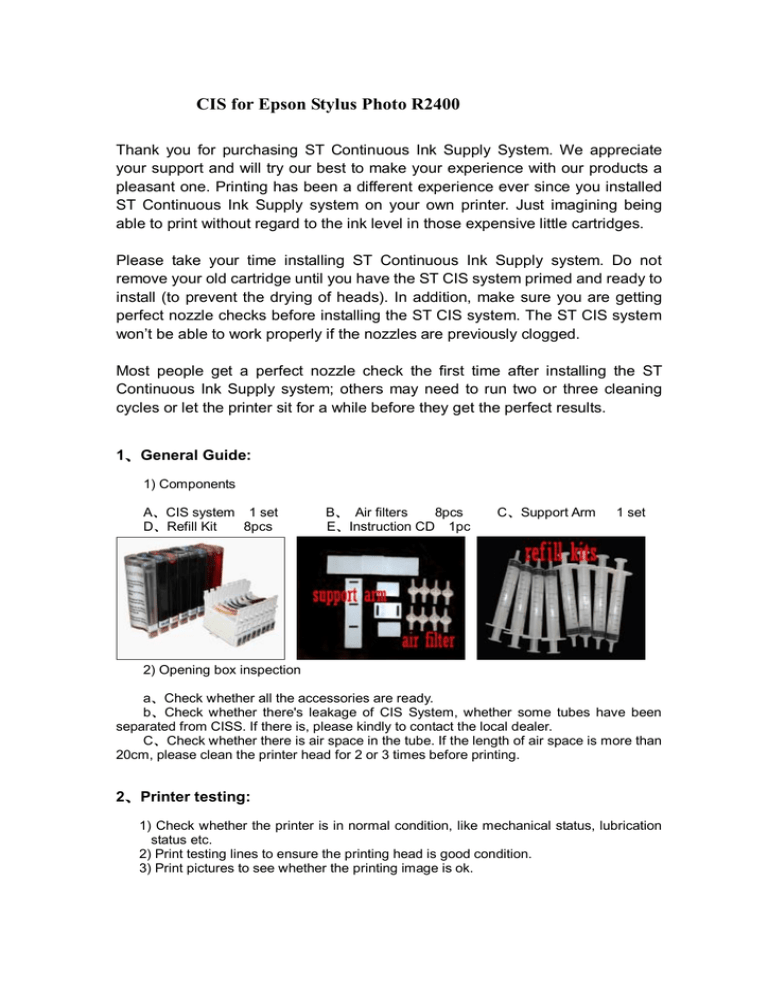

CIS for Epson Stylus Photo R2400
Thank you for purchasing ST Continuous Ink Supply System. We appreciate
your support and will try our best to make your experience with our products a
pleasant one. Printing has been a different experience ever since you installed
ST Continuous Ink Supply system on your own printer. Just imagining being
able to print without regard to the ink level in those expensive little cartridges.
Please take your time installing ST Continuous Ink Supply system. Do not
remove your old cartridge until you have the ST CIS system primed and ready to
install (to prevent the drying of heads). In addition, make sure you are getting
perfect nozzle checks before installing the ST CIS system. The ST CIS system
won’t be able to work properly if the nozzles are previously clogged.
Most people get a perfect nozzle check the first time after installing the ST
Continuous Ink Supply system; others may need to run two or three cleaning
cycles or let the printer sit for a while before they get the perfect results.
1、General Guide:
1) Components
A、CIS system 1 set
D、Refill Kit
8pcs
B、 Air filters
8pcs
E、Instruction CD 1pc
C、Support Arm
1 set
2) Opening box inspection
a、Check whether all the accessories are ready.
b、Check whether there's leakage of CIS System, whether some tubes have been
separated from CISS. If there is, please kindly to contact the local dealer.
C、Check whether there is air space in the tube. If the length of air space is more than
20cm, please clean the printer head for 2 or 3 times before printing.
2、Printer testing:
1) Check whether the printer is in normal condition, like mechanical status, lubrication
status etc.
2) Print testing lines to ensure the printing head is good condition.
3) Print pictures to see whether the printing image is ok.
3、Installation Procedures:
1) First step
Put the CISS on the left side
of the printer. In the meantime
place all the tubes at correct
position.
Pull out the small rubber plug
from the air hole as above
picture shown.
Place 8pcs of air filters into
air holes, the thicker side
is down into tank.
2) Second step: Remove out the original cartridges
Press the ink cartridge replace button to make the small cart move to the position which
ready to change the ink cartridges. And draw out the electrical Source.
3) Take off the cartridge cover:
Remove profile spring the on the cart, second open the cover to certain degree, then insert
the screwdriver at the connection which between the cart and the right side of the cover.
And screw the screwdriver in clockwise till the right side of the cover divide from the
connection on the cart, then take down the cartridge cover
4)、The fourth step: Place the Cartridges in
Remove out the original cartridges ,then place down each cartridge according to the
color ,in the meantime, make every cartridge in the correct position.
Remove the cartridge cart back and place the cartridges down as show in picture ,then click
the cartridges to the right position.
5)、The fifth step : Fix up the support arm
Rip the label
Stick the Support arm at 25cm
distance from the side of the printer
Rip the label
on the balance arm
Fix the balance arm stick on the support arm as show on the picture, Rip the label on the
shortest arm ,And Stick it on the right side of the printer, but need to keep it in the same
horizontal line as show in the picture
6)、The sixth step: Installing tubes
Clip the tubes in the clip
Now finished
7) Adjust the tubes
Adjust the tube length and move the cartridge car. Insure there will no block and collision
when the tubes moving with cartridge car .Insure there's plenty length of tube to make the
cartridge cart can thoroughly move to the left side.
The tube is excessive long, it The tube is twist ,it is not ok.
is not ok.
8)、The eighth step
Insert the electrical source
line suitably
Power on the printer to check
whether the printer works well
9)、The ninth step: Checking the printing head
In this situation ,it is ok
OK
Everything is in normal
You can work your print
Show breaks
If it show this breaks,
please
clean
the printing head
Enter this item
If there show breaks, please clean your printing head. It is possible that the wispy air have
entered into the printing head. If it is still show little breaks specially show in one color, it no
need to repeatedly continue to clean. Just keep the printer silent for about one hour, it may
disappear. If after testing, it still abnormal, please kindly to contact with local dealer.
4、Reset Procedure:
If the indicator light show flashing when printing .it tell you that you need to change the
cartridges, the please power off the printer for about 1 minutes and turn on again, this time it
will show full on the computer, then it can work in good condition.
5、Refill Ink
Please pay attention to the ink level in the reservoirs; if the ink level is below 1CM as the
above picture shown, please use refill kits to fill ink into Reservoir bottles. Carefully pull out
the rubber plugs from the refill holes.(there is possibility of ink spattering. Be careful!) Refill
ink according to the color in short supply. Then put the rubber back. (Please keep the printer
and the reservoir at the same horizontal line during the process of refilling ink.)
6. Assemble the cartridge cover
First place the left side of cartridge cover down correctly, second, put the other side of the
cartridge cover at the above of the cart and adjust the position of the connection
Then press the right side of the cartridge cover to make it down to the suitable position, now
it is ok to work.
7、Attention for maintenance:
Take out the CISS including the inner cartridges and other components. Then
remove support arm from printer, and place the original cartridges in. Please
inquire local dealer before sending to maintenance.
8.Notice:
1. Please don’t take out cartridge at random after installing the CIS system.
Keep the reservoir bottles on the same level with the printer.
2. Try to keep at least 1/2 inch of ink in the bottles, as you don’t want to run out
of ink and draw air into the cartridge.
3. Don’t place the Reservoir Bottles higher or lower much than the printer.
4. To be used in a dry place between 15 and 35 degree. Avoid exposure to direct
sunlight.
5. Don’t put the continuous ink supply systems reversed or leaning during the
shipment. Please make sure all the ink filling holes and Ventilation holes are
closed tightly during the transportation. Otherwise, the ink shall leak out.
6. Don’t sway the cartridge frequently. It may cause ink leakage.
7. Don’t pull out the connector of cartridge and don’t tear off adhesive tape at the
bottom of cartridge.
9.Warning:
1. Not drinkable; keep it out reach of children.
2. Avoid exposure to direct sunshine and don’t keep it in high or freezing
temperature.
3. Avoid collision and fallen down.
