Epson NX510 Start Here Guide

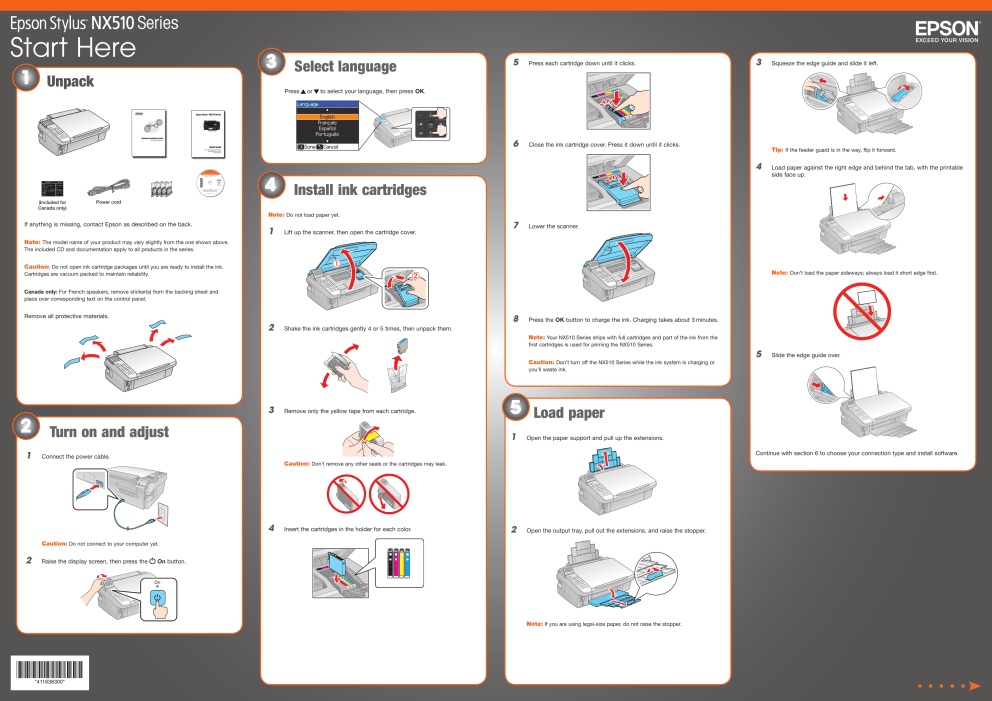

Start Here
Series
3 Select language
1 Unpack
Press
or
5Press each cartridge down until it clicks.
3
to select your language, then press OK.
6
Close the ink cartridge cover. Press it down until it clicks.
Tip: If the feeder guard is in the way, flip it forward.
4
4 Install ink cartridges
(Included for
Canada only)
Squeeze the edge guide and slide it left.
Load paper against the right edge and behind the tab, with the printable
side face up.
Power cord
Note: Do not load paper yet.
If anything is missing, contact Epson as described on the back.
1
Lift up the scanner, then open the cartridge cover.
7
Lower the scanner.
Note: The model name of your product may vary slightly from the one shown above.
The included CD and documentation apply to all products in the series.
Caution: Do not open ink cartridge packages until you are ready to install the ink.
Note: Don’t load the paper sideways; always load it short edge first.
Cartridges are vacuum packed to maintain reliability.
Canada only: For French speakers, remove sticker(s) from the backing sheet and
place over corresponding text on the control panel.
Remove all protective materials.
2Shake the ink cartridges gently 4 or 5 times, then unpack them.
8
Press the OK button to charge the ink. Charging takes about 3 minutes.
Note: Your NX510 Series ships with full cartridges and part of the ink from the
first cartridges is used for priming the NX510 Series.
Caution: Don’t turn off the NX510 Series while the ink system is charging or
5
Slide the edge guide over.
you’ll waste ink.
2 Turn on and adjust
1
3
Remove only the yellow tape from each cartridge.
5 Load paper
1
Open the paper support and pull up the extensions.
Continue with section 6 to choose your connection type and install software.
Connect the power cable.
Caution: Don’t remove any other seals or the cartridges may leak.
4Insert the cartridges in the holder for each color.
2
Open the output tray, pull out the extensions, and raise the stopper.
Caution: Do not connect to your computer yet.
2
Raise the display screen, then press the
On button.
Note: If you are using legal-size paper, do not raise the stopper.
*411638300*
*411638300*
Start Here
Series
3 Select language
1 Unpack
Press
or
5Press each cartridge down until it clicks.
3
to select your language, then press OK.
6
Close the ink cartridge cover. Press it down until it clicks.
Tip: If the feeder guard is in the way, flip it forward.
4
4 Install ink cartridges
(Included for
Canada only)
Squeeze the edge guide and slide it left.
Load paper against the right edge and behind the tab, with the printable
side face up.
Power cord
Note: Do not load paper yet.
If anything is missing, contact Epson as described on the back.
1
Lift up the scanner, then open the cartridge cover.
7
Lower the scanner.
Note: The model name of your product may vary slightly from the one shown above.
The included CD and documentation apply to all products in the series.
Caution: Do not open ink cartridge packages until you are ready to install the ink.
Note: Don’t load the paper sideways; always load it short edge first.
Cartridges are vacuum packed to maintain reliability.
Canada only: For French speakers, remove sticker(s) from the backing sheet and
place over corresponding text on the control panel.
Remove all protective materials.
2Shake the ink cartridges gently 4 or 5 times, then unpack them.
8
Press the OK button to charge the ink. Charging takes about 3 minutes.
Note: Your NX510 Series ships with full cartridges and part of the ink from the
first cartridges is used for priming the NX510 Series.
Caution: Don’t turn off the NX510 Series while the ink system is charging or
5
Slide the edge guide over.
you’ll waste ink.
2 Turn on and adjust
1
3
Remove only the yellow tape from each cartridge.
5 Load paper
1
Open the paper support and pull up the extensions.
Continue with section 6 to choose your connection type and install software.
Connect the power cable.
Caution: Don’t remove any other seals or the cartridges may leak.
4Insert the cartridges in the holder for each color.
2
Open the output tray, pull out the extensions, and raise the stopper.
Caution: Do not connect to your computer yet.
2
Raise the display screen, then press the
On button.
Note: If you are using legal-size paper, do not raise the stopper.
*411638300*
*411638300*
Start Here
Series
3 Select language
1 Unpack
Press
or
5Press each cartridge down until it clicks.
3
to select your language, then press OK.
6
Close the ink cartridge cover. Press it down until it clicks.
Tip: If the feeder guard is in the way, flip it forward.
4
4 Install ink cartridges
(Included for
Canada only)
Squeeze the edge guide and slide it left.
Load paper against the right edge and behind the tab, with the printable
side face up.
Power cord
Note: Do not load paper yet.
If anything is missing, contact Epson as described on the back.
1
Lift up the scanner, then open the cartridge cover.
7
Lower the scanner.
Note: The model name of your product may vary slightly from the one shown above.
The included CD and documentation apply to all products in the series.
Caution: Do not open ink cartridge packages until you are ready to install the ink.
Note: Don’t load the paper sideways; always load it short edge first.
Cartridges are vacuum packed to maintain reliability.
Canada only: For French speakers, remove sticker(s) from the backing sheet and
place over corresponding text on the control panel.
Remove all protective materials.
2Shake the ink cartridges gently 4 or 5 times, then unpack them.
8
Press the OK button to charge the ink. Charging takes about 3 minutes.
Note: Your NX510 Series ships with full cartridges and part of the ink from the
first cartridges is used for priming the NX510 Series.
Caution: Don’t turn off the NX510 Series while the ink system is charging or
5
Slide the edge guide over.
you’ll waste ink.
2 Turn on and adjust
1
3
Remove only the yellow tape from each cartridge.
5 Load paper
1
Open the paper support and pull up the extensions.
Continue with section 6 to choose your connection type and install software.
Connect the power cable.
Caution: Don’t remove any other seals or the cartridges may leak.
4Insert the cartridges in the holder for each color.
2
Open the output tray, pull out the extensions, and raise the stopper.
Caution: Do not connect to your computer yet.
2
Raise the display screen, then press the
On button.
Note: If you are using legal-size paper, do not raise the stopper.
*411638300*
*411638300*
Start Here
Series
3 Select language
1 Unpack
Press
or
5Press each cartridge down until it clicks.
3
to select your language, then press OK.
6
Close the ink cartridge cover. Press it down until it clicks.
Tip: If the feeder guard is in the way, flip it forward.
4
4 Install ink cartridges
(Included for
Canada only)
Squeeze the edge guide and slide it left.
Load paper against the right edge and behind the tab, with the printable
side face up.
Power cord
Note: Do not load paper yet.
If anything is missing, contact Epson as described on the back.
1
Lift up the scanner, then open the cartridge cover.
7
Lower the scanner.
Note: The model name of your product may vary slightly from the one shown above.
The included CD and documentation apply to all products in the series.
Caution: Do not open ink cartridge packages until you are ready to install the ink.
Note: Don’t load the paper sideways; always load it short edge first.
Cartridges are vacuum packed to maintain reliability.
Canada only: For French speakers, remove sticker(s) from the backing sheet and
place over corresponding text on the control panel.
Remove all protective materials.
2Shake the ink cartridges gently 4 or 5 times, then unpack them.
8
Press the OK button to charge the ink. Charging takes about 3 minutes.
Note: Your NX510 Series ships with full cartridges and part of the ink from the
first cartridges is used for priming the NX510 Series.
Caution: Don’t turn off the NX510 Series while the ink system is charging or
5
Slide the edge guide over.
you’ll waste ink.
2 Turn on and adjust
1
3
Remove only the yellow tape from each cartridge.
5 Load paper
1
Open the paper support and pull up the extensions.
Continue with section 6 to choose your connection type and install software.
Connect the power cable.
Caution: Don’t remove any other seals or the cartridges may leak.
4Insert the cartridges in the holder for each color.
2
Open the output tray, pull out the extensions, and raise the stopper.
Caution: Do not connect to your computer yet.
2
Raise the display screen, then press the
On button.
Note: If you are using legal-size paper, do not raise the stopper.
*411638300*
*411638300*
6 Choose your connection
Network (wireless or wired)
See your Network Installation
Guide. You can’t install your
software as described below.
5
When prompted, connect a USB cable. Use any open USB port on your
computer.
7
When you see this screen, click Add Printer. Follow the steps on the right
side of the screen to add the NX510 Series.
Try Epson paper with DURABrite® Ultra Ink for professional results. For the
right supplies at the right time, you can purchase them at Epson Supplies
CentralSM at www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian
sales). You can also purchase supplies from an Epson authorized reseller. To
find the nearest one, call 800-GO-EPSON (800-463-7766).
OR
Genuine Epson Paper
USB connection
Make sure you have a USB cable (not included).
Then follow the steps below.
Note: If installation doesn’t continue after a moment, make sure you securely connected and turned on the NX510 Series.
6
7
USB connection
Follow these steps to connect the NX510 Series directly to your computer using
a USB cable (not included).
Windows®
1
Make sure the NX510 Series is NOT CONNECTED to your computer.
Epson offers a wide variety of papers to meet your needs; visit Epson
Supplies Central for more information.
8
Follow the on-screen instructions to install the rest of the software and
register your NX510 Series.
9
When you’re done, remove the CD.
10
You’re ready to print, copy, and scan! See your Quick Guide or on-screen
Epson Information Center.
Click Next again, if necessary.
Premium Presentation Paper Matte
Ultra smooth, non-glare, heavy-weight paper for
long-lasting photos and professional looking
brochures.
When you’re done, eject the CD.
You’re ready to print, copy, and scan! See your Quick Guide or on-screen
Epson Information Center.
Genuine Epson Inks
Look for the numbers below to
find your cartridges. It’s as easy as
remembering your number!
Macintosh
®
1
Make sure the NX510 Series is NOT CONNECTED to your computer.
Any questions?
Basic instructions for printing, copying, and scanning.
On-screen Epson Information Center
Click the desktop shortcut for easy access to the NX510 Series
user’s guide, FAQs, online troubleshooting advice, and software downloads.
You can also purchase paper and ink.
the USB cable. You can’t install your software that way.
Follow the on-screen instructions to install the rest of the software and
register your NX510 Series.
Quick Guide
Note: If you see a Found New Hardware screen, click Cancel and disconnect
Need paper and ink?
2
Insert the NX510 Series software CD.
3
Double-click the
4
Click Install and follow the on-screen instructions.
Standardcapacity
High-capacity
Extra Highcapacity
Black
69
68
97
Cyan
69
68
–––
Magenta
69
68
–––
Yellow
69
68
–––
Color
Note: The 69 Standard-capacity ink cartridges are available online and from Epson
authorized resellers.
Epson icon.
* 1-year limited warranty to all purchasers. For California and Québec residents, failure to
submit this product registration form does not diminish your warranty rights.
Network Installation Guide and Video
2
Insert the NX510 Series software CD.
With Windows Vista®, if you see the AutoPlay
window, click Run Setup.exe. When you see the
User Account Control screen, click Continue.
3
Instructions on configuring the NX510 Series for a network. For
a video tutorial and other information about setting up a wireless
network, go to: epson.com/support/wireless
On-screen help with your software
5
Select Help or ? when you’re using your software.
When you see this screen, select Install driver for direct USB
connection and then click Next.
Click Install and follow the on-screen instructions.
Epson is a registered trademark, Epson Exceed Your Vision is a registered logomark, and
Supplies Central is a service mark of Seiko Epson Corporation. DURABrite is a registered
trademark and Epson Stylus is a registered trademark of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and
may be trademarks of their respective owners. Epson disclaims any and all rights in those
marks.
This information is subject to change without notice.
© 2009 Epson America, Inc. 2/09
CPD-27298
Epson Technical Support
Internet Support
Visit Epson’s support website at epson.com/support and select your
product for solutions to common problems. You can download drivers and
documentation, get FAQs and troubleshooting advice, or e-mail Epson with
your questions.
Speak to a Support Representative
Call (562) 276-4382 (U.S.) or (905) 709-3839 (Canada), 6 AM to 6 PM, Pacific
Time, Monday through Friday. Days and hours of support are subject to change
without notice. Toll or long distance charges may apply.
4
6
When you see this screen, select Install driver for direct USB
connection and then click Next.
Software Technical Support
When prompted, connect a USB cable. Use any open USB port on your
computer. Make sure the NX510 Series is securely connected and turned
on.
ArcSoft Print Creations™
www.arcsoft.com/support
Cut out the card to the
right and keep it with
you when purchasing
replacement ink
cartridges.
Epson Stylus® NX510 Series Ink Cartridges
Standardcapacity
Highcapacity
Extra Highcapacity
Black
69
68
97
Cyan
69
68
––
If you’re using Mac OS X 10.5.x, skip to step 9.
Magenta
69
68
––
If you’re using Mac OS X 10.3.9 or 10.4.11, continue with the next step.
Yellow
69
68
––
Printed in XXXXXX
Color
6 Choose your connection
Network (wireless or wired)
See your Network Installation
Guide. You can’t install your
software as described below.
5
When prompted, connect a USB cable. Use any open USB port on your
computer.
7
When you see this screen, click Add Printer. Follow the steps on the right
side of the screen to add the NX510 Series.
Try Epson paper with DURABrite® Ultra Ink for professional results. For the
right supplies at the right time, you can purchase them at Epson Supplies
CentralSM at www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian
sales). You can also purchase supplies from an Epson authorized reseller. To
find the nearest one, call 800-GO-EPSON (800-463-7766).
OR
Genuine Epson Paper
USB connection
Make sure you have a USB cable (not included).
Then follow the steps below.
Note: If installation doesn’t continue after a moment, make sure you securely connected and turned on the NX510 Series.
6
7
USB connection
Follow these steps to connect the NX510 Series directly to your computer using
a USB cable (not included).
Windows®
1
Make sure the NX510 Series is NOT CONNECTED to your computer.
Epson offers a wide variety of papers to meet your needs; visit Epson
Supplies Central for more information.
8
Follow the on-screen instructions to install the rest of the software and
register your NX510 Series.
9
When you’re done, remove the CD.
10
You’re ready to print, copy, and scan! See your Quick Guide or on-screen
Epson Information Center.
Click Next again, if necessary.
Premium Presentation Paper Matte
Ultra smooth, non-glare, heavy-weight paper for
long-lasting photos and professional looking
brochures.
When you’re done, eject the CD.
You’re ready to print, copy, and scan! See your Quick Guide or on-screen
Epson Information Center.
Genuine Epson Inks
Look for the numbers below to
find your cartridges. It’s as easy as
remembering your number!
Macintosh
®
1
Make sure the NX510 Series is NOT CONNECTED to your computer.
Any questions?
Basic instructions for printing, copying, and scanning.
On-screen Epson Information Center
Click the desktop shortcut for easy access to the NX510 Series
user’s guide, FAQs, online troubleshooting advice, and software downloads.
You can also purchase paper and ink.
the USB cable. You can’t install your software that way.
Follow the on-screen instructions to install the rest of the software and
register your NX510 Series.
Quick Guide
Note: If you see a Found New Hardware screen, click Cancel and disconnect
Need paper and ink?
2
Insert the NX510 Series software CD.
3
Double-click the
4
Click Install and follow the on-screen instructions.
Standardcapacity
High-capacity
Extra Highcapacity
Black
69
68
97
Cyan
69
68
–––
Magenta
69
68
–––
Yellow
69
68
–––
Color
Note: The 69 Standard-capacity ink cartridges are available online and from Epson
authorized resellers.
Epson icon.
* 1-year limited warranty to all purchasers. For California and Québec residents, failure to
submit this product registration form does not diminish your warranty rights.
Network Installation Guide and Video
2
Insert the NX510 Series software CD.
With Windows Vista®, if you see the AutoPlay
window, click Run Setup.exe. When you see the
User Account Control screen, click Continue.
3
Instructions on configuring the NX510 Series for a network. For
a video tutorial and other information about setting up a wireless
network, go to: epson.com/support/wireless
On-screen help with your software
5
Select Help or ? when you’re using your software.
When you see this screen, select Install driver for direct USB
connection and then click Next.
Click Install and follow the on-screen instructions.
Epson is a registered trademark, Epson Exceed Your Vision is a registered logomark, and
Supplies Central is a service mark of Seiko Epson Corporation. DURABrite is a registered
trademark and Epson Stylus is a registered trademark of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and
may be trademarks of their respective owners. Epson disclaims any and all rights in those
marks.
This information is subject to change without notice.
© 2009 Epson America, Inc. 2/09
CPD-27298
Epson Technical Support
Internet Support
Visit Epson’s support website at epson.com/support and select your
product for solutions to common problems. You can download drivers and
documentation, get FAQs and troubleshooting advice, or e-mail Epson with
your questions.
Speak to a Support Representative
Call (562) 276-4382 (U.S.) or (905) 709-3839 (Canada), 6 AM to 6 PM, Pacific
Time, Monday through Friday. Days and hours of support are subject to change
without notice. Toll or long distance charges may apply.
4
6
When you see this screen, select Install driver for direct USB
connection and then click Next.
Software Technical Support
When prompted, connect a USB cable. Use any open USB port on your
computer. Make sure the NX510 Series is securely connected and turned
on.
ArcSoft Print Creations™
www.arcsoft.com/support
Cut out the card to the
right and keep it with
you when purchasing
replacement ink
cartridges.
Epson Stylus® NX510 Series Ink Cartridges
Standardcapacity
Highcapacity
Extra Highcapacity
Black
69
68
97
Cyan
69
68
––
If you’re using Mac OS X 10.5.x, skip to step 9.
Magenta
69
68
––
If you’re using Mac OS X 10.3.9 or 10.4.11, continue with the next step.
Yellow
69
68
––
Printed in XXXXXX
Color
6 Choose your connection
Network (wireless or wired)
See your Network Installation
Guide. You can’t install your
software as described below.
5
When prompted, connect a USB cable. Use any open USB port on your
computer.
7
When you see this screen, click Add Printer. Follow the steps on the right
side of the screen to add the NX510 Series.
Try Epson paper with DURABrite® Ultra Ink for professional results. For the
right supplies at the right time, you can purchase them at Epson Supplies
CentralSM at www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian
sales). You can also purchase supplies from an Epson authorized reseller. To
find the nearest one, call 800-GO-EPSON (800-463-7766).
OR
Genuine Epson Paper
USB connection
Make sure you have a USB cable (not included).
Then follow the steps below.
Note: If installation doesn’t continue after a moment, make sure you securely connected and turned on the NX510 Series.
6
7
USB connection
Follow these steps to connect the NX510 Series directly to your computer using
a USB cable (not included).
Windows®
1
Make sure the NX510 Series is NOT CONNECTED to your computer.
Epson offers a wide variety of papers to meet your needs; visit Epson
Supplies Central for more information.
8
Follow the on-screen instructions to install the rest of the software and
register your NX510 Series.
9
When you’re done, remove the CD.
10
You’re ready to print, copy, and scan! See your Quick Guide or on-screen
Epson Information Center.
Click Next again, if necessary.
Premium Presentation Paper Matte
Ultra smooth, non-glare, heavy-weight paper for
long-lasting photos and professional looking
brochures.
When you’re done, eject the CD.
You’re ready to print, copy, and scan! See your Quick Guide or on-screen
Epson Information Center.
Genuine Epson Inks
Look for the numbers below to
find your cartridges. It’s as easy as
remembering your number!
Macintosh
®
1
Make sure the NX510 Series is NOT CONNECTED to your computer.
Any questions?
Basic instructions for printing, copying, and scanning.
On-screen Epson Information Center
Click the desktop shortcut for easy access to the NX510 Series
user’s guide, FAQs, online troubleshooting advice, and software downloads.
You can also purchase paper and ink.
the USB cable. You can’t install your software that way.
Follow the on-screen instructions to install the rest of the software and
register your NX510 Series.
Quick Guide
Note: If you see a Found New Hardware screen, click Cancel and disconnect
Need paper and ink?
2
Insert the NX510 Series software CD.
3
Double-click the
4
Click Install and follow the on-screen instructions.
Standardcapacity
High-capacity
Extra Highcapacity
Black
69
68
97
Cyan
69
68
–––
Magenta
69
68
–––
Yellow
69
68
–––
Color
Note: The 69 Standard-capacity ink cartridges are available online and from Epson
authorized resellers.
Epson icon.
* 1-year limited warranty to all purchasers. For California and Québec residents, failure to
submit this product registration form does not diminish your warranty rights.
Network Installation Guide and Video
2
Insert the NX510 Series software CD.
With Windows Vista®, if you see the AutoPlay
window, click Run Setup.exe. When you see the
User Account Control screen, click Continue.
3
Instructions on configuring the NX510 Series for a network. For
a video tutorial and other information about setting up a wireless
network, go to: epson.com/support/wireless
On-screen help with your software
5
Select Help or ? when you’re using your software.
When you see this screen, select Install driver for direct USB
connection and then click Next.
Click Install and follow the on-screen instructions.
Epson is a registered trademark, Epson Exceed Your Vision is a registered logomark, and
Supplies Central is a service mark of Seiko Epson Corporation. DURABrite is a registered
trademark and Epson Stylus is a registered trademark of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and
may be trademarks of their respective owners. Epson disclaims any and all rights in those
marks.
This information is subject to change without notice.
© 2009 Epson America, Inc. 2/09
CPD-27298
Epson Technical Support
Internet Support
Visit Epson’s support website at epson.com/support and select your
product for solutions to common problems. You can download drivers and
documentation, get FAQs and troubleshooting advice, or e-mail Epson with
your questions.
Speak to a Support Representative
Call (562) 276-4382 (U.S.) or (905) 709-3839 (Canada), 6 AM to 6 PM, Pacific
Time, Monday through Friday. Days and hours of support are subject to change
without notice. Toll or long distance charges may apply.
4
6
When you see this screen, select Install driver for direct USB
connection and then click Next.
Software Technical Support
When prompted, connect a USB cable. Use any open USB port on your
computer. Make sure the NX510 Series is securely connected and turned
on.
ArcSoft Print Creations™
www.arcsoft.com/support
Cut out the card to the
right and keep it with
you when purchasing
replacement ink
cartridges.
Epson Stylus® NX510 Series Ink Cartridges
Standardcapacity
Highcapacity
Extra Highcapacity
Black
69
68
97
Cyan
69
68
––
If you’re using Mac OS X 10.5.x, skip to step 9.
Magenta
69
68
––
If you’re using Mac OS X 10.3.9 or 10.4.11, continue with the next step.
Yellow
69
68
––
Printed in XXXXXX
Color
6 Choose your connection
Network (wireless or wired)
See your Network Installation
Guide. You can’t install your
software as described below.
5
When prompted, connect a USB cable. Use any open USB port on your
computer.
7
When you see this screen, click Add Printer. Follow the steps on the right
side of the screen to add the NX510 Series.
Try Epson paper with DURABrite® Ultra Ink for professional results. For the
right supplies at the right time, you can purchase them at Epson Supplies
CentralSM at www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian
sales). You can also purchase supplies from an Epson authorized reseller. To
find the nearest one, call 800-GO-EPSON (800-463-7766).
OR
Genuine Epson Paper
USB connection
Make sure you have a USB cable (not included).
Then follow the steps below.
Note: If installation doesn’t continue after a moment, make sure you securely connected and turned on the NX510 Series.
6
7
USB connection
Follow these steps to connect the NX510 Series directly to your computer using
a USB cable (not included).
Windows®
1
Make sure the NX510 Series is NOT CONNECTED to your computer.
Epson offers a wide variety of papers to meet your needs; visit Epson
Supplies Central for more information.
8
Follow the on-screen instructions to install the rest of the software and
register your NX510 Series.
9
When you’re done, remove the CD.
10
You’re ready to print, copy, and scan! See your Quick Guide or on-screen
Epson Information Center.
Click Next again, if necessary.
Premium Presentation Paper Matte
Ultra smooth, non-glare, heavy-weight paper for
long-lasting photos and professional looking
brochures.
When you’re done, eject the CD.
You’re ready to print, copy, and scan! See your Quick Guide or on-screen
Epson Information Center.
Genuine Epson Inks
Look for the numbers below to
find your cartridges. It’s as easy as
remembering your number!
Macintosh
®
1
Make sure the NX510 Series is NOT CONNECTED to your computer.
Any questions?
Basic instructions for printing, copying, and scanning.
On-screen Epson Information Center
Click the desktop shortcut for easy access to the NX510 Series
user’s guide, FAQs, online troubleshooting advice, and software downloads.
You can also purchase paper and ink.
the USB cable. You can’t install your software that way.
Follow the on-screen instructions to install the rest of the software and
register your NX510 Series.
Quick Guide
Note: If you see a Found New Hardware screen, click Cancel and disconnect
Need paper and ink?
2
Insert the NX510 Series software CD.
3
Double-click the
4
Click Install and follow the on-screen instructions.
Standardcapacity
High-capacity
Extra Highcapacity
Black
69
68
97
Cyan
69
68
–––
Magenta
69
68
–––
Yellow
69
68
–––
Color
Note: The 69 Standard-capacity ink cartridges are available online and from Epson
authorized resellers.
Epson icon.
* 1-year limited warranty to all purchasers. For California and Québec residents, failure to
submit this product registration form does not diminish your warranty rights.
Network Installation Guide and Video
2
Insert the NX510 Series software CD.
With Windows Vista®, if you see the AutoPlay
window, click Run Setup.exe. When you see the
User Account Control screen, click Continue.
3
Instructions on configuring the NX510 Series for a network. For
a video tutorial and other information about setting up a wireless
network, go to: epson.com/support/wireless
On-screen help with your software
5
Select Help or ? when you’re using your software.
When you see this screen, select Install driver for direct USB
connection and then click Next.
Click Install and follow the on-screen instructions.
Epson is a registered trademark, Epson Exceed Your Vision is a registered logomark, and
Supplies Central is a service mark of Seiko Epson Corporation. DURABrite is a registered
trademark and Epson Stylus is a registered trademark of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and
may be trademarks of their respective owners. Epson disclaims any and all rights in those
marks.
This information is subject to change without notice.
© 2009 Epson America, Inc. 2/09
CPD-27298
Epson Technical Support
Internet Support
Visit Epson’s support website at epson.com/support and select your
product for solutions to common problems. You can download drivers and
documentation, get FAQs and troubleshooting advice, or e-mail Epson with
your questions.
Speak to a Support Representative
Call (562) 276-4382 (U.S.) or (905) 709-3839 (Canada), 6 AM to 6 PM, Pacific
Time, Monday through Friday. Days and hours of support are subject to change
without notice. Toll or long distance charges may apply.
4
6
When you see this screen, select Install driver for direct USB
connection and then click Next.
Software Technical Support
When prompted, connect a USB cable. Use any open USB port on your
computer. Make sure the NX510 Series is securely connected and turned
on.
ArcSoft Print Creations™
www.arcsoft.com/support
Cut out the card to the
right and keep it with
you when purchasing
replacement ink
cartridges.
Epson Stylus® NX510 Series Ink Cartridges
Standardcapacity
Highcapacity
Extra Highcapacity
Black
69
68
97
Cyan
69
68
––
If you’re using Mac OS X 10.5.x, skip to step 9.
Magenta
69
68
––
If you’re using Mac OS X 10.3.9 or 10.4.11, continue with the next step.
Yellow
69
68
––
Printed in XXXXXX
Color

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
