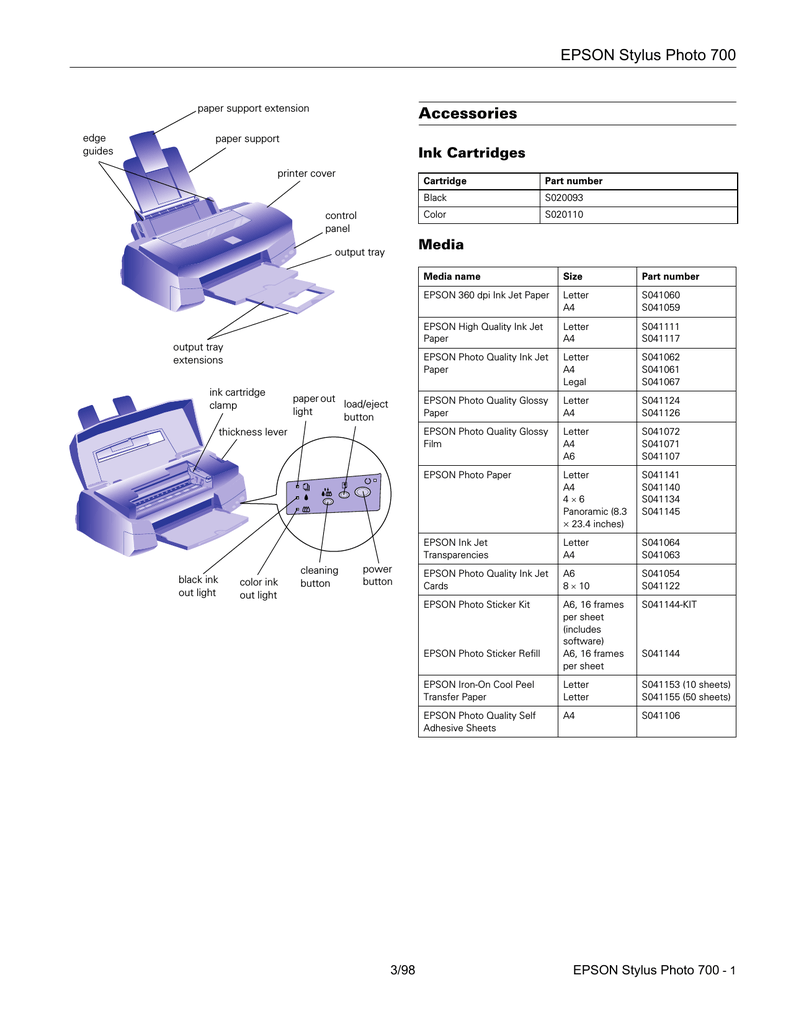

Epson Stylus Photo 700 Ink Jet Printer Product Information Guide

EPSON Stylus Photo 700
paper support extension
edge
guides
Accessories
paper support
Ink Cartridges
printer cover
control
panel
output tray
extensions
paper out
load/eject
light
button
thickness lever
black ink
out light
color ink
out light
cleaning
button
Part number
Black
S020093
Color
S020110
Media
output tray
ink cartridge
clamp
Cartridge
power
button
Media name
Size
Part number
EPSON 360 dpi Ink Jet Paper
Letter
A4
S041060
S041059
EPSON High Quality Ink Jet
Paper
Letter
A4
S041111
S041117
EPSON Photo Quality Ink Jet
Paper
Letter
A4
Legal
S041062
S041061
S041067
EPSON Photo Quality Glossy
Paper
Letter
A4
S041124
S041126
EPSON Photo Quality Glossy
Film
Letter
A4
A6
S041072
S041071
S041107
EPSON Photo Paper
Letter
A4
4×6
Panoramic (8.3
× 23.4 inches)
S041141
S041140
S041134
S041145
EPSON Ink Jet
Transparencies
Letter
A4
S041064
S041063
EPSON Photo Quality Ink Jet
Cards
A6
8 × 10
S041054
S041122
EPSON Photo Sticker Kit
A6, 16 frames
per sheet
(includes
software)
A6, 16 frames
per sheet
S041144-KIT
EPSON Iron-On Cool Peel
Transfer Paper
Letter
Letter
S041153 (10 sheets)
S041155 (50 sheets)
EPSON Photo Quality Self
Adhesive Sheets
A4
S041106
EPSON Photo Sticker Refill
3/98
S041144
EPSON Stylus Photo 700 - 1
EPSON Stylus Photo 700
Ink Cartridge
Printer Specifications
Printing
Printing method
EPSON’s exclusive drop-on-demand
Micro Piezo™ ink jet technology
Specification
Black ink cartridge
(S020093)
Color ink cartridge
(S020110)
Color(s)
Black
Cyan, Magenta, Yellow,
Light Magenta, Light Cyan
Print capacity* 540 pages/A4 (ISO/IEC
10561 Letter Pattern at
360 dpi)
Nozzle configuration
220 pages (A4, 360 dpi,
5% duty each color)
Black
32 nozzles
Cartridge life
Color
32 nozzles × 5 (cyan, magenta, yellow, light
cyan, light magenta)
2 years from production date (if unopened)
(within 6 months after opening package, at 77 °F (25 °C))
Storage
temperature
Installed:
Transit
temperature
−22 to 140 °F (−30 to 60 °C)
1 month at 104 °F (40 °C)
120 hours at 140 °F (60 °C)
Printable columns and printing speeds
Print quality
Printable width
Available dots
CR speed
180 dpi
8.26 inches (209.8 mm)
1488
20 ips
360 dpi
8.26 inches (209.8 mm)
2976
20 ips
720 dpi
8.26 inches (209.8 mm)
5952
20 ips
1440 dpi
8.26 inches (209.8 mm)
11904
20 ips
Freezing
5 °F (−15 °C)
temperature**
Dimensions
dpi = dots per inch, ips = inches per second
Resolution
Maximum 1440 dpi × 720 dpi
Print direction
Bidirectional with logic seeking
Control code
ESC/P Raster™
−4 to 104 °F (−20 to 40 °C)
1 month at 104 °F (40 °C)
Uninstalled: −22 to 104 °F (−30 to 40 °C)
1 month at 104 °F (40 °C)
0.7 (W) × 2.1 (D) ×
1.5 (H) inches
19.8 (W) × 52.7 (D) ×
38.5 (H) mm
1.4 °F (−17 °C)
2.0 (W) × 2.1 (D) ×
1.5 (H) inches
51.4 (W) × 52.7 (D) ×
38.5 (H) mm
* The print capacity may vary, depending on how often you clean
the print head.
** Cartridges thaw and are usable after approximately 3 hours at
77 °F (25 °C).
Caution:
EPSON recommends the use of genuine EPSON ink
cartridges. Other products not manufactured by EPSON
may cause damage to your printer not covered by
EPSON’s warranties.
Do not use an ink cartridge if the date on the package has
expired.
2 - EPSON Stylus Photo 700
3/98
EPSON Stylus Photo 700
Paper
Paper type
Size
Paper types
Thickness
Weight
Single sheets
Letter (8.5 × 11 inches)
Legal (8.5 × 14 inches)
Statement (5.5 × 8.5 inches)
Executive (7.5 × 10 inches)
A4 (210 × 297 mm)
A5 (148 × 210 mm)
B5 (182 × 257 mm)
Plain bond paper and special ink jet
papers distributed by EPSON
0.003 to 0.004 inch 17 to 24 lb (64 to
90 g/m2) for plain
(0.08 to 0.11 mm)
for plain bond paper bond paper
Transparencies, Glossy
film, Glossy paper
Letter (8.5 × 11 inches)
A4 (210 × 297 mm)
A6 (105 × 148 mm), glossy film only
Transparencies, glossy paper, and glossy —
film distributed by EPSON
—
Adhesive sheets
A4 (210 × 297 mm)
Self adhesive sheets distributed by
EPSON
—
—
Envelopes
No. 10 9.5 × 4.1 inches (240 × 104 mm) Plain bond paper or air mail paper
DL
8.7 × 4.3 inches (220 × 110 mm)
C6
4.4 × 6.4 inches (114 × 162 mm)
0.006 to 0.017 inch
(0.16 to 0.43 mm)
12 to 20 lb
(45 to 75 g/m2)
Index (ink jet) cards
A6 (105 × 148 mm)
8 × 10 inches (203 × 254 mm)
Ink jet cards distributed by EPSON
—
—
Photo paper
Letter (8.5 × 11 inches)
A4 (210 × 297 mm)
4 × 6 inches (102 × 152 mm)
Panoramic (210 × 594 mm)
Photo paper distributed by EPSON
—
—
Photo stickers
A6 (105 × 148 mm) 16 frames per sheet
Photo stickers distributed by EPSON
—
—
Iron-on cool peel transfer
paper
A4 (210 × 297 mm)
Letter (8.5 × 11 inches)
Transfer paper distributed by EPSON
—
—
Note:
Since the quality of any particular brand or type of paper may be
changed by the manufacturer at any time, EPSON cannot attest to
the quality of any non-EPSON brand or type of paper. Always test
samples of paper stock before purchasing large quantities or printing
large jobs.
Poor quality paper may reduce print quality and cause paper jams and
other problems. If you encounter problems, switch to a higher grade
of paper.
Do not load curled or folded paper.
Use special papers distributed by EPSON under these conditions:
Temperature: 59 to 77 °F (15 to 25 °C)
Humidity:
40 to 60% RH
Store printouts on EPSON glossy media and self adhesive sheets
under these conditions:
Temperature: 59 to 86 °F (15 to 30 °C)
Humidity:
20 to 60% RH
3/98
EPSON Stylus Photo 700 - 3
EPSON Stylus Photo 700
Printable area
A
A
B-L
B-R
B-L
C
B-R
EPSON Panoramic Photo Paper
A: The minimum top margin is 0.12 inch (3.0 mm).
B-L, The minimum left margin is 0.12 inch (3.0 mm).
B-R: The minimum right margin is 0.54 inch (14.0 mm).
C: The minimum bottom margin is 0.12 inch (3.0 mm).
C
single sheets/index cards
Note:
Always load paper into the sheet feeder short edge first. However,
envelopes should be loaded long edge first.
A
B-L
Mechanical
B-R
C
envelope
A:
The minimum top margin is 0.12 inch (3.0 mm).
When loading multiple sheets of EPSON Photo Quality Film, the
minimum top margin is 1.2 inches (30 mm).
B-L,
B-R: The minimum left and right margins are 0.12 inch (3.0 mm).
The minimum right margin for envelopes is as follows:
0.28 inch (7 mm) for DL envelopes.
1.10 inch (28 mm) for No. 10 envelopes.
0.12 inch (3 mm) for C6 envelopes.
C: The minimum bottom margin is 0.54 inch (14.0 mm).
.
Paper feed
method
Friction
Paper path
Rear entry sheet feeder
Sheet feeder
capacity
100 sheets of 17 lb (64 g/m2) paper
Dimensions
Storage
Width: 16.9 inches (429 mm)
Depth: 9.2 inches (234 mm)
Height: 6.4 inches (162 mm)
Printing (standard)
Width: 16.9 inches (429 mm)
Depth: 22.9 inches (582 mm)
Height: 12.1 inches (307 mm)
A
Printing (on transparencies)
Width: 16.9 inches (429 mm)
Depth: 26.1 inches (664 mm)
Height: 7.7 inches (196 mm)
B-L, B-R
Weight
C
EPSON 4 × 6-inch Photo Paper
(dotted lines indicate perforations)
A:
B–L,
B–R:
C:
The maximum top margin is 0.67 inch (17.0 mm).
The maximum left and right margin is 0.24 inch (6.1 mm).
The maximum bottom margin is 0.24 inch (6.1 mm).
4 - EPSON Stylus Photo 700
3/98
11.5 lb (5.2 kg) without the ink cartridges
EPSON Stylus Photo 700
Electrical
Hardware initialization
Specification
120 V Model
220−240 V Model*
Input voltage
range**
99 to 132 V
198 to 264 V
Rated frequency
range
50 to 60 Hz
Input frequency
range
49.5 to 60.5 Hz
Rated current
0.4 A
Power
consumption
Approx. 15 W (ISO/IEC 10561 Letter Pattern)
Approx. 5 W in standby mode (120 V model)
Approx. 5.5 W in standby mode (220−240 V
model)
When the printer is turned on, the printer mechanism is
initialized and the input data buffer and print buffer are
cleared. Printer settings are returned to their default values.
However, the printer mechanism is not initialized if the
printer is turned on within ten seconds after turning it off. In
this case, the printer caps the print head, and ejects any paper
in the paper path.
Software initialization
0.2 A
Software initialization clears the print buffer and returns
printer settings to their default values. However, it does not
initialize the printer mechanism or clear the data buffer.
Interface
* This product is also designed for an IT power system phase-tophase voltage of 220−240 V.
Your printer is equipped with an 8-bit parallel interface and a
serial interface.
** Check the label on the back of the printer for the voltage of your
printer.
Parallel interface
Environmental
The built-in parallel interface has the following characteristics:
Temperature
Forward channel
Operation
50 to 95 °F (10 to 35 °C)
Storage*
−4
to 140 °F (−20 to 60 °C)
1 month at 104 °F (40 °C)
120 hours at 140 °F (60 °C)
Humidity (without condensation)
Operation
20 to 80% RH
Storage*
5 to 85% RH
Data format:
8-bit parallel, IEEE-1284
compatibility mode
Synchronization:
STROBE pulse
Handshake timing:
BUSY and ACKNLG signals
Signal level:
TTL compatible
Connector:
57-30360 Amphenol connector or
equivalent
*Stored in shipping container
Reverse channel
Safety approvals
Transmission mode:
IEEE-1284 Nibble mode
Safety standards
UL 1950 with D3, CSA C22.2 No. 950
with D3
Adaptable connector:
57-30360 Amphenol connector or
equivalent
EMC
FCC part 15 subpart B class B, CSA
C108.8 class B
Synchronization:
Refer to the IEEE-1284
specification
Handshaking:
Refer to the IEEE-1284
specification
Signal level:
IEEE-1284 Level 1 device
Initialization
The printer can be initialized (returned to a fixed set of
conditions) in these ways:
Hardware
initialization
∗ The printer is turned on.
∗ The printer receives an INIT signal from the parallel
interface.
Software
initialization
∗ Software sends an ESC @ (initialize the printer)
command.
Data transmission timing: Refer to the IEEE-1284
specification
3/98
EPSON Stylus Photo 700 - 5
EPSON Stylus Photo 700
Serial interface
The printer’s built-in serial interface is based on the RS-423
standard. This interface has the following characteristics:
Standard:
Based on RS-423
Synchronization:
Synchronous
Bit rate:
Approx. 1.8 Mbps
Handshaking:
X-ON/X-OFF and DTR protocol
Word format:
Data bit: 8 bits
Parity bit: None
Start bit: 1 bit
Stop bit: 1 bit
Connector
8-pin mini-DIN
Recommended cable: Apple System Peripheral-8 cable (part
number M0197)
Control Panel
power light
paper out light
black ink
out light
B or A
When an ink out light comes on, you need
to replace the ink cartridge.
P
The power light is on when the printer is
on. The power light flashes when the printer
is receiving a print job or performing a
maintenance operation such as cleaning a
print head.
PSBA
When the power and paper out lights flash
and the ink out lights are on, your printer
has a carriage error. Turn off the printer by
pressing the P power button; wait several
seconds; then turn it on again. If this does
not clear the error condition, contact
EPSON as described in the User’s Guide.
PSBA
When all the lights flash, your printer may
have an internal error. Turn off the printer
by pressing the P power button; wait
several seconds; then turn it on again. If
this does not clear the error condition,
contact EPSON as described in the User’s
Guide.
Installing an Ink Cartridge for the First
Time
1. Plug the power cord into a grounded outlet.
2. Make sure the power is off (the P power light is off).
color ink
out light
cleaning
button
load/eject
button
power
button
Caution:
Don’t use an outlet controlled by a wall switch or timer,
or one that uses the same circuit as a large appliance.
This may disrupt the power, which can erase memory or
even damage the power supply.
The four lights on your printer’s control panel show the
printer’s status and alert you to problems like paper jams.
S
When the paper out light comes on, your
paper ran out or is incorrectly loaded. Load
paper in the sheet feeder and then press the
E load/eject button.
S
When the paper out light flashes, you have a
paper jam. Take all of the paper out of the
sheet feeder, reload the paper, then press
the E load/eject button. If the light
continues to flash, turn off the printer and
gently pull out any jammed paper.
B or A
3. Lower the output tray and open the printer cover.
printer
cover
power
button
output
tray
When an ink out light flashes, your ink
supply is low. Make sure you have a
replacement cartridge.
6 - EPSON Stylus Photo 700
3/98
EPSON Stylus Photo 700
The printer moves the print head and begins charging the ink
delivery system. Charging can take up to two minutes. During
this time, the P power light flashes, and the printer makes
various sounds. Don’t turn off the printer or interrupt the
charging process or you’ll use more ink than necessary.
Charging is complete when the P power light stops flashing
and is continually lit.
4. Press the P power button to turn on the printer. The
P power light flashes, the B and A ink out lights come on,
and the ink cartridge holders move left to the installation
position.
Caution:
Always use the P power button to turn the printer on or
off. Never use an external switch—such as a power
strip—to turn off the printer.
Caution:
Never turn off the printer when the P power light is
flashing. But if the light is still flashing after five minutes
and the printer isn’t moving or making noise, you may
turn off the printer.
5. Pull up the two ink cartridge clamps. (The illustration
shows the color ink cartridge clamp.)
Testing the Printer
You can run a printer check to determine whether a problem
comes from the printer itself or some other source.
❏ If the results are satisfactory, the problem lies in software
settings, the interface cable, or your computer.
❏ If the printer check does not print correctly, there is a
problem with your printer.
6. Remove the ink cartridges from their foil packages. Then
remove only the yellow part of the tape seal on the top of
each cartridge. Do not remove the white part.
Follow these steps to check the printer:
1. Make sure both the printer and computer are turned off.
2. Disconnect the interface cable from the printer.
Caution:
You must remove the yellow tape seal from the top of
the cartridge or you will permanently damage it. It’s OK if
the tape does not exactly tear off along the dotted line.
Don’t remove the tape seal from the bottom.
3. Make sure paper is loaded in the printer.
4. Hold down the E load/eject button and press the Ppower
button. Hold down the buttons until the Ppower light
starts to flash. Then release both buttons.
don’t remove
don’t remove
The printer prints one page containing the printer’s ROM
version, ink counter code, character table number, and a
nozzle check pattern. Only the nozzle check pattern is
shown below:
remove
remove
black ink cartridge
5. After it prints the page, turn off the printer. Remember to
reconnect the interface cable, then turn on the printer and
your computer.
color ink cartridge
Warning:
If ink gets on your hands, wash them thoroughly with
soap and water. If ink gets in your eyes, flush them
immediately with water.
7. Insert the ink cartridges into their holders. Be sure the labels
are face up and the arrows point toward the back of the
printer. The black ink cartridge goes on the left and the
color ink cartridge goes on the right.
8. Push down the clamps until they lock in place.
9. Press the R cleaning button and close the printer cover.
3/98
EPSON Stylus Photo 700 - 7
EPSON Stylus Photo 700
Printing on Special Media
Whether you print on plain paper or special media, you need
to load it according to the guidelines in the table below.
For this media
name...
Load a maximum of
this many sheets...
Plain paper, letter
size
100 (load preprinted
forms top edge first)
Plain paper, legal
size
100 (pull up the paper
support extension)
Envelopes
10 (set the thickness
lever to the + position)
Labels (single
sheets)
1
EPSON 360 dpi Ink
Jet Paper
70 letter size
30 legal size
Then select this
Media Type setting
in your printer
software...
Plain paper
1 sheet
EPSON High Quality
Ink Jet Paper
70 letter size
30 legal size
EPSON Ink Jet
Transparencies
10 (use a support
sheet)
Ink Jet Transparencies
1
Use the Flip Horizontal option to reverse your image before you
print it—especially if it includes text—so the image will appear
correctly when it’s transferred.
2
For better results, load EPSON Photo Quality Glossy Film one
sheet at a time. This also allows you to use a smaller top margin.
Caution:
Don’t use the cleaning sheets that may be included with
your special media; they may damage the printer.
❏ If the corresponding Media Type option for your paper is
not shown in the Media Type list, change the Print Quality
setting in the More Settings dialog box, select Automatic as
the Mode setting, or change the predefined setting in the
Custom Settings list in the printer settings dialog box. Then
select the correct media type.
360 dpi Ink Jet Paper
❏ In addition to the Media Type option, remember to select
the correct Paper Size for your media on the Paper menu.
Photo Quality Ink Jet
Paper
❏ Some special media have a cut corner that you need to
position correctly; follow any instructions in the package.
Always handle sheets by the edges, and don’t touch the
printable surface.
EPSON Photo
Quality Ink Jet Paper
EPSON Special
Coated Paper for
720 dpi Printing
EPSON Photo
Quality Ink Jet Cards
Load a maximum of
this many sheets...
Additional Media Loading Guidelines
EPSON Special
Coated Paper for
360 dpi Printing
EPSON Iron-On Cool
Peel Transfer Paper1
For this media
name...
Then select this
Media Type setting
in your printer
software...
cut corner
30 cards (use a
support sheet)
EPSON Special
Coated Index Cards
for 720 dpi Printing
EPSON Photo
Quality Self
Adhesive Sheets
1
EPSON Photo
Quality Glossy Paper
20 (use a support
sheet)
EPSON Photo Paper
20 (use a support
sheet)
EPSON Panoramic
Photo Paper
1
EPSON Photo
Quality Glossy Film2
30 (use a 1.2 inch top
margin and a support
sheet)
EPSON Photo
Stickers
1 (use a support sheet)
EPSON High Quality
Glossy Paper
30 (use a support
sheet)
8 - EPSON Stylus Photo 700
Photo Paper
❏ If the special media has protective sheets between each sheet
of media, be sure to remove the protective sheets before
printing.
Photo Quality Glossy
Film
❏ Be sure to load the printable side of the media face up in the
sheet feeder.
3/98
EPSON Stylus Photo 700
Warning:
If ink gets on your hands, wash them thoroughly with
soap and water. If ink gets into your eyes, flush them
immediately with water.
Replacing an Ink Cartridge
Caution:
To ensure good results, use genuine EPSON cartridges
and do not refill them. Other products may cause
damage to your printer not covered by EPSON’s
warranty.
Installing the New Cartridge
Once you have removed the empty cartridge, you’re ready to
install the new one. Follow these steps:
When a B black or A color ink out light flashes, the indicated
cartridge is low on ink. This is a good time to make sure you
have a new cartridge. When the light stays on, the cartridge is
empty and you need to replace it. You cannot print if either
ink cartridge is empty.
1. Remove the new ink cartridge from its packaging.
2. Remove only the yellow part of the tape seal on the top of
the cartridge. Do not remove the white part. (It’s OK if the
tape does not exactly tear off along the dotted line.)
Use these EPSON ink cartridges within six months of
installing them and before the expiration date on the package:
Caution:
You must remove the yellow tape seal from the top of
the cartridge; leaving the tape on will permanently
damage it. Do not remove the clear seal from the bottom
of the cartridge; ink will leak out.
❏ Black ink cartridge: S020093
❏ Color ink cartridge: S020110
don’t remove
Removing an Empty Ink Cartridge
don’t remove
You can replace a cartridge when the B black or A color ink
out light is either flashing or on. Follow these steps:
remove
remove
1. Make sure the printer is turned on and not printing.
2. Determine which cartridge needs to be replaced.
3. Lower the output tray and raise the printer cover.
Note:
If you press the R cleaning button when neither ink out light is
flashing or on, the printer cleans the print head as described on
page 10. If you need to replace an ink cartridge before the lights flash
(because the ink is too old, for example) follow the instructions in
“Replacing an Outdated Ink Cartridge.”
black ink cartridge
color ink cartridge
3. Lower the ink cartridge into its holder with the label facing
up and the arrow pointing to the back of the printer. The
larger cartridge (color) goes on the right, the black ink
cartridge on the left.
4. Press the R cleaning button and hold it for three seconds.
4. Press down the ink cartridge clamp until it locks in place.
The print head moves slightly to the left and the P power
light begins flashing. (The print head returns to its home
position if you don’t proceed to step 5 within 60 seconds.)
5. If you need to replace the other ink cartridge, remove it as
described in “Removing an Empty Ink Cartridge.” Then
follow steps 1 through 4 in this section.
5. Pull up the ink cartridge clamp. The cartridge rises up from
its holder.
6. Press the R cleaning button and close the printer cover.
Caution:
Don’t open the clamp or remove a cartridge except to
replace it with a new one. Once you remove a
cartridge, you can’t reuse it. Even if the cartridge
contains ink, reusing it may damage the print head.
The printer moves the print head and begins charging the
ink delivery system. (Even if you don’t press the button, ink
charging begins 60 seconds after you close the clamp.)
The Ppower light flashes and the printer makes various
sounds. Charging takes about two minutes. When it’s
finished, you can print again.
6. Lift the cartridge out of the printer and dispose of it
carefully.
Caution:
Never turn off the printer while the P power light is
flashing, unless the printer hasn’t moved or made any
noise for more than 5 minutes.
7. Follow the steps in the next section to install the new ink
cartridge.
3/98
EPSON Stylus Photo 700 - 9
EPSON Stylus Photo 700
Replacing an Outdated Ink Cartridge
2. Access the printer settings dialog box.
If an ink cartridge is more than six months old, you may need
to replace it. How can you tell? You may notice that your
printouts don’t look as good as they used to. If print quality
doesn’t improve after cleaning and aligning the print head,
you may need to replace one or both cartridges.
3. Click the Utility tab (Windows) or the Utility button
(Macintosh). You see the Utility menu.
4. Click the Head Cleaning button.
5. Follow the instructions on the screen to clean the print
head. Cleaning takes about two minutes, during which the
printer makes some noise and the P power light flashes.
Follow these steps to replace an ink cartridge before the
B black or A color ink out light is flashing or on:
Caution:
Never turn off the printer while the P power light is
flashing, unless the printer hasn’t moved or made any
noise for more than 5 minutes.
1. Make sure the printer is turned on and not printing.
2. Lower the output tray and raise the printer cover.
3. Press the E load/eject button and hold it down for a few
seconds until the print head moves to the left. (The printer
automatically moves the print head back to the home
position after 60 seconds if you don’t continue with step 4.)
When the Ppower light stops flashing, you need to run a
nozzle check to confirm that the print head is clean and to
reset the printer’s cleaning cycle.
6. Make sure paper is loaded in the printer and click Print
nozzle check pattern (Windows) or Confirmation
(Macintosh). Then click Next. See “Examining the Nozzle
Check Pattern” for further instructions.
Caution:
To avoid damaging the printer, never move the print head
by hand.
4. Pull up the ink cartridge clamp. The cartridge rises up from
its holder.
If your print quality has not improved, repeat the steps above.
5. Lift the cartridge out of the printer and dispose of it
carefully.
Using the Control Panel
Follow these steps to clean the print head:
6. Follow the steps in the previous section, “Installing the New
Cartridge,” to install the new ink cartridge.
1. Make sure the printer is turned on and not printing, and
that the B black and A color ink out lights are off.
2. Press the R cleaning button and hold it for three seconds.
Cleaning takes about two minutes, during which the printer
makes some noise and the Ppower light flashes.
Cleaning the Print Head
If your printed image is unexpectedly light or faint, or dots are
missing from the image, you may need to clean the print head.
This unclogs the nozzles so they can deliver ink properly.
Caution:
Never turn off the printer while the P power light is
flashing, unless the printer hasn’t moved or made any
noise for more than 5 minutes.
Caution:
Don’t use the cleaning sheets that may be included
with your special media; they may damage the printer.
After the cleaning cycle is complete and the Ppower light
stops flashing, you need to run a nozzle check to confirm
that the print head is clean and to reset the printer’s
cleaning cycle.
Cleaning the print head uses ink, so clean it only if print
quality declines. You can use either of the following to clean
the print head:
3. Access the printer settings dialog box as described in
Chapter 1.
❏ The Head Cleaning utility (recommended) in your printer
software (if the printer is on a local port rather than a
network)
4. Click the Utility tab (Windows) or the Utility button
(Macintosh). You see the Utility menu.
5. Click the Nozzle Check button. Then click Next. See the
next section for instructions on examining the nozzle check
pattern.
❏ The printer’s control panel buttons.
Using the Head Cleaning Utility
If your print quality has not improved, repeat the steps above.
Follow these steps to run the utility:
1. Make sure the printer is turned on but not printing, and the
B black and A color ink out lights are off.
10 - EPSON Stylus Photo 700
3/98
EPSON Stylus Photo 700
Examining the Nozzle Check Pattern
1. Turn off the printer, unplug the power cord, and
disconnect the printer cable.
Examine the nozzle check pattern after printing it. It should
look something like this, with each of the six sections showing
one of the ink colors:
2. Remove all the paper from the sheet feeder.
3. Clean the exterior of the printer with a soft, damp cloth.
Keep the printer cover closed so water doesn’t get inside.
4. Clean ink out of the printer’s interior with a damp cloth.
Each staggered horizontal and straight vertical line should be
complete, with no gaps in the dot pattern. If your printout
looks OK, you’re done. If any dots are missing, as shown
below, clean the print head again, as explained in the previous
sections.
Transporting the Printer
If you want to move your printer some distance, you need to
prepare it for transportation and repack it in the original box.
missing dots
Caution:
To avoid damage, always leave the ink cartridges
installed when transporting the printer.
Follow these steps:
Aligning the Print Head
1. Turn on the printer and wait until the print head locks in
the far right position. Then turn off the printer.
If your printouts contain misaligned vertical lines, you may
need to align the print head. Follow these steps:
2. Unplug the power cord from the electrical outlet. Then
disconnect the interface cable from the printer.
1. Make sure the printer is turned on and paper is loaded.
3. Remove any paper from the sheet feeder and remove the
paper support.
2. Access the printer settings dialog box as described in
Chapter 1.
4. Push in the output tray extensions and close the tray.
3. Click the Utility tab (Windows) or the Utility button
(Macintosh). You see the Utility menu.
5. Repack the printer and attachments in the original box
using the protective materials that came with it. See the
Notice Sheet that was packed with the printer.
4. Click the Print Head Alignment button.
5. Follow the instructions on the screen to print a test page
and select the correct alignment.
Be sure to keep the printer flat as you transport it. If you
notice a decline in print quality after transporting the printer,
clean the print head; if output is misaligned, align the print
head.
Note:
For best results, use EPSON ink jet paper or photo quality paper
whenever you check the print head alignment.
Related Documentation
Cleaning the Printer
TM-SP700AD
PL-SP700
CPD-6291
CPD-6294
Caution:
Don’t touch the gears inside the printer.
Never use alcohol or thinner for cleaning; they can
damage the printer components and case.
EPSON Stylus Photo 700 Service Manual
EPSON Stylus Photo 700 Parts Price List
EPSON Stylus Photo 700 User’s Guide
EPSON Stylus Photo 700 Getting Started
guide
Don’t get water on the printer components.
Don’t spray lubricants or oils inside the printer.
To keep your printer working at its best, you should clean it
several times a year, following these steps:
3/98
EPSON Stylus Photo 700 - 11
EPSON Stylus Photo 700
12 - EPSON Stylus Photo 700
