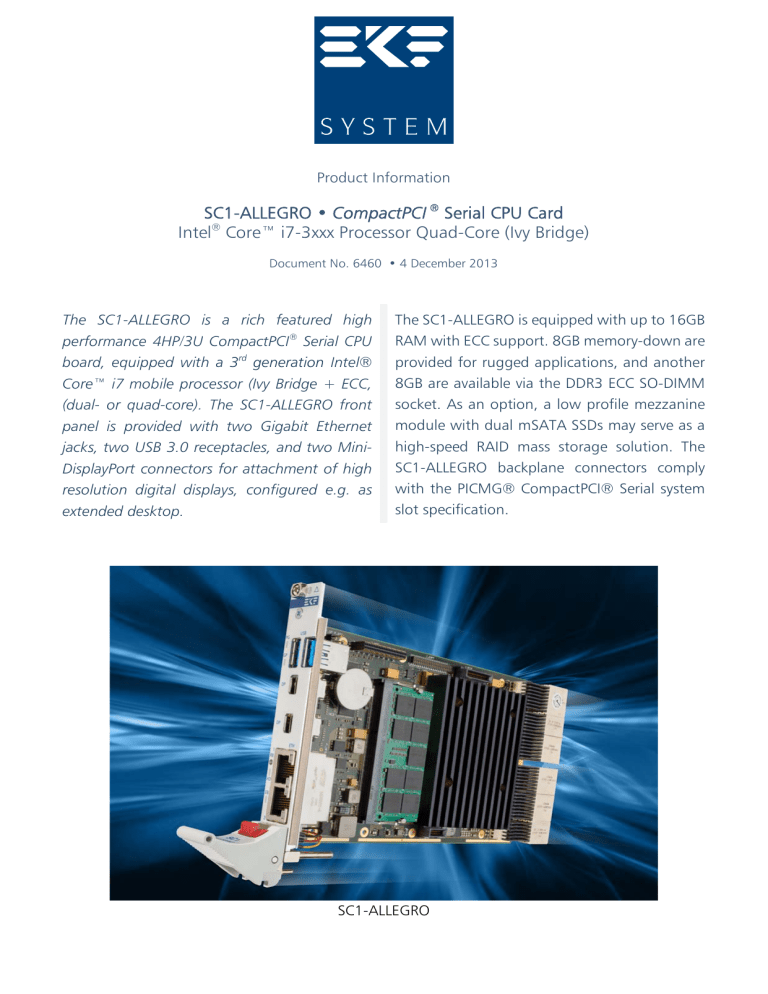

Product Information
SC1-ALLEGRO • CompactPCI ® Serial CPU Card
Intel® Core™ i7-3xxx Processor Quad-Core (Ivy Bridge)
Document No. 6460 • 4 December 2013
The SC1-ALLEGRO is a rich featured high
performance 4HP/3U CompactPCI® Serial CPU
board, equipped with a 3rd generation Intel®
Core™ i7 mobile processor (Ivy Bridge + ECC,
(dual- or quad-core). The SC1-ALLEGRO front
panel is provided with two Gigabit Ethernet
jacks, two USB 3.0 receptacles, and two MiniDisplayPort connectors for attachment of high
resolution digital displays, configured e.g. as
extended desktop.
The SC1-ALLEGRO is equipped with up to 16GB
RAM with ECC support. 8GB memory-down are
provided for rugged applications, and another
8GB are available via the DDR3 ECC SO-DIMM
socket. As an option, a low profile mezzanine
module with dual mSATA SSDs may serve as a
high-speed RAID mass storage solution. The
SC1-ALLEGRO backplane connectors comply
with the PICMG® CompactPCI® Serial system
slot specification.
SC1-ALLEGRO
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
Feature Summary
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
CompactPCI® Serial (PICMG® CPCI-S.0) System Slot Controller
Based on the Intel® Chief River Platform (Ivy Bridge + ECC CPU, Panther Point PCH)
Intel® Core™ i7 (i5/i3) Mobile +ECC Processor, 22nm Process Technology, Low Power, Dual-Core and QuadCore, Code Name Ivy Bridge
i7-3612QE Processor 2.1GHz • 35W TDP Standard Voltage Quad-Core
i7-3555LE Processor 2.5GHz • 25W TDP Low Voltage Dual-Core
i7-3517UE Processor 1.7GHz • 17W TDP Ultra Low Voltage Dual-Core
i5-3610ME Processor 2.7GHz • 35W TDP Standard Voltage Dual-Core
i3-3120ME Processor 2.4GHz • 35W TDP Standard Voltage Dual-Core
i3-3217UE Processor 1.6GHz • 17W TDP Ultra Low Voltage Dual-Core
Integrated HD Graphics Engine, 3 Independent Displays, Enhanced Media Processing
Integrated Memory Controller up to 16GB DDR3 +ECC 1333 and 1600
DDR3 +ECC Soldered Memory up to 8GB
DDR3 +ECC SO-DIMM Memory Module Socket up to 8GB
Intel® QM77 Panther Point Platform Controller Hub (PCH)
Up to 3 Display Configuration (Front Panel: Dual mDP or Single VGA Connector Option)
Max Resolution 2560 x 1600 (DisplayPort), 1920 x 1200 (VGA)
2 + 1 SATA Channels 6Gbps/3Gbps for Mezzanine Storage Modules (Connector HSE)
CompactFlash® Card with C40-SCFA Mezzanine Module Option (4HP Maintained)
CFast™ Card with C41-CFAST Mezzanine Module Option (4HP Profile Maintained)
SATA 1.8-Inch Solid State Drive with C42-SATA Mezzanine Card Option (4HP Maintained)
Dual mSATA Modules with C47-MSATA RAID Mezzanine Card Option (4HP Maintained)
7 x SATA Channels 3Gbps to Backplane Connectors, 5 Channels Available for Hardware RAID Configuration
Level 0/1/10 + Hot Spare (Option RAID Level 3/5)
4 x USB 3.0 XHCI SuperSpeed Channels (2 x to F/P Connectors, 2 x Backplane)
10 x USB 2.0 EHCI (6 x to Mezzanine Connectors, 4 x Backplane)
4 x Gigabit Ethernet Controllers (2 x F/P RJ-45 Jacks and 2 x Backplane Connector)
8 + 8 x PCI Express® Gen3 Lanes to CPCI Serial Backplane (CPCI Serial Fat Pipe 1 + 2)
4 + 4 x PCI Express® Gen2 Lanes (4 x Mezzanine Connector, 4 x Backplane)
Legacy I/O Mezzanine Expansion Connector EXP (USB, HD Audio, LPC)
High Speed I/O Mezzanine Expansion Connector HSE (3 x SATA, 4 x USB)
PCI Express® Mezzanine Expansion Connector PCIE (4 Lanes)
Third Display Mezzanine Expansion Connector SDVO/DP
Variety of Mezzanine Expansion Boards (Side Cards) Available with and w/o PCIe
Most Mezzanines Optionally Equipped with 2.5-Inch Single- or Dual-Drive
UEFI Phoenix BIOS with ACPI
Long Term Availability
Coating, Sealing, Underfilling on Request
RoHS compliant
MTBF 104 x 103 h (11.9 years) @ 50° C
Related Information
© EKF
SC1-ALLEGRO Home
www.ekf.com/s/sc1/sc1.html
SC1-ALLEGRO User Guide
www.ekf.com/s/sc1/sc1_ug.pdf
-2-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
SC1-ALLEGRO
© EKF
-3-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
SC1-ALLEGRO w. C42-SATA Storage Module
SC1-ALLEGRO w. C42-SATA Storage Module
© EKF
-4-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
While mechanically compliant to CompactPCI®
Classic, CompactPCI® Serial (PICMG® CPCIS.0)
defines a completely new card slot, based on
PCI Express®, SATA, Gigabit Ethernet and USB
serial data lines. Up to 6 high-speed backplane
connectors P1 - P6 are provided on a system
slot controller such as the SC1-ALLEGRO, which
can be considered as a root hub with respect to
most signal lines. A passive backplane is used
for distribution of a defined subset of I/O
channels from the system slot to each of up to
eight peripheral slots in a CompactPCI® Serial
system.
Most CompactPCI® Serial peripheral slot cards
require only the backplane connector P1, which
comprises PCIe, SATA and USB signals, resulting
in a concise and inexpensive peripheral board
design. More powerful peripheral cards profit
from so called Fat Pipe slots (PCIe x 8).
The SC1-ALLEGRO is a native CompactPCI®
Serial CPU card, suitable for usage in a pure
CPCI Serial environment. Due to its generous
backplane capabilities (20 x PCI Express® lanes,
6 x USB, 7 x SATA/RAID, 2 x GbE), very powerful
industrial systems can be built.
EXP
HSE
PCIE
8 x GE
2x
USB
3.0
P6
Clk PE (1-8)
VGA
DP
2
CompactPCI® Serial
System Slot
up to 40 x PCIe
Connectors P1-P6
© EKF • ekf.com
4 x PE (8)
4 x PE (7)
P5
4 x PE (6)
4 x PE (5)
4 x PE (4)
4 x PE (3)
P4
7 x SATA
7 x USB3
4 x USB2
P3
8 x PE (2)
4 x PE (1)
Dual
GbE
P2
3 x USB2
I/O (DP)
SDVO/DP
4 x PE (1)
1 x SATA
1 x USB2/3
Sideband
Power
DP
1
P1
CompactPCI® Serial • © EKF • ekf.com
Backplane Connector Assignment
According to PICMG® CPCI-S.0
© EKF
-5-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
SC1-ALLEGRO as CompactPCI® Serial System Slot Controller
Related Documents CompactPCI® PlusIO & CompactPCI® Serial
© EKF
CompactPCI® PlusIO & Serial Overview
www.ekf.com/s/cpci_serial_overview.pdf
CompactPCI® PlusIO Home
www.ekf.com/p/plus.html
CompactPCI® Serial Home
www.ekf.com/s/serial.html
-6-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
The SC1-ALLEGRO is equipped with a set of
high-speed local expansion interface
connectors, which can be optionally used to
attach a mezzanine side board. A variety of
expansion cards is available, e.g. providing
legacy I/O such as RS-232, and additional PCI
Express® based I/O controllers such as SATA,
USB 3.0 and Gigabit Ethernet, and also a third
video output.
Most mezzanine side cards can accommodate
in addition a 2.5-inch drive. Typically, the
SC1-ALLEGRO and the related side card would
come as a readily assembled 8HP unit. As an
alternate, MicroSATA or mSATA SSD based low
profile mezzanine mass-storage modules are
available that fit on the SC1-ALLEGRO 4HP
envelope, nevertheless suitable for installation
of any popular operating system.
2 x SATA 6G
1 x SATA 3G
4 x USB
LPC USB
SMBus
HD Audio
PCI Express®
x4
EXP
HSE
PCIE
P6
2x
USB
3.0
P5
DP
1
VGA
SC1-ALLEGRO
Mezzanine
Expansion
Options
DP
2
P4
Intel® Ivy Bridge
Core™ i7 CPU
© EKF • ekf.com
Dual
GbE
Video
FlatDP/DVI
Panel
P3
P2
SDVO/DP
P1
SC1-ALLEGRO • CompactPCI® Serial • © EKF • ekf.com
SC1-ALLEGRO • Mezzanine Board Connectors
Related Documents Mezzanine Modules and Side Cards
© EKF
C40 ... C45 Series
Mezzanine Storage Modules
www.ekf.com/c/ccpu/c4x_mezz_ovw.pdf
Mezzanine Side Cards Overview
www.ekf.com/c/ccpu/mezz_ovw.pdf
The EKF Mezzanine Module Concept
www.ekf.com/c/ccpu/cpci_mezzanine_evolution.pdf
-7-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
Mezzanine Side Card Connector Suite
© EKF
-8-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
Typical 8HP Assembly w. PCS-BALLET Side Card & C42-SATA
8HP Assembly w. PCS-BALLET Side Card & C47-MSATA
© EKF
-9-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
Typical 8HP Stack
© EKF
-10-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
SC1-ALLEGRO • See-Through Heatsink
SC1-ALLEGRO • Heatsink Removed
© EKF
-11-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
C40-CFA • CompactFlash Mezzanine Module
C41-CFAST • CFast Card SATA Storage Mezzanine Module
© EKF
-12-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
SC1-ALLEGRO w. C41-CFAST
© EKF
-13-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
C42-SATA • Solid State Drive Low Profile Mezzanine Module
SC1-ALLEGRO w. C43-SATA Internal Connectors Mezzanine Module
© EKF
-14-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
C44-SATA • 2.5-Inch HDD/SSD Mezzanine Side Card (8HP F/P Assembly)
C45-SATA • 1.8-Inch SSD Mezzanine Side Card (8HP F/P Assembly)
© EKF
-15-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
SC1-ALLEGRO w. C47-MSATA Dual mSATA Mezzanine Module (RAID)
C47-MSATA • Low Profile Dual-SSD Mezzanine Module
© EKF
-16-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
SC1-ALLEGRO w. C47-MSATA Dual mSATA SSD Storage Module
© EKF
-17-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
SC1-ALLEGRO w. PCS-BALLET Mezzanine Side Card (8HP)
SC1-ALLEGRO w. PCS-BALLET Side Card & 2.5-Inch SSD (8HP)
© EKF
-18-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
SC1-ALLEGRO w. PCS-BALLET & Half-Slim SATA SSD (8HP)
SC1-ALLEGRO w. PCS-BALLET & C41-CFAST (8HP)
© EKF
-19-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
SC1-ALLEGRO w. PCS-BALLET C32-FIO C20-SATA (12HP)
SC1-ALLEGRO w. PCS-BALLET C32-FIO (12HP)
© EKF
-20-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
Backplane w. System Slot Right Aligned
© EKF
-21-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
Block Diagram
Simplified Block Diagram
®
SC1-ALLEGRO Rev. 2
®
GbE
GbE
Front Panel Stuffing Alternates either Mini DisplayPort or VGA
PICMG CompactPCI Serial
System Slot Controller
Front
Panel
I/O
GbE
1
GbE
2
82579
LM
Flash
SPI
2
DDR3 ECC SODIMM
82574
IT
Dual Channel
up to 16GB
DDR3 1600
USB3
DP1
VGA
DP2
SPI
PCIe
PCIe
FDI
Ivy Bridge +ECC
Ivy Bridge ECC
Embedded Mobile
CPU
2/4-Core
Panther Point
QM77
Mobile
PCH
5GT/s
DMI2
PCIe Gen3
PCIe Gen3
USB2/3
SDVO/DP
PCIe Gen2
PCIe
SATA 6G/3G
SATA 3G
SATA 3G
8
8
2+9
4
2
2/1
1
2
LPC/Audio/SMB/GPIO
Intel® Chief River Platform
USB2
USB2/3
USB2
USB
Hub
SATA
RAID
0/1/3/5/6
82574
IT
PCIe
Gen2
Switch
4
2+6
2
5
3G
GbE
2
4
4
Mezzanine
Side Card
I/O
P1 P2
Fat Pipe 1
P2
Fat Pipe 2
Backplane
CompactPCI
Serial
ekf.com
-22-
© EKF
DDR3 ECC Soldered
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
Front Panel Options
USB 3.0
PG
PG
USB 3.0
GP
1
mDP
2
G-ETH
RST
HD
© EKF • draft - do not scale • ekf.com
GP
GEB
V
G
A
RST
HD
GEB
SC1-ALLEGRO
Dual - mDP
SC1-ALLEGRO
VGA
Option Screw-Locked mDP Cable Connectors
© EKF
-23-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
Option VGA Connector
Convection Cooling
© EKF
-24-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
Top & Bottom Component Assembly
P-GP
EXP
1
PCIE
P6
2 Channel ECC DDR3
QM77
Mobile
BAT
© EKF • ekf.com
P-MFG
SC1-ALLEGRO
VGA
DP
2
P5
PCH
P4
Soldered ECC DDR3
DP
1
Dual
GbE
1
SODIMM ECC DDR3
2x
USB
3.0
HSE
1
P-RTC
Ivy Bridge
i7
CPU
P3
P2
P1
SDVO/DP
1
SC1-ALLEGRO • CompactPCI® Serial • © EKF • ekf.com
SC1-ALLEGRO
LED
PGD
© EKF • ekf.com
LED
GP
DIP Switch
P-ISP
DS-P
PLD
XDP
Soldered ECC DDR3
1
1
Reset
BTN
LED
HD
LED
GEB
SC1-ALLEGRO • CompactPCI® Serial • © EKF • ekf.com
© EKF
-25-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
System Integration
SC1-ALLEGRO (Multi-DP & Storage Configuration)
CompactPCI® Serial Racks Available
© EKF
-26-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
CompactPCI® Serial Backplanes Available
1 + 4 Slots CompactPCI® Serial Backplane
© EKF
-27-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
1+6 Slots Backplane w. System Slot Right Aligned
© EKF
-28-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
BlueLine Series Small Systems Rack
BlueLine Series for up to 4 Peripheral Slot Cards
© EKF
-29-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
System Rack for 8 Peripeheral Slot Cards (w/o RIO)
System Rack for 8 Peripeheral Slot Cards (w/o RIO)
© EKF
-30-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
System Rack for 8 Peripeheral Slot Cards (with RIO)
System Rack for 8 Peripeheral Slot Cards (with RIO)
© EKF
-31-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
Backplane Ressources
SC1-ALLEGRO Rev. 2 • Ressources w. 1+8 Slots Backplane
GE
(1-2)
GE (1)
GE (2)
1
2
3
4
5
6
7
8
4 x PE (1)
PE Gen3 x 8
1 x USB3
Sideband
PE Gen2 x 1
SATA (RAID)
USB2
PE Gen2 x 1
SATA (RAID)
USB2
PE Gen2 x 1
SATA (RAID)
USB2
PE Gen2 x 1
SATA (RAID)
USB2
SATA (PCH)
SATA (PCH)
USB3
PE Gen3 x 8
SATA (RAID)
USB3
SC1ALLEGRO
Fat Pipe
Slot
Fat Pipe
Slot
Peripheral
Slot
Peripheral
Slot
Peripheral
Slot
Peripheral
Slot
Peripheral
Slot
Peripheral
Slot
Clk PE
(1-6)
4 x PE (3-6)
4 Links
x
1 Lane
2 x SATA (PCH)
5 x SATA (RAID)
1 x USB3
3 x USB2
8 x PE (2)
4 x PE (1)
3 x USB2
I/O
© EKF • ekf.com
© EKF
-32-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
Ordering Information
For popular SC1-ALLEGRO SKUs please refer to www.ekf.com/liste/liste_21.html#SC1
For popular Mezzanine Side Cards please refer to www.ekf.com/liste/liste_20.html#C40
© EKF
-33-
ekf.com
SC1-ALLEGRO • CompactPCI® Serial CPU Board • Quad-Core Intel® i7-3xxx Processor
Industrial Computers Made in Germany
boards.
EKF Elektronik GmbH
Philipp-Reis-Str. 4
59065 HAMM
Germany
systems.
solutions.
Phone +49 (0)2381/6890-0
Fax +49 (0)2381/6890-90
Internet www.ekf.com
E-Mail [email protected]
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
