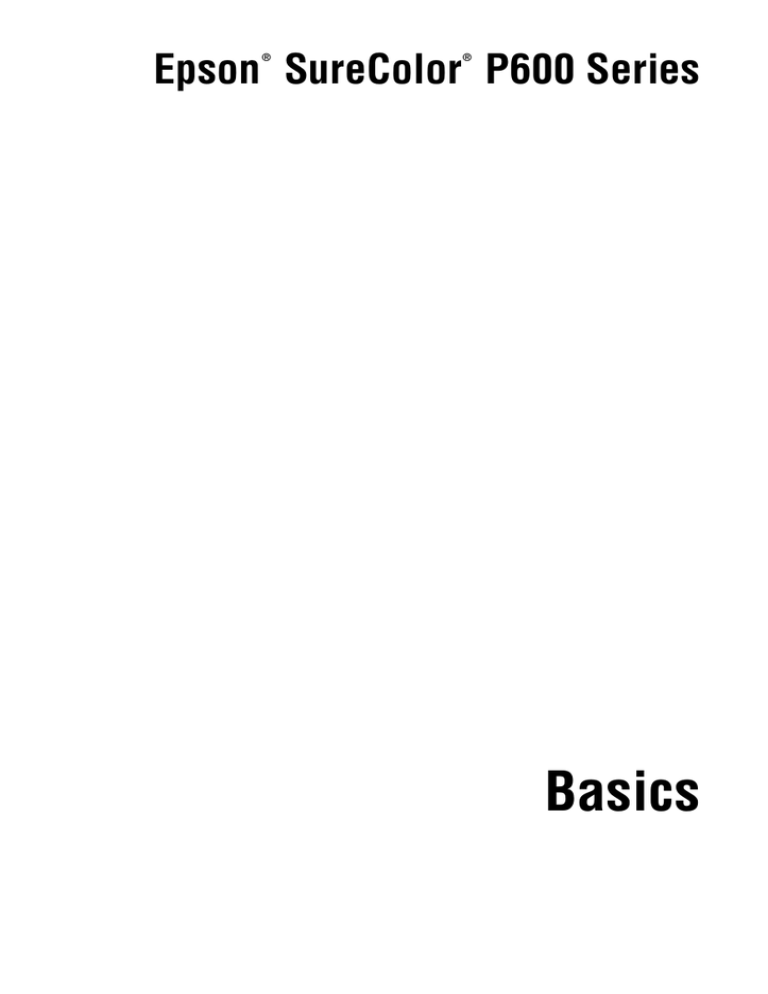

Epson SureColor P600 Series
®
®
Basics
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without the prior written permission of Seiko
Epson Corporation. The information contained herein is designed only for use with this
Epson product. Epson is not responsible for any use of this information as applied to other
equipment.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this
product or third parties for damages, losses, costs, or expenses incurred by purchaser or
third parties as a result of: accident, misuse, or abuse of this product or unauthorized
modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to
strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.
Seiko Epson Corporation shall not be liable for any damages or problems arising from the
use of any options or any consumable products other than those designated as Original
Epson Products or Epson Approved Products by Seiko Epson Corporation.
Responsible Use of Copyrighted Materials
Epson encourages each user to be responsible and respectful of the copyright laws when
using any Epson product. While some countries’ laws permit limited copying or reuse of
copyrighted material in certain circumstances, those circumstances may not be as broad as
some people assume. Contact your legal advisor for any questions regarding copyright law.
Trademarks
EPSON, Epson UltraChrome, Supplies Central, and SureColor are registered trademarks
and EPSON Exceed Your Vision is a registered logomark of Seiko Epson Corporation.
UltraSmooth is a registered trademark and Epson Connection is a service mark of Epson
America, Inc.
Mac and OS X are trademarks of Apple, Inc., registered in the U.S. and other countries.
AirPrint and the AirPrint logo are trademarks of Apple, Inc.
General Notice: Other product names used herein are for identification purposes only and
may be trademarks of their respective owners. Epson disclaims any and all rights in those
marks.
This information is subject to change without notice.
© 2014 Epson America, Inc., 10/14
2
CPD-41366R1
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using the Touch Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Loading Paper in the Sheet Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Loading Fine Art Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Loading Roll Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Loading Thick Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Printing from Start to Finish . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Printing in Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Printing with OS X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Selecting the Correct Paper Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Loading and Removing CDs and DVDs . . . . . . . . . . . . . . . . . . 29
Loading a CD or DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Removing Your Printed CD/DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Maintaining Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Checking and Cleaning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and Aligning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the Ink Cartridge Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing Ink Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching Black Ink Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the Rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
33
34
36
40
42
Contents 3
Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Checking for Software Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Where to Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
4 Contents
Introduction
Your Epson® SureColor® P600 Series printer gives you exhibition quality prints
on a wide variety of glossy and matte papers in many sizes.
Your outstanding printouts result from these advanced features:
■
Epson UltraChrome® HD ink cartridges for unprecedented gray balance,
outstanding tonal range, and astounding color
■
Enhanced media handling of fine art paper, thick media up to 1.3 mm, and
rolls for virtually any kind of print up to 13 × 129 inches, with or without
borders
■
Resolutions up to 5760 × 1440 optimized dpi (dots per inch) with droplets as
small as 2 picoliters for the finest details
■
Direct printing onto ink jet-printable CDs and DVDs for a professional look
■
Hi-Speed USB 2.0, 100Mbps Ethernet®, AirPrint™, Wi-Fi Direct®, and
Wi-Fi CERTIFIED™ 802.11n for fast, wireless connectivity to multiple
computers
■
Downloadable Premium ICC Profiles for precise color management
Please follow these guidelines as you read your documentation:
Warning:
Warnings must be followed carefully to avoid bodily injury.
Caution:
Cautions must be observed to avoid damage to your equipment.
Note:
Notes contain important information about your product.
Tip:
Tips contain hints for better printing.
Introduction 5
Using the Touch Screen
The touch screen makes it easy to use all the features of your product. To save
energy, the screen goes dark after several minutes of inactivity. Touch the screen to
wake it up.
Home menu
Power on/off
LCD screen
Return to previous
menu
Navigate menus
Main Menu
Press the icons on the main menu to display configuration sub-menus such as
Setup and Media Load Guide.
Status indicators
Select the media size
and type for paper
that is loaded
Display the ink
levels remaining
Eject paper that
is loaded
Change the
black ink type
Display the
Wi-Fi/Network
settings
Open the Setup
menu
For more information on the icons displayed on the screen, see your online User’s
Guide.
6 Introduction
Loading Paper
You can print on a variety of paper types in the sheet feeder, or use the manual
feed tray for fine art papers (see page 9) and thick media such as poster board (see
page 16). To print multiple photos, panoramics, and banners, load roll paper
using the roll paper holders (see page 12).
Epson offers a wide array of high quality papers, making it easy to maximize the
impact of your photos, presentations, and creative projects.
You can purchase genuine Epson ink and paper at Epson Supplies Central® at
www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can
also purchase supplies from an Epson authorized reseller. To find the nearest one,
call 800-GO-EPSON (800-463-7766).
Loading Paper in the Sheet Feeder
You can load the following paper types and quantities in the sheet feeder.
Paper type
Maximum sheets by size
Plain paper
Approximately 120
Epson Presentation Paper Matte
100 (Letter)
50 (B or Super B)
Epson Bright White Paper
80
Epson Photo Paper Glossy
30
Epson Premium Photo Paper Glossy
Epson Ultra Premium Photo Paper Glossy
30 (4 × 6 inch, 8 × 10 inch, Letter,
11 × 14 inch)
20 (5 × 7 inch)
10 (B, A3, Super B)
Epson Ultra Premium Photo Paper Luster
Epson Ultra Premium Presentation Paper Matte
30 (Letter)
10 (A3 or Super B)
Epson Metallic Photo Paper Glossy
Epson Metallic Photo Paper Luster
30 (Letter)
10 (Super B)
Loading Paper 7
Paper type
Maximum sheets by size
Epson Premium Photo Paper Semi-gloss
30 (4 × 6 inch or Letter)
10 (Super B)
Epson Premium Presentation Paper Matte
Epson Premium Presentation Paper Matte
Double-sided
30 (8 × 10 inch or Letter)
10 (11 × 14 inch, A3, or Super B)
Epson Photo Quality Self-adhesive Sheets
1 sheet
1. Open the paper support and pull up the extensions.
2. Open the front cover, then extend the output tray.
8 Loading Paper
3. Insert paper, glossy or printable side up, short edge first, against the right side
and beneath the tab. Then press the button on the edge guide and slide it
against the paper (but not too tightly).
Always load paper short edge first, even for landscape printing.
Load letterhead or pre-printed paper top edge first.
Note:
The edge guide may move slightly during paper feeding and
printing. Do not adjust it while printing is in progress.
Loading Fine Art Paper
You can print professional quality photos on these paper types using the manual
feed tray:
■
Epson Velvet Fine Art Paper
■
Epson Hot Press Bright
■
Epson® UltraSmooth® Fine Art Paper
■
Epson Hot Press Natural
■
Epson Watercolor Paper Radiant White ■
Epson Cold Press Bright
■
Epson Exhibition Fiber Paper
■
Epson Cold Press Natural
■
Epson Exhibition Watercolor Paper
Textured
■
Epson Exhibition Canvas
Matte
Loading Paper 9
1. Turn on the printer.
2. Remove any paper from the sheet feeder and close the paper support. Remove
roll paper if it’s currently being used.
3. Open the rear support and extend it fully.
4. Open the front cover, then push the center of the manual feed tray to extend
it.
5. Insert a single sheet of fine art paper. Insert it short edge first with the
printable side face-up.
10 Loading Paper
Note:
Load paper short edge first, no matter which way your photo faces. Check the
paper package for any additional loading instructions.
6. Feed the paper up to the line on the tray. Make sure the paper is flush against
the right.
7. Press Load on the touch screen. The paper loads inside the printer.
8. When you see the message to extend the output tray, extend the tray fully.
9. Select the Paper Size and Paper Type, then press OK.
Loading Paper 11
10. Push in the manual feed tray until it latches.
Note:
To eject paper, press Eject on the main menu and press Yes to confirm.
Loading Roll Paper
You can load 13-inch wide roll paper for printing large images, panoramic images,
or multiple photos, with or without borders.
Tip:
It’s a good idea to check the ink status and replace cartridges, if necessary, before
printing a large print job (see page 34). If you need to replace a cartridge while printing,
you can continue to print but you might notice a color difference depending on drying
conditions.
1. Turn on the printer.
2. Remove any paper loaded in the sheet feeder.
3. Open the front cover.
12 Loading Paper
4. Remove any tape and protective paper from the
end of the roll. Make sure the paper is cut straight
across to avoid paper feeding problems.
Note:
Avoid touching the surface of your paper.
With canvas media that you have previously loaded,
it’s a good idea to cut the edge straight each time you reload it.
5. Place the roll paper holders on each end of the paper roll as shown. The
holders are labeled L and R (for left and right), as viewed from the front of the
printer.
6. Open the rear support but don’t extend it.
Loading Paper 13
7. Attach the roll paper holders as shown. Hook the holders onto the attachment
points indicated with orange labels.
Note:
When attached properly, the roll paper should be firmly secured to the printer.
8. Feed the paper into the printer until it meets resistance. In a few seconds, the
paper loads automatically.
Note:
When loading canvas media, leave slack in the roll as it feeds and prints for the
best results. If you have trouble feeding canvas media, check that the edge is
straight and reload it, making sure to keep the roll slack.
9. Select the Paper Size and Paper Type, then press OK.
14 Loading Paper
Removing Roll Paper Prints and Roll Paper
1. When printing is finished, you see this screen:
Select Cut to print a cut line and feed the paper.
(If you select No Cut, you return to the main menu.)
2. Use scissors to cut the paper along the cut line.
3. Follow the instructions on the screen to unload the paper. Turn the knobs on
the roll paper holders backward as the paper unloads, then remove the paper
and holders from the printer.
Store unused roll paper in its original package away from high temperatures,
humidity, and direct sunlight.
Note:
You can also unload roll paper by pressing Cut/Eject on the main menu, then pressing
Eject. The paper will feed back through the printer.
Loading Paper 15
Loading Thick Media
Use the manual feed tray to load 13 × 19-inch media that is 0.7 to 1.3 mm thick.
Note:
Be sure to leave at least 13 inches (32 cm) of space behind the printer for the media to
feed through.
1. Turn on the printer.
2. Remove any roll paper or paper loaded in the sheet feeder. Close the rear
support if it’s open.
3. Open the front cover, then push the center of the manual feed tray to extend
it.
16 Loading Paper
4. Insert a single sheet of thick media. Insert it short edge first with the printable
side face-up.
Note:
Never try to load media from the rear, or you could damage the printer.
5. Feed the paper up to the line on the tray. Make sure the paper is flush against
the right.
6. Press Poster Board - Load on the printer’s touch screen. The paper loads
inside the printer.
7. When you see a message on the screen, close the manual feed tray. Push it in
until it latches.
Loading Paper 17
8. Extend the output tray.
Note:
To eject paper, press Eject on the main menu, then follow the touch screen
instructions. Do not extend the manual feed tray while printing, or you may damage the
printer.
18 Loading Paper
Printing from Start to Finish
This section describes basic printing from your Windows® or Mac computer. For
detailed instructions, see the online User’s Guide.
You can also print label designs directly onto ink jet-printable CDs or DVDs. See
page 29 and the online User’s Guide for details.
Tip:
It’s a good idea to check for updates to your Epson SureColor P600 Series software.
See “Checking for Software Updates” on page 43 for instructions.
Printing in Windows
1. Open a photo or document in a printing program, and select the print option.
Select your Epson
product
Click here to open
your printer software
2. Select your product, then click the Preferences or Properties button.
Note:
If you see a Setup, Printer, or Options button, click it. Then click Preferences or
Properties on the next screen.
Printing from Start to Finish 19
3. On the Main tab, select the Media Type setting that matches the paper you
loaded (see page 27).
Note:
The available media types vary depending on the type of black ink currently
selected as the Ink setting. To avoid changing black ink more often than necessary,
set the printer to the type of black ink you usually use (see page 40).
4. For the Color setting, select Color for any type of photographic printing. To
print black-and-white photos using Advanced B&W Photo mode, see your
online User’s Guide for instructions.
20 Printing from Start to Finish
5. For the Print Quality setting, select Speed, Quality, or Max Quality
(available with certain media types only), or select Quality Options to display
a window like this:
Use the Speed/Quality slider to set from the following quality levels:
■
LEVEL 1 for fast printing with draft quality.
■
LEVEL 2 for everyday text and image printing.
■
LEVEL 3 for photos and graphics with good print quality and speed.
■
LEVEL 4 for photos and graphics with high print quality and slower
speed.
■
LEVEL 5 for the best print quality and slowest print speed (best to use for
canvas media).
Then select from the following additional options, and click OK:
■
High Speed for fast, bidirectional printing at lower quality.
■
Edge Smoothing to improve the quality of low-resolution images.
■
Finest Detail for sharper edges on vector-based data including text,
graphics, and line art. (This setting does not affect photographs.)
Printing from Start to Finish 21
6. Select one of the following as the Mode setting:
■
Epson Standard (sRGB) increases the contrast in images.
■
Adobe RGB matches images colors to the Adobe RGB color standard.
Use this setting if your source file was captured in Adobe RGB.
■
Photo Enhance lets you choose from various Scene Correction settings
to automatically analyze your photos and, if necessary, adjusts the
brightness, contrast, and saturation.
■
ICM automatically adjusts colors based on the printer’s ICC profile and
the selected Media Type setting, using the Image Color Matching system.
■
Off (No Color Adjustment) disables color management in the printer
driver.
Note:
For color management instructions, see epson.com/proimaging/iccprofiles.html.
For more information about print settings, click Help or see your online User’s
Guide.
7. Choose the paper Source in which you loaded your paper:
■
Sheet: for sheets of paper loaded in the sheet feeder.
■
Roll Paper: for photos or panoramics up to 27 inches (68.6 cm) long. If
desired, click Print page frame to print a cutting guideline around each
photo.
■
Roll Paper (Banner): for photos or banners over 27 inches (68.6 cm)
long. If desired, click Save Roll Paper to reduce the amount of roll paper
between each banner.
■
Front - Fine Art: for a sheet of compatible paper loaded in the manual
feed tray.
■
Front - Poster Board: for thick media loaded in the manual feed tray.
■
CD/DVD: for a disc loaded in the CD/DVD tray.
8. Select the paper Size setting for the paper you loaded.
If you loaded roll paper, create a custom paper size. Select User Defined in
the Size menu, then click the User Defined button. Type a name for your
custom size. For the Paper Width, enter 12.95 for Super B-size rolls. For the
Paper Height enter the desired length up to 129 inches. Click Save, click OK,
then select your custom paper size in the Size menu.
22 Printing from Start to Finish
Note:
For roll paper, make sure the maximum width of your photo is 13 inches to fit in the
width of your roll paper (set the margins to 0 in your application software).
9. If you’re printing borderless photos, select Borderless, if available. To adjust
the borderless expansion setting click Expansion.
10. To reduce or enlarge your printout or print double-sided, click the Page
Layout tab and select settings as necessary. (Click Help or see your online
User’s Guide for details.)
11. Click OK to save your settings.
12. Click OK or Print to start printing.
This window appears and shows the progress of your print job.
Cancel
printing
Note:
If you’re printing on roll paper, see page 15 for instructions on removing your printed
photos and paper.
Printing with OS X
Follow the steps below to print from OS X 10.7.x to 10.9.x
1. Open a photo or document in a printing program, then select the print
command in your application.
Printing from Start to Finish 23
2. Select your product as the Printer setting.
Select your Epson product
3. Click Show Details.
4. Select the Paper Size setting for the paper size and source you are using:
■
To print a borderless photo, select a paper size with a Borderless option.
■
To print on roll paper, create a custom paper size. Select Manage
Custom Sizes as the Paper Size option. Click the + (plus sign), doubleclick Untitled and give your paper size a name. For the Width, enter
12.95 for Super B-size rolls. For the Height, enter the desired length up
to 129 inches. Set the margins to 0 and click OK. Then select your
custom paper size in the size menu.
Note:
For roll paper, make sure the maximum width of your photo is set to 13 inches
to fit in the width of your roll paper (set the margins to 0 in your application
software).
■
To print on paper loaded in the manual feed tray, select a paper size with a
Front - FineArt (or Fr.-FineArt) option.
5. Choose portrait or landscape as the Orientation setting for your document or
photo.
24 Printing from Start to Finish
6. Select Print Settings from the pop-up menu.
Note:
In certain programs, you may need to select Advanced before you can select Print
Settings. For more information about print settings, click the ? button.
7. Select the Media Type setting that matches the paper you loaded (see
page 27).
Note:
The ink type will change depending on the size and type of paper you select. To
avoid changing black ink more often than necessary, set the printer to the type of
black ink you usually use (see page 40).
8. For the Color setting, select AccuPhoto HD2 for any type of photographic
printing. To print black-and-white photos using Advanced B&W Photo
mode, see your online User’s Guide for instructions.
9. Select one of the following as the Color Settings setting:
■
Epson Standard (sRGB) increases the contrast in images.
Printing from Start to Finish 25
■
Adobe RGB matches images colors to the Adobe RGB color standard.
Use this setting if your source file was captured in Adobe RGB.
Note:
For color management instructions, see epson.com/proimaging/iccprofiles.html.
For more information about print settings, click Help or see your online User’s
Guide.
10. Select a Print Quality setting (available settings depend on selected media
type):
■
Draft: for fast printing with draft quality
■
Fine - 720dpi: for everyday text and image printing
■
SuperFine - 1440dpi: for photos and graphics with good print quality
and speed
■
Photo - 1440dpi: for photos and graphics with high print quality and
slower speed
■
SuperPhoto - 5760dpi: for the best print quality and slowest print speed
(best to use for canvas media)
11. Click Print.
12. To monitor your print job, click the
printer icon in the dock.
Pause or
resume
printing
Note:
If you’re printing on roll paper, see page 15 for instructions on removing your printed
photos and paper, if necessary.
26 Printing from Start to Finish
Selecting the Correct Paper Type
Select the correct Media Type setting in your printer software (see page 20 for
Windows or page 25 for OS X). This adjusts ink coverage for your media. If you
don’t see your paper type listed in the printer driver, see the tables below.
Media usable with Photo Black ink (see page 40):
For this paper/media
Select this setting
Plain paper
Epson Bright White Paper
Plain Paper/Bright White Paper*
Epson Photo Paper Glossy
Photo Paper Glossy
Epson Premium Photo Paper Glossy
Epson Ultra Premium Photo Paper Glossy
Premium Photo Paper Glossy
Epson Premium Photo Paper Semi-gloss
Premium Photo Paper Semigloss
Epson Ultra Premium Photo Paper Luster
Ultra Premium Photo Paper Luster
Epson Exhibition Fiber Paper**
Exhibition Fiber Paper
Epson Exhibition Canvas Satin
Exhibition Canvas Satin
Epson Exhibition Canvas Natural Satin
Exhibition Canvas Natural Satin
Epson Exhibition Canvas Natural Gloss
Exhibition Canvas Natural Gloss
Epson Metallic Photo Paper Glossy
Metallic Photo Glossy
Epson Metallic Photo Paper Luster
Metallic Photo Luster
Ink jet-printable CD or DVD
CD/DVD*
CD/DVD Premium Surface*
* OS X: When printing with Photo Black ink, select the PK (Photo Black) option.
** For the best results on this paper, print using a premium ICC profile, downloadable
from Epson at epson.com/proimaging/iccprofiles.html.
Printing from Start to Finish 27
Media usable with Matte Black ink (see page 40):
For this paper/media
Select this setting
Plain paper
Epson Bright White Paper
Plain Paper/Bright White Paper*
Epson Presentation Paper Matte
Presentation Paper Matte
Epson Premium Presentation Paper Matte
Epson Ultra Premium Presentation Paper
Matte
Epson Premium Presentation Paper Matte
Double-sided
Epson Photo Quality Self-adhesive Sheets
Ultra Premium Presentation Paper
Matte
Epson Velvet Fine Art Paper
Velvet Fine Art Paper
Epson Watercolor Paper Radiant White
Watercolor Paper - Radiant White
Epson Exhibition Watercolor Paper Textured
Exhibition Watercolor Textured
Epson UltraSmooth Fine Art Paper 325 gsm
UltraSmooth Fine Art Paper
Epson Exhibition Canvas Matte
Exhibition Canvas Matte
Epson Exhibition Canvas Natural Matte
Exhibition Canvas Natural Matte
Epson Hot Press Bright
Hot Press Bright
Epson Hot Press Natural
Hot Press Natural
Epson Cold Press Bright
Cold Press Bright
Epson Cold Press Natural
Cold Press Natural
Ink jet-printable CD or DVD
CD/DVD*
CD/DVD Premium Surface*
*
OS X: When printing with Matte Black ink, select the MK (Matte Black) option.
28 Printing from Start to Finish
Loading and Removing CDs
and DVDs
You can use your P600 Series and the Epson Print CD software that came with it
to print label designs directly onto ink jet-printable CDs or DVDs. To prevent
errors, you should burn files, music, or video onto your CD or DVD before
printing.
Follow the steps in these sections to load and remove a CD/DVD:
■
“Loading a CD or DVD” on this page
■
“Removing Your Printed CD/DVD” on page 31
Note:
See your online User’s Guide for instructions on printing on a CD/ DVD.
Loading a CD or DVD
1. Turn on the printer.
2. Remove any roll paper or paper loaded in the sheet feeder. Close the rear
support if it’s open.
Loading and Removing CDs and DVDs 29
3. Open the front cover, then push the center of the manual feed tray to extend
it.
4. Place your disc on the included CD/DVD tray with the label side up.
5. Place the CD/DVD tray on the manual feed tray.
30 Loading and Removing CDs and DVDs
6. Line up the arrows on the CD/DVD tray with the line on the manual feed
tray. Make sure the CD/DVD tray is flush against the right.
7. Press CD/DVD - Load on the touch screen. The CD/DVD tray loads inside
the printer.
Removing Your Printed CD/DVD
After your CD or DVD is printed, the tray ejects partially from the P600 Series.
Pull out the tray and remove the disc.
After printing, handle the printed CD or DVD carefully. You may need to wait
up to 24 hours for the ink to dry fully before inserting it in a drive. Keep printed
discs away from moisture and direct sunlight.
If you need to adjust the print position or print quality, see your online User’s
Guide for instructions.
If you notice lines or streaks on your CD or DVD, you may need to clean the
rollers inside the printer. See “Cleaning the Rollers” on page 42.
Loading and Removing CDs and DVDs 31
Maintaining Your Printer
Follow the steps in these sections to keep the P600 Series working at its best:
■
“Checking and Cleaning the Print Head” below
■
“Checking and Aligning the Print Head” on page 33
■
“Checking the Ink Cartridge Status” on page 34
■
“Replacing Ink Cartridges” on page 36
■
“Switching Black Ink Types” on page 40
■
“Cleaning the Rollers” on page 42
Checking and Cleaning the Print Head
If your printouts are faint or have gaps in them, some of the nozzles in the print
head may be clogged or ink may be running low in one or more of the ink
cartridges. Follow the steps below to check the print head nozzles.
1. Load a few sheets of plain paper.
2. Press the
button or tap the printer’s touch screen to open the main menu.
3. Press the F button, select Maintenance, then select Print Head Nozzle
Check.
4. Press Print to print a nozzle check pattern.
5. Check the nozzle check pattern that prints to see if there are gaps in the lines.
Nozzles are clean
Nozzles need cleaning
6. If there are no gaps, the print head is clean. Select Done.
If there are gaps or the pattern is faint, select Clean the Print Head (see
page 33).
32 Maintaining Your Printer
Cleaning the Print Head
If print quality has declined and the nozzle check indicates clogged nozzles, you
can clean the print head. Print head cleaning uses ink, so clean it only if necessary.
Note:
You cannot clean the print head if an ink cartridge is expended, and may not be able to
clean it when a cartridge is low. You must replace the cartridge first (see page 36).
1. Load a few sheets of plain paper.
2. Press the
button or tap the printer’s touch screen to open the main menu.
3. Press the F button, select Maintenance, then select Print Head Cleaning.
4. Press Head Cleaning.
Cleaning lasts around 2 minutes. When it’s finished, you see a message on the
screen.
Caution:
Never turn off the product during head cleaning or you may damage it.
5. Press Done to confirm that the print head is clean.
Note:
If you don’t see any improvement after cleaning the print head four times, leave the
product on and wait at least six hours to let any dried ink soften. Then try cleaning the
print head again. If quality does not improve, one of the ink cartridges may need to be
replaced. If that doesn’t help, contact Epson as described on page 47.
If you do not use your product often, it is a good idea to print a few pages at least once
a month to maintain good print quality.
Checking and Aligning the Print Head
If your printouts become grainy or blurry, or you see dark or light bands across
them, you may need to align the print head.
Note:
Banding may also occur if your print head nozzles need cleaning (see page 32).
1. Load a few sheets of Epson Presentation Paper Matte (or the photo paper you
have on hand) in the sheet feeder (see page 7). It’s best to use matte or photo
paper for the most accurate alignment.
2. Press the
button or tap the printer’s touch screen to open the main menu.
Maintaining Your Printer 33
3. Press the F button, select Maintenance, then select Head Alignment.
4. Press Print to print an adjustment pattern.
5. Look at line #1 and choose the pattern with the fewest vertical lines. (In the
example below, you would choose “4”.)
6. Make sure #1 is displayed on the touch screen, press the up or down arrow
buttons to select the number you chose in step 5, then press Proceed.
7. Repeat this process for lines #2 through #9.
8. Press Done when finished.
Checking the Ink Cartridge Status
Your P600 Series will let you know when an ink cartridge is low or expended in
the following ways:
■
The printer’s touch screen displays an error message.
■
Your computer screen displays a message when you try to print. This window
can optionally display ink offers and other updates retrieved from an Epson
website.
Tip:
It’s a good idea to check the ink status and replace cartridges, if necessary, before
printing a large print job. If you need to replace a cartridge while printing, you can
continue to print but you might notice a color difference depending on drying
conditions.
Note:
On a Windows computer that is connected to the Internet, you may see a screen
asking if you want to receive Epson offers the first time you try to print when ink is low.
Click Accept or Decline. To disable checking for ink offers or updates from Epson, see
the instructions in your online User’s Guide.
34 Maintaining Your Printer
To check the ink cartridge status at any time, do one of the following:
Control panel:
1. Press the
button or tap the printer’s touch screen to open the main menu.
2. Press the
button.
You see the Ink Levels screen.
Windows:
Double-click the icon in the bottom right
corner of your screen (the taskbar).
You see the screen to the right.
OS X:
1. In the Apple menu or the Dock, select
System Preferences. Select Printers &
Scanners, Print & Fax or Print & Scan,
select your product, and select Options &
Supplies. Select Utility and select Open
Printer Utility.
2. Select EPSON Status Monitor.
You see the screen to the right.
Maintaining Your Printer 35
Replacing Ink Cartridges
You can purchase genuine Epson ink and paper at Epson Supplies Central at
www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can
also purchase supplies from an Epson authorized reseller. To find the nearest one,
call 800-GO-EPSON (800-463-7766).
Use the following list when you order or purchase new ink cartridges:
Ink color
Part number
Photo Black
760
Cyan
760
Vivid Magenta
760
Yellow
760
Light Cyan
760
Vivid Light Magenta
760
Light Black
760
Matte Black
760
Light Light Black
760
Note:
We recommend that you use genuine Epson cartridges and do not refill them. The use
of other products may affect your print quality and could result in printer damage.
Yields vary considerably based on images printed, print settings, paper type, frequency
of use, and temperature. For print quality, a small amount of ink remains in the cartridge
after the “replace cartridge” indicator comes on. The printer ships with full cartridges
and part of the ink from the first cartridges is used for priming the printer.
For best printing results, use up a cartridge within six months of opening the package.
Caution:
Do not open ink cartridge packages until you are ready to install the ink. Cartridges are
vacuum packed to maintain reliability.
Leave your old cartridges in the P600 Series until you are ready to replace them to
prevent the print head nozzles from drying out.
36 Maintaining Your Printer
Make sure you have a new ink cartridge before you begin. You must install new
cartridges immediately after removing the old ones.
1. Open the printer cover, then open the ink cartridge cover.
2. Squeeze the tab on the cartridge and lift the cartridge straight up to remove it.
Dispose of it carefully. Do not take the used cartridge apart or try to refill it.
Warning:
If ink gets on your hands, wash them thoroughly with soap and water. If ink gets
into your eyes, flush them immediately with water. Keep ink cartridges out of the
reach of children.
Maintaining Your Printer 37
3. Before opening the cartridge package, shake the package four or five times.
Note:
Cartridges may make a clicking sound when you shake them.
Caution:
Do not shake the cartridges after opening the packages or ink will leak.
4. Remove the cartridge from the package, but be careful not to touch the green
chip on the cartridge.
5. Remove the yellow tape from the bottom of the cartridge.
Caution:
Do not remove any other labels or seals, or ink will leak.
38 Maintaining Your Printer
6. Insert the new cartridge into the holder and push it down until it clicks into
place.
7. Close the cartridge cover, then close the printer cover.
Wait for the printer to check the ink cartridges and charge the ink delivery
system, if necessary.
Caution:
Never turn off the P600 Series while ink is charging or you’ll waste ink.
Maintaining Your Printer 39
Switching Black Ink Types
Your printer comes with Matte Black and Photo Black ink cartridges. Although
both must be installed for the printer to work, the printer can use only one type of
ink at a time. The printer will switch ink automatically, depending on the type of
media you load. This consumes a certain amount of ink, so you should avoid
switching ink more often than necessary.
To conserve ink, you can select the type of ink that is available by default (see
page 41). First decide which type of media you usually print on. Then, if
necessary, switch to the type of ink that works with that media.
The following media use Matte Black ink:
■
Presentation Paper Matte
■
Premium Presentation Paper Matte
■
Premium Presentation Paper Matte Double-sided
■
Ultra Premium Presentation Paper Matte
■
Velvet Fine Art PaperEpson
■
Exhibition Watercolor Paper Textured
■
Watercolor Paper Radiant White
■
UltraSmooth Fine Art Paper 325 gsm
■
Exhibition Canvas Matte
■
Exhibition Canvas Natural Matte
■
Photo Quality Self-adhesive Sheets
■
Hot Press Bright
■
Hot Press Natural
■
Cold Press Bright
■
Cold Press Natural
40 Maintaining Your Printer
The following media use Photo Black ink:
■
Photo Paper Glossy
■
Premium Photo Paper Glossy
■
Ultra Premium Photo Paper Glossy
■
Premium Photo Paper Semi-gloss
■
Ultra Premium Photo Paper Luster
■
Exhibition Canvas Satin
■
Exhibition Canvas Natural Satin
■
Exhibition Canvas Natural Gloss
■
Exhibition Fiber Paper
■
Metallic Photo Paper Glossy
■
Metallic Photo Paper Luster
Select the Black Ink Type
Switching black ink takes several minutes. Because it consumes some of the new
type of ink, you should not switch ink more often than necessary.
1. Press the
button or tap the printer’s touch screen to open the main menu.
2. Press the
button.
3. Press Proceed to select the type of ink the printer will switch to. The time
required for each type is shown below:
■
Photo Black to Matte Black: about 1.5 minutes
■
Matte Black to Photo Black: about 3.5 minutes
Maintaining Your Printer 41
Cleaning the Rollers
If you notice lines or streaks on your printouts, you may need to clean the rollers
inside the printer by feeding several sheets of plain paper or a cleaning sheet (if
applicable) through it.
Note:
If paper dust builds up on the rollers, they may lose traction and become unable to feed
paper properly. To keep the paper feed mechanism running smoothly, use cleaning
sheets after feeding every 100 sheets or so of matte paper.
1. Turn on the printer.
2. Open the paper support and output tray.
3. Load several sheets of plain paper or a cleaning sheet in the sheet feeder (see
page 7).
Note:
Only the area corresponding to the size of the paper will be cleaned.
4. Press the
button or tap the printer’s touch screen to open the main menu.
5. Press the F button, select Maintenance, then select Paper Guide Cleaning.
6. Press Roller Cleaning to feed a sheet of paper or a cleaning sheet through the
printer.
7. Feed several sheets of paper, or one cleaning sheet three times, to completely
clean the rollers.
42 Maintaining Your Printer
Solving Problems
If you have a problem with your Epson product, check the messages on the LCD
screen to diagnose the cause. You can also check the basic troubleshooting
suggestions below or in your online User’s Guide.
Checking for Software Updates
Periodically, it’s a good idea to check Epson’s support website for free updates to
your product software. Visit the driver download site at epson.com/support
(U.S.) or epson.ca/support (Canada).
With Windows, your printer software automatically checks for updates. You can
also select Driver Update on the Utility tab in the printer settings window, or
right-click the
icon in the bottom right corner of your screen (the taskbar) and
select Software Update.
You can also update the software by selecting EPSON Software Updater in the
EPSON or EPSON Software program group, accessible by the Start button, or
on the Start or Apps screens, depending on your version of Windows.
With OS X, you can manually update the software by opening the Applications
> Epson Software folder and selecting EPSON Software Updater.
Problems and Solutions
Check the solutions below if you’re having trouble using your printer.
Printing Problems
■
Make sure your paper is loaded printable side up, short edge first, and all the
way to the right (see page 7 and page 9).
■
When using the sheet feeder, don’t load paper above the arrow mark on the
left edge guide.
Solving Problems 43
■
When using the manual feed tray, load only one sheet of compatible paper
(see page 9).
■
Make sure the paper size settings in the printer software are correct for the
paper you loaded.
Paper Feeding Problems
■
If paper doesn’t feed into the sheet feeder, remove the paper and fan the stack
of paper to separate the sheets. Reload paper against the right side and slide
the edge guide against it. Do not load too many sheets in the sheet feeder at
once (see page 7).
■
If paper dust builds up on the rollers, they may lose traction and become
unable to feed paper properly. See page 42 or your online User’s Guide for
cleaning instructions.
■
If you can’t insert paper easily into the manual feed tray, make sure the paper
is perfectly flat and not curled.
■
Make sure the manual feed tray is not extended if you’re printing on roll
paper or with the sheet feeder. Extend it only to load fine art paper or poster
board. Once the media is fed into the printer and you see a message on the
screen, close the manual feed tray.
■
If roll paper doesn’t feed, cut the end of it straight across and uncurl the end
by rolling it backward, if necessary. Then reload the paper (see page 12).
■
If thick media doesn’t feed, make sure you’re loading it straight into the
printer and not at an incline (see page 16).
■
If paper is jammed, try the following, depending on how you’re printing:
Sheet feeder: Open the printer cover and remove any paper jammed inside.
Press Restart to clear the error.
Roll paper slot: Cut off any printed roll paper and then cut the paper close to
the roll. Gently pull out the paper from the front or back (whichever is easier)
and press Restart to clear the error.
Manual feed tray: Gently pull out the paper from the front or back
(whichever is easier) and press Restart to clear the error.
If you still see an error message, turn off the printer and then turn it back on.
44 Solving Problems
CD/DVD Printing Problems
■
If the CD/DVD tray won’t load or jams in the printer, gently pull out the
CD/DVD tray and press Restart. Reload the CD/DVD tray, making sure to
insert the tray correctly in the tray guide and align the arrows (see page 31).
■
If your image is not positioned correctly on the disc or does not cover the
printable area correctly, you may need to adjust the printing position using
the Epson Print CD software. See the online User’s Guide for instructions.
■
If ink smears on your disc, make sure you’re printing on ink jet-printable CDs
or DVDs and that the surface of the disc is dry. Handle printed discs carefully
and let them dry for 24 hours before inserting them in a drive. If necessary,
you can adjust the print quality using Epson Print CD software. See the
online User’s Guide for instructions.
Print Quality Problems
■
For the best print quality, use Epson papers and genuine Epson ink cartridges
(see page 36).
■
Load the paper printable side up (usually the whiter, brighter, or glossy side).
■
Make sure your paper isn’t damp or curled.
■
Some papers can only be loaded one sheet at a time (see page 7).
■
Make sure the type of paper you loaded matches the paper size and paper type
settings in your printer software (see page 27).
■
Remove sheets from the output tray as they eject. Let your prints dry
separately for at least 12 hours before framing or placing in a protective sheet.
If you need to stack them, place a sheet of plain paper between each print.
■
If you notice light or dark bands across your printouts or they are too faint,
you may need to clean the print head. Run a nozzle check and clean the print
head if necessary (see page 32).
■
If you notice jagged vertical lines, run the print head alignment utility to
check and align the print head (see page 33).
■
The ink cartridges may be low on ink. Check cartridge status (see page 34)
and replace cartridges if necessary (see page 36).
Solving Problems 45
Network Problems
If you have a poor wireless connection, try moving the product to a different
location. Avoid placing it next to a microwave oven, 2.4 GHz cordless phone, or
large metal object such as a filing cabinet.
Note:
For optimal print speed, your wireless router and/or laptop must conform to the
802.11n standard. Earlier standards (802.11a/b/g) are not supported.
Network setup failed
■
Try moving the product to a different location.
■
Make sure there aren’t any access restrictions (such as MAC address filtering)
set on the wireless router. If access restrictions are set, register the product’s
MAC address on the router. Print a Network Status Sheet (see below) to
obtain the MAC address. Then see your router’s manual for instructions.
■
If your wireless router doesn’t broadcast its network name (SSID), see the
online User’s Guide for instructions on manually entering your wireless
network name.
■
If your wireless router has security enabled, make sure you entered the WEP
key or WPA passphrase correctly.
■
Reinstall your product software.
The WiFi icon appears on the LCD screen but you cannot print
■
Make sure your firewall or security software is not set to block port 3690
(TCP/UDP). Contact your firewall manufacturer for assistance.
■
Your router might not be assigning IP addresses automatically using DHCP.
If it isn’t, you will need to set the product’s IP address manually. Make sure it
is set correctly for your network.
Print a Network Status Sheet
1. Press the
button or tap the printer’s touch screen to open the main menu.
2. Press the F button, select Network Status, then select Wi-Fi/Network
Status.
3. Press Print twice to print the status sheet.
46 Solving Problems
Where to Get Help
Epson Technical Support
Internet Support
Visit your product’s support website at epson.com/support/p600 (U.S.) or
epson.ca/support/p600 (Canada) for solutions to common problems. You can
download drivers, printer software, and utilities, view how-to videos, access the
online User’s Guide, get FAQs and troubleshooting advice, or e-mail Epson with
your questions.
Speak to a Support Representative
Before you call Epson for support, please have the following information ready:
■
Product name (Epson SureColor P600 Series)
■
Product serial number (located on the label in back)
■
Proof of purchase (such as a store receipt) and date of purchase
■
Computer configuration
■
Description of the problem
Then call:
(562) 276-7272 (U.S.) or (905) 709-2567 (Canada), 6 AM to 8 PM, Pacific Time,
Monday through Friday, and 7 AM to 4 PM, Pacific Time, Saturday.
Days and hours of support are subject to change without notice. Toll or long
distance charges may apply.
Purchase Supplies and Accessories
You can purchase genuine Epson ink and paper at Epson Supplies Central at
www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can
also purchase supplies from an Epson authorized reseller. To find the nearest one,
call 800-GO-EPSON (800-463-7766).
Solving Problems 47
Notices
Important Safety Instructions
Before using your P600 Series, read and follow these safety instructions:
■
Be sure to follow all warnings and instructions marked on the P600 Series.
■
Use only the type of power source indicated on the P600 Series label.
■
Place the P600 Series near a wall outlet where the plug can be easily unplugged.
■
If you won’t be using the P600 Series for a long period, unplug the power cord from
the electrical outlet.
■
Always turn off the P600 Series using the P power button, and wait until the
P power light stops flashing before unplugging the printer or cutting off power to the
electrical outlet.
■
Avoid plugging the P600 Series into an outlet on the same circuit as a photocopier or
air control system that regularly switches on and off, or on an outlet controlled by a
wall switch or timer.
■
Do not let the power cord become damaged or frayed.
■
If you use an extension cord with the P600 Series, make sure the total ampere rating
of the devices plugged into the extension cord does not exceed the cord’s ampere
rating. Also, make sure the total ampere rating of all devices plugged into the wall
outlet does not exceed the wall outlet’s ampere rating.
■
Avoid locations that are subject to rapid changes in heat or humidity, shocks or
vibrations, or dust.
■
Leave enough room around the P600 Series for sufficient ventilation. Do not block or
cover openings in the P600 Series case or insert objects through the slots.
■
Do not place the P600 Series near a radiator or heating vent or in direct sunlight.
■
Do not use aerosol products that contain flammable gases inside or around the P600
Series. Doing so may cause fire.
■
Place the P600 Series on a flat, stable surface that extends beyond its base in all
directions. It will not operate properly if it is tilted or at an angle.
■
Make sure the P600 Series is at least 4 inches (10 cm) away from the wall.
■
Be careful not to spill liquid on the P600 Series.
■
Except as specifically explained in your documentation, do not attempt to service the
P600 Series yourself.
48 Notices
■
Unplug the P600 Series and refer servicing to qualified service personnel under the
following conditions: if the power cord or plug is damaged; if liquid has entered the
product; if the product has been dropped or the case damaged; if the product does not
operate normally or exhibits a distinct change in performance. Adjust only those
controls that are covered by the operating instructions.
■
When storing or transporting the P600 Series, do not tilt it, stand it on its side, or
turn it upside down; otherwise ink may leak from the cartridges.
Ink Cartridge Safety
■
Keep ink cartridges out of the reach of children and do not drink the ink.
■
Be careful when you handle used ink cartridges; there may be ink remaining around
the ink supply port. If ink gets on your skin, wash it off with soap and water. If it gets
in your eyes, flush them immediately with water.
■
Do not put your hand inside the P600 Series or touch any cartridges during printing.
■
Install a new ink cartridge immediately after removing an expended one. Leaving
cartridges uninstalled can dry out the print head and may prevent the P600 Series
from printing.
■
If you remove an ink cartridge for later use, protect the ink supply area from dirt and
dust and store it in the same environment as the P600 Series. Note that there is a
valve in the ink supply port, making covers or plugs unnecessary, but care is needed to
prevent the ink from staining items that the cartridge touches. Do not touch the ink
cartridge ink supply port or surrounding area. Do not store the cartridge upside
down.
Touch Screen Safety
■
Use only a dry, soft cloth to clean the touch screen. Do not use liquid or chemical
cleansers.
■
If the touch screen is damaged, contact Epson. If the liquid crystal solution gets on
your hands, wash them thoroughly with soap and water. If the liquid crystal solution
gets into your eyes, flush them immediately with water. If discomfort or vision
problems remain after a thorough flushing, see a doctor immediately.
■
Press the touch screen gently with your finger only. Do not use pens or other sharp
objects to press the touch screen.
Notices 49
Wireless Network Safety
■
Do not use this product inside medical facilities or near medical equipment. Radio
waves from the product may adversely affect the operation of medical equipment.
■
Keep this product at least 9 inches (22 cm) away from cardiac pacemakers. Radio
waves from this product may adversely affect their operation.
■
Do not use this product near automatically controlled devices such as automatic doors
or fire alarms. Radio waves from this product may adversely affect these devices.
Epson America, Inc., Limited Warranty
What Is Covered: Epson America, Inc. (“Epson”) warrants to the original retail purchaser
that the Epson printer covered by this limited warranty statement, if purchased and
operated only in the United States, Canada, or Puerto Rico, will be free from defects in
workmanship and materials for a period of one (1) year from the date of original purchase.
For warranty service, you must provide proof of the date of original purchase.
What Epson Will Do To Correct Problems: Should your Epson printer prove defective
during the warranty period, please call the Epson Connection at (562) 276-7272 (U.S.) or
(905) 709-2567 (Canada) for warranty repair instructions and return authorization. An
Epson service technician will provide telephone diagnostic service to determine whether
the printer requires service. If service is needed, Epson will, at its option, exchange or
repair the printer without charge for parts or labor. If Epson authorizes an exchange for the
defective unit, Epson will ship a replacement printer to you, freight prepaid, so long as you
use an address in the United States, Canada, or Puerto Rico. Shipments to other locations
will be made freight collect. You are responsible for securely packaging the defective unit
and returning it to Epson within five (5) working days of receipt of the replacement.
Epson requires a debit or a credit card number to secure the cost of the replacement
printer in the event that you fail to return the defective one. If Epson authorizes repair
instead of exchange, Epson will direct you to send your printer to Epson or its authorized
service center, where the printer will be repaired and sent back to you. You are responsible
for packing the printer and for all costs to and from the Epson authorized service center.
When warranty service involves the exchange of the printer or a part, the item replaced
becomes Epson property. The replacement printer or part may be new or refurbished to
the Epson standard of quality, and, at Epson's option, may be another model of like kind
and quality. Exchange products and parts assume the remaining warranty period of your
original product covered by this limited warranty.
What This Warranty Does Not Cover: This warranty covers only normal use in the
United States, Canada, or Puerto Rico. Excessive, continuous use is not considered normal
use; damage, maintenance or service from such use will not be covered under this
warranty. This warranty is not transferable. This warranty does not cover any color change
50 Notices
or fading of prints or reimbursement of materials or services required for reprinting. This
warranty does not cover damage to the Epson product caused by parts or supplies not
manufactured, distributed or certified by Epson. This warranty does not cover ink
cartridges, ink supply units, or ink packs. This warranty does not cover third party parts,
components, or peripheral devices added to the Epson product after its shipment from
Epson, e.g., dealer or user-added boards or components. Epson is not responsible for
warranty service should the Epson label or logo or the rating label or serial number be
removed or should the product fail to be properly maintained or fail to function properly
as a result of misuse, abuse, improper installation, neglect, improper shipping, damage
caused by disasters such as fire, flood, and lightning, improper electrical current, software
problems, interaction with non-Epson products, or service other than by an Epson
Authorized Servicer. If a claimed defect cannot be identified or reproduced, you will be
held responsible for the costs incurred.
DISCLAIMER OF WARRANTIES: THE WARRANTY AND REMEDY PROVIDED
ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESSED OR
IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NON-INFRINGEMENT. UNLESS STATED HEREIN, ANY
STATEMENTS OR REPRESENTATION MADE BY ANY OTHER PERSON OR
FIRM ARE VOID.
Remedies: Your exclusive remedy and Epson’s entire liability for a material breach of this
Agreement will be limited to a refund of the price paid for the Epson products covered by
this Agreement. Any action for breach of warranty must be brought within 3 months of
the expiration date of the warranty. Epson is not liable for performance delays or for
nonperformance due to causes beyond its reasonable control. Except as provided in this
written warranty, neither Epson nor its affiliates shall be liable for any loss, inconvenience,
or damage, including direct, special, incidental or consequential damages, including lost
profits, cost of substitute equipment, downtime, claims of third parties, including
customers, or injury to property, resulting from the use or inability to use the Epson
products, whether resulting from a breach of warranty or any other legal theory. Some
jurisdictions do not allow limits on warranties or remedies for breach in certain
transactions. In such jurisdictions, the limits in this paragraph and the preceding
paragraph may not apply.
In Canada, warranties include both warranties and conditions.
Arbitration, Governing Laws: Any disputes arising out of this Agreement will be settled by
arbitration, before a single arbitrator to be conducted in Los Angeles, California, in
accordance with the commercial Arbitration Rules of the American Arbitration
Association, and judgment upon the award rendered by the arbitrator may be entered in
any court having jurisdiction thereof. This Agreement shall be construed in accordance
with the laws of the State of California, except this arbitration clause which shall be
construed in accordance with the Federal Arbitration Act.
Notices 51
To find the Epson Authorized Reseller nearest you, visit our website at: epson.com
To find the Epson Customer Care Center nearest you, visit epson.com/support
You can also write to:
Epson America, Inc., P.O. Box 93012, Long Beach, CA 90809-3012
Declaration of Conformity
According to 47CFR, Part 2 and 15 for: Class B Personal Computers and Peripherals;
and/or CPU Boards and Power Supplies used with Class B Personal Computers:
We:
Located at:
Epson America, Inc.
MS 3-13
3840 Kilroy Airport Way
Long Beach, CA 90806
Telephone: (562) 981-3840
Declare under sole responsibility that the product identified herein, complies with 47CFR
Part 2 and 15 of the FCC rules as a Class B digital device. Each product marketed is
identical to the representative unit tested and found to be compliant with the standards.
Records maintained continue to reflect the equipment being produced can be expected to
be within the variation accepted, due to quantity production and testing on a statistical
basis as required by 47CFR §2.909. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Trade Name:
Epson
Type of Product: Ink jet printer
Model:
B471A
52 Notices
FCC Compliance Statement
For United States Users
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio or
television reception. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause interference to radio and television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
■
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment and receiver.
■
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
■
Consult the dealer or an experienced radio/TV technician for help.
WARNING
The connection of a non-shielded equipment interface cable to this equipment will
invalidate the FCC Certification of this device and may cause interference levels which
exceed the limits established by the FCC for this equipment. It is the responsibility of the
user to obtain and use a shielded equipment interface cable with this device. If this
equipment has more than one interface connector, do not leave cables connected to
unused interfaces. Changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
For Canadian Users
CAN ICES-3(B)/NMB-3(B)
Notices 53
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
