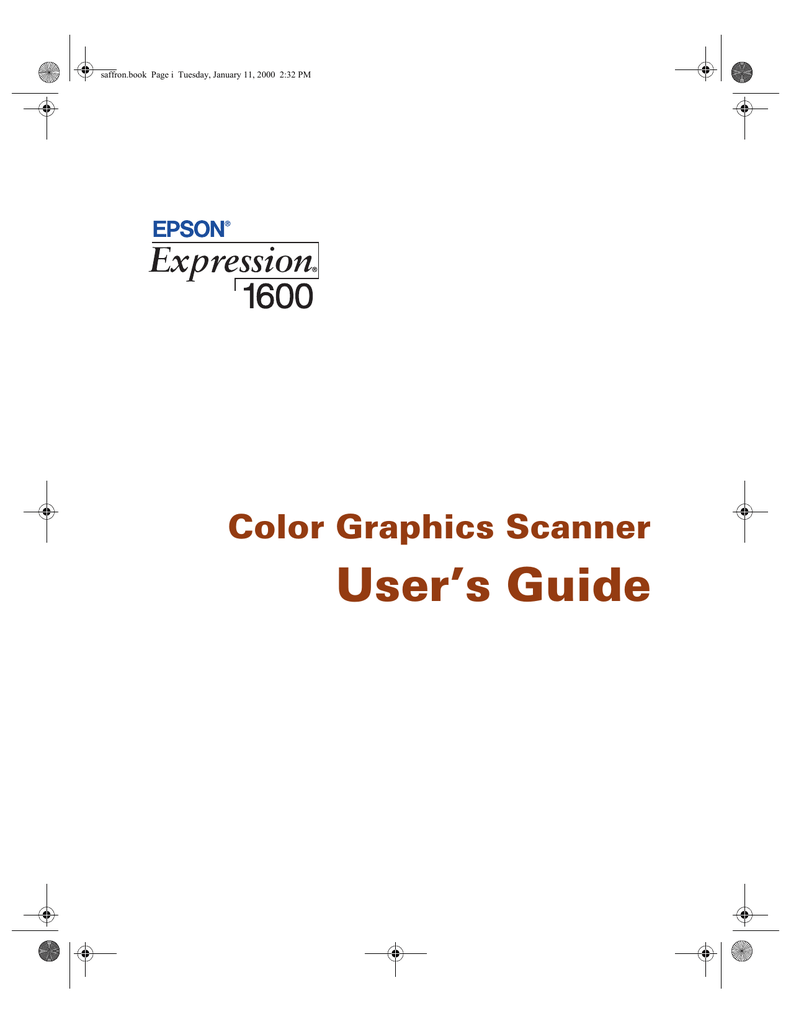

Epson Expression 1600 Artist User's Manual

saffron.book Page i Tuesday, January 11, 2000 2:32 PM
Color Graphics Scanner
User’s Guide
saffron.book Page ii Tuesday, January 11, 2000 2:32 PM
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of SEIKO EPSON CORPORATION. The information contained herein is designed only for
use with this EPSON scanner. EPSON is not responsible for any use of this information as applied to other
scanners.
Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third
parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse,
or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the
U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’s operating and maintenance instructions.
SEIKO EPSON CORPORATION shall not be liable for any damages or problems arising from the use of any
options or any consumable products other than those designated as Original EPSON Products or EPSON
Approved Products by SEIKO EPSON CORPORATION.
A Note Concerning Responsible Use of Copyrighted Materials
Digital cameras and scanners, like photocopiers and conventional scanners, can be misused by improper copying of
copyrighted material. While some countries’ laws permit limited copying of copyrighted material in certain
circumstances, those circumstances may not be as broad as some people assume. EPSON encourages each user to
be responsible and respectful of the copyright laws when using digital cameras and scanners.
Trademarks
EPSON and EPSON Stylus are registered trademarks of SEIKO EPSON CORPORATION.
EPSON SoundAdvice is a service mark. Micro Step Drive and EPSON FaxAdvice are trademarks, and Expression
and ColorTrue are registered trademarks of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of
their respective owners. EPSON disclaims any and all rights in those marks.
Copyright © 2000 by Epson America, Inc.
Printed on recycled paper with at least 10% post-consumer content.
CPD-9639
1/00
saffron.book Page iii Tuesday, January 11, 2000 2:32 PM
Contents
CHAPTER 1
WELCOME
9
About Your Scanner
About Your Software
Getting More Information
Warnings, Cautions, Notes, and Tips
Reading Your Reference Guide
Viewing Your Other Electronic Manuals
Registering
9
10
11
12
13
15
17
CHAPTER 2
19
SETTING UP YOUR SCANNER
Unpacking Your Scanner
Choosing a Good Place for Your Scanner
Unlocking the Scanner
Testing Your Scanner’s Operation
Connecting the Scanner to Your Computer
Connecting to a USB Interface
Connecting to a SCSI Interface
Connecting to an IEEE 1394 FireWire Interface
Installing the Windows Software
Installing the Windows 98 Software
Installing the Windows 95 Software
Installing the Windows NT 4.0 Software
Installing Additional Windows Software
Installing TextBridge Classic
Installing Adobe Photoshop 5.0 LE
Installing MonacoEZcolor
20
22
23
24
25
26
27
29
30
30
37
42
45
45
46
46
iii
saffron.book Page iv Tuesday, January 11, 2000 2:32 PM
Installing the Macintosh Software
Starting the Macintosh Software Installation
Installing Other Software on Your Scanning Tools CD-ROM
Installing Adobe Photoshop 5.0 LE
Installing MonacoEZcolor
Selecting the Expression 1600 as Your Default Scanner
47
47
49
50
51
51
CHAPTER 3
HOW TO SCAN
53
Scanning Tips
Selecting Resolution
Scaling (Resizing) Images
Scanning Color Images
Batch Scanning
Using the Dual Focus Mechanism
Recommended Settings
Step-by-Step Scanning Instructions
Placing Your Original Document
Scanning with EPSON TWAIN Pro
Using the ] Start Button
Setting Up the ] Start Button
Setting Up Presto! PageManager for One-Touch Scanning
53
53
54
54
55
55
56
57
57
58
60
61
64
CHAPTER 4
67
NETWORK SCANNING
Setting Up the Scanner Server
Installing the Scanner Server Software on Windows 98
Installing the Scanner Server Software on
Windows 95 and Windows NT 4.0
Changing the Scanner Server Start Up Mode
Setting Up Client Computers
Installing EPSON TWAIN Pro Network on Windows
Installing EPSON TWAIN Pro Network on a Macintosh
iv
68
68
74
81
82
82
85
saffron.book Page v Tuesday, January 11, 2000 2:32 PM
Using a Network Scanner
Starting EPSON Scan Server
Starting EPSON TWAIN Pro Network
Starting a Scan
Stopping a Scan in Progress
88
89
90
91
92
CHAPTER 5
93
USING OPTIONAL EQUIPMENT
Transparency Unit
Unpacking the Transparency Unit
Removing the Shipping Screw
Installing the Transparency Unit
Using the Film Guides
Scanning Reflective Documents
Automatic Document Feeder
Unpacking the Automatic Document Feeder
Installing the Automatic Document Feeder
Loading Paper in the Automatic Document Feeder
Fixing Paper Jams
IEEE 1394 FireWire Scanner Interface Card
Installing the Card in Your Scanner
93
94
95
95
97
101
102
102
103
105
106
106
107
CHAPTER 6
109
SCANNER MAINTENANCE
Transporting the Scanner
Transporting the Transparency Unit
Cleaning the Scanner
109
110
111
v
saffron.book Page vi Tuesday, January 11, 2000 2:32 PM
CHAPTER 7
SOLVING PROBLEMS
Lights and Buttons
Problems and Solutions
Setup Problems
Scanner Problems
Software Problems
Scanning Problems
Uninstalling the Expression 1600 Software
Uninstalling EPSON TWAIN Pro
Uninstalling EPSON TWAIN Pro Network
Uninstalling EPSON Scan Server
Where To Get Help
EPSON Technical Support
Software Technical Support
113
115
115
117
118
120
125
125
126
127
128
128
129
APPENDIX A
131
SPECIFICATIONS
Scanner
General
Electrical
Environmental
Safety Approvals
SCSI Interface
USB Interface
Option Interface Connector
Initialization Methods
Transparency Unit (B813182)
General
Electrical
Environmental
vi
113
131
131
132
133
133
133
133
134
134
134
134
134
134
saffron.book Page vii Tuesday, January 11, 2000 2:32 PM
Automatic Document Feeder (B813162)
General
Electrical
Environmental
IEEE 1394 FireWire Scanner Interface Card (B808342)
General
Environmental
135
135
135
135
135
135
135
APPENDIX B
137
INSTALLING THE TCP/IP PROTOCOL
Installing the TCP/IP Protocol on Windows 95 and Windows 98
Assigning an IP Address
Installing the TCP/IP Protocol on Windows NT 4.0
Assigning an IP Address
APPENDIX C
NOTICES
138
139
140
141
143
System Requirements
Windows
Macintosh
Year 2000 Ready
Important Safety Instructions
ENERGY STAR Compliance
Declaration of Conformity
FCC Compliance Statement
For United States Users
Warning
For Canadian Users
Limited Warranty
143
143
144
145
145
146
147
148
148
148
148
149
INDEX
151
vii
saffron.book Page viii Tuesday, January 11, 2000 2:32 PM
viii
saffron.book Page 9 Tuesday, January 11, 2000 2:32 PM
Welcome
The EPSON® Expression® 1600 is a 36-bit
professional graphics scanner designed to meet the
needs of artists, graphics professionals, and business
graphics users. It’s ideally suited for small LAN
(Local Area Network) users who want to share a
scanner within their workgroup. Using EPSON’s
ColorTrue® II Imaging System, it reproduces
images with amazingly accurate detail and color.
Your scanner can achieve up to 1600 × 3200 dpi hardware resolution with EPSON’s
proprietary Micro Step Drive™ technology, and is one of the fastest scanners in
its class.
About Your Scanner
Your EPSON Expression 1600 scanner comes with these features:
■
Superior image quality with true optical resolution of 1600 dpi
■
36-bit color depth for capturing images with over 68 billion colors and 4,096
shades of gray
■
Start button for easy, automated scanning
■
Unique Dual Focus mechanism lets you choose the focus position
■
Can be shared by several users in a small workgroup
■
USB, SCSI 2, and IEEE 1394-compatible FireWire® (USB and SCSI 2 interfaces
are standard)
■
Optional transparency unit, automatic document feeder, and IEEE 1394
FireWire scanner interface card
9
saffron.book Page 10 Tuesday, January 11, 2000 2:32 PM
About Your Software
The EPSON Expression 1600 scanner includes these leading-edge applications for
professional-quality scans:
EPSON TWAIN Pro
Exclusive professional-quality scanner driver with powerful
features for controlling every aspect of your scan. Includes
Auto Area Segmentation (AAS) to separate text from
background colors, and Text Enhancement Technology
(TET) for more accurate OCR scanning.
EPSON Scan Server (PC only)
Enables you to share the Expression 1600 with other users in a
small workgroup.
EPSON TWAIN Pro Network
This network version of EPSON TWAIN Pro lets client
computers use the Expression 1600 when it’s attached to
another computer. (EPSON Scan Server must be installed
on the computer sharing the scanner.)
Adobe ® Photoshop ® 5.0 LE
Edit your photos with this version of the ultimate
imaging application. Add special effects, overlay titles and
captions, restore old photos, and add many other creative
enhancements to your photographs. (Not included with the
Special Edition model.)
Xerox ® TextBridge® Classic
Use the premiere OCR (Optical Character Recognition)
software to turn your paper documents into electronic text
without retyping. (Not included with the Special Edition
model.)
10
saffron.book Page 11 Tuesday, January 11, 2000 2:32 PM
NewSoft ™ Presto! ™ PageManager for EPSON
After you’ve scanned your paper documents, use this leading
document management software to organize, file, edit, copy,
fax, and e-mail them from one convenient screen. (Not
included with the Special Edition model.)
MonacoEZcolor™ 1.5
Simplify the process of color management by creating
customized color profiles for your scanner, monitor, and
printer with this easy-to-use ICC profiling tool. (Not included
with the Special Edition model.)
Getting More Information
There are several ways to learn more about your EPSON Expression 1600. In
addition to the printed materials, help utilities and electronic manuals are available on
your computer and CD-ROMs. Here’s where to look for help:
■
Checklists
Read the checklist for your scanner model to make sure you have everything.
If anything is missing, call EPSON at (562) 276-4382 (United States) or
(905) 709-3839 (Canada).
■
EPSON Expression 1600 Software Reference Guide
Provides detailed information about EPSON TWAIN Pro, including
troubleshooting tips. You must have a web browser (Netscape® Navigator® or
Microsoft® Internet Explorer,® versions 3.0 or later) on your computer to read
this guide. See page 13 for instructions on viewing your Reference Guide.
■
On-Screen Help
Most of the applications that come with your scanner include on-screen help. For
EPSON TWAIN Pro, just click the
button or select Help from the menu.
11
saffron.book Page 12 Tuesday, January 11, 2000 2:32 PM
■
Electronic Documents
Several of the applications that came with your scanner include electronic manuals
in the Adobe Acrobat® PDF format. You’ll find electronic user’s guides in the
Manuals folder on the EPSON Expression 1600 Scanning Tools CD-ROM, as
well as in the product folders. The Adobe Photoshop 5.0 LE CD-ROM also
includes an electronic user’s guide, as does the MonacoEZcolor 1.5 CD-ROM.
See page 15 for instructions on locating and viewing your Acrobat manuals.
If none of these sources answers your questions, please see “Where To Get Help” on
page 128.
Warnings, Cautions, Notes, and Tips
Please follow these guidelines as you read your documentation:
Warnings must be followed carefully to avoid bodily injury.
Cautions must be observed to avoid damage to your
equipment.
Notes contain important information about your scanner.
Tips contain additional hints for great scanning.
12
saffron.book Page 13 Tuesday, January 11, 2000 2:32 PM
Reading Your Reference Guide
Your electronic EPSON Expression 1600 Reference Guide is on your EPSON
Expression 1600 Scanning Tools CD-ROM. You can view it from the CD-ROM or
copy it to your hard drive and view it from there. You must have a web browser
(Netscape Navigator or Internet Explorer, versions 3.0 or later).
If you install the manual to your hard drive, you can read it
anytime. For Windows, just click Start, Programs, EPSON,
and select Exp1600 Guide. For Macintosh, double-click the
View Reference Guide icon in the Expression 1600 folder on
your hard drive.
Follow these steps to view the manual:
1. Insert your EPSON Expression 1600 Scanning Tools CD-ROM.
■
If you’re running Windows, you see the Select Language window. Click OK.
When you see the Software Setup window, click Browse this CD, and
double-click the Manuals folder. Then double-click the Exp1600 icon.
■
If you have a Macintosh, double-click the Manuals folder, and then
double-click the EPSON Expression 1600 icon.
The Reference Guide window opens:
Click to view the
Reference Guide.
Click to install the
Reference Guide
to your hard drive.
13
saffron.book Page 14 Tuesday, January 11, 2000 2:32 PM
2. Click View Reference Guide. Your browser opens and you see this window:
Click a topic
to expand its
contents.
3. Click topics on the left to expand the
contents. Then click the subtopic you
want to view.
Expanded
contents list
14
saffron.book Page 15 Tuesday, January 11, 2000 2:32 PM
Viewing Your Other Electronic Manuals
To view your electronic manual for Presto! PageManager for EPSON, Xerox
TextBridge Classic, or any other PDF manuals, you’ll use Adobe Acrobat Reader. If
Acrobat Reader is not already installed on your computer, you can install it with the
other scanner software. See the software installation instructions for your system in
Chapter 2.
When you open an electronic manual, you’ll see this toolbar:
Previous page
First page
Next page
Last page
Show bookmarks and page
This is the toolbar for Acrobat Reader 4.0. The toolbar for
Acrobat Reader 3.0 looks slightly different.
With Acrobat Reader, you have several ways to navigate through text:
■
Use the bookmark section on the left side of the screen to move quickly to the
topic of your choice. Click the Show Bookmarks icon on the toolbar to see the
bookmark section, if the manual has bookmarks. Some manuals only have a
table of contents, but you can also use this to navigate the manual if the topics
are hot.
■
Use the arrow buttons in the toolbar or the vertical scroll bar on the right side of
the document to move through the manual. (The box to the left of the scroll bar
displays the current page number.)
■
Click on hot topics, which are usually underlined or displayed in a different color.
To find out if a topic is hot, move your cursor over it. If the cursor turns into a
pointing hand, the topic is hot—you can jump to it by clicking once.
For more information, see your Acrobat Reader online guide.
15
saffron.book Page 16 Tuesday, January 11, 2000 2:32 PM
Locate your PDF manuals as follows:
■
EPSON Expression 1600 User’s Guide—You can find a PDF version of this
user’s guide in the Manuals folder on your Expression 1600 Scanning Tools
CD-ROM.
■
Acrobat Reader—For Windows, select Reader Guide from the Acrobat Reader
Help menu.
For Macintosh, select Reader Guide from the Acrobat Reader Help menu. Then
browse to Help\Enu\Reader.pdf.
■
Presto! PageManager—For Windows, click Start, Programs, Presto!
PageManager for EPSON, PageManager User’s Manual.
For Macintosh, double-click the User’s Guide.pdf icon in the Presto!
PageManager for EPSON folder on your hard drive.
■
TextBridge Classic—For Windows, click Start, Programs, TextBridge
Classic 2.0, and select User Guide.
For Macintosh, insert your Expression 1600 Scanning Tools CD-ROM, then
double-click the Xerox TextBridge Classic folder. Double-click the
TextBridge 3.0-Documents folder, then the English folder, then the User’s
Guide folder, and finally the PDF file for the chapter you want to read.
■
Adobe Photoshop 5.0 LE—Insert your Adobe Photoshop 5.0 LE CD-ROM.
For Windows, double-click the My Computer icon on your desktop,
then double-click the Photosle CD-ROM icon. Finally, double-click the
User Guide icon.
For Macintosh, double-click the Adobe Photoshop 5.0 LE CD-ROM icon on
your desktop, then double-click the User Guide.pdf icon.
■
MonacoEZcolor—For Windows, click Start, Programs, MonacoEZcolor, and
then select MonacoEZcolor User Guide.
For Macintosh, double-click the MonacoEZcolor 1.5 folder on your hard drive,
and then double-click the MonacoEZcolor User Guide.pdf icon.
16
saffron.book Page 17 Tuesday, January 11, 2000 2:32 PM
Registering
Please take a minute to fill out the registration card for your EPSON Expression 1600
and mail it back to us. This enables you to receive special information on options,
new products, and software upgrades. You’ll get immediate attention if you have a
problem with your scanner.
17
saffron.book Page 18 Tuesday, January 11, 2000 2:32 PM
18
saffron.book Page 19 Tuesday, January 11, 2000 2:32 PM
Setting Up Your
Scanner
Setting up your scanner is easy. For most
installations, just follow the steps in this book in
the order listed below.
1. Unpack and choose a place for your scanner.
2. Unlock the scanner.
3. Connect the scanner to your computer.
4. Power on your scanner, then power on your computer.
5. Install the scanner software.
6. View your electronic manuals.
If you have a Macintosh, you may prefer to install the scanner software before you
connect the scanner to your computer. See “Installing the Macintosh Software” on
page 47. If you decide to connect the scanner before you install the software, you’ll see
a message that your scanner driver needs to be installed. Just close the message and
proceed with the installation instructions.
If you’re installing a transparency unit, an automatic document feeder, or an IEEE
1394 FireWire scanner interface card, see Chapter 5, “Using Optional Equipment.”
19
saffron.book Page 20 Tuesday, January 11, 2000 2:32 PM
Unpacking Your Scanner
Remove the scanner from the box, then remove the packing material from your
scanner. Save the packaging in case you need it later. Your EPSON Expression 1600
comes with these items:
EPSON Expression 1600
Scanning Tools CD-ROM
Adobe Photoshop 5.0 LE CD-ROM
(not available with the Special Edition
model of the scanner)
scanner
MonacoEZcolor 1.5 CD-ROM (located
in plastic sleeve attached to the
MonacoEZcolor User Guide; not
available with the Special Edition model
of the scanner)
power cable
IT8 target (attached to the MonacoEZcolor
User Guide; not available with the Special
Edition model of the scanner)
Monaco EZcolor
MonacoEZcolor User Guide (not available
with the Special Edition model of the
scanner)
User Guide
USB cable
EPSON Expression 1600 User’s Guide
The Special Edition model of the scanner doesn’t include
MonacoEZcolor or Adobe Photoshop 5.0 LE.
20
saffron.book Page 21 Tuesday, January 11, 2000 2:32 PM
If you have the Professional or Professional FireWire models of the EPSON
Expression 1600, your scanner also comes with these items:
transparency unit
installation screws
reflective document mat
film holders
IEEE 1394 FireWire interface cable (available
with the Professional FireWire model only)
21
saffron.book Page 22 Tuesday, January 11, 2000 2:32 PM
Choosing a Good Place for Your Scanner
Here are some points to consider:
■
Place the scanner on a flat, stable surface. If the scanner is tilted, it can’t operate
properly.
■
Make sure to place the scanner where you can easily unplug the power cord, and
where your cable can reach your computer.
■
Keep the scanner away from direct sunlight and strong light sources.
■
Be sure there’s enough
room behind the scanner
for the cables, and above
the scanner so you can
fully raise the document
cover.
■
18.9 inches
(48.0 cm)
when
document
cover is open
Avoid places subject to
shocks and vibrations,
or high or rapidly
changing temperatures
and humidity.
at least
3.9 inches
(10.0 cm)
11.3 inches
(28.7 cm)
22
16.7 inches (42.5 cm)
saffron.book Page 23 Tuesday, January 11, 2000 2:32 PM
Unlocking the Scanner
Before connecting the scanner to a
power source, you must release the
transportation lock, located on the
back of the scanner.
Slide the transportation lock to the
unlocked position, as shown.
If you can’t slide the transportation
lock easily, turn the scanner on;
then, after the ERROR and READY
lights start flashing, turn the scanner off and try again.
Always lock the
transportation lock before
moving the scanner. Also, be
sure the scanner lamp is in
the home position (toward
the back of the scanner). See
“Transporting the Scanner”
on page 109 for more
information.
home position
23
saffron.book Page 24 Tuesday, January 11, 2000 2:32 PM
Testing Your Scanner’s Operation
To make sure your scanner is working properly, it’s a good idea to turn it on before
you connect it to your computer.
1. Make sure the scanner is plugged in. Then open the scanner’s document cover so
you can see the operation of the lamp carriage.
2. Press the P Operate button to turn the scanner on.
The READY light on the scanner’s front panel flashes, and the scanner’s carriage
moves forward, then back. The READY light stays on when the scanner is ready
to scan.
ERROR light
READY light
24
Operate button
saffron.book Page 25 Tuesday, January 11, 2000 2:32 PM
Connecting the Scanner to Your Computer
You can connect the scanner to your computer in any of these ways:
■
USB
If you have a Power Macintosh or your computer is running Windows 98, you
can connect the Expression 1600 with the USB cable that came with the scanner.
Windows 98 must be preinstalled on your computer; it cannot be upgraded from
Windows 95. There is no USB support for Windows 95 and Windows NT 4.0.
■
SCSI
If you have a Power Macintosh or your Windows computer has an
ASPI-compliant SCSI 2 board (Adaptec® boards are recommended), you can
connect the scanner with a SCSI 2 cable not more than 19.7 feet long. If you’re
connecting multiple SCSI devices, the total length of the SCSI bus (cables)
should not exceed 9.8 feet. If your computer is running Windows 95 or Windows
NT 4.0, you must use a SCSI connection.
■
IEEE 1394 (FireWire)
If you have the Professional FireWire model of the Expression 1600, or you’ve
purchased the optional IEEE 1394 FireWire scanner interface card, you can
connect the scanner to your Power Macintosh with the IEEE 1394 FireWire cable
that came with your scanner or card. Your Power Macintosh must have a built-in
IEEE 1394 FireWire port or an IEEE 1394 FireWire PCI card, and must be
running Macintosh OS 8.6 or later with FireWire Update 2.1 or later.
Adaptec Power Domain® SCSI boards for the Macintosh are
not compatible with scanners.
See “IEEE 1394 FireWire Scanner Interface Card” on
page 106 for instructions on installing the IEEE 1394 FireWire
scanner interface card in your scanner.
If you install a USB card in your Macintosh and then upgrade
your system to OS 8.6, your USB Manager won’t be installed
and your scanner may not work. To have USB support, you
must perform a full installation of OS 8.6 from a CD-ROM
before you install the card.
25
saffron.book Page 26 Tuesday, January 11, 2000 2:32 PM
Connecting to a USB Interface
With the USB interface, you can connect or remove your scanner without having to
shut down or restart your computer.
Don’t disconnect or connect the USB cable when the
Expression 1600 is scanning.
Windows 98 must be preinstalled on your computer, not upgraded from
Windows 95. There is no USB support for Windows 95 or Windows NT 4.0.
1. Locate the USB cable that came with your scanner.
2. Connect the square end of the USB
cable to the scanner’s USB port.
3. Connect the flat end of the USB
cable to your computer’s USB port
or USB hub port.
If your scanner and computer are both powered on, you see the Add New Hardware
Wizard (Windows) or a message that your scanner driver needs to be installed
(Macintosh). Continue with the instructions in “Installing the Windows Software” on
page 30 or “Installing the Macintosh Software” on page 47.
If you’re using a USB hub, connect the scanner to a first tier
hub, which is the hub closest to the computer. If the scanner
doesn’t work with the hub, connect it directly to a USB port
on your computer.
26
saffron.book Page 27 Tuesday, January 11, 2000 2:32 PM
Connecting to a SCSI Interface
Before you connect the scanner, you must have an ASPI-compliant SCSI 2
interface board installed in your computer (Adaptec SCSI 2 interface boards are
recommended). Some computers come with a SCSI 2 board preinstalled; check your
computer documentation.
Adaptec Power Domain SCSI boards for the Macintosh are
not compatible with scanners.
If you purchased the board as an option, follow the manufacturer’s instructions to
install both the board and its driver.
You may also need to change the
scanner’s SCSI ID setting before you
connect it to your computer. If you have
another SCSI device that uses SCSI ID 2,
turn the scanner off and turn the SCSI
ID switch on the back of the scanner to a
new number.
SCSI ID switch
Choose a number that doesn’t conflict with the ID number of
other SCSI devices. Don’t use SCSI ID 0, 1, or 7. If your
Macintosh has a built-in CD-ROM, don’t use SCSI ID 3. Also,
only use the asterisk (*) setting when you need to transport
the scanner.
Follow these steps to connect the scanner to a SCSI interface:
1. Make sure the scanner and computer are turned off. (The scanner is off when the
P Operate button is out and the ERROR and READY lights are off.)
27
saffron.book Page 28 Tuesday, January 11, 2000 2:32 PM
2. Squeeze the lock releases on the lock
connector end of your SCSI cable, and
then plug the cable into either SCSI
connector on the back of the scanner.
The cable is secure when both connector
locks snap in.
3. Connect the pin end of the SCSI cable
to the SCSI port on your computer, or to another SCSI device in the chain.
Tighten the screws to secure the cable.
If you’re connecting multiple SCSI devices, the total length
of the SCSI bus (cables) should not exceed 9.8 feet (three
meters); otherwise the system may not work properly. If you
are connecting the scanner directly to your computer, use a
cable no more than 19.7 feet (six meters) long.
Don’t use an external terminator.
4. Locate the SCSI terminator switch at the rear of the scanner.
If the scanner is your only SCSI device, or if it’s the last device in a SCSI chain,
leave the terminator switch turned ON.
If you’ve connected your scanner in the
middle of a SCSI chain, turn the
terminator switch OFF.
5. Plug in the power cables for your
computer, scanner, and other external
SCSI devices.
Continue with the instructions in “Installing
the Windows Software” on page 30 or
“Installing the Macintosh Software” on
page 47.
28
terminator switch
saffron.book Page 29 Tuesday, January 11, 2000 2:32 PM
Connecting to an IEEE 1394 FireWire Interface
If you have the Professional FireWire model of the Expression 1600, or if you’ve
purchased the optional IEEE 1394 FireWire scanner interface card, you can connect
the scanner to your Macintosh using an IEEE 1394 FireWire interface. Your
Macintosh must have a built-in IEEE 1394 FireWire port or an IEEE 1394 FireWire
PCI card.
See “IEEE 1394 FireWire Scanner Interface Card” on
page 106 for information about system requirements and
instructions on installing the card. See page 93 for information
about ordering the card.
The IEEE 1394 FireWire scanner interface card has two cable connectors. You can
use either one to connect the scanner directly to your computer. At the same time,
you can use the second connector to connect other IEEE 1394 FireWire devices in a
daisy chain or tree configuration. You can also connect the scanner to another IEEE
1394 FireWire device so that it’s the last IEEE 1394 FireWire device in a chain
connected to your computer.
Neither your scanner nor your computer has to be off when you connect the cable.
However, be careful not to connect or disconnect the cable when the scanner is in use.
Follow these steps to connect the scanner:
1. Locate the cable that came with the card.
Connect one end of the cable to the
IEEE 1394 FireWire port on the card.
2. Connect the other end of the cable to the
IEEE 1394 FireWire port on your computer
or on another IEEE 1394 FireWire device.
Continue with “Installing the Macintosh
Software” on page 47.
29
saffron.book Page 30 Tuesday, January 11, 2000 2:32 PM
Installing the Windows Software
Before you begin installing software, make sure you recalibrate your monitor to
factory specifications. Then follow the instructions for your operating system:
■
If you’re running Windows 98, continue with the next section, “Installing the
Windows 98 Software.”
■
If you’re running Windows 95, go to “Installing the Windows 95 Software” on
page 37.
■
If you’re running Windows NT 4.0, go to “Installing the Windows NT 4.0
Software” on page 42.
For instructions on installing software for a network scanner,
go to Chapter 4, “Network Scanning.”
When you’ve finished installing the software on your EPSON Expression 1600
Scanning Tools CD-ROM, continue with “Installing Additional Windows Software”
on page 45 if you want to install Adobe Photoshop 5.0 LE, TextBridge Classic, or
MonacoEZcolor.
Adobe Photoshop 5.0 LE, TextBridge Classic, MonacoEZcolor,
and Presto! PageManager are not included with the Special
Edition model of the scanner.
Installing the Windows 98 Software
Before you begin, make sure the Expression 1600 is connected to your computer.
Also, make sure you’ve recalibrated your monitor to factory specifications.
This procedure automatically installs your EPSON TWAIN Pro driver and any
software you need for a USB connection. If you’re using a SCSI connection and are
configuring your SCSI interface card for the first time, you’ll be asked to install your
SCSI driver at the beginning of installation. Follow the instructions on the screen to
install your SCSI driver, or see the documentation that came with your SCSI card.
30
saffron.book Page 31 Tuesday, January 11, 2000 2:32 PM
You may be asked to insert your Windows CD-ROM during this procedure.
Make sure you have your Windows CD-ROM available, or know where to find the
Windows source files on your hard drive. If you need help locating your source files,
contact your computer manufacturer.
1. Turn on your scanner first, then turn on your computer.
2. When you see the window on the
right, click Next. (The wizard may
also say that it has found an
unknown device.)
3. Select Search for the best driver
for your device, and then click
Next.
4. Insert the EPSON Expression 1600
Scanning Tools CD-ROM in your
drive.
31
saffron.book Page 32 Tuesday, January 11, 2000 2:32 PM
5. Select Specify a location, if
necessary, and browse to
Epson\English\Win 98 on your
CD-ROM drive. (The example to
the right uses “G” as the CD-ROM
drive letter. Your CD-ROM drive
letter may be different.) Click OK to
close the Browse window, and then
click Next.
6. Follow the instructions on the screen.
If you see a message asking for your
Windows 98 CD-ROM, insert it and click OK (or select Specify a location,
click Browse, and locate the Windows 98 source files on your hard drive. Then
click OK.) When prompted for the EPSON Scanners Driver Disk 1, reinsert your
EPSON Expression 1600 Scanning Tools CD-ROM.
7. When you see the EPSON Screen Calibration Utility,
move the slider right or left until the stripes match as
closely as possible. Then click OK.
8. Click Finish when you see a message that installation
is complete.
Continue with the instructions in the next section,
“Installing Other Software on Your Scanning Tools
CD-ROM.”
32
saffron.book Page 33 Tuesday, January 11, 2000 2:32 PM
The EPSON Screen Calibration Utility calibrates the preview
image you see in your EPSON TWAIN Pro driver to match
your monitor settings.
You won’t need to change the screen calibration as long as
you continue to use the same display. If you need to
recalibrate your screen at a later time, double-click the
Scanners and Cameras icon in your Windows Control Panel to
open the Scanners and Cameras Properties window. On the
Devices tab, select EPSON Expression 1600 and click the
Properties button to display the EPSON Expression 1600
Properties window. Click the Utility tab, and then click the
Screen Calibration Utility button.
Installing Other Software on Your Scanning Tools CD-ROM
Follow these steps to install Presto! PageManager and Adobe Acrobat:
1. If the Select Language window doesn’t appear,
double-click the My Computer icon on your
Windows desktop, then double-click the
Epson CD-ROM icon. (If the window
doesn’t appear when you double-click the
CD-ROM icon, double-click the Cdsetup
icon.)
2. Make sure English is selected, then click OK to display the following window.
33
saffron.book Page 34 Tuesday, January 11, 2000 2:32 PM
3. Click the Add Software
button to display the
software selection window.
A check mark appears
beside applications selected
for installation. If you want
to deselect either Presto!
PageManager or Acrobat Reader, click the application to clear the check mark.
Then click OK.
Don’t select either of the two network applications, EPSON
TWAIN Pro Network or EPSON Scan Server. The EPSON
TWAIN Pro driver, which is already installed on your
computer, lets you scan to an Expression 1600 connected to
your computer. If you want to install software for a network
scanner, go to Chapter 4, “Network Scanning.”
If you have the Special Edition model of the scanner, Presto!
PageManager does not appear in the software selection
window. This software is not included with your scanner.
4. Follow the instructions on the screen to install the software.
If you’re done installing software, remove the EPSON Expression 1600 Scanning
Tools CD-ROM and restart your computer. Then follow the instructions in the next
section to make sure your scanner is operating properly.
If you want to install TextBridge Classic, Adobe Photoshop 5.0 LE, or
MonacoEZcolor, continue with the instructions under “Installing Additional
Windows Software” on page 45.
34
saffron.book Page 35 Tuesday, January 11, 2000 2:32 PM
Testing the Scanner’s Operation (Windows 98)
Follow these steps to test scanner operation:
1. Double-click the Scanners and
Cameras icon in the Windows Control
Panel to open the Scanners and
Cameras Properties window.
2. Make sure EPSON Expression1600 is
selected, and then click the Properties
button.
3. Click the Test Scanner or Camera
button. If the scanner is operating
properly, Device Ready appears next
to Status.
35
saffron.book Page 36 Tuesday, January 11, 2000 2:32 PM
Selecting the Expression 1600 as Your Default Scanner
(Windows 98)
If you have more than one scanner connected to your computer, you can set up the
Expression 1600 as the default scanner.
1. Double-click the Scanners and
Cameras icon in your Windows
Control Panel to open the Scanners and
Cameras Properties window.
2. Make sure EPSON Expression 1600 is
selected, and click the Properties
button. You see the EPSON Expression
1600 Properties window.
36
saffron.book Page 37 Tuesday, January 11, 2000 2:32 PM
3. Click the Utility tab. Make sure Select
as default scanner for EPSON
TWAIN Pro is checked, and then click
OK.
Installing the Windows 95 Software
Before you begin, make sure the Expression 1600 is connected to your computer.
Also, make sure you’ve recalibrated your monitor to factory specifications.
If you’re configuring your SCSI interface card for the first time, you’ll be asked to
install your SCSI driver at the beginning of installation. Make sure you have your
Windows CD-ROM available, or know where to find the Windows source files on
your hard drive. Then follow the instructions on the screen, or see the documentation
that came with your SCSI card for more information.
If you need help locating your source files, contact your
computer manufacturer.
37
saffron.book Page 38 Tuesday, January 11, 2000 2:32 PM
1. Turn on your scanner first; then
turn on your computer. When
you see the window on the right,
click Next.
2. Insert your Expression 1600
Scanning Tools CD-ROM in
your drive. Then click Other
Locations.
3. Browse to the following
location on your CD-ROM drive:
EPSON\English\Win95. (The
example on the right uses “E” as
the CD-ROM drive letter. Your
CD-ROM drive may have a
different letter.) Click OK.
38
saffron.book Page 39 Tuesday, January 11, 2000 2:32 PM
4. When you see this window, click
Finish.
Continue with the instructions in
the next section to install EPSON
TWAIN Pro and other software on
your Expression 1600 Scanning
Tools CD-ROM.
Installing Other Software on Your Scanning Tools CD-ROM
Follow these steps to install EPSON TWAIN Pro, Presto! PageManager, and Acrobat
Reader:
1. Double-click the My Computer icon on
your Windows desktop, then double-click
the Epson CD-ROM icon. You see the
window on the right. (If the Select Language
window doesn’t appear, double-click the
Cdsetup icon.)
2. Make sure English is selected, and click OK
to display the Software Setup window.
39
saffron.book Page 40 Tuesday, January 11, 2000 2:32 PM
3. Click Add Software.
You see the software
selection window.
A check mark appears
beside applications
selected for installation.
You must install EPSON TWAIN Pro to use your scanner. If you want to
deselect either Presto! PageManager or Acrobat Reader, click the application to
clear the check mark. Then click OK.
Don’t select either of the two network applications, EPSON
TWAIN Pro Network or EPSON Scan Server. If you want to
install software for a network scanner, go to Chapter 4,
“Network Scanning.”
If you have the Special Edition model of the scanner, Presto!
PageManager does not appear in the software selection
window. This software is not included with your scanner.
4. Follow the instructions on the screen
to install EPSON TWAIN Pro.
When installation is complete, you
see the window on the right. Make
sure SCSI is selected and
Expression1600 appears in the
Scanner Selection box.
5. Click Test to check the connection.
If the scanner software is installed
correctly, you see Status: Device
Ready under Scanner Information.
Click OK to close the window.
40
saffron.book Page 41 Tuesday, January 11, 2000 2:32 PM
6. When you see the EPSON Screen Calibration
Utility, move the slider right or left until the
stripes match as closely as possible. Then click
OK.
7. Follow the instructions on the screen to install
Presto! PageManager and Acrobat Reader.
If you’re done installing software, remove the
EPSON Expression 1600 Scanning Tools
CD-ROM and restart your computer.
If you want to install TextBridge Classic, Adobe
Photoshop 5.0 LE, or MonacoEZcolor, continue
with the instructions under “Installing Additional
Windows Software” on page 45.
The EPSON Screen Calibration Utility calibrates the preview
image you see in your EPSON TWAIN Pro driver to match
your monitor settings.
You won’t need to change the screen calibration as long as
you continue to use the same display. If you need to
recalibrate your screen at a later time, open the EPSON
TWAIN Pro window by double-clicking the EPSON TWAIN Pro
icon in the Windows Control Panel. Then start the EPSON
Screen Calibration Utility by clicking the Screen Calibration
button at the bottom of the window.
Verify that the scanner is listed in the Windows Device Manager. (Click Start,
Settings, Control Panel, then double-click the System icon. Select the Device
Manager tab and double-click EPSON Scanners. EPSON Expression1600 should
appear in the list.)
41
saffron.book Page 42 Tuesday, January 11, 2000 2:32 PM
Installing the Windows NT 4.0 Software
This procedure installs EPSON TWAIN Pro, Presto! PageManager, and Acrobat
Reader. Before you begin, make sure the scanner is attached to your computer, and
that you’ve recalibrated your screen to factory specifications.
If you’re configuring your SCSI interface card for the first time, you’ll be asked to
install your SCSI driver at the beginning of installation. Make sure you have your
Windows CD-ROM available, or know where to find the Windows source files on
your hard drive. Then follow the instructions on the screen, or see the documentation
that came with your SCSI card for more information.
If you need help locating your source files, contact your
computer manufacturer.
1. Turn on your scanner first; then turn on your computer.
2. Log onto Windows NT. Then insert the EPSON Expression 1600 Scanning
Tools CD-ROM.
3. When you see the Select Language window, make sure English is selected, then
click OK to display the Software Setup window.
If the Select Language window doesn’t appear, double-click
the My Computer icon on your Windows desktop, then
double-click the Epson CD-ROM icon. If necessary,
double-click the Cdsetup icon.
42
saffron.book Page 43 Tuesday, January 11, 2000 2:32 PM
4. Click Add Software.
You see the software
selection window.
A check mark appears
beside applications
selected for installation.
You must install EPSON
TWAIN Pro to use your scanner. If you want to deselect either Presto!
PageManager or Acrobat Reader, click the application to clear the check mark.
Then click OK.
Don’t select either of the two network applications, EPSON
TWAIN Pro Network or EPSON Scan Server. If you want to
install software for a network scanner, go to Chapter 4,
“Network Scanning.”
If you have the Special Edition model of the scanner, Presto!
PageManager does not appear in the software selection
window. This software is not included with your scanner.
5. Follow the instructions on the screen to
install EPSON TWAIN Pro. When
installation is complete, you see the
window on the right. Make sure SCSI
is selected and Expression1600
appears in the Scanner Selection box.
6. Click Test to check the connection.
If the scanner software is installed
correctly, you see Status: Device
Ready under Scanner Information.
Click OK to close the window.
43
saffron.book Page 44 Tuesday, January 11, 2000 2:32 PM
7. When you see the EPSON Screen Calibration
Utility, move the slider right or left until the
stripes match as closely as possible. Then click
OK.
8. Follow the instructions on the screen to install
Presto! PageManager for EPSON and Acrobat
Reader.
If you’re done installing software, remove the
EPSON Expression 1600 Scanning Tools CD-ROM
and restart your computer.
If you want to install TextBridge Classic, Adobe
Photoshop 5.0 LE, or MonacoEZcolor, continue with the instructions under
“Installing Additional Windows Software” on page 45.
The EPSON Screen Calibration Utility calibrates the preview
image you see in your EPSON TWAIN Pro driver to match
your monitor settings.
You won’t need to change the screen calibration as long as
you continue to use the same display. If you need to
recalibrate your screen at a later time, open the EPSON
TWAIN Pro window by double-clicking the EPSON TWAIN Pro
icon in the Windows Control Panel. Then click the Screen
Calibration button at the bottom of the window to start the
utility.
To verify that the scanner software was installed correctly, click Start, Settings,
Control Panel, and then double-click SCSI Adapters. Click the Devices tab, if
necessary. Then click the + next to the listing for your SCSI card manufacturer;
EPSON Expression1600 should be listed beneath it.
44
saffron.book Page 45 Tuesday, January 11, 2000 2:32 PM
Installing Additional Windows Software
Follow the instructions in this section to install TextBridge Classic, Adobe Photoshop
5.0 LE, and MonacoEZcolor.
TextBridge Classic, Adobe Photoshop 5.0 LE, and
MonacoEZcolor are not included with the Special Edition
model of the scanner.
Installing TextBridge Classic
1. If necessary, insert the EPSON Expression 1600 Scanning Tools CD-ROM in
your drive.
You see the window on the right. (If the
Select Language window doesn’t appear,
double-click the My Computer icon on your
Windows desktop, then double-click the
Epson CD-ROM icon.)
2. Make sure English is selected, and click OK.
3. When you see the Software
Setup window, click Browse
This CD.
4. Double-click the TextBridge
Classic folder on the
CD-ROM, then double-click
the
Setup installer icon.
If you’re running Windows NT, you must have Service Pack 3
installed. Otherwise, you may see an error message indicating
that your path to Setup.exe is invalid.
45
saffron.book Page 46 Tuesday, January 11, 2000 2:32 PM
5. At the first screen, click English-US, then follow the instructions on the screen to
install TextBridge Classic. When installation is complete, remove the EPSON
Expression 1600 Scanning Tools CD-ROM.
If you’re done installing software, restart your computer.
Installing Adobe Photoshop 5.0 LE
To find out how to upgrade to the full version of Adobe Photoshop 5.0, see the
Acrobat file titled Upgrade.pdf on the Adobe Photoshop 5.0 LE CD-ROM (you
must have Acrobat Reader installed to view this file).
1. Insert the Adobe Photoshop 5.0 LE CD-ROM in your drive.
2. Double-click the My Computer icon on your Windows desktop, then
double-click the Photosle CD-ROM icon.
3. Double-click the Photosle folder, then double-click the
setup icon.
4. Follow the instructions on the screen. When you see the User Information dialog
box, enter your name and company, and then enter the serial number (including
the hyphen) of your software exactly as it appears on the CD-ROM sleeve. Then
click Next.
5. Follow the instructions on the screen to complete installation and create a
Photoshop 5.0 Limited Edition program folder in your Adobe program group.
6. Remove the Adobe Photoshop 5.0 LE CD-ROM.
If you’re done installing software, restart your computer.
Installing MonacoEZcolor
1. Insert the MonacoEZcolor CD-ROM in your drive.
2. Double-click the My Computer icon on your Windows desktop, then
double-click the MonacoEZcolor CD-ROM icon.
3. Double-click the Setup.exe icon and follow the instructions on the screen.
When you’re done installing the software, click Finish and restart your computer.
46
saffron.book Page 47 Tuesday, January 11, 2000 2:32 PM
Installing the Macintosh Software
Although you can connect the scanner either before or after installing the scanner
software, you’ll see a message that your scanner driver needs to be installed if you
connect it before installing. Close the message and continue with the installation
instructions in the next section. For instructions on installing software for a network
scanner, go to Chapter 4, “Network Scanning.”
You can connect the scanner using either a SCSI or USB interface. If you have the
Professional FireWire model of the scanner or you’ve installed the optional IEEE
1394 FireWire scanner interface card, you can also connect the scanner using the
IEEE 1394 FireWire interface. See “Connecting the Scanner to Your Computer” on
page 25 for instructions on connecting the scanner, and “IEEE 1394 FireWire
Scanner Interface Card” on page 106 for instructions on installing the IEEE scanner
FireWire interface card.
If you’ve used an EPSON scanner on your Macintosh and
have installed an older version of EPSON TWAIN software,
open the Extensions Manager before you begin installation.
Clear the checkboxes next to EPSON Scanner Monitor
Extension or EPSON Scanner Monitor USB Extension and
restart your computer. Then continue with the instructions
below.
Starting the Macintosh Software Installation
Before you begin, make sure you’ve recalibrated your monitor to factory
specifications. You can use tools such as ColorSync 2.5 or above, the Adobe Gamma
utility included with Adobe Photoshop 5.0 and above, and MonacoEZcolor. (For
instructions on installing MonacoEZcolor, see “Installing MonacoEZcolor” on
page 51.)
If you don’t calibrate your monitor, you may get inconsistent
scanning results.
1. Turn on your Macintosh and turn off any virus protection programs you’re using.
2. Insert the EPSON Expression 1600 Scanning Tools CD-ROM in your drive.
47
saffron.book Page 48 Tuesday, January 11, 2000 2:32 PM
3. Double-click the EPSON TWAIN Pro folder, then double-click the English
folder.
4. Double-click the EPSON TWAIN Pro Installer icon.
5. Click Install, and then follow
the instructions on the screen to
install EPSON TWAIN Pro and
EPSON Scanner Monitor.
6. When installation finishes, click
Restart.
The EPSON Screen Calibration
Utility starts. (If you’ve previously installed
another EPSON scanner on your computer, the
EPSON Screen Calibration Utility may not start
if it’s already installed on your computer.)
7. Move the slider left or right until the stripes
match as closely as possible. Then click OK.
Your computer restarts.
The EPSON Screen Calibration Utility calibrates the preview
image you see in your EPSON TWAIN Pro driver to match your
monitor settings. If you need to recalibrate your screen at a later
time, double-click the EPSON Screen Calibration icon in the
EPSON Scanner folder on your hard drive.
48
saffron.book Page 49 Tuesday, January 11, 2000 2:32 PM
Installing Other Software on Your Scanning Tools
CD-ROM
Follow these steps to finish installing the software on your Expression 1600 Scanning
Tools CD-ROM:
If you have the Special Edition model, Presto! PageManager
and TextBridge Classic are not included with your scanner.
1. Double-click the Presto! PageManager folder, then double-click the English
folder. (If necessary, double-click the EPSON CD-ROM icon to open the
CD-ROM window.)
2. Double-click the Presto! PageManager Disk 1 folder. Double-click the
PageManager Installer #1 icon and follow the instructions on the screen to
install Presto! PageManager.
3. If you want to install Acrobat Reader 4.0, double-click the Acrobat Reader
folder, and then double-click the English folder.
4. Double-click the Reader Installer icon and follow the instructions on the screen
to install Acrobat Reader.
5. When you’re done installing Acrobat Reader, double-click the Xerox
TextBridge Classic folder.
6. Double-click the Install TextBridge 3.0 icon. Click English-US, and then
follow the instructions on the screen to install TextBridge Classic.
7. If you’ve finished installing software, remove the Expression 1600 Scanning Tools
CD-ROM and restart your computer. If you want to install other software,
continue with the instructions below.
49
saffron.book Page 50 Tuesday, January 11, 2000 2:32 PM
Installing Adobe Photoshop 5.0 LE
To find out how to upgrade to the full version of Adobe Photoshop 5.0, see the
Acrobat file titled Upgrade.pdf on the Adobe Photoshop 5.0 LE CD-ROM (you
must have Acrobat Reader installed to view this file).
If you have the Special Edition model, Adobe Photoshop 5.0
LE does not come with your scanner.
1. Insert the Adobe Photoshop 5.0 LE CD-ROM in your drive.
2. Double-click the Adobe Photoshop 5.0 LE CD-ROM icon, then double-click
the Adobe Photoshop 5.0 LE folder.
3. Double-click the Install Photoshop® LE icon. You see the Adobe Photoshop
Installer banner. Click Continue.
4. At the next window, choose the country you’re in and click OK. You see the
License Agreement.
5. Read the agreement and click Accept.
6. Follow the instructions on the screen until you see the registration screen. Enter
your name and company, and then enter the serial number of your software
(including the hyphen) exactly as it appears on the CD-ROM case. Click Next.
7. Follow the instructions on the screen to install the software and create an Adobe
Photoshop 5.0 LE folder on your hard drive.
8. If you’ve finished installing software, restart your computer. If you want to install
other software, continue with the instructions in the following sections.
50
saffron.book Page 51 Tuesday, January 11, 2000 2:32 PM
Installing MonacoEZcolor
If you have the Special Edition model, MonacoEZcolor is not
included with your scanner.
1. Insert the MonacoEZcolor CD-ROM in your drive.
2. Double-click the MonacoEZcolor 1.5.0 CD-ROM icon on your desktop.
3. Double-click the Monaco EZcolor 1.5.0 folder, and then double-click the
MonacoEZcolor 1.5 Installer icon.
4. When you see the installer window, click Continue and follow the instructions
on the screen.
5. Click Quit when installation is complete. Then restart your computer.
Selecting the Expression 1600 as Your Default
Scanner
If you have more than one EPSON scanner connected to your computer, you can
choose which scanner you want to use.
Follow these steps to choose the Expression 1600 as your default scanner:
1. From the Apple menu, click Control Panels, EPSON ScannerSelector. You
see the following window:
2. Select EPSON Expression1600 in the scanner list and click OK.
Your selection remains in effect until you change it.
51
saffron.book Page 52 Tuesday, January 11, 2000 2:32 PM
52
saffron.book Page 53 Tuesday, January 11, 2000 2:32 PM
How to Scan
This section gives you an overview of the scanning
process and some tips for getting the best scan. It
also includes step-by-step scanning instructions.
Scanning Tips
Getting the best scan possible depends on several factors, including the quality of your
original and the resolution you select. The better your original is, the better your scan
will be. While you can make some color corrections in your scanning software, you’ll
need to do major color photo retouching in a program such as Adobe Photoshop.
Selecting Resolution
Resolution refers to how many dots per inch (dpi) or dots per centimeter (dpcm) your
image contains. The best resolution for a scanned image depends on the type of image
you’re scanning and your final output device.
As a rule of thumb for most images except line art, use a scanning resolution that is
approximately one third of your output resolution. For example, use a scanning
resolution up to 100 dpi with a 300 dpi laser printer, and up to 200 dpi with a
600 dpi laser printer. For 1440 dpi ink jet printers, such as the EPSON Stylus®
COLOR series, use a scanning resolution of up to 300 dpi. Try a scanning resolution
of 240 dpi for 720 dpi printing.
53
saffron.book Page 54 Tuesday, January 11, 2000 2:32 PM
Keep the following in mind when you choose a resolution:
■
The higher the resolution you select, the larger the resulting image file will be. For
example, an 8.5 × 11-inch original scanned at 300 dpi can produce a 24MB file.
The same original scanned at 72 dpi creates only a 1.3MB file. Large files take
longer to process and print, so consider the practical limitations of your computer
system and hard disk drive when selecting a resolution. To keep your file size
manageable, select the lowest possible resolution that gives acceptable quality. (If
your final output is for on-screen viewing, you can scan at 72 dpi and reduce your
file size.)
■
If you need to scan at a higher resolution, you can reduce the size of the resulting
image file by scanning only part of the image. For information about selecting
part of an image, see “Making and modifying marquees” in your electronic
EPSON Expression 1600 Software Reference Guide.
Scaling (Resizing) Images
If you plan to enlarge your image, it’s better to enlarge it by scanning at a higher
resolution rather than adjusting resolution in your application. Each time you modify
an image, you lose some image quality.
Keep in mind when you enlarge a small photo, such as 35 mm slides or wallet-size
photos, you’ll need to scan at a high enough resolution to retain your image quality,
but not so high that your file size is too large to be efficient.
Scanning Color Images
If the colors in your scanned image don’t match those in your original document, try
experimenting with the Unsharp Mask setting. Click the Destination button in the
EPSON TWAIN Pro main window to display the Destination window, and then
select or deselect Unsharp Mask.
To reproduce the most accurate colors, use MonacoEZcolor to create color profiles
for your scanner, printer, and monitor. Then use an ICC-compliant color
management application like Adobe Photoshop 5.0 to apply the profiles. (Make sure
to turn off color management in your scanner software.) See the MonacoEZcolor User
Guide for details.
54
saffron.book Page 55 Tuesday, January 11, 2000 2:32 PM
Batch Scanning
You can use batch scanning to save time. Batch scanning allows you to scan several
images at once, or the same image with several different settings.
For more information, see “Making and modifying marquees” in your electronic
EPSON Expression 1600 Software Reference Guide.
Using the Dual Focus Mechanism
The Expression 1600’s Dual Focus mechanism eliminates the Newton ring effect
when you’re using the transparency unit. The focus is automatically set to 2.5 when
the transparency unit is installed and you select TPU for Neg. Film or TPU for Pos.
Film as the Document Source. If you use the film guides, you don’t need to change
the focus setting. If you set your film directly on the scanner’s document table, you
should preview your scan and click the
Focus button on the Preview window to
set the focus position to 0.0. See your electronic EPSON Expression 1600 Software
Reference Guide for more information.
55
saffron.book Page 56 Tuesday, January 11, 2000 2:32 PM
Recommended Settings
Here are some recommended settings for different types of scans.
Image type
Recommended
application
Recommended
TWAIN Pro* settings
Scanning
resolution for
printing**
Photograph
Photoshop 5.0 LE Image Type:
36-bit Color (HiFi)***,
24-bit Color (Std),
12-bit Gray (HiFi)***, or
8-bit Gray (Std)
300 dpi**
Magazine
Photoshop 5.0 LE Image Type:
300 dpi
24-bit Color De-screening
Newspaper (text only) TextBridge or
PageManager
Image Type: OCR****
300 or
400 dpi*****
Text for OCR
TextBridge or
PageManager
Image Type: OCR****
300 or
400 dpi*****
Text with images
TextBridge or
PageManager
Image Type: Line art
B/W option: Auto Area
Segmentation
300 or
400 dpi *****
Line art
Photoshop 5.0 LE Image Type: Line Art
300 to 3200 dpi
Negative
transparency
(35 mm film)
Photoshop 5.0 LE Document Source:
TPU for Neg. Film
300 to 3200 dpi
Positive transparency Photoshop 5.0 LE Document Source:
(35 mm slides)
TPU for Pos. Film
300 to 3200 dpi
*
Recommendations for EPSON TWAIN Pro also apply to EPSON TWAIN Pro Network.
**
If your output is for on-screen viewing (for example, on a web page), select a resolution of
72 dpi.
***
This Image Type is available only in certain applications, such as Photoshop.
**** Automatically selects Text Enhancement Technology (TET) as your B/W option.
***** If you are enlarging your image, you must manually change the resolution (dpi).
56
saffron.book Page 57 Tuesday, January 11, 2000 2:32 PM
Step-by-Step Scanning Instructions
This section contains step-by-step instructions for scanning an image. Although the
Macintosh interface is shown, Windows steps are the same.
Placing Your Original Document
1. Raise the scanner cover and place your document face down on the document
table. If you’re scanning a transparency, the optional transparency unit should be
installed. (See “Installing the Transparency Unit” on page 95.)
If you have the Professional or Professional FireWire model of the
EPSON Expression 1600, the transparency unit came with your
scanner. If you have the Artist or Special Edition models, you can
order the transparency unit.
2. Position the document so the
horizontal and vertical edges are
carefully aligned with the scales
along the sides of the document
table.
top corner of
document
3. Close the document cover slowly.
Be careful not to move the
document.
You can remove the document cover if you need to scan a
thick item—such as a photo in an album—that doesn’t fit
under the cover. Simply lift the back of the cover straight up.
When you reattach the cover, position the hinges over the
posts at the top of the scanner and push down gently until the
cover clicks into place.
57
saffron.book Page 58 Tuesday, January 11, 2000 2:32 PM
Scanning with EPSON TWAIN Pro
1. Start your host application (for example, Adobe Photoshop 5.0 LE).
2. Select your scanner driver. (Unless you change your source, you only need to do
this step once.)
For example, if you’re running Windows and using Adobe Photoshop 5.0 LE as
your host application, click File, Import, Select TWAIN_32 Source. In the
Select Source dialog box, select EPSON TWAIN Pro(32-bit). Then click Select.
If you have a Macintosh, click File, Import, Twain Select. In the Select a source
dialog box, choose EPSON TWAIN Pro and click OK.
The command you choose from the File menu differs from
one host application to another. With other host applications,
you might choose Acquire or Select Source instead of Import.
3. Open the scanner software.
For example, choose Import
from Photoshop 5.0 LE’s
File menu.
In Windows, select
TWAIN_32.
Click to start
scanning.
On a Macintosh, select
TWAIN_Acquire.
Click to display
a preview of
the image.
The EPSON TWAIN Pro
main window appears.
4. Choose the Document
Source, Image Type, and
Destination.
For example, if you’re scanning a photograph, select Flatbed as your Document
Source, 24-bit Color (Std) as your Image Type, and EPSON Stylus Printer
(Photo) as the Destination, if you’re sending the scanned image to an EPSON
inkjet printer. If you’re using the optional transparency unit, select TPU for Neg.
58
saffron.book Page 59 Tuesday, January 11, 2000 2:32 PM
Film or TPU for Pos. Film as your Document Source. If you’re using the
optional automatic document feeder, select Auto Document Feeder as your
Document Source.
5. Click the Preview button.
You see a preview of your scan
in the window that opens.
6. Click the
Auto Locate
button to automatically
define the scan area around
the edges of your image. Or
adjust the scan area by
positioning the mouse pointer
over any of the eight boxes
around the marquee’s edge
and dragging the box to resize
the marquee.
Click to
define the
scan area
automatically.
A dotted
marquee
frames the
area to be
scanned.
Click the
Auto
Exposure button to
automatically set the
highlight, midtones, and shadow exposure.
Generally it’s a good idea to use the Auto Exposure button to
obtain the best settings for your scan. If you’re not satisfied
with the results, see your electronic EPSON Expression 1600
Software Reference Guide for information about adjusting
settings.
If you need to remove color cast from your image, use the
Gray Balance Intensity feature.
7. When you’ve finished making adjustments, click the Scan button.
The READY light on the front of the scanner flashes while it’s scanning. In a few
moments, a scanned image is imported into your host application’s window.
(If the READY light continues to blink, it may indicate an error condition. See
Chapter 7, “Solving Problems,” for more information.)
59
saffron.book Page 60 Tuesday, January 11, 2000 2:32 PM
8. Click Close to close the EPSON TWAIN Pro window and return to your
application.
Don’t leave photographs on the document table for long
periods of time; they may stick to the glass.
Using the ] Start Button
You can load a document in the scanner, press the ] Start button, and watch while
Presto! PageManager starts and then scans, copies, faxes, or e-mails your document.
If you have the Special Edition model of the Expression 1600, Presto! PageManager
was not included with your scanner. Go to “Setting Up the ] Start Button” on
page 61 to set up your system to start another application that supports ] Start
button scanning, such as Adobe Photoshop.
This section includes the following:
■
How to set up the ] Start button to launch other applications
■
How to set up Presto! PageManager for one-touch scanning.
To use the ] Start button with a network scanner, the client
computer must start both the host application and EPSON
TWAIN Pro Network. Pressing the ] Start button sends the
scanned image to the client computer currently connected to
the scanner server, but does not automatically launch any
applications.
When EPSON Scan Server is running, the Expression 1600
connected to the scanner server becomes a network scanner
available only to remote users. The scanner server cannot use
the ] Start button features described in this chapter, which
are only available to a local scanner.
60
saffron.book Page 61 Tuesday, January 11, 2000 2:32 PM
Setting Up the ] Start Button
If you didn’t install Presto! PageManager or if you have the Special Edition model of
the scanner, you need to assign an application to the ] Start button before you use it
the first time.
If you’re running Windows 98, whenever you
press the ] Start button you’ll see a window
asking you to choose which application to
launch. To avoid this window, make sure that
only one application is assigned to the ] Start
button. Continue with the next section,
“Windows 98.”
If you’re running Windows 95 or Windows
NT 4.0, go to “Windows 95 and Windows
NT” on page 62. If you have a Macintosh, go
to “Macintosh” on page 63.
Windows 98
Follow these steps to assign an application to the ] Start button:
1. Double-click the Scanners and
Cameras icon in the Windows Control
Panel.
2. Select EPSON Expression1600 and
click the Properties button.
61
saffron.book Page 62 Tuesday, January 11, 2000 2:32 PM
3. Click the Events tab. You see the
window to the right.
4. Make sure Start Button appears in the
Scanner events box, then deselect any
applications you don’t want to use in the
Send to this application list. When you
finish, a check should appear only beside
the application that you want to assign to
the ] Start button.
5. Click OK to close the EPSON Expression
1600 Properties window, then click OK
again to close the Scanners and Cameras
Properties window.
You can disable the ] Start button by clicking the Disable
device events checkbox on the Events tab.
Whenever you press the scanner’s ] Start button, the application you assigned
launches. If you assigned Presto! PageManager, it automatically starts EPSON
TWAIN Pro. If you assigned another application, you must start EPSON TWAIN
Pro manually.
Windows 95 and Windows NT
You don’t need to assign an application to the ] Start button if you want it to
automatically launch Presto! PageManager. If you want it to launch a different
application, follow these steps:
1. Click the
Scanner Monitor icon located on your Windows taskbar.
2. Select Preferences. You see
the EPSON Scanner
Monitor window.
62
saffron.book Page 63 Tuesday, January 11, 2000 2:32 PM
3. Do one of the following:
■
Choose an application in the Launch Application list.
■
Browse to another application on your hard drive. Select the application and
click Open to close the Browse window. Your application’s path appears in
the Launch Application box.
4. Click OK to close the EPSON Scanner Monitor window and save your setting.
Whenever you press the scanner’s ] Start button, the application you assigned
launches. You can then start EPSON TWAIN Pro.
Only Presto! PageManager automatically starts EPSON
TWAIN Pro. If you assign another application to the ] Start
button, you must start your scanner driver manually.
Macintosh
You don’t need to assign an application to the ] Start button if you want it to
automatically launch Presto! PageManager. If you want it to launch a different
application, follow these steps:
1. Select EPSON Scanner Monitor
Setup in the Apple menu. You see the
window to the right.
2. Browse to the application you want to
use and open it. When your
application’s icon appears in the
Launch Application box, click OK.
Whenever you press the scanner’s ] Start button, the application you assigned
launches. You can then start EPSON TWAIN Pro.
63
saffron.book Page 64 Tuesday, January 11, 2000 2:32 PM
Only Presto! PageManager automatically starts EPSON
TWAIN Pro. If you assign another application to the ] Start
button, you must start your scanner driver manually.
Setting Up Presto! PageManager for One-Touch
Scanning
You can set up Presto! PageManager to send your image directly to another
application or utility, such as TextBridge Classic or a fax utility, or to a peripheral
device such as a printer. You can suppress the EPSON TWAIN Pro user interface so
the scanner uses the settings assigned in this procedure. If you use this shortcut, faxing
or printing an image could be as easy as pressing the scanner’s ] Start button.
Follow these steps:
1. Start Presto! PageManager and select Scan Buttons Setting from the File menu.
The Scan Buttons window opens.
2. You see an icon for your default printer, fax program, e-mail program, and other
applications in the Scan Buttons box. Click the icon you want to highlight to see
its settings.
Select the icon for the
application or peripheral
you want to use.
Click to suppress the
EPSON TWAIN Pro user
interface.
3. Click the Suppress TWAIN user interface checkbox to select it. The settings
for your scan become active.
64
saffron.book Page 65 Tuesday, January 11, 2000 2:32 PM
4. Choose the Scan Mode, Scan Size, and Resolution. If you plan to use the
automatic document feeder, select Enable Document Feeder. Make any other
settings you want.
These are the default settings that will be used whenever you press the scanner’s
] Start button. Choose settings that you can use for most of the scans you initiate
with one-touch scanning.
5. Click the Start Button Settings tab.
6. Scroll the Select target application
box until you see the icon for your
printer or program. (Programs or
printers you added appear to the
right.) Select the icon and click OK
to assign it to the ] Start button.
A ] Start button icon appears next to the
selected icon in Presto! PageManager’s Scan Buttons
Palette. Now you can copy, fax, e-mail, or scan by
simply pressing the ] Start button.
Start button icon
You can only assign one function at a time to the ] Start
button.
65
saffron.book Page 66 Tuesday, January 11, 2000 2:32 PM
66
saffron.book Page 67 Tuesday, January 11, 2000 2:32 PM
Network Scanning
You can use EPSON Scan Server and EPSON TWAIN
Pro Network, two applications on your EPSON
Expression 1600 Scanning Tools CD-ROM, to share
your scanner with other users in a small workgroup.
Your network must have a scanner server (the Windows
computer connected to the scanner) and one or more
client computers. Only one client computer at a time
can connect to the scanner server and access the
scanner. However, you can have more than one scanner and scanner server on a
network, so clients can choose which scanner to use.
Here are some other requirements for sharing a scanner:
■
The scanner server must be an IBM/AT compatible computer running
Windows 95, Windows 98, or Windows NT 4.0 (Windows NT 4.0 is
recommended).
■
Client computers can be running Windows 95, Windows 98, Windows NT 4.0,
or Macintosh System 7.6.1 or later.
■
Both the client computers and the scanner server must have a network interface
card installed, and must be running the TCP/IP protocol (see Appendix B for
instructions on installing the TCP/IP protocol).
■
EPSON Scan Server must be installed on the scanner server, and EPSON
TWAIN Pro Network must be installed on client computers.
67
saffron.book Page 68 Tuesday, January 11, 2000 2:32 PM
This chapter includes the following:
■
How to install, set up and start EPSON Scan Server on the scanner server
■
How to install and start EPSON TWAIN Pro Network on client computers
■
How to begin a scan from the client computer, the scanner server, or the scanner’s
] Start button
■
How to stop a scan in progress.
Setting Up the Scanner Server
You can set up any Windows 95, Windows 98, or Windows NT 4.0 computer as a
scanner server, as long as it has a network interface card installed and is running the
TCP/IP protocol.
Before you begin, make sure to unlock the scanner and connect it to the scanner
server (see Chapter 2, “Setting Up Your Scanner,” for details). If you don’t have the
TCP/IP protocol installed on the scanner server, see Appendix B, “Installing the
TCP/IP Protocol.”
Follow the instructions for your operating system:
■
If you’re running Windows 98, continue with the next section, “Installing the
Scanner Server Software on Windows 98.”
■
If you’re running Windows 95 or NT 4.0, go to “Installing the Scanner Server
Software on Windows 95 and Windows NT 4.0” on page 74.
Installing the Scanner Server Software on
Windows 98
Depending on how your computer system was originally set up, you may be asked to
insert your Windows 98 CD-ROM during driver installation. Make sure you have it
available, or know where to find the Windows source files on your hard disk (for
example, in the Windows 98 folder). If you need help, contact your computer
manufacturer.
68
saffron.book Page 69 Tuesday, January 11, 2000 2:32 PM
If you’ve just installed a SCSI interface card, you may be
asked to install a SCSI driver at the beginning of installation.
Follow the instructions on the screen to install the best driver,
then continue with the scanner server installation.
1. Turn on the scanner, and then turn
on your computer. When you see the
window on the right, click Next.
2. Insert the EPSON Expression 1600
Scanning Tools CD-ROM in your
drive.
3. Select Search for the best driver
for your device, and click Next.
4. Select Specify a location, then
browse to EPSON\English\Win98
on your CD-ROM drive. Click OK
to close the Browse window, and
then click Next. (The example to the
right uses “G” as the CD-ROM drive
letter. Your CD-ROM drive letter
may be different.)
69
saffron.book Page 70 Tuesday, January 11, 2000 2:32 PM
5. Follow the instructions on the screen to complete the driver installation.
If you see a message asking for your Windows CD-ROM, insert it and click OK,
or browse to the Windows source files on your hard drive. When prompted for
the EPSON Scanners Driver Disk 1, reinsert your EPSON Expression 1600
Scanning Tools CD-ROM.
6. When you see the EPSON Screen Calibration
Utility, move the slider right or left until
the stripes match as closely as possible. Then
click OK.
The EPSON Screen Calibration Utility calibrates the preview
image you see in your EPSON TWAIN Pro driver to match
your monitor settings.
You won’t need to change the screen calibration as long as
you continue to use the same display. If you need to
recalibrate your screen at a later time, double-click the
Scanners and Cameras icon in your Windows Control Panel to
open the Scanners and Cameras Properties window. In the
Devices tab, make sure EPSON Expression1600 is selected,
and then click the Properties button to display the EPSON
Expression 1600 Properties window. Click the Utility tab, and
then click the Screen Calibration Utility button.
7. When installation is complete, click Finish.
Continue with the instructions in the next section, “Finishing the Scanner Server
Installation on Windows 98.”
70
saffron.book Page 71 Tuesday, January 11, 2000 2:32 PM
Finishing the Scanner Server Installation on Windows 98
Before your computer can share its scanner, you must install EPSON Scan Server. At
the same time, you can install other software that came with your scanner. Your
scanner comes with a single-user license for Presto! PageManager, TextBridge Classic,
Adobe Photoshop 5.0 LE, and MonacoEZcolor. If you want to install these
applications on additional computers, please contact the software manufacturer to
purchase additional licenses.
1. Double-click the My Computer icon on your
Windows desktop, then double-click the
Epson CD-ROM icon to display the Select
Language window. (If the window doesn’t
appear when you double-click the CD-ROM
icon, double-click the Cdsetup icon.)
2. Make sure that English is selected, then click
OK. You see the EPSON Software Setup window.
71
saffron.book Page 72 Tuesday, January 11, 2000 2:32 PM
3. Click Add Software. The software selection window appears.
4. Select EPSON Scan Server. (A check mark appears beside applications selected
for installation.) Click to select other software you want to install, or deselect
software that you don’t want. Then click OK.
You don’t need to install EPSON TWAIN Pro Network to use
the scanner connected to your computer— use EPSON
TWAIN Pro instead. EPSON TWAIN Pro is automatically
installed when you install the scanner server software. Only
install EPSON TWAIN Pro Network if you want to use an
Expression 1600 attached to another computer.
5. Follow the instructions on the screen to install EPSON Scan Server and any other
software you selected in the software selection window.
If you’re installing EPSON TWAIN Pro Network in order to use
a scanner attached to another computer, you’ll see a window
that asks for the Network Scanner Address (the scanner
server’s IP address). Enter the IP address for the computer you
want to connect to (see page 84 for instructions).
6. Follow the instructions in “Installing Additional Windows Software” on page 45
if you want to install TextBridge Classic, Adobe Photoshop 5.0 LE, or
MonacoEZcolor.
7. When you’re done installing software, restart your computer. Then follow the
instructions in “Testing the Scanner’s Operation (Windows 98)” on page 35 to
make sure the scanner is operating properly.
72
saffron.book Page 73 Tuesday, January 11, 2000 2:32 PM
Setting Up the Default Scanner on Windows 98
If you have more than one scanner connected to your scanner server, you can set up
the Expression 1600 as the default scanner.
1. Double-click the Scanners and
Cameras icon in your Windows
Control Panel to open the Scanners
and Cameras Properties window.
2. Select EPSON Expression 1600, if
necessary, and click the Properties
button. You see the EPSON Expression
1600 Properties window.
73
saffron.book Page 74 Tuesday, January 11, 2000 2:32 PM
3. Click the Utility tab. Make sure Select
as default scanner for EPSON Scan
Server is checked, and then click OK.
Installing the Scanner Server Software on
Windows 95 and Windows NT 4.0
Before you begin, make sure the scanner is connected to your computer.
If you’ve just installed a SCSI interface board in your computer, you may be asked to
install a SCSI driver at the beginning of the software installation. Make sure you have
your Windows CD-ROM available, or know where to find the Windows source files
on your hard drive. Then follow the instructions on the screen to install the SCSI
driver. If you need help locating your Windows source files, contact your computer
manufacturer.
If you’re running Windows 95, continue with the instructions in the next section. If
you’re running Windows NT 4.0, go to “Starting the Scanner Server Installation on
Windows NT 4.0” on page 77.
74
saffron.book Page 75 Tuesday, January 11, 2000 2:32 PM
Starting the Scanner Server Installation on Windows 95
Follow these steps to install the scanner driver and begin software installation:
1. Turn on your scanner first, then
turn on your computer. When you
see the window on the right, click
Next.
2. Insert the EPSON Expression 1600
Scanning Tools CD-ROM in your
drive and click Other Locations.
3. Browse to the following location
on your CD-ROM drive:
EPSON\English\Win95. Click
OK to close the Browse window,
then click OK again. (The example
on the right uses “E” as the
CD-ROM drive letter. Your
CD-ROM drive may have a
different letter.)
75
saffron.book Page 76 Tuesday, January 11, 2000 2:32 PM
4. When you see this window, click
Finish.
5. Double-click the My Computer
icon on your Windows desktop.
6. Double-click the Epson CD-ROM
icon. You see the Select Language
window. (If you don’t see this
window, double-click the Cdsetup
icon.)
7. Make sure that English is
selected, then click OK. You see
the EPSON Software Setup
window.
8. Click Add Software.
Continue with the instructions
in “Finishing the Scanner Server
Installation (Windows 95 and
Windows NT 4.0)” on page 78.
76
saffron.book Page 77 Tuesday, January 11, 2000 2:32 PM
Starting the Scanner Server Installation on
Windows NT 4.0
Follow these steps to begin the scanner server installation:
1. Turn on your scanner first. Then turn on the scanner server.
2. Log onto Windows NT. Then insert your EPSON Expression 1600 Scanning
Tools CD-ROM in your drive.
3. When you see the Select Language window,
make sure English is selected, and then click
OK.
If the Select Language window doesn’t appear,
double-click the My Computer icon on your
desktop, then double-click the Epson
CD-ROM icon. (If the Select Language
window still doesn’t appear, double-click the Cdsetup icon.)
4. Click the Add Software
button. The software selection
window appears.
Continue with the instructions
in the next section to finish
installing the scanner server
software.
77
saffron.book Page 78 Tuesday, January 11, 2000 2:32 PM
Finishing the Scanner Server Installation (Windows 95 and
Windows NT 4.0)
Before your computer can share its scanner, you must install EPSON Scan Server. At
the same time, you can install other software that came with your scanner. Your
scanner comes with a single-user license for Presto! PageManager, TextBridge Classic,
Adobe Photoshop 5.0 LE, and MonacoEZcolor. If you want to install these
applications on additional computers, please contact the software manufacturer to
purchase additional licenses.
1. Select EPSON Scan Server.
(A check mark appears beside
selected applications.) Click
to select other software you
want to install, or deselect
software that you don’t want.
Then click OK.
Use EPSON TWAIN Pro to scan from the Expression 1600
connected to your computer. Only install EPSON TWAIN Pro
Network if you want to use an Expression 1600 attached to
another computer.
2. If you’re not installing EPSON TWAIN Pro, go to step 5.
If you’re installing EPSON TWAIN Pro,
follow the instructions on the screen.
When you see the window on the right,
make sure SCSI and Expression1600 are
selected under Scanner Selection.
78
saffron.book Page 79 Tuesday, January 11, 2000 2:32 PM
If you’re installing EPSON TWAIN Pro Network in order to use
a scanner attached to another computer, you’ll see a window
that asks for the Network Scanner Address (the scanner
server’s IP address). Enter the IP address for the scanner
server you want to connect to. See page 84 for instructions.
Then continue with step 4 below.
3. Click Test to check scanner operation. If the scanner is communicating with your
computer, you see Status: Device Ready under Scanner Information. Click
OK to close the window.
4. When you see the EPSON Screen Calibration
Utility, move the slider right or left until the stripes
match as closely as possible. Then click OK.
The EPSON Screen Calibration Utility calibrates the preview
image you see in your EPSON TWAIN Pro driver to match
your monitor settings.
You won’t need to change the screen calibration as long as
you continue to use the same display. If you need to
recalibrate your screen at a later time, open the EPSON
TWAIN Pro window by double-clicking the EPSON TWAIN Pro
icon in the Windows Control Panel. Click the Screen
Calibration button at the bottom of the window to start the
utility.
79
saffron.book Page 80 Tuesday, January 11, 2000 2:32 PM
5. Follow the instructions on the screen to
install EPSON Scan Server. When you see
the window on the right, make sure
Expression1600 is selected under Scanner
Selection. Select either Icon or Dialogbox
as the scanner server Startup Mode. (See
“Changing the Scanner Server Start Up
Mode” on page 81 for details.)
6. Click Test to test scanner operation.
OK. Scanner Available appears under
Scanner Information if the scanner is
communicating with the scanner server.
Click OK to close the window.
If you want to share a different network scanner with client
computers, you can access the EPSON Scan Server window
at any time by double-clicking the EPSON Scan Server icon in
the Windows Control Panel. Then select the scanner you
want in the Scanner Selection list.
7. Follow the instructions on the screen to complete installation of any other
software you’ve selected in the software selection window.
8. Follow the instructions in “Installing Additional Windows Software” on page 45
if you want to install TextBridge Classic, Adobe Photoshop 5.0 LE, or
MonacoEZcolor. When you’re done installing software, restart your computer.
80
saffron.book Page 81 Tuesday, January 11, 2000 2:32 PM
Changing the Scanner Server Start Up Mode
When you installed the software, you set up the scanner server to start in either Dialog
Box mode or Icon mode.
In Dialog Box mode, the following dialog box appears whenever you start EPSON
Scan Server. (The message Waiting for connection in the status area indicates that
the scanner is waiting for a connection to a client computer.)
Click here and select
Taskbar Icon to switch
to Icon mode.
In Icon mode, the EPSON Scan Server icon
when you start EPSON Scan Server.
appears on the Windows taskbar
■
To change from Dialog Box mode to Icon mode, click the scanner icon in the
upper left corner of the dialog box and select Taskbar Icon from the list.
■
To change from Icon mode to Dialog Box mode, right-click the EPSON Scan
Server icon on the taskbar and click Taskbar Icon to deselect it.
Your setting takes effect when you exit and restart EPSON Scan Server. See “Starting
EPSON Scan Server” on page 89 for instructions on restarting EPSON Scan Server.
Make sure no client computer is connected to the scanner
server when you exit EPSON Scan Server.
81
saffron.book Page 82 Tuesday, January 11, 2000 2:32 PM
Setting Up Client Computers
To set up a client computer, you’ll need to know the IP address or host name of the
scanner server. Also, make sure the TCP/IP protocol is installed (see Appendix B,
“Installing the TCP/IP Protocol,” for instructions).
The TCP/IP protocol is preinstalled on newer Macintosh
systems. If you have a Macintosh, just make sure that TCP/IP is
enabled in your Extensions Manager.
Installing EPSON TWAIN Pro Network on Windows
You must install EPSON TWAIN Pro Network on the client computer before the
client can use the network scanner. At the same time, you can install other software
that came with your scanner. Your scanner comes with a single-user license for Presto!
PageManager, TextBridge Classic, Adobe Photoshop 5.0 LE, and MonacoEZcolor. If
you want to install these applications on additional computers, please contact the
software manufacturer to purchase additional licenses.
1. Insert the EPSON Expression 1600 Scanning Tools CD-ROM in the CD-ROM
drive. If the Select Language window doesn’t appear, double-click the My
Computer icon on your desktop, and then double-click the Epson CD-ROM
icon.
If you still don’t see the Select Language window, double-click
the Cdsetup icon.
82
saffron.book Page 83 Tuesday, January 11, 2000 2:32 PM
2. Make sure English is selected and
click OK. The EPSON Software
Setup window appears.
3. Click Add Software.
You see the software
selection window.
4. Make sure EPSON TWAIN Pro Network is selected. If you want to install them,
select Presto! PageManager for EPSON and Acrobat Reader. (A check mark
appears beside selected applications.) Then click OK.
Your license allows you to install Presto! PageManager on
one computer in your network. Contact the manufacturer if
you want to purchase additional licenses.
83
saffron.book Page 84 Tuesday, January 11, 2000 2:32 PM
5. Follow the instructions on the screen to
continue the installation. When you see the
window to the right, enter the IP address or
host name of the scanner server in the
Network Scanner Address box.
You can only use host names if you have a
WINS or DNS server on your network.
6. Click Test to test the connection. If your
computer is communicating with the
scanner server and the scanner is on, you see
a message that the scanner is available. Click
OK to save your settings.
If you need to connect to a different network scanner or
change the timeout setting, you can open the EPSON TWAIN
Pro Network window anytime by double-clicking the EPSON
TWAIN Pro Network icon in the Control Panel. You can enter
up to five IP addresses or host names in the Network Scanner
Address box.
7. Follow the instructions on the screen. When you
see the EPSON Screen Calibration Utility, move
the slider right or left until the stripes match as
closely as possible. Then click OK.
8. Follow the instructions on the screen to complete
installation of any other software you’ve selected.
9. Follow the instructions in “Installing Additional
Windows Software” on page 45 if you want to
install Adobe Photoshop 5.0 LE, TextBridge
Classic, or MonacoEZcolor.
10. When you’re done installing software, restart your
computer.
84
saffron.book Page 85 Tuesday, January 11, 2000 2:32 PM
The EPSON Screen Calibration Utility calibrates the preview
image you see in your EPSON TWAIN Pro driver to match
your monitor settings.
You won’t need to change the screen calibration as long as
you continue to use the same display. If you need to
recalibrate your screen at a later time, open the EPSON Pro
Network window by double-clicking the EPSON TWAIN Pro
Network icon in the Control Panel. Then click the Screen
Calibration button at the bottom of the window to start the
utility.
Installing EPSON TWAIN Pro Network on a
Macintosh
You can install EPSON TWAIN Pro Network on all of the computers in your
workgroup. Your scanner comes with a single-user license for Presto! PageManager,
TextBridge Classic, Adobe Photoshop 5.0 LE, and MonacoEZcolor. If you want to
install these applications on additional computers, please contact the software
manufacturer to purchase additional licenses.
1. Insert the EPSON Expression 1600 Scanning Tools CD-ROM in your drive.
2. Double-click the EPSON TWAIN Pro Network folder, and then double-click
the English folder.
3. Double-click the EPSON
TWAIN Pro NET Installer
icon. You see the screen to the
right.
4. Click Install and follow the
instructions on the screen.
When you see a message that
software was successfully
installed, click Quit.
85
saffron.book Page 86 Tuesday, January 11, 2000 2:32 PM
You see the EPSON Screen Calibration
Utility.
5. Move the slider right or left until the stripes
match as closely as possible. Then click OK.
The EPSON Screen Calibration Utility calibrates the preview
image you see in your EPSON TWAIN Pro driver to match
your monitor settings.
You won’t need to change the screen calibration as long as
you continue to use the same display. If you need to
recalibrate your screen at a later time, double-click the EPSON
Network Scanner folder on your hard drive, then double-click
the EPSON Screen Calibration icon.
6. When you see the screen on the right, enter
the IP address or host name of the scanner
server in the Network Scanner Address
box.
(You can only use a host name if you have a
DNS server on your network.)
86
saffron.book Page 87 Tuesday, January 11, 2000 2:32 PM
7. Click Test to test the connection. You see a
message that the scanner is available in the
Scanner Status section of the window.
Click OK to save your settings.
8. Follow the instructions in “Installing Other
Software on Your Scanning Tools
CD-ROM” on page 49 to install these
applications.
9. Follow the instructions beginning on
page 50 if you want to install Adobe
Photoshop 5.0 LE and MonacoEZcolor.
10. When you’re done installing software,
restart your computer.
If you need to connect to a different network scanner or
change the timeout setting, you can open the EPSON TWAIN
Pro Network window anytime by selecting Control Panels
from the Apple menu, then selecting EPSON TWAIN Pro Net.
You can enter up to five IP addresses or host names in the
Network Scanner Address box.
87
saffron.book Page 88 Tuesday, January 11, 2000 2:32 PM
Using a Network Scanner
Network scanning involves the following steps:
■
The scanner server must be turned on and running EPSON Scan Server.
■
From the client computer, start EPSON TWAIN Pro Network to establish a
connection to the scanner server. Only one client computer at a time can connect
to the scanner server. (See “Starting EPSON TWAIN Pro Network” on page 90
for instructions.)
■
Choose the Image Type, Resolution, and other settings you want for your scan.
(See Chapter 3, “How to Scan,” for more information about choosing settings.)
■
Place your first image on the document table (or in the optional automatic
document feeder or one of the optional transparency unit’s film guides).
■
Start the scan. Although this can be done from EPSON TWAIN Pro Network on
the client computer, it may be more convenient to press the scanner’s ] Start
button or to start the scan from the scanner server. Then you can scan several
images with a single trip to the scanner.
■
If you want to scan more than one image, place your second image on the
document table and press the scanner’s ] Start button again. Repeat this step for
every image you want to scan. (The settings you chose for the first image apply to
these images too.)
■
When you return to the client computer, your scanned images appear in the host
application’s window. Close EPSON TWAIN Pro Network to end your
connection to the scanner server and allow other client computers to use the
scanner.
Some applications, such as Adobe Photoshop 5.0 LE,
automatically close the client computer’s connection to the
scanner server when you press the ] Start button. You can’t
use the ] Start button to scan multiple images if you’re using
these applications.
88
saffron.book Page 89 Tuesday, January 11, 2000 2:32 PM
Starting EPSON Scan Server
EPSON Scan Server starts automatically whenever the scanner server is turned on.
When EPSON Scan Server is running, you’ll see either the EPSON Scan Server
dialog box, or the EPSON Scan Server icon
on the Windows taskbar. If you need
to start EPSON Scan Server manually, click Start, Programs, EPSON Scan
Server, and then select EPSON Scan Server.
You can quit EPSON Scan Server at any time. Just click the Exit button on the
EPSON Scan Server dialog box.
Wait for this message
before you exit.
Click to exit.
Before you quit, make sure no client computers are trying to
use the scanner. Don’t exit if the status area of the EPSON
Scan Server dialog box indicates that you are connecting to a
client. Wait until you see the message Waiting for connection.
If you installed EPSON TWAIN Pro on the scanner server so
that you could make a direct connection to the scanner,
remember that you must exit EPSON Scan Server to use
EPSON TWAIN Pro. EPSON Scan Server disables EPSON
TWAIN Pro.
89
saffron.book Page 90 Tuesday, January 11, 2000 2:32 PM
Starting EPSON TWAIN Pro Network
You connect to the scanner server by starting EPSON TWAIN Pro Network from the
client computer. Follow these steps:
1. Start your host application.
2. Select EPSON TWAIN Pro Network as your source, or scanner driver. (You only
need to do this step once.)
For example, if you’re running Windows and using Presto! PageManager for
EPSON as your host application, choose Select Source from the File menu. In
the Select Source window, choose EPSON TWAIN Pro Network and click
Select.
If you have a Macintosh and are using Presto! PageManager for EPSON, click
File, Select Source, then Select TWAIN Source. In the Select a source
window, select the EPSON TWAIN Pro Network icon and click OK.
The command you choose from the File menu differs from
one host application to another. With other host applications,
you might choose Import or Select TWAIN_32 Source, for
example.
3. Start EPSON TWAIN Pro Network.
If your host application is Presto! PageManager for EPSON, choose Acquire
from the File menu. When EPSON TWAIN Pro Network starts, the EPSON
TWAIN Pro Network main menu appears and you connect to the scanner server.
Since the settings and controls for EPSON TWAIN Pro Network are the same as
those for EPSON TWAIN Pro, see “Scanning with EPSON TWAIN Pro” on
page 58 for general scanning instructions. For more detailed information about
settings, see the EPSON Expression 1600 Software Reference Guide on your
EPSON Expression 1600 Scanning Tools CD-ROM.
90
saffron.book Page 91 Tuesday, January 11, 2000 2:32 PM
Starting a Scan
You can start a scan on your network scanner in several ways:
■
You can start EPSON TWAIN
Pro Network on the client
computer, make your scan
settings, and click the Scan
button on the EPSON TWAIN
Pro Network main window. The
scanned image is imported into
your host application’s window.
■
You can press the ] Start
button on the scanner to send
the scanned image to the client
computer that is currently
connected to the scanner server.
■
Click to start
scanning.
You can click the Start button
on the EPSON Scan Server dialog box to send the scanned image to the client
computer currently connected to the scanner server.
IP address of the client
computer connected to
the scanner server
Click to start a scan from the scanner server.
No matter how you start the scan, the client computer must be running EPSON
TWAIN Pro Network to connect to the scanner server.
91
saffron.book Page 92 Tuesday, January 11, 2000 2:32 PM
Stopping a Scan in Progress
You can stop a scan in progress from either the client computer or the scanner server.
92
■
To cancel a scan from the client computer, click the Cancel button on the
Progress bar.
■
To cancel from the scanner server, click the Cancel button at the bottom of the
EPSON Scan Server dialog box.
■
To break the connection between the client computer and the scanner server,
click the Stop button on the EPSON Scan Server dialog box. This closes EPSON
TWAIN Pro Network on the client computer and allows other client computers
to connect to the scanner server.
saffron.book Page 93 Tuesday, January 11, 2000 2:32 PM
Using Optional
Equipment
There are three options available for the EPSON
Expression 1600: the transparency unit (B813182)
the automatic document feeder (B813162), and
the IEEE 1394 FireWire scanner interface card
(B808342).
If you have the Professional or Professional FireWire model of
the EPSON Expression 1600, the transparency unit came with
your scanner. If you have the Professional FireWire model, the
IEEE 1394 FireWire scanner interface card was preinstalled in
your scanner.
You can purchase these options from your reseller or from EPSON Accessories at
(800) 873-7766 (U.S. sales only). In Canada, please call (800) 873-7766 for dealer
referral. Or visit our web site at www.epsonsupplies.com (U.S. sales only).
Transparency Unit
The transparency unit (B813182) allows you to scan transparent materials—35 mm
slides, filmstrips, and film up to 8.5 × 11.7 inches (216 × 297 mm) in size. To switch
between scanning transparent materials and normal reflective (paper) documents,
simply insert or remove the reflective document mat that came with the unit. For
instructions on using the reflective document mat, see “Scanning Reflective
Documents” on page 101.
93
saffron.book Page 94 Tuesday, January 11, 2000 2:32 PM
Unpacking the Transparency Unit
Make sure that all of the following items are included in the transparency unit box. If
any items are missing or damaged, contact your EPSON dealer, or contact EPSON at
(562) 276-4382 (in the United States) or (905) 709-3839 (in Canada). Keep all the
packing materials so you can use them for storage when you are not scanning
transparencies.
transparency unit
screws
reflective document mat
film holders
Use the transparency unit’s pocket to store the reflective
document mat. Don’t store anything else in the pocket.
94
saffron.book Page 95 Tuesday, January 11, 2000 2:32 PM
Removing the Shipping Screw
To prevent damage during shipping, a shipping screw is attached to the transparency
unit to secure its lamp assembly. You must remove this screw before using the
transparency unit.
1. Turn the transparency unit so the glass side faces up.
2. Use a Phillips head (cross
head) screwdriver to remove
the shipping screw from the
hole labeled CLAMP, as
shown at right.
3. Install the screw in the
storage hole labeled
STOCK.
Before transporting the scanner,
be sure to reinstall the shipping screw in the hole labeled CLAMP, and slide the
transportation lock at the back of the scanner to the LOCK position.
Installing the Transparency Unit
Follow these steps to install the transparency unit on the scanner.
1. Make sure the scanner is turned off. Then unplug the power cable from the
scanner.
2. Remove the document cover
by grasping the back of the
document cover as shown and
easing the cover up.
3. Make sure the document table
is clean and dust free.
95
saffron.book Page 96 Tuesday, January 11, 2000 2:32 PM
4. Position the slots on the
transparency unit’s mounting
bracket over the heads of the
two mounting screws located
at the back of the scanner.
Slide the transparency unit
forward slightly until the two
holes in front of these slots
are aligned with the screw
holes at the back of the
scanner.
5. Insert the two installation
screws that came with the
transparency unit into the screw
holes, then tighten the screws
with a coin.
6. Gently close the transparency
unit.
7. Attach the transparency unit
connector to the OPTION
connector at the back of the
scanner. Tighten the attached
screws to secure the connector.
96
saffron.book Page 97 Tuesday, January 11, 2000 2:32 PM
If you haven’t connected the scanner to your computer, continue with “Connecting
the Scanner to Your Computer” on page 25. Then plug the scanner in and turn it on.
See “Step-by-Step Scanning Instructions” on page 57 for scanning instructions. For
more detail on scanning with EPSON TWAIN Pro, see your electronic EPSON
Expression 1600 Software Reference Guide.
Using the Film Guides
You can use the four film guides that came with the TPU to scan 35 mm slides, strips
of 35 mm negative or positive film, 120-size or 220-size format film, and 4 × 5-inch
film.
Loading 35 mm film
Follow these steps to load 35 mm positive or
negative film:
1. Place the 35 mm filmstrip guide on a flat
surface and remove the cover from one of
the strip holders.
2. Insert a filmstrip in the holder, and then
close the cover. The glossy (smooth) side of
the film should be facing down, and the
film emulsion layer should be facing up.
3. Repeat steps 1 and 2 for all the film strips
you scan.
97
saffron.book Page 98 Tuesday, January 11, 2000 2:32 PM
4. Place the 35 mm filmstrip
guide on the document table,
as shown. Make sure that the
upper and right edges of the
guide are aligned with the
ruled edges of the document
table.
5. Close the TPU and begin
scanning.
Make sure to select TPU for Neg. Film or TPU for Pos. Film as
your Document Source in EPSON TWAIN Pro.
Loading 35 mm slides
Follow these steps to load 35 mm slides:
1. Load slides in the 35 mm slide holder as
shown. Make sure the glossy side of each
slide faces down, and the film emulsion
layer faces up.
2. Position the slide holder on
the document table. The upper
and right edges of the guide
should be aligned with the
ruled edges of the document
table.
3. Close the TPU and begin your
scan.
If you’re using EPSON TWAIN Pro to scan, make sure to
select TPU Pos as your document source.
98
saffron.book Page 99 Tuesday, January 11, 2000 2:32 PM
Loading 4 × 5-inch film
Follow these steps to load 4 × 5-inch
film:
1. Place the 4 × 5-inch film guide on a
flat surface and remove the cover
from one of the film holders.
2. Insert the film in the film holder,
making sure the glossy (smooth)
side of the film faces down and the
film emulsion layer faces up. Then
close the cover.
3. Repeat steps 1 and 2 for all the film
you scan.
4. Place the 4 × 5-inch film guide
on the document table. Make
sure the upper and right edges of
the guide are aligned with the
ruled edges of the document
table.
5. Close the TPU and begin your
scan.
If you’re using EPSON TWAIN Pro to scan, make sure to
select TPU Neg or TPU Pos as your document source.
99
saffron.book Page 100 Tuesday, January 11, 2000 2:32 PM
Loading 120-size or 220-size (medium format) film
Follow these steps to load 120-size or
220-size format film:
1. Place the 120/220-size film guide on
a flat surface and open the cover for
one of the film holders.
2. Insert the film in the film holder,
making sure the glossy (smooth) side
of the film faces down, and the film
emulsion layer faces up. Then close
the cover.
3. Repeat steps 1 and 2 for all the film
you scan.
4. Place the film guide on the
document table. Align the
upper and right edges of the
guide with the ruled edges of
the document table.
5. Close the TPU and begin your
scan.
If you’re using EPSON TWAIN Pro to scan, make sure to
select TPU Neg or TPU Pos as your document source.
100
saffron.book Page 101 Tuesday, January 11, 2000 2:32 PM
Scanning Reflective Documents
To scan reflective documents with the transparency unit installed, insert the reflective
document mat included with the transparency unit.
1. Open the transparency unit. If there’s a film guide on the document table, remove it.
2. Insert the tabs on the reflective document
mat into the slots on the transparency unit
and slide the mat down until the tabs are
secure.
3. Place your document face down on the
document table and close the transparency
unit.
4. Scan according to instructions in
“Step-by-Step Scanning Instructions” on
page 57.
101
saffron.book Page 102 Tuesday, January 11, 2000 2:32 PM
Automatic Document Feeder
The automatic document feeder (B813162) allows you to automatically load
multi-page documents into your scanner. This document feeder is particularly useful
for OCR (optical character recognition) scanning, or for creating an image database.
You can load up to 30 pages of 8.5 × 11-inch paper in the automatic document
feeder.
Unpacking the Automatic Document Feeder
When you unpack your automatic document feeder, make sure you have the parts
shown below. If any items are missing or damaged, contact your EPSON dealer, or
call EPSON at (562) 276-4382 (in the United States) or (905) 709-3839 (in
Canada).
screws
102
automatic document feeder
saffron.book Page 103 Tuesday, January 11, 2000 2:32 PM
Installing the Automatic Document Feeder
Don’t remove the protective foam block from the mounting hardware until you’ve
finished installing the automatic document feeder.
Because the automatic document feeder is heavy, you may want
to have someone help you with this procedure.
Follow the steps below to install the automatic document feeder on your scanner:
1. Make sure your scanner is turned
off and unplug the cables.
2. Remove your scanner’s document
cover by grasping the back of
the cover as shown and easing the
cover up.
3. Make sure the document table is
clean and dust free.
4. Position the automatic
document feeder’s mounting
slots over the two mounting
screws located at the back of
the scanner. Slide the
automatic document feeder
forward slightly until the two
holes in front of these slots
are aligned with the screw
holes at the back of the
scanner.
Don’t remove the foam
block until you’re done
installing the unit.
103
saffron.book Page 104 Tuesday, January 11, 2000 2:32 PM
5. Insert the two installation
screws that came with the
automatic document feeder
into the screw holes, then
tighten the screws with a coin.
6. Remove the protective foam
block from the automatic
document feeder’s mounting
hardware, and then gently close
the automatic document feeder.
Remove the foam
block after tightening
the installation screws.
7. Attach the automatic
document feeder’s
connector to the scanner’s
OPTION interface.
8. Reattach all the scanner
cables.
If you haven’t connected the scanner to your computer, continue with “Connecting
the Scanner to Your Computer” on page 25.
104
saffron.book Page 105 Tuesday, January 11, 2000 2:32 PM
Loading Paper in the Automatic Document Feeder
Your automatic document feeder can load up to 30 sheets of the following paper sizes:
Letter, Legal, Checks (3.3 × 5 inches), A4 (8.27 × 11.7 inches), and B5 (7.17 × 10.1
inches). Follow these steps to load paper:
1. Slide the automatic document feeder’s left edge guide all the way to the left.
2. Insert your document face up in the
automatic document feeder. Feed it until
it meets resistance. Then move the right
edge guide so it touches the right edge of
your paper.
You can still load documents manually, if you want. Just lift the
automatic document feeder and place the first sheet of your
document face down on the document table.
Make sure to select Auto Document Feeder as your Document
Source in EPSON TWAIN Pro.
If you want to scan only part of the document area, load the
first page of the document in the automatic document
feeder. When you start EPSON TWAIN Pro and click the
Preview button, the first page is ejected. You can adjust the
marquee in the Preview area, and then load up to 30 pages
of the document in the automatic document feeder. The
Expression 1600 scans the area defined by the marquee on
each page.
105
saffron.book Page 106 Tuesday, January 11, 2000 2:32 PM
Fixing Paper Jams
If a paper jam occurs, follow these steps to
clear it:
jam-release lever
cover
1. Open the automatic document feeder’s
cover, as shown.
2. Pull forward on the jam-release lever, and
slowly pull the jammed paper out of the
feeder mechanism. Be careful not to tear the
paper.
3. After removing the jammed paper, close the
document feeder cover. Make sure the
ERROR light is off and the READY light
isn’t flashing.
IEEE 1394 FireWire Scanner Interface Card
To use the IEEE 1394 FireWire scanner interface card, your system must have either
a built-in IEEE 1394 FireWire port or an IEEE 1394 FireWire PCI card, and must
be running Macintosh OS 8.6 or later with FireWire Update 2.1 or later.
When you install the scanner software, FireWire Update 2.1
will automatically be installed or updated, if it’s not already on
your Macintosh or if you have an older version.
This section explains how to install the IEEE 1394 FireWire scanner interface card in
your scanner, and how to connect the scanner to your computer.
106
■
If you have the Professional FireWire model of the EPSON Expression 1600, the
card was preinstalled in your scanner. Go to “Connecting to an IEEE 1394
FireWire Interface” on page 29.
■
If you purchased the IEEE 1394 FireWire scanner interface card as an option,
continue with the next section.
saffron.book Page 107 Tuesday, January 11, 2000 2:32 PM
Installing the Card in Your Scanner
Before you begin, turn off the scanner and disconnect the power cord and any cables.
1. Remove the two screws securing the shield
plate to the scanner’s optional interface
slot, and then remove the plate. Put the
screws in a safe place in case you want to
reinstall the shield plate later.
Static electricity can damage electronic components like the
IEEE 1394 FireWire scanner interface card. To discharge static
electricity, touch the scanner’s metal frame before handling
the card.
2. Turn the card over so that the
component side is facing down, and
insert it in the optional interface slot.
Push gently until the card is firmly
seated in the expansion slot inside the
optional interface slot.
3. Tighten the retaining screws and
reconnect the scanner’s cables.
Now you’re ready to connect the scanner to your computer. Continue with
“Connecting to an IEEE 1394 FireWire Interface” on page 29.
107
saffron.book Page 108 Tuesday, January 11, 2000 2:32 PM
108
saffron.book Page 109 Tuesday, January 11, 2000 2:32 PM
Scanner
Maintenance
This section gives you basic maintenance
instructions and tells you how to transport your
scanner safely.
Transporting the Scanner
When you transport the scanner a long distance or store it for an extended time,
follow the steps below to secure the carriage.
1. Make sure the transportation lock on the back of the scanner is in the UNLOCK
position.
2. Locate the SCSI ID rotary switch on
the back of the scanner. Align the
dot on the rotary switch with the
asterisk (*).
home position
3. If you’re using a transparency unit or
automatic document feeder, remove
it and replace the scanner cover.
4. Turn on the scanner and wait until
the carriage moves to the home
position (toward the back of the
scanner). Then turn off the scanner.
109
saffron.book Page 110 Tuesday, January 11, 2000 2:32 PM
5. Slide the transportation lock at
the back of the scanner to the
LOCK position.
If the carriage does not
automatically return to the home
position, slowly raise the front of
the scanner and hold it up until
the carriage comes to rest in the
home position. Then slide the
transportation lock to the LOCK
position.
If you are using a transparency unit and it is switched on, the
scanner carriage will not move to the home position. Remove
the transparency unit first, then perform the steps above. See
the next section for instructions.
Transporting the Transparency Unit
After you’ve removed the transparency unit from
the scanner, prepare it for shipping as follows:
1. Slowly raise the front of the transparency unit
as shown to allow the lamp assembly to slide to
the back of the unit. Wait until the lamp
assembly comes to rest.
110
saffron.book Page 111 Tuesday, January 11, 2000 2:32 PM
2. Reinstall the
transparency unit’s
shipping screw in the
hole marked CLAMP.
Cleaning the Scanner
To keep your scanner operating at its best, you should clean it periodically. Before
cleaning, unplug the power cord.
Use a soft cloth to clean the outer case with mild detergent dissolved in water.
If the document table glass gets dirty, clean it with a soft, dry cloth. If the glass is
stained with grease or other hard-to-remove material, use a small amount of glass
cleaner on a soft cloth to remove it. Wipe off any remaining liquid with a dry cloth.
Be sure there’s no dust on your document table. Dust can cause white spots to appear
in your scanned image.
111
saffron.book Page 112 Tuesday, January 11, 2000 2:32 PM
Always unplug the scanner before cleaning.
Never use a harsh or abrasive brush or cleaning product to
clean the document table. A damaged glass surface can
decrease the scanning quality.
Never use alcohol, thinner, or corrosive solvent to clean the
scanner. These chemicals can damage the scanner
components as well as the case.
Be careful not to spill liquid into the scanner mechanism or
electronic components. This could permanently damage them.
Don’t spray lubricants inside the scanner.
Never open the scanner case. If you think repairs or
adjustments are necessary, consult your dealer or contact
EPSON.
Unplug the scanner and refer servicing to qualified service
personnel if the power cord or plug is damaged, if liquid has
entered the scanner, if the scanner has been dropped or the
case damaged, or if the scanner does not operate normally or
exhibits a distinct change in performance.
112
saffron.book Page 113 Tuesday, January 11, 2000 2:32 PM
Solving Problems
This chapter explains how to interpret the signals
from your scanner indicator lights, and gives you
the basics for diagnosing and solving scanner
problems. It also provides instructions on how to
uninstall your software and tells you how to contact
EPSON and other software manufacturers.
For additional troubleshooting tips, see your electronic EPSON Expression 1600
Software Reference Guide.
Lights and Buttons
The scanner has two indicator lights and two buttons:
Scanner indicator lights
Light
Light status
Color
Scanner status
READY
N
Green
Ready to scan images
F (flashing)
Green
Scanning is in progress
N
Red
An error occurred; see the
following table for more
information
ERROR
F (rapidly flashing)
O
N = on, O = off, F = flashing
113
saffron.book Page 114 Tuesday, January 11, 2000 2:32 PM
Error conditions
ERROR light READY light Error type
N
N
Command error: The scanner has received incorrect
commands from your scanning software. Try rescanning
the document.
F
O
Interface error: Check that your scanner is securely
connected to your computer, and then turn the scanner
off and back on again.
F
F
Fatal error: Check that the transportation lock is released,
and then turn the scanner off and on again. If this doesn’t
solve the problem, call your EPSON dealer.
O
O
Option error: There’s a problem with an installed option.
Check to make sure the transparency unit or automatic
document feeder is flat against the document table.
Check that your option is securely connected to the
OPTION connector at the back of the scanner. Finally,
check that the automatic document feeder isn’t out of
paper and doesn’t have a paper jam. If these suggestions
don’t solve the problem, call your EPSON dealer.
N = on, O = off, F = flashing
Scanner buttons
Button
Function
P Operate
Turns the scanner on and off.
]
Automatically launches a ] Start button-compatible application. You
must set up your scanner software and a compatible application to
use this button.
Start
If you installed Presto! PageManager, it’s automatically assigned to
the ] Start button. You can set up Presto! PageManager to scan your
image automatically and send it directly to another application or a
peripheral device, such as a printer.
114
saffron.book Page 115 Tuesday, January 11, 2000 2:32 PM
Problems and Solutions
If you’re having problems, this section answers some of the most common questions.
For additional software troubleshooting tips, see your electronic EPSON Expression
1600 Software Reference Guide.
Setup Problems
■
If your scanner is connected to a
USB hub, try connecting it
directly to the computer’s USB
port.
■
Check the Plug and Play option
for your computer; it should be
active (Windows 95 or 98 only).
■
If you have a SCSI connection,
turn off both your scanner and
computer. Then turn on your
scanner before you turn on the
computer.
■
If you have a SCSI connection,
make sure your SCSI board is
installed correctly.
■
If the SCSI board is found,
but not the scanner, check
the SCSI terminator and ID.
Make sure the SCSI ID doesn’t
conflict with another SCSI device.
■
If you’ve replaced your SCSI
board or changed the SCSI ID,
you may need to uninstall and
reinstall your scanner software. See
the instructions beginning on
page 125.
Your system doesn’t recognize the
scanner . . .
■
■
■
Check your cable connections. If
your cable is securely connected to
both the scanner and computer,
try another cable. If you have a
USB connection, use an EPSON
USB cable. If you have a SCSI
connection, try using an
ASPI-compliant Adaptec SCSI 2
cable, and be sure to restart your
computer after you change the
cable.
The USB connection only
supports a Macintosh or Windows
98 system. Windows 98 must be
preinstalled on your system, not
upgraded from Windows 95.
There is no USB support for
Windows 95 or Windows NT.
Make sure your scanner is on.
If you opened your host
application before you turned on
the scanner, close your application
and reopen it. If that doesn’t
work, restart your system.
115
saffron.book Page 116 Tuesday, January 11, 2000 2:32 PM
■
Check for IRQ conflicts with
built-in options.
■
Windows users: check the System
Device Manager in the Windows
Control Panel. If there is an
Unknown Device icon, select it
and click Remove.
■
Macintosh only: if you have an
IEEE 1394 FireWire interface
connection, make sure the
following Extensions are selected
in the Extensions Manager:
EPSON FW Scanner Enabler,
EPSON FW Scanner Expert,
and EPSON FW ScannerLib.
■
Macintosh only: if you have an
IEEE 1394 FireWire interface
connection, make sure the IEEE
1394 FireWire scanner interface
card is installed correctly in the
scanner. (See “Installing the Card
in Your Scanner” on page 107.)
■
If all else fails, uninstall and
reinstall your software. See the
instructions for uninstalling
software beginning on page 125.
EPSON TWAIN Pro (or EPSON
TWAIN Pro Network) doesn’t
appear in the list where you select
your scanner . . .
See the solutions under “Your system
doesn’t recognize the scanner...”.
116
If you are unable to connect to the
scanner when you click the Test
button . . .
■
Check to make sure your cable is
securely connected to both the
scanner and computer.
■
Try a different cable. If you have a
USB connection, be sure to use
the USB cable that came with
your scanner. If you have a SCSI
connection, try using an
ASPI-compliant Adaptec SCSI 2
cable, and be sure to restart your
computer after you change the
cable.
■
Turn off both the scanner and
your computer. Then turn on
your scanner before you turn on
the computer.
■
If you’re connected to a USB hub,
try connecting the cable to the
computer’s USB port.
■
If you have a SCSI connection,
make sure your system is correctly
terminated and there are no
conflicting SCSI IDs.
■
If you’re using a network scanner,
check with your network
administrator to see whether your
computer is on a different router
than the scanner server. If it is,
make sure the router for the
scanner server is configured to
allow traffic from your network.
saffron.book Page 117 Tuesday, January 11, 2000 2:32 PM
■
Uninstall and reinstall your
software. See the instructions for
uninstalling software beginning on
page 125.
■
Check your image source
setting. Make sure you selected
EPSON TWAIN Pro (or EPSON
TWAIN Pro Network).
■
Run the scanner test to make sure
the scanner is communicating
with your computer. For
Windows 98, see “Testing Your
Scanner’s Operation” on page 24.
For Windows 95 or NT and
Macintosh, open the EPSON
TWAIN Pro window (or EPSON
TWAIN Pro Network window)
and click the Test button.
■
Make sure you have enough
memory to scan your image. If
you’re scanning a large image or
scanning at a high resolution, try
closing other programs before you
scan. If you have a Macintosh, try
increasing the memory of the host
application. If your computer still
doesn’t have enough memory to
process the image, try scanning at
a lower resolution, or select part of
the image to scan.
■
If you’re using a network scanner,
the scanner may have timed out.
Check the time out setting on the
EPSON TWAIN Pro Network
window and increase the value, if
necessary.
Scanner Problems
The READY light doesn’t
come on, or flashes . . .
■
Check the scanner power cord.
Make sure the power cord is
securely plugged into the scanner
and the power outlet, and that the
scanner is turned on.
■
Check that the power outlet is
working and provides sufficient
power for the scanner.
■
If you’re using a transparency unit
or automatic document feeder and
both the READY and ERROR
lights are off, make sure your
installed option is closed (lying flat
against the document table). Also,
make sure the automatic
document feeder doesn’t have a
paper jam and isn’t out of paper.
The scanner doesn’t scan your
image . . .
■
Make sure the scanner is ready to
scan. Wait until the READY light
stops flashing and remains on.
117
saffron.book Page 118 Tuesday, January 11, 2000 2:32 PM
If you installed a ZIP drive . . .
■
Try a different cable. If you have a
USB connection, be sure to use an
EPSON USB cable. If you have a
SCSI connection, try using an
ASPI-compliant Adaptec SCSI 2
cable, and be sure to restart your
computer after you change the
cable.
■
If you have a SCSI connection,
you can’t turn the scanner off and
on again while you’re using your
computer. Turn both the scanner
and computer off, then turn on
the scanner before you turn on the
computer.
■
If you have a SCSI connection,
make sure the SCSI interface
board is installed correctly in your
computer.
■
For SCSI connections, check
that your system recognizes
your scanner and SCSI board
(Windows only). Check the
System Device Manager in the
Windows Control Panel. For
Windows NT, check the SCSI
Adapters dialog in the Windows
Control Panel.
■
For SCSI connections, check for
conflicts in your SCSI ID setting,
I/O address, the interrupt setting
for your SCSI board, and other
settings. For information about
the SCSI ID setting, see
“Connecting to a SCSI Interface”
on page 27. For information
about choosing other settings, see
your computer manual.
Your ZIP drive may be interfering
with your scanner. Disconnect your
ZIP drive, then try using the
scanner.
If you’re using a transparency unit
or automatic document feeder . . .
■
Make sure the unit is correctly
installed and connected to the
scanner’s OPTION interface.
■
Make sure you selected the correct
Document Source setting for
your image.
■
Make sure your transparency unit
or automatic document feeder is
closed (lying flat against the
document table).
■
If paper is jammed in your
automatic document feeder, see
“Fixing Paper Jams” on page 106.
Software Problems
You can’t start EPSON
TWAIN Pro . . .
118
■
Make sure the scanner’s READY
light is on.
■
Check to make sure your cable is
securely connected to both the
scanner and computer.
saffron.book Page 119 Tuesday, January 11, 2000 2:32 PM
If you have more than one scanner
connected to your computer,
make sure the Expression 1600 is
selected as your default scanner.
For Macintosh, check the
EPSON ScannerSelector. For
Windows 98, check the Utility tab
on the Expression 1600 Properties
window. For Windows 95 or NT,
check the EPSON TWAIN Pro
window.
■
Make sure the cables connecting
the scanner, the scanner server,
and the client computer meet
system requirements and are
properly connected.
■
Make sure the correct IP address
for the scanner server is entered in
the EPSON TWAIN Pro
Network setup window for the
client computer.
■
Make sure you selected EPSON
TWAIN Pro as your TWAIN
source.
■
Make sure the network interface
card is installed correctly in both
the scanner server and the client
computer.
■
If you have an older EPSON
scanner and have a previous
version of EPSON TWAIN
installed, uninstall the older
version (Windows) or close any
extensions like EPSON Scanner
Monitor, EPSON Scanner
Monitor USB, or EPSON
Monitor 3 (Macintosh).
■
Make sure both the scanner server
and client computer are running
the TCP/IP protocol.
■
If more than one scanner is
connected to the scanner server,
make sure the Expression 1600 is
selected as the default scanner.
■
■
If none of these solutions help,
uninstall your software, then
reinstall it. See the instructions for
uninstalling software beginning on
page 125.
You can’t start EPSON TWAIN
Pro Network from a client
computer . . .
■
The scanner software doesn’t work
properly . . .
■
Make sure the system
requirements (for example, the
operating system version) are
correct for your software. See
“System Requirements” on
page 143.
Make sure the scanner and
the scanner server are both
powered on.
119
saffron.book Page 120 Tuesday, January 11, 2000 2:32 PM
■
Check your computer’s memory. If
you’re running other software at the
same time, using RAM resident
programs, or have many device
drivers, the computer may not have
enough memory. (See your software
and computer manuals.) If you’re
scanning a large image or scanning at
a high resolution, your computer
may not have enough memory to
process the image.
■
Check your software installation.
Make sure that your software is
correctly installed and set up. If all
else fails, uninstall your software,
then reinstall it.
You can’t select any of the following
as your Document Source: Auto
Document Feeder, TPU for Neg.
Film, TPU for Pos. Film . . .
■
120
Make sure your option is installed
correctly, and that it’s securely
connected to the OPTION
connector. If you need to reinstall the
option or connect it to the OPTION
connector, restart your computer.
Scanning Problems
The file size is too big . . .
Adjust your scan settings. Try setting
at a lower resolution (dpi), or scan
only part of the image.
saffron.book Page 121 Tuesday, January 11, 2000 2:32 PM
Your scanned image is faint or has
gaps . . .
■
Check the brightness. Decrease the
software or driver’s brightness
setting.
■
Try adjusting the Gamma and
Exposure settings in the Image
Controls window.
■
Check the condition of your original.
If the document is damaged, dirty, or
wrinkled, these imperfections will
show up in your scan.
■
Make sure the document is placed
flat against the document table.
Your scanned image is blurred or
distorted . . .
■
Check the position and condition of
your document. Make sure the
document is placed flat against the
scanner’s document table glass. If
only part of the image is blurred, part
of your document may be wrinkled
or warped.
■
Make sure the document table glass is
clean.
■
Make sure the scanner is on a flat,
stable surface.
121
saffron.book Page 122 Tuesday, January 11, 2000 2:32 PM
The edges of the document aren’t
scanned . . .
■
Check the position of your
document. Adjust it so that the
image is within the glass area of the
document table.
■
If colors are patchy or distorted at the
edges of the image, the document
may be too thick, or there may be
outside light interfering with the
scan.
Your image scans at an angle . . .
Check the position of your document.
It may be placed at an angle on the
document table. Align it so the
horizontal and vertical edges are
carefully aligned with the scales on the
top and side of the document table.
Straight lines in the image come out
jagged . . .
Make sure the document is aligned
with the scales on the top and side of
the document table.
A line of dots appears in the image . . .
Clean the narrow window near the
scanner’s mounting bracket with a soft,
dry cloth.
122
saffron.book Page 123 Tuesday, January 11, 2000 2:32 PM
A line of dots is missing from the
image . . .
■
When a line of dots is missing
from the scanned image on your
screen, the scanner sensor has
malfunctioned. Contact your
EPSON dealer.
■
When a line of dots is missing
from your printouts, your print
head has malfunctioned. See your
printer manual.
■
Use MonacoEZcolor to create
color profiles for your scanner,
printer and monitor. Then use an
ICC-compliant color management
application like Adobe Photoshop
5.0 to apply the profiles. See the
MonacoEZcolor User Guide for
instructions.
■
If you’re using profiles created
in MonacoEZcolor, make sure
color management is turned off
in your scanner software. Click
the Configuration button
in the EPSON TWAIN Pro
main window to display the
Configuration window; make sure
the ICM or ColorSync checkbox
is deselected.
The colors in your scanned image
look different than the colors in
the original document . . .
■
Run the EPSON Screen
Calibration Utility.
■
Experiment with the Unsharp
Mask setting. Click the
Destination button in the
EPSON TWAIN Pro main
window to display the Destination
window, then select or deselect
Unsharp Mask.
Moiré (cross-hatch) patterns
appear in the image when you
perform halftone scanning . . .
■
Make the image size slightly
smaller.
■
Use a transparent sheet between
the document and the document
table to defocus the image.
■
Make sure the Image Type and
Destination settings are correct.
■
Try different combinations of
gamma and color settings in your
scanner software.
■
Reposition the document on the
document table. Try positioning
the document at a slight angle.
■
If you’re using a transparency unit
or automatic document feeder,
make sure they’re closed when
scanning.
■
Make sure Unsharp Mask is
deselected in the Destination
window.
123
saffron.book Page 124 Tuesday, January 11, 2000 2:32 PM
■
Select 24-bit Color
De-screening as your Image
Type, or select On for
De-screening in the Image Type
The image doesn’t scan, or you
can only scan a few dots . . .
■
Make sure the document is face
down on the document table.
■
If you’re using an automatic
document feeder, make sure the
original document is inserted
face up.
■
If you’ve selected OCR as your
Image Type, select None for
the Black and White Option in
the Image Type window. Then
adjust the Threshold setting in
the Image Controls window. Or
try changing the Image Type
from OCR to Line Art, then
adjust the Threshold setting.
window.
The printed image is larger or
smaller than the original . . .
You can’t judge the size of the
printed image by what you see on
your screen. The image size settings
in your scanner software determine
the size of the printed image.
You can’t print scanned
images, or the printed image
looks garbled . . .
■
■
Make sure your printer is securely
connected to your computer and
that you’re using the correct cable.
Make sure the correct printer is
selected in your printer software.
You’re using a transparency unit,
and the colors of your negative
film preview look strange . . .
■
Make sure you’ve selected TPU
for Neg. Film as your
Document Source.
■
The scanner perceives the film
guide’s frame as white, which
alters the exposure of the
scanning area and makes the
preview appear darker. To see
the correct colors, do a zoom
preview on an area toward the
center of an image.
OCR scanning produces poor
character recognition . . .
124
■
Select OCR as both the Image
Type and Destination.
■
Select Text Enhancement
Technology for the Black and
White Option in the Image Type
window.
■
Adjust the Threshold setting in
the Image Controls window.
saffron.book Page 125 Tuesday, January 11, 2000 2:32 PM
Uninstalling the Expression 1600 Software
If you’ve tried every other solution and your system still doesn’t recognize your
scanner, try uninstalling and reinstalling the scanner driver software.
Uninstalling EPSON TWAIN Pro
Follow the procedure for uninstalling EPSON TWAIN Pro on your system.
Windows 98
1. Double-click the Scanners and
Cameras icon in the Windows
Control Panel.
2. On the Devices tab, select EPSON
Expression1600.
3. Click the Remove button. Then click
OK to close the window.
4. Restart your computer.
Windows 95 and Windows NT
1. On the Start menu, click Programs, EPSON Scanner, EPSON TWAIN Pro
Uninstall.
2. When you’re finished, restart your computer.
Macintosh
1. Insert the EPSON Expression 1600 Scanning Tools CD-ROM in your drive.
2. Double-click the EPSON TWAIN Pro folder.
3. Double-click the English folder.
125
saffron.book Page 126 Tuesday, January 11, 2000 2:32 PM
4. Double-click the EPSON TWAIN Pro Installer icon.
5. At the Installer window, select Remove at the top of the window, then click the
Remove button.
Select Remove
here.
Click the Remove button.
6. When you’re finished, restart your computer.
Uninstalling EPSON TWAIN Pro Network
Follow the procedure for uninstalling EPSON TWAIN Pro Network on your system.
Windows 95, Windows 98, and Windows NT
1. On the Start menu, click Programs, EPSON Network Scanner, EPSON
TWAIN Pro Network Uninstall.
2. When you’re finished, restart your computer.
Macintosh
1. Insert the EPSON Expression 1600 Scanning Tools CD-ROM in your drive.
2. Double-click the EPSON TWAIN Pro Network folder.
3. Double-click the English folder.
4. Double-click the EPSON TWAIN Pro NET Installer icon.
126
saffron.book Page 127 Tuesday, January 11, 2000 2:32 PM
5. At the Installer window, select Remove at the top of the window, then click the
Remove button.
Select Remove
here.
Click the Remove button.
6. When you’re finished, restart your computer.
Uninstalling EPSON Scan Server
1. To uninstall EPSON Scan Server on your Windows system, click Start,
Programs, EPSON Scan Server, and select EPSON Scan Server Uninstall.
2. When you’re finished, restart your computer.
127
saffron.book Page 128 Tuesday, January 11, 2000 2:32 PM
Where To Get Help
EPSON Technical Support
EPSON provides technical assistance through electronic support services and
automated telephone services 24 hours a day. The following tables list the contact
information:
Electronic support services
Service
Access
World Wide Web
From the Internet, you can reach EPSON’s Home Page at
http://www.epson.com.
EPSON Internet FTP
Site
If you have Internet FTP capability, use your Web browser
(or other software for FTP downloading) to log onto
ftp.epson.com with the user name anonymous and your
e-mail address as the password.
Automated telephone services
Service
Access
EPSON
SoundAdviceSM
For pre-recorded answers to commonly asked questions about
EPSON products 24 hours a day, seven days a week, call
(800) 922-8911.
EPSON FaxAdviceTM
Access EPSON’s technical information library by calling
(800) 922-8911. You must provide a return fax number to use
this service.
EPSON Referral
Service
For the location of your nearest Authorized EPSON Reseller or
Customer Care Center, call (800) 922-8911.
To speak to a technical support representative, dial (562) 276-4382 (U.S.) or
(905) 709-3839 (Canada), 6 AM to 6 PM, Pacific Time, Monday through Friday. Toll
or long distance charges may apply.
128
saffron.book Page 129 Tuesday, January 11, 2000 2:32 PM
Before you call, please have the following information ready:
■
Product name (EPSON Expression 1600)
■
Product serial number (located on the back of scanner)
■
Computer configuration
■
Description of the problem
You can purchase genuine EPSON supplies and accessories from EPSON Accessories
at (800) 873-7766 (U.S. sales only), 6 AM to 6 PM, Pacific Time, Monday through
Friday. In Canada, please call (800) 873-7766 for dealer referral. Or visit our web site
at www.epsonsupplies.com (U.S. sales only).
If you need help using another manufacturer’s software with
an EPSON product, see the documentation for that software
for technical support information.
Software Technical Support
Software
Telephone
Fax
EPSON TWAIN Pro
(562) 276-4382
(800) 922-8911 www.epson.com
fax-on-demand
system
(800) 922-8911
TextBridge Classic
(562) 276-4382
(800) 922-8911
Adobe Photoshop 5.0 LE Macintosh:
(900) 555-3300
Windows:
(900) 555-2200
Online and E-mail
(800) 922-8911 www.epson.com
fax-on-demand
system
www.adobe.com/
supportservice/custsupport/
techsupport.html
[email protected]
$2.00 per minute
NewSoft Presto!
PageManager
(510) 445-8616
(510) 445-8601 www.newsoftinc.com
MonacoEZcolor
(978) 749-9944
(978) 749-9977 www.monacosys.com
129
saffron.book Page 130 Tuesday, January 11, 2000 2:32 PM
130
saffron.book Page 131 Tuesday, January 11, 2000 2:32 PM
Specifications
This appendix includes general, electrical,
environmental, and interface specifications. It also
includes specifications for the transparency unit,
automatic document feeder, and IEEE 1394
FireWire scanner interface card.
Scanner
General
Scanner type
Flatbed, color
Photoelectric device
Color CCD line sensor
Effective pixels
13600 × 18720 pixels at 1600 dpi,
100% scaling
Optical density
3.3 Dmax
Color depth
36-bit internal/36-bit external
Grayscale depth
12-bit internal/12-bit external
Optical resolution
1600 dpi
Maximum hardware resolution*
1600 dpi (main scan)
3200 dpi with Micro Step Drive
(sub scan)
*The maximum hardware resolution of
1600 × 3200 dpi is achieved using
EPSON’s Micro Step Drive technology
Maximum interpolated resolution
12800 × 12800 dpi
Speed (1600 dpi, draft mode)
Color:
9.2 msec/line (approx.)
Grayscale:
3.1 msec/line (approx.)
Line Art:
3.1 msec/line (approx.)
Color separation
RGB color filters on CCD
Maximum document size
US letter or A4 size (8.5 × 11.7 inches
[216 × 297 mm])
Up to legal size if using the automatic
document feeder
Reading area can be specified from
software
131
saffron.book Page 132 Tuesday, January 11, 2000 2:32 PM
Reading sequence
Monochrome: One-pass scanning
Color byte sequence: One-pass
scanning (R, G, B)
Color line sequence: One-pass
scanning (R, G, B)
Color correction
1 type for CRT display
3 types for printer (available in color
byte sequence mode and color line
sequence mode)
1 type user-defined
Zoom
50 to 200% in 1% increments
Command level
ESC/I-B8
Interfaces
SCSI 2 (50 pin half pitch connectors)
USB (Type B receptacle connector)
Optional IEEE 1394 (FireWire)
Pixel depth
12 bits per pixel (12 bits per pixel
input, 1 to 12 bits per pixel output)
Light source
Xenon gas cold cathode fluorescent
lamp
Brightness
7 levels
Reliability
100,000 cycles of carriage movement
(main unit MCBF)
Line art settings
Fixed threshold
TET (Text Enhancement
Technology, enable/disable
selectable)
132
Dimensions
Width:
Depth:
Height:
13 inches (332 mm)
22.1 inches (562 mm)
5.3 inches (133 mm)
Digital halftoning
AAS (Auto Area Segmentation,
enable/disable selectable)
3 halftoning modes (A, B, and C)
4 dither patterns (A, B, C, and D) for
bi-level and quad-level data
(2 downloadable dither patterns)
2 user-defined dither patterns (A, B)
Weight
Approximately 18.7 lb (8.5 kg)
Gamma correction
2 types for CRT display
3 types for printer
2 types user-defined
Rated frequency
50 to 60 Hz
Electrical
Input voltage range
100 to 120 VAC:
220 to 240 VAC:
90 to 132 VAC
198 to
264 VAC
saffron.book Page 133 Tuesday, January 11, 2000 2:32 PM
Rated current
100 to 120 VAC:
220 to 240 VAC:
0.8 A
0.4 A
Power consumption
Operating: Approximately 30 W
Approximately 50 W
with TPU or ADF unit
Standby:
Approximately 10 W
Environmental
Temperature
Operating:
Standby:
41 to 95 °F (5 to
35 °C)
50 to 89 °F when
using ADF (10 to
32 °C)
−13 to 140 °F
(−25 to 60 °C)
Humidity (without condensation)
Operating: 10 to 80%
Standby:
10 to 85%
230 V model
Safety:
EMC:
EN 60950
EN 550022
(CISPR Pub 22)
class B
AS/NZS 3548 class B
SCSI Interface
Interface type
ANSI X3T9.2/375R Revision 10L
(SCSI 2)
Logic level
TTL-compatible
ID setting
Selectable from 0 to 7
Terminator
Internal terminator (enable/disable
selectable)
Connector type
Two half pitch 50-pin connectors
Operating conditions
Ordinary office or home conditions.
Avoid dust, direct sunlight, and
proximity to strong light sources.
USB Interface
Safety Approvals
Electrical standard
Full speed mode (12Mb) of Universal
Serial Bus Specification Revision 1.0
120 V model
Safety: UL 1950 with D3
CSA C22.2 No. 950
EMC FCC part 15 subpart B class B
CSA C108.8 class B
Interface type
Universal Serial Bus Specification
Revision 1.0
Connector type
One receptacle (Type B)
133
saffron.book Page 134 Tuesday, January 11, 2000 2:32 PM
Option Interface Connector
Interface type
For use with the optional automatic
document feeder (B813162) and
transparency unit (B813182)
Output voltage
21.6 to 26.4 VDC
4.75 to 5.25 VDC
Output current
0.6 A (24 V)
0.3 A (5 V)
Initialization Methods
SCSI interface
Hardware: Initialized when the
scanner is turned on or
the scanner receives a
SCSI Reset signal from
the SCSI interface
Software:
Initialized when the
software sends the
Esc @ (initialize the
scanner command), or
the scanner receives a
SCSI Bus Device
message
USB interface
Hardware:
Software:
134
Initialized when the
scanner is turned on or
the USB cable is
unplugged from the
USB port on the
scanner
Initialized when the
software sends the
Esc @ command or the
scanner receives a Bus
Reset from the USB
interface
Transparency Unit
(B813182)
General
Reliability
MCBF 100,000 cycles
Readable area
8.5 × 11.7 inches (216 × 297 mm)
Dimensions
Width:
Depth:
Height:
12.8 inches (324 mm)
21.3 inches (540 mm)
3.6 inches (92 mm)
Weight
Approximately 11 lb (5 kg)
Electrical
Input voltage
21.6 to 26.4 VDC
4.7 to 5.25 VDC
Rated current
0.6 A
0.1 A
Environmental
Temperature
Operating:
Standby:
41 to 95 °F (5 to
35 °C)
−14 to 140 °F (−20 to
60 °C)
Humidity (without condensation)
Operating: 10 to 80%
Standby:
10 to 85%
saffron.book Page 135 Tuesday, January 11, 2000 2:32 PM
Automatic Document
Feeder (B813162)
General
Paper input/output
Load face-up; eject face-down
Paper quantity
30 pages (55 g/m2 paper, maximum
total thickness under 0.24 inches
[6 mm])
IEEE 1394 FireWire
Scanner Interface Card
(B808342)
General
Interface type
IEEE 1394-1995 compatible
Data transfer method
Half-duplex Data/Strobe differential
serial
Reliability
100,000 sheets (load/eject MCBF)
Synchronization method
Clock synchronization with DS-Link
Dimensions
Width: 12.2 inches (310 mm)
Depth: 20.9 inches (528 mm)
Height: 3.6 inches (92 mm)
Encoding/decoding
DS-Link
Weight
Approximately 9.9 lb (4.5 kg)
Electrical
Input voltage
22.8 to 25.2 VDC
4.75 to 5.25 VDC
Input current
24 V: 0.6 A
5 V: 0.3 A
Standby:
Compatible connectors
IEEE 1394-1995 compatible
Power class
Power class code 100
No power supply from external
sources
Fitted with a repeat function with bus
power
Environmental
Environmental
Temperature
Operating:
Logic level
3.3 V
50 to 89 °F (10 to
32 °C)
−4 to 140 °F (−20 to
60 °C)
Humidity (without condensation)
Operating: 20 to 80%
Standby:
95% or less
Temperature
Operating:
Standby:
41 to 95 °F (5 to
35 °C)
−13 to 140 °F (−25 to
60 °C)
Humidity (without condensation)
Operating: 10 to 80%
Standby:
10 to 85%
135
saffron.book Page 136 Tuesday, January 11, 2000 2:32 PM
136
saffron.book Page 137 Tuesday, January 11, 2000 2:32 PM
Installing the TCP/IP
Protocol
To use your EPSON Expression 1600 as a network
scanner, your client computers and scanner server
must have a network interface card, a network
interface card driver, and the TCP/IP protocol
installed. In addition, both the client computers
and the scanner server must have an IP address
assigned.
If you have a newer Macintosh, the TCP/IP protocol was preinstalled on your
computer. Just make sure that TCP/IP is enabled in your Extensions Manager. Your
computer has already been assigned an IP address if you are running a DHCP server,
so no further setup is necessary. Obtain an IP address from your network
adminstrator if you want to enter an address manually.
If you’re running DHCP and WINS, or if you have a DNS
server, you may find it easer to use a host name rather than
an IP address to identify the scanner server. To specify a host
name, you must enable DNS. See your Windows or
Macintosh documentation for instructions.
137
saffron.book Page 138 Tuesday, January 11, 2000 2:32 PM
Installing the TCP/IP Protocol on
Windows 95 and Windows 98
1. Double-click the Network icon in the
Control Panel. If necessary, click the
Configuration tab to display the window
on the right.
2. Check that TCP/IP appears in the list of
installed network components.
If it appears in the list, go to “Assigning an
IP Address” on page 139.
If you don’t see TCP/IP in the list,
continue with the next step.
3. Click the Add button. You see
the screen to the right.
4. Select Protocol from the list and
click the Add button. The
screen to the right appears.
5. Select Microsoft from the
Manufacturers list, and TCP/IP
from the Network Protocols list.
Then click OK.
6. Continue with the instructions
below to assign an IP address.
138
saffron.book Page 139 Tuesday, January 11, 2000 2:32 PM
Assigning an IP Address
If your network is connected to the Internet, ask your Internet provider or IS
department for a formal IP address.
If your network is not connected to the Internet, you can use an IP address in the
following ranges: 10.0.0.0 to 10.255.255.255, 172.16.0.0 to 172.31.255.255, or
192.168.0.0 to 192.168.255.255. Use a different IP address for every computer on
your network.
If you use IP addresses in the ranges listed above, you may
need to change them before you connect the network to the
Internet. Check with your network administrator.
If your network uses a DHCP server, you don’t need to obtain an IP address before
beginning this procedure—the server finds one for you.
When you have your IP address, follow the steps below to assign it to your computer.
1. Select TCP/IP on the list of installed
network components on the
Configuration tab, and then click the
Properties button. If necessary, click
the IP Address tab.
2. Click Specify an IP address, and
then enter the IP address and subnet
mask.
If you’re using a DHCP server on your network, you can assign
an IP address automatically by selecting Obtain an IP address
automatically and clicking OK.
3. Click OK to close the TCP/IP Properties window, then click OK again to close
the Network window and have your IP address assignment take effect. Make sure
you share the IP address for the scanner server with client computers.
139
saffron.book Page 140 Tuesday, January 11, 2000 2:32 PM
Installing the TCP/IP Protocol on
Windows NT 4.0
1. Double-click the Network icon in the
Control Panel. If necessary, click the
Protocols tab.
2. Check that TCP/IP Protocol appears in
the list of network protocols.
If it appears in the list, go to “Assigning
an IP Address” on page 141.
If you don’t see TCP/IP Protocol in the
list, continue with the next step.
3. Click the Add button. You see the
screen to the right.
4. Select TCP/IP Protocol and click OK.
5. Continue with the instructions below to
assign an IP address.
140
saffron.book Page 141 Tuesday, January 11, 2000 2:32 PM
Assigning an IP Address
If your network is connected to the Internet, ask your Internet provider or IS
department for a formal IP address.
If your network is not connected to the Internet, you can use an IP address in the
following ranges: 10.0.0.0 to 10.255.255.255, 172.16.0.0 to 172.31.255.255, or
192.168.0.0 to 192.168.255.255. Make sure you use a different IP address for every
computer on your network.
If you use IP addresses in the ranges listed above, you may
need to change them before you connect the network to the
Internet. Check with your network administrator.
If your network uses a DHCP server, you don’t need to obtain an IP address before
beginning this procedure—the server finds one for you.
Follow the steps below to assign the IP address to your computer:
1. Select TCP/IP Protocol in the Network Protocols list on the Protocols tab, and
then click the Properties button.
2. Click the IP Address tab to display the
screen to the right.
3. Click Specify an IP address, and then
enter your IP address and subnet mask.
Click OK. (If you’re using a DHCP
server on your network, you can assign
an IP address automatically by selecting
Obtain an IP address from a DHCP
server and clicking OK.)
4. Click OK again to close the Network
window and have your IP address
assignment take effect.
Make sure you share the IP address for the
scanner server with all client computers on
the network.
141
saffron.book Page 142 Tuesday, January 11, 2000 2:32 PM
142
saffron.book Page 143 Tuesday, January 11, 2000 2:32 PM
Notices
This chapter includes system requirements, safety
instructions, your Epson America Limited
Warranty, and other important information about
your EPSON Expression 1600.
System Requirements
The minimum system requirements for Windows and Macintosh are listed below.
For optimum performance, a faster processor and more memory are recommended. If
you’re scanning high resolution images, you need more than the minimum available
hard disk space.
Color and tone reproduction are subject to the display capability of
your computer system, including the video card, monitor, and
software. See the documentation for these products for details.
Windows
■
An IBM-compatible PC with a Pentium® processor
■
Microsoft Windows 95, Windows 98, or Windows NT 4.0 (Service Pack 3)
■
SCSI or USB (Windows 98 only) port
■
32MB RAM (64MB RAM recommended for all systems)
■
50MB available hard disk space
■
CD-ROM drive
143
saffron.book Page 144 Tuesday, January 11, 2000 2:32 PM
■
VGA color monitor with 640 × 480 resolution (a color monitor with a resolution
of 800 × 600 or higher recommended)
■
8-bit 256-color display adapter card (24-bit display adapter card with millions of
colors recommended)
Macintosh
■
USB: Macintosh OS 8.1 or later
If you’re using Mac OS 8.1 on an iMac®, you need to install
iMac Firmware Update 1.0 before installing the scanner
software. This is available online from the Apple® web site. If
you’re using Mac OS 8.5, check the Apple web site for any
updates.
■
SCSI: Macintosh OS 7.5 or later
■
FireWire: Macintosh OS 8.6 with FireWire update 2.1
■
Power Macintosh or higher processor
■
Macintosh standard SCSI or USB interface; for IEEE 1394 FireWire connections,
either a built-in IEEE 1394 FireWire port or an IEEE 1394 FireWire PCI card
■
32MB RAM (64MB RAM recommended)
■
50MB available hard disk space
■
CD-ROM drive
■
VGA color monitor with 640 × 480 screen resolution (a color monitor with a
resolution of 800 × 600 or higher recommended)
■
8-bit 256-color display adapter card (24-bit display adapter card with millions of
colors recommended)
EPSON TWAIN Pro supports the Apple ColorSync™ 2.0 color management system
and QuickTime.™ These extensions are automatically installed during the EPSON
TWAIN Pro installation.
144
saffron.book Page 145 Tuesday, January 11, 2000 2:32 PM
Year 2000 Ready
Your EPSON scanner is Year 2000 Ready. However, be sure the other parts of your
computer system are also ready for the year 2000.
Important Safety Instructions
Read all of these instructions and save them for later reference. Follow all warnings
and instructions marked on the scanner.
■
Unplug the scanner before cleaning. Clean with a damp cloth only. Do not spill
liquid on the scanner.
■
Do not place the scanner on an unstable surface or near a radiator or heat source.
■
Do not block or cover the openings in the scanner’s cabinet. Do not insert objects
through the slots.
■
Use only the type of power source indicated on the scanner’s label.
■
Connect all equipment to properly grounded power outlets. Avoid using outlets
on the same circuit as photocopiers or air control systems that regularly switch on
and off.
■
Do not let the power cord become damaged or frayed.
■
If you use an extension cord with the scanner, make sure the total ampere rating
of the devices plugged into the extension cord does not exceed the cord’s ampere
rating. Also, make sure the total ampere rating of all devices plugged into the wall
outlet does not exceed the wall outlet’s ampere rating.
■
Do not attempt to service the scanner yourself.
■
Unplug the scanner and refer servicing to qualified service personnel under the
following conditions: if the power cord or plug is damaged; if liquid has entered
the scanner; if the scanner has been dropped or the cabinet damaged; if the
scanner does not operate normally or exhibits a distinct change in performance.
Do not adjust controls that are not covered by the operating instructions.
145
saffron.book Page 146 Tuesday, January 11, 2000 2:32 PM
ENERGY STAR Compliance
As an ENERGY STAR Partner, EPSON has determined that this product meets the
ENERGY STAR guidelines for energy efficiency.
The International ENERGY STAR Office Equipment Program is
a voluntary partnership with the computer and office equipment
industry to promote the introduction of energy-efficient personal
computers, monitors, printers, fax machines, copiers, and
scanners, in an effort to reduce air pollution caused by power
generation.
146
saffron.book Page 147 Tuesday, January 11, 2000 2:32 PM
Declaration of Conformity
According to 47CFR, Part 2 and 15 for Class B Personal Computers and Peripherals;
and/or CPU Boards and Power Supplies used with Class B Personal Computers:
We:
EPSON AMERICA, INC.
Located at:
MS 6-43
3840 Kilroy Airport Way
Long Beach, CA 90806-9941
Telephone: (562) 290-5254
Declare under sole responsibility that the product identified herein, complies with
47CFR Part 2 and 15 of the FCC rules as a Class B digital device. Each product
marketed, is identical to the representative unit tested and found to be compliant with
the standards. Records maintained continue to reflect the equipment being produced
can be expected to be within the variation accepted, due to quantity production and
testing on a statistical basis as required by 47CFR §2.909. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Trade Name:
EPSON
Type of Product:
Image Scanner
Model:
G780A
Product:
EPSON Expression 1600
147
saffron.book Page 148 Tuesday, January 11, 2000 2:32 PM
FCC Compliance Statement
For United States Users
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio or television
reception. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause interference to radio and television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures.
◗
Reorient or relocate the receiving antenna.
◗
Increase the separation between the equipment and receiver.
◗
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
◗
Consult the dealer or an experienced radio/TV technician for help.
Warning
The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC
Certification of this device and may cause interference levels which exceed the limits established by the FCC for
this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this
device. If this equipment has more than one interface connector, do not leave cables connected to unused
interfaces. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to
operate the equipment.
For Canadian Users
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le materiel brouilleur du
Canada.
148
saffron.book Page 149 Tuesday, January 11, 2000 2:32 PM
EPSON AMERICA, INC.
LIMITED WARRANTY
What Is Covered: Epson America, Inc. (“EPSON”) warrants to the first end user customer of the EPSON product enclosed with
this limited warranty statement, that the product if purchased and used in the United States or Canada, conforms to the
manufacturer’s specifications and will be free from defects in workmanship and materials for a period of one year from the date of
original purchase. EPSON warrants that the EPSON product is manufactured from new components and parts, or in the case of a
refurbished unit, may contain refurbished parts that meet the EPSON standard of quality.
What EPSON Will Do To Correct Problems: Should your EPSON product prove defective during the warranty period, please bring
the product securely packaged in its original container or an equivalent, along with proof of the date of original purchase, to your
EPSON Dealer or EPSON Customer Care Center. EPSON will, at its option, repair or replace on an exchange basis the defective
unit, without charge for parts or labor. When warranty service involves the exchange of the product or of a part, the item replaced
becomes EPSON property. The exchanged product or part may be new or previously repaired to the EPSON standard of quality.
Exchange or replacement products or parts assume the remaining warranty period of the product covered by this limited
warranty. For warranty service, you must provide proof of the original purchase date.
What This Warranty Does Not Cover: This warranty covers only normal use in the United States and Canada. This warranty does
not cover damage to the EPSON product caused by parts or supplies not manufactured, distributed or certified by EPSON. This
warranty does not cover third party parts, components or peripheral devices added to the E PSON product after its shipment from
EPSON, e.g., dealer-added boards, chips or drives. EPSON is not responsible for warranty service should the EPSON label or logo
or the rating label or serial number be removed or should the product fail to be properly maintained or fail to function properly
as a result of misuse, abuse, improper installation, neglect, improper shipping, damage caused by disasters such as fire, flood, and
lightning, improper electrical current, software problems, interaction with non-EPSON products, or service other than by an
EPSON Authorized Servicer. Postage, insurance, or shipping costs incurred in presenting your EPSON product for warranty
service are your responsibility. If a claimed defect cannot be identified or reproduced in service, you will be held responsible for
costs incurred.
THE WARRANTY AND REMEDY PROVIDED ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS
OR IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME LAWS DO NOT ALLOW THE
EXCLUSION OF IMPLIED WARRANTIES. IF THESE LAWS APPLY, THEN ALL EXPRESS AND IMPLIED
WARRANTIES ARE LIMITED TO THE WARRANTY PERIOD IDENTIFIED ABOVE. UNLESS STATED HEREIN,
ANY STATEMENTS OR REPRESENTATIONS MADE BY ANY OTHER PERSON OR FIRM ARE VOID. NEITHER
EPSON AMERICA, INC. NOR ITS AFFILIATES SHALL BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR
DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, RESULTING
FROM THE USE OR INABILITY TO USE THE EPSON PRODUCT, WHETHER RESULTING FROM BREACH OF
WARRANTY OR ANY OTHER LEGAL THEORY.
In Canada, warranties include both warranties and conditions.
Some jurisdictions do not allow limitations on how long an implied warranty lasts and some jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from jurisdiction to jurisdiction.
To locate the EPSON Authorized Reseller or EPSON Customer Care Center nearest you call:
800-922-8911 or write to:
Epson America, Inc. ● P.O. Box 93008 ● Long Beach, CA 90809-9985
149
saffron.book Page 150 Tuesday, January 11, 2000 2:32 PM
150
saffron.book Page 151 Tuesday, January 11, 2000 2:32 PM
Index
A
Accessories, 129
Acrobat Reader
how to use, 15
locating the PDF manuals, 16
Adobe Photoshop
installing, 46, 50
locating the user’s guide, 16
Auto document feeder, 102 to 106
fixing paper jams, 106
loading paper, 105
problems, 120
specifications, 135
Auto Exposure button, 59
Auto Locate button, 59
B
Batch scanning, 55
Blurred image, 121
Buttons, 114
C
Cable length, 25, 28
Calibrating the scanner driver, 32, 41, 44,
48, 79, 84, 85, 86
Cleaning the scanner, 111 to 112
Client software, installing, 82 to 87
Colors, problems, 32, 41, 44, 48, 79, 84, 85,
86, 123 to 124
Connecting the scanner, 25 to 28
connecting with FireWire, 29
connecting with SCSI, 27 to 28
connecting with USB, 26
D
Default scanner, setting up, 36 to 37, 40, 43,
51, 73 to 74, 80
Document position, 57, 122
Documentation
PDF manuals, viewing, 15 to 16
Reference Guide, viewing, 13 to 14
Dual Focus Mechanism, using, 55
E
Electrical requirements, 132 to 133
EPSON
Accessories, 129
help, 128 to 129
EPSON TWAIN Pro Network, see
TWAIN Pro Network
EPSON TWAIN Pro, see TWAIN Pro
F
File size, 120
Film guides, using, 97 to 100
Film, scanning, 97, 99 to 100
151
saffron.book Page 152 Tuesday, January 11, 2000 2:32 PM
FireWire
connecting the scanner, 29
installing the scanner card, 106 to 107
requirements, 25
scanner card specifications, 135
H
Help
EPSON, 128 to 129
software, 129
Home position, 23
I
IEEE 1394, see FireWire
Image quality problems, 120 to 124
Installing
auto document feeder, 103 to 104
client software, 82 to 87
FireWire scanner interface card, 106 to
107
Macintosh software, 47 to 51, 85 to 87
scanner server software, 68 to 80
TCP/IP on a network, 137 to 141
transparency unit, 95 to 97
Windows 95 software, 37 to 41, 45 to 46
Windows 98 software, 30 to 34, 45 to 46
Windows NT software, 42 to 46
IP address, assigning, 139, 141
L
Lights, scanner, 113 to 114
Lock, transportation, 23
152
M
Macintosh
connecting with FireWire, 29
FireWire requirements, 25
installing client software, 85 to 87
installing the software, 47 to 51
system requirements, 144
USB requirements, 25
Magazines, scanning, 56
Maintenance, 109 to 112
Manuals
PDF manuals, locating, 16
Reference Guide, viewing, 13 to 14
MonacoEZcolor
installing, 46, 51
locating the manual, 16
solving color problems, 54, 123
Moving
scanner, 109 to 110
transparency unit, 110 to 111
N
Network
assigning an IP address, 139, 141
changing scanner server start up mode,
81
installing client software, 82 to 87
installing scanner server software, 68 to
80
installing TCP/IP, 137 to 141
starting a scan, 91
starting EPSON Scan Server, 89
stopping a scan in progress, 92
using the Start button, 91
Newspapers, scanning, 56
saffron.book Page 153 Tuesday, January 11, 2000 2:32 PM
O
Operate button, 114
Optional equipment, 93 to 107
P
Paper jams, fixing, 106
Paper, loading, 105
Photographs, scanning, 56
Power-on sequence, 24
Presto! PageManager
installing, 34, 40, 43, 49
locating the user’s guide, 16
setting up one-touch scanning, 64 to 65
R
Recommended settings, 56
Reference Guide, viewing, 13 to 14
Requirements
electrical, 132 to 133
environmental, 133
system, 143 to 144
Resizing images, 54
Resolution
choosing, 53 to 54, 56
maximum, 131
S
Safety instructions, 145
Scaling images, 54
Scanner server
changing start up mode, 81
installing the software, 68 to 80
starting EPSON Scan Server, 89
stopping a scan, 92
uninstalling Scan Server, 127
Scanning
defining the scan area, 59
film, 97, 99 to 100
multiple images at once, 55
network, 88 to 92
photographs, 56
slides, 98
transparencies, 56, 58, 97 to 100
using TWAIN Pro, 58 to 60
with auto document feeder, 59
Screen calibration utility, 32, 41, 44, 48, 79,
84, 85, 86
SCSI
cable length, 25
connecting the scanner, 27 to 28
ID number, 27
interface specifications, 133
terminator switch, 28
Service, 128 to 129
Settings, software, 56
Setup problems, 115 to 117
Slides, scanning, 98
Software
problems, 118 to 120
settings, 56
uninstalling, 125 to 127
Space requirements, 22
Specifications
auto document feeder, 135
FireWire card, 135
scanner, 131 to 134
transparency unit, 134
Start button, 60 to 65, 114
one-touch scanning, 64 to 65
using on a network scanner, 91
153
saffron.book Page 154 Tuesday, January 11, 2000 2:32 PM
Start up mode, changing for scanner server,
Support, 128 to 129
System requirements, 143 to 144
TWAIN Pro Network
problems, 118 to 120
starting, 90
uninstalling, 126 to 127
T
U
TCP/IP, installing, 137 to 141
Technical support, 128 to 129
Terminator switch, SCSI, 28
Text Enhancement Technology (TET), 56
Text, scanning, 56
TextBridge Classic
installing, 45, 49
locating the manual, 16
Transparency unit, 93 to 97
color problems with transparencies, 124
problems, 120
scan settings, 56
specifications, 134
using film guides, 97 to 100
Transportation lock, 23
Transporting
scanner, 109 to 110
transparency unit, 110 to 111
Troubleshooting
auto document feeder, 120
calibrating the scanner driver, 32, 41, 44,
48, 79, 84, 85, 86
image quality, 120 to 124
scanner, 117 to 118
setup, 115 to 117
software, 118 to 120
testing the scanner, 24
testing the scanner connection, 35, 40, 43
transparency unit, 120
TWAIN Pro
problems, 118 to 120
scanning with, 58 to 60
uninstalling, 125 to 126
Uninstalling software, 125 to 127
Unlocking the scanner, 23
Unpacking
auto document feeder, 102
scanner, 20
transparency unit, 94
USB
connecting the scanner, 26
interface specifications, 133
requirements, 25
81
154
W
Warranty, 149
Windows
installing TCP/IP, 137 to 141
installing the software, 30 to 46
system requirements, 143
World Wide Web, 128, 129
Y
Year 2000, 145
