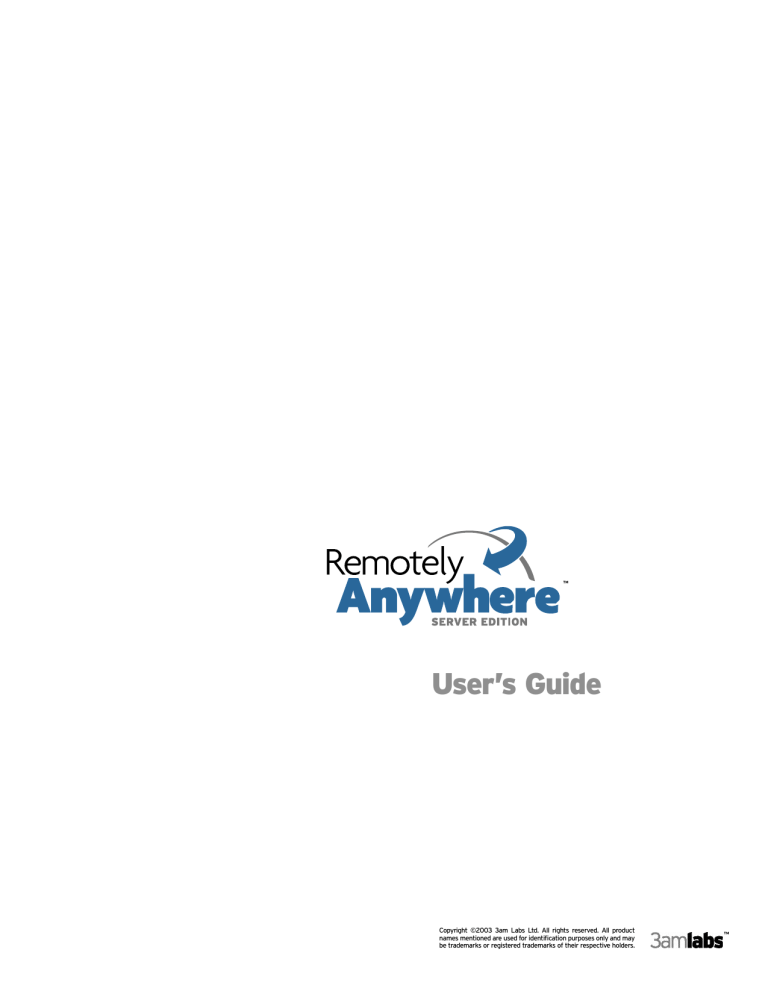

User’s Guide
Copyright ©2003 3am Labs Ltd. All rights reserved. All product
names mentioned are used for identification purposes only and may
be trademarks or registered trademarks of their respective holders.
™
Contents
1. WHAT IS REMOTELYANYWHERE SERVER EDITION.......................................................4
2. ACKNOWLEDGEMENTS................................................................................................................6
3. GETTING STARTED.......................................................................................................................7
4. WHAT’S NEW..................................................................................................................................13
5. USER INTERFACE........................................................................................................................15
6. SECTION GUIDE - HOME............................................................................................................20
System Overview....................................................................................................................20
About RemotelyAnywhere...................................................................................................21
7. SECTION GUIDE - REMOTE CONTROL....................................................................................23
8. SECTION GUIDE - FILE TRANSFER.........................................................................................28
9. SECTION GUIDE - HELP DESK CHAT......................................................................................30
10. SECTION GUIDE - COMPUTER MANAGEMENT................................................................31
File Manager............................................................................................................................31
User Manager..........................................................................................................................32
Event Viewer...........................................................................................................................32
Services & Drivers.................................................................................................................33
Proceses..................................................................................................................................34
Registry Editor.......................................................................................................................35
Command Prompt..................................................................................................................35
Reboot......................................................................................................................................36
11. SECTION GUIDE - COMPUTER SETTINGS...........................................................................38
Environment Variables..........................................................................................................38
Virtual Memory.......................................................................................................................38
Time..........................................................................................................................................39
Automatic Login.....................................................................................................................39
Shared Resources..................................................................................................................39
Automatic Priorities..............................................................................................................40
12. SECTION GUIDE - SERVER FUNCTIONS.............................................................................41
FTP Server...............................................................................................................................41
FTP Server Configuration.....................................................................................................41
FTP Server Status.................................................................................................................56
FTP Statistics.........................................................................................................................57
PortForwardingServer...........................................................................................................57
Port Forwarding Configuration.............................................................................................57
Port Forwarding Status.........................................................................................................59
Active Directory......................................................................................................................69
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 2
Contents
13. SECTION GUIDE - SCHEDULING & ALERTS.......................................................................61
System Monitoring................................................................................................................61
Email Alerts............................................................................................................................62
Task Scheduler........................................................................................................................63
Scripting..................................................................................................................................63
14. SECTION GUIDE - PERFORMANCE MONITORING...........................................................65
CPU Load.................................................................................................................................65
Memory Load..........................................................................................................................66
Disk Space...............................................................................................................................66
Drive & Partition Info............................................................................................................66
Open TCP/IP Ports................................................................................................................66
Network...................................................................................................................................66
PCI Information......................................................................................................................66
Open Files................................................................................................................................66
Registry Keys in Use.............................................................................................................66
DLLS in Use.............................................................................................................................66
RemotelyAnywhere Connections.........................................................................................67
Telnet/SSH Connections.......................................................................................................67
Installed Applications............................................................................................................67
Motherboard Status...............................................................................................................67
15. SECTION GUIDE - SECURITY................................................................................................68
Access Control........................................................................................................................68
IP Address Lockout...............................................................................................................71
IP Filtering..............................................................................................................................72
RemotelyAnywhere Logs......................................................................................................73
SSL Setup................................................................................................................................74
16. SECTION GUIDE - PREFERENCES.......................................................................................76
Appearance.............................................................................................................................76
Network...................................................................................................................................77
Colors.......................................................................................................................................80
Log Settings............................................................................................................................80
ODBC Messages......................................................................................................................81
License.....................................................................................................................................82
Remote Control......................................................................................................................82
Telnet Server...........................................................................................................................84
SSH Server..............................................................................................................................86
Network Maintenance............................................................................................................88
17. COMMAND LINE PARAMETERS............................................................................................89
18. PDA ACCESS..................................................................................................................................93
19. WAP ACCESS................................................................................................................................98
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 3
1. What is RemotelyAnywhere
Server Edition?
RemotelyAnywhere Server Edition allows secure remote access to and administration of your
servers. No special client software is required on your local machine, and it is closely integrated
with Windows NT/2000/XP security.
DIAGNOSTIC TOOLSET
RemotelyAnywhere Server Edition provides real-time performance, connection, hardware and
registry information so you know exactly what’s going on and when. This gives you access to the
nuts and bolts of your system so that you can perform the diagnostic tests you need in order to
keep your servers running smoothly.
AUTOMATIC MONITORING & ALERTS
Catch problems in time before they critical. If you’re running out of disk space, find out about
it quickly with an automated email. Set it up so that you will be alerted to unauthorized login
attempts with an SMS message to your mobile phone. You can tailor it all to your needs.
INDUSTRY LEADING SECURITY
RemotelyAnywhere sets the standard for security. Protect your servers from unauthorized logins
or Denial Of Service attacks with configurable IP filtering and IP lockout tools. Plus, all events
are logged to a central machine so you can review them easily. RemotelyAnywhere works in
conjunction with your Windows security system. All data transferred is protected with 128-bit SSL
encryption.
PORT FORWARDING
RemotelyAnywhere’s port forwarding server is a convenient way to direct traffic between LAN
segments, or from outside the network to computers on the LAN, without resorting to costly
hardware solutions. RemotelyAnywhere Server Edition’s port forwarding interface allows for
fast, flexible, on-the-fly configuration. What’s more, when port forwarding is set up between
RemotelyAnywhere Server Edition installations, all traffic between the two can be compressed and
then encrypted using 128-bit SSL. It’s a cost-effective and scalable solution that lets you establish
secure communication channels between and within networks.
SMALL FOOTPRINT
RemotelyAnywhere Server Edition has an extremely small footprint. You get the benefits of
RemotelyAnywhere’s remote access and system monitoring without sacrificing memory or
processing resources.
GLOBAL ADMINISTRATION
Administer any of your servers, anywhere in the world, from anywhere in the world. You have
complete access to the entire machine using a light html interface that means you can spend your
time on your work and not waiting for things to happen.
NO CLIENT SOFTWARE REQUIRED
RemotelyAnywhere Server Edition uses html and secure java applets so that you can access your
servers from anywhere. You do not have to pre-install any client software. You can even perform
many tasks using a web-enabled mobile phone.
DIAGNOSTIC TOOLSET
- Realtime performance, network, hardware and registry information
- Service Manager with service account and dependencies
- Driver Manager with dependencies
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_eeguide.pdf
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 4
1. What is RemotelyAnywhere
Server Edition?
- Comprehensive User Manager
- Full Registry Editor with ACL support
- Virtual Memory settings
- Resource availability
- Emergency reboot
- Task scheduling
AUTOMATIC MONITORING, ALERTS, AND RECOVERY
- Realtime performance, resource, security, and event monitoring
- Script-defined alerts and warnings
- Powerful and flexible scripting language
- Automatic start of recovery procedures
- Alerts can be delivered online, via email, or text (SMS) messages
ADVANCED SECURITY FEATURES
- All communication is encrypted using 128-bit SSL
- All events including unauthenticated connection attempts are logged to central syslog server
- IP lockout of machines with a configurable number of unsuccessful logon attempts
- Security alerts and notification sent to IT managers
- Integrated Windows authentication
- RSA support
ALWAYS ON PERFORMANCE
- Small memory footprint
- Low resource usage
- Automatic restart of RemotelyAnywhere service
ACCESS FROM EVERYWHERE
- RemotelyAnywhere can be accessed with or without client software
- All diagnostic and administrative toolset features are presented using a fast, simple HTML
interface
- Fully customizable interfaces support standard, light, and handheld/WAP browsers
- No client software needed
ADDITIONAL FEATURES
- Full support for XP Fast User Switching and Terminal Server
- Custom HTTP pages can be delivered from each workstation running RemotelyAnywhere
without additional HTTP server
- Automatic check for upgrades
- User-defined colors and layouts
- User-defined quick links to the features you use most
SYSTEM REQUIREMENTS
- RemotelyAnywhere can be used to remotely control and manage any computer running
Windows XP/2000/ NT4 and now Windows 98/ME. Some features, however will not appear on
Windows 98/ME machines, and this will be indicated in the manual
- The computer can be accessed from any device which has a Web browser, regardless of the
operating system
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 5
2. Acknowledgements
OpenSSL
RemotelyAnywhere includes cryptographic software developed by the OpenSSL Project for use in
the OpenSSL Toolkit. For more information visit: http://www.openssl.org
OpenSSH
RemotelyAnywhere uses cryptographic software developed by the OpenSSH group. For more
information visit: http://www.openssh.org
CompuPhase
RemotelyAnywhere includes scripting software developed by ITB CompuPhase. The Small
language, its interpreter and compiler are copyright © Thiadmer Riemersma, ITB CompuPhase,
1998-2000, The Netherlands. For more information visit: http://www.compuphase.com/small.htm
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_eeguide.pdf
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 6
3. Getting Started
1. About RemotelyAnywhere
RemotelyAnywhere is the perfect choice for anyone who has ever needed to access and control a
PC or server from elsewhere, be it from down the hall or from halfway around the world. All that
is required to control a PC or server is a web browser or WAP-enabled wireless device.
RemotelyAnywhere is a remote administration tool that lets you control and administer
Microsoft® Windows® -based computers over a local area network or the Internet. Originally
designed for network administrators by network administrators, RemotelyAnywhere has since
evolved to offer a wide variety of remote computing solutions for an equally wide variety of users.
Today, RemotelyAnywhere provides such useful capabilities as Java-based desktop remote control,
file transfer protocol (FTP) for downloading and uploading of files, configuration of the host
computer, remote-to-local printing, advanced scripting, and dozens of other features fully detailed
in the rest of this manual.
RemotelyAnywhere acts as the host software on the machine that is to be controlled or accessed.
The client (the remote computer that is used to access the host) requires no special software.
The client software is any Java-enabled web browser, such as Internet Explorer (IE) or Netscape
Navigator (versions 3 or above). Many RemotelyAnywhere features can also be accessed and
controlled using such client software as that found in handheld PDAs and WAP-enabled mobile
telephones.
ABOUT THIS CHAPTER
This chapter walks you through the process of setting up and accessing your host computer
through RemotelyAnywhere.
The chapter covers:
• Installing the RemotelyAnywhere software on the machine that you wish to remotely
control, including:
-Default installation configurations
-Custom installation configurations
• Activating the software following installation.
• Accessing the host computer from a local area network (LAN) or over the Internet.
• Logging into the host machine, and the special options available.
• Bypassing the Login screen.
• Special settings required to access RemotelyAnywhere through a firewall.
2. Installation of RemotelyAnywhere
DEFAULT INSTALLATION
Step 1. If you have not already downloaded RemotelyAnywhere, locate and download
remotelyanywhere.zip from http://www.RemotelyAnywhere.com/downloads.htm.
Step 2. Execute remotelyanywhere.msi, found in the downloaded .zip archive.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_eeguide.pdf
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 7
3. Getting Started
Step 3. On the Welcome screen, select Next.
Step 4. On the License Agreement screen, select I Agree if you agree to the terms and conditions.
If you do not accept these terms, you can exit the setup by clicking the Cancel button.
Step 5. The Software Options screen appears next. If the default listening port is acceptable, click
Next. For more information regarding customizing RemotelyAnywhere during installation, see
Custom Installation below.
Step 6. The setup will then ask for confirmation of the destination location for the files for
RemotelyAnywhere.
If you wish to change the destination folder, select the Browse option. Select Next to confirm the
destination folder.
Step 7. In order to start copying the files to their destination folder (selected in step 6 above) click
Next.
Step 8. Select Finish to complete the Setup.
CUSTOM INSTALLATION
Step 1. Follow steps 1 – 4 above of the Default Installation.
Step 2. The Software Options screen allows the user to specify the listening port for use by
RemotelyAnywhere.
If the default port used by RemotelyAnywhere (2000) conflicts with an existing application
or service, the user may change it here. If the person installing RemotelyAnywhere is not the
Network Administrator, the Network Administrator should be consulted before a port is assigned.
This screen also allows the user to copy configuration settings from an existing
RemotelyAnywhere installation.
After all options have been configured satisfactorily, select Next.
Step 3. Continue with steps 6 – 9 outlined above for the Default Installation.
3. Software Activation
Once you have installed RemotelyAnywhere following the instructions above you will then need to
activate it.
If you have already purchased a license you will be able to paste it into the space provided and
activate the software straightaway.
If you have not purchased a license but would like to do so, you will be given the option to do this on
the software activation screen. If you purchase online your license would be delivered immediately,
so you can activate your software without delay. Alternatively, you may want to contact our sales
department on [email protected] or by calling 1 866 800 0758 (toll free U.S.) or +36 1
336 1324 (international).
If you’d prefer to try the software before purchasing you are entitled to a 30 day evaluation period.
Just select “I would like a free trial” on the software activation screen and follow the instructions.
You will need to be connected to the Internet to activate your free trial.
The RemotelyAnywhere free trial uses an identifier value from your machine to control the number
of evaluation licenses a single computer can receive. It is generated by passing unique data related
to your computer through a one-way cryptographic hash function. The ID generated with this
algorithm does not identify you or any component of your computer system. You can think of this
as a unique ticket that your machine receives.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 8
3. Getting Started
4. Accessing RemotelyAnywhere
When the installation is complete, the default Internet browser will open with the address of
http://MachineName:2000.
To access the host machine from a different machine, open an Internet browser and enter
http://111.111.11.1:2000 on the Location/Address line. The “111.111.11.1” represents the IP address
of the host machine. The “2000” represents the default port shown on the Software Options
screen during installation. If you changed this port during installation, then use that port when
accessing RemotelyAnywhere. On the same network the machine name can also be used.
On the host itself you can also access a machine by entering the loopback address http://127.0.0.1:
2000 at the Location/Address line. This address allows the user to communicate with the
RemotelyAnywhere installation only at the machine on which it is installed.
ABOUT DYNAMIC IP ADDRESSES
Many DSL and cable internet connections assign your machine a new IP address each time you
connect to the internet. This is known as a Dynamic IP address. RemotelyAnywhere will work if
you have a dynamic IP (DNS) address, but RemotelyAnywhere needs to be able to track your IP
address so that if it changes, the connection can be maintained. There are dynamic DNS solutions
available, often for free, which means your machine can be assigned a fully qualified and static
domain name regardless of your IP address.
Alternatively, Under Preferences > Network you can configure RemotelyAnywhere to send you an
e-mail message pointing to the IP address of your remote host every time it detects a change. This
way, you always know where to find your remote computer.
5. Logging In
After entering the URL into your browser and pressing enter, you will reach the
RemotelyAnywhere Login screen.
RemotelyAnywhere will access the user database to authenticate the user. Initially, you will need
to log on as someone who is a member of the Administrators group. Later you can change this
default behavior by granting NT users or groups access to RemotelyAnywhere under Security >
Access Control.
Win98 and ME users need to specify their user name during installation. If they do not, the
default user name will be the machine name, and the password field will be blank.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 9
3. Getting Started
NTLM: By clicking on the NTLM button you can use your current Windows login credentials to
verify your identity on the host computer. This only works when accessing a Windows NT/2000
or XP computer. It will use your current credentials (those you entered at the NT logon prompt on
the computer running your browser) to identify you to the remote computer. This is only available
on local networks.
RSA Support: RemotelyAnywhere now supports RSA security. RSA SecurID offers an extra
physical layer of security by demanding conclusive proof of a user’s identity. If your remote
machine has RSA installed the option to use this powerful authentication method will be available
on the login screen. For more information please see http://www.rsasecurity.com/products/
securid/index.html.
ADVANCED LOGIN OPTIONS
By clicking on Show Advanced Options in the login window a number of additional options
become available:
Go directly to - Using these buttons you can select whether you want to go directly into Remote
Control, to File Transfer & Synchronization or to the Main Menu page - this last option being the
default.
Full and Light Interfaces – You can choose between the full and light interfaces.
RemotelyAnywhere’s full interface is for DHTML capable browsers. The light interface is more
suitable for old browsers or users with slow connections.
SSL – If you set up SSL Support for RemotelyAnywhere all traffic between the host and the
remote computer will be encrypted using industry-strength 128-bit ciphers, protecting your
passwords and data. You can do this easily by going to Security, clicking on SSL Setup, and
following the step-by-step instructions there. More information about this can be found in this
manual’s Section Guide.
Language Option – With RemotelyAnywhere version 5 you are now able to select the language of
your choice when logging in. German, Italian, and Chinese are already available, and more will be
available soon.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 10
3. Getting Started
BYPASSING THE LOGIN SCREEN
You can force an NTLM login – and thus bypass the login screen entirely – by appending
“/ntlm/” to the URL with which you access RemotelyAnywhere. For example, the URL http://
MAILSERVER:2000 would become http://MAILSERVER:2000/ntlm/. Be careful not to forget the
trailing slash!
You can also use this method to bypass the menu system and access certain parts of
RemotelyAnywhere directly. Here are some URLs as an example:
Remote Control:
http://your.machine.here:2000/ntlm/remctrl.html
Command Prompt:
http://your.machine.here:2000/ntlm/telnet.html
Chat:
http://your.machine.here:2000/ntlm/chat.html
Similarly, you can specify your username and password in the URL – thus forcing a normal login
– by appending the credentials in a “/login:username:password:domain/” form to the URL with
which you access RemotelyAnywhere. For example, the URL http://MAILSERVER:2000 would
become http://MAILSERVER:2000/login:username:password:domain/. Yet again, be careful not
to forget the trailing slash!
The Windows NT domain you are logging in to is optional. If omitted, RemotelyAnywhere will
try to authenticate you on the computer on which it’s running, then in the domain to which it
belongs. Here are some URLS as an example:
Remote Control:
http://your.machine.here:2000/login:yourloginname:yourpassword/remctrl.html
Command Prompt:
http://your.machine.here:2000/login:yourloginname:yourpassword/telnet.html
Chat:
http://your.machine.here:2000/login:yourloginname:yourpassword/chat.html
6. Accessing RemotelyAnywhere through a firewall
Most corporations today employ certain security measures to protect their computer networks
from hostile intrusion. One of the common measures includes creating a firewall. A firewall is a
system designed to prevent unauthorized access to a private (internal) network. Firewalls can be
implemented either as hardware or software, or a combination of the two.
The most common use of a firewall is to prevent unauthorized intrusion from Internet users
attempting to access a private network or Intranet. A firewall examines all traffic entering or
leaving the internal network/Intranet, ensuring that traffic meets security criteria established by
the Network Administrator.
RemotelyAnywhere can be configured to work with a computer protected by a firewall. This
requires mapping an external, incoming port on the firewall to the internal IP and port on the
computer running RemotelyAnywhere.
From outside your LAN, you would gain access to the computer running RemotelyAnywhere
by entering the router’s IP address and the port to which the desired machine is mapped. For
example:
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 11
3. Getting Started
Router:
External IP address: 111.111.111.111
RemotelyAnywhere computer:
IP address: 192.168.0.10, Port: 2000
(port 2000 is the default but this can also be changed)
STEP 1: MAP A FIREWALL PORT TO THE COMPUTER
In this case, you would pick a port on the router (say, 5200) and map it to 192.168.0.10:2000.
The procedure for mapping ports from routers to computers is router-specific. Usually your router
will have a web-based interface that allows you to configure and maintain it. Sometimes router
companies refer to this action as Port Forwarding or Port Mapping.
STEP 2: ACCESS REMOTELYANYWHERE THROUGH THE FIREWALL
Having done the above, you will now be able to fully access the RemotelyAnywhere computer with
the URL http://111.111.111.111:5200 - that is the firewall’s external IP, followed by the port you
mapped to the RemotelyAnywhere machine.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 12
4. What’s New in
RemotelyAnywhere Version 5
If you’re new to RemotelyAnywhere then you can skip this chapter and go straight to the next one.
This chapter is a summary of the new features that set RemotelyAnywhere version 5 apart from its
predecessor.
3 Flavors RemotelyAnywhere version 5 comes in 3 distinct flavors to suit your remote
administration needs.
This manual is for RemotelyAnywhere Server Edition, the professional solution for monitoring
and administering your servers.
Improved User Interface The most obvious change when you first start up RemotelyAnywhere
version 5 will be the new look user interface. You can read more about this in the next chapter. As
with RemotelyAnywhere version 4 the colors are fully configurable under Preferences > Colors.
You can even change it back to the old green and blue interface if you prefer!
RSA SecureID support By requiring conclusive proof of a user’s identity, RemotelyAnywhere and
RSA SecurID turns away intruders and establishs accountability for authorized users.
In short, it mitigates two of the major risks of e-business: identity fraud by outsiders and hardto-detect misdeeds by insiders. This makes RemotelyAnywhere one of the most secure remote
administration tools available.
QuickLinks You can now add direct links to any area of RemotelyAnywhere and access them from
every screen.
Remote Printing Whilst controlling a computer remotely you can now print directly to a local
printer.
Automatic emails for dynamic IP users RemotelyAnywhere can now keep track of the IP address
of the remote computer and send it to a specified email address whenever it changes.
File Transfer Interface Much more intuitive interface with the ability to sort by file name, date or
size.
File Transfer Functions Folder Synchronization may make your life a lot easier.
Fast User Switching RemotelyAnywhere version 5 now supports Windows XP’s Fast User
Switching and terminal services.
Improved Remote Control You can now change the color and resolution settings for Remote
Control on the fly.
Configurable Emailer Automatic emailing for event logs etc can now be configured to be sent
from a particular email account.
Sun Java Version 5 fully supports Sun Java.
Improved File Manager On the fly folder compression for full folder downloads.
Syslog Support You can now configure RemotelyAnywhere to log events to a central location.
Multi-Language Support Version 5 is available in a number of world languages, including
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_eeguide.pdf
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 13
4. What’s New in
RemotelyAnywhere Version 5
German Italian and Chinese, with more to follow.
Full and Light Interfaces Options to view the remote machine with a DHTML capable browser,
or with a light interface suitable for older browsers and slow connections.
Scheduled Reboots In addition to RemotelyAnywhere’s reboot features, the remote machine can
now be scheduled to reboot at a specified time.
Denial of Service Filter RemotelyAnywhere’s IP Address Lockout feature has been updated
in order to fend off attacks from unwanted intruders who tie up your system resources with
persistent service requests.
PDA Support With the launch of RemotelyAnywhere version 5.2 enhanced PDA support is now
built into the software as detailed in the PDA Access chapter of this manual. You can access your
remote systems via a PDA and perform many of RemotelyAnywhere’s administrative functions,
including network maintenance.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 14
5. User Interface
User Interface
The completely updated user interface is designed to make using RemotelyAnywhere quicker and
easier than ever before. The best reference for using RemotelyAnywhere are the Section Guides
which follow this chapter. There the functionality of every feature is detailed at length. In this
chapter, however, we will outline those interface features that are consistent throughout the tool.
When you start up RemotelyAnywhere 5 this is what you’ll see:
THE MENU
Every page of RemotelyAnywhere can be reached from the left hand menu tree. The menu tree
is expandable and collapsible like Windows Explorer so you can find the pages you need quickly.
There are new categories for RemotelyAnywhere’s extensive range of features so that the tool’s
functionality is now more transparent than ever before. These are shown at the top of the next
page.
The sub-sections of each of the above categories are labeled as follows in the menu:
This means that the page contains data that can be modified. It is a configurable page.
This icon shows that a page just displays data. Although you may be able to refresh the page in
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_eeguide.pdf
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 15
5. User Interface
order to get the latest data, you cannot interact with or in anyway modify what is shown from this
location.
For more information about the above sections, please refer to this manual’s Section Guide.
PERFORMANCE DATA VIEWER
On every page of RemotelyAnywhere you can see a real-time Performance Data Viewer. This java
applet is to the right of the RemotelyAnywhere logo in the top frame. It shows CPU load (green)
and Memory load (red) and is updated every few seconds so you can get instant feedback on the
effects of performance intensive processes.
This graph can be disabled under Preferences > Appearance.
QUICKLINKS
QuickLinks are another new feature accessible from every page of RemotelyAnywhere. You can
add your favorite pages to the QuickLinks drop down menu wherever you see the star icon in the
tool bar of the page you are viewing. You can also edit your QuickLinks by clicking on —Edit your
QuickLinks – in the QuickLinks drop-down menu.
The QuickLinks menu is situated in the top frame of the page so that your favorite pages are
always only a click away. They are also listed on the System Overview tab of Home page.
LOG OUT
You can Log Out from RemotelyAnywhere via the red Log Out button in the top right corner of the
screen, to the right of your computer’s name. If you are inactive for 10 minutes you will be logged
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 16
5. User Interface
out automatically. The session timeout time can be modified under Security > Access Control.
TIME
The time on the remote machine is displayed above the log out button.
THE MAIN CONTENT WINDOW
The main content window is where you’ll do most of your interaction with the host machine
via RemotelyAnywhere. For the most part this should be self explanatory. The Remote Control
window can be detached from the main pane – you will read more about this in the relevant part
of the Section Guide.
On most pages you’ll see a tool bar at the top. Below is a quick key to the buttons you’ll encounter
on these toolbars. For more information about commands specific to certain pages, see Section
Guide - Remote Control.
SYSTEM TRAY ICON
RemotelyAnywhere includes a system tray icon that serves multiple purposes. This icon can be
fully configured via the Preferences > Systray Settings screen.
The icon will blink whenever someone is accessing the computer with RemotelyAnywhere.
Double-clicking the tray icon will bring up a dialog, that shows the most recent events that have
occurred within RemotelyAnywhere.
A user sitting at a Windows XP host computer will be notified of remote printing:
Right-clicking the RemotelyAnywhere icon will bring up the following menu:
Open RemotelyAnywhere This option will open the dialogue shown at the top of the next page.
Open RemotelyAnywhere Web Interface This option will start up RemotelyAnywhere on the
local host and log you in using NTLM.
Open Status Window TThis option opens a window that updates you on the current status of
RemotelyAnywhere.
Enable/Disable RemotelyAnywhere Here you can turn the RemotelyAnywhere service on and
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 17
5. User Interface
off at will.
The above dialog is displayed when you click on Open RemotelyAnywhere in the menu available
from the systray icon or from your Start menu. In addition to the other context menu items
(open the web interface, enable/disable RemotelyAnywhere) you can see if RemotelyAnywhere is
currently being accessed, and access the documentation (including this guide). You will also be
alerted via this screen if RemotelyAnywhere’s license has expired or the software has not been
activated.
Enable/Disable Status Indicators Here you can enable or disable the memory and CPU usage
indicators.
About... This command brings up RemotelyAnywhere’s HTML About box.
Show Performance Windows This item will open the following submenu:
In this menu, you are given a selection of performance indicators to display on your desktop.
What actually appears in this menu is based on the performance data RemotelyAnywhere is able
to collect. The software automatically collects performance data on CPU usage (total and broken
down by individual CPU on SMP systems), and various memory counters.
When you select an item from this menu, a window will pop up, similar to that shown at the top
of the next page.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 18
5. User Interface
Double-clicking the performance window will shrink it to a smaller format:
You can have as many of these windows up on your screen as you want. They are persistent – that
is, they will automatically appear in their previous position following a reboot.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 19
6. Section Guide - Home
Home
Home is the page that you’ll see when you first start up RemotelyAnywhere. There you will find a
useful at-a-glance System Overview, and more general information about RemotelyAnywhere itself
is available if you click on the About RemotelyAnywhere tab.
System Overview
When you first start up RemotelyAnywhere you will see the System Overview tab of the
RemotelyAnywhere homepage. It contains a multitude of useful information about the host
computer.
Welcome At the top of the page you’ll see a welcome message which displays your basic licensee
information as well as who you’re logged in as. The date and time of the host machine is also
displayed. If you click on the date and time (highlighted in blue) you’ll be taken to a page where
you can set the time on that machine. This page is normally accessible under Computer Settings >
Time in the left hand menu.
Information about when the machine was last rebooted, how long it’s been running, and how
much data has been sent to how many clients is also shown here.
Security In the top right corner of the System Overview section of the RemotelyAnywhere Home
page you can see a summary of your security data. This includes the authentification method
used to log in and information on the Secure Sockets Layer (SSL) connection. More information
on SSL can be found later in this manual.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 20
6. Section Guide - Home
QuickLinks QuickLinks are a new addition to RemotelyAnywhere version 5, designed to make
things even quicker and easier. Displayed in the blue box on the right hand side of the home page,
you can add any page of RemotelyAnywhere to QuickLinks so that your favorite or most often
used sections are always only a click away from log in.
QuickLinks are also diplayed in a dropdown in the upper frame of every page so you can always
select your favorite pages quickly.
To add a QuickLink, just click on the QuickLinks icon, which appears on every page. To remove a
QuickLink, select —Edit your QuickLinks – from the drop down menu.
Performance The performance graph details memory usage (in fact, this section was called
Memory in previous releases of RemotelyAnywhere). Data about the physical and committed
memory are displayed in an easy to read green and red graph.
Current Connections Here you can see data on any current connections on the host machine.
Most Recent Accesses Here you can see information about the users who have most recently
accessed RemotelyAnywhere on this computer.
System Information Here you can see information on the computer itself, including the current
CPU utilization.
Operating System An overview of the operating system of the accessed machine is displayed
here, including when it was installed.
Installed Hotfixes Here you can see a list of the Hotfixes that have been installed on the machine.
Click on the Hotfix name for more information about that particular Hotfix.
About RemotelyAnywhere
Behind the System Overview tab you will see the About RemotelyAnywhere tab. Here you
can find out information about the software, updates, the company, and this very manual. It
also presents you with more detailed license information, so you can find out who this copy of
RemotelyAnywhere is registered to, and for how many machines.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 21
6. Section Guide - Home
News The News panel exists to notify you of any important news about RemotelyAnywhere.
This will most often consist of any updates we make so you can make sure you always have the
most up to date release, but could also notifiy you of Windows vulnerabilities and so on. News
items are retrieved by your browser from our website. Whenever a news item is posted the About
RemotelyAnywhere tab will flash to alert you to the update.
If you’d prefer not to see the News panel on this page, click on the Delete icon on the right and it
will disappear. You can re-enable it easily by clicking on Show News.
Licensee Information The About RemotelyAnywhere tab also displays your licensee data. It tells
you who the software is licensed to, how many installations it is valid for, and the license ID. You
might need to quote your license ID if contacting the RemotelyAnywhere support desk.
If you need to see the full license file, you can see it under Preferences > License in the left hand
menu.
RemotelyAnywhere Users Manual You can bring up this manual for your reference at any time
via the About RemotelyAnywhere tab. This should be your first stop when looking for information
about the software.
RemotelyAnywhere.com There is also a link to our site so you can find out more about this and
other products in the RemotelyAnywhere range. Here you’ll also find our support pages, along
with a comprehensive FAQ section and contact details. If the answer isn’t in this manual you may
well find it there.
SMALL Documentation Documentation on the scripting language used with RemotelyAnywhere
is also available from here. RemotelyAnywhere specific extensions to this language will be covered
later in this manual.
Software License The legal terms and conditions of your license are published here for your
reference. General copyright data is also displayed on this page.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 22
7. Section Guide Remote Control
Remote Control
One of the main features of RemotelyAnywhere is its advanced ability to remotely control the
computer on which it is installed, thus enabling you to authentically replicate the experience of
sitting in front of the host computer — regardless of where you actually are in the world.
When you select Remote Control a small Java applet is downloaded which will display the screen
of the remote computer. Your actions, such as keyboard usage and mouse movement are emulated
by RemotelyAnywhere on the screen and on the remote computer. The java applet downloads
automatically. Depending on your browser settings, you may see a popup window asking you to
accept or reject this. You should accept it in order to use Remote Control.
When typing or using your mouse it will be exactly as if you were sitting in front of the remote
machine. The only real difference will be a few RemotelyAnywhere specific tools which appear at
the top of the remote control window, detailed below.
The Menu
In the top left corner of the remote control screen you will see the menu:
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 23
7. Section Guide Remote Control
SEND SPECIAL KEYS
Some actions, such as sending Ctrl-Alt-Delete, cannot be captured by the applet, but you can still
send them via the menu. If you select Send Special Keys you will gain access to a whole list of
special key combinations you might want to send to the host computer.
FULL SCREEN REMOTE SESSIONS
Also available in the menu is the Full Screen option. This detaches the remote window allowing
you greater flexibility. When in full screen mode you can easily switch back to the standard
RemotelyAnywhere frame by selecting Exit Full Screen.
You can also do this with the close and maximize icons in the top right corner of the remote
window.
DISPLAY PROPERTIES
You can modify the remote screen’s display properties via the menu as well. There are drop down
menus for color and screen resolution, as well as a zoom option that allows you to view the screen
all the way up to 300% of its original size.
For the best performance during remote control you should set the remote machine’s screen
resolution down to the lowest, still convenient value.
It is also recommended that you do not use 16-bit (hi-color, 65536 colors) for the remote host’s
display. Use either 256 colors or true color. Converting 16-bit color bitmaps down to the internal
format is rather slow, and has an impact on performance.
REMOTE CLIPBOARD
Another useful option available from the menu is the ability to transfer your clipboards between
machines, thus allowing you to copy from one machine and paste on the other.
For example, if you copy some text on the local machine, then select from the menu on the remote
screen Transfer Clipboard > Local to Host. The same applies the other way around, but you would
select Host to Local in order to transfer your clipboard between machines.
The limit is 8 mb in both directions. If the clipboard is larger it won’t do anything. On the MS
JVM it only supports Unicode text. With Sun, it also works with bitmaps.
CHAT
Using this feature you can chat with an interactive user of the remote host. Having clicked on the
Chat button a dialog field opens beneath the toolbar wherein you can enter and send messages.
These messages will be displayed on the remote desktop, much as with RemotelyAnywhere’s Help
Desk Chat feature, which is documented later in this manual.
TERMINAL SERVERS
This feature enables you to attach your remote control connection to an existing terminal server
session. By default, RemotelyAnywhere reads the display output in order to show the remote
desktop. Terminal server sessions are not included in this display output. In effect, they are
hidden from the desktop, but RemotelyAnywhere is able to display and interact with them in a way
that would not ordinarily be available to an interactive user of the host machine.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 24
7. Section Guide Remote Control
REMOTE CONTROL TOOLBAR
In addition to the Menu options and the ability to change screen resolution and magnification on
the fly, the following options are available via the remote control toolbar:
Send Ctrl+Alt+Delete. This option is found under the Menu option during browser based
RemotelyAnywhere Remote Control, and you’ll need this to unlock a remote machine.
Network Here you can configure your link speed options. We recommend the Auto setting, but it
is possible to force the link speed.
REMOTE NOTIFICATION
When you initiate a remote control session a notification message will appear on the remote
screen. If you do not have full administrative rights on the remote machine, a user sitting there
would be invited to decline or accept the remote session, with a default time of 10 seconds before
you would be connected automatically. You can configure both the message displayed and the
amount of time given to make a decision under Preferences > Remote Control.
When a remote session is in progress, a small window in the top right corner of the remote screen
is displayed stating who is currently remotely connected to the machine. This message can also be
configured under Preferences > Remote Control.
REMOTE PRINTING
When connected to the remote machine, and if you have remote printing enabled (under
Preferences > Remote Control) that machine’s default printer will temporarily become that of your
local machine. This means that should you choose to print anything from the remote machine,
you will receive it on your local printer.
A user sitting at the remote machine would be notified of this change.
REMOTE CONTROL PREFERENCES
There are a number of special features you can use to configure your remote control sessions
under preferences. These are detailed in the Preferences section towards the end of this chapter
under Preferences > Remote Control.
Screenshot-based Remote Control
If the client you are using is not java-enabled, or for whichever reason your connection is just too
slow, you might want to make use of Screenshot-based Remote Control.
In order to use this feature you’ll first need to set it as the default for Remote Control under
Preferences > Remote Control. You can switch back to Java Remote Control (the standard for realtime control) any time, although you cannot switch from Java straight to Screenshot-based.
If you have Screenshot-based Remote Control enabled, this is what you’ll see when you click on
Remote Control in the left hand menu:
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 25
7. Section Guide Remote Control
The remote screen is a clickable image map, with which you can interact right on the page to some
extent (clicking on buttons, right clicking) but for the most part you will have to use the toolbar at
the top.
To enter text on the remote screen, you have to enter it in the send keys field in the toolbar and click
send. Checking the box next to this field enables you to enter special characters and simulate special
keys. Each key is represented by one or more characters. To specify a single keyboard character,
use the character itself. The plus sign (+), caret (^), percent sign (%), tilde (~), and braces { } have
special meanings to this function. To specify one of these characters, enclose it within braces ({}).
For example, to specify the plus sign, use {+}. To specify brace characters, use {{} and {}}.
To send special key combinations such as Ctrl+Alt+Delete, use the drop down menu to the right of
the send keys field.
To specify characters that aren’t displayed when you press a key, such as Enter or Tab, and keys that
represent actions rather than characters, use the codes shown below:
Key Code
Backspace
Caps Lock
Del
Down Arrow
End
Enter
Home
Insert
Left Arrow
Num Lock
Page Down
Page Up
Right Arrow
Scroll Lock
Tab
Up Arrow
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
{BACKSPACE}, {BS}, or {BKSP}
{CAPSLOCK}
{DELETE} or {DEL}
{DOWN}
{END}
{ENTER} or ~ ESC {ESC}
{HOME}
{INSERT} or {INS}
{LEFT}
{NUMLOCK}
{PGDN}
{PGUP}
{RIGHT}
{SCROLLLOCK}
{TAB}
{UP}
•
Send support questions to: [email protected]
Page 26
7. Section Guide Remote Control
F1 to F24
{F1} to {F24}
To specify keys combined with any combination of the Shift, Ctrl, and Alt keys, precede the key code
with one or more of the following codes:
Key Code
Shift
Ctrl
Alt
+
^
%
For example, if you wanted to go to the beginning of an edit field, select the entire line, place it on
the clipboard, and overwrite it with something else then hit Enter, you would type:
{HOME}+{END}^cThis is the new text {ENTER}
This translates into pressing the Home key (going to the beginning to the field), pressing the Shift
and the End keys at the same time (selecting the entire field), pressing Ctrl+C (clipboard copy),
typing the new text and then hitting Enter.
Click on the Java-based Remote Control icon in the toolbar to switch to Java based Remote Control.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 27
8. Section Guide - File Transfer
File Transfer
With RemotelyAnywhere File Transfer you can quickly and securely transfer files between the
local and the remote computer.
All data transferred between the two computers is compressed and encrypted by the Java applet,
so you can be sure that it is secure.
As in the screenshot above, the screen is divided into two panels. The left hand panel shows
the file system of the computer running the web browser. The right panel displays the remote
computer’s file system.
You can use the icons at the top of the screen or your keyboard and mouse to operate the File
Transfer applet. There’s always an active and inactive panel and you can switch easily between
them with the Tab key.
Refresh You can refresh the list with the refreshbutton, or by pressing F5.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 28
8. Section Guide - File Transfer
Up You can go up to the parent directory by clicking on the Up button, or by pressing Backspace.
Goto Folder To go to a different folder click on the Goto folder button, or use the Ctrl+G key.
.combination.
Create folder You can create a new folder with the Create folder button or by pressing Ctrl+N.
Delete You can delete a folder or file with the delete button, or by pressing Delete on your
keyboard.
Rename You can rename a file or folder with the Rename button or by pressing F2.
Copy You can copy a file or folder with the copy button or by pressing Ctrl+C.
Move You can move a file or folder with the Move button or by pressing Ctrl+X.
Synchronize current folders By clicking on the Synchronize current folder button (or by pressing
Ctrl+S) you can synchronise the folders on local and remote machines.
Replicate Current folder These button allows you to synchronise one way from one folder to
another.
Select files You can select files with the Select files button or by pressing + on the number pad.
Deselect files You can also deselect files via the toolbar or with - on the number pad.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 29
9. Section Guide Help Desk Chat
Help Desk Chat
RemotelyAnywhere’s Help Desk Chat feature allows you to communicate with the user sitting
in front of the remote computer as you would with any instant messenger software. Thus
RemotelyAnywhere’s advanced diagnostic capabilities can be put to use while you’re remotely
connected.
The text you type appears in the upper pane of the chat window, the remote user’s in the lower.
You can copy and paste text from and to these windows.
In order for this feature to work there must be an interactive user logged in at the remote machine.
This functionality is implemented in a java applet which is similar to the screen that the remote
user will see.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 30
10. Section Guide Computer Management
Computer Management
Under Computer Management you can take advantage of a wealth of RemotelyAnywhere
administrative features including the File Manager, data on the Processes, Services and Drivers of
the remote machine and even rebooting.
File Manager
When you click on File Manager under System Administration in the menu this what you will
see:
The File Manager displays a list of all available drives, together with their capacity and available
space.
Clicking on the drive names will take you into the root directory of that drive, where all files and
directories are also links. Clicking on the name of a subdirectory will take you into it and produce
a listing. If you click on the name of a file, RemotelyAnywhere will send it to your browser.
You can select multiple consecutive files with the Shift key, or non-consecutive files with the Ctrl
key. Then, using the toolbar or by right-clicking you can copy, delete, or move the files.
By clicking the Execute button, RemotelyAnywhere will attempt to launch each selected file on the
host computer.
The Edit button lets you edit small text files right within your browser. This is useful for changing
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 31
10. Section Guide Computer Management
small configuration or batch files without downloading or uploading.
The Attributes button lets you change file attributes, such as Hidden, Read-Only, etc.
The Permissions button lets you specify new Windows NT permissions on the selected objects if
the file system supports it.
Clicking the Upload button lets you upload files to the current directory using your browser.
FIELDS DISPLAYED IN THE FILE MANAGER
Icon A small icon indicating the file type
Name File name and extension
Attributes File attributes (i.e. read-only, system, etc.)
Permissions Indicates what actions the user can perform on the object (i.e. read, write, change,
etc.)
Size File size
Created File creation time
Last modified Last modification time
Last accessed Last access (read or write) time
Owner The owner of the file
The following properties are also displayed as tooltips The name of the application that might
have this file open, if the file system supports compression, the amount of storage the file takes up
on disk and also the effectiveness of compression, if applicable
The Quick Jump field accepts a path name. Entering a directory (for example C:\Winnt\System32\
Drivers) and clicking on the Quick Jump button will immediately take you to the requested
location, without having to click your way there. This can be especially helpful over slow
connections.
Clicking on header fields will change the sorting order of the file list to the relevant column. For
example, to sort files by modification time rather than name, simply click on the header field for
that column. To sort in descending order, click the header field of the currently active sorting field
again.
XP/2000/NT4 only
User Manager
When you click on User Manager under System Administration in the menu you will be able to
access RemotelyAnywhere’s full-blown user manager. This supports all the features of NT’s builtin User Manger.
XP/2000/NT4 only
Event Viewer
If you select Event Viewer under Computer Management in the menu you can view the NT logs of
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 32
10. Section Guide Computer Management
the remote machine. This feature is very much like NT’s Event Viewer.
You’ll see a listing of log entries on your screen. Clicking on an entry will display its details.
You can choose to clear the contents of the log file by pressing the Delete button in the toolbar. If
you specify a filename, the event log will be backed up before being erased.
You can also have RemotelyAnywhere send email alerts to a specified email address when log
entries matching a given criteria are entered into any of the event logs.
See Scheduling & Alerts > Email Alerts for more information on this feature and its uses.
XP/2000/NT4 only
Services & Drivers
When you click on Services or Drivers under Computer Management you will see this:
The format of the Services and the Drivers lists are identical. These lists display the names and
statuses of all the services (or drivers) installed on the remote machine.
Clicking on the name will show you more detail about the selected object and allows you to control
it. You can also change its startup options. When specifying a user account to be used by a service,
it must be in DOMAIN\USER form. If you want to use a local user account, you can type .\USER.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 33
10. Section Guide Computer Management
In the list of objects, the status field shows Stopped, Running, Starting, Stopping, etc.
RemotelyAnywhere looks through the list of services and drivers, and if it finds one that is set to
start automatically but is not running, it will be marked in red. This alerts you to the fact that the
service should be running, but isn’t.
When you select a service you can drill down to find more information about their properties, and
stop, start or restart them.
Processes
When you click on Processes under Computer Management in the menu a window like this will
appear:
The output of this function will give you a listing of all processes running on the remote
computer.
The list is hierarchical: a parent process will have its child processes listed beneath it, with
indentation indicating relationships. Please note that this is for information purposes only, since
Windows reuses process IDs.
The following information is available either in the list, by clicking on an item, or as tooltips:
PID The internal Windows NT Process ID.
Name The name of the executable file with full path. This works as a link, and clicking on it will
give you some very detailed information on the process. On that page, you have the option of
changing the priority class or the processor affinity for the selected process. This data is arranged
under the following tabs for easy viewing: General, Threads, DLLs, Open Files, Registry Keys in
Use.
Version The version of the program, if given.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 34
10. Section Guide Computer Management
Description The description of what the program does, if given.
Memory Used The amount of memory in use by the process in kilobytes.
Created The date and time the process was started.
CPU Time The amount of CPU time (d hh:mm:ss) the process has used.
Priority The priority class of the process.
Type The type of the process (service or interactive).
Account The user account the process runs under.
End Process Clicking the End Process button will have RemotelyAnywhere kill the process. The
process will be terminated immediately.
The Refresh button will retrieve and display the latest process list.
Registry Editor
This option (System Administration > Registry Editor) enables you to edit the registry of the host
computer. First, the registry roots (HKCR, HKCU, HKLM, etc.) are displayed, and you can dig
down into them by clicking on their names.
Registry keys are displayed in a hierarchical tree. Key values are also displayed, with their name,
type and value.
You can edit values that are of either text (REG_SZ, REG_EXPAND_SZ or REG_MULTI_SZ) or
integer (REG_DWORD) type and REG_QWORD type values. Binary, etc. values are only displayed
but cannot be edited.
Using the buttons in the toolbar you can add a subkey, add a value or delete the currently opened
key.
Command Prompt
You can access a command prompt from within your browser by selecting Command Prompt
under Server Functions in the menu. The Telnet client, written as a Java applet, provides
encryption and data compression for security and speed. The Telnet and SSH server included
with RemotelyAnywhere lets you access a command prompt on a remote computer from terminal
emulator software or a web browser.
You can either use the Java Telnet client that’s part of RemotelyAnywhere, or any other terminal
emulator you like. There are several reasons to stick with our client:
It’s secure - it uses the same encryption that’s employed by the remote control module. It’s fast,
since it uses sophisticated data compression to achieve high throughput. And finally, it lets you
transfer keystrokes that terminal emulators don’t handle, such as the Alt key. You can also use
your mouse in console applications that support it.
If you decide to use a terminal emulator instead, you will need to connect to the Telnet port (23)
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 35
10. Section Guide Computer Management
or the SSH port (22). You can change the default listener ports in the configuration dialogs to any
available port. Should you need to send a special keystroke to the server, just press Ctrl-Q and a
virtual keyboard will pop up. You can then move the pointer over the desired key with the cursor
keys, and press Enter to send it. If you want to send a combination of several keys at the same
time, you can select the keys with Space, and then press Enter after selecting the last key of the
combination.
When a connection is initiated from a terminal emulator, you will be asked to log on.
This is handled automatically by SSH clients, so you need to enter your username and password
in the SSH client itself. RemotelyAnywhere currently supports the SSH1 and SSH2 protocols
with password authentication. To specify a Windows NT/2000 domain, you can enter it as part
of the username, separated from the actual login name with a backslash character. For example:
DOMAIN\Username.
With Telnet clients, you need to enter your credentials in clear text during the session. You are
asked for your username, password, and Windows NT/2000 domain.
After successfully logging in, you will be asked if you want full console support. If you answer
with No, you will only be able to use stream-mode programs - applications that take over the whole
console window, like Edit.com, Norton Commander, the Far file manager, etc. will not work.
However, if you are only planning to use command-line utilities, you can safely say No to this
question and you will be right at the command prompt.
If you answered yes to the previous question, you will be asked to specify the console window
size. A default value is provided for you. You should make sure that the terminal emulator you are
using supports it and is set to the size you enter here.
Finally, if you have an ANSI compliant terminal emulator, you can choose to use ANSI color
support during the session.
Should you disconnect your terminal emulator, or go to a different page in the browser window
containing the Telnet client applet, all applications you have running in the Telnet session are left
active.
You can reconnect to this Telnet session by simply logging in (or loading the applet) again. There
is a timeframe for this though: if you do not reconnect within an hour, all your telnet applications,
including the command shell, are terminated. You can change the timeout value from the default
one hour to anything you like in the configuration dialogs.
To close the Telnet session for good, type exit at the command prompt.
Reboot
When you click on Reboot under System Administration in the menu this what you will see:
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 36
10. Section Guide Computer Management
With this feature you can reboot the machine. You have five choices.
Restart RemotelyAnywhere Restarts the RemotelyAnywhere service. It does not reboot the
remote machine. This is useful if you change settings like the listening port and have no physical
access to the machine in order to restart the service.
Normal Reboot Closes all processes and reboots the remote machine in an orderly fashion.
Emergency Reboot Does not allow applications and other processes to terminate gracefully, so
you might lose unsaved data. Windows will, however, shut down nicely and flush all outstanding
file operations to disk. This can be useful if there are hung processes that prevent NT from
shutting down normally.
Hard Reboot Reboots as quickly as possible. This option will not allow Windows to terminate
gracefully, so you might lose unsaved data. Since rebooting is immediate (just like pressing
the reset button) you will not receive any feedback from RemotelyAnywhere when clicking this
button.
Scheduled Reboot This allows you to schedule a date and time to automatically reboot the
computer. This is useful if the reboot is not urgent and can take place during off-peak hours.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 37
11. Section Guide Computer Settings
Computer Settings
In addition to the administrative features available under Computer Management, you can also
view and modify a number of settings on the remote machine, from Environment Variables to
Automatic Priorities.
Environment Variables
Here you can view and make changes if necessary to Environment Variables on the remote
machine. User environment variables that are defined by you or by programs are listed here, such
as a path where files are located. It looks like this:
Virtual Memory
When you click on Virtual Memory under System Administration in the menu this what you will
see:
This option allows you to change virtual memory settings on the remote computer. Simply enter
a minimum or maximum size for the paging file next to a drive listed above and click the Apply
button. Entering zero values both for the minimum and maximum size will remove the paging
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 38
11. Section Guide Computer Settings
file from the drive.
You will need to reboot the computer for any changes to take effect.
Time
You can edit the time on the remote computer under Computer Settings > Time. Simply enter the
correct values and click the Apply button. Please note that the time is displayed according to the
time zone settings of the host computer.
Automatic Login
This option lets you enable or disable NT’s autologon feature. You can also do this via the registry
or with other small utilities, like the one included in the NT Resource Kit.
Enabling autologon will cause the server to bypass the logon screen after system startup and log in
with the username and password specified here.
This is a potential security risk: the username and password are stored in the registry in clear-text
format.
Shared Resources
When you click on Shared Resources under System Administration in the menu this what you
will see:
This function gives a detailed report of all shared resources on the remote computer, including
shared folders, administrative shares, and printers etc.
This screenshot shows the C$ administrative share. The Path link takes you to the directory in
File Manager. The connections list shows open files, if any, and these files can be closed forcibly
by clicking on the Close button.
Access permissions active on the object are also shown in detail, except for administrative shares
where permissions cannot be set.
The Delete Share button removes sharing from the object.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 39
11. Section Guide Computer Settings
XP/2000/NT4 only
Automatic Priorities
Automatic Priorities (System Administration > Automatic Priorities) lets you direct
RemotelyAnywhere to automatically change process priorities. If you’ve ever wanted to run a
backup on your server without impacting performance or archive a huge directory structure using
zip/winzip on a live web server without putting additional load on the machine you’ll find this
feature useful. Likewise if you’ve ever wanted your workstation to be responsive while you browse
the web on your workstation during a lengthy compile.
When you click on Automatic Priorities, you are taken to a dialog that shows you a list of
executables and their target priorities. By default the list is empty, so you’ll need to click on Create
in the toolbar. On the dialog that comes up, enter the name of the executable, and select the target
priority from the dropdown box. The name of the executable is without paths, so, for WinZip it’s
WINZIP.EXE, for the Microsoft C compiler it’s CL.EXE, etc. The target priority is usually Idle.
This puts your process in the same priority class as the screen saver, meaning that it will only get
a chance to make any progress if it does not compete for CPU power with other processes. You can
also select a target CPU for the process. This allows you to divide processes amongst CPUs on an
SMP machine to suit your needs. Click on Add and you are taken back to the previous list that is
now showing your executable’s name and the priority class you selected.
If there are entries in the above list, RemotelyAnywhere will scan the process list on your machine
every ten seconds, looking for the process names you entered. If RemotelyAnywhere finds one and
its priority class does not match the one you specified it will be changed to your preference.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 40
12. Section Guide Server Functions
Server Functions
Under Server Functions you can find all the pages you’ll need to make use of RemotelyAnywhere’s
powerful FTP and Port Forwarding capabilities.
RemotelyAnywhere Server Edition comes with an extremely versatile FTP server. You can set up
an unlimited amount of FTP servers on one computer, each with its unique IP address and port
combination. You can create users and groups for your FTP server, or you can use the built-in
Windows NT accounts for rights management.
If logging has been enabled in Preferences > Log Settings the FTP Server will log all user activity
to the main RemotelyAnywhere log file.
FTP Configuration
When you click on FTP Configuration under Server Functions in the menu this what you will see:
The options for creating and managing the settings for your FTP servers, users and groups are
arranged into three tabs. We will address the content of each tab in turn.
FTP SERVERS
In order to create a new virtual FTP server on your machine you need to define at least one virtual
FTP server on the FTP Servers tab of the FTP Configuration screen. If no FTP servers are defined
then this screen will be blank, but for the New FTP server button.
Once you have defined a new server they will be shown in a table as in the screen shot above. You
can delete a server by clicking on the red box in the delete column to the right of a given server.
The server can be started and stopped by clicking on the status indicator to the left of the virtual
server.
A green circle indicates that the server is running, and a red one shows that it is stopped. This
may be either because it was stopped manually, it has been disabled, or it was not able to start due
to an error.
When you stop an FTP server on this screen its status will change to Disabled. This means that
when you reboot the computer the server will not be started automatically. Likewise, if you start a
stopped or disabled FTP server it will be Enabled, and it will start automatically on rebooting.
New FTP Server To set up a new FTP server click on New FTP server at the bottom of the FTP
servers tab. This will bring up the New FTP server dialog screen, which will look something like
this:
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 41
You can specify the following settings for your new FTP server here:
Name The name of the virtual FTP server. This is for reference purposes only. You can call your
server whatever you want. This is what will be displayed on the FTP configuration screens, the
login message from the FTP server, and so on.
TCP/IP port to listen on The port in use by the virtual FTP server. The default is the standard
FTP port, 21.
TCP/IP address to listen on The IP address to use. You can select one item from the list. If you
select All available interfaces the virtual FTP server will listen on all assigned IP addresses.
IP Filter The IP Filtering drop down lets you specify the IP addresses from which to accept
connections. By default, the clients can come from any IP address. The IP filtering engine is
the same as that used by RemotelyAnywhere itself. Please see the section on IP filtering under
Security for more information.
Port range for passive data transfers (inclusive) This feature is relevant to passive mode
data connections (PMDCs), also known as PASV mode in some clients. In such cases the data
channels are opened by the client and the server communicates a PASV reply stating which
address and port to connect to. However, servers behind firewalls and/or routers may have
problems with the use of the reported address and/or port.
If the server is behind a firewall there may be a problem with the port on which PMDCs are
accepted. By default the server tries the port (server port - 1). For example, the server will try port
20 if it is on the default FTP port of 21. If multiple clients were to try to establish simultaneous
data connections this would fail and the server would query Windows for an arbitrary free port.
Behind a firewall connection to random ports will not work. To avoid this, you can specify a range
of ports on which to accept PMDCs. If these ports are open on the firewall then the connection
will be established.
IP address of the network interface connecting to NAT router and External IP address of
NAT router By default the server examines the local IP address to which the client is connected
and accepts the PMDC on that address. In a NAT environment this is likely to fail, because the
server’s local IP address is not externally visible for access from the Internet. To avoid this we can
12. Section Guide Server Functions
configure the FTP server to report a user specified IP address instead of the local one, although
only for connections passing through the router. Thus we must specify the IP address of the
network interface connecting to the router, and that to report to clients opening PMDCs through
this interface. This should be the router’s external IP address.
Subnet mask of network interface connecting to NAT router In the above scenario a problem
remains, which is that clients connecting from the LAN, possibly using the same network as the
router would be redirected to open the PMDC using the external address. Most routers do not
support this. Thus there is a third setting which allows you to specify the subnet mask of the
network interface. Clients connected from the same subnet as the router will not be redirected. If
the subnet parameter is not specified all connections from the interface will be redirected.
A typical FTP server setup behind an NAT router and a firewall
Imagine a machine on which RemotelyAnywhere has been installed with a local IP address of
192.168.1.2 (subnet mask 255.255.0.0) and the external IP address of 123.45.67.89 (belonging to a
NAT router/firewall). We would need to do the following in order to set up an externally accessible
FTP server on this machine:
1.
2.
3.
4.
5.
6.
Create an FTP server within RemotelyAnywhere with the default settings, listening on
all available interfaces, with the default FTP port of 21.
On the main configuration page of our new FTP server set the IP address of the network
interface connecting to the NAT router as 192.168.1.2, the subnet mask to 255.255.0.0,
and the external IP address to 123.45.67.89
Set the port range for passive data transfers to 5200-5299
Configure your router so that it forwards connections to 123.45.67.89:21 to 192.168.1.2:
21 and make sure port 21 is open on the firewall.
Configure the router to forward connections to 123.45.67.89:5200-5299 to 192.168.1.2:
5200-5299 and make sure that you open the 5200-5299 port range on the firewall.
Finish configuring your remaining FTP settings (security, users, etc.)
The server is enabled If a server is enabled it will start automatically with RemotelyAnywhere. If
disabled you will need to start it manually.
Use implicit SSL encryption Here you can set your new virtual FTP server to use implicit
SSL encryption. Please note that if a server uses implicit SSL connections, it will accept these
connections alone and clients must be configured accordingly. Most clients default to port 990
when creating implicit SSL FTP site entries.
Root directory The root directory for the virtual FTP server. If you leave this field blank the drive
list will be used as the root.
Resolve shell links If you enable this option, shell links (.lnk files) pointing to directories will be
displayed as directories, enabling you to use Unix and Windows 2000-style hard links.
Download bandwidth limit The global download speed limit for the server. No matter how fast
users are accepting data, the server will not send it any faster than the speed specified here.
Upload bandwidth limit The global upload limit to the server. No matter how fast users are
sending data, the server will not accept it any faster than the speed specified here.
When you’ve filled in the required data to define your new server, click apply. The following FTP
server configuration pages will become available as buttons at the bottom of the page:
•
•
•
•
Copyright ©2003
•
Security
NT Users
Welcome
ODBC
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 40
12. Section Guide Server Functions
SECURITY
The Security dialog lets you specify various security and connection-related options. It will look
like this:
Maximum number of simultaneous connections The maximum number of simultaneous
connections to the FTP server. Setting it to zero means that there are no limits.
Maximum number of failed login attempts If a user fails to log in with this many tries the
connection will be dropped.
Login timeout The maximum number of seconds the user can take to log in.
No transfer timeout The connection will be considered idle and will terminate after the specified
number of seconds have elapsed on an open connection without a file transfer or directory listing.
Stalled transfer timeout This is the amount of time a file transfer can spend without sending or
receiving any data before it is considered stalled and thus terminated.
Allow keep-alives FTP clients use various commands to keep the connection from being idle.
When enabled, FTP commands such as CWD, PWD or the ubiquitous NOOP will reset the No
transfer timeout counter (described above). If disabled, only an actual file transfer or a directory
listing will reset the counter.
Thread priority You can select the priority of the threads servicing users for the FTP server. If
you are running an FTP server on an otherwise busy web server it might be a good idea to set the
priority to a lower value than the default Normal setting.
Allow unsecured FTP connections If this option is disabled the FTP client must support and
utilize SSL.
Allow data connections to go to different IPs than that of the control connection (enable
FXP, basically) The FTP protocol uses two connections: The control connection and the data
connection. The data connection is where all the raw data is sent, the control connection is used
to send commands to the server and receive replies. Normally data connections are set up to the
same IP address as that of the control connection, but in order to facilitate server-to-server file
transfers it may be desirable to allow data connections to go to different IP addresses. If you are
not using server-to-server transfers you can safely disable this option.
Copyright
Copyright ©2003
©2003
••
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
••
Send
Send support
support questions
questions to:
to: [email protected]
[email protected]
Page 44
41
Page
12. Section Guide Server Functions
Quoted password changes This determines whether the parameters of the SITE PSWD
command are in quotes or simply surrounded by a space. (SITE PSWD oldpwd newpwd vs. SITE
PSWD “oldpwd” “newpwd”).
Which form is used depends on the targeted FTP client.
Anti-hammer filter This feature is similar to RemotelyAnywhere’s IP address lockout settings. By
default if 4 bad logins occur from an IP address within one minute, the IP address will be locked
out for one hour.
Number of invalid attempts before locking out You can change the number of bad login
attempts from 4 to anything you want.
Reset invalid attempt count after You can modify the time before the invalid attempt count is
reset to zero.
Lock out for You can choose the duration for which the user is locked out after the specified
number of invalid attempts has been made.
NT Users You can connect to the newly defined FTP server with any FTP client, but you are not
able to log in until you have created a new FTP user and give them access to the server or you can
allow any Windows NT user to access the new virtual FTP server.
The difference between FTP users and NT users is simple.
NT users are pre-existing users in the Windows NT user database. Creating and managing them
is done via the User Manager – either the HTML-based one included in RemotelyAnywhere, or
the User Manager applet that comes with Windows. You cannot explicitly tell the FTP server the
directories and files to which the user has access, but Windows access rights will be enforced. If a
user can access a file below the server’s root directory locally or over the network, he will be able to
do so via FTP as well. If a user has no rights to a file or a directory, he will not be able to access the
object with FTP either. This is enforced by the FTP server by having the thread servicing the user
impersonate him towards the operating system as soon as login is complete.
FTP users, on the other hand, are created and managed within the FTP configuration pages.
You can tell the server which files or folders the user can access, where he can read from, where
he can write to. When an FTP user logs on, the thread servicing the user is executing under the
LocalSystem account by default. This is rather undesirable, so you can specify an NT user account
on a per-server basis that will be impersonated when servicing FTP users. We will return to FTP
users later in this chapter, when discussing the content of the FTP users tab.
Clicking on the NT Users button will bring up the following dialog:
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 45
12. Section Guide Server Functions
The Windows NT account whose permissions are assigned to FTP users fields let you specify a
username, domain and password for an existing Windows NT account. This is used when an
FTP user logs on: the thread servicing the user will be impersonating this account towards the
operating system. If you enter an incorrect username or an incorrect password here, the FTP user
will receive a ‘Login incorrect’ message from the FTP server, even if he enters his credentials
correctly.
To grant access to a Windows NT user or group on the FTP server, select its name in the list on the
right and click the Update button. To revoke access from a user or a group, select its name in the
list on the left, and click the Update button.
To list user accounts from a domain rather than from the local computer, enter the domain’s name
in the ‘default domain’ field and click the Update button.
Now that you have granted access to an NT user, you can use an FTP client to connect and log
in to the FTP server. The user will have access to all files and directories below the server’s root
directory. However, on an NTFS file system, NT access restrictions will apply. For example, if the
user does not have the rights to read or write in a certain directory, he will not be able to do so via
FTP either. The FTP server enforces this in a very effective way: the thread servicing the user will
impersonate him towards the operating system as soon as login is successful.
WELCOME
The Welcome dialog allows you to view and modify the welcome message for your users:
The first message the user will see when they log in will be the RemotelyAnywhere welcome
banner. If you do not wish to let the outside world know which FTP server you are running, you
can disable this via the checkbox at the bottom of this window.
The next message the user will see looks like this by default:
-----------------------------------------------------------Welcome to the _!SERVER_NAME!_ FTP server,
running on _!OS_VERSION!_.
The server has been up for _!SERVER_UPTIME!_.
Data downloaded: _!BYTES_DOWN!_
Data uploaded: _!BYTES_UP!_
Sessions serviced: _!TOTAL_LOGINS!_
-----------------------------------------------------------You can change this to anything you like, or leave it blank if you’d prefer no login message for
your users. If you disable both the banner and the welcome note, the FTP Server will just send
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 46
12. Section Guide Server Functions
‘Welcome’ whenever somebody connects to the FTP port. This is because the FTP specification
requires a server to send a code and some text when a connection is established.
By default, the post-login message looks like this:
-----------------------------------------------------------Welcome, _!USER_NAME!_, to _!SERVER_NAME!_.
Your last successful login was at _!LAST_LOGIN!_.
Good logins so far: _!GOOD_LOGINS!_.
Bad logins so far: _!BAD_LOGINS!_.
You have uploaded _!BYTES_UP!_ and downloaded
_!BYTES_DOWN!_ in your previous sessions.
-----------------------------------------------------------User logged in.
The final line reading User logged in cannot be customized, as this is a requirement of FTP
protocol. The rest you can change to suit your preferences, or leave blank.
The following variables can be inserted into the welcome messages, and they will be automatically
replaced with their corresponding values:
_!SERVER_NAME!_
The name of the FTP server.
_!OS_VERSION!_
The operating system and its version.
_!SERVER_UPTIME!_
The amount of time the server has been up.
_!BYTES_UP!_ and _!BYTES_DOWN!_
The amount of data uploaded and downloaded. These variables behave differently when
used in the pre-login or post-login messages. In the pre-login message, they represent
a server-wide value, while in the post-login message they represent the amount of data
transferred by the user.
_!TOTAL_LOGINS!_
The number of successful logins to the FTP server. Only valid in the pre-login message.
_!GOOD_LOGINS!_ and _!BAD_LOGINS!_
The number of logins and unsuccessful login attempts. Only valid in the post-login
message.
_!LAST_LOGIN!_
The last successful login by the user. Only valid in the post-login message.
These welcome messages are server-wide settings, and apply to all users and groups. When
you specify a welcome message for an FTP group or an FTP user, it will override the post-login
message defined here.
ODBC ACCESS
The ODBC option allows you to specify a database as a source of user information as in the image
on the next page.
With this dialog you can set up a database to contain user information. This can be any database
type: Oracle, SQL Server, Microsoft Access, or even a plain text file. You need to create an ODBC
data source that refers to this database so that RemotelyAnywhere can access it. The data source
must be a so-called Machine Data Source, as this is the only ODBC source available to processes
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 47
12. Section Guide Server Functions
running in the system context.
When you have your database and ODBC data source ready, we advise you to test it by querying it
with a tool that supports ODBC queries, such as a spreadsheet program.
You should have all user information available in one table. If you already have a user database
and user information is in separate tables, you should set up a query within your database that
contains all user-related fields. RemotelyAnywhere only reads from the database.
The above screenshot is set up for the following scenario:
Suppose that you have a user database in a data source called FTPUsers. The user information is
present in a database table called Users. A database user called ra is able to read from the Users
table. You should also supply the password for this user in the above form.
The Users table can have any number of fields in any order, but the above figure assumes that
these fields are present:
login (character string)
password (character string)
homedir (character string)
quota (integer, in bytes, optional)
downstream (integer, speed in bytes/sec, optional)
upstream (integer, speed in bytes/sec, optional)
disabled (integer, zero or non-zero, optional)
maxconns (integer, optional)
maxconnsperip (integer, optional)
welcome (character string, optional)
The only three mandatory fields are login, password and homedir. The login and password fields
contain the user’s login name and password, in clear text. The homedir field must contain the
user’s home directory, which can be an absolute path (such as z:\ftp\users\~john) or it can be
relative to the server root (such as /users/~john).
Users have full access to their home directory, but have neither read nor write permissions outside
of it.
The quota field will not let the user store more data in his home directory and its subdirectories
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 48
12. Section Guide Server Functions
than the number of bytes specified here.
The downstream and upstream fields restrict download and upload speed. They are optional, and
should be an integer number specifying bytes per second.
The disabled field should be an integer. When it’s non-zero, the user is disabled and cannot log in.
The maxconns field specifies the maximum simultaneous connections to this FTP server for a
user.
The maxconnsperip field specifies the maximum simultaneous connections per unique IP
address for a user.
The welcome string, if used, should contain a custom welcome message for the user.
FTP USERS
If you click on the FTP users tab under Server Functions > FTP Configuration you can view, create
or modify your existing FTP users. These are only defined in RemotelyAnywhere and unlike NT
users they do not exist outside of the FTP server.
As on the FTP Servers page, users are shown in a table, with a delete column to the right.
Below this is the New FTP user button.
NEW FTP USER
To create a new FTP user click on the New FTP user button on the FTP Users tab of the FTP
configuration page.
Enter the desired username and password in the above dialog. You can also specify upload and
download speed limits for the user. If not set to zero (meaning disabled) these options override the
global FTP server settings.
You can also enable or disable their ability to change this password, and select an IP from the IP
filter drop down menu.
Click Apply to create the user.
When you create a new user the following options become available:
Groups
Permissions
Ratio
Disable
Home/Quota
Max Connections
Welcome
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 49
12. Section Guide Server Functions
Permissions Report
The newly created user cannot log in yet: you have to assign permissions to them for an FTP
server and a path so that the user is able to use the account.
To allow anonymous access to an FTP server, you should create an FTP user called anonymous.
This user account is special: no password checking is done upon login. You can assign
permissions to the anonymous user account as you would to any other user. By default, the newly
created anonymous user has no rights to any virtual FTP server defined.
Groups This dialog lets you specify the FTP groups to which the user belongs. For more details on
FTP groups, please see the next section.
Selecting a group that the user is a member of and clicking the Update button will remove the
user from that group. Selecting a group that the user is not a member of and clicking the Update
button will add the user to that group.
The Back button takes you back to the main user editing dialog.
PERMISSIONS
The following dialog lets you edit users’ access to directories, and it looks like this:
This dialog lets you edit users’ access rights to directories. To grant access to a directory on a
server, select the virtual server from the server list, select the type of rights you wish to assign to
the user, enter the path to the directory and click the Update button.
The path you specify can be a full path, containing a drive letter, or a path relative to the server’s
root directory. If you assign rights to a path that is not within the server’s root directory, the
setting will have no effect at all.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 50
12. Section Guide Server Functions
The following rights are possible:
L – Show directory contents.
Allows the user to list the contents of the directory.
R – Read file.
Download files from the directory.
C – Create subdirectories.
Create new directories in the directory.
D – Delete/rename file.
Delete or rename a file or a directory. Also required to be able to overwrite files.
W – Create/modify file.
Create a new file and/or write data to it.
Full access.
All of the above.
The above settings let the user access FTP Server 1 – he has full control over the contents of the
server. These rights only apply to the root directory of the server and all directories below that. The
user also has list, read and write access to the c:\work directory on FTP Server 2. However, the
user has no rights at all to the c:\work\java directory on FTP Server 2. The user has no rights at all
on FTP Server 3, meaning he cannot even log on.
The rights you specify for a directory are automatically inherited by its subdirectories, unless you
specify different rights for them.
The following method is used when checking access rights to a directory:
1.
2.
3.
The current virtual server’s access list is enumerated for the current user.
When the directory closest to the directory in question is found, the access rights
specified for that directory is used. For example, if the user has LRW rights for C:\Work,
he has LR rights for C:\Work\CPP, and the directory in question is C:\Work\CPP\
Project1, only LR rights are returned – meaning that the user can only list and read files,
but not write to them.
If an NT user is specified for the server to run FTP accounts under, further Windows
NT-enforced restrictions might apply, based on file system permissions.
You can also make the user member of one or more groups, and these groups can also be
members of one or more groups. For an explanation of this scenario, please see the FTP Groups
section of this document.
RATIO
The following dialog lets you edit the upload/download ratio settings for the user.
This dialog lets you edit the upload/download ratio settings for users. The upload/download ratio
lets you control how much data the user has to upload before he can download anything.
If the Upload ratio is set to 1, and the Download ratio is set to 5, the user can download 5 bytes for
every byte uploaded. If it were the other way around, the user would have to upload 5 bytes to be
able to download one. You can enter any positive integer number in either of these fields.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 51
12. Section Guide Server Functions
There are four possible settings for the Ratio type:
1.
2.
3.
4.
None. The user is a normal user, and can download any file he has read access to,
without having to upload first.
Per session. When the user logs in, his counters are zeroed. Should he lose connection
while uploading or downloading, any remaining credits he has will be lost.
Per user. The user’s credits are remembered over sessions. It is not recommended if you
want several users to share the same account.
Per IP. Even if the user loses connection, his credits are remembered, if he logs in again
from the same IP address. This does not cause a problem, even if the user account is
shared by hundreds of concurrent users.
The Per IP ratio information expiration time setting allows you to expire the per-IP credits after a
certain amount of time. If the user logs back from the same IP address after not visiting the server
for this much time, he will have to start over building up his credits.
The ratio setting applies to all virtual servers.
To let the user download files without uploading, you can specify a starting credit. The amount
given is in kilobytes – the user will be able to download the specified amount of data without
uploading.
DISABLE
The following dialog lets you explicitly disable (or ban) a user on a virtual FTP server.
Disabled users cannot log in, even if they have rights on an FTP server. You can also disable a
connected user from the FTP status page.
HOME/QUOTA
The dialog below lets you specify home directories for the user.
A home directory is basically the entry point for a user on an FTP server. When the user logs in,
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 52
12. Section Guide Server Functions
he will find himself in the directory you specify here. If no home directory is specified, he will be
logged in to the server’s root directory.
The user can move out from his home directory if he has rights to an outside directory.
You can use a full path, starting with a drive letter, when specifying home directories – or you can
enter a relative path to the server’s root directory. Home directories specified above the server’s
root directory are disregarded.
You should make sure that the user has rights to his entry point on the server – either to his home
directory, or if the home directory is not specified, to the root directory of the server. If the user
has no rights to the entry point, he will not be able to log in.
You can specify quotas for your users. Quotas are only enforced on home directories, and apply to
all files contained in the home directory and its subdirectories. If a user has rights to upload files
outside of his home directory, he will be able to do so without restrictions – quotas only apply to
the home directory and its contents.
Since Windows does not support disk quotas for user accounts, RemotelyAnywhere has to
enforce them. When a user starts to upload a file, the FTP server quickly scans the contents of
the directory to determine if the user is below or above the quota. If the quota is not exceeded,
the upload can be started – however, the FTP server will interrupt the transfer as soon as the file
being uploaded starts to exceed the specified quota.
Home directory quotas are entirely optional, by leaving the field empty you choose not to limit the
amount of data that can be stored on the server by the user.
MAXIMUM CONNECTIONS
You can specify the maximum number of simultaneous connections for a user account in this
dialog. By default, a user account can be used to log in any number of times, until exhausting the
maximum number of connections for the virtual FTP server, or exhausting the resources of the
computer.
Simply select the server on the right, enter the number of maximum simultaneous connections in
the Count field and click the Update button.
To remove a limitation, select it in the list on the left and click the Update button.
You can also limit the number of simultaneous connections for the user from a computer or IP
address. The Per IP field serves this purpose. When left blank, or a zero is entered, this limitation
is disabled. If you enter a numeric value, a single computer can be used to log in that many times
with the account.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 53
12. Section Guide Server Functions
It is a good idea to limit certain user accounts (for example the Anonymous account) this way. An
overall maximum connection limit ensures that the server cannot be overloaded by thousands of
Anonymous users, and a Per IP limitation makes sure that no single user can take up all available
connections.
WELCOME
You can compose a custom welcome message for the user in this window.
-----------------------------------------------------------Welcome, _!USER_NAME!_, to _!SERVER_NAME!_.
Your last successful login was at _!LAST_LOGIN!_.
Good logins so far: _!GOOD_LOGINS!_.
Bad logins so far: _!BAD_LOGINS!_.
You have uploaded _!BYTES_UP!_ and downloaded
_!BYTES_DOWN!_ in your previous sessions.
_!QUOTA!_
-----------------------------------------------------------Messages specified here override any post-login message specified for the virtual FTP server. In
this case, messages specified for any groups the user belongs to will be disregarded as well. See
the equivalent section on welcome messages above for the available variables.
PERMISSIONS REPORT
The permissions report can be retrieved for any FTP user. It will list all FTP servers, and all the
rights a user has on the given server. Here is a sample report for a user on FTP Server 2:
You can see that the user can list, read and write to files in the C:\Work directory. The Inherited
from column shows that this particular right was granted to the user himself.
The user has full access to the C:\Work\files directory, due to being a member of the filexfer
group. As a member of the web group he also as full access to the C:\Work\websites directory.
He has no rights at all to the C:\Work\Java directory – and it is clear that the user himself has
been denied access.
This report can be useful if you have a more complicated setup of groups and users, and would
like to see what exactly the user can do on the system, and from where these rights come.
FTP GROUPS
If you click on the FTP Groups tab under Server Functions > FTP Configuration you can easily
control the resources available to your FTP users. As on the FTP Servers and Users pages, groups
are shown in a table, with a delete column to the right.
To add a new FTP Group click on New FTP Group.
GENERAL GROUP SETTINGS
This dialog lets you specify general settings for a group.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 54
12. Section Guide Server Functions
You can make a group a member of another group, thus bringing in any permissions or
restrictions for its member users from the parent group.
Selecting a group in the Member of list and clicking the Update button will remove it from that
group. Selecting a group in the Not member of list and clicking the Update button will add the
group to it.
You can also specify a welcome message for a group. Whenever a member logs in, he will see this
message instead of the server’s general welcome message.
PERMISSIONS
With this dialog you can specify the rights to servers and directories.
The dialog works very much like the FTP User Rights dialog. For a basic description please see
the appropriate section of this document.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 55
12. Section Guide Server Functions
There are some scenarios, however, that might require further explanation.
Suppose the following, rather complicated scenario:
•
•
•
•
•
•
User1 is member of Group1.
Group1 is member of Group2 and Group3. On the membership display, Group2 is shown
first and Group3 is shown second.
User1 is granted LR access to C:\, and LRW access to C:\Work.
Group1 is granted full access to C:\, LR access to C:\Work, and LRWD access to C:\Work\
CPP.
Group2 is granted LR access to C:\Work\CPP and full access to C:\Work\CPP\Project1
Group3 is granted LR access to C:\Work\CPP\Project1
So, what exactly User1 can do in the aforementioned directories?
•
C:\
He has LR rights. He was explicitly granted LR rights to this directory, and this overrides
anything else.
•
C:\TEMP
He has LR rights. He was explicitly granted LR rights to the directory closest to this one (C:\),
and no groups that he is a member of, directly or indirectly, specify anything else for the C:
\TEMP directory.
•
C:\Work
LRW rights again. See the first case.
•
C:\Work\CPP
LRWD, because Group1 has LRWD rights. Even though Group2, which Group1 is a member
of, specifies LR access for this directory, Group1 is the least indirect object that specifies
actual rights for the directory. Group2 is one more indirection away, with User1 only being a
member of it because he is a member of Group1, and is therefore overridden by Group1.
•
C:\Work\CPP\Project1
Full access. Both Group2 and Group3 are two indirections away, they both specify access
rights to the same directory, so the deciding factor between Group2 and Group3 is that
Group2 is the first one in the list on the membership display of Group1.
FTP Status
When you click on FTP Status under Server Functions in the menu you can view the current
status of each of your virtual FTP servers.
For each server, it provides a listing of all current connections and their current activity. The fields
in the list are:
Icon This field shows a small icon, representing the current status of the connection. A green
checkmark indicates a ready, or idle connection. An hourglass indicates a connection currently
in the process of logging in or becoming ready. An up or down arrow indicates uploading or
downloading.
User name The name of the user associated with the connection. For NT users, it is in an
AUTHORITY\ACCOUNT form. For FTP users, it’s simply the username. For connections not yet
logged in, it’s N/A.
Control address The IP address of the FTP control connection.
Downloaded Bytes downloaded during this connection.
Uploaded Bytes uploaded during this connection.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 56
12. Section Guide Server Functions
Data address The IP address of the FTP data connection, if applicable.
Path The path and name of the file currently being uploaded or downloaded, if any.
Speed The speed of the upload or download process.
Bytes left The amount of data left from the transfer operation. Only applies to download
transfers, since the FTP protocol does not let the server know the size of the file being uploaded in
advance.
Est. time left The estimated time remaining from the transfer operation. Only applies to
download transfers, for the same reason as the previous item.
Kick This button kicks the user out – in other words, terminates the connection.
Ban user This button kicks and then bans the user from the FTP server. Only applies to FTP
users, and not to NT users. The user’s properties will show him as disabled on the server he was
banned from.
Ban user IP This option first kicks the user from the server in question, then adds an IP
filtering rule to the user object that will prevent him from logging in again from the IP address
in question. He will have the ability to log in from other IP addresses (depending on IP filtering
setup) and the IP address will only be disabled for this user.
Ban server IP This button kicks the user, then adds an IP filtering rule to the server object that
will cause the server not to accept connections from the IP address in question at all. The user will
be able to log in from other IP addresses.
Anti-hammering information for each server is also shown, where applicable. It is in the
following format:
IP address The address the attempted connection came from.
Expires at The time when the information will be discarded – users will be able to establish
connections from the IP address at this time again.
Bad logins Number of bad logins from the IP address.
Delete Clicking this button will remove the anti-hammering information from the FTP server’s
memory, thus making the IP address available for logins, had it been locked out.
The Refresh button refreshes the contents of the screen to reflect any changes, while the Back
button goes back to the main FTP settings screen.
FTP Statistics
If you click on FTP Statistics under Server Functions in the menu you can view per-server and
per-user statistics, such as the last login, number of logins, bytes sent and received, etc.
The red button labeled Reset for servers and FTP users, or Delete for NT users will reset or delete
statistics kept on that object.
Port Forwarding Server
RemotelyAnywhere Server Edition also comes with Port Forwarding Server. This allows you to
forward one or more TCP or UDP ports on one computer to another so that separate networks can
be bridged.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 57
12. Section Guide Server Functions
Before getting into the details of how you would configure your Port Forwarding Server (PFS) we
will look at how it works. Picture the following scenario:
You have a Local Area Network (LAN), connected to the Internet with a firewall / proxy server.
The computers on the LAN all have non-Internet IP addresses, and they connect to the outside
world via the proxy server.
If you have RemotelyAnywhere installed on any computer on the LAN — say, the fileserver — you
would be able to access it from within the LAN without any problems. However, it is not accessible
from the Internet.
If you set up RemotelyAnywhere Server Edition and PFS on the firewall, so that a certain port
(say, 3000) on the firewall is forwarded to the fileserver’s IP address and RemotelyAnywhere port
(2000 by default), accessing port 3000 on the firewall will let you access RemotelyAnywhere on the
fileserver. Both from within the LAN and from the outside as well.
Port Forwarding Configuration
When you click on Port Forwarding Configuration under Server Functions in the menu you can
set up the above scenario. In order to look at the interface for this feature we will look at some
more possible scenarios.
Imagine, for example, the following situation:
The firewall’s Internet IP address is 145.236.120.227
The firewall’s LAN IP address is 192.168.0.2
The fileserver’s LAN IP address is 192.168.0.10
RemotelyAnywhere is installed on both computers, and is listening on port 2000.
The IP addresses used in the foregoing are for demonstration purposes only.
What we need to do is simple: map port 3000 on the firewall computer to port 2000 on the mail
server (dns name mailserver.company.com).
Having called up the Port Forwarding Configuration screen from the menu you can now add a
new rule by clicking the Create forwarding rule button. This will present you with the following
dialog:
The Incoming Protocol field will be TCP. Other protocols (SSL, CSSL) will be discussed later.
The Incoming IP Address can be either All available meaning that the port will be forwarded
from all IP addresses of the firewall. If you want to use a single IP address instead of all assigned
ones, select it here. The Incoming Port can be anything not already in use on the computer - let’s
assume 3000 for now.
The Outgoing Protocol will be TCP. The Outgoing IP Address will be mailserver.company.com (or
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 58
12. Section Guide Server Functions
the actual IP address of the host), and the Outgoing Port will be 2000.
The Defer Close and the I/O Timeout values can be left to their defaults. These will be explained
later.
The Description field lets you specify a remark associated with the port forwarding item. This will
be displayed on the main screen.
If you fill out the dialog and click the Add button, the item will be listed on the main PFS screen:
That’s really all there is to it. Your first port forwarding item has now been configured.
ADVANCED OPTIONS
You can edit a port forwarding item by double clicking it, or by selecting on it and clicking on the
modify rule button.
You can specify IP address restrictions for the item from the IP filtering drop down. This works
exactly like the RemotelyAnywhere IP Address Filtering feature, only it restricts incoming
connections to the corresponding port forwarding item only. For more information, please read
the documentation on Security > IP Address Filtering.
I/O Timeout This setting lets you specify how long the PFS will hold a connection open with no
data going through it in either direction. When the amount of time specified here is reached and
the connection is idle, both ends of the connection will be closed gracefully.
Defer Close This setting lets you specify a timeout value for a special condition. When one end of
the connection has been closed, but the other is still open, PFS will wait this much time for the
open end of the connection to be closed. It will then close the connection itself.
Incoming and Outgoing Protocol These fields let you specify SSL or CSSL as well as TCP. To
translate SSL connections to TCP or TCP to SSL, and thus behave as an SSL proxy for applications
that are not SSL-enabled, simply set one end to SSL and the other end to TCP.
There are situations when SSL encryption would be a very nice thing to have, but neither the
client nor the server support it. In this case, you can use two installations of RemotelyAnywhere:
one to translate the connection from TCP to SSL, the other to translate it back from SSL to TCP.
Let’s suppose that you are using a laptop with a dialup account, and your email software does not
support SSL. Let’s also suppose that your corporate mail server does not support SSL either. If you
still want to keep your email secure, you can install RemotelyAnywhere both on your laptop and
on the email server, and set up a port forwarding item on both computers.
On your laptop, you would need to do the following:
1. Create a port forwarding item with the incoming IP address as 127.0.0.1 (the loopback
address), the incoming port as 3110, the incoming protocol is TCP. The outgoing IP
address or host name would be set to that of your email server, the outgoing port would
be set to 3110, and the outgoing protocol would be SSL.
2. Change your email client’s preferences so that the POP3 server is 127.0.0.1 and the
port is 3110.
On the mail server, you would need to only create one port forwarding item, with the incoming
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 59
12. Section Guide Server Functions
IP address set to your mail server’s Internet IP address, the incoming port would be 3110, and the
incoming protocol would be SSL. The outgoing IP address would be the same (the mail server’s
Internet IP address), the outgoing port would be 110 (the standard POP3 port), and the outgoing
protocol would be set to TCP.
If you performed the above three steps, starting up your email client and checking for mail would
actually go through two port forwarding servers; the first one being on your own computer,
encrypting all data before it’s sent to the mail server. The mail server’s port forwarding server
would receive the encrypted data, and decrypt it before sending it on to the actual mail server
software. Data flowing in the other direction would be also seamlessly encrypted and decrypted.
However, if you have two RemotelyAnywhere Port Forwarding Servers talking to each other, you
could also utilize the proprietary CSSL protocol instead of using plain SSL. CSSL, which stands for
Compressed SSL, would also seamlessly compress and uncompress your data as well as encrypt
and decrypt it - to keep to the above example, making your mail arrive much faster over a dialup
connection. (And also, to properly finish the laptop/email example, you would also have to create
one additional port forwarding item on both computers for the SMTP protocol that is used to send
email as opposed to receiving it. This runs on port 25 by default.)
Port Forwarding Status
If you have configured your Port Forwarding Server as in the examples above, you will be able to
view the status of your Port Forwarding connections by clicking on Port Forwarding Status under
Server Functions in the menu.
Active Directory
This is an Active Directory browser. It lets the user connect to and browse through the various
elements in the Windows 2000 domain’s active directory tree. It’s usually employed as a simple
system info tool.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 60
13. Section Guide Scheduling & Alerts
Scheduling & Alerts
Under Scheduling & Alerts you can make use of RemotelyAnywhere’s scripting capabilities, as
well as set up a service to send you email alerts when certain events occur on the remote machine.
System Monitoring
This is a powerful feature of RemotelyAnywhere enabling you to monitor the system based on the
performance data collected.
You can also define conditions, and actions to be performed. A condition and an associated action
are known as a rule.
Rules are defined in the file MonitoringScript.txt located in your RemotelyAnywhere directory.
You can edit this file using your favorite text editor, or you can use the System Monitoring option
under Scheduling & Alerts in the menu to make changes and create new rules.
A rule has the following structure:
<rule name> (delay)
{ <condition> { <action1> } else { <action2> } }
For example:
“Check Memory Usage” (10m)
{
MemUsageAboveFor(70%, 20m)
{
SendMail(“[email protected]”,
“Memory usage on [MACHINE]”,
“High memory utilization!\n”
“(Max: [MAX_USAGE])”);
}
else
{
SendMail(“[email protected]”,
“Memory usage back to normal”,
“See topic.”);
}
}
The above rule executes every 10 minutes (delay), and checks the condition MemUsageAboveFor.
In the above scenario, if the memory utilization is above 70% for 20 minutes or more, the
condition becomes true, and action1 is executed.
The action, in this case, will send an email to [email protected] describing what
has happened. The rule will keep checking the condition every 10 minutes after the condition
has become true. If it’s still true, it does nothing – but if it becomes false (that is, the emergency
situation is resolved) it executes action2. In that case, RemotelyAnywhere will email the
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 61
13. Section Guide Scheduling & Alerts
administrator to let him know that the problem has been resolved.
The action can consist of several statements – they have to be separated with a semicolon. Such as:
MemUsageAboveFor(70%, 20m)
{
SendMail(“[email protected]”,
“Memory usage on [MACHINE]”,
“High memory utilization!\n”
“(Max: [MAX_USAGE])”);
SendMessage(“administrator”,
“High memory utilization on [MACHINE]!\n”
“(Max: [MAX_USAGE])”);
}
There is one special rule that can – and should - be defined: it’s called ERROR. If something goes
wrong while performing actions – for example, when the user Administrator is not logged on
and the above actions are executed, SendMessage will fail – ERROR is executed, allowing you to
customize error-handling behavior.
The MonitoringScript.txt file that ships with RemotelyAnywhere defines a number of sample
rules. They are all commented out – you will need to remove the comment marks (#) from the
beginning of each line of a rule you’d like to use.
It might seem overwhelming at first, but if you have a little bit of experience of programming in
C or a similar language (escape sequences and string formatting are C-like) and study the sample
MonitoringScript.txt for a little while, you will be up and running sooner than you thought.
You can enable or disable certain conditions with the dialogue that appears when you select
System Monitoring
The Edit script button lets you edit the monitoring script in your browser.
XP/2000/NT4 only
Email Alerts
When log entries matching a certain criteria are entered into any of the event logs you can have
RemotelyAnywhere send you email alerts to an email address of your choice.
Email alerts will not work until you configure your SMTP server under Preferences > Network.
Once you’ve set that up, you can configure email alerts according to the following criteria:
Log The event log to watch.
Type Can be Error, Warning or Information. It is not necessary to specify this field.
Source Type in the source of the message you want to be alerted on. For example, Security, Disk,
etc. This field is optional.
Category Type in the category of the message as it would appear in the event log. This field is
optional.
Event Type in the event code as it would appear in the event log. This field is optional.
Email The email address the notifications are sent out to. You can only specify a single email
address per entry, so if you want several people to receive these messages you should specify a
group alias here.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 62
13. Section Guide Scheduling & Alerts
Task Scheduler
This function (Scheduling & Alerts > Task Scheduler) differs in behavior on NT and W2K
systems. On NT, it gives you a simple interface to NT’s Scheduler. In order to be able to view, add
and delete tasks, the Schedule service must also be running.
On W2K, it interfaces with the updated task scheduler service instead of the old, still present
Scheduler. It allows you to create multiple triggers for a single task, specify different user accounts
to run tasks under, and so on. It supports the entire feature set of the W2K Task Scheduler.
On the main page, you can see a list of all currently scheduled tasks. The table shows you the
following:
•
•
•
•
•
•
the ID of the task
the command to be executed
the time of the day the command is to be run
the days of the week and month on which the command is scheduled to run
whether the command is interactive (that is, shows on the desktop)
whether the last run of the job ended successfully
You can remove a task from the list by selecting it and clicking on the delete button in the toolbar.
You can add a new scheduled task by clicking on the Create New Task button. You can also
check and modify the attributes of your existing tasks by double clicking them or via the Change
attributes button in the toolbar. These attributes are organized under three tabs, with the headings
Task, Settings and Schedule.
Scripting
RemotelyAnywhere provides an extension interface in which you can create custom scripts that
interact with the system, RemotelyAnywhere and the user. This is available under Scheduling &
Alerts > Scripting, and this is what you’ll see when you select it:
Clicking on the name of the script will execute it. The Edit command will bring up a page with
the source code of the script, where you can edit and compile your program. The Delete command
removes the script.
To create a new script, enter its desired name in the input field and click the New script button.
There are three kinds of scripts you can create:
1.
2.
3.
Interactive
Quiet
Hybrid
Interactive scripts display their output on HTML pages, within the RemotelyAnywhere frameset.
An example for an interactive script is the File.sma script, which is installed with RA. These
scripts do not have to return a value from their main function. They communicate with the user
via the htmlBeginOutptut(), htmlEndOutput(), and various other html***() functions.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 63
13. Section Guide Scheduling & Alerts
A Quiet script is one that is usually called from the System Monitoring script. It does not display
output. A return value is required at the end of the main function. A skeleton example for a Quiet
script is here:
#include <ra>
main ()
{
return 0;
}
This script does not do anything useful. It simply returns a zero value, meaning that no problem
has occurred. If you attempt to run this script from the Script menu, you will get a message
similar to this:
Hybrid scripts, on the other hand, are executable interactively and also return a value at the end of
their main function. An example for a hybrid script is the WatchProcess.sma file, included with
RemotelyAnywhere. Hybrid scripts check the return value of the htmlBeginOutput() function,
and if it’s a zero value, the script is run in non-interactive mode. (That is, it is invoked from the
System Monitoring script, via the Small() function call.)
For a complete reference of the scripting language, please the Small Booklet (smalldoc.pdf), also
included with RemotelyAnywhere.
If you have experience in programming in C or C++, and have a basic understanding of HTML,
you will be creating your own scripts in no time.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 64
14. Section Guide Performance Monitoring
Performance Monitoring
The menu items under Performance Monitoring allow you access to the performance data
collected by RemotelyAnywhere. Descriptions for each of the choices can be found below. When
you open this branch of the menu tree you’ll notice that all the items are just data pages. They can
only be configured under Preferences > System Monitoring.
CPU LOAD
This option takes you to a page with a number of graphs and lists. The graphs show CPU
utilization with various sampling rates. Please note that RemotelyAnywhere needs time to gather
performance data for these graphs. If you have just installed the software, it is likely that only the
left-hand side of the first graph will show you meaningful information. If you have multiple CPUs
in your computer, you will see separate graphs for each one, as well as a set of graphs showing you
the total CPU load.
The sampling rate for the first graph is 2 seconds, so the graph spans less than an hour. This is
useful to see what’s happening right now on the machine. If you move your mouse over a line in
one of the graphs, the tooltip that pops up tells you exactly when the sample was taken.
The list at the bottom shows the processes that take up most of the processor time. This list is
weighted, so younger processes that take up a lot of processing time come closer to the top. (The
figure is: PROCESSOR_SECONDS/PROCESS_AGE_SECONDS). So, if you see a sudden spike
on the first graph you can check the second list and immediately find out which process is eating
up processor time.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 65
14. Section Guide Performance Monitoring
Clicking on an item in the ID column will display the relevant data on that process, organized
under six separate tabs (General, Threads, Services hosted, DLLs, Open Files, and Registry Keys
In Use).
MEMORY LOAD
This will present you with four graphs similar to those on the CPU Load page. These display the
memory utilization on the machine.
DISK SPACE
Graphs displaying the disk space utilization per logical disk are available under this menu item.
XP/2000/NT4 only
DRIVE & PARTITION INFO
This page displays all physical drives in the remote computer and their partition tables. This data
is organized onto two separate tabs for Physical Drives and Partitions, and Logical Drives.
XP/2000/NT4 only
OPEN TCP/IP PORTS
This will present you with a listing of all open IP endpoints on the computer. You can specify
whether you’d like to see the ports that are listening for connections, ports that have been
connected to another computer, and ports in various stages of being connected and disconnected.
You can also elect to have RemotelyAnywhere resolve IP addresses appearing in the list of
hostnames - please note that this can take a considerable amount of time.
NETWORK
Under Network you can find feedback on your network traffic. The four graphs offer different
timelines of 2 seconds, 10 seconds, 5 minutes, and 1 hour on your inbound or outbound traffic.
You can set the Maximum Inbound Bandwidth according to the appropriate kilobits per second in
order to be sure of accurate results.
PCI INFORMATION
If you click on PCI Information you can view all hardware connected to the PCI bus or buses in
the system.
OPEN FILES
This will show a listing of all files currently open on the remote computer, along with the names
of the processes using them. The processes list is clickable, so you can view data on the processes,
and if necessary, kill them.
XP/2000/NT4 only
REGISTRY KEYS IN USE
Under Registry Keys in Use you can view a list of all registry keys currently open on the remote
computer. As with open files, you can also see the names of the processes that use them. The
processes list is clickable, so you can view data on the processes, and if necessary, kill them.
DLLS IN USE
Here you can view a listing of all currently loaded dynamic link libraries and the processes that
use them.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 66
14. Section Guide Performance Monitoring
REMOTELYANYWHERE CONNECTIONS
Selecting this option will display all current connections currently being served by
RemotelyAnywhere. It will display the IP address and host name of the remote computer, the
type of connection and the name of the Windows NT user associated with the connection. The
connection type can be one of the following:
(Browser) HTTP A typical browser connection requesting a page.
Remote Control A Java remote control client.
Upload Status Viewer A Java applet displaying the progress of a File Manager upload.
Performance Viewer The Java applet above the menu, displaying CPU and memory utilization.
TELNET/SSH CONNECTIONS
Selecting this option will display all current Telnet/SSH connections currently being served by
RemotelyAnywhere. It will display the IP address and host name of the remote computer, the type
of connection and the name of the Windows NT user associated with the connection.
INSTALLED APPLICATIONS
Under Installed Applications you will find a useful list of applications installed on the remote
machine. This list is populated from Add or Remove Programs on the remote machine’s Control
Panel.
The data is for information purposes only, but in addition to the program name and version you
will be able to see the Publisher, Installation Directory and frequency of usage, if this information
is available. If you roll over a listed application you may also be able to see other data such as
estimated size, the installation source, registration data, and the time and date it was last used.
MOTHERBOARD STATUS
This feature relies on a 3rd party free product created by Alex van Kaam called Motherboard
Monitor. If you have this software installed on your system, RemotelyAnywhere can extract
information from it and display it here. MBM can provide you with the following information:
chassis and CPU temperatures, fan speeds and voltages. MBM can be found at
http://mbm.livewiredev.com.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 67
15. Section Guide Security
Security
The menu items under Security allow you access to RemotelyAnywhere’s various enhanced
security features.
Access Control
Under Security > Access Control you can control who has access to RemotelyAnywhere. This is
slightly different on Windows 9x and Windows NT, due to lack of a user database on the Windows
9x family of operating systems. We’ll cover Windows NT first.
Before getting into the details of setting up users here we’ll look at the lower part of the Access
control page. Here you can enable or disable the following features:
Allow full control to administrators This is enabled by default. It adds Full Control permission
to all administrators of the computer. If you turn it off, only users explicitly granted permission to
use RemotelyAnywhere will have access.
NT LAN Manager Authentication Enable/Disable NTLM authentication. For those of you
concerned about security, RemotelyAnywhere supports the Windows NT Challenge/Response
type authentication. You must use Internet Explorer to take advantage of this feature. Netscape
will always use the default authentication method, which means that passwords travel in Base64encoded clear text over the network. You need not worry about exposing your password to
eavesdroppers if you are using HTTPS to secure all communications between your browser and
RemotelyAnywhere.
Save user name in a cookie Finally, you can configure RemotelyAnywhere to remember your
user name in a cookie.
The upper portion of this dialog lists users already granted access to RemotelyAnywhere. The Add
button lets you specify a Windows NT user or group, and the access mask you wish to assign. The
red Remove button next to each entry in the list will remove that user or group from the access
list.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 68
15. Section Guide Security
Here’s the dialog showing you the options available for an entry in the permission list:
You can select individual permissions, or specify Full Control. You can also restrict the user to
an IP address or a network by entering the appropriate parameters in the fields below. To restrict
the user to a single IP address, enter it in the IP Address field, and leave Subnet Mask blank. To
specify access from a network, enter the network address in the IP Address field, and enter the
subnet mask in the Subnet Mask field.
The R, W and D columns allow you to specify powers to read only ( R ), write ( W), or delete content
( D ). All three on Remote Control, for example, will allow user access to a remote machine without
asking for permission from the interactive user on the host. Just uncheck D to force this dialogue
to appear before accessing the remote machine.
Login Anyone with any sort of access to RemotelyAnywhere is implicitly granted Login access.
This allows for looking at the Info page, reading the Help file, chatting with the user in front of
the computer, and logging out.
Configuration Users with access to the Configuration module can re-configure
RemotelyAnywhere. This also grants users access to modifying RemotelyAnywhere permissions;
keep this in mind!
Scripts Users can execute, create, change or delete scripts.
Event Viewer Allows the use of the Event Viewer module.
File System Allows access to and the use of the file system on the remote machine.
Registry Allows for editing and compacting the registry.
Performance Data Ability to view performance and system information data.
Processes Allows access to the Process List, and adds the ability to terminate processes and/or
change their priorities.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 69
15. Section Guide Security
Reboot Allows rebooting the computer and restarting the RemotelyAnywhere service.
Remote Control Allows use of both the screenshot-based and the Java-based Remote Control
module.
User / Group Accounts Allows the use of the User Manager module.
System Configuration Access to setting the time, using the Shared Resources administrative
page and changing virtual memory settings under the Computer Settings menu option.
SSH Shell Allows access to a command prompt on the host computer via the SSH protocol.
SSH Port Forward This option grants the user the right to use SSH port forwarding.
SSH Privileged Port Forward This option grants the user the right to use SSH privileged port
forwarding.
SCP This option grants the user the right to use SCP.
SFTP Allows the user access to the filesystem of the host computer via the SFTP (Secure File
Transfer Protocol, an extension of SSH) protocol.
Telnet (RA Client) This option allows the user to use the secured telnet client found in
the browser under Computer Management > Command Prompt.
Telnet Allows access to the machine via Telnet - either using the built-in telnet client or any
standalone terminal emulator.
Full Control Adds all possible permissions to a user. It is recommended to have at least one
account that has Full Control capabilities.
Force Personal Edition Interface By checking this box you can create a user who would see the
RemotelyAnywhere Personal Edition interface, regardless of the fact that the machine is using
Enterprise Edition or Server Edition. This is useful for creating users with full secure remote
control and file transfer capabilities, but without access to the extensive administration toolkit.
IP Filter This assign an IP filter profile to the user, and specifies which IP addresses from which
he or she can or cannot connect.
Special care needs to be taken with a few of the above options. Users with access to Configuration
and Registry Editor can also access and change the RemotelyAnywhere configuration data,
including permissions. However, the Registry Editor option can be considered safe, since the
administrator can change permissions on the HKLM\Software\RemotelyAnywhere key and
protect it from unwanted access. Users who can Create/Edit Scripts can also create programs in
the Small language that run on the remote computer. These scripts will be run under the account
of the person starting the script from the Scripts menu – except when a Small program is called
from the system monitoring script. In this case, the program is run under the LocalSystem
account.
With the exception of the Reboot, Remote Control and Processes, Windows NT access restrictions
apply. For example, you can grant someone access to the File Manager, but they will only be able to
access files and directories their Windows NT account has permissions to. The same goes for the
Registry Editor, User Manager, etc.
The above exception for Reboot, Remote Control and Processes is made to provide you maximum
control over your system, and RemotelyAnywhere uses the all-powerful LocalSystem account
to perform the above tasks. For example, not even an Administrator has sufficient rights to
terminate a service process - but with RemotelyAnywhere performing this action under the
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 70
15. Section Guide Security
LocalSystem account, any process can be terminated. Remote Control is another exception. When
you are remotely controlling the system with RemotelyAnywhere, you have access to the mouse
and the keyboard of the system. If nobody is logged on interactively, you will need to use the NT
Logon dialog to gain access to the desktop, typing in a username or password, possibly different
than the one you are accessing RemotelyAnywhere with. If there is a user logged on to the host
computer, you will be working under his account.
Access rights are cumulative. That is, if Group A has access to the Event Viewer, and Group B
has access to the File Manager, a user who is a member of both groups will have access to both
modules.
If the machine is a domain controller, the user accounts and groups that appear are listed from its
domain. If the computer is not a domain controller, local users and groups are displayed. You can
specify where to list accounts from by typing the name of the domain or the computer in the input
field and clicking the List accounts button.
You can also restrict a certain user to an IP address or an IP address range. Please remember that
access rights are cumulative: if Group X has full access to RemotelyAnywhere and is not bound
to an IP address and User Z is a member of that group, he will always have full access, even if you
bind him to a specific IP address or network. To allow a user or group access from two or more IP
addresses or networks, simply grant them the same permissions several times, but with different
IP restrictions.
Access rights are stored in the registry value HKEY_LOCAL_MACHINE/Software/
RemotelyAnywhere/Permissions in binary form. This data is basically a listing of the Security
Identifiers of the groups or users, the access mask associated with them, the network they might
be restricted to, and a CRC value. By default, any data under the HKEY_LOCAL_MACHINE/
Software key can only be changed by administrators or the LocalSystem account. Windows NT
reserves the latter for services and the operating system itself.
IP Address Lockout
With RemotelyAnywhere’s IP Address Lockout feature you can detect and temporarily lock out
potential intruders.
This security precaution allows you to configure two specific types of filter. These are called the
Denial of Service Filter and the Authentication Attack Filter. The first is a precaution against
unwanted intruders who slow your remote machine to a halt by continuously requesting the same
service. The second locks out those who persistently try to get past your log-in screen without
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 71
15. Section Guide Security
authorization.
The configuration for each is identical, although the default values differ due to the differences in
the kind of attack they are designed to prevent.
Active By ticking this box you will enable this feature. This can be useful if your server is exposed
to the Internet. IP Lockout will prevent people from gaining access to the administrator username
and password using brute-force methods, or from tying up your services through relentless
requests.
Number of invalid attempts before locking out Specify the number of login attempts before a
lockout occurs.
Reset invalid attempt counter after After the amount of time specified in this box elapses, the
invalid attempt count of the offending IP address will be reset to zero.
Lock out for If there were a number of bad login attempts from the same IP address, as specified
in the second field, within the time period specified in the reset count field, all attempted
connections from the offending IP address will be rejected for the amount of time given here.
Bad login attempts and lockouts are logged in the RemotelyAnywhere.log file if you have logging
enabled.
IP Filtering
With RemotelyAnywhere’s IP address filtering feature you can specify exactly which computers
are allowed to access RemotelyAnywhere on your system.
The above simple interface lets you maintain IP address restrictions. If the Current IP Address
Filters list is empty, then filtering is disabled.
The Up, Remove and Down buttons let you manage already entered filters. Select one item in the
list, and move it up or down with the appropriate buttons, or remove it altogether.
The New Item fields let you specify a new filtering item. You can enter the following:
1.
2.
3.
A single IP address
An IP address with a subnet mask, essentially granting or denying access for a whole
network.
An IP address with wildcards and no subnet mask. Accepted wildcards are an asterisk
(*) that matches any number of characters, or a question mark (?), that matches a single
character only.
The Allow and Deny drop down lets you specify whether you want to allow or deny access to the IP
address or addresses entered.
Whenever a new connection is established to RemotelyAnywhere, the remote IP address is
checked against the filter or filters in the list, and access is granted or denied accordingly. The IP
filters that you set up here apply to every connection received by RemotelyAnywhere, except for
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 72
15. Section Guide Security
those aimed at the FTP or Port Forwarding Server. To specify IP address restrictions specific to
these modules you will need to use their specific IP filtering options (see Section Guide - Server
Functions).
HOW IP FILTERING WORKS
When an IP address is checked against a list, RemotelyAnywhere goes from the first element of
the list to the last, comparing the IP address against the item. If the item is a single IP address,
it only matches the remote IP if they are equal. If the item is an IP address with a subnet mask,
a logical AND operation is performed on the subnet mask and the remote IP address, and the
result is checked against the item’s network address to see if the remote IP address is in fact on
the network. If the item is a wildcard, the remote IP address is converted to its dotted textual
representation and the two strings are compared.
When a match is found, RemotelyAnywhere checks if it should allow or deny the connection,
based on the allow/deny flag belonging to it. This result is then used to decide whether to let the
connection proceed.
If no match is found, then the connection is allowed. If you would like all connections to be
denied by default, except for those in the list, enter a DENY:* line as the last item on the list.
Examples:
1.
Allow connections from IP address 215.43.21.12 and the network 192.168.0.0, and deny
all other connections:
ALLOW:215.43.21.12
ALLOW:192.168.0.0 (255.255.0.0) –OR- ALLOW:192.168.*
DENY:*
2.
Allow connections from IP address 215.43.21.12 and the network 192.168.0.0, but not
from the address 192.168.0.12, and deny everything else:
ALLOW:215.43.21.12
DENY:192.168.0.12
ALLOW:192.168.0.0 (255.255.0.0) –OR- ALLOW:192.168.*
DENY:*
Please note that denying the connection from 192.168.0.12 comes before allowing connections to
the 192.168.0.0 network. This is because if RemotelyAnywhere was to find the ALLOW item first,
it would let IP address 192.168.0.12 through, since it matches the condition. To prevent this, we
make sure that the address 192.168.0.12 is checked before the network to which it belongs.
3.
Allow all connections, except those coming from 192.168.0.12:
DENY:192.168.0.12
4.
Deny all connections from the network 192.168.0.0 except for the subnet 192.168.12.0,
and allow all other connections:
ALLOW:192.168.12.0 (255.255.255.0) –OR- ALLOW:192.168.12.*
DENY:192.168.0.0 (255.255.0.0) –OR- DENY:192.168.*
Yet again, ordering is crucial.
It is not possible for you to lock yourself out by accident when setting up IP address restrictions
from afar, i.e. you can’t enter a DENY:* clause into an empty list.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 73
15. Section Guide Security
RemotelyAnywhere Logs
In order to view the RemotelyAnywhere log files, this is where you’d look.
The active log file is at the bottom of the list and is named RemotelyAnywhere.log. Older logs are
stored with the naming convention RAYYYYMMDD.log. For example, the RemotelyAnywhere log
file for June 1st 2003 would be called RA20030601.log.
You can enable or disable logging to text files as you will, but RemotelyAnywhere will always log
the following events to the Windows NT/2000 Application Log:
1.
2.
3.
4.
Service Start/Stop
Login/Logout
Remote Control Start/Stop
Telnet/SSH Login/Logout
The Application Log is used because of security considerations.
In addition, service start and stop events are always written to the RemotelyAnywhere.log file, no
matter whether logging is enabled or disabled. You can modify the settings for these logs under
Preferences > Log Settings.
SSL Setup
If you set up SSL support for RemotelyAnywhere all traffic between the host and the remote
computer will be encrypted using industry-strength 128-bit ciphers, protecting your passwords
and data. You can do this fairly easily by going to Security and clicking on SSL Setup.
RemotelyAnywhere can detect and use any SSL certificates already installed in Windows on your
machine, as long as they have an exportable private key.
You will be given a choice whether you’d like to use one of your already installed certificates or
create a new self-signed certificate.
To select a previously installed certificate select -- Look in Certificate Services -- and then click on
Continue.
You will be displayed a list of Certificate Services found in your domain. Select the one from
which you wish to request your RemotelyAnywhere server certificate.
If you’d prefer to create your own self-signed certificate, it can be done in four easy steps:
Copyright ©2003
•
•
First, you must set up your Certificate Authority (CA). This step will create a CA
certificate, valid for ten years, and self-sign it. Simply fill out the form at the bottom of
the page specifying your country code, your organization and your name. Some default
values are provided here from your computer’s registry. When you’ve finished, click
on the Create CA button. This will create the CA. Click on the Continue button at the
bottom of the page when you’re ready for the next step.
•
Second, you need to create the server certificate. Simply fill out the form at the bottom
and click on Create Certificate to proceed. RemotelyAnywhere will generate a certificate
request, and sign it with the Certificate Authority you created in the previous step. The
certificate created this way will be valid for ten years. Click Continue on the next screen.
•
The third step is optional: you can now install the CA certificate in your browser. This
will suppress the message you’d otherwise get about the unknown Certificate Authority
every time you make a secure connection to RemotelyAnywhere. Click on the button and
follow the instructions on screen.
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 74
15. Section Guide Security
•
Fourth, you need to restart RemotelyAnywhere so that it can load the newly created
server certificate. You can do this from the Control Panel or the console by typing net
stop RemotelyAnywhere and net start RemotelyAnywhere.
That’s it. You are now ready to make a secure connection to RemotelyAnywhere. Simply use a URL
in the form of https://my.machine.here:2000.
Note: you can use the same CA certificate on several machines, but you can’t use the same
server certificate in more than one place. If you want to use one CA certificate on a network of
NT machines, simply perform step one on the first machine, then copy the files CACert.pem,
CAKey.pem and CACert.der in the RemotelyAnywhere directory to the other machines. You can
then continue SSL setup from step two on all other boxes. You only have to perform step three
once in this case.
The SSL certificates generated here are used for accessing the HTML-based administration
module via HTTPS, and are also used by all virtual FTP servers to secure connections if using a
suitable client.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 75
16. Section Guide - Preferences
Preferences
RemotelyAnywhere is a highly configurable tool, meaning that you can change its settings to suit
your individual remote administration needs and desires. When you click on Preferences in the
menu a number of additional options become available for configuring the various sections of
RemotelyAnywhere outlined in previous sections of this manual. In Version 4 and earlier releases
of RemotelyAnywhere this option was called Configuration.
Appearance
If you select Appearance under Preferences you can tailor the look of RemotelyAnywhere to your
liking.
GENERAL SETTINGS
Display perfviewer applet at the top of the screen Enable/Disable the Java applet showing the
current processor and memory utilization in the top frame.
Enable Tooltips If you grow bored of the tooltips displayed by RemotelyAnywhere, you can turn
them off here.
Enable Icons You can turn off most of the icons displayed on the HTML pages.
Default number of items per page for long lists The number of records displayed per page on
those where there are long lists (such as eventlogs).
Default number of items per WAP page Most of the WAP devices out there have very small
screens and limited memory. Also, some gateways might enforce size restrictions on the WML
documents they compile for their devices. This configuration setting lets you specify the number
of records to appear per WAP screen, where applicable. Such screens belong to the Processes,
Services, and Drivers menu options.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_eeguide.pdf
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 76
16. Section Guide - Preferences
SYSTRAY SETTINGS
Under Preferences > Systray Settings you can enable and disable the System Tray icons.
Display the RemotelyAnywhere icon in the System Tray If you don’t want the
RemotelyAnywhere icon to be displayed in the System Tray, you can disable it here. Clicking on
this icon gives you access to a wealth of extra information, including a log of recent events and
detailed performance data graphs. This is detailed in the User Interface chapter of this manual.
CUSTOM PAGES
RemotelyAnywhere is able to act as a simple HTTP daemon and serve files from the computer to
the Web. You can customize the HTTP daemon’s behavior in the Appearance submenu under
Preferences.
If you specify the root directory for the HTTP daemon, and the default index file then when you
select Custom Pages (at the bottom of the menu) it will display the default index file from the web
root specified.
Simply leave the directory field empty if you don’t want to use custom pages.
Network
Under Preferences > Network you can configure your RemotelyAnywhere connection settings,
your SMTP settings, and even Dynamic IP Support.
GENERAL SETTINGS
The General Settings dialog allows you to change various connection and data transport related
options.
TCP/IP port to listen on Specify the port you want RemotelyAnywhere to use. This takes effect
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 77
16. Section Guide - Preferences
when the service is restarted.
IP Address to listen on Specify the IP address you want RemotelyAnywhere to use for incoming
connections. Your machine can have several IP addresses assigned to it, and RemotelyAnywhere
can listen on all of those addresses or just the one you specify here. This takes effect when the
service is restarted.
IP filter profile to use Here you can select from a drop down menu of specified IP addresses. You
will first need to set this up under Security > IP Filtering
Accept unsecured HTTP connections (non-SSL) If this box is unchecked and SSL transport has
been set up (Security > SSL Setup) then only HTTPS connections will be allowed.
Broken proxy server mask This is a rather obscure name for a setting provided to work around a
rather obscure problem.
Some proxy servers request pages from web servers using several IP addresses. This can cause
RemotelyAnywhere to bounce you back to the login page after you click the Login button. If you
are not affected by this problem, you should not change this setting. However, if you experience
this problem, please read the following section carefully.
When you log in, your browser is assigned a session identifier in a cookie. For security reasons,
this cookie is only valid when sent from the IP address from which the login originated. Were
it not so, an eavesdropping attacker would be able to copy your cookie and gain access to all
RemotelyAnywhere resources to which you have access.
Some proxy servers use several IP addresses when requesting data from a remote computer. If this
is the case with your proxy server, RemotelyAnywhere sees the original IP address and session
identifier as valid, but requests originating from other IP addresses (even if accompanied by a
valid cookie) are replied to with the login page. The login page breaks out of frames, and displays
itself in your browser - and you are prompted to log in again. A possible workaround is to keep
logging in as many times as necessary - most proxy servers only use a few - maybe half a dozen
- IP addresses. Once all the IP addresses are logged in, you will no longer be bounced to the login
page.
Since version 3.2, RemotelyAnywhere has had a setting called Proxy Problem Fixer.
This is essentially a mask that can be applied to IP addresses. Suppose your proxy server uses the
following IP addresses to request pages from servers:
192.168.0.33, 192.168.0.34, 192.168.0.35, 192.168.0.36, 192.168.0.37, 192.168.0.38
In this scenario, if you look at the IP addresses in binary form, you can see that only the last three
bits are different:
11000000.10101000.00000000.00100001
11000000.10101000.00000000.00100010
11000000.10101000.00000000.00100011
11000000.10101000.00000000.00100100
11000000.10101000.00000000.00100101
11000000.10101000.00000000.00100110
This means that the largest number that can be represented on three bits (111 binary = 7 decimal)
has to be masked from the IP addresses when checking them against each other to verify the
validity of the session identifier cookie.
RemotelyAnywhere provides a subnet mask-like setting for this purpose. By default, it is set
to 255.255.255.255 - this means that no bits are masked off. Given the above scenario, we
need to mask off the three least significant bits, thus we subtract 7 (binary form: 111) from
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 78
16. Section Guide - Preferences
255.255.255.255, which leaves us with 255.255.255.248. By entering this value in the Proxy
Problem Fixer field, we are telling RemotelyAnywhere to ignore the last three bits.
This is a rather tedious way of getting around the problem, but short of reconfiguring the proxy
server to use only one IP address, there is no easier solution. The latter is the recommended
solution, since allowing several IP addresses to share the same session identifier can be a security
risk. It is not really significant when you only mask off a few (three or four) bits, but if you need
to decrease more and more significant bits of the IP addresses, you are putting yourself in a risky
situation.
The risk is decreased significantly due to the fact that RemotelyAnywhere now uses HTTPS rather
than HTTP by default meaning that the cookie is protected by SSL.
Maximum number of servicing threads Here you can specify the maximum number of threads
RemotelyAnywhere can spawn to service client connections.
Idle time allowed Here you can specify the idle time allowed on a connection before the user is
automatically logged out.
Stalled transfer timeout Here you can specifiy the time before a stalled transfer times out.
Force HTTP Tunneling HTTP tunneling basically allows the applets to communicate to
the RemotelyAnywhere installation from behind proxy servers by issuing HTTP requests to
RemotelyAnywhere.
This option has two advantages and one drawback:
If you connect to the remote computer via HTTPS, Remote Control, Telnet, and Chat will be
tunneled through HTTPS - and SSL is much more secure than the built-in encryption used by
these modules when a direct socket connection is established.
If you can not establish a direct connection to the remote computer (because of, say, a proxy server)
you will not have to wait for the direct connection attempt to time out, RemotelyAnywhere will
immediately try to connect via the HTTP tunnel.
The drawback is that you will definitely notice a performance decrease when using these modules
with HTTP tunneling, since tunneling requires the data to be packed into HTTP packets and
usually each packet will need to establish its own connection to RemotelyAnywhere.
Automatically check for latest version on the Web When enabled, RemotelyAnywhere will
attempt to connect to http://www.remotelyanywhere.com every 24 hours to see if there is a newer
version of the software available. If there is, it will notify you via the News panel on the About
RemotelyAnywhere tab of the home page, as well as place an entry in the RemotelyAnywhere.log
file. When RemotelyAnywhere connects to RemotelyAnywhere.com, the following information is
recorded on the server:
•
•
•
•
The version of RemotelyAnywhere making the request
The version and family of the operating system RemotelyAnywhere is running on
The language of the operating system
Whether the instance of RemotelyAnywhere making the request is a trial or a licensed
copy
This information is recorded for statistical purposes, to help 3am Laboratories PL better serve its
customers. If you do not wish to provide this information to us, please disable this option.
SMTP SETTINGS
If you want to configure RemotelyAnywhere to send you e-mail alerts you need to enter your
SMTP settings here.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 79
16. Section Guide - Preferences
DYNAMIC IP SUPPORT
RemotelyAnywhere can send you an email message pointing to the IP address of your remote host
every time it starts up. Use this if your host has a dynamic IP address. Leave the recipient field
blank if you don’t want to use this feature.
Colors
Under Preferences > Colors you can modify the colors used by RemotelyAnywhere.
This is done using the standard hexadecimal code used by HTML. Simply enter the ‘#’ symbol
followed by the appropriate six-digit code and click Apply to see the change. For example, the pale
blue color used for backgrounds in the default color settings for RemotelyAnywhere is #8abdf0.
A new feature available with RemotelyAnywhere version 5 is the ability to select predefined
color schemes. Just select from the options in the drop down menu at the bottom of the screen
and click Apply. With this option, you can even revert to the colors used for earlier releases of
RemotelyAnywhere.
You can restore the default colors by clicking Restore at the bottom of the page.
Log Settings
RemotelyAnywhere’s log settings are fully configurable. In order to view the logs themselves you
would go to Security > RemotelyAnywhere Logs. Here, in the Preferences section you can modify
the general settings for RemotelyAnywhere and the Syslog settings.
GENERAL SETTINGS
Keep log files for this many days At midnight RemotelyAnywhere rotates its log files and deletes
old, unneeded ones. The value you enter here determines how old log files can grow before they
are deleted. If you set this to zero, the files will never be deleted, unless you do it manually.
Directory for log files You can also specify the directory for storing these log files. If you leave
this blank, they will be stored in RemotelyAnywhere’s installation folder, by default.
Send log events to ODBC data source Now that you can specify a predefined ODBC data source
within RemotelyAnywhere you can also specify a data source for storing log events. See the ODBC
messages option under Preferences for more information on this feature.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 80
16. Section Guide - Preferences
SYSLOG SETTINGS
With RemotelyAnywhere version 5 you can also modify the syslog settings. Here you can specify
the syslog hostname or IP address, transport protocol (UDP or TCP), syslog port numbers for
UDP and TCP, as well as the facility code to report.
Click Apply to update your settings.
ODBC Messages
The ODBC messages feature under Scheduling & Alerts allows you to write messages from
System Monitoring and Scripting to a database. By filling in the fields shown on the screen below
you can specify the ODBC data source properties through which these operations are done.
Data Source Here you can enter a predefined data source on the remote host. This can be set up
via that machine’s Control Panel, under Administrative Tools > Data Sources (ODBC). This can
be any database type: Oracle, SQL Server, Microsoft Access, or Excel.
User name & Password You need to enter the user name (including domain) and password in
order to access the data source, as RemotelyAnywhere cannot imitate your login to the database.
Table Name Enter the table in which the messages are to be stored.
You can also specify the column names for the messages to be written to the specified database.
The message, computer name and time stamp fields are all required.
A machine datasource must already be set up, and should contain a table with at least three
fields. Specify the name of the datasource, an optional username and password, and the name of
the table that will be used to hold the data. Then enter the names of the fields that will hold the
timestamp, the computer name (max. 16 characters), the message itself (max. 250 characters) and
other parameters.
Click Apply for these settings to take effect. You can also write a test message to correct that you
have configured ODBC messages correctly.
For more information about the kind of data that RemotelyAnywhere can collect, please see the
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 81
16. Section Guide - Preferences
relevant sections under Scheduling & Alerts > System Monitoring.
License
Under Preferences > License you can view your current license, enter updated licenses, or request
an evaluation license. Simply paste the license you received when you purchased or updated
your RemotelyAnywhere license into the input field, and click the Apply button. See the Getting
Stared chapter for more information about activating RemotelyAnywhere after installation and
requesting a trial.
The license file that you must copy without making ANY modifications looks something like this:
-----BEGIN LICENSE----PRODUCT
RemotelyAnywhere
PRODUCTTYPE
Server Edition
VALIDFORVERSION 5
EXPIRES
2004-06-08
LICENSETYPE
COUNTED
LICENSECOUNT
1
LICENSEETYPE
Corporate
LICENSEE
Your Company Name Ltd
ISSUER
3am Laboratories PL
ISSUERID
1060-4b81-0781-f51c
ISSUEDATE
2003-05-22
ISSUEREASON
PURCHASE
LICENSEID
52af-38f3-126e-0658
-----END LICENSE---------BEGIN PKCS7----MIHbBgkqhkiG9w0BBwKggc0wgcoCAQExCzAJBgUrDgMCGgUAMAsGCSqGSIb3DQEH
dG9yaWVzIFBMMRQwEgYDVQQDEwtNYXJ0b24gQW5rYQIBADAJBgUrDgMCGgUAMA0G
ATGBqjCBpwIBATBGMEExCzAJBgNVBAYTAkhVMRwwGgYDVQQKExMzYW0gTGFib3Jh
CSqGSIb3DQEBAQUABEBtenZrjzT4rXX41iYZgJ1UaONyL72nc/KEnfoM4+zHEfBk4A
sG7E6+FOa1uLSryMu4bLPj+segZZ03/GuTXjlN8l
-----END PKCS7----You must cut and paste everything from BEGIN LICENSE to END PKCS7 when you are
prompted.
The license file contains two distinct parts. The first part is the actual license and is in plain text
format. This is indicated by the BEGIN LICENSE and END LICENSE lines. The second part is
the digital signature which assures the integrity of the license text. This is contained between the
lines BEGIN PKCS7 and END PKCS7.
Remote Control
Under Preferences > Remote Control you can view and modify a number of options available
during realtime remote control sessions. This includes the general settings, audible notification,
interactive user permissions, and the remote printing feature, as you can see on the next page.
GENERAL SETTINGS
Disable host keyboard and mouse By disabling the host keyboard and mouse you can prevent the
person sitting in front of the machine from using their mouse or keyboard while a remote control
session is in progress.
Use mirror display driver RemotelyAnywhere provides a mirror display driver on the W2K/XP
platforms. This display driver provides a faster and less CPU-intensive remote control session.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 82
16. Section Guide - Preferences
Should you have any compatibility problems, you can turn off the use of this driver by disabling
this option.
Automatically disable wallpaper By default the wallpaper (or background desktop image) on the
host computer is disabled when a remote control session is started. If, for some reason, you need
to be able to see this, uncheck this box.
Automatic clipboard transfer maximum size RemotelyAnywhere version 5 features advanced
remote clipboard capabilities. Its usage is outlined earlier in this manual. Under preferences you
can specify the maximum number of kilobytes to be transferred between machines. The default
maximum is 1024kb, but bear in mind that transferring significantly larger amounts may cause
problems.
Idle time allowed If the remote control client is inactive for the amount of time specified here, it
will automatically be disconnected.
Auto panning If the host computer’s display area is larger than that which the remote control
client can display only a part of the screen is shown and you can use scrollbars to view the
required area of the remote display. With this option enabled, the screen is automatically scrolled
for you when the mouse nears the edge of the current display area.
Lock console when connection broken With this option enabled RemotelyAnywhere will lock
the console to protect your work if, due to a network error, the Java remote control client loses its
connection to the server.
Lock console when connection times out With this option enabled RemotelyAnywhere will lock
the console to protect your work if your connection times out.
Maximum number of screen updates per second Here you can specify the number of times the
screen is updated every second.
Use screenshot-based remote control by default Here you can enable screenshot-based remote
control, which menas that when you click on Remote Control in the menu, instead of loading the
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 83
16. Section Guide - Preferences
Java applet, it will go straight to screenshot-based Remote Control instead. You can switch to Java
based Remote Control from the toolbar, but you cannot switch back again. This setting is useful if
you have an extremely slow connection or a browser without Java. For more information, see the
appropriate part of this manual.
AUDIBLE NOTIFICATION
Beep when the remote control session starts or ends If this is enabled the host computer will
beep when a remote control session is initiated or ended.
Beep continuously during remote control With this enabled the host computer will beep
periodically when a remote control session is active.
Beep interval Here you can specify the time between beeps for the above setting.
INTERACTIVE USER’S PERMISSION
Ask for permission from interactive user If you turn this option off, you will disable the icon,
and also any attempts to notify the local user when someone is accessing the computer remotely.
When this option is off, none of the other settings in this configuration screen apply. This option,
when disabled, basically tells RemotelyAnywhere not to bother starting RAGui.exe, the software
that sits in the system tray and communicates with the user. Disabling this option will also disable
the Chat function.
Default answer for confirmation message Yes or No. When someone tries to gain remote control
access to the computer, and the local user does not answer the query, the remote control session
will either proceed or not, depending on this setting.
Time allowed for the interactive user to give permission This is the amount of time specified
before the notification message times out.
Text to display to the user This is the text that will be presented to the user in the remote control
confirmation dialog box. The string ‘%USER%’ will be substituted by the name of the user who is
attempting the remote control operation.
Display a warning message during Remote Control Disabling this option requires a special
license file.
Full Control (and Remote Control D) access rights bypass interactive user’s permission With
this option enabled, users with full Remote Control access rights (R+W+D) will be able to access
the remote host without first asking the user’s permission. If this is enabled it overrides the above
settings.
REMOTE PRINTING
Here you can enable or disable RemotelyAnywhere’s ability to print remotely.
Telnet Server
This dialog allows you to view and modify Telnet related options. For a complete explanation of
the Telnet server, please see the Computer Management section of this manual.
TCP/IP port to listen on / address to listen on Here you can specify which port / address you
want RemotelyAnywhere to listen on for telnet connections. This defaults to the standard telnet
port of 23, and all available interfaces. Changes take effect when the service is restarted.
Accept RemotelyAnywhere connections (secure) Allow connections from RemotelyAnywhere’s
built in Command Prompt.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 84
16. Section Guide - Preferences
Accept Telnet connections Allow plaintext terminal emulator connections. If disabled, only the
built-in Java client can be used to access Telnet. This does not affect the SSH server.
Show login banner Enable or disable the logon message sent by the Telnet/SSH servers when a
connection is established. The logon message looks like the following:
Windows NT Server 4.0 (build 1381) Service Pack 6
RemotelyAnywhere Telnet/SSH Server v3.5.268
Copyright (C) 1998-2001 3am Laboratories PL. All Rights Reserved.
Login:
If you do not want to let anybody who connects to the Telnet/SSH ports know the version of the
operating system and RemotelyAnywhere, disable this option.
Maximum simultaneous connections Here you can specify the maximum number of
connections to the Telnet/SSH servers. It’s a good idea to set a reasonable limit, especially on
computers connected to the Internet. Every new connection uses resources on the computer.
TIMEOUTS
Here you can set the login timeout (number of seconds the user may remain idle during the login
process), the idle timeout (number of seconds the user may remain idle during a Telnet/SSH
session) and the session recovery timeout. When a Telnet connection is broken ungracefully (that
is, the user does not type exit at the command prompt) it is possible to reconnect to the session
and continue work where it was left off for a period of time. You can specify the amount of time
for which you want the lost telnet session to remain available. Any and all running programs
started by the user in the Telnet session will be available when the session is resumed.
REMOTELYANYWHERE CLIENT
Here you can specify the number of columns and rows that the console window will occupy. You
can also specify whether you’d like to have the client open in a new window, or in a new window in
full screen mode.
TELNET/SSH CLIENT DEFAULT PARAMETERS
Here you can specify the default parameters for the Telnet/SSH client. You can also select the
console mode (Stream, Full ANSI Colors, or Full Monochrome) and enable/disable the console
parameters option.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 85
16. Section Guide - Preferences
SSH Server
As with the Preference options for the Telnet Server, this dialog allows you to view and modify
SSH related options.
The IP and address options are the same as above, but with the default port of 22, which is
standard for SSH connections. Changes will take effect when the service is restarted.
Features enabled These are the nuts and bolts of the SSH server.
Enable SSH1 or SSH2 server to take advantage of these features.
SFTP This is a secure file transfer method
SCP This is another secure file transfer method, but non-interactive.
Compression If this is checked data sent over the network will be compressed.
Password authentication When activated, the user can enter a username / password combination
in the terminal emulator client program and use that to gain access.
Keyboard interactive authentication This is similar to the above option, but it won’t allow the
saving of the username / password in the terminal client.
Cross-check IP and DNS entry of clients If this option is activated, and if the client comes
from the IP address 192.168.0.10 (for example), and this IP address resolves to COMPUTER1, but
COMPUTER1 does not resolve to 192.168.0.10, the connection will be disallowed.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 86
16. Section Guide - Preferences
Forwarding of server-side ports This is SSH Port Forwarding, allowing server-side ports to be
forwarded to others, effectively creating a virtual encrypted tunnel for the duration of the SSH
session.
Remote connects to the forwarded ports This allows the ports to be forwarded outside the server;
that is, to any computer on the network the server has access to.
HOST KEYS
The SSH Host Keys section lets you re-generate SSH1 and SSH2 host keys used by the SSH server.
You can specify the key size, but the larger the key, the longer it takes to generate it. Anything
above 2048 bits is excessive, and will take a very long time even on a fast computer.
SSH hosts have keys that can be used to identify them, much like SSL-protected websites have
certificates. SSH1 only supports a single host key, while SSH2 supports both RSA and DSA
keys. The key length is recommended to be 1024 bits or more, and can be 512, 768, 1024, 2048
or 4096. The SSH1 server key is a key that is relatively short, and has a short lifetime. It is used in
conjunction with the host key to negotiate a one-time session key for each connection. SSH2 uses
the Diffie-Hellman keyexchange protocol to negotiate the session key and therefore does not need
one.
Export SSH2 public host keys in SECSH format This button lets you export the host keys and
save them in your terminal emulator. This way, you can be sure that when the emulator connects
to the RemotelyAnywhere computer and does not put up a warning about an unknown host key,
you are still in fact connecting to the intended computer.
PRIVILEGE SEPARATION
You can enable or disable privilege separation here. A full description of what this means is
available within RemotelyAnywhere by clicking on ‘What is it.’ The text is reproduced here in full
for your reference.
PRIVILEGE SEPARATION IN SSH
When a user establishes an SSH session, and authentication succeeds, the server executes
applications (typically a shell process such as cmd.exe) in the user’s security context. The server
needs to execute with LocalSystem privileges to access resources required for user authentication
and impersonation.
Allowing an anonymous user to directly communicate with code that runs with the same
permissions as the operating system itself is the primary reason remote exploits exist.
Privilege separation has been pioneered by the Unix community with the release of OpenSSH 3.2.
The main goal of this technology is to prevent anonymous clients from exchanging information
with highly privileged software. This is achieved by serving a client with the help of two serverside processes: one that runs with SYSTEM privileges, and another which has practically no
privileges (i.e. GUEST privileges). The latter process is automatically spawned by the privileged
parent. The unprivileged child processes all network data and handles communications with
potentially untrusted clients. It relies on the parent process to perform tasks that need privileges,
and communicates these requests through a well defined and very simple interface. This way both
sides must agree that the client has authenticated before it is granted further access, and even
if the unprivileged child is compromised, the intruder cannot gain access to, let alone modify,
valuable information.
OpenSSH runs the unprivileged process in the context of a special user account. When you
enable SSH Privilege Separation in RemotelyAnywhere, this user is automatically created and
its access rights are minimized on the file system and the registry. This usually requires several
minutes, especially on large file systems. This special user has very limited rights: only execute
permissions in the System32 directory, and read rights to a minimum set of registry entries.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 87
16. Section Guide - Preferences
These permissions are required by Windows to execute any and all software. All other access
rights are explicitly denied for the special user account.
The Privilege Separation User is created under the name __ra_ssh_privsep__. It is maintained
by RemotelyAnywhere and you should not modify the account, its group memberships or any
other related security settings. This user is created with GUEST privileges, its password is set to
a cryptographically random string that is as long as system policies allow. The user account is
disabled by default. When RemotelyAnywhere accepts an SSH connection, it changes the user’s
password, enables the account, logs the user in, stores it’s access token handle, resets the password
again - and finally disables the user account until it is needed again.
WARNING!
Only NTFS file systems allow the required access rights to be set.
When you install a new hard drive in your computer, Windows grants full access to the everyone
group to the new hard disk and all of its contents. On such occasions you should use the Check
rights feature on the SSH Configuration page to set the correct access permissions on your
system.
Local or domain security policies might restrict local logins. RemotelyAnywhere attempts to
explicitly grant the Privilege Separation User local login privileges in the local security policy
- however, if domain policies override the local security policy, the __ra_ssh_privsep__ user
might not be allowed to log in. In this case, Privilege Separation should be disabled or the domain
security policy should be changed to be less restrictive.
Network Maintenance
With this feature you can install and configure RemotelyAnywhere on other computers connected
to the network, much as you would with the RemotelyAnywhere Console.
This option will not work if you have logged on with NTLM authentication. NTLM authentication
cannot be delegated over the network, so RemotelyAnywhere would not be able to identify you to
other computers.
First, you are asked how you would like to scan the network. You can choose to scan a specified
domain only, or you can browse the whole network. On larger networks, this can be a lengthy
operation, so looking at single domains at a time is recommended. You also have the option of
inspecting and upgrading a single computer.
On the next screen you are shown the part of the network selected in the previous step. All
computers are listed, and you will be able to see what operating system and which version
they are running, what roles they fulfill, and last, but not least, whether or not they have
RemotelyAnywhere installed.
If RemotelyAnywhere is installed on a machine in the list, you can quickly open it by clicking
on the machine name. You can also see which version of RemotelyAnywhere is running on the
computer, and you can upgrade it if necessary with two mouse clicks.
If RemotelyAnywhere is not installed on one of the machines on the network you can also quickly
do so from here with two clicks.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 88
17. Command Line Parameters
On Windows NT and Windows 2000, you can run RemotelyAnywhere from the command line to
perform various actions. These are:
1. INSTALLING REMOTELYANYWHERE ON THE LOCAL COMPUTER
The command for this operation is:
Install [-port PORT]
You will need to have the RemotelyAnywhere installation files in the current directory, either
copied from an existing installation or from the manual installation archive available on
RemotelyAnywhere.com.
This command will create the RemotelyAnywhere service and its support driver in the current
directory, and start it immediately.
The optional parameter can specify the listener port. For example:
RemotelyAnywhere Install -port 2020
You will need administrative privileges on the local computer to successfully perform this
operation.
2. INSTALLING REMOTELYANYWHERE ON A REMOTE COMPUTER
The command is:
Install <–computer COMPUTER> <–path PATH> [-port PORT]
[-minimal] [-license FILENAME]
You will need to have the RemotelyAnywhere installation files in the current directory. You will
also need administrative rights on the remote computer.
The first optional parameter is the same as when installing RemotelyAnywhere on the local
computer; it specifies the HTTP port number. The [-minimal] switch allows you to perform a
minimal install. This option does not copy the documentation files, thus speeding up the install
process over a slow network connection. The two required parameters are the name of the remote
computer and the local path to the intended destination directory on the remote computer.
The [-license FILENAME] option lets you specify a license file to be installed on the target
computer.
For example, if you want to install RemotelyAnywhere on a computer called KOSSUTH in the C:
\RemotelyAnywhere directory, and you do not want the documentation files copied, you will need
to enter the following command:
RemotelyAnywhere Install –computer KOSSUTH -path
“C:\RemotelyAnywhere” -minimal
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 89
17. Command Line Parameters
This will create the destination directory, copy all necessary files, and create and start the
RemotelyAnywhere service on KOSSUTH.
3. UNINSTALLING REMOTELYANYWHERE ON A LOCAL COMPUTER
The command is:
Uninstall
This will stop and remove the RemotelyAnywhere service and its support driver, as well as all
registry entries created by RemotelyAnywhere. You will need to delete the RemotelyAnywhere
directory and all its contents yourself.
For example:
RemotelyAnywhere Uninstall
You will need administrative privileges on the local computer to successfully perform this
operation.
4. UNINSTALLING REMOTELYANYWHERE ON A REMOTE COMPUTER
The command is:
Uninstall <-computer COMPUTER>
This will stop and remove the RemotelyAnywhere service and its support driver, as well as all
registry entries created by RemotelyAnywhere. You will need to delete the RemotelyAnywhere
directory and all its contents yourself.
For example:
RemotelyAnywhere Uninstall –computer KOSSUTH
You will need administrative privileges on the remote computer to successfully perform this
operation.
5. STARTING AND STOPPING A SERVICE
The command is:
start [-service SERVICE] [-computer MACHINE]
stop [-service SERVICE] [-computer MACHINE]
The optional parameters are the name of the service (it defaults to RemotelyAnywhere) to be
started, and the computer to perform the operation on (defaults to the local computer).
For example:
RemotelyAnywhere start
This will start the RemotelyAnywhere service on the local computer.
RemotelyAnywhere stop W3SVC –computer KOSSUTH
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 90
17. Command Line Parameters
This will stop the W3SVC service on the computer called KOSSUTH. You will need
administrative rights on the remote computer to perform this operation.
6. RESTART THE REMOTELYANYWHERE SERVICE
The command is:
Restart [-computer COMPUTER]
The optional parameter is a computer name (defaults to the local machine).
For example:
RemotelyAnywhere Restart –computer KOSSUTH
You will need administrative privileges on the computer to successfully perform this operation.
7. EXPORT/IMPORT REMOTELYANYWHERE CONFIGURATION SETTINGS TO/
FROM A TEXT FILE
The commands are:
CreateIniFile [-inifile FILENAME] [-computer MACHINE]
LoadIniFile [-inifile FILENAME] [-computer MACHINE]
The default value for FILENAME is RemotelyAnywhere.ini in the directory the RemotelyAnywhere
executable is located in. The COMPUTER parameter, if not specified, defaults to the local
computer.
You can use these commands to quickly copy configuration settings from one RemotelyAnywhere
installation to another, usually when installing RemotelyAnywhere to a remote computer from the
command line.
A typical set of commands using these settings would be:
RemotelyAnywhere CreateIniFile
RemotelyAnywhere Install –computer SERVER1
RemotelyAnywhere Stop –computer SERVER1
RemotelyAnywhere LoadIniFile –computer SERVER1
RemotelyAnywhere Start –computer SERVER1
The first line saves the local RemotelyAnywhere configuration to the default file. The second
command installs RemotelyAnywhere on the computer named SERVER1. The third command
stops the RemotelyAnywhere service on SERVER1 – necessary, because the previous command
already started RemotelyAnywhere. The fourth command will read all settings from the default ini
file, and configure RemotelyAnywhere on SERVER1 accordingly. Finally, the last command starts
RemotelyAnywhere.
The CreateIniFile command will write all RemotelyAnywhere configuration data to the target text
file. The LoadIniFile command will import all configuration data contained within the text file to
the target computer. This means that all configuration data is copied, including permissions, FTP
Server settings, the license key, etc. If you do not want to import specific configuration items, you
will need to edit the generated ini file and remove these entries. The format of the generated ini file
is as follows:
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 91
17. Command Line Parameters
[MetaData]
Creator=RemotelyAnywhere
CreatorBuildNumber=268
SourceComputer=SERVER2
Value0000=UseGraphRed
Value0001=VisitLength
Values=2
[UseGraphRed]
Type=REG_DWORD
Data=0
[VisitLength]
Type=REG_DWORD
Data=600
The above example, of course, is just a small part of the actual file generated. If you do not wish to
copy, for example, the VisitLength setting, simply remove the ValueXXXX=VisitLength line from
the MetaData section.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 92
18. PDA Access
Introduction
RemotelyAnywhere supports access via wireless handheld devices connecting using the http
protocol.
These devices, commonly known as PDAs, offer more connectivity to RemotelyAnywhere than
do devices using the WAP protocol. With their limited screen size and lesser processor capacity,
PDAs are not generally suitable for desktop remote control. However, most of RemotelyAnywhere’s
other features can still be accessed.
Not all handheld PDAs are the same. While RemotelyAnywhere is designed to operate on the most
popular PDA devices and browsers, some features may appear different from one handheld to
the next, and indeed in some cases certain functions have been deactivated altogether due to the
limitations of some devices. This chapter features screenshots of RemotelyAnywhere as used by
Palm devices; other browsers, such as Windows CE, may display differently.
BlackBerry users please note: BlackBerry handhelds connect to RemotelyAnywhere using the
WAP protocol. Please see chapter 19, WAP Access, for more information.
Logging in to RemotelyAnywhere via a PDA is very similar to logging in via a desktop’s web
browser. Simply ensure your PDA is connected to your LAN, or, if necessary, the internet, and
enter the appropriate IP address or web address and click OK. Authentication with PDA browsers
is exactly the same as with other browsers. Enter your Windows username and password and, if
necessary, the domain name, click OK, and you will be brought to the main menu.
Security Precautions
With HTTP and the PDA’s browser interface, making secure SSL connections is very similar to
the process found on other browsers: simply create an SSL certificate, install the certificate in your
browser, and use HTTPS as the protocol.
Main Menu
Depending on the browser, you will see a menu resembling the image to the left when logging in.
The clickable links are, in order:
Home
Processes
Services
Drivers
Event Viewer
User Manager
Registry Editor
Reboot
CPU Load
Memory Load
File Transfer
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 93
18. PDA Access
Network Maintenance
Log Out
The left-pointing arrow encased in the blue circle, present at the top of every page displayed by
RemotelyAnywhere, provides a link back to this main menu.
Home
A simplified version of the RemotelyAnywhere home page described earlier in this manual, as
pictured to the left, the PDA interface’s home page shows a simple system overview.
Processes
The Processes page has three options, as shown in the image to the left.
The output of this function will give you a listing of all processes running on the remote
computer. The list is hierarchical: a parent process will have its child processes listed beneath it,
with indentation indicating relationships. Please note that this is for information purposes only,
since Windows reuses process IDs.
Selecting a process will give you more information about it, as detailed earlier in this manual.
Services & Drivers
The images below show you what you would see under the services or drivers menu options:
The format of the Services and the Drivers lists are identical. These lists display the names and
statuses of all the services (or drivers) installed on the remote machine. Clicking on the name will
show you more detail about the selected object and allows you to control it. You can also change its
startup options. When specifying a user account to be used by a service,it must be in DOMAIN\
USER form. If you want to use a local user account, you can type .\USER.
In the list of objects, the status field shows Stopped, Running, Starting, Stopping, etc.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 94
18. PDA Access
RemotelyAnywhere looks through the list of services and drivers, and if it finds one that is set to
start automatically but is not running, a question mark is displayed. This alerts you to the fact that
the service should be running, but isn’t.
Event Viewer
This option enables you to view RemotelyAnywhere’s event viewer. You will be given a list of event
viewer options as in the image on the left.
User Manager
When you click on User Manager in the menu you will be able to access RemotelyAnywhere’s fullblown user manager. This supports all the features of NT’s builtin User Manger, and is shown
below:
Registry Editor
This option enables you to edit the registry of the host computer. First, the registry roots (HKCR,
HKCU, HKLM, etc.) are displayed, and you can dig down into them by clicking on their names.
Registry keys are links that open up that key for you. Key values are also displayed here, with their
name, type and value.
You can edit values that are of either text (REG_SZ, REG_EXPAND_SZ or REG_MULTI_SZ) or
integer (REG_DWORD) type. Binary, etc. values are only displayed but cannot be edited. Using
the buttons at the bottom of every page you can add a subkey, add a value or delete the currently
opened key.
Reboot
This option presents you with a menu similar to that found in the HTML interface.
The first selection restarts the RemotelyAnywhere service.
The next four selections reboot the computer. Normal reboot shuts down all applications.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 95
18. PDA Access
Emergency reboot kills all processes then shuts down and restarts the system in an orderly
fashion. You might lose data in your running applications. Hard reboot is just like pressing the
reset button or toggling the power switch: use this only as a last resort! Scheduled reboot allows
you to reboot the remote machine at a specified time.
CPU Load & Memory Load
Here you can view graphs on the CPU, and memory load.
File Transfer
When using File Transfer bear in mind that Palm devices don’t really have a proper file system.
Under the Windows CE browser, you can hover your stylus over a file and it will give you the
option to “Save as” (thus putting the “transfer” in “file transfer”) whereas under the Palm, all it
will do is try to open files in various programs (ie. textfiles in textpad, jpegs in picture viewer, etc.)
This is the fundamental difference between Palm and Windows CE.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 96
18. PDA Access
Network Maintenance
With this feature you can install and configure RemotelyAnywhere on other computers connected
to the network, much as you would with the RemotelyAnywhere Console, as documented in the
Preferences chapter of this manual.
Log Out
This menu option ends your RemotelyAnywhere session.
It is not strictly necessary to manually log out – your session will eventually time out after the time
period specified in the RemotelyAnywhere configuration elapses.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 97
19. WAP Access
Introduction
RemotelyAnywhere supports limited access via wireless devices using the Wireless Application
Protocol (WAP).
These devices are usually mobile phones, with limited screen size, limited memory, and limited
processor capacity.
For this reason, they do not understand HTML – pages displayed on WAP devices are written in
WML, which is based on XML. Graphics are simple black-and-white images.
When you access RemotelyAnywhere via the WAP interface, you are prompted to log in.
Enter your username and password using the phone’s controls then click the OK link.
Note If RemotelyAnywhere does not recognize your WAP device as such, it might cause
your WAP browser to display a message regarding unknown content, a compile error, or
something similar. In this case, you can edit the contents of the WapClients.cfg file found in
your RemotelyAnywhere directory to make the user agent known as a WAP device. Further
information on the format of the file is found inside. It is a plain text file and can be edited using
any text editor.
Security Precautions
With HTTP and the browser interface, you have a fairly simple job securing your communication:
simply create an SSL certificate, install the certificate in your browser, and use HTTPS as the
protocol.
With the WAP interface, things are more difficult, since your phone does not directly
communicate with RemotelyAnywhere. WAP devices connect to a WAP gateway that acts like an
intelligent proxy server:
1.
2.
3.
The phone issues a request to the gateway. The phone and the gateway communicate via
UDP (connectionless IP).
The gateway issues an HTTP or HTTPS request to RemotelyAnywhere and waits for the
reply.
The gateway compiles the received WML into bytecode and sends it to the phone.
While this is of no concern when browsing WAP pages for stock quotes or weather forecasts, it
raises two issues when a secure connection is required:
1.
2.
The phone must be able to communicate with the gateway via a secure channel. This is
done via the WTLS protocol that requires that the phone ‘trusts’ the gateway – that is, it
has its WTLS certificate installed.
The gateway must be able to communicate with RemotelyAnywhere via HTTPS. This
requires that the gateway ‘trust’ the RemotelyAnywhere installation in question – it
should have its certificate installed.
When using a commercial gateway (such as the ones provided by cellphone companies) the first
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 98
19. WAP Access
issue is usually not a problem. However, your cellphone provider will probably not install your
self-generated RemotelyAnywhere certificates, so the secure connection between the gateway and
RemotelyAnywhere will not be established.
RemotelyAnywhere provides a free, secure WAP gateway to its customers. The IP address of this
gateway is 206.252.132.168.
If you can make a secure (WTLS & HTTPS) connection to your computer running
RemotelyAnywhere from your WAP device, then you do not need to use our gateway. However,
if you run into problems, then we recommend using a normal ISP dial-up account and the
RemotelyAnywhere WAP gateway instead of the dial-up service and gateway offered by your
cellphone provider.
Using a third-party ISP for dial-up access is not necessary, but most cellphone companies will not
let you use a WAP gateway outside of their network. If this is the case, then you need a dial-up
account with an ISP, in addition to the RemotelyAnywhere WAP gateway.
If your RemotelyAnywhere installation is set to filter IP addresses, then you should allow access
from 206.252.132.168, since this is the IP address where the HTTP/HTTPS connections will be
made from.
When accessing RemotelyAnywhere from your phone, always use the HTTPS protocol by
specifying HTTPS:// in the beginning of the URL. This will encrypt the data sent and received
between the gateway and the RemotelyAnywhere installation.
Here is a brief description of how to configure a Nokia7110 to use our gateway:
•
•
•
•
•
•
•
•
•
•
•
•
•
Select the Services menu. Select Settings. The 7110 allows you to store 5 different sets of
WAP connection settings. Highlight the current settings, or one of the unused settings
on the phone, and select Options. Select Edit to edit the selected settings.
Homepage should be set to the RemotelyAnywhere installation you most frequently
access - or any other WML page. You can use the Bookmarks feature of the phone to
store your RemotelyAnywhere URLs.
Connection Type should be set to Continuous.
Connection Security should be set to On, this will encrypt the data sent and received
between the phone and the gateway.
Bearer must be set to Data.
Dial-up number must be set to the phone number of your dial-in server.
IP Address must be set to 206.252.132.168.
Authentication type can be set to either Normal or Secure, depending on the
configuration of your dial-in server. This setting specifies how the username and
password are sent to the dial-in server, and does not have any affect on actual WAP
communications.
Data call type can be set to either Analogue or ISDN, depending on your mobile operator
network and the type of dial-in connection that you will be using.
Data call speed can normally be left to Autobauding.
User name specifies the user name associated with your dial-up connection.
Password specifies the password associated with your dial-up connection.
Once you have configured all of your settings, use Back to return to the previous level of
menus, and then Activate your configuration.
Info Screen
You will be greeted with an Info screen that displays some essential information about the
computer. The Info screen will look similar to the images on the left.
At the bottom of this screen (and at the bottom of every screen) you will find the main menu that
allows you to select RemotelyAnywhere functions accessible via the WAP interface.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 99
19. WAP Access
The Menu
The menu, at the bottom of the screen looks like the image on the left (only partially shown):
Here is the complete list of menu options:
1.
2.
3.
4.
5.
6.
8.
8.
Main Menu
Services
Drivers
Processes
Performance Monitoring
Reboot
Event Viewer
Logout
A link to this menu is present at the bottom of every page displayed by RemotelyAnywhere.
Services & Drivers
The Services page looks like the image on the left.
You see a listing of all installed services, with their status next to them. Selecting a service takes
you into a menu that allows you to control that service:
On the services listing page, near the end, you can request different parts of the list.
The Drivers page looks and behaves exactly like the Services page.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 100
19. WAP Access
Processes
The Processes page has three options, as shown in the image on the left.
The first two will let you see a listing similar to the Services or Drivers lists – next to the process
name you will see either the CPU time used by the process or the Memory in use by the process,
depending on your selection:
Selecting a process will display detailed information about it, such as the executable name with
full path, the parent process, if available, the creation time, CPU time, pagefile and physical
memory usage, as in the image on the left.
You also have the option of killing a process here.
The third option in the Processes menu is the Create Process one. This will present you with the
following dialog:
Filling out this form and submitting it launches a new process under the user account of the
person using the WAP device. You can use this for a variety of tasks, such as executing batch files:
Executable Name: cmd.exe
Optional Parameters: /C c:\backup\startbackup.cmd
This will launch the command interpreter, which, in turn, will launch the startbackup.cmd batch
file in the c:\backup directory.
Performance Monitoring
On the performance pages, you can view graphs on the CPU, memory, and disk space utilization.
The main menu looks like the image on the left.
By selecting either of these options, you are presented with three graphs, each with a different
sampling rate – just like in the main RemotelyAnywhere performance charts.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 101
19. WAP Access
The CPU load represents the total CPU load on multiprocessor machines. The memory load
includes physical and virtual memory. The disk space utilization chart represents the total for all
harddisks in the computer.
Reboot
This option presents you with a menu similar to that found in the HTML interface.
The first three selections reboot the computer. Normal reboot shuts down all applications.
Emergency reboot kills all processes then shuts down and restarts the system in an orderly
fashion. You might lose data in your running applications. Hard reboot is just like pressing the
reset button or toggling the power switch: use this only as a last resort!
The last selection restarts the RemotelyAnywhere service.
Event Viewer
This option enables you to view RemotelyAnywhere’s event viewer. You will be given a list of event
viewer options as in the image on the left.
If you select one of these options, you will see the following:
Logout
This menu option ends your RemotelyAnywhere session.
It is not strictly necessary to manually log out – your session will eventually time out after the time
period specified in the RemotelyAnywhere configuration elapses.
Copyright ©2003
•
www.remotelyanywhere.com/remotelyanywhere_seguide.pdf
•
Send support questions to: [email protected]
Page 102
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
