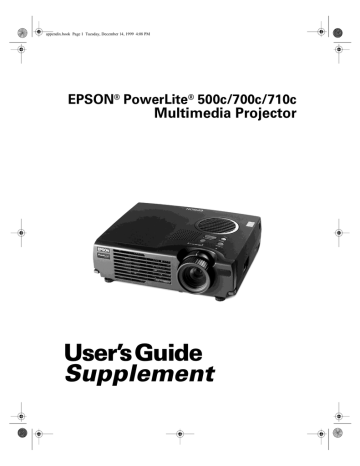

appendix.book Page 1 Tuesday, December 14, 1999 4:08 PM
EPSON
®
PowerLite
®
500c/700c/710c
Multimedia Projector
User’s Guide
Supplement
appendix.book Page 2 Tuesday, December 14, 1999 4:08 PM
Important Safety Information
WARNING: Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes.
Never let children look into the lens when it is on. Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical voltages inside the projector can severely injure you. Except as specifically explained in the User’s Guide or this Supplement, do not attempt to service this product yourself. Refer all servicing to qualified service personnel.
WARNING: The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small children to avoid any risk of suffocation.
Caution: When you replace the lamp, never touch the new lamp with your bare hands; the invisible residue left by the oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of SEIKO EPSON CORPORATION. The information contained herein is designed only for use with this EPSON printer. EPSON is not responsible for any use of this information as applied to other printers.
Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the
U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’s operating and maintenance instructions.
SEIKO EPSON CORPORATION shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original EPSON Products or EPSON
Approved Products by SEIKO EPSON CORPORATION.
EPSON is a registered trademark of SEIKO EPSON CORPORATION.
PowerLite is a registered trademark of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. EPSON disclaims any and all rights in those marks.
PL500700710C
1/00 Copyright © 2000 by Epson America, Inc.
2
appendix.book Page 3 Tuesday, December 14, 1999 4:08 PM
B
Projector
Menus
Computer
A
Desktop
C
Contents
Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Identifying the Projector Ports . . . . . . . . . . . . . . . . . . . . . . . . 7
Connecting to a PC Desktop Computer . . . . . . . . . . . . . . . . 7
Connecting the Computer Cable . . . . . . . . . . . . . . . . . . 8
Connecting the Audio Cable . . . . . . . . . . . . . . . . . . . . . . 9
Connecting the Cable for Remote Mouse Control . . . . . 9
Connecting to a Desktop Macintosh . . . . . . . . . . . . . . . . . . 10
Connecting the Computer Cable . . . . . . . . . . . . . . . . . 11
Connecting the Audio Cable . . . . . . . . . . . . . . . . . . . . . 13
Connecting the Cable for Remote Mouse Control . . . . 13
Turning the Projector On and Off . . . . . . . . . . . . . . . . . . . 14
Turning On Other Equipment . . . . . . . . . . . . . . . . . . . 16
Changing Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Video Menu (Computer Image Source) . . . . . . . . . . . . . . . . 20
Video Menu (Video Image Source) . . . . . . . . . . . . . . . . . . . 22
Audio Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Effect Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Setting Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
User’s Logo Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Capturing the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Advanced Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
About Menu (Computer Image Source) . . . . . . . . . . . . . . . 31
About Menu (Video Image Source) . . . . . . . . . . . . . . . . . . . 32
Reset All Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3
appendix.book Page 4 Tuesday, December 14, 1999 4:08 PM
C
Specifications
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Projection Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Mouse Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Remote IR Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
CE Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Supported Monitor Displays . . . . . . . . . . . . . . . . . . . . . . . . 35
Computer Connector Pin Assignments . . . . . . . . . . . . . . . . 37
Index
4
appendix.book Page 5 Tuesday, December 14, 1999 4:08 PM note
For instructions on connecting to a laptop computer or to external speakers, see your User’s
Guide.
A
Appendix A:
Connecting to a Desktop
Computer
This appendix describes how to connect the projector to your desktop computer and turn everything on. The projector must be connected to a computer or a video source such as a VCR, camcorder, digital camera, DVD player, or laser disc player before it can project any images. You may also want to set up the projector for one or more of the following:
■ Connect the mouse cable to use the remote control as a wireless mouse. Except for some laptops, this disables your computer’s mouse. You use the remote control’s pointer to control the screen cursor.
■ Provide audio for one or both image sources. The audio source can be the computer, video source, or another device such as a stereo.
Connect to an external speaker or PA system to amplify the audio (see your User’s Guide for instructions).
■
Positioning the Projector
Before you can set up the projector, you need to decide where to place it. Keep the following in mind:
■ Place the projector on a sturdy, level surface.
■
■
■
Make sure the projector is within 10 feet of a grounded electrical outlet or extension cord.
Place the computer and/or video source within 5 feet of the projector.
Make sure the projector is at right angles to the screen.
Otherwise, your image will be distorted.
Connecting to a Desktop Computer 5
appendix.book Page 6 Tuesday, December 14, 1999 4:08 PM note
It is easier to position the projector when the screen is directly in front of the room.
If the screen is placed diagonally in a corner, it is much more difficult to position the projector perpendicular to the screen and get a non-distorted image.
Most presenters find it convenient to place the projector (and computer) in the front of the room. With this arrangement, the projector is placed close to the screen. You need to raise the front of the projector (by extending the legs) in order to position the image high enough on the screen. Then you can use the projector’s keystone control to correct the distortion caused by tilting up the front of the projector.
The distance between the projector and the screen determines the actual image size. Use the general guidelines in the table below to determine the proper distance.
Image size
(diagonal)
Horizontal distance from projector to screen
Minimum
(lens set to W)
Maximum
(lens set to T)
2.2 feet (0.7 meter)
2.5 feet (0.8 meter)
—
3.6 feet (1.1 meters)
3.6 feet (1.1 meters)
4.3 feet (1.3 meter)
3.3 feet (1.0 meter) 4.8 feet (1.5 meters) 5.6 feet (1.7 meters)
5.0 feet (1.5 meters) 7.5 feet (2.3 meters) 8.9 feet (2.7 meters)
6.7 feet (2.0 meters) 9.8 feet (3.0 meters) 11.8 feet (3.6 meters)
8.3 feet (2.5 meters) 12.5 feet (3.8 meters) 14.8 feet (4.5 meters)
12.5 feet (3.8 meters) 18.7 feet (5.7 meters) 22.6 feet (6.9 meters)
16.7 feet (5.1 meters) 25.3 feet (7.7 meters) 30.2 feet (9.2 meters)
25 feet (7.6 meters) 37.7 feet
(11.5 meters)
45.3 feet
(13.8 meters)
6 Connecting to a Desktop Computer
appendix.book Page 7 Tuesday, December 14, 1999 4:08 PM
Identifying the Projector Ports
The following illustrations identify all the interface ports on the back and side of the projector; you may want to refer to them as you connect your computer or other equipment to the projector.
L-Audio-R
Audio In
Computer
Audio Out
S-Video
Video
Out
S-Video
Audio
In
R
Audio
L
Computer
Video note
Computer configurations vary. See your computer manual for the location of the ports needed to connect your projector.
Mouse/Com
Mouse/Com
USB Mouse
USB Mouse
Power Inlet
Connecting to a PC Desktop
Computer
To connect the projector to your PC desktop computer, you need to:
■ Connect the computer cable
■
■
Connect the audio cable (if you’ll be projecting with audio)
Connect the mouse cable (if you want to use the remote control as a mouse)
If you connect the projector to your desktop computer, you cannot view your images on the computer monitor.
Follow the steps in each section for the cables you need to connect.
Connecting to a Desktop Computer 7
appendix.book Page 8 Tuesday, December 14, 1999 4:08 PM
Connecting the Computer Cable
Before you start, make sure your projector, computer, and all peripherals are all turned off.
1. Disconnect the monitor cable from the monitor port on the back of your computer.
2. Connect one end of the projector’s computer cable to the projector’s Computer port.
3. Connect the other end of the cable to your computer’s video (monitor) port.
4. Tighten the screws on all connectors.
If you don’t need to make any other connections, you can plug
in your projector and turn it on. See page 14 for instructions.
8 Connecting to a Desktop Computer
appendix.book Page 9 Tuesday, December 14, 1999 4:08 PM note
If you need maximum volume (in a large auditorium, for example), you can also connect external speakers or a public address system to the projector. See your User’s
Guide for instructions.
Connecting the Audio Cable
If your presentation includes sound effects or other types of computer audio, you need to connect the audio cable.
1. Connect one end of the audio cable to the Audio In jack on the projector.
Audio in jack audio cable
2. Connect the other end of the audio cable to the speaker or audio out port on your computer’s sound card.
Connecting the Cable for Remote Mouse
Control
Using the remote control as a wireless mouse gives you more flexibility. You can deliver your presentation from anywhere in the room and interact with the audience. You don’t need to stand near your computer or near the projector.
You’ll use different cables and different ports on the projector, depending on whether your computer has a round PS/2 mouse port or a flat USB mouse port.
Mouse/Com
PS/2 mouse port
USB Mouse
USB mouse port
PS/2 mouse cable
USB mouse cable
Connecting to a Desktop Computer 9
appendix.book Page 10 Tuesday, December 14, 1999 4:08 PM
1. Determine which type of mouse port your computer has:
■ Round PS/2 mouse port
■ Flat USB mouse port
2. Connect one end of the appropriate mouse cable to the
PS/2 Mouse/Com port or the USB Mouse port on the projector.
connecting PS/2 mouse cable connecting USB mouse cable
3. Connect the other end to the mouse port on your computer. (Your computer’s mouse will be disabled while you are using the remote control as a mouse.) note
Macintosh configurations vary. See your computer manual for the location of the ports needed to connect your projector.
Connecting to a Desktop Macintosh
To connect the projector to your desktop Macintosh, ® you need to:
■
■
Connect the computer cable
Connect the audio cable (if you’ll be projecting with audio)
■ Connect the mouse cable (if you want to use the remote control as a mouse)
If you connect the projector to your Macintosh, you cannot view your images on the computer monitor.
Follow the steps in each section for the cables you need to connect.
10 Connecting to a Desktop Computer
appendix.book Page 11 Tuesday, December 14, 1999 4:08 PM note
If you have an older
Macintosh, you may need to use a Macintosh adapter
(available from Apple ® ).
Check the documentation for your Macintosh to determine what type of connections are available.
Connecting the Computer Cable
Before you start, make sure your projector, computer, and all peripherals are all turned off.
1. Disconnect the monitor cable from the monitor port on the back of your Macintosh.
2. Connect one end of the computer cable to the projector’s
Computer port.
3. Connect the other end to the monitor port on your
Macintosh.
Macintosh adapter, if necessary
Connecting to a Desktop Computer 11
appendix.book Page 12 Tuesday, December 14, 1999 4:08 PM
If you can’t connect the projector’s computer cable to your
Macintosh, you may need to use a Macintosh adapter
(available from Apple).
■
■
Remove the small cover on the
Macintosh adapter and set its DIP switches according to the resolution you want to use (such as 16-inch mode). See your Macintosh documentation for instructions.
Connect the small end of the Macintosh adapter to the computer cable.
■ Connect the computer cable (with the
Macintosh adapter attached) to the monitor port on your Macintosh.
4. Tighten the screws on all the connectors.
If you don’t need to make any other connections, you can plug
in your projector and turn it on. See page 14 for instructions.
12 Connecting to a Desktop Computer
appendix.book Page 13 Tuesday, December 14, 1999 4:08 PM note
If you need maximum volume (in a large auditorium, for example), you can also connect external speakers or a public address system to the projector. See your User’s
Guide for instructions.
Connecting the Audio Cable
If your presentation includes sound effects or other types of computer audio, you need to connect the audio cable.
1. Connect one end of the audio cable to the Audio In jack on the projector.
Audio in jack audio cable
2. Connect the other end of the audio cable to the speaker jack on your Macintosh.
Connecting the Cable for Remote Mouse
Control
Using the remote control as a wireless mouse gives you more flexibility. You can deliver your presentation from anywhere in the room and interact with the audience. You don’t need to stand near your Macintosh or near the projector.
You’ll use different cables and different ports on the projector, depending on what type of mouse your Macintosh has.
Mouse/Com standard mouse port
USB Mouse
USB mouse port
Mac mouse cable
USB mouse cable
Connecting to a Desktop Computer 13
appendix.book Page 14 Tuesday, December 14, 1999 4:08 PM
1. Determine which type of mouse port your Macintosh has:
■ Round mouse port
■ Flat USB mouse port
2. Connect one end of the appropriate mouse cable to the standard Mouse/Com port or the USB Mouse port on the projector.
connecting Mac mouse cable connecting USB mouse cable
3. Connect the other end to the port on your Macintosh.
Turning the Projector On and Off
After you have connected your computer and other equipment, you can plug in the projector and turn it on.
1. Connect the power cable to your projector’s power inlet. power light
2. Plug the other end of the cable into a grounded electrical outlet.
The power light on top of the projector turns orange. This indicates that the projector is receiving power, but is not yet turned on.
14 Connecting to a Desktop Computer
appendix.book Page 15 Tuesday, December 14, 1999 4:08 PM
3. Use the tab on the lens ring to rotate the ring and pop out the lens.
tab
4. Squeeze the lens cap tabs and remove the lens cap.
Squeeze here warning
Never look into the lens when the lamp is on. This can damage your eyes, and is especially dangerous for children.
5. Press the red Power button on top of the projector.
power button power light
The power light flashes green, and then stays on. You may see a blue screen with the message No Signal displayed.
This is normal.
6. Turn on or restart your computer. In a few moments, you should see the computer display projected.
Connecting to a Desktop Computer 15
appendix.book Page 16 Tuesday, December 14, 1999 4:08 PM caution
To avoid damaging the lamp, never unplug the power cord when the power light is green.
When you are ready to turn off the projector, follow these steps:
1. Press the red Power button on top of the projector. You see a confirmation message. (If you don’t want to turn it off, press any other button.)
2. Press the Power button again. The Power light flashes orange for about a minute and the fan gets louder as the projector cools down. When the projector has cooled, the orange light stays on and the fan shuts off.
If you want to turn the projector on again, wait until the orange light stops flashing. Then press the Power button.
3. When you are finished using the projector, replace the lens cap, retract the lens, and unplug the power cord.
Turning On Other Equipment
If you’re using a VCR, other external video source, or additional equipment with the projector, turn on the equipment in this order:
1. Video source
2. External audio source
3. Projector
4. External speakers or PA system
5. Computer
When you’re ready to shut down, turn off the equipment in the reverse order.
16 Connecting to a Desktop Computer
appendix.book Page 17 Tuesday, December 14, 1999 4:08 PM
B
Appendix B:
Using the Projector
Menus
The on-screen menus let you customize and adjust projector features. The following 8 menus and features are available:
Video
Controls the look and quality of the projected image (from a computer or video source).
■
■
■
■
■
■
■
Audio
Adjusts the volume and tone (treble/bass).
Effect
Customizes the drawing tools available on the remote control.
Setting
Adjusts features such as the keystone setting, blank screen color, message prompt, and power management system.
User’s Logo
Lets you capture and store an image to be displayed with the A/V Mute button, or as the startup screen.
Advanced
Controls settings such as menu language, use of startup screen, color temperature, and rear or ceiling projection.
About
Provides information about lamp usage and the current display settings.
Reset All
Restores the factory defaults for all the projector settings.
■
Using the Projector Menus 17
appendix.book Page 18 Tuesday, December 14, 1999 4:08 PM
Changing Menu Settings
You use the Menu , Enter and Esc buttons on the remote control to change menu settings.
To change a menu setting:
1. To access the menu system, open the cover on the lower part of the remote control and press the Menu button.
Menu button
Power
Freeze
A/V Mute
E-Zoom
2
3
R/C ON
OFF
4
Enter
Esc
Menu Help
Comp
S-Video Video
Resize Auto
P in P
- Volume +
You see the following: menus
Video menu options
18 Using the Projector Menus
appendix.book Page 19 Tuesday, December 14, 1999 4:08 PM note
The options available in some submenus vary, depending on whether the current image source is the computer or a video source.
As you select a menu, a submenu of options appears to the right.
2. Press the bottom of the Enter button (or grasp it between your thumb and finger and tilt it down) to scroll through the menus.
When you highlight a menu, its options are shown on the right.
3. When the menu you want is highlighted, press the center of the Enter button to select it.
The highlight moves to the first option for that menu.
4. Press the bottom of the Enter button (or grasp it between your thumb and finger and tilt it down) to scroll through the options.
5. Press the right or left side of the Enter button (or grasp it between your thumb and finger and tilt it to the side) to change the setting.
6. If you want to go back to the default settings on any menu, select Reset , press Enter , select Yes , and then press Enter .
7. Press the Esc button on the remote to go back to the main menu display. Your changes are saved automatically.
8. Press the Menu button to exit the menu system.
The settings available in each of the menus are described below.
Using the Projector Menus 19
appendix.book Page 20 Tuesday, December 14, 1999 4:08 PM
Video Menu (Computer Image
Source)
note
Some options are limited to being enabled (turned on) or disabled (turned off).
The computer must be connected and operating, and the image source on the projector must be set to
Computer for you to access these menu options.
The Video menu lets you make adjustments to the projected image. The following options are available when the image source is your computer.
Menu item
Position
Tracking
Sync
Brightness
Contrast
Description
Use the Enter button to move the screen position in the corresponding direction.
When you finish making adjustments, press the
Esc button.
Matches the projector’s internal clock to various computer graphic signals. Adjust this setting to remove vertical lines from the image.
Synchronizes with the tracking signal sent from the computer. Adjust this setting to correct fuzziness or screen flicker.
Lightens or darkens the overall image. Increase brightness to lighten an image, or decrease it to darken the image.
Adjusts the difference between light and dark areas. Increase the contrast to make light areas lighter and dark areas darker. Decrease it to minimize the difference between light and dark areas.
20 Using the Projector Menus
appendix.book Page 21 Tuesday, December 14, 1999 4:08 PM
Menu item
Color
Sharpness
Auto Setup
Gamma
Reset
Description
Adjusts the color balance (red:green:blue) of the input source.
Increase the color setting for more intense color on the screen, and lower the setting for less intense color.
When you finish making adjustments, press the
Esc button.
Adjusts the sharpness of the screen image.
Set to On to have the computer automatically optimize the image for projection.
Adjusts the projected image for natural coloration.
Returns all menu items to their initial factory defaults.
Using the Projector Menus 21
appendix.book Page 22 Tuesday, December 14, 1999 4:08 PM note
The projector’s image source must be set to
Video, and the video source (such as a VCR or camcorder) must be connected and operating for you to access these menu options. For example, the projector must actually be projecting the image from your video tape if you’re using a VCR.
Video Menu (Video Image Source)
The Video menu lets you make adjustments to the projected image. The following options are available when the image source is Video.
Menu item
Position
Brightness
Contrast
Color
Tint
(NTSC only)
Sharpness
Gamma
Mode
Reset
Description
Use the Enter button to move the screen position in the corresponding direction.
When you finish making adjustments, press the
Esc button.
Lightens or darkens the overall image. Increase brightness to lighten an image, or decrease it to darken the image.
Adjusts the degree of difference between light and dark areas. Increase the contrast to make light areas lighter and dark areas darker.
Decrease it to minimize the difference between the lightest and darkest areas of the image.
Adjusts color density. Increase the setting for darker and more opaque colors. Decrease it for lighter and less opaque colors.
Adjusts the red-green color balance of the screen. Increase tint to add more green, or decrease it to add more red.
Adjusts the sharpness of the screen image.
Adjusts the projected image for natural coloration.
Specifies the image signal mode: Auto, NTSC,
NTSC4.43, PAL, M-PAL, N-PAL, PAL 60,
SECAM.
Returns all menu items to their initial factory defaults.
22 Using the Projector Menus
appendix.book Page 23 Tuesday, December 14, 1999 4:08 PM
Audio Menu
Use the Audio menu to adjust the sound volume and quality of your audio.
Menu item
Volume
Tone
Reset
Description
Adjusts the volume level for the projector’s speaker and audio-out terminal.
Increase the setting to raise the volume, or decrease it to lower the volume.
Adjusts the sound quality. Move left to increase bass and right to increase treble.
Returns all menu items to their initial factory defaults.
Using the Projector Menus 23
appendix.book Page 24 Tuesday, December 14, 1999 4:08 PM
Effect Menu
The Effect menu lets you customize the drawing tools available on the remote control.
Menu item
Cursor/
Stamp
Box
Marker
Freehand
Description
Selects the stamp you want to use as the cursor graphic and lets you enlarge it.
Selects a box color and shape.
Selects the marker (horizontal or vertical lines) color and width (from 2 to 32 pixels).
Selects the color and width for freehand lines
(2 to 148 pixels).
Cursor Speed Adjusts the cursor speed to Low, Middle, or
High.
Reset Returns all menu items to their initial factory defaults.
24 Using the Projector Menus
appendix.book Page 25 Tuesday, December 14, 1999 4:08 PM
Setting Menu
The Setting menu allows you to set or adjust various projector options.
Menu item
Keystone
P-in-P
No-Signal
Msg
Prompt
A/V Mute
Power Mgmt
Sys
Reset
Description
Adjusts a trapezoid (distorted) image to a 4:3 rectangle, correcting up to a ± 15
°
tilt.
Selects the image source (composite or
S-Video) for the picture-in-picture subscreen.
Specifies whether no screen, a black screen, a blue screen, or a user logo is displayed when the projector is not receiving a signal.
Turns off the message identifying the image source (computer or video).
Specifies whether a blue, black, or user logo screen is displayed when the A/V mute button is pressed.
Turns on the power management system which works with your computer’s power management.
Returns all menu items to their initial factory defaults.
Using the Projector Menus 25
appendix.book Page 26 Tuesday, December 14, 1999 4:08 PM
User’s Logo Feature
26 Using the Projector Menus
The User’s Logo feature allows you to transfer any image on your computer to the projector, and then use it as the screen displayed when the projector is not receiving a signal. You can also set it as a startup screen or to be displayed when you press the A/V Mute button on the remote. The image can be a company logo, slogan, photograph, or another other image you want to use.
Capturing the Image
You start by displaying the image you want to use on the projector. You can use an image from either a computer or video source such as a VCR or digital camera. Then follow these steps to capture the image and transfer it to the projector:
1. Press the Menu button. You see the main menu listing, with the Video menu highlighted.
2. Press the bottom edge of the Enter button (or move it down) to highlight the User’s Logo menu.
appendix.book Page 27 Tuesday, December 14, 1999 4:08 PM
3. Press Enter to select this feature. You see the following message:
4. Select Yes and press Enter . A selection box displays over the image.
5. Use the Enter button on the remote control to select the area of the image you want to use. Once you have selected the entire area, press Enter .
6. When you see the message “Do you use this image?” select
Yes and press Enter . If you want to change the area selected, select No
and repeat step 5. You see the following:
7. Use the Enter button on the remote control to select a zoom rate (display size), and then press Enter .
Using the Projector Menus 27
appendix.book Page 28 Tuesday, December 14, 1999 4:08 PM
8. When the following message appears, select Yes and press
Enter .
Saving the logo may take a few moments. Do not use the projector or other sources (computer, video, speaker, etc.) while the logo is being saved.
9. When you see the following message, press the Menu or
Enter button to redisplay the main menu.
28 Using the Projector Menus
appendix.book Page 29 Tuesday, December 14, 1999 4:08 PM note
You can also set up your image as a startup screen.
Use the Advanced menu to enable the startup screen.
Assigning the Image to the No-Signal
Message and/or A/V Mute Button
After your image is saved, you can set it up as the no-signal message and/or the screen that’s displayed when you press the
A/V Mute button.
1. Press the Menu button. You see the main menu listing, with the Video menu highlighted.
2. Press the bottom edge of the Enter button (or tilt it down) to highlight the Setting menu.
3. Press the Enter button to select the Setting menu.
4. Press the bottom edge of the Enter button (or tilt it down) to highlight No-Signal Msg .
5. Press the right side of the Enter button to select Logo . This sets your image as the screen displayed when the projector is not receiving a signal.
6. If you want to set up your image as the A/V mute display, press the bottom edge of the Enter button (or tilt it down) to highlight A/V Mute .
7. Press the right side of the Enter button to select Logo . This sets your image as the screen displayed when you press the
AV/Mute button.
8. When you’re finished, press Esc or Menu .
To test your setting, press the A/V Mute button to display your image. Press it again to turn off the image.
Using the Projector Menus 29
appendix.book Page 30 Tuesday, December 14, 1999 4:08 PM
Advanced Menu
30 Using the Projector Menus
The Advanced menu lets you set additional projector options.
Menu item
Language
Startup
Screen
Color Temp
Rear Proj.
Ceiling
Reset
Description
Selects the language to be used in the menus:
Japanese, English, French, German, Italian,
Spanish, Portuguese, Chinese, or Korean.
Displays the image you have saved as a user logo during the projector’s startup.
Adjusts the whiteness of the screen. Positive color temperature values provide a cold white; negative values provide a warmer white.
Mirrors the projected image so it looks correct when you’re projecting from behind onto a translucent screen. Selecting ON turns mirroring on, while OFF turns it off (for a normal image).
Flips the projected image so it looks correct when the projector is mounted upside-down from the ceiling. Selecting ON turns the feature on, while OFF turns it off (for a normal image).
Returns all Advanced menu items to their initial factory defaults.
appendix.book Page 31 Tuesday, December 14, 1999 4:08 PM
About Menu (Computer Image
Source)
When the image source is a computer, the About menu displays information about the projector’s horizontal and vertical frequency, lamp hours, and computer connection.
Menu item Description
Lamp Displays the number of hours the current lamp has been used.
Frequency Displays the projector’s horizontal and vertical frequency.
Displays the sync polarity of the computer.
Sync
Polarity
Sync Mode Displays the sync mode of the computer.
Resolution
Refresh
Rate
Displays the output resolution of the computer video output.
Displays the refresh rate of the computer video output.
Using the Projector Menus 31
appendix.book Page 32 Tuesday, December 14, 1999 4:08 PM
About Menu (Video Image Source)
When the image source is video, the About menu displays information about the projector’s lamp hours and video signal.
Menu item Description
Lamp Displays the number of hours the current lamp has been used.
Video Signal Displays the input image signal mode.
Reset All Feature
32 Using the Projector Menus
The Reset All feature lets you return all the projector settings to their default values. It does not change or delete any user logo you have stored.
Select Reset All and press the Enter button to display the confirmation screen. Select Yes to reset all the default settings or No to cancel.
appendix.book Page 33 Tuesday, December 14, 1999 4:08 PM
C
Appendix C:
Technical Specifications
General Type of display Poly-silicon Thin Film Transistor
(TFT)
Size of liquid crystal panels Diagonal: 0.9 inch (22.9 mm)
Lens F=2.0–2.2, f=35–42 mm
500c: 800
×
600 pixels
700c: 1024
×
768 pixels
710c: 1024
×
768 pixels
Resolution
Color reproduction
Brightness
24 bit, 16.7 million colors
500c: 800 lumens (ANSI)
700c: 800 lumens (ANSI)
710c: 1000 lumens (ANSI)
Image size (diagonal) 2.2 to 25 feet (0.7 to 7.6 meters)
Projection distance 3.6 to 45.3 feet (1.1 to 13.8 meters)
Projection methods Front, rear, upside-down (ceiling mount)
Internal speaker system 1 monaural
Optical aspect ratio
Zoom ratio
Keystone correction angle
Supported video interface standards
4:3 (horizontal:vertical)
1.2:1
± 15°
NTSC, NTSC4.43, PAL, PAL-M,
PAL-N, PAL60, SECAM
Technical Specifications 33
appendix.book Page 34 Tuesday, December 14, 1999 4:08 PM
Projection Lamp Type
Power consumption
Lamp life
Part number
UHE (Ultra High Efficiency)
120 W
About 2000 hours
ELPLP10S (710c)
ELPLP10B (500c, 700c)
Remote Control Range 32.8 feet (10 meters)
Batteries Alkaline AA (2)
Mouse Compatibility Supports PS/2, USB, Macintosh
Remote IR Receiver Supports EPSON Remote IR Receiver, 10-foot cable (typical use for rear screen projection)
Mechanical Height 2.8 to 3.0 inches (72 to 77 mm)
Width
Depth
Weight
Electrical Rated frequency
Power supply
Environmental
Power consumption
Temperature
Humidity
8.4 inches (213 mm)
10.5 inches (267 mm)
5.8 lb (2.6 kg)
50/60 Hz
100 to 120 VAC, 2.4 A
200 to 240 VAC, 1.2 A
Operating: 360 W
Standby: 12 W
Operating: 41 to 104° F (5 to 40° C), non-condensing
Storage: 14 to 140° F (–10 to 60° C), non-condensing
Operating: 20 to 80% RH, non-condensing
Storage: 10 to 90% RH, non-condensing
34 Technical Specifications
appendix.book Page 35 Tuesday, December 14, 1999 4:08 PM
Safety
CE Marking
Supported Monitor
Displays
United States FCC Part 15J Class B
UL1950 Rev. 3
Canada DOC SOR/88-475
CSA C22.2 No. 950 Rev. 3
Directive 89/336/EEC
EN 55022 Class B
EN 50082-1
Directive 73/23/EEC
EN 60950
The following table lists the display formats supported by the projector:
Mode
VGACGA
VGAEGA
NEC400
VGA60
VGA72
VGA75
VGA85
SVGA56
SVGA60
SVGA72
SVGA75
SVGA85
XGA43i
XGA60
XGA70
XGA75
XGA85
SXGA1_70
SXGA1_75
SXGA1_85
SXGA2_60
SXGA2_75
SXGA2_85
Resolution
640 x 400
640 x 350
640 x 400
640 x 480
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1024 x 768
1152 x 864
1152 x 864
1152 x 864
1280 x 960
1280 x 960
1280 x 960
Frequency
H(KHz)/V(Hz)
31.46 / 70
31.46 / 70
24.83 / 56.65
31.469 / 59.94
37.861 / 72.809
37.5 / 75
48.269 / 85.008
35.156 / 56.25
37.879 / 60.317
48.077 / 72.188
46.875 / 75
53.674 / 85.061
35.522 / 86.958
48.363 / 60.004
56.476 / 70.069
60.023 / 75.029
68.677 / 84.997
63.851 / 70.012
67.5 / 75
77.094 / 84.999
60 / 60
75 / 75
85.938 / 85.002
Dot
(MHz)
25.175
25.175
21.053
25.175
31.5
31.5
36
36
40
50
49.5
56.25
44.9
65
75
78.75
94.5
94.5
108
121.5
108
126
148.5
Technical Specifications 35
appendix.book Page 36 Tuesday, December 14, 1999 4:08 PM
Mode
SXGA3_43i
SXGA3_60
SXGA3_75
SXGA_85
UXGA48i
UXGA60
(these are not supported by
PowerLite 500c)
MACLC13
MACII13
MAC16
MAC19-60
MAC19
MAC21
NTSC (SXGA)
NTSC (XGA)
PAL (SXGA)
PAL (XGA)
SECAM (SXGA)
SECAM (XGA)
Resolution
1280 x 1024
1280 x 1024
1280 x 1024
1280 x 1024
1600 x 1200
1600 x 1200
640 x 480
640 x 480
832 x 624
1024 x 768
1024 x 768
1152 x 870
1366 x 438
1024 x 438
1366 x 512
1024 x 512
1366 x 512
1024 x 512
Frequency
H(KHz)/V(Hz)
46.433 / 86.871
63.981 / 60.02
79.976 / 75.025
91.146 / 85.024
62.5 / 96.08
75 / 60
34.975 / 66.62
35 / 66.67
49.725 / 74.55
48.193 / 59.28
60.241 / 74.93
68.682 / 75.062
15.734 / 60
15.625 / 50
15.625 / 50
31.33
30.24
57.28
64
80
100
28.486
20.890
28.846
21.154
28.846
21.154
Note: The frequencies of some computers may not allow the image to be displayed correctly.
Dot
(MHz)
78.75
108
135
157.5
135
162
36 Technical Specifications
appendix.book Page 37 Tuesday, December 14, 1999 4:08 PM
Computer Connector
Pin Assignments
The Computer port is a female video RGB, 15-pin micro-D-style connector. Here are the pin assignments:
Input pin Computer connector signals
10
11
12
13
14
15
4
5
6
1
2
3
7
8
9
Red video
Green video
Blue video
GND
GND
Red video GND
Green video GND
Blue video GND
Reserve
Synchronous GND
GND
SDA
Horizontal sync/composite sync
Vertical sync
SCL
Technical Specifications 37
appendix.book Page 38 Tuesday, December 14, 1999 4:08 PM
.
Index
A
Audio
B
Buttons, remote control, 18 to 19
C
Camcorder, adjusting the projected image, 22
Ceiling, hanging the projector from, 30
Computer connector pin assignments, 37
Computer, adjusting projected image for, 20
Connecting projector
to a desktop Macintosh, 10 to 14
D
Display formats, supported, 35 to 36
Distance from projector to screen, 5 to 6
E
Environmental specifications, 34 to 35
F
Formats, supported display, 35 to 36
G
H
I
K
L
38 Index
appendix.book Page 39 Tuesday, December 14, 1999 4:08 PM
M
Macintosh, connecting projector to, 10 to 14
Menus
P
Pin assignments, connector, 37
Positioning the projector, 5 to 6
Positioning the screen image, 20, 22
Power
Projector
positioning the screen image, 20, 22
R
Remote control
S
Specifications
lamp, 34 mechanical, 34 remote control, 34
T
Turning on additional equipment, 16
U
V
VCR, adjusting the projected image, 22
Video
adjusting the projected image, 22 menus, 20 to 22
Z
Index 39
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
