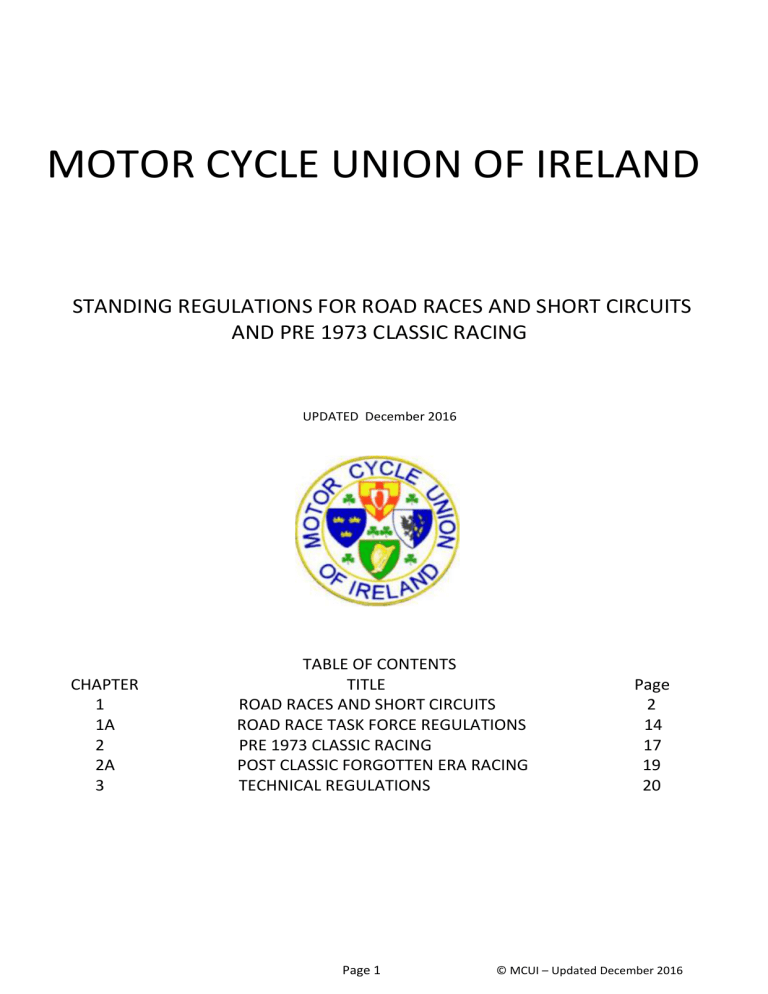

MOTOR CYCLE UNION OF IRELAND

STANDING REGULATIONS FOR ROAD RACES AND SHORT CIRCUITS

AND PRE 1973 CLASSIC RACING

UPDATED December 2016

TABLE OF CONTENTS

CHAPTER TITLE Page

1 ROAD RACES AND SHORT CIRCUITS 2

1A ROAD RACE TASK FORCE REGULATIONS 14

2 PRE 1973 CLASSIC RACING 17

2A POST CLASSIC FORGOTTEN ERA RACING 19

3 TECHNICAL REGULATIONS 20

Page 1

© MCUI – Updated December 2016

CHAPTER 1

STANDING REGULATIONS FOR ROAD RACES AND SHORT CIRCUITS

1. ANNOUNCEMENT ON OFFICIAL DOCUMENTS.

All Supplementary Regulations, Programmes, Announcements, Entry Forms or other official communications relating to any competition shall give a description of the Competition, whether it is

International, National, Restricted or Closed, and shall be conspicuously marked with the words:

“Held under the "General Competition Rules and Standing Regulations of the MCUI.”, and the Centre concerned (if applicable). In the case of any documents relating to an International Competition, the words shall be: "Held under the International Sporting Code of the F.I.M. and the General

Competition Rules, and Standing Regulations of the MCUI", and the Centre concerned (if applicable).

2. SUPPLEMENTARY REGULATIONS.

The Supplementary Regulations shall contain the following information together with any other information which the promoters wish to convey to entrants or competitors.

(a) Name of Promoters.

(b) Name and Title of competition.

(c) Name of Centre issuing the Permit, and permit number.

(d) Stewards of the meeting and appointing authority.

(e) Clerk of the Course and Licence number.

(f) Secretary of the meeting, with official address.

(g) Date and Venue of the Competition.

(h) Statement that Competition is held under the rules set out in 1

(i) Type of competition.

(j) Persons eligible to compete.

(k) Type of vehicle eligible to compete.

(l) Awards.

(m) Address to which entries are to be sent.

(n) Date and time of closing of entry list.

(o) Amount of entry fee, and other charges.

(p) Maximum and minimum number of entries acceptable.

(q) Right of refusal of entry.

(r) Time limit for drivers finishing after the winner.

(s) Statement regarding issue and wearing of identity discs.

(t) Statement as to type of insurance effected by promoter for drivers. Where handicap races are run, either separately, or in conjunction with scratch races, the

Supplementary Regulations shall contain the following clause:

DETERMINATION OF PLACING ON HANDICAP. In determining placings on handicap, every driver who

is still riding when flagged off the course at the completion of the race, i.e. when the first driver as completed the race distance will, for the purposes of handicap, be regarded as a finisher, provided he has completed nor less than 3/4 of the full distance If the number of laps then covered by the driver is less than full distance, the time taken by him to cover his last completed lap will be added to the time for his completed laps, in respect of each uncompleted lap, and the sum of these rules will be regarded, as the driver's time for the purpose of computing his handicap position only. In addition the type of handicap and method of notification to the driver must be clearly stated.

Page 2

© MCUI – Updated December 2016

THE COURSE

The following particulars shall be stated in the Supplementary Regulations or the final instructions.

(a) Length of course.

(b) Nature of course, and direction of racing.

(c) Method of warming up.

(d) Method of starting.

(e) Order of starting.

(f) Maximum number of starters permitted.

(g) Method of practising.

(h) Method of driver rescue.

(i) Arrangements for refuelling, if any.

3. ELIGIBILITY.

For national competitions, entrants drivers and passengers must hold a valid National or

International Competition Licences issued by the MCUI or any other FMN. Entrants, drivers and passengers must hold International Licences for International events.

Riders not holding an MCUI Licence must carry proof of Insurance and a written Start Permission document issued by their FMN.

Any further eligibility requirements will be set out in the Supplementary Regulations for the event and, if applicable, any championship regulations for which the event is a counting round.

(ICC Jan. 2009 )

4. ENTRIES.

A closing date will be set for receipt of entries, which shall, in the case of National Road Races, be not less than 14 days before the start of practice. Entries accepted after the closing date may incur a late entry fee at the total discretion of the Promoting Club.

Entry forms accompanied by the correct fees as laid down in the Supplementary Regulations, complete in every detail, and signed by the driver and entrants (if any) shall be forwarded to the

Secretary of the Meeting by this date Current competition licence numbers for the driver and entrant must be stated, the statement applied for" not being acceptable.

(ICC December 2015)

5. MEDICAL EXAMINATIONS.

Every entrant must furnish to the promoters a Medical Certificate in respect of each and every driver nominated by him, or in respect of himself, if the driver.

This certificate shall be on the prescribed form, and furnished at the entrant's expense.

No driver will be allowed to start in a competition unless this certificate has been produced. Notwithstanding anything contained in the above, the promoters have the right to call upon any driver to be examined by a doctor appointed by them, and at their expense at any time during a competition.

6. CHANGE OF DRIVER, PASSENGER OR MOTORCYCLE

(1) It is not permitted to change a driver, passenger, make or capacity of motorcycle, after the start of any competition unless such change is authorised in the Supplementary Regulations.

(2) Unless specifically prohibited, or otherwise provided for in the Supplementary Regulations, a change of driver, passenger, or the make or capacity of motorcycle may be considered by the

Secretary of the Meeting after entries have closed, provided the entrant notifies him in writing at least twenty-four hours before the official starting time of the competition of some good and sufficient reason why,

(a) the entered driver, or passenger is unable to take part in any competition on that date, or,

(b) the entered motorcycle cannot be produced on that date.

(3) If the composition of any team is affected by changes as authorised above, the entrant of that team, or his representative, may, up to the official starting time of the competition, replace the

Page 3

© MCUI – Updated December 2016

driver so affected, by any other entered driver otherwise eligible for the team, including the driver substituted for the original entry, provided always that the Supplementary Regulations do not otherwise provide for alterations for the composition of nominated teams.

(4) A change of both driver and make of motorcycle is not permitted unless the authority granting the permit has specifically approved the Supplementary Regulations providing for such changes being made.

(6) In the event of a change of rider, the replacement rider MUST be allocated a new number.

7. LEGAL REQUIREMENTS.

Every motorcycle which takes part in a competition on a public road, other than when a road is closed to traffic by virtue of a Road Closing Order, shall comply with all legal requirements.

8. POSITIONS OF DRIVER AND PASSENGER.

During a race drivers should adopt a position with their feet on the footrests. If a driver adopts any other position, and this is deemed dangerous, he/she must be excluded by the Clerk of" the Course.

During a race the passenger, if any, must be effectively and continuously carried on the vehicle in the place provided for him/her. He/she may, however leave his/her seat when starting or on the bends of the course and when the motorcycle is stationary. The penalty of a breach of this rule is exclusion.

9. FALLEN RIDERS

Once a Rider has fallen from their machine they are not permitted remount and continue in that race or qualifying/ practice session.

The machine must be rechecked and passed by a Scrutineer before the rider can continue in the meeting.

(ICC Dec. 2014)

10. SCRUTINY.

All motorcycles, protective clothing, including boots, gloves and helmets shall be worn by the competitor, and be presented to the official scrutineers prior to the start of practice or racing, to ensure that they are in a safe condition, and comply with the regulations. Machines must be presented with the fuel tank ready for removal, to facilitate inspection of the headstock for cracks, etc.

Any protest against the decision of a scrutineer, must be made immediately to the Clerk of the

Course for transmission to the Stewards of the Meeting. Notwithstanding anything contained in the above, the Clerk of the Course may exclude any machine the construction, or condition of which he deems to be dangerous.

11. FINAL EXAMINATION OF MACHINES.

Every motorcycle finishing in a competition must, if so required, be submitted for final examination, and any motorcycle may be retained by the promoters for such period, as may be necessary for its examination. Such period shall not be unreasonable.

12. MEASUREMENT OF ENGINES.

Where it may be necessary for promoters to verify the fact, this shall be done at the cost of the driver. If the measurement is to determine a protest, the party against whom the decision is made shall bear the costs, and the motorcycle may if the engine is found to be outside the category limits, be retained by the promoters until such costs are paid. If during the final examination, any component of a machine is found to differ in a material way from that stated on the entry form then the driver shall be excluded from any award to which he might otherwise have been entitled, and shall be reported to his F.M.N.

The cost payable shall be a maximum of £150 (or the euro equivalent) for 2 Strokes and £250 ((or the euro equivalent) for 4 Strokes machines. The costs shall be payable in the currency of the Centre in which the event took place unless the parties agree between themselves to settle in the other currency.

(ICC Jan. 2009 )

Page 4

© MCUI – Updated December 2016

13. METHOD OF STARTING.

There shall only be one method of starting-

(i) The "Clutch Start".

The aforementioned method shall be subject to the limitations detailed in the following paragraphs.

(a) Races containing Solo Machines up to, and including 500cc only ALL races shall be a clutch start.

(b) Races containing any Solo Machine of over 500cc.

(b.1) Short Circuits. All races shall be a clutch start.

Group starts will be permitted, provided that the total number of starters does not exceed the maximum as stated on the Track Certificate.

There shall be no more than two groups.

The interval between groups shall not be less than 10 seconds

(ICC December 2015)

(b.2) Road Races. Clutch starts in groups will be permitted, provided that each group shall be up to a maximum of one third of the total number of starters permitted for a "push" massed start; the actual number per group to be specified on the Track Certificate. The interval between groups shall not be less than fifteen seconds.

(c) Sidecar Races. All races shall be a clutch start. Grids to be as laid down on the Track Certificate.

The use of a mechanical or electrical starter shall only be permitted in 'Endurance Races’ and only then if the Supplementary Regulations for the event so provide. Cycle cars shall start from the back of the grid with the driver normally seated.

(ii) Grid Formation. The starting grid shall be formed in the following way:

- The width available on the starting line will be divided into lanes taking into consideration the number of drivers’ per row, mentioned in the SR, and the interval of the drivers in the second row.

- the minimum width available is: for solo machines column of 2.40m

for sidecars column of 3.00m

- length of track available for each row: 7.00m

- machines must be positioned on the grid in staggered lines thus leaving the space in front of each machine free in the preceding row.

- the maximum number of solo drivers in the front row - 5

- the maximum number of sidecars on the first row - 3

14. STARTERS ORDERS.

Only those drivers in the starting area, or on a grid, will be deemed to be under Starter's Orders. No other driver is subsequently permitted to start in a race.

15. FLAG SIGNALS.

Flags will be used during practice, and the race itself, and will have the same meaning.

Dimensions of Flags

Signalling Flags 60cm x 80cm (Minimum)

Red Flag 80cm x 100cm

16. FLAGS USED TO PROVIDE INFORMATION TO RIDERS – NO FLAG SIGNAL, ALL CLEAR.

Yellow Flag with

Red Stripes

Warning of slippery surface. (e.g. oil, rain, dirt, etc) The adhesion on this

section of the track could be affected by any reason. This flag is shown motionless at the marshals post

White Flag

Yellow Flag with

Black Cross

Warning that a non competing vehicle is on circuit. This could be for example an official vehicle such as a safety car, an ambulance, etc.

Last Lap flag, this flag is displayed to the rider from the start finish line and indicates that the rider is commencing his/her last racing lap of the circuit.

Page 5

© MCUI – Updated December 2016

17. FLAGS USED TO PROVIDE DIRECT INSTRUCTION TO RIDERS – NO SIGNAL, ALL CLEAR.

Yellow Flag – Held

Motionless

Or

Steady Yellow

Light

Yellow Flag –

Waved

Or Flashing Yellow

Light

* Red Flag

Or

Red Light

The Yellow Flag held motionless is a direct instruction to the rider to Slow

Down. Overtaking is Forbidden. Should a rider inadvertently gain a

position (i.e. A preceding rider slows at a faster rate), once it is safe to do so, (s)he should return to the original position and may raise his/her hand to indicate same.

The Yellow Flag waved is a direct instruction to the rider to Slow Down and

Prepare to stop, Overtaking is Forbidden Should a rider inadvertently gain

a position (i.e. A preceding rider slows at a faster rate), once it is safe to do so, (s)he should return to the original position and may raise his/her hand to indicate same.

The use of the red flag indicates that Racing has been Stopped. Overtaking is forbidden. Riders shall slow down and may be instructed to return to the starting grid or paddock, as decided by the Clerk of Course (COC). A rider and may raise his/her hand to acknowledge a red flag.

Black Flag

Chequered Flag

The Black Flag will be displayed motionless with a board displaying a riders race number (usually at start finish line). There is a Serious Problem and the rider must pull off the racing line and stop in a safe position with the

utmost care and attention. The Rider must report to the COC.

When the leading rider has completed the required number of laps (s)he will be shown the chequered flag by an official standing at the start finish line. The chequered flag will continue to be shown to all subsequent riders.

Once a rider receives the chequered flag (s)he must proceed safely to the paddock using the designated route.

National Flag

Green Flag

The national flag may be used to start the race, In the event of the national flag being used you will receive clear instruction from the race starter.

This flag will be shown motionless at each Flag Marshal Post for the first lap of each practice session and of the warm-up, for the sighting lap(s) and for the warm-up lap.

* RED FLAG or RED LIGHT: To be shown on the authority of the Clerk of the Course at designated

signalling posts when racing or practice, has been interrupted.

(ICC December 2015)

18. FALSE START.

A false start occurs when a driver under Starter's Orders moves forward from his prescribed position before the signal of start is given.

19. PENALTY FOR FALSE START.

- Road Races. In the case of a massed start the driver concerned shall be penalised by the addition of

one minute to the time taken by him/her to complete the course.

-Short Circuits. In the case of a massed start the driver concerned shall be penalised by the addition

of twenty seconds to the time taken by him/her to complete the course.

In the case where the Supplementary Regulations provide, the Clerk of the Course shall have the power to increase the amount of the above penalty, or to impose other penalties within the limits prescribed in such Supplementary Regulations where applicable, any such penalty shall immediately be notified to the depot, or the representative of the driver concerned.

Page 6

© MCUI – Updated December 2016

20. FINISH OF A RACE.

When the leading driver on the track has completed the designated number of laps or duration for the race, a chequered flag will be displayed as that driver crosses the finish line. The chequered flag will continue to be displayed to the subsequent drivers, until the last driver completes that lap. The onus of completing the required number of laps rests with the driver, but no driver will be allowed to start a fresh lap after the chequered flag has been displayed.

In case of a photo-finish between two, or more, drivers, the decision shall be taken in favour of the driver whose front wheel leading edge crosses the plane of the finish line first. In case of ties, the drivers concerned will be ranked in the order of the best lap time made during the race.

Should for any reason the chequered flag be given before the leading driver completes the scheduled number of laps or duration, the race will be deemed to have finished. If the chequered flag is given to the leader then a result will be drawn accordingly, but if the chequered flag is given to a driver other than the leader then the result will be taken when the leader last crossed the finish line before the signal was given. Should the end of race signal be delayed for any reason, the race will be deemed to have finished when it should have finished and the drivers classified accordingly.

The results will be based on the most number of laps completed in the least time, corrected for group start time differences. To be counted as a finisher in the race and be included in the results a driver must have: i.) completed 75% of the number of laps carried out by the winner. ii.) crossed the finish line on the race track (not in the pit lane) after the race winner within 5 minutes. The driver (and passenger) must be in control of the machine when taking the chequered flag.

21. STOPPING AND RE-STARTING A RACE

(a) Only the Clerk of the Course (or in their unavoidable absence the Deputy Clerk of the Course) may decide to stop a race prematurely.

(b) A red flag will be shown at the start line and simultaneously at all other designated Red Flag posts.

If Red Lights are available then these may also be switched on.

(c) When these signals are displayed all drivers must stop racing and return slowly to the Start/Pits area as directed by the course marshals under the instruction of the Clerk of the Course.

21.1 The conditions under which a race will be restarted depend on the status of the race and are

detailed in 21.1.1, 21.1.2, and 21.1.3.

(a) If a race includes more than one class, which may have been started separately, then all classes will be considered as a single race for the purposes of applying Standing Regulations

21.1.1,21.1.2 and 21.1.3

(b) The term 'leader' or 'race leader' shall mean the leader on the road who will not necessarily be

the leader on corrected time.

21.1.1 If a race has to be stopped with less than 3 laps of its duration completed by the race leader it

will, in normal circumstances, be considered null and void and will be restarted.

(a) The race will be restarted as quickly as possible, consistent with track conditions allowing.

(b) All drivers originally eligible to start may re-start

(c) Motorcycles may be repaired or changed subject to having passed scrutineering examination.

(d) Refuelling is permitted under instruction from the Clerk of the Course.

(e) In principle the restarted race shall be for the full race distance

Page 7

© MCUI – Updated December 2016

(f) The Clerk of the Course may reduce the race distance:

 if condition have changed to wet or damp conditions

 if there are time constraints

 in lieu of additional sighting and/or warm up laps.

(g) In exceptional circumstances if it is not possible to restart the race an order of classification may

be prepared for the purpose of making awards (financial and otherwise), subject to the approval of the Stewards of the Meeting. This classification will be based upon the order of last crossing the finish line prior to the showing of the red flag, applying Standing Regulation 20.

Drivers not actively involved in the race at the time when the red flag is displayed will not be classified.

(h) In all cases if it is not possible to restart the race, no points will be awarded towards any

championship involved.

21.1.2 If a race has to be stopped between 3 laps and two-thirds race distance rounded down to the

nearest whole number of laps, by the race leader then the race will be restarted.

a) The race will be started as quickly as possible, consistent with track conditions allowing.

b) Drivers will be restarted from a grid based on the finishing order of the previous part of the race.

The place of any driver unable to restart shall be left vacant.

c) The finishing order of the previous part of the race will be based upon the order of last crossing the finishing line prior to the showing of the red flag. Drivers who are not actively competing in the race at the time when the red flag is displayed will not be classified.

d) Motorcycles may be repaired subject to having passed scrutineering examination.

e) Refuelling is permitted under instruction of the Clerk of the Course.

f) In principle the number of laps of the restarted race shall be the number of laps required to

complete the original race distance.

g) The Clerk of the Course may reduce the race distance:

 if conditions have changed to wet or damp conditions;

 if there are time constraints;

 in lieu of additional sighting and/or warm-up laps.

h) There must be a minimum of 3 laps excluding any sighting and/or warm-up laps.

I) The final result will be based on the classification of the restarted race, applying Standing

Regulations 20 and 21.

j) If the restarted race is stopped it may further restarted as required at the discretion the Clerk of

the Course, applying Standing Regulation 21.1.1 and 21.1.2, over a minimum of 3 laps.

k) If it is not possible to restart the race and complete two-thirds race distance by the race leader, the result of the last race where the race leader completed more than 3 laps will count.

Half points will be awarded towards any championship for which the race counts.

21.1.3 If a race has to be stopped after the race leader has completed two-thirds race distance,

rounded down to the nearest whole number of laps, it will be considered to have finished:

a) The order of classification shall be based upon the order of last crossing the finishing line prior to the showing of the red flag. Drivers who are not actively competing in the race at the time when the red flag is displayed will not be classified.

b) Full points will be awarded towards any championship for which the race counts.

21.1.4 If a race has to be stopped after the leader(s) on the road have taken the chequered flag they will be classified as having finished the race

a) The order of classification for those drivers who have not taken the chequered flag shall be based upon the order of last crossing the finishing line prior to the showing of the red flag. Drivers who are not actively competing in the race at the time when the red flag is displayed will not be classified.

b) Full points will be awarded towards any championship for which the race counts.

(ICC December 2015)

Page 8

© MCUI – Updated December 2016

Page 9

© MCUI – Updated December 2016

22. OUTSIDE ASSISTANCE.

If a driver receives outside assistance during a race, other than any provided by the organisers for the removal of himself, or his machine from the course in the interests of safety, he shall be excluded from the results.

23. FOUL, UNFAIR OR DANGEROUS DRIVING.

The Clerk of the Course shall immediately exclude any driver who, in his opinion, is guilty of any foul, unfair or dangerous driving, either in practice or during the actual race. Deliberate lifting of the front wheel (Wheelieing) by a driver for the purposes of showmanship may result in exclusion, or any other action the Clerk of the Course may feel necessary.

24. ALTERATION OF PROGRAMME.

In the event of a race being cancelled due to insufficient entries having been received, the promoters shall have the right to offer the race time and prizes for a race of similar length, for machines in another class or category.

25. ABANDONMENT

.

The promoters shall have the right, subject to the approval of the Stewards of the Meeting, to cancel, postpone, or abandon any event, or the competition itself, if circumstances should arise which, in their opinion, render such action necessary.

26. ADVERTISING.

Advertising may be displayed on a motorcycle, and on the driver's and/or passenger's clothing, and helmet in any competition held under the permit of the MCUI, or a

Centre of the MCUI, subject to the following conditions.

(a) No advertisement shall be displayed within 5cms of any plate or number panel.

(b) No advertisement shall be displayed on a driver's or passenger's clothing below the knee

(c) The name of the motorcycle and/or sidecar and/or the name of the driver will not be regarded as advertising.

(d) Notwithstanding the above conditions the promoters of any competition may, at their sole discretion, prohibit the display of any advertisement, or any particular advertisement, on any motorcycle, or on the clothing or helmet of any driver or passenger.

(e) Where advertising, or any particular advertisement, is prohibited, all drivers will be notified at least seven days before the date of the meeting.

(f) The MCUI may prohibit the display of any advertisement, which it deems to be offensive, or not in the best interests of the sport.

NOTE: Advertising at International Competitions must be in accordance with provisions of the

International Sporting Code.

27. INSTRUCTIONS TO DRIVERS.

Any instructions to drivers issued after the Supplementary Regulations have the same force as these Standing Regulations and the Supplementary Regulations.

28. PROTESTS.

Every protest shall be in writing, signed by the entrant, or driver, making the protest, clearly specify the matter protested against, which shall refer to a single subject only, and be accompanied by a fee of £25 the protest fee will only be returned if the protest shall be to be justified, or upon a direction by the Stewards of the Meeting, a Centre, or the MCUI.

During a meeting, protests shall be handed to the Clerk of the Course, or his representative, for transmission to the Stewards of the Meeting. At all other times protests shall be addressed to the Secretary of the Meeting for transmission to the Stewards of the Meeting.

A protest, as to the validity of entry, eligibility of entrant, or driver or vehicle, shall be lodged at least twenty-four hours before the start of any National Competition, save when the conditions under which the Competition is held render this impracticable.

Page 10

© MCUI – Updated December 2016

In such circumstances the protest shall be made with the minimum of delay, and at the latest within half an hour of the conclusion of the competition.

A protest against a decision of a Scrutineer, or of an Official measurement, shall be lodged immediately after the decision. A protest against any mistake, or irregularity, alleged to have occurred during the course of a race must be made within ten minutes of the finish of a race. No protest lodged after this time shall be considered, except with the special permission of the

Stewards of the Meeting, who, before admitting a protest, must be satisfied that there has been no unnecessary delay on the part of the protester.

A protest concerning the results of a competition, and any matter not referred to above, shall be lodged within three days of the publication of the detailed results unless for any special reason, of which the Stewards of the Meeting shall be the sole judges, it could not have been lodged within that time. The results of a competition shall be deemed to have been published 24 hours after the date of dispatch to entrants and drivers. Proof of dispatch is to be furnished by the promoters if required.

29. INTERPRETATION.

The decision regarding the interpretation of the GCR, these Standing Regulations the

Supplementary Regulations, and any Instructions to Drivers, shall rest entirely with the Stewards of the Meeting, whose decision shall be final and binding subject to the provisions of the General

Competition Rules.

30. DISCLAIMER

.

It is a condition of acceptance of entry that the promoters shall not be responsible for any damage to any motorcycle, or its accessories, howsoever caused, nor for the theft of any motorcycle during the meeting.

31. LIABILITY FOR DAMAGE

.

An entrant shall be liable for any damage caused by himself, his driver, or passenger or any agent, representative or servants, acting on their behalf, during the meeting. The promoters shall be empowered to act as agents for such persons, to agree and pay for any damage, and entrants shall on demand reimburse the promoters for any such sum so paid.

32. COMPLIANCE WITH REGULATIONS.

Each and every entrant, driver, and passenger by entering, or being entered or nominated to take part in a competition thereby acknowledges that he will be bound by the General

Competition Rules of the MCUI, these Standing Regulations, the Supplementary Regulations for the Competition, and any instructions to Drivers that may be issued, to all of which he undertakes to submit. He also expressly renounces the right to have recourse to any tribunal, or arbitration not provided for in the aforesaid Rules and Regulations.

33. MACHINE ELIGIBILITY

. Only purpose built machines are acceptable in Road Races and Short

Circuits. Exceptions to this rule will only be permitted if the machine is certified as suitable by the

Technical Committee. The decision of the Technical Committee of either Centre or Centres is final.

34. WET RACES.

The clerk of course allows riders time for change of tyres. Clerk of Course decision is final.

35. NEWCOMERS TO SHORT CIRCUIT RACING.

All newcomers to short circuit racing must complete a training day before being allowed to enter their first race.

Page 11

© MCUI – Updated December 2016

36. SIGNING ON AT ROAD RACES.

Competitors at all road races are required to ‘sign on’ only once, this will cover both days racing.

Competitors must report to race secretary on race day to receive race permit. If a competitor is not going to compete on race day, they must inform race secretary in writing 30 minutes before road closing time. No exceptions to the above rule.

37. COMMON START AT ROAD RACES UNIFORMITY.

Clubs must have the start flag / lights and the finish flag on the same side of the road, so that there can be no confusion with riders. Only Red flag to be used to stop a race prematurely.

38. NOISE LEVELS.

All machines must be silenced as per MCUI rules. This includes Classic Bikes. Maximum 105dba.

39. CHAIN GUARDS.

Compulsory fitting of a chain guard to all machinery from the rear fork (swinging arm) in front of the rear drive sprocket to beyond the lower chain run so that nothing can be caught between the chain and sprocket. Exclusion at scrutineering if not fitted.

40. LINE JUDGES.

Each promoting club will have a line judge for both the start and finish of racing.

41.

ELIGIBILITY FOR PRE INJECTION CLASS

.

Any machine whose engine is normally aspirated through carburettors and is between 201/600cc.

No 250cc GP / 500cc GP machines are permitted.

(ICC Dec 2016)

42. PADDOCK AND PIT AREA SAFETY

42.1

GENERAL. Competitors must observe all instructions given to them by the promoting club, the

Clerk of the Course and other Grid, Paddock and Pit Area officials as to how and where to park their vehicles (and those of their assistants and sponsors in the paddock) in the paddock, machine holding areas, the dummy grid, the grid and the designated pit area.

Competitors and their assistants and sponsors, must also observe any other regulations and protocols stipulated by the promoters/circuit owners in relation to ‘curfew times’ for movement of vehicles in the paddock, the type and number of vehicles allowed in the paddock, generator switch off times, etc.

42.2 FIRE EXTINGUISHERS. All competitors’ vehicles must carry a dry powder fire extinguisher, of minimum capacity 2.5kg, which must bear a current Inspection Certificate. The fire extinguisher must be easily accessible and readily available.

42.3 STORAGE OF FUEL IN THE PADDOCK AND REFUELLING. Fuel must be stored in a well ventilated area. Only approved fuel storage containers to be used. No Smoking / No open flames in the areas of fuel storage and during refuelling.

42.4 PROHIBITION OF SMOKING. Smoking is prohibited in all machine holding areas, the dummy grid, the grid and the designated pit area.

42.5 PARKING OF MACHINES AND STORAGE OF EQUIPMENT IN THE PADDOCK. Competitors must park their machine(s) and store their equipment beside their vehicle(s), in a space consistent with number of machines the competitor has, and in such a manner as not to endanger other competitors, officials or spectators.

42.6 EQUIPMENT IN MACHINE HOLDING AREAS, THE DUMMY GRID, THE GRID AND THE DESIGNATED

PIT AREA. The competitor’s assistant(s)/pit attendant(s) must ensure that all equipment taken

into these areas is controlled in such a manner as not to endanger other competitors, officials or spectators.

Page 12

© MCUI – Updated December 2016

42.7

PREVENTION OF ELECTROCUTION/ELECTRICAL SHOCK.

To minimize the chances of electrocution/electrical shock, all power supplies from generators must be controlled by a 30 mA Residual Current Device (RCD)/Power Breaker. If the generator is not fitted with an RCD of this type, a 30 mA RCD must be fitted to the power cable at a maximum length of 50cms from the generator power output point, and preferably also mounted on the generator. Where the competitor is using a Power Supply provided by the Promoter/Circuit owner, under arrangement, the competitor must still ensure that the supply is controlled by an

RCD. However, in this case the responsibility for the provision and installation of the circuit breaker rests with the Promoter/Circuit owner.

Where the competitor is using a Power Supply provided by the Promoter/Circuit owner, under arrangement, the competitor must still ensure that the supply is controlled by an RCD. However, in this case the responsibility for the provision and installation of the circuit breaker rests with the

Promoter/Circuit owner.

Competitors must ensure that all that all cables, sockets and plugs used by them and their teams are in good and safe condition and free from breakages. Also that cable runs are kept to the minimum length possible and are positioned so as not to endanger, themselves, their assistants, other competitors, officials and spectators.

It is recommended that all electric cables, electrical sockets and plugs on electrical equipment used in the paddock, machine holding areas, the dummy grid, the grid and the designated pit area are of industrial type and waterproof. This will minimise the likelihood of the RCD on the power supply de-activating the supply due to fractures or adverse weather conditions.

Should the Clerk of the Course or the Appointed Safety Officers at an event consider a competitor or his/her team to be in breach of this regulation; the competitor shall immediately switch off all the electrical equipment and will not switch it on again until the breach has been remedied. Any competitor failing to do so immediately may be excluded from the meeting or subject to such other disciplinary action, consistent with the GCRs, that the Clerk of the Course and Stewards of the Meeting decide on.

(ICC Jan. 2009)

Page 13

© MCUI – Updated December 2016

Agreed reclassify ‘Road Racing Task Force Regulations’ which are currently contained within Standing

Regulation 41 as Chapter 1A to allow addition of new SRs without impacting Task Force Regulations

(ICC Jan. 2009)

CHAPTER 1A

ROAD RACING TASK FORCE REGULATIONS.

The following regulations were first approved by the MCUI Inter Centre Conference in 2001 and revised as indicated at Special Conference of the MCUI on 9th March 2008

No

Course Improvements

Recommendation/Regulation

1 Close Temple Course (Saintfield circuit).

2 Close Leitrim Course.

3 Independent Risk Analysis to be completed every five years.

4 Promoters Risk Assessment to be completed annually.

5 Annual MCUI/Road Service inspection of each course to be completed.

6 Short Term Action List to be implemented following risk assessment.

7 Outstanding issues arising from risk assessments to be incorporated into routine maintenance by

Roads Services and utility providers.

8 Safety and medical equipment needs to be identified and resourced.

9 Photographic record of all course furniture to be established and maintained.

10 Speeds to be artificially reduced at potentially dangerous locations as identified by independent

risk analysis

11 Additional protective measures to be introduced to potentially dangerous locations - as identified in the risk analysis

12 Preference is for an independent common official to be responsible for safety measures at all

courses. (Special Conference 9th March 2008)

13 Paddock procedures and protocols to be developed.

Rider Improvements

14 MCUI approved helmets, boots and protective clothing including gloves to be

15 Accident-involved helmets to be permanently marked.

16 100% scrutineering for helmets. Zero tolerance to impact damage. (

Special Conference 9th March 2008).

17 Use of back protectors to be highly recommended.

18 Licence system to be reviewed to provide for restrictions, upgrades, and endorsements

19 Coloured jacket system to be strictly enforced for practice only, with riders having the option to wear the jacket during racing.

(Special Conference 9th March 2008)

20 All event organisers to appoint a rider welfare officer reporting to the common official.

21 All riders to be provided with a prohibited substances list and random dope testing to be introduced to all events. All competitors to be bound by the MCUI anti-doping policy, whose policy will determine sanctions imposed.

22 Random alcohol testing to be introduced to all events. Zero tolerance.

23 Compulsory course induction and familiarization to be introduced for all Newcomers.

(Special Conference 9th March 2008)

24 Previous evening or day practice to be compulsory for riders and promoters. No practice, no race.

Exceptions will only be allowed for reasons of “force majeure” which mean that practice cannot be completed on the previous day, such exceptions to be approved by the Stewards of the

Meeting”. Reasons for ‘force majeure’ must be genuine, e.g. inclement weather, delays for accidents, etc; but not delays caused by poor course preparation, or poor organisation by the promoter.

(Special Conference 9th March 2008)

25 All riders to have a minimum of 5 laps practice.

26 All riders to have a minimum of one sighting lap.

Page 14

© MCUI – Updated December 2016

27 All competitors in their first year in Irish National Road Racing are restricted to support races only, with the exception of year one competitors taking part in the 125cc and 250 cc classes who can take part in the 125cc and 250cc open classes at national races but not in any other open classes. International and Super ‘A’ licence holders are ineligible to ride in the Support Classes.

Exceptions to the above will only be permitted if approved by the MCUI Road Race Commission.

(Special Conference 9th March 2008)

28 Competitors in their second year of Irish Road Racing (National or International) are restricted to a maximum of 3 races per day.

(Special Conference 9th March 2008)

29 No rider to be permitted to enter more than 5 races per day.

30 Slow riders to be flagged off.

31 Rider training packages regarding fitness, mental preparation and riding techniques to be developed.

32 Both centres to provide an annual rider training programme.

33 Pump fuel to be required for all classes. Pump fuel is defined as fuel of maximum of 102 RON.

(Special Conference 9th March 2008)

34 The feasibility of central fuel supplies being made available through the paddocks to be investigated.

35 Establish, via FIM research, some guidelines on tyre usage and practice.

36 Develop best practice guidelines for use of protective safety material (bales etc).

37 Develop best practice guidelines for the design and construction of chicanes and other speed restricting devices.

Official and Marshalling Improvements

38 Introduce up to 3 common officials.

39 Introduce rider welfare officer at each event.

40 Introduce and train a team of travelling marshals which shall include riders who have been competitive riders within the last 5 years.

41 Establish written guidelines for all officials.

42 Produce a motor cycle road racing marshal’s handbook.

43 Run an annual safety seminar for marshals.

44 Run an annual seminar for clerks of courses and common officials.

45 Establish a small marshal’s focus group.

46 Establish a qualification for, and a database of tutors.

47 Develop a recognised qualification for rider coaches.

48 Require annual training and / or a refresher course for all officials and marshals.

49 Review syllabi content, tutor training and resource material for

(a) Clerk of Course training

(b) Stewards’ training

(c) Marshal and flag marshal training

(d) Spectator marshal training

(e) First aid and medical training

50 Each course and each race to have prescribed maximum number of starters

51 Novices to have separate starts.

(Special Conference 9th March 2008)

52 The number of classes to be prescribed at all events.

53 Investigate the possibility of establishing helicopter stand-by for all events.

54 Establish an all-Ireland safety commission and require a formal annual report.

55 Establish a small medical and first aid committee.

56 Review and standardise general course instructions.

57 Computerise and extend accident reports.

58 Revise records to include race miles actually ridden per event (and if possible per machine).

59 Design and implement a new entry form

60 Review first aid management and rewards.

Page 15

© MCUI – Updated December 2016

61 Establish a forum or small focus group for:

62 (1) Riders.

63 (2) Stewards.

64 (3) Clerks of the course and common officials.

65 Commission an economic impact study.

66 Review MCUI structure.

67 Review club structure.

Page 16

© MCUI – Updated December 2016

CHAPTER 2

STANDING REGULATIONS FOR PRE 1973 CLASSIC RACING MACHINES

1. CATEGORIES.

A machine is categorised by the first year of manufacture, i.e. the chassis is the machine. Should the engine and/or proprietary parts post date the chassis, the age of the machine shall be determined by the engine and/or proprietary parts. Proprietary parts shall mean the brakes, engine, frame, gearbox, front and rear suspension units and wheels. The parts must be of a design that was manufactured and available within the relevant classic period.

The categories shall be as follows:

(a) British and European four stroke machines up to and including 31st December 1972.

(b) Japanese four stroke machines with no more than two cylinders up to and including 31st

December 1968.

(c) Japanese two stroke machines up to and including 31st December 1967.

(d) British and European two stroke machines up to and including 31st December 1968.

(Special ICC March 2009)

2. CLASSES

(a) 250cc (up to 250cc)

(b) 350cc (263-350cc)

(c) 500cc (368-500cc)

(d) 1000cc (526-1000cc)

To facilitate re-bores, capacity may be enlarged within the following limitations:

¨ 250cc - by a maximum of 5%

¨ 350cc - by a maximum of 5%

¨ 500cc - by a maximum of 5%

¨ 1000cc - by a maximum of 5%

3. ENGINE

.

Internal modifications will be permitted at the discretion of the owner. However, the external design of the engine may not be changed unless a similar modification was carried in the period for which the machine is eligible under Rule 1.

(Special ICC March 2009)

4. IGNITION

. Any ignition system may be used.

(Special ICC March 2009)

5. CARBURETTORS.

The carburettor(s) may be changed.

(Special ICC March 2009)

6. BELT DRIVES

. The use of belt drives is permitted.

(Special ICC March 2009)

7. FUEL.

As per MCUI rules.

8. Twin OR MULTI CYLINDER TWO STROKE MACHINES.

(Special ICC March 2009)

All twin or multi cylinder two stroke powered machines above the swept volume of 250cc will be deemed ineligible for classic racing after 1st January 1993.

For all twin or multi cylinder two stroke powered machines up to, and including the swept volume of 250cc:

(a) Carburettors and inlet choke dimensions must not exceed a maximum of 30mm.

(b) The external appearance of the engine parts/castings must remain as per the manufacturer's specification.

9. NORTON COMMANDO ENGINE.

The 850cc Norton Commando engine will, as a special dispensation, be accepted as a continuation of the 750cc Commando model.

(Special ICC March 2009)

10. WHEELS.

The wheels must be of wire spoke construction.

(Special ICC March 2009)

Page 17

© MCUI – Updated December 2016

11. WHEEL RIM SIZES.

The maximum rim sizes allowed on Classic race machines up to and including, 500cc shall be

WM3; over 501cc and up to 1000cc shall be WM4.

(Special ICC March 2009)

12. TYRES.

Slicks or hand-cut slicks are not permitted.

13. TANKS/SEATS/FAIRINGS.

(Special ICC March 2009)

These shall be of a style and pattern in use within the period specified for the category of machine as mentioned in Rule 1.

(Special ICC March 2009)

14.'K' MODEL HONDAS

All 'K' model Honda machines manufactured after the 31st December 1968 will be accepted as a continuation run of the 'K' model.

Front forks and/or front wheel can be changed but the exchange units must be of a type available in the period pre-dating 31st December 1968. Any change of frame must be of a design and type manufactured in the period up to, and including, the 31st December 1968 cut off date.

(Special ICC March 2009)

15. NO RACING WITH OTHER MACHINES.

Pre 1973 Classic machines must not be run in the same race at the same time as other classes of machines.

(Special ICC March 2009)

16. REGISTRATION OF MACHINES.

All machines must be registered with, and approved by, the M.C.U.I. which shall issue a

Certificate of Registration in respect of each machine registered.

Riders of Classic machines taking part in a Classic race will have to produce their machine registration card in conjunction with their competition licence and medical certificate when signing on .

(Special ICC March 2009)

17

.

BELLY PAN

All four stroke Classic machines must be fitted with a belly pan.

(ICC 6th December 2014)

Page 18

© MCUI – Updated December 2016

CHAPTER 2A

STANDING REGULATIONS FOR POST CLASSIC FORGOTTEN ERA RACING

( Passed at Special Conference March 2009)

"Factory Racing - Open"

A category for factory produced racing machines of the following capacity:

200 - 250cc

251 - 350cc

 over 350cc

Formula One

1. Any 250cc machine manufactured for use in Great Britain before 31st December 1987 i.e.

Yamaha TZT model or other manufacturers equivalent of.

2. No converted road bikes except where applicable to Formula One motorcycles.

3. 350cc machines to use frame manufactured before 31st December 1987 (including beam frames).

4. Genuine Formula One machines, or bona-fide copies. Proof of authenticity or accuracy of copy

may be required.

5. The use of "upside down forks" is prohibited.

6. Formula One engines to have only 2 valves per cylinder.

7. Wheels, free choice.

8. Wet weather racing tyres are permitted.

9. Promoters will split the "over 350cc" class into Formula One and either "Open" or "GP 500" when

there are sufficient machines competing.

10. Riders please note that in all categories:-

(a) Tyre warmers are not permitted.

(b) The onus to prove eligibility for any component or modification lies with the rider or entrant.

Page 19

© MCUI – Updated December 2016

CHAPTER 3

(Updated June 2016)

TABLE OF CONTENTS

Pages 21-23 Young Guns Challenge

Pages 24-26 Junior Cup

Pages 27-28 125GP and 250 GP

Page 29

Pages 30-31

Page 32-33 Moto 3

Pages 34-35 Production Twins

Pages 36-37

Pages 38-41

Page 42

Pages 43-46 Supersport

Pages 47-51 Superstock (To include Superstock 1000, Junior Stock)

Pages 52-56

Pages 57-58 Formula 1 Era Superbikes

MCUI Technical Regulations Handbook Pages 59-67

Page 20

© MCUI – Updated December 2016

MCUI TECHNICAL REGULATIONS :- YOUNG GUNS CHALLENGE

All items not mentioned in the following articles must remain as originally produced by the Manufacturer for the homologated machine. Everything that is not authorised and prescribed in these rules is strictly forbidden. All motorcycles must comply in every respect with all the requirements for racing as specified in the Technical Regulations, unless it is equipped as such on the homologated machine.

All items not mentioned in the following articles must remain as originally produced by the Manufacturer for the homologated machine. Everything that is not authorised and prescribed in these rules is strictly forbidden. All motorcycles must comply in every respect with all the requirements for racing as specified in the Technical Regulations, unless it is equipped as such on the homologated machine.

1. Machines:

Any 125cc two stroke single cylinder machine originally produced for road use with a water cooled engine with a maximum capacity as stated may be used provided it adheres to the following regulations.

2. Carburation Instruments:

Carburation instruments must remain as homologated. Carburettor jets and needles may be replaced. No modification, polishing or cutting is allowed. Only the standard bodied carburettor is permitted. Electronic or mechanical enriching devices must remain installed and active (If the carburettor is changed from one model to another, the appropriate wiring loom must also be installed and be operative). Bell mouths must be as originally produced by the manufacturer for the homologated machine.

Throttle controls must be standard, quick action throttles are not permitted.

3. Frame Body and Rear Sub-Frame:

Fairing, mudguards and seat unit may be altered or replaced. Windscreen, if fitted, may be replaced with transparent material only. The original instruments and fairing brackets may be removed or replaced. The petrol tank must remain as originally produced by the manufacturer for the homologated machine although it may be refinished if required. The position of the tank mounting points on the frame must remain as standard. The lower fairing has to be constructed to hold, in case of an engine breakdown, at least half of the total oil and engine coolant capacity used in the engine (minimum 5 litres). The lower edge of openings in the fairing must be positioned at least 50 mm above the bottom of the fairing. The lower fairing must incorporate a hole of 25 mm in the bottom of the front lower area. This hole must remain closed in dry conditions and must be only opened in wet race conditions as declared by the Race Director.

4. Front Forks:

Forks structure (spindle, stanchions, bridges, stem etc) must remain as originally produced by the manufacturer. Standard original internal parts of the forks may be modified. Aftermarket damper kits or valves may be installed. The fork caps can be modified or changed to add spring preload/compression and damping adjusters. Dust seals can be modified, changed or removed providing the fork remains totally oil sealed. Any quantity or quality of oil can be used in the front forks. The height and position of the front fork in relation to the fork crowns is free. A steering damper may be added but may not act as a steering lock device.

5. Rear Suspension Unit:

Rear suspension unit (shock absorber) may be modified or replaced, but the original attachments to the frame and rear fork must be used and the rear suspension linkage must remain as originally produced. Rear suspension spring may be changed.

6. Wheels:

Wheels must remain as originally produced by the manufacturer (any wheel from eligible models may be used). The speedometer drive may be replaced with a spacer. The cushion drive for the rear wheel must remain as originally produced for the standard wheel. No modification of the wheel axles or any fixing or mounting points for front brake callipers are authorised. Spacers can be modified. Modifications to the wheels to keep spacers in place are permitted.

7. Brakes:

Brake discs must remain as originally produced by the manufacturer. The front and rear calliper (mount, carrier, hanger) must remain as originally produced. The front master cylinder may be changed but the rear master cylinder must remain as originally produced. Both reservoirs may be changed for aftermarket products. Front and rear hydraulic lines may be changed for aftermarket braided hoses. Front and rear brake pads may be changed. Air scoops are not permitted.

8. Tyres:

All tyres must be treaded. Slick tyres are not permitted.

9. Foot Rests/Foot Rest Controls:

Foot rests/Foot rest controls may be relocated but brackets must be mounted to the frame at the original mounting points.

10. Handle Bars and Hand Controls:

Handle bars may be replaced (does not include brake master cylinder). Handle bars and hand controls may be relocated. Unused switches can be removed but electric starter switch and engine stop switch must be located on the handlebars in accordance with MCUI Standing Regulations.

11. Fairing/Bodywork/Fuel Tank Cover:

Fairing, seat, bodywork and fuel tank cover, may be replaced with cosmetic duplicates for racing purposes. The use of carbon fibre or exotic materials is forbidden. The original combination instrument cluster and bracket must remain standard. All other fairing brackets may be altered or replaced. Exotic materials are forbidden. The original air ducts must remain standard.

Particle grills (if installed) may be removed. Front mud guards may be replaced with a cosmetic duplicate of the original and

Page 21

© MCUI – Updated December 2016

MCUI TECHNICAL REGULATIONS :- YOUNG GUNS CHALLENGE (Continued 1)

may be spaced to allow correct tyre clearance. Rear mudguard fixed on the swing arm can be modified or changed but the original profile must remain. Exotic materials are forbidden.

13. Seat and Support:

Seat base and associated body work may be replaced with parts of similar appearance. These at may be modified to lower the seat height for smaller riders, under no circumstances may the sub-frame be altered to accommodate such changes. The appearance from both sides and rear must conform to the original silhouette.

14. Wiring Harness:

The original wiring loom may only be modified as follows: The unused wire loom elements supplying current to indicators, horn, ignition contact and lights etc may be unplugged and or removed (no cutting is allowed). The wiring loom may be relocated on the machine but no cutting of any wires is permitted.

15. Battery: The battery may be replaced but must remain in the standard location.

16. Air Box:

The air box must remain as originally produced by the manufacturer (no modifications are permitted). The air filter element may be modified, removed or replaced.

17. Cylinder Head: No modifications permitted.

18. Crankshaft : No modifications are allowed.

19. Connecting Rod: No modifications are allowed.

20. Pistons:

Manufacturers standard pistons or aftermarket pistons may be used but bore and stroke must remain as standard.

22. Piston Pins and Clips:

No modifications are allowed.

23. Cylinder:

No modifications are allowed except for replating/relining. Bore must remain as standard

24. Crank Case and all other Engine Cases:

No modifications to these parts are allowed except polishing and matching.

25. Transmission/Gearbox:

No modifications to the gearbox or select or mechanism are allowed. Counter shaft, sprockets, chain pitch and size may be changed. The sprocket cover can be modified or removed. No quick-shifters or ignition interruption systems are permitted.

26. Clutch:

No modifications are allowed, except for replacing the friction and drive plates (the number of plates and their ratio must remain as the standard model). Clutch springs may be replaced.

27. Ignition/Engine Control System: (CDI/ECU)

The unit must remain standard.

28. Generator, Alternator & Electric Starter:

No other modifications are permitted. The electric starter must operate normally and always be able to start the engine throughout the event. The standard connections must be maintained to both the starter and generator.

29. Ignition Switch and Key:

These parts must remain on the bike and in working order.

30. Exhaust System:

Exhaust pipe and silencers may be altered or replaced from those fitted to the homologated motorcycle. This must adhere to the maximum noise regulations of 105db. The number of final exit(s) to the exhaust may be altered from that of the homologated machine. Wrapping of exhaust systems is permitted.

31. Fasteners:

Standard fasteners may be replaced with fasteners of any material and design but titanium fasteners may not be used. The strength and design of any replacement must be at least equal to the original part. Fairing/bodywork fasteners may be changed to the quick connect type, but aluminium fasteners may only be used in non structural locations.

32. Auto Lube System:

The Auto lube or premix is allowed, however the auto lube system (including the oil tank and pump) must remain.

33. The Following Items May Be Altered Or Replaced From Those Fitted To The Homologated Machine:

Any type of lubrication, brake or suspension fluid may be used. Any type of spark plug may be used. Any inflation valves may be used. Wheel balance weights may be discarded, changed or added to. Any type of gaskets and gasket materials may be used.

35. The Following Items Must Be Removed: Headlamp, rear lamp and turn signal indicators, rear view mirrors, horn, license plate bracket, toolbox, helmet hooks and luggage carrier hooks, passenger footrests, passenger grab rails, safety bars, centre and side stands (fixed frame brackets must remain).

36. Additional Equipment: Additional equipment not on the original homologated motorcycle may not be added (ie data acquisition, computers, recording equipment etc). Telemetry is not allowed. The only potentiometers and sensors allowed are those fitted as original equipment on the motorcycle as homologated.

37. Replacement and Repairs:

Where necessary, parts from an older or newer version of the same model maybe used. No advantage maybe gained from these changes.

Page 22

© MCUI – Updated December 2016

MCUI TECHNICAL REGULATIONS :- YOUNG GUNS CHALLENGE (Continued 2)

38. Chain Guards:

A guard must be fitted in such a way as to prevent trapping between the lower drive chain run and the final drive sprocket at the rear wheel.

39. Fuel:

Only Unleaded and Super Unleaded fuel is permitted. The use of fuel additives is strictly prohibited.

40. Radiator and Oil Cooler:

The original radiator may be modified to aid cooling. Radiator hoses may be replaced with those of a similar internal diameter.

The use of coolants is prohibited, water only to be used.

41. Bore and Stroke:

Bore and Stroke details must be displayed on the motorcycle.

42. Race Numbers & Backgrounds: As per MCUI regulations

ALL MACHINES MUST HAVE

43. Rear Safety Light

All motorcycles must have a functioning red light mounted at the rear of the seat to be used during wet practice/races or in low visibility conditions as declared by the Clerk of the Course.

1. the lighting direction must be parallel to the centre line of the motorcycle (running direction) and it must be clearly visible from the

rear, at least 15 degrees to both the left and right sides of the centre line of the motorcycle.

2. it must be safely mounted on the very end of seat/rear bodywork and approximately on the centre line of the motorcycle.

3. the power output/luminosity must be equivalent to approximately 10-15W (incandescent) or 3-5W (led).

4. the light must be able to be switched on and off.

44. Handlebar Lever Protection

All motorcycles must be equipped with a brake lever protection, intended to prevent the handlebar brake lever from being accidently activated in the case of collision with another motorcycle.

Page 23

© MCUI – Updated December 2016

MCUI TECHNICAL REGULATIONS :- JUNIOR CUP

All items not mentioned in the following articles must remain as originally produced by the Manufacturer for the homologated machine.

Everything that is not authorised and prescribed in these rules is strictly forbidden. All motorcycles must comply in every respect with all the requirements for racing as specified in the Technical Regulations, unless it is equipped as such on the homologated machine.

1. Machines:

For 4 Stroke machines originally produced for road use with a water cooled engine may be used provided it adheres to the following regulations.

2. PERFORMANCE/OUTPUT:

All machines must be limited to 43bhp at the rear wheel. A tolerance of 1bhp will be permitted to allow for climatic and output irregularities between various dyno machines. The results of the MCUI official dyno test machine will be final.

Machines attributed to these Regulations are:

HONDA CBR250R produced from 2011-2013

HONDA CBR300R produced from 2014 onwards

KAWASAKI NINJA 250R produced from 2008-2013

KAWASAKI NINJA 300R produced from 2013 onwards

KTM RC250 produced from 2015 onwards

KTM RC390 produced from 2014 onwards

YAMAHA YZF-R25 produced from 2014 onwards

YAMAHA YZF-R3 produced from 2015 onwards

BMW G310R produced from 2016 onwards

3. Carburation Instruments:

Carburation instruments must remain as homologated. If a 250cc 4 stroke machine is being converted to 300cc then it is permitted to use the

300cc carburation instruments from the same manufacturer. Carburettor jets and needles may be replaced. No modification, polishing or cutting is allowed. Only the standard bodied carburettor is permitted, except in the case mentioned above. Electronic or mechanical enriching devices must remain installed and active (If the carburettor is changed from one model to another, the appropriate wiring loom must also be installed and be operative). Bell mouths must be as originally produced by the manufacturer for the homologated machine.

Throttle must be standard, quick action throttles are not permitted.

4. Frame Body and Rear Sub-Frame:

Fairing, mudguards and seat unit may be altered or replaced. Windscreen, if fitted, may be replaced with transparent material only. The original instruments and fairing brackets may be removed or replaced. The petrol tank must remain as originally produced by the manufacturer for the homologated machine although it may be refinished if required. The position of the tank mounting points on the frame must remain as standard. The lower fairing has to be constructed to hold, in case of an engine breakdown, at least half of the total oil and engine coolant capacity used in the engine (minimum 5 litres). The lower edge of openings in the fairing must be positioned at least 50 mm above the bottom of the fairing. The lower fairing must incorporate a hole of 25 mm in the bottom of the front lower area. This hole must remain closed in dry conditions and must be only opened in wet race conditions as declared by the Race Director.

5. Front Forks:

Forks structure (spindle, stanchions, bridges, stem etc) must remain as originally produced by the manufacturer. Standard original internal parts of the forks may be modified. Aftermarket damper kits or valves may be installed. The fork caps can be modified or changed to add spring preload/compression and damping adjusters. Dust seals can be modified, changed or removed providing the fork remains totally oil sealed. Any quantity or quality of oil can be used in the front forks. The height and position of the front fork in relation to the fork crowns is free. A steering damper may be added but may not act as a steering lock device.

6. Rear Suspension Unit:

Rear suspension unit (shock absorber) may be modified or replaced, but the original attachments to the frame and rear fork must be used and the rear suspension linkage must remain as originally produced. Rear suspension spring may be changed.

7. Wheels:

Wheels must remain as originally produced by the manufacturer (any wheel from eligible models may be used). The speedometer drive may be replaced with a spacer. The cushion drive for the rear wheel must remain as originally produced for the standard wheel. No modification of the wheel axles or any fixing or mounting points for front brake callipers are authorised. Spacers can be modified. Modifications to the wheels to keep spacers in place are permitted.

8. Brakes:

Brake discs must remain as originally produced by the manufacturer. The front and rear calliper (mount, carrier, hanger) must remain as originally produced. The front master cylinder may be changed but the rear master cylinder must remain as originally produced. Both reservoirs may be changed for aftermarket products. Front and rear hydraulic lines may be changed for aftermarket braided hoses.

Front and rear brake pads may be changed. Air scoops are not permitted.

9. Tyres:

All tyres must be treaded. Slick tyres are not permitted.

10. Foot Rests/Foot Rest Controls:

Foot rests/Foot rest controls may be relocated but brackets must be mounted to the frame at the original mounting points.

11. Handle Bars and Hand Controls:

Handle bars may be replaced (does not include brake master cylinder). Handle bars and hand controls may be relocated. Un-used switches can be removed but electric starter switch and engine stop switch must be located on the handlebars in accordance with MCUI Standing

Regulations.

12. Fairing/Bodywork/Fuel Tank Cover:

Fairing, seat, bodywork and fuel tank cover, may be replaced with cosmetic duplicates for racing purposes. The use of carbon fibre or exotic materials is forbidden. The original combination instrument cluster and bracket must remain standard. All other fairing brackets may be altered or replaced. Exotic materials are forbidden. The original air ducts must remain standard. Particle grills (if installed) may be removed.

Front mud guards may be replaced with a cosmetic duplicate of the original and may be spaced to allow correct tyre clearance. Rear mudguard fixed on the swing arm can be modified or changed but the original profile must remain. Exotic materials are forbidden.

Page 24

© MCUI – Updated December 2016

MCUI TECHNICAL REGULATIONS :- JUNIOR CUP (Continued 1)

13. Seat and Support:

Seat base and associated body work may be replaced with parts of similar appearance. These at may be modified to lower the seat height for smaller riders, under no circumstances may the sub-frame be altered to accommodate such changes. The appearance from both sides and rear must conform to the original silhouette.

14. Wiring Harness:

The original wiring loom may only be modified as follows: The unused wire loom elements supplying current to indicators, horn, ignition contact and lights etc may be unplugged and or removed (no cutting is allowed). The wiring loom may be relocated on the machine but no cutting of any wires is permitted.

15. Battery:

The battery may be replaced but must remain in the standard location.

16. Air Box:

The air box must remain as originally produced by the manufacturer (no modifications are permitted). The air filter element may be modified, removed or replaced.

17. Cylinder Head:

No modifications permitted

18. Crankshaft :

Must remain as standard. Polishing and lightening of cranks is not permitted. The only exception being 250cc machines may fit the 300cc crank of the later 300cc machine from the same manufacturer.

19. Connecting Rod:

Must remain as standard. Polishing and lightening of conrods is not permitted. The only exception being 250cc machines may fit the 300cc conrods if fitting the crank of the later 300cc machine from the same manufacturer as above.

20. Pistons:

Must remain as standard. Other manufacturers pistons are permitted but bore and stroke must remain as standard. The only exception being 250cc machines may fit the 300cc pistons if fitting the crank and conrods of the later 300cc machine from the same manufacturer as above.

21. Piston Rings:

No modifications are allowed. The only exception being 250cc machines are permitted to use the 300cc piston rings if converted as mentioned above.

22. Piston Pins and Clips:

No modifications are allowed. The only exception being 250cc machines are permitted to use the 300cc piston pins and clips if using the pistons as mentioned at point 20

23. Cylinder:

No modifications are allowed. The only exception being a cylinder spacer is permitted for 250cc machines to accommodate the longer stroke if fitting the 300cc conversion kit as mentioned at points 18 to 22 above.

24. Crank Case and all other Engine Cases:

No modifications to these parts are allowed except polishing and matching.

All lateral covers/engine cases containing oil on 4 stroke machines and which could come in contact with the ground during a crash, must be protected by a second cover made from composite materials, aluminium or steel plates and or bars are also permitted.

All these devices must be designed to be resistant against sudden shocks and must be fixed properly and securely.

Where secondary covers are not commercially available, engine case guards in the form of strengthened engine side covers may be installed.

The countershaft cover may be removed. The addition of a crankcase protector at the countershaft is allowed.

25. Transmission/Gearbox:

No modifications to the gearbox or selector mechanism are allowed. Counter shaft, sprockets, chain pitch and size may be changed. The sprocket cover can be modified or removed. No quick-shifters or ignition interruption systems are permitted.

26. Clutch:

No modifications are allowed, except for replacing the friction and drive plates (the number of plates and their ratio must remain as the standard model). Clutch springs may be replaced.

27. Ignition/Engine Control System: (CDI/ECU)

The unit must remain standard in every other respect. In the case of a 250cc to 300cc conversion as mentioned above, the 250cc ECU/CDI may be replaced with the 300cc unit from the same manufacturer.

28. Generator, Alternator & Electric Starter:

No other modifications are permitted. The electric starter must operate normally and always be able to start the engine throughout the event. The standard connections must be maintained to both the starter and generator.

29. Ignition Switch and Key:

These parts must remain on the bike and in working order.

30. Exhaust System:

Exhaust pipe and silencers may be altered or replaced from those fitted to the homologated motorcycle. This must adhere to the maximum noise regulations of 105db. The number of final exit(s) to the exhaust may be altered from that of the homologated machine. Wrapping of exhaust systems is permitted.

31. Fasteners:

Standard fasteners may be replaced with fasteners of any material and design but titanium fasteners may not be used. The strength and design of any replacement must be at least equal to the original part. Fairing/bodywork fasteners may be changed to the quick connect type, but aluminium fasteners may only be used in non structural locations.

32. The Following Items May Be Altered Or Replaced From Those Fitted To The Homologated Machine:

Any type of lubrication, brake or suspension fluid may be used. Any type of spark plug may be used. Any inflation valves may be used. Wheel balance weights may be discarded, changed or added to. Any type of gaskets and gasket materials may be used.

33. The Following Items Must Be Removed: Headlamp, rear lamp and turn signal indicators, rear view mirrors, horn, license plate bracket, toolbox, helmet hooks and luggage carrier hooks, passenger footrests, passenger grab rails, safety bars, centre and side stands (fixed frame brackets must remain).

Page 25

© MCUI – Updated December 2016

MCUI TECHNICAL REGULATIONS :- JUNIOR CUP (Continued 2)

34. Additional Equipment: Additional equipment not on the original homologated motorcycle may not be added (ie data acquisition, computers, recording equipment etc). Telemetry is not allowed. The only potentiometers and sensors allowed are those fitted as original equipment on the motorcycle as homologated.

35. Replacement and Repairs:

Where necessary, parts from an older or newer version of the same model may be used. No advantage may be gained from these changes.

36. Chain Guards:

A guard must be fitted in such a way as to prevent trapping between the lower drive chain run and the final drive sprocket at the rear wheel.

37. Fuel:

Only Unleaded and Super Unleaded fuel is permitted. The use of fuel additives is strictly prohibited

38. Race Numbers & Backgrounds: As per MCUI regulations

ALL MACHINES MUST HAVE

39. Rear Safety Light

All motorcycles must have a functioning red light mounted at the rear of the seat to be used during wet practice/races or in low visibility conditions as declared by the Clerk of the Course.

1. the lighting direction must be parallel to the centre line of the motorcycle (running direction) and it must be clearly visible from the

rear, at least 15 degrees to both the left and right sides of the centre line of the motorcycle.

2. it must be safely mounted on the very end of seat/rear bodywork and approximately on the centre line of the motorcycle.

3. the power output/luminosity must be equivalent to approximately 10-15W (incandescent) or 3-5W (led).

4. the light must be able to be switched on and off.

40. Handlebar Lever Protection

All motorcycles must be equipped with a brake lever protection, intended to prevent the handlebar brake lever from being accidently activated in the case of collision with another motorcycle.

Page 26

© MCUI – Updated December 2016

MCUI 125GP & 250GP TECHNICAL REGULATIONS

1. Classes:

The following classes will be accommodated, which will be designated by engine capacity:

125GP Over 80cc up to 125cc Maximum one cylinder

250 GP Over 175cc up to 250cc Maximum two cylinders

2. Engines:

Engines may operate on the two stroke only. Engines must be normally aspirated. Cubic capacity of the engine will be defined by the swept volume of the cylinder, i.e. the area of the bore of the cylinder multiplied by the stroke. No tolerance on capacities is permitted. Engine capacity must be measured at ambient temperature.

3. Gears:

There must be a maximum of six gears.

4. Weights:

The following are the minimum weights permitted:

125cc motorcycle + rider 136 kg

250cc motorcycle 100 kg

Ballast may be added to achieve the minimum weights.

Weight may be checked at the initial technical control, but the main control of weight will be made at the end of practice sessions or at the end of the race. The weight of the motorcycle will be that measured in the form that the motorcycle participated, with fuel tank on and including normal levels of oil and water, and all additional equipment attached to the motorcycle, for example timekeeping senders, camera equipment, electronic telemetry equipment etc. For the 125cc class the weight checked will be the total of the rider with full protective clothing plus the weight of the motorcycle. Random weight controls may be carried out during practice in a designated weighing area.

5. Fuel Tanks:

Fuel caps must be leak proof and have a positive closing device. Fuel tank breather pipes must include a non-return valve. Fuel tank breather pipes must discharge into a suitable container, one per motorcycle with a minimum capacity of 200cc and a maximum capacity of 250cc.

Except for the case that a fuel tank is fixed on the chassis with bolts, all fuel lines from the fuel tank to the engine/carburettor system should have a self sealing breakaway valve. This valve must separate at less than 50% of the load required to break any part of the fuel line or fitting or to pull it out of the fuel tank.

6. Exhausts:

The outlet of the exhaust must not extend behind a line drawn vertically through the edge of the rear tyre. For safety reasons the exposed edge of the exhaust pipe outlet must be rounded to avoid any sharp edges.

7. Footrests:

Footrests must have rounded ends with a minimum solid spherical radius of 8mm

8. Handlebar Levers:

Levers must not be longer than 200mm measured from the pivot point.

9. Bodywork:

The windscreen edge and the edges of all other exposed parts of the streamlining must be rounded. The maximum width of bodywork must not exceed 600mm. The width of the seat or anything to its rear shall not be more than 450mm (exhaust pipes excepted). Bodywork must not extend beyond a line drawn vertically at the leading edge of the front tyre and a line drawn vertically at the rearward edge of the rear tyre. The suspension should be fully extended when the measurement is taken.

When viewed from the side, it must be possible to see: a. At least 180 degrees of the rear wheel rim. b. The whole of the front rim, other than the part obscured by the mudguard, forks or removable air-intake. c. The rider, seated in a normal position with the exception of the forearms.

No transparent material may be used to circumvent the above rules.

The seat unit shall have a maximum height of the (approximately) vertical section behind the rider’s seating position of 150mm. The measurement will be taken at a 90° angle to the upper surface of the flat base at the rider’s seating position, excluding any seat pad or covering. Any on-board camera/antenna mounted on the seat unit is not included in this measurement.

Mudguards are not compulsory. When fitted, front mudguards must not extend: a. In front of a line drawn upwards and forwards at 45 degrees from a horizontal line through the front wheel spindle. b. Below a line drawn horizontally and to the rear of the front wheel spindle.

The mudguard mounts/brackets and fork-leg covers, close to the suspension leg and wheel spindle, and brake disc covers are not considered part of the mudguard.

Wings may be fitted provided they are an integral part of the fairing or seat and do not exceed the width of the fairing or seat or the height of the handlebars. Any sharp edges must be rounded. Moving aerodynamic devices are prohibited. The lower fairing should incorporate a maximum of two holes of 25mm. These holes must remain closed in dry conditions and must be only opened in wet race conditions, as declared by the Race Director.

10. Clearances:

The motorcycle, unloaded, must be capable of being leaned at an angle of 50 degrees from the vertical without touching the ground, other than with the tyre. There must be a clearance of at least 15mm around the circumference of the tyre at all positions of the motorcycle suspension and all positions of the rear wheel adjustment.

11. Breather Pipes:

Any breather pipe from the engine or gearbox must discharge into a suitable container with a minimum capacity of 250cc. There must be a separate container for each breather pipe.

12. Materials:

The use of titanium in the construction of the frame, the front forks, the handle-bars, the swinging arm spindles, and the wheel spindles is forbidden. For wheel spindles, the use of light alloys is also forbidden. The basic structure of the crankshaft and camshafts must be made from steel or cast iron. Pistons, cylinder heads and cylinder blocks may not be composite structures which use carbon or aramid fibre reinforcing materials.

Brake callipers must be made from aluminium materials with a modulus of elasticity no greater than 80 Gpa. No parts of the motorcycle or engine may be made from metallic materials which have a specific modulus of elasticity greater than 50 Gpa / (g/cm3).

Page 27

© MCUI – Updated December 2016

MCUI 125GP & 250GP TECHNICAL REGULATIONS (Continued)

13. Rims:

Maximum rim widths are as follows:

Front:

125cc 2.5"

250cc 4.0"

Rear:

125cc 3.5”

250cc 5.5”

14. Tyres:

No restriction on tyres.

15. Noise Tests:

The maximum noise levels at all times are 105 dB/A

16. Throttle Twist Grips:

Throttle twist grips must close automatically when released.

17. Steering:

Handlebars must have a width of not less than 450mm and their ends must be solid or rubber covered. The width of the handlebar is defined as the width measured between the outside of the handlebar grips or throttle twist grips. There must be at least 15 degrees of movement of the steering each side of the centre line. Stops must be fitted to ensure a clearance of at least 30mm between the handlebar and the fuel tank frame and/or bodywork when at the extremes of steering lock.

18. Brakes:

Motorcycles must have a minimum of one brake on each wheel that is independently operated. In the 125cc and 250cc classes, only brake discs of ferrous materials are allowed.

19. Fasteners:

Standard fasteners may be replaced with fasteners of any material and design. The strength and design must be equal to or exceed the strength of the standard fastener it is replacing for structural applications. The use of titanium in the swing arm spindles and the wheels spindles is forbidden. For wheel spindles the use of light alloys is also forbidden. The use of titanium alloy nuts and bolts is allowed.

Aluminium fasteners may only be used in non-structural locations.

20. Chain Guards:

A guard must be fitted in such a way as to prevent trapping between the lower drive chain run and the final drive sprocket at the rear wheel.

21. Fuel:

Only Unleaded, Super Unleaded fuel and AVGAS is permitted.

22. Radiator and Oil Cooler:

The original radiator or oil cooler may be modified to aid cooling. Radiator hoses may be replaced with those of a similar internal diameter.

The use of coolants is prohibited, water only to be used.

23. Bore and Stroke:

Bore and Stroke details must be displayed on the motorcycle.

24. Race Numbers & Backgrounds:

As per MCUI rules.

ALL MACHINES MUST HAVE

25. Rear Safety Light

All motorcycles must have a functioning red light mounted at the rear of the seat to be used during wet practice/races or in low visibility conditions as declared by the Clerk of the Course.

1. the lighting direction must be parallel to the centre line of the motorcycle (running direction) and it must be clearly visible from the

rear, at least 15 degrees to both the left and right sides of the centre line of the motorcycle.

2. it must be safely mounted on the very end of seat/rear bodywork and approximately on the centre line of the motorcycle.

3. the power output/luminosity must be equivalent to approximately 10-15W (incandescent) or 3-5W (led).

4. the light must be able to be switched on and off.

26. Handlebar Lever Protection

All motorcycles must be equipped with a brake lever protection, intended to prevent the handlebar brake lever from being accidently activated in the case of collision with another motorcycle.

Page 28

© MCUI – Updated December 2016

MCUI MOTO 450 TECHNICAL REGULATIONS

1. Eligible Machines:

Single cylinder 450cc machines listed by the FIM or UEM for Motocross or Supermoto competition from 2002 onwards.

2. Frame & Swinging Arm:

The standard frame and swinging arm must be retained. Engine mounting points must not be altered.

3. Wheels & Tyres:

Only 17inch rims may be used. No restrictions on tyres..

5. Clutches:

Slipper clutches are permitted.

6. Engine:

Tuning of engine is permitted using standard parts. Maximum power of 55bhp at post race control.

7. Weight:

Minimum weight of machine at post race control is 100kg.

8. Noise Limit:

Maximum noise level of 100dba at 5000rpm measured at post race control

9. Chain Guards:

A guard must be fitted in such a way as to prevent trapping between the lower drive chain run and the final drive sprocket at the rear wheel.

10. Fuel:

Only Unleaded and Super Unleaded fuel is permitted. The use of fuel additives is strictly prohibited.

11. Radiator and Oil Cooler:

The original radiator or oil cooler may be modified to aid cooling. Radiator hoses may be replaced with those of a similar internal diameter.

The use of coolants is prohibited, water only to be used.

12. Bore and Stroke:

Bore and Stroke details must be displayed on the motorcycle.

13. Race Numbers & Backgrounds:

As per MCUI rules.

14. Bodywork and Colours:

Bodywork as supplied by the nominated series supplier in the following colours based on machine manufacturer

Kawasaki - Green

Honda - Red

Yamaha - Dark Blue

Suzuki - Yellow

Husqvarna - Red and White

KTM - Orange

All other manufactures -White

ALL MACHINES MUST HAVE

15. Rear Safety Light

All motorcycles must have a functioning red light mounted at the rear of the seat to be used during wet practice/races or in low visibility conditions as declared by the Clerk of the Course.

1. the lighting direction must be parallel to the centre line of the motorcycle (running direction) and it must be clearly visible from the

rear, at least 15 degrees to both the left and right sides of the centre line of the motorcycle.

2. it must be safely mounted on the very end of seat/rear bodywork and approximately on the centre line of the motorcycle.

3. the power output/luminosity must be equivalent to approximately 10-15W (incandescent) or 3-5W (led).

4. the light must be able to be switched on and off.

16. Handlebar Lever Protection

All motorcycles must be equipped with a brake lever protection, intended to prevent the handlebar brake lever from being accidently activated in the case of collision with another motorcycle.

17. Engine Protection.

All lateral covers/engine cases containing oil on 4 stroke machines, and which could come in contact with the ground during a crash, must be protected by a second cover made from composite materials, aluminum or steel plates and/or bars are also permitted.

All these devices must be designed to be resistant against sudden shocks and must be fixed properly and securely.

Where secondary covers are not commercially available, Engine case guards in the form of strengthened engine side covers may be installed.

The countershaft cover may be removed. The addition of a crankcase protector at the countershaft is allowed

Page 29

© MCUI – Updated December 2016

MCUI LIGHTWEIGHT SUPERSPORT TECHNICAL REGULATIONS

All items not mentioned in the following articles must remain as originally produced by the Manufacturer for the homologated machine.

Anything that is not authorised and prescribed in these rules are strictly forbidden. All motorcycles must comply in every respect with all the requirements for racing as specified in the Technical Regulations, unless it is equipped as such on the homologated machine.

Eligible Machines

Any 2 cylinder two stroke or 4 cylinder four-stroke motorcycles originally produced for road use with a water cooled engine between 201 –

415cc and any single or twin cylinder 4 Stroke machines with a maximum capacity of 450cc may be used provided it adheres to the following regulations.

Older models may be updated with genuine parts found on a newer version of the same model and newer models may use parts from older machines. All parts must be used as intended for the homologated machine and in accordance with the manufacturer’s recommendations.

1. Frame:

Frame must remain as originally produced by the manufacturer for the homologated machine. Nothing may be added or removed from the frame body with the exception of a steering damper bracket. Rear sub frame may be replaced or modified. Refinishing of frame to a suitable standard is acceptable.

2. Swingarm:

No restrictions

2. Suspension:

Forks may be replaced. Steering damper may be added although it cannot act as a steering lock device. Rear suspension unit can be changed or modified.

3. Wheels:

Wheels may be changed but must be 17”. Wheel bearings and spacers may be modified or changed where required. The speedometer drive may be removed and replaced with a spacer. The refinishing of wheel rims to a suitable standard is acceptable. 18” Rear wheel may be replaced with a suitable 17”. Modifications can be made in order to accept safety retention devices.

4. Brakes:

Front and rear brake discs may be changed. Only ferrous materials are allowed for brake discs. Front and rear brake callipers may be changed. Front and rear master cylinders may be changed. Front and rear hydraulic brake lines may be changed. The split of the front brake lines for both front brake callipers must be made above the lower fork bridge (bottom yoke). Front and rear brake pads may be changed.

5. Tyres:

All tyres must be treaded. Slick tyres are not permitted.

6. Controls:

Footrest and foot controls may be replaced or relocated but brackets must be mounted to the frame at the original mounting points.

Handlebars, hand controls and cables may be altered or replaced (this does not include brake master cylinders) from those fitted to the homologated motorcycle. Electric stop switch must be located on the handlebars and must be operational.

7. Fairing and Seat Unit:

Fairing, mudguards and seat unit may be altered or replaced. Windscreen, if fitted, may be replaced with transparent material only. The original instruments and fairing brackets may be removed or replaced. The petrol tank must remain as originally produced by the manufacturer for the homologated machine although it may be refinished if required. The position of the tank mounting points on the frame must remain as standard. The lower fairing has to be constructed to hold, in case of an engine breakdown, at least half of the total oil and engine coolant capacity used in the engine (minimum 5 litres). The lower edge of openings in the fairing must be positioned at least 50 mm above the bottom of the fairing. The lower fairing must incorporate a hole of 25 mm in the bottom of the front lower area. This hole must remain closed in dry conditions and must be only opened in wet race conditions as declared by the Race Director.

8. Wiring Harness and Battery:

The wiring harness may be altered or replaced. Additional wiring may be added where required, with the exception of the following:

Electric stop switch must be fitted and working.

The size and type of battery may be changed and or relocated.

9. Air Box / Carburetion / Fuel Injection:

The air box may be altered or replaced from that fitted to the homologated motorcycle. The air filter element may be removed or replaced with an aftermarket item. Carburettors must be the standard units as on the homologated model. Throttle bodies for fuel injected machines must be as on the homologated model. Carburettor jets and needles may be replaced. Resizing of the air metering holes in CV carburettors slide control is permitted. No other alterations are permitted to the air intake or carburetion system. Bell mouths may be added, altered or replaced from those fitted to the homologated motorcycle. The fuel injection management system may not be altered or replaced other than the remapping of internally stored fuelling maps.

10. Engine:

Must not exceed cc as stated above. Cylinder head, camshafts, cam sprockets, crankshaft, rods, pistons, valves, cylinders and all other engine components may be modified. Polishing and lightening of engine parts is permitted. Balancing or gas flow modifications normally associated with individual tuning is permitted. Compression ratio of the engine maybe changed. Camshaft timing may be changed. The crankcase/gearbox casing, clutch and generator covers may be protected by additional means, e.g. protective covers made of stainless steel or carbon/Kevlar composites. The thermostat may be removed from the housing to aid cooling, if required.

11. Transmission:

An addition to the gearbox or selector mechanism, such as quick shift systems is permitted. Clutch Springs, friction and drive plates may be replaced. The use of slipper clutches is permitted Gear shift detent spring may be replaced with a heavy duty item. Front and rear external drive sprockets, chain pitch and chain length can be changed.

12. Ignition and Engine Control System:

Ignition and engine control system (CDI) may be modified or changed. All units must remain fully interchangeable with available control units. Modifications or alterations, whether electronic or mechanical, are permitted to the motorcycle to alter the engine ignition timing. The fitting of a curve changer is not permitted on 4 stroke machines.

Page 30

© MCUI – Updated December 2016

MCUI LIGHTWEIGHT SUPERSPORT TECHNICAL REGULATIONS (Continued)

13. Generator:

The generator, starting system, starter crank gear and starter shaft may be replaced, modified or removed from those fitted to the homologated motorcycle.

14. Exhaust System:

Exhaust pipe and silencers may be altered or replaced from those fitted to the homologated motorcycle. This must adhere to the maximum noise regulations of 105db as set out in the MCUI Standing Regulations. The number of final exit(s) to the exhaust may be altered from that of the homologated machine. Wrapping of exhaust systems is permitted.

15. Fasteners:

Standard fasteners may be replaced with fasteners of any material and design. The strength and design must be equal to or exceed the strength of the standard fastener it is replacing for structural applications. The use of titanium in the swing arm spindles and the wheels spindles is forbidden. For wheel spindles the use of light alloys is also forbidden. The use of titanium alloy nuts and bolts is allowed.

Aluminium fasteners may only be used in non-structural locations.

16. The Following Items MUST BE Removed:

Headlamp, rear lamp and turn signal indicators (when not incorporated in the fairing). Openings must be covered by suitable materials. Rear view mirrors, horn, license plate bracket, tool box, helmet hooks and luggage carrier hooks, passenger foot rests, passenger grab rails, safety bars, centre and side stands must be removed (fixed brackets must remain).

17. The following items MAY BE removed:

Instruments, instrument bracket and associated cables, horn, license plate brackets, tool kit, tachometer, speedometer and wheel spacers, radiator fan and wiring, passenger foot rests, passenger grab rails and upper chain guard.

18. The following items MUST BE adhered to:

Motorcycle must be equipped with a functional ignition kill switch mounted on the handlebar that is capable of stopping a running engine.

Side stand must be removed. All drain plugs must be safety wired. External oil filter screws and bolts that enter the oil or water cavities must be safety wired. Head lamp, rear lamp and turn indicators must be removed. A suitable material must cover the openings. Mirrors must also be removed.

19. Replacement and Repairs:

Where necessary, parts from an older or newer version of the same model maybe used.

20. Chain Guards:

A guard must be fitted in such a way as to prevent trapping between the lower drive chain run and the final drive sprocket at the rear wheel.

21. Fuel:

All 4 Stroke machines, only Unleaded and Super Unleaded fuel is permitted. The use of fuel additives is strictly prohibited.

Avgas, Race Fuel and fuel additives are permitted for 2 Stroke machines only in order to inhibit unnecessary detonation.

22. Radiator and Oil Cooler:

The original radiator or oil cooler may be modified to aid cooling. Radiator hoses may be replaced with those of a similar internal diameter.

The use of coolants is prohibited, water only to be used.

23. Bore and Stroke:

Bore and Stroke details must be displayed on the motorcycle.

24. Race Numbers & Backgrounds:

As per MCUI rules.

ALL MACHINES MUST HAVE

25. Rear Safety Light

All motorcycles must have a functioning red light mounted at the rear of the seat to be used during wet practice/races or in low visibility conditions as declared by the Clerk of the Course.

1. the lighting direction must be parallel to the centre line of the motorcycle (running direction) and it must be clearly visible from the rear, at least 15 degrees to both the left and right sides of the centre line of the motorcycle.

2. it must be safely mounted on the very end of seat/rear bodywork and approximately on the centre line of the motorcycle.

3. the power output/luminosity must be equivalent to approximately 10-15W (incandescent) or 3-5W (led).

4. the light must be able to be switched on and off.

26. Handlebar Lever Protection

All motorcycles must be equipped with a brake lever protection, intended to prevent the handlebar brake lever from being accidently activated in the case of collision with another motorcycle.

27. Engine Protection.

All lateral covers/engine cases containing oil on, 4 stroke machines, and which could come in contact with the ground during a crash, must be protected by a second cover made from composite materials, aluminum or steel plates and/or bars are also permitted.

All these devices must be designed to be resistant against sudden shocks and must be fixed properly and securely.

.

Where secondary covers are not commercially available, Engine case guards in the form of strengthened engine side covers may be installed.

The countershaft cover may be removed. The addition of a crankcase protector at the countershaft is allowed.

Page 31

© MCUI – Updated December 2016

MCUI MOTO 3 TECHNICAL RULES

Engine; AS MOTO 3 IS FIM CLASS (MCUI) WILL ALLOW USE OF MOTO CROSS ENGINES

Frames will be free but must comply to scrutineering

- 4-stroke reciprocating piston engines only.

- Engine capacity: maximum 250cc.

- Single cylinder only.

- Maximum bore size: 81mm. No oval pistons.

- Engines must be normally aspirated. No turbo-charging, no super-charging.

- Crankshaft speed limited to maximum: 14,000 rpm.*

- Maximum of 1 ignition driver.*

- Maximum of 5 valves.

- Pneumatic and/or hydraulic valve systems are not permitted.

- Valves timing system drive must be by chain.

- Variable valve timing and/or variable valve opening systems are not permitted.

Engine Supply

- The engine is defined as the complete engine including intake system (throttle body, injectors), and one complete transmission.

Inlet & Fuel System

- Variable-length inlet tract systems are not permitted.

- Only one throttle control valve is permitted, which must be controlled exclusively by mechanical means (e.g. cable) operated by the rider only. No other moving devices (except injectors) are permitted in the inlet tract before the engine intake valve. No interruption of the mechanical connection between the rider’s input and the throttle is allowed.

- Idle speed adjustment by means of an air bypass system, controlled by the ECU is allowed.*

- Fuel injectors must be located upstream of the engine intake valves.

- Maximum of 2 fuel injectors and 2 independent fuel injector drivers.*

- Fuel pressure must not exceed 5.0 bar.

- Other than engine sump breather gases, only air or air/fuel mixture is permitted in the inlet tract and combustion chamber.

- Fuel must comply with MCUI rules.

Exhaust system

- Variable length exhaust systems are not permitted.

- Noise limit will be a maximum of 105 dB/A, measured in a static test.

- No moving parts (e.g. valves, baffles…) are allowed in the exhaust system.

Transmission

- A maximum of 6 gearbox speeds is permitted..

- Electro-mechanical or electro-hydraulic clutch actuating systems are not permitted.

Chassis

- Chassis can be of a prototype, the design and construction of which is free within the constraints of the FIM Grand Prix

Technical Regulations.

- Minimum total weight of Motorcycle + Rider:

- Brake discs must be made from an iron-based alloy.

- Suspension systems must be of a conventional passive, mechanical type. Active and semi-active suspension systems and/or electronic control of any aspect of the suspension and ride height is not permitted. Springing must be by means of coil springs made of Iron-based alloys.

Wheels & Tyres

- The only materials allowed for the wheels rims are Mg and Al alloys.

- The only permitted wheel rim sizes are:

Front, 2.50” x 17”

Rear, 3.50” x 17”

- Tyres as per MCUI rules.

Material & Construction

- Construction materials must comply with Article 2.7.10 of the FIM Grand Prix regulations.

- Camshafts, crankshafts, piston pins must be made from Iron-based alloys.

- Engine crankcases, cylinder blocks and cylinder heads must be made from cast aluminium alloys.

- Pistons must be made from an aluminium alloy.

- Connecting rods, valves and valve springs must be made from either Iron-based based alloys. MCUI will allow Motocross type engines.

The split of the front brake lines for both front brake callipers must be made above the lower fork bridge (bottom yoke).Front and rear brake pads may be changed.

Page 32

© MCUI – Updated December 2016

MCUI MOTO 3 TECHNICAL RULES (Continued )

ALL MACHINES MUST HAVE

Rear Safety Light

All motorcycles must have a functioning red light mounted at the rear of the seat to be used during wet practice/races or in low visibility conditions as declared by the Clerk of the Course.

1. the lighting direction must be parallel to the centre line of the motorcycle (running direction) and it must be clearly visible from the

rear, at least 15 degrees to both the left and right sides of the centre line of the motorcycle.

2. it must be safely mounted on the very end of seat/rear bodywork and approximately on the centre line of the motorcycle.

3. the power output/luminosity must be equivalent to approximately 10-15W (incandescent) or 3-5W (led).

4. the light must be able to be switched on and off.

Handlebar Lever Protection

All motorcycles must be equipped with a brake lever protection, intended to prevent the handlebar brake lever from being accidently activated in the case of collision with another motorcycle

Engine Protection.

All lateral covers/engine cases containing oil on, 4 stroke machines, and which could come in contact with the ground during a crash, must be protected by a second cover made from composite materials, aluminum or steel plates and/or bars are also permitted.

All these devices must be designed to be resistant against sudden shocks and must be fixed properly and securely.

Where secondary covers are not commercially available, Engine case guards in the form of strengthened engine side covers may be installed.

The countershaft cover may be removed. The addition of a crankcase protector at the countershaft is allowed

Page 33

© MCUI – Updated December 2016

MCUI PRODUCTION TWINS TECHNICAL REGULATIONS

All items not mentioned in the following articles must remain as originally produced by the Manufacturer for the homologated machine.

Everything that is not authorised and prescribed in these rules is strictly forbidden. All motorcycles must comply in every respect with all the requirements for racing as specified in the Technical Regulations, unless it is equipped as such on the homologated machine.

Any four-stroke twin cylinder motorcycle originally sold for road use with a water cooled engine of up to 650cc may be used provided it adheres to the following regulations. Older models may be updated with genuine parts found on a newer version of the same model and newer models may use parts from older machines.

1. Frame and Swing Arm:

Frame and swing arm must remain as originally produced by the manufacturer for the homologated machine. Nothing may be added or removed from the frame body. Rear sub frame may be replaced or modified. The sub frame may only be altered if it was originally designed to be unbolted from the frame body. Refinishing of frame or swing arm to a suitable standard is acceptable.

2. Suspension:

Forks must remain as originally produced by the manufacturer for the homologated machine with the exception of the following. Original internal parts of the fork may be modified or replaced. Aftermarket damper kits or valves may by installed. Fork springs may be replaced.

Fork caps may not be modified or replaced beyond the homologated standard to allow external adjustments. Fork stanchions must retain the original finish. No additional surface treatments are allowed. Refinishing of the outer fork tubes to a suitable standard is acceptable. Steering damper may be added although it cannot act as a steering lock device. Rear suspension unit can be changed or modified. The original attachment to the frame and swing arm must be as homologated. The rear suspension linkage must remain as originally produced by the manufacturer for the homologated machine.

3. Wheels:

Wheels must remain as originally produced by the manufacturer at the time of sale into the dealer/distributor network for the homologated machine except for the following. Wheel bearings and spacers may be modified or changed where required. The speedometer drive may be removed and replaced with a spacer. Refinishing of wheel rims to a suitable standard is acceptable. Front and rear wheel axles must remain as originally produced by the manufacturer for the homologated machine. Modifications can be made in order to accept safety retention devices.

4. Brakes:

Front and rear brake discs may be changed but must fit the original calliper and mounting. The outside diameter must remain as fitted to the homologated machine. Only ferrous materials are allowed for brake discs. Front and rear brake callipers, including mount, carrier and hanger, must remain as originally produced by the manufacturer for the homologated machine. Front and rear master cylinders must remain as originally produced by the manufacturer for the homologated machine. Front and rear hydraulic brake lines may be changed. The split of the front brake lines for both front brake callipers must be made above the lower fork bridge (bottom yoke). Front and rear brake pads may be changed.

5. Tyres:

All tyres must be treaded. Slick tyres are not permitted.

6. Controls:

Footrest and foot controls may be replaced or relocated but brackets must be mounted to the frame at the original mounting points.

Handlebars, hand controls and cables may be altered or replaced (does not include brake master cylinder) from those fitted to the homologated motorcycle. Engine starter switch and electric stop switch must be located on the handlebars and must be operational.

7. Fairing and Seat Unit:

Fairing, mudguards and seat unit may be altered or replaced. Windscreen, if fitted, may be replaced with transparent material only. The original instruments and fairing brackets may be removed or replaced. The petrol tank must remain as originally produced by the manufacturer for the homologated machine although it may be refinished if required. The position of the tank mounting points on the frame must remain as standard. The lower fairing has to be constructed to hold, in case of an engine breakdown, at least half of the total oil and engine coolant capacity used in the engine (minimum 5 litres). The lower edge of openings in the fairing must be positioned at least 50 mm above the bottom of the fairing. The lower fairing must incorporate a hole of 25 mm in the bottom of the front lower area. This hole must remain closed in dry conditions and must be only opened in wet race conditions as declared by the Race Director.

8. Wiring Harness and Battery:

The wiring harness may be altered or replaced. Additional wiring may be added where required. No wiring or electronic equipment may be added or modified to alter the ignition or engine timing characteristics from those of the homologated machine with the exception of the following. The use of flash memory (flash RAM) for fuel injection mapping is allowed where the capability exists within the homologated motorcycle. An additional control unit to change the fuel mixture may be installed and must be fitted to the original connectors. The unit must not be able to perform any other function. The side stand switch, and related wiring, may be disabled or removed. Any electrical switch gear located on the handlebars or front sub frame may be unplugged or removed as required. Engine starter switch and electric stop switch must be fitted. All original electrical equipment not directly related to road use must be fully incorporated in to any modified wiring loom, including generator, CDI, regulator and starter motor. All original connections to the CDI must be retained and maintain their normal use.

The size and type of battery may be changed and or relocated.

9. Radiator and Oil Cooler:

The original radiator and oil cooler, if fitted, must remain as homologated. Radiator hoses may be replaced with those of a similar internal diameter. The use of coolants is prohibited, water only to be used.

10. Air Box / Carburetion / Fuel Injection:

The air box may not be altered or replaced from that fitted to the homologated motorcycle. The air filter element must be fitted but may be replaced with an aftermarket item. The air box inlet rubbers may not be removed or altered. Carburettors must be the standard units as on the homologated model. Throttle bodies for fuel-injected machines must be as on the homologated model. Carburettor jets and needles may be replaced. Resizing of the air metering holes in CV carburettors slide control is permitted. No other alterations are permitted to the air intake or carburetion system. Bell mouths may not be added, altered or replaced from those fitted to the homologated motorcycle. The fuel injection management system may not be altered or replaced other than the remapping of internally stored fuelling maps.

11. Engine:

Cylinder head, camshafts, cam sprockets, crankshaft, rods, pistons, valves, cylinders and all other engine components must be as homologated. No internal engine, gearbox and clutch parts may be altered or replaced with the exception of the gear shift detent spring, the

Page 34

© MCUI – Updated December 2016

MCUI PRODUCTION TWINS TECHNICAL REGULATIONS (Continued)

clutch friction and drive plates and the clutch springs. Polishing and lightening of engine parts is not permitted. Balancing or gas flow modifications normally associated with individual tuning are not permitted.

Compression ratio of the engine must remain as homologated. Camshaft timing must remain as homologated. No other engine tuning or alteration from the homologated standard is permitted. The thermostat may be removed from the housing to aid cooling, if required.

12. Transmission:

Additions to gearbox or selector mechanism, such as quick shift systems, are not allowed. Clutch springs, friction and drive plates may be replaced. Clutch baskets must remain as homologated. The use of slipper clutches is prohibited unless fitted as standard. Gear shift detent spring may be replaced with a heavy duty item. Front and rear external drive sprockets, chain pitch and chain length can be changed.

13. Ignition and Engine Control System:

Ignition and engine control system (CDI) may not be modified or changed. All units must remain fully interchangeable with available control units. No modifications or alterations, whether electronic or mechanical, may be made to the motorcycle to alter the engine ignition timing.

The use of flash memory (flash RAM) for fuel injection mapping is allowed where the capability exists within the homologated motorcycle. An additional control unit to change the fuel mixture may be installed and must be fitted to the original connectors. The unit must not be able to perform any other function. Fuel injection mapping may be reprogrammed. Alterations must remain within the capability of the standard fuel injection system as fitted to the homologated machine unless overridden with a permitted control unit.

14. Generator:

The generator, starting system, starter crank gear and starter shaft may not be altered, replaced or removed from those fitted to the homologated motorcycle.

15. Exhaust System;

Exhaust pipe and silencers may be altered or replaced from those fitted to the homologated motorcycle. This must adhere to the maximum noise regulations as set out in the MCUI regulations. The number of final exit(s) to the exhaust may be altered from that of the homologated machine. Wrapping of exhaust systems is permitted.

16. Fasteners:

Standard fasteners may be replaced with fasteners of any material and design. The strength and design must be equal to or exceed the strength of the standard fastener it is replacing for structural applications. The use of titanium in the swing arm spindles and the wheels spindles is forbidden. For wheel spindles the use of light alloys is also forbidden. The use of titanium alloy nuts and bolts is allowed.

Aluminium fasteners may only be used in non-structural locations.

17. The Following Items MUST BE Removed:

Headlamp, rear lamp and turn signal indicators (when not incorporated in the fairing). Openings must be covered by suitable materials. Rear view mirrors, horn, license plate bracket, tool box, helmet hooks and luggage carrier hooks, passenger foot rests, passenger grab rails, safety bars, centre and side stands must be removed (fixed brackets must remain).

18.The following items MAY BE removed:

Instruments, instrument bracket and associated cables, horn, license plate brackets, tool kit, tachometer, speedometer and wheel spacers, radiator fan and wiring, passenger foot rests, passenger grab rails and upper chain guard.

19. The following items MUST BE adhered to:

Motorcycle must be equipped with a functional ignition kill switch or button mounted on the handlebar that is capable of stopping a running engine. Side stand must be removed. All drain plugs must be safety wired. External oil filter screws and bolts that enter the oil or water cavities must be safety wired. Head lamp, rear lamp and turn indicators must be removed. A suitable material must cover the openings.

Mirrors must also be removed.

20. Replacement and Repairs:

Where necessary, parts from an older or newer version of the same model maybe used.

21. Chain Guards:

A guard must be fitted in such a way as to prevent trapping between the lower drive chain run and the final drive sprocket at the rear wheel.

22. Fuel:

Only Unleaded and Super Unleaded fuel is permitted. The use of fuel additives is strictly prohibited.

24. Bore and Stroke:

Bore and Stroke details must be displayed on the motorcycle.

25. Race Numbers & Backgrounds:

As per MCUI rules.

26. BHP Maximum BHP 76

ALL MACHINES MUST HAVE

27. Rear Safety Light

All motorcycles must have a functioning red light mounted at the rear of the seat to be used during wet practice/races or in low visibility conditions as declared by the Clerk of the Course.

1. the lighting direction must be parallel to the centre line of the motorcycle (running direction) and it must be clearly visible from the

rear, at least 15 degrees to both the left and right sides of the centre line of the motorcycle.

2. it must be safely mounted on the very end of seat/rear bodywork and approximately on the centre line of the motorcycle.

3. the power output/luminosity must be equivalent to approximately 10-15W (incandescent) or 3-5W (led).

4. the light must be able to be switched on and off.

28. Handlebar Lever Protection

All motorcycles must be equipped with a brake lever protection, intended to prevent the handlebar brake lever from being accidently activated in the case of collision with another motorcycle.

27. Engine Protection.

All lateral covers/engine cases containing oil on, 4 stroke machines, and which could come in contact with the ground during a crash, must be protected by a second cover made from composite materials, aluminum or steel plates and/or bars are also permitted.

All these devices must be designed to be resistant against sudden shocks and must be fixed properly and securely.

Where secondary covers are not commercially available, Engine case guards in the form of strengthened engine side covers may be installed.

The countershaft cover may be removed. The addition of a crankcase protector at the countershaft is allowed

Page 35

© MCUI – Updated December 2016

MCUI SUPER TWINS TECHNICAL REGULATIONS

All items not mentioned in the following articles must remain as originally produced by the Manufacturer for the homologated machine.

Everything that is not authorised and prescribed in these rules is strictly forbidden. All motorcycles must comply in every respect with all the requirements for racing as specified in the Technical Regulations, unless it is equipped as such on the homologated machine.

Any four-stroke twin cylinder motorcycle originally sold for road use with a water cooled engine of up to 650cc may be used provided it adheres to the following regulations. Older models may be updated with genuine parts found on a newer version of the same model and newer models may use parts from older machines.

1. Frame and Swing Arm:

Frame and swing arm must remain as originally produced by the manufacturer for the homologated machine. Nothing may be added or removed from the frame body. Rear sub frame may be replaced or modified. The sub frame may only be altered if it was originally designed to be unbolted from the frame body. Refinishing of frame or swing arm to a suitable standard is acceptable.

2. Suspension:

Forks may be replaced. Original internal parts of the fork may be modified or replaced. Aftermarket damper kits or valves may be installed.

Fork springs may be replaced. Fork caps may be modified or replaced beyond the homologated standard to allow external adjustments.

Steering damper may be added although it cannot act as a steering lock device. Rear suspension unit can be changed or modified. The original attachment to the frame and swing arm must be as homologated. The rear suspension linkage must remain as originally produced by the manufacturer for the homologated machine.

3.Brakes:

Front and rear brake discs may be changed. Only ferrous materials are allowed for brake discs. Front and rear brake callipers may be changed.

Front and rear master cylinders may be changed. Front and rear hydraulic brake lines may be changed. The split of the front brake lines for both front brake callipers must be made above the lower fork bridge (bottom yoke). Front and rear brake pads may be changed.

4. Tyres:

All tyres must be treaded. Slick tyres are not permitted.

5. Controls:

Footrest and foot controls may be replaced or relocated but brackets must be mounted to the frame at the original mounting points.

Handlebars, hand controls and cables may be altered or replaced (does not include brake master cylinder) from those fitted to the homologated motorcycle. Engine starter switch and electric stop switch must be located on the handlebars and must be operational at post race scrutineering checks.

6. Fairing and Seat Unit:

Fairing, mudguards and seat unit may be altered or replaced. Windscreen, if fitted, may be replaced with transparent material only. The original instruments and fairing brackets may be removed or replaced. The petrol tank must remain as originally produced by the manufacturer for the homologated machine although it may be refinished if required. The position of the tank mounting points on the frame must remain as standard. The lower fairing has to be constructed to hold, in case of an engine breakdown, at least half of the total oil and engine coolant capacity used in the engine (minimum 5 litres). The lower edge of openings in the fairing must be positioned at least 50 mm above the bottom of the fairing. The lower fairing must incorporate a hole of 25 mm in the bottom of the front lower area. This hole must remain closed in dry conditions and must be only opened in wet race conditions as declared by the Race Director.

7. Wiring Harness and Battery:

The wiring harness may be altered or replaced. Additional wiring may be added where required. The size and type of the battery may be changed and relocated.

8. Engine:

Cylinder head, camshafts, cam sprockets, crankshaft, rods, pistons, valves, cylinders and all other engine components may be modified but the capacity must not exceed 650cc. Polishing and lightening of engine parts is permitted. Balancing or gas flow modifications normally associated with individual tuning is permitted. Compression ratio of the engine maybe changed. Camshaft timing may be changed. The crankcase/gearbox casing, clutch and generator covers may be protected by additional means, e.g. protective covers made of stainless steel or carbon/Kevlar composites. The thermostat may be removed from the housing to aid cooling, if required.

9. Transmission:

Additions to the gearbox or selector mechanism, such as quick shift systems is permitted. Clutch springs, friction and drive plates may be replaced. The use of slipper clutches is permitted. Gear shift detent spring may be replaced with a heavy duty item. Front and rear external drive sprockets, chain pitch and chain length can be changed.

10. Generator:

The generator, starting system, starter crank gear and starter shaft may not be altered, replaced or removed from those fitted to the homologated motorcycle.

11. Exhaust System;

Exhaust pipe and silencers may be altered or replaced from those fitted to the homologated motorcycle. This must adhere to the maximum noise regulations as set out in the MCUI regulations. The number of final exit(s) to the exhaust may be altered from that of the homologated machine. Wrapping of exhaust systems is permitted.

12. Fasteners:

Standard fasteners may be replaced with fasteners of any material and design. The strength and design must be equal to or exceed the strength of the standard fastener it is replacing for structural applications. The use of titanium in the swing arm spindles and the wheels spindles is forbidden. For wheel spindles the use of light alloys is also forbidden. The use of titanium alloy nuts and bolts is allowed.

Aluminium fasteners may only be used in non-structural locations.

13. The Following Items MUST BE Removed:

Headlamp, rear lamp and turn signal indicators (when not incorporated in the fairing). Openings must be covered by suitable materials. Rear view mirrors, horn, license plate bracket, tool box, helmet hooks and luggage carrier hooks, passenger foot rests, passenger grab rails, safety bars, centre and side stands must be removed (fixed brackets must remain).

14.The following items MAY BE removed:

Instruments, instrument bracket and associated cables, horn, license plate brackets, tool kit, tachometer, speedometer and wheel spacers, radiator fan and wiring, passenger foot rests, passenger grab rails and upper chain guard.

Page 36

© MCUI – Updated December 2016

MCUI SUPER TWINS TECHNICAL REGULATIONS (Continued)

15. The following items MUST BE adhered to:

The motorcycle must be equipped with a functional ignition kill switch or button mounted on the handlebar that is capable of stopping a running engine. Side stand must be removed. All drain plugs must be safety wired. External oil filter screws and bolts that enter the oil or water cavities must be safety wired. Head lamp, rear lamp and turn indicators must be removed. A suitable material must cover the openings. Mirrors must also be removed.

16. Replacement and Repairs:

Where necessary, parts from an older or newer version of the same model maybe used.

17. Chain Guards:

A guard must be fitted in such a way as to prevent trapping between the lower drive chain run and the final drive sprocket at the rear wheel.

18. Fuel:

Only Unleaded and Super Unleaded fuel is permitted. The use of fuel additives is strictly prohibited.

19. Radiator and Oil Cooler:

The original radiator or oil cooler must not be modified. Radiator hoses may be replaced with those of a similar internal diameter. The use of coolants is prohibited, water only to be used.

20. Bore and Stroke:

Bore and Stroke details must be displayed on the motorcycle.

21. Race Numbers & Backgrounds:

As per MCUI rules.

ALL MACHINES MUST HAVE

22. Rear Safety Light

All motorcycles must have a functioning red light mounted at the rear of the seat to be used during wet practice/races or in low visibility conditions as declared by the Clerk of the Course.

1. the lighting direction must be parallel to the centre line of the motorcycle (running direction) and it must be clearly visible from the

rear, at least 15 degrees to both the left and right sides of the centre line of the motorcycle.

2. it must be safely mounted on the very end of seat/rear bodywork and approximately on the centre line of the motorcycle.

3. the power output/luminosity must be equivalent to approximately 10-15W (incandescent) or 3-5W (led).

4. the light must be able to be switched on and off.

23. Handlebar Lever Protection

All motorcycles must be equipped with a brake lever protection, intended to prevent the handlebar brake lever from being accidently activated in the case of collision with another motorcycle.

24. Engine Protection.

All lateral covers/engine cases containing oil on, 4 stroke machines, and which could come in contact with the ground during a crash, must be protected by a second cover made from composite materials, aluminum or steel plates and/or bars are also permitted.

All these devices must be designed to be resistant against sudden shocks and must be fixed properly and securely.

Where secondary covers are not commercially available, Engine case guards in the form of strengthened engine side covers may be installed.

The countershaft cover may be removed. The addition of a crankcase protector at the countershaft is allowed

Page 37

© MCUI – Updated December 2016

MCUI PRE-INJECTION TECHNICAL REGULATIONS

All items not mentioned in the following articles must remain as originally produced by the Manufacturer for the homologated machine.

Everything that is not authorised and prescribed in these rules is strictly forbidden. All motorcycles must comply in every respect with all the requirements for racing as specified in the Technical Regulations, unless it is equipped as such on the homologated machine. The appearance from both front, rear and the profile of motorcycles must (except when otherwise stated) conform in principle to the homologated shape (as originally produced by the manufacturer). The appearance of the exhaust system is excluded from this rule. The displacement capacities must remain at the homologated size. Modifying the bore and stroke to reach class limits is not allowed.

Pre Injection:

Any machine whose engine is normally aspirated through carburettors and is between 201/600cc. No 250cc GP / 500cc GP machines are permitted.

1. Displacement Capacities:

Over 201cc up to 600cc

2. Induction Tract Restriction:

Carburetion instruments must remain as homologated.

3. Frame Body and Rear sub-frame:

Frame must remain as originally produced by the manufacturer for the homologated machine. Holes may be drilled on the frame only to fix approved components (i.e. fairing brackets, steering damper mount). The sides of the frame-body may be covered by a protective part made of a composite material. These protectors must fit the form of the frame. Nothing else can be added or removed from the frame body. All motorcycles must display a vehicle identification number on the frame body (chassis number). Engine mounting brackets or plates must remain as originally produced by the manufacturer for the homologated machine. Additional seat brackets may be added, non-stressed protruding brackets may be removed if they do not affect the safety of the construction or assembly. Bolt-on accessories to the rear subframe may be removed. The paint scheme is not restricted but polishing the frame body or sub-frame is not allowed.

4. Front Forks:

Forks must remain as originally produced by the manufacturer for the homologated machine. Standard original internal parts of the forks may be modified. After market damper kits or valves may be installed. Fork springs may be replaced. Fork caps may be modified or replaced to allow external adjustment. Dust seal can be modified, changed or removed if the fork is totally oil-sealed. The original surface finish of the fork tubes (stanchions, fork pipes) may be changed. Additional surface treatments are allowed. The upper and lower fork clamps (triple clamp, fork bridges) must remain as originally produced by the manufacturer on the homologated machine. Steering damper may be added or replaced with an aftermarket damper. The steering damper cannot act as a steering lock limiting device.

5. Rear Fork (Swing arm):

The rear fork must remain as originally produced by the manufacturer for the homologated machine. A chain guard must be fitted in such a way to reduce the possibility that any part of the riders’ body must become trapped between the lower chain run and the rear wheel sprocket. Rear fork pivot bolt must remain as originally produced by the manufacturer for the homologated machine. Rear axle chain adjuster can be modified or changed. Rear wheel stand brackets may be added to the rear fork by welding or by bolts. Brackets must have rounded edges (with a large radius). Fastening screws must be recessed. An anchorage system or point(s) to keep the original rear brake calliper in place may be added to the rear swing-arm.

6. Rear Suspension Unit:

Rear suspension unit can be changed or modified. The original attachments of the frame and rear fork must be as homologated. Rear suspension unit spring(s) may be changed. Rear suspension linkage must remain as originally produced by the manufacturer for the homologated machine.

7. Wheels:

Wheels must remain as originally produced by the manufacturer at the time of sale into the dealer/distributor network for the homologated machine. The speedometer drive may be removed and replaced with a spacer. If the original design included a cushion drive for the rear wheel, it must remain as originally produced for the homologated machine. Front and rear wheel axles must remain as originally produced by the manufacturer for the homologated machine. Wheel diameter and rim width must remain as originally homologated.

8. Brakes:

Front and rear brake discs may be changed but must fit the original calliper and mounting. However, the outside diameter, the ventilation system must remain as originally produced by the manufacturer for the homologated machine. Internally ventilated discs are not allowed.

The brake disc carriers may be changed, but must retain the same off set and same type of mounting to the wheels. Replacement brake discs must be of ferrous material. Front and rear brake callipers as well as all the mounting points and mounting hardware (mount, carrier, hanger) must remain as originally produced by the manufacturer for the homologated machine. The front master cylinder must remain as originally produced by the manufacturer for the homologated machine. Rear master cylinder must remain as originally produced by the manufacturer for the homologated machine. Front and rear hydraulic brake lines may be changed. The brake fluid reservoir may be replaced and/or repositioned. Quick connectors may be used. The split of the front brake lines for both front brake callipers must be made above the lower fork bridge (lower triple clamp). Front and rear brake pads may be changed. Brake pad locking pins may be modified for quick change type. Additional air ducts are not allowed.

9. Tyres:

All tyres must be treaded. Slick tyres are not permitted.

10. Foot Rest/Foot Controls:

Foot rest/foot controls may be relocated but brackets must be mounted to the frame at the original mounting points. Foot rests may be rigidly mounted or a folding type which must incorporate a device to return them to the normal position. The end of the foot rest must have at least an 8 mm solid spherical radius. (see diagram A & C). Non folding footrests must have an end (plug) which is permanently fixed, made of aluminium, plastic, Teflon® or an equivalent type material (minimum radius 8mm). The plug surface must be designed to reach the widest possible area. The Technical Director has the right to refuse any plug not satisfying this safety aim.

11. Handle Bars and Hand Controls:

Handle bars, throttle assembly and associated cables, hand controls and levers may be replaced (does not include brake master cylinder).

Handle bars and hand controls may be relocated. Electric starter switch and engine stop switch must be located on the handle bars.

Page 38

© MCUI – Updated December 2016

MCUI PRE-INJECTION TECHNICAL REGULATIONS (Continued 1)

12. Fairing/Body Work:

a) Fairing, front mudguards and body work must appear to be as originally produced by the manufacturer for the homologated machine. b) Fairing and body work may be replaced with cosmetic duplicates of the original parts. The material may be changed. The use of carbon fibre or Kevlar® materials is allowed. c) Size and dimensions must be the same as the original parts without any addition or subtractions of design elements. d) Wind screen may be replaced with transparent material only. e) The original combination instrument/fairing brackets may be replaced. All other fairing brackets may be altered or replaced.

f) The original air ducts running between the fairing and the air box may be altered or replaced. g) The original air ducts into the airbox may be altered or replaced. h) The lower fairing has to be constructed to hold, in case of an engine breakdown, at least half of the total oil and engine coolant capacity used in the engine (minimum 5 litres). The lower edge of openings in the fairing must be positioned at least 50 mm above the bottom of the fairing. i) The lower fairing must incorporate a hole of 25 mm in the bottom of the front lower area. This hole must remain closed in dry conditions and must be only opened in wet race conditions as declared by the Race Director. j) Minimal changes are allowed to permit the use of an elevator (stand) for wheel changes and to add a small plastic protective cone to the frame or engine.

k) Front mudguard must appear as originally supplied by the manufacturer for the homologated machine. l) Front mudguard may be replaced with cosmetic duplicates of the original parts. m) Front mudguard may be spaced upward for increased tyre clearance. n) Rear mudguard fixed on the swing-arm may be replaced with cosmetic duplicates of the original parts. o) Rear mudguards fixed on the swing-arm that incorporate the chain guard can be modified to accommodate larger diameter rear sprockets. p) The existing rear mudguard under the seat may be removed. A mudguard may be fitted directly onto the swing-arm(it may not cover more than 120 degrees of the wheel).

13. Fuel Tank:

Fuel tank must remain as originally produced by the manufacturer for the homologated machine. Fuel tanks with tank breather pipes must be fitted with non-return valves that discharge into a catch tank with a minimum volume of 250 cc made of a suitable material. Fuel caps may be changed. Fuel caps when closed, must be leak proof. Additionally, they must be securely locked to prevent accidental opening at any time.

14. Seat:

Seat, seat base and associated body work may be replaced with parts of similar appearance as originally produced by the manufacturer for the homologated machine. The use of carbon fibre or carbon composite materials is allowed. The top portion of the rear body work around the seat may be modified to a solo seat. Holes may be drilled in the seat or rear cowl to allow additional cooling. Holes which are bigger than

10mm must be covered with metal gauze or fine mesh. Mesh must be painted to match the surrounding material. The solo seat then must incorporate the rear number plates. The appearance from both front rear and profile must conform in principle to the homologated shape.

The seat/rear cowl replacement must allow for proper number display. All exposed edges must be rounded.

15. Wiring Harness:

The wiring harness may be altered or replaced. Additional wiring harnesses may be added. Cutting of the wiring harness is allowed.

16. Battery:

The size and type of battery may be changed and relocated. Additional batteries may be added.

17. Radiator and Oil Coolers:

The radiator may be changed only if it fits in the standard location and does not require any modifications to the main frame or to the fairings’ outer appearance. Modifications to the existing oil cooler are allowed only if it does not require any modifications to the main frame or to the fairings’ outer appearance. A heat exchange (oil/water) can be exchanged by an oil cooler. Additional oil coolers are not allowed.

18. Air Box:

The air box must remain as originally produced by the manufacturer on homologated machine. The air filter element may be removed or replaced. The air box drains must be sealed. All motorcycles must have a closed breather system. The oil breather line must be connected and discharge in the airbox. The original air ducts running from the fairing to the air box may be altered or replaced. The original air ducts to the airbox may be altered or replaced.

19. Fuel Supply:

Fuel lines may be replaced. Quick connectors or dry brake quick connectors may be used. Fuel vent lines may be replaced. Fuel filters may be added. Fuel petcock must remain as originally produced by the manufacturer. The fuel pump must remain as homologated. The fuel pressure regulator may be modified or changed.

20. Cylinder Head:

Cylinder head must be as homologated. The following modifications are allowed. Grinding of the cylinder head surface on the side of the gasket. Modifications of the inlet and exhaust ports by taking off or adding material (welding is forbidden).Original homologated valves guides may be cut or modified, but only on the intake or exhaust port side. Polishing of the combustion chamber. Original valve seats must be used, but modifications are allowed to the shape. Compression ratio is free, but the combustion chamber can be modified only by taking material off. It is forbidden to add any material to the cylinder head unless as described above. The compression ratio is free. The combustion chamber may be modified. Rocker arms (if any) must remain as homologated (material and dimensions). Valves may be altered or replaced and the material can be changed, but maximum diameters and minimum weights must remain as homologated. The use of titanium valves is permitted only if the homologated machines are equipped with such kind of valves. Valve springs can be changed. Valve spring retainers may be replaced or modified, but their weight must be the same or higher than the original ones.

21. Camshaft:

The method of drive must remain as homologated. The duration is free but the lift must remain as homologated. The cam chain or cam belt tensioning device(s) are free. At the technical checks: for direct camdrive systems, the camlobe lift is measured; for non direct camdrive

systems (i.e. with rocker arms), the valve lift is measured.

Page 39

© MCUI – Updated December 2016

MCUI PRE-INJECTION TECHNICAL REGULATIONS (Continued 2)

22. Cam Sprockets:

Cam sprockets can be modified or replaced to allow the degreeing of camshafts.

23. Crankshaft:

Crankshaft must remain as homologated without modification. Polishing and lightening is not allowed. Modifications of the flywheels are not allowed.

24. Oil Pumps, Water Pumps and Oil Lines:

Oil pump must remain as homologated. Modifications are allowed. Oil lines may be modified or replaced. Oil lines containing positive pressure, if replaced, must be of metal reinforced construction with swaged or treaded connectors. The internal parts of the water pump may be changed or modified. The drive ratio may be changed. The external appearance must remain as homologated.

25. Connecting Rods:

Connecting rods must remain as homologated. Polishing and lightening is not allowed.

26. Pistons:

Pistons must remain as homologated. Polishing and lightening is not allowed.

27. Piston Rings:

Piston rings must remain as homologated. No modifications are allowed.

28. Piston Pins and Clips:

Piston pins and clips must remain as homologated. No modifications are allowed.

29. Cylinders:

Cylinders must remain as homologated. Only the following modifications to the cylinders are allowed. Cylinder head gasket surface may be machined to allow the adjustment of compression ratio or resurfacing to repair a warped cylinder surface deck. Homologated materials and castings for cylinders must be used. The surface finish of the cylinder bore must remain as homologated. Cylinder capacity must remain at the homologated size.

30. Crankcase and all other Engine Cases: (i.e. ignition case, clutch case ).

Crankcases must remain as homologated. No modifications are allowed (including painting, polishing and lightening). Other engine cases must be made of the homologated material. All lateral covers/engine cases containing oil and which could be in contact with the ground during a crash, must be protected by a second cover made from composite materials, type carbon or Kevlar®, aluminium or steel plates and/or bars are also permitted. All these devices must be designed to be resistant against sudden shocks and must be fixed properly and securely. Holes may be added in dry clutch covers to allow additional cooling. Engine case guards in the form of strengthened engine side covers may be installed. These covers must be no lighter in weight than the standard part. The countershaft cover may be removed. The addition of a crankcase protector at the countershaft is allowed.

31. Transmission/Gearbox:

All transmission/gearbox ratios are free. The number of gears must remain as homologated. Primary gears must remain as homologated.

Quick-shift systems are allowed. Countershaft sprocket, rear wheel sprocket, chain pitch and size can be changed.

32. Clutch:

Clutch type (wet or dry) and the way of operation (by cable or hydraulic) must remain as homologated. Friction and drive discs may be changed. Clutch springs may be changed. The clutch basket (outer) may be reinforced. The original clutch assembly may be modified for back torque limiting capabilities (slipper type). It is allowed to change to an aftermarket clutch with back torque limiting capabilities (slipper type).

The use of electro-mechanical or electro-hydraulic actuating systems are not allowed.

33. Ignition/Engine Control System: (ECU)

Ignition/engine control system(ECU) may be modified or changed. Additional wiring harnesses may be added. Cutting of the wiring harness is allowed. Spark plugs and plug wires may be replaced.

34. Generator, Alternator, Electric Starter:

Generator may be modified, removed or replaced. The electric starter must operate normally and always be able to start the engine during the practices and race.

35. Exhaust System:

Exhaust pipes and silencers may be modified or changed. Catalytic converters must be removed. The number of final exhaust silencer(s) must remain as homologated. The silencer(s) must be on the same side(s) of the homologated model. For safety reasons, the exposed edge(s) of the exhaust pipe(s) outlet(s) must be rounded to avoid any sharp edges. Wrapping of exhaust systems is not allowed except in the area of the rider’s foot or an area in contact with the fairing for protection from heat. The noise limit for Supersport will be 105 dB/A.

36. Fasteners:

Standard fasteners may be replaced with fasteners of any material and design. Aluminium fasteners may only be used in non-structural locations. Titanium fasteners may be used in structural locations, but the strength and design must be equal to or exceed the strength of the standard fastener it is replacing. Special steel fasteners may be used in structural locations, but the strength and design must be equal to or exceed the strength of the standard fastener it is replacing. Fasteners may be drilled for safety wire, but intentional weight-saving modifications are not allowed. Fairing/bodywork fasteners may be changed to the quick disconnect type.

37. The following items MAY BE altered or replaced from those fitted to the homologated motorcycle:

Any type of lubrication, brake or suspension fluid may be used. Any type of spark plug and plug cap may be used. Any inner tube (if fitted) or inflation valves may be used. Wheel balance weights may be discarded, changed or added to. Bearings (ball, roller, taper, plain, etc.) of any type or brand may be used. Gaskets and gasket materials. Painted external surface finishes and decals.

38. The following items MAY BE removed:

Instrument and instrument bracket and associated cables. Emission control items (anti-pollution) in or around the air box (O2 sensors, air injection devices) Tachometer. Speedometer and related wheel spacers. Radiator fan and wiring. Chain guard as long as it is not incorporated in the rear fender. Bolt on accessories on a rear sub frame.

39. The Following Items MUST BE removed:

Headlamp, rear lamp and turn signal indicators (when not incorporated in the fairing). Openings must be covered by suitable materials. Rear view mirrors, horn, license plate bracket, tool box, helmet hooks and luggage carrier hooks, passenger foot rests, passenger grab rails, safety bars, centre and side stands must be removed (fixed brackets must remain).

Page 40

© MCUI – Updated December 2016

MCUI PRE-INJECTION TECHNICAL REGULATIONS (Continued 3)

40. The following items MUST BE altered:

Motorcycles must be equipped with a functional ignition kill switch or button mounted at least on one side of the handlebar (within reach of the hand while on the hand grips) that is capable of stopping a running engine. Throttle controls must be self-closing when not held by the hand. All drain plugs must be wired. External oil filter(s) screws and bolts that enter an oil cavity must be safety wired (i.e. on crankcases, oil lines, oil coolers, etc.) All motorcycles must have a closed breather system. The oil breather line must be connected and discharge in the airbox. Where breather or overflow pipes are fitted they must discharge via existing outlets. The original closed system must be retained, no direct atmospheric emission is permitted. Oil cooler must not be mounted on or above the rear mudguard.

41. Additional Equipment:

Additional electronic hardware equipment not on the original homologated motorcycle may be added (e.g. data acquisition, computers, recording equipment). The addition of a device for infra red (IR) transmission of a signal between the racing rider and his team, used exclusively for lap timing, is allowed. The addition of a GPS unit for lap timing/scoring purposes is allowed. Telemetry is not allowed.

42. Replacement and Repairs:

Where necessary, parts from an older or newer version of the same model maybe used.

43. Chain Guards:

A guard must be fitted in such a way as to prevent trapping between the lower drive chain run and the final drive sprocket at the rear wheel.

44. Fuel:

Only Unleaded and Super Unleaded fuel is permitted. The use of fuel additives is strictly prohibited.

45. Bore and Stroke:

Bore and Stroke details must be displayed on the motorcycle.

46. Race Numbers & Backgrounds:

As per MCUI rules.

ALL MACHINES MUST HAVE

47. Rear Safety Light

All motorcycles must have a functioning red light mounted at the rear of the seat to be used during wet practice/races or in low visibility conditions as declared by the Clerk of the Course.

1. the lighting direction must be parallel to the centre line of the motorcycle (running direction) and it must be clearly visible from the

rear, at least 15 degrees to both the left and right sides of the centre line of the motorcycle.

2. it must be safely mounted on the very end of seat/rear bodywork and approximately on the centre line of the motorcycle.

3. the power output/luminosity must be equivalent to approximately 10-15W (incandescent) or 3-5W (led).

4. the light must be able to be switched on and off.

48. Handlebar Lever Protection

All motorcycles must be equipped with a brake lever protection, intended to prevent the handlebar brake lever from being accidently activated in the case of collision with another motorcycle

Page 41

© MCUI – Updated December 2016

MCUI FORGOTTEN ERA CLASSES & REGULATIONS

CATEGORY A: POST CLASSIC TWIN SHOCK

1. Machines manufactured between 1.1.1963 and 31.12.1978

2. Water Cooled machines are permitted with the exception of TZ Yamahas and RG Suzuki’s

3. Water cooled kits are permitted if available to the public in the period (1963-1978)

4. No external modifications to cylinders, castings and casings.

5. Reed Valves not permitted if not fitted as standard.

6. Frames to be manufactured before cut off date (31.12.78) or bona fide copy.

7. Alternative swinging arms are permitted if available within the period, no modifications allowed to the design to accommodate wider rear tyre.

8. Dual Shock absorber, rear suspension of a type generally available. Mono shock is prohibited.

9. Front Forks and mechanical anti dive if fitted must be of a type and model used in the era.

10. Any front brake (or period replacement) may be used. Floating discs are prohibited. Rear drum brake must be retained if fitted as standard.

11. Any carburettor available within the period including power jets are permitted.

12. Megaphone and expansion chamber exhausts are permitted (All must comply with current MCUI noise regulations)

13. Wheels to be wire spoke unless otherwise fitted as standard by the manufacturer. (Riders must be aware of the dangers of using elderly cast wheels).

14. Maximum permitted tyre widths are 125 cc =3” 250/350 cc =3” 500 cc =5” 501-1300 cc =7”

15. Ignition unit any type allowed.

16. The competitor is requested to style their machine to resemble racing machines of the era. Suitable seats, tanks, and fairings are readily available.

CATEGORY B: CLASSIC GRAND PRIX

A category for factory produced racing machines up to 350cc

1. No Converted Road Machines.

2. Machines shall be in “as produced trim” and be fitted with fairings and clip on handlebars.

3. 125 cc Single cylinder machines up to 1986 only. No aluminium framed Hondas allowed.

4. 125 cc disc vale twins all years and suspension types allowed.

5. 250 cc machines up to 31st Dec 1984.

6. 350 cc machines up to 31st Dec 1984.

(ICC Dec. 2015)

7. Aluminium frames are permitted: they must be a direct replica of a steel frame and made of box section construction.

(No bean type frames)

8. Alternative but period and replica brake components may be used.

9. Free choice of wheel type and design (18” diameter and 3” max width)

10. Noise limit 102dba

CATEGORY C: CLASSIC SUPERBIKES

For factory produced racing machines of an unlimited capacity: to include TT Formula 1 & 2 machines.

1. 250 cc machines manufactured for use in Great Britain prior to Dec 1987

2. No Converted road machines except where applicable to Formula one & two machines. Machines shall be in road trim with fairings and clip on bars. TT formula 2 machines shall be in a race chassis (No LC’s in road going frames)

3. Four stroke machines to be two valves per cylinder.

4. 350 cc machines to use alloy or steel frames manufactured before 31.12.87 or bona fide copy.

5. The use of upside down forks is prohibited.

6. Wheels: free choice

Riders please note that in all classes

A) Tyre warmers are not allowed

B) No Wet weather or slick tyres allowed

C) The onus on eligibility for any component or modification lies with the competitor.

D) Each machine entered must have the correct Transponder fitted (Tran x 260) and a Suitable Toe Guard must be in place

All classes must comply with MCUI Noise limits maximum 105dba

ALL 4 STROKE MACHINES MUST HAVE

Engine Protection.

All lateral covers/engine cases containing oil on, 4 stroke machines, and which could come in contact with the ground during a crash, must be protected by a second cover made from composite materials, aluminum or steel plates and/or bars are also permitted.

All these devices must be designed to be resistant against sudden shocks and must be fixed properly and securely.

Where secondary covers are not commercially available, Engine case guards in the form of strengthened engine side covers may be installed.

The countershaft cover may be removed. The addition of a crankcase protector at the countershaft is allowed.

ALL MACHINES MUST HAVE

1. Rear Safety Light

All motorcycles must have a functioning red light mounted at the rear of the seat to be used during wet practice/races or in low visibility conditions as declared by the Clerk of the Course.

1. the lighting direction must be parallel to the centre line of the motorcycle (running direction) and it must be clearly visible from the

rear, at least 15 degrees to both the left and right sides of the centre line of the motorcycle.

2. it must be safely mounted on the very end of seat/rear bodywork and approximately on the centre line of the motorcycle.

3. the power output/luminosity must be equivalent to approximately 10-15W (incandescent) or 3-5W (led).

4. the light must be able to be switched on and off.

2. Handlebar Lever Protection

All motorcycles must be equipped with a brake lever protection, intended to prevent the handlebar brake lever from being accidently activated in the case of collision with another motorcycle.

Page 42

© MCUI – Updated December 2016

MCUI SUPERSPORT TECHNICAL REGULATIONS

All items not mentioned in the following articles must remain as originally produced by the Manufacturer for the homologated machine.

Everything that is not authorised and prescribed in these rules is strictly forbidden. All motorcycles must comply in every respect with all the requirements for racing as specified in the Technical Regulations, unless it is equipped as such on the homologated machine. The appearance from both front, rear and the profile of motorcycles must (except when otherwise stated) conform in principle to the homologated shape (as originally produced by the manufacturer). The appearance of the exhaust system is excluded from this rule. The displacement capacities must remain at the homologated size. Modifying the bore and stroke to reach class limits is not allowed.

1. Displacement Capacities:

Over 400cc up to 600cc 4 Stroke 4 cylinders

Over 500cc up to 675cc 4 Stroke 3 cylinders

Over 650cc up to 750cc 4 Stroke 2 cylinders

2. Minimum Weights:

The minimum weights will be: 600 cc four cylinders 158 kg

The minimum weights will be: 675 cc three cylinders 162 kg

In the final inspection at the end of the race, the checked machines will be weighed in the condition they were at the end of the race.

The established weight limit must be met in the condition the machine finished the race. Nothing can be added to the machine including water, oil, fuel or tyres. At any time of the event, the weight of the whole machine (including the tank and its contents) must not be less than the minimum weight with a tolerance of 1 kg. During the practice and qualifying sessions every rider may be asked to submit his motorcycle to a weight control in the pit lane. (This will be done in such a way that the rider and team will be disturbed as little as possible, but in any case the rider and team must comply with these checks.)

3. Induction Tract Restriction:

Carburetion instruments must remain as homologated.

4. Frame Body and Rear sub-frame:

Frame must remain as originally produced by the manufacturer for the homologated machine. Holes may be drilled on the frame only to fix approved components (i.e. fairing brackets, steering damper mount). The sides of the frame-body may be covered by a protective part made of a composite material. These protectors must fit the form of the frame. Nothing else can be added or removed from the frame body. All motorcycles must display a vehicle identification number on the frame body (chassis number). Engine mounting brackets or plates must remain as originally produced by the manufacturer for the homologated machine. Additional seat brackets may be added, non-stressed protruding brackets may be removed if they do not affect the safety of the construction or assembly. Bolt-on accessories to the rear subframe may be removed. The paint scheme is not restricted but polishing the frame body or sub-frame is not allowed.

5. Front Forks:

Forks must remain as originally produced by the manufacturer for the homologated machine. Standard original internal parts of the forks may be modified. After market damper kits or valves may be installed. Fork springs may be replaced. Fork caps may be modified or replaced to allow external adjustment. Dust seal can be modified, changed or removed if the fork is totally oil-sealed. The original surface finish of the fork tubes (stanchions, fork pipes) may be changed. Additional surface treatments are allowed. The upper and lower fork clamps (triple clamp, fork bridges) must remain as originally produced by the manufacturer on the homologated machine. Steering damper may be added or replaced with an aftermarket damper. The steering damper cannot act as a steering lock limiting device.

6. Rear Fork (Swing arm):

The rear fork must remain as originally produced by the manufacturer for the homologated machine. A chain guard must be fitted in such a way to reduce the possibility that any part of the riders’ body must become trapped between the lower chain run and the rear wheel sprocket. Rear fork pivot bolt must remain as originally produced by the manufacturer for the homologated machine. Rear axle chain adjuster can be modified or changed. Rear wheel stand brackets may be added to the rear fork by welding or by bolts. Brackets must have rounded edges (with a large radius). Fastening screws must be recessed. An anchorage system or point(s) to keep the original rear brake calliper in place may be added to the rear swing-arm.

7. Rear Suspension Unit:

Rear suspension unit can be changed or modified. The original attachments of the frame and rear fork must be as homologated. Rear suspension unit spring(s) may be changed. Rear suspension linkage must remain as originally produced by the manufacturer for the homologated machine.

8. Wheels:

Wheels must remain as originally produced by the manufacturer at the time of sale into the dealer/distributor network for the homologated machine. The speedometer drive may be removed and replaced with a spacer. If the original design included a cushion drive for the rear wheel, it must remain as originally produced for the homologated machine. Front and rear wheel axles must remain as originally produced by the manufacturer for the homologated machine. Wheel diameter and rim width must remain as originally homologated.

9. Brakes:

Front and rear brake discs may be changed but must fit the original calliper and mounting. However, the outside diameter, the ventilation system must remain as originally produced by the manufacturer for the homologated machine. Internally ventilated discs are not allowed.

The brake disc carriers may be changed, but must retain the same off set and same type of mounting to the wheels. Replacement brake discs must be of ferrous material. Front and rear brake callipers as well as all the mounting points and mounting hardware (mount, carrier, hanger) must remain as originally produced by the manufacturer for the homologated machine. The front master cylinder must remain as originally produced by the manufacturer for the homologated machine. Rear master cylinder must remain as originally produced by the manufacturer for the homologated machine. Front and rear hydraulic brake lines may be changed. The brake fluid reservoir may be replaced and/or repositioned. Quick connectors may be used. The split of the front brake lines for both front brake callipers must be made above the lower fork bridge (lower triple clamp). Front and rear brake pads may be changed. Brake pad locking pins may be modified for quick change type. Additional air ducts are not allowed.

10. Tyres:

All tyres must be treaded. Slick tyres are not permitted.

Page 43

© MCUI – Updated December 2016

MCUI SUPERSPORT TECHNICAL REGULATIONS (Continued 1)

11. Foot Rest/Foot Controls:

Foot rest/foot controls may be relocated but brackets must be mounted to the frame at the original mounting points. Foot rests may be rigidly mounted or a folding type which must incorporate a device to return them to the normal position. The end of the foot rest must have at least an 8 mm solid spherical radius. (see diagram A & C). Non folding footrests must have an end (plug) which is permanently fixed, made of aluminium, plastic, Teflon® or an equivalent type material (minimum radius 8mm).

The plug surface must be designed to reach the widest possible area. The Technical Director has the right to refuse any plug not satisfying this safety aim

12. Handle Bars and Hand Controls:

Handle bars, throttle assembly and associated cables, hand controls and levers may be replaced (does not include brake master cylinder).

Handle bars and hand controls may be relocated. Electric starter switch and engine stop switch must be located on the handle bars.

13. Fairing/Body Work:

a) Fairing, front mudguards and body work must appear to be as originally produced by the manufacturer for the homologated machine. b) Fairing and body work may be replaced with cosmetic duplicates of the original parts. The material may be changed. The use of carbon fibre or Kevlar® materials is allowed. c) Size and dimensions must be the same as the original parts without any addition or subtractions of design elements. d) Wind screen may be replaced with transparent material only. e) The original combination instrument/fairing brackets may be replaced. All other fairing brackets may be altered or replaced. f) The original air ducts running between the fairing and the air box may be altered or replaced. g) The original air ducts into the airbox may be altered or replaced. h) The lower fairing has to be constructed to hold, in case of an engine breakdown, at least half of the total oil and engine coolant capacity used in the engine (minimum 5 litres). The lower edge of openings in the fairing must be positioned at least 50 mm above the bottom of the fairing. i) The lower fairing must incorporate a hole of 25 mm in the bottom of the front lower area. This hole must remain closed in dry conditions and must be only opened in wet race conditions as declared by the Race Director. j) Minimal changes are allowed to permit the use of an elevator (stand) for wheel changes and to add a small plastic protective cone to the frame or engine. k) Front mudguard must appear as originally supplied by the manufacturer for the homologated machine. l) Front mudguard may be replaced with cosmetic duplicates of the original parts. m) Front mudguard may be spaced upward for increased tyre clearance. n) Rear mudguard fixed on the swing-arm may be replaced with cosmetic duplicates of the original parts. o) Rear mudguards fixed on the swing-arm that incorporate the chain guard can be modified to accommodate larger diameter rear sprockets. p) The existing rear mudguard under the seat may be removed. A mudguard may be fitted directly onto the swing-arm (it may not cover more than 120 degrees of the wheel).

14. Fuel Tank:

Fuel tank must remain as originally produced by the manufacturer for the homologated machine. Fuel tanks with tank breather pipes must be fitted with non-return valves that discharge into a catch tank with a minimum volume of 250 cc made of a suitable material. Fuel caps may be changed. Fuel caps when closed, must be leak proof. Additionally, they must be securely locked to prevent accidental opening at any time.

15. Seat:

Seat, seat base and associated body work may be replaced with parts of similar appearance as originally produced by the manufacturer for the homologated machine. The use of carbon fibre or carbon composite materials is allowed. The top portion of the rear body work around the seat may be modified to a solo seat. Holes may be drilled in the seat or rear cowl to allow additional cooling. Holes which are bigger than

10mm must be covered with metal gauze or fine mesh. Mesh must be painted to match the surrounding material. The solo seat then must incorporate the rear number plates. The appearance from both front rear and profile must conform in principle to the homologated shape.

The seat/rear cowl replacement must allow for proper number display. All exposed edges must be rounded.

16. Wiring Harness:

The wiring harness may be altered or replaced. Additional wiring harnesses may be added. Cutting of the wiring harness is allowed.

17. Battery:

The size and type of battery may be changed and relocated. Additional batteries may be added.

18. Radiator and Oil Coolers:

The radiator may be changed only if it fits in the standard location and does not require any modifications to the main frame or to the fairings’ outer appearance. Modifications to the existing oil cooler are allowed only if it does not require any modifications to the main frame or to the fairings’ outer appearance. A heat exchange (oil/water) can be exchanged by an oil cooler. Additional oil coolers are not allowed.

19. Air Box:

The air box must remain as originally produced by the manufacturer on homologated machine. The air filter element may be removed or replaced. The air box drains must be sealed. All motorcycles must have a closed breather system. The oil breather line must be connected and discharge in the airbox. The original air ducts running from the fairing to the air box may be altered or replaced. The original air ducts to the airbox may be altered or replaced.

20. Fuel Injection System:

Throttle bodies must be standard units as on the homologated model. Throttle bodies intake insulators may be modified. The injectors must be standard units as on the homologated motorcycle. Bell mouths may be altered or replaced from those fitted by the manufacturer on the homologated machine. Butterfly cannot be changed or modified. No modifications of fuel pump or pressure regulator are allowed. The fuel injection management computer chip (EPROM) may be changed. Fuel pump and fuel pressure regulator must remain as homologated. The use of flash memory ("flash RAM") for fuel injection mapping is allowed.

Page 44

© MCUI – Updated December 2016

MCUI SUPERSPORT TECHNICAL REGULATIONS (Continued 2)

21. Fuel Supply:

Fuel lines may be replaced. Quick connectors or dry brake quick connectors may be used. Fuel vent lines may be replaced. Fuel filters may be added. Fuel petcock must remain as originally produced by the manufacturer. The fuel pump must remain as homologated. The fuel pressure regulator may be modified or changed.

22. Cylinder Head:

Cylinder head must be as homologated. The following modifications are allowed. Grinding of the cylinder head surface on the side of the gasket.

Modifications of the inlet and exhaust ports by taking off or adding material (welding is forbidden). Original homologated valves guides may be cut or modified, but only on the intake or exhaust port side. Polishing of the combustion chamber. Original valve seats must be used, but modifications are allowed to the shape. Compression ratio is free, but the combustion chamber can be modified only by taking material off.

It is forbidden to add any material to the cylinder head unless as described above. The compression ratio is free. The combustion chamber may be modified. Rocker arms (if any) must remain as homologated (material and dimensions). Valves may be altered or replaced and the material can be changed, but maximum diameters and minimum weights must remain as homologated. The use of titanium valves is permitted only if the homologated machines are equipped with such kind of valves. Valve springs can be changed. Valve spring retainers may be replaced or modified, but their weight must be the same or higher than the original ones.

23. Camshaft:

The method of drive must remain as homologated. The duration is free but the lift must remain as homologated. The cam chain or cam belt tensioning device(s) are free. At the technical checks: for direct cam drive systems, the cam lobe lift is measured; for non direct cam drive systems (i.e. with rocker arms), the valve lift is measured.

24. Cam Sprockets:

Cam sprockets can be modified or replaced to allow the degreeing of camshafts.

25. Crankshaft:

Crankshaft must remain as homologated without modification. Polishing and lightening is not allowed. Modifications of the flywheels are not allowed.

26. Oil Pumps, Water Pumps and Oil Lines:

Oil pump must remain as homologated. Modifications are allowed. Oil lines may be modified or replaced. Oil lines containing positive pressure, if replaced, must be of metal reinforced construction with swaged or treaded connectors. The internal parts of the water pump may be changed or modified. The drive ratio may be changed. The external appearance must remain as homologated.

27. Connecting Rods:

Connecting rods must remain as homologated. Polishing and lightening is not allowed.

28. Pistons:

Pistons must remain as homologated. Polishing and lightening is not allowed.

29. Piston Rings:

Piston rings must remain as homologated. No modifications are allowed.

30. Piston Pins and Clips:

Piston pins and clips must remain as homologated. No modifications are allowed.

31. Cylinders:

Cylinders must remain as homologated. Only the following modifications to the cylinders are allowed. Cylinder head gasket surface may be machined to allow the adjustment of compression ratio or resurfacing to repair a warped cylinder surface deck. Homologated materials and castings for cylinders must be used. The surface finish of the cylinder bore must remain as homologated. Cylinder capacity must remain at the homologated size.

32. Crankcase and all other Engine Cases: (i.e. ignition case, clutch case ).

Crankcases must remain as homologated. No modifications are allowed (including painting, polishing and lightening). Other engine cases must be made of the homologated material. All lateral covers/engine cases containing oil and which could be in contact with the ground during a crash, must be protected by a second cover made from composite materials, type carbon or Kevlar®, aluminium or steel plates and/or bars are also permitted. All these devices must be designed to be resistant against sudden shocks and must be fixed properly and securely. Holes may be added in dry clutch covers to allow additional cooling. Engine case guards in the form of strengthened engine side covers may be installed. These covers must be no lighter in weight than the standard part. The countershaft cover may be removed. The addition of a crankcase protector at the countershaft is allowed.

33. Transmission/Gearbox:

All transmission/gearbox ratios are free. The number of gears must remain as homologated. Primary gears must remain as homologated.

Quick-shift systems are allowed. Countershaft sprocket, rear wheel sprocket, chain pitch and size can be changed.

34. Clutch:

Clutch type (wet or dry) and the way of operation (by cable or hydraulic) must remain as homologated. Friction and drive discs may be changed. Clutch springs may be changed. The clutch basket (outer) may be reinforced. The original clutch assembly may be modified for back torque limiting capabilities (slipper type). It is allowed to change to an aftermarket clutch with back torque limiting capabilities (slipper type).

The use of electro-mechanical or electro-hydraulic actuating systems are not allowed.

35. Ignition/Engine Control System: (ECU)

Ignition/engine control system (ECU) may be modified or changed. Additional wiring harnesses may be added. Cutting of the wiring harness is allowed. Spark plugs and plug wires may be replaced.

36. Generator, Alternator, Electric Starter:

Generator may be modified, removed or replaced. The electric starter must operate normally and always be able to start the engine during the practices and race.

37. Exhaust System:

Exhaust pipes and silencers may be modified or changed. Catalytic converters must be removed. The number of final exhaust silencer(s) must remain as homologated. The silencer(s) must be on the same side(s) of the homologated model. For safety reasons, the exposed edge(s) of the exhaust pipe(s) outlet(s) must be rounded to avoid any sharp edges. Wrapping of exhaust systems is not allowed except in the area of the rider’s foot or an area in contact with the fairing for protection from heat. The noise limit for Supersport will be 105 dB/A.

Page 45

© MCUI – Updated December 2016

MCUI SUPERSPORT TECHNICAL REGULATIONS (Continued 3)

38. Fasteners:

Standard fasteners may be replaced with fasteners of any material and design. Aluminium fasteners may only be used in non-structural locations. Titanium fasteners may be used in structural locations, but the strength and design must be equal to or exceed the strength of the standard fastener it is replacing. Special steel fasteners may be used in structural locations, but the strength and design must be equal to or exceed the strength of the standard fastener it is replacing. Fasteners may be drilled for safety wire, but intentional weight-saving modifications are not allowed. Fairing/bodywork fasteners may be changed to the quick disconnect type.

39. The following items MAY BE altered or replaced from those fitted to the homologated motorcycle:

Any type of lubrication, brake or suspension fluid may be used. Any type of spark plug and plug cap may be used. Any inner tube (if fitted) or inflation valves may be used. Wheel balance weights may be discarded, changed or added to. Bearings (ball, roller, taper, plain, etc.) of any type or brand may be used. Gaskets and gasket materials. Painted external surface finishes and decals.

40. The following items MAY BE removed:

Instrument and instrument bracket and associated cables. Emission control items (anti-pollution) in or around the air box (O2 sensors, air injection devices). Tachometer. Speedometer and related wheel spacers. Radiator fan and wiring. Chain guard as long as it is not incorporated in the rear fender. Bolt on accessories on a rear sub frame.

41. The Following Items MUST BE removed:

Headlamp, rear lamp and turn signal indicators (when not incorporated in the fairing). Openings must be covered by suitable materials. Rear view mirrors, horn, license plate bracket, tool box, helmet hooks and luggage carrier hooks, passenger foot rests, passenger grab rails, safety bars, centre and side stands must be removed (fixed brackets must remain).

42. The following items MUST BE altered:

Motorcycles must be equipped with a functional ignition kill switch or button mounted at least on one side of the handlebar (within reach of the hand while on the hand grips) that is capable of stopping a running engine. Throttle controls must be self-closing when not held by the hand. All drain plugs must be wired. External oil filter(s) screws and bolts that enter an oil cavity must be safety wired (i.e. on crankcases, oil lines, oil coolers, etc.) All motorcycles must have a closed breather system. The oil breather line must be connected and discharge in the airbox. Where breather or overflow pipes are fitted they must discharge via existing outlets. The original closed system must be retained, no direct atmospheric emission is permitted. Oil cooler must not be mounted on or above the rear mudguard.

43. Additional Equipment:

Additional electronic hardware equipment not on the original homologated motorcycle may be added (e.g. data acquisition, computers, recording equipment). The addition of a device for infra red (IR) transmission of a signal between the racing rider and his team, used exclusively for lap timing, is allowed. The addition of a GPS unit for lap timing/scoring purposes is allowed. Telemetry is not allowed.

44. Replacement and Repairs:

Where necessary, parts from an older or newer version of the same model maybe used.

45. Chain Guards:

A guard must be fitted in such a way as to prevent trapping between the lower drive chain run and the final drive sprocket at the rear wheel.

46. Fuel:

Only Unleaded and Super Unleaded fuel is permitted. The use of fuel additives is strictly prohibited.

47. Bore and Stroke:

Bore and Stroke details must be displayed on the motorcycle.

48. Race Numbers & Backgrounds:

As per MCUI rules.

ALL MACHINES MUST HAVE

49. Rear Safety Light

All motorcycles must have a functioning red light mounted at the rear of the seat to be used during wet practice/races or in low visibility conditions as declared by the Clerk of the Course.

1. the lighting direction must be parallel to the centre line of the motorcycle (running direction) and it must be clearly visible from the

rear, at least 15 degrees to both the left and right sides of the centre line of the motorcycle.

2. it must be safely mounted on the very end of seat/rear bodywork and approximately on the centre line of the motorcycle.

3. the power output/luminosity must be equivalent to approximately 10-15W (incandescent) or 3-5W (led).

4. the light must be able to be switched on and off.

50. Handlebar Lever Protection

All motorcycles must be equipped with a brake lever protection, intended to prevent the handlebar brake lever from being accidently activated in the case of collision with another motorcycle

Page 46

© MCUI – Updated December 2016

MCUI SUPERSTOCK TECHNICAL REGULATIONS

(These regulations will apply to the follow Championships – Junior Superstock – Superstock 1000)

These regulations are the MCUI Superstock Regulations. The FIM regulations differ specifically regarding electronics and gearbox .We believe that Superstock regulations, as the name implies, should only allow limited modifications to the homologated machine.

EVERYTHING THAT IS NOT AUTHORISED AND PRESCRIBED IN THESE REGULATIONS IS STRICTLY FORBIDDEN

The motorcycles must be homologated by the original manufacturer only. The model will be eligible for Superstock competition for a maximum period of 5 years.

As the name Superstock implies, the machines used are allowed limited modifications. Most modifications that are allowed are only allowed for safety reasons.

Superstock motorcycles require FIM Homologation (see art 2.9). The MCUI/MCI may homologate machines, which comply or will comply with the principles stated by the FIM.

All machines must comply with all requirements of Road Racing as specified in the MCUI Regulations. The Appearance from front, rear and the profile of Superstock motorcycles must (except when otherwise stated) conform to the homologated shape (as originally produced by the manufacturer). The appearance of the exhaust system and engine case and tank guards is excluded from this rule.

1. Machine Specifications:

All items not mentioned in the following articles must remain as originally produced by the manufacturer for the homologated machine.

2. Balancing various motorcycle concepts:

In order to equalize the performance of motorcycles with different engine configurations, changes in the minimum weight can be applied according to their respective racing performances. The decision about applying a handicap system to a respective class will be taken by MCUI at any time. These handicaps will follow the system like described in 2.4.4.2 of the Superbike regulation, but will be adapted to the

Superstock class.

3. Displacement capacities:

The following engine configurations compose the Superstock 1000, Junior Superstock and Junior Twins.

4. Superstock 1000:

- Over 600cc up to 1000cc 4-stroke 4 cylinders maximum

- Over 750cc up to 1000cc 4-stroke 3 cylinders maximum

- Over 850cc up to 1200cc 4-stroke 2 cylinders maximum

5. Junior Superstock:

- Over 500cc up to 600cc 4-stroke 4 cylinders maximum

- Over 600cc up to 675cc 4-stroke 3 cylinders maximum

- Over 650cc up to 750cc 4-stroke 2 cylinders maximum

The displacement capacities must remain at the homologated size. Increasing the bore size to reach class limits is not allowed.

6. Minimum Weight:

- The FIM decides the minimum weight value for a homologated model as sold to the public by determining its dry weight.

- The dry weight of a homologated motorcycle is defined as the total weight of the empty motorcycle as produced by the manufacturer (after removal of fuel, vehicle number plate, tools and the main stand when fitted but with oil and radiator liquid at the prescribed level). To confirm the dry weight a minimum of three motorcycles are weight and compared. The result is rounded off to the nearest digit.

- The minimum weight value is determined by the dry weight value (in Kg.)

- minus 12 KG for Superstock 1000.

- minus 10 KG for Junior Superstock

- In the final inspection at the end of the race, the checked machines will be weighed in the condition they were at the end of the race.

- The established weight limit must be met in the condition the machine finished the race. Nothing can be added to the machine including water, oil, fuel or tyres.

- At the time of the event, the weight of the whole machine including the tank and its contents must be not less than the minimum weight, with a tolerance of 1 kg.

During the practice and qualifying sessions every rider may be asked to submit his motorcycle to a weight control.

7. Tyres:

All tyres must be treaded. Slick tyres are not permitted.

8. Carburetion Instruments / Fuel Injection System:

Carburetion instruments refer to throttle bodies and variable length intake track devices.

- Carburetion instruments must remain as homologated

- Bell mouths must remain as originally produced by the manufacturer for the homologated machine.

- The injectors must remain standard units as on the homologated motorcycle.

See also 2.7.8.17 Fuel Supply

9. Cylinder Head:

- No modifications are allowed.

- No material may be added or removed from the cylinder head.

- The cylinder head gaskets may be changed.

- The valves, valve seats, guides, springs, tappets, oil seals, shims, cotter valve, spring base and retainers must be as originally produced by the manufacturer for the homologated machine. Only normal maintenance interventions as prescribed by the Manufacturer in the model’s

Service Manual are authorized.

- Valve springs shims are not allowed.

10. Camshaft:

- No modifications are allowed.

- At the technical checks: for direct cam drive systems, the cam lobe lift is measured; for non direct cam drive systems (i.e. rocker arms) the valve lift is measured.

- The timing of the camshaft is free, however no machining of the camshaft sprocket is authorised.

11. Cam Sprockets or Gears: -.No dimensional modifications are allowed

12. Cylinders: - No modifications are allowed.

Page 47

© MCUI – Updated December 2016

MCUI SUPERSTOCK TECHNICAL REGULATIONS (Continued 1)

13. Pistons: - No modifications are allowed (including polishing and lightening).

14. Piston Rings: - No modifications are allowed.

15. Piston Pins and Clips: - No modifications are allowed.

16. Connecting Rods: - No modifications are allowed (including polishing and lightening).

17. Crankshaft: - No modifications are allowed (including polishing and lightening)

18. Crankcase and all other Engine Cases (i.e. ignition case, clutch case):

- No modification to the crankcases are allowed (including painting, polishing and lightening).

- The original lateral (side) covers may be modified without modification to the position and dimensions of the covered parts. The modified cover must have at least the same resistance to impact.

- Engine case guards in the form of strengthened engine side covers may be installed. These covers must be constructed of the same material and be no lighter in weight than the standard material.

- All lateral covers/engine cases containing oil and which could be in contact with the ground during a crash must be protected by a second cover made of composite material, type injection moulded long glass fibre nylon, carbon or Kevlar® approved by the FIM or MCUI, aluminium or steel plates and/or bars are also permitted. All these devices must be designed to be resistant against sudden shocks and fixed properly and securely. No damaged cases will be permitted unless approved by the Chief Technical Officer.

19. Transmission/Gearbox:

- The material and heat treatment of the highest 2 gear pinions may be changed, but the number of teeth has to be kept as homologated.

- Other modifications or additions to the gearbox or selector mechanism, including quick shift systems are not allowed. Quick shift systems are allowed if on the homologated model.

- Only countershaft sprocket, rear wheel sprocket, chain pitch and size can be changed.

- The sprocket cover can be modified or eliminated.

20. Clutch:

- No modifications are allowed.

- Only Friction and drive discs may be changed but their numbers must remain as original.

- Clutch springs may be changed.

21. Oil Pumps and Oil Lines:

- No pump modifications are allowed

- Oil lines may be modified or replaced. Oil lines containing positive pressure, if replaced, must be of metal reinforced construction with swaged or threaded connectors.

22. Radiator and oil coolers:

- Additional radiators and / or oil coolers are not allowed.

- The radiator tubes to and from the engine can be changed but the system must be maintained, with its original tanks.

- Protective meshes can be added in front of the oil and/or water radiator(s)

- Radiator fan and wiring may be removed

23. Air Box:

- The air box must remain as originally produced by the manufacturer for the homologated machine but the air box drains must be sealed

- The air filter element may be removed or replaced.

- All motorcycles must have a closed breather system. The oil breather line must be connected and discharge in the airbox.

24. Fuel Supply:

- The fuel injection management computer chip (EPROM) may be changed.

- The use of flash memory (flash RAM) for fuel injection mapping is allowed. An additional control unit to change the fuel mixture may be installed and must be fitted to the original connectors, the unit must not be able to perform any other function. (The original wire-loom must remain unmodified).

- Fuel pump and fuel pressure regulator must remain as homologated.

- Fuel lines may be replaced but the fuel petcock must remain as originally produced by the manufacturer.

- Quick connectors or dry break quick connectors may be used.

- Fuel vent lines may be replaced.

- Fuel filters may be added.

See also 2.7.8.1 Carburetion Instruments/Fuel Injection

25. Exhaust System:

- Exhaust pipes and silencers may be modified or changed from those fitted to the homologated motorcycle.

- The number of the final exhaust silencer(s) must remain as homologated. The silencer(s) must be on the same side(s) of the homologated model.

- Catalytic converters must be removed

- For safety reasons, the exposed edges of the exhausts pipe(s) outlet must be rounded to avoid any sharp edges.

- Wrapping of exhaust systems is not allowed except in the area of the riders foot or an area in contact with the fairing for protection from heat.

- The noise limit for Superstock is 105 dB/A (with a 3 dB/A tolerance after the race).

26. Ignition/Engine Control System (ECU):

- Spark plugs may be replaced.

- The central unit (ignition/engine control unit/CDI) must stay as homologated.

27. Generators:

- No modifications allowed.

- The electric starter must operate normally and always be able to start the engine during the event (including at pre and post race inspections). The engine must start and run when the electric starter has stopped its procedure.

Page 48

© MCUI – Updated December 2016

MCUI SUPERSTOCK TECHNICAL REGULATIONS (Continued 2)

28. Additional Equipment:

- Additional electronic hardware equipment not on the original homologated motorcycle may be added. (i.e. data acquisition, computers, recording equipment etc.).

- The addition of a device for infra red (IR) transmission of a signal between the racing rider and his team, used exclusively for lap timing, is allowed.

- The addition of a GPS unit for lap timing/scoring purposes is allowed.

- Telemetry is not allowed.

29. Wiring Harness:

- The original wire-loom may be modified only as indicated hereafter:

- The unused wire loom elements supplying current to direction indicators, horn, ignition contact and key lock etc. may be unplugged and/or removed (no cutting allowed).

- Cutting of the wiring harness is not allowed but to disconnect connectors is allowed.

- The wiring harness may only be used for the purpose it is homologated for unless stated in these regulations.

30. Battery:

Battery is free but nominal capacity must be equal or higher than the homologated type.

31. Frame Body and Rear Sub Frame:

- Frame must remain as originally produced by the manufacturer for the homologated machine.

- The sides of the frame-body may be covered by a protective part made of composite material. These protectors must fit the form of the frame.

- Holes may be drilled on the frame only to fix approved components (i.e. fairing brackets, steering damper mount)

- Nothing can be added by welding or removed by machining from the frame body.

- All motorcycles must display the manufacturers’ vehicle identification number on the frame body (chassis number), with the exception of spare frames.

- Engine mounting brackets or plates must remain as originally produced by the manufacturer for the homologated machine.

- Rear sub frame must remain as originally produced by the manufacturer for the homologated machine.

- Additional seat brackets may be added, non-stressed protruding brackets may be removed if they do not affect the safety of the construction or assembly.

- Bolt on accessories to the rear sub-frame may be removed.

- The paint scheme is not restricted but polishing the frame body or the sub frame is not allowed.

32. Front Forks:

- Forks structure (spindle, stanchions, bridge, stem etc.) must remain as originally produced by the manufacturer for the homologated machine.

- Standard original internal parts of the forks may be modified.

- After market damper kits or valves may be installed.

- No aftermarket or prototype electronic ally-controlled suspensions can be used. If original electronic suspensions are used, they must be completely standard(any mechanical or electronic part must remain as homologated). The original electronic system must work properly in the event of an electric/electronic failure otherwise it cannot be homologated for FIM/MCUI competitions.

- The fork caps can be modified or changed to add spring preload/compression adjusters.

- Dust seal can be modified, changed or removed if the fork is totally oil-sealed.

- Any quality and quantity of oil can be used in the front forks.

- The height and position of the front fork in relation to the fork crowns is free.

- The upper and lower fork clamps (triple clamp, fork bridges) must remain as originally produced by the manufacturer on the homologated machine.

- Steering damper may be added or replaced with an after-market damper.

- The steering damper cannot act as a steering lock limiting device.

33. Rear Fork (Swing arm):

- Every part of the rear fork must remain as originally produced by the manufacturer for the homologated machine (including rear fork pivot bolt and rear axle adjuster).

- Rear wheel stand positioning (support) brackets may be added to the rear fork. Brackets must have rounded edges (with a large radius) viewed from all sides. Fastening screws must be recessed.

- For safety reasons, it is compulsory to use a chain guard fitted in such a way as to prevent trapping between the lower chain run and the final driven sprocket at the rear wheel.

34. Rear Suspension Unit:

- Rear suspension unit (shock absorber) may be modified or replaced, but the original attachments to the frame and rear fork (swing arm) must be used and the rear suspension linkage must remain as originally produced by the manufacturer for the homologated machine.

- Rear suspension unit spring may be changed

- No aftermarket or prototype electronic ally-controlled suspensions can be used. If original electronic suspensions are used, they must be completely standard (any mechanical or electronic part must remain as homologated). The original electronic system must work properly in the event of an electric/electronic failure otherwise it cannot be homologated for FIM/MCUI competitions.

35. Wheels:

- Wheels must remain as originally produced by the manufacturer at the time of sale into the dealer/distributor network for the homologated machine.

- The speedometer drive may be removed and replaced with a spacer.

- If the original design included a cushion drive for the rear wheel, it must remain as originally produced for the homologated Machine.

- No modifications of the wheel-axles or any fixing and mounting points for front and rear brake calliper are authorised. Spacers can be modified. Modifications to keep spacers in place are permitted.

- Wheel diameter and rim width must remain as originally homologated.

- Any inner tube (if fitted) or inflation valves may be used.

- Wheel balance weights may be discarded, changed or added to.

Page 49

© MCUI – Updated December 2016

MCUI SUPERSTOCK TECHNICAL REGULATIONS (Continued 3)

36. Brakes:

- Brake discs must remain as originally produced by the manufacturer for the homologated machine. Front discs can be made floating, using original rotors and discs unmodified (washers and pins may be modified or changed)

- Front and rear brake callipers (mount, carrier, hanger) must remain as originally produced by the manufacturer for the homologated machine.

- The rear brake calliper bracket may be fixed on the swing arm, but the bracket (support) must maintain the same mounting (fixing) points for the calliper as used on the homologated machine. A modification of these parts is authorised. The Swing arm may be modified for this reason to aid the location of the rear brake calliper bracket, by welding, drilling or using a helicoil.

- The front and rear master cylinder must remain as originally produced by the manufacturers for the homologated machine.

- Front and rear hydraulic brake lines may be changed.

- The split of the front brake lines for both front brake callipers must be made above the lower fork bridge (lower triple clamp).

- Quick (or “dry-brake”) connectors in the brake lines are authorised.

- Front and rear brake pads may be changed. Brake pad locking pins may be modified for quick change types.

- Additional air scoops or ducts are not allowed.

37. Footrest/Foot Controls:

- Footrest/foot controls may be relocated but brackets must be mounted to the frame at the original mounting points. Their two original mounting points of fixture (on foot controls and on the shift shaft) must remain as original.

- Footrest may be rigidly mounted or a folding type which must incorporate a device to return them to the normal position.

- The end of the footrest must have an 8mm solid spherical radius.

- Non-folding footrests must have an end (plug) which is permanently fixed, made of plastic, Teflon® or an equivalent type material

(minimum radius 8mm). The plug surface must be designed to reach the widest possible area. The Chief Technical Officer has the right to refuse any plug not satisfying this safety aim.

38. Handlebars and Hand Controls:

- Handlebars may be replaced (does not include brake master cylinder).

- Handlebars and hand controls may be relocated.

- Throttle controls must be self closing when not held by the hand.

- Throttle assembly and associated cables may be modified or replaced.

- Clutch and brake lever may be exchanged by an aftermarket copy.

- Switches can be changed but electric starter switch and engine stop switch must be located on the handlebars.

39. Fuel Tank:

- Fuel tank filler cap may be altered or replaced from those fitted to the homologated motorcycle, by a “screw-on” type fuel cap (SAFETY).

- All fuel tanks must be completely filled with a fire retardant material (open celled mesh i.e. “Explososafe ®” ).

- Fuel tank valve petcock must remain as originally produced by the manufacturer for the homologated machine.

- The sides of the fuel tank may be covered by a protective part made of a composite material. These protectors must fit the shape of the tank

- Fuel tanks with a tank breather pipes must be fitted with non-return valves that discharge into a catch tank with a minimum volume of

250cc made of a suitable material.

40. Seat:

- The appearance from both front rear and profile must conform to the homologated shape.

- Seat, seat base and associated body work may be replaced with parts of similar appearance as originally produced by the manufacturer for the homologated machine.

- The top portion of the rear bodywork around the seat may be modified to a solo seat.

- The homologated seat locking system (with plates, pins, rubber pads etc.) may be removed

- All exposed edges must be rounded.

41. Fairing/Body Work:

a) Fairing and bodywork may be replaced with exact cosmetic duplicates of the original parts, but must appear to be as originally produced by the manufacturer for the homologated machine, with slight differences due to the racing use (different attachment points, fairing bottom etc.). The materials may be changed. The use of carbon fibre or carbon composite materials is not allowed. The front of the fairing may be modified to accommodate a front number plate in compliance with MCUI General Technical Regulations. b) Overall size and dimensions must be the same as the original part. c) Windscreens may be replaced with a duplicate of transparent material. The height of the windscreen is free, within a tolerance of +/- 15 mm regarding the vertical height from the upper fork bridge. d) Motorcycles that were not originally equipped with streamlining are not allowed to add streamling in any form, with the exception of a lower fairing device, as described in (h). This device cannot exceed above a line drawn horizontally from axle to axle. e) The original combination instrument/fairing brackets may be replaced, but the use of titanium and carbon (or similar composite materials) is forbidden. All other fairing brackets may be altered or replaced. f) The original air ducts running between the fairing and the air box may be altered or replaced. Carbon Fibre composites and other exotic materials are forbidden, particle grills or wire meshes, originally installed in the openings of the air-ducts, may be taken away. g) The lower fairing has to be constructed to hold, in case of engine breakdown, at least half of the total oil and engine coolant capacity used in the engine (minimum 5 litres). The lower edge of the openings in the fairing must be positioned at least 50mm above the bottom of the fairing. h) If the lower fairing should incorporate a maximum of two holes of 25mm. These holes must remain closed in all conditions. i) Front mudguards may be replaced with a cosmetic duplicates of the original parts and may be spaced upwards for increased tyre clearance. j) Rear mudguards fixed on the swinging arm can be modified or changed but the original profile must be respected. k) All exposed edges must be rounded. l) Motorcycles can be equipped with inner ducts to improve the air stream towards the radiator but the appearance of the front, the rear and the profile of the motorcycle must not be changed.

Page 50

© MCUI – Updated December 2016

MCUI SUPERSTOCK TECHNICAL REGULATIONS (Continued 4

)

m) Screen Height - there is no FIM homologated height. An average will be determined and the results are all taken from a fixed casting point on the top fork yoke by the ignition mounting point to the top of the top of the screen.

42. Fasteners:

- Standard fasteners may be replaced with fasteners of any material and design but titanium fasteners may not be used.. The strength and design must be equal to or exceed the strength of the standard fastener it is replacing..

- Fasteners may be drilled for safety wire, but intentional weight saving modifications are not allowed.

- Fairing/body work fasteners may be changed to the quick disconnect type.

- Aluminium fasteners may only be used in non-structural locations.

43. The following items may be altered or replaced from those fitted to the homologated motorcycle:

- A special one way valve can be fitted to the crankcase oil filler opening (to avoid oil spillage)

- Any type of lubrication, brake or suspension fluid may be used.

- Gasket and gasket materials (with the exception of the cylinder base gasket).

- Instrument, instrument bracket(s) and associated cables

- Painted external surface finishes and decals.

- Material for brackets connecting non-original parts to the frame (or engine) cannot be made from titanium or fibre reinforced composites.

- Protective covers for engine, frame, chain, footrests etc. can be made in other material like fibre composite material if these parts do not replace original parts mounted on the homologated model.

- Tachometer – NB this must be working so that noise limits may be measured – (MCUI Only)

44. The Following Items May Be Removed:

- Emission control items (anti-pollution) in or around the airbox and engine (02 sensors, air injection devices)

- Instrument and instrument bracket and associated cables.

- Speedometer.

- Chain guard as long as it is not incorporated in the rear fender.

- Bolt on accessories on a rear sub frame.

45. The following items MUST BE removed:

- Headlamp and rear lamp

- Turn signal indicators (when not incorporated in the fairing). Openings must be covered with a suitable material.

- Rear view mirrors

- Horn

- Licence plate bracket.

- Tool kit

- Helmet hooks and luggage carrier hooks

- Passenger foot rests

- Passenger grab rails

- Safety bars, centre and side stands must be removed (fixed brackets must remain)

46. The Following Items Must Be Altered:

- Motorcycles must be equipped with a functional ignition kill switch or button mounted on either side of the handlebar (within reach of the hand while on the hand grips) that is capable of stopping a running engine.

- All drain plugs must be wired. External oil filter(s) screws and bolts that enter an oil cavity must be safety wired (i.e. on crankcases, oil lines, oil coolers, etc.)

- All motorcycles must have a closed breather system. The oil breather line must be connected and discharge in the airbox

- Where breather or overflow pipes are fitted they must discharge via existing outlets. The original closed system must be retained, no direct atmospheric emission is permitted.

47. Chain Guards:

A guard must be fitted in such a way as to prevent trapping between the lower drive chain run and the final drive sprocket at the rear wheel.

48. Fuel:

Only Unleaded and Super Unleaded fuel is permitted. The use of fuel additives is strictly prohibited.

49. Bore and Stroke:

Bore and Stroke details must be displayed on the motorcycle.

50. Race Numbers & Backgrounds:

As per MCUI rules.

ALL MACHINES MUST HAVE

51. Rear Safety Light

All motorcycles must have a functioning red light mounted at the rear of the seat to be used during wet practice/races or in low visibility conditions as declared by the Clerk of the Course.

1. the lighting direction must be parallel to the centre line of the motorcycle (running direction) and it must be clearly visible from the

rear, at least 15 degrees to both the left and right sides of the centre line of the motorcycle.

2. it must be safely mounted on the very end of seat/rear bodywork and approximately on the centre line of the motorcycle.

3. the power output/luminosity must be equivalent to approximately 10-15W (incandescent) or 3-5W (led).

4. the light must be able to be switched on and off.

52. Handlebar Lever Protection

All motorcycles must be equipped with a brake lever protection, intended to prevent the handlebar brake lever from being accidently activated in the case of collision with another motorcycle.

Page 51

© MCUI – Updated December 2016

MCUI SUPERBIKE TECHNICAL REGULATIONS

All items not mentioned in the following articles must remain as originally produced by the Manufacturer for the homologated machine.

Everything that is not authorised and prescribed in these rules is strictly forbidden. All motorcycles must comply in every respect with all the requirements for racing as specified in the Technical Regulations, unless it is equipped as such on the homologated machine. The appearance from both front, rear and the profile of motorcycles must (except when otherwise stated) conform in principle to the homologated shape (as originally produced by the manufacturer). The appearance of the exhaust system is excluded from this rule.

1. Displacement Capacities:

Over 590cc up to 1010cc 4 Stroke 4 cylinders (701cc-1010cc for Clubman’s Senior Championship)

Over 690cc up to 1010cc 4 Stroke 3 cylinders

Over 700cc up to 1200cc 4 Stroke 2 cylinders (1010cc limit for Clubman’s Senior Championship)

The displacement capacities must remain at the homologated size. Modifying the bore and stroke to reach class limits is not allowed.

Balancing various motorcycle concepts

2. Minimum Weight:

The minimum weights will be: 590cc/1010cc three/four cylinders 162 kg

The minimum weights will be: 700cc/1200cc two cylinders 168 kg

3. For up to 1000 cc 2 cylinders:

Carburetion instruments refer to both throttle bodies. Carburation instruments must be used un-modified either as the original homologated carburetion instrument or as the homologated optional carburetion instrument. The only modifications allowed to the homologated

Carburation instruments original or optional are jets, needles, throttle valves, fuel injectors and bell mouths. Variable-length fuel injection intake tract devices that function while the engine is operating are prohibited, unless such a system is used on the homologated machine.

4. For up to 1010 cc 3 & 4 cylinders and 1200 cc 2 cylinders:

Carburetion instruments refers to throttle bodies. The original homologated carburetion instruments must be used un-modified. The use of optional homologated carburetion instruments is not allowed. The fuel injectors may be replaced, however they must fit without modification to the homologated throttle body. The carburetion instruments intake insulators may be modified. Bell mouths may be altered or replaced. Variable length intake tract devices that function while the engine is operating are not allowed, unless such a system is use on the homologated machine. Vacuum slides may be fixed in the open position

Secondary throttle valves and shafts may be removed or fixed in the open position and the electronics may be disconnected or removed

5. Air restrictors for 1200 cc 2- cylinders:

Definition: An air restrictor is a metallic device with a tract of constant controlled section and which is placed in the induction duct between the carburetion instrument (throttle body) and the cylinder head. The length of the controlled tract must be at least 3 mm. No air and/or airfuel mixture to the engine must by-pass the restrictor. No carburetion part (injector, needle, slide, etc) must extend through the restrictor.

Application: Only the 1200 cc 2 cylinders will be fitted with air restrictors. The initial air restrictor size to be installed is equivalent to a

ø 50 mm circular area (1963,5 mm2). Air restrictor size will be adjusted (in steps equivalent to a change of 2 mm in diameter or equivalent circular area, upwards to ø 52 mm and then to no restrictor at all, downwards to a minimum of ø 46 mm), if needed during the

Championship,

A motorcycle may have a non-circular air restrictor, provided that the area of this restrictor is equivalent to the area of a nominal circular restrictor.

6. Machine Specifications:

All items not mentioned in the following articles must remain as originally produced by the manufacturer for the homologated machine. The use of titanium in the construction of the front forks, the handlebars and the swing-arm spindle is forbidden.

7. Frame Body and Rear Sub-Frame:

The main frame must remain as originally produced by the manufacturer for use on the homologated machine. The main frame may only be altered by the addition of gussets or tubes. No gussets or tubes may be removed. Holes may be drilled on the frame only to fix approved components (i.e. fairing brackets, steering damper mount). The homologated dimensions and position of bearing seats in the steering head column, and the engine, swing arm, rear shock, and suspension linkage mounting points must remain as original. Steering angle changes are permitted by fitting inserts onto the bearing seats of the original steering head, but no part of the insert must protrude axially more than 3 mm. from the original steering head. All motorcycles must display a vehicle identification number on the main frame body (chassis number).

Rear sub frame may be changed or altered, but the material must remain as homologated. The paint scheme is not restricted.

8. Front Forks:

Front fork in whole or part may be changed but must be the same type homologated (leading link, telescopic, upside down, etc.). The upper and lower fork clamps (triple clamp, fork bridges) can be changed or modified. Steering damper may be added or replaced with an aftermarket damper. The steering damper cannot act as a steering lock limiting device.

9. Rear Fork (Swing-arm):

The rear fork may be altered or replaced from those fitted to the homologated motorcycle. The use of carbon fibre or Kevlar® materials is not allowed if not homologated on the original machine. A chain guard must be fitted in such a way to reduce the possibility that any part of the riders’ body must become trapped between the lower chain run and the rear wheel sprocket. Rear wheel stand brackets may be added to the rear fork by welding or by bolts. Brackets must have rounded edges (with a large radius). Fastening screws must be recessed.

10. Rear Suspension Unit:

Rear suspension unit can be changed but a similar system must be used (i.e. dual or mono). The rear suspension linkage may be modified or replaced. The original fixing points in the frame (if any) must be used to mount the shock absorber, linkage and rod assembly fulcrum (pivot points).

11. Wheels:

Wheels may be replaced and associated parts may be altered or replaced from those fitted to the homologated motorcycle. Carbon fibre or carbon composite wheels are not allowed. Bearings, seals, and axles may be altered or replaced from those fitted to the homologated motorcycle. The use of titanium and light alloys is forbidden for wheel spindles (axles). Wheel rims smaller than 16 in. in diameter are not allowed. Maximum front wheel rim width : 4.00 in. Maximum rear wheel rim width : 6.25 in.

Page 52

© MCUI – Updated December 2016

MCUI SUPERBIKE TECHNICAL REGULATIONS (Continued 1)

12. Brakes:

Front master cylinder may be altered or replaced from those fitted to the homologated motorcycle. Rear master cylinder may be altered or replaced from those fitted to the homologated motorcycle. Front callipers may be altered or replaced from those fitted to the homologated motorcycle. Rear callipers may be altered or replaced from those fitted to the homologated motorcycle. Brake pads or shoes may be altered or replaced from those fitted to the homologated motorcycle. Brake hoses and brake couplings may be altered or replaced from those fitted to the homologated motorcycle. The split of the front brake lines for both front brake callipers must be made above the lower fork bridge

(lower triple clamp). Brake discs may be altered or replaced from those fitted to the homologated motorcycle. Only ferrous materials are allowed for brake discs. The use of exotic alloy materials for discs and brake callipers (i.e. aluminium beryllium, etc.) is not allowed.

13. Tyres:

No restriction on tyres.

14. Foot Rest/Foot Controls:

Foot rest/foot controls may be relocated, but the original mounting points must be used. Foot rests may be rigidly mounted or a folding type which must incorporate a device to return them to the normal position. The end of the foot rest must have at least an 8mm solid spherical radius. Non folding footrests must have an end (plug) which is permanently fixed, made of aluminium, plastic, Teflon® or equivalent type of material (min. radius of 8mm). The plug surface must be designed to reach the widest possible area of the footrest. The Technical Director has the right to refuse any plug not satisfying this safety aim.

15. Handle Bars and Hand Controls:

Handle bars, hand controls and cables may be altered or replaced from those fitted to the homologated motorcycle Engine stop switch must be located on the handle bars.

16. Fairing/Bodywork:

Fairing, mudguards and body work must conform in principle to the homologated shape as originally produced by the manufacturer. Wind screen may be replaced. Original air ducts running between the fairing to the airbox may be altered or replaced from those fitted to the homologated motorcycle. The lower fairing has to be constructed to hold, in case of an engine breakdown, at least half of the total oil and engine coolant capacity used in the engine (min. 5 litres). The lower edge of openings in the fairing must be positioned at least 50 mm above the bottom of the fairing. The lower fairing must incorporate one hole of 25 mm in the bottom of the front lower area. This hole must remain closed in dry conditions and must be only opened in wet race conditions, as declared by the Race Director. Minimal changes are allowed in the fairing to permit the use of an elevator (stand) for wheel changes and to add plastic protective cones to the frame or the engine. Holes may be drilled or cut in the fairing or bodywork to allow additional increased intake air to the oil cooler. Holes bigger than

10mm must be covered with a particle grill or fine wire mesh. Grill/mesh must be painted to match the surrounding material. Front mudguard must conform in principle to the homologated shape originally produced by the manufacturer. Holes may be drilled in the front mudguard to allow additional cooling. Holes bigger than 10mm must be covered with metal gauze or fine mesh. Mesh must be painted to match the surrounding material. Rear mudguard may be added or removed. Material of construction of the front mudguard, rear mudguard and fairing may be altered or replaced from those fitted to the homologated motorcycle.

17. Fuel Tank:

Material of construction of the fuel tank may be altered or replaced from those fitted to the homologated motorcycle. The fuel tank must be fixed to the frame from the front and the rear with a crash-proof assembly system. Bayonet style couplings cannot be used, nor may the tank be fixed to any parts of the streamlining (fairing) or any plastic part. The Technical Director has the right to refuse a motorcycle if he is of the opinion that the fuel tank fixation is not safe. The original tank may be modified to achieve the maximum capacity of 24 litres, provided the original profile is as homologated. A cross over line between each side of the tank is allowed (maximum inside diameter 10 mm). Fuel tanks with tank breather pipes must be fitted with non-return valves which discharge into a catch tank with a minimum volume of 250 cc made of a suitable material. Fuel tank filler caps may be altered or replaced from those fitted to the homologated motorcycle, and when closed, must be leak proof. Additionally, they must be secured to prevent accidental opening at any time. The same size fuel tank used in practice must be used during the entire event.

18. Seat:

Seat may be altered or replaced from those fitted to the homologated motorcycle. The top portion of the rear body work around the seat may be modified to a solo seat. The solo seat then must incorporate the rear number plates. The appearance from both front rear and profile must conform in principle to the homologated shape. The seat/rear cowl must allow for proper number display. Holes may be drilled in the seat or rear cowl to allow additional cooling. Holes which are bigger than 10mm must be covered with metal gauze or fine mesh. Mesh must be painted to match the surrounding material. Material of construction of the seat may be altered or replaced from those fitted to the homologated motorcycle.

19. Radiator/Oil Cooler:

The original radiator or oil cooler may be altered or replaced from those fitted to the homologated motorcycle. Additional radiators or oil coolers may be added. Oil cooler must not be mounted on or above the rear mudguard. The appearance from the front, rear and profile of the machine must in principle conform to the homologated shape after the addition of additional radiators or oil coolers.

20. Air Box:

The air box may be altered or replaced from those fitted to the homologated motorcycle (a special design for racing is allowed). If fuel injectors are attached to the cover of the air box, their position must remain as original. The air filter element may be removed. The air box must be completely closed around the induction bell mouth and all engine breather tubes. Carburation instruments may be entirely within the air box. The air box drains must be sealed. All motorcycles must have a closed breather system. The oil breather line must be connected and discharge in the air box. The breather system (air box plus any breather oil collector box) must be capable in the event of drain pipe blockage, of retaining a minimum of 1000 cc of discharged fluid.

21. Fuel Supply The engine control unit (ECU):

May be modified or changed. Fuel pump and pressure regulator may be modified or changed. Fuel lines from fuel tank up to the injectors may be replaced. The fuel line(s) going from the fuel tank to the carburation instruments must be located in such a way that they are protected from possible defects. Fuel vent lines may be replaced. Fuel filters may be added. Fuel petcock may be altered or replaced from those fitted to the homologated motorcycle.

Page 53

© MCUI – Updated December 2016

MCUI SUPERBIKE TECHNICAL REGULATIONS (Continued 2)

22. Engine:

The following engine components may not be altered from the homologated machine except as noted. The homologated engine design model cannot be changed. Homologated materials and castings for the crankcase, cylinder, cylinder head and gear-box housing must be used. Material for the crankcase, cylinder, cylinder head and gear-box housing may only be added by welding or removed by machining.

The method of cam drive must remain as homologated unless a complete kit is available through normal commercial channels. For up to

1010 cc 3 & 4 cylinders and 1200 cc 2 cylinders aftermarket or modified cam drive components are allowed, however the cam drive must be in the homologated location. The method of valve retention must remain as the homologated model (no pneumatic valve retention devices are allowed unless fitted to the homologated model). All moving internal engine, gear-box and clutch parts may be altered or replaced including materials from those fitted on the homologated motorcycle (unless not allowed by the individual section covering the parts in question). Polishing and lightening of engine parts is permitted, except for carburation instruments (unless not allowed by the individual section covering the parts in question). For all configurations: The sequence in which the cylinders are ignited (i.e. 1-2-4-3), must remain as originally designed on the homologated model. Simultaneous (*) firing of 2 cylinders is also forbidden if not adopted on the homologated motorcycle. *up to 5 degrees firing difference in 2 cylinders is regarded as ‘simultaneous’ firing.

23. Cylinder Head:

The homologated cylinder head can be modified as follows:

Homologated materials and castings for the cylinder heads must be used. Material for these parts may only be added by welding or removed by machining. The induction and exhaust system including the number of valves and or ports (intake and exhaust) must be as homologated.

Porting and polishing of the cylinder head normally associated with individual tuning such as gas flowing of the cylinder head, including the combustion chamber is allowed. The compression ratio is free. The combustion chamber may be modified. The valves may be altered or replaced from those fitted to the homologated motorcycle. The valve seats may be altered or replaced from those fitted to the homologated motorcycle. The valve guide may be altered or replaced from those fitted to the homologated motorcycle. Valve springs may be altered or replaced from those fitted to the homologated motorcycle. The valve retainers may be altered or replaced from those fitted to the homologated motorcycle.

• For up to 1010 cc 3 & 4 cylinders and 1200 cc 2 cylinders

Aftermarket or modified valves, springs, retainers and other valve train components are permitted. The original number of valves must be maintained. a. Valve diameters, including stem, must remain as homologated. b. Valves must be made of the same basic material as the homologated valves. c. Valves must remain in the homologated location and at the same angle as the homologated valves, except for normal valve maintenance. d. Rocker arms (if any) must remain as homologated (material and dimensions).

24. Camshaft:

Camshafts may be altered or replaced from those fitted to the homologated motorcycle.

25. Cam Sprockets or Gears:

Cam sprockets or cam gears may be altered or replaced to allow the degreeing of the camshafts.

26. Crankshaft:

• For up to 1000 cc 2 cylinders

Crankshaft may be altered or replaced from those fitted to the homologated motorcycle. Crankshaft stroke must remain as homologated.

• For up to 1010 cc 3 & 4 cylinders and 1200cc 2 cylinders

The following modifications are allowed to the homologated crankshaft: a) Bearing surfaces may be polished or a surface treatment may be applied. b) Balancing is allowed but only by the same method as the homologated crankshaft. (for example heavy metal i.e. Mallory metal inserts are not permitted unless they are originally specified in the homologated crankshaft.) c) Attachment of aftermarket ignition components or sensors is permitted. d) Balance shaft may be removed.

27. Oil Pumps and Oil Lines:

Oil pump may be altered or replaced from those fitted to the homologated motorcycle. Oil lines may be modified or replaced. Oil lines containing positive pressure, if replaced, must be of metal reinforced construction with swaged or treaded connectors.

28 Connecting Rods:

• For up to 1000 cc 2 cylinders and up to 1010 cc 3 & 4 cylinders

Connecting rod may be altered or replaced from those fitted to the homologated motorcycle. Carbon composite or carbon fibre materials are not allowed if not used in the homologated motorcycle.

• For 1200 cc 2 cylinders

Connecting rod must remain as homologated. Polishing and lightening is not allowed.

29. Pistons:

• For up to 1000cc 2 cylinders, up to 1010 cc 3 & 4 cylinders

Pistons may be altered or replaced from those fitted to the homologated motorcycle.

• For 1200 cc 2 cylinders

Standard piston or piston kit must be used.

30. Piston Rings:

Piston rings may be altered or replaced from those fitted to the homologated motorcycle.

31. Piston Pins and Clips:

Piston pins and clips may be altered or replaced from those fitted to the homologated motorcycle.

32. Cylinders:

Homologated materials and casting for the cylinder block must be used. The material for the cylinder block may only be added by welding and/or removed by machining. The sleeves or liner material may be changed and the surface finish is free. The original bore size must be retained.

Page 54

© MCUI – Updated December 2016

MCUI SUPERBIKE TECHNICAL REGULATIONS (Continued 3)

33. Crankcase/Gearbox housing and lateral covers:

Homologated materials and castings for crankcase and gearbox housing must be used. Material for crankcase and gearbox housing may only be added by welding or removed by machining. Oil-pan (sump) may be altered or replaced. Lateral (side) covers may be altered, modified or replaced. If replaced, the cover must be made in material of same or higher specific weight and the total weight of the cover must not be less than the original one. All lateral covers/engine cases containing oil and which could be in contact with the ground during a crash, must be protected by a second cover made from composite materials, type carbon or Kevlar®. Plates and/or bars from aluminium or steel are also permitted. All these devices must be designed to be resistant against sudden shocks and must be fixed properly and securely.

34. Transmission/Gearbox:

All transmission/gearbox ratios, shafts, drums, selector forks are free. Primary gear ratios are free. The number of gears must remain as homologated. Additions to gearbox or selector mechanism, such as quick shift systems, are allowed. Countershaft sprocket, rear wheel sprocket, chain pitch and size can be changed.

35. Clutch:

Aftermarket or modified clutches are permitted. Back torque limiter is permitted.

• For up to 1000 cc 2 cylinders

Clutch system (wet or dry type) and method of operation (cable/hydraulic) may be altered or replaced from those fitted to the homologated motorcycle.

• For up to 1010 cc 3 & 4 cylinders and 1200cc 2 cylinders

Clutch system (wet or dry type) and method of operation (cable/hydraulic) must remain as homologated

36. Ignition/Engine Control System:

Ignition/engine control system (ECU) may be modified or changed. Spark plugs and plug wires may be replaced.

37. Generator, alternator, electric starter:

The generator, starting system electrical or manual including kick lever, pedal, starter crank gear and starter shaft may be altered, replaced or removed from those fitted to the homologated motorcycle.

38. Exhaust System:

Exhaust pipes, catalytic converters and silencers may be altered or replaced from those fitted to the homologated motorcycle. The number of the final exhaust silencer(s) must remain as homologated. The silencer(s) must be on the same side(s) of the homologated model. For safety reasons, the exposed edge(s) of the exhaust pipe(s) outlet(s) must be rounded to avoid any sharp edges. Wrapping of exhaust systems is not allowed except in the area of the rider’s foot or an area in contact with the fairing for protection from heat. The noise limit for

Superbikes will be 105 dB/A (with a 3 dB/A tolerance after the race).

39. The following items MAY BE altered or replaced from those fitted to the homologated motorcycle:

Any type of lubrication, brake or suspension fluid may be used. Any type of spark plug and plug cap may be used. Any inner tube (if fitted) or inflation valves may be used. Gaskets and gasket material. Wheel balance weights may be discarded, changed or added to.

Bearings (ball, roller, taper, plain, etc.) of any type or brand may be used. Fasteners (nuts, bolts, screws, etc.). Electronic devices, electric cables, connectors, battery and switches. External surface finishes and decals.

40. The following items MAY BE removed:

Instrument and instrument bracket and associated cables. Tachometer. Speedometer and associated wheel spacers. Radiator fan and wiring.

Chain guard.

41. The Following Items MUST BE Removed:

Headlamp, rear lamp and turn signal indicators (when not incorporated in the fairing). Openings must be covered by suitable materials. Rear view mirrors, horn, license plate bracket, tool box, helmet hooks and luggage carrier hooks, passenger foot rests, passenger grab rails, safety bars, centre and side stands must be removed (fixed brackets must remain).

42. The following items MUST BE altered:

Motorcycles must be equipped with a functional ignition kill switch or button mounted at least on one side of the handlebar (within reach of the hand while on the hand grips) that is capable of stopping a running engine. Throttle controls must be self closing when not held by the hand. All drain plugs must be wired. External oil filter(s) screws and bolts that enter an oil cavity must be safety wired (i.e. on crankcases, oil lines, oil coolers, etc.) All motorcycles must have a closed breather system. The oil breather line must be connected and discharge in the airbox. Where breather or overflow pipes are fitted they must discharge via existing outlets. The original closed system must be retained, no direct atmospheric emission is permitted. Oil cooler must not be mounted on or above the rear mudguard.

43. Additional Equipment:

Additional electronic hardware equipment not on the original homologated motorcycle may be added (e.g. data acquisition, computers, recording equipment). The addition of a device for infra red (IR) transmission of a signal between the racing rider and his team, used exclusively for lap timing, is allowed. The addition of a GPS unit for lap timing/scoring purposes is allowed. Telemetry is not allowed.

44. Replacement and Repairs:

Where necessary, parts from an older or newer version of the same model may be used.

45. Chain Guards:

A guard must be fitted in such a way as to prevent trapping between the lower drive chain run and the final drive sprocket at the rear wheel.

46. Fuel:

Only Unleaded and Super Unleaded fuel is permitted. The use of fuel additives is strictly prohibited.

47. Bore and Stroke:

Bore and Stroke details must be displayed on the motorcycle.

48. Race Numbers & Backgrounds:

As per MCUI rules.

Page 55

© MCUI – Updated December 2016

MCUI SUPERBIKE TECHNICAL REGULATIONS (Continued 4)

ALL MACHINES MUST HAVE

49. Rear Safety Light

All motorcycles must have a functioning red light mounted at the rear of the seat to be used during wet practice/races or in low visibility conditions as declared by the Clerk of the Course.

1. the lighting direction must be parallel to the centre line of the motorcycle (running direction) and it must be clearly visible from the

rear, at least 15 degrees to both the left and right sides of the centre line of the motorcycle.

2. it must be safely mounted on the very end of seat/rear bodywork and approximately on the centre line of the motorcycle.

3. the power output/luminosity must be equivalent to approximately 10-15W (incandescent) or 3-5W (led).

4. the light must be able to be switched on and off.

50. Handlebar Lever Protection

All motorcycles must be equipped with a brake lever protection, intended to prevent the handlebar brake lever from being accidently activated in the case of collision with another motorcycle

Page 56

© MCUI – Updated December 2016

TECHNICAL REGULATIONS FORMULA 1 ERA SUPERBIKES 2013

1. ELIGIBLE MACHINES

In principle, all 4-stroke machines of the following ages are eligible:-

4 cylinder 750cc machines built before 1st January 2000

3 cylinder 950cc machines built before 1st January 2000

2 cylinder 1010cc machines built before 1st January 2000

Plus the following models that were basically unchanged from that period until they ceased production:-

Kawasaki ZX7R and RR up to 2003

Aprilia RSV Mille & Mille R up to 2003 (not later model RSV 1000 with central air intake)

Suzuki TL1000S & TL1000R up to 2003

Triumph T595 up to 2001

MV Augusta F4 750 Oro & S models to 2002

Honda RC51 (SP1 & SP2)

Ducati 916 – 996 (not 998 models)

Yamaha OWO1 (to 861cc)

Yamaha YZF 750 (all models)

Yamaha R7 (750cc only no conversions)

“Specials” from in period accepted on a case by case specific basis.

All motorcycles must comply in every respect with all requirements for Road Racing as specified in the M.C.U.I regulations.

2. DISPLACEMENT CAPACITY

The displacement must remain within 15cc of the original design for the engine concerned allowing for rebore repairs. Four cylinder machines built before 1st January 1995 may be over bored to a maximum of 861cc and the smaller capacity twins & triples from the same period may be updated with the later parts to bring the capacity up to the class limits. Machines built after 1st January 1995 may not exceed the cc limits as listed above for the relevant year of manufacture.

3. MINIMUM WEIGHTS

The minimum machine weight at post race control must not be less than:-

Up to 750cc – 160kg (4 cylinders)

Up to 750cc – 145kg (2 & 3 cylinder)

Up to 950cc – 162kg (2 & 3 cylinder)

Up to 1010cc – 165kg (2 cylinders)

4. NUMBER PLATE COLOURS

Front and side number colours are: - White Backgrounds with Black Numbers As per M.C.U.I Regulations

5. CARBURATION INSTRUMENTS

Carburation instruments are free within the constraints of equipment freely available within the up to 2003 period.

6. FUEL

All machines must function on fuel in conformity with current M.C.U.I Regulations i.e. Only Unleaded and Super Unleaded fuel is permitted.

The use of fuel additives is strictly prohibited.

7. FRAME BODY AND REAR SUBFRAME

For all machines, the engine and frame must be from the same model unless an older engine is married to a frame made within the period restraints listed above. (TT Formula 1 machines excepted)

8. FRONT FORKS

Front fork fitment is free. A steering damper may be added but may not act as a steering lock device.

9. REAR FORK (Swing Arm)

The rear fork unit is free.

10. REAR SUSPENSION UNITS

Rear suspension units, including all linkages and mounting points, are free.

11. WHEELS

Wheels are free, provided they remain within the minimum size range for the machine capacity as listed in the current M.C.U.I Regulations

12. BRAKES

Brakes are free, but no carbon or ceramic units are permitted.

13. TYRES

No Slick Tyres . The use of tyre warmers is allowed.

14. WIRING HARNESS

The wiring harness is free.

15. IGNITION / ENGINE CONTROL SYSTEM (CDI/IGNITOR)

In principal the ignition control system is free, but may not contain any traction control or launch control functions not associated with the machine periods as listed above. Power Commanders and the like are permitted for altering fuelling etc.

Page 57

© MCUI – Updated December 2016

TECHNICAL REGULATIONS FORMULA 1 ERA SUPERBIKES 2013(Continued)

16. OTHER NON-PERIOD MODIFICATIONS

There are numerous non-period modifications made to certain types of racing machinery, some of which are safety related and others which are performance related. In principal any safety related modification will be permitted, whereas performance related modifications not listed above will not be permitted. This does not include tuning of barrels, porting, polishing or changing any component in line with what was considered acceptable ‘in period’.

Data acquisition sensors other than for road speed are not permitted. Any disputes in this area will be adjudicated upon by the M.C.U.I

Technical Stewards.

ALL MACHINES MUST HAVE

17. REAR SAFETY LIGHT

All motorcycles must have a functioning red light mounted at the rear of the seat to be used during wet practice/races or in low visibility conditions as declared by the Clerk of the Course.

1. the lighting direction must be parallel to the centre line of the motorcycle (running direction) and it must be clearly visible from the

rear, at least 15 degrees to both the left and right sides of the centre line of the motorcycle.

2. it must be safely mounted on the very end of seat/rear bodywork and approximately on the centre line of the motorcycle.

3. the power output/luminosity must be equivalent to approximately 10-15W (incandescent) or 3-5W (led).

4. the light must be able to be switched on and off.

18. HANDLEBAR LEVER PROTECTION

All motorcycles must be equipped with a brake lever protection, intended to prevent the handlebar brake lever from being accidently activated in the case of collision with another motorcycle

19. ENGINE PROTECTION.

All lateral covers/engine cases containing oil on, 4 stroke machines, and which could come in contact with the ground during a crash, must be protected by a second cover made from composite materials, aluminum or steel plates and/or bars are also permitted.

All these devices must be designed to be resistant against sudden shocks and must be fixed properly and securely.

Where secondary covers are not commercially available, Engine case guards in the form of strengthened engine side covers may be installed.

The countershaft cover may be removed. The addition of a crankcase protector at the countershaft is allowed.

THE FOLLOWING ITEMS MUST BE REMOVED FROM ALL MACHINES:

Headlamp, rear lamp and turn signal indicators.

Rear view mirrors.

Horn.

License plate bracket.

Tool box.

Helmet hooks and luggage carrier hooks.

Passenger foot rests.

Passenger grab rails.

Safety bars, centre and side stands (fixed frame brackets may remain)

Page 58

© MCUI – Updated December 2016

MCUI Technical Regulations Handbook

Technical Information

Page 59

© MCUI – Updated December 2016

MCUI GUIDE TO SCRUTINEERING

Please note that this is a guide only and the list is not exhaustive.

1. Handle Bars, Grips, Bar Ends, Clearance.

2. Throttle.

3. Sump Plug. (Must be lock wired)

4. Levers, Brake and Clutch.

5. Front Wheel, Bearings, Nuts.

6. Front Tyre, Value Cap.

7. Steering Head Stock, Fork Clamp Bolts.

8. Steering Stops.

9. Steering Damper.

10. Front Forks, Oil Seals.

11. Fairing Brackets.

12. Screen Edges.

13. Fuel Tank, Fuel Cap.

14. Seat

15. Front Mud Guard.

16. Front Sprocket.

17. Rear Wheel, Bearings, Nuts, Sprockets

18. Rear Tyre, Valve Cap.

19. Foot Pegs.

20. Rear Suspension.

21. Chain, Guard, Links.

22. Exhaust, End Can.

23. Oil Filler Cap. (Must be lock wired)

24. Oil Filter. (Must be lock wired)

25. Belly Pan, Drainage Holes. (Must be sealed in dry weather)

26. Swing Arm

27. Frame.

28. Start Button, Kill Switch.

29. Rear Brake, Pads, Callipers, Bolts, Pins, Discs, Pipes, Cylinders

30. Front Brake, Pads, Callipers, Bolts, Pins, Discs, Pipes, Cylinders.

31. Engine Cases.

Page 60

© MCUI – Updated December 2016

Page 61

© MCUI – Updated December 2016

Page 62

© MCUI – Updated December 2016

MCUI NUMBER PLATES AND NUMBERS

1. Number plates must be rectangular or elliptical in shape with minimum measurements of 285mm

x 235mm. In place of separate plates a space of equivalent size in matt colours can be painted or fixed on the bodywork or streamlining.

Plates which are just a larger outline of the number are not permitted. In the case of bodywork of a similar colour to the specified number plate background colour, there must be a minimum 5mm black line all around the perimeter of the number plate.

2. The allocated number and plate must be affixed to the front and the two sides of the motorcycle

so that both front and side numbers are clearly visible to the public and officials ON BOTH SIDES

OF THE TRACK as follows:

FRONT NUMBERS must be fitted directly on the front of the fairing and not to one side. All fairings may be modified to accommodate this. Where the design of the fairing makes this IMPOSSIBLE the numbers must be fixed on BOTH sides of the front fairing.

SIDE NUMBERS must be fitted to the middle or lower part of the side fairing. Side numbers can also be fitted to the seat fairing subject to being clearly visible to the public and officials.

3. The figures must be clearly legible and like the background must be in matt colours to avoid

reflection from sunlight. The minimum dimensions of the numbers being: Figures to be of the form shown in the diagram at (7) and to be solid in colour - shading or outlining in a different colour is not permitted. 4. Advertising must not appear on the number plate and a space of at least 50mm must be left free around all number plates in which no advertising may appear. No advertising may appear within in the figures of the number. All other numbers or markings on a motorcycle liable to cause confusion with the number must be removed.

Height of figure: 160mm (front number) 120mm (side number)

Width of figure: 80mm (front number) 60mm (side number)

Width of stroke: 25mm

Space between two figures: 15mm

4. Advertising must not appear on the number plate and a space of at least 50mm must be left free

around all number plates in which no advertising may appear. No advertising may appear within in the figures of the number. All other numbers or markings on a motorcycle liable to cause confusion with the number must be removed.

Page 63

© MCUI – Updated December 2016

5. The following matt colours, with corresponding RAL codes shall be used.

Black

Blue

Yellow

RAL 9005

RAL 5010

RAL 1003

Red

Green

White

RAL 3020

RAL 6002

RAL 9010

Background Colour Number Colour Classes

Black Background White Numbers Young Guns Moto 3 /125 GP – Junior Cup

Green Background White Numbers 250 GP – Classic 250cc

Blue Background White Numbers 350 GP – Classic 350cc – Lightweight Supersport – Supertwins

Yellow Background Black Numbers

White Background Red Numbers

Yellow Background Black Numbers

White Background Blue Numbers

500 GP – Classic 500cc – Production Twins

Pre-Injection

Supersport Cup & Superbike Cup

Supersport

White Background Black Numbers Superbike Classic 1000cc – Sidecar

(ICC Dec 2016)

6. Motorcycles which do not comply with these rules may not pass scrutineering and or technical

control. The decision of the Technical Steward will be final.

Page 64

© MCUI – Updated December 2016

MCUI NUMBER PLATE, NUMBERS & FONTS GUIDE

Page 65

© MCUI – Updated December 2016

Page 66

© MCUI – Updated December 2016

NUMBER PLATES

10

10

10

10

10

10

10

10

Background: Black Number: White

Young Guns Challenge – Moto3/125GP - Junior Cup

Background: Green Number: White

250 GP – 250 Classic

Background: Blue Number: White

350GP - 350 Classic –Lightweight Supersport - Supertwins

Background: Yellow Number: Black

500GP - 500 Classic – Production Twins

Background: White Number: Red

Pre-Injection

Background: White Number: Blue

Supersport

Background: Yellow Number: Black

Supersport Cup – Superbike Cup

Background: White Number: Black

Superbike - 1000 Classic – Sidecar – F1 Era

(ICC Dec. 2016)

Page 67

© MCUI – Updated December 2016

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
