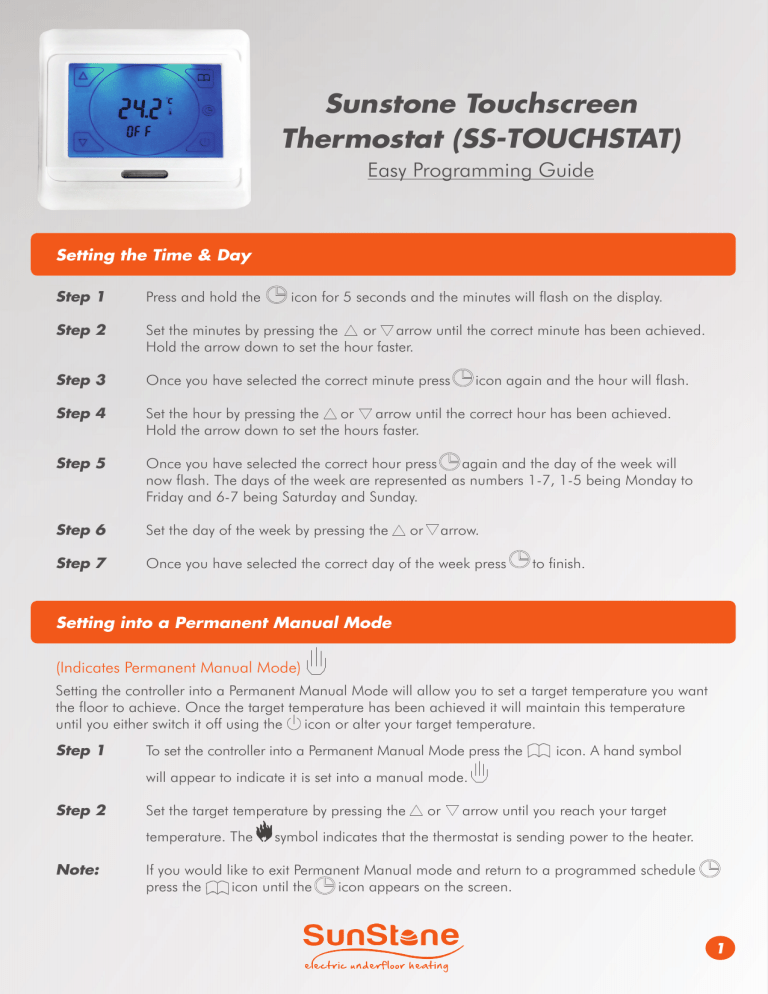

Sunstone Touchscreen
Thermostat (SS-TOUCHSTAT)
Easy Programming Guide
Setting the Time & Day
Step 1
Press and hold the
Step 2
Set the minutes by pressing the
or arrow until the correct minute has been achieved. Hold the arrow down to set the hour faster.
Step 3
Once you have selected the correct minute press
Step 4
Set the hour by pressing the or arrow until the correct hour has been achieved. Hold the arrow down to set the hours faster.
Step 5
Once you have selected the correct hour press
again and the day of the week will now flash. The days of the week are represented as numbers 1-7, 1-5 being Monday to Friday and 6-7 being Saturday and Sunday.
Step 6
Set the day of the week by pressing the
Step 7
Once you have selected the correct day of the week press
icon for 5 seconds and the minutes will flash on the display.
or
icon again and the hour will flash.
arrow.
to finish.
Setting into a Permanent Manual Mode
(Indicates Permanent Manual Mode)
Setting the controller into a Permanent Manual Mode will allow you to set a target temperature you want
the floor to achieve. Once the target temperature has been achieved it will maintain this temperature
until you either switch it off using the icon or alter your target temperature.
Step 1
To set the controller into a Permanent Manual Mode press the
will appear to indicate it is set into a manual mode.
icon. A hand symbol
Step 2
Set the target temperature by pressing the or arrow until you reach your target
temperature. The symbol indicates that the thermostat is sending power to the heater.
Note: If you would like to exit Permanent Manual mode and return to a programmed schedule
press the
icon until the
icon appears on the screen.
1
Setting into a Temporary Manual Mode
(Indicates Temporary Manual Mode)
Setting the controller into a Temporary Manual Mode will allow you to set a target temperature you want
the floor to achieve. Once the target temperature has been achieved it will maintain this temperature
until your next programmed period.
Step 1
When the controller is in a programmed mode
target temperature. The symbols
Temporary Manual Mode. The
the heater.
Note: press the
or
arrow to set your will appear to indicate that it is set into a symbol indicates that the thermostat is sending power to If you would like to exit Temporary Manual Mode and return to a programmed schedule
press the
icon until
icon only appears on the screen.
How to set a program
(Indicates Programmed Mode)
The thermostat is set so that you can program 5 weekdays as a block and Saturday and Sunday
as a block. There are 6 programmed periods per day which must be set for the 5 weekdays and 2
programmed periods for the Satuday and Sunday block. This can be changed in the advanced settings.
See page 3 for information on how to access the advanced settings
Step 1
To set a program press and hold the
Step 2
Press the or arrow to set the time for the FIRST PERIOD of the day
. For example this would be the time you would like the heating on first thing in the morning.
Hold the arrows down to set the time faster.
icon until the 1 2 3 4 5 Block and
appears.
Step 3Press the
icon again to set the target temperature. An adequate temperature would be anywhere between 24-28°C. Use the or arrow to set the temperature.
Step 4Press the
icon again to move onto the SECOND PERIOD
. This would be when you would want to turn off your heating in the morning. Press the or arrow to set the time you want the heating to switch off. Hold the arrows down to set the time faster.
Step 5Press the
icon again to set the setback temperature. Anything below 16°C and the underfloor heating will not come on. Use the or arrow to set the temperature.
Step 6
Press the
icon again to move onto the THIRD PERIOD
. This would be when you would want to turn on your heating on in the afternoon. Press the or arrow to set the time you want the heating to switch on. Hold the arrows down to set the time faster.
Step 7
Press the
icon again to set the target temperature. An adequate temperature would be anywhere between 24-28°C. Use the or arrow to set the temperature.
2
Step 8Press the
icon again to move onto the FOURTH PERIOD
. This would be when you would want to turn off your heating in the afternoon. Press the or arrow to set the time you want the heating to switch off. Hold arrows down to set the time faster.
Step 9Press the
icon again to set the setback temperature. Anything below 16°C and the underfloor heating will not come on. Use the or arrow to set the temperature.
Step 10
Press the
icon again to move onto the FIFTH PERIOD
. This would be when you would want to turn on your heating on in the evening. Press the or arrow to set the time you want the heating to switch on. Hold arrow downs to set the time faster.
Step 11
Press the
icon again to set the target temperature. An adequate temperature would be anywhere between 24-28°C. Use the or arrow to set the temperature.
Step 12Press the
icon again to move onto the SIXTH PERIOD
. This is the final period. This would be when you would want to turn off your heating at night. Press the or arrow to set the time you want the heating to switch off. Hold arrows down to set the time faster.
Step 13Press the
icon again to set the setback temperature. Anything below 16°C and the underfloor heating will not come on. Use the or arrow to set the temperature.
Step 14
Saturday & Sunday (6 & 7) block will have to be programmed separately. There are just 2 programmed periods to set here. For example ON & OFF in the morning. Repeat steps 3-6 above. To exit programming press the icon.
Advanced Settings
To access the advanced settings firstly turn the controller off by pressing the icon. Now PRESS &
HOLD the
icon then press with the icon. 1Adj indicates you are in the advanced settings. To cycle
through the settings use the
icon and use the or arrow to make any changes.
Advanced Settings Description
Allows you to offset the current measured temperature by +/- 9°C
1 ADJ
2 SEN
4 DIF
Allows you to switch from built in sensor (IN), to floor sensor (OUT), to using
both which makes the floor sensor the limit sensor (ALL)
This option will let you set the minimum/maximum temperature you would
like to set the floor sensor to (20-60°C).
Adjusts the switching differential setting range 0.5-10°C
5 LTP
Switches the frost setting function ON/OFF
6 PRG
Allows you to switch the programming mode to 5/2, 6/1 or 7 day mode
7 RLE
DO NOT ADJUST
8 DLY
9 HIT
DO NOT ADJUST
Adjusts maximum temperature setting from 35-90°C
AFAC
Resets to factory settings. Hold the
3 LIT
icon for 5 seconds until “---” appears
If “ERR” appears on the screen go back into the advanced settings and stop at the 2SEN and change the
setting to “IN” which is the floor sensor. Switch the controller OFF & ON again.
3
