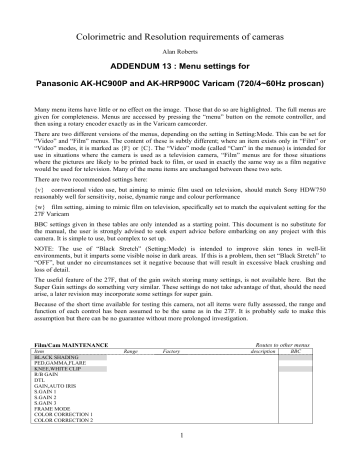

ADDENDUM 13 : Menu settings for
Panasonic AK-HC900P and AK-HRP900C Varicam (720/4~60Hz proscan)
Many menu items have little or no effect on the image. Those that do so are highlighted. The full menus are
given for completeness. Menus are accessed by pressing the “menu” button on the remote controller, and
then using a rotary encoder exactly as in the Varicam camcorder.
There are two different versions of the menus, depending on the setting in Setting:Mode. This can be set for
“Video” and “Film” menus. The content of these is subtly different; where an item exists only in “Film” or
“Video” modes, it is marked as {F} or {C}. The “Video” mode (called “Cam” in the menus) is intended for
use in situations where the camera is used as a television camera, “Film” menus are for those situations
where the pictures are likely to be printed back to film, or used in exactly the same way as a film negative
would be used for television. Many of the menu items are unchanged between these two sets.
There are two recommended settings here:
{v} conventional video use, but aiming to mimic film used on television, should match Sony HDW750
reasonably well for sensitivity, noise, dynamic range and colour performance
{w} film setting, aiming to mimic film on television, specifically set to match the equivalent setting for the
27F Varicam
BBC settings given in these tables are only intended as a starting point. This document is no substitute for
the manual, the user is strongly advised to seek expert advice before embarking on any project with this
camera. It is simple to use, but complex to set up.
NOTE: The use of “Black Stretch” (Setting:Mode) is intended to improve skin tones in well-lit
environments, but it imparts some visible noise in dark areas. If this is a problem, then set “Black Stretch” to
“OFF”, but under no circumstances set it negative because that will result in excessive black crushing and
loss of detail.
The useful feature of the 27F, that of the gain switch storing many settings, is not available here. But the
Super Gain settings do something very similar. These settings do not take advantage of that, should the need
arise, a later revision may incorporate some settings for super gain.
Because of the short time available for testing this camera, not all items were fully assessed, the range and
function of each control has been assumed to be the same as in the 27F. It is probably safe to make this
assumption but there can be no guarantee without more prolonged investigation.
Routes to other menus
Film/Cam MAINTENANCE
Item
BLACK SHADING
PED,GAMMA,FLARE
KNEE,WHITE CLIP
R/B GAIN
DTL
GAIN,AUTO IRIS
S.GAIN 1
S.GAIN 2
S.GAIN 3
FRAME MODE
COLOR CORRECTION 1
COLOR CORRECTION 2
Range
Factory
1
description
BBC
Basic stuff
Film/Cam MAINTENANCE :BLACK SHADING
Item
Range
Factory
ON,OFF
ON
DETECTION
CORRECT(DIG)
description
Press Menu key to perform black
shading correction
Takes about 90 seconds
Transfer curve
Film/Cam MAINTENANCE :PED,GAMMA,FLARE
Item
M.PED
R.PED
B.PED
Range
Factory
0.35-0.75
0.45
R.GAMMA
B.GAMMA
R.FLARE
G.FLARE
B.FLARE
GAMMA
FLARE
-15~15
-15~15
0~100
0~100
0~100
OFF/ON
OFF/ON
FILM REC / VIDEO
REC[F]
0~30%[F]
200~500%[F]
0
0
BLACK STR LVL{F]
DYNAMIC LVL{F}
description
Master gamma
M.KNEE POINT
R.KNEE POINT
B.KNEE POINT
Range
80~107%[C]
30~90%[F]
M.KNEE SLOPE
ON
ON
VIDEO
REC[F]
0[F]
200%[F]
ON
ON
Only in FILM MENU
Only in FILM REC with Knee ON
R.KNEE SLOPE
B.KNEE SLOPE
65%
0
0
100%
A.KNEE SLOPE
WHITE CLIP LVL
KNEE
WHITE CLIP
0
100%
ON
ON
Disabled in FILM REC
Don’t use auto knee, manual is
better
Range
Factory
description
Probably reflects settings on control
panel
Factory
ON
0
11
2
2
10
OFF
10
OFF
0
0
0
(B+G)/2
description
Range
ON,OFF
0~31
ON,OFF
ON,OFF
BBC
85{v}
63(w}
0
0
99{v}
350{w}
0
0
95{v}
100{w}
108
109
MANUAL
ON
BBC
Detail enhancement
Film/Cam MAINTENANCE :DTL
Item
DTL
TOTAL DTL LVL
H DTL LVL
CRISP
LVL DEPENDENT
PEAK FREQUENCY
KNEE APERTURE
KNEE APA LVL
SLIM DTL
DTL(+)
DTL(-)
DTL CLIP
DTL SOURCE
0
300%{w}
Colour balance
Film/Cam MAINTENANCE :R/B GAIN
Item
R.GAIN
B.GAIN
description
Master knee, disabled in FILM
REC
R/B deviations, disabled in FILM
REC
0
0
A.KNEE POINT
OFF,MANU,AUTO
ON,OFF
VIDEO{w}
Transfer curve
Factory
150%
1~99[C] 150~600%[F]
0.45{v}
0.52{w}
0
0
Set depending on lens, usual stuff
Film/Cam MAINTENANCE :KNEE,WHITE CLIP
Item
BBC
Indication of pedestal levels set in
control panel
M.GAMMA
CINE GAMMA SEL[F]
BBC
2
Horizontal and vertical together
Horizontal only
Clips low detail, noise saving
Adds detail back in knee region
Separate controls for + and – going
edges
BBC
ON
4{v} 5{w}
2
1{v} 2{w}
2
31
ON
5
OFF
0
+10
0
(R+G)/2
Film/Cam MAINTENANCE :GAIN,AUTO IRIS
Item
LOW GAIN
MID GAIN
HIGH GAIN
A.IRIS LEVEL
A.IRIS PEAK/AVE
A.IRIS WINDOW
IRIS MODE
IRIS GAIN
Range
-6~18dB
-6~18dB
-6~18dB
0~100
0~100
NORM1,NORM2,
CENTER
CAM/LENS
Factory
50
50
NORM1
LENS
6
Range
Factory
0~36dB
9
6
6
6
11
2
2
10
0.55
0
0
0
OFF,6dB,12dB,15dB,2
0dB
BBC
-6{v} -3{w}
-3{v} 0{w}
0{v} -3{w}
100
100
NORM1
Super gain setting
Film/Cam MAINTENANCE :S.GAIN1,2 and 3
Item
TOTAL GAIN
ANA GAIN
PIX MIX
V MIX
FRAME MIX[C]
H DTL LVL
CRISP
LVL DEPENDENT
PEAK FREQUENCY
M.GAMMA
M.PED OFFSET
R.PED OFFSET
B.PED OFFSET
description
Only gain is set, unlike the 27F.
Button on controller cycles these
and Supergain settings
Aim point and peak/mean ratio,
set to work only on peak white
Most of pic, most except top strip,
centre area
Auto iris control at camera or lens
description
Indication of total gain, no control
Analogue extra gain
Gain by adding pixels horizontally
And vertically
And frame-to-frame[C]
Same detail controls as for normal
use, not set
Black level offsets to fight noise
Varicam stuff
Film/Cam MAINTENANCE :FRAME MODE
Item
SCAN REVERSE
FRAME RATE RANGE[F]
FRAME RATE[F]
Range
ON,OFF
60-6,60-4[F]
60-4
Factory
OFF
60-6[F]
60
description
Inverts picture for lens adaptors
Camera rate, Film menu only, not
in Camera mode
Factory
A
0
0
0
0
0
0
0
0
0
0
0
0
description
Two user tweakable matrices
Settings for matrix A
Range
A,B
-31~31
-31~31
-31~31
-31~31
-31~31
-31~31
-31~31
-31~31
-31~31
-31~31
-31~31
-31~31
Settings for matrix B
Range
-63~63
-63~63
-63~63
-63~63
-63~63
-63~63
-63~63
-63~63
-63~63
-63~63
-63~63
-63~63
Factory
0
0
0
0
0
0
0
0
0
0
0
0
3
BBC
0{v} +7{w}
0{v} +17{w}
0{v} +7{w}
0{v} -6{w}
0{v} -6{w}
0{v} 0{w}
0{v} +9{w}
0{v} +7{w}
0{v} +16{w}
0{v} +12{w}
0{v} 0{w}
0{v} 0{w}
More colour stuff
Film/Cam MAINTENANCE :COLOR CORRECTION1
Item
R (Sat)
R (Phase)
Mg (Sat)
Mg (Phase)
B (Sat)
B (Phase)
Cy (Sat)
Cy (Phase)
G (Sat)
G (Phase)
Yl (Sat)
Yl (Phase)
BBC
OFF
60-4[F]
25[F]
Colour stuff
Film/Cam MAINTENANCE :MATRIX
Item
Matrix Table
Matrix R-G
Matrix R-B
Matrix G-R
Matrix G-B
Matrix B-R
Matrix B-G
Matrix R-G
Matrix R-B
Matrix G-R
Matrix G-B
Matrix B-R
Matrix B-G
BBC
description
Adjusts colour
in 45 degree
segments,
tweaks
saturation
and hue.
These
segments
interleave
those
in
Color Correction 2.
BBC
+30{v} -20{w}
0{v} +8{w}
+30{v} +35{w}
0{v} 0{w}
+30{v} -29{w}
0{v} +13{w}
+30{v} +15{w}
0{v} -4{w}
+30{v} +13{w}
0{v} -10{w}
+30{v} -27{w}
0{v} -29{w}
More colour stuff
Film/Cam MAINTENANCE :COLOR CORRECTION2
Item
R-Mg (Sat)
R-Mg (Phase)
Mg-B (Sat)
Mg-B (Phase)
B-Cy (Sat)
B-Cy (Phase)
Cy-G (Sat)
Cy-G (Phase)
G-Yl (Sat)
G-Yl (Phase)
Yl-R (Sat)
Yl-R (Phase)
Range
-63~63
-63~63
-63~63
-63~63
-63~63
-63~63
-63~63
-63~63
-63~63
-63~63
-63~63
-63~63
Factory
0
0
0
0
0
0
0
0
0
0
0
0
Range
Factory
Range
-3,-2,-1,OFF,1,2,3
ON,OFF
YPbPr,RGB
ON,OFF
Factory
OFF
OFF
YPbPr
OFF
0m
OFF
OFF
0
OFF
OFF
ON
VIDEO
60
Film/Cam SETTING
description
Adjusts colour
in 45 degree
segments,
tweaks
saturation
and hue.
These
segments
interleave
those
in
Color Correction 1.
Route to other menus
Item
MODE
SHUTTER
H.PHASE
description
ON,OFF
OFF,ON,BAR
0,1,2,3
OFF,A,B
ON,OFF
ON,OFF
VIDEO/FILM
59.94,60
description
BBC
Same as 27F +2{v} OFF{w}
Default colour balance, D65/P3100
OFF
Control panel outputs
YPbPr
Syncs on Y or G
ON
Video cable equalisation
0
Doesn’t seem to work
OFF
Cam ID shown on Bars
BAR
Where ID is shown on screen
0
Colour matrix
OFF{v} A{w}
ON
Shows ABB/AWB working
ON
Changes menu contents VIDEO{v} FILM{w}
Power OFF then ON to activate
60
Basic settings
Film/Cam SETTING :SHUTTER
Item
SHUTTER MODE
SHUTTER SPEED
SYNCHRO SCAN
Range
OFF,ON,SYNCHRO
1/100,1/120,1/250,1/50
0,1/1000,1/2000{C}
1/100,1/120,1/250,1/50
0,1/1000,1/2000,180deg
,172.8deg,144deg,120d
eg,90deg,45deg{F}
1/44.7~1/7500[C]
3deg~350deg[F]
Factory
OFF
description
239.3
Basic settings
Range
Factory
7
32
description
Range
Factory
0
description
Enter camera ID, only if CAM ID
Mode is ON in SETTING:MODE
BBC
Setup files
Film/Cam FILE MENU
Item
FILE
SAVE FILE?
SAVE
BBC
7
32
Camera name
Film/Cam CAM ID
Item
ID
BBC
ON
Degree settings available only in Film
menu
1/100
Film/Cam SETTING :H.PHASE
Item
H.PHASE COARSE
H.PHASE FINE
BBC
Basic settings
Film/Cam SETTING :MODE
Item
BLACK STRETCH
D5600K [F]
ANLG OUTPOUT SEL
OUTPUT SYNC SEL
CABKLE COMPE
SUPER GAIN
CAM ID Mode
CAM ID POSi
MATRIX TABLE
COLOR CORRECT
STATUS
MENU SEL
SYSTEM FREQ
BBC
+30{v} -5{w}
0{v} -25{w}
+30{v} 0{w}
0{v} 0{w}
+30{v} 0{w}
0{v} 0{w}
+30{v} 0{w}
0{v} 0{w}
+30{v} 0{w}
0{v} 0{w}
+30{v} 0{w}
0{v} 0{w}
Range
Factory
4
description
Report current file name
Enter file name, up to five?
And save it
BBC
