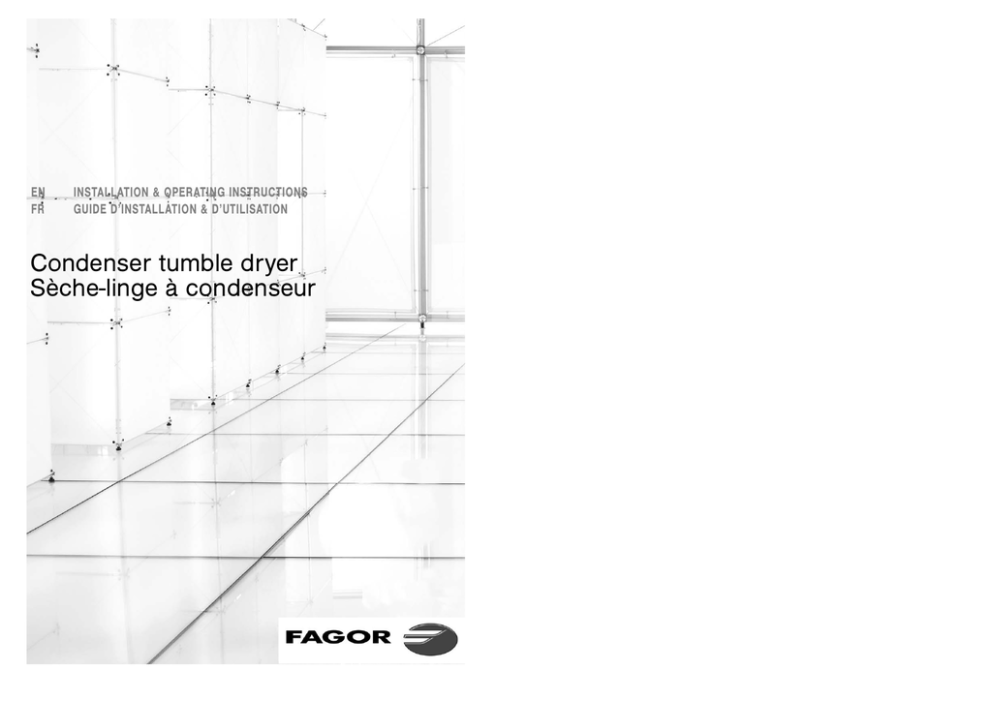

INSTALLATION & OPERATING INSTRUCTIONS
GUIDE D’INSTALLATION & D’UTILISATION
Condenser tumble dryer
Sèche-linge à condenseur
EN
EN
CONTENTS
1 / FOR THE USER’S ATTENTION
•IMPORTANT SAFETY INSTRUCTIONS
1 / FOR THE USER’S ATTENTION
• Important safety instructions ______________________________
• Energy savings ________________________________________
2 / DESCRIPTION OF YOUR APPLIANCE
• General presentation of the tumble dryer ____________________
3 / INSTALLING YOUR TUMBLE DRYER
• The appliance’s surroundings ____________________________
• Levelling ______________________________________________
• Built-in installation ______________________________________
• Combined washer/dryer installation ________________________
• Modifying the door opening direction ______________________
• Electrical connection ____________________________________
• Replacing the electric power cable ________________________
4 / PREPARING YOUR ITEMS
• Checking the condition of your textiles______________________
• Inserting the items in the drum ____________________________
5 / OPERATING INSTRUCTIONS AND PROGRAMMING
• Presentation of the control panel __________________________
• Programming a drying cycle ______________________________
• Your drier’s programs ____________________________________
6 / USER-MAINTENANCE INSTRUCTIONS
• Cleaning the filter ______________________________________
• Emptying the condensation container ______________________
• Direct evacuation of water condenser ______________________
• Cleaning the condenser __________________________________
• Cleaning the appliance __________________________________
7 / TROUBLESHOOTING ______________________________________
8 / AFTER-SALES SERVICE ____________________________________
• Changing the bulb ______________________________________
WARNING :
3
5
6
7
8
8
9
9
10
10
11
11
12
12
16
17
17
18
19
19
20
21
21
To reduce the risk of fire, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following :
— Read all instructions before using the appliance.
— Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off
vapours that could ignite or explode.
— Do not allow children to play on or in the appliance. Close supervision of children is necessary
when the appliance is used near children.
— Before the appliance is removed from service or discarded, remove the door to the drying compartment.
— Do not reach into the appliance if the drum is moving.
— Do not install or store this appliance where it will be exposed to the weather.
— Do not tamper with controls.
— Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in the user-maintenance instructions or in published user-repair instructions that
you understand and have the skills to carry out.
— Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
— Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
— Clean lint screen before or after each load.
— Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.
— The interior of the appliance should be cleaned periodically by qualified service personnel.
— Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could cause a load to catch fire.
•Grounding instructions
— This appliance must be grounded. In the event of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current.
— This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING :
Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service representative or personnel if you are in
doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance: if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
Warning :
Please read the user guide carefully before turning on your appliance so that you can
learn how to use it as quickly as possible.
2
SAVE THESE INSTRUCTIONS
3
EN
EN
1 / FOR THE USER’S ATTENTION
Important :
•Children’s safety
— This appliance must only be used by adults.
Do not let children play with the appliance and
keep pets away from it.
— Keep young children away from the
appliance when it is operating.
— Keep the packaging materials out of children’s reach (e.g.: plastic bags, polystyrene,
etc.) because they can be dangerous for children : risk of suffocation.
— This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they are
supervised or instructed concerning use of
the appliance by the person responsible for
their safety.
Keep these operating instructions with
your appliance. If you should sell your
machine or give it to someone else, ensure
that the operating instructions are provided.
Please take note of these safety instructions
before installing and using your appliance.
They have been written for your safety and
that of others.
•SAFETY INSTRUCTIONS
•Installation
— When you receive the appliance, unpack it or
have it unpacked immediately. Check that it
has not suffered any damage during transport. Express any reservations in writing on
the delivery slip and keep a copy.
Never connect a damaged appliance.
If your appliance is damaged, please contact
your dealer.
— Before connecting your appliance, please
refer to the installation instructions.
— Your tumble dryer must be kept disconnected from the mains supply throughout the
whole installation process.
— The electrical connection details shown on
your appliance’s information plate must match
those of the local mains supply.
— Once your appliance has been installed, the
electrical plug must remain accessible.
— Do not alter or try to alter the appliance’s
characteristics. This could be dangerous.
— If your installation requires alteration, only
entrust the electrical and plumbing work to
qualified electricians and plumbers.
— The appliance must not be installed behind a
locking door, a sliding door or a door with hinges on the opposite side to those on the dryer.
— Your appliance is designed for normal
domestic use. Do not use it for commercial or
industrial purposes or for any purpose other
than the one for which it has been designed
1 / FOR THE USER’S ATTENTION
— Substances contained in soiling such as oil, acetone, alcohol, petrol, kerosene, stain removers,
turpentine or wax must be removed before drying in your machine (by using an adapted warm water
washing programme with additional detergent for example).
— Precautions for using stain-removing products : any preliminary treatment by solvent, stain-remover, aerosol, such as acetone, alcohol, gasoline, kerosene, térébentine is prohibited because these
products are very inflammable. If your laundry requires this type of treatment, this must be done
before washing. Similarly, we recommend that you do not use these products near to the dryer or,
in general, near any electrical appliance in a poorly ventilated room in order to avoid any risk of an
explosion.
— If any incidents occur, which you cannot resolve using the troubleshooting advice we provide (see
“TROUBLESHOOTING”), contact our Technical Service Center.
— Before disposing of your worn-out appliance, make it unusable. Unplug and cut off the power
cable flush with the appliance and make the door lock inoperable.
— For your safety’s sake, if you wish to change your appliance’s power cable, contact a qualified
electrician.
— If any operating anomalies occur, disconnect your appliance and call our Technical Service
Center.
•Use
Important :
Your tumble dryer is designed for
domestic use only, for drying textiles suitable
for tumble drying.
Important :
You must observe the following instructions. We decline any responsibility and rescind the guarantee if these recommendations
are ignored : failure to observe them can
result in material damage and physical injury.
•ENERGY SAVINGS
— Spin your textiles at high speeds ; the residual dampness will be low, as will your energy
consumption. Even synthetic textiles must be spun before drying.
— Place the maximum load in your machine ; this will optimize the energy used. When doing so,
comply with the indications on volume provided in this instruction manual.
— The drying time and the energy consumption are both increased by a high ambient temperature
and too small a room.
— Clean the filter after each drying cycle.
— Clean the condenser twice a month.
— Use your appliance in accordance with its
method of use, thereby avoiding injury to yourself and damage to your items. Do not use solvents in the appliance (risk of fire and explosion).
— Strictly comply with the care instructions on
your laundry.
— If you have to open the door of the drum
during the drying cycle, ensure that you do not
touch the drum immediately, as it is very hot.
4
5
EN
EN
2 / DESCRIPTION OF YOUR APPLIANCE
3 / INSTALLING YOUR TUMBLE DRYER
• THE APPLIANCE’S SURROUNDINGS
• GENERAL PRESENTATION OF THE TUMBLE DRYER
Advice :
Your tumble dryer releases heat. If you place it next to another appliance or a unit, we
advise you always to leave a space in-between to assist in air circulation (Fig. 02).
Important :
B
0.4 inches minimum
1 cm mini
We strongly advise against :
— Installing your appliance on a carpeted floor.
If you cannot avoid this, take all possible measures not to obstruct the circulation of air at
its base.
— Installing your dryer in a location where it
can be subject to being splashed with water.
— Installing your dryer in a small closed room
(if this is the case, open the door or the window during drying)
— Installing your dryer in a poorly ventilated
room. The temperature in the room must
remain below 30°C during drying.
A
E
D
• LEVELLING
C
Fig. 01
Fig. 02
F
Important :
Use a level to check that the appliance
is horizontal :
A
Control panel
B
Condensate container
C
Condenser grill
D
Filter
E Information plate (Reference for
After-Sales)
F
Adjustable feet
Your dryer is fitted with 4 adjustable feet
(Fig.03). To adjust the stability and levelness :
— Tip it slightly backwards
— Screw one or more of the feet in or out using
a spanner or a screwdriver to adjust their
height to suit the shape of the floor (Fig.03)
— Set your dryer back on its feet and check
that it is stable.
Fig. 03
6
7
EN
3 / INSTALLING YOUR TUMBLE DRYER
• IMPORTANT SAFETY INSTRUCTIONS
•Grounding instructions
— This appliance must be grounded. In the event of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current.
— This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
EN
3 / INSTALLING YOUR TUMBLE DRYER
• COMBINED WASHER/DRYER INSTALLATION
An adaptation kit is available from your dealer. This is used to mount your tumble dryer above your
washing machine.
Important :
Check with your dealer that the kit is compatible with your washing machine. For safety reasons, fitting must be performed by a qualified professional.
WARNING :
Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service representative or personnel if you are in
doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance: if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
• MODIFYING THE DOOR OPENING DIRECTION
If you wish, you can alter the direction the door opens as follows (Fig. 04 or 05).
SAVE THESE INSTRUCTIONS
— Remove the 4 screws in the front panel holding the hinges A and B
.
— Reverse the hinge A and fasten it back on.
— Refit the door on the hinge A .
— Reverse the hinge B and fasten it back on.
— Reverse the positions of the lock F and the cover E on the machine’s front.
— Reverse the positions of the bolt C .
E
• BUILT-IN INSTALLATION
F
F
E
B
A
C
C
Important :
If you are fitting the appliance underneath a worktop, you must either keep the original
laminated top, or replace it with a slimmer version using a kit available for this purpose from your
dealer. For safety reasons, the appliance must never be operated without a top.
B
Fig. 04
8
A
Left-hand Door
Fig. 05
9
Right-hand door
EN
3 / INSTALLING YOUR TUMBLE DRYER
EN
4 / PREPARING YOUR ITEMS
• CHECKING THE CONDITION OF YOUR TEXTILES
• ELECTRICAL CONNECTION
The dryer must be installed in accordance with all local codes or, in the absence of a local code :
— in the U.S.A., in accordance with the National Electric Code, ANSI/NFPA 70 - latest edition/State
and Municipal codes and/or local codes.
— in Canada, in accordance with the Canadianl Electric Code, C22.1 - latest edition/Provincial and
Municipal codes and/or local codes.
Danger :
To make the electrical connection to your appliance :
— Do not use an extension, an adapter, a multiple socket or a programmable timer.
— The plug must be easily accessible but be out of children’s reach.
— If there's any doubt about the condition of your installation, contact your installer or a qualified
Brandt-approved professional.
— Never eliminate the electrical Earthing system.
Advice :
Important :
Do not tumble-dry the following
articles :
If, before you insert your clothes in the
tumble dryer, you notice any stains, even
after washing, do not dry the items concerned. As a general rule, stains that have been
ironed or tumble-dried can no longer be
removed.
Please refer to the instructions for treating
stubborn stains provided in most washing
machine instruction manuals and, in particular, wash the stained items again.
— Clothing including rubber like materials (for
example: shower caps, waterproof clothing
and textiles, linings, pillows etc.)
— Chlorofibres (Thermolactyl* for example)
*Registered trademark
— Items containing underwiring that could
become detached
— Bulky items (duvets, eiderdowns, etc...)
— Laundry that has not been spun
— Laundry cleaned with inflammable chemicals.
• Preparing your items :
The Dryer comes with a 16AWG Cord and NEMA 6-15P plug
It should be connected to a 240V, 15A, 60Hz AC 2 Phases + wire grounding power outlet (NEMA
6-15R) is necessary.
— Close all zippers and snap buttons.
— Remove any loose buttons, pins or hook
fasteners.
— Knot any belts, apron strings, etc...
— Empty pockets.
We cannot be held responsible for any incident caused by poor electrical installation.
— Always adhere to the manufacturer's instructions when using softening products.
Important :
Check the labels on your textiles
Normal
drying
Do not tumble dry
• REPLACING THE ELECTRIC POWER CABLE
• INSERTING YOUR ITEMS IN THE DRUM
Important :
To ensure your safety, this must be carried out by the manufacturer's after-sales service
team or a qualified professional.
Advice :
In order to easily find your appliance’s reference numbers in the future, we recommend
that you note them down on the “After-Sales Service and Consumer Relations” page (this page
also explains where to find these on your appliance).
Your appliance complies with UL 2158 (Electric clothes Dryer).
— Open the door by pushing (press where the
label is) (Fig. 06).
— Check that the filter is in its housing .
— Insert washed and spun clothes loosely in
the drum without folding it or piling it up.
— Take care not to let any fabrics get caught in
the door.
— Close the door.
• Recommended volumes :
The maximum capacity of the dryer is 8 kg.
— To reduce creasing and optimize drying
times, we recommend you do not overload
the machine.
Fig. 06
10
11
Gentle
drying
EN
EN
5 / OPERATING INSTRUCTIONS AND PROGRAMMING
5 / OPERATING INSTRUCTIONS AND PROGRAMMING
Pause
Pause
WARNING :
• Delaying a program’s start :
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.
Pause
Stop
+
-
A
A
B
C
D E F G
H
E
Delay timer “-”
Delay timer “+”
G Start/Pause
H On/Off
Programs dial
Anti-creasing
C Beeper
D Extra drying time
B
Delay Timer
Select your program using the program dial
A . The indicator light shows you the program
you have selected.
Press the ”Delay timer +” button F to delay
the start of your program thirty minutes at a
time until you reach the desired delay time
(max 23 ½ hours). To decrease the differed
starting time, press the “Delay timer -” button
E .
Confirm by pressing the “Start/Pause” button
G.
The display shows you how much time
remains before your program starts.
Once the time delay has expired, the program
actually starts. The screen tells you the time
remaining, which becomes more precise as
the drying cycle progresses.
• PRESENTATION OF THE CONTROL PANEL
Anti-creasing
Beeper
Delayed start
Pause
Program progress
Pause
Stop
P
+
Stop
Delay Timer
-
Delay Timer
Anti-creasing
Anti-creasing
Beeper
Extra Drying
Time
Beeper
Extra Drying
Time
Pause
Ant
Stop
Delay Timer
Anti-creasing
Extra Drying
Time
Beeper
Pause
Ant
Stop
Delay Timer
Anti-creasing
Extra Drying
Time
Beeper
Pause
Pause
An
Stop
Stop
Delay Timer
Delay Timer
• Adding or removing an item during
drying :
Anti-creasing
Anti-creasing
Press “Start/Pause” G to interrupt drying or
open the door.
Insert or remove the item or items and close the
door.
Press the “Start/Pause” button G to resume
drying.
• PROGRAMMING A DRYING CYCLE
Check that the power cable is plugged in. The
appliance will not start unless the door is properly closed.
Press the “On/Off” button H .
Select your program (see the table “Your
dryer’s programs” on the following pages) by
turning the programs dial A (it turns in both
directions). The indicator light shows you the
program you have selected.
Press “Start/Pause” G and the program will
start.
The screen tells you the time remaining,
which becomes more precise as the drying
cycle progresses.
Extra Drying
Time
Time remaining until drying cycle begins
F
• Starting the appliance :
Stop
Stop
Beeper
Extra Drying
Time
Extra Drying
Time
Beeper
An
Program stop
Pause
Stop
Time remaining
+
Delay Timer
Pa
-
An
Anti-creasing
Beeper
Extra Drying
Time
Anti-c
P
Pause
Pause
Stop
Stop
+
Delay Timer
• Altering programming or drying
during operation :
-
Time remaining
Anti-creasing
Beeper
Extra Drying
Time
Stop
Stop
Pause
Delay Timer
Anti-creasing
Beeper
Beeper
Extra Drying
Time
Pause
Extra Drying
Time
Stop
Pause
Stop
Delay Timer
Anti-creasing
An
If you have entered the wrong program, you
can change your selection during the cycle.
Press “Start/Pause” G to interrupt drying.
Select another program using the program
dial.
Press the “Start/Pause” button G to resume
drying.
Pause
Pause
Anti-
P
Stop
Delay Timer
Anti-creasing
Pause
Beeper
Anti-c
Extra Drying
Time
Pause
Stop
Delay Timer
Delay Timer
Anti-creasing
Anti-creasing
Beeper
Pause
Extra Drying
Time
Anti-creasing
Stop
• “ MEMO ACTIV’ ” function :
Pause
Beeper
Stop
Delay Timer
Your dryer remembers the programs that you
use most often.
After a few drying cycles, the program displayed when you switch on your machine is the
one that you have used most often.
Anti-creasing
Beeper
Extra Drying
Time
Extra Drying
Time
Delay Timer
Anti-creasing
Beeper
Extra Drying
Time
Advice :
Pause
Stop
Consult the Programs table on the next page to determine the program needed for the
type of items being dried.
Pause
Stop
Delay Timer
12
Anti-creasing
Beeper
Extra Drying
Time
Delay Timer
Anti-creasing
Beeper
Extra Drying
Time
13
Anti-creasing
Extra Drying
Time
Beeper
Pause
Pause
EN
Stop
Stop
5 / OPERATING INSTRUCTIONS AND PROGRAMMING
EN
Delay Timer
Pause
Anti-creasing
Beeper
Pause
Stop
Pause
Pause
Stop
Anti-creasing
Pause
Anti-creasing
Pause
Beeper
Pause
Stop
Pause
Anti-creasing
Extra Drying
Time
Beeper
Pause
Stop
Stop
Pause
Anti-creasing
Stop
Stop
Pause
Anti-creasing
Pause
Pause
Extra Drying
Time
Stop
Delay Timer
Stop
Delay Timer
Extra Drying
Time
Stop
Anti-creasing
Beeper
Anti-creasing
Important :
Stop
Anti-creasing
Pause
Pause
Anti-creasing
Stop
Stop
Pause
Extra Drying
Time
Beeper
Pause
Stop
DelayTimer
Timer
Delay
Stop
The “Anti-creasing” option fluffs the textiles
every 10 minutes for up to 24 hours, until the
door is opened or the machine is turned off.
It begins as soon as the drying finishes and
prevents the clothes from settling in the
machine. To select this function, press the
“Anti-creasing” B . An indicator lights up to
show that this option has been activated.
Anti-creasing
Anti-creasing
Beeper
Beeper
Anti-creasing
“Anti-creasing” option
Pause
Anti-creasing
Beeper
Anti-creasing
Beeper
Pause
Delay Timer
Stop
Stop
Pause
Pause
Anti-creasing
Extra Drying
Time
Extra Drying
Time
Stop
Anti-creasing
Anti-creasing
Delay Timer
Delay Timer
-
Anti-creasing
Anti-creasing
Extra Drying
Time
Delay Timer
Beeper
Beeper
Beeper
Extra Drying
Extra Time
Drying
Time Pause
Extra Drying
Time
Pause
Beeper
Pause
Stop
Stop
Beeper
Anti-creasing
Beeper
Pause
Pause
Anti-creasing
Anti-creasing
Beeper
Pause
Pause
Beeper
Beeper
Beeper
Extra Drying
Time
Anti-creasing
Stop
Beeper
Anti-creasing
Beeper
Beeper
Stop
+
Delay Timer
Delay Timer
-
Anti-creasing
Beeper
Extra Drying
Time
Extra Drying
Time
The ”Tank Full” light illuminates.
Pause
Stop
Pause
Pause
Stop
Stop
Delay Timer
Delay Timer
Delay Timer
Anti-creasing
Extra Drying
Time
Beeper
Anti-creasing
Beeper
Pause
Stop
Extra Drying
Time
Extra Drying
Time
Anti-creasing
Beeper
Extra Drying
Time
Stop
Pause
St
Stop
Extra Drying
Time
Extra Drying
Time
Extra Drying
Time
Pause
Delay Timer
Stop
Pause
Anti-creasing
Anti-creasing
Beeper
Pause
Stop
Pause
Pause
Pause
Pause
Stop
Stop
Pause
Stop
Delay Timer
Delay Timer
Pause
Delay Timer
Stop
Pause
+
Stop
Pause
Anti-creasing
Anti-creasing
Beeper
Beeper
Anti-creasing
Beeper
Beeper
Delay TimerBeeper
Anti-creasing
Extra Drying
Time
Anti-creasing
Beeper
Delay Timer
-
Extra Drying
Time
Anti-creasing
Beeper
Extra Drying
Time
Pause
Anti-creasing
Extra Drying
Time
Stop
DelayTimer
Timer
Delay
ExtraDrying
Drying
Extra
Time
Time
Extra Drying
Time
Stop
Stop
Stop
Delay Timer
Extra Drying
Time
Extra Drying
Time
Beeper
Delay Timer
Anti-creasing
Extra Drying
Time
Extra Drying
Time
Beeper
Anti-creasing
Delay Timer
Beeper
Pause
Delay Timer
Extra Drying
Time
Pause
Stop
Delay Timer
Extra Drying
Time
Extra Drying
Time
Stop
Stop
Anti-creasing
“Beeper” option
Beeper
Time
Stop
Stop
Pause
Stop
Extra Drying
Time
Beeper
Pause
Beeper
Anti-creasing
• “Beeper” option :
Press the “Buzzer” button C . At the end of
drying, three beeps will sound every 10 minutes for one hour until the door is opened or
the appliance is stopped. The indicator light
corresponding to this option lights up at the
bottom of the screen, indicating that the buzzer is activated.
Anti-creasing
Delay Timer
Pause
Stop
Stop
Delay Timer
Extra Drying
Time
Extra
Drying
Delay Timer
Stop
Delay Timer
Stop
Stop
Delay Timer
Anti-creasing
Pause
Pause
Pause
Program
stop
Stop
Delay Timer
Delay Timer
Extra Drying
Time
Stop
Pause
Extra Drying
Time
Stop
Pause
Beeper
Pause
Anti-creasing
Stop
Pause
Delay Timer
Anti-creasing
Beeper
Pause
Stop
Anti-creasing
Pause
-
Extra Drying
Time
Stop
Pause
Delay Timer
Extra Drying
Time
Stop
Pause
Anti-creasing
Stop
Beeper
Delay Timer
Extra Drying
Time
Pause
Stop
Your tank is
full during the
drying cycle.
The appliance stops during the program.
Delay Timer
The “Tank Full”
and “Pause” turns on, the
time remaining flashes.
Extra Drying
Proceed Anti-creasing
to empty your
water collection
tank
Beeper
Time
(see the “REGULAR MAINTENANCE” section).
Press “Start/Pause” G to restart your program.
Beeper
+
Stop
Stop
Beeper
Anti-creasing
Pause
Anti-creasing
Stop
Anti-creasing
Delay Timer
Anti-creasing
Extra Drying
Time
Beeper
Pause
Pause
Stop
Delay Timer
Beeper
Delay Timer
Stop
Pause
Stop
Stop
Extra
Drying
Extra
Drying
Time
Delay TimerTime
Extra Drying
Beeper
Time
Extra Drying
Time
Beeper
Pause
Delay Timer
Pause
Stop
Pause
Stop
Delay Timer
Stop
Pause
+
Delay Timer
Stop
Pause
Delay
Timer
Delay
Timer
Pause
Delay Timer
ExtraDrying
Drying
Extra
Time
Time
Anti-creasing
Beeper
Anti-creasing
Stop
Anti-creasing
• During the cycle :
Pause
Stop
Stop
Pause
Extra Drying
Time
Anti-creasing
Extra Drying
Time
Extra Drying
Time
Stop
Delay Timer
Extra Drying
Time
Beeper
Pause
Pause
Beeper
Beeper
Stop
Stop
Delay Timer
Stop
Stop
Anti-creasing
Anti-creasing
Pause
Pause
Delay Timer
Delay Timer
Stop
Pause
Pause
Stop
Stop
Delay Timer
Extra Drying
Extra Drying
Time
Time
Beeper
Beeper
Do not stop your dryer before this cycle
has finished.
Pause
Extra Drying
DelayTime
Timer
Beeper
Anti-creasing
Anti-creasing
Extra Drying
Time
Beeper
Extra Drying
Time
Beeper
Pause
Pause
Anti-creasing
Pause
Pause
Delay Timer
Delay Timer
Extra Drying
Time
Beeper
Extra Drying
Time
Delay Timer
Stop
Cooling cycle
Stop
Stop
Stop
Delay Timer
Stop
Pause
Beeper
The “Filter” and “TankAnti-creasing
Full” lights flash
Pause
Delay Timer
Pause
• “Anti-creasing” option :
Pause
Anti-creasing
Pause
Pause
Stop
Beeper
Pause
Pause
Delay Timer
Extra Drying
Time
Beeper
Extra Drying
Time
Stop
Stop
Delay Timer
Anti-creasing
Beeper
Beeper
All programs finish with a cooling cycle that
lasts for a few minutes to allow the washing to
cool gradually.
Pause
+
Extra Drying
Time
Beeper
Anti-creasing
Stop
Anti-creasing
Extra Drying
Time
Pause
• Cooling
cycle :
Delay Timer
- Delay Timer
Stop
Beeper
Stop
End of program
Extra Drying
Time
Stop
Delay Timer
Extra Drying
Time
Beeper
Pause
Stop
Delay Timer
Anti-creasing
Anti-creasing
Stop
Delay Timer
Stop
Stop
Pause
Stop
Delay Timer
Extra Drying
Time
Beeper
Pause
Pause
Delay Timer
Stop
Pause
Extra Drying
Time
Beeper
Stop
Stop
Pause
Stop
At the end of the program, the “Filter”
and “Tank Full”
lights flash alternately
to remind you that you must clean the filter
and empty the water collection tank after
every drying cycle :
Press the “On/Off”button H and empty your
drier.
Clean the filter and empty the water collection tank (see the “REGULAR MAINTENANCE” section).
Pause
Delay Timer
Pause
Anti-creasing
Anti-creasing
Pause
5 / OPERATING INSTRUCTIONS AND PROGRAMMING
Stop
Delay Timer
Delay Timer
Pause
• Stopping the appliance :
Pause
Stop
Extra Drying
Time
Beeper
Pause
Extra Drying
Time
Stop
Stop
Delay Timer
Delay Timer
Important :
Pause
Stop
Pause
Delay Timer
Pause
Anti-creasing
Stop
Beeper
Pause
Extra Drying
Time
Anti-creasing
Beeper
Extra Drying
Time
St
A power failure cancels the current program. In this case, you have to reset all the programming operations.
Stop
Delay Timer
Anti-creasing
Pause
Beeper
Extra Drying
StopTime
Anti-creasing
Extra Drying
Time
Beeper
Pause
Pause
Stop
Stop
Pause
Advice :
• “Additional Drying” option :
Pause
This function enables you to add drying time
at the end of a program in units of 10 minutes
by successively pressing the “Extra Drying
Time” button D .
Press the “Start/Pause” button. The additional drying time is added at the end of the
selected program.
Stop
Additional time
Pause
Pause
Stop
+
Stop
Pause
Stop
Timer
Delay Timer
As a safety measure, youDelayare
advised to unplug the power cable when you
are not using
the appliance.
Stop
Delay Timer
Anti-creasing
Beeper
Delay Timer
Anti-creasing
Beeper
Extra Drying
Time
Anti-creasing
Beeper
Pause
Pause
Extra Drying
Time
Pause
Anti-creasing
StopBeeper
Pause
St
Stop
Stop
Pause
Stop
Pause
Stop
Delay Timer
Delay Timer
Pause
Remarks :
The “Anti-creasing” and "Beeper" options remains selected from one program to the next. You
can simply press the button to deactivate these options, even during a program.
Anti-creasing
Extra Drying
Time
Beeper
Pause
Anti-creasing
Stop
15
14
Pause
Extra Drying
Time
Extra Drying
Time
Stop
Stop
Pause
Beeper
Extra Drying
Time
S
EN
EN
5 / OPERATING INSTRUCTIONS AND PROGRAMMING
• YOUR DRIER’S PROGRAMS
6 / USER-MAINTENANCE INSTRUCTIONS
• CLEANING THE FILTER
Important :
Regular programs
Type of textile
Drying results
Fig. 07
COTTON
Extra Dry
Cotton
Dry
Dry
Cotton
Dry
Damp Dry
Cotton
Slightly damp
Heavy Duty
Cotton
Damp
REGULAR TEXTILES
Dry
Regular textiles
Dry
Damp Dry
Regular textiles
Slightly damp
Other drying programs
Permanent Press
Delicates
Synthetic,
easy iron
Dry
Delicate, synthetic
Dry
Very delicate: silk, light
synthetic lingerie ...
Refreshing and airing your textiles after prolonged storage
Ultra Delicates
Air Dry
Air Dry - Wool
Please remember that the filter must
be cleaned after every drying.
Dry
Other textiles
15 minutes
Woollens already dry
6 minutes
The filter is located in the lower part of your
dryer.
Clean it as follows:
— Remove it from its housing by pulling it
upwards (Fig. 07)
— Open the filter (Fig. 08)
— Clean it by removing the thin coating of fluff
covering it (Fig. 09)
Fig. 08
Ensure that there is no fluff accumulating
round the dryer.
Important :
Do not wash filter with water (Fig. 10)..
— Re-insert it in its housing, pushing it well in.
Fig. 09
• EMPTYING THE CONDENSATION
CONTAINER
Fig. 10
This is located at the top of your appliance. It
collects the water extracted from your items
as they are dried.
— To empty it, release it from its housing by
pulling it towards you (Fig. 11).
Fig. 11
Important :
The condensation container must be
emptied after each drying cycle (Fig.12).
Important :
Risk of frost : if there is a risk of frost,
empty the condensation container.
Important :
Moving the appliance : empty the
condensation container if you wish to move
or tilt your appliance.
— Empty the container (Fig. 12).
16
Fig. 12
17
EN
EN
6 / USER-MAINTENANCE INSTRUCTIONS
• CLEANING THE CONDENSER
• DIRECT EVACUATION OF WATER CONDENSER
To avoid having to empty the collection tank every
time you use the appliance, you have a kit (*) for
removing the water from the condenser directly into
the drain (hose and deflector). To fit this :
— Take off the existing pipe and push it inside the
appliance (Fig. 13).
— Clip the deflector with the top of the pump (Fig. 14).
— Connect the hose from the kit to the end connector
on the appliance (Fig. 15)
6 / USER-MAINTENANCE INSTRUCTIONS
Important :
The condenser must be cleaned twice a
month.
Important :
Unplug the power cable from the socket
before cleaning the condenser.
— Open the grill at the front of the appliance.
— Release the condenser (Fig.18).
— Remove it carefully (Fig.19).
— Remove any fluff from the condenser.
— Clean it with water only under the tap (Fig.20).
— After cleaning, ensure that none of the tubes are
“blocked” and that the fins are clean.
— Rub it superficially.
— Re-insert the condenser and lock it in place. Close
the grill.
Fig. 13
You can connect the other end of the hose either :
- To a ventilated trap (Fig. 16).
- Or a sink trap (Fig. 17).
When connecting to a trap, you must remove the filler plug. Then press home the rubber tip. If necessary, add a clamp connection (Fig. 17).
Fig. 18
Fig. 19
Fig. 14
Important :
Fig. 20
The deflector must be positioned before the
drain hose connection to avoid any water splashes
when taking off the hose.
Important :
When refitting the condenser, ensure that it is pushed in firmly right to the back of its housing when locking it in
Fig. 15
• CLEANING THE APPLIANCE
Remarks :
(*) This kit is provided with the appliance
or is available near your After-sales service
under the ref. 57X3184 (according to model).
90 cm maxi
Advice :
Hose
Tuyau
Fig. 16
Insert
Encart
Deflector
Déflecteur
Fig. 17
18
To clean the control panel, the access to the
drum and the casing, use only a sponge or a damp
cloth and some soapy water.
— Ensure that there is no fluff accumulating round
the dryer.
— Clean the door seal with a damp cloth.
— Clean the filter housing with your vacuum cleaner
once a year.
You should not use, under any circumstances (Fig
21) :
— Abrasive powders
— Metal or plastic sponges
— Alcohol-based products (alcohol, thinners, etc.)
19
Fig. 21
EN
EN
7 / TROUBLESHOOTING
Advice :
Some incidents may arise when you are using your dryer. Here are the points you should
check.
Fault :
The dryer does not start :
Check whether :
- The plug is in the socket
- The On/Off button is pressed in
- The door is properly closed
- The condenser is correctly locked in place.
The drying times are too long :
- The filter in the drum is clogged with fluff
- The laundry has been spun enough beforehand
(500rpm minimum, but spinning at 850rpm provides
better drying times)
- The condenser is not clogged.
- The air inlets and outlets are unobstructed enough to
ensure correct air circulation.
- The drying program selected matches the type of
items in the drum.
The laundry is too damp :
- The filter in the drum is clogged with fluff
- The type of drying has been selected correctly (too
low) : switch to the next programme up or increase
the drying time.
- The condenser is not blocked by fluff.
The laundry is too dry, too creased : - The drying time selected is too long : the drying time
is better to be too short than too long: this avoids the
laundry becoming too dry and difficult to iron.
The items are unevenly dried :
- The types of textiles in the load are too different (e.g.
sheets together with jeans)
- The laundry has been laid correctly ‘unfolded’ in the
dryer
- The drum is not overloaded.
The synthetic items are loaded with - The laundry has been dried too much
static electricity :
- You have used softener during washing. By using this
product, you can reduce most of the problems with
static electricity.
The “Tank Full” indicator light is lit :
The “Tank Full” indicator light illuminates although the tank is empty :
- The condensate container is full : once you have emptied it, re-insert it correctly, pushing it completely into
its housing
- Check whether the container has been properly inserted: push it in completely.
- Check if the condenser is tightly locked on the two
sides.
20
8 / AFTER-SALES SERVICE
• INTERVENTIONS
Any work on your appliance must be performed by a brand approved qualified professional. When you call, mention your appliance’s
full reference (model, type, serial number).
These details are shown on the manufacturer’s
information plate (Fig. 22).
ORIGINAL PARTS
During any maintenance work, ask that only
certified original replacement parts be used.
Fig. 22
• CHANGING THE BULB
You can replace the light bulb (type E1415W/230V) yourself (Fig. 23).
Important :
Unplug the power cord before changing the bulb.
To do this :
— Unscrew the glass cover located to the left
inside the appliance.
— Unscrew the extinguished bulb and replace it.
— Screw on the glass cover tightly.
Fig. 23
Important :
The bulb must be replaced when the
appliance is cooled down.
21
B7311A - 06/08
SFA-8CE - SFA-8CELX

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
