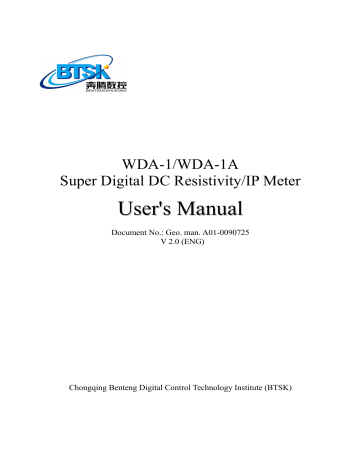

BTSK WDA-1/WDA-1A
WDA-1/WDA-1A
Super Digital DC Resistivity/IP Meter
User's Manual
Document No.: Geo. man. A01-0090725
V 2.0 (ENG)
Chongqing Benteng Digital Control Technology Institute (BTSK)
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
S TATEMENT
Thanks for purchasing BTSK WDA-1/WDA-1A Super Digital DC
Resistivity/IP Meter!
In order to have the system work at its best efficiency, please read this user’s
manual carefully before operation and please pay special attention to the
items marked “Note”, “Warning” or “Precaution”.
All contents of this document are under the protection of copyright laws.
This manual may not be copied in whole or in part or reproduced in any
other media by any organization or individual without written permission of
BTSK.
BTSK undertakes responsibilities only within its warranty claims. We will
not assume obligations on the possible losses in the process of using our
products. Any dispute arising wherefrom shall be settled in accordance with
applicable laws of People’s Republic of China.
The information, figures, tables, specifications and schematics contained
herein are subject to change without notice.
Page
1
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
PRECAUTIONS
1) Every time before field survey, please ensure that the WDA-1/WDA-1A main
frame and the pocket PC (hereafter also referred to as PDA) have enough
power. If power is not enough, recharge them in time; and that,
2) Current electrodes A, B, potential electrodes M, N should be correctly and
well connected. As to WDA-1, another DC high voltage input port should be
correctly connected (red for positive end and black for negative end). Prohibit
misconnecting A, B, M, N ports and DC high-voltage input ports.
3) When working in the pole-pole array configuration or Dipole-pole array
configuration, connect the infinity Current electrode to the “B(∞)” port on
WDA-1/WDA-1A main frame.
4) There are two options of power source for WDA-1A main frame, namely,
external DC high voltage and internal high voltage. If both power sources give
power supply, WDA-1A will choose the one as it power source whose output
voltage range is wider.
5) Since output current of WDA-1A internal high voltage is small, it is
recommended to do resistivity survey; however, for induced polarization
(chargeability) survey, external DC high voltage power source is
recommended.
6) If WDA-1/WDA-1A is used together with WDZJ-3 Multiplex Electrode
Converter, DC High Voltage is not allowed to be over 400V; if the main
frame WDA-1/WDA-1A is used with intelligent resistivity/IP cable, DC High
Voltage is not allowed to over 800V.
7) When taking the intelligent cable to conduct multi-electrode resistivity
imaging, the cross-borehole dipole array configuration needs the two cable
sockets (Socket 1 and Socket 2), and only one of the other fifteen electrode
array configurations could work with it.
8) Before commencing measurement of a new section, first set parameters
correctly.
9) If system clews “Over-current protection”, please cut off power supply of
WDA-1/WDA-1A main frame and check whether AB gets short-circuited.
10) When conducting multi-electrode resistivity imaging, grounding resistances of
two electrodes locating in a section should not vary too much. Please decrease
the grounding resistance as possible to favor power supply. If the surface soil
is too dry, water it to make sure the electrodes are well grounded.
11) Power source of WDA-1A main frame may be external DC high voltage or
internal high voltage. If both power sources give power supply, WDA-1A will
automatically choose the one as it power source whose output voltage range is
Page
2
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
wider.
12) WDA-1A is designed with a high voltage battery fuse to protect internal
circuit when output high voltage gets short-circuited. If the fuse breaks off
because of short-circuit, take off the fuse box cover to replace the 2A fuse
with a new one.
13) DO NOT store the instruments in a damp place or a gas-corrosive
environment for a long time. Storage temperature should also NOT be lower
than -20℃.
14) DO NOT conduct field survey in rainy days, especially when there are a lot of
water accumulating on the ground surface.
15) The WDA-1A mainframe can work with 8V rechargeable lithium battery and
high voltage power supply, rechargeable 48V lithium battery.
16) If the instruments are not to use for a long time, DO recharge it every three
month; otherwise, the lithium battery will discharge itself and thus damage the
battery. Recharge temperature range of the lithium battery is 0℃~45℃.
17) When conducting imaging with two-pole array configuration or three-pole
array configuration, connect the Current electrode to the “B(∞)” (on the front
panel of WDA-1/WDA-1A mainframe).
18) Under combined electrical profiling (3P-PREL) or combined electrical
sounding (3P-VES) configurations, the “B (∞)” port (on the front panel of the
mainframe WDA-1/WDA-1A) connects to the infinity electrode and while the
“3-Pole B” port (on the front panel of the mainframe WDA-1/WDA-1A)
connects to the Current electrode A or B.
19) Valid distance for the Bluetooth wireless communication is 10 meters. If it is
more than 10 meters, communication will fail, and the Bluetooth should be
paired once again.
20) In order to have WDA-1/WDA-1A main frame compatible with notebook PC
to control the data sampling, we provide each WDA-1/WDA-1A with a
Bluetooth USB adapter driver and a Bluetooth USB adapter. First the
Bluetooth USB adapter driver is installed in the notebook PC and then the
USB adapter inserts to the notebook PC through a USB port. Operation of the
system program is the same with that on the PDA. Please refer to Appendix D
to install the Bluetooth USB adapter.
Page
3
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
OVERVIEW
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter (hereafter also
referred to as WDA-1/WDA-1A system) is developed basing on years’ experience
of studying and manufacturing advanced electrical resistivity instruments. Its
leading technical characteristics and function are much superior to the instruments
of its kind worldwide.
It’s mainframe, WDA-1/WDA-1A super digital DC resistivity/IP meter, is a
newly developed electrical method instrument, adopting many advanced
technologies such as pocket PC, Bluetooth, 24bit A/D, and high power control. It
features compact size and lightweight. Its main performance and functions are
better than its similar products at home and abroad.
WDA-1/WDA-1A system can conduct,
a). General resistivity/IP survey, in association with only one/two Current
electrodes, one/two Potential electrodes, AB connecting wire, MN connecting
wire and power source. For this part, please refer to Section Three and Section
Four)
b). Multi-electrode 2D resistivity imaging when works together with WDZJ-3
Multiple Electrode Converter, power source, electrodes and corresponding
cables. For this section, please refer to Section Six.
c). Multi-electrode 2D resistivity imaging (in Section Seven), Multi-electrode
3D resistivity imaging (in Section Ten) and Multi-electrode 2D induced
polarization (IP) imaging (in Section Nine), in association with 10-take-out
intelligent cables, electrodes and power source.
WDA-1/WDA-1A can be applied in a variety of complex regions, energy resource
and city geophysical exploration, railway and bridge prospecting, metal and
non-metal mineral resources prospecting, city geophysical exploration, hydrology
and engineering geology to inspect base of dam and flood protection levee for
incipient faults. Besides, it contributes to geothermal survey.
Page
4
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
TABLE OF C ONTENTS
Statement ................................................................................................................ 1
Precautions ............................................................................................................. 2
Overview ................................................................................................................. 4
Table of Contents ................................................................................................... 3
Section One: Introduction To WDA-1/WDA-1A................................................ 6
1.2
Main Function and Features ........................................................................... 6
1.3
Configuration and Technical Specifications .................................................. 8
1.4
Front Panel .................................................................................................... 10
1.5
Power Source and Internal Battery ............................................................... 12
1.5.1 Power Source of WDA-1/WDA-1A ............................................................... 12
1.5.2 Internal High Voltage Battery (WDA-1A only) ............................................ 12
Section Two: General Operation Guide to Pocket PC (PDA) ......................... 14
2.1
General Operation......................................................................................... 14
2.3
Soft Reset ...................................................................................................... 14
2.4
Hard Reset .................................................................................................... 14
2.5
Turn On Bluetooth ........................................................................................ 15
2.6
Bluetooth Pairing .......................................................................................... 15
2.7
Battery Recharge .......................................................................................... 17
Section Three: General Resistivity & SP Survey.............................................. 19
3.1
Concept and Relevant Parameters ................................................................ 19
3.2
Program Main Interface ................................................................................ 20
3.3
Operation ...................................................................................................... 21
3.3.1 Turn on WDA-1/WDA-1A and Run System Program ................................... 21
3.3.2 Bluetooth Pairing.......................................................................................... 22
3.3.3 Create Survey Line ....................................................................................... 22
3.3.4 Set Schedule (Electrode Distance) ............................................................... 23
3.3.5 Measure ........................................................................................................ 24
3.3.6 Measure in Composite Electric Profiling Array (C-PRFL) ......................... 27
3.3.7 Display Waveform ........................................................................................ 28
Page
3
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
3.3.8 Open a Survey Line....................................................................................... 29
Section Four: General IP & SP Survey ............................................................. 30
4.1
Concept and Relevant Parameters ................................................................ 30
4.2
Program Main Interface of General IP & SP Survey Function .................... 34
4.3
Operation ...................................................................................................... 35
4.4 Differences Between Resistivity Survey and Induced Polarization (IP)
Survey .................................................................................................................... 35
Section Five: Field Survey Example ——General IP ...................................... 37
Section Six: Multi-Electrode 2D Resistivity Imaging (With WDZJ-3
/30-take-out Multi-Electrodes Cable) ................................................................ 41
6.1
Overview....................................................................................................... 41
6.2
WDZJ-3 Multiplex Electrode Converter ...................................................... 41
6.3
Operation ...................................................................................................... 45
6.3.1 Turn on WDA-1/WDA-1A and Run System Program ................................... 45
6.3.2 Pair Bluetooth ............................................................................................... 45
6.3.3 Set Parameter ............................................................................................... 45
6.3.4 Measure ........................................................................................................ 52
6.3.5 View .............................................................................................................. 54
6.3.6 Load Section ................................................................................................. 55
Section Seven: Multi-Electrode 2D Resistivity Imaging (With 10-Take-Out
Intelligent Cable) ................................................................................................. 56
7.1
Overview....................................................................................................... 56
7.2
Intelligent Resistivity/IP Cable ..................................................................... 56
7.3
Field Layout .................................................................................................. 57
7.4
Program Main Interface ................................................................................ 57
7.5
Operation ...................................................................................................... 58
7.5.1 Turn on WDA-1/WDA-1A and Run System Program ................................... 58
7.5.2 Pair Bluetooth ............................................................................................... 59
7.5.3 Set Parameter ............................................................................................... 59
7.5.4 Measure ........................................................................................................ 65
7.5.5 View .............................................................................................................. 67
7.5.6 Load Section ................................................................................................. 67
Page
4
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Section Eight: Field Survey Example — 2D Res (With 10-Take-Out
Intelligent Cable) ................................................................................................. 68
Section Nine: Multi-Electrode 2D IP Imaging (With 10-Take-Out Intelligent
Cable) .................................................................................................................... 74
9.1
Overview....................................................................................................... 74
9.2
Differences Between 2D Res Imaging and 2D (IP) Imaging ....................... 74
9.2.1 Intelligent IP Cable....................................................................................... 74
9.2.2 Parameter Setting for New Cross Section .................................................... 75
9.2.3 Power Supply Mode ...................................................................................... 76
9.3
Operations ..................................................................................................... 77
Section Ten: Multi-Electrode 3D Resistivity Imaging (With 10-Take-Out
Intelligent Cable) ................................................................................................. 78
10.1 Working Principle .......................................................................................... 78
10.2 Division and Layout ...................................................................................... 79
10.3 Concept of Survey Block and Grid................................................................ 81
10.4 Electrode Array of 3D Resistivity Imaging ................................................... 83
10.5 Field Layout ................................................................................................... 85
10.6 Instrument Operation ..................................................................................... 86
10.6.1Turn on WDA-1/WDA-1A and Run System Program .................................. 86
10.6.2Bluetooth Pairing......................................................................................... 87
10.6.3Create New Section...................................................................................... 87
10.6.4Set Measure Parameters .............................................................................. 89
10.6.5Self Potential (SP) Parameter ..................................................................... 90
10.6.6Measure ....................................................................................................... 91
10.6.7Copy Measured Results ............................................................................... 93
Complete Set of System ....................................................................................... 95
Appendix A: PDZ-1 Switch Self-Checker ......................................................... 97
Appendix B: WDZJ-3 Multiplex Electrode Converter Self-Checker........... 100
Appendix C: Format Conversion Software..................................................... 102
Appendix D: Installation of Bluetooth USB Adaptor .................................... 104
Appendix E: Use and Maintaining of DC-2 Solid Non-Polarized Electrode 112
Page
5
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
S ECTION O NE: I NTRODUCTION TO WDA-1/WDA-1A
1.2
Main Function and Features
Portability and flexibility: the transmitting unit and the receiving unit are
designed in one device, small and lightweight. The 96V internal battery of
WDA-1A mainframe can conduct multi-electrode imaging in wide variety of
environments.
Unique and open measuring process control. User-defined power-on time
and power-off time controls measuring process. The main frame can also
monitor variation of electrode potential automatically. If the parameter
exceeds the user-defined over-variation limit, it stops measuring, and wait to
measure again until it becomes stable. Thanks to this function,
WDA-1/WDA-1A system can ensure accurate measured result even in harsh
environment.
WDA-1/WDA-1A is designed with two cable sockets which enable
cross-hole electrode array configuration works without switching control unit,
and thus makes the measuring process much simpler and easier.
Multiple functions: voltage and current range and small signal accuracy are
allowed to increase dramatically, which makes it suitable to work with rock
sampling tester, high-power IP receiver, general electrical method instrument,
IP instrument, water finder, 2D and 3D multi-electrode electrical method
instrument, etc.
Measuring various parameters, wide application: it is able to acquire data
of voltage (VP), current (IP), apparent resistivity (R0), Self-Potential (SP),
apparent polarizability (M~M7), metal factor (G1~G7), half decay time (TH),
deviation (r), induce polarization ratio (J), etc.
High power supply, wide current range, high accuracy: maximum power
reaches 7200W (1200V×6A), voltage input is 64Vp-p, small signal
measurement precision is high (voltage is less than 0.1mV and current is less
than 0.1mA with ±1% measurement precision), both of which make
WDA-1/WDA-1A main frame an ideal device for regions of high resistivity
and to achieve better measured results.
On its panel there is an “B(∞)” port for pole-pole and dipole-pole electrode
array. As to dipole-pole array configuration, ResA, ResB, and Res can be
measured automatically with high efficiency and fewer errors.
Bluetooth technology facilitating wireless remote control: Bluetooth
technology enables the pocket PC to control the WDA-1/WDA-1A main
frame in 10 meters. Sampling control, parameters setting, measurement
manipulating, data transferring and displaying, graph plotting can also be
realized through the pocket PC, and thus field work becomes easier.
Page
6
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Pocket PC controlled and powerful function: English version pocket PC to
control sampling and relevant parameters setting, data displaying and storing,
graph plotting for 10 kinds of electrode array configurations (such as, 4P-VES
Schlumberger, 4P-VES Wenner, Combined electric sounding, four-pole
electric profiling, Combined electric profiling, Rectangle/Middle Gradient,
dipole-dipole, Five-pole Longitudinal Axis Electrical Sounding, Quadratic
time difference array, etc). Moreover, advance hardware enables operator to
have agenda and to connect with Internet wirelessly, with software such as
WORD, EXCEL, PowerPoint, Media Player and so on.
16 kinds of electrode arrays of multi-electrode system: In addition to the 10
electrode arrays of general electrical resistivity survey system, there are 16
electrode arrays for multi-electrode imaging, namely, Wenner Alpha array
(WENNER α), Wenner Beta array (WENNER β), Wenner Gamma array
(WENNER γ), Three-pole direct array (δA ARRAY), Three-pole reverse
array (δB ARRAY), Wenner Alpha 2 array (SCHLMBG), Self-Potential M
array (SP-M), Self-Potential MN array (SP-MN), Charging M (CHG-M),
Charging MN (CHG-MN), Two-pole Roll along array (2P AM), Three-pole
Roll along array (3P A-MN and 3P AB-M), Dipole-dipole Roll along array
(DIPOLE), MN-B, Cross-Hole Dipole/Equatorial Dipole-dipole array
(CR-DIPOLE).
Extendable system: data sampling and storing are controlled by pocket PC.
Data management is easy. Software is flexible to be upgraded and extended
(extending data storage capacity and collection software functions, also extend
to special multi-electrode electrical instrument).
Excellent anti-interface performance: integrated with multistage filtration
and signal enhancement technologies and suppresser against common mode
interference and differential mode interference. Measurement precision is
high.
Automatically achieving SP, drift and electrode compensation (maximum
compensation reaches ±10V).
Receiving unit supports transient over-voltage protection for input voltage;
transmitting unit supports over-voltage protection, over-current protection and
AB open-circuit protection as well as DC high voltage reverse connection
protection.
Earth resistance check: earth resistance of AB Current electrodes and MN
Potential electrode can be inspected at any time.
Diagnosis program can find the fault or failure quickly and accurately.
Sealed constitution features waterproof and dust-proof design, long lifetime.
Flexible option of control: control unit may also be notebook PC to remotely
manipulate measurement.
Page
7
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
1.3
Configuration and Technical Specifications
WDA-1/WDA-1A Main Frame
(Standard)
Maximum transmitting power: 7200W
Maximum supply voltage: 1200V (with WDZJ-3, no more than 450V)
Maximum supply current: 6A (with WDZJ-3, no more than 2.5A)
Transmitting power pulse width: 1~60s, duty cycle is 1:1.
Voltage: ±32V (24 bit A/D). If Vp≥5mV, accuracy is ±0.2% ±1LSB. If
0.1mV≤Vp<5mV, accuracy is ±1% ±1LSB.
Input impedance: >50MΩ
Apparent polarizability accuracy: ±1%±1LSB
SP compensation range: ±10V
Current: 6A (24bit A/D). If Ip≥5mA, accuracy is ±0.2% ±1LSB. If
0.1mA≤Ip<5mA, accuracy is ±1% ±1LSB.
Suppression: for 50Hz industrial frequency interference (common mode and
differential mode interference), suppression is more than 80dB.
Power supply: internal 7.4V 4Ah rechargeable battery continuously lasts for
20 hours (or 12V external power supply).
Ports support (transmitting unit): A, B, M and N connecting ports, DC high
voltage input ports and external battery terminals, 2 cable ports, RS-232,
Bluetooth.
Working temperature: -10℃~+50℃, 95%RH
Storage temperature: -20℃~+60℃
Weight: ≤4kg
Dimension:270mmx246mmx123mm
Internal power source (only for WDA-1A): maximum voltage 96V (two
notches, 48V and 96V); maximum current is 0.7A.
HP Pocket PC
(Standard)
Microsoft Windows Mobile 6 Classic
Microsoft Office Mobile (Word, Excel, PowerPoint)
Marvell PXA310 624MHz processor
3.5-inch TFT display, 320*240 resolution
256MB flash ROM/64MB SDRAM
2 Gigabyte SD card
Bluetooth, infrared, serial port
Page
8
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
WDZJ-3 Multiplex Electrode Converter
Maximum electrodes: 60/pcs
(Optional, can be cascaded)
Insulation performance: ≥500MΩ
Maximum output voltage: 450V DC
Maximum output current: 2.5A DC
Power supply: 8Size-D batteries (or ni-cd batteries of the same spec)
Operating temperature range: -10℃~+50℃
Multi-electrode Cable for WDZJ-3
(Optional)
Multi-electrode cable: 32-core, outer diameter is Φ6mm
Maximum voltage: 450V
Maximum current: 3A
Accessible for two multi-electrode cables (each cable string has 30 take-out)
Take-out spacing: standard 5m or 10m (also customized according to order)
Cable insulation: ≥500MΩ/500V between any two cores
Copper Electrode for Multi-electrode Cable
(Optional)
Copper electrode: Φ12mm x 280mm, with plug-pull clamp
Quantity: up to order
Intelligent Cable for 2D/3D Resistivity or IP Imaging
(Optional)
Cable: polyurethane coated, outer diameter Φ8mm
Quantity: up to order
Connector (take-out) number: 10/sting (ten electrode per string)
Connector (take-out) spacing: 1~10m (or up to order)
Connector size: Φ30mmx100mm
(including rubber head)
Maximum voltage: 800V
Maximum current: 3A
(connector
only),
Φ39mmx170mm
Cable insulation: cable between A, B connecting ports and cable between A,
B connecting ports and the low voltage connecting port, insulation is more
than 1000MΩ/1000V; cable between low voltage connecting ports, insulation
is more than 500MΩ/500V
Working temperature: -20°C~+70°C
Page
9
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Stainless Steel Electrode for 2D/3D Resistivity Imaging
(Optional)
Stainless steel electrode: Φ10mm x 280mm, with stainless spring
1.4
Quantity: up to order
Front Panel
Front panel of WDA-1 super digital DC resistivity/IP meter is as shown in Fig.
1-1).
Fig. 1-1 Front panel of WDA-1
① DC high voltage input: connecting to the high voltage power supply, “+”
for positive terminal and “-” for negative terminal.
② A: port for Current electrode.
③ B (∞): port for Current electrode.
④ 3-Pole B: when conducting combined electric profiling (3P-PRFL) or
combined electric sounding (3P-VES), connecting the infinity Current
electrode to the “B (∞)” port and connecting the other Current electrode
to“3-Pole B” port.
⑤ Charging /External battery 12V: as recharge socket to charge the internal
battery; or as power source socket to connect with the 12V external battery.
⑥ Power: power switch.
Page
10
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
⑦ Power supply/wireless telecommunication: turn on the WDA-1 and the
indicator light turns on; during measuring process, this indicator light flickers.
⑧ Multi-electrode work: this indicator light flickers when conducting
multi-electrode imaging mode.
⑨ RS232: standard serial communication port.
⑩ M, N: ports for signal input. “M” port connects to Potential electrode M
electrode and “N” port to Potential N electrode.
⑪ Cable socket 1, 2: they are connected with intelligent cables when
conducting multi-electrode 2D/3D imaging.
Front panel of WDA-1A super digital DC resistivity/IP meter is as shown in Fig.
1-2).
Fig. 1-2 Front panel of WDA-1A
The only difference between WDA-1 main frame and WDA-1A main frame is
that WDA-1A is designed with a 96V internal battery. Introduction to the
section of the internal high voltage battery is as follows:
① Output voltages (V): display output voltage range of the internal high
voltage battery.
② Voltage selection: 48V or 96V optional.
③ 48V Battery Charging: recharge socket for the internal high voltage battery.
④ Battery fuse: protect the inner circuit when the high output voltage gets
short-circuited.
Page
11
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
⑤ Power: power switch for internal high voltage battery.
1.5
Power Source and Internal Battery
1.5.1 Power Source of WDA-1/WDA-1A
Standard working power source for WDA-1/WDA-1A super digital DC
resistivity/IP meter is 8V lithium battery. This kind of lithium battery supports
automatic protection function, that is, once voltage battery is lower than 6.6V,
power supply is cut off automatically. Therefore, operator needs to pay attention
to battery voltage during measuring process to ensure smooth field survey.
Run the data collection program in the PDA, click the battery icon on the menu
bar at the screen bottom, or click “Menu”“Measure”“Battery volt” to check
the battery voltage, and then the battery voltage value is displayed on the screen.
When battery voltage is lower than 6.8V, system clews “Lower battery voltage,
please recharge in time”. In that case, recharge the battery of WDA-1/WDA-1A
main frame in time with the standard charger.
How to recharge
① Switch off WDA-1/WDA-1A main frame, and insert the three-core plug to
the “Charging/External battery 12V” socket on the WDA-1/WDA-1A main
frame.
② Connect the WDA-1/WDA-1A to 220V DC power supply and indicator light
on the charger turns to red, at this time, the internal battery is being
recharged.
③ After about 4~6 hours, when the battery is fully charged, the indicator light
turns to green.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
Recharging temperature range for the lithium battery is 0℃
℃~45℃
℃. If
temperature is too high, the battery will be heated, which will shorten its
lifetime or damage the battery.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1.5.2 Internal High Voltage Battery (WDA-1A only)
WDA-1A super digital resistivity/IP meter can not only get power supply from an
external high voltage, but also from an internal high voltage battery which directly
gives 48V or 96V DC high voltage. Voltage value is displayed on the LCD
display on the mainframe.
Page
12
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
This high-voltage lithium battery supports automatic protection function, when no
output voltage from the internal High Voltage Battery or the voltage is lower than
43V (at 48V notch), system reminds operator to recharge the internal battery. In
that case, please DO recharge the internal high-voltage battery with the standard
charger packed.
How to Recharge?
① Turn off WDA-1A and insert the four-core plug to the “48V Battery
Charging” port on WDA-1A main frame.
② Connect WDA-1A to 220V DC power supply and the indicator light on the
charger turns to red. At this time, the internal battery is being recharged.
③ After about 4~6 hours, when the battery is fully charged, the indicator light
turns to green.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
Since the output current of this internal high voltage battery is very low, it is
recommended to take the internal high voltage battery as power supply for
resistivity survey mode; while for induced polarization survey, external DC
high voltage battery is recommended.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page
13
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
S ECTION TWO: GENERAL O PERATION GUIDE
(PDA)
2.1
TO
P OCKET PC
General Operation
Each PDA is equipped with a stylus to select items and input information. For fear
of loss of the stylus, please put it in the stylus slot at the right top of the PDA.
The stylus functions as a mouse. General operations are:
1) Click: click once the screen by the stylus to open an item or choose an item;
during sampling process, click once to choose an item.
2) Click and hold: click and hold an item by the stylus to display its available
popup menu sub-items; then click a sub-item item to execute the
corresponding function.
2.3
Soft Reset
During operation, if the PDA has no response when the screen or buttons are
clicked, press the “Reset” button (on the right panel of the PDA) to do soft reset
with the stylus.
2.4
Hard Reset
If the PDA system gets into critical fault or failure and refuses to soft reset,
execute hard reset function.
What needs to pay attention is that all the data in the flash memory and the
programs will lose, and that the PDA will recover to original settings. Please DO
backup all the data in the PDA before hard reset.
After hard resets, the PDA system recovers to the original settings. Before field
survey, please set parameters by following the steps below:
① Once the PDA hard resets, the Bluetooth also turns off. To continue field
survey, turn on Bluetooth by following the steps in Section 2.5.
② Click “Start” “Settings”“Personal” “Menus” to set the parameters or
items according to specific needs.
③ Click “Start” “Settings” “System” “Screen” (Fig.2-1) to choose
“Landscape” (right-handed/left-handed, Fig.2-2).
④ Click “Start” “Settings” “System” “Power” “Advanced” to cancel
automatic power-off function.
Page
14
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig.2-1
2.5
Fig.2-2
Turn On Bluetooth
Ensure that Bluetooth feature is turned on before field survey (check by the
Bluetooth icon (marked in Fig. 2-4). If the Bluetooth icon is bright, Bluetooth
feature has been turned on. If the Bluetooth icon is gray (Fig.2-3), click the icon
and the Bluetooth icon turns to bright.
Fig. 2-3
2.6
Fig.2-4
Bluetooth Pairing
Based on the Bluetooth wireless communication technology, all operations of the
PDA are fulfilled though the Bluetooth terminal. Therefore, before measuring,
first pair the Bluetooth to enable WDA-1/WDA-1A to communicate with the
PDA smoothly. Specific procedures of pairing Bluetooth are as follows:
1) Firstly turn on the WDA-1/WDA-1A main frame and turn on Bluetooth
(please refer to Section 2.5).
2) Enter into the Program Main Interface and click “Menu”“Bluetooth
pairing” to get into the Bluetooth pairing interface (Fig. 2-5).
3) Choose an appropriate Bluetooth port (Bluetooth port varies from various
pocket PC. For HP iPAQ pocket PC, choose COM6), then click “Bluetooth
pairing” button and click “OK” (at the right top) to execute Bluetooth pairing
operation (Fig.2-6).
Page
15
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 2-5
Fig.2-6
4) Click “Exit” to exit from the present program.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
In order to verify the users’ validity, sometimes the Bluetooth pairing
interface (Fig. 2-6) pops up directly the moment system starts up, prior to
the Program Main Interface. In this case, it means that system requires
operator to pair the Bluetooth first and then enter into the measure
interface.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------5) Once the “Bluetooth pairing” button is clicked, the PDA get into Bluetooth
Browser; or then click “Refresh” and all the devices searched are displayed in
the Bluetooth console interface (Fig. 2-7).
6) Select a Bluetooth device to pair Bluetooth and input passkey “1234” through
the software keyboard that can be called out by clicking the icon
. Then
click “OK” to finish Bluetooth pairing and the “Bluetooth pairing
accomplished” dialog box pops up (Fig.2-8).
Page
16
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 2-7
Fig. 2-8
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
Original passkey is 1234.
Operation of software keyboard: click the “
” button at the bottom of
the screen and software keyboard pops up automatically. Choose an
appropriate input mode (at the left button of the keyboard); and then
input the value through the stylus. When input finishes, click “
”
button once again to hide the software keyboard.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
2.7
Battery Recharge
Before field survey, ensure that the PDA has enough power; if not, recharge the
PDA.
Power of the battery of the PDA can be read from the power supply indicator light.
If the indicator light is green and flickering, battery is being recharged. If the
indicator light keeps green, the battery is fully recharged.
Specific recharge operation is as follows:
1) Connect the power supply adapter to the PDA with charging wire (attached
accessory).
2) Connect the power supply adapter to the 220V power source
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
Standard configuration of the pocket is a HP iPAQ.
Page
17
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Regarding other operations on the PDA, please read the user guide
packed together with the HP iPAQ.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page
18
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
S ECTION T HREE : GENERAL R ESISTIVITY & SP S URVEY
3.1
Concept and Relevant Parameters
1) Apparent resistivity ρs/Res: When the ground surface is flat and medium
underground is uniform, infinite and isotropic medium, connect the Current
electrode A and B to the power source and provide a current intensity of IP to
the earth, then gain the potential differences VP between Potential electrode
M and N. Resistivity measured in this way is the homogeneous earth
resistivity. But actually, the earth conditions dissatisfy resistivity survey: the
measured results are not resistivity of the surrounding rock or the ore body,
but apparent resistivity. Apparent resistivity is represented by ρs and
calculated in ΩM. It can be defined as follows:
ρs=K (VP/IP)
Among them, K as the array factor (or geometric factor) is calculated by the
corresponding electrode array configuration formula, according the specific
electrode array configuration and distances among electrode A, B, M, N, etc.
2) VP: according to resistivity’s definition, VP is the electric potential difference
between Potential electrodes M and N.
3) IP: transmitting current by the Current electrodes A and B.
4) Array/geometric factor K: according to the definition formula of the
resistivity ρs above, we can get the geometric factor by the following
formula.
K=
AM
−1
2π
− AN − BM −1 + BN −1 ,
−1
Among them, AM, AN, BM, BN represents the distances among A, B, M and
N. Unit is meter. K value depends on relative location of these four electrodes.
5) Schedule: there is a table containing relative electrode distance parameter of
the four electrodes, which are called Schedule in the system program.
Different electrode array configurations have different Schedule. For example,
electrode distance parameters of 4-pole vertical electric sounding (4P-VES)
are AB/2 and MN/2, while those for combined electric sounding (3P-VES)
are OB and MN/2. For more details, please refer to the attached Electrode
Array User’s Manual.
6) Self-potential (SP): SP is short name of self-potential; unit is mV.
7) REarth resistance: earth resistance. All the DC electrical methods must be
powered supplied by two Current electrodes (for instrument by BTSK,
Current electrodes are defined as A and B) to form a loop circuit. However,
Page
19
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
earthing state directly influences the value of output current. If well grounded,
earth resistance is lower; if poorly grounded, earth resistance is higher.
8) Electrode Array configuration: referring to electrical method survey,
various electrode array configurations are optional, applicable for various
geologic structures. An electrode array configuration represents that its
electrodes are arranged in certain mode and move at a certain method.
Generally, electric profiling and electric sounding are commonly used
electrode array configurations.
9) Electric profiling: electric profiling is one category of electrical methods,
including many electrode array configurations whose electrodes are featured
by keeping a certain distance between each electrode, while all the electrodes
roll along at the same time along the survey line to measure apparent
resistivity. Since that distance between electrodes keeps unchanged during
roll-along movement, output current is injected underground to a certain
depth, measuring depth of the points on the survey line keeping the same; in
other words, the resistivity curve is geologic reflection of a certain layer.
10) Electric sounding: similar to electric profiling on variety, electric sounding
includes many electrode array configurations. These electrode array
configurations feature keeping measuring point position fixed but increasing
distances among the electrodes. Since that distance between the current
electrodes increases, output current is injected deeper into the ground.
Therefore, measured results are geologic reflection of the geological structure
of different layers.
3.2
Program Main Interface
Program Main Interface of resistivity method is as the figure below (Fig.3-1).
Fig.3-1 Program Main Interface of General Res & SP Survey (Res method)
As shown in Fig. 3-2, in the middle of the screen are data display area and
waveform display area. The right section is an area with buttons. Parameters are
also displayed at the right side of the screen.
Page
20
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
At the top of these shortcut buttons is a button for a pull-down menu which
enables operator to choose a parameter to be plotted as curve and displayed,
resistivity ρs or SP are available (Fig. 3-2).
Fig.3-2
3.3
Operation
3.3.1 Turn on WDA-1/WDA-1A and Run System Program
Turn on the WDA-1/WDA-1A main frame and turn on the pocket PC.
Click “Start” “Program” (Fig.3-3) “File Explorer” (Fig.3-4) “Storage
Card” file “WDA-1DR” program to enter into system program of General
Electrical Resistivity Survey mode (Fig.3-5).
Fig. 3-3
Fig. 3-4
Page
21
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig.3-5
Click the screen to get into the Program Main Interface (Fig.3-1).
3.3.2 Bluetooth Pairing
Before any other operation, first pair Bluetooth (for details, please refer to Section
3.6). After that, system enters into “Bluetooth pairing accomplished” interface;
click “OK” to back to the Program Main Interface.
3.3.3 Create Survey Line
Under Program Main Interface (Fig. 3-6), click “Menu” “New line” to set
parameters (Fig.3-7).
Input parameters and finally click “Create line” or “OK” (at the right top of the
screen).
Fig. 3-6
Fig. 3-7
Parameters in the interface are introduced below.
Line name: number of a survey line or name of the corresponding data file stored,
which is inputted through the software keyboard.
Station space: distance between two adjacent survey points, that is,
spacing/interval of the survey points.
Page
22
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Station position: relative distance between two adjacent survey points. This
parameter is also valid in other survey method except for vertical electric
sounding. Once data of a survey point are stored, “Station position” automatically
adds one Station space. For example, if “Station position” of present survey point
is 10 and “Station space” is 2, once data of this point are stored, “Station position”
of the next survey point turns to 12 automatically.
Array: 12 electrode array configurations are available for general resistivity/IP
survey, namely, 4P-VES Schlumberger, 4P-VES Wenner, Combined electric
sounding (3P-VES), Four-pole electric profiling (4P-PRFL), Combined electric
profiling (3P-PRFL), Rectangle/Middle Gradient (RECT), Dipole-dipole
(DIPOLE), IP Survey in Well - Well Azimuth Sounding (IP-BUR), Five-pole
Longitudinal Axis Electrical Sounding (5P-VES), Composite Electric Profiling
(C-PRFL), Four-pole Quadratic time difference array (QUADR-TD 4P) and
Three-pole Quadratic time difference array (QUADR TD 3P). Except for access
to these electrode arrays, user can also input geometric factor K value directly
through Item 9 Input K value for some special electrode array configurations
that is not available in this system. For detailed introduction to these electrode
array configurations, please refer to the attached Electrode Array User’s Manual,
Section One, Electrode Array of General Electrical Resistivity/IP Survey.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
If name of the new survey line already exists, system will fail to create this
line. Please input another new name (Fig. 3-8).
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Fig. 3-8
3.3.4 Set Schedule (Electrode Distance)
1) Under Program Main Interface or under Fig. 3-7, click “Schedule” button to
enter into Schedule interface (Fig. 3-9) to set interval relations among the
electrodes. Electrode intervals of each electrode array configuration are
Page
23
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
different. Therefore, operator has to update the Schedule according the
specific electrode array configuration. System will automatically calculate
geometric factor K automatically according to the electrode distance
parameters set.
Fig.3-9 Schedule interface
2) After that, click one ID as the present electrode distances (take Fig. 3-9 for
example, Schedule ID is 5 and set “Step” (1, -1 and 0 optional). System will
move to the next ID according to “Step” parameter. For example, if Schedule
ID of present survey point is 2 and Step is 1, once the data of present survey
point are stored, Schedule ID turns to 3 automatically.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
① If Schedule ID is chosen prior to measurement, but later the measured
resistivity value proves that the Schedule ID is incorrect, modify this
Schedule ID before it is stored. Following the steps in Note ② to change
the Schedule ID.
② Clicking “Schedule” button to modify the Schedule ID click “OK” to
confirm and exit from the interface. Then, resistivity of this survey point
displayed on the screen changes as well.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
3.3.5 Measure
Under the Program Main Interface, click buttons “SP”, “R”, “Res” to measure
self-potential, earth resistance and resistivity respectively, or click “Menu” “Measure” to conduct the corresponding measurement.
1) Measure Self-Potential (SP)
Click “SP” button, and the SP value displays on the screen; unit is mV (Fig.3-10).
If absolute value of SP>100,000mV, system clews “Excessive self potential”.
Page
24
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 3-10
2) Measure Earth Resistance (R)
Click “R” button to enter into the measure interface, as shown in Fig. 3-11. Click
the “Grounding R” button to start continuous measuring. If the measured
resistance is more than 5KΩ, system clews “Too large”. To stop measure, press
“Terminate” button.
Fig. 3-11
3) Measure Battery Voltage
Click the battery icon on the menu bar to read battery voltage (Fig.3-12).
Page
25
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig.3-12
4) Measure Resistivity (Res)
Click the “Res” button to measure resistivity, and then SP, VP, IP and resistivity
values are displayed on the digital display together with curve.
Fig.3-13
Unit of resistivity is ΩM. Each time one measuring action finishes, store the data
manually and ensure survey point is correct. If data are stored successfully, the
“Res” button turns to gray.
For non-vertical electric sounding configuration, position and ID of the next
survey point changes automatically according to the preset “Station space” and
“Step”. If operator wants to test a survey point once again, “Station space” and
“Step” should be set as 0 (Fig.3-14). Operation is, clicking “Schedule” buttons to
modify the parameters and then clicking “Measure”.
Page
26
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig.3-14
For vertical electric sounding configuration, “Station space” is unavailable, for
several data points are acquired on a same survey point. The total data points may
be unknown. If several data points acquired on a same survey point, the measured
results could be stored directly. When electrodes are moved to another survey
point, modify “Station position” parameter. Operation order is clicking “Station”
button inputting a new position, pressing “OK” to exit from the interface
(Fig.3-15), clicking “Measure” to measure again and then system starts a new
serial of vertical sounding.
Fig.3-15
3.3.6 Measure in Composite Electric Profiling Array (C-PRFL)
Under the Program Main Interface, click “Res” button to enter into the measure
interface of the Composite Electric Profiling (Fig. 3-16). Set “Station position”,
“Station space” and choose parameters to be displayed (R0, SP, VP and IP are
available).
Page
27
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig.3-16
Since Composite Electric Profiling is a combination of three combined electrical
profiling (3P-PRFL), each point should acquire three groups of data, namely,
Res1, Res2 and Res3, only when all these data are gained could they be stored
together. What’s more, each group of data includes Resa and Resb in that current
electrode A, B give power supply respectively.
Fig. 3-17
During once period of power supply, system could memorize four groups of
measured results for a survey point. Press arrow keys to choose the best group of
measured results as the final data gained. When Res1, Res2 and Res3 are gained,
click “Save” to store these data.
For two adjacent measured results of a point, in the right text box is percentage
showing approximation of the measured results (Fig.3-17). The higher the
percentage, the better the data are.
3.3.7 Display Waveform
For the waveform gained by non-vertical electric sounding, click the arrow
buttons, “Zoom in” and “Zoom out” icon, “Delete” icon or click
“Menu”“Display” to adjust the waveform. While for the vertical electric
sounding configurations, only “Delete selected data” and “Delete all data”
functions are available (at the bottom of the screen, Fig. 3-18).
Page
28
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 3-18
1)
Cancel survey point
Click one data point on the waveform by the stylus, and the corresponding
information displays at right side of the waveform, including survey point number,
corresponding curve, measured data, etc; click “x” icon (at the bottom of the
screen) to delete this data point.
2)
Display curve data
Click the corresponding icon on the menu bar or click “Menu”“Display”
“Review data of curve” to enter into the display interface (Fig. 3-18), the
corresponding survey line number, electrode array configuration, data points,
measured data, Res, SP, etc, are displayed. If measured results of a data point is
not ideal, click “Delete selected data” option with the stylus to delete data of this
point; to measure this point again, first modify the survey point location and then
measure once again and store the measured result.
3.3.8 Open a Survey Line
All the measured data of resistivity are stored in SD card, in “WDA-1D” file.
Click the corresponding icon at the left bottom of the screen or click
“Menu”“Load line” to choose as survey line name (Fig. 3-19).
Fig. 3-19
Page
29
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
S ECTION FOUR: GENERAL IP & SP S URVEY
Even though output current is injected into the earth constantly and stably, it is
observed that electric potential between the Current electrodes changes as time
and trends to a stable value after a certain time. When output current is cut off,
electric potential between the Current electrodes drops instantly first and then
slows down and finally decays to zero.
During the process of charging and discharging, an additional electric field forms
slowly as time goes by, caused by electrochemistry. This phenomenon is called
induced polarization effect (IP or chargeability for short). This kind of electrical
method is based on non-homogeneous medium or ore body.
Through observing and studying different chargeability of the surrounding rocks
or ore body, we can gain geologic structure and information of a region clearly.
4.1
Concept and Relevant Parameters
1) Apparent Polarizability (M1~M7)
The waveform in Fig. 4-1 is a typical waveform of induced polarization measured
data. For sampling time and “Sampling duration” of polarizability M1~M7, please
refer to Table 4-1 below.
M1~M7 sampling time and “Sampling duration” of M1~M7 is fixed and has
nothing to do with “Transmitting duration. If “Transmitting duration” is shortened,
parameters which cannot be measured are 0, for example, when “Transmitting
duration” is 2s, only M1~M5 can be measured while M6, M7 are set as 0.
Fig. 4-1 Waveform of induced polarization
Page
30
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
M1
M2
M3
M4
M5
M6
M7
Sampling time (ms)
200
300
500
920
1920
2920
3920
Sampling duration (ms)
40
80
80
80
80
80
80
Table 4-1 M1~M7 sampling time and sampling duration
2) Define Polarizability M
Different from apparent polarizability M1~M7, users can define transmitting
duration and M sampling duration of polarizability, that is, in Fig. 4-1, operators
can set transmitting duration and sampling duration of M. What should be noted is
that transmitting duration (including M sampling duration) is 5000ms; therefore,
ensure that time summation of M starting time and M sampling duration is no
more than 5000ms.
3) Half Decay Time TH
Provided power-off time prologs to 200ms and secondary field sampling is DVMI,
then TH is the time for secondary field decaying to DVMI/2; unit is ms and
accuracy is ±10ms.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note: only when “Transmitting duration” is ≥5s, should this parameter be
calculated.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------4) Decay rate D
5000
1
∑VMN (t ) ⋅ ∆t
5000 − 200 t = 200
D=
• 100
DVMI
Where, △t = 10ms.
Provided power-off time prologs to 200ms and secondary field sampling is DVMI,
that is, D is the ratio of the mean value in 5s of secondary field sample and the
first sample.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note: only when the “Transmitting duration” is ≥5s, should this parameter D
be calculated.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------5) Induced Polarization Ratio J
Page
31
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
5000
1
⋅ ∑ VMN (t ) ⋅ ∆t
(5000 − 200) t = 200
J=
⋅ 100
VP
Among which △t = 10ms.
J is the ratio of the mean value in 5s of secondary field sample and voltage of the
primary field.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note: only when the “Transmitting duration” is ≥5s, should this parameter J
be calculated.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------6) Comprehensive Parameter ZP
Zp = 0.75 × M 1 × TH / 1000
7) Metal Parameter G1~
~G7
Gn = 100× Mn/ ρs
Among them, n: 1~7
Gn: metal factor
Mn: apparent polarizability of present survey point
ρs: resistivity value of present survey point
8) Decay curve
Actual decay curve of the secondary field
9) Quadratic Time Difference DT2
Quadratic time different is the difference between half decay time measured at
high-voltage power supply and half decay time measured at low-voltage power
supply. Only when “Transmitting duration” MT≥6S will this parameter be
calculated.
Since that secondary field decay time of aquifer is in direct proportion to the
generated current, but it keeps unchanged or decreases in non-aquiferous stratum
as the increase of generated current, this parameter Quadratic decay time plays a
key role in groundwater exploration.
Quadratic time difference survey method utilizes four/three electrodes.
Working principle of Quadratic Time Difference Survey method:
Page
32
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
System transmits two different types of current (high voltage and low voltage) to
the earth through the Current electrodes, and system measures twice with the same
electrode position and electrode distances. Then system calculates their difference
of half decay time of the two secondary fields between these two measurements.
If the layer is aquifer, the difference value is a positive value; if the layer is not
aquifer, the difference value is zero or negative value.
The measured quadratic time difference values of all the data points will be
plotted. Curve sections above the base line indicate aquifer; curve sections below
the base line indicate that there is no groundwater. Area formed by the curve of
positive values is in direct proportion to the amount of groundwater of a unit.
This parameter is only available in Quadratic time difference electrode array. It is
very useful for groundwater exploration.
10) Quality Discriminant Coefficient K
This parameter is to test accuracy of the voltage range of the secondary field. If
current intensity is less than 1mA/cm2, voltage range of the secondary field is in
direct proportion to the current.
Provided that, ID is high transmitting current
IX is low transmitting current.
U2D is voltage of the secondary field that generated by the high
transmitting current.
U2X- is voltage of the secondary field that generated by the low
transmitting current.
Then,
I D ⋅U 2 X
=1
I X ⋅U 2D
K = Ln
I D ⋅U 2 X
=0
I X ⋅U 2D
In actual measurement, it is impossible to have K=0. Statistics prove that the
result is reliable when K<0.05. This parameter is only available in “Quadratic
time different” survey method.
11) Deviation r
1
r=
Mi
∑ (M
i
+ k ⋅ log(t i ) − B 2 )
n
Page
33
of
⋅ 100
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
n
Of which, n stands for sampling point quantity; n=1~7, M i = 1 ∑ M i stands for
n
i =1
the mean value of polarizability (M1~M7) of respective sampling points in the
observing time period. K and B are coefficients of equations of the straight Line
—— M(t)=B-klog(t), in the logarithm time axis.
r is used to weigh the difference between practically measured decay curve and
“ideal straight line”. The larger r is, the worse the “linearity” is; the smaller r is,
the stronger the “linearity” is. So, r is called as deviation, i.e. the degree of
deviating from “ideal straight line”. The research shows that r will decrease with
the increase of water amount in the rock, i.e. when water amount increases, the
“linearity” of decay curve will become stronger.
12) Comprehensive Parameter ZP
Zp = 0.75 × M 1 × TH / 1000
13) Metal Parameter G1~
~G7
Gn = 100× Mn/ ρs
Among them, n: 1~7
Gn: metal factor
Mn: apparent polarizability of present survey point
ρs: resistivity value of present survey point
4.2
Program Main Interface of General IP & SP Survey Function
Turn on the WDA-1/WDA-1A main frame and turn on the pocket PC. Click
“Start” “Program” “File Explorer” “Storage Card” file “WDA-1DRIP”
program to enter into the system program of General Induced Polarization Survey
mode (Fig.4-2).
Program Main Interface of induced polarization and SP survey is nearly the same
with that of the electrical resistivity & SP survey function (Fig.4-3).
Fig.4-2
Fig.4-3
Page
34
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
4.3
Operation
Operation of IP survey is basically the same with that of resistivity/SP survey
mode, but different on the following points.
This section gives introduction only to the parameters that are unique to general
induced polarization survey and to the differences between resistivity survey and
IP survey. For other introduction and operations, please refer to Section Four
Operation Guide to General Electrical Resistivity & SP survey.
4.4
Differences Between Resistivity Survey and Induced Polarization
(IP) Survey
Compared with the general resistivity survey, IP survey function,
1) Measure other parameters
Some unique parameters of IP survey are apparent polarizability M1~M7,
user-defined polarizability M, decay rate D, etc. Each parameter can be plotted in
curve (by choosing and clicking the corresponding parameter in the pull-down
menu at the right top of the display area on the screen).
2) More parameters are set
Click “P” icon (on the menu bar) or click “Menu” “Set parameters” (Fig. 4-4)
to enter the “Parameter setting” interface (Fig. 4-5). Set parameters of “M Starting
time”, “M sampling duration”, “Transmitting duration” and “Transmitting”, as
well as parameter to be displayed.
Fig.4-4
Fig.4-5
M Starting time: Start sampling time of the polarizability M.
M sampling duration: sample width of polarizability M.
Transmitting duration: power-on time of the current electrodes A, B which
inject current to the earth.
Parameters to be displayed: the certain measured data could be chosen to be
displayed. They are apparent resistivity (R0), voltage of primary field (VP),
Page
35
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
current of primary field (IP), self-potential (SP), half decay time (TH), decay rate
(D), comprehensive Parameter (ZP), polarizability (M~M7), metal factor
(G1~G7), induced polarization ratio (J).
Transmitting: there are three types of power supply modes, namely, standard
mode, unidirectional mode and bidirectional mode.
a) Unidirectional mode
b) Bidirectional mode
C) Standard mode
Fig. 4-6 Power supply modes
As shown in Fig.4-6, the unidirectional mode has only one power-on period, i.e.
“Positive power —Power off” (Fig.4-6a)); bidirectional mode has two power
power-on periods, i.e. “Positive power — Power off — Negative power — Power
off” (Fig.4-6b)); while the standard mode has three power-on period, i.e. “Positive
power — Power off —Negative power — Power off — Positive power —
Power off” (Fig.4-6c)). The measuring of parameters is accomplished during
power off.
Page
36
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
S ECTION FIVE: FIELD S URVEY E XAMPLE ——G
—— ENERAL IP
1. Measuring Conditions
1) Electrode array configuration is Schlumberger, a kind of 4-pole vertical
electrode array (4P-VES).
2) Measure two data points at different depth, along a survey line.
3) AB/2=3.0m, 9.0m, MN/2=0.5m, Transmitting duration=5s.
4) To ensure measuring accuracy, DC high voltage for primary field
VP≥10.0mV.
5) DC power supply is 30V.
6) Measuring function: electrical resistivity and induced polarization (IP).
2. Operation Procedures
1) Arrange electrodes -- The First Data Point
Arrange the electrodes according to requirements of Schlumberger configuration
(Fig.5-1), solid non-polarized electrodes M, N locate at in the center of the two
current electrodes A, B symmetrically, MN/2=0.5m, AB/2=3.0m.
Electrodes A, B, M and N respectively connect to the terminals A, B (∞), M and
N connecting port on the WDA-1/WDA-1A main frame.
Fig.5-1 Layout of the system in field
2) Ensure connections are correct and then turn on the WDA-1/WDA-1A main
Page
37
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
frame and the PDA.
3) Run the resistivity and induced polarization program “WDA-1DRIP”.
4) Pair Bluetooth. For detailed operating procedures, please refer to Section 3.6
in this user’s manual.
5) Set survey line parameters
Click “Menu”“New line”, the interface pops up as shown in Fig.6-2. Set
Line name, Station position, Station space and choose electrode array
“4P-VES Schlumberger”.
----------------------------------------------------------------------------------------------------------------------------Note:
“Station space” is unavailable for vertical electric sounding
configurations. When present survey point has been measured, manually
modify survey point location to measure the next point.
-----------------------------------------------------------------------------------------------------------------------------
Fig.5-2
Fig.5-3
Click the button “Schedule” in the screen (Fig.5-2) to enter into Schedule
interface (Fig.5-3) and choose “1” as the “Step”.
To measure two data points at different depth, modify Schedule AB/2 and
MN/2 that are under ID 1, ID 2. For ID 1, AB/2=3, MN/2=0.5; for ID 2,
AB/2=9, MN/2=0.5, instantly, system calculates array factor K automatically.
Then choose ID 1 and click “OK” to exit from the setting interface.
Finally, click “Create line” button to back to the Program Main Interface and
setting of this survey line finishes.
6) Set power supply parameter and sampling parameters
Click “Menu”“Set parameters”. Set “M starting time” of self-defined
polarizability M as 200ms, “M sampling duration” as 100ms, “Transmitting
duration” as 5s, and power supply mode “Transmitting” as standard, or choose
some “Parameters to be displayed” on the Program Main Interface (Fig.5-4).
Page
38
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig.5-4
Fig.5-5
7) Measure and save
When all the parameters have been set, start to measure. Click “Res” button
(at the right bottom of the screen, see Fig. 5-5) or click “Menu” “Measure”
“Res”. Measured result is then displayed in the middle of the screen. At this
time, click “Save” button to save the measured data.
8) Rearrange electrodes -- The second Data Point
Enlarge the distance between two Current electrodes A and B: AB/2=9.
Distance between electrodes M and N keeps unchanged. In the system,
schedule ID turns to 2 automatically since the “Step” is 1 (Fig.5-6).
Fig.5-6
9) Measure and save
Click the button “Res” to measure the second data point. Measured result is
then displayed at the middle of the screen. After saving this group of
measured data, curve formed by these two data points is displayed on the
screen (Fig.5-7).
Page
39
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig.5-7
10) Till then, measurement of these two data points finishes. Shutdown the
system.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
If more data points need to be measured, repeat step 8~9.
For input of “Station position” before measure another survey point,
click “Station” button (at the right bottom of the screen, and click the
software keyboard to input position of the next survey point (Fig.5-8).
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Fig.5-8
Page
40
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
S ECTION S IX: MULTI-ELECTRODE 2D R ESISTIVITY I MAGING
(WITH WDZJ-3 /30-TAKE-OUT M ULTI-ELECTRODES C ABLE)
6.1
Overview
There are two systems that can conduct 2D resistivity imaging, both of which take
WDA-1/WDA-1A as the mainframe. One system is composed of one
WDA-1/WDA-1A mainframe, one WDZJ-3 multiplex electrode converter
(hereafter also referred to as WDZJ-3 converter), multi-electrode cables and
electrodes. The other system consists of one WDA-1/WDA-1A mainframe,
intelligent cables and electrodes.
Section six only devotes to the introduction and operation guide of the former
system, that is, the 2D resistivity imaging system with WDZJ-3 multiplex
electrode converter. WDA-1/WDA-1A super digital DC resistivity/IP meter as
its mainframe to do control and imaging, completes with WDZJ-3 multiplex
electrode converter and multi-electrode cables and electrodes, to fulfill 2D
resistivity imaging.
Regarding introduction to the latter system, please refer to Section Seven in this
user’s manual.
6.2
WDZJ-3 Multiplex Electrode Converter
Front Panel
Page
41
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 6-1 Front panel of WDZJ-3 converter
1) Electrode 1-30: the first 30-take-out cable socket, electrode numbered from 1
to 30.
2) Electrode 31-60: the other 30-take-out cables socket, electrode numbered
from 31 to 60.
3) A, B: power supply terminals, connecting to the corresponding ports on
WDA-1/WDA-1A mainframe when measuring.
4) M, N: signal terminals, connecting to the corresponding terminals of
WDA-1/WDA-1A mainframe when measuring.
5) Forward RS-232: serial port, connecting to RS-232 port on front panel of the
mainframe WDA-1/1A, receiving control commands from the WDA-1/1A.
6) Backward RS-232: serial port transmitting commands of WDA-1/1A
backward to the next WDZJ-3 converter. If several WDZJ-3 converters is in
serial connection with more electrodes, communication cable should connect
the previous WDZJ-3 converter to next WDZJ-3 converter through the
RS-232 ports, namely, “Forward RS-232” port and “Backward RS-232” port.
“Forward RS-232” port connects to the previous WDZJ-3 converter and the
“Backward RS-232” port connects to the next WDZJ-3 converter.
7) Working indicator light: this indicator light keeps on when it works well. It
flickers when system starts up, initializing, receiving or transmitting
commands of mainframe.
Page
42
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Working Principle
Fig. 6-2 Circuitry
As mainframe, WDA-1/WDA-1A controls the WDZJ-3 multiplex electrode
converter through RS-232, select A, B, M, N electrodes by turns among 1~60
electrodes, according to the specific electrode array (for interpretation of different
kinds of electrode arrays, please refer to the attached Electrode Array User’s
Manual, Section Two, Electrode Array of Multi-electrode Electrical Resistivity
Survey).
Page
43
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 6-3 Field survey layout
WDZJ-3 converter in Fig. 6-3 is numbered as 1 automatically. To cascade more
WDZJ-3 converter, just connect them together through “Backward RS-232” port
and “Forward RS-232” port, and connect A, B, M, N port to each corresponding
electrodes. The mainframe will number the next WDZJ-3 converter as 2 and
electrodes on the second WDZJ-3 converter will be numbered as 61~120.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
Examine regularly whether WDZJ-3 converter works well and make sure
switch-on or switch-off functions are normal. For detailed operation,
please refer to Appendix B).
Periodically check insulating property of WDZJ-3 converter and make
sure that insulation between each pin of “1~30 Socket” and “31~60
Socket” and terminals A, B, M, N on panel are more than 500Ω (by
500VMΩ resistivity meter). If insulation fails to meet the requirements,
please contact the supplier.
Generally, each size-D battery of WDZJ-3 converter could last for 10
hours. If the output voltage is about 70~80% of the nominal voltage,
please replace the batteries with new ones, otherwise, battery box will be
damaged by battery leakage.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page
44
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
6.3
Operation
6.3.1 Turn on WDA-1/WDA-1A and Run System Program
Switch on WDA-1/WDA-1A, turn on the pocket PC and then click “Start”
“Program” “Explorer” “SD card” “WDA-2DR” to enter into the system
program (Fig. 6-4).
Fig. 6-4
6.3.2 Pair Bluetooth
Please refer to Section 2.6.
6.3.3 Set Parameter
1) Create Cross-Section
Click “Menu” “New section” (Fig. 6-5) and system enters into the Parameter
setting interface (Fig. 6-6).
Fig. 6-5
Page
45
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 6-6
Section: section/cross-section is the collection of all the survey points on the same
vertical plane where the survey line locates. Section is the name of one
cross-section in field survey and the name of the corresponding file stored in disk.
Layer Nos.: a layer is the collection of all the survey points at the same depth.
And “Layer Nos.” comes from total layers measured at the different depth.
Electrode space: it is the distance between the two adjacent electrodes; unit is
meter. This parameter functions calculating the geometrical factor K of each
electrode array configuration and recording points locations.
Electrode Nos.: amount of all the electrode take-out that used at present,
connecting to all the multi-electrode cables.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note: in cross-hole dipole, “Electrode Nos.” means the number of take-out on
the cable along a single side.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------First electrode No.: number of the electrode where the measurement starts, all the
electrodes which are prior to this electrode are not involved in this measurement.
Involved electrodes nos.: amount of the electrodes connected along the survey
lines and in use.
2) Choose Electrode Array Configuration
Array: there are 15 electrode array configurations available, Wenner Alpha array
(WENNER α), Wenner Beta array (WENNER β), Wenner Gamma array
(WENNER γ), Three-pole direct array (δA ARRAY), Three-pole reverse array
(δB ARRAY), Wenner Alpha 2 array (SCHLMBG), Self-Potential M array
(SP-M), Self-Potential MN array (SP-MN), Charging M (CHG-M), Charging
MN (CHG-MN) which are applicable for fixed cross section roll-along scan
measurement; and Two-pole Roll along array (2P AM), Three-pole Roll along
array (3P A-MN and 3P AB-M), Dipole-dipole Roll along array (DIPOLE),
Page
46
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
MN-B are applicable for extendable cross section continuous roll-along
measurement (Fig. 6-7). For detailed introduction, please refer to the attached
Electrode Array User’s Manual.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
Only the 15 electrode array configurations are available when
WDA-1/WDA-1A works with WDZJ-3, the last option of cross-hole dipole
array is excluded. In other words, if you choose Cross-hole Dipole array
(CR-DIPOLE) as the electrode array of an newly created section, then system
automatically choose “Intelligent cable” and “Socket 1” and “Socket 2” as
the cable and switches (Fig. 6-11).
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Fig. 6-7
Fig. 6-8
AB space: AB distance, unavailable.
MN spans: distance between potential electrodes M and N. “Fixed” and “Auto”
are options. “Fixed” means MN interval is set by the operator; while “Auto”
means the center of MN keeps fixed; yet adds two electrode spacings every eight
layers on the section. For example, if the original setting of “MN spans” is 1, the
ninth layer is 3 and the seventeenth layer is 5. When the electrode array is
three-pole roll along array (3P A-MN and 3P AB-M) array, MN-B array or
Wenner Alpha 2 array (SCHLMBG), this parameter is distance between Potential
electrodes M and N.
Section color: see Fig. 6-8, “Auto-scale in Min-Max” button is to set color
automatically according to values chosen in “Max” and “Min” pull-down boxes;
“Default” button is to set color automatically according to maximum and
minimum resistivity of current profile. User can also choose “Logarithm scale”
and “Linearity scale” of the defined color.
Page
47
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 6-9
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
Section names are not allowed to be the same. Once a new section is created,
the parameters can not be modified. If modification is necessary, input a new
section name to create another “Section” (Fig. 6-9).
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------3) Set Control Parameter
As shown in Fig 6-10, click the corresponding shortcut icon at the bottom of
screen or click “Menu”“Control Parameter”, and the Control parameter setting
interface pops up (Fig. 6-11 a). If the currently chosen option is “Intelligent cable”,
choose WDZJ-3 (Fig. 6-11 b).
Parameters are profile, power supply, self-potential, etc. All these parameters have
a default; to recover the default, click the “Restore to Default” button.
Fig. 6-10
Page
48
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
a)
b)
Fig. 6-11
4) Profile
First layer No.: number of layer from which the system starts measuring. Default
is 1.
Last layer No.: Number of profile till which measuring finishes. Default is 16.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
“Last layer No.” should not be less than the first layer number (First layer
No.).
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------5) Transmitting
Both positive power supply phase and negative power supply phase belong to the
Power-on phase (Fig. 6-12). Time of positive power supply phase and negative
power supply phase is named as Power-on time; time between them is named as
Power-off time.
Fig. 6-12
6) Self-Potential
In the multi-electrode resistivity imaging system, there may be a large amount of
electrode coulombs left after one measuring action; if go on to the next measuring
Page
49
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
action immediately, measuring error of may be enlarged. In order to improve
measuring precision, WDA-1/WDA-1A will wait until the potential recovers, so
as to eliminate errors caused by self potential jumping.
However, in some geological conditions whose self-potential is quite active (such
as alkaline soil), recovery of self potential may not be satisfying after the above
operation; then set appropriate “Variation limit” and “Over-variation delay” to
improve measuring precision, which means system compensates self-potential of
the next survey point. System first tests and checks whether current self potential
jumps and whether it is higher than “Variation limit” defined; if it is higher, set
“Over-variation delay” time to wait until self-potential gets stable.
“Variation limit”: 10, 20, 50, 100, 200, 500 are available; unit is mV/s. Choose
one value according to the actual geological condition (default is 100mv/s). The
smaller the value, the higher the measuring precision, and the longer the time
needed; the higher the value, the lower the measuring precision and the shorter the
time needed.
“Over-variation delay”: 500, 1000, 2000, 3000, 5000 are available; unit is ms
and default is 2000ms.
Switch and Socket: since the Section you are reading devotes on introduction to
multi-electrode 2D Res imaging with WDZJ-3, choose WDZJ-3. Information of
the alternative “Intelligent cable”, please go to Section Seven.
7) Automatic Section Ending
User decides whether performing the function of ending section automatically or
not.
If choose this function, system will end section automatically when the complete
section is measured; however, under this mode, system could not conduct
extendable cross-section continuous roll-along imaging.
Since cross-section is defined differently by various electrode array configurations,
shapes of the ending of the section are different (Fig. 6-13).
Fig. 6-13
If to continue performing roll-along measurement, deselect this option “Automatic
Section Ending” and the system will automatically clew movement of the
Page
50
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
electrodes (Fig. 6-14). Then follow the prompt message to rearrange the electrode
backwards by clicking “Yes” and to do extendable cross-section roll-along
imaging, or click “No” to have system end the section.
Since each multi-electrode cable can connect with 30 electrodes, to perform
roll-along imaging, all cables should be shifted forwards or backwards.
Fig. 6-14
For example, survey conditions are:
a) Electrode: 60 electrodes
b) Electrode array: Wenner Alpha array (WENNER α)
c) Parameters of cross-section: defaults
When conduct multi-electrode 2D Res imaging with WDZJ-3, system prompts as
Fig. 6-14 after one cross-section is measured. Move the No.1 electrode to where
No.13 electrode is, No.2 electrode to where No.14 electrode is, and the following
electrode backwards one by one, until the 60 electrodes are rearranged (Fig. 6-15);
then click “Yes” to continual measuring.
Fig. 6-15
8) Check Parameters
Finishing setting all the parameters of the cross-section, click the corresponding
shortcut button at the bottom screen or click “Menu”“Section parameters” (Fig.
6-16) to display current parameters of a section (Fig. 6-17), so as to check whether
Page
51
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
any incorrectness exists.
If any parameter is incorrect, go back to the Parameter setting interface to modify
it immediately.
Fig. 6-16
Fig. 6-17
6.3.4 Measure
Page
52
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig.6-18
Measure interface consists of the following items:
1) Self-check
WDA-1/WDA-1A connects with the multi-electrode cable/electrodes through
WDZJ-3 multiplex electrode converter, electrode switches are inside WDZJ-3
converter. Self check is to inspect the switch contacts inside WDZJ-3 converter,
which is carried out by WDZJ-3 multiplex electrode converter self-checker (for
details, please refer to Appendix B).
2) Section
For a new cross-section, click “Menu” “Section” or click the “Section” button
to start measuring and save the measured data into “WDA-2DR” file in SD card
or CF card of the PDA automatically. During measuring, click “Continue” to
continual measuring or click “Pause” button to quit measuring (Fig. 6-19).
Fig. 6-19
When the complete cross-section is measured, system clews measuring finishes
and thereafter, the “Section” button is unavailable, but “Point” button is available.
Click a data point in the pseudo-section and click “Point” button, this data point
will be measured once again.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
In process of measuring, the multi-electrode working indicator light flickers
frequently. If voltage of the WDZJ-3 converter is too low, this indicator light
flickers at a lower frequency, in this case, please do replace the batteries for it
with new ones.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page
53
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
3) Point
Measure the single point and save measured data automatically. If you are not
satisfied with the measured result of one point, measure it once again by this
function. Operation is, clicking one data point and then clicking “Point” button.
4) Grounding R
This function is Measure earth resistance of each electrode. click the
corresponding shortcut icon (Fig. 6-18) to enter into the measure interface and
choose 1-channel or 2-channel. If resistance measured is more than 5 KΩ, system
clews resistance is too high.
5) WDZJ-3 Volt
This function is to get battery voltage status of WDZJ-3 converter, “Normal” or
“Under-voltage”. In case of several WDZJ-3 converters are needed to be
paralleled to add in more electrodes, this function will test status of all these
WDZJ-3 converters one by one. If voltage of any WDZJ-3 converter is
insufficient, it is recommended to replace its batteries, to ensure smooth field
survey.
6) Battery Volt
This function is to measure battery voltage of WDA-1/WDA-1A main frame.
Click the battery icon at the right bottom of the screen.
6.3.5 View
Fig. 6-20
Page
54
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 6-21
1) Move left/right/up/down: cross-section displayed can be
leftwards/rightwards/up/down by these four functions (Fig. 6-20).
moved
2) Section data: this function is to observe resistivity value ρs of all the survey
points on a cross-section. What displayed are survey line name, electrode
array configuration, X and Y coordinate values and resistivity gained. X
direction stands for the actual distance of the measured results in the
cross-section and Y direction stands for the layer number (Fig. 6-21).
6.3.6 Load Section
Click the “Open” shortcut icon at the left bottom of main interface or click
“Menu”“Load section” to open the cross-section data stored in “WDA-2D” file.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
All the data by 2D imaging are stored in “WDA-2D” file.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page
55
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
S ECTION S EVEN : MULTI-ELECTRODE 2D R ESISTIVITY I MAGING
(WITH 10-TAKE-OUT I NTELLIGENT C ABLE)
7.1
Overview
This 2D resistivity imaging system takes WDA-1/WDA-1A super digital DC
resistivity/IP meter as its mainframe to do control and imaging, completing with
intelligent cables and stainless steel electrodes. This system can conduct
multi-electrode 2D/3D resistivity imaging and multi-electrode 2D induced
polarization imaging.
In this Section the function of 2D resistivity imaging is elaborated.
7.2
Intelligent Resistivity/IP Cable
The only difference between intelligent resistivity cable (Fig.7-1) and intelligent
IP cable (Fig.7-2) is that, intelligent resistivity cable can only perform 2D/3D
resistivity imaging, not 2D IP imaging, while intelligent IP cable can both
perform 2D/3D resistivity imaging and 2D IP imaging.
Fix the Connector at the upper end of the stainless electrode by pulling the string
upwards to have electrode top insert into the ringer that is at the end of the spring.
Fig.7-1 Intelligent Resistivity cable
Fig.7-2 Intelligent IP cable
Page
56
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
7.3
Field Layout
As shown in Fig.7-3, it is a 2D resistivity imaging system. There are 60 electrodes
in all (6 strings of intelligent cables, 10 take-out/string. To add more electrodes in
you need to add more strings of intelligent cables).
Fig.7-3 Field layout of 2D resistivity imaging system
As mainframe, WDA-1/WDA-1A controls the WDZJ-3 multiplex electrode
converter through RS-232 and select A, B, M, N electrodes by turns among 1~60
electrodes (each strings of intelligent cable has 10 take-out for electrodes which
are numbered as 1~10 respectively). The intelligent cable head is a 12-core plug,
with 12 pin holes at its end; while the tail of the intelligent cable is also 12-core
plug, with 12 pins at its ends. Connect the intelligent cables one by one with the
take-out. During field survey, the system will automatically number the electrodes
on the intelligent cables, No.1~No.60 respectively starting from the one that is
nearest to the WDA-1/WDA-1A main frame.
7.4
Program Main Interface
The Program Main Interface of 2D resistivity imaging function is as follows
(Fig.7-4).
Page
57
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 7-4 Program Main Interface of 2D resistivity imaging function
In the top of the screen is a display area for measured results (SP, VP, IP, and R0)
and electrode array configuration information; at the bottom are a menu bar and
shortcut icons; in the middle is a display area for pseudo-section of measured
results which varies from electrode array configurations (in Fig. 7-4, it is Wenner
Alpha array, the pseudo-section of measured data is a inversed trapezoid. For
details of other electrode arrays, please refer to the attached Electrode Array
User’s Manual, Section Two).
To review measured result of a certain point on the cross-section, just click this
point on the waveform with the stylus, and then the corresponding values of SP,
VP, IP and V0 are displayed at the top section.
7.5
Operation
7.5.1 Turn on WDA-1/WDA-1A and Run System Program
Switch on WDA-1/WDA-1A, turn on the PDA and then click “Start”
“Program” “File Explorer”“SD card” “WDA-2DR” to enter into the
system program (Fig. 7-5).
Fig. 7-5
Page
58
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
7.5.2 Pair Bluetooth
Please refer to Section 2.6 in this user’s manual.
7.5.3 Set Parameter
1) Create Profile
Click “Menu” “New section” (Fig. 7-6), and system enters into the section
parameter setting interface (Fig.7-7).
Fig. 7-6
Fig. 7-7
Section: section/cross-section is the collection of all the survey points in the same
vertical plane where the survey line locates. Section name is the name of one
cross-section in field survey and the name of the corresponding file stored in disk.
Layer Nos.: layer is the collection of all the survey points at the same depth. And
“Layer Nos.” comes from total layers measured at different depth.
Electrode space: electrode space is the distance between the two adjacent
electrodes; unit is meter. This parameter functions calculating array factor of each
electrode array configuration and recording points locations.
Electrode Nos.: amount of all the electrode or take-out that used at present, on all
of the intelligent cables.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
In cross-hole dipole, “Electrode Nos.” stands for the number of electrode or
take-out on the intelligent cable along each single side.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------First electrode No.: number of the electrode that firstly measured, other
electrodes prior to this electrode will not be measured.
Involved electrodes Nos.: amount of the electrodes connected along the survey
lines and in use.
Page
59
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Take Fig. 7-8 for example, cascade three strings of intelligent cables one by one.
Provided that the “First electrode No.” is No.6 and the last five electrodes are not
to be counted in for limitation of space. In this case, “Electrode Nos.” is 30, “First
electrode No.” is 6, and “Involved electrode Nos.” is 20. “Electrode space” is the
distance between two adjacent electrodes in the figure below.
High voltage
Cable socket 1
3-pole B
Cable socket 2
The first five electrode disconnected
the last five electrode disconnected
Fig. 7-8
2) Choose Electrode array configuration
Array: there are 15 electrode array configurations available for this system.
Wenner Alpha array (WENNER α), Wenner Beta array (WENNER β), Wenner
Gamma array (WENNER γ), Three-pole direct array (δA ARRAY), Three-pole
reverse array (δB ARRAY), Wenner Alpha 2 array (SCHLMBG), Self-Potential
M array (SP-M), Self-Potential MN array (SP-MN), Charging M (CHG-M),
Charging MN (CHG-MN) which are applicable for fixed cross section roll-along
scan measurement; and Two-pole Roll along array (2P AM), Three-pole Roll
along array (3P A-MN and 3P AB-M), Dipole-dipole Roll along array
(DIPOLE), MN-B, Cross-Hole Dipole/Equatorial Dipole-dipole array
(CR-DIPOLE) are applicable for extendable cross section continuous roll-along
measurement. For detailed introduction, please refer to the attached Electrode
Array User’s Manual.
Page
60
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 7-9
Fig. 7-10
Below are definitions of the related parameters.
AB space: the actual distance between electrodes A, B; unit is meter. It is only
available for cross-hole dipole array configuration, not for other electrode arrays.
MN space control: invariable and auto are optional. “Invariable” means MN
interval is set by the operator; while “Auto” means the center of MN keeps fixed;
yet adds two electrode intervals every eight layers on the profile. For example, if
the original setting of MN interval is 1, the ninth layer is 3 and the seventeenth
layer is 5.
MN spans: When array is A-MN pole-dipole array, AB-M pole-dipole array,
AB-MN dipole electrode array, MN-B array or Schlumberger Array (α2), this
parameter is distance between Potential electrodes M and N.
Section color: see Fig.7-10, “Auto-scale in Min-Max” button is to set color
automatically according to values chosen in “Max” and “Min” pull-down boxes;
“Default” button is to set color automatically according to maximum and
minimum resistivity of the present section. User can also select “Logarithm scale”
and “Linearity scale” to set color.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
When system works with the intelligent resistivity/IP cable, the first 15
electrode array configurations need only one socket (on the WDA-1/WDA-1A,
Socket 1 or Socket 2), either one works. While Cross-hole DIPOLE
(CR-DIPOLE) array needs both sockets simultaneously, “Socket 1”
connecting with Current electrodes A, M and “Socket 2” connects with
Potential electrodes B, N.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------3) Set Control Parameter
As shown in Fig.7-11, click the corresponding shortcut icon at bottom of screen or
click “Menu”“Control Parameter”, and the control parameter setting interface
Page
61
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
pops up (Fig.7-12), parameters are profile, power supply, self-potential, etc.
Fig. 7-11
①
Fig. 7-12
Profile
First layer No.: number of layer where the measuring starts. Default is 1.
Last layer No.: number of layer where the measuring finishes. Default is 16.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
“Last layer No.” should not be less than “First layer No.”.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------②
Transmitting
Both positive power supply period and negative power supply period belong to the
power supply phase (Fig. 7-13). The time of positive power supply and negative
power supply is also named as “Power-on time”. The time between them is
power-off time (Power off).
Fig. 7-13
③
Self-Potential
Background:
In the multi-electrode resistivity imaging system, there may be a large amount of
Page
62
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
electrode coulombs left after one measuring action. If go on to the next measuring
action immediately, measuring error of may be enlarged. In order to improve
measuring precision, WDA-1/WDA-1A will wait until the potential recovers, so as
to eliminate errors caused by self potential jumping.
However, in some geological conditions whose self-potential is quite active (such
as alkaline soil), recovery of self potential may not be satisfied after the above
operation. To meet this need, this system is designed with parameters of
“Variation limit” and “Over-variation delay” to improve measuring precision,
which enables the system to compensate self-potential of the next survey point.
System first tests and checks whether current self-potential jumps and whether it is
higher than “Variation limit” defined; if it is higher, set “Over-variation delay”
time to wait until self-potential gets stable.
Variation limit: 10, 20, 50, 100, 200, 500 are available; unit is mV/s. Choose one
value according to the actual geological condition (default is 100mv/s). The
smaller the value, the higher the measuring precision, and the longer the time
needed; the higher the value, the lower the measuring precision and the shorter the
time needed.
Over-variation delay: 500, 1000, 2000, 3000, 5000 are available; unit is ms and
default is 2000ms.
④
Switch and Socket
Choose “Intelligent cable” and choose “Socket 1” or “Socket 2” (if the electrode is
Cross-hole DIPOLE (CR-DIPOLE) array, select both sockets.
⑤
Automatic Section Ending
User decides whether performing the function of “Automatic section ending” or
not.
If choose this function, system will end section automatically when the complete
cross-section is measured. However, under this function, system could not perform
extendable cross-section continuous roll-along measuring.
Since cross-section varies from electrode array configurations, shapes of the
ending cross-section are different. As for 2P AM array, 3P AMN array, etc.,
whose cross-section are parallelograms and MNB array whose cross-section
rectangle, shapes of section ending are as shown in Fig.7-14.
Page
63
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 7-14
If to perform extendable cross-section continuous roll-along imaging, deselect this
option and the system will automatically ask whether to move the electrodes (Fig.
7-15). Follow the prompt message to rearrange the electrode (move forwards) and
click “Yes” button, or click “No” button to have the system perform section
ending function.
Since each intelligent cable can connect to 10 electrodes, to perform extendable
cross-section continuous roll-along imaging, all the intelligent cables shall be
shifted forwards or backwards together. Operator should strictly follow the
prompt message to move the electrodes.
Fig. 7-15
For example, conditions are:
a) Electrode: 60 electrodes
b) Electrode array configuration: Wenner Alpha array (WENNER α)
c) Parameters of cross-section: defaults
While multi-electrode 2D resistivity imaging with the intelligent cable, system
prompts as Fig. 7-15 after one cross-section is measured. Follow the message and
move the first string of intelligent cable (together with 10 electrodes) to the tail of
the last string, and the No.11 survey point turns to No.1 electrode of the present
system.
Page
64
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 7-16
4) Check Parameters
Finishing setting all the parameters of the cross-section, click the corresponding
shortcut button at the bottom screen or click “Menu”“Section Parameters” (Fig.
7-17) to display parameters of the present section (Fig. 7-18), so as to check
whether any incorrectness exists. If any parameter is incorrect, go back to the
parameter setting interface and modify it immediately.
Fig. 7-17
Fig. 7-18
7.5.4 Measure
Fig.7-19
Page
65
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Measure interface consists of the following items:
① Self check
Imbedded inside each take-out of the intelligent cable is an electrode switch.
Function of the electrode switch can also be checked by the PDZ-1 switch adapter
self-checker. For detailed operations, please refer to Appendix A in this user’s
manual.
② Section
To measure a new section, click the “Section” button to start measuring and save
the measured data into “WDA-2D” folder in SD card or CF card of the PDA
automatically; or click “Pause” to quit measuring and click “Continue” to continue
measuring (Fig.7-19).
When the complete cross-section is measured, system clews “Section measure is
completed successfully” and thereafter, the “Section” button is unavailable, but
“Point” button is available. Click a data point that is in the pseudo-section and
click “Point” button, this data point will be measured once again.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
In process of measurement, the multi-electrode working indicator light
flickers frequently. If the “Involved electrode Nos.” is less than the parameter
“Electrode Nos.”, this indicator light flickers at a lower frequency. That is to
say, if parameter “Electrodes Nos.” is 60, but the actual amount of electrodes
counted in (Involved electrode Nos.” is 50, this indicator light flickers at low
frequency.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------③ Point
Measure the single point and save measured data automatically. If you are not
satisfied with the measured result of one data point, measure it once again through
this function. Operation is, clicking one data point that is in the cross-section and
then clicking “Point” button or clicking “Menu” “Measure” “Point”.
④ Grounding R
This function is to measure earth resistance of each electrode. Click the
corresponding shortcut icon (Fig.7-19) to enter into the measure interface and
choose 1-channel or 2-channel. The system will clew that earth resistance is too
high if it is more than 5 KΩ.
⑤ Electrode-box Voltage
For this system with intelligent cable, this function is unavailable.
⑥ Battery Volt
Page
66
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
This function is to measure battery voltage of WDA-1/WDA-1A main frame; click
the battery icon at the right bottom of the screen.
7.5.5 View
Click Menu Display to view the measured data of a section (Fig. 7-20).
Fig. 7-20
Fig. 7-21
1) Move left/right/up/down: cross-section displayed
leftwards/rightwards/up/down by these four function
can
be
moved
2) Section data: this function is to review resistivity value ρs of all the survey
points on a cross-section. What displayed are survey line name, electrode
array configuration, X and Y coordinate values and resistivity measured
(Fig.7-21). X direction means the actual distance of the measured results in the
cross-section and Y direction means the layer number.
7.5.6 Load Section
Click the “Open” icon at the left bottom of the main interface or click
“Menu”“Load section” to open the cross-section data stored in “WDA-2D” file.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
All the data by 2D imaging are stored in “WDA-2D” file.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page
67
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
S ECTION EIGHT: FIELD S URVEY E XAMPLE — 2D R ES (WITH
10-TAKE-OUT I NTELLIGENT C ABLE)
Measuring Condition:
a) System survey mode: multi-electrode 2D resistivity imaging with intelligent
cable
b) Electrode array configuration (Array): Winner Alpha array (Wenner α)
c) Total numbers of electrode (Electrode Nos.): 60 electrodes
d) Electrode spacing (Electrode space): 2m
Operation procedures:
1) Lay Electrode
First of all, clinch the 60 electrodes on the survey line to measured, with electrode
spacing of 2 meters, along the cross-section direction.
2) Assemble Cable
The 10 connector (take-out) on each sting of cable are numbered as 1~10
respectively, that is, each string of cable could connect with 10 electrodes, at the
head of the cable is a 12-core plug and at the end of the cable is a 12-pin plug
(jack plug).
Prior to assemble the cables, get a clear mind of the location of the electrode
arrangement where the section locates. Put the cable along the array, keeping its
head and end in sequence. Then mount the connector to connect the cables one by
one.
Fig.8-1 Layout of intelligent cable and electrode in field
3) Fix Electrode on the Connector of the Intelligent Cable
Fix the connector at the upper end of the stainless electrode by pulling the string
upwards to have electrode top insert into the ringer that is at the end of the spring.
Fig. 8-2 shows the connection of intelligent resistivity cable and the electrode.
Page
68
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 8-2
If completing with intelligent IP cables, the white plastic ring at the end of
ABMN should be rotated to have AB, MN short-circuited, i.e., to have Potential
electrodes MN and the Current electrodes AB short-circuited (Fig. 8-3).
Current electrodes AB
White plastic ring
Fig. 8-3
4) Connect to WDA-1/WDA-1A
Insert one end of the intelligent cable into socket 1 or socket 2 on the
WDA-1/WDA-1A main frame (Fig. 8-4).
If the mainframe is WDA-1, connect the DC HV positive and negative terminals
to those of the DC high-voltage power source respectively.
Page
69
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 8-4
5) Turn on WDA-1/WDA-1A and the Pocket PC
Ensure all the cables are well and correctly connected and then switch on the main
frame and PDA.
6) Run System Program
Turn on the pocket PC. Run the multi-electrode 2D resistivity imaging system
program “WDA-2DR”.
Fig.8-5
Operation is, clicking “Start” “Program” “File Explorer” “SD card”
Page
70
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
“WDA-2DR” program.
7) Pair Bluetooth
Please refer to Section 2.6 in this user’s manual.
8) Create New Section and Set Parameters
Click “Menu” “New section” to enter into the interface as shown in Fig. 8-7.
Fig.8-6
Fig. 8-7
Name the “Section”, set “Layer Nos.” as 16, “Electrode space” as 2m, “Electrode
Nos.” as 60, “First electrode No.” as 1 and “Involved electrodes Nos.” as 60.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
If the “Involved electrode Nos.” has to be 55 due to limitation of field,
“Electrode Nos.” equals the total number of take-out 60, “Involved
electrodes Nos.” then is 55.
Choose Wenner Alpha array (Wenner α) as the electrode array
configuration (Array).
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------9) Set Control Parameters
Click “Menu”“Control parameters” to get into the interface shown in Fig. 8-8.
Page
71
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 8-8
Set “First layer No.” as 1, “Last layer No.” as 16, “Power-on time” as 100ms,
“Power-off time” as 50ms and choose “Socket 1” without the function “Automatic
section ending”.
10) Start Measure Section
After setting all the parameters, click the icon “Section” or click
“Menu”“Measure”“Section” (Fig.8-9); measured results are then stored
automatically.
Fig.8-9
Since system measures without the function of “Automatic section ending”, when
all the connected electrodes are measured, system gives clews as shown in Fig.
8-10, reminding to move the electrodes.
Page
72
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 8-10
Click “YES” to extend the section and continue measuring, and then move the
electrodes according to requirement. Or click “NO” to perform “Automatic section
ending” function.
11) Shut Down System
Finishing measuring the wanted section, turn off the pocket PC and the
WDA-1/WDA-1A mainframe
Page
73
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
S ECTION N INE: MULTI-ELECTRODE 2D IP I MAGING (WITH
10-TAKE-OUT I NTELLIGENT C ABLE)
9.1
Overview
Operation of multi-electrode 2D induced polarization (IP/chargeability)
imaging is quite similar to that of multi-electrode 2D resistivity imaging.
Hereafter are four aspects of differences between them.
9.2
Differences Between 2D Res Imaging and 2D (IP) Imaging
9.2.1 Intelligent IP Cable
As we mentioned in Section Seven, intelligent resistivity cable can only perform
multi-electrode resistivity imaging (2D/3D). Different from intelligent resistivity
cable, intelligent IP cable can perform both multi-electrode 2D/3D resistivity and
2D IP imaging. As shown in Fig.8-1, there are two solid non-polarized electrodes
function as the Potential electrodes M and N.
White plastic ring
Current
electrodes AB
Spring
Potential
electrodes M, N
Fig. 9-1
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
When performing multi-electrode 2D IP imaging, connections between the
Page
74
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Potential electrodes M, N and the Current electrodes A, B must be cut off; for
operation, rotate the white plastic ring to cut off contacts between the spring
and the stainless end.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------If to conduct 2D resistivity imaging with intelligent IP cables, the white plastic
ring at the end of ABMN should be rotated to have ABMN short-circuited, i.e., to
have Potential electrodes MN and the Current electrodes AB short-circuited (Fig.
9-2).
White plastic ring
Fig. 9-2
9.2.2 Parameter Setting for New Cross Section
If a new cross-section is created, the following parameter should be set.
Data displayed: Resistivity (R0) and user-defined M or M1 are optional.
M Starting time: starting time for user-defined polarizability M sample.
M Sampling duration: sample width for user-defined polarizability M.
Select Display Parameter: any four of these parameters can be selected to be
displayed in the main interface.
Page
75
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
9.2.3 Power Supply Mode
IP
Transmitting
Fig. 9-4
Under the control parameter setting interface, set the power supply mode
(Fig.9-4).
Standard mode: standard mode has three power-on period, i.e. “Positive power
— Power off — Negative power — Power off — Positive power — Power off”
(Fig. 9-5c)).
Unidirectional mode: unidirectional mode has only one power-on period, i.e.
“Positive power —Power off” (Fig. 9-5a)).
Bidirectional mode: bidirectional mode has two power power-on periods, i.e.
“Positive power — Power off — Negative power — Power off” (Fig. 9-5b)).
a) Unidirectional mode
b) Bidirectional mode
Page
76
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
C) Standard mode
Fig.9-5 Power Supply Mode Schematic Diagram
9.3
Operations
Except the above mentioned differences on parameters and connection of
solid non-polarized electrodes, multi-electrode 2D resistivity imaging
system and 2D IP imaging system are the same on instrument operation,
please refer to operation guide to the multi-electrode 2D resistivity imaging
system in Section Seven.
Page
77
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
S ECTION T EN: MULTI-ELECTRODE 3D R ESISTIVITY I MAGING
(WITH 10-TAKE-OUT I NTELLIGENT C ABLE)
10.1 Working Principle
Along the horizontal plane or the vertical planes of X and Y axis direction, a
limited solid space can be divided into numerous short rectangular columns which
are combined as the 3D Model of this solid. And in each column, an appropriate
point could be regarded as the approximate resistivity of the whole.
3D imaging mode is developed from 2D imaging mode.
What is the difference between them is, 2D imaging mode divides one big
cross-section into different smaller ones and measures all the survey points of small
sections to complete the measurement approximately, while 3D imaging mode is
developed from 2D, finishing the measurement approximately through combining
all the points along the planes of different directions (in column mode) on the basis
of 2D measurement. However, 3D imaging mode is not only a simple combination
of 2D mode but involves data processing by inversion software to make the
inversion model more practical.
Fig. 10-1
Electrode array of 3D imaging is S-shaped rectangular (Fig. 10-1), taking four
adjacent electrode locations as the corners of small column on the ground, which
means the length and width of column is equal to the unit electrode distance. Then
resistivity of these columns at different depths could be measured by different
Page
78
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
electrode combination modes. Finally, measured data is processed by inversion
software, reflecting the underground with model.
10.2 Division and Layout
Generally, all the electrodes for 3D imaging are distributed in grid-node-shaped
region, of the whole survey district or one portion of the survey district The
instrument selects the corresponding electrodes automatically according to the
specific array to collect the resistivity data that are with various electrode arrays at
all directions. Layout of the cable and electrode is shown as Fig. 10-1.
Definition of electrode number on the cable and of the electrodes in matrix is
shown as Fig. 10-2.
Electrode array may be pole-pole, pole-dipole and dipole-dipole.
Fig. 10-2
To conduct 3D imaging successfully, data of every electrode, with different
electrode distances or in various directions should be gained. Take 5*5 matrix for
example, to demonstrate the completely measurement for 3D data in pole-pole
array. The 1~25 are serial numbers for the points of the rectangular and they are
not consistent with the electrode numbers on the intelligent cable (Fig. 10-3).
According to interchange Law, measure the electrode whose serial number is larger
than the one of power supply electrode.
Page
79
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 10-3
If complete survey district is too large to be covered with the electrodes in one
measurement, divide it into several sections. Method is as follows:
① First of all, divide the complete district into several subareas, along Y (or X)
direction, to ensure that one section could be covered by all the electrodes.
Execute 3D imaging on each subarea in turn.
② If the subareas are still too large, divide than again by following the above
procedures.
For example, a 10*10 electrode grids of survey district, only 50 electrodes are
available (Fig. 10-4), steps are: divide it into four sections; divide the district into
two 10*5 subareas along Y direction (Fig. 10-4), set two survey stations and take
3-D measurement one by one; then take the same operation along X direction.
Page
80
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 10-4
10.3 Concept of Survey Block and Grid
Considering that survey district may be relatively larger but user is in want of
electrodes or intelligent cables, we brings about the conception of survey grid and
survey block, to enable limited electrodes to measure relatively larger regions (Fig.
10-5) .
Page
81
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Region encircled
by red line is
survey block
Region encircled
by yellow line is
survey grid
Survey block
Survey block
Survey block
Survey block
Survey block
Survey block
Fig. 10-5
1)
Survey Block
Survey block is the maximum section that all the arranged electrodes can fully
reach. Size the survey block is defined when it is created and could not be
modified.
2)
Survey Grid
One survey grid may consist of several survey blocks. Size of the survey is defined
when it is created and could not be modified; to gain data of the survey grid, just
measure all its blocks one by one.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
When moving among survey blocks, ensure that the actual electrode
coordinates are consistent with those on the graph.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page
82
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
10.4 Electrode Array of 3D Resistivity Imaging
1)
3D pole-pole (two-electrodes) Array
Pole-pole array is quite simple and usually applied in 3D imaging.
Calculation formula of apparent resistivity in pole-pole array is,
ρ=2π aV/I,
“V”: potential observed.
“I”: current observed.
“a”: distance between the Current electrodes A and Potential electrode M.
To get known electrodes number “n”, maximum irrelevant data number in
pole-pole array is Nmax=n (n-1)/2
As aforementioned, a lot of electrodes are involved, cross-diagonal observation
scheme is recommenced to reduce the work of observation and data processing.
What needs to do is to observe the data of every electrode distance arrange of eight
azimuths along horizontal, vertical and 45° diagonal directions.
Again, take 5*5 matrix for example and seem 1~25 as the serial numbers of the
points in the matrix (Fig. 10-6).
Fig. 10-6 Cross-Diagonal observation
2)
3D Pole-Dipole (Three-Electrode) Array
For 3D survey or imaging of middle-size districts (not less than 12*12 electrodes),
pole-dipole array is more fitted, for it interference suppression is better than
pole-pole array because the two measuring electrodes locates in the survey district,
what’s more, the signal observed is greatly improved (Fig. 10-7).
Page
83
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 10-7 Pole-Dipole Array
Different from other electrode arrays, pole-dipole array is not arranged
symmetrically, so is the apparent resistivity gained, which is more complicated for
inversion.
Calculation formula of apparent resistivity in pole-dipole array is:
ρ=2∏n (n+1) aV/I
“V”: potential observed.
“I”: current observed.
“a”: distance between the Potential electrodes N and M.
“n”: isolation coefficient which equals the ratio of AM electrode distance to MN
electrode distance
In that potential difference of the Potential electrodes M, N in opposite proportion
of the square of the coefficient “n”, “SNR (signal noise ratio)” decreases rapidly
when “n” value grows; to increase SNR, enlarging the distance between the
measuring electrodes (M, N) as shown in Fig. 10-7(b); if SNR is high and “n”
value is low, take the first array (Fig. 10-7(a)). Therefore, data intensity increases
and inversion quality improves.
3)
3D Dipole-Dipole (four-electrode) Array
Dipole-dipole array is recommended only when electrode grid-node is larger than
12*12, terrain is rough and the electrodes are hard to be arranged (Fig. 10-8).
Fig. 10-8 Dipole-Dipole Array
Calculation formula of apparent resistivity in Dipole-Dipole array is:
Page
84
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
ρ=∏n (n+1)(n+2)aV/I,
“a”: distance between the measuring electrodes P1, P2.
“V”: potential gained
“I”: current gained.
“n”: isolation coefficient which equals to the ratio of BM electrode distance to MN
electrode distance.
The merit of dipole-dipole array is high horizontal resolution. However, signal
gained is very poor in that potential difference of the Potential electrodes M, N in
opposite proportion of the cube of the coefficient “n”, and “SNR (signal noise
ratio)” decreases rapidly when “n” value grows. When “n” is higher than 6, data
gained are not reliable.
10.5 Field Layout
1)
Arrange Electrodes
Firstly, clinch the stainless electrodes in the survey district and electrodes are
arrayed in grid-node shape.
2)
Assemble Cable
The 10 connectors (take-out) on each sting of intelligent cable are numbered as
1~10 respectively, that is, each string of cable could connect with 10 electrode, at
the head of the cable is a 12-core plug and at the end of the cable is a 12-pin plug
(jack plug).
Prior to arranging the cables, get a clear mind of the location of the electrode
matrix in which the survey station is. Put the cable along the array, keeping its head
and end in sequence. Then mount the connector to connect the cables one by one.
3)
Lay and Connect Electrodes
Lay the electrode in S-shape (Fig.10-9) as described in Section 10.2.
Page
85
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig.10-9
4)
Mount Connector (Take-Out) and Lay Electrodes
Fix the connector on the upper end of the stainless electrode by pulling the string
upwards to have electrode top insert into the ringer that is at the end of the spring
(Fig. 10-10).
Fig.10-10
5)
Connect Instrument
After the above steps, insert the 12-core plug of into socket 1 or socket 2 (on the
WDA-1A main frame, Fig.10-11).
If the mainframe is WDA-1, connect the DCHV positive and negative connecting
ports to those of the DC high-voltage power source respectively.
Fig.10-11
10.6 Instrument Operation
10.6.1Turn on WDA-1/WDA-1A and Run System Program
Switch on WDA-1/WDA-1A, turn on the pocket PC and then click “Start”
“Program” “File Explorer” “SD card” “WDA-3DR” to enter into the
system program (Fig. 10-12).
Page
86
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 10-12
10.6.2Bluetooth Pairing
Before commencement of measuring, first pair the Bluetooth to enable
WDA-1/WDA-1A to communicate with the pocket PC smoothly (Fig. 10-13).
Fig.10-13
10.6.3Create New Section
After Bluetooth pairing, create a new section.
Get into the Main interface as shown in Fig. 10-14 and click “Section” “New
section” button; and then pops up the next interface (Fig. 10-15).
Page
87
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 10-14
Fig.10-15
Click “Create a new section” button to define this newly created section
(Fig.10-16).
Fig. 10-16
Section: section/cross-section is the collection of all the survey points in the same
vertical plane where the survey lines locate. Section name is the name of one
cross-section in field survey and the name of the corresponding file stored in disk.
Array: electrode array configuration. There are 4 electrode array configurations
are available for multi-electrode 3D resistivity imaging, namely, 2-pole complete,
2-pole diagonal, 3pole-pole diagonal and 4-pole diagonal. For 3-pole and 4-dipole
electrode array, only diagonal method is available.
Connected electrodes: it is the total number of electrodes that are connected to the
intelligent cables.
Electrodes on X axis of survey block: total electrode numbers on X axis of the
survey block. Electrode number along the line direction is in the first row of the
S-shape routing. X axis actually means the intelligent cables.
Electrodes on Y axis of survey block: total electrode numbers on Y axis of the
survey block, vertical to X axis. The product of the electrodes on X axis and Y axis
should be not more than “Connected electrodes”. The electrodes on each axis
should be more than or equal to electrode numbers of the electrode array
Page
88
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
configuration.
Electrode space on X axis: distance between the two adjacent electrodes on X
axis.
Electrode space on Y axis: distance between the two adjacent electrodes on Y
axis.
Electrodes on X axis of survey grid: the total electrode numbers in X axis
direction of the whole survey grid.
Electrodes on Y axis of survey grid: the total electrode numbers in Y axis
direction of the whole survey grid.
Survey block X axis
Survey block Y axis
Survey grid X axis
Survey grid Y axis
Fig. 10-17
10.6.4Set Measure Parameters
Before commencement of measuring, set measure parameters for this
measurement.
Under the Main interface, click “Set” “Measure Parameter” (Fig.10-18) or click
the shortcut icon
to enter into the interface as shown Fig. 10-19.
Fig. 10-18
Fig. 10-19
Page
89
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 10-20
Power-on time: both positive power supply period and negative power supply
period belong to the power supply phase. The time of positive power supply period
and negative power supply period is Power-on time
Power-off time: the time between positive power supply and negative power
supply is Power-off time.
Socket: since multi-electrode 3D resistivity imaging is realized with the intelligent
cable. Before commencement of measuring, choose socket 1 or socket 2 according
to the actual connection.
10.6.5Self Potential (SP) Parameter
Self-potential parameter is advantageous for WDA-1/WDA-1A system.
Background:
In multi-electrode resistivity imaging system, there may be a large amount of
electrode coulombs left after one measuring action. If go on to the next measuring
action immediately, measuring error may be enlarged. In order to improve
measuring precision, WDA-1/WDA-1A will wait until the potential recovers, so as
to eliminate errors caused by self potential jumping.
However, in some geological conditions whose self-potential is quite active (such
as alkaline soil), recovery of self potential may not be satisfied after the above
operation. To meet this need, WDA-1/WDA-1A is design with these two
parameters of “Variation limit” and “Over-variation delay” to improve measuring
precision, which means that the system will compensate self-potential of the next
survey point. System first tests and checks whether current self potential jumps and
whether it is higher than “Variation limit” defined; if it is higher, the
“Over-variation delay” will controls system to wait until self-potential gets stable.
Access:
Under the Main interface, click “Set” “SP Delay” (Fig.10-21) to enter into the
interface as Fig. 10-22.
Page
90
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig. 10-21
Fig. 10-22
“Variation limit”: 10, 20, 50, 100, 200, 500 are available; unit is mV/s. Choose
one value according to the actual geological condition (default is 100mv/s). The
smaller the value, the higher the measuring precision, and the longer the time
needed; the higher the value, the lower the measuring precision and the shorter the
time needed.
“Over-variation Delay”: 500, 1000, 2000, 3000, 5000 are available; unit is ms
and default is 2000ms.
10.6.6Measure
After arranging the system in field, setting the parameters above, it is ready to
commence measuring. You may execute “Self-check” of the intelligent cable,
“Grounding R” of the electrodes or “Battery volt” of the pocket PC.
Get into the Main interface. Click “Measure” “Self-check/Grounding R/ Battery
volt” (Fig.10-23) to perform the corresponding function.
Fig.10-23
1)
Self Check
Imbedded in each take-out of the intelligent cable is switch. Function of the switch
can also be checked by the PDZ-1 switch adapter self-checker (for detailed
Page
91
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
operations, please refer to Appendix A in this user’s manual).
2)
Grounding R
This function is to measure earth resistance of each electrode.
Under the Main interface, click “Measure” “Grounding R” or click the shortcut
icon
to enter into the “Grounding R” measure interface. Choose “Socket 1” or
“Socket 2” that is actually connected (Fig. 10-24). Click “Grounding R” button to
start measure, then the earth resistance of a certain electrode is displayed (Fig.
10-25).
If earth resistance of that electrode is more than 5 KΩ, the system will beep once.
Fig.10-24
3)
Fig.10-25
Battery Volt
This function is to measure battery voltage of WDA-1/WDA-1A main frame.
Click “Measure” “Battery volt” or click the battery icon
at the right bottom
of the screen and then the battery voltage is displayed (Fig.10-26).
Fig. 10-26
4)
Measure Survey Block
Page
92
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
After the above operations, system is ready to measure the block.
Click the “Measure” button on the left bottom of the screen to commence
measuring of the present survey block, and then system keeps measuring one
survey block automatically until all finish (Fig.10-27).
Fig.10-27
During measuring process, click “Terminate” button to quit measuring; to continue
the above measuring action, just click “Measure” button once again.
If survey grid is larger than survey block in the settled parameters, move the
electrodes to the location of next survey block. Select the actual location of the
survey block with the stylus of the pocket PC and then click “Measure” to start to
measure the next survey block.
Measure the survey blocks one by one till the complete survey grid is measured.
10.6.7Copy Measured Results
Since parameters of a newly created section are not allowed to be modified, the
actual survey region is usually smaller than the one defined in the system.
Through this function, “Copy measured results”, user can copy data of the actual
survey region and save it for further processing.
Fig. 10-28
Page
93
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
In Fig. 10-28, click the starting point of the survey region (on the screen) and drag
till the last survey point. The selected region encircled by a red rectangle is the
wanted measured results.
Click “Copy” button and system automatically saves it with the name of [Original
name of the section + ‘-copy/cut’].
Page
94
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
C OMPLETE S ET OF S YSTEM
Standard Configuration:
1. WDA-1/WDA-1A mainframe and accessories:
No.
Description
Quantity
1
WDA-1/WDA-1A mainframe
1set
2
Hp iPAD 112 pocket PC and its standard components.
Program software in SD card for General Res/IP survey function
1set
3
An extra original rechargeable battery for the Hp iPAD pocket PC
1pc
4
One CD with Bluetooth USB adapter and installation program,
User’s manual and Data format convert software
1pc
5
Portable bag for WDA-1/WDA-1A mainframe
1pc
6
One Windows version program software CD
1pc
7
WDA-1/WDA-1A Super Multi-Electrode Resistivity/IP Imaging
System User’s Manual
1pc
8
Aluminum packaging case for WDA-1/WDA-1A mainframe
1pc
2. Electrodes and other accessories
No.
Description
Quantity
1
Solid non-polarized electrode
2pcs
2
Iron electrode
10pcs
3
Charger for WDA-1/WDA-1A mainframe
1set
4
Charger for internal battery of only WDA-1A
1set
5
Power wire for connection to external 12V battery
1pc
6
Aluminum packaging case for electrodes
1pc
Optional Components:
1. Multi-electrode 2D/3D Resistivity/IP Imaging System (with 10-take-out
Intelligent Cable)
No.
1
Description
Quantity
Quantity and take-out
spacing are up to order
Intelligent cable
Page
95
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
2
Multi-electrode stainless steel electrode
Up to order
Shoulder bag for multi-electrode stainless steel
electrode
PDZ-1 distributed self-checker, including,
1pc
PDZ-1 self-checker main frame
1pc
Special cable for election connection
1pc
Switching cable for adapter
1pc
Shoulder bag
3
4
5
Connecting wire for electrodes M and N
1pc/70 electrodes
1set
Up to order
2. Multi-electrode 2D Resistivity Imaging System (with 30/60-take-out cable):
No.
Description
1
Quantity
WDZJ-3 multiplex electrode converter
RS232 communication cable for connection of WDA-1/WDA-1A
mainframe and WDZJ-3 Multiplex Electrode Converter
Cable for connection of A, B, M, N ports between
WDA-1/WDA-1A mainframe and WDZJ-3 Multiplex Electrode
Converter
Multi-electrode cable (30pcs electrodes/string, take-out spacing is
up to order)
Copper electrode (with clamp)
WDZJ-3 multiplex electrode converter self-checker, including
1pc self-checker
1pc 32-core self-checker cables
1pc
Cable for connection of A, B, M, N ports between
self-checker and WDZJ-3 multiplex electrode converter
2
3
4
5
6
1 set
1pc
4pcs
2string
60pcs
1 set
3. Other Components:
No.
1
2
3
4
5
6
7
Description
Quantity
90V cell box
Up to order
Variable speed wire winding frame (for 600m)
Uniform speed wire winding frame (for 800m)
Field wire (500m/roll)
Solid non-polarized electrode
Iron electrode
Copper electrode
Up to order
Up to order
Up to order
Up to order
Up to order
Up to order
Page
96
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
A PPENDIX A: PDZ-1 S WITCH S ELF-C HECKER
PDZ-1 switch self-checker is an optional component for multi-electrode resistivity
imaging system. It mainly functions inspecting connections of the switches in the
take-out of the intelligent cable and helping operator to find the fault or failure
quickly and correctly.
1)
Front Panel
Fig.A-1 Front panel of PDZ-1 switch self-checker
2) Connection
① Plug the self-checker cable into the “Connect self-check electrode cable”
socket (on the left bottom of the front panel) of PDZ-1 switch self-checker.
Page
97
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
② Plug the intelligent resistivity/IP cable into the “Connect switch box cable”
socket (on the right bottom of the front panel) of PDZ -1.
③ Have the 10 clamps (on the self-checker electrode cable) clamp each stainless
connector on the intelligent cable take-out. What should be noted is that
clamps should not be short-circuited and so are the stainless connectors on
each intelligent cable.
④ Connect the “Connect adapter cable” socket (on the front panel of the PDZ-1)
and the “Cable socket 1” (on the WDA-1/WDA-1A mainframe) with the
special cable.
3) Self-check Procedure
① Turn on the WDA-1/WDA-1A mainframe.
② Turn on the PDA, under “WDA-2DR” program, click “Menu”
“Measurement”“Self-check” (Fig.A-2), and system enters into self-check
interface (Fig.A-3). Choose “Intelligent” option.
Fig.A-2
Fig.A-3
③ Click “Self-check” to start self check.
Fig.A-4
Fig.A-5
④ “A” “B” ”M” “N” indicator lights on the self-checker turn on at difference
frequencies (A keeps on; B flickers at a high frequency; C flickers at a relative
high frequency; N flickers at a low frequency).
Page
98
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
⑤ While the 1~10 channels LED first turns on at the frequency of A one by one;
then turns on at the frequency of B, M, N respectively, which means
self-checker is inspecting ABMN respectively.
⑥ If the 1~10 channel turns on, the switch in the intelligent cable can work well;
if any one of the ten channels keeps off, that switch would fail to work.
Page
99
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
A PPENDIX B: WDZJ-3 MULTIPLEX ELECTRODE C ONVERTER
S ELF-C HECKER
WDZJ-3 Multiplex Electrode Converter self-checker is an optional component for
multi-electrode resistivity imaging system. It mainly functions inspecting contacts
of electrode switches and helping operator to find the fault or failure quickly and
correctly.
1) Front Panel
Fig.B-1 Front panel of WDZJ-3 multiplex electrode converter self-checker
2) Connection
① Connect the “Electrode 1~30”, “Electrode 31~60” socket (on the WDZJ-3
multiplex electrode converter to the “Electrode 1~30”, “Electrode 31~60”
socket (on the self-checker) respectively with the special cable.
② Connect the A, B, M, N ports (on the WDZJ-3 converter and the self-checker)
with the A, B, M, N connecting ports (on the WDA-1/WDA-1A)
correspondingly.
③ Connect the “Forward RS-232” port (on the WDZJ-3 converter) to the
“RS-232” port (on the WDA-1/WDA-1A) with special cable.
3) Self-Check Procedure
① Switch on the WDA-1/WDA-1A main frame and the WDZJ-3 multiplex
electrode converter.
② Turn on the PDA, under “WDA-2DR” program, click “Menu”
“Measure”“Self-check”, and system enters into self-check interface. Choose
“WDZJ-3”.
Page
100
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Fig.B-2
Fig.B-3
③ Click “Self-check” button to start self check.
Fig.B-4
Fig.B-5
④ Observe the LED for each electrode switch; if any indicator light is off, that
electrode switch would fail to work.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Note:
All the LED should be off when the self-checker and WDZJ-3 converter are
well connected and WDZJ-3 converter is switched on. If any light is on, fault
may exists (i.e., always switched on and could not be cut off).
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page
101
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
A PPENDIX C: F ORMAT C ONVERSION S OFTWARE
Extension of WDA-1/WDA-1A data file is WDA, in binary format. This
WDAFC.EXE data format convert software can transform data file into text file.
Besides, data file of general resistivity survey can be transformed to Surfer format.
Specific procedures are as follows:
1. Transfer the measured results from the pocket PC to the computer.
2. Run the format conversion software WDAFC.EXE.
3. Choose the format corresponding to the data file (RES2D, Decay curve,
Surfer, WYS formats are available). For general resistivity method, choose
Surfer format.
4. Click “Open WDA data file to convert” and choose the file to be transformed
(see the following figure).
Page
102
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
5. Click “Open” and the software transforms the file into the wanted format, to
the “Converted data” folder in the present directory.
Page
103
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
A PPENDIX D: I NSTALLATION OF BLUETOOTH USB A DAPTOR
WDA-1/WDA-1A super digital DC Resistivity/IP meter could also use notebook
PC or table computer to control sampling. What needs to do is installing
Bluetooth USB adaptor drive, and then plugging the Bluetooth USB adaptor into
the USB port on the computer.
Procedures of installing Bluetooth USB adaptor is as follows.
1. Insert the CD into the CD driver and system automatically enters into the
installation interface (see the following figure). Note that the Bluetooth
adaptor should not be connected with the computer at this time.
2. Click “Next”.
Page
104
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
3. Click “Yes”.
4. Click “Next” and install it to a directory
Page
105
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
5. Click “Finish” to restart the computer.
6. After restarting, plug the Bluetooth adaptor to the computer and system clews
finding a new device. Then system automatically installs driver for this new
device.
Page
106
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
7. Click “OK”. Then, installation finishes.
Preparations for Communication
1. After installation, a Bluetooth icon appears at the right button of the screen
(see the following figure).
2. Double click the icon to enter into the Bluetooth main interface; then right
lick the red ball at the center and pops up a floating menu; click “General
Page
107
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
Inquiry” time.
3. Available devices are displayed on the screen then (see the following figure).
4. Choose on device icon; right click the device and click “Pair Device”.
Page
108
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
5. System asks for passkey; input “1234” and then press “Enter”.
6. If succeeds, this device icon will be marked with a red tick “√”.
Page
109
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
7. Then right click and click “Connect”“Bluetooth serial port service”.
8. After that, system clews successfully building connection between the
computer and instrument. Run this program to start sample data.
Page
110
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
9. Click “Yes” or “No”.
When running this program, choose the corresponding Bluetooth port that is
indicated by the system when it clews successfully building connection between
the computer and the instrument (that is as displayed in the above figure).
Page
111
of
112
WDA-1/WDA-1A Super Digital DC Resistivity/IP Meter User’s Manual
Document No.: Geo. man. A01-0090725
V2.0 (ENG)
A PPENDIX E: U SE AND MAINTAINING
N ON-POLARIZED ELECTRODE
OF
DC-2
S OLID
1. Features of DC-2 solid non-polarized electrode are: high efficiency and
stability, simple use and maintenance.
2. DC-2 solid non-polarized electrodes are prohibited to dip in metal container,
or mixed with other chemical materials.
3. DO NOT dip it in light salty solution for long, otherwise the stabilizer inside
the solid non-polarized electrode exchanges and thus performance goes down.
4. For transportation and handling, please pack the solid non-polarized
electrodes into the original package, plastic bag, special sponge pad and box,
to avoid crash.
5. DC-2 solid non-polarized electrode can work directly on humid soil in field,
lasting for some time.
6. To measure the potential difference between two DC-2 solid non-polarized
electrodes, first get a container filled with 3-5cm high saturated salt solution.
Then put the solid non-polarized electrodes into the solution. Measure the
potential difference as quickly as possible. After measurement, pack it back
into the original package.
7. If the solid non-polarized electrode works in dry field and the surface soil is
not humid, every 3~5 days dip the solid non-polarized electrodes into the
3-5cm high salt solution, 3~5 minutes later, pack the electrodes back into the
original package.
8. Every time field work finishes, put the solid non-polarized electrode into the
plastic bag to keep the water and stabilizer inside the electrode from
volatility.
9. If the electrode is not to use for a long time, put the electrode into the original
package, and store it in shadowy and cool environment. If it is not to use for
about one month, dip it in a container filled with 3-5cm high saturated salt
solution, for 5 minutes, and then put it into the original package
10. The solid non-polarized electrode may fail to work because of lead reveal of
the electrode which is resulting from long-tern storage or improper use. In
that case, those two solid non-polarized electrodes are not allowed to be
utilized once again. Please replace them with new ones in time.
11. DO keep it in mind: the pair of DC-2 solid non-polarized electrodes should be
abandoned together. Non-polarized electrodes of two different pairs should
not work as a new pair.
Page
112
of
112
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
