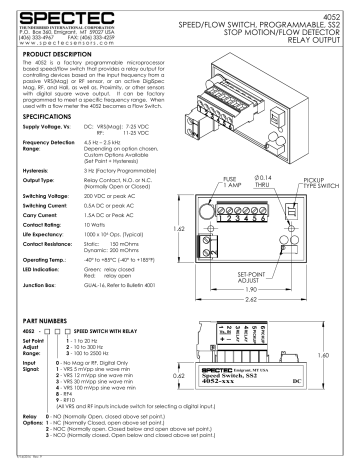

SPEED/FLOW SWITCH, PROGRAMMABLE, SS2
STOP MOTION/FLOW DETECTOR
RELAY OUTPUT
PRODUCT DESCRIPTION
The 4052 is a factory programmable microprocessor
based speed/flow switch that provides a relay output for
controlling devices based on the input frequency from a
passive VRS(Mag) or RF sensor, or an active DigiSpec
Mag, RF, and Hall, as well as, Proximity, or other sensors
with digital square wave output. It can be factory
programmed to meet a specific frequency range. When
used with a flow meter the 4052 becomes a Flow Switch.
SPECIFICATIONS
Supply Voltage, Vs:
DC: VRS(Mag): 7-25 VDC
RF:
11-25 VDC
Frequency Detection
Range:
4.5 Hz – 2.5 kHz
Depending on option chosen,
Custom Options Available
(Set Point + Hysteresis)
Hysteresis:
3 Hz (Factory Programmable)
Output Type:
Relay Contact, N.O. or N.C.
(Normally Open or Closed)
Switching Voltage:
200 VDC or peak AC
Switching Current:
0.5A DC or peak AC
Carry Current:
1.5A DC or Peak AC
Contact Rating:
10 Watts
Life Expectancy:
1000 x 106 Ops. (Typical)
Contact Resistance:
Static:
150 mOhms
Dynamic: 200 mOhms
Operating Temp.:
-40° to +85°C (-40° to +185°F)
LED Indication:
Green: relay closed
Red:
relay open
Junction Box:
GUAL-16, Refer to Bulletin 4001
FUSE
1 AMP
0.14
THRU
PICKUP
TYPE SWITCH
1.62
SET-POINT
ADJUST
1.90
2.62
PART NUMBERS
Set Point
Adjust
Range:
Input
Signal:

 SPEED SWITCH WITH RELAY
1 - 1 to 20 Hz
2 - 10 to 300 Hz
3 - 100 to 2500 Hz
Vs, IN
0 - No Mag or RF, Digital Only
1 - VRS 5 mVpp sine wave min
Emigrant, MT USA
2 - VRS 12 mVpp sine wave min
Speed Switch, SS2
0.62
4052-xxx
3 - VRS 30 mVpp sine wave min
4 - VRS 100 mVpp sine wave min
8 - RF4
9 - RF10
(All VRS and RF inputs include switch for selecting a digital input.)
Relay
0 - NO (Normally Open, closed above set point.)
Options: 1 - NC (Normally Closed, open above set point.)
2 - NOC (Normally open. Closed below and open above set point.)
3 - NCO (Normally closed. Open below and closed above set point.)
9/14/2016 Rev. 9
6 PICKUP
5 PICKUP
4 RELAY
3 RELAY
2
1 +
4052 - 
1.60
DC
TERMINAL CONNECTIONS: DIGITAL SENSORS ONLY
Terminal Block #1
1.
, Vs
2.
, Vs
Terminal Block #2
1.
, Digital Signal to Sensor
2.
, Vs: Common to Sensor
3. Relay Contacts
4. Relay Contacts
Vs, VDC
-
+
DIGITAL
SENSOR
RELAY
CONTACTS
TERMINAL CONNECTIONS: VRS (MAG) AND RF PICKUPS
Terminal Block #1
1.
, Vs
Terminal Block #2
1.
, Digital Signal
Input Type Switch

UP: VRS or RF Input
2.
, Vs
2.
, Vs: Common

DOWN: Digital Input
3. Relay Contacts
4. Relay Contacts
5. VRS (Mag) or RF Pickup
6.VRS (Mag) or RF Pickup
NOTE: If Digital Input is selected, connect as shown above.
Do NOT connector digital input to terminals 5 & 6.
Do NOT connector VRS or RF sensors to Terminal Block #2
Vs, VDC
+
RELAY
CONTACTS
VRS OR RF
PICKUP
VRS or RF
Digital Input
9/14/2016 Rev. 9
