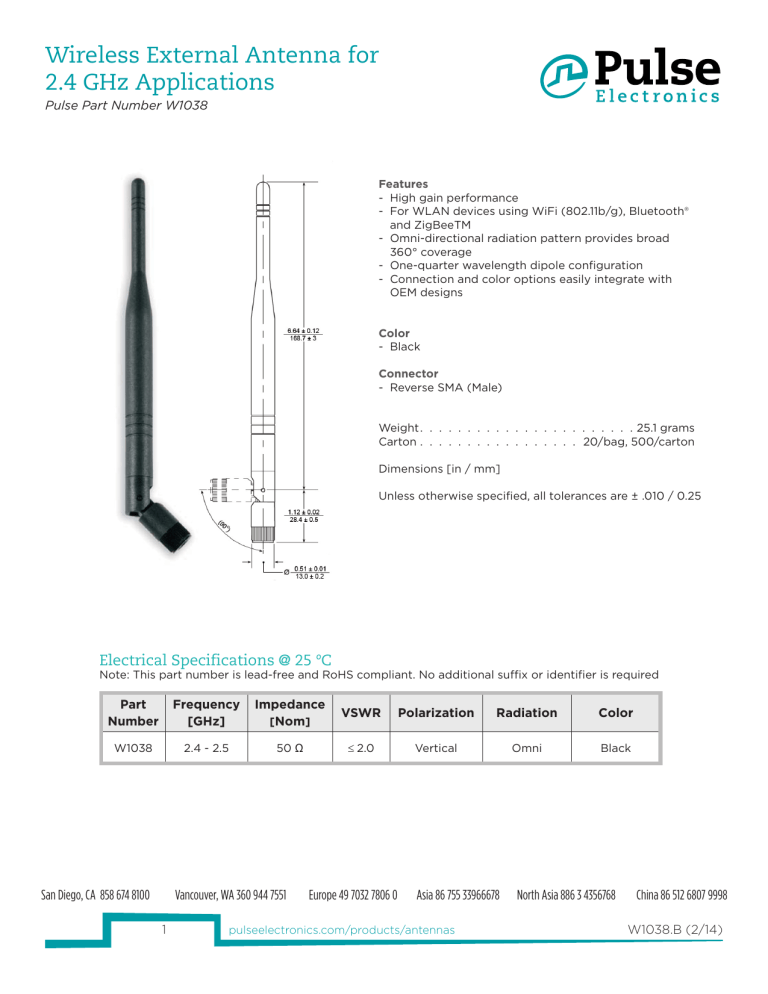

Wireless External Antenna for
2.4 GHz Applications
Pulse Part Number W1038
Features
-- High gain performance
-- For WLAN devices using WiFi (802.11b/g), Bluetooth®
and ZigBeeTM
-- Omni-directional radiation pattern provides broad
360° coverage
-- One-quarter wavelength dipole configuration
-- Connection and color options easily integrate with
OEM designs
Color
-- Black
Connector
-- Reverse SMA (Male)
Weight . . . . . . . . . . . . . . . . . . . . . . . 25.1 grams
Carton . . . . . . . . . . . . . . . . . .20/bag, 500/carton
Dimensions [in / mm]
Unless otherwise specified, all tolerances are ± .010 / 0.25
Electrical Specifications @ 25 ºC
Note: This part number is lead-free and RoHS compliant. No additional suffix or identifier is required
Part
Number
Frequency
[GHz]
Impedance
[Nom]
VSWR
Polarization
Radiation
Color
W1038
2.4 - 2.5
50 Ω
≤ 2.0
Vertical
Omni
Black
San Diego, CA 858 674 8100
Vancouver, WA 360 944 7551
1
Europe 49 7032 7806 0
Asia 86 755 33966678
pulseelectronics.com/products/antennas
North Asia 886 3 4356768
China 86 512 6807 9998
W1038.B (2/14)
Wireless External Antenna for
2.4 GHz Applications
Pulse Part Number W1038
Application Notes
Omni-directional antennas provide a uniform, donutshaped, 360˚ radiation pattern. The omni-directional
pattern is suitable for point-to-multipoint broadcasting
in all directions. The antenna is primarily used for
WLAN applications. However, it can also be used for
a variety of other applications within the specified
frequency range. When used as an access point, the
antenna is ideally located at the center of the coverage
Gain Performance W1038
Horizontal Position
2400 MHz
2450 MHz
2500 MHz
2400 MHz
2450 MHz
2500 MHz
Vertical Position
For More Information
Pulse Worldwide Headquarters
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
Larsen Brand Antennas
3611 NE 112th Avenue
Vancouver, WA 98682
USA
Europe Headquarters
Pulse GmbH & Do, KG
Zeppelinstrasse 15
Herrenberg
Germany
Asia Headquarters
B402, Shenzhen Academy of
Aerospace Technology Bldg.
10th Kejinan Road, High-Tech Zone
Nanshan District, Shenzen, PR China 518057
Pulse North Asia
3F, No. 198, Zhongyuan Road
Zhongli City, Taoyuan County 320
Taiwan R. O. C.
Pulse (Suzhou) Wireless Products Co, Inc.
99 Huo Ju Road, (#29 Bldg, 4th Phase)
Suzhou New District
Science & Tech Industrial Park
Jiangsu Province, Suzhou 215009 PR China
Tel: 858 674 8100
Tel: 360 944 7551
Tel: 49 7032 7806 0
Tel: 86 755 33966678
Tel: 886 3 4356768
Tel: 86 512 6807 9998
Fax: 858 674 8262
Fax: 369 944 7556
Fax: 49 7032 7806 135
Fax: 86 755 33966700
Fax: 886 3 4356823
Fax: 86 512 6809 8023
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2014. Pulse Electronics, Inc. All
rights reserved.
2
