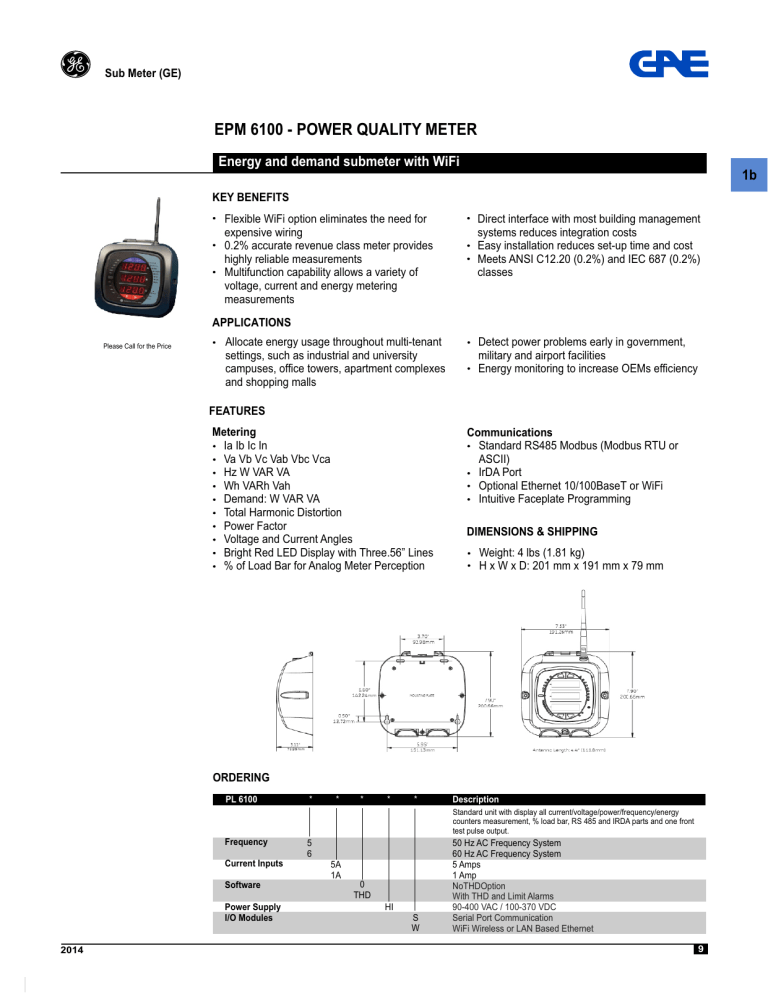

Sub Meter (GE)

EPM 6100 - POWER QUALITY METER

Please Call for the Price

KEY BENEFITS

Flexible WiFi option eliminates the need for expensive wiring

0.2% accurate revenue class meter provides highly reliable measurements

Multifunction capability allows a variety of voltage, current and energy metering measurements

APPLICATIONS

Allocate energy usage throughout multi-tenant settings, such as industrial and university campuses, office towers, apartment complexes and shopping malls

FEATURES

Metering

Ia Ib Ic In

Va Vb Vc Vab Vbc Vca

Hz W VAR VA

Wh VARh Vah

Demand: W VAR VA

Total Harmonic Distortion

Power Factor

Voltage and Current Angles

Bright Red LED Display with Three.56” Lines

% of Load Bar for Analog Meter Perception

Direct interface with most building management systems reduces integration costs

Easy installation reduces set-up time and cost

Meets ANSI C12.20 (0.2%) and IEC 687 (0.2%) classes

Detect power problems early in government, military and airport facilities

Energy monitoring to increase OEMs efficiency

Communications

Standard RS485 Modbus (Modbus RTU or

ASCII)

IrDA Port

Optional Ethernet 10/100BaseT or WiFi

Intuitive Faceplate Programming

DIMENSIONS & SHIPPING

Weight: 4 lbs (1.81 kg)

H x W x D: 201 mm x 191 mm x 79 mm

1b

2014

ORDERING

PL 6100 * * * * * Description

Standard unit with display all current/voltage/power/frequency/energy counters measurement, % load bar, RS 485 and IRDA parts and one front test pulse output.

Frequency

Current Inputs

Software

5

6

5A

1A

0

THD

50 Hz AC Frequency System

60 Hz AC Frequency System

5 Amps

1 Amp

NoTHDOption

Power Supply

I/O Modules

HI

S

W

With THD and Limit Alarms

90-400 VAC / 100-370 VDC

Serial Port Communication

WiFi Wireless or LAN Based Ethernet

9

1b

Sub Meter (GE)

EPM 7100 - POWER QUALITY METER

Please Call for the Price

KEY BENEFITS

Flexible WiFi option eliminates the need for expensive wiring

0.2% accurate revenue class meter provides highly reliable measurements

Extensive data logging and alarm recording allows for predictive maintenance and performance analysis

APPLICATIONS

Allocate energy usage throughout multi-tenant settings, such as industrial and university campuses, office towers, apartment complexes and shopping malls

FEATURES

Metering

Ia Ib Ic In

Va Vb Vc Vab Vbc Vca

Hz W VAR VA

Wh VARh Vah

Demand: W VAR VA

2 MB of Data Logging Capacity

Power Factor

Voltage and Current Angles

Bright Red LED Display with Three.56” Lines

% of Load Bar for Analog Meter Perception

Multifunction capability allows a variety of voltage, current and energy metering measurement

Direct interface with most building management systems reduces integration costs

Easy installation reduces set-up time and cost

Meets ANSI C12.20 (0.2%) and IEC 687 (0.2%) classes

Detect power problems early in government, military and airport facilities

Energy monitoring to increase OEMs efficiency

Communications

Standard RS485 Modbus (Modbus RTU or ASCII)

IrDA Port

Optional Ethernet 10/100BaseT or WiFi

Intuitive Faceplate Programming

DIMENSIONS & SHIPPING

Weight: 4 lbs (1.81 kg)

H x W x D: 201 mm x 191 mm x 79 mm

10

ORDERING

PL 7100 * * * * * Description

Standard unit with display all current/voltage/power/frequency/energy counters measurement, % load bar, RS 485 and IRDA communication parts and one front test pulse output. 2 MB of data logging memory.

Frequency

A1

B1

Current Inputs

5A

1A

B

50 Hz AC Frequency System

60 Hz AC Frequency System

5 Amps

1 Amp

Software

Power Supply

I/O Modules

HI

S

W

Multifunction Meter with 2MB Data Logging

90-400 VAC / 100-370 VDC

Serial Port Communication

Wireless or LAN Based Ethernet

2014

2014

Power Meter (GE)

EPM 2000 - DIGITAL POWER METER

Please Call for the Price

KEY BENEFITS

Economical meter for Circuit Monitoring of

Panels, Main Feeds, Branch Circuits, Gensets & equipment with communications

Universal operation - 50 / 60 Hz, user programmable for high medium or low voltage circuits

APPLICATIONS

Continuous metering of electrical loads such as generator panels, feeders, switchgear etc.

Low and Medium voltage applications

DIN Standard 96 x 96 mm size for easy installation in new and retrofit Panels

True RMS measurement more than 40 electrical parameters

Instant load verification through analog type loadbar

Provides remote status when used with

TM

EnerVista suite of software

FEATURES

Monitoring and Metering

Measures 3-phase real-time amps, volts, power,

energy, power factor and frequency

Monitors equipment “run hours”, “on hours” and

interruptions (outages)

Communication

Brilliant 3 line LED Display

Auto Scrolling features

Standard RS-485 Modbus communications

DIMENSION & SHIPPING

Weight: 0.4 kg. Unpacked

0.5 kg. Shipping

H x W x D: 9 mm x 9 mm x 8 mm

1b

ORDERING

PL 2000

System Voltage

Input Voltage

Communication

Description

80 - 270V AC

100 - 270V DC

48 - 270 VLN

80 - 500 VLL

Modbus RS 485

11

1b

Power Meter (GE)

EPM 2200 - DIGITAL POWER METER

Please Call for the Price

KEY BENEFITS

Economical meter for Circuit Monitoring of

Panels, Main Feeds, Branch Circuits, & Gensets

Ultra compact, easy to install, program and use

Fits both ANSI and DIN cutout

Large 3 line .56” bright LED display for better visibility and longer life.

User programmable for different system voltages and current measurements

Optional Modbus Communications

APPLICATIONS

Monitoring & metering of electrical loads such as generator panels, feeders, switchgear etc.

Low and medium voltage applications

FEATURES

Monitoring and Metering

Future field Upgradeable for added functionality

(communications option required)

0.5% Accuracy

Measures 3-phase real-time amps and volts

Optional support for Power, Energy, Frequency,

and Power Factor measurements

Communications

3 Line .56” Bright Red LED Display

Intuitive faceplate programming

Optional RS485 Modbus up to 57.6K Baud and

Pulse output

DIMENSIONS & SHIPPING

Weight: 2 lbs (0.9 kg)

H x W x D: 123 mm x 122 mm x 107 mm

12

ORDERING

PL 2200 * * Description

Option

A1

B1

C1

Volts and Amps Meter

Volts, Amps, Power and Frequency

Volts, Amps, Power, Frequency and Energy Counters

Communications

X

S

None

RS485 + Pulse

Example1 - EPM 2200 support Voltage and Current measurement with no communications. PL2200A1X

Example 2: EPM 2200 support Voltage, Current, Power, and Frequency measurement and Energy counters measurement with RS485 communication. PL2200C1S

2014

Power Meter (GE)

Please Call for the Price

EPM 6000 - POWER METER

KEY BENEFITS

High accuracy multifunction power meter

Superior performance at competitive pricing

Ultra compact, easy to install, program and use

0.2% class revenue certifiable energy and demand metering

Total harmonic distortion (%THD)

APPLICATIONS

Continuous metering of electrical loads such as generator panels, feeders, switchgear etc.

Provides remote status when used with

EnerVista suite of software

Fits both ANSI and DIN cutout

Large 3 line .56” bright LED display for better visibility and longer life

User programmable for different system voltages and current measurements

Standard Modbus and DNP communications

Low and medium voltage applications

Replaces multiple analog meters saving space and installation costs

FEATURES

Monitoring and Metering

True RMS multifunction measurements including voltage, current, power, freq., energy, etc.

Meets ANSI C12.20 (0.2%) and IEC 687 (0.2%) accuracy classes

Future field upgradeable for added functionality without removing installed meter

Load percentage graphical bar for instant load visualization

Communication

RS485 Modbus and DNP 3.0 Protocol up to

57.6K Baud

3 Line .56” Bright Red LED Display

Front IrDA Port laptop communication

Pulse output for accuracy testing and energy

DIMENSIONS & SHIPPING

Weight: 2 lbs (0.9 kg)

H x W x D: 123 mm x 122 mm x 107 mm

1b

2014

ORDERING

PL 6000

* * *

Description

Standard unit with display, all current/voltage/power/frequency/energy counters measurement, % load bar, RS 485 and IRDA communication ports and one front test pulse output.

5

6

5A

1A

0

THD

50 Hz AC frequency systeM

60 Hz AC frequency system

5 Amps

1 Amp

No THD option

THD, Limit Alarms & one pulse Output

Example - EPM 6000 for 60Hz system with 1 Amp secondary current with THD, Limit Alarms & one additional pulse output. PL600061ATHD

13

1b

Please Call for the Price

Power Meter (GE)

EPM 6010 - BUILDING AUTOMATION POWER METER

®

KEY BENEFITS

Rapid integration into BACnet management systems

High accuracy multifunction power meter,0.2% class revenue certifiable energy and demand metering

Ultra compact and easy to install,fits both ANSI and DIN cutouts

EnerVista™ software makes metered data and power quality status easily accessible

User programmable for different system voltages and current measurements

Standard Modbus™ TCP communications

Easy to read, large 3 line. 56” bright LED display for better visibility and longer life

APPLICATIONS

LED projects

Smart buildings

Commercial energy management

HVAC efficiency monitoring

Building management systems

FEATURES

Communications

BACnet/IP100BaseT Ethernet protocol

40 pre-defined BACnet objects facilitate rapid

integration

Embedded web-server,allows BACnet/IPinterface

to be remotely configured and BACnet object

scan be remotely view edover the internet with a

web browser

Standard Modbus TCP communications can be

used to poll the EPM 6010 while BACnet/

IPinterface is being used

DIMENSIONS & SHIPPING

Measuring and Metering

High accuracy multifunction power meter, 0.2%

class revenue certifiable energy and demand

metering

Samples at 400 + times per cycle and has 24 bit

A/D conversion to measure accurately

and reliably

Meets ANSIC 12.20(0.2%) and IEC687 (0.2%)

accuracy classes

Total harmonic distortion (%THD)

Load percentage graphical bar for instant load

visualization

True RMS multifunction measurements including

voltage, current, power, frequency and energy

Weight: 2 lbs (0.9 kg)

H x W x D: 123 mm x 122 mm x 107 mm

14

ORDERING

PL6010 * * * * Description

Frequency

6

5

50Hz-BACnet/ IP Communicating Multimeter

60Hz-BACnet/ IP Communicating Multimeter

Current Inputs

Software

Power Supply

5A

1A

THD

HI

LDC

5Amps

1Amp

THD, Limits Alarms & One KYZ Pulse Output

AC/DC Power Supply (90-265) VAC or (100-370) VDC

Low Voltage DC Power Supply (18-60) VDC

Example – EPM 6010 for 60Hz system with 5 Amp secondary and an AC/DC Power supply. PL601065ATHDHI

EPM 6010 is available without a display as the EPM 6010T. Please see the online store for ordering information.

2014

Power Quality Meter (GE)

EPM 7000 - POWER QUALITY METER

Please Call for the Price

KEY BENEFITS

Four Quadrant Energy and Power Measurement, complying with ANSI C12.20 (0.2% Accuracy)

Analyze power quality over long periods of time to improve network reliability through high resolution event and disturbance recording

Ideal for monitoring industrial power centers, data centers and hospitals due to high accuracy disturbance recording (up to 512 samples/cycle)

APPLICATIONS

Four quadrant energy and power monitoring of distribution feeders, transformers, reactors and generators

Retrieve archived data, capture past events and analyze disturbances through high resolution data recording (up to 4MB of datalogging)

Flexible communication options provide easy to access meter values, simplified configuration and seamless integration into new or existing automation systems

Power monitoring of LV and MV industrial power control centers and motor control centers

Energy monitoring of commercial and distribution utilities

FEATURES

Metering

Meets ANSI C 12.20 and IEC 687

(0.2% Accuracy)

la Ib Ic In

Va Vb Vc Vab Vbc Vca

Hz W VAR VA, Wh VARh VAh

Demand: W VAR VA

Power Factor, Voltage and Current Angles,

Load Bar

Power Quality

Harmonics to the 40th order

Total Harmonic Distortion

Disturbance Recording and Waveform Capture

Sag and Swell

Data Logging

Up to 4 MB Memory

Disturbance Recording

Power Quality Studies

Load Studies

Communications

Standard RS485 Modbus (DNP 3.0 and

Modbus RTU or ASCII)

Optional Ethernet 100Base T

IrDA Port

Intuitive faceplate programming

Software

Embedded Web Server

GE Communicator

EnerVista

TM

Integ rator

TM

EnerVista Launchpad

DIMENSIONS & SHIPPING

Weight: 2 lbs (0.9 kg)

H x W x D: 123 mm x 122 mm x 107 mm

ORDERING

Frequency

6

5

Current Inputs

5A

1A

Software

A

B

C

D

E

F

Power Supply

HI

LDC

I/O Module

X

E1

C1

C20

RS1

PS1

F1

F2

X

E1

C1

C20

RS1

PS1

F1

F2

EPM 7000 is available without a display as the EPM 7000T. Please see the online store for ordering information.

2014

Description

Standard unit with display all current/voltage/power/frequency/energy counters measurement, % load bar,

RS 485 and IRDA communication parts and one front test pulse output.

50 Hz AC frequency system

60 Hz AC frequency system

5 Amps

1 Amp

Multimeter Function Only

Data Logging Memory. 2 MB of Memory

Power Quality Harmonics. 2 MB of Memory

Limits and Control, 2 MB of Memory

64 Samples/Cycle Waveform Recording, 3 MB of Memory

512 Samples/Cycle Waveform Recording. 4 MB of Memory

90-265VAC/100-370VDC

18-60VDC

None

100BaseT Ethernet*

Four Channel Bi-directional 0-1mA Outputs

Four Channel 4-20mA Outputs

Two Relay status Outputs / Two Status Inputs

Four Pulse Outputs / Four Status Inputs

Fiber Optic Interface with ST terminations

Fiber Optic Interface with Versatile Terminations

* Only one E1 module may be used in the EPM7000

15

1b

Power Quality Meter (GE)

EPM 9000/9450/9650 - POWER QUALITY METER

1b

Please Call for the Price

KEY BENEFITS

High-performance power quality and revenue class metering for critical power applications

EN50160 flicker with up to 512 waveform samples percycle and high-speed transient recording for complete power quality monitoring

Fast response time to power quality events for diagnostics and maintenance

Built-in GPS clock sync capability for accurate time stamping of events and alarms for complete synchronized system monitoring

Exceeds ANSI C-12 and IEC 687 specifications for accuracy with auto calibration using temperature compensation

Software and hardware triggers record waveform events. This allows the unit to be used for fault analysis, system apparatus monitoring and many other applications

Records THD to the 255th order peak. Real-time harmonic magnitudes analysis to the 128th order for every channel. This advanced harmonic recording capability has been traditionally available only in high-end power quality recorders

Real time phasor analyzer monitors phase angles between the voltage and the currents

Communication option of 10/100 BaseT ethernet with Modbus/TCP

Expandable output modules

APPLICATIONS

Revenue class metering and load aggregation for energy management

Transformer loss compensation

High-performance power quality monitoring of critical loads

FEATURES

Protection and Control

Fully programmable set-points for alarms and 90

millisec relay activation for high-speed

update & contro

Expandable external outputs for control l

Communications

On-board ethernet and web server capability

High-speed RS-485 and RS-232 Com Ports

Multiple protocols including Modbus and DNP

3.0 level 2

Built-in modem with dial-out capability

8 built-in High-Speed Digital Inputs

Multiple analog, digital, and relay outputs

Web Server & Gateway

Monitoring and Metering

Current, voltage, real and reactive power, energy

use, cost of power, power factor and frequency

Laboratory grade 0.04% Watt-Hour accuracy

Flicker and waveform recording

Real-time PQ monitoring and harmonic analysis

to 255th order

DIMENSIONS & SHIPPING

Weight: 12 lbs (5.4kg)

H x W x D: 406 mm x 330 cm x 279 mm

ORDERING

EPM 9450 - High performance power meter & data acquisition node

PL9450 * * * A * 0 0 0 0 Description

Frequency

0 60 Hz

1

System Voltage

A

B

50 Hz

120/208 volts connection

277/480 volts connection

Control Power

Features Options

Communications

0

1

A

A

90-276 volts AC/DC power supply

18-60 volts DC power supply

Basic unit with 512 K memory, 8 digital inputs,

8 cycle of waveform (up to 512 samples/cycle), 100 days data log.

4 communication port

1

2

User-selectable RS 485 Modbus and DNP - no modem or Ethernet connection

TCP/IP Ethernet connection with web server and gateway capability

Internal 56k modem connection with pass-through port

16

2014

Power Quality Meter (GE)

ORDERING

EPM 9650 - High performance power meter & data acquisition node with memory

PL9650 * * * A * 0 0 0 0 Description

Frequency

0 60 Hz

1 50 Hz

System Voltage

A

B

120/208 volts connection

277/480 volts connection

Control Power

0

1

90-276 volts AC/DC power supply

18-60 volts DC power supply

Features Options

A

Advance unit includes basic unit, with 2 Meg memory,

Up to 162 days of data logging, up to 64 cycles of waveform recording

Flicker includes advance unit plus Flicker with 4 Meg memory,

Communications

B

A

1

2

66 days of data logging

4 Communication port

User-selectable RS 485 Modbus and DNP - no modem or Ethernet connection

TCP/IP Ethernet connection with web server and gateway capability

Internal 56k modem connection with pass-through port

Accessories

PL9000 *

* * * * * * 0 0

1 M A O N 4 O

1 M A O N 8 O

2 O M A O N 4

2 O M A O N 8

PL9000 *

* * * * * * 0 0

8 A I 1 0 0 0 0 0

8 A I 2 0 0 0 0 0

8 A I 3 0 0 0 0 0

8 A I 4 0 0 0 0 0

PL9000 *

* * * 0 0 0 0 0

4 R O 1

4 P O 1

PL9000 *

* * * 0 0 0 0 0

8 D I 1 0 0 0 0 0

PL9000 M B I O 0 0 0 0 0

PL9000 P S I O 0 0 0 0 0

PL9000 * * * * * * * * *

P 4 0 N P L U S 0

P 6 0 N 0 0 0 0 0

P 6 0 N 1 0 0 0 0

PL9000 *

* * * 0 0 0 0 0

N C M 1

N C M 5

N C M S

Analog Output Modules

4 Channel 0-1mA Analog Outputs

8 Channel 0-1mA Analog Outputs

4 Channel 4-20mA Analog Outputs

8 Channe l4-20mA Analog Outputs

Analog Output Modules

4 Channel 0-1mA Analog Outputs

8 Channel0–20mA Analog Inputs

8 Channel0–5VDCAnalogInputs

8 Channel0–10VDCAnalogInputs

Analog Output Modules

4 Channel Control Relay Outputs

4 Channel kyz Solid State Pulse Outputs

Analog Output Modules

8 Channel Digital Status Inputs

Auxiliary Mounting Bracket (One set per module group)

Auxiliary Power Supply (For more than 4 modules)

9000 Series Meter Display Module

Threeline LED Display

Touch-Screen LCD Display with 6-ft cable

Touch-Screen LCD Display with 15-ft cable

9000 Series Meter Software

Communicator Software, Single User License

Communicator Software, Five User License

Communicator Software, MultipleUser, SingleSite License

1b

2014

17

Power Quality Meter (GE)

EPM 9800 - POWER QUALITY METER

1b

Precision measurement, advanced communication, advanced PQ and alarm reporting, economical recording meter

Please Call for the Price

KEY BENEFITS

Socket type mounting design with advanced power quality recording and EN50160 Flicker compliance monitoring

Revenue class .06% Watt/Hr metering with 20 years time of use calendar

Comprehensive logging & recording capability

Auto-calibration and temperature change compensation

Advanced DNP 3.0 implementation

High speed waveform recording with programmable 16 to 512 samples per cycle resolution

APPLICATIONS

Advanced power quality monitoring

Revenue class energy and power billing with

.06% accuracy

Extensive harmonics capability provides a real-time harmonic analysis to the 128th order for every channel. Records THD to the 255th order peak

Real time phasor analyzer monitors phase angles between the voltage and the currents

Multiple communication option with 10/100BaseT ethernet and web capability for data viewing over the web

Up to 256 expandable digital and analog I/O modules for analysis and control

Control of external devices using I/Os

Alarm and event notification over the web, email, pager or telephone

FEATURES

Monitoring and Metering

True RMS real-time power and energy

parameters reporting

4 quadrant, high accuracy revenue metering

Automatic dial-out for remote data downloads,

dial-In during outage notification

Comprehensive events and alarms recording

using GPS synchronized time stamps.

Historical logs for energy, power events and

alarms.

Flicker and waveform recording

Real-time PQ monitoring and analysis

Communications

RS 485 communication ports

Optical port

Internal ethernet TCP/IP

Built-in dial-in and dial-out telephone modems

DNP 3.0 level 2 plus, Modbus RTU and Modbus

ASCII protocols

Multiple analog, digital and relay inputs/outputs

Programmable LCD display screen

DIMENSIONS & SHIPPING

Weight: Socket: 8 Lbs (2.62kg)

H x W x D: 254 mm x 279 mm x 330 mm

Switchboard: 14 lbs (6.35kg)

ORDERING

EPM 9800 * * * * * * Description

PL9800

Frequency

Power Supply

Form

Logging Options

Communications

Class Amps

6

5

S

E

D

L

9S

36S

45S

9A

SB

A

S

R

W

M

C

2

20

LCD Graphical Display, 2 RS 485 Serial Communication Ports (Modbus & DNP)

8 Internal Digital Inputs, 4 KYZ Pulse Outputs, IR Port, IRIG-B Synchronization Port

Flicker and Waveform Detection and Logging

60 Hz

50 Hz

Blade Powered - 102 to 550 VAC Auto Ranging

External - 102 - 275 VAC/DC Auto Ranging

External - 18 - 60 VDC Auto Ranging

Blade Powered - 69 VAC

Rated Voltage 0-277 V L-N - 3E, 4W Wye Hook-up

Rated Voltage 0-277 V L-N - 2.5E, 4W Wye w/ Neutral

Rated Voltage 0-480 V L-L - 2E, 3W, Delta

Rated Voltage 0-277 V L-N - A Base Form

Switchboard - Available with “Power Supply” E and D Only

Standard -218 days of data logging, 63 Waveform Record, 1536 Flicker Log, 1024 System Events

Advance -688 days of data logging, 95 Waveform Record, 5120 Flicker Log, 1024 System Events

Standard 2 RS485 serial communications ports (Modbus & DNP)

Web - Standard with Internal 10/100 Base with Web Server and Ethernet Connection

Modem - Standard with Internal 56k Dial Out Modem

Combination - Standard Modem with Ethernet Gateway & Web

2 Amps

20 Amps

18

2014

Power Quality Meter (GE)

PQM II - POWER QUALITY METER

Please Call for the Price

KEY BENEFITS

Power quality metering with waveform capture and historical data logging

Easy to program and use with keypad and large illuminated 40 character display

Multiple communication ports for integration with

DCS and SCADA systems

Supports DNP 3.0 and Modbus protocols

Digital and analog I/Os for control and alarms

Voltage disturbance recording capability for electrical sag and swell events.

APPLICATIONS

Metering of distribution feeders, transformers, generators, capacitor banks and motors

Medium and low voltage systems

Commercial, industrial, utility

Flexible control for demand load shedding, power factor, etc.

FEATURES

Protection and control

Load shedding

Power factor control

Pulse input totalizing

Monitoring and Metering

Ia Ib Ic In

Va Vb Vc Vab Vbc Vca

V I unbalance

True PF crest and K factor

Hz W var VA

Wh varh VAh W cost

Demand: A W var VA

Harmonic analysis through 63rd with THD and TIF

Event recorder - 150 events

Waveform capture

Data logger -98,000 events

Voltage Disturbance Recorder (VDR) -500 events

Communication

Front RS232 serial port (1,200 to 19,200 bps)

Two rear RS485 serial ports with ModBus and

DNP 3.0 protocol

Ethernet connectivity provided by MultiNet

TM

EnerVista software is provided for setup

and monitoring functions

External dial-in modem capabilities

DIMENSIONS & SHIPPING

Weight: Socket: 5 lbs

H x W x D: 215 mm x 152 mm x 152 mm

1b

ORDERING

Basic Unit

Tranducer

Option

PQM II

PQM II

* * *

T20

T1

Control Option

Power Analysis

Option

C

A

* The voltage disturbance recorder is only available with the 25 MHz processor.

Description

Basic unit with display, all current/voltage/power measurements, 1-RS485 comm port, 1 RS232 comm port

Transducer option; 4 isolated analog outputs 0 – 20 mA and 4 – 20 mA, assignable to all measured parameters, 4 – 20 mA analog input, 2nd RS485 comm port

Transducer option; 4 isolated analog outputs 0 – 1 mA, assignable to all measured parameters, 4 – 20 mA analog input, 2nd RS485 comm port

Control option; 3 additional programmable output relays (total of 4), 4-programmable switch inputs

Power analysis option; harmonic analysis, triggered trace memory waveform capture, event record, data logger, voltage disturbance recorder (VDR)

2014

19

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
