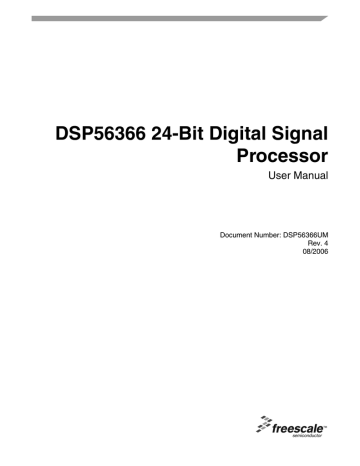

DSP56366 24-Bit Digital Signal
Processor
User Manual
Document Number: DSP56366UM
Rev. 4
08/2006
How to Reach Us:
Home Page:
www.freescale.com
E-mail:
[email protected]
USA/Europe or Locations Not Listed:
Freescale Semiconductor
Technical Information Center, CH370
1300 N. Alma School Road
Chandler, Arizona 85224
+1-800-521-6274 or +1-480-768-2130
[email protected]
Europe, Middle East, and Africa:
Freescale Halbleiter Deutschland GmbH
Technical Information Center
Schatzbogen 7
81829 Muenchen, Germany
+44 1296 380 456 (English)
+46 8 52200080 (English)
+49 89 92103 559 (German)
+33 1 69 35 48 48 (French)
[email protected]
Japan:
Freescale Semiconductor Japan Ltd.
Headquarters
ARCO Tower 15F
1-8-1, Shimo-Meguro, Meguro-ku,
Tokyo 153-0064, Japan
0120 191014 or +81 3 5437 9125
[email protected]
Asia/Pacific:
Freescale Semiconductor Hong Kong Ltd.
Technical Information Center
2 Dai King Street
Tai Po Industrial Estate
Tai Po, N.T., Hong Kong
+800 2666 8080
[email protected]
For Literature Requests Only:
Freescale Semiconductor Literature Distribution Center
P.O. Box 5405
Denver, Colorado 80217
1-800-521-6274 or 303-675-2140
Fax: 303-675-2150
[email protected]
Information in this document is provided solely to enable system and software implementers to use
Freescale Semiconductor products. There are no express or implied copyright licenses granted
hereunder to design or fabricate any integrated circuits or integrated circuits based on the information
in this document.
Freescale Semiconductor reserves the right to make changes without further notice to any products
herein. Freescale Semiconductor makes no warranty, representation or guarantee regarding the
suitability of its products for any particular purpose, nor does Freescale Semiconductor assume any
liability arising out of the application or use of any product or circuit, and specifically disclaims any
and all liability, including without limitation consequential or incidental damages. “Typical” parameters
that may be provided in Freescale Semiconductor data sheets and/or specifications can and do vary
in different applications and actual performance may vary over time. All operating parameters,
including “Typicals”, must be validated for each customer application by customer’s technical experts.
Freescale Semiconductor does not convey any license under its patent rights nor the rights of others.
Freescale Semiconductor products are not designed, intended, or authorized for use as components
in systems intended for surgical implant into the body, or other applications intended to support or
sustain life, or for any other application in which the failure of the Freescale Semiconductor product
could create a situation where personal injury or death may occur. Should Buyer purchase or use
Freescale Semiconductor products for any such unintended or unauthorized application, Buyer shall
indemnify and hold Freescale Semiconductor and its officers, employees, subsidiaries, affiliates, and
distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney
fees arising out of, directly or indirectly, any claim of personal injury or death associated with such
unintended or unauthorized use, even if such claim alleges that Freescale Semiconductor was
negligent regarding the design or manufacture of the part.
Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other
product or service names are the property of their respective owners.
© Freescale Semiconductor, Inc. 2006. All rights reserved.
Contents
1
DSP56366 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.2
DSP56300 Core Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1.3
DSP56366 Audio Processor Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
1.4
DSP56300 Core Functional Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
1.4.1
Data ALU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1.4.1.1
Data ALU Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1.4.1.2
Multiplier-Accumulator (MAC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1.4.2
Address Generation Unit (AGU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
1.4.3
Program Control Unit (PCU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
1.4.4
Internal Buses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
1.4.5
Direct Memory Access (DMA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
1.4.6
PLL-based Clock Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1.4.7
JTAG TAP and OnCE Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1.4.8
On-Chip Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1.4.9
Off-Chip Memory Expansion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1.5
Peripheral Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1.5.1
Host Interface (HDI08) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
1.5.2
General Purpose Input/Output (GPIO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
1.5.3
Triple Timer (TEC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
1.5.4
Enhanced Serial Audio Interface (ESAI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
1.5.5
Enhanced Serial Audio Interface 1 (ESAI_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
1.5.6
Serial Host Interface (SHI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
1.5.7
Digital Audio Transmitter (DAX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
2
Signal/Connection Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2.1
Signal Groupings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2.2
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
2.3
Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
2.4
Clock and PLL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
2.5
External Memory Expansion Port (Port A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
2.5.1
External Address Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
2.5.2
External Data Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
2.5.3
External Bus Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
2.6
Interrupt and Mode Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
2.7
PARALLEL HOST INTERFACE (HDI08) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
2.8
Serial Host Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
2.9
Enhanced Serial Audio Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
2.10 Enhanced Serial Audio Interface_1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
2.11 SPDIF Transmitter Digital Audio Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
2.12 Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
2.13 JTAG/OnCE Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
3
Memory Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Freescale Semiconductor
TOC-1
3.1
3.1.1
3.1.2
3.1.3
3.1.4
3.1.5
3.2
Data and Program Memory Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Reserved Memory Spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Program ROM Area Reserved for Motorola Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Bootstrap ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Dynamic Memory Configuration Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
External Memory Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Internal I/O Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
4
Core Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.1
4.2
4.2.1
4.2.2
4.2.3
4.2.4
4.3
4.4
4.5
4.6
4.6.1
4.6.2
4.6.3
4.6.4
4.7
4.8
4.9
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Operating Mode Register (OMR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Asynchronous Bus Arbitration Enable (ABE) - Bit 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Address Attribute Priority Disable (APD) - Bit 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Address Tracing Enable (ATE) - Bit 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Patch Enable (PEN) - Bit 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Interrupt Priority Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
DMA Request Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
PLL Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
PLL Multiplication Factor (MF0-MF11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
PLL Pre-Divider Factor (PD0-PD3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
Crystal Range Bit (XTLR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
XTAL Disable Bit (XTLD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
Device Identification (ID) Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
JTAG Identification (ID) Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
JTAG Boundary Scan Register (BSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
5
General Purpose Input/Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5.1
5.2
5.2.1
5.2.2
5.2.3
5.2.4
5.2.5
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programming Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Port B Signals and Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Port C Signals and Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Port D Signals and Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Port E Signals and Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Timer/Event Counter Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Host Interface (HDI08) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
6.1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2
HDI08 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2.1
Interface - DSP side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2.2
Interface - Host Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3
HDI08 Host Port Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.4
HDI08 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5
HDI08 – DSP-Side Programmer’s Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-1
5-1
5-1
5-1
5-1
5-2
5-2
6-1
6-1
6-1
6-2
6-3
6-4
6-5
DSP56366 24-Bit Digital Signal Processor, Rev. 4
TOC-2
Freescale Semiconductor
6.5.1
Host Receive Data Register (HORX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
6.5.2
Host Transmit Data Register (HOTX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
6.5.3
Host Control Register (HCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
6.5.3.1
HCR Host Receive Interrupt Enable (HRIE) Bit 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
6.5.3.2
HCR Host Transmit Interrupt Enable (HTIE) Bit 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
6.5.3.3
HCR Host Command Interrupt Enable (HCIE) Bit 2 . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
6.5.3.4
HCR Host Flags 2,3 (HF2,HF3) Bits 3-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
6.5.3.5
HCR Host DMA Mode Control Bits (HDM0, HDM1, HDM2) Bits 5-7 . . . . . . . . . . . 6-8
6.5.3.6
HCR Reserved Bits 8-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
6.5.4
Host Status Register (HSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
6.5.4.1
HSR Host Receive Data Full (HRDF) Bit 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
6.5.4.2
HSR Host Transmit Data Empty (HTDE) Bit 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
6.5.4.3
HSR Host Command Pending (HCP) Bit 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
6.5.4.4
HSR Host Flags 0,1 (HF0,HF1) Bits 3-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
6.5.4.5
HSR Reserved Bits 5-6, 8-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
6.5.4.6
HSR DMA Status (DMA) Bit 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
6.5.5
Host Base Address Register (HBAR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
6.5.5.1
HBAR Base Address (BA[10:3]) Bits 0-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
6.5.5.2
HBAR Reserved Bits 8-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
6.5.6
Host Port Control Register (HPCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
6.5.6.1
HPCR Host GPIO Port Enable (HGEN) Bit 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
6.5.6.2
HPCR Host Address Line 8 Enable (HA8EN) Bit 1 . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
6.5.6.3
HPCR Host Address Line 9 Enable (HA9EN) Bit 2 . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
6.5.6.4
HPCR Host Chip Select Enable (HCSEN) Bit 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
6.5.6.5
HPCR Host Request Enable (HREN) Bit 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
6.5.6.6
HPCR Host Acknowledge Enable (HAEN) Bit 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
6.5.6.7
HPCR Host Enable (HEN) Bit 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
6.5.6.8
HPCR Reserved Bit 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
6.5.6.9
HPCR Host Request Open Drain (HROD) Bit 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
6.5.6.10
HPCR Host Data Strobe Polarity (HDSP) Bit 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
6.5.6.11
HPCR Host Address Strobe Polarity (HASP) Bit 10 . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
6.5.6.12
HPCR Host Multiplexed bus (HMUX) Bit 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
6.5.6.13
HPCR Host Dual Data Strobe (HDDS) Bit 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
6.5.6.14
HPCR Host Chip Select Polarity (HCSP) Bit 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
6.5.6.15
HPCR Host Request Polarity (HRP) Bit 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
6.5.6.16
HPCR Host Acknowledge Polarity (HAP) Bit 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
6.5.7
Data direction register (HDDR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
6.5.8
Host Data Register (HDR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16
6.5.9
DSP-Side Registers After Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16
6.5.10
Host Interface DSP Core Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17
6.6
HDI08 – External Host Programmer’s Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-18
6.6.1
Interface Control Register (ICR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-19
6.6.1.1
ICR Receive Request Enable (RREQ) Bit 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20
6.6.1.2
ICR Transmit Request Enable (TREQ) Bit 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20
6.6.1.3
ICR Double Host Request (HDRQ) Bit 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Freescale Semiconductor
TOC-3
6.6.1.4
ICR Host Flag 0 (HF0) Bit 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.1.5
ICR Host Flag 1 (HF1) Bit 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.1.6
ICR Host Little Endian (HLEND) Bit 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.1.7
ICR Initialize Bit (INIT) Bit 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.2
Command Vector Register (CVR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.2.1
CVR Host Vector (HV[6:0]) Bits 0–6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.2.2
CVR Host Command Bit (HC) Bit 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.3
Interface Status Register (ISR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.3.1
ISR Receive Data Register Full (RXDF) Bit 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.3.2
ISR Transmit Data Register Empty (TXDE) Bit 1 . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.3.3
ISR Transmitter Ready (TRDY) Bit 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.3.4
ISR Host Flag 2 (HF2) Bit 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.3.5
ISR Host Flag 3 (HF3) Bit 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.3.6
ISR Reserved Bits 5-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.3.7
ISR Host Request (HREQ) Bit 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.4
Interrupt Vector Register (IVR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.5
Receive Byte Registers (RXH:RXM:RXL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.6
Transmit Byte Registers (TXH:TXM:TXL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.7
Host Side Registers After Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6.8
General Purpose INPUT/OUTPUT (GPIO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.7
Servicing The Host Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.7.1
HDI08 Host Processor Data Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.7.2
Polling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.7.3
Servicing Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
6-21
6-21
6-22
6-23
6-23
6-23
6-24
6-24
6-24
6-24
6-25
6-25
6-25
6-25
6-25
6-26
6-26
6-26
6-27
6-27
6-28
6-28
6-28
6-29
Serial Host Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
7.1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
7.2
Serial Host Interface Internal Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
7.3
SHI Clock Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
7.4
Serial Host Interface Programming Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
7.4.1
SHI Input/Output Shift Register (IOSR)—Host Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
7.4.2
SHI Host Transmit Data Register (HTX)—DSP Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
7.4.3
SHI Host Receive Data FIFO (HRX)—DSP Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
7.4.4
SHI Slave Address Register (HSAR)—DSP Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
7.4.4.1
HSAR Reserved Bits—Bits 19, 17–0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
7.4.4.2
HSAR I2C Slave Address (HA[6:3], HA1)—Bits 23–20,18 . . . . . . . . . . . . . . . . . . . . . 7-7
7.4.5
SHI Clock Control Register (HCKR)—DSP Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
7.4.5.1
Clock Phase and Polarity (CPHA and CPOL)—Bits 1–0 . . . . . . . . . . . . . . . . . . . . . . . 7-7
7.4.5.2
HCKR Prescaler Rate Select (HRS)—Bit 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
7.4.5.3
HCKR Divider Modulus Select (HDM[7:0])—Bits 10–3 . . . . . . . . . . . . . . . . . . . . . . . 7-9
7.4.5.4
HCKR Reserved Bits—Bits 23–14, 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
7.4.5.5
HCKR Filter Mode (HFM[1:0]) — Bits 13–12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
7.4.6
SHI Control/Status Register (HCSR)—DSP Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
7.4.6.1
HCSR Host Enable (HEN)—Bit 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
7.4.6.1.1
SHI Individual Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11
DSP56366 24-Bit Digital Signal Processor, Rev. 4
TOC-4
Freescale Semiconductor
7.4.6.2
HCSR I2C/SPI Selection (HI2C)—Bit 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.3
HCSR Serial Host Interface Mode (HM[1:0])—Bits 3–2 . . . . . . . . . . . . . . . . . . . . . .
7.4.6.4
HCSR I2C Clock Freeze (HCKFR)—Bit 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.5
HCSR FIFO-Enable Control (HFIFO)—Bit 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.6
HCSR Master Mode (HMST)—Bit 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.7
HCSR Host-Request Enable (HRQE[1:0])—Bits 8–7 . . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.8
HCSR Idle (HIDLE)—Bit 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.9
HCSR Bus-Error Interrupt Enable (HBIE)—Bit 10 . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.10
HCSR Transmit-Interrupt Enable (HTIE)—Bit 11 . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.11
HCSR Receive Interrupt Enable (HRIE[1:0])—Bits 13–12 . . . . . . . . . . . . . . . . . . . .
7.4.6.12
HCSR Host Transmit Underrun Error (HTUE)—Bit 14 . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.13
HCSR Host Transmit Data Empty (HTDE)—Bit 15 . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.14
HCSR Reserved Bits—Bits 23, 18 and 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.15
Host Receive FIFO Not Empty (HRNE)—Bit 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.16
Host Receive FIFO Full (HRFF)—Bit 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.17
Host Receive Overrun Error (HROE)—Bit 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.18
Host Bus Error (HBER)—Bit 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.6.19
HCSR Host Busy (HBUSY)—Bit 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5
Characteristics Of The SPI Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6
Characteristics Of The I2C Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.2
I2C Data Transfer Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7
SHI Programming Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.1
SPI Slave Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.2
SPI Master Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.3
I2C Slave Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.3.1
Receive Data in I2C Slave Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.3.2
Transmit Data In I2C Slave Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.4
I2C Master Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.4.1
Receive Data in I2C Master Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.4.2
Transmit Data In I2C Master Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.5
SHI Operation During DSP Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7-11
7-11
7-11
7-12
7-12
7-12
7-13
7-13
7-13
7-14
7-14
7-15
7-15
7-15
7-15
7-15
7-16
7-16
7-16
7-16
7-17
7-18
7-19
7-19
7-20
7-21
7-21
7-22
7-23
7-24
7-24
7-25
8
Enhanced Serial AUDIO Interface (ESAI) . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
8..1
8.2
8.2.1
8.2.2
8.2.3
8.2.4
8.2.5
8.2.6
8.2.7
8.2.8
8.2.9
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
ESAI Data and Control Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Serial Transmit 0 Data Pin (SDO0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Serial Transmit 1 Data Pin (SDO1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Serial Transmit 2/Receive 3 Data Pin (SDO2/SDI3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Serial Transmit 3/Receive 2 Data Pin (SDO3/SDI2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Serial Transmit 4/Receive 1 Data Pin (SDO4/SDI1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Serial Transmit 5/Receive 0 Data Pin (SDO5/SDI0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Receiver Serial Clock (SCKR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V4
Transmitter Serial Clock (SCKT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Frame Sync for Receiver (FSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Freescale Semiconductor
TOC-5
8.2.10
Frame Sync for Transmitter (FST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
8.2.11
High Frequency Clock for Transmitter (HCKT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
8.2.12
High Frequency Clock for Receiver (HCKR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
8.3
ESAI Programming Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
8.3.1
ESAI Transmitter Clock Control Register (TCCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8
8.3.1.1
TCCR Transmit Prescale Modulus Select (TPM7–TPM0) - Bits 0–7 . . . . . . . . . . . . . 8-8
8.3.1.2
TCCR Transmit Prescaler Range (TPSR) - Bit 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
8.3.1.3
TCCR Tx Frame Rate Divider Control (TDC4–TDC0) - Bits 9–13 . . . . . . . . . . . . . . 8-10
8.3.1.4
TCCR Tx High Frequency Clock Divider (TFP3-TFP0) - Bits 14–17 . . . . . . . . . . . . 8-11
8.3.1.5
TCCR Transmit Clock Polarity (TCKP) - Bit 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
8.3.1.6
TCCR Transmit Frame Sync Polarity (TFSP) - Bit 19 . . . . . . . . . . . . . . . . . . . . . . . . 8-12
8.3.1.7
TCCR Transmit High Frequency Clock Polarity (THCKP) - Bit 20 . . . . . . . . . . . . . 8-12
8.3.1.8
TCCR Transmit Clock Source Direction (TCKD) - Bit 21 . . . . . . . . . . . . . . . . . . . . . 8-12
8.3.1.9
TCCR Transmit Frame Sync Signal Direction (TFSD) - Bit 22 . . . . . . . . . . . . . . . . . 8-12
8.3.1.10
TCCR Transmit High Frequency Clock Direction (THCKD) - Bit 23 . . . . . . . . . . . . 8-12
8.3.2
ESAI Transmit Control Register (TCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
8.3.2.1
TCR ESAI Transmit 0 Enable (TE0) - Bit 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13
8.3.2.2
TCR ESAI Transmit 1 Enable (TE1) - Bit 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13
8.3.2.3
TCR ESAI Transmit 2 Enable (TE2) - Bit 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14
8.3.2.4
TCR ESAI Transmit 3 Enable (TE3) - Bit 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14
8.3.2.5
TCR ESAI Transmit 4 Enable (TE4) - Bit 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14
8.3.2.6
TCR ESAI Transmit 5 Enable (TE5) - Bit 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15
8.3.2.7
TCR Transmit Shift Direction (TSHFD) - Bit 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15
8.3.2.8
TCR Transmit Word Alignment Control (TWA) - Bit 7 . . . . . . . . . . . . . . . . . . . . . . . 8-15
8.3.2.9
TCR Transmit Network Mode Control (TMOD1-TMOD0) - Bits 8-9 . . . . . . . . . . . . 8-16
8.3.2.10
TCR Tx Slot and Word Length Select (TSWS4-TSWS0) - Bits 10-14 . . . . . . . . . . . 8-18
8.3.2.11
TCR Transmit Frame Sync Length (TFSL) - Bit 15 . . . . . . . . . . . . . . . . . . . . . . . . . . 8-19
8.3.2.12
TCR Transmit Frame Sync Relative Timing (TFSR) - Bit 16 . . . . . . . . . . . . . . . . . . 8-21
8.3.2.13
TCR Transmit Zero Padding Control (PADC) - Bit 17 . . . . . . . . . . . . . . . . . . . . . . . . 8-21
8.3.2.14
TCR Reserved Bit - Bits 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21
8.3.2.15
TCR Transmit Section Personal Reset (TPR) - Bit 19 . . . . . . . . . . . . . . . . . . . . . . . . 8-21
8.3.2.16
TCR Transmit Exception Interrupt Enable (TEIE) - Bit 20 . . . . . . . . . . . . . . . . . . . . 8-21
8.3.2.17
TCR Transmit Even Slot Data Interrupt Enable (TEDIE) - Bit 21 . . . . . . . . . . . . . . . 8-22
8.3.2.18
TCR Transmit Interrupt Enable (TIE) - Bit 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
8.3.2.19
TCR Transmit Last Slot Interrupt Enable (TLIE) - Bit 23 . . . . . . . . . . . . . . . . . . . . . 8-22
8.3.3
ESAI Receive Clock Control Register (RCCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
8.3.3.1
RCCR Receiver Prescale Modulus Select (RPM7–RPM0) - Bits 7–0 . . . . . . . . . . . . 8-23
8.3.3.2
RCCR Receiver Prescaler Range (RPSR) - Bit 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-23
8.3.3.3
RCCR Rx Frame Rate Divider Control (RDC4–RDC0) - Bits 9–13 . . . . . . . . . . . . . 8-23
8.3.3.4
RCCR Rx High Frequency Clock Divider (RFP3-RFP0) - Bits 14-17 . . . . . . . . . . . . 8-23
8.3.3.5
RCCR Receiver Clock Polarity (RCKP) - Bit 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24
8.3.3.6
RCCR Receiver Frame Sync Polarity (RFSP) - Bit 19 . . . . . . . . . . . . . . . . . . . . . . . . 8-24
8.3.3.7
RCCR Receiver High Frequency Clock Polarity (RHCKP) - Bit 20 . . . . . . . . . . . . . 8-24
8.3.3.8
RCCR Receiver Clock Source Direction (RCKD) - Bit 21 . . . . . . . . . . . . . . . . . . . . . 8-24
8.3.3.9
RCCR Receiver Frame Sync Signal Direction (RFSD) - Bit 22 . . . . . . . . . . . . . . . . . 8-25
DSP56366 24-Bit Digital Signal Processor, Rev. 4
TOC-6
Freescale Semiconductor
8.3.3.10
8.3.4
8.3.4.1
8.3.4.2
8.3.4.3
8.3.4.4
8.3.4.5
8.3.4.6
8.3.4.7
8.3.4.8
8.3.4.9
8.3.4.10
8.3.4.11
8.3.4.12
8.3.4.13
8.3.4.14
8.3.4.15
8.3.4.16
8.3.5
8.3.5.1
8.3.5.2
8.3.5.3
8.3.5.4
8.3.5.5
8.3.5.6
8.3.5.7
8.3.6
8.3.6.1
8.3.6.2
8.3.6.3
8.3.6.4
8.3.6.5
8.3.6.6
8.3.6.7
8.3.6.8
8.3.6.9
8.3.6.10
8.3.6.11
8.3.6.12
8.3.6.13
8.3.6.14
8.3.7
8.3.8
8.3.9
8.3.10
RCCR Receiver High Frequency Clock Direction (RHCKD) - Bit 23 . . . . . . . . . . . .
ESAI Receive Control Register (RCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RCR ESAI Receiver 0 Enable (RE0) - Bit 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RCR ESAI Receiver 1 Enable (RE1) - Bit 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RCR ESAI Receiver 2 Enable (RE2) - Bit 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RCR ESAI Receiver 3 Enable (RE3) - Bit 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RCR Reserved Bits - Bits 4-5, 17-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RCR Receiver Shift Direction (RSHFD) - Bit 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RCR Receiver Word Alignment Control (RWA) - Bit 7 . . . . . . . . . . . . . . . . . . . . . . .
RCR Receiver Network Mode Control (RMOD1-RMOD0) - Bits 8-9 . . . . . . . . . . . .
RCR Receiver Slot and Word Select (RSWS4-RSWS0) - Bits 10-14 . . . . . . . . . . . .
RCR Receiver Frame Sync Length (RFSL) - Bit 15 . . . . . . . . . . . . . . . . . . . . . . . . . .
RCR Receiver Frame Sync Relative Timing (RFSR) - Bit 16 . . . . . . . . . . . . . . . . . .
RCR Receiver Section Personal Reset (RPR) - Bit 19 . . . . . . . . . . . . . . . . . . . . . . . .
RCR Receive Exception Interrupt Enable (REIE) - Bit 20 . . . . . . . . . . . . . . . . . . . . .
RCR Receive Even Slot Data Interrupt Enable (REDIE) - Bit 21 . . . . . . . . . . . . . . . .
RCR Receive Interrupt Enable (RIE) - Bit 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RCR Receive Last Slot Interrupt Enable (RLIE) - Bit 23 . . . . . . . . . . . . . . . . . . . . . .
ESAI Common Control Register (SAICR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAICR Serial Output Flag 0 (OF0) - Bit 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAICR Serial Output Flag 1 (OF1) - Bit 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAICR Serial Output Flag 2 (OF2) - Bit 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAICR Reserved Bits - Bits 3-5, 9-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAICR Synchronous Mode Selection (SYN) - Bit 6 . . . . . . . . . . . . . . . . . . . . . . . . . .
SAICR Transmit External Buffer Enable (TEBE) - Bit 7 . . . . . . . . . . . . . . . . . . . . . .
SAICR Alignment Control (ALC) - Bit 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ESAI Status Register (SAISR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAISR Serial Input Flag 0 (IF0) - Bit 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAISR Serial Input Flag 1 (IF1) - Bit 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAISR Serial Input Flag 2 (IF2) - Bit 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAISR Reserved Bits - Bits 3-5, 11-12, 18-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAISR Receive Frame Sync Flag (RFS) - Bit 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAISR Receiver Overrun Error Flag (ROE) - Bit 7 . . . . . . . . . . . . . . . . . . . . . . . . . .
SAISR Receive Data Register Full (RDF) - Bit 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAISR Receive Even-Data Register Full (REDF) - Bit 9 . . . . . . . . . . . . . . . . . . . . . .
SAISR Receive Odd-Data Register Full (RODF) - Bit 10 . . . . . . . . . . . . . . . . . . . . .
SAISR Transmit Frame Sync Flag (TFS) - Bit 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAISR Transmit Underrun Error Flag (TUE) - Bit 14 . . . . . . . . . . . . . . . . . . . . . . . .
SAISR Transmit Data Register Empty (TDE) - Bit 15 . . . . . . . . . . . . . . . . . . . . . . . .
SAISR Transmit Even-Data Register Empty (TEDE) - Bit 16 . . . . . . . . . . . . . . . . . .
SAISR Transmit Odd-Data Register Empty (TODE) - Bit 17 . . . . . . . . . . . . . . . . . .
ESAI Receive Shift Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ESAI Receive Data Registers (RX3, RX2, RX1, RX0) . . . . . . . . . . . . . . . . . . . . . . . . . .
ESAI Transmit Shift Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ESAI Transmit Data Registers (TX5, TX4, TX3, TX2,TX1,TX0) . . . . . . . . . . . . . . . . . .
8-26
8-26
8-27
8-27
8-27
8-27
8-27
8-27
8-28
8-28
8-28
8-30
8-30
8-30
8-31
8-31
8-31
8-31
8-31
8-32
8-32
8-32
8-32
8-32
8-33
8-33
8-34
8-35
8-35
8-35
8-35
8-35
8-36
8-36
8-36
8-36
8-36
8-37
8-37
8-37
8-37
8-40
8-40
8-40
8-40
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Freescale Semiconductor
TOC-7
8.3.11
ESAI Time Slot Register (TSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.3.12
Transmit Slot Mask Registers (TSMA, TSMB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.3.13
Receive Slot Mask Registers (RSMA, RSMB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.4
Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.4.1
ESAI After Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.4.2
ESAI Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.4.3
ESAI Interrupt Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.4.4
Operating Modes – Normal, Network, and On-Demand . . . . . . . . . . . . . . . . . . . . . . . . . .
8.4.4.1
Normal/Network/On-Demand Mode Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.4.4.2
Synchronous/Asynchronous Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.4.4.3
Frame Sync Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.4.4.4
Shift Direction Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.4.5
Serial I/O Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.5
GPIO - Pins and Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.5.1
Port C Control Register (PCRC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.5.2
Port C Direction Register (PRRC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.5.3
Port C Data register (PDRC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.6
ESAI Initialization Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.6.1
Initializing the ESAI Using Individual Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.6.2
Initializing Just the ESAI Transmitter Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.6.3
Initializing Just the ESAI Receiver Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
8-40
8-40
8-42
8-43
8-43
8-43
8-44
8-45
8-45
8-45
8-46
8-46
8-46
8-47
8-47
8-47
8-48
8-49
8-49
8-49
8-50
Enhanced Serial Audio Interface 1 (ESAI_1) . . . . . . . . . . . . . . . . . . . . . . . . .9-1
9.1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2
ESAI_1 Data and Control Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2.1
Serial Transmit 0 Data Pin (SDO0_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2.2
Serial Transmit 1 Data Pin (SDO1_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2.3
Serial Transmit 2/Receive 3 Data Pin (SDO2_1/SDI3_1) . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2.4
Serial Transmit 3/Receive 2 Data Pin (SDO3_1/SDI2_1) . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2.5
Serial Transmit 4/Receive 1 Data Pin (SDO4_1/SDI1_1) . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2.6
Serial Transmit 5/Receive 0 Data Pin (SDO5_1/SDI0_1) . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2.7
Receiver Serial Clock (SCKR_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2.8
Transmitter Serial Clock (SCKT_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2.9
Frame Sync for Receiver (FSR_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2.10
Frame Sync for Transmitter (FST_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.3
ESAI_1 Programming Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.3.1
ESAI_1 Multiplex Control Register (EMUXR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.3.2
ESAI_1 Transmitter Clock Control Register (TCCR_1) . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.3.2.1
TCCR_1 Tx High Freq. Clock Divider (TFP3-TFP0) - Bits 14–17 . . . . . . . . . . . . . . .
9.3.2.2
TCCR_1 Tx High Freq. Clock Polarity (THCKP) - Bit 20 . . . . . . . . . . . . . . . . . . . . . .
9.3.2.3
TCCR_1 Tx High Freq. Clock Direction (THCKD) - Bit 23 . . . . . . . . . . . . . . . . . . . .
9.3.3
ESAI_1 Transmit Control Register (TCR_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.3.4
ESAI_1 Receive Clock Control Register (RCCR_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.3.4.1
RCCR_1 Rx High Freq. Clock Divider (RFP3-RFP0) - Bits 14–17 . . . . . . . . . . . . . . .
9.3.4.2
RCCR_1 Rx High Freq. Clock Polarity (RHCKP) - Bit 20 . . . . . . . . . . . . . . . . . . . . .
9-1
9-3
9-3
9-3
9-3
9-3
9-3
9-4
9-4
9-4
9-4
9-4
9-4
9-5
9-5
9-6
9-6
9-6
9-8
9-9
9-9
9-9
DSP56366 24-Bit Digital Signal Processor, Rev. 4
TOC-8
Freescale Semiconductor
9.3.4.3
RCCR_1 Rx High Freq. Clock Direction (RHCKD) - Bit 23 . . . . . . . . . . . . . . . . . . . . 9-9
9.3.5
ESAI_1 Receive Control Register (RCR_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
9.3.6
ESAI_1 Common Control Register (SAICR_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
9.3.7
ESAI_1 Status Register (SAISR_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
9.3.8
ESAI_1 Receive Shift Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
9.3.9
ESAI_1 Receive Data Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
9.3.10
ESAI_1 Transmit Shift Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
9.3.11
ESAI_1 Transmit Data Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
9.3.12
ESAI_1 Time Slot Register (TSR_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12
9.3.13
Transmit Slot Mask Registers (TSMA_1, TSMB_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12
9.3.14
Receive Slot Mask Registers (RSMA_1, RSMB_1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12
9.4
Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13
9.4.1
ESAI_1 After Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13
9.5
GPIO - Pins and Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13
9.5.1
Port E Control Register (PCRE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13
9.5.2
Port E Direction Register (PRRE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-14
9.5.3
Port E Data register (PDRE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-14
10
Digital Audio Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
10.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.2 DAX Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.3 DAX Functional Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.4 DAX Programming Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5 DAX Internal Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.1
DAX Audio Data Register (XADR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.2
DAX Audio Data Buffers (XADBUFA / XADBUFB) . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.3
DAX Audio Data Shift Register (XADSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.4
DAX Non-Audio Data Register (XNADR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.4.1
DAX Channel A Validity (XVA)—Bit 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.4.2
DAX Channel A User Data (XUA)—Bit 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.4.3
DAX Channel A Channel Status (XCA)—Bit 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.4.4
DAX Channel B Validity (XVB)—Bit 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.4.5
DAX Channel B User Data (XUB)—Bit 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.4.6
DAX Channel B Channel Status (XCB)—Bit 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.4.7
XNADR Reserved Bits—Bits 0-9, 16–23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.5
DAX Non-Audio Data Buffer (XNADBUF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.6
DAX Control Register (XCTR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.6.1
Audio Data Register Empty Interrupt Enable (XDIE)—Bit 0 . . . . . . . . . . . . . . . . . . .
10.5.6.2
Underrun Error Interrupt Enable (XUIE)—Bit 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.6.3
Block Transferred Interrupt Enable (XBIE)—Bit 2 . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.6.4
DAX Clock Input Select (XCS[1:0])—Bits 3–4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.6.5
DAX Start Block (XSB)—Bit 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.6.6
XCTR Reserved Bits—Bits 6-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.7
DAX Status Register (XSTR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5.7.1
DAX Audio Data Register Empty (XADE)—Bit 0 . . . . . . . . . . . . . . . . . . . . . . . . . . .
10-1
10-2
10-2
10-3
10-4
10-5
10-5
10-5
10-5
10-5
10-6
10-6
10-6
10-6
10-6
10-6
10-6
10-6
10-7
10-7
10-7
10-7
10-7
10-7
10-7
10-8
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Freescale Semiconductor
TOC-9
10.5.7.2
DAX Transmit Underrun Error Flag (XAUR)—Bit 1 . . . . . . . . . . . . . . . . . . . . . . . . . 10-8
10.5.7.3
DAX Block Transfer Flag (XBLK)—Bit 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8
10.5.7.4
XSTR Reserved Bits—Bits 3–23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8
10.5.8
DAX Parity Generator (PRTYG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9
10.5.9
DAX Biphase Encoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9
10.5.10
DAX Preamble Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9
10.5.11
DAX Clock Multiplexer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9
10.5.12
DAX State Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10
10.6 DAX Programming Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10
10.6.1
Initiating A Transmit Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10
10.6.2
Audio Data Register Empty Interrupt Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10
10.6.3
Block Transferred Interrupt Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
10.6.4
DAX operation with DMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
10.6.5
DAX Operation During Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12
10.7 GPIO (PORT D) - Pins and Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12
10.7.1
Port D Control Register (PCRD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12
10.7.2
Port D Direction Register (PRRD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-13
10.7.3
Port D Data Register (PDRD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-14
11
Timer/ Event Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
11.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
11.2 Timer/Event Counter Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
11.2.1
Timer/Event Counter Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
11.2.2
Individual Timer Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
11.3 Timer/Event Counter Programming Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3
11.3.1
Prescaler Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5
11.3.2
Timer Prescaler Load Register (TPLR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5
11.3.2.1
TPLR Prescaler Preload Value PL[20:0] Bits 20–0 . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5
11.3.2.2
TPLR Prescaler Source PS[1:0] Bits 22-21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5
11.3.2.3
TPLR Reserved Bit 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-6
11.3.3
Timer Prescaler Count Register (TPCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-6
11.3.3.1
TPCR Prescaler Counter Value PC[20:0] Bits 20–0 . . . . . . . . . . . . . . . . . . . . . . . . . . 11-6
11.3.3.2
TPCR Reserved Bits 23–21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-6
11.3.4
Timer Control/Status Register (TCSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-6
11.3.4.1
TCSR Timer Enable (TE) Bit 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-6
11.3.4.2
TCSR Timer Overflow Interrupt Enable (TOIE) Bit 1 . . . . . . . . . . . . . . . . . . . . . . . . 11-7
11.3.4.3
TCSR Timer Compare Interrupt Enable (TCIE) Bit 2 . . . . . . . . . . . . . . . . . . . . . . . . 11-7
11.3.4.4
TCSR Timer Control (TC[3:0]) Bits 4–7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-7
11.3.4.5
TCSR Inverter (INV) Bit 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-9
11.3.4.6
TCSR Timer Reload Mode (TRM) Bit 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-10
11.3.4.7
TCSR Direction (DIR) Bit 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-10
11.3.4.8
TCSR Data Input (DI) Bit 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-10
11.3.4.9
TCSR Data Output (DO) Bit 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-10
11.3.4.10
TCSR Prescaler Clock Enable (PCE) Bit 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-11
11.3.4.11
TCSR Timer Overflow Flag (TOF) Bit 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-11
DSP56366 24-Bit Digital Signal Processor, Rev. 4
TOC-10
Freescale Semiconductor
11.3.4.12
TCSR Timer Compare Flag (TCF) Bit 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.3.4.13
TCSR Reserved Bits (Bits 3, 10, 14, 16-19, 22, 23) . . . . . . . . . . . . . . . . . . . . . . . . .
11.3.5
Timer Load Register (TLR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.3.6
Timer Compare Register (TCPR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.3.7
Timer Count Register (TCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4 Timer Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.1
Timer Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.1.1
Timer GPIO (Mode 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.1.2
Timer Pulse (Mode 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.1.3
Timer Toggle (Mode 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.1.4
Timer Event Counter (Mode 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.2
Signal Measurement Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.2.1
Measurement Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.2.2
Measurement Input Width (Mode 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.2.3
Measurement Input Period (Mode 5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.2.4
Measurement Capture (Mode 6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.3
Pulse Width Modulation (PWM, Mode 7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.4
Watchdog Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.4.1
Watchdog Pulse (Mode 9) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.4.2
Watchdog Toggle (Mode 10) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.5
Reserved Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.6
Special Cases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.6.1
Timer Behavior during Wait . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.6.2
Timer Behavior during Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11.4.7
DMA Trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appendix A
A.1
11-11
11-11
11-12
11-12
11-12
11-12
11-13
11-13
11-14
11-14
11-15
11-16
11-16
11-16
11-17
11-17
11-18
11-19
11-19
11-20
11-20
11-20
11-20
11-21
11-21
Bootstrap ROM Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
DSP56366 Bootstrap Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Appendix B
Equates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Appendix C
JTAG BSDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
Appendix D
Programmer’s Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1
B.1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
B.1.1
Peripheral Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
B.1.2
Interrupt Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
B.1.3
Interrupt Priorities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
B.1.4
Host Interface Quick Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
B.1.5
Programming Sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
B.2
Internal I/O Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
B.3
Interrupt Vector Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Freescale Semiconductor
TOC-11
B.4
B.5
B.6
Interrupt Source Priorities (within an IPL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-10
Host Interface—Quick Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-12
Programming Sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-15
DSP56366 24-Bit Digital Signal Processor, Rev. 4
TOC-12
Freescale Semiconductor
List of Figures
Figure 1-1
Figure 2-1
Figure 3-1
Figure 3-2
Figure 3-3
Figure 3-4
Figure 3-5
Figure 3-6
Figure 3-7
Figure 3-8
Figure 3-9
Figure 3-10
Figure 3-11
Figure 3-12
Figure 3-13
Figure 3-14
Figure 3-15
Figure 3-16
Figure 4-1
Figure 4-2
Figure 6-1
Figure 6-2
Figure 6-3
Figure 6-4
Figure 6-5
Figure 6-6
Figure 6-7
Figure 6-8
Figure 6-9
Figure 6-10
Figure 6-11
Figure 6-12
Figure 6-13
Figure 6-14
Figure 6-15
Figure 6-16
Figure 7-1
Figure 7-2
Figure 7-3
DSP56366 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Signals Identified by Functional Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Memory Maps for MSW=(X,X), CE=0, MS=0, SC=0 . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Memory Maps for MSW=(X,X), CE=1, MS=0, SC=0 . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Memory Maps for MSW=(0,0), CE=0 MS=1, SC=0 . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Memory Maps for MSW=(0,1), CE=0, MS=1, SC=0 . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Memory Maps for MSW=(1,0), CE=0, MS=1, SC=0 . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Memory Maps for MSW=(0,0), CE=1, MS=1, SC=0 . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Memory Maps for MSW=(0,1), CE=1, MS=1, SC=0 . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Memory Maps for MSW=(1,0), CE=1, MS=1, SC=0 . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Memory Maps for MSW=(X,X), CE=0, MS=0, SC=1 . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Memory Maps for MSW=(X,X), CE=1, MS=0, SC=1 . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Memory Maps for MSW=(0,0), CE=0, MS=1, SC=1 . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Memory Maps for MSW=(0,1), CE=0, MS=1, SC=1 . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Memory Maps for MSW=(1,0), CE=0, MS=1, SC=1 . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Memory Maps for MSW=(0,0), CE=1, MS=1, SC=1 . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Memory Maps for MSW=(0,1), CE=1, MS=1, SC=1 . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Memory Maps for MSW=(1,0), CE=1, MS=1, SC=1 . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Interrupt Priority Register P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Interrupt Priority Register C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
HDI08 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Host Control Register (HCR) (X:$FFFFC2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Host Status Register (HSR) (X:FFFFC3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
Host Base Address Register (HBAR) (X:$FFFFC5) . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Self Chip Select logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
Host Port Control Register (HPCR) (X:$FFFFC4) . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
Single strobe bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
Dual strobes bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Host Data Direction Register (HDDR) (X:$FFFFC8) . . . . . . . . . . . . . . . . . . . . . . . . . 6-16
Host Data Register (HDR) (X:$FFFFC9) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16
HSR-HCR Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-18
Interface Control Register (ICR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20
Command Vector Register (CVR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23
Interface Status Register (ISR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-24
Interrupt Vector Register (IVR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-26
HDI08 Host Request Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-29
Serial Host Interface Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
SHI Clock Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
SHI Programming Model—Host Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Freescale Semiconductor
LOF-1
Figure 7-4
Figure 7-5
Figure 7-6
Figure 7-7
Figure 7-8
Figure 7-9
Figure 7-10
Figure 7-11
Figure 8-1
Figure 8-2
Figure 8-3
Figure 8-4
Figure 8-5
Figure 8-6
Figure 8-7
Figure 8-8
Figure 8-9
Figure 8-10
Figure 8-11
Figure 8-12
Figure 8-13
Figure 8-14
Figure 8-15
Figure 8-16
Figure 8-17
Figure 8-18
Figure 8-19
Figure 8-20
Figure 8-21
Figure 9-1
Figure 9-2
Figure 9-3
Figure 9-4
Figure 9-5
Figure 9-6
Figure 9-7
Figure 9-8
Figure 9-9
Figure 9-10
SHI Programming Model—DSP Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
SHI I/O Shift Register (IOSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
SPI Data-To-Clock Timing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
I2C Bit Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
I2C Start and Stop Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
Acknowledgment on the I2C Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18
I2C Bus Protocol For Host Write Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18
I2C Bus Protocol For Host Read Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19
ESAI Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
TCCR Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8
ESAI Clock Generator Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
ESAI Frame Sync Generator Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . 8-11
TCR Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13
Normal and Network Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17
Frame Length Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-20
RCCR Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
RCR Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-26
SAICR Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-32
SAICR SYN Bit Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-34
SAISR Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35
ESAI Data Path Programming Model ([R/T]SHFD=0) . . . . . . . . . . . . . . . . . . . . . . . 8-38
ESAI Data Path Programming Model ([R/T]SHFD=1) . . . . . . . . . . . . . . . . . . . . . . . 8-39
TSMA Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-41
TSMB Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-41
RSMA Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-42
RSMB Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-42
PCRC Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-48
PRRC Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-48
PDRC Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-49
ESAI_1 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
EMUXR Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
TCCR_1 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6
ESAI_1 Clock Generator Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7
ESAI_1 Frame Sync Generator Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . 9-8
TCR_1 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-8
RCCR_1 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-9
RCR_1 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
SAICR_1 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
SAISR_1 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
DSP56366 24-Bit Digital Signal Processor, Rev. 4
LOF-2
Freescale Semiconductor
Figure 9-11
Figure 9-12
Figure 9-13
Figure 9-14
Figure 9-15
Figure 9-16
Figure 9-17
Figure 10-1
Figure 10-2
Figure 10-3
Figure 10-4
Figure 10-5
Figure 10-6
Figure 10-7
Figure 10-8
Figure 11-1
Figure 11-2
Figure 11-3
Figure 11-4
Figure 11-5
Figure D-1
Figure D-2
Figure D-3
Figure D-4
Figure D-5
Figure D-6
Figure D-7
Figure D-8
Figure D-9
Figure D-10
Figure D-11
Figure D-12
Figure D-13
Figure D-14
Figure D-15
Figure D-16
Figure D-17
Figure D-18
Figure D-19
TSMA_1 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12
TSMB_1 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12
RSMA_1 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13
RSMB_1 Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13
PCRE Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-14
PRRE Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-14
PDRE Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-15
Digital Audio Transmitter (DAX) Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
DAX Programming Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-4
DAX Relative Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8
Preamble sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9
Clock Multiplexer Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10
Examples of data organization in memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12
Port D Direction Register (PRRD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-13
Port D Data Register (PDRD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-14
Timer/Event Counter Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
Timer Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3
Timer Module Programmer’s Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4
Timer Prescaler Load Register (TPLR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5
Time Prescaler Count Register (TPCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-6
Status Register (SR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-16
Operating Mode Register (OMR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-17
Interrupt Priority Register–Core (IPR–C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-18
Interrupt Priority Register – Peripherals (IPR–P) . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-19
Phase Lock Loop Control Register (PCTL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-20
Host Receive and Host Transmit Data Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-21
Host Control and Status Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-22
Host Base Address and Host Port Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-23
Host Interrupt Control and Interrupt Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-24
Host Interrupt Vector and Command Vector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-25
Host Receive and Transmit Byte Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-26
SHI Slave Address and Clock Control Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-27
SHI Transmit and Receive Data Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-28
SHI Host Control/Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-29
ESAI Transmit Clock Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-30
ESAI Transmit Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-31
ESAI Receive Clock Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-32
ESAI Receive Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-33
ESAI Common Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-34
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Freescale Semiconductor
LOF-3
Figure D-20
Figure D-21
Figure D-22
Figure D-23
Figure D-24
Figure D-25
Figure D-26
Figure D-27
Figure D-28
Figure D-29
Figure D-30
Figure D-31
Figure D-32
Figure D-33
Figure D-34
Figure D-35
Figure D-36
ESAI Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-35
ESAI_1 Multiplex Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-36
ESAI_1 Transmit Clock Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-37
ESAI_1 Transmit Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-38
ESAI_1 Receive Clock Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-39
ESAI_1 Receive Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-40
ESAI_1 Common Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-41
ESAI_1 Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-42
DAX Non-Audio Data Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-43
DAX Control and Status Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-44
Timer Prescaler Load and Prescaler Count Registers (TPLR, TPCR) . . . . . . . . . . . . D-45
Timer Control/Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-46
Timer Load, Compare and Count Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-47
GPIO Port B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-48
GPIO Port C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-49
GPIO Port D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-50
GPIO Port E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-51
DSP56366 24-Bit Digital Signal Processor, Rev. 4
LOF-4
Freescale Semiconductor
List of Tables
Table 2-1
Table 2-2
Table 2-3
Table 2-4
Table 2-5
Table 2-6
Table 2-7
Table 2-8
Table 2-9
Table 2-10
Table 2-11
Table 2-12
Table 2-13
Table 2-14
Table 2-15
Table 3-1
Table 3-2
Table 3-3
Table 3-4
Table 4-1
Table 4-2
Table 4-3
Table 4-4
Table 4-5
Table 4-6
Table 4-7
Table 4-8
Table 4-9
Table 4-10
Table 6-1
Table 6-2
Table 6-3
Table 6-4
Table 6-5
Table 6-6
Table 6-7
Table 6-8
Table 6-9
Table 6-10
Table 6-11
DSP56364 Functional Signal Groupings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Power Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Grounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Clock and PLL Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
External Address Bus Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
External Data Bus Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
External Bus Control Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Interrupt and Mode Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Host Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Serial Host Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
Enhanced Serial Audio Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
Enhanced Serial Audio Interface_1 Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
Digital Audio Interface (DAX) Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
Timer Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
JTAG/OnCE Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
Internal Memory Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
On-chip RAM Memory Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
On-chip ROM Memory Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Internal I/O Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Operating Mode Register (OMR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
DSP56366 Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
DSP56366 Mode Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Interrupt Priority Level Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Interrupt Sources Priorities Within an IPL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
DSP56366 Interrupt Vectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
DMA Request Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Identification Register Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
JTAG Identification Register Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
DSP56366 BSR Bit Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
HDI08 Signal Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Strobe Signals Support signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Host request support signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
HDI08 IRQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
HDM[2:0] Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
HDR and HDDR Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16
DSP-Side Registers after Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17
HDI08 Host Side Register Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-19
TREQ RREQ Interrupt Mode (HDM[2:0]=000 or HM[1:0]=00) . . . . . . . . . . . . . . . . 6-21
TREQ RREQ DMA Mode (HM1¼0 or HM0¼0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21
HDRQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Freescale Semiconductor
LOT-1
Table 6-12
Table 6-13
Table 6-14
Table 6-15
Table 7-1
Table 7-2
Table 7-3
Table 7-4
Table 7-5
Table 7-6
Table 8-1
Table 8-2
Table 8-3
Table 8-4
Table 8-5
Table 8-6
Table 8-7
Table 8-8
Table 8-9
Table 8-10
Table 8-11
Table 8-12
Table 9-1
Table 9-2
Table 9-3
Table 9-4
Table 10-1
Table 10-2
Table 10-3
Table 10-4
Table 10-5
Table 10-6
Table 11-1
Table 11-2
Table 11-3
Table 11-4
Table D-1
Table D-2
Table D-3
Table D-4
Host Mode Bit Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-22
INIT Command Effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23
Host Request Status (HREQ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25
Host Side Registers After Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-27
SHI Interrupt Vectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
SHI Internal Interrupt Priorities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
SHI Noise Reduction Filter Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
SHI Data Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11
HREQ Function In SHI Slave Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-12
HCSR Receive Interrupt Enable Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
Receiver Clock Sources (asynchronous mode only) . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Transmitter Clock Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Transmitter High Frequency Clock Divider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Transmit Network Mode Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-16
ESAI Transmit Slot and Word Length Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
Receiver High Frequency Clock Divider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24
SCKR Pin Definition Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-25
FSR Pin Definition Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-25
HCKR Pin Definition Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-26
ESAI Receive Network Mode Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-28
ESAI Receive Slot and Word Length Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-29
PCRC and PRRC Bits Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-48
EMUXR ESA/ESAI_1 Pin Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
Transmitter Clock Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6
Receiver Clock Sources (asynchronous mode only) . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-9
PCRE and PRRE Bits Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-14
DAX Interrupt Vectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-4
DAX Interrupt Priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-4
Clock Source Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-7
Preamble Bit Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9
Examples of DMA configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
DAX Port GPIO Control Register Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-13
Prescaler Source Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-6
Timer Control Bits for Timer 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-8
Timer Control Bits for Timers 1 and 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-8
Inverter (INV) Bit Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-9
Internal I/O Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-2
DSP56366 Interrupt Vectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-8
Interrupt Sources Priorities Within an IPL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-10
HDI08 Programming Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-12
DSP56366 24-Bit Digital Signal Processor, Rev. 4
LOT-2
Freescale Semiconductor
Preface
This manual describes the DSP56366 24-bit digital signal processor (DSP), its memory, operating modes,
and peripheral modules. The DSP56366 is a member of the DSP56300 family of programmable CMOS
DSPs. Changes in core functionality specific to the DSP56366 are also described in this manual.
The DSP56366 is targeted to applications that require digital audio compression and decompression,
sound field processing, acoustic equalization, and other digital audio algorithms.
This manual is intended to be used with the following publications:
• The DSP56300 Family Manual (DSP56300FM), which describes the CPU, core programming models,
and instruction set details.
• The DSP56366 Technical Data Sheet (DSP56366), which provides electrical specifications, timing,
pinout, and packaging descriptions of the DSP56366.
These documents, as well as Freescale’s DSP development tools, can be obtained through a local Freescale
Semiconductor Sales Office or authorized distributor.
To receive the latest information on this DSP, access the Freescale DSP home page at the address given on
the back cover of this document.
This manual contains the following sections and appendices.
SECTION 1—DSP56366 OVERVIEW
•
Provides a brief description of the DSP56366, including a features list and block diagram. Lists
related documentation needed to use this chip and describes the organization of this manual.
SECTION 2—SIGNAL/CONNECTION DESCRIPTIONS
•
Describes the signals on the DSP56366 pins and how these signals are grouped into interfaces.
SECTION 3—MEMORY CONFIGURATION
•
Describes the DSP56366 memory spaces, RAM and ROM configuration, memory configurations
and their bit settings, and memory maps.
SECTION 4—CORE CONFIGURATION
•
Describes the registers used to configure the DSP56300 core when programming the DSP56366,
in particular the interrupt vector locations and the operation of the interrupt priority registers.
Explains the operating modes and how they affect the processor’s program and data memories.
SECTION 5—GENERAL PURPOSE INPUT/OUTPUT (GPIO)
•
Describes the DSP56366 GPIO capability and the programming model for the GPIO signals
(operation, registers, and control).
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
i
SECTION 6— HOST INTERFACE (HDI08)
•
Describes the HDI08 parallel host interface.
SECTION 7—SERIAL HOST INTERFACE (SHI)
•
Describes the serial input/output interface providing a path for communication and
program/coefficient data transfers between the DSP and an external host processor. The SHI can
also communicate with other serial peripheral devices.
SECTION 8—ENHANCED SERIAL AUDIO INTERFACE (ESAI)
•
Describes one of the full-duplex serial port for serial communication with a variety of serial
devices.
SECTION 9—ENHANCED SERIAL AUDIO INTERFACE 1 (ESAI_1)
•
Describes the second full-duplex serial port for serial communication with a variety of serial
devices.
SECTION 10—DIGITAL AUDIO TRANSMITTER (DAX)
•
Describes the full-duplex serial port for serial communication with a variety of serial devices.
SECTION 11—TRIPLE TIMER MODULE (TEC)
APPENDIX A—BOOTSTRAP PROGRAM
•
Lists the bootstrap code used for the DSP56366.
APPENDIX B—EQUATES
•
Lists equates for the DSP56366.
APPENDIX C—JTAG/BSDL LISTING
•
Provides the BSDL listing for the DSP56366.
APPENDIX D—PROGRAMMING REFERENCE
•
Lists peripheral addresses, interrupt addresses, and interrupt priorities for the DSP56366. Contains
programming sheets listing the contents of the major DSP56366 registers for programmer
reference.
Manual Conventions
The following conventions are used in this manual:
• Bits within registers are always listed from most significant bit (MSB) to least significant bit
(LSB).
• When several related bits are discussed, they are referenced as AA[n:m], where n>m. For purposes
of description, the bits are presented as if they are contiguous within a register. However, this is not
always the case. Refer to the programming model diagrams or to the programmer’s sheets to see
the exact location of bits within a register.
• When a bit is described as “set”, its value is 1. When a bit is described as “cleared”, its value is 0.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
ii
Freescale Semiconductor
•
The word “assert” means that a high true (active high) signal is pulled high to VCC or that a low
true (active low) signal is pulled low to ground. The word “deassert” means that a high true signal
is pulled low to ground or that a low true signal is pulled high to VCC.
High True/Low True Signal Conventions
Signal/Symbol
Logic State
Signal State
Voltage
PIN1
True
Asserted
Ground2
PIN
False
Deasserted
VCC3
PIN
True
Asserted
VCC
PIN
False
Deasserted
Ground
1
PIN is a generic term for any pin on the chip.
Ground is an acceptable low voltage level. See the appropriate data sheet for the range of
acceptable low voltage levels (typically a TTL logic low).
3
VCC is an acceptable high voltage level. See the appropriate data sheet for the range of acceptable
high voltage levels (typically a TTL logic high).
2
•
•
•
Pins or signals that are asserted low (made active when pulled to ground)
— In text, have an overbar (e.g., RESET is asserted low).
— In code examples, have a tilde in front of their names. In example below, line 3 refers to the
SS0 pin (shown as ~SS0).
Sets of pins or signals are indicated by the first and last pins or signals in the set (e.g., HA1–HA8).
Code examples are displayed in a monospaced font, as shown below:
Example Sample Code Listing
BFSET
•
•
#$0007,X:PCC Configure:
line 1
; MISO0, MOSI0, SCK0 for SPI master
line 2
; ~SS0 as PC3 for GPIO
line 3
Hex values are indicated with a dollar sign ($) preceding the hex value, as follows: $FFFFFF is the
X memory address for the core interrupt priority register (IPR-C).
The word “reset” is used in four different contexts in this manual:
— the reset signal, written as “RESET,”
— the reset instruction, written as “RESET,”
— the reset operating state, written as “Reset,” and
— the reset function, written as “reset.”
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
iii
NOTES
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
iv
Freescale Semiconductor
1
1.1
DSP56366 Overview
Introduction
This manual describes the DSP56366 24-bit digital signal processor (DSP), its memory, operating modes,
and peripheral modules. The DSP56366 is a member of the DSP56300 family of programmable CMOS
DSPs. The DSP56366 is targeted to applications that require digital audio compression/decompression,
sound field processing, acoustic equalization and other digital audio algorithms. Changes in core
functionality specific to the DSP56366 are also described in this manual. See Figure 1-1 for the block
diagram of the DSP56366.
2
1
4
8
16
5
6
MEMORY EXPANSION AREA
ESAI
INTERFACE
SHI
INTERFACE
ADDRESS
GENERATION
UNIT
SIX CHANNELS
DMA UNIT
PIO_EB
ESAI_1
PERIPHERAL
EXPANSION AREA
X MEMORY
RAM
13K X 24
ROM
32K x 24
YAB
XAB
PAB
DAB
Y MEMORY
RAM
7K X 24
ROM
8K x 24
YM_EB
HOST
INTERFACE
XM_EB
DAX
(SPDIF Tx.)
INTER-FAC
E
PM_EB
TRIPLE
TIMER
PROGRAM
RAM
/INSTR.
CACHE
3K x 24
PROGRAM
ROM
40K x 24
Bootstrap
24-BIT
DSP56300
Core
EXTERNAL
ADDRESS
BUS
SWITCH
DRAM &
SRAM BUS
INTERFACE
&
I - CACHE
DDB
YDB
INTERNAL
DATA
BUS
PDB
GDB
ADDRESS
10
CONTROL
24
DATA
POWER
MNGMNT
PLL
CLOCK
GENERATO
EXTAL
RESET
PINIT/NMI
EXTERNAL
DATA BUS
SWITCH
XDB
18
PROGRAM
INTERRUPT
CONTROLLER
PROGRAM
DECODE
CONTROLLE
PROGRAM
ADDRESS
GENERATOR
DATA ALU
24X24+56->56-BIT MAC
TWO 56-BIT ACCUMULATORS
BARREL SHIFTER
MODA/IRQA
MODB/IRQB
MODC/IRQC
MODD/IRQD
JTAG
4
OnCE™
24 BITS BUS
Figure 1-1 DSP56366 Block Diagram
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
1-1
DSP56300 Core Description
1.2
DSP56300 Core Description
The DSP56366 uses the DSP56300 core, a high-performance, single clock cycle per instruction engine that
provides up to twice the performance of Freescale's popular DSP56000 core family while retaining code
compatibility with it.
The DSP56300 core family offers a new level of performance in speed and power, provided by its rich
instruction set and low power dissipation, thus enabling a new generation of wireless, telecommunications,
and multimedia products. For a description of the DSP56300 core, see Section 1.4, "DSP56300 Core
Functional Blocks". Significant architectural enhancements to the DSP56300 core family include a barrel
shifter, 24-bit addressing, an instruction cache, and direct memory access (DMA).
The DSP56300 core family members contain the DSP56300 core and additional modules. The modules
are chosen from a library of standard predesigned elements such as memories and peripherals. New
modules may be added to the library to meet customer specifications. A standard interface between the
DSP56300 core and the on-chip memory and peripherals supports a wide variety of memory and
peripheral configurations. Refer to Section 3, "Memory Configuration".
Core features are described fully in the DSP56300 Family Manual. Pinout, memory, and peripheral
features are described in this manual.
• DSP56300 modular chassis
— 120 Million Instructions Per Second (MIPS) with an 120 MHz clock at 3.3V.
— Object Code Compatible with the 56K core.
— Data ALU with a 24 × 24 bit multiplier-accumulator and a 56-bit barrel shifter. 16-bit
arithmetic support.
— Program Control with position independent code support and instruction cache support.
— Six-channel DMA controller.
— PLL based clocking with a wide range of frequency multiplications (1 to 4096), predivider
factors (1 to 16) and power saving clock divider (2i: i=0 to 7). Reduces clock noise.
— Internal address tracing support and OnCE™ for Hardware/Software debugging.
— JTAG port.
— Very low-power CMOS design, fully static design with operating frequencies down to DC.
— STOP and WAIT low-power standby modes.
• On-chip Memory Configuration
— 7K × 24 Bit Y-Data RAM and 8K × 24 Bit Y-Data ROM.
— 13K × 24 Bit X-Data RAM and 32K × 24 Bit X-Data ROM.
— 40K × 24 Bit Program ROM.
— 3K × 24 Bit Program RAM and 192 × 24 Bit Bootstrap ROM. 1K of Program RAM may be
used as Instruction Cache or for Program ROM patching.
— 2K × 24 Bit from Y Data RAM and 5K × 24 Bit from X Data RAM can be switched to Program
RAM resulting in up to 10K × 24 Bit of Program RAM.
• Off-chip memory expansion
— External Memory Expansion Port.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
1-2
Freescale Semiconductor
DSP56366 Audio Processor Architecture
•
•
1.3
— Off-chip expansion up to two 16M × 24-bit word of Data memory.
— Off-chip expansion up to 16M × 24-bit word of Program memory.
— Simultaneous glueless interface to SRAM and DRAM.
Peripheral modules
— Serial Audio Interface (ESAI): up to 4 receivers and up to 6 transmitters, master or slave. I2S,
Sony, AC97, network and other programmable protocols.
— Serial Audio Interface I (ESAI_1): up to 4 receivers and up to 6 transmitters, master or slave.
I2S, Sony, AC97, network and other programmable protocols
The ESAI_1 shares four of the data pins with ESAI, and ESAI_1 does NOT support HCKR and
HCKT (high frequency clocks)
— Serial Host Interface (SHI): SPI and I2C protocols, multi master capability, 10-word receive
FIFO, support for 8, 16 and 24-bit words.
— Byte-wide parallel Host Interface (HDI08) with DMA support.
— Triple Timer module (TEC).
— Digital Audio Transmitter (DAX): 1 serial transmitter capable of supporting the SPDIF,
IEC958, CP-340 and AES/EBU digital audio formats.
— Pins of unused peripherals (except SHI) may be programmed as GPIO lines.
144-pin plastic TQFP package.
DSP56366 Audio Processor Architecture
This section defines the DSP56366 audio processor architecture. The audio processor is composed of the
following units:
• The DSP56300 core is composed of the Data ALU, Address Generation Unit, Program Controller,
Instruction-Cache Controller, DMA Controller, PLL-based clock oscillator, Memory Module
Interface, Peripheral Module Interface and the On-Chip Emulator (OnCE). The DSP56300 core is
described in the document DSP56300 24-Bit Digital Signal Processor Family Manual, Freescale
publication DSP56300FM.
• Memory modules.
• Peripheral modules. The peripheral modules are defined in the following sections.
Memory sizes in the block diagram are defaults. Memory may be differently partitioned, according to the
memory mode of the chip. See Section 1.4.8, "On-Chip Memory" for more details about memory size.
1.4
DSP56300 Core Functional Blocks
The DSP56300 core provides the following functional blocks:
• Data arithmetic logic unit (Data ALU)
• Address generation unit (AGU)
• Program control unit (PCU)
• Bus interface unit (BIU)
• DMA controller (with six channels)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
1-3
DSP56300 Core Functional Blocks
•
•
•
•
•
Instruction cache controller
PLL-based clock oscillator
OnCE module
JTAG TAP
Memory
In addition, the DSP56366 provides a set of on-chip peripherals, described in Section 1.5, "Peripheral
Overview".
1.4.1
Data ALU
The Data ALU performs all the arithmetic and logical operations on data operands in the DSP56300 core.
The components of the Data ALU are as follows:
• Fully pipelined 24-bit × 24-bit parallel multiplier-accumulator (MAC)
• Bit field unit, comprising a 56-bit parallel barrel shifter (fast shift and normalization; bit stream
generation and parsing)
• Conditional ALU instructions
• 24-bit or 16-bit arithmetic support under software control
• Four 24-bit input general purpose registers: X1, X0, Y1, and Y0
• Six Data ALU registers (A2, A1, A0, B2, B1, and B0) that are concatenated into two general
purpose, 56-bit accumulators (A and B), accumulator shifters
• Two data bus shifter/limiter circuits
1.4.1.1
Data ALU Registers
The Data ALU registers can be read or written over the X memory data bus (XDB) and the Y memory data
bus (YDB) as 24- or 48-bit operands (or as 16- or 32-bit operands in 16-bit arithmetic mode). The source
operands for the Data ALU, which can be 24, 48, or 56 bits (16, 32, or 40 bits in 16-bit arithmetic mode),
always originate from Data ALU registers. The results of all Data ALU operations are stored in an
accumulator.
All the Data ALU operations are performed in two clock cycles in pipeline fashion so that a new
instruction can be initiated in every clock, yielding an effective execution rate of one instruction per clock
cycle. The destination of every arithmetic operation can be used as a source operand for the immediately
following arithmetic operation without a time penalty (i.e., without a pipeline stall).
1.4.1.2
Multiplier-Accumulator (MAC)
The MAC unit comprises the main arithmetic processing unit of the DSP56300 core and performs all of
the calculations on data operands. In the case of arithmetic instructions, the unit accepts as many as three
input operands and outputs one 56-bit result of the following form- Extension:Most Significant
Product:Least Significant Product (EXT:MSP:LSP).
The multiplier executes 24-bit × 24-bit, parallel, fractional multiplies, between two’s-complement signed,
unsigned, or mixed operands. The 48-bit product is right-justified and added to the 56-bit contents of either
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
1-4
Freescale Semiconductor
DSP56300 Core Functional Blocks
the A or B accumulator. A 56-bit result can be stored as a 24-bit operand. The LSP can either be truncated
or rounded into the MSP. Rounding is performed if specified.
1.4.2
Address Generation Unit (AGU)
The AGU performs the effective address calculations using integer arithmetic necessary to address data
operands in memory and contains the registers used to generate the addresses. It implements four types of
arithmetic: linear, modulo, multiple wrap-around modulo, and reverse-carry. The AGU operates in parallel
with other chip resources to minimize address-generation overhead.
The AGU is divided into two halves, each with its own Address ALU. Each Address ALU has four sets of
register triplets, and each register triplet is composed of an address register, an offset register, and a
modifier register. The two Address ALUs are identical. Each contains a 24-bit full adder (called an offset
adder).
A second full adder (called a modulo adder) adds the summed result of the first full adder to a modulo
value that is stored in its respective modifier register. A third full adder (called a reverse-carry adder) is
also provided.
The offset adder and the reverse-carry adder are in parallel and share common inputs. The only difference
between them is that the carry propagates in opposite directions. Test logic determines which of the three
summed results of the full adders is output.
Each Address ALU can update one address register from its respective address register file during one
instruction cycle. The contents of the associated modifier register specifies the type of arithmetic to be used
in the address register update calculation. The modifier value is decoded in the Address ALU.
1.4.3
Program Control Unit (PCU)
The PCU performs instruction prefetch, instruction decoding, hardware DO loop control, and exception
processing. The PCU implements a seven-stage pipeline and controls the different processing states of the
DSP56300 core. The PCU consists of the following three hardware blocks:
• Program decode controller (PDC)
• Program address generator (PAG)
• Program interrupt controller (PIC)
The PDC decodes the 24-bit instruction loaded into the instruction latch and generates all signals necessary
for pipeline control. The PAG contains all the hardware needed for program address generation, system
stack, and loop control. The PIC arbitrates among all interrupt requests (internal interrupts, as well as the
five external requests: IRQA, IRQB, IRQC, IRQD, and NMI), and generates the appropriate interrupt
vector address.
PCU features include the following:
• Position independent code support
• Addressing modes optimized for DSP applications (including immediate offsets)
• On-chip instruction cache controller
• On-chip memory-expandable hardware stack
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
1-5
DSP56300 Core Functional Blocks
•
•
Nested hardware DO loops
Fast auto-return interrupts
The PCU implements its functions using the following registers:
• PC—program counter register
• SR—Status register
• LA—loop address register
• LC—loop counter register
• VBA—vector base address register
• SZ—stack size register
• SP—stack pointer
• OMR—operating mode register
• SC—stack counter register
The PCU also includes a hardware system stack (SS).
1.4.4
Internal Buses
To provide data exchange between blocks, the following buses are implemented:
• Peripheral input/output expansion bus (PIO_EB) to peripherals
• Program memory expansion bus (PM_EB) to program memory
• X memory expansion bus (XM_EB) to X memory
• Y memory expansion bus (YM_EB) to Y memory
• Global data bus (GDB) between registers in the DMA, AGU, OnCE, PLL, BIU, and PCU as well
as the memory-mapped registers in the peripherals
• DMA data bus (DDB) for carrying DMA data between memories and/or peripherals
• DMA address bus (DAB) for carrying DMA addresses to memories and peripherals
• Program Data Bus (PDB) for carrying program data throughout the core
• X memory Data Bus (XDB) for carrying X data throughout the core
• Y memory Data Bus (YDB) for carrying Y data throughout the core
• Program address bus (PAB) for carrying program memory addresses throughout the core
• X memory address bus (XAB) for carrying X memory addresses throughout the core
• Y memory address bus (YAB) for carrying Y memory addresses throughout the core
All internal buses on the DSP56300 family members are 24-bit buses. See Figure 1-1.
1.4.5
Direct Memory Access (DMA)
The DMA block has the following features:
• Six DMA channels supporting internal and external accesses
• One-, two-, and three-dimensional transfers (including circular buffering)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
1-6
Freescale Semiconductor
DSP56300 Core Functional Blocks
•
•
1.4.6
End-of-block-transfer interrupts
Triggering from interrupt lines and all peripherals
PLL-based Clock Oscillator
The clock generator in the DSP56300 core is composed of two main blocks: the PLL, which performs
clock input division, frequency multiplication, and skew elimination; and the clock generator (CLKGEN),
which performs low-power division and clock pulse generation. PLL-based clocking:
• Allows change of low-power divide factor (DF) without loss of lock
• Provides output clock with skew elimination
• Provides a wide range of frequency multiplications (1 to 4096), predivider factors (1 to 16), and a
power-saving clock divider (2i: i = 0 to 7) to reduce clock noise
The PLL allows the processor to operate at a high internal clock frequency using a low frequency clock
input. This feature offers two immediate benefits:
• A lower frequency clock input reduces the overall electromagnetic interference generated by a
system.
• The ability to oscillate at different frequencies reduces costs by eliminating the need to add
additional oscillators to a system.
1.4.7
JTAG TAP and OnCE Module
The DSP56300 core provides a dedicated user-accessible TAP fully compatible with the IEEE 1149.1
Standard Test Access Port and Boundary Scan Architecture. Problems associated with testing high-density
circuit boards led to developing this standard under the sponsorship of the Test Technology Committee of
IEEE and JTAG. The DSP56300 core implementation supports circuit-board test strategies based on this
standard.
The test logic includes a TAP consisting of four dedicated signals, a 16-state controller, and three test data
registers. A boundary scan register links all device signals into a single shift register. The test logic,
implemented utilizing static logic design, is independent of the device system logic. More information on
the JTAG port is provided in DSP56300 Family Manual, JTAG Port.
The OnCE module provides a nonintrusive means of interacting with the DSP56300 core and its
peripherals so a user can examine registers, memory, or on-chip peripherals. This facilitates hardware and
software development on the DSP56300 core processor. OnCE module functions are provided through the
JTAG TAP signals. More information on the OnCE module is provided in DSP56300 Family Manual,
On-Chip Emulation Module.
1.4.8
On-Chip Memory
The memory space of the DSP56300 core is partitioned into program memory space,
X data memory space, and Y data memory space. The data memory space is divided into X and Y data
memory in order to work with the two Address ALUs and to feed two operands simultaneously to the Data
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
1-7
Peripheral Overview
ALU. Memory space includes internal RAM and ROM and can be expanded off-chip under software
control.
There is an instruction cache, made using program RAM. The patch mode (which uses instruction cache
space) is used to patch program ROM. The memory switch mode is used to increase the size of program
RAM as needed (switch from X data RAM and/or Y data RAM).
There are on-chip ROMs for program memory (40K × 24-bit), bootstrap memory (192 words × 24-bit), X
ROM (32K × 24-bit), and Y ROM(8K × 24-bit).
More information on the internal memory is provided in Section 3, "Memory Configuration".
1.4.9
Off-Chip Memory Expansion
Memory can be expanded off-chip as follows:
• Data memory can be expanded to two 16 M × 24-bit word memory spaces in 24-bit address mode
(64K in 16-bit address mode).
• Program memory can be expanded to one 16 M × 24-bit word memory space in 24-bit address
mode (64K in 16-bit address mode).
Other features of external memory expansion include the following:
• External memory expansion port
• Chip-select logic glueless interface to static random access memory (SRAM)
• On-chip dynamic RAM (DRAM) controller for glueless interface to DRAM
• Eighteen external address lines
1.5
Peripheral Overview
The DSP56366 is designed to perform a wide variety of fixed-point digital signal processing functions. In
addition to the core features previously discussed, the DSP56366 provides the following peripherals:
• 8-bit parallel host interface (HDI08, with DMA support) to external hosts
• As many as 37 user-configurable general purpose input/output (GPIO) signals
• Timer/event counter (TEC) module, containing three independent timers
• Memory switch mode in on-chip memory
• Four external interrupt/mode control lines and one external non-maskable interrupt line
• Enhanced serial audio interface (ESAI) with up to four receivers and up to six transmitters, master
or slave, using the I2S, Sony, AC97, network, and other programmable protocols
• A second enhanced serial audio interface (ESAI_1) with 6 dedicated pins.
• Serial host interface (SHI) using SPI and I2C protocols, with multi-master capability, 10-word
receive FIFO, and support for 8-, 16-, and 24-bit words
• Digital audio transmitter (DAX): a serial transmitter capable of supporting the SPDIF, IEC958,
CP-340, and AES/EBU digital audio formats
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
1-8
Freescale Semiconductor
Peripheral Overview
1.5.1
Host Interface (HDI08)
The host interface (HDI08) is a byte-wide, full-duplex, double-buffered, parallel port that can be connected
directly to the data bus of a host processor. The HDI08 supports a variety of buses and provides glueless
connection with a number of industry-standard DSPs, microcomputers, microprocessors, and DMA
hardware.
The DSP core treats the HDI08 as a memory-mapped peripheral, using either standard polled or interrupt
programming techniques. Separate transmit and receive data registers are double-buffered to allow the
DSP and host processor to efficiently transfer data at high speed. Memory mapping allows DSP core
communication with the HDI08 registers to be accomplished using standard instructions and addressing
modes.
Since the host bus may operate asynchronously with the DSP core clock, the HDI08 registers are divided
into 2 banks. The “host side” bank is accessible to the external host, and the “DSP side” bank is accessible
to the DSP core.
The HDI08 supports the following three classes of interfaces:
•
•
•
Host processor/MCU connection
DMA controller
GPIO port
Host port pins not in use may be configured as GPIO pins. The host interface provides up to 16 GPIO pins.
These pins can be programmed to function as either GPIO or host interface.
For more information on the HDI08, see Section 6, Host Interface (HDI08).
1.5.2
General Purpose Input/Output (GPIO)
The GPIO port consists of as many as 37 programmable signals, all of which are also used by the
peripherals (HDI08, ESAI, ESAI_1, DAX, and TEC). There are no dedicated GPIO signals. The signals
are configured as GPIO after hardware reset. Register programming techniques for all GPIO functionality
among these interfaces are very similar.
1.5.3
Triple Timer (TEC)
This section describes a peripheral module composed of a common 21-bit prescaler and three independent
and identical general purpose 24-bit timer/event counters, each one having its own register set.
Each timer can use internal or external clocking and can interrupt the DSP after a specified number of
events (clocks). Timer 0 can signal an external device after counting internal events. Each timer can also
be used to trigger DMA transfers after a specified number of events (clocks) occurred. One timer (Timer
0) connects to the external world through one bidirectional pin TIO0. When TIO0 is configured as input,
the timer functions as an external event counter or can measure external pulse width/signal period. When
TIO0 is used as output the timer is functioning as either a timer, a watchdog or a Pulse Width Modulator.
When the TIO0 pin is not used by the timer it can be used as a General Purpose Input/Output Pin. Refer
to Section 11, "Timer/ Event Counter".
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
1-9
Peripheral Overview
1.5.4
Enhanced Serial Audio Interface (ESAI)
The ESAI provides a full-duplex serial port for serial communication with a variety of serial devices
including one or more industry-standard codecs, other DSPs, microprocessors, and peripherals that
implement the Freescale SPI serial protocol. The ESAI consists of independent transmitter and receiver
sections, each with its own clock generator. It is a superset of the DSP56300 family ESSI peripheral and
of the DSP56000 family SAI peripheral. For more information on the ESAI, refer to Section 8, "Enhanced
Serial AUDIO Interface (ESAI)".
1.5.5
Enhanced Serial Audio Interface 1 (ESAI_1)
The ESAI_1 is a second ESAI interface with just 6 dedicated pins instead of the 12 pins of the full ESAI.
Four data pins are shared with the ESAI, while the two high frequency clock pins are not available. Other
than the available pins, ESAI_1 is functionally identical to ESAI. For more information on the ESAI_1,
refer to Section 9, "Enhanced Serial Audio Interface 1 (ESAI_1)".
1.5.6
Serial Host Interface (SHI)
The SHI is a serial input/output interface providing a path for communication and program/coefficient data
transfers between the DSP and an external host processor. The SHI can also communicate with other serial
peripheral devices. The SHI can interface directly to either of two well-known and widely used
synchronous serial buses: the Freescale serial peripheral interface (SPI) bus and the Philips
inter-integrated-circuit control (I2C) bus. The SHI supports either the SPI or I2C bus protocol, as required,
from a slave or a single-master device. To minimize DSP overhead, the SHI supports single-, double-, and
triple-byte data transfers. The SHI has a 10-word receive FIFO that permits receiving up to 30 bytes before
generating a receive interrupt, reducing the overhead for data reception. For more information on the SHI,
refer to Section 7, "Serial Host Interface".
1.5.7
Digital Audio Transmitter (DAX)
The DAX is a serial audio interface module that outputs digital audio data in the AES/EBU, CP-340 and
IEC958 formats. For more information on the DAX, refer to Section 10, "Digital Audio Transmitter".
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
1-10
Freescale Semiconductor
2
Signal/Connection Descriptions
2.1
Signal Groupings
The input and output signals of the DSP56364 are organized into functional groups, which are listed in
Table 2-1 and illustrated in Figure 2-1.
The DSP56364 is operated from a 3.3 V supply; however, some of the inputs can tolerate 5 V. A special
notice for this feature is added to the signal descriptions of those inputs.
Table 2-1 DSP56364 Functional Signal Groupings
Number of
Signals
Detailed
Description
Power (VCC)
20
Table 2-2
Ground (GND)
18
Table 2-3
Clock and PLL
3
Table 2-4
18
Table 2-5
Data bus
24
Table 2-6
Bus control
10
Table 2-7
Interrupt and mode control
5
Table 2-8
16
Table 2-9
5
Table 2-10
Functional Group
Address bus
Port A1
Port B2
HDI08
SHI
ESAI
Port C3
12
Table 2-11
ESAI_1
Port E4
6
Table 2-12
Digital audio transmitter (DAX)
Port D5
2
Table 2-13
Timer
1
Table 2-14
JTAG/OnCE Port
4
Table 2-15
1
Port A is the external memory interface port, including the external address bus, data bus, and control signals.
Port B signals are the GPIO port signals which are multiplexed with the HDI08 signals.
3
Port C signals are the GPIO port signals which are multiplexed with the ESAI signals.
4 Port E signals are the GPIO port signals which are multiplexed with the ESAI_1 signals.
5 Port D signals are the GPIO port signals which are multiplexed with the DAX signals.
2
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
2-1
Signal Groupings
PORT A ADDRESS BUS
DSP56366
A0-A17
VCCA (3)
OnCE‰ ON-CHIP EMULATION/
JTAG PORT
TDI
TCK
TDO
TMS
GNDA (4)
PORT A DATA BUS
PARALLEL HOST PORT (HDI08)
D0-D23
VCCD (4)
Port B
HAD(7:0) [PB0-PB7]
HAS/HA0 [PB8]
GNDD (4)
HA8/HA1 [PB9]
PORT A BUS CONTROL
HA9/HA2 [PB10]
AA0-AA2/RAS0-RAS2
HRW/HRD [PB11]
CAS
HDS/HWR [PB12]
RD
HCS/HA10 [PB13]
WR
HOREQ/HTRQ [PB14]
TA
HACK/HRRQ [PB15]
VCCH
GNDH
BR
BG
SERIAL AUDIO INTERFACE (ESAI)
BB
VCCC (2)
SCKT[PC3]
GNDC (2)
Port C
FST [PC4]
HCKT [PC5]
INTERRUPT AND
MODE CONTROL
SCKR [PC0]
FSR [PC1]
MODA/IRQA
HCKR [PC2]
MODB/IRQB
SDO0 [PC11] / SDO0_1[PE11]
MODC/IRQC
SDO1 [PC10] / SDO1_1[PE10]
MODD/IRQD
SDO2/SDI3[PC9] / SDO2_1/SDI3_1[PE9]
RESET
SDO3/SDI2[PC8] / SDO3_1/SDI2_1[PE8]
SDO4/SDI1 [PC7]
PLL AND CLOCK
SDO5/SDI0 [PC6]
EXTAL
PINIT/NMI
PCAP
SERIAL AUDIO INTERFACE(ESAI_1)
SCKT_1[PE3]
VCCP
Port E
FS T_1[PE4]
SCKR_1[PE0]
GNDP
QUIET POWER
FSR_1[PE1]
VCCQH (3)
SDO4_1/SDI1_1[PE7]
VCCQL (4)
GNDQ (4)
SDO5_1/SDI0_1[PE6]
VCCS (2)
SPDIF TRANSMITTER (DAX)
ADO [PD1]
Port D
GNDS (2)
SERIAL HOST INTERFACE (SHI)
ACI [PD0]
MOSI/HA0
TIO0 [TIO0]
SS/HA2
MISO/SDA
TIMER 0
SCK/SCL
HREQ
Figure 2-1 Signals Identified by Functional Group
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
2-2
Freescale Semiconductor
Power
2.2
Power
Table 2-2 Power Inputs
Power Name
Description
VCCP
PLL Power — VCCP is VCC dedicated for PLL use. The voltage should be well-regulated and the input
should be provided with an extremely low impedance path to the VCC power rail. There is one VCCP
input.
2.3
VCCQL (4)
Quiet Core (Low) Power — VCCQL is an isolated power for the internal processing logic. This input
must be tied externally to all other chip power inputs. The user must provide adequate external
decoupling capacitors. There are four VCCQL inputs.
VCCQH (3)
Quiet External (High) Power — VCCQH is a quiet power source for I/O lines. This input must be tied
externally to all other chip power inputs. The user must provide adequate decoupling capacitors. There
are three VCCQH inputs.
VCCA (3)
Address Bus Power — VCCA is an isolated power for sections of the address bus I/O drivers. This input
must be tied externally to all other chip power inputs. The user must provide adequate external
decoupling capacitors. There are three VCCA inputs.
VCCD (4)
Data Bus Power — VCCD is an isolated power for sections of the data bus I/O drivers. This input must
be tied externally to all other chip power inputs. The user must provide adequate external decoupling
capacitors. There are four VCCD inputs.
VCCC (2)
Bus Control Power — VCCC is an isolated power for the bus control I/O drivers. This input must be tied
externally to all other chip power inputs. The user must provide adequate external decoupling
capacitors. There are two VCCC inputs.
VCCH
Host Power — VCCH is an isolated power for the HDI08 I/O drivers. This input must be tied externally
to all other chip power inputs. The user must provide adequate external decoupling capacitors. There
is one VCCH input.
VCCS (2)
SHI, ESAI, ESAI_1, DAX and Timer Power — VCCS is an isolated power for the SHI, ESAI, ESAI_1,
DAX and Timer. This input must be tied externally to all other chip power inputs. The user must provide
adequate external decoupling capacitors. There are two VCCS inputs.
Ground
Table 2-3 Grounds
Ground Name
Description
GNDP
PLL Ground — GNDP is a ground dedicated for PLL use. The connection should be provided with an
extremely low-impedance path to ground. VCCP should be bypassed to GNDP by a 0.47 µF capacitor
located as close as possible to the chip package. There is one GNDP connection.
GNDQ (4)
Quiet Ground — GNDQ is an isolated ground for the internal processing logic. This connection must
be tied externally to all other chip ground connections. The user must provide adequate external
decoupling capacitors. There are four GNDQ connections.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
2-3
Clock and PLL
Table 2-3 Grounds (continued)
Ground Name
Description
GNDA (4)
Address Bus Ground — GNDA is an isolated ground for sections of the address bus I/O drivers. This
connection must be tied externally to all other chip ground connections. The user must provide
adequate external decoupling capacitors. There are four GNDA connections.
GNDD (4)
Data Bus Ground — GNDD is an isolated ground for sections of the data bus I/O drivers. This
connection must be tied externally to all other chip ground connections. The user must provide
adequate external decoupling capacitors. There are four GNDD connections.
GNDC (2)
Bus Control Ground — GNDC is an isolated ground for the bus control I/O drivers. This connection
must be tied externally to all other chip ground connections. The user must provide adequate external
decoupling capacitors. There are two GNDC connections.
GNDH
Host Ground — GNDh is an isolated ground for the HD08 I/O drivers. This connection must be tied
externally to all other chip ground connections. The user must provide adequate external decoupling
capacitors. There is one GNDH connection.
GNDS (2)
2.4
SHI, ESAI, ESAI_1, DAX and Timer Ground — GNDS is an isolated ground for the SHI, ESAI, ESAI_1,
DAX and Timer. This connection must be tied externally to all other chip ground connections. The user
must provide adequate external decoupling capacitors. There are two GNDS connections.
Clock and PLL
Table 2-4 Clock and PLL Signals
Signal
Name
Type
State during
Reset
EXTAL
Input
Input
Signal Description
External Clock Input — An external clock source must be connected to EXTAL
in order to supply the clock to the internal clock generator and PLL.
This input cannot tolerate 5 V.
PCAP
Input
Input
PLL Capacitor — PCAP is an input connecting an off-chip capacitor to the PLL
filter. Connect one capacitor terminal to PCAP and the other terminal to VCCP.
If the PLL is not used, PCAP may be tied to VCC, GND, or left floating.
PINIT/NMI
Input
Input
PLL Initial/Nonmaskable Interrupt — During assertion of RESET, the value of
PINIT/NMI is written into the PLL Enable (PEN) bit of the PLL control register,
determining whether the PLL is enabled or disabled. After RESET de assertion
and during normal instruction processing, the PINIT/NMI Schmitt-trigger input
is a negative-edge-triggered nonmaskable interrupt (NMI) request internally
synchronized to internal system clock.
This input cannot tolerate 5 V.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
2-4
Freescale Semiconductor
External Memory Expansion Port (Port A)
2.5
External Memory Expansion Port (Port A)
When the DSP56364 enters a low-power standby mode (stop or wait), it releases bus mastership and
tri-states the relevant port A signals: A0 – A17, D0 – D23, AA0/RAS0 – AA2/RAS2, RD, WR, BB, CAS.
2.5.1
External Address Bus
Table 2-5 External Address Bus Signals
Signal Name
Type
State during
Reset
A0–A17
Output
Tri-stated
2.5.2
Signal Description
Address Bus — When the DSP is the bus master, A0 – A17 are active-high
outputs that specify the address for external program and data memory
accesses. Otherwise, the signals are tri-stated. To minimize power dissipation,
A0 – A17 do not change state when external memory spaces are not being
accessed.
External Data Bus
Table 2-6 External Data Bus Signals
Signal Name
Type
State during Reset
Signal Description
D0–D23
Input/Output
Tri-stated
Data Bus — When the DSP is the bus master,
D0 – D23 are active-high, bidirectional input/outputs that provide the
bidirectional data bus for external program and data memory
accesses. Otherwise,
D0 – D23 are tri-stated.
2.5.3
External Bus Control
Table 2-7 External Bus Control Signals
Signal Name
Type
State during
Reset
AA0–AA2/RAS0
– RAS2
Output
Tri-stated
Address Attribute or Row Address Strobe — When defined as AA, these
signals can be used as chip selects or additional address lines. When defined
as RAS, these signals can be used as RAS for DRAM interface. These
signals are tri-statable outputs with programmable polarity.
CAS
Output
Tri-stated
Column Address Strobe — When the DSP is the bus master, CAS is an
active-low output used by DRAM to strobe the column address. Otherwise, if
the bus mastership enable (BME) bit in the DRAM control register is cleared,
the signal is tri-stated.
RD
Output
Tri-stated
Read Enable — When the DSP is the bus master, RD is an active-low output
that is asserted to read external memory on the data bus (D0-D23).
Otherwise, RD is tri-stated.
Signal Description
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
2-5
External Memory Expansion Port (Port A)
Table 2-7 External Bus Control Signals (continued)
Signal Name
Type
State during
Reset
WR
Output
Tri-stated
Write Enable — When the DSP is the bus master, WR is an active-low output
that is asserted to write external memory on the data bus (D0-D23).
Otherwise, WR is tri-stated.
TA
Input
Ignored Input
Transfer Acknowledge — If the DSP is the bus master and there is no
external bus activity, or the DSP is not the bus master, the TA input is ignored.
The TA input is a data transfer acknowledge (DTACK) function that can extend
an external bus cycle indefinitely. Any number of wait states (1, 2. . .infinity)
may be added to the wait states inserted by the BCR by keeping TA
deasserted. In typical operation, TA is deasserted at the start of a bus cycle,
is asserted to enable completion of the bus cycle, and is deasserted before
the next bus cycle. The current bus cycle completes one clock period after TA
is asserted synchronous to the internal system clock. The number of wait
states is determined by the TA input or by the bus control register (BCR),
whichever is longer. The BCR can be used to set the minimum number of wait
states in external bus cycles.
Signal Description
In order to use the TA functionality, the BCR must be programmed to at least
one wait state. A zero wait state access cannot be extended by TA
deassertion, otherwise improper operation may result. TA can operate
synchronously or asynchronously, depending on the setting of the TAS bit in
the operating mode register (OMR).
TA functionality may not be used while performing DRAM type accesses,
otherwise improper operation may result.
BR
Output
Output
(deasserted)
Bus Request — BR is an active-low output, never tri-stated. BR is asserted
when the DSP requests bus mastership. BR is deasserted when the DSP no
longer needs the bus. BR may be asserted or deasserted independent of
whether the DSP56364 is a bus master or a bus slave. Bus “parking” allows
BR to be deasserted even though the DSP56364 is the bus master. (See the
description of bus “parking” in the BB signal description.) The bus request
hold (BRH) bit in the BCR allows BR to be asserted under software control
even though the DSP does not need the bus. BR is typically sent to an
external bus arbitrator that controls the priority, parking, and tenure of each
master on the same external bus. BR is only affected by DSP requests for the
external bus, never for the internal bus. During hardware reset, BR is
deasserted and the arbitration is reset to the bus slave state.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
2-6
Freescale Semiconductor
Interrupt and Mode Control
Table 2-7 External Bus Control Signals (continued)
Signal Name
Type
State during
Reset
BG
Input
Ignored Input
Signal Description
Bus Grant — BG is an active-low input. BG is asserted by an external bus
arbitration circuit when the DSP56364 becomes the next bus master. When
BG is asserted, the DSP56364 must wait until BB is deasserted before taking
bus mastership. When BG is deasserted, bus mastership is typically given up
at the end of the current bus cycle. This may occur in the middle of an
instruction that requires more than one external bus cycle for execution.
For proper BG operation, the asynchronous bus arbitration enable bit (ABE)
in the OMR register must be set.
BB
Input/
Output
Input
Bus Busy — BB is a bidirectional active-low input/output. BB indicates that
the bus is active. Only after BB is deasserted can the pending bus master
become the bus master (and then assert the signal again). The bus master
may keep BB asserted after ceasing bus activity regardless of whether BR is
asserted or deasserted. This is called “bus parking” and allows the current
bus master to reuse the bus without rearbitration until another device requires
the bus. The deassertion of BB is done by an “active pull-up” method (i.e., BB
is driven high and then released and held high by an external pull-up resistor).
For proper BB operation, the asynchronous bus arbitration enable bit (ABE)
in the OMR register must be set.
BB requires an external pull-up resistor.
2.6
Interrupt and Mode Control
The interrupt and mode control signals select the chip’s operating mode as it comes out of hardware reset.
After RESET is deasserted, these inputs are hardware interrupt request lines.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
2-7
Interrupt and Mode Control
Table 2-8 Interrupt and Mode Control
Signal Name
Type
State during
Reset
MODA/IRQA
Input
Input
Signal Description
Mode Select A/External Interrupt Request A — MODA/IRQA is an active-low
Schmitt-trigger input, internally synchronized to the DSP clock. MODA/IRQA
selects the initial chip operating mode during hardware reset and becomes a
level-sensitive or negative-edge-triggered, maskable interrupt request input
during normal instruction processing. MODA, MODB, MODC, and MODD select
one of 16 initial chip operating modes, latched into the OMR when the RESET
signal is deasserted. If the processor is in the stop standby state and the
MODA/IRQA pin is pulled to GND, the processor will exit the stop state.
This input is 5 V tolerant.
MODB/IRQB
Input
Input
Mode Select B/External Interrupt Request B — MODB/IRQB is an active-low
Schmitt-trigger input, internally synchronized to the DSP clock. MODB/IRQB
selects the initial chip operating mode during hardware reset and becomes a
level-sensitive or negative-edge-triggered, maskable interrupt request input
during normal instruction processing. MODA, MODB, MODC, and MODD select
one of 16 initial chip operating modes, latched into OMR when the RESET
signal is deasserted.
This input is 5 V tolerant.
MODC/IRQC
Input
Input
Mode Select C/External Interrupt Request C — MODC/IRQC is an active-low
Schmitt-trigger input, internally synchronized to the DSP clock. MODC/IRQC
selects the initial chip operating mode during hardware reset and becomes a
level-sensitive or negative-edge-triggered, maskable interrupt request input
during normal instruction processing. MODA, MODB, MODC, and MODD select
one of 16 initial chip operating modes, latched into OMR when the RESET
signal is deasserted.
This input is 5 V tolerant.
MODD/IRQD
Input
Input
Mode Select D/External Interrupt Request D — MODD/IRQD is an active-low
Schmitt-trigger input, internally synchronized to the DSP clock. MODD/IRQD
selects the initial chip operating mode during hardware reset and becomes a
level-sensitive or negative-edge-triggered, maskable interrupt request input
during normal instruction processing. MODA, MODB, MODC, and MODD select
one of 16 initial chip operating modes, latched into OMR when the RESET
signal is deasserted.
This input is 5 V tolerant.
RESET
Input
Input
Reset — RESET is an active-low, Schmitt-trigger input. When asserted, the
chip is placed in the Reset state and the internal phase generator is reset. The
Schmitt-trigger input allows a slowly rising input (such as a capacitor charging)
to reset the chip reliably. When the RESET signal is deasserted, the initial chip
operating mode is latched from the MODA, MODB, MODC, and MODD inputs.
The RESET signal must be asserted during power up. A stable EXTAL signal
must be supplied while RESET is being asserted.
This input is 5 V tolerant.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
2-8
Freescale Semiconductor
PARALLEL HOST INTERFACE (HDI08)
2.7
PARALLEL HOST INTERFACE (HDI08)
The HDI08 provides a fast, 8-bit, parallel data port that may be connected directly to the host bus. The
HDI08 supports a variety of standard buses and can be directly connected to a number of industry standard
microcomputers, microprocessors, DSPs, and DMA hardware.
Table 2-9 Host Interface
State during
Reset
Signal Name
Type
H0 – H7
Input/
output
Host Data — When HDI08 is programmed to interface a nonmultiplexed
host bus and the HI function is selected, these signals are lines 0 – 7 of the
bidirectional, tri-state data bus.
HAD0 – HAD7
Input/
output
Host Address/Data — When HDI08 is programmed to interface a
multiplexed host bus and the HI function is selected, these signals are lines
0 – 7 of the address/data bidirectional, multiplexed, tri-state bus.
PB0 – PB7
Input, output, or
disconnected
Signal Description
GPIO
Port B 0–7 — When the HDI08 is configured as GPIO, these signals are
disconnected individually programmable as input, output, or internally disconnected.
The default state after reset for these signals is GPIO disconnected.
These inputs are 5 V tolerant.
HA0
Input
GPIO
Host Address Input 0 — When the HDI08 is programmed to interface a
disconnected nonmultiplexed host bus and the HI function is selected, this signal is line 0
of the host address input bus.
HAS/HAS
Input
Host Address Strobe — When HDI08 is programmed to interface a
multiplexed host bus and the HI function is selected, this signal is the host
address strobe (HAS) Schmitt-trigger input. The polarity of the address
strobe is programmable, but is configured active-low (HAS) following reset.
PB8
Input, output, or
disconnected
Port B 8 — When the HDI08 is configured as GPIO, this signal is individually
programmed as input, output, or internally disconnected.
The default state after reset for this signal is GPIO disconnected.
This input is 5 V tolerant.
HA1
Input
GPIO
Host Address Input 1 — When the HDI08 is programmed to interface a
disconnected nonmultiplexed host bus and the HI function is selected, this signal is line 1
of the host address (HA1) input bus.
HA8
Input
Host Address 8 — When HDI08 is programmed to interface a multiplexed
host bus and the HI function is selected, this signal is line 8 of the host
address (HA8) input bus.
PB9
Input, output, or
disconnected
Port B 9 — When the HDI08 is configured as GPIO, this signal is individually
programmed as input, output, or internally disconnected.
The default state after reset for this signal is GPIO disconnected.
This input is 5 V tolerant.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
2-9
PARALLEL HOST INTERFACE (HDI08)
Table 2-9 Host Interface (continued)
State during
Reset
Signal Name
Type
Signal Description
HA2
Input
GPIO
Host Address Input 2 — When the HDI08 is programmed to interface a
disconnected non-multiplexed host bus and the HI function is selected, this signal is line 2
of the host address (HA2) input bus.
HA9
Input
Host Address 9 — When HDI08 is programmed to interface a multiplexed
host bus and the HI function is selected, this signal is line 9 of the host
address (HA9) input bus.
PB10
Input, Output, or
Disconnected
Port B 10 — When the HDI08 is configured as GPIO, this signal is
individually programmed as input, output, or internally disconnected.
The default state after reset for this signal is GPIO disconnected.
This input is 5 V tolerant.
HRW
Input
GPIO
Host Read/Write — When HDI08 is programmed to interface a
disconnected single-data-strobe host bus and the HI function is selected, this signal is the
Host Read/Write (HRW) input.
HRD/
HRD
Input
Host Read Data — When HDI08 is programmed to interface a
double-data-strobe host bus and the HI function is selected, this signal is the
host read data strobe (HRD) Schmitt-trigger input. The polarity of the data
strobe is programmable, but is configured as active-low (HRD) after reset.
PB11
Input, Output, or
Disconnected
Port B 11 — When the HDI08 is configured as GPIO, this signal is
individually programmed as input, output, or internally disconnected.
The default state after reset for this signal is GPIO disconnected.
This input is 5 V tolerant.
HDS/
HDS
Input
GPIO
Host Data Strobe — When HDI08 is programmed to interface a
disconnected single-data-strobe host bus and the HI function is selected, this signal is the
host data strobe (HDS) Schmitt-trigger input. The polarity of the data strobe
is programmable, but is configured as active-low (HDS) following reset.
HWR/
HWR
Input
Host Write Data — When HDI08 is programmed to interface a
double-data-strobe host bus and the HI function is selected, this signal is the
host write data strobe (HWR) Schmitt-trigger input. The polarity of the data
strobe is programmable, but is configured as active-low (HWR) following
reset.
PB12
Input, output, or
disconnected
Port B 12 — When the HDI08 is configured as GPIO, this signal is
individually programmed as input, output, or internally disconnected.
The default state after reset for this signal is GPIO disconnected.
This input is 5 V tolerant.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
2-10
Freescale Semiconductor
PARALLEL HOST INTERFACE (HDI08)
Table 2-9 Host Interface (continued)
State during
Reset
Signal Name
Type
HCS
Input
HA10
Input
PB13
Input, output, or
disconnected
Signal Description
GPIO
Host Chip Select — When HDI08 is programmed to interface a
disconnected nonmultiplexed host bus and the HI function is selected, this signal is the
host chip select (HCS) input. The polarity of the chip select is
programmable, but is configured active-low (HCS) after reset.
Host Address 10 — When HDI08 is programmed to interface a multiplexed
host bus and the HI function is selected, this signal is line 10 of the host
address (HA10) input bus.
Port B 13 — When the HDI08 is configured as GPIO, this signal is
individually programmed as input, output, or internally disconnected.
The default state after reset for this signal is GPIO disconnected.
This input is 5 V tolerant.
HOREQ/HOR
EQ
Output
GPIO
Host Request — When HDI08 is programmed to interface a single host
disconnected request host bus and the HI function is selected, this signal is the host
request (HOREQ) output. The polarity of the host request is programmable,
but is configured as active-low (HOREQ) following reset. The host request
may be programmed as a driven or open-drain output.
HTRQ/
HTRQ
Output
Transmit Host Request — When HDI08 is programmed to interface a
double host request host bus and the HI function is selected, this signal is
the transmit host request (HTRQ) output. The polarity of the host request is
programmable, but is configured as active-low (HTRQ) following reset. The
host request may be programmed as a driven or open-drain output.
PB14
Input, output, or
disconnected
Port B 14 — When the HDI08 is configured as GPIO, this signal is
individually programmed as input, output, or internally disconnected.
The default state after reset for this signal is GPIO disconnected.
This input is 5 V tolerant.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
2-11
Serial Host Interface
Table 2-9 Host Interface (continued)
State during
Reset
Signal Name
Type
HACK/
HACK
Input
HRRQ/
HRRQ
Output
PB15
Input, output, or
disconnected
Signal Description
GPIO
Host Acknowledge — When HDI08 is programmed to interface a single
disconnected host request host bus and the HI function is selected, this signal is the host
acknowledge (HACK) Schmitt-trigger input. The polarity of the host
acknowledge is programmable, but is configured as active-low (HACK) after
reset.
Receive Host Request — When HDI08 is programmed to interface a
double host request host bus and the HI function is selected, this signal is
the receive host request (HRRQ) output. The polarity of the host request is
programmable, but is configured as active-low (HRRQ) after reset. The host
request may be programmed as a driven or open-drain output.
Port B 15 — When the HDI08 is configured as GPIO, this signal is
individually programmed as input, output, or internally disconnected.
The default state after reset for this signal is GPIO disconnected.
This input is 5 V tolerant.
2.8
Serial Host Interface
The SHI has five I/O signals that can be configured to allow the SHI to operate in either SPI or I2C mode.
Table 2-10 Serial Host Interface Signals
Signal
Name
Signal Type
State during
Reset
SCK
Input or output
Tri-stated
SCL
Input or output
Signal Description
SPI Serial Clock — The SCK signal is an output when the SPI is configured as
a master and a Schmitt-trigger input when the SPI is configured as a slave.
When the SPI is configured as a master, the SCK signal is derived from the
internal SHI clock generator. When the SPI is configured as a slave, the SCK
signal is an input, and the clock signal from the external master synchronizes
the data transfer. The SCK signal is ignored by the SPI if it is defined as a slave
and the slave select (SS) signal is not asserted. In both the master and slave
SPI devices, data is shifted on one edge of the SCK signal and is sampled on
the opposite edge where data is stable. Edge polarity is determined by the SPI
transfer protocol.
I2C Serial Clock — SCL carries the clock for I2C bus transactions in the I2C
mode. SCL is a Schmitt-trigger input when configured as a slave and an
open-drain output when configured as a master. SCL should be connected to
VCC through a pull-up resistor.
This signal is tri-stated during hardware, software, and individual reset. Thus,
there is no need for an external pull-up in this state.
This input is 5 V tolerant.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
2-12
Freescale Semiconductor
Serial Host Interface
Table 2-10 Serial Host Interface Signals (continued)
Signal
Name
Signal Type
State during
Reset
MISO
Input or output
Tri-stated
SDA
Input or
open-drain
output
Signal Description
SPI Master-In-Slave-Out — When the SPI is configured as a master, MISO is
the master data input line. The MISO signal is used in conjunction with the
MOSI signal for transmitting and receiving serial data. This signal is a
Schmitt-trigger input when configured for the SPI Master mode, an output when
configured for the SPI Slave mode, and tri-stated if configured for the SPI Slave
mode when SS is deasserted. An external pull-up resistor is not required for SPI
operation.
I2C Data and Acknowledge — In I2C mode, SDA is a Schmitt-trigger input
when receiving and an open-drain output when transmitting. SDA should be
connected to VCC through a pull-up resistor. SDA carries the data for I2C
transactions. The data in SDA must be stable during the high period of SCL.
The data in SDA is only allowed to change when SCL is low. When the bus is
free, SDA is high. The SDA line is only allowed to change during the time SCL
is high in the case of start and stop events. A high-to-low transition of the SDA
line while SCL is high is a unique situation, and is defined as the start event. A
low-to-high transition of SDA while SCL is high is a unique situation defined as
the stop event.
This signal is tri-stated during hardware, software, and individual reset. Thus,
there is no need for an external pull-up in this state.
This input is 5 V tolerant.
MOSI
Input or output
HA0
Input
Tri-stated
SPI Master-Out-Slave-In — When the SPI is configured as a master, MOSI is
the master data output line. The MOSI signal is used in conjunction with the
MISO signal for transmitting and receiving serial data. MOSI is the slave data
input line when the SPI is configured as a slave. This signal is a Schmitt-trigger
input when configured for the SPI Slave mode.
I2C Slave Address 0 — This signal uses a Schmitt-trigger input when
configured for the I2C mode. When configured for I2C slave mode, the HA0
signal is used to form the slave device address. HA0 is ignored when configured
for the I2C master mode.
This signal is tri-stated during hardware, software, and individual reset. Thus,
there is no need for an external pull-up in this state.
This input is 5 V tolerant.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
2-13
Serial Host Interface
Table 2-10 Serial Host Interface Signals (continued)
Signal
Name
Signal Type
State during
Reset
SS
Input
Tri-stated
HA2
Input
Signal Description
SPI Slave Select — This signal is an active low Schmitt-trigger input when
configured for the SPI mode. When configured for the SPI Slave mode, this
signal is used to enable the SPI slave for transfer. When configured for the SPI
master mode, this signal should be kept deasserted (pulled high). If it is
asserted while configured as SPI master, a bus error condition is flagged. If SS
is deasserted, the SHI ignores SCK clocks and keeps the MISO output signal
in the high-impedance state.
I2C Slave Address 2 — This signal uses a Schmitt-trigger input when
configured for the I2C mode. When configured for the I2C Slave mode, the HA2
signal is used to form the slave device address. HA2 is ignored in the I2C master
mode.
This signal is tri-stated during hardware, software, and individual reset. Thus,
there is no need for an external pull-up in this state.
This input is 5 V tolerant.
HREQ
Input or Output
Tri-stated
Host Request — This signal is an active low Schmitt-trigger input when
configured for the master mode but an active low output when configured for the
slave mode.
When configured for the slave mode, HREQ is asserted to indicate that the SHI
is ready for the next data word transfer and deasserted at the first clock pulse
of the new data word transfer. When configured for the master mode, HREQ is
an input. When asserted by the external slave device, it will trigger the start of
the data word transfer by the master. After finishing the data word transfer, the
master will await the next assertion of HREQ to proceed to the next transfer.
This signal is tri-stated during hardware, software, personal reset, or when the
HREQ1–HREQ0 bits in the HCSR are cleared. There is no need for external
pull-up in this state.
This input is 5 V tolerant.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
2-14
Freescale Semiconductor
Enhanced Serial Audio Interface
2.9
Enhanced Serial Audio Interface
Table 2-11 Enhanced Serial Audio Interface Signals
Signal Name
Signal Type
HCKR
Input or output
PC2
Input, output, or
disconnected
State during
Reset
GPIO
disconnected
Signal Description
High Frequency Clock for Receiver — When programmed as an
input, this signal provides a high frequency clock source for the ESAI
receiver as an alternate to the DSP core clock. When programmed as
an output, this signal can serve as a high-frequency sample clock (e.g.,
for external digital to analog converters [DACs]) or as an additional
system clock.
Port C 2 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
HCKT
Input or output
PC5
Input, output, or
disconnected
GPIO
disconnected
High Frequency Clock for Transmitter — When programmed as an
input, this signal provides a high frequency clock source for the ESAI
transmitter as an alternate to the DSP core clock. When programmed as
an output, this signal can serve as a high frequency sample clock (e.g.,
for external DACs) or as an additional system clock.
Port C 5 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
FSR
Input or output
GPIO
disconnected
Frame Sync for Receiver — This is the receiver frame sync
input/output signal. In the asynchronous mode (SYN=0), the FSR pin
operates as the frame sync input or output used by all the enabled
receivers. In the synchronous mode (SYN=1), it operates as either the
serial flag 1 pin (TEBE=0), or as the transmitter external buffer enable
control (TEBE=1, RFSD=1).
When this pin is configured as serial flag pin, its direction is determined
by the RFSD bit in the RCCR register. When configured as the output
flag OF1, this pin will reflect the value of the OF1 bit in the SAICR
register, and the data in the OF1 bit will show up at the pin synchronized
to the frame sync in normal mode or the slot in network mode. When
configured as the input flag IF1, the data value at the pin will be stored
in the IF1 bit in the SAISR register, synchronized by the frame sync in
normal mode or the slot in network mode.
PC1
Input, output, or
disconnected
Port C 1 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
2-15
Enhanced Serial Audio Interface
Table 2-11 Enhanced Serial Audio Interface Signals (continued)
Signal Name
Signal Type
FST
Input or output
PC4
Input, output, or
disconnected
State during
Reset
GPIO
disconnected
Signal Description
Frame Sync for Transmitter — This is the transmitter frame sync
input/output signal. For synchronous mode, this signal is the frame sync
for both transmitters and receivers. For asynchronous mode, FST is the
frame sync for the transmitters only. The direction is determined by the
transmitter frame sync direction (TFSD) bit in the ESAI transmit clock
control register (TCCR).
Port C 4 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
SCKR
Input or output
GPIO
disconnected
Receiver Serial Clock — SCKR provides the receiver serial bit clock for
the ESAI. The SCKR operates as a clock input or output used by all the
enabled receivers in the asynchronous mode (SYN=0), or as serial flag
0 pin in the synchronous mode (SYN=1).
When this pin is configured as serial flag pin, its direction is determined
by the RCKD bit in the RCCR register. When configured as the output
flag OF0, this pin will reflect the value of the OF0 bit in the SAICR
register, and the data in the OF0 bit will show up at the pin synchronized
to the frame sync in normal mode or the slot in network mode. When
configured as the input flag IF0, the data value at the pin will be stored
in the IF0 bit in the SAISR register, synchronized by the frame sync in
normal mode or the slot in network mode.
PC0
Input, output, or
disconnected
Port C 0 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
SCKT
Input or output
PC3
Input, output, or
disconnected
GPIO
disconnected
Transmitter Serial Clock — This signal provides the serial bit rate clock
for the ESAI. SCKT is a clock input or output used by all enabled
transmitters and receivers in synchronous mode, or by all enabled
transmitters in asynchronous mode.
Port C 3 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
2-16
Freescale Semiconductor
Enhanced Serial Audio Interface
Table 2-11 Enhanced Serial Audio Interface Signals (continued)
State during
Reset
Signal Description
GPIO
disconnected
Serial Data Output 5 — When programmed as a transmitter, SDO5 is
used to transmit data from the TX5 serial transmit shift register.
Signal Name
Signal Type
SDO5
Output
SDI0
Input
Serial Data Input 0 — When programmed as a receiver, SDI0 is used
to receive serial data into the RX0 serial receive shift register.
PC6
Input, output, or
disconnected
Port C 6 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
SDO4
Output
GPIO
disconnected
Serial Data Output 4 — When programmed as a transmitter, SDO4 is
used to transmit data from the TX4 serial transmit shift register.
SDI1
Input
Serial Data Input 1 — When programmed as a receiver, SDI1 is used
to receive serial data into the RX1 serial receive shift register.
PC7
Input, output, or
disconnected
Port C 7 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
SDO3/
SDO3_1
Output
GPIO
disconnected
Serial Data Output 3 — When programmed as a transmitter, SDO3 is
used to transmit data from the TX3 serial transmit shift register.
When enabled for ESAI_1 operation, this is the ESAI_1 Serial Data
Output 3.
SDI2/
SDI2_1
Input
Serial Data Input 2 — When programmed as a receiver, SDI2 is used
to receive serial data into the RX2 serial receive shift register.
When enabled for ESAI_1 operation, this is the ESAI_1 Serial Data Input
2.
PC8/PE8
Input, output, or
disconnected
Port C 8 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
When enabled for ESAI_1 GPIO, this is the Port E 8 signal.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
2-17
Enhanced Serial Audio Interface
Table 2-11 Enhanced Serial Audio Interface Signals (continued)
Signal Name
Signal Type
SDO2/
SDO2_1
Output
State during
Reset
Signal Description
GPIO
disconnected
Serial Data Output 2 — When programmed as a transmitter, SDO2 is
used to transmit data from the TX2 serial transmit shift register
When enabled for ESAI_1 operation, this is the ESAI_1 Serial Data
Output 2.
SDI3/
SDI3_1
Input
Serial Data Input 3 — When programmed as a receiver, SDI3 is used
to receive serial data into the RX3 serial receive shift register.
When enabled for ESAI_1 operation, this is the ESAI_1 Serial Data Input
3.
PC9/PE9
Input, output, or
disconnected
Port C 9 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
When enabled for ESAI_1 GPIO, this is the Port E 9 signal.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
SDO1/
SDO1_1
Output
GPIO
disconnected
Serial Data Output 1 — SDO1 is used to transmit data from the TX1
serial transmit shift register.
When enabled for ESAI_1 operation, this is the ESAI_1 Serial Data
Output 1.
PC10/PE10
Input, output, or
disconnected
Port C 10 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
When enabled for ESAI_1 GPIO, this is the Port E 10 signal.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
SDO0/
SDO0_1
Output
GPIO
disconnected
Serial Data Output 0 — SDO0 is used to transmit data from the TX0
serial transmit shift register.
When enabled for ESAI_1 operation, this is the ESAI_1 Serial Data
Output 0.
PC11/
PE11
Input, output, or
disconnected
Port C 11 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
When enabled for ESAI_1 GPIO, this is the Port E 11 signal.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
2-18
Freescale Semiconductor
Enhanced Serial Audio Interface_1
2.10
Enhanced Serial Audio Interface_1
Table 2-12 Enhanced Serial Audio Interface_1 Signals
Signal
Name
Signal Type
FSR_1
Input or output
State during
Reset
GPIO
disconnected
Signal Description
Frame Sync for Receiver_1 — This is the receiver frame sync
input/output signal. In the asynchronous mode (SYN=0), the FSR pin
operates as the frame sync input or output used by all the enabled
receivers. In the synchronous mode (SYN=1), it operates as either the
serial flag 1 pin (TEBE=0), or as the transmitter external buffer enable
control (TEBE=1, RFSD=1).
When this pin is configured as serial flag pin, its direction is determined
by the RFSD bit in the RCCR register. When configured as the output
flag OF1, this pin will reflect the value of the OF1 bit in the SAICR
register, and the data in the OF1 bit will show up at the pin synchronized
to the frame sync in normal mode or the slot in network mode. When
configured as the input flag IF1, the data value at the pin will be stored
in the IF1 bit in the SAISR register, synchronized by the frame sync in
normal mode or the slot in network mode.
PE1
Input, output, or
disconnected
Port E 1—When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input cannot tolerate 5 V.
FST_1
Input or output
PE4
Input, output, or
disconnected
GPIO
disconnected
Frame Sync for Transmitter_1—This is the transmitter frame sync
input/output signal. For synchronous mode, this signal is the frame sync
for both transmitters and receivers. For asynchronous mode, FST is the
frame sync for the transmitters only. The direction is determined by the
transmitter frame sync direction (TFSD) bit in the ESAI transmit clock
control register (TCCR).
Port E 4—When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input cannot tolerate 5 V.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
2-19
Enhanced Serial Audio Interface_1
Table 2-12 Enhanced Serial Audio Interface_1 Signals (continued)
Signal
Name
Signal Type
SCKR_1
Input or output
State during
Reset
GPIO
disconnected
Signal Description
Receiver Serial Clock_1 — SCKR provides the receiver serial bit clock
for the ESAI. The SCKR operates as a clock input or output used by all
the enabled receivers in the asynchronous mode (SYN=0), or as serial
flag 0 pin in the synchronous mode (SYN=1).
When this pin is configured as serial flag pin, its direction is determined
by the RCKD bit in the RCCR register. When configured as the output
flag OF0, this pin will reflect the value of the OF0 bit in the SAICR
register, and the data in the OF0 bit will show up at the pin synchronized
to the frame sync in normal mode or the slot in network mode. When
configured as the input flag IF0, the data value at the pin will be stored
in the IF0 bit in the SAISR register, synchronized by the frame sync in
normal mode or the slot in network mode.
PE0
Input, output, or
disconnected
Port E 0 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input cannot tolerate 5 V.
SCKT_1
Input or output
PE3
Input, output, or
disconnected
GPIO
disconnected
Transmitter Serial Clock_1 — This signal provides the serial bit rate
clock for the ESAI. SCKT is a clock input or output used by all enabled
transmitters and receivers in synchronous mode, or by all enabled
transmitters in asynchronous mode.
Port E 3 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input cannot tolerate 5 V.
SDO5_1
Output
GPIO
disconnected
Serial Data Output 5_1 — When programmed as a transmitter, SDO5
is used to transmit data from the TX5 serial transmit shift register.
SDI0_1
Input
Serial Data Input 0_1 — When programmed as a receiver, SDI0 is used
to receive serial data into the RX0 serial receive shift register.
PE6
Input, output, or
disconnected
Port E 6 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input cannot tolerate 5 V.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
2-20
Freescale Semiconductor
SPDIF Transmitter Digital Audio Interface
Table 2-12 Enhanced Serial Audio Interface_1 Signals (continued)
Signal
Name
Signal Type
State during
Reset
Signal Description
SDO4_1
Output
GPIO
disconnected
Serial Data Output 4_1 — When programmed as a transmitter, SDO4
is used to transmit data from the TX4 serial transmit shift register.
SDI1_1
Input
Serial Data Input 1_1 — When programmed as a receiver, SDI1 is used
to receive serial data into the RX1 serial receive shift register.
PE7
Input, output, or
disconnected
Port E 7 — When the ESAI is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
2.11
SPDIF Transmitter Digital Audio Interface
Table 2-13 Digital Audio Interface (DAX) Signals
Signal
Name
Type
ACI
Input
PD0
Input,
output, or
disconnected
State During
Reset
GPIO
Disconnected
Signal Description
Audio Clock Input — This is the DAX clock input. When programmed
to use an external clock, this input supplies the DAX clock. The external
clock frequency must be 256, 384, or 512 times the audio sampling
frequency (256 × Fs, 384 × Fs or 512 × Fs, respectively).
Port D 0 — When the DAX is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
ADO
Output
PD1
Input,
output, or
disconnected
GPIO
Disconnected
Digital Audio Data Output — This signal is an audio and non-audio
output in the form of AES/EBU, CP340 and IEC958 data in a biphase
mark format.
Port D 1 — When the DAX is configured as GPIO, this signal is
individually programmable as input, output, or internally disconnected.
The default state after reset is GPIO disconnected.
This input is 5 V tolerant.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
2-21
Timer
2.12
Timer
Table 2-14 Timer Signal
Signal
Name
TIO0
Type
Input or
Output
State during
Reset
Input
Signal Description
Timer 0 Schmitt-Trigger Input/Output — When timer 0 functions as an
external event counter or in measurement mode, TIO0 is used as input.
When timer 0 functions in watchdog, timer, or pulse modulation mode,
TIO0 is used as output.
The default mode after reset is GPIO input. This can be changed to
output or configured as a timer input/output through the timer 0
control/status register (TCSR0). If TIO0 is not being used, it is
recommended to either define it as GPIO output immediately at the
beginning of operation or leave it defined as GPIO input but connected
to Vcc through a pull-up resistor in order to ensure a stable logic level at
this input.
This input is 5 V tolerant.
2.13
JTAG/OnCE Interface
Table 2-15 JTAG/OnCE Interface
Signal
Name
Signal
Type
State during
Reset
TCK
Input
Input
Signal Description
Test Clock — TCK is a test clock input signal used to synchronize the JTAG
test logic. It has an internal pull-up resistor.
This input is 5 V tolerant.
TDI
Input
Input
Test Data Input — TDI is a test data serial input signal used for test
instructions and data. TDI is sampled on the rising edge of TCK and has an
internal pull-up resistor.
This input is 5 V tolerant.
TDO
Output
Tri-stated
Test Data Output — TDO is a test data serial output signal used for test
instructions and data. TDO is tri-statable and is actively driven in the shift-IR
and shift-DR controller states. TDO changes on the falling edge of TCK.
TMS
Input
Input
Test Mode Select — TMS is an input signal used to sequence the test
controller’s state machine. TMS is sampled on the rising edge of TCK and has
an internal pull-up resistor.
This input is 5 V tolerant.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
2-22
Freescale Semiconductor
3
Memory Configuration
3.1
Data and Program Memory Maps
The on-chip memory configuration of the DSP56366 is affected by the state of the CE (Cache Enable),
MSW0, MSW1, and MS (Memory Switch) control bits in the OMR register, and by the SC bit in the Status
Register. The internal data and program memory configurations are shown in Table 3-1. The address
ranges for the internal memory are shown in Table 3-2 and Table 3-3. The memory maps for each memory
configuration are shown in Figure 3-1 to Figure 3-16.
Table 3-1 Internal Memory Configurations
Bit Settings
Memory Sizes (24-bit words)
MSW1
MSW0
CE
MS
SC
Prog
RAM
Prog
Cache
Prog
ROM
Boot
ROM
X Data
RAM
Y Data
RAM
X Data
ROM
Y Data
ROM
X
X
0
0
0
3K
n.a.
40K
192
13K
7K
32K
8K
X
X
1
0
0
2K
1K
40K
192
13K
7K
32K
8K
0
0
0
1
0
10K
n.a.
40K
192
8K
5K
32K
8K
0
1
0
1
0
8K
n.a.
40K
192
8K
7K
32K
8K
1
0
0
1
0
5K
n.a.
40K
192
11K
7K
32K
8K
0
0
1
1
0
9K
1K
40K
192
8K
5K
32K
8K
0
1
1
1
0
7K
1K
40K
192
8K
7K
32K
8K
1
0
1
1
0
4K
1K
40K
192
11K
7K
32K
8K
X
X
0
0
1
3K
n.a.
n.a.
n.a.
13K
7K
32K
8K
X
X
1
0
1
2K
1K
n.a.
n.a.
13K
7K
32K
8K
0
0
0
1
1
10K
n.a.
n.a.
n.a.
8K
5K
32K
8K
0
1
0
1
1
8K
n.a.
n.a.
n.a.
8K
7K
32K
8K
1
0
0
1
1
5K
n.a.
n.a.
n.a.
11K
7K
32K
8K
0
0
1
1
1
9K
1K
n.a.
n.a.
8K
5K
32K
8K
0
1
1
1
1
7K
1K
n.a.
n.a.
8K
7K
32K
8K
1
0
1
1
1
4K
1K
n.a.
n.a.
11K
7K
32K
8K
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
3-1
Data and Program Memory Maps
Table 3-2 On-chip RAM Memory Locations
Bit Settings
RAM Memory Locations
MSW1
MSW0
CE
MS
SC
Prog.
RAM
Prog.
Cache
X Data
RAM
Y Data
RAM
X
X
0
0
X
$0000 - $0BFF
n.a.
$0000 - $33FF
$0000-$1BFF
X
X
1
0
X
$0000 - $07FF
enabled
$0000 - $33FF
$0000-$1BFF
0
0
0
1
X
$0000 -$27FF
n.a.
$0000 - $1FFF
$0000 - $13FF
0
1
0
1
X
$0000 - $1BFF and
$2400 - $27FF
n.a.
$0000 - $1FFF
$0000-$1BFF
1
0
0
1
X
$0000 - $ 0FFF and
$2400 - $27FF
n.a.
$0000 - $2BFF
$0000-$1BFF
0
0
1
1
X
$0000 - $23FF
enabled
$0000 - $1FFF
$0000 - $13FF
0
1
1
1
X
$0000 - $1BFF
enabled
$0000 - $1FFF
$0000 - $1BFF
1
0
1
1
X
$0000 - $0FFF
enabled
$0000 - $2BFF
$0000 - $1BFF
Table 3-3 On-chip ROM Memory Locations
Bit Settings
ROM Memory Locations
Prog.
ROM
Boot.
ROM
X Data
ROM
Y Data
ROM
0
$FF1000 $FFAFFF
$FF0000 $FF00BF
$004000$00BFFF
$004000$005FFF
1
no access
no access
$004000$00BFFF
$004000$005FFF
MSW1
MSW0
CE
MS
SC
X
X
X
X
X
X
X
X
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
3-2
Freescale Semiconductor
Data and Program Memory Maps
PROGRAM
$FFFFFF
INTERNAL
RESERVED
$FFB000
40K INTERNAL
X DATA
$FFFFFF
$FFFF80
$FFF000
INTERNAL
RESERVED
$FF00C0
$FFFFFF
EXTERNAL
$FFFFB0
$FF0000
BOOT ROM
$FF0000
INTERNAL I/O
(128 words)
INTERNAL
RESERVED
ROM
$FF1000
Y DATA
$FFFF80
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48 words)
EXTERNAL
INTERNAL
RESERVED
$FFF000
$FF0000
EXTERNAL
$00C000
EXTERNAL
$006000
8K INTERNAL
32K INTERNAL
ROM
ROM
EXTERNAL
$004000
$003400
$004000
INT. RESERVED
$001C00
INT. RESERVED
$000C00
3K INTERNAL
RAM
$000000
$000000
13K INTERNAL
RAM
$000000
7K INTERNAL
RAM
Figure 3-1 Memory Maps for MSW=(X,X), CE=0, MS=0, SC=0
PROGRAM
$FFFFFF
INTERNAL
RESERVED
$FFB000
40K INTERNAL
X DATA
$FFFFFF
$FFFF80
$FFF000
INTERNAL
RESERVED
$FF00C0
$FFFFFF
EXTERNAL
$FFFFB0
$FF0000
BOOT ROM
$FF0000
INTERNAL I/O
(128 words)
INTERNAL
RESERVED
ROM
$FF1000
Y DATA
$FFFF80
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48 words)
EXTERNAL
INTERNAL
RESERVED
$FFF000
$FF0000
EXTERNAL
$00C000
EXTERNAL
$006000
32K INTERNAL
8K INTERNAL
ROM
ROM
EXTERNAL
$004000
$003400
$004000
INT. RESERVED
$001C00
INT. RESERVED
$000800
2K INTERNAL
RAM
$000000
$000000
13K INTERNAL
RAM
$000000
7K INTERNAL
RAM
1K I-CACHE ENABLED
Figure 3-2 Memory Maps for MSW=(X,X), CE=1, MS=0, SC=0
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
3-3
Data and Program Memory Maps
PROGRAM
$FFFFFF
INTERNAL
RESERVED
$FFB000
40K INTERNAL
$FF1000
$FF00C0
$FF0000
X DATA
$FFFFFF
$FFFF80
$FFF000
INTERNAL
RESERVED
INTERNAL I/O
(128 words)
$FFFFFF
EXTERNAL
$FFFFB0
INTERNAL
RESERVED
ROM
$FF0000
BOOT ROM
Y DATA
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48 words)
$FFFF80
EXTERNAL
INTERNAL
RESERVED
$FFF000
$FF0000
EXTERNAL
$00C000
EXTERNAL
$006000
8K INTERNAL
32K INTERNAL
ROM
ROM
EXTERNAL
$004000
$002000
$004000
INT. RESERVED
$001400
INT. RESERVED
$002800
$000000
10K INTERNAL
RAM
$000000
8K INTERNAL
RAM
5K INTERNAL
RAM
$000000
Figure 3-3 Memory Maps for MSW=(0,0), CE=0 MS=1, SC=0
PROGRAM
$FFFFFF
INTERNAL
RESERVED
$FFB000
40K INTERNAL
$FF1000
$FF00C0
$FF0000
X DATA
$FFFFFF
$FFFF80
$FFF000
INTERNAL
RESERVED
INTERNAL I/O
(128 words)
$FFFFFF
EXTERNAL
$FFFFB0
INTERNAL
RESERVED
ROM
$FF0000
BOOT ROM
Y DATA
$FFFF80
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48 words)
EXTERNAL
INTERNAL
RESERVED
$FFF000
$FF0000
EXTERNAL
$00C000
EXTERNAL
$006000
32K INTERNAL
EXTERNAL
8K INTERNAL
ROM
ROM
$004000
$002800
1K RAM
$002000
$004000
INT. RESERVED
$001C00
INT. RESERVED
$002400
$001C00
$000000
INT. RESERVED
7K INTERNAL
RAM
$000000
8K INTERNAL
RAM
$000000
7K INTERNAL
RAM
Figure 3-4 Memory Maps for MSW=(0,1), CE=0, MS=1, SC=0
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
3-4
Freescale Semiconductor
Data and Program Memory Maps
PROGRAM
$FFFFFF
INTERNAL
RESERVED
$FFB000
40K INTERNAL
X DATA
$FFFFFF
$FFFF80
$FFF000
INTERNAL
RESERVED
$FF00C0
$FFFFFF
EXTERNAL
$FFFFB0
$FF0000
BOOT ROM
$FF0000
INTERNAL I/O
(128 words)
INTERNAL
RESERVED
ROM
$FF1000
Y DATA
$FFFF80
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48 words)
EXTERNAL
INTERNAL
RESERVED
$FFF000
$FF0000
EXTERNAL
$00C000
EXTERNAL
$006000
32K INTERNAL
EXTERNAL
8K INTERNAL
ROM
ROM
$004000
$002800
1K RAM
$002C00
$004000
INT. RESERVED
$001C00
INT. RESERVED
$002400
$001000
INT. RESERVED
4K INTERNAL
RAM
$000000
$000000
11K INTERNAL
RAM
7K INTERNAL
RAM
$000000
Figure 3-5 Memory Maps for MSW=(1,0), CE=0, MS=1, SC=0
PROGRAM
$FFFFFF
INTERNAL
RESERVED
$FFB000
40K INTERNAL
X DATA
$FFFFFF
$FFFF80
$FFF000
INTERNAL
RESERVED
$FF00C0
$FFFFFF
EXTERNAL
$FFFFB0
$FF0000
BOOT ROM
$FF0000
INTERNAL I/O
(128 words)
INTERNAL
RESERVED
ROM
$FF1000
Y DATA
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48 words)
$FFFF80
EXTERNAL
INTERNAL
RESERVED
$FFF000
$FF0000
EXTERNAL
$00C000
EXTERNAL
$006000
32K INTERNAL
8K INTERNAL
ROM
ROM
EXTERNAL
$004000
$002000
$004000
INT. RESERVED
$001400
INT. RESERVED
$002400
9K INTERNAL
RAM
$000000
$000000
8K INTERNAL
RAM
$000000
5K INTERNAL
RAM
1K I-CACHE ENABLED
Figure 3-6 Memory Maps for MSW=(0,0), CE=1, MS=1, SC=0
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
3-5
Data and Program Memory Maps
PROGRAM
$FFFFFF
INTERNAL
RESERVED
$FFB000
40K INTERNAL
$FF1000
$FF00C0
$FF0000
X DATA
$FFFFFF
$FFFF80
$FFF000
INTERNAL
RESERVED
INTERNAL I/O
(128 words)
$FFFFFF
EXTERNAL
$FFFFB0
INTERNAL
RESERVED
ROM
$FF0000
BOOT ROM
Y DATA
$FFFF80
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48 words)
EXTERNAL
INTERNAL
RESERVED
$FFF000
$FF0000
EXTERNAL
$00C000
EXTERNAL
$006000
32K INTERNAL
8K INTERNAL
ROM
ROM
EXTERNAL
$004000
$002000
$004000
INT. RESERVED
$001C00
INT. RESERVED
$002400
$001C00
INT. RESERVED
7K INTERNAL
RAM
$000000
$000000
8K INTERNAL
RAM
$000000
7K INTERNAL
RAM
1K I-CACHE ENABLED
Figure 3-7 Memory Maps for MSW=(0,1), CE=1, MS=1, SC=0
PROGRAM
$FFFFFF
INTERNAL
RESERVED
$FFB000
40K INTERNAL
$FF1000
$FF00C0
$FF0000
X DATA
$FFFFFF
$FFFF80
$FFF000
INTERNAL
RESERVED
INTERNAL I/O
(128 words)
$FFFFFF
EXTERNAL
$FFFFB0
INTERNAL
RESERVED
ROM
$FF0000
BOOT ROM
Y DATA
$FFFF80
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48 words)
EXTERNAL
INTERNAL
RESERVED
$FFF000
$FF0000
EXTERNAL
$00C000
EXTERNAL
$006000
32K INTERNAL
8K INTERNAL
ROM
ROM
EXTERNAL
$004000
$002C00
$004000
INT. RESERVED
$001C00
INT. RESERVED
$002400
$001000
$000000
INT. RESERVED
4K INTERNAL
RAM
$000000
11K INTERNAL
RAM
$000000
7K INTERNAL
RAM
1K I-CACHE ENABLED
Figure 3-8 Memory Maps for MSW=(1,0), CE=1, MS=1, SC=0
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
3-6
Freescale Semiconductor
Data and Program Memory Maps
PROGRAM
$FFFF
X DATA
$FFFF
$FF80
INTERNAL I/O
(128 words)
Y DATA
$FFFF
$FFB0
EXTERNAL I/O
(82 words)
INTERNAL I/O
(46 words)
$FF80
EXTERNAL
EXTERNAL
EXTERNAL
$C000
$6000
32K INTERNAL
8K INTERNAL
ROM
ROM
$4000
$4000
$3400
INT. RESERVED
$0000
13K INTERNAL
RAM
$1C00
INT. RESERVED
$0C00
3K INTERNAL
RAM
$0000
$0000
7K INTERNAL
RAM
Figure 3-9 Memory Maps for MSW=(X,X), CE=0, MS=0, SC=1
PROGRAM
$FFFF
X DATA
$FFFF
$FF80
INTERNAL I/O
(128 words)
Y DATA
$FFFF
$FFB0
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48words)
$FF80
EXTERNAL
EXTERNAL
EXTERNAL
$C000
$6000
32K INTERNAL
8K INTERNAL
ROM
ROM
$4000
$4000
$3400
INT. RESERVED
$0000
13K INTERNAL
RAM
$1C00
INT. RESERVED
$0800
2K INTERNAL
RAM
$0000
$0000
7K INTERNAL
RAM
1K I-CACHE ENABLED
Figure 3-10 Memory Maps for MSW=(X,X), CE=1, MS=0, SC=1
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
3-7
Data and Program Memory Maps
PROGRAM
$FFFF
X DATA
$FFFF
$FF80
INTERNAL I/O
(128 words)
Y DATA
$FFFF
$FFB0
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48words)
$FF80
EXTERNAL
EXTERNAL
EXTERNAL
$C000
$6000
32K INTERNAL
8K INTERNAL
ROM
$4000
$2000
ROM
$4000
INT. RESERVED
$1400
INT. RESERVED
$2800
$0000
10K INTERNAL
RAM
$0000
8K INTERNAL
RAM
$0000
5K INTERNAL
RAM
Figure 3-11 Memory Maps for MSW=(0,0), CE=0, MS=1, SC=1
PROGRAM
$FFFF
X DATA
$FFFF
$FF80
INTERNAL I/O
(128 words)
Y DATA
$FFFF
$FFB0
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48 words)
$FF80
EXTERNAL
EXTERNAL
EXTERNAL
$C000
$6000
32K INTERNAL
8K INTERNAL
ROM
$4000
$2800
$2400
$1C00
$0000
1K RAM
INT. RESERVED
7K INTERNAL
RAM
$2000
$0000
ROM
$4000
INT. RESERVED
8K INTERNAL
RAM
$1C00
$0000
INT. RESERVED
7K INTERNAL
RAM
Figure 3-12 Memory Maps for MSW=(0,1), CE=0, MS=1, SC=1
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
3-8
Freescale Semiconductor
Data and Program Memory Maps
PROGRAM
$FFFF
X DATA
$FFFF
$FF80
INTERNAL I/O
(128 words)
Y DATA
$FFFF
$FFB0
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48 words)
$FF80
EXTERNAL
EXTERNAL
EXTERNAL
$C000
$6000
32K INTERNAL
8K INTERNAL
ROM
$4000
$2800
1K RAM
$2400
INT. RESERVED
$1000
4K INTERNAL
RAM
$0000
$2C00
$0000
ROM
$4000
INT. RESERVED
11K INTERNAL
RAM
$1C00
$0000
INT. RESERVED
7K INTERNAL
RAM
Figure 3-13 Memory Maps for MSW=(1,0), CE=0, MS=1, SC=1
PROGRAM
$FFFF
X DATA
$FFFF
$FF80
INTERNAL I/O
(128 words)
Y DATA
$FFFF
$FFB0
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48 words)
$FF80
EXTERNAL
EXTERNAL
EXTERNAL
$C000
$6000
32K INTERNAL
8K INTERNAL
ROM
$4000
$2000
ROM
$4000
INT. RESERVED
$1400
INT. RESERVED
$2400
9K INTERNAL
RAM
$0000
$0000
8K INTERNAL
RAM
$0000
5K INTERNAL
RAM
1K I-CACHE ENABLED
Figure 3-14 Memory Maps for MSW=(0,0), CE=1, MS=1, SC=1
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
3-9
Data and Program Memory Maps
PROGRAM
$FFFF
X DATA
$FFFF
$FF80
INTERNAL I/O
(128 words)
Y DATA
$FFFF
$FFB0
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48 words)
$FF80
EXTERNAL
EXTERNAL
EXTERNAL
$C000
$6000
32K INTERNAL
8K INTERNAL
ROM
$4000
$2000
$2400
$1C00
$0000
INT. RESERVED
7K INTERNAL
RAM
$0000
ROM
$4000
INT. RESERVED
8K INTERNAL
RAM
$1C00
$0000
INT. RESERVED
7K INTERNAL
RAM
1K I-CACHE ENABLED
Figure 3-15 Memory Maps for MSW=(0,1), CE=1, MS=1, SC=1
PROGRAM
$FFFF
X DATA
$FFFF
$FF80
INTERNAL I/O
(128 words)
Y DATA
$FFFF
$FFB0
EXTERNAL I/O
(80 words)
INTERNAL I/O
(48 words)
$FF80
EXTERNAL
EXTERNAL
EXTERNAL
$C000
$6000
32K INTERNAL
8K INTERNAL
ROM
$4000
$2C00
ROM
$4000
INT. RESERVED
$1C00
INT. RESERVED
$2400
$1000
$0000
INT. RESERVED
4K INTERNAL
RAM
$0000
11K INTERNAL
RAM
$0000
7K INTERNAL
RAM
1K I-CACHE ENABLED
Figure 3-16 Memory Maps for MSW=(1,0), CE=1, MS=1, SC=1
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
3-10
Freescale Semiconductor
Data and Program Memory Maps
3.1.1
Reserved Memory Spaces
The reserved memory spaces should not be accessed by the user. They are reserved for future expansion.
3.1.2
Program ROM Area Reserved for Freescale Use
The last 128 words ($FFAF80-$FFAFFF) of the Program ROM are reserved for Freescale use. This
memory area is reserved for use as expansion area for the bootstrap ROM as well as for testing purposes.
Customer code should not use this area. The contents of this Program ROM segment is defined by the
Appendix A, "Bootstrap ROM Contents".
3.1.3
Bootstrap ROM
The 192-word Bootstrap ROM occupies locations $FF0000-$FF00BF. The bootstrap ROM is
factory-programmed to perform the bootstrap operation following hardware reset. The contents of the
Bootstrap ROM are defined by the Bootstrap ROM source code in Appendix A, "Bootstrap ROM
Contents".
3.1.4
Dynamic Memory Configuration Switching
The internal memory configuration is altered by re-mapping RAM modules from Y and X data memory
into program memory space and vice-versa. The contents of the switched RAM modules are preserved.
The memory can be dynamically switched from one configuration to another by changing the MS, MSW0
or MSW1 bits in OMR. The address ranges that are directly affected by the switch operation are specified
in Table 3-2. The memory switch can be accomplished provided that the affected address ranges are not
being accessed during the instruction cycle in which the switch operation takes place. Accordingly, the
following condition must be observed for trouble-free dynamic switching:
NOTE
No accesses (including instruction fetches) to or from the affected address
ranges in program and data memories are allowed during the switch cycle.
NOTE
The switch cycle actually occurs 3 instruction cycles after the instruction
that modifies the MS, MSW0 or MSW1 bits.
Any sequence that complies with the switch condition is valid. For example, if the program flow executes
in the address range that is not affected by the switch, the switch condition can be met very easily. In this
case a switch can be accomplished by just changing the MS, MSW0 or MSW1 bits in OMR in the regular
program flow, assuming no accesses to the affected address ranges of the data memory occur up to 3
instructions after the instruction that changes the OMR bit. Special care should be taken in relation to the
interrupt vector routines since an interrupt could cause the DSP to fetch instructions out of sequence and
might violate the switch condition.
Special attention should be given when running a memory switch routine using the OnCE™ port. Running
the switch routine in Trace mode, for example, can cause the switch to complete after the MS bit change
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
3-11
Internal I/O Memory Map
while the DSP is in Debug mode. As a result, subsequent instructions might be fetched according to the
new memory configuration (after the switch), and thus might execute improperly.
3.1.5
External Memory Support
The DSP56366 does not support the SSRAM memory type. It does support SRAM and DRAM as
indicated in the DSP56300 24-Bit Digital Signal Processor Family Manual, Freescale publication
DSP56300FM. Also, care should be taken when accessing external memory to ensure that the necessary
address lines are available. For example, when using glueless SRAM interfacing, it is possible to directly
address 3 × 218 memory locations (768k) when using the 18 address lines and the three programmable
address attribute lines.
3.2
Internal I/O Memory Map
The DSP56366 on-chip peripheral modules have their register files programmed to the addresses in the
internal X-I/O memory range (the top 128 locations of the X data memory space) and internal Y-I/O
memory range (48 locations of the Y-data memory space) as shown in Table 3-4.
Table 3-4 Internal I/O Memory Map
Peripheral
Address
IPR
X:$FFFFFF
INTERRUPT PRIORITY REGISTER CORE (IPR-C)
X:$FFFFFE
INTERRUPT PRIORITY REGISTER PERIPHERAL (IPR-P)
PLL
X:$FFFFFD
PLL CONTROL REGISTER (PCTL)
ONCE
X:$FFFFFC
ONCE GDB REGISTER (OGDB)
BIU
X:$FFFFFB
BUS CONTROL REGISTER (BCR)
X:$FFFFFA
DRAM CONTROL REGISTER (DCR)
X:$FFFFF9
ADDRESS ATTRIBUTE REGISTER 0 (AAR0)
X:$FFFFF8
ADDRESS ATTRIBUTE REGISTER 1 (AAR1)
X:$FFFFF7
ADDRESS ATTRIBUTE REGISTER 2 (AAR2)
X:$FFFFF6
ADDRESS ATTRIBUTE REGISTER 3 (AAR3) [pin not available]
X:$FFFFF5
ID REGISTER (IDR)
X:$FFFFF4
DMA STATUS REGISTER (DSTR)
X:$FFFFF3
DMA OFFSET REGISTER 0 (DOR0)
X:$FFFFF2
DMA OFFSET REGISTER 1 (DOR1)
X:$FFFFF1
DMA OFFSET REGISTER 2 (DOR2)
X:$FFFFF0
DMA OFFSET REGISTER 3 (DOR3)
X:$FFFFEF
DMA SOURCE ADDRESS REGISTER (DSR0)
X:$FFFFEE
DMA DESTINATION ADDRESS REGISTER (DDR0)
X:$FFFFED
DMA COUNTER (DCO0)
X:$FFFFEC
DMA CONTROL REGISTER (DCR0)
DMA
DMA0
Register Name
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
3-12
Freescale Semiconductor
Internal I/O Memory Map
Table 3-4 Internal I/O Memory Map (continued)
Peripheral
Address
DMA1
X:$FFFFEB
DMA SOURCE ADDRESS REGISTER (DSR1)
X:$FFFFEA
DMA DESTINATION ADDRESS REGISTER (DDR1)
X:$FFFFE9
DMA COUNTER (DCO1)
X:$FFFFE8
DMA CONTROL REGISTER (DCR1)
X:$FFFFE7
DMA SOURCE ADDRESS REGISTER (DSR2)
X:$FFFFE6
DMA DESTINATION ADDRESS REGISTER (DDR2)
X:$FFFFE5
DMA COUNTER (DCO2)
X:$FFFFE4
DMA CONTROL REGISTER (DCR2)
X:$FFFFE3
DMA SOURCE ADDRESS REGISTER (DSR3)
X:$FFFFE2
DMA DESTINATION ADDRESS REGISTER (DDR3)
X:$FFFFE1
DMA COUNTER (DCO3)
X:$FFFFE0
DMA CONTROL REGISTER (DCR3)
X:$FFFFDF
DMA SOURCE ADDRESS REGISTER (DSR4)
X:$FFFFDE
DMA DESTINATION ADDRESS REGISTER (DDR4)
X:$FFFFDD
DMA COUNTER (DCO4)
X:$FFFFDC
DMA CONTROL REGISTER (DCR4)
X:$FFFFDB
DMA SOURCE ADDRESS REGISTER (DSR5)
X:$FFFFDA
DMA DESTINATION ADDRESS REGISTER (DDR5)
X:$FFFFD9
DMA COUNTER (DCO5)
X:$FFFFD8
DMA CONTROL REGISTER (DCR5)
X:$FFFFD7
PORT D CONTROL REGISTER (PCRD)
X:$FFFFD6
PORT D DIRECTION REGISTER (PRRD)
X:$FFFFD5
PORT D DATA REGISTER (PDRD)
X:$FFFFD4
DAX STATUS REGISTER (XSTR)
X:$FFFFD3
DAX AUDIO DATA REGISTER B (XADRB)
X:$FFFFD2
DAX AUDIO DATA REGISTER A (XADRA)
X:$FFFFD1
DAX NON-AUDIO DATA REGISTER (XNADR)
X:$FFFFD0
DAX CONTROL REGISTER (XCTR)
X:$FFFFCF
Reserved
X:$FFFFCE
Reserved
X:$FFFFCD
Reserved
X:$FFFFCC
Reserved
X:$FFFFCB
Reserved
X:$FFFFCA
Reserved
X:$FFFFC9
HOST PORT GPIO DATA REGISTER (HDR)
X:$FFFFC8
HOST PORT GPIO DIRECTION REGISTER (HDDR)
DMA2
DMA3
DMA4
DMA5
PORT D
DAX
PORT B
Register Name
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
3-13
Internal I/O Memory Map
Table 3-4 Internal I/O Memory Map (continued)
Peripheral
Address
HDI08
X:$FFFFC7
HOST TRANSMIT REGISTER (HOTX)
X:$FFFFC6
HOST RECEIVE REGISTER (HORX)
X:$FFFFC5
HOST BASE ADDRESS REGISTER (HBAR)
X:$FFFFC4
HOST PORT CONTROL REGISTER (HPCR)
X:$FFFFC3
HOST STATUS REGISTER (HSR)
X:$FFFFC2
HOST CONTROL REGISTER (HCR)
X:$FFFFC1
Reserved
X:$FFFFC0
Reserved
X:$FFFFBF
PORT C CONTROL REGISTER (PCRC)
X:$FFFFBE
PORT C DIRECTION REGISTER (PRRC)
X:$FFFFBD
PORT C GPIO DATA REGISTER (PDRC)
PORT C
Register Name
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
3-14
Freescale Semiconductor
Internal I/O Memory Map
Table 3-4 Internal I/O Memory Map (continued)
Peripheral
Address
Register Name
ESAI
X:$FFFFBC
ESAI RECEIVE SLOT MASK REGISTER B (RSMB)
X:$FFFFBB
ESAI RECEIVE SLOT MASK REGISTER A (RSMA)
X:$FFFFBA
ESAI TRANSMIT SLOT MASK REGISTER B (TSMB)
X:$FFFFB9
ESAI TRANSMIT SLOT MASK REGISTER A (TSMA)
X:$FFFFB8
ESAI RECEIVE CLOCK CONTROL REGISTER (RCCR)
X:$FFFFB7
ESAI RECEIVE CONTROL REGISTER (RCR)
X:$FFFFB6
ESAI TRANSMIT CLOCK CONTROL REGISTER (TCCR)
X:$FFFFB5
ESAI TRANSMIT CONTROL REGISTER (TCR)
X:$FFFFB4
ESAI COMMON CONTROL REGISTER (SAICR)
X:$FFFFB3
ESAI STATUS REGISTER (SAISR)
X:$FFFFB2
Reserved
X:$FFFFB1
Reserved
X:$FFFFB0
Reserved
X:$FFFFAF
Reserved
X:$FFFFAE
Reserved
X:$FFFFAD
Reserved
X:$FFFFAC
Reserved
X:$FFFFAB
ESAI RECEIVE DATA REGISTER 3 (RX3)
X:$FFFFAA
ESAI RECEIVE DATA REGISTER 2 (RX2)
X:$FFFFA9
ESAI RECEIVE DATA REGISTER 1 (RX1)
X:$FFFFA8
ESAI RECEIVE DATA REGISTER 0 (RX0)
X:$FFFFA7
Reserved
X:$FFFFA6
ESAI TIME SLOT REGISTER (TSR)
X:$FFFFA5
ESAI TRANSMIT DATA REGISTER 5 (TX5)
X:$FFFFA4
ESAI TRANSMIT DATA REGISTER 4 (TX4)
X:$FFFFA3
ESAI TRANSMIT DATA REGISTER 3 (TX3)
X:$FFFFA2
ESAI TRANSMIT DATA REGISTER 2 (TX2)
X:$FFFFA1
ESAI TRANSMIT DATA REGISTER 1 (TX1)
X:$FFFFA0
ESAI TRANSMIT DATA REGISTER 0 (TX0)
X:$FFFF9F
Reserved
X:$FFFF9E
Reserved
X:$FFFF9D
Reserved
X:$FFFF9C
Reserved
X:$FFFF9B
Reserved
X:$FFFF9A
Reserved
X:$FFFF99
Reserved
X:$FFFF98
Reserved
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
3-15
Internal I/O Memory Map
Table 3-4 Internal I/O Memory Map (continued)
Peripheral
SHI
TRIPLE TIMER
ESAI MUX PIN
CONTROL
Address
Register Name
X:$FFFF97
Reserved
X:$FFFF96
Reserved
X:$FFFF95
Reserved
X:$FFFF94
SHI RECEIVE FIFO (HRX)
X:$FFFF93
SHI TRANSMIT REGISTER (HTX)
X:$FFFF92
SHI I2C SLAVE ADDRESS REGISTER (HSAR)
X:$FFFF91
SHI CONTROL/STATUS REGISTER (HCSR)
X:$FFFF90
SHI CLOCK CONTROL REGISTER (HCKR)
X:$FFFF8F
TIMER 0 CONTROL/STATUS REGISTER (TCSR0)
X:$FFFF8E
TIMER 0 LOAD REGISTER (TLR0)
X:$FFFF8D
TIMER 0 COMPARE REGISTER (TCPR0)
X:$FFFF8C
TIMER 0 COUNT REGISTER (TCR0)
X:$FFFF8B
TIMER 1 CONTROL/STATUS REGISTER (TCSR1)
X:$FFFF8A
TIMER 1 LOAD REGISTER (TLR1)
X:$FFFF89
TIMER 1 COMPARE REGISTER (TCPR1)
X:$FFFF88
TIMER 1 COUNT REGISTER (TCR1)
X:$FFFF87
TIMER 2 CONTROL/STATUS REGISTER (TCSR2)
X:$FFFF86
TIMER 2 LOAD REGISTER (TLR2)
X:$FFFF85
TIMER 2 COMPARE REGISTER (TCPR2)
X:$FFFF84
TIMER 2 COUNT REGISTER (TCR2)
X:$FFFF83
TIMER PRESCALER LOAD REGISTER (TPLR)
X:$FFFF82
TIMER PRESCALER COUNT REGISTER (TPCR)
X:$FFFF81
Reserved
X:$FFFF80
Reserved
Y:$FFFFAF
MUX PIN CONTROL REGISTER (EMUXR)
Y:$FFFFAE
Reserved
Y:$FFFFAD
Reserved
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
3-16
Freescale Semiconductor
Internal I/O Memory Map
Table 3-4 Internal I/O Memory Map (continued)
Peripheral
PORT E
Address
Register Name
Y:$FFFFAC
Reserved
Y:$FFFFAB
Reserved
Y:$FFFFAA
Reserved
Y:$FFFFA9
Reserved
Y:$FFFFA8
Reserved
Y:$FFFFA7
Reserved
Y:$FFFFA6
Reserved
Y:$FFFFA5
Reserved
Y:$FFFFA4
Reserved
Y:$FFFFA3
Reserved
Y:$FFFFA2
Reserved
Y:$FFFFA1
Reserved
Y:$FFFFA0
Reserved
Y:$FFFF9F
PORT E CONTROL REGISTER (PCRE)
Y:$FFFF9E
PORT E DIRECTION REGISTER(PPRE)
Y:$FFFF9D
PORT E GPIO DATA REGISTER(PDRE)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
3-17
Internal I/O Memory Map
Table 3-4 Internal I/O Memory Map (continued)
Peripheral
Address
Register Name
ESAI_1
Y:$FFFF9C
ESAI_1 RECEIVE SLOT MASK REGISTER B (RSMB_1)
Y:$FFFF9B
ESAI_1 RECEIVE SLOT MASK REGISTER A (RSMA_1)
Y:$FFFF9A
ESAI_1 TRANSMIT SLOT MASK REGISTER B (TSMB_1)
Y:$FFFF99
ESAI_1 TRANSMIT SLOT MASK REGISTER A (TSMA_1)
Y:$FFFF98
ESAI_1 RECEIVE CLOCK CONTROL REGISTER (RCCR_)
Y:$FFFF97
ESAI_1 RECEIVE CONTROL REGISTER (RCR_1)
Y:$FFFF96
ESAI_1 TRANSMIT CLOCK CONTROL REGISTER (TCCR_1)
Y:$FFFF95
ESAI_1 TRANSMIT CONTROL REGISTER (TCR_1)
Y:$FFFF94
ESAI_1 COMMON CONTROL REGISTER (SAICR_1)
Y:$FFFF93
ESAI_1 STATUS REGISTER (SAISR_1)
Y:$FFFF92
Reserved
Y:$FFFF91
Reserved
Y:$FFFF90
Reserved
Y:$FFFF8F
Reserved
Y:$FFFF8E
Reserved
Y:$FFFF8D
Reserved
Y:$FFFF8C
Reserved
Y:$FFFF8B
ESAI_1 RECEIVE DATA REGISTER 3 (RX3_1)
Y:$FFFF8A
ESAI_1 RECEIVE DATA REGISTER 2 (RX2_1)
Y:$FFFF89
ESAI_1 RECEIVE DATA REGISTER 1 (RX1_1)
Y:$FFFF88
ESAI_1 RECEIVE DATA REGISTER 0 (RX0_1)
Y:$FFFF87
Reserved
Y:$FFFF86
ESAI_1 TIME SLOT REGISTER (TSR_1)
Y:$FFFF85
ESAI_1 TRANSMIT DATA REGISTER 5 (TX5_1)
Y:$FFFF84
ESAI_1 TRANSMIT DATA REGISTER 4 (TX4_1)
Y:$FFFF83
ESAI_1 TRANSMIT DATA REGISTER 3 (TX3_1)
Y:$FFFF82
ESAI_1 TRANSMIT DATA REGISTER 2 (TX2_1)
Y:$FFFF81
ESAI_1 TRANSMIT DATA REGISTER 1 (TX1_1)
Y:$FFFF80
ESAI_1 TRANSMIT DATA REGISTER 0 (TX0_1)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
3-18
Freescale Semiconductor
4
4.1
Core Configuration
Introduction
This chapter contains DSP56300 core configuration information details specific to the DSP56366. These
include the following:
• Operating modes
• Bootstrap program
• Interrupt sources and priorities
• DMA request sources
• OMR
• PLL control register
• AA control registers
• JTAG BSR
For more information on specific registers or modules in the DSP56300 core, refer to the DSP56300 Family
Manual (DSP56300FM).
4.2
Operating Mode Register (OMR)
Refer to the DSP56300 Family Manual, Freescale publication DSP56300FM for a description of the OMR
bits.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
4-1
Operating Mode Register (OMR)
Table 4-1 Operating Mode Register (OMR)
SCS
EOM
23
22
21
20
19
18
17
16
15
COM
14
13
12
11
PEN MSW 1 : 0 SEN WRP EOV EUN XYS ATE APD ABE BRT TAS
10
9
8
BE
CDP1:0
7
6
MS
SD
5
4
3
EBD MD
2
1
0
MC
MB
MA
PEN
- Patch Enable
ATE
- Address Tracing Enable
MS
- Master memory Switch Mode
MSW1
- Memory switch mode 1
APD
- Address Priority Disable
SD
- Stop Delay
MSW0
- Memory switch mode 0
ABE
- Asyn. Bus Arbitration Enable
SEN
- Stack Extension Enable
BRT
- Bus Release Timing
EBD
- External Bus Disable
WRP
- Extended Stack Wrap Flag
TAS
- TA Synchronize Select
MD
- Operating Mode D
EOV
- Extended Stack Overflow Flag
BE
- Burst Mode Enable
MC
- Operating Mode C
EUN
- Extended Stack Underflow Flag
CDP1
- Core-Dma Priority 1
MB
- Operating Mode B
XYS
- Stack Extension Space Select
CDP0
- Core-Dma Priority 0
MA
- Operating Mode A
- Reserved bit. Read as zero, should be written with zero for future compatibility
4.2.1
Asynchronous Bus Arbitration Enable (ABE) - Bit 13
The asynchronous bus arbitration mode is activated by setting the ABE bit in the OMR register. Hardware
reset clears the ABE bit.
4.2.2
Address Attribute Priority Disable (APD) - Bit 14
The Address Attribute Priority Disable (APD) bit is used to turn off the address attribute priority
mechanism. When this bit is set, more than one address attribute pin AA/RAS(2:0) may be simultaneously
asserted according to its AAR settings. The APD bit is cleared by hardware reset.
4.2.3
Address Tracing Enable (ATE) - Bit 15
The Address Tracing Enable (ATE) bit is used to turn on Address Tracing (AT) Mode. When the AT Mode
is enabled, the DSP56300 Core reflects the addresses of internal fetches and program space moves
(MOVEM) to the Address Bus (A0-A17), if the Address Bus is not needed by the DSP56300 Core for
external accesses. The ATE bit is cleared on hardware reset.
4.2.4
Patch Enable (PEN) - Bit 23
The Patch Enable function is used for patching Program ROM locations. i.e. to replace during program
execution, the contents of the Program ROM. This is done by using the Instruction Cache to supply the
instruction word instead of the Program ROM.
The Patch Enable function is activated by setting bit 23 (PEN) in the OMR Register. The PEN bit is cleared
by hardware reset.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
4-2
Freescale Semiconductor
Operating Mode Register (OMR)
The Instruction Cache should be initialized with the new instructions according to the following
procedure:
These steps should be executed from external memory or by download via host interface:
1. Set Cache Enable = 1
2. Set Patch Enable = 1
3. Initialize TAGs to different values by unlock eight different external sectors
4. Lock the PATCH sector(s)
5. Move new code to locked sector(s), to the addresses that should be replaced
6. Start regular PROM program
;****************************************************************************
; PATCH initialization example
;****************************************************************************
page
nolist
132,55,0,0,0
INCLUDE "ioequ.asm"
INCLUDE "intequ.asm"
list
START
PATCH_OFSET
M_PAE
M_PROMS
M_PROME
equ
equ
equ
equ
equ
$100
128
23
$ffafec
$ffafff
; main program starting address
; patch offset
; Patch Enable
; ROM area Start
; ROM area End
org
P:START
move
#M_PROMS,r0
bset
bset
move
move
move
#M_CE,sr
#M_PAE,omr
#$800000,r1
#128,n1
#(M_PROMS+PATCH_OFSET),r2
dup
punlock
8
(r1)+n1
;
;
;
;
CacheEnable = 1
PatchEnable = 1
any external address
128 for 1K ICACHE, sector size
; initialize TAGs to different
; values
endm
plock
(r2)
move
#PATCH_DATA_START,r1
; lock patch's sector
; (start/mid/end)
;
; replace ROM code by PATCH
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
4-3
Operating Modes
;
do
movem
movem
nop
#(PATCH_DATA_END-PATCH_DATA_START+1),PATCH_LOOP
p:(r1)+,x0
x0,p:(r2)+
; Do-loop restriction
jsr
#M_PROMS
jmp
nop
nop
nop
nop
ENDTEST
move
move
move
#5,m0
#6,m1
#7,m2
PATCH_LOOP
ENDTEST
; start ROM code execution
;
; patch data
;
PATCH_DATA_START
PATCH_DATA_END
;****************************************************************************
4.3
Operating Modes
The operating modes are defined as shown in Table 4-2. The operating modes are latched from MODA,
MODB, MODC and MODD pins during reset. Each operating mode is briefly described below. Except for
modes 0 and 8, the operation of all other modes is defined by the Bootstrap ROM source code in Appendix
A , "Bootstrap ROM Contents".
Table 4-2 DSP56366 Operating Modes
Mode
MOD
D
MOD
C
MOD
B
MOD
A
Reset
Vector
0
0
0
0
0
$C00000
Expanded mode
1
0
0
0
1
$FF0000
Bootstrap from byte-wide memory
2
0
0
1
0
$FF0000
Jump to PROM starting address
3
0
0
1
1
$FF0000
Reserved
4
0
1
0
0
$FF0000
Reserved
5
0
1
0
1
$FF0000
Bootstrap from SHI (slave SPI mode)
Description
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
4-4
Freescale Semiconductor
Operating Modes
Table 4-2 DSP56366 Operating Modes (continued)
Mode
MOD
D
MOD
C
MOD
B
MOD
A
Reset
Vector
6
0
1
1
0
$FF0000
Bootstrap from SHI (slave I2C mode) (HCKFR=1, 100ns filter
enabled)
7
0
1
1
1
$FF0000
Bootstrap from SHI (slave I2C mode)(HCKR=0)
8
1
0
0
0
$008000
Expanded mode
9
1
0
0
1
$FF0000
Reserved for Burn-in testing
A
1
0
1
0
$FF0000
Reserved
B
1
0
1
1
$FF0000
Reserved
C
1
1
0
0
$FF0000
HDI08 Bootstrap in ISA Mode
D
1
1
0
1
$FF0000
HDI08 Bootstrap in HC11 non-multiplexed mode
E
1
1
1
0
$FF0000
HDI08 Bootstrap in 8051 multiplexed bus mode
F
1
1
1
1
$FF0000
HDI08 Bootstrap in 68302 bus mode
Description
Table 4-3 DSP56366 Mode Descriptions
Mode 0
The DSP starts fetching instructions beginning at address $C00000. Memory accesses are performed using
SRAM memory access type with 31 wait states and no address attributes selected. Address $C00000 is reflected
as address $00000 on Port A pins A0-A17.
Mode 1
The bootstrap program loads instructions through Port A from external byte-wide memory, connected to the least
significant byte of the data bus (bits 7-0), and starting at address P:$D00000. The bootstrap code expects to read
3 bytes specifying the number of program words, 3 bytes specifying the address to start loading the program
words and then 3 bytes for each program word to be loaded. The number of words, the starting address and the
program words are read least significant byte first followed by the mid and then by the most significant byte. The
program words will be stored in contiguous PRAM memory locations starting at the specified starting address.
After reading the program words, program execution starts from the same address where loading started.The
SRAM memory access type is selected by the values in Address Attribute Register 1 (AAR1), with 31 wait states
for each memory access. Address $D00000 is reflected as address $00000 on Port A pins A0-A17.
Mode 2
The DSP starts fetching instructions from the starting address of the on-chip Program ROM.
Mode 3
Reserved.
Mode 4
Reserved.
Mode 5
In this mode, the internal PRAM is loaded from the Serial Host Interface (SHI). The SHI operates in the SPI slave
mode, with 24-bit word width.The bootstrap code expects to read a 24-bit word specifying the number of program
words, a 24-bit word specifying the address to start loading the program words and then a 24-bit word for each
program word to be loaded. The program words will be stored in contiguous PRAM memory locations starting at
the specified starting address. After reading the program words, program execution starts from the same address
where loading started.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
4-5
Interrupt Priority Registers
Table 4-3 DSP56366 Mode Descriptions
Mode 6
Same as Mode 5 except SHI interface operates in the I2C slave mode with HCKFR set to 1 and the 100ns filter
enabled.
Mode 7
Same as Mode 5 except SHI interface operates in the I2C slave mode with HCKFR set to 0.
Mode 8
The DSP starts fetching instructions beginning at address $008000. Memory accesses are performed using
SRAM memory access type with 31 wait states and no address attributes selected.
Mode 9
Reserved. Used for Burn-In testing.
Mode A
Reserved.
Mode B
Reserved.
Mode C
Instructions are loaded through the HDI08, which is configured to interface with an ISA bus. The HOST ISA
bootstrap code expects to read a 24-bit word specifying the number of program words, a 24-bit word specifying
the address to start loading the program words and then a 24-bit word for each program word to be loaded. The
program words will be stored in contiguous PRAM memory locations starting at the specified starting address.
After reading the program words, program execution starts from the same address where loading started. The
Host Interface bootstrap load program may be stopped by setting the Host Flag 0 (HF0). This will start execution
of the loaded program from the specified starting address.
Mode D
As in Mode C, but HDI08 is set for interfacing to Freescale HC11 microcontroller in non-multiplexed mode
Mode E
As in Mode C, but HDI08 is set for interfacing to Intel 8051 multiplexed bus
Mode F
As in Mode C, but HDI08 is set for interfacing to Freescale 68302 bus.
4.4
Interrupt Priority Registers
There are two interrupt priority registers in the DSP56366:
1. IPR-C is dedicated for DSP56300 Core interrupt sources.
2. IPR-P is dedicated for DSP56366 peripheral interrupt sources.
The interrupt priority registers are shown in Figure 4-1 and Figure 4-2. The Interrupt Priority Level bits
are defined in Table 4-4. The interrupt vectors are shown in Table 4-6 and the interrupt priorities are shown
in Table 4-5.
Table 4-4 Interrupt Priority Level Bits
IPL bits
Interrupts
Enabled
Interrupt
Priority
Level
xxL1
xxL0
0
0
No
—
0
1
Yes
0
1
0
Yes
1
1
1
Yes
2
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
4-6
Freescale Semiconductor
Interrupt Priority Registers
11
10
9
8
ESL11 ESL10 TAL1 TAL0
7
DAL1
6
5
4
DAL0 HDL1 HDL0
3
2
1
0
SHL1
SHL0
ESL1
ESL0
ESAI IPL
SHI IPL
HDI08 IPL
DAX IPL
TRIPLE TIMER IPL
ESAI_1 IPL
22
23
21
20
19
18
17
16
15
14
13
12
reserved
Reserved bit. Read as zero, should be written with zero for future compatibility.
Figure 4-1 Interrupt Priority Register P
11
10
9
8
7
6
5
IDL2
IDL1
IDL0
ICL2
ICL1
ICL0
IBL2
4
IBL1
3
IBL0
2
1
0
IAL2
IAL1
IAL0
IRQA IPL
IRQA mode
IRQB IPL
IRQB mode
IRQC IPL
IRQC mode
IRQD IPL
IRQD mode
23
22
D5L1
D5L0
21
D4L1
20
19
18
17
D4L0
D3L1
D3L0
D2L1
16
15
D2L0 D1L1
14
13
12
D1L0
D0L1
D0L0
DMA0 IPL
DMA1 IPL
DMA2 IPL
DMA3 IPL
DMA4 IPL
DMA5 IPL
Figure 4-2 Interrupt Priority Register C
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
4-7
Interrupt Priority Registers
Table 4-5 Interrupt Sources Priorities Within an IPL
Priority
Interrupt Source
Level 3 (Nonmaskable)
Highest
Hardware RESET
Stack Error
Illegal Instruction
Debug Request Interrupt
Trap
Lowest
Non-Maskable Interrupt
Levels 0, 1, 2 (Maskable)
Highest
IRQA (External Interrupt)
IRQB (External Interrupt)
IRQC (External Interrupt)
IRQD (External Interrupt)
DMA Channel 0 Interrupt
DMA Channel 1 Interrupt
DMA Channel 2 Interrupt
DMA Channel 3 Interrupt
DMA Channel 4 Interrupt
DMA Channel 5 Interrupt
ESAI Receive Data with Exception Status
ESAI Receive Even Data
ESAI Receive Data
ESAI Receive Last Slot
ESAI Transmit Data with Exception Status
ESAI Transmit Last Slot
ESAI Transmit Even Data
ESAI Transmit Data
SHI Bus Error
SHI Receive Overrun Error
SHI Transmit Underrun Error
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
4-8
Freescale Semiconductor
Interrupt Priority Registers
Table 4-5 Interrupt Sources Priorities Within an IPL (continued)
Priority
Interrupt Source
SHI Receive FIFO Full
SHI Transmit Data
SHI Receive FIFO Not Empty
HOST Command Interrupt
HOST Receive Data Interrupt
HOST Transmit Data Interrupt
DAX Transmit Underrun Error
DAX Block Transferred
DAX Transmit Register Empty
TIMER0 Overflow Interrupt
TIMER0 Compare Interrupt
TIMER1 Overflow Interrupt
TIMER1 Compare Interrupt
TIMER2 Overflow Interrupt
TIMER2 Compare Interrupt
ESAI_1 Receive Data with Exception Status
ESAI_1 Receive Even Data
ESAI_1 Receive Data
ESAI_1 Receive Last Slot
ESAI_1 Transmit Data with Exception Status
ESAI_1 Transmit Last Slot
ESAI_1 Transmit Even Data
Lowest
ESAI_1 Transmit Data
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
4-9
Interrupt Priority Registers
Table 4-6 DSP56366 Interrupt Vectors
Interrupt
Starting Address
Interrupt Priority
Level Range
Interrupt Source
VBA:$00
3
Hardware RESET
VBA:$02
3
Stack Error
VBA:$04
3
Illegal Instruction
VBA:$06
3
Debug Request Interrupt
VBA:$08
3
Trap
VBA:$0A
3
Non-Maskable Interrupt (NMI)
VBA:$0C
3
Reserved For Future Level-3 Interrupt Source
VBA:$0E
3
Reserved For Future Level-3 Interrupt Source
VBA:$10
0-2
IRQA
VBA:$12
0-2
IRQB
VBA:$14
0-2
IRQC
VBA:$16
0-2
IRQD
VBA:$18
0-2
DMA Channel 0
VBA:$1A
0-2
DMA Channel 1
VBA:$1C
0-2
DMA Channel 2
VBA:$1E
0-2
DMA Channel 3
VBA:$20
0-2
DMA Channel 4
VBA:$22
0-2
DMA Channel 5
VBA:$24
0-2
Reserved
VBA:$26
0-2
Reserved
VBA:$28
0-2
DAX Underrun Error
VBA:$2A
0-2
DAX Block Transferred
VBA:$2C
0-2
Reserved
VBA:$2E
0-2
DAX Audio Data Empty
VBA:$30
0-2
ESAI Receive Data
VBA:$32
0-2
ESAI Receive Even Data
VBA:$34
0-2
ESAI Receive Data With Exception Status
VBA:$36
0-2
ESAI Receive Last Slot
VBA:$38
0-2
ESAI Transmit Data
VBA:$3A
0-2
ESAI Transmit Even Data
VBA:$3C
0-2
ESAI Transmit Data with Exception Status
VBA:$3E
0-2
ESAI Transmit Last Slot
VBA:$40
0-2
SHI Transmit Data
VBA:$42
0-2
SHI Transmit Underrun Error
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
4-10
Freescale Semiconductor
Interrupt Priority Registers
Table 4-6 DSP56366 Interrupt Vectors (continued)
Interrupt
Starting Address
Interrupt Priority
Level Range
Interrupt Source
VBA:$44
0-2
SHI Receive FIFO Not Empty
VBA:$46
0-2
Reserved
VBA:$48
0-2
SHI Receive FIFO Full
VBA:$4A
0-2
SHI Receive Overrun Error
VBA:$4C
0-2
SHI Bus Error
VBA:$4E
0-2
Reserved
VBA:$50
0-2
Reserved
VBA:$52
0-2
Reserved
VBA:$54
0-2
TIMER0 Compare
VBA:$56
0-2
TIMER0 Overflow
VBA:$58
0-2
TIMER1 Compare
VBA:$5A
0-2
TIMER1 Overflow
VBA:$5C
0-2
TIMER2 Compare
VBA:$5E
0-2
TIMER2 Overflow
VBA:$60
0-2
Host Receive Data Full
VBA:$62
0-2
Host Transmit Data Empty
VBA:$64
0-2
Host Command (Default)
VBA:$66
0-2
Reserved
VBA:$68
0-2
Reserved
VBA:$6A
0-2
Reserved
VBA:$6C
0-2
Reserved
VBA:$6E
0-2
Reserved
VBA:$70
0-2
ESAI_1 Receive Data
VBA:$72
0-2
ESAI_1 Receive Even Data
VBA:$74
0-2
ESAI_1 Receive Data With Exception Status
VBA:$76
0-2
ESAI_1 Receive Last Slot
VBA:$78
0-2
ESAI_1 Transmit Data
VBA:$7A
0-2
ESAI_1 Transmit Even Data
VBA:$7C
0-2
ESAI_1 Transmit Data with Exception Status
VBA:$7E
0-2
ESAI_1 Transmit Last Slot
VBA:$80
0-2
Reserved
:
VBA:$FE
:
0-2
:
Reserved
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
4-11
DMA Request Sources
4.5
DMA Request Sources
The DMA Request Source bits (DRS0-DRS4 bits in the DMA Control/Status registers) encode the source
of DMA requests used to trigger the DMA transfers. The DMA request sources may be the internal
peripherals or external devices requesting service through the IRQA, IRQB, IRQC and IRQD pins. The
DMA Request Sources are shown in Table 4-7.
Table 4-7 DMA Request Sources
DMA Request Source Bits
DRS4...DRS0
Requesting Device
00000
External (IRQA pin)
00001
External (IRQB pin)
00010
External (IRQC pin)
00011
External (IRQD pin)
00100
Transfer Done from DMA channel 0
00101
Transfer Done from DMA channel 1
00110
Transfer Done from DMA channel 2
00111
Transfer Done from DMA channel 3
01000
Transfer Done from DMA channel 4
01001
Transfer Done from DMA channel 5
01010
DAX Transmit Data
01011
ESAI Receive Data (RDF=1)
01100
ESAI Transmit Data (TDE=1)
01101
SHI HTX Empty
01110
SHI FIFO Not Empty
01111
SHI FIFO Full
10000
HDI08 Receive Data
10001
HDI08 Transmit Data
10010
TIMER0 (TCF=1)
10011
TIMER1 (TCF=1)
10100
TIMER2 (TCF=1)
10101
ESAI_1 Receive Data (RDF=1)
10110
ESAI_1 Transmit Data (TDE=1)
10111-11111
Reserved
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
4-12
Freescale Semiconductor
PLL Initialization
4.6
4.6.1
PLL Initialization
PLL Multiplication Factor (MF0-MF11)
The DSP56366 PLL multiplication factor is set to 6 during hardware reset, i.e. the Multiplication Factor
Bits MF0-MF11 in the PLL Control Register (PCTL) are set to $005.
4.6.2
PLL Pre-Divider Factor (PD0-PD3)
The DSP56366 PLL Pre-Divider factor is set to 1 during hardware reset, i.e. the Pre-Divider Factor Bits
PD0-PD3 in the PLL Control Register (PCTL) are set to $0.
4.6.3
Crystal Range Bit (XTLR)
The Crystal Range (XTLR) bit controls the on-chip crystal oscillator transconductance. The on-chip
crystal oscillator is not used on the DSP56366 since no XTAL pin is available. The XTLR bit is set to zero
during hardware reset in the DSP56366.
4.6.4
XTAL Disable Bit (XTLD)
The XTAL Disable Bit (XTLD) is set to 1 (XTAL disabled) during hardware reset in the DSP56366.
4.7
Device Identification (ID) Register
The Device Identification Register (IDR) is a 24 bit read only factory programmed register used to identify
the different DSP56300 core-based family members. This register specifies the derivative number and
revision number. This information may be used in testing or by software. Table 4-8 shows the ID register
configuration.
Table 4-8 Identification Register Configuration
23
4.8
16
15
12
11
0
Reserved
Revision Number
Derivative Number
$00
$0
$366
JTAG Identification (ID) Register
The JTAG Identification (ID) Register is a 32 bit, read only thought JTAG, factory programmed register
used to distinguish the component on a board according to the IEEE 1149.1 standard. Table 4-9 shows the
JTAG ID register configuration.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
4-13
JTAG Boundary Scan Register (BSR)
Table 4-9 JTAG Identification Register Configuration
31
4.9
28
27
22
21
12
11
1
0
Version
Information
Customer Part
Number
Sequence
Number
Manufacturer
Identity
1
0000
000111
0001001111
00000001110
1
JTAG Boundary Scan Register (BSR)
The boundary scan register (BSR) in the DSP56366 JTAG implementation contains bits for all device
signal and clock pins and associated control signals. All bidirectional pins have a single register bit in the
boundary scan register for pin data, and are controlled by an associated control bit in the boundary scan
register. The boundary scan register bit definitions are described in Table 4-10.
Table 4-10 DSP56366 BSR Bit Definition
Bit
#
Pin Name
Pin Type
BSR Cell
Type
Bit
#
Control
76
FST_1
—
Input/Output
Pin Name
Pin Type
BSR Cell
Type
0
SDO4_1/SDI1_1
—
Control
1
SDO4_1/SDI1_1
Input/Output
Data
77
FST_1
2
IRQA
Input
Data
78
SDO5_1/SDI0_1
3
IRQB
Input
Data
79
SDO5_1/SDI0_1
Input/Output
Data
4
IRQC
Input
Data
80
RES
Input
Data
5
IRQD
Input
Data
81
HAD0
—
6
D23
Input/Output
Data
82
HAD0
Input/Output
7
D22
Input/Output
Data
83
HAD1
—
8
D21
Input/Output
Data
84
HAD1
Input/Output
9
D20
Input/Output
Data
85
HAD2
—
10
D19
Input/Output
Data
86
HAD2
Input/Output
11
D18
Input/Output
Data
87
HAD3
—
12
D17
Input/Output
Data
88
HAD3
Input/Output
13
D16
Input/Output
Data
89
HAD4
—
14
D15
Input/Output
Data
90
HAD4
Input/Output
15
D[23:13]
—
Control
91
HAD5
—
16
D14
Input/Output
Data
92
HAD5
Input/Output
Data
Control
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
4-14
Freescale Semiconductor
JTAG Boundary Scan Register (BSR)
Table 4-10 DSP56366 BSR Bit Definition (continued)
Bit
#
Pin Name
Pin Type
BSR Cell
Type
Bit
#
Pin Name
Pin Type
17
D13
Input/Output
Data
93
HAD6
—
18
D12
Input/Output
Data
94
HAD6
Input/Output
19
D11
Input/Output
Data
95
HAD7
—
20
D10
Input/Output
Data
96
HAD7
Input/Output
21
D9
Input/Output
Data
97
HAS/A0
—
22
D8
Input/Output
Data
98
HAS/A0
Input/Output
23
D7
Input/Output
Data
99
HA8/A1
—
24
D6
Input/Output
Data
100 HA8/A1
Input/Output
25
D5
Input/Output
Data
101 HA9/A2
—
26
D4
Input/Output
Data
102 HA9/A2
Input/Output
27
D3
Input/Output
Data
103 HCS/A10
—
28
D[12:0]
—
Control
104 HCS/A10
Input/Output
29
D2
Input/Output
Data
105 TIO0
—
30
D1
Input/Output
Data
106 TIO0
Input/Output
31
D0
Input/Output
Data
107 ACI
—
32
A17
Output3
Data
108 ACI
Input/Output
33
A16
Output3
Data
109 ADO
—
34
A15
Output3
Data
110 ADO
Input/Output
35
A[17:9]
—
Control
111 HREQ/HTRQ
—
36
A14
Output3
Data
112 HREQ/HTRQ
Input/Output
37
A13
Output3
Data
113 HACK/RRQ
—
38
A12
Output3
Data
114 HACK/RRQ
Input/Output
39
A11
Output3
Data
115 HRW/RD
—
40
A10
Output3
Data
116 HRW/RD
Input/Output
41
A9
Output3
Data
117 HDS/WR
—
42
A8
Output3
Data
118 HDS/WR
Input/Output
BSR Cell
Type
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
4-15
JTAG Boundary Scan Register (BSR)
Table 4-10 DSP56366 BSR Bit Definition (continued)
Bit
#
Pin Name
Pin Type
BSR Cell
Type
Bit
#
Pin Name
Pin Type
43
A7
Output3
Data
119 HSCKR
—
44
A6
Output3
Data
120 HSCKR
Input/Output
45
A[8:0]
—
Control
121 HSCKT
—
46
A5
Output3
Data
122 HSCKT
Input/Output
47
A4
Output3
Data
123 SCKR
—
48
A3
Output3
Data
124 SCKR
Input/Output
49
A2
Output3
Data
125 SCKT
—
50
A1
Output3
Data
126 SCKT
Input/Output
51
A0
Output3
Data
127 FSR
—
52
BG
Input
Data
128 FSR
Input/Output
53
AA0
—
Control
129 FST
—
54
AA0
Output3
Data
130 FST
Input/Output
55
AA1
—
Control
131 SDO5/SDI0
—
56
AA1
Output3
Data
132 SDO5/SDI0
Input/Output
57
RD
Output3
Data
133 SDO4/SDI1
—
58
WR
Output3
Data
134 SDO4/SDI1
Input/Output
59
BB
—
Control
135 SDO3/SDI2
—
60
BB
Input/Output
Data
136 SDO3/SDI2
Input/Output
61
BR
Output2
Data
137 SDO2/SDI3
—
62
TA
Input
Data
138 SDO2/SDI3
Input/Output
63
PINIT
Input
Data
139 SDO1
—
64
SCKR_1
Control
140 SDO1
Input/Output
65
SCKR_1
Data
141 SDO0
—
66
FSR_1
Control
142 SDO0
Input/Output
67
FSR_1
Input/Output
Data
143 HREQ
—
68
RD,WR
—
Control
144 HREQ
Input/Output
Input/Output
BSR Cell
Type
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
Control
Data
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
4-16
Freescale Semiconductor
JTAG Boundary Scan Register (BSR)
Table 4-10 DSP56366 BSR Bit Definition (continued)
Bit
#
Pin Name
Pin Type
69
EXTAL
Input
70
SCKT_1
—
71
SCKT_1
Input/Output
72
CAS
—
73
CAS
Output3
74
AA2
—
75
AA2
Output3
BSR Cell
Type
Data
Bit
#
Pin Name
Pin Type
145 SS
Input
Control
146 SCK/SCL
—
Data
147 SCK/SCL
Input/Output
Control
148 MISO/SDA
—
Data
149 MISO/SDA
Input/Output
Control
150 MOSI/HA0
—
Data
151 MOSI/HA0
Input/Output
BSR Cell
Type
Data
Control
Data
Control
Data
Control
Data
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
4-17
JTAG Boundary Scan Register (BSR)
NOTES
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
4-18
Freescale Semiconductor
5
5.1
General Purpose Input/Output
Introduction
The DSP56362 provides up to 37 bidirectional signals that can be configured as GPIO signals or as
peripheral dedicated signals. No dedicated GPIO signals are provided. All of these signals are GPIO by
default after reset. The techniques for register programming for all GPIO functionality is very similar
between these interfaces. This section describes how signals may be used as GPIO.
5.2
Programming Model
The signals description section of this manual describes the special uses of these signals in detail. There
are five groups of these signals which can be controlled separately or as groups:
• Port B: up to 16 GPIO signals (shared with the HDI08 signals)
• Port C: 12 GPIO signals (shared with the ESAI signals)
• Port D: two GPIO signals (shared with the DAX signals)
• Port E: 10 GPIO signals (shared with the ESAI_1 signals)
• Timer: one GPIO signal (shared with the timer/event counter signal)
5.2.1
Port B Signals and Registers
When HDI08 is disabled, all 16 HDI08 signals can be used as GPIO. When HDI08 is enabled, five (HA8,
HA9, HCS, HOREQ, and HACK) of the 16 port B signals, if not used as a HDI08 signal, can be configured
as GPIO signals. The GPIO functionality of port B is controlled by three registers: host port control register
(HPCR), host port GPIO data register (HDR), and host port GPIO direction register (HDDR). These
registers are described in Section 6, "Host Interface (HDI08)" of this document.
5.2.2
Port C Signals and Registers
Each of the 12 port C signals not used as an ESAI signal can be configured individually as a GPIO signal.
The GPIO functionality of port C is controlled by three registers: port C control register (PCRC), port C
direction register (PRRC), and port C data register (PDRC). These registers are described in Section 8,
"Enhanced Serial AUDIO Interface (ESAI)".
5.2.3
Port D Signals and Registers
Each of the two Port D signals not used as a DAX signal can be configured individually as a GPIO signal.
The GPIO functionality of Port D is controlled by three registers: Port D control register (PCRD), Port D
direction register (PRRD) and Port D data register (PDRD). These registers are described in Section 10,
"Digital Audio Transmitter".
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
5-1
Programming Model
5.2.4
Port E Signals and Registers
Port E has 10 signals, shared with the ESAI_1. Six of the ESAI_1 signals have their own pin, so each of
the six signals, if not used as an ESAI_1 signal, can be configured individually as a GPIO signal. The other
four ESAI_1 signals share pins with the ESAI. For these shared pins, if the pin is not being used by the
ESAI, Port C and the ESAI_1, then it may be used as a Port E GPIO signal. The GPIO functionality of port
E is controlled by three registers: port E control register (PCRE), port E direction register (PRRE), and
port E data register (PDRE). These registers are described in Section 9, "Enhanced Serial Audio Interface
1 (ESAI_1)".
5.2.5
Timer/Event Counter Signals
The timer/event counter signal (TIO), when not used as a timer signal can be configured as a GPIO signal.
The signal is controlled by the appropriate timer control status register (TCSR). The register is described
in Section 11, "Timer/ Event Counter".
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
5-2
Freescale Semiconductor
6
Host Interface (HDI08)
6.1
Introduction
The host interface (HDI08) is a byte-wide, full-duplex, double-buffered, parallel port that can be connected
directly to the data bus of a host processor. The HDI08 supports a variety of buses and provides glueless
connection with a number of industry standard microcomputers, microprocessors, DSPs and DMA
hardware.
The host bus can operate asynchronously to the DSP core clock, therefore the HDI08 registers are divided
into 2 banks. The host register bank is accessible to the external host and the DSP register bank is
accessible to the DSP core.
The HDI08 supports three classes of interfaces:
• Host processor/Microcontroller (MCU) connection interface
• DMA controller interface
• General purpose I/O (GPIO) port
6.2
6.2.1
•
•
•
•
•
HDI08 Features
Interface - DSP side
Mapping:
— Registers are directly mapped into eight internal X data memory locations
Data Word:
— 24-bit (native) data words are supported, as are 8-bit and 16-bit words
Transfer Modes:
— DSP to Host
— Host to DSP
— Host Command
Handshaking Protocols:
— Software polled
— Interrupt driven
— Core DMA accesses
Instructions:
— Memory-mapped registers allow the standard MOVE instruction to be used to transfer data
between the DSP and the external host.
— Special MOVEP instruction provides for I/O service capability using fast interrupts.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-1
HDI08 Features
— Bit addressing instructions (e.g. BCHG, BCLR, BSET, BTST, JCLR, JSCLR, JSET, JSSET)
simplify I/O service routines.
6.2.2
•
•
•
•
•
Interface - Host Side
Sixteen signals are provided to support non-multiplexed or multiplexed buses:
— H0-H7/HAD0-HAD7
Host data bus (H7-H0) or host multiplexed address/data bus (HAD0-HAD7)
— HAS/HA0
Address strobe (HAS) or Host address line HA0
— HA8/HA1
Host address line HA8 or Host address line HA1
— HA9/HA2
Host address line HA9 or Host address line HA2
— HRW/HRD
Read/write select (HRW) or Read Strobe (HRD)
— HDS/HWR
Data Strobe (HDS) or Write Strobe (HWR)
— HCS/HA10
Host chip select (HCS) or Host address line HA10
— HOREQ/HTRQ
Host request (HOREQ) or Host transmit request (HTRQ)
— HACK/HRRQ
Host acknowledge (HACK) or Host receive request (HRRQ)
Mapping:
— HDI08 registers are mapped into eight consecutive byte locations in the external host bus
address space.
— The HDI08 acts as a memory or IO-mapped peripheral for microprocessors, microcontrollers,
etc.
Data Word:
— 8-bit
Transfer Modes:
— Mixed 8-bit, 16-bit and 24-bit data transfers
– DSP to Host
– Host to DSP
— Host Command
Handshaking Protocols:
— Software polled
— Interrupt-driven (Interrupts are compatible with most processors, including the MC68000,
8051, HC11 and Hitachi H8).
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-2
Freescale Semiconductor
HDI08 Host Port Signals
•
•
6.3
— Cycle-stealing DMA with initialization
Dedicated Interrupts:
— Separate interrupt lines for each interrupt source
— Special host commands force DSP core interrupts under host processor control, which are
useful for the following:
– Real-Time Production Diagnostics
– Debugging Window for Program Development
– Host Control Protocols
Interface Capabilities:
— Glueless interface (no external logic required) to the following:
– Freescale HC11
– Hitachi H8
– 8051 family
– Thomson P6 family
– external DMA controllers
— Minimal glue-logic (pullups, pulldowns) required to interface to the following:
– ISA bus
– Motorola 68K family
– Intel X86 family.
HDI08 Host Port Signals
The host port signals are described in Section 2, "Signal/Connection Descriptions". If the Host Interface
functionality is not required, the 16 pins may be defined as general purpose I/O pins PB0-PB15. When the
HDI08 is in use, only five host port signals (HA8, HA9, HCS, HOREQ and HACK) may be individually
programmed as GPIO pins if they are not needed for their HDI08 function. Summary of the HDI08 signals.
Table 6-1 HDI08 Signal Summary
HDI08 Port Pin
Multiplexed address/data bus Mode
Non Multiplexed bus Mode
GPIO Mode
HAD0-HAD7
HAD0-HAD7
H0-H7
PB0-PB7
HAS/HA0
HAS/HAS
HA0
PB8
HA8/HA1
HA8
HA1
PB9
HA9/HA2
HA9
HA2
PB10
HCS/HA10
HA10
HCS/HCS
PB13
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-3
HDI08 Block Diagram
Table 6-2 Strobe Signals Support signals
HDI08 Port Pin
Single strobe bus
Dual strobe bus
GPIO Mode
HRW/HRD
HRW
HRD/HRD
PB11
HDS/HWR
HDS/HDS
HWR/HWR
PB12
Table 6-3 Host request support signals
6.4
HDI08 Port Pin
Vector required
No vector required
GPIO Mode
HOREQ/HTRQ
HOREQ/HOREQ
HTRQ/HTRQ
PB14
HACK/HRRQ
HACK/HACK
HRRQ/HRRQ
PB15
HDI08 Block Diagram
Figure 6-1 shows the HDI08 registers. The top row of registers (HCR, HSR, HDDR, HDR, HBAR, HPCR,
HOTX, HORX) can be accessed the DSP core. The bottom row of registers (ISR, ICR, CVR, IVR,
RXH:RXM:RXL and TXH:TXM:TXL) can be accessed by the host processor.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-4
Freescale Semiconductor
HDI08 – DSP-Side Programmer’s Model
Core DMA Data Bus
DSP Peripheral Data Bus
24
HCR
24
24
HSR
HDDR
24
HDR
24
24
24
HBAR
HPCR
24
24
HOTX
24
HOR
8
Address
Comparator
24
24
5
3
ICR
ISR
8
CVR
8
IVR
8
Latch
8
8
RXH RXM RXL
3
8
8
TXH
8
TXM
8
8
RXL
8
HOST Bus
ICR
Interface Control Register
HCR
Host Control Register
CVR
Command Vector Register
HSR
Host Status Register
ISR
Interface Status Register
HPCR
Host Port Control Register
IVR
Interrupt Vector Register
HBAR
Host Base Address register
RXH/RXM/RXL
Receive Register High/Middle/Low
HOTX
Host Transmit register
TXH/TXM/TXL
Transmit Register High/Middle/Low
HORX
Host Receive register
HDDR
Host Data Direction Register
HDR
Host Data Register
Figure 6-1 HDI08 Block Diagram
6.5
HDI08 – DSP-Side Programmer’s Model
The DSP core threats the HDI08 as a memory-mapped peripheral occupying eight 24-bit words in X data
memory space. The DSP may use the HDI08 as a normal memory-mapped peripheral, employing either
standard polled or interrupt-driven programming techniques. Separate transmit and receive data registers
are double-buffered to allow the DSP and host processor to transfer data efficiently at high speed. Direct
memory mapping allows the DSP core to communicate with the HDI08 registers using standard
instructions and addressing modes. In addition, the MOVEP instruction allows direct data transfers
between the DSP memory and the HDI08 registers or vice-versa. The HOTX and HORX registers may be
serviced by the on-chip DMA controller for data transfers.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-5
HDI08 – DSP-Side Programmer’s Model
The eight host processor registers consists of two data registers and six control registers. All registers can
be accessed by the DSP core but not by the external processor.
Data registers are 24-bit registers used for high-speed data transfer to and from the DSP. They are as
follows:
• Host Data Receive Register (HORX)
• Host Data Transmit Register (HOTX)
The control registers are 16-bit registers used to control the HDI08 functions. The eight MSBs in the
control registers are read by the DSP as zero. The control registers are as follows:
• Host control register (HCR)
• Host status register (HSR)
• Host base address register (HBAR)
• Host port control register (HPCR)
• Host GPIO data direction register (HDDR)
• Host GPIO data register (HDR)
Hardware and software reset disable the HDI08. After reset, the HDI08 signals are configured as GPIO
with all pins disconnected.
6.5.1
Host Receive Data Register (HORX)
The 24-bit read-only HORX register is used for host-to-DSP data transfers. The HORX register is loaded
with 24-bit data from the transmit data registers (TXH:TXM:TXL) on the host side when both the transmit
data register empty TXDE (host side) and host receive data full HRDF (DSP side) bits are cleared. This
transfer operation sets both the TXDE and HRDF flags. The HORX register contains valid data when the
HRDF bit is set. Reading HORX clears HRDF. The DSP may program the HRIE bit to cause a host receive
data interrupt when HRDF is set. Also, a DMA channel may be programmed to read the HORX when
HRDF is set.
6.5.2
Host Transmit Data Register (HOTX)
The 24-bit write-only HOTX register is used for DSP- to-host data transfers. Writing to the HOTX register
clears the host transfer data empty flag HTDE (DSP side). The contents of the HOTX register are
transferred as 24-bit data to the receive byte registers (RXH:RXM:RXL) when both the HTDE flag (DSP
side) and receive data full RXDF flag (host side) are cleared. This transfer operation sets the RXDF and
HTDE flags. The DSP may set the HTIE bit to cause a host transmit data interrupt when HTDE is set. Also,
a DMA Channel may be programmed to write to HOTX when HTDE is set. To prevent the previous data
from being overwritten, data should not be written to the HOTX until the HTDE flag is set.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-6
Freescale Semiconductor
HDI08 – DSP-Side Programmer’s Model
NOTE
When writing data to a peripheral device, there is a two-cycle pipeline delay
until any status bits affected by the operation are updated. If the programmer
reads any of those status bits within the next two cycles, the bit will not
reflect its current status. See the DSP56300 Family Manual , Freescale
publication DSP56300FM for further details.
6.5.3
Host Control Register (HCR)
The HCR is 16-bit read/write control register used by the DSP core to control the HDI08 operating mode.
The initialization values for the HCR bits are described in Section 6.5.9, "DSP-Side Registers After
Reset". The HCR bits are described in the following paragraphs.
15
14
13
12
11
10
9
8
7
6
5
HDM2 HMD1 HDM0
4
3
2
1
0
HF3
HF2
HCIE
HTIE
HRIE
- Reserved bit. Read as 0. Should be written with 0 for future compatibility.
Figure 6-2 Host Control Register (HCR) (X:$FFFFC2)
6.5.3.1
HCR Host Receive Interrupt Enable (HRIE) Bit 0
The HRIE bit is used to enable the host receive data interrupt request. When the host receive data full
(HRDF) status bit in the host status register (HSR) is set, a host receive data interrupt request occurs if
HRIE is set. If HRIE is cleared, HRDF interrupts are disabled.
6.5.3.2
HCR Host Transmit Interrupt Enable (HTIE) Bit 1
The HTIE bit is used to enable the host transmit data empty interrupt request. When the host transmit data
empty (HTDE) status bit in the HSR is set, a host transmit data interrupt request occurs if HTIE is set. If
HTIE is cleared, HTDE interrupts are disabled.
6.5.3.3
HCR Host Command Interrupt Enable (HCIE) Bit 2
The HCIE bit is used to enable the host command interrupt request. When the host command pending
(HCP) status bit in the HSR is set, a host command interrupt request occurs if HCIE is set. If HCIE is
cleared, HCP interrupts are disabled. The interrupt address is determined by the host command vector
register (CVR).
NOTE
Host interrupt request priorities: If more than one interrupt request source is
asserted and enabled (e.g. HRDF=1, HCP=1, HRIE=1 and HCIE=1), the
HDI08 generates interrupt requests according to the following table:
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-7
HDI08 – DSP-Side Programmer’s Model
Table 6-4 HDI08 IRQ
Priority
Highest
Interrupt Source
Host Command (HCP=1)
Transmit Data (HTDE=1)
Lowest
6.5.3.4
Receive Data (HRDF=1)
HCR Host Flags 2,3 (HF2,HF3) Bits 3-4
HF2 and HF3 bits are used as a general-purpose flags for DSP to host communication. HF2 and HF3 may
be set or cleared by the DSP core. HF2 and HF3 are reflected in the interface status register (ISR) on the
host side such that if they are modified by the DSP software, the host processor can read the modified
values by reading the ISR.
These two flags are not designated for any specific purpose but are general-purpose flags. They can be
used individually or as encoded pairs in a simple DSP to host communication protocol, implemented in
both the DSP and the host processor software.
6.5.3.5
HCR Host DMA Mode Control Bits (HDM0, HDM1, HDM2) Bits 5-7
The HDM[2:0] bits are used to enable the HDI08 DMA mode operation. The HDI08 DMA mode supports
external DMA controller devices connected to the HDI08 on the Host side. This mode should not be
confused with the operation of the on-chip DMA controller.
With HDM[2:0] cleared, the HDI08 does not support DMA mode operation and the TREQ and RREQ
control bits are used for host processor interrupt control via the external HOREQ output signal (or HRREQ
and HTREQ output signals if HDREQ in the ICR is set). Also, in the non-DMA mode, the HACK input
signal is used for the MC68000 Family vectored interrupt acknowledge input. If HDM[2:0] are not all
cleared, the HDI08 operates as described in Table 6-5.
Table 6-5 HDM[2:0] Functionality
HDM
Mode
2
1
0
0
0
0
Description
ICR
DMA operation disabled
INIT
1
0
0
DMA Operation Enabled.
Host may set HM1 or HM0 in
the ICR to enable DMA
transfers.
INIT
HM1
HLEND
HF1
HF0
HM0
HF1
HF0
HDRQ
TREQ
TREQ
RREQ
RREQ
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-8
Freescale Semiconductor
HDI08 – DSP-Side Programmer’s Model
Table 6-5 HDM[2:0] Functionality (continued)
HDM
Mode
2
1
0
Description
0
0
1
DMA Mode Data Output
Transfers Enabled.
(24-Bit words)
0
1
0
DMA Mode Data Output
Transfers Enabled.
(16-Bit words)
0
1
1
DMA Mode Data Output
Transfers Enabled.
(8-Bit words)
1
0
1
DMA Mode Data Input
Transfers Enabled.
(24-Bit words)
1
1
0
DMA Mode Data Input
Transfers Enabled.
(16-Bit words)
1
1
1
DMA Mode Data Input
Transfers Enabled.
(8-Bit words)
ICR
INIT
HDM1
HDM0
HF1
HF0
TREQ
RREQ
If HDM1 or HDM0 are set, the DMA mode is enabled, and the HOREQ signal is used to request DMA
transfers (the value of the HM1, HM0, HLEND and HDREQ bits in the ICR have no affect). When the
DMA mode is enabled, the HDM2 bit selects the direction of DMA transfers:
• setting HDM2 sets the direction of DMA transfer to be DSP to host and enables the HOREQ signal
to request data transfer.
• clearing HDM2 sets the direction of DMA transfer to be host to DSP and enables the HOREQ
signal to request data transfer.
The HACK input signal is used as a DMA transfer acknowledge input. If the DMA direction is from DSP
to host, the contents of the selected register are driven onto the host data bus when HACK is asserted. If
the DMA direction is from host to DSP, the selected register is written from the host data bus when HACK
is asserted.
The size of the DMA word to be transferred is determined by the DMA control bits, HDM[1:0]. Only the
data registers TXH, TXM, TXL and RXH, RXM, RXL can be accessed in DMA mode.The HDI08 data
register selected during a DMA transfer is determined by a 2-bit address counter, which is preloaded with
the value in HDM[1:0]. The address counter substitutes for the address bits of the HDI08 during a DMA
transfer. The address counter can be initialized with the INIT bit feature. After each DMA transfer on the
host data bus, the address counter is incremented to the next register. When the address counter reaches
the highest register (RXL or TXL), the address counter is not incremented but is loaded with the value in
HDM[1:0]. This allows 8-, 16- or 24-bit data to be transferred in a circular fashion and eliminates the need
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-9
HDI08 – DSP-Side Programmer’s Model
for the DMA controller to supply the HA2, HA1, and HA0 signals. For 16- or 24-bit data transfers, the
DSP CPU interrupt rate is reduced by a factor of 2 or 3, respectively, from the host request rate – i.e., for
every two or three host processor data transfers of one byte each, there is only one 24-bit DSP CPU
interrupt.
If HDM1 or HDM0 are set, the HM[1:0] bits in the ICR register reflect the value of HDM[1:0].
The HDM[2:0] bits should be changed only while HEN is cleared in the HPCR.
6.5.3.6
HCR Reserved Bits 8-15
These bits are reserved. They read as zero and should be written with zero for future compatibility.
6.5.4
Host Status Register (HSR)
The HSR is a 16-bit read-only status register used by the DSP to read the status and flags of the HDI08. It
cannot be directly accessed by the host processor. The initialization values for the HSR bits are described
in Section 6.5.9, "DSP-Side Registers After Reset". The HSR bits are described in the following
paragraphs.
15
14
13
12
11
10
9
8
7
6
5
DMA
4
3
2
HF1
HF0
HCP
1
0
HTDE HRDF
- Reserved bit. Read as 0. Should be written with 0 for future compatibility.
Figure 6-3 Host Status Register (HSR) (X:FFFFC3)
6.5.4.1
HSR Host Receive Data Full (HRDF) Bit 0
The HRDF bit indicates that the host receive data register (HORX) contains data from the host processor.
HRDF is set when data is transferred from the TXH:TXM:TXL registers to the HORX register. HRDF is
cleared when HORX is read by the DSP core. If HRDF is set the HDI08 generates a receive data full DMA
request, if enabled by a DSP core DMA Channel. If HRDF is set when HRIE is set, a host receive data
interrupt request is generated. HRDF can also be cleared by the host processor using the initialize function.
6.5.4.2
HSR Host Transmit Data Empty (HTDE) Bit 1
The HTDE bit indicates that the host transmit data register (HOTX) is empty and can be written by the
DSP core. HTDE is set when the HOTX register is transferred to the RXH:RXM:RXL registers. HTDE is
cleared when HOTX is written by the DSP core. If HTDE is set the HDI08 generates a transmit data empty
DMA request, if enabled by a DSP core DMA Channel. If HTDE is set when HTIE is set, a host transmit
data interrupt request is generated. HTDE can also be set by the host processor using the initialize function.
6.5.4.3
HSR Host Command Pending (HCP) Bit 2
The HCP bit indicates that the host has set the HC bit and that a host command interrupt is pending. The
HCP bit reflects the status of the HC bit in the command vector register (CVR). HC and HCP are cleared
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-10
Freescale Semiconductor
HDI08 – DSP-Side Programmer’s Model
by the HDI08 hardware when the interrupt request is serviced by the DSP core. The host can clear HC,
which also clears HCP.
6.5.4.4
HSR Host Flags 0,1 (HF0,HF1) Bits 3-4
HF0 and HF1 bits are used as a general-purpose flags for host to DSP communication. HF0 and HF1 may
be set or cleared by the host. HF0 and HF1 reflect the status of host flags HF0 and HF1 in the ICR register
on the host side.
These two flags are not designated for any specific purpose but are general-purpose flags. They can be
used individually or as encoded pairs in a simple host to DSP communication protocol, implemented in
both the DSP and the host Processor software.
6.5.4.5
HSR Reserved Bits 5-6, 8-15
These bits are reserved. They read as zero and should be written with zero for future compatibility.
6.5.4.6
HSR DMA Status (DMA) Bit 7
The DMA status bit is set when the DMA mode of operation is enabled, and is cleared when the DMA
mode is disabled. The DMA mode is enabled under the following conditions:
• HCR bits HDM[2:0] = 100 and the host processor has enabled the DMA mode by setting either or
both the ICR bits HM1 and HM0
• Either or both of the HCR bits HDM1 and HDM0 have been set
When the DMA bit is zero, the channel not in use can be used for polled or interrupt operation by the DSP.
6.5.5
Host Base Address Register (HBAR)
The HBAR is used in multiplexed bus modes. This register selects the base address where the host side
registers are mapped into the bus address space. The address from the host bus is compared with the base
address as programmed in the base address register. If the addresses match, an internal chip select is
generated. The use of this register by the chip selectlogic is shown in Figure 6-5.
.
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
BA10
BA9
BA8
BA7
BA6
BA5
BA4
BA3
- Reserved bit. Read as 0. Should be written with 0, for future compatibility.
Figure 6-4 Host Base Address Register (HBAR) (X:$FFFFC5)
6.5.5.1
HBAR Base Address (BA[10:3]) Bits 0-7
These bits define the base address where the host side registers are mapped into the bus address space.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-11
HDI08 – DSP-Side Programmer’s Model
6.5.5.2
HBAR Reserved Bits 8-15
These bits are reserved. They read as zero and should be written with zero for future compatibility.
HAD[0-7]
Latch A[3:7]
HAS
COMPARATOR
HA[8:10]
Base
DSP Peripheral
data bus
Address
8 bits
register
Chip select
BA[3:7]
Figure 6-5 Self Chip Select logic
6.5.6
Host Port Control Register (HPCR)
The HPCR is a 16-bit read/write control register used by the DSP to control the HDI08 operating mode.
The initialization values for the HPCR bits are described in Section 6.5.9, "DSP-Side Registers After
Reset". The HPCR bits are described in the following paragraphs.
15
HAP
14
13
12
11
10
9
8
HRP HCSP HDDS HMUX HASP HDSP HROD
7
6
5
4
3
2
1
0
HEN HAEN HREN HCSEN HA9EN HA8EN HGEN
- Reserved bit. Read as 0. Should be written with 0, for future compatibility.
Figure 6-6 Host Port Control Register (HPCR) (X:$FFFFC4)
NOTE
To assure proper operation of the HDI08, the HPCR bits HAP, HRP, HCSP,
HDDS, HMUX, HASP, HDSP, HROD, HAEN and HREN should be
changed only if HEN is cleared. Also, the HPCR bits HAP, HRP, HCSP,
HDDS, HMUX, HASP, HDSP, HROD, HAEN, HREN, HCSEN, HA9EN
and HA8EN should not be set when HEN is set or simultaneously with
setting HEN.
6.5.6.1
HPCR Host GPIO Port Enable (HGEN) Bit 0
If the HGEN bit is set, pins configured as GPIO are enabled. If this bit is cleared, pins configured as GPIO
are disconnected: outputs are high impedance, inputs are electrically disconnected. Pins configured as
HDI08 are not affected by the state of HGEN.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-12
Freescale Semiconductor
HDI08 – DSP-Side Programmer’s Model
6.5.6.2
HPCR Host Address Line 8 Enable (HA8EN) Bit 1
If the HA8EN bit is set and the HDI08 is used in multiplexed bus mode, then HA8/HA1 is used as host
address line 8 (HA8). If this bit is cleared and the HDI08 is used in multiplexed bus mode, then HA8/HA1
is configured as GPIO pin according to the value of HDDR and HDR registers. HA8EN is ignored when
the HDI08 is not in the multiplexed bus mode (HMUX=0).
6.5.6.3
HPCR Host Address Line 9 Enable (HA9EN) Bit 2
If the HA9EN bit is set and the HDI08 is used in multiplexed bus mode, then HA9/HA2 is used as host
address line 9 (HA9). If this bit is cleared and the HDI08 is used in multiplexed bus mode, then HA9/HA2
is configured as GPIO pin according to the value of HDDR and HDR registers. HA9EN is ignored when
the HDI08 is not in the multiplexed bus mode (HMUX=0).
6.5.6.4
HPCR Host Chip Select Enable (HCSEN) Bit 3
If the HCSEN bit is set, then HCS/HA10 is used as host chip select (HCS) in the non-multiplexed bus
mode (HMUX=0), and as host address line 10 (HA10) in the multiplexed bus mode (HMUX=1). If this bit
is cleared, then HCS/HA10 is configured as GPIO pin according to the value of HDDR and HDR registers.
6.5.6.5
HPCR Host Request Enable (HREN) Bit 4
The HREN bit controls the host request signals. If HREN is set and the HDI08 is in the single host request
mode (HDRQ=0 in the ICR), HOREQ/HTRQ is configured as the host request (HOREQ) output.
If HREN is set in the double host request mode (HDRQ=1 in the ICR), HOREQ/HTRQ is configured as
the host transmit request (HTRQ) output and HACK/HRRQ as the host receive request (HRRQ) output.
If HREN is cleared, HOREQ/HTRQ and HACK/HRRQ are configured as GPIO pins according to the
value of HDDR and HDR registers.
6.5.6.6
HPCR Host Acknowledge Enable (HAEN) Bit 5
The HAEN bit controls the HACK signal. In the single host request mode (HDRQ=0 in the ICR), if HAEN
and HREN are both set, HACK/HRRQ is configured as the host acknowledge (HACK) input. If HAEN or
HREN is cleared, HACK/HRRQ is configured as a GPIO pin according to the value of HDDR and HDR
registers. In the double host request mode (HDRQ=1 in the ICR), HAEN is ignored.
6.5.6.7
HPCR Host Enable (HEN) Bit 6
If the HEN bit is set, the HDI08 operation is enabled as Host Interface. If cleared, the HDI08 is not active,
and all the HDI08 pins are configured as GPIO pins according to the value of HDDR and HDR registers.
6.5.6.8
HPCR Reserved Bit 7
This bit is reserved. It reads as zero and should be written with zero for future compatibility.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-13
HDI08 – DSP-Side Programmer’s Model
6.5.6.9
HPCR Host Request Open Drain (HROD) Bit 8
The HROD bit controls the output drive of the host request signals. In the single host request mode
(HDRQ=0 in ICR), if HROD is cleared and host requests are enabled (HREN=1 and HEN=1 in HPCR),
the HOREQ signal is always driven. If HROD is set and host requests are enabled, the HOREQ signal is
an open drain output.
In the double host request mode (HDRQ=1 in the ICR), if HROD is cleared and host requests are enabled
(HREN=1 and HEN=1 in the HPCR), the HTRQ and HRRQ signals are always driven. If HROD is set and
host requests are enabled, the HTRQ and HRRQ signals are open drain outputs.
6.5.6.10
HPCR Host Data Strobe Polarity (HDSP) Bit 9
If the HDSP bit is cleared, the data strobe signals are configured as active low inputs, and data is
transferred when the data strobe is low. If HDSP is set, the data strobe signals are configured as active high
inputs, and data is transferred when the data strobe is high. The data strobe signals are either HDS by itself
or HRD and HWR together.
6.5.6.11
HPCR Host Address Strobe Polarity (HASP) Bit 10
If the HASP bit is cleared, the address strobe (HAS) signal is an active low input, and the address on the
host address/data bus is sampled when the HAS signal is low. If HASP is set, HAS is an active high address
strobe input, and the address on the host address/data bus 8 is sampled when the HAS signal is high.
6.5.6.12
HPCR Host Multiplexed bus (HMUX) Bit 11
If the HMUX bit is set, the HDI08 latches the lower portion of a multiplexed address/data bus. In this mode
the internal address line values of the host registers are taken from the internal latch. If HMUX is cleared,
it indicates that the HDI08 is connected to a non-multiplexed type of bus, and the address lines are taken
from the HDI08 input signals.
6.5.6.13
HPCR Host Dual Data Strobe (HDDS) Bit 12
If the HDDS bit is cleared, the HDI08 operates in the single strobe bus mode. In this mode, the bus has a
single data strobe signal for both reads and writes. If HDDS is set, the HDI08 operates in the dual strobe
bus mode. In this mode, the bus has two separate data strobes, one for data reads, the other for data writes.
See Figure 6-7 and Figure 6-8 for more information on the two types of buses.
HRW
HDS
In the single strobe bus mode, the HDS (Data-Strobe) signal qualifies the access, while the
HRW (Read/Write) signal specifies the direction of the access.
Figure 6-7 Single strobe bus
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-14
Freescale Semiconductor
HDI08 – DSP-Side Programmer’s Model
Write data in
Data
HWR
Write cycle
Read data out
Data
HRD
Read cycle
In the dual strobe bus mode, there are separate HRD and HWR signals that specify the access
as being a read or write access, respectively.
Figure 6-8 Dual strobes bus
6.5.6.14
HPCR Host Chip Select Polarity (HCSP) Bit 13
If the HCSP bit is cleared, the chip select (HCS) signal is configured as an active low input and the HDI08
is selected when the HCS signal is low. If HCSP is set, HCS is configured as an active high input and the
HDI08 is selected when the HCS signal is high. This bit is ignored in the multiplexed mode.
6.5.6.15
HPCR Host Request Polarity (HRP) Bit 14
The HRP bit controls the polarity of the host request signals. In the single host request mode (HDRQ=0 in
the ICR), if HRP is cleared and host requests are enabled (HREN=1 and HEN=1 in the HPCR), the
HOREQ signal is an active low output. If HRP is set and host requests are enabled, the HOREQ signal is
an active high output.
In the double host request mode (HDRQ=1 in the ICR), if HRP is cleared and host requests are enabled
(HREN=1 and HEN=1 in the HPCR), the HTRQ and HRRQ signals are active low outputs. If HRP is set
and host requests are enabled, the HTRQ and HRRQ signals are active high outputs.
6.5.6.16
HPCR Host Acknowledge Polarity (HAP) Bit 15
If the HAP bit is cleared, the host acknowledge (HACK) signal is configured as an active low input, and
the HDI08 drives the contents of the HIVR register onto the host bus when the HACK signal is low. If
HAP is set, HACK is configured as an active high input, and the HDI08 outputs the contents of the HIVR
register when the HACK signal is high.
6.5.7
Data direction register (HDDR)
The HDDR controls the direction of the data flow for each of the HDI08 pins configured as GPIO. Even
when the HDI08 is used as the host interface, some of its unused signals may be configured as GPIO pins.
For information on the HDI08 GPIO configuration options, see Section 6.6.8, "General Purpose
INPUT/OUTPUT (GPIO)". If bit DRxx is set, the corresponding HDI08 pin is configured as an output
signal. If bit DRxx is cleared, the corresponding HDI08 pin is configured as an input signal. See Table 6-6.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-15
HDI08 – DSP-Side Programmer’s Model
15
14
13
12
11
10
DR15 DR14 DR13 DR12 DR11 DR10
9
8
7
6
5
4
3
2
1
0
DR9
DR8
DR7
DR6
DR5
DR4
DR3
DR2
DR1
DR0
Figure 6-9 Host Data Direction Register (HDDR) (X:$FFFFC8)
6.5.8
Host Data Register (HDR)
The HDR register holds the data value of the corresponding bits of the HDI08 pins which are configured
as GPIO pins. The functionality of the Dxx bit depends on the corresponding HDDR bit (DRxx). See
Table 6-6.
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Figure 6-10 Host Data Register (HDR) (X:$FFFFC9)
Table 6-6 HDR and HDDR Functionality
HDDR
HDR
Dxx
DRxx
GPIO pin1
0
Read only bit. The value read is the binary value of
the pin.
non-GPIO pin1
Read only bit. Does not contain significant data.
The corresponding pin is configured as an input.
1
1
Read/write bit. The value written is the value read.
Read/write bit. The value written is the value read.
The corresponding pin is configured as an output, and
is driven with the data written to Dxx.
Defined by the selected configuration
6.5.9
DSP-Side Registers After Reset
Table 6-7 shows the results of the four reset types on the bits in each of the HDI08 registers accessible by
the DSP core. The hardware reset (HW) is caused by the RESET signal. The software reset (SW) is caused
by executing the RESET instruction. The individual reset (IR) is caused by clearing the HEN bit (HPCR
bit 6). The stop reset (ST) is caused by executing the STOP instruction.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-16
Freescale Semiconductor
HDI08 – DSP-Side Programmer’s Model
Table 6-7 DSP-Side Registers after Reset
Reset Type
Register
Name
Register
Data
HCR
HW
Reset
SW
Reset
IR
Reset
ST
Reset
All bits
0
0
—
—
HPCR
All bits
0
0
—
—
HSR
HF[1:0]
0
0
—
—
HCP
0
0
0
0
HTDE
1
1
1
1
HRDF
0
0
0
0
DMA
0
0
—
—
HBAR
BA[10:3]
$80
$80
—
—
HDDR
DR[15:0]
0
0
—
—
HDR
D[15:0]
—
—
—
—
HORX
HORX[23:0]
empty
empty
empty
empty
HOTX
HOTX[23:0]
empty
empty
empty
empty
Note: A long dash (—) denotes that the register value is not affected by the specified reset.
6.5.10
Host Interface DSP Core Interrupts
The HDI08 may request interrupt service from either the DSP core or the host processor. The DSP core
interrupts are internal and do not require the use of an external interrupt pin. When the appropriate interrupt
enable bit in the HCR is set, an interrupt condition caused by the host processor sets the appropriate bit in
the HSR, generating an interrupt request to the DSP core. The DSP core acknowledges interrupts caused
by the host processor by jumping to the appropriate interrupt service routine. The three possible interrupts
are as follows:
• Host command
• Transmit data register empty
• Receive data register full
Although there is a set of vectors reserved for host command use, the host command can access any
interrupt vector in the interrupt vector table. The DSP interrupt service routine must read or write the
appropriate HDI08 register (clearing HRDF or HTDE, for example) to clear the interrupt. In the case of
host command interrupts, the interrupt acknowledge from the DSP core program controller clears the
pending interrupt condition. Figure 6-11 illustrates the HSR-HCR operation.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-17
HDI08 – External Host Programmer’s Model
ENABLE
15
0
HF3
X:HCR
HF2
HCIE
HTIE
HRIE
HCR
DSP CORE INTERRUPTS
RECIEVE DATA FULL
TRANSMIT DATA EMPTY
HOST COMMAND
15
X:HSR
0
HF1
HF0
HCP
HTDE
HRDF
HSR
STATUS
Figure 6-11 HSR-HCR Operation
6.6
HDI08 – External Host Programmer’s Model
The HDI08 has been designed to provide a simple, high speed interface to a host processor. To the host
bus, the HDI08 appears to be eight byte-wide registers. Separate transmit and receive data registers are
double-buffered to allow the DSP core and host processor to transfer data efficiently at high speed. The
host may access the HDI08 asynchronously by using polling techniques or interrupt-based techniques.
The HDI08 appears to the host processor as a memory-mapped peripheral occupying 8 bytes in the host
processor address space (See Table 6-8). The eight HDI08 include the following:
• A control register (ICR)
• A status register (ISR)
• Three data registers (RXH/TXH, RXM/TXM and RXL/TXL)
• Two vector registers (IVR and CVR)
These registers can be accessed only by the host processor.
Host processors may use standard host processor instructions (e.g., byte move) and addressing modes to
communicate with the HDI08 registers. The HDI08 registers are aligned so that 8-bit host processors can
use 8/16/24-bit load and store instructions for data transfers. The HOREQ/HTRQ and HACK/HRRQ
handshake flags are provided for polled or interrupt-driven data transfers with the host processor. Because
the DSP interrupt response, most host microprocessors can load or store data at their maximum
programmed I/O instruction rate without testing the handshake flags for each transfer. If full handshake is
not needed, the host processor can treat the DSP as a fast device, and data can be transferred between the
host processor and the DSP at the fastest host processor data rate.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-18
Freescale Semiconductor
HDI08 – External Host Programmer’s Model
One of the most innovative features of the host interface is the host command feature. With this feature,
the host processor can issue vectored interrupt requests to the DSP core. The host may select any of 128
DSP interrupt routines to be executed by writing a vector address register in the HDI08. This flexibility
allows the host programmer to execute up to 128 pre-programmed functions inside the DSP. For example,
host interrupts can allow the host processor to read or write DSP registers (X, Y, or program memory
locations), force interrupt handlers (e.g. IRQA, IRQB, etc. interrupt routines), and perform control and
debugging operations if interrupt routines are implemented in the DSP to perform these tasks.
Table 6-8 HDI08 Host Side Register Map
1
6.6.1
Host
Address
Big Endian
HLEND=0
Little Endian
HLEND=1
Function
0
ICR
ICR
Interface Control
1
CVR
CVR
Command Vector
2
ISR
ISR
Interface Status
3
IVR
IVR
Interrupt Vector
4
00000000
00000000
Unused
5
RXH/TXH1
RXL/TXL
6
RXM/TXM
RXM/TXM
7
RXL/TXL
RXH/TXH
Host Data Bus
H0 - H7
Host Data Bus
H0 - H7
Receive/Transmit
Bytes
The RXH/TXH register is always mapped to the most significant byte of the DSP word.
Interface Control Register (ICR)
The ICR is an 8-bit read/write control register used by the host processor to control the HDI08 interrupts
and flags. The ICR cannot be accessed by the DSP core. The ICR is a read/write register, which allows the
use of bit manipulation instructions on control register bits. The control bits are described in the following
paragraphs.
Bits 2, 5 and 6 of the ICR are affected by the condition of HDM[2:0] (HCR bits 5-7), as shown in
Figure 6-12.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-19
HDI08 – External Host Programmer’s Model
7
6
5
4
3
2
1
0
HLEND
HF1
HF0
HDRQ
TREQ
RREQ
For HDM[2:0]=000
INIT
For HDM[2:0]=100
INIT
HM1
HM0
HF1
HF0
TREQ
RREQ
For HDM1=1 and/or HDM0=1
INIT
HDM1
HDM0
HF1
HF0
TREQ
RREQ
HDM[1:0] - These read-only bits reflect the value of the HDM[1:0] bits in the HCR.
- Reserved bit. Read as 0. Should be written with 0 for future compatibility.
Figure 6-12 Interface Control Register (ICR)
6.6.1.1
ICR Receive Request Enable (RREQ) Bit 0
In interrupt mode (HDM[2:0]=000 or HM[1:0]=00), RREQ is used to enable host receive data requests via
the host request (HOREQ or HRRQ) signal when the receive data register full (RXDF) status bit in the
ISR is set. If RREQ is cleared, RXDF requests are disabled. If RREQ is set, the host request signal
(HOREQ or HRRQ) is asserted if RXDF is set.
In the DMA modes where HDM[2:0]=100 and (HM1≠0 or HM0≠0), RREQ must be set and TREQ must
be cleared to direct DMA transfers from DSP to host. In the other DMA modes, RREQ is ignored.
Table 6-9 summarizes the effect of RREQ and TREQ on the HOREQ, HTRQ and HRRQ signals.
6.6.1.2
ICR Transmit Request Enable (TREQ) Bit 1
In interrupt mode (HDM[2:0]=000 or HM[1:0]=00), TREQ is used to enable host transmit data requests
via the host request (HOREQ or HTRQ) signal when the transmit data register empty (TXDE) status bit
in the ISR is set. If TREQ is cleared, TXDE requests are disabled. If TREQ is set, the host request signal
(HOREQ or HTRQ) is asserted if TXDE is set.
In the DMA modes where HDM[2:0]=100 and (HM1≠0 or HM0≠0), TREQ must be set and RREQ must
be cleared to direct DMA transfers from host to DSP. In the other DMA modes, TREQ is ignored.
Table 6-9 summarizes the effect of RREQ and TREQ on the HOREQ, HTRQ and HRRQ signals.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-20
Freescale Semiconductor
HDI08 – External Host Programmer’s Model
Table 6-9 TREQ RREQ Interrupt Mode (HDM[2:0]=000 or HM[1:0]=00)
HDRQ=0
TREQ
HDRQ=1
RREQ
HOREQ signal
HTRQ signal
HRRQ signal
0
0
No Interrupts (Polling)
No Interrupts (Polling)
No Interrupts (Polling)
0
1
RXDF Request (Interrupt)
No Interrupts (Polling)
RXDF Request (Interrupt)
1
0
TXDE Request (Interrupt)
TXDE Request (Interrupt)
No Interrupts (Polling)
1
1
RXDF and TXDE Requests (Interrupts)
TXDE Request (Interrupt)
RXDF Request (Interrupt)
Table 6-10 TREQ RREQ DMA Mode (HM1≠0 or HM0≠0)
TREQ
RREQ
HDRQ=0
HDRQ=1
HOREQ signal
HTRQ signal
HRRQ signal
0
0
No DMA request
No DMA request
No DMA request
0
1
DSP to Host Request (RX)
No DMA request
DSP to Host Request (RX)
1
0
Host to DSP Request (TX)
Host to DSP Request (TX)
No DMA request
1
1
Reserved
Reserved
Reserved
6.6.1.3
ICR Double Host Request (HDRQ) Bit 2
The HDRQ bit determines the functions of the HOREQ/HTRQ and HACK/HRRQ signals as shown in
Table 6-11.
Table 6-11 HDRQ
6.6.1.4
HDRQ
HOREQ/HTRQ pin
HACK/HRRQ pin
0
HOREQ signal
HACK signal
1
HTRQ signal
HRRQ signal
ICR Host Flag 0 (HF0) Bit 3
The HF0 bit is used as a general purpose flag for host-to-DSP communication. HF0 may be set or cleared
by the host processor and cannot be changed by the DSP core. HF0 is reflected in the HSR on the DSP side
of the HDI08.
6.6.1.5
ICR Host Flag 1 (HF1) Bit 4
The HF1 bit is used as a general purpose flag for host-to-DSP communication. HF1 may be set or cleared
by the host processor and cannot be changed by the DSP core. HF1 is reflected in the HSR on the DSP side
of the HDI08.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-21
HDI08 – External Host Programmer’s Model
6.6.1.6
ICR Host Little Endian (HLEND) Bit 5
If the HLEND bit is cleared, the HDI08 can be accessed by the host in big endian byte order. If set, the
HDI08 can be accessed by the host in little endian byte order. If the HLEND bit is cleared, the RXH/TXH
register is located at address $5, the RXM/TXM register is located at address $6, and the RXL/TXL
register is located at address $7. If the HLEND bit is set, the RXH/TXH register is located at address $7,
the RXM/TXM register is located at address $6, and the RXL/TXL is located at address $5. See Table 6-8
for an illustration of the effect of HLEND.
The HLEND function is available only if HDM[2:0]=000 in the host control register (HCR). When
HLEND is available, the ICR bit 6 has no function and should be regarded as reserved.
Bits 6 and 5 function as read/write HM[1:0] bits only when the HCR bits HDM[2:0]=100 (See Table 6-5).
The HM0 and HM1 bits select the transfer mode of the HDI08, as shown in Table 6-12.
Table 6-12 Host Mode Bit Definition
HM1
HM0
Mode
0
0
Interrupt Mode (DMA Off)
0
1
DMA Mode (24 Bit)
1
0
DMA Mode (16 Bit)
1
1
DMA Mode (8 Bit)
When both HM1 and HM0 are cleared, the DMA mode is disabled and the interrupt mode is enabled. In
interrupt mode, the TREQ and RREQ control bits are used for host processor interrupt control via the
external HOREQ output signal, and the HACK input signal is used for the MC68000 Family vectored
interrupt acknowledge input.
When HM1 and/or HM0 are set, they enable the DMA mode and determine the size of the DMA word to
be transferred. In the DMA mode, the HOREQ signal is used to request DMA transfers, the TREQ and
RREQ bits select the direction of DMA transfers (see Table 6-10), and the HACK input signal is used as
a DMA transfer acknowledge input. If the DMA direction is from DSP to host, the contents of the selected
register are enabled onto the host data bus when HACK is asserted. If the DMA direction is from host to
DSP, the selected register is written from the host data bus when HACK is asserted.
The size of the DMA word to be transferred is determined by the DMA control bits, HM0 and HM1. The
HDI08 host side data register selected during a DMA transfer is determined by a 2-bit address counter,
which is preloaded with the value in HM1 and HM0. The address counter substitutes for the HA1 and HA0
host address signals of the HDI08 during a DMA transfer. The host address signal HA2 is forced to one
during each DMA transfer. The address counter can be initialized with the INIT bit feature. After each
DMA transfer on the host data bus, the address counter is incremented to the next data register. When the
address counter reaches the highest register (RXL or TXL), the address counter is not incremented but is
loaded with the value in HM1 and HM0. This allows 8-, 16- or 24-bit data to be transferred in a circular
fashion and eliminates the need for the DMA controller to supply the HA2, HA1, and HA0 address signals.
For 16- or 24-bit data transfers, the DSP CPU interrupt rate is reduced by a factor of 2 or 3, respectively,
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-22
Freescale Semiconductor
HDI08 – External Host Programmer’s Model
from the host request rate – i.e., for every two or three host processor data transfers of one byte each, there
is only one 24-bit DSP CPU interrupt.
If either HDM1 or HDM0 in the HCR register are set, bits 6 and 5 become read-only bits that reflect the
value of HDM[1:0].
6.6.1.7
ICR Initialize Bit (INIT) Bit 7
The INIT bit is used by the host processor to force initialization of the HDI08 hardware. During
initialization, the HDI08 transmit and receive control bits are configured.
Using the INIT bit to initialize the HDI08 hardware may or may not be necessary, depending on the
software design of the interface.
The type of initialization done when the INIT bit is set depends on the state of TREQ and RREQ in the
HDI08. The INIT command, which is local to the HDI08, is designed to conveniently configure the HDI08
into the desired data transfer mode. The effect of the INIT command is described in Table 6-13. When the
host sets the INIT bit, the HDI08 hardware executes the INIT command. The interface hardware clears the
INIT bit after the command has been executed.
Table 6-13 INIT Command Effect
6.6.2
Transfer Direction
Initialized
TREQ
RREQ
After INIT Execution
0
0
INIT=0
None
0
1
INIT=0; RXDF=0; HTDE=1
DSP to Host
1
0
INIT=0; TXDE=1; HRDF=0
Host to DSP
1
1
INIT=0; RXDF=0; HTDE=1; TXDE=1; HRDF=0
Host to/from DSP
Command Vector Register (CVR)
The CVR is used by the host processor to cause the DSP core to execute an interrupt. The host command
feature is independent of any of the data transfer mechanisms in the HDI08. It can be used to invoke
execution of any of the 128 possible interrupt routines in the DSP core.
7
6
5
4
3
2
1
0
HC
HV6
HV5
HV4
HV3
HV2
HV1
HV0
Figure 6-13 Command Vector Register (CVR)
6.6.2.1
CVR Host Vector (HV[6:0]) Bits 0–6
The seven HV bits select the host command interrupt address to be used by the host command interrupt
logic. When the host command interrupt is recognized by the DSP interrupt control logic, the address of
the interrupt routine taken is 2 ∗ HV. The host can write HC and HV in the same write cycle.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-23
HDI08 – External Host Programmer’s Model
The host processor can select the starting address of any of the 128 possible interrupt routines in the DSP
by writing the interrupt routine address divided by 2 into the HV bits. The host processor can thus force
execution of any of the existing interrupt handlers (IRQA, IRQB, etc.) and can use any of the reserved or
otherwise unused addresses provided they have been pre-programmed in the DSP. HV[6:0] is set to $32
(vector location $0064) by hardware, software, individual and stop resets.
6.6.2.2
CVR Host Command Bit (HC) Bit 7
The HC bit is used by the host processor to handshake the execution of host command interrupts.
Normally, the host processor sets HC to request the host command interrupt from the DSP core. When the
host command interrupt is acknowledged by the DSP core, the HC bit is cleared by the HDI08 hardware.
The host processor can read the state of HC to determine when the host command has been accepted. After
setting HC, the host must not write to the CVR again until HC is cleared by the HDI08 hardware. Setting
HC causes the host command pending (HCP) in the HSR to be set. The host can write to the HC and HV
bits in the same write cycle.
6.6.3
Interface Status Register (ISR)
The ISR is an 8-bit read-only status register used by the host processor to interrogate the status and flags
of the HDI08. The host processor can write to this address without affecting the internal state of the HDI08,
which is useful if the user desires to access all of the HDI08 registers by stepping through the HDI08
addresses. The ISR cannot be accessed by the DSP core. The ISR bits are described in the following
paragraphs.
7
6
HREQ
5
4
3
2
1
0
HF3
HF2
TRDY
TXDE
RXDF
- Reserved bit. Read as 0. Should be written with 0 for future compatibility.
Figure 6-14 Interface Status Register (ISR)
6.6.3.1
ISR Receive Data Register Full (RXDF) Bit 0
The RXDF bit indicates that the receive byte registers (RXH:RXM:RXL) contain data from the DSP core
and may be read by the host processor. RXDF is set when the contents of HOTX is transferred to the
receive byte registers. RXDF is cleared when the receive data (RXL or RXH according to HLEND bit)
register is read by the host processor. RXDF can be cleared by the host processor using the initialize
function. RXDF may be used to assert the external HOREQ signal if the RREQ bit is set. Regardless of
whether the RXDF interrupt is enabled, RXDF indicates whether the RX registers are full and data can be
latched out (so that polling techniques may be used by the host processor).
6.6.3.2
ISR Transmit Data Register Empty (TXDE) Bit 1
The TXDE bit indicates that the transmit byte registers (TXH:TXM:TXL) are empty and can be written
by the host processor. TXDE is set when the contents of the transmit byte registers are transferred to the
HORX register. TXDE is cleared when the transmit (TXL or TXH according to HLEND bit) register is
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-24
Freescale Semiconductor
HDI08 – External Host Programmer’s Model
written by the host processor. TXDE can be set by the host processor using the initialize feature. TXDE
may be used to assert the external HOREQ signal if the TREQ bit is set. Regardless of whether the TXDE
interrupt is enabled, TXDE indicates whether the TX registers are full and data can be latched in (so that
polling techniques may be used by the host processor).
6.6.3.3
ISR Transmitter Ready (TRDY) Bit 2
The TRDY status bit indicates that TXH:TXM:TXL and the HORX registers are empty.
TRDY=TXDE • HRDF
If TRDY is set, the data that the host processor writes to TXH:TXM:TXL is immediately transferred to
the DSP side of the HDI08. This feature has many applications. For example, if the host processor issues
a host command which causes the DSP core to read the HORX, the host processor can be guaranteed that
the data it just transferred to the HDI08 is what is being received by the DSP core.
6.6.3.4
ISR Host Flag 2 (HF2) Bit 3
The HF2 bit in the ISR indicates the state of host flag 2 in the HCR on the DSP side. HF2 can be changed
only by the DSP (see Section 6.5.3.4, "HCR Host Flags 2,3 (HF2,HF3) Bits 3-4").
6.6.3.5
ISR Host Flag 3 (HF3) Bit 4
The HF3 bit in the ISR indicates the state of host flag 3 in the HCR on the DSP side. HF3 can be changed
only by the DSP (see Section 6.5.3.4, "HCR Host Flags 2,3 (HF2,HF3) Bits 3-4").
6.6.3.6
ISR Reserved Bits 5-6
These bits are reserved. They read as zero and should be written with zero for future compatibility.
6.6.3.7
ISR Host Request (HREQ) Bit 7
The HREQ bit indicates the status of the external host request output signal (HOREQ) if HDRQ is cleared.
If HDRQ is set, it indicates the status of the external transmit and receive request output signals (HTRQ
and HRRQ).
Table 6-14 Host Request Status (HREQ)
HREQ
Status [HDRQ=0]
Status [HDRQ=1]
0
HOREQ deasserted; no host processor interrupt is
requested
HTRQ and HRRQ deasserted; no host processor
interrupts are requested
1
HOREQ asserted; a host processor interrupt is
requested
HTRQ and/or HRRQ asserted; host processor
interrupts are requested
The HREQ bit may be set from either or both of two conditions – either the receive byte registers are full
or the transmit byte registers are empty. These conditions are indicated by the ISR RXDF and TXDE status
bits, respectively. If the interrupt source has been enabled by the associated request enable bit in the ICR,
HREQ is set if one or more of the two enabled interrupt sources is set.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-25
HDI08 – External Host Programmer’s Model
6.6.4
Interrupt Vector Register (IVR)
The IVR is an 8-bit read/write register which typically contains the interrupt vector number used with
MC68000 Family processor vectored interrupts. Only the host processor can read and write this register.
The contents of IVR are placed on the host data bus (H0–H7) when both the HOREQ and HACK signals
are asserted. The contents of this register are initialized to $0F by hardware or software reset, which
corresponds to the uninitialized interrupt vector in the MC68000 Family.
7
6
5
4
3
2
1
0
IV7
IV6
IV5
IV4
IV3
IV2
IV1
IV0
Figure 6-15 Interrupt Vector Register (IVR)
6.6.5
Receive Byte Registers (RXH:RXM:RXL)
The receive byte registers are viewed by the host processor as three 8-bit read-only registers. These
registers are the receive high register (RXH), the receive middle register (RXM) and the receive low
register (RXL). They receive data from the high, middle and low bytes, respectively, of the HOTX register
and are selected by the external host address inputs (HA2, HA1 and HA0) during a host processor read
operation.
The memory locations of the receive byte registers are determined by the HLEND bit in the ICR. If the
HLEND bit is set, the RXH is located at address $7, RXM at $6 and RXL at $5. If the HLEND bit is
cleared, the RXH is located at address $5, RXM at $6 and RXL at $7.
When data is transferred from the HOTX register to the receive byte registers, the receive data register full
(RXDF) bit is set. The host processor may program the RREQ bit to assert the external HOREQ/HRRQ
signal when RXDF is set. This indicates that the HDI08 has a full word (either 8, 16 or 24 bits) for the host
processor. When the host reads the receive byte register at host address $7, the RXDF bit is cleared.
6.6.6
Transmit Byte Registers (TXH:TXM:TXL)
The transmit byte registers are viewed as three 8-bit write-only registers by the host processor. These
registers are the transmit high register (TXH), the transmit middle register (TXM) and the transmit low
register (TXL). These registers send data to the high, middle and low bytes, respectively, of the HORX
register and are selected by the external host address inputs (HA2, HA1 and HA0) during a host processor
write operation.
If the HLEND bit in the ICR is cleared, the TXH is located at address $5, TXM at $6 and TXL at $7. If
the HLEND bit in the ICR is set, the TXH is located at address $7, TXM at $6 and TXL at $5.
Data may be written into the transmit byte registers when the transmit data register empty (TXDE) bit is
set. The host processor may program the TREQ bit to assert the external HOREQ/HTRQ signal when
TXDE is set. This informs the host processor that the transmit byte registers are empty. Writing to the data
register at host address $7 clears the TXDE bit. The contents of the transmit byte registers are transferred
as 24-bit data to the HORX register when both TXDE and the HRDF bit are cleared. This transfer
operation sets TXDE and HRDF.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-26
Freescale Semiconductor
HDI08 – External Host Programmer’s Model
6.6.7
Host Side Registers After Reset
Table 6-15 shows the result of the four kinds of reset on bits in each of the HDI08 registers seen by the
host processor. The hardware reset (HW) is caused by asserting the RESET signal. The software reset
(SW) is caused by executing the RESET instruction. The individual reset (IR) is caused by clearing the
HEN bit in the HPCR register. The stop reset (ST) is caused by executing the STOP instruction.
Table 6-15 Host Side Registers After Reset
Reset Type
Register
Name
Register
Data
ICR
CVR
HW
Reset
SW
Reset
IR
Reset
ST
Reset
All Bits
0
0
—
—
HC
0
0
0
0
HV[6:0]
$32
$32
—
—
HREQ
0
0
1 if TREQ is set;
0 otherwise
1 if TREQ is set;
0 otherwise
HF3-HF2
0
0
—
—
TRDY
1
1
1
1
TXDE
1
1
1
1
RXDF
0
0
0
0
IVR
IV[7:0]
$0F
$0F
—
—
RX
RXH:RXM:RXL
empty
empty
empty
empty
TX
TXH:TXM:TXL
empty
empty
empty
empty
ISR
Note: A long dash (—) denotes that the register value is not affected by the specified reset.
6.6.8
General Purpose INPUT/OUTPUT (GPIO)
When configured as general-purpose I/O, the HDI08 is viewed by the DSP core as memory-mapped
registers (see Section 6.5, "HDI08 – DSP-Side Programmer’s Model") that control up to 16 I/O pins. The
software and hardware resets clear all DSP-side control registers and configure the HDI08 as GPIO with
all 16 signals disconnected. External circuitry connected to the HDI08 may need external
pull-up/pull-down resistors until the signals are configured for operation. The registers cleared are the
HPCR, HDDR and HDR. Selection between GPIO and HDI08 is made by clearing HPCR bits 6 through
1 for GPIO or setting these bits for HDI08 functionality. If the HDI08 is in GPIO mode, the HDDR
configures each corresponding signal in the HDR as an input signal if the HDDR bit is cleared or as an
output signal if the HDDR bit is set (see Section 6.5.7, "Data direction register (HDDR)" and
Section 6.5.8, "Host Data Register (HDR)").
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-27
Servicing The Host Interface
6.7
Servicing The Host Interface
The HDI08 can be serviced by using one of the following protocols:
• Polling
• Interrupts
6.7.1
HDI08 Host Processor Data Transfer
To the host processor, the HDI08 appears as a contiguous block of static RAM. To transfer data between
itself and the HDI08, the host processor performs the following steps:
1. Asserts the HDI08 address to select the register to be read or written.
2. Selects the direction of the data transfer. If it is writing, the host processor drives the data on the
bus.
3. Strobes the data transfer.
6.7.2
Polling
In the polling mode of operation, the HOREQ/HTRQ signal is not connected to the host processor and
HACK must be deasserted to ensure IVR data is not being driven on H0-H7 when other registers are being
polled.
The host processor first performs a data read transfer to read the ISR register.This allows the host processor
to assess the status of the HDI08:
1. If RXDF=1, the receive byte registers are full and therefore a data read can be performed by the
host processor.
2. If TXDE=1, the transmit byte registers are empty. A data write can be performed by the host
processor.
3. If TRDY=1, the transmit byte registers and the receive data register on the DSP side are empty.
Data written by the host processor is transferred directly to the DSP side.
4. If (HF2 • HF3) ≠ 0, depending on how the host flags have been defined, may indicate an
application-specific state within the DSP core has been reached. Intervention by the host processor
may be required.
5. If HREQ=1, the HOREQ/HTRQ/HRRQ signal has been asserted, and the DSP is requesting the
attention of the host processor. One of the previous four conditions exists.
After the appropriate data transfer has been made, the corresponding status bit is updated to reflect the
transfer.
If the host processor has issued a command to the DSP by writing the CVR and setting the HC bit, it can
read the HC bit in the CVR to determine when the command has been accepted by the interrupt controller
in the DSP core. When the command has been accepted for execution, the HC bit is cleared by the interrupt
controller in the DSP core.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-28
Freescale Semiconductor
Servicing The Host Interface
STATUS
7
$2
0
HREQ
0
0
HF3
HF2
TRDY
TXDE
ISR
RXDF
HRRQ
Host Request
ASSERTED
HOREQ
HTRQ
7
$0
0
INIT
0
HLEND
HF1
HF0
HDRQ
TREQ
RREQ
ICR
ENABLE
Figure 6-16 HDI08 Host Request Structure
6.7.3
Servicing Interrupts
If either the HOREQ/HTRQ or the HRRQ signal or both are connected to the host processor interrupt
inputs, the HDI08 can request service from the host processor by asserting one of these signals. The
HOREQ/HTRQ and/or the HRRQ signal is asserted when TXDE=1 and/or RXDF=1 and the
corresponding enable bit (TREQ or RREQ, respectively) is set. This is depicted in Figure 6-16.
HOREQ/HTRQ and HRRQ are normally connected to the host processor maskable interrupt inputs. The
host processor acknowledges host interrupts by executing an interrupt service routine. The host processor
can test RXDF and TXDE to determine the interrupt source. The host processor interrupt service routine
must read or write the appropriate HDI08 data register to clear the interrupt. HOREQ/HTRQ and/or HRRQ
is deasserted under the following conditions:
• The enabled request is cleared or masked
• The DSP is reset.
If the host processor is a member of the MC68000 family, there is no need for the additional step when the
host processor reads the ISR to determine how to respond to an interrupt generated by the DSP. Instead,
the DSP automatically sources the contents of the IVR on the data bus when the host processor
acknowledges the interrupt by asserting HACK. The contents of the IVR are placed on the host data bus
while HOREQ and HACK are simultaneously asserted. The IVR data tells the MC680XX host processor
which interrupt routine to execute to service the DSP.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
6-29
Servicing The Host Interface
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
6-30
Freescale Semiconductor
7
Serial Host Interface
7.1
Introduction
The Serial Host Interface (SHI) is a serial I/O interface that provides a path for communication and
program/coefficient data transfers between the DSP and an external host processor. The SHI can also
communicate with other serial peripheral devices. The SHI supports two well-known and widely used
synchronous serial buses: the Freescale Serial Peripheral Interface (SPI) bus and the Philips
Inter-Integrated-Circuit Control (I2C) bus. The SHI supports either bus protocol as either a slave or a
single-master device. To minimize DSP overhead, the SHI supports 8-bit, 16-bit and 24-bit data transfers.
The SHI has a 1 or 10-word receive FIFO that permits receiving up to 30 bytes before generating a receive
interrupt, reducing the overhead for data reception.
When configured in the SPI mode, the SHI can perform the following functions:
• Identify its slave selection (in slave mode)
• Simultaneously transmit (shift out) and receive (shift in) serial data
• Directly operate with 8-, 16- and 24-bit words
• Generate vectored interrupts separately for receive and transmit events and update status bits
• Generate a separate vectored interrupt for a receive exception
• Generate a separate vectored interrupt for a bus-error exception
• Generate the serial clock signal (in master mode)
• Trigger DMA interrupts to service the transmit and receive events
When configured in the I2C mode, the SHI can perform the following functions:
•
•
•
•
•
•
•
•
•
•
•
•
Detect/generate start and stop events
Identify its slave (ID) address (in slave mode)
Identify the transfer direction (receive/transmit)
Transfer data byte-wise according to the SCL clock line
Generate ACK signal following a byte receive
Inspect ACK signal following a byte transmit
Directly operate with 8-, 16- and 24-bit words
Generate vectored interrupts separately for receive and transmit events and update status bits
Generate a separate vectored interrupt for a receive exception
Generate a separate vectored interrupt for a bus error exception
Generate the clock signal (in master mode)
Trigger DMA interrupts to service the transmit and receive events
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
7-1
Serial Host Interface Internal Architecture
7.2
Serial Host Interface Internal Architecture
The DSP views the SHI as a memory-mapped peripheral in the X data memory space. The DSP uses the
SHI as a normal memory-mapped peripheral using standard polling or interrupt programming techniques
and DMA transfers. Memory mapping allows DSP communication with the SHI registers to be
accomplished using standard instructions and addressing modes. In addition, the MOVEP instruction
allows interface-to-memory and memory-to-interface data transfers without going through an intermediate
register. The DMA controller may be used to service the receive or transmit data path. The single master
configuration allows the DSP to directly connect to dumb peripheral devices. For that purpose, a
programmable baud-rate generator is included to generate the clock signal for serial transfers. The host
side invokes the SHI for communication and data transfer with the DSP through a shift register that may
be accessed serially using either the I2C or the SPI bus protocols. Figure 7-1 shows the SHI block diagram.
Host Accessible
DSP Accessible
DSP
Global
Data
Bus
Clock
Generator
SCK/SCL
HCSR
MISO/SDA
MOSI/HA0
DSP
DMA
Data
Bus
HCKR
Controller
Logic
Pin
Control
Logic
HTX
INPUT/OUTPUT Shift Register
(IOSR)
SS/HA2
HREQ
Slave
Address
Recognition
Unit
(SAR)
HRX
(FIFO)
HSAR
24 BIT
AA0416
Figure 7-1 Serial Host Interface Block Diagram
7.3
SHI Clock Generator
The SHI clock generator generates the SHI serial clock if the interface operates in the master mode. The
clock generator is disabled if the interface operates in the slave mode, except in I2C mode when the
HCKFR bit is set in the HCKR register. When the SHI operates in the slave mode, the clock is external
and is input to the SHI (HMST = 0). Figure 7-2 illustrates the internal clock path connections. It is the
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
7-2
Freescale Semiconductor
Serial Host Interface Programming Model
user’s responsibility to select the proper clock rate within the range as defined in the I2C and SPI bus
specifications.
HMST
SHI Clock
SCK/SCL
FOSC
Divide
By 2
HMST = 0
Divide By 1
To
Divide By 256
Divide By
1 or 8
HDM0–HDM7
HRS
Clock
Logic
SHI
Controller
CPHA, CPOL, HI2C
AA0417
HMST = 1
Figure 7-2 SHI Clock Generator
7.4
Serial Host Interface Programming Model
The Serial Host Interface programming model has two parts:
• Host side—see Figure 7-3 below and Section 7.4.1, "SHI Input/Output Shift Register
(IOSR)—Host Side"
• DSP side—see Figure 7-4 and Section 7.4.2, "SHI Host Transmit Data Register (HTX)—DSP
Side" through Section 7.4.6, "SHI Control/Status Register (HCSR)—DSP Side" for detailed
information.
23
0
IOSR
I/O Shift Register (IOSR)
AA0418
Figure 7-3 SHI Programming Model—Host Side
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
7-3
7-4
HA5
HA6
HA4
21
HA3
20
22
21
20
21
HBER
22
HBUSY
HROE
20
HRFF
19
19
19
18
18
HA1
18
HRNE
17
17
17
16
16
16
HTDE
15
15
15
HTUE
14
14
14
Reserved bit, read as 0, should be written with 0 for future compatibility.
SHI Transmit Data Register (HTX)
(write only, X: $FFFF93)
23
SHI Receive Data FIFO (HRX)
(read only, X: $FFFF94)
23
23
SHI Control/Status Register (HCSR)
X: $FFFF91
23
SHI Clock Control Register (HCKR)
X: $FFFF90
22
23
SHI I2C Slave Address Register (HSAR)
X: $FFFF92
11
11
11
HTIE
9
HIDLE
10
HTX
HDM6
9
9
HBIE
HDM7
10
10
FIFO (10 Words Deep)
HRX
HRIE1 HRIE0
12
HFM0
HFM1
13
12
12
13
13
HRQE1
6
6
5
HDM2
5
5
4
HDM1
4
4
3
HDM0
3
3
HMST HFIFO HCKFR HM1
6
HDM3
HRQE0
7
HDM4
HDM5
8
7
7
8
8
HM0
2
HRS
2
2
AA0419
HEN
0
0
0
HI2C
CPHA
0
0
1
CPOL
1
1
Serial Host Interface Programming Model
Figure 7-4 SHI Programming Model—DSP Side
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
Serial Host Interface Programming Model
The SHI interrupt vector table is shown in Table 7-1 and the exception priorities generated by the SHI are
shown in Table 7-2.
Table 7-1 SHI Interrupt Vectors
Program Address
Interrupt Source
VBA:$0040
SHI Transmit Data
VBA:$0042
SHI Transmit Underrun Error
VBA:$0044
SHI Receive FIFO Not Empty
VBA:$0048
SHI Receive FIFO Full
VBA:$004A
SHI Receive Overrun Error
VBA:$004C
SHI Bus Error
Table 7-2 SHI Internal Interrupt Priorities
Priority
Highest
Interrupt
SHI Bus Error
SHI Receive Overrun Error
SHI Transmit Underrun Error
SHI Receive FIFO Full
SHI Transmit Data
Lowest
7.4.1
SHI Receive FIFO Not Empty
SHI Input/Output Shift Register (IOSR)—Host Side
The variable length Input/Output Shift Register (IOSR) can be viewed as a serial-to-parallel and
parallel-to-serial buffer in the SHI. The IOSR is involved with every data transfer in both directions (read
and write). In compliance with the I2C and SPI bus protocols, data is shifted in and out MSB first. In 8-bit
data transfer modes, the most significant byte of the IOSR is used as the shift register. In 16-bit data
transfer modes, the two most significant bytes become the shift register. In 24-bit transfer modes, the shift
register uses all three bytes of the IOSR (see Figure 7-5).
NOTE
The IOSR cannot be accessed directly either by the host processor or by the
DSP. It is fully controlled by the SHI controller logic.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
7-5
Serial Host Interface Programming Model
23
Mode of Operation
15
16
8-Bit Data
Mode
8
7
16-Bit Data
Mode
0
24-Bit Data
Mode
Stops Data When Data Mode is Selected
Passes Data When Data Mode is Selected
AA0420
Figure 7-5 SHI I/O Shift Register (IOSR)
7.4.2
SHI Host Transmit Data Register (HTX)—DSP Side
The host transmit data register (HTX) is used for DSP-to-Host data transfers. The HTX register is 24 bits
wide. Writing to the HTX register by DSP core instructions or by DMA transfers clears the HTDE flag.
The DSP may program the HTIE bit to cause a host transmit data interrupt when HTDE is set (see
Section 7.4.6.10, "HCSR Transmit-Interrupt Enable (HTIE)—Bit 11"). Data should not be written to the
HTX until HTDE is set in order to prevent overwriting the previous data. HTX is reset to the empty state
when in stop mode and during hardware reset, software reset, and individual reset.
In the 8-bit data transfer mode the most significant byte of the HTX is transmitted; in the 16-bit mode the
two most significant bytes, and in the 24-bit mode all the contents of HTX is transferred.
7.4.3
SHI Host Receive Data FIFO (HRX)—DSP Side
The 24-bit host receive data FIFO (HRX) is a 10-word deep, First-In-First-Out (FIFO) register used for
Host-to-DSP data transfers. The serial data is received via the shift register and then loaded into the HRX.
In the 8-bit data transfer mode, the most significant byte of the shift register is transferred to the HRX (the
other bits are cleared); in the 16-bit mode the two most significant bytes are transferred (the least
significant byte is cleared), and in the 24-bit mode, all 24 bits are transferred to the HRX. The HRX may
be read by the DSP while the FIFO is being loaded from the shift register. Reading all data from HRX
clears the HRNE flag. The HRX may be read by DSP core instructions or by DMA transfers. The HRX
FIFO is reset to the empty state when the chip is in stop mode, and during hardware reset, software reset,
and individual reset.
7.4.4
SHI Slave Address Register (HSAR)—DSP Side
The 24-bit slave address register (HSAR) is used when the SHI operates in the I2C slave mode and is
ignored in the other operational modes. HSAR holds five bits of the 7-bit slave device address. The SHI
also acknowledges the general call address specified by the I2C protocol (eight zeroes comprising a 7-bit
address and a R/W bit), but treats any following data bytes as regular data. That is, the SHI does not
differentiate between its dedicated address and the general call address. HSAR cannot be accessed by the
host processor.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
7-6
Freescale Semiconductor
Serial Host Interface Programming Model
7.4.4.1
HSAR Reserved Bits—Bits 19, 17–0
These bits are reserved. They read as zero and should be written with zero for future compatibility.
7.4.4.2
HSAR I2C Slave Address (HA[6:3], HA1)—Bits 23–20,18
Part of the I2C slave device address is stored in the read/write HA[6:3], HA1 bits of HSAR. The full 7-bit
slave device address is formed by combining the HA[6:3], HA1 bits with the HA0 and HA2 pins to obtain
the HA[6:0] slave device address. The full 7-bit slave device address is compared to the received address
byte whenever an I2C master device initiates an I2C bus transfer. During hardware reset or software reset,
HA[6:3] = 1011 and HA1 is cleared; this results in a default slave device address of 1011[HA2]0[HA0].
7.4.5
SHI Clock Control Register (HCKR)—DSP Side
The HCKR is a 24-bit read/write register that controls SHI clock generator operation. The HCKR bits
should be modified only while the SHI is in the individual reset state (HEN = 0 in the HCSR).
For proper SHI clock setup, please consult the datasheet. The programmer should not use the combination
HRS = 1 and HDM[7:0] = 00000000, since it may cause synchronization problems and improper operation
(it is an illegal combination).
The HCKR bits are cleared during hardware reset or software reset, except for CPHA, which is set. The
HCKR is not affected by the stop state.
The HCKR bits are described in the following paragraphs.
7.4.5.1
Clock Phase and Polarity (CPHA and CPOL)—Bits 1–0
The Clock Phase (CPHA) bit controls the relationship between the data on the master-in-slave-out (MISO)
and master-out-slave-in (MOSI) pins and the clock produced or received at the SCK pin. The CPOL bit
determines the clock polarity (1 = active-high, 0 = active-low).
The clock phase and polarity should be identical for both the master and slave SPI devices. CPHA and
CPOL are functional only when the SHI operates in the SPI mode, and are ignored in the I2C mode. The
CPHA bit is set and the CPOL bit is cleared during hardware reset and software reset.
The programmer may select any of four combinations of serial clock (SCK) phase and polarity when
operating in the SPI mode (See Figure 7-6).
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
7-7
Serial Host Interface Programming Model
SS
SCK (CPOL = 0, CPHA = 0)
SCK (CPOL = 0, CPHA = 1)
SCK (CPOL = 1, CPHA = 0)
SCK (CPOL = 1, CPHA = 1)
MISO/
MOSI
MSB
6
5
4
3
2
1
LSB
Internal Strobe for Data Capture
AA0421
Figure 7-6 SPI Data-To-Clock Timing Diagram
If CPOL is cleared, it produces a steady-state low value at the SCK pin of the master device whenever data
is not being transferred. If the CPOL bit is set, it produces a high value at the SCK pin of the master device
whenever data is not being transferred.
CPHA is used with the CPOL bit to select the desired clock-to-data relationship. The CPHA bit, in general,
selects the clock edge that captures data and allows it to change states. It has its greatest impact on the first
bit transmitted (MSB) in that it does or does not allow a clock transition before the data capture edge.
When the SHI is in slave mode and CPHA = 0, the SS line must be deasserted and asserted by the external
master between each successive word transfer. SS must remain asserted between successive bytes within
a word. The DSP core should write the next data word to HTX when HTDE = 1, clearing HTDE. However,
the data is transferred to the shift register for transmission only when SS is deasserted. HTDE is set when
the data is transferred from HTX to the shift register.
When the SHI is in slave mode and CPHA = 1, the SS line may remain asserted between successive word
transfers. The SS must remain asserted between successive bytes within a word. The DSP core should
write the next data word to HTX when HTDE = 1, clearing HTDE. The HTX data is transferred to the shift
register for transmission as soon as the shift register is empty. HTDE is set when the data is transferred
from HTX to the shift register.
When the SHI is in master mode and CPHA = 0, the DSP core should write the next data word to HTX
when HTDE = 1, clearing HTDE. The data is transferred immediately to the shift register for transmission.
HTDE is set only at the end of the data word transmission.
NOTE
The master is responsible for deasserting and asserting the slave device SS
line between word transmissions.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
7-8
Freescale Semiconductor
Serial Host Interface Programming Model
When the SHI is in master mode and CPHA = 1, the DSP core should write the next data word to HTX
when HTDE = 1, clearing HTDE. The HTX data is transferred to the shift register for transmission as soon
as the shift register is empty. HTDE is set when the data is transferred from HTX to the shift register.
7.4.5.2
HCKR Prescaler Rate Select (HRS)—Bit 2
The HRS bit controls a prescaler in series with the clock generator divider. This bit is used to extend the
range of the divider when slower clock rates are desired. When HRS is set, the prescaler is bypassed. When
HRS is cleared, the fixed divide-by-eight prescaler is operational. HRS is ignored when the SHI operates
in the slave mode, except for I2C when HCKFR is set. The HRS bit is cleared during hardware reset and
software reset.
NOTE
Use the equations in the SHI datasheet to determine the value of HRS for
the specific serial clock frequency required.
7.4.5.3
HCKR Divider Modulus Select (HDM[7:0])—Bits 10–3
The HDM[7:0] bits specify the divide ratio of the clock generator divider. A divide ratio between 1 and
256 (HDM[7:0] = $00 to $FF) may be selected. When the SHI operates in the slave mode, the HDM[7:0]
bits are ignored (except for I2C when HCKFR is set). The HDM[7:0] bits are cleared during hardware reset
and software reset.
NOTE
Use the equations in the SHI datasheet to determine the value of HDM[7:0]
for the specific serial clock frequency required.
7.4.5.4
HCKR Reserved Bits—Bits 23–14, 11
These bits in HCKR are reserved. They are read as zero and should be written with zero for future
compatibility.
7.4.5.5
HCKR Filter Mode (HFM[1:0]) — Bits 13–12
The read/write control bits HFM[1:0] specify the operational mode of the noise reduction filters, as
described in Table 7-3. The filters are designed to eliminate undesired spikes that might occur on the clock
and data-in lines and allow the SHI to operate in noisy environments when required. One filter is located
in the input path of the SCK/SCL line and the other is located in the input path of the data line (i.e., the
SDA line when in I2C mode, the MISO line when in SPI master mode, and the MOSI line when in SPI
slave mode).
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
7-9
Serial Host Interface Programming Model
Table 7-3 SHI Noise Reduction Filter Mode
HFM1
HFM0
Description
0
0
Bypassed (Disabled)
0
1
Reserved
1
0
Narrow Spike Tolerance
1
1
Wide Spike Tolerance
When HFM[1:0] = 00, the filter is bypassed (spikes are not filtered out). This mode is useful when higher
bit-rate transfers are required and the SHI operates in a noise-free environment.
When HFM[1:0] = 10, the narrow-spike-tolerance filter mode is selected. In this mode the filters eliminate
spikes with durations of up to 50ns. This mode is suitable for use in mildly noisy environments and
imposes some limitations on the maximum achievable bit-rate transfer.
When HFM[1:0] = 11, the wide-spike-tolerance filter mode is selected. In this mode the filters eliminate
spikes up to 100 ns. This mode is recommended for use in noisy environments; the bit-rate transfer is
strictly limited. The wide-spike- tolerance filter mode is highly recommended for use in I2C bus systems
as it fully conforms to the I2C bus specification and improves noise immunity.
NOTE
HFM[1:0] are cleared during hardware reset and software reset.
After changing the filter bits in the HCKR to a non-bypass mode (HFM[1:0] not equal to ‘00’), the
programmer should wait at least ten times the tolerable spike width before enabling the SHI (setting the
HEN bit in the HCSR). Similarly, after changing the HI2C bit in the HCSR or the CPOL bit in the HCKR,
while the filter mode bits are in a non-bypass mode (HFM[1:0] not equal to ‘00’), the programmer should
wait at least ten times the tolerable spike width before enabling the SHI (setting HEN in the HCSR).
7.4.6
SHI Control/Status Register (HCSR)—DSP Side
The HCSR is a 24-bit register that controls the SHI operation and reflects its status. The control bits are
read/write. The status bits are read-only. The bits are described in the following paragraphs. When in the
stop state or during individual reset, the HCSR status bits are reset to their hardware-reset state, while the
control bits are not affected.
7.4.6.1
HCSR Host Enable (HEN)—Bit 0
The read/write control bit HEN, when set, enables the SHI. When HEN is cleared, the SHI is disabled (that
is, it is in the individual reset state, see below). The HCKR and the HCSR control bits are not affected when
HEN is cleared. When operating in master mode, HEN should be cleared only when the SHI is idle
(HBUSY = 0). HEN is cleared during hardware reset and software reset.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
7-10
Freescale Semiconductor
Serial Host Interface Programming Model
7.4.6.1.1
SHI Individual Reset
While the SHI is in the individual reset state, SHI input pins are inhibited, output and bidirectional pins
are disabled (high impedance), the HCSR status bits and the transmit/receive paths are reset to the same
state produced by hardware reset or software reset. The individual reset state is entered following a
one-instruction-cycle delay after clearing HEN.
7.4.6.2
HCSR I2C/SPI Selection (HI2C)—Bit 1
The read/write control bit HI2C selects whether the SHI operates in the I2C or SPI modes. When HI2C is
cleared, the SHI operates in the SPI mode. When HI2C is set, the SHI operates in the I2C mode. HI2C
affects the functionality of the SHI pins as described in Section 2, "Signal/Connection Descriptions". It is
recommended that an SHI individual reset be generated (HEN cleared) before changing HI2C. HI2C is
cleared during hardware reset and software reset.
7.4.6.3
HCSR Serial Host Interface Mode (HM[1:0])—Bits 3–2
The read/write control bits HM[1:0] select the size of the data words to be transferred, as shown in
Table 7-4. HM[1:0] should be modified only when the SHI is idle (HBUSY = 0). HM[1:0] are cleared
during hardware reset and software reset
.
7.4.6.4
Table 7-4 SHI Data Size
HM1
HMO
Description
0
0
8-bit data
0
1
16-bit data
1
0
24-bit data
1
1
Reserved
HCSR I2C Clock Freeze (HCKFR)—Bit 4
The read/write control bit HCKFR determines the behavior of the SHI when the SHI is unable to service
the master request, when operating in the I2C slave mode. The HCKFR bit is used only in the I2C slave
mode; it is ignored otherwise.
If HCKFR is set, the SHI holds the clock line to GND if it is not ready to send data to the master during a
read transfer or if the input FIFO is full when the master attempts to execute a write transfer. In this way,
the master may detect that the slave is not ready for the requested transfer, without causing an error
condition in the slave. When HCKFR is set for transmit sessions, the SHI clock generator must be
programmed as if to generate the same serial clock as produced by the external master, otherwise
erroneous operation may result. The programmed frequency should be in the range of 1 to 0.75 times the
external clock frequency.
If HCKFR is cleared, any attempt from the master to execute a transfer when the slave is not ready results
in an overrun or underrun error condition.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
7-11
Serial Host Interface Programming Model
It is recommended that an SHI individual reset be generated (HEN cleared) before changing HCKFR.
HCKFR is cleared during hardware reset and software reset.
7.4.6.5
HCSR FIFO-Enable Control (HFIFO)—Bit 5
The read/write control bit HFIFO selects the receive FIFO size. When HFIFO is cleared, the FIFO has one
level. When HFIFO is set, the FIFO has 10 levels. It is recommended that an SHI individual reset be
generated (HEN cleared) before changing HFIFO. HFIFO is cleared during hardware reset and software
reset.
7.4.6.6
HCSR Master Mode (HMST)—Bit 6
The read/write control bit HMST determines the SHI operating mode. If HMST is set, the interface
operates in the master mode. If HMST is cleared, the interface operates in the slave mode. The SHI
supports a single-master configuration in both I2C and SPI modes.
When configured as an SPI master, the SHI drives the SCK line and controls the direction of the data lines
MOSI and MISO. The SS line must be held deasserted in the SPI master mode; if the SS line is asserted
when the SHI is in SPI master mode, a bus error is generated (the HCSR HBER bit is set—see
Section 7.4.6.18, "Host Bus Error (HBER)—Bit 21").
When configured as an I2C master, the SHI controls the I2C bus by generating start events, clock pulses,
and stop events for transmission and reception of serial data.
It is recommended that an SHI individual reset be generated (HEN cleared) before changing HMST.
HMST is cleared during hardware reset and software reset.
7.4.6.7
HCSR Host-Request Enable (HRQE[1:0])—Bits 8–7
The read/write control bits HRQE[1:0] are used to control the HREQ pin. When HRQE[1:0] are cleared,
the HREQ pin is disabled and held in the high impedance state. If either of HRQE[1:0] are set and the SHI
is in a master mode, the HREQ pin becomes an input controlling SCK: deasserting HREQ suspends SCK.
If either of HRQE[1:0] are set and the SHI is in a slave mode, HREQ becomes an output and its operation
is defined in Table 7-5. HRQE[1:0] should be changed only when the SHI is idle (HBUSY = 0).
HRQE[1:0] are cleared during hardware reset and software reset.
Table 7-5 HREQ Function In SHI Slave Modes
HRQE1
HRQE0
HREQ Pin Operation
0
0
High impedance
0
1
Asserted if IOSR is ready to receive a new word
1
0
Asserted if IOSR is ready to transmit a new word
1
1
I2C: Asserted if IOSR is ready to transmit or receive
SPI: Asserted if IOSR is ready to transmit and receive
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
7-12
Freescale Semiconductor
Serial Host Interface Programming Model
7.4.6.8
HCSR Idle (HIDLE)—Bit 9
The read/write control/status bit HIDLE is used only in the I2C master mode; it is ignored otherwise. It is
only possible to set the HIDLE bit during writes to the HCSR. HIDLE is cleared by writing to HTX. To
ensure correct transmission of the slave device address byte, HIDLE should be set only when HTX is
empty (HTDE = 1). After HIDLE is set, a write to HTX clears HIDLE and causes the generation of a stop
event, a start event, and then the transmission of the eight MSBs of the data as the slave device address
byte. While HIDLE is cleared, data written to HTX is transmitted as is. If the SHI completes transmitting
a word and there is no new data in HTX, the clock is suspended after sampling ACK. If HIDLE is set when
the SHI completes transmitting a word with no new data in HTX, a stop event is generated.
HIDLE determines the acknowledge that the receiver sends after correct reception of a byte. If HIDLE is
cleared, the reception is acknowledged by sending a 0 bit on the SDA line at the ACK clock tick. If HIDLE
is set, the reception is not acknowledged (a 1 bit is sent). It is used to signal an end-of-data to a slave
transmitter by not generating an ACK on the last byte. As a result, the slave transmitter must release the
SDA line to allow the master to generate the stop event. If the SHI completes receiving a word and the
HRX FIFO is full, the clock is suspended before transmitting an ACK. While HIDLE is cleared the bus is
busy, that is, the start event was sent but no stop event was generated. Setting HIDLE causes a stop event
after receiving the current word.
HIDLE is set while the SHI is not in the I2C master mode, while the chip is in the stop state, and during
hardware reset, software reset and individual reset.
NOTE
Programmers should take care to ensure that all DMA channel service to
HTX is disabled before setting HIDLE.
7.4.6.9
HCSR Bus-Error Interrupt Enable (HBIE)—Bit 10
The read/write control bit HBIE is used to enable the SHI bus-error interrupt. If HBIE is cleared, bus-error
interrupts are disabled, and the HBER status bit must be polled to determine if an SHI bus error occurred.
If both HBIE and HBER are set, the SHI requests an SHI bus-error interrupt service from the interrupt
controller. HBIE is cleared by hardware reset and software reset.
NOTE
Clearing HBIE masks a pending bus-error interrupt only after a one
instruction cycle delay. If HBIE is cleared in a long interrupt service routine,
it is recommended that at least one other instruction separate the instruction
that clears HBIE and the RTI instruction at the end of the interrupt service
routine.
7.4.6.10
HCSR Transmit-Interrupt Enable (HTIE)—Bit 11
The read/write control bit HTIE is used to enable the SHI transmit data interrupts. If HTIE is cleared,
transmit interrupts are disabled, and the HTDE status bit must be polled to determine if HTX is empty. If
both HTIE and HTDE are set and HTUE is cleared, the SHI requests an SHI transmit-data interrupt service
from the interrupt controller. If both HTIE and HTUE are set, the SHI requests an SHI
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
7-13
Serial Host Interface Programming Model
transmit-underrun-error interrupt service from the interrupt controller. HTIE is cleared by hardware reset
and software reset.
NOTE
Clearing HTIE masks a pending transmit interrupt only after a one
instruction cycle delay. If HTIE is cleared in a long interrupt service routine,
it is recommended that at least one other instruction separate the instruction
that clears HTIE and the RTI instruction at the end of the interrupt service
routine.
7.4.6.11
HCSR Receive Interrupt Enable (HRIE[1:0])—Bits 13–12
The read/write control bits HRIE[1:0] are used to enable the SHI receive-data interrupts. If HRIE[1:0] are
cleared, receive interrupts are disabled, and the HRNE and HRFF (bits 17 and 19, see below) status bits
must be polled to determine if there is data in the receive FIFO. If HRIE[1:0] are not cleared, receive
interrupts are generated according to Table 7-6. HRIE[1:0] are cleared by hardware and software reset.
Table 7-6 HCSR Receive Interrupt Enable Bits
HRIE[1:0]
Interrupt
Condition
00
Disabled
Not applicable
01
Receive FIFO not empty
HRNE = 1 and HROE = 0
Receive Overrun Error
HROE = 1
Reserved
Not applicable
Receive FIFO full
HRFF = 1 and HROE = 0
Receive Overrun Error
HROE = 1
10
11
NOTE
Clearing HRIE[1:0] masks a pending receive interrupt only after a one
instruction cycle delay. If HRIE[1:0] are cleared in a long interrupt service
routine, it is recommended that at least one other instruction separate the
instruction that clears HRIE[1:0] and the RTI instruction at the end of the
interrupt service routine.
7.4.6.12
HCSR Host Transmit Underrun Error (HTUE)—Bit 14
The read-only status bit HTUE indicates whether a transmit-underrun error occurred. Transmit-underrun
errors can occur only when operating in the SPI slave mode or the I2C slave mode when HCKFR is cleared.
In a master mode, transmission takes place on demand and no underrun can occur. HTUE is set when both
the shift register and the HTX register are empty and the external master begins reading the next word:
• When operating in the I2C mode, HTUE is set in the falling edge of the ACK bit. In this case, the
SHI retransmits the previously transmitted word.
• When operating in the SPI mode, HTUE is set at the first clock edge if CPHA = 1; it is set at the
assertion of SS if CPHA = 0.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
7-14
Freescale Semiconductor
Serial Host Interface Programming Model
If a transmit interrupt occurs with HTUE set, the transmit-underrun interrupt vector is generated. If a
transmit interrupt occurs with HTUE cleared, the regular transmit-data interrupt vector is generated.
HTUE is cleared by reading the HCSR and then writing to the HTX register. HTUE is cleared by hardware
reset, software reset, SHI individual reset, and during the stop state.
7.4.6.13
HCSR Host Transmit Data Empty (HTDE)—Bit 15
The read-only status bit HTDE indicates whether the HTX register is empty and can be written by the DSP.
HTDE is set when the data word is transferred from HTX to the shift register, except in SPI master mode
when CPHA = 0 (see HCKR). When in the SPI master mode with CPHA = 0, HTDE is set after the end
of the data word transmission. HTDE is cleared when the DSP writes the HTX either with write
instructions or DMA transfers. HTDE is set by hardware reset, software reset, SHI individual reset, and
during the stop state.
7.4.6.14
HCSR Reserved Bits—Bits 23, 18 and 16
These bits are reserved. They read as zero and should be written with zero for future compatibility.
7.4.6.15
Host Receive FIFO Not Empty (HRNE)—Bit 17
The read-only status bit HRNE indicates that the Host Receive FIFO (HRX) contains at least one data
word. HRNE is set when the FIFO is not empty. HRNE is cleared when HRX is read by the DSP (read
instructions or DMA transfers), reducing the number of words in the FIFO to zero. HRNE is cleared during
hardware reset, software reset, SHI individual reset, and during the stop state.
7.4.6.16
Host Receive FIFO Full (HRFF)—Bit 19
The read-only status bit HRFF indicates, when set, that the Host Receive FIFO (HRX) is full. HRFF is
cleared when HRX is read by the DSP (read instructions or DMA transfers) and at least one place is
available in the FIFO. HRFF is cleared by hardware reset, software reset, SHI individual reset, and during
the stop state.
7.4.6.17
Host Receive Overrun Error (HROE)—Bit 20
The read-only status bit HROE indicates, when set, that a data-receive overrun error has occurred.
Receive-overrun errors cannot occur when operating in the I2C master mode, because the clock is
suspended if the receive FIFO is full; nor can they occur in the I2C slave mode when HCKFR is set.
HROE is set when the shift register (IOSR) is filled and ready to transfer the data word to the HRX FIFO
and the FIFO is already full (HRFF is set). When a receive-overrun error occurs, the shift register is not
transferred to the FIFO. If a receive interrupt occurs with HROE set, the receive-overrun interrupt vector
is generated. If a receive interrupt occurs with HROE cleared, the regular receive-data interrupt vector is
generated.
HROE is cleared by reading the HCSR with HROE set, followed by reading HRX. HROE is cleared by
hardware reset, software reset, SHI individual reset, and during the stop state.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
7-15
Characteristics Of The SPI Bus
7.4.6.18
Host Bus Error (HBER)—Bit 21
The read-only status bit HBER indicates, when set, that an SHI bus error occurred when operating as a
master (HMST set). In I2C mode, HBER is set if the transmitter does not receive an acknowledge after a
byte is transferred; then a stop event is generated and transmission is suspended. In SPI mode, HBER is
set if SS is asserted; then transmission is suspended at the end of transmission of the current word. HBER
is cleared only by hardware reset, software reset, SHI individual reset, and during the stop state.
7.4.6.19
HCSR Host Busy (HBUSY)—Bit 22
The read-only status bit HBUSY indicates that the I2C bus is busy (when in the I2C mode) or that the SHI
itself is busy (when in the SPI mode). When operating in the I2C mode, HBUSY is set after the SHI detects
a start event and remains set until a stop event is detected. When operating in the slave SPI mode, HBUSY
is set while SS is asserted. When operating in the master SPI mode, HBUSY is set if the HTX register is
not empty or if the IOSR is not empty. HBUSY is cleared otherwise. HBUSY is cleared by hardware reset,
software reset, SHI individual reset, and during the stop state.
7.5
Characteristics Of The SPI Bus
The SPI bus consists of two serial data lines (MISO and MOSI), a clock line (SCK), and a Slave Select
line (SS). During an SPI transfer, a byte is shifted out one data pin while a different byte is simultaneously
shifted in through a second data pin. It can be viewed as two 8-bit shift registers connected together in a
circular manner, with one shift register on the master side and the other on the slave side. Thus the data
bytes in the master device and slave device are exchanged. The MISO and MOSI data pins are used for
transmitting and receiving serial data. When the SPI is configured as a master, MISO is the master data
input line, and MOSI is the master data output line. When the SPI is configured as a slave device, MISO
is the slave data output line, and MOSI is the slave data input line.
Clock control logic allows a selection of clock polarity and a choice of two fundamentally different
clocking protocols to accommodate most available synchronous serial peripheral devices. When the SPI
is configured as a master, the control bits in the HCKR select the appropriate clock rate, as well as the
desired clock polarity and phase format (see Figure 7-6).
The SS line allows selection of an individual slave SPI device; slave devices that are not selected do not
interfere with SPI bus activity (i.e., they keep their MISO output pin in the high-impedance state). When
the SHI is configured as an SPI master device, the SS line should be held high. If the SS line is driven low
when the SHI is in SPI master mode, a bus error is generated (the HCSR HBER bit is set).
7.6
Characteristics Of The I2C Bus
The I2C serial bus consists of two bidirectional lines, one for data signals (SDA) and one for clock signals
(SCL). Both the SDA and SCL lines must be connected to a positive supply voltage via a pull-up resistor.
NOTE
C bus specifications, the standard mode (100 kHz clock rate) and a
fast mode (400 kHz clock rate) are defined. The SHI can operate in either
mode.
In the I2
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
7-16
Freescale Semiconductor
Characteristics Of The I2C Bus
7.6.1
Overview
The I2C bus protocol must conform to the following rules:
• Data transfer may be initiated only when the bus is not busy.
• During data transfer, the data line must remain stable whenever the clock line is high. Changes in
the data line when the clock line is high are interpreted as control signals (see Figure 7-7).
SDA
SCL
Data Line
Stable:
Data Valid
Change
of Data
Allowed
AA0422
Figure 7-7 I2C Bit Transfer
Accordingly, the I2C bus protocol defines the following events:
• Bus not busy—Both data and clock lines remain high.
• Start data transfer—The start event is defined as a change in the state of the data line, from high
to low, while the clock is high (see Figure 7-8).
• Stop data transfer—The stop event is defined as a change in the state of the data line, from low
to high, while the clock is high (see Figure 7-8).
• Data valid—The state of the data line represents valid data when, after a start event, the data line
is stable for the duration of the high period of the clock signal. The data on the line may be changed
during the low period of the clock signal. There is one clock pulse per bit of data.
SDA
SCL
S
P
Start Event
Stop Event
AA0423
2
Figure 7-8 I C Start and Stop Events
Each 8-bit word is followed by one acknowledge bit. This acknowledge bit is a high level put on the bus
by the transmitter when the master device generates an extra acknowledge-related clock pulse. A slave
receiver that is addressed must generate an acknowledge after each byte is received. Also, a master
receiver must generate an acknowledge after the reception of each byte that has been clocked out of the
slave transmitter. The acknowledging device must pull down the SDA line during the acknowledge clock
pulse so that the SDA line is stable low during the high period of the acknowledge-related clock pulse (see
Figure 7-9).
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
7-17
Characteristics Of The I2C Bus
Start
Event
Clock Pulse For
Acknowledgment
SCL From
Master Device
1
2
8
9
Data Output
by Transmitter
Data Output
by Receiver
S
AA0424
Figure 7-9 Acknowledgment on the I2C Bus
A device generating a signal is called a transmitter, and a device receiving a signal is called a receiver. A
device controlling a signal is called a master and devices controlled by the master are called slaves. A
master receiver must signal an end-of-data to the slave transmitter by not generating an acknowledge on
the last byte clocked out of the slave device. In this case the transmitter must leave the data line high to
enable the master to generate the stop event. Handshaking may also be accomplished by using the clock
synchronizing mechanism. Slave devices can hold the SCL line low, after receiving and acknowledging a
byte, to force the master into a wait state until the slave device is ready for the next byte transfer. The SHI
supports this feature when operating as a master device and waits until the slave device releases the SCL
line before proceeding with the data transfer.
7.6.2
I2C Data Transfer Formats
I2C bus data transfers follow the following process: after the start event, a slave device address is sent. The
address consists of seven address bits and an eighth bit as a data direction bit (R/W). In the data direction
bit, zero indicates a transmission (write), and one indicates a request for data (read). A data transfer is
always terminated by a stop event generated by the master device. However, if the master device still
wishes to communicate on the bus, it can generate another start event, and address another slave device
without first generating a stop event (the SHI does not support this feature when operating as an I2C master
device). This method is also used to provide indivisible data transfers. Various combinations of read/write
formats are illustrated in Figure 7-10 and Figure 7-11.
ACK from
Slave Device
S Slave Address
Start
Bit
0
A
ACK from
Slave Device
First Data Byte
A
ACK from
Slave Device
Data Byte
N = 0 to M
Data Bytes
R/W
AA0425
A S, P
Start or
Stop Bit
Figure 7-10 I2C Bus Protocol For Host Write Cycle
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
7-18
Freescale Semiconductor
SHI Programming Considerations
ACK from
Slave Device
S Slave Address
Start
Bit
1
R/W
A
ACK from
Master Device
Data Byte
A
No ACK
from Master Device
Last Data Byte
N = 0 to M
Data Bytes
AA0426
1
P
Stop
Bit
Figure 7-11 I2C Bus Protocol For Host Read Cycle
NOTE
The first data byte in a write-bus cycle can be used as a user-predefined
control byte (e.g., to determine the location to which the forthcoming data
bytes should be transferred).
7.7
SHI Programming Considerations
The SHI implements both SPI and I2C bus protocols and can be programmed to operate as a slave device
or a single-master device. Once the operating mode is selected, the SHI may communicate with an external
device by receiving and/or transmitting data. Before changing the SHI operational mode, an SHI
individual reset should be generated by clearing the HEN bit. The following paragraphs describe
programming considerations for each operational mode.
7.7.1
SPI Slave Mode
The SPI slave mode is entered by enabling the SHI (HEN=1), selecting the SPI mode (HI2C=0), and
selecting the slave mode of operation (HMST=0). The programmer should verify that the CPHA and
CPOL bits (in the HCKR) correspond to the external host clock phase and polarity. Other HCKR bits are
ignored. When configured in the SPI slave mode, the SHI external pins operate as follows:
• SCK/SCL is the SCK serial clock input.
• MISO/SDA is the MISO serial data output.
• MOSI/HA0 is the MOSI serial data input.
• SS/HA2 is the SS slave select input.
• HREQ is the Host Request output.
In the SPI slave mode, a receive, transmit, or full-duplex data transfer may be performed. Actually, the
interface performs data receive and transmit simultaneously. The status bits of both receive and transmit
paths are active; however, the programmer may disable undesired interrupts and ignore irrelevant status
bits. It is recommended that an SHI individual reset (HEN cleared) be generated before beginning data
reception in order to reset the HRX FIFO to its initial (empty) state (e.g., when switching from transmit to
receive data).
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
7-19
SHI Programming Considerations
If a write to HTX occurs, its contents are transferred to IOSR between data word transfers. The IOSR data
is shifted out (via MISO) and received data is shifted in (via MOSI). The DSP may write HTX with either
DSP instructions or DMA transfers if the HTDE status bit is set. If no writes to HTX occur, the contents
of HTX are not transferred to IOSR, so the data shifted out when receiving is the data present in the IOSR
at the time. The HRX FIFO contains valid receive data, which the DSP can read with either DSP
instructions or DMA transfers (if the HRNE status bit is set).
The HREQ output pin, if enabled for receive (HRQE[1:0] = 01), is asserted when the IOSR is ready for
receive and the HRX FIFO is not full; this operation guarantees that the next received data word is stored
in the FIFO. The HREQ output pin, if enabled for transmit (HRQE[1:0] = 10), is asserted when the IOSR
is loaded from HTX with a new data word to transfer. If HREQ is enabled for both transmit and receive
(HRQE[1:0] = 11), it is asserted when the receive and transmit conditions are both true. HREQ is
deasserted at the first clock pulse of the next data word transfer. The HREQ line may be used to interrupt
the external master device. Connecting the HREQ line between two SHI-equipped DSPs, one operating as
an SPI master device and the other as an SPI slave device, enables full hardware handshaking if operating
with CPHA = 1.
The SS line should be kept asserted during a data word transfer. If the SS line is deasserted before the end
of the data word transfer, the transfer is aborted and the received data word is lost.
7.7.2
SPI Master Mode
The SPI master mode is initiated by enabling the SHI (HEN = 1), selecting the SPI mode (HI2C = 0), and
selecting the master mode of operation (HMST = 1). Before enabling the SHI as an SPI master device, the
programmer should program the proper clock rate, phase and polarity in HCKR. When configured in the
SPI master mode, the SHI external pins operate as follows:
• SCK/SCL is the SCK serial clock output.
• MISO/SDA is the MISO serial data input.
• MOSI/HA0 is the MOSI serial data output.
• SS/HA2 is the SS input. It should be kept deasserted (high) for proper operation.
• HREQ is the Host Request input.
The external slave device can be selected either by using external logic or by activating a GPIO pin
connected to its SS pin. However, the SS input pin of the SPI master device should be held deasserted
(high) for proper operation. If the SPI master device SS pin is asserted, the host bus error status bit (HBER)
is set. If the HBIE bit is also set, the SHI issues a request to the DSP interrupt controller to service the SHI
bus error interrupt.
In the SPI master mode the DSP must write to HTX to receive, transmit or perform a full-duplex data
transfer. Actually, the interface performs simultaneous data receive and transmit. The status bits of both
receive and transmit paths are active; however, the programmer may disable undesired interrupts and
ignore irrelevant status bits. In a data transfer, the HTX is transferred to IOSR, clock pulses are generated,
the IOSR data is shifted out (via MOSI) and received data is shifted in (via MISO). The DSP programmer
may write HTX (if the HTDE status bit is set) with either DSP instructions or DMA transfers to initiate
the transfer of the next word. The HRX FIFO contains valid receive data, which the DSP can read with
either DSP instructions or DMA transfers, if the HRNE status bit is set.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
7-20
Freescale Semiconductor
SHI Programming Considerations
It is recommended that an SHI individual reset (HEN cleared) be generated before beginning data
reception in order to reset the receive FIFO to its initial (empty) state (e.g., when switching from transmit
to receive data).
The HREQ input pin is ignored by the SPI master device if the HRQE[1:0] bits are cleared, and considered
if any of them is set. When asserted by the slave device, HREQ indicates that the external slave device is
ready for the next data transfer. As a result, the SPI master sends clock pulses for the full data word transfer.
HREQ is deasserted by the external slave device at the first clock pulse of the new data transfer. When
deasserted, HREQ prevents the clock generation of the next data word transfer until it is asserted again.
Connecting the HREQ line between two SHI-equipped DSPs, one operating as an SPI master device and
the other as an SPI slave device, enables full hardware handshaking if CPHA = 1. For CPHA = 0, HREQ
should be disabled by clearing HRQE[1:0].
7.7.3
I2C Slave Mode
The I2C slave mode is entered by enabling the SHI (HEN=1), selecting the I2C mode (HI2C=1), and
selecting the slave mode of operation (HMST=0). In this operational mode the contents of HCKR are
ignored. When configured in the I2C slave mode, the SHI external pins operate as follows:
• SCK/SCL is the SCL serial clock input.
• MISO/SDA is the SDA open drain serial data line.
• MOSI/HA0 is the HA0 slave device address input.
• SS/HA2 is the HA2 slave device address input.
• HREQ is the Host Request output.
When the SHI is enabled and configured in the I2C slave mode, the SHI controller inspects the SDA and
SCL lines to detect a start event. Upon detection of the start event, the SHI receives the slave device
address byte and enables the slave device address recognition unit. If the slave device address byte was not
identified as its personal address, the SHI controller fails to acknowledge this byte by not driving low the
SDA line at the ninth clock pulse (ACK = 1). However, it continues to poll the SDA and SCL lines to detect
a new start event. If the personal slave device address was correctly identified, the slave device address
byte is acknowledged (ACK = 0 is sent) and a receive/transmit session is initiated according to the eighth
bit of the received slave device address byte (i.e., the R/W bit).
7.7.3.1
Receive Data in I2C Slave Mode
A receive session is initiated when the personal slave device address has been correctly identified and the
R/W bit of the received slave device address byte has been cleared. Following a receive initiation, data in
the SDA line is shifted into IOSR MSB first. Following each received byte, an acknowledge (ACK = 0) is
sent at the ninth clock pulse via the SDA line. Data is acknowledged bytewise, as required by the I2C bus
protocol, and is transferred to the HRX FIFO when the complete word (according to HM[1:0]) is filled
into IOSR. It is the responsibility of the programmer to select the correct number of bytes in an I2C frame
so that they fit in a complete number of words. For this purpose, the slave device address byte does not
count as part of the data; therefore, it is treated separately.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
7-21
SHI Programming Considerations
In a receive session, only the receive path is enabled and HTX to IOSR transfers are inhibited. The HRX
FIFO contains valid data, which may be read by the DSP with either DSP instructions or DMA transfers
(if the HRNE status bit is set).
If HCKFR is cleared, when the HRX FIFO is full and IOSR is filled, an overrun error occurs and the HROE
status bit is set. In this case, the last received byte is not acknowledged (ACK=1 is sent) and the word in
the IOSR is not transferred to the HRX FIFO. This may inform the external I2C master device of the
occurrence of an overrun error on the slave side. Consequently the I2C master device may terminate this
session by generating a stop event.
If HCKFR is set, when the HRX FIFO is full the SHI holds the clock line to GND not letting the master
device write to IOSR, which eliminates the possibility of reaching the overrun condition.
The HREQ output pin, if enabled for receive (HRQE[1:0] = 01), is asserted when the IOSR is ready to
receive and the HRX FIFO is not full; this operation guarantees that the next received data word is stored
in the FIFO. HREQ is deasserted at the first clock pulse of the next received word. The HREQ line may
be used to interrupt the external I2C master device. Connecting the HREQ line between two SHI-equipped
DSPs, one operating as an I2C master device and the other as an I2C slave device, enables full hardware
handshaking.
7.7.3.2
Transmit Data In I2C Slave Mode
A transmit session is initiated when the personal slave device address has been correctly identified and the
R/W bit of the received slave device address byte has been set. Following a transmit initiation, the IOSR
is loaded from HTX (assuming the latter was not empty) and its contents are shifted out, MSB first, on the
SDA line. Following each transmitted byte, the SHI controller samples the SDA line at the ninth clock
pulse, and inspects the ACK status. If the transmitted byte was acknowledged (ACK = 0), the SHI
controller continues and transmits the next byte. However, if it was not acknowledged (ACK = 1), the
transmit session is stopped and the SDA line is released. Consequently, the external master device may
generate a stop event in order to terminate the session.
HTX contents are transferred to IOSR when the complete word (according to HM[1:0]) has been shifted
out. It is, therefore, the responsibility of the programmer to select the correct number of bytes in an I2C
frame so that they fit in a complete number of words. For this purpose, the slave device address byte does
not count as part of the data; therefore, it is treated separately.
In a transmit session, only the transmit path is enabled and the IOSR-to-HRX FIFO transfers are inhibited.
When the HTX transfers its valid data word to IOSR, the HTDE status bit is set and the DSP may write a
new data word to HTX with either DSP instructions or DMA transfers.
If HCKFR is cleared and both IOSR and HTX are empty when the master device attempts a transmit
session, an underrun condition occurs, setting the HTUE status bit, and the previous word is retransmitted.
If HCKFR is set and both IOSR and HTX are empty when the master device attempts a transmit session,
the SHI holds the clock line to GND to avoid an underrun condition.
The HREQ output pin, if enabled for transmit (HRQE[1:0] = 10), is asserted when HTX is transferred to
IOSR for transmission. When asserted, HREQ indicates that the slave device is ready to transmit the next
data word. HREQ is deasserted at the first clock pulse of the next transmitted data word. The HREQ line
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
7-22
Freescale Semiconductor
SHI Programming Considerations
may be used to interrupt the external I2C master device. Connecting the HREQ line between two
SHI-equipped DSPs, one operating as an I2C master device and the other as an I2C slave device, enables
full hardware handshaking.
7.7.4
I2C Master Mode
The I2C master mode is entered by enabling the SHI (HEN=1), selecting the I2C mode (HI2C=1) and
selecting the master mode of operation (HMST=1). Before enabling the SHI as an I2C master, the
programmer should program the appropriate clock rate in HCKR.
When configured in the I2C master mode, the SHI external pins operate as follows:
• SCK/SCL is the SCL open drain serial clock output.
• MISO/SDA is the SDA open drain serial data line.
• MOSI/HA0 is the HA0 slave device address input.
• SS/HA2 is the HA2 slave device address input.
• HREQ is the Host Request input.
In the I2C master mode, a data transfer session is always initiated by the DSP by writing to the HTX
register when HIDLE is set. This condition ensures that the data byte written to HTX is interpreted as being
a slave address byte. This data byte must specify the slave device address to be selected and the requested
data transfer direction.
NOTE
The slave address byte should be located in the high portion of the data
word, whereas the middle and low portions are ignored. Only one byte (the
slave address byte) is shifted out, independent of the word length defined by
the HM[1:0] bits.
In order for the DSP to initiate a data transfer the following actions are to be performed:
• The DSP tests the HIDLE status bit.
• If the HIDLE status bit is set, the DSP writes the slave device address and the R/W bit to the most
significant byte of HTX.
• The SHI generates a start event.
• The SHI transmits one byte only, internally samples the R/W direction bit (last bit), and
accordingly initiates a receive or transmit session.
• The SHI inspects the SDA level at the ninth clock pulse to determine the ACK value. If
acknowledged (ACK = 0), it starts its receive or transmit session according to the sampled R/W
value. If not acknowledged (ACK = 1), the HBER status bit in HCSR is set, which causes an SHI
Bus Error interrupt request if HBIE is set, and a stop event is generated.
The HREQ input pin is ignored by the I2C master device if HRQE[1:0] are cleared, and considered if either
of them is set. When asserted, HREQ indicates that the external slave device is ready for the next data
transfer. As a result, the I2C master device sends clock pulses for the full data word transfer. HREQ is
deasserted by the external slave device at the first clock pulse of the next data transfer. When deasserted,
HREQ prevents the clock generation of the next data word transfer until it is asserted again. Connecting
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
7-23
SHI Programming Considerations
the HREQ line between two SHI-equipped DSPs, one operating as an I2C master device and the other as
an I2C slave device, enables full hardware handshaking.
7.7.4.1
Receive Data in I2C Master Mode
A receive session is initiated if the R/W direction bit of the transmitted slave device address byte is set.
Following a receive initiation, data in the SDA line is shifted into IOSR MSB first. Following each
received byte, an acknowledge (ACK = 0) is sent at the ninth clock pulse via the SDA line if the HIDLE
control bit is cleared. Data is acknowledged bytewise, as required by the I2C bus protocol, and is
transferred to the HRX FIFO when the complete word (according to HM[1:0]) is filled into IOSR. It is the
responsibility of the programmer to select the correct number of bytes in an I2C frame so that they fit in a
complete number of words. For this purpose, the slave device address byte does not count as part of the
data; therefore, it is treated separately.
If the I2C slave transmitter is acknowledged, it should transmit the next data byte. In order to terminate the
receive session, the programmer should set the HIDLE bit at the last required data word. As a result, the
last byte of the next received data word is not acknowledged, the slave transmitter releases the SDA line,
and the SHI generates the stop event and terminates the session.
In a receive session, only the receive path is enabled and the HTX-to-IOSR transfers are inhibited. If the
HRNE status bit is set, the HRX FIFO contains valid data, which may be read by the DSP with either DSP
instructions or DMA transfers. When the HRX FIFO is full, the SHI suspends the serial clock just before
acknowledge. In this case, the clock is reactivated when the FIFO is read (the SHI gives an ACK = 0 and
proceeds receiving).
7.7.4.2
Transmit Data In I2C Master Mode
A transmit session is initiated if the R/W direction bit of the transmitted slave device address byte is
cleared. Following a transmit initiation, the IOSR is loaded from HTX (assuming HTX is not empty) and
its contents are shifted out, MSB-first, on the SDA line. Following each transmitted byte, the SHI
controller samples the SDA line at the ninth clock pulse, and inspects the ACK status. If the transmitted
byte was acknowledged (ACK=0), the SHI controller continues transmitting the next byte. However, if it
was not acknowledged (ACK=1), the HBER status bit is set to inform the DSP side that a bus error (or
overrun, or any other exception in the slave device) has occurred. Consequently, the I2C master device
generates a stop event and terminates the session.
HTX contents are transferred to the IOSR when the complete word (according to HM[1:0]) has been
shifted out. It is, therefore, the responsibility of the programmer to select the right number of bytes in an
I2C frame so that they fit in a complete number of words. Remember that for this purpose, the slave device
address byte does not count as part of the data.
In a transmit session, only the transmit path is enabled and the IOSR-to-HRX FIFO transfers are inhibited.
When the HTX transfers its valid data word to the IOSR, the HTDE status bit is set and the DSP may write
a new data word to HTX with either DSP instructions or DMA transfers. If both IOSR and HTX are empty,
the SHI suspends the serial clock until new data is written into HTX (when the SHI proceeds with the
transmit session) or HIDLE is set (the SHI reactivates the clock to generate the stop event and terminate
the transmit session).
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
7-24
Freescale Semiconductor
SHI Programming Considerations
7.7.5
SHI Operation During DSP Stop
The SHI operation cannot continue when the DSP is in the stop state, because no DSP clocks are active.
While the DSP is in the stop state, the SHI remains in the individual reset state.
While in the individual reset state the following is true:
• If the SHI was operating in the I2C mode, the SHI signals are disabled (high impedance state).
• If the SHI was operating in the SPI mode, the SHI signals are not affected.
• The HCSR status bits and the transmit/receive paths are reset to the same state produced by
hardware reset or software reset.
• The HCSR and HCKR control bits are not affected.
NOTE
It is recommended that the SHI be disabled before entering the stop state.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
7-25
SHI Programming Considerations
NOTES
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
7-26
Freescale Semiconductor
8
8.1
Enhanced Serial AUDIO Interface (ESAI)
Introduction
The Enhanced Serial Audio Interface (ESAI) provides a full-duplex serial port for serial communication
with a variety of serial devices including one or more industry-standard codecs, other DSPs,
microprocessors, and peripherals which implement the Freescale SPI serial protocol. The ESAI consists
of independent transmitter and receiver sections, each section with its own clock generator. It is a superset
of the 56300 Family ESSI peripheral and of the 56000 Family SAI peripheral.
NOTE
The DSP56366 has two ESAI modules. This section describes the ESAI,
and Section 9 describes the ESAI_1. The ESAI and ESAI_1 share 4 data
pins. This is described in the ESAI_1 section.
The ESAI block diagram is shown in Figure 8-1. The ESAI is named synchronous because all serial
transfers are synchronized to a clock. Additional synchronization signals are used to delineate the word
frames. The normal mode of operation is used to transfer data at a periodic rate, one word per period. The
network mode is similar in that it is also intended for periodic transfers; however, it supports up to 32
words (time slots) per period. This mode can be used to build time division multiplexed (TDM) networks.
In contrast, the on-demand mode is intended for non-periodic transfers of data and to transfer data serially
at high speed when the data becomes available. This mode offers a subset of the SPI protocol.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-1
Introduction
GDB
DDB
TX0
RSMA
SDO0 [PC11]
RSMB
Shift Register
TSMA
TX1
TSMB
SDO1 [PC10]
Shift Register
RCCR
TX2
RCR
SDO2/SDI3 [PC9]
Shift Register
TCCR
RX3
TCR
TX3
SDO3/SDI2 [PC8]
SAICR
Shift Register
SAISR
RX2
TX4
TSR
SDO4/SDI1 [PC7]
Shift Register
RX1
Clock / Frame Sync
Generators
and
Control Logic
TX5
RCLK
SDO5/SDI0 [PC6]
Shift Register
[PC2] HCKR
[PC1] FSR
[PC0] SCKR
[PC5] HCKT
[PC4] FST
[PC3] SCKT
TCLK
RX0
Figure 8-1 ESAI Block Diagram
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-2
Freescale Semiconductor
ESAI Data and Control Pins
8.2
ESAI Data and Control Pins
Three to twelve pins are required for operation, depending on the operating mode selected and the number
of transmitters and receivers enabled. The SDO0 and SDO1 pins are used by transmitters 0 and 1 only. The
SDO2/SDI3, SDO3/SDI2, SDO4/SDI1, and SDO5/SDI0 pins are shared by transmitters 2 to 5 with
receivers 0 to 3. The actual mode of operation is selected under software control. All transmitters operate
fully synchronized under control of the same transmitter clock signals. All receivers operate fully
synchronized under control of the same receiver clock signals.
8.2.1
Serial Transmit 0 Data Pin (SDO0)
SDO0 is used for transmitting data from the TX0 serial transmit shift register. SDO0 is an output when
data is being transmitted from the TX0 shift register. In the on-demand mode with an internally generated
bit clock, the SDO0 pin becomes high impedance for a full clock period after the last data bit has been
transmitted, assuming another data word does not follow immediately. If a data word follows immediately,
there is no high-impedance interval.
SDO0 may be programmed as a general-purpose I/O pin (PC11) when the ESAI SDO0 function is not
being used.
8.2.2
Serial Transmit 1 Data Pin (SDO1)
SDO1 is used for transmitting data from the TX1 serial transmit shift register. SDO1 is an output when
data is being transmitted from the TX1 shift register. In the on-demand mode with an internally generated
bit clock, the SDO1 pin becomes high impedance for a full clock period after the last data bit has been
transmitted, assuming another data word does not follow immediately. If a data word follows immediately,
there is no high-impedance interval.
SDO1 may be programmed as a general-purpose I/O pin (PC10) when the ESAI SDO1 function is not
being used.
8.2.3
Serial Transmit 2/Receive 3 Data Pin (SDO2/SDI3)
SDO2/SDI3 is used as the SDO2 for transmitting data from the TX2 serial transmit shift register when
programmed as a transmitter pin, or as the SDI3 signal for receiving serial data to the RX3 serial receive
shift register when programmed as a receiver pin. SDO2/SDI3 is an input when data is being received by
the RX3 shift register. SDO2/SDI3 is an output when data is being transmitted from the TX2 shift register.
In the on-demand mode with an internally generated bit clock, the SDO2/SDI3 pin becomes high
impedance for a full clock period after the last data bit has been transmitted, assuming another data word
does not follow immediately. If a data word follows immediately, there is no high-impedance interval.
SDO2/SDI3 may be programmed as a general-purpose I/O pin (PC9) when the ESAI SDO2 and SDI3
functions are not being used.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-3
ESAI Data and Control Pins
8.2.4
Serial Transmit 3/Receive 2 Data Pin (SDO3/SDI2)
SDO3/SDI2 is used as the SDO3 signal for transmitting data from the TX3 serial transmit shift register
when programmed as a transmitter pin, or as the SDI2 signal for receiving serial data to the RX2 serial
receive shift register when programmed as a receiver pin. SDO3/SDI2 is an input when data is being
received by the RX2 shift register. SDO3/SDI2 is an output when data is being transmitted from the TX3
shift register. In the on-demand mode with an internally generated bit clock, the SDO3/SDI2 pin becomes
high impedance for a full clock period after the last data bit has been transmitted, assuming another data
word does not follow immediately. If a data word follows immediately, there is no high-impedance
interval.
SDO3/SDI2 may be programmed as a general-purpose I/O pin (PC8) when the ESAI SDO3 and SDI2
functions are not being used.
8.2.5
Serial Transmit 4/Receive 1 Data Pin (SDO4/SDI1)
SDO4/SDI1 is used as the SDO4 signal for transmitting data from the TX4 serial transmit shift register
when programmed as transmitter pin, or as the SDI1 signal for receiving serial data to the RX1 serial
receive shift register when programmed as a receiver pin. SDO4/SDI1 is an input when data is being
received by the RX1 shift register. SDO4/SDI1 is an output when data is being transmitted from the TX4
shift register. In the on-demand mode with an internally generated bit clock, the SDO4/SDI1 pin becomes
high impedance for a full clock period after the last data bit has been transmitted, assuming another data
word does not follow immediately. If a data word follows immediately, there is no high-impedance
interval.
SDO4/SDI1 may be programmed as a general-purpose I/O pin (PC7) when the ESAI SDO4 and SDI1
functions are not being used.
8.2.6
Serial Transmit 5/Receive 0 Data Pin (SDO5/SDI0)
SDO5/SDI0 is used as the SDO5 signal for transmitting data from the TX5 serial transmit shift register
when programmed as transmitter pin, or as the SDI0 signal for receiving serial data to the RX0 serial shift
register when programmed as a receiver pin. SDO5/SDI0 is an input when data is being received by the
RX0 shift register. SDO5/SDI0 is an output when data is being transmitted from the TX5 shift register. In
the on-demand mode with an internally generated bit clock, the SDO5/SDI0 pin becomes high impedance
for a full clock period after the last data bit has been transmitted, assuming another data word does not
follow immediately. If a data word follows immediately, there is no high-impedance interval.
SDO5/SDI0 may be programmed as a general-purpose I/O pin (PC6) when the ESAI SDO5 and SDI0
functions are not being used
8.2.7
Receiver Serial Clock (SCKR)
SCKR is a bidirectional pin providing the receivers serial bit clock for the ESAI interface. The direction
of this pin is determined by the RCKD bit in the RCCR register.The SCKR operates as a clock input or
output used by all the enabled receivers in the asynchronous mode (SYN=0), or as serial flag 0 pin in the
synchronous mode (SYN=1).
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-4
Freescale Semiconductor
ESAI Data and Control Pins
When this pin is configured as serial flag pin, its direction is determined by the RCKD bit in the RCCR
register. When configured as the output flag OF0, this pin reflects the value of the OF0 bit in the SAICR
register, and the data in the OF0 bit shows up at the pin synchronized to the frame sync being used by the
transmitter and receiver sections. When this pin is configured as the input flag IF0, the data value at the
pin is stored in the IF0 bit in the SAISR register, synchronized by the frame sync in normal mode or the
slot in network mode.
SCKR may be programmed as a general-purpose I/O pin (PC0) when the ESAI SCKR function is not being
used.
NOTE
Although the external ESAI serial clock can be independent of and
asynchronous to the DSP system clock, the DSP clock frequency must be at
least three times the external ESAI serial clock frequency and each ESAI
serial clock phase must exceed the minimum of 1.5 DSP clock periods.
For more information on pin mode and definition, see Table 8-7 and on receiver clock signals see
Table 8-1.
Table 8-1 Receiver Clock Sources (asynchronous mode only)
8.2.8
RHCKD
RFSD
RCKD
Receiver
Bit Clock
Source
0
0
0
SCKR
0
0
1
HCKR
0
1
0
SCKR
FSR
0
1
1
HCKR
FSR
1
0
0
SCKR
HCKR
1
0
1
INT
HCKR
1
1
0
SCKR
HCKR
FSR
1
1
1
INT
HCKR
FSR
OUTPUTS
SCKR
SCKR
SCKR
SCKR
Transmitter Serial Clock (SCKT)
SCKT is a bidirectional pin providing the transmitters serial bit clock for the ESAI interface. The direction
of this pin is determined by the TCKD bit in the TCCR register. The SCKT is a clock input or output used
by all the enabled transmitters in the asynchronous mode (SYN=0) or by all the enabled transmitters and
receivers in the synchronous mode (SYN=1) (see Table 8-2).
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-5
ESAI Data and Control Pins
Table 8-2 Transmitter Clock Sources
THCKD
TFSD
TCKD
Transmitter
Bit Clock
Source
0
0
0
SCKT
0
0
1
HCKT
0
1
0
SCKT
FST
0
1
1
HCKT
FST
1
0
0
SCKT
HCKT
1
0
1
INT
HCKT
1
1
0
SCKT
HCKT
FST
1
1
1
INT
HCKT
FST
OUTPUTS
SCKT
SCKT
SCKT
SCKT
SCKT may be programmed as a general-purpose I/O pin (PC3) when the ESAI SCKT function is not being
used.
NOTE
Although the external ESAI serial clock can be independent of and
asynchronous to the DSP system clock, the DSP clock frequency must be at
least three times the external ESAI serial clock frequency and each ESAI
serial clock phase must exceed the minimum of 1.5 DSP clock periods.
8.2.9
Frame Sync for Receiver (FSR)
FSR is a bidirectional pin providing the receivers frame sync signal for the ESAI interface. The direction
of this pin is determined by the RFSD bit in RCR register. In the asynchronous mode (SYN=0), the FSR
pin operates as the frame sync input or output used by all the enabled receivers. In the synchronous mode
(SYN=1), it operates as either the serial flag 1 pin (TEBE=0), or as the transmitter external buffer enable
control (TEBE=1, RFSD=1). For further information on pin mode and definition, see Table 8-8 and on
receiver clock signals see Table 8-1.
When this pin is configured as serial flag pin, its direction is determined by the RFSD bit in the RCCR
register. When configured as the output flag OF1, this pin reflects the value of the OF1 bit in the SAICR
register, and the data in the OF1 bit shows up at the pin synchronized to the frame sync being used by the
transmitter and receiver sections. When configured as the input flag IF1, the data value at the pin is stored
in the IF1 bit in the SAISR register, synchronized by the frame sync in normal mode or the slot in network
mode.
FSR may be programmed as a general-purpose I/O pin (PC1) when the ESAI FSR function is not being
used.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-6
Freescale Semiconductor
ESAI Programming Model
8.2.10
Frame Sync for Transmitter (FST)
FST is a bidirectional pin providing the frame sync for both the transmitters and receivers in the
synchronous mode (SYN=1) and for the transmitters only in asynchronous mode (SYN=0) (see Table 8-2).
The direction of this pin is determined by the TFSD bit in the TCR register. When configured as an output,
this pin is the internally generated frame sync signal. When configured as an input, this pin receives an
external frame sync signal for the transmitters (and the receivers in synchronous mode).
FST may be programmed as a general-purpose I/O pin (PC4) when the ESAI FST function is not being
used.
8.2.11
High Frequency Clock for Transmitter (HCKT)
HCKT is a bidirectional pin providing the transmitters high frequency clock for the ESAI interface. The
direction of this pin is determined by the THCKD bit in the TCCR register. In the asynchronous mode
(SYN=0), the HCKT pin operates as the high frequency clock input or output used by all enabled
transmitters. In the synchronous mode (SYN=1), it operates as the high frequency clock input or output
used by all enabled transmitters and receivers. When programmed as input this pin is used as an alternative
high frequency clock source to the ESAI transmitter rather than the DSP main clock. When programmed
as output it can serve as a high frequency sample clock (to external DACs for example) or as an additional
system clock. See Table 8-2.
HCKT may be programmed as a general-purpose I/O pin (PC5) when the ESAI HCKT function is not
being used.
8.2.12
High Frequency Clock for Receiver (HCKR)
HCKR is a bidirectional pin providing the receivers high frequency clock for the ESAI interface. The
direction of this pin is determined by the RHCKD bit in the RCCR register. In the asynchronous mode
(SYN=0), the HCKR pin operates as the high frequency clock input or output used by all the enabled
receivers. In the synchronous mode (SYN=1), it operates as the serial flag 2 pin. For further information
on pin mode and definition, see Table 8-9 and on receiver clock signals see Table 8-1.
When this pin is configured as serial flag pin, its direction is determined by the RHCKD bit in the RCCR
register. When configured as the output flag OF2, this pin reflects the value of the OF2 bit in the SAICR
register, and the data in the OF2 bit shows up at the pin synchronized to the frame sync being used by the
transmitter and receiver sections. When configured as the input flag IF2, the data value at the pin is stored
in the IF2 bit in the SAISR register, synchronized by the frame sync in normal mode or the slot in network
mode.
HCKR may be programmed as a general-purpose I/O pin (PC2) when the ESAI HCKR function is not
being used.
8.3
ESAI Programming Model
The ESAI can be viewed as five control registers, one status register, six transmit data registers, four
receive data registers, two transmit slot mask registers, two receive slot mask registers and a
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-7
ESAI Programming Model
special-purpose time slot register. The following paragraphs give detailed descriptions and operations of
each bit in the ESAI registers.
The ESAI pins can also function as GPIO pins (Port C), described in Section 8.5, "GPIO - Pins and
Registers".
8.3.1
ESAI Transmitter Clock Control Register (TCCR)
The read/write Transmitter Clock Control Register (TCCR) controls the ESAI transmitter clock generator
bit and frame sync rates, the bit clock and high frequency clock sources and the directions of the HCKT,
FST and SCKT signals. (See Figure 8-2). In the synchronous mode (SYN=1), the bit clock defined for the
transmitter determines the receiver bit clock as well. TCCR also controls the number of words per frame
for the serial data.
X:$FFFFB6
11
10
9
8
7
6
5
4
3
2
1
0
TDC2
TDC1
TDC0
TPSR
TPM7
TPM6
TPM5
TPM4
TPM3
TPM2
TPM1
TPM0
23
22
21
20
19
18
17
16
15
14
13
12
TFSP
TCKP
TFP3
TFP2
TFP1
TFP0
TDC4
TDC3
THCKD TFSD
TCKD THCKP
Figure 8-2 TCCR Register
Hardware and software reset clear all the bits of the TCCR register.
The TCCR control bits are described in the following paragraphs.
8.3.1.1
TCCR Transmit Prescale Modulus Select (TPM7–TPM0) - Bits 0–7
The TPM7–TPM0 bits specify the divide ratio of the prescale divider in the ESAI transmitter clock
generator. A divide ratio from 1 to 256 (TPM[7:0]=$00 to $FF) may be selected. The bit clock output is
available at the transmit serial bit clock (SCKT) pin of the DSP. The bit clock output is also available
internally for use as the bit clock to shift the transmit and receive shift registers. The ESAI transmit clock
generator functional diagram is shown in Figure 8-3.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-8
Freescale Semiconductor
ESAI Programming Model
RHCKD=1
FOSC
DIVIDE
BY 2
PRESCALE
DIVIDE BY
1
OR
DIVIDER
DIVIDE BY
1
TO DIVIDE
DIVIDER
DIVIDE BY
1
TO DIVIDE
RPM0 - RPM7
RFP0 - RFP3
RHCKD=0
RPSR
HCKR
RHCKD
FLAG0 OUT
(SYNC MODE)
FLAG0 IN
(SYNC MODE)
INTERNAL BIT CLOCK
RSWS4-RSWS0
RX WORD
LENGTH DIVIDER
SYN=1
RX WORD
CLOCK
SYN=0
SCKR
RX SHIFT REGISTER
RCLOCK
SYN=0
TSWS4-TSWS0
SYN=1
RCKD
TCLOCK
INTERNAL BIT CLOCK
SCKT
TX WORD
LENGTH DIVIDER
TX WORD
CLOCK
TCKD
TX SHIFT REGISTER
THCKD
HCKT
TPSR
TPM0 - TPM7
TFP0 - TFP3
DIVIDER
DIVIDE BY
1
TO DIVIDE
BY 256
DIVIDER
DIVIDE BY
1
TO DIVIDE
BY 16
THCKD=0
DIVIDE
BY 2
FOSC
THCKD=1
PRESCALE
DIVIDE BY
1
OR
DIVIDE BY
Notes:
1. FOSC is the DSP56300 Core internal clock frequency.
Figure 8-3 ESAI Clock Generator Functional Block Diagram
8.3.1.2
TCCR Transmit Prescaler Range (TPSR) - Bit 8
The TPSR bit controls a fixed divide-by-eight prescaler in series with the variable prescaler. This bit is
used to extend the range of the prescaler for those cases where a slower bit clock is desired. When TPSR
is set, the fixed prescaler is bypassed. When TPSR is cleared, the fixed divide-by-eight prescaler is
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-9
ESAI Programming Model
operational (see Figure 8-3). The maximum internally generated bit clock frequency is Fosc/4; the
minimum internally generated bit clock frequency is Fosc/(2 x 8 x 256)=Fosc/4096.
NOTE
Do not use the combination TPSR=1 and TPM7-TPM0=$00, which causes
synchronization problems when using the internal DSP clock as source
(TCKD=1 or THCKD=1).
8.3.1.3
TCCR Tx Frame Rate Divider Control (TDC4–TDC0) - Bits 9–13
The TDC4–TDC0 bits control the divide ratio for the programmable frame rate dividers used to generate
the transmitter frame clocks.
In network mode, this ratio may be interpreted as the number of words per frame minus one. The divide
ratio may range from 2 to 32 (TDC[4:0]=00001 to 11111) for network mode. A divide ratio of one
(TDC[4:0]=00000) in network mode is a special case (on-demand mode).
In normal mode, this ratio determines the word transfer rate. The divide ratio may range from 1 to 32
(TDC[4:0]=00000 to 11111) for normal mode. In normal mode, a divide ratio of 1 (TDC[4:0]=00000)
provides continuous periodic data word transfers. A bit-length frame sync (TFSL=1) must be used in this
case.
The ESAI frame sync generator functional diagram is shown in Figure 8-4.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-10
Freescale Semiconductor
ESAI Programming Model
RX WORD
CLOCK
RDC0 - RDC4
RFSL
RECEIVER
FRAME RATE
DIVIDER
SYNC
TYPE
INTERNAL RX FRAME CLOCK
RFSD
SYN=0
RFSD=1
SYN=0
RECEIVE
CONTROL
LOGIC
FSR
RECEIVE
FRAME SYNC
RFSD=0
SYN=1
SYN=1
TDC0 - TDC4
TFSL
FLAG1 IN
(SYNC MODE)
FLAG1OUT
(SYNC MODE)
TFSD
TX WORD
CLOCK
TRANSMITTER
FRAME RATE
DIVIDER
TRANSMIT
CONTROL
LOGIC
SYNC
TYPE
INTERNAL TX FRAME CLOCK
FST
TRANSMIT
FRAME SYNC
Figure 8-4 ESAI Frame Sync Generator Functional Block Diagram
8.3.1.4
TCCR Tx High Frequency Clock Divider (TFP3-TFP0) - Bits 14–17
The TFP3–TFP0 bits control the divide ratio of the transmitter high frequency clock to the transmitter
serial bit clock when the source of the high frequency clock and the bit clock is the internal DSP clock.
When the HCKT input is being driven from an external high frequency clock, the TFP3-TFP0 bits specify
an additional division ratio in the clock divider chain. See Table 8-3 for the specification of the divide ratio.
The ESAI high frequency clock generator functional diagram is shown in Figure 8-3.
Table 8-3 Transmitter High Frequency Clock Divider
TFP3-TFP0
Divide Ratio
$0
1
$1
2
$2
3
$3
4
...
...
$F
16
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-11
ESAI Programming Model
8.3.1.5
TCCR Transmit Clock Polarity (TCKP) - Bit 18
The Transmitter Clock Polarity (TCKP) bit controls on which bit clock edge data and frame sync are
clocked out and latched in. If TCKP is cleared the data and the frame sync are clocked out on the rising
edge of the transmit bit clock and latched in on the falling edge of the transmit bit clock. If TCKP is set
the falling edge of the transmit clock is used to clock the data out and frame sync and the rising edge of
the transmit clock is used to latch the data and frame sync in.
8.3.1.6
TCCR Transmit Frame Sync Polarity (TFSP) - Bit 19
The Transmitter Frame Sync Polarity (TFSP) bit determines the polarity of the transmit frame sync signal.
When TFSP is cleared, the frame sync signal polarity is positive (i.e the frame start is indicated by a high
level on the frame sync pin). When TFSP is set, the frame sync signal polarity is negative (i.e the frame
start is indicated by a low level on the frame sync pin).
8.3.1.7
TCCR Transmit High Frequency Clock Polarity (THCKP) - Bit 20
The Transmitter High Frequency Clock Polarity (THCKP) bit controls on which bit clock edge data and
frame sync are clocked out and latched in. If THCKP is cleared the data and the frame sync are clocked
out on the rising edge of the transmit bit clock and latched in on the falling edge of the transmit bit clock.
If THCKP is set the falling edge of the transmit clock is used to clock the data out and frame sync and the
rising edge of the transmit clock is used to latch the data and frame sync in.
8.3.1.8
TCCR Transmit Clock Source Direction (TCKD) - Bit 21
The Transmitter Clock Source Direction (TCKD) bit selects the source of the clock signal used to clock
the transmit shift registers in the asynchronous mode (SYN=0) and the transmit shift registers and the
receive shift registers in the synchronous mode (SYN=1). When TCKD is set, the internal clock source
becomes the bit clock for the transmit shift registers and word length divider and is the output on the SCKT
pin. When TCKD is cleared, the clock source is external; the internal clock generator is disconnected from
the SCKT pin, and an external clock source may drive this pin. See Table 8-2.
8.3.1.9
TCCR Transmit Frame Sync Signal Direction (TFSD) - Bit 22
TFSD controls the direction of the FST pin. When TFSD is cleared, FST is an input; when TFSD is set,
FST is an output. See Table 8-2.
8.3.1.10
TCCR Transmit High Frequency Clock Direction (THCKD) - Bit 23
THCKD controls the direction of the HCKT pin. When THCKD is cleared, HCKT is an input; when
THCKD is set, HCKT is an output. See Table 8-2.
8.3.2
ESAI Transmit Control Register (TCR)
The read/write Transmit Control Register (TCR) controls the ESAI transmitter section. Interrupt enable
bits for the transmitter section are provided in this control register. Operating modes are also selected in
this register See Figure 8-5.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-12
Freescale Semiconductor
ESAI Programming Model
.
11
X:$FFFFB5
10
9
8
TSWS1 TSWS0 TMOD1 TMOD0
7
6
5
4
3
2
1
0
TWA
TSHFD
TE5
TE4
TE3
TE2
TE1
TE0
18
17
16
15
14
13
12
PADC
TFSR
TFSL
23
22
21
20
19
TLIE
TIE
TEDIE
TEIE
TPR
TSWS4 TSWS3 TSWS2
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 8-5 TCR Register
Hardware and software reset clear all the bits in the TCR register.
The TCR bits are described in the following paragraphs.
8.3.2.1
TCR ESAI Transmit 0 Enable (TE0) - Bit 0
TE0 enables the transfer of data from TX0 to the transmit shift register #0. When TE0 is set and a frame
sync is detected, the transmit #0 portion of the ESAI is enabled for that frame. When TE0 is cleared, the
transmitter #0 is disabled after completing transmission of data currently in the ESAI transmit shift
register. The SDO0 output is tri-stated, and any data present in TX0 is not transmitted (i.e., data can be
written to TX0 with TE0 cleared; but data is not transferred to the transmit shift register #0).
The normal mode transmit enable sequence is to write data to one or more transmit data registers before
setting TEx. The normal transmit disable sequence is to clear TEx, TIE and TEIE after TDE equals one.
In the network mode, the operation of clearing TE0 and setting it again disables the transmitter #0 after
completing transmission of the current data word until the beginning of the next frame. During that time
period, the SDO0 pin remains in the high-impedance state.The on-demand mode transmit enable sequence
can be the same as the normal mode, or TE0 can be left enabled.
8.3.2.2
TCR ESAI Transmit 1 Enable (TE1) - Bit 1
TE1 enables the transfer of data from TX1 to the transmit shift register #1. When TE1 is set and a frame
sync is detected, the transmit #1 portion of the ESAI is enabled for that frame. When TE1 is cleared, the
transmitter #1 is disabled after completing transmission of data currently in the ESAI transmit shift
register. The SDO1 output is tri-stated, and any data present in TX1 is not transmitted (i.e., data can be
written to TX1 with TE1 cleared; but data is not transferred to the transmit shift register #1).
The normal mode transmit enable sequence is to write data to one or more transmit data registers before
setting TEx. The normal transmit disable sequence is to clear TEx, TIE and TEIE after TDE equals one.
In the network mode, the operation of clearing TE1 and setting it again disables the transmitter #1 after
completing transmission of the current data word until the beginning of the next frame. During that time
period, the SDO1 pin remains in the high-impedance state. The on-demand mode transmit enable sequence
can be the same as the normal mode, or TE1 can be left enabled.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-13
ESAI Programming Model
8.3.2.3
TCR ESAI Transmit 2 Enable (TE2) - Bit 2
TE2 enables the transfer of data from TX2 to the transmit shift register #2. When TE2 is set and a frame
sync is detected, the transmit #2 portion of the ESAI is enabled for that frame. When TE2 is cleared, the
transmitter #2 is disabled after completing transmission of data currently in the ESAI transmit shift
register. Data can be written to TX2 when TE2 is cleared but the data is not transferred to the transmit shift
register #2.
The SDO2/SDI3 pin is the data input pin for RX3 if TE2 is cleared and RE3 in the RCR register is set. If
both RE3 and TE2 are cleared the transmitter and receiver are disabled, and the pin is tri-stated. Both RE3
and TE2 should not be set at the same time.
The normal mode transmit enable sequence is to write data to one or more transmit data registers before
setting TEx. The normal transmit disable sequence is to clear TEx, TIE and TEIE after TDE equals one.
In the network mode, the operation of clearing TE2 and setting it again disables the transmitter #2 after
completing transmission of the current data word until the beginning of the next frame. During that time
period, the SDO2/SDI3 pin remains in the high-impedance state. The on-demand mode transmit enable
sequence can be the same as the normal mode, or TE2 can be left enabled.
8.3.2.4
TCR ESAI Transmit 3 Enable (TE3) - Bit 3
TE3 enables the transfer of data from TX3 to the transmit shift register #3. When TE3 is set and a frame
sync is detected, the transmit #3 portion of the ESAI is enabled for that frame. When TE3 is cleared, the
transmitter #3 is disabled after completing transmission of data currently in the ESAI transmit shift
register. Data can be written to TX3 when TE3 is cleared but the data is not transferred to the transmit shift
register #3.
The SDO3/SDI2 pin is the data input pin for RX2 if TE3 is cleared and RE2 in the RCR register is set. If
both RE2 and TE3 are cleared the transmitter and receiver are disabled, and the pin is tri-stated. Both RE2
and TE3 should not be set at the same time.
The normal mode transmit enable sequence is to write data to one or more transmit data registers before
setting TEx. The normal transmit disable sequence is to clear TEx, TIE and TEIE after TDE equals one.
In the network mode, the operation of clearing TE3 and setting it again disables the transmitter #3 after
completing transmission of the current data word until the beginning of the next frame. During that time
period, the SDO3/SDI2 pin remains in the high-impedance state. The on-demand mode transmit enable
sequence can be the same as the normal mode, or TE3 can be left enabled.
8.3.2.5
TCR ESAI Transmit 4 Enable (TE4) - Bit 4
TE4 enables the transfer of data from TX4 to the transmit shift register #4. When TE4 is set and a frame
sync is detected, the transmit #4 portion of the ESAI is enabled for that frame. When TE4 is cleared, the
transmitter #4 is disabled after completing transmission of data currently in the ESAI transmit shift
register. Data can be written to TX4 when TE4 is cleared but the data is not transferred to the transmit shift
register #4.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-14
Freescale Semiconductor
ESAI Programming Model
The SDO4/SDI1 pin is the data input pin for RX1 if TE4 is cleared and RE1 in the RCR register is set. If
both RE1 and TE4 are cleared the transmitter and receiver are disabled, and the pin is tri-stated. Both RE1
and TE4 should not be set at the same time.
The normal mode transmit enable sequence is to write data to one or more transmit data registers before
setting TEx. The normal transmit disable sequence is to clear TEx, TIE and TEIE after TDE equals one.
In the network mode, the operation of clearing TE4 and setting it again disables the transmitter #4 after
completing transmission of the current data word until the beginning of the next frame. During that time
period, the SDO4/SDI1 pin remains in the high-impedance state. The on-demand mode transmit enable
sequence can be the same as the normal mode, or TE4 can be left enabled.
8.3.2.6
TCR ESAI Transmit 5 Enable (TE5) - Bit 5
TE5 enables the transfer of data from TX5 to the transmit shift register #5. When TE5 is set and a frame
sync is detected, the transmit #5 portion of the ESAI is enabled for that frame. When TE5 is cleared, the
transmitter #5 is disabled after completing transmission of data currently in the ESAI transmit shift
register. Data can be written to TX5 when TE5 is cleared but the data is not transferred to the transmit shift
register #5.
The SDO5/SDI0 pin is the data input pin for RX0 if TE5 is cleared and RE0 in the RCR register is set. If
both RE0 and TE5 are cleared the transmitter and receiver are disabled, and the pin is tri-stated. Both RE0
and TE5 should not be set at the same time.
The normal mode transmit enable sequence is to write data to one or more transmit data registers before
setting TEx. The normal transmit disable sequence is to clear TEx, TIE and TEIE after TDE equals one.
In the network mode, the operation of clearing TE5 and setting it again disables the transmitter #5 after
completing transmission of the current data word until the beginning of the next frame. During that time
period, the SDO5/SDI0 pin remains in the high-impedance state. The on-demand mode transmit enable
sequence can be the same as the normal mode, or TE5 can be left enabled.
8.3.2.7
TCR Transmit Shift Direction (TSHFD) - Bit 6
The TSHFD bit causes the transmit shift registers to shift data out MSB first when TSHFD equals zero or
LSB first when TSHFD equals one (see Figure 8-13 and Figure 8-14).
8.3.2.8
TCR Transmit Word Alignment Control (TWA) - Bit 7
The Transmitter Word Alignment Control (TWA) bit defines the alignment of the data word in relation to
the slot. This is relevant for the cases where the word length is shorter than the slot length. If TWA is
cleared, the data word is left-aligned in the slot frame during transmission. If TWA is set, the data word is
right-aligned in the slot frame during transmission.
Since the data word is shorter than the slot length, the data word is extended until achieving the slot length,
according to the following rule:
1. If the data word is left-aligned (TWA=0), and zero padding is disabled (PADC=0), then the last data
bit is repeated after the data word has been transmitted. If zero padding is enabled (PADC=1),
zeroes are transmitted after the data word has been transmitted.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-15
ESAI Programming Model
2. If the data word is right-aligned (TWA=1), and zero padding is disabled (PADC=0), then the first
data bit is repeated before the transmission of the data word. If zero padding is enabled (PADC=1),
zeroes are transmitted before the transmission of the data word.
8.3.2.9
TCR Transmit Network Mode Control (TMOD1-TMOD0) - Bits 8-9
The TMOD1 and TMOD0 bits are used to define the network mode of ESAI transmitters according to
Table 8-4. In the normal mode, the frame rate divider determines the word transfer rate – one word is
transferred per frame sync during the frame sync time slot, as shown in Figure 8-6. In network mode, it is
possible to transfer a word for every time slot, as shown in Figure 8-6. For more details, see Section 8.4,
"Operating Modes".
In order to comply with AC-97 specifications, TSWS4-TSWS0 should be set to 00011 (20-bit slot, 20-bit
word length), TFSL and TFSR should be cleared, and TDC4-TDC0 should be set to $0C (13 words in
frame). If TMOD[1:0]=$11 and the above recommendations are followed, the first slot and word will be
16 bits long, and the next 12 slots and words will be 20 bits long, as required by the AC97 protocol.
Table 8-4 Transmit Network Mode Selection
TMOD1
TMOD0
TDC4-TDC0
0
0
$0-$1F
0
1
$0
0
1
$1-$1F
1
0
X
1
1
$0C
Transmitter Network Mode
Normal Mode
On-Demand Mode
Network Mode
Reserved
AC97
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-16
Freescale Semiconductor
Freescale Semiconductor
DATA
SLOT 0
SLOT 1
SLOT 0
DATA
RECEIVER INTERRUPT (OR DMA REQUEST)
AND FLAGS SET
SLOT 2
TRANSMITTER INTERRUPTS (OR DMA
REQUEST) AND FLAGS SET
NOTE: Interrupts occur and a word may be transferred at every time slot.
SERIAL DATA
FRAME SYNC
SERIAL CLOCK
Network Mode
RECEIVER INTERRUPT (OR DMA
REQUEST) AND FLAGS SET
TRANSMITTER INTERRUPT (OR DMA REQUEST)
AND FLAGS SET
NOTE: Interrupts occur and data is transferred once per frame sync.
SERIAL DATA
FRAME SYNC
SERIAL CLOCK
Normal Mode
SLOT 1
ESAI Programming Model
Figure 8-6 Normal and Network Operation
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-17
ESAI Programming Model
8.3.2.10
TCR Tx Slot and Word Length Select (TSWS4-TSWS0) - Bits 10-14
The TSWS4-TSWS0 bits are used to select the length of the slot and the length of the data words being
transferred via the ESAI. The word length must be equal to or shorter than the slot length. The possible
combinations are shown in Table 8-5. See also the ESAI data path programming model in Figure 8-13 and
Figure 8-14.
Table 8-5 ESAI Transmit Slot and Word Length Selection
TSWS4
TSWS3
TSWS2
TSWS1
TSWS0
SLOT LENGTH
WORD LENGTH
0
0
0
0
0
8
8
0
0
1
0
0
12
8
0
0
0
0
1
0
1
0
0
0
0
0
1
0
1
12
0
0
0
1
0
16
0
1
1
0
0
0
1
0
0
1
12
0
0
1
1
0
16
0
0
0
1
1
20
1
0
0
0
0
0
1
1
0
1
12
0
1
0
1
0
16
0
0
1
1
1
20
1
1
1
1
0
24
1
1
0
0
0
1
0
1
0
1
12
1
0
0
1
0
16
0
1
1
1
1
20
1
1
1
1
1
24
12
16
20
24
32
8
8
8
8
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-18
Freescale Semiconductor
ESAI Programming Model
Table 8-5 ESAI Transmit Slot and Word Length Selection (continued)
8.3.2.11
TSWS4
TSWS3
TSWS2
TSWS1
TSWS0
0
1
0
1
1
0
1
1
1
0
1
0
0
0
1
1
0
0
1
1
1
0
1
0
0
1
0
1
1
0
1
0
1
1
1
1
1
0
0
1
1
1
0
1
0
1
1
0
1
1
1
1
1
0
0
1
1
1
0
1
SLOT LENGTH
WORD LENGTH
Reserved
TCR Transmit Frame Sync Length (TFSL) - Bit 15
The TFSL bit selects the length of frame sync to be generated or recognized. If TFSL is cleared, a
word-length frame sync is selected. If TFSL is set, a 1-bit clock period frame sync is selected. See
Figure 8-7 for examples of frame length selection.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-19
ESAI Programming Model
WORD LENGTH: TFSL=0, RFSL=0
SERIAL CLOCK
RX, TX FRAME SYNC
RX, TX SERIAL DATA
DATA
DATA
NOTE: Frame sync occurs while data is valid.
ONE BIT LENGTH: TFSL=1, RFSL=1
SERIAL CLOCK
RX, TX FRAME SYNC
RX, TX SERIAL DATA
DATA
DATA
NOTE: Frame sync occurs for one bit time preceding the data.
MIXED FRAME LENGTH: TFSL=1, RFSL=0
SERIAL CLOCK
RX FRAME SYNC
RX SERIAL DATA
DATA
DATA
DATA
DATA
TX FRAME SYNC
TX SERIAL DATA
MIXED FRAME LENGTH: TFSL=0, RFSL=1
SERIAL CLOCK
RX FRAME SYNC
RX SERIAL DATA
DATA
DATA
DATA
DATA
TX FRAME SYNC
TX SERIAL DATA
Figure 8-7 Frame Length Selection
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-20
Freescale Semiconductor
ESAI Programming Model
8.3.2.12
TCR Transmit Frame Sync Relative Timing (TFSR) - Bit 16
TFSR determines the relative timing of the transmit frame sync signal as referred to the serial data lines,
for a word length frame sync only (TFSL=0). When TFSR is cleared the word length frame sync occurs
together with the first bit of the data word of the first slot. When TFSR is set the word length frame sync
starts one serial clock cycle earlier (i.e together with the last bit of the previous data word).
8.3.2.13
TCR Transmit Zero Padding Control (PADC) - Bit 17
When PADC is cleared, zero padding is disabled. When PADC is set, zero padding is enabled. PADC, in
conjunction with the TWA control bit, determines the way that padding is done for operating modes where
the word length is less than the slot length. See the TWA bit description in Section 8.3.2.8, "TCR Transmit
Word Alignment Control (TWA) - Bit 7" for more details.
Since the data word is shorter than the slot length, the data word is extended until achieving the slot length,
according to the following rules:
1. If the data word is left-aligned (TWA=0), and zero padding is disabled (PADC=0), then the last data
bit is repeated after the data word has been transmitted. If zero padding is enabled (PADC=1),
zeroes are transmitted after the data word has been transmitted.
2. If the data word is right-aligned (TWA=1), and zero padding is disabled (PADC=0), then the first
data bit is repeated before the transmission of the data word. If zero padding is enabled (PADC=1),
zeroes are transmitted before the transmission of the data word.
8.3.2.14
TCR Reserved Bit - Bits 18
This bit is reserved. It reads as zero, and it should be written with zero for future compatibility.
8.3.2.15
TCR Transmit Section Personal Reset (TPR) - Bit 19
The TPR control bit is used to put the transmitter section of the ESAI in the personal reset state. The
receiver section is not affected. When TPR is cleared, the transmitter section may operate normally. When
TPR is set, the transmitter section enters the personal reset state immediately. When in the personal reset
state, the status bits are reset to the same state as after hardware reset. The control bits are not affected by
the personal reset state. The transmitter data pins are tri-stated while in the personal reset state; if a stable
logic level is desired, the transmitter data pins should be defined as GPIO outputs, or external pull-up or
pull-down resistors should be used. The transmitter clock outputs drive zeroes while in the personal reset
state. Note that to leave the personal reset state by clearing TPR, the procedure described in Section 8.6,
"ESAI Initialization Examples" should be followed.
8.3.2.16
TCR Transmit Exception Interrupt Enable (TEIE) - Bit 20
When TEIE is set, the DSP is interrupted when both TDE and TUE in the SAISR status register are set.
When TEIE is cleared, this interrupt is disabled. Reading the SAISR status register followed by writing to
all the data registers of the enabled transmitters clears TUE, thus clearing the pending interrupt.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-21
ESAI Programming Model
8.3.2.17
TCR Transmit Even Slot Data Interrupt Enable (TEDIE) - Bit 21
The TEDIE control bit is used to enable the transmit even slot data interrupts. If TEDIE is set, the transmit
even slot data interrupts are enabled. If TEDIE is cleared, the transmit even slot data interrupts are
disabled. A transmit even slot data interrupt request is generated if TEDIE is set and the TEDE status flag
in the SAISR status register is set. Even time slots are all even-numbered time slots (0, 2, 4, etc.) when
operating in network mode. The zero time slot in the frame is marked by the frame sync signal and is
considered to be even. Writing data to all the data registers of the enabled transmitters or to TSR clears the
TEDE flag, thus servicing the interrupt.
Transmit interrupts with exception have higher priority than transmit even slot data interrupts, therefore if
exception occurs (TUE is set) and TEIE is set, the ESAI requests an ESAI transmit data with exception
interrupt from the interrupt controller.
8.3.2.18
TCR Transmit Interrupt Enable (TIE) - Bit 22
The DSP is interrupted when TIE and the TDE flag in the SAISR status register are set. When TIE is
cleared, this interrupt is disabled. Writing data to all the data registers of the enabled transmitters or to TSR
clears TDE, thus clearing the interrupt.
Transmit interrupts with exception have higher priority than normal transmit data interrupts, therefore if
exception occurs (TUE is set) and TEIE is set, the ESAI requests an ESAI transmit data with exception
interrupt from the interrupt controller.
8.3.2.19
TCR Transmit Last Slot Interrupt Enable (TLIE) - Bit 23
TLIE enables an interrupt at the beginning of last slot of a frame in network mode. When TLIE is set the
DSP is interrupted at the start of the last slot in a frame in network mode regardless of the transmit mask
register setting. When TLIE is cleared the transmit last slot interrupt is disabled. TLIE is disabled when
TDC[4:0]=$00000 (on-demand mode). The use of the transmit last slot interrupt is described in
Section 8.4.3, "ESAI Interrupt Requests".
8.3.3
ESAI Receive Clock Control Register (RCCR)
The read/write Receive Clock Control Register (RCCR) controls the ESAI receiver clock generator bit and
frame sync rates, word length, and number of words per frame for the serial data. The RCCR control bits
are described in the following paragraphs (see Figure 8-8).
X:$FFFFB8
11
10
9
8
7
6
5
4
3
2
1
0
RDC2
RDC1
RDC0
RPSR
RPM7
RPM6
RPM5
RPM4
RPM3
RPM2
RPM1
RPM0
23
22
21
20
19
18
17
16
15
14
13
12
RCKP
RFP3
RFP2
RFP1
RFP0
RDC4
RDC3
RHCKD RFSD
RCKD RHCKP RFSP
Figure 8-8 RCCR Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-22
Freescale Semiconductor
ESAI Programming Model
Hardware and software reset clear all the bits of the RCCR register.
8.3.3.1
RCCR Receiver Prescale Modulus Select (RPM7–RPM0) - Bits 7–0
The RPM7–RPM0 bits specify the divide ratio of the prescale divider in the ESAI receiver clock generator.
A divide ratio from 1 to 256 (RPM[7:0]=$00 to $FF) may be selected. The bit clock output is available at
the receiver serial bit clock (SCKR) pin of the DSP. The bit clock output is also available internally for use
as the bit clock to shift the receive shift registers. The ESAI receive clock generator functional diagram is
shown in Figure 8-3.
8.3.3.2
RCCR Receiver Prescaler Range (RPSR) - Bit 8
The RPSR controls a fixed divide-by-eight prescaler in series with the variable prescaler. This bit is used
to extend the range of the prescaler for those cases where a slower bit clock is desired. When RPSR is set,
the fixed prescaler is bypassed. When RPSR is cleared, the fixed divide-by-eight prescaler is operational
(see Figure 8-3). The maximum internally generated bit clock frequency is Fosc/4, the minimum internally
generated bit clock frequency is Fosc/(2 x 8 x 256)=Fosc/4096.
NOTE
Do not use the combination RPSR=1 and RPM7-RPM0=$00, which causes
synchronization problems when using the internal DSP clock as source
(RHCKD=1 or RCKD=1).
8.3.3.3
RCCR Rx Frame Rate Divider Control (RDC4–RDC0) - Bits 9–13
The RDC4–RDC0 bits control the divide ratio for the programmable frame rate dividers used to generate
the receiver frame clocks.
In network mode, this ratio may be interpreted as the number of words per frame minus one. The divide
ratio may range from 2 to 32 (RDC[4:0]=00001 to 11111) for network mode. A divide ratio of one
(RDC[4:0]=00000) in network mode is a special case (on-demand mode).
In normal mode, this ratio determines the word transfer rate. The divide ratio may range from 1 to 32
(RDC[4:0]=00000 to 11111) for normal mode. In normal mode, a divide ratio of one (RDC[4:0]=00000)
provides continuous periodic data word transfers. A bit-length frame sync (RFSL=1) must be used in this
case.
The ESAI frame sync generator functional diagram is shown in Figure 8-4.
8.3.3.4
RCCR Rx High Frequency Clock Divider (RFP3-RFP0) - Bits 14-17
The RFP3–RFP0 bits control the divide ratio of the receiver high frequency clock to the receiver serial bit
clock when the source of the receiver high frequency clock and the bit clock is the internal DSP clock.
When the HCKR input is being driven from an external high frequency clock, the RFP3-RFP0 bits specify
an additional division ration in the clock divider chain. See Table 8-6 for the specification of the divide
ratio. The ESAI high frequency generator functional diagram is shown in Figure 8-3.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-23
ESAI Programming Model
Table 8-6 Receiver High Frequency Clock Divider
8.3.3.5
RFP3-RFP0
Divide Ratio
$0
1
$1
2
$2
3
$3
4
...
...
$F
16
RCCR Receiver Clock Polarity (RCKP) - Bit 18
The Receiver Clock Polarity (RCKP) bit controls on which bit clock edge data and frame sync are clocked
out and latched in. If RCKP is cleared the data and the frame sync are clocked out on the rising edge of the
receive bit clock and the frame sync is latched in on the falling edge of the receive bit clock. If RCKP is
set the falling edge of the receive clock is used to clock the data and frame sync out and the rising edge of
the receive clock is used to latch the frame sync in.
8.3.3.6
RCCR Receiver Frame Sync Polarity (RFSP) - Bit 19
The Receiver Frame Sync Polarity (RFSP) determines the polarity of the receive frame sync signal. When
RFSP is cleared the frame sync signal polarity is positive (i.e the frame start is indicated by a high level
on the frame sync pin). When RFSP is set the frame sync signal polarity is negative (i.e the frame start is
indicated by a low level on the frame sync pin).
8.3.3.7
RCCR Receiver High Frequency Clock Polarity (RHCKP) - Bit 20
The Receiver High Frequency Clock Polarity (RHCKP) bit controls on which bit clock edge data and
frame sync are clocked out and latched in. If RHCKP is cleared the data and the frame sync are clocked
out on the rising edge of the receive bit clock and the frame sync is latched in on the falling edge of the
receive bit clock. If RHCKP is set the falling edge of the receive clock is used to clock the data and frame
sync out and the rising edge of the receive clock is used to latch the frame sync in.
8.3.3.8
RCCR Receiver Clock Source Direction (RCKD) - Bit 21
The Receiver Clock Source Direction (RCKD) bit selects the source of the clock signal used to clock the
receive shift register in the asynchronous mode (SYN=0) and the IF0/OF0 flag direction in the
synchronous mode (SYN=1).
In the asynchronous mode when RCKD is set, the internal clock source becomes the bit clock for the
receive shift registers and word length divider, and is the output on the SCKR pin. In the asynchronous
mode when RCKD is cleared, the clock source is external; the internal clock generator is disconnected
from the SCKR pin, and an external clock source may drive this pin.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-24
Freescale Semiconductor
ESAI Programming Model
In the synchronous mode when RCKD is set, the SCKR pin becomes the OF0 output flag. If RCKD is
cleared, then the SCKR pin becomes the IF0 input flag. See Table 8-1 and Table 8-7
.
Table 8-7 SCKR Pin Definition Table
Control Bits
SCKR PIN
8.3.3.9
SYN
RCKD
0
0
SCKR input
0
1
SCKR output
1
0
IF0
1
1
OF0
RCCR Receiver Frame Sync Signal Direction (RFSD) - Bit 22
The Receiver Frame Sync Signal Direction (RFSD) bit selects the source of the receiver frame sync signal
when in the asynchronous mode (SYN=0), and the IF1/OF1/Transmitter Buffer Enable flag direction in
the synchronous mode (SYN=1).
In the asynchronous mode when RFSD is set, the internal clock generator becomes the source of the
receiver frame sync, and is the output on the FSR pin. In the asynchronous mode when RFSD is cleared,
the receiver frame sync source is external; the internal clock generator is disconnected from the FSR pin,
and an external clock source may drive this pin.
In the synchronous mode when RFSD is set, the FSR pin becomes the OF1 output flag or the Transmitter
Buffer Enable, according to the TEBE control bit. If RFSD is cleared, then the FSR pin becomes the IF1
input flag. See Table 8-1 and Table 8-8.
Table 8-8 FSR Pin Definition Table
Control Bits
FSR Pin
SYN
TEBE
RFSD
0
X
0
FSR input
0
X
1
FSR output
1
0
0
IF1
1
0
1
OF1
1
1
0
reserved
1
1
1
Transmitter Buffer Enable
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-25
ESAI Programming Model
8.3.3.10
RCCR Receiver High Frequency Clock Direction (RHCKD) - Bit 23
The Receiver High Frequency Clock Direction (RHCKD) bit selects the source of the receiver high
frequency clock when in the asynchronous mode (SYN=0), and the IF2/OF2 flag direction in the
synchronous mode (SYN=1).
In the asynchronous mode when RHCKD is set, the internal clock generator becomes the source of the
receiver high frequency clock, and is the output on the HCKR pin. In the asynchronous mode when
RHCKD is cleared, the receiver high frequency clock source is external; the internal clock generator is
disconnected from the HCKR pin, and an external clock source may drive this pin.
When RHCKD is cleared, HCKR is an input; when RHCKD is set, HCKR is an output.
In the synchronous mode when RHCKD is set, the HCKR pin becomes the OF2 output flag. If RHCKD
is cleared, then the HCKR pin becomes the IF2 input flag. See Table 8-1 and Table 8-9.
Table 8-9 HCKR Pin Definition Table
Control Bits
HCKR PIN
8.3.4
SYN
RHCKD
0
0
HCKR input
0
1
HCKR output
1
0
IF2
1
1
OF2
ESAI Receive Control Register (RCR)
The read/write Receive Control Register (RCR) controls the ESAI receiver section. Interrupt enable bits
for the receivers are provided in this control register. The receivers are enabled in this register (0,1,2 or 3
receivers can be enabled) if the input data pin is not used by a transmitter. Operating modes are also
selected in this register.
11
X:$FFFFB7
10
9
8
RSWS1 RSWS0 RMOD RMOD
7
6
RWA
RSHFD
18
23
22
21
20
19
RLIE
RIE
REDIE
REIE
RPR
5
17
4
16
RFSR
3
2
1
0
RE3
RE2
RE1
RE0
15
14
13
12
RFSL RSWS4 RSWS3 RSWS2
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 8-9 RCR Register
Hardware and software reset clear all the bits in the RCR register.
The ESAI RCR bits are described in the following paragraphs.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-26
Freescale Semiconductor
ESAI Programming Model
8.3.4.1
RCR ESAI Receiver 0 Enable (RE0) - Bit 0
When RE0 is set and TE5 is cleared, the ESAI receiver 0 is enabled and samples data at the SDO5/SDI0
pin. TX5 and RX0 should not be enabled at the same time (RE0=1 and TE5=1). When RE0 is cleared,
receiver 0 is disabled by inhibiting data transfer into RX0. If this bit is cleared while receiving a data word,
the remainder of the word is shifted in and transferred to the RX0 data register.
If RE0 is set while some of the other receivers are already in operation, the first data word received in RX0
will be invalid and must be discarded.
8.3.4.2
RCR ESAI Receiver 1 Enable (RE1) - Bit 1
When RE1 is set and TE4 is cleared, the ESAI receiver 1 is enabled and samples data at the SDO4/SDI1
pin. TX4 and RX1 should not be enabled at the same time (RE1=1 and TE4=1). When RE1 is cleared,
receiver 1 is disabled by inhibiting data transfer into RX1. If this bit is cleared while receiving a data word,
the remainder of the word is shifted in and transferred to the RX1 data register.
If RE1 is set while some of the other receivers are already in operation, the first data word received in RX1
will be invalid and must be discarded.
8.3.4.3
RCR ESAI Receiver 2 Enable (RE2) - Bit 2
When RE2 is set and TE3 is cleared, the ESAI receiver 2 is enabled and samples data at the SDO3/SDI2
pin. TX3 and RX2 should not be enabled at the same time (RE2=1 and TE3=1). When RE2 is cleared,
receiver 2 is disabled by inhibiting data transfer into RX2. If this bit is cleared while receiving a data word,
the remainder of the word is shifted in and transferred to the RX2 data register.
If RE2 is set while some of the other receivers are already in operation, the first data word received in RX2
will be invalid and must be discarded.
8.3.4.4
RCR ESAI Receiver 3 Enable (RE3) - Bit 3
When RE3 is set and TE2 is cleared, the ESAI receiver 3 is enabled and samples data at the SDO2/SDI3
pin. TX2 and RX3 should not be enabled at the same time (RE3=1 and TE2=1). When RE3 is cleared,
receiver 3 is disabled by inhibiting data transfer into RX3. If this bit is cleared while receiving a data word,
the remainder of the word is shifted in and transferred to the RX3 data register.
If RE3 is set while some of the other receivers are already in operation, the first data word received in RX3
will be invalid and must be discarded.
8.3.4.5
RCR Reserved Bits - Bits 4-5, 17-18
These bits are reserved. They read as zero, and they should be written with zero for future compatibility.
8.3.4.6
RCR Receiver Shift Direction (RSHFD) - Bit 6
The RSHFD bit causes the receiver shift registers to shift data in MSB first when RSHFD is cleared or
LSB first when RSHFD is set (see Figure 8-13 and Figure 8-14).
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-27
ESAI Programming Model
8.3.4.7
RCR Receiver Word Alignment Control (RWA) - Bit 7
The Receiver Word Alignment Control (RWA) bit defines the alignment of the data word in relation to the
slot. This is relevant for the cases where the word length is shorter than the slot length. If RWA is cleared,
the data word is assumed to be left-aligned in the slot frame. If RWA is set, the data word is assumed to be
right-aligned in the slot frame.
If the data word is shorter than the slot length, the data bits which are not in the data word field are ignored.
For data word lengths of less than 24 bits, the data word is right-extended with zeroes before being stored
in the receive data registers.
8.3.4.8
RCR Receiver Network Mode Control (RMOD1-RMOD0) - Bits 8-9
The RMOD1 and RMOD0 bits are used to define the network mode of the ESAI receivers according to
Table 8-10. In the normal mode, the frame rate divider determines the word transfer rate – one word is
transferred per frame sync during the frame sync time slot, as shown in Figure 8-6. In network mode, it is
possible to transfer a word for every time slot, as shown in Figure 8-6. For more details, see Section 8.4,
"Operating Modes".
In order to comply with AC-97 specifications, RSWS4-RSWS0 should be set to 00011 (20-bit slot, 20-bit
word), RFSL and RFSR should be cleared, and RDC4-RDC0 should be set to $0C (13 words in frame).
Table 8-10 ESAI Receive Network Mode Selection
8.3.4.9
RMOD1
RMOD0
RDC4-RDC0
Receiver Network Mode
0
0
$0-$1F
Normal Mode
0
1
$0
On-Demand Mode
0
1
$1-$1F
Network Mode
1
0
X
Reserved
1
1
$0C
AC97
RCR Receiver Slot and Word Select (RSWS4-RSWS0) - Bits 10-14
The RSWS4-RSWS0 bits are used to select the length of the slot and the length of the data words being
received via the ESAI. The word length must be equal to or shorter than the slot length. The possible
combinations are shown in Table 8-11. See also the ESAI data path programming model in Figure 8-13
and Figure 8-14.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-28
Freescale Semiconductor
ESAI Programming Model
Table 8-11 ESAI Receive Slot and Word Length Selection
RSWS4
RSWS3
RSWS2
RSWS1
RSWS0
SLOT LENGTH
WORD LENGTH
0
0
0
0
0
8
8
0
0
1
0
0
12
8
0
0
0
0
1
0
1
0
0
0
0
0
1
0
1
12
0
0
0
1
0
16
0
1
1
0
0
0
1
0
0
1
12
0
0
1
1
0
16
0
0
0
1
1
20
1
0
0
0
0
0
1
1
0
1
12
0
1
0
1
0
16
0
0
1
1
1
20
1
1
1
1
0
24
1
1
0
0
0
1
0
1
0
1
12
1
0
0
1
0
16
0
1
1
1
1
20
1
1
1
1
1
24
12
16
20
24
32
8
8
8
8
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-29
ESAI Programming Model
Table 8-11 ESAI Receive Slot and Word Length Selection (continued)
8.3.4.10
RSWS4
RSWS3
RSWS2
RSWS1
RSWS0
0
1
0
1
1
0
1
1
1
0
1
0
0
0
1
1
0
0
1
1
1
0
1
0
0
1
0
1
1
0
1
0
1
1
1
1
1
0
0
1
1
1
0
1
0
1
1
0
1
1
1
1
1
0
0
1
1
1
0
1
SLOT LENGTH
WORD LENGTH
Reserved
RCR Receiver Frame Sync Length (RFSL) - Bit 15
The RFSL bit selects the length of the receive frame sync to be generated or recognized. If RFSL is cleared,
a word-length frame sync is selected. If RFSL is set, a 1-bit clock period frame sync is selected. See
Figure 8-7 for examples of frame length selection.
8.3.4.11
RCR Receiver Frame Sync Relative Timing (RFSR) - Bit 16
RFSR determines the relative timing of the receive frame sync signal as referred to the serial data lines,
for a word length frame sync only. When RFSR is cleared the word length frame sync occurs together with
the first bit of the data word of the first slot. When RFSR is set the word length frame sync starts one serial
clock cycle earlier (i.e. together with the last bit of the previous data word).
8.3.4.12
RCR Receiver Section Personal Reset (RPR) - Bit 19
The RPR control bit is used to put the receiver section of the ESAI in the personal reset state. The
transmitter section is not affected. When RPR is cleared, the receiver section may operate normally. When
RPR is set, the receiver section enters the personal reset state immediately. When in the personal reset
state, the status bits are reset to the same state as after hardware reset.The control bits are not affected by
the personal reset state.The receiver data pins are disconnected while in the personal reset state. Note that
to leave the personal reset state by clearing RPR, the procedure described in Section 8.6, "ESAI
Initialization Examples" should be followed.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-30
Freescale Semiconductor
ESAI Programming Model
8.3.4.13
RCR Receive Exception Interrupt Enable (REIE) - Bit 20
When REIE is set, the DSP is interrupted when both RDF and ROE in the SAISR status register are set.
When REIE is cleared, this interrupt is disabled. Reading the SAISR status register followed by reading
the enabled receivers data registers clears ROE, thus clearing the pending interrupt.
8.3.4.14
RCR Receive Even Slot Data Interrupt Enable (REDIE) - Bit 21
The REDIE control bit is used to enable the receive even slot data interrupts. If REDIE is set, the receive
even slot data interrupts are enabled. If REDIE is cleared, the receive even slot data interrupts are disabled.
A receive even slot data interrupt request is generated if REDIE is set and the REDF status flag in the
SAISR status register is set. Even time slots are all even-numbered time slots (0, 2, 4, etc.) when operating
in network mode. The zero time slot is marked by the frame sync signal and is considered to be even.
Reading all the data registers of the enabled receivers clears the REDF flag, thus servicing the interrupt.
Receive interrupts with exception have higher priority than receive even slot data interrupts, therefore if
exception occurs (ROE is set) and REIE is set, the ESAI requests an ESAI receive data with exception
interrupt from the interrupt controller.
8.3.4.15
RCR Receive Interrupt Enable (RIE) - Bit 22
The DSP is interrupted when RIE and the RDF flag in the SAISR status register are set. When RIE is
cleared, this interrupt is disabled. Reading the receive data registers of the enabled receivers clears RDF,
thus clearing the interrupt.
Receive interrupts with exception have higher priority than normal receive data interrupts, therefore if
exception occurs (ROE is set) and REIE is set, the ESAI requests an ESAI receive data with exception
interrupt from the interrupt controller.
8.3.4.16
RCR Receive Last Slot Interrupt Enable (RLIE) - Bit 23
RLIE enables an interrupt after the last slot of a frame ended in network mode only. When RLIE is set the
DSP is interrupted after the last slot in a frame ended regardless of the receive mask register setting. When
RLIE is cleared the receive last slot interrupt is disabled. Hardware and software reset clear RLIE. RLIE
is disabled when RDC[4:0]=00000 (on-demand mode). The use of the receive last slot interrupt is
described in Section 8.4.3, "ESAI Interrupt Requests".
8.3.5
ESAI Common Control Register (SAICR)
The read/write Common Control Register (SAICR) contains control bits for functions that affect both the
receive and transmit sections of the ESAI.See Figure 8-10.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-31
ESAI Programming Model
11
10
9
X:$FFFFB4
23
22
21
8
7
6
ALC
TEBE
SYN
20
19
18
5
17
4
16
3
15
2
1
0
OF2
OF1
OF0
14
13
12
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 8-10 SAICR Register
Hardware and software reset clear all the bits in the SAICR register.
8.3.5.1
SAICR Serial Output Flag 0 (OF0) - Bit 0
The Serial Output Flag 0 (OF0) is a data bit used to hold data to be send to the OF0 pin. When the ESAI
is in the synchronous clock mode (SYN=1), the SCKR pin is configured as the ESAI flag 0. If the receiver
serial clock direction bit (RCKD) is set, the SCKR pin is the output flag OF0, and data present in the OF0
bit is written to the OF0 pin at the beginning of the frame in normal mode or at the beginning of the next
time slot in network mode.
8.3.5.2
SAICR Serial Output Flag 1 (OF1) - Bit 1
The Serial Output Flag 1 (OF1) is a data bit used to hold data to be send to the OF1 pin. When the ESAI
is in the synchronous clock mode (SYN=1), the FSR pin is configured as the ESAI flag 1. If the receiver
frame sync direction bit (RFSD) is set and the TEBE bit is cleared, the FSR pin is the output flag OF1, and
data present in the OF1 bit is written to the OF1 pin at the beginning of the frame in normal mode or at the
beginning of the next time slot in network mode.
8.3.5.3
SAICR Serial Output Flag 2 (OF2) - Bit 2
The Serial Output Flag 2 (OF2) is a data bit used to hold data to be send to the OF2 pin. When the ESAI
is in the synchronous clock mode (SYN=1), the HCKR pin is configured as the ESAI flag 2. If the receiver
high frequency clock direction bit (RHCKD) is set, the HCKR pin is the output flag OF2, and data present
in the OF2 bit is written to the OF2 pin at the beginning of the frame in normal mode or at the beginning
of the next time slot in network mode.
8.3.5.4
SAICR Reserved Bits - Bits 3-5, 9-23
These bits are reserved. They read as zero, and they should be written with zero for future compatibility.
8.3.5.5
SAICR Synchronous Mode Selection (SYN) - Bit 6
The Synchronous Mode Selection (SYN) bit controls whether the receiver and transmitter sections of the
ESAI operate synchronously or asynchronously with respect to each other (see Figure 8-11). When SYN
is cleared, the asynchronous mode is chosen and independent clock and frame sync signals are used for
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-32
Freescale Semiconductor
ESAI Programming Model
the transmit and receive sections. When SYN is set, the synchronous mode is chosen and the transmit and
receive sections use common clock and frame sync signals.
When in the synchronous mode (SYN=1), the transmit and receive sections use the transmitter section
clock generator as the source of the clock and frame sync for both sections. Also, the receiver clock pins
SCKR, FSR and HCKR now operate as I/O flags. See Table 8-7, Table 8-8 and Table 8-9 for the effects of
SYN on the receiver clock pins.
8.3.5.6
SAICR Transmit External Buffer Enable (TEBE) - Bit 7
The Transmitter External Buffer Enable (TEBE) bit controls the function of the FSR pin when in the
synchronous mode. If the ESAI is configured for operation in the synchronous mode (SYN=1), and TEBE
is set while FSR pin is configured as an output (RFSD=1), the FSR pin functions as the transmitter external
buffer enable control, to enable the use of an external buffers on the transmitter outputs. If TEBE is cleared
then the FSR pin functions as the serial I/O flag 1. See Table 8-8 for a summary of the effects of TEBE on
the FSR pin.
8.3.5.7
SAICR Alignment Control (ALC) - Bit 8
The ESAI is designed for 24-bit fractional data, thus shorter data words are left aligned to the MSB (bit
23). Some applications use 16-bit fractional data. In those cases, shorter data words may be left aligned to
bit 15. The Alignment Control (ALC) bit supports these applications.
If ALC is set, transmitted and received words are left aligned to bit 15 in the transmit and receive shift
registers. If ALC is cleared, transmitted and received word are left aligned to bit 23 in the transmit and
receive shift registers.
NOTE
While ALC is set, 20-bit and 24-bit words may not be used, and word length
control should specify 8-, 12- or 16-bit words, otherwise results are
unpredictable.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-33
ESAI Programming Model
ASYNCHRONOUS (SYN=0)
TRANSMITTER
SDO
FRAME
SYNC
CLOCK
EXTERNAL TRANSMIT CLOCK
EXTERNAL TRANSMIT FRAME SYNC
SCKT
ESAI BIT
CLOCK
FST
INTERNAL CLOCK
INTERNAL FRAME SYNC
EXTERNAL RECEIVE CLOCK
EXTERNAL RECEIVE FRAME SYNC
SCKR
FSR
CLOCK
FRAME
SYNC
SDI
RECEIVER
NOTE: Transmitter and receiver may have different clocks and frame syncs.
SYNCHRONOUS (SYN=1)
TRANSMITTER
SDO
FRAME
SYNC
CLOCK
EXTERNAL CLOCK
EXTERNAL FRAME SYNC
SCKT
ESAI BIT
CLOCK
FST
INTERNAL CLOCK
INTERNAL FRAME SYNC
CLOCK
FRAME
SYNC
SDI
RECEIVER
NOTE: Transmitter and receiver have the same clocks and frame syncs.
Figure 8-11 SAICR SYN Bit Operation
8.3.6
ESAI Status Register (SAISR)
The Status Register (SAISR) is a read-only status register used by the DSP to read the status and serial
input flags of the ESAI. See Figure 8-12. The status bits are described in the following paragraphs.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-34
Freescale Semiconductor
ESAI Programming Model
11
X:$FFFFB3
23
10
9
8
7
6
RODF
REDF
RDF
ROE
RFS
22
21
20
19
18
5
4
3
2
1
0
IF2
IF1
IF0
12
17
16
15
14
13
TODE
TEDE
TDE
TUE
TFS
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 8-12 SAISR Register
8.3.6.1
SAISR Serial Input Flag 0 (IF0) - Bit 0
The IF0 bit is enabled only when the SCKR pin is defined as ESAI in the Port Control Register, SYN=1
and RCKD=0, indicating that SCKR is an input flag and the synchronous mode is selected. Data present
on the SCKR pin is latched during reception of the first received data bit after frame sync is detected. The
IF0 bit is updated with this data when the receiver shift registers are transferred into the receiver data
registers. IF0 reads as a zero when it is not enabled. Hardware, software, ESAI individual, and STOP reset
clear IF0.
8.3.6.2
SAISR Serial Input Flag 1 (IF1) - Bit 1
The IF1 bit is enabled only when the FSR pin is defined as ESAI in the Port Control Register, SYN =1,
RFSD=0 and TEBE=0, indicating that FSR is an input flag and the synchronous mode is selected. Data
present on the FSR pin is latched during reception of the first received data bit after frame sync is detected.
The IF1 bit is updated with this data when the receiver shift registers are transferred into the receiver data
registers. IF1 reads as a zero when it is not enabled. Hardware, software, ESAI individual, and STOP reset
clear IF1.
8.3.6.3
SAISR Serial Input Flag 2 (IF2) - Bit 2
The IF2 bit is enabled only when the HCKR pin is defined as ESAI in the Port Control Register, SYN=1
and RHCKD=0, indicating that HCKR is an input flag and the synchronous mode is selected. Data present
on the HCKR pin is latched during reception of the first received data bit after frame sync is detected. The
IF2 bit is updated with this data when the receive shift registers are transferred into the receiver data
registers. IF2 reads as a zero when it is not enabled. Hardware, software, ESAI individual, and STOP reset
clear IF2.
8.3.6.4
SAISR Reserved Bits - Bits 3-5, 11-12, 18-23
These bits are reserved for future use. They read as zero.
8.3.6.5
SAISR Receive Frame Sync Flag (RFS) - Bit 6
When set, RFS indicates that a receive frame sync occurred during reception of the words in the receiver
data registers. This indicates that the data words are from the first slot in the frame. When RFS is clear and
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-35
ESAI Programming Model
a word is received, it indicates (only in the network mode) that the frame sync did not occur during
reception of that word. RFS is cleared by hardware, software, ESAI individual, or STOP reset. RFS is valid
only if at least one of the receivers is enabled (REx=1).
NOTE
In normal mode, RFS always reads as a one when reading data because there
is only one time slot per frame – the “frame sync” time slot.
8.3.6.6
SAISR Receiver Overrun Error Flag (ROE) - Bit 7
The ROE flag is set when the serial receive shift register of an enabled receiver is full and ready to transfer
to its receiver data register (RXx) and the register is already full (RDF=1). If REIE is set, an ESAI receive
data with exception (overrun error) interrupt request is issued when ROE is set. Hardware, software, ESAI
individual, and STOP reset clear ROE. ROE is also cleared by reading the SAISR with ROE set, followed
by reading all the enabled receive data registers.
8.3.6.7
SAISR Receive Data Register Full (RDF) - Bit 8
RDF is set when the contents of the receive shift register of an enabled receiver is transferred to the
respective receive data register. RDF is cleared when the DSP reads the receive data register of all enabled
receivers or cleared by hardware, software, ESAI individual, or STOP reset. If RIE is set, an ESAI receive
data interrupt request is issued when RDF is set.
8.3.6.8
SAISR Receive Even-Data Register Full (REDF) - Bit 9
When set, REDF indicates that the received data in the receive data registers of the enabled receivers have
arrived during an even time slot when operating in the network mode. Even time slots are all
even-numbered slots (0, 2, 4, 6, etc.). Time slots are numbered from zero to N-1, where N is the number
of time slots in the frame. The zero time slot is considered even. REDF is set when the contents of the
receive shift registers are transferred to the receive data registers. REDF is cleared when the DSP reads all
the enabled receive data registers or cleared by hardware, software, ESAI individual, or STOP resets. If
REDIE is set, an ESAI receive even slot data interrupt request is issued when REDF is set.
8.3.6.9
SAISR Receive Odd-Data Register Full (RODF) - Bit 10
When set, RODF indicates that the received data in the receive data registers of the enabled receivers have
arrived during an odd time slot when operating in the network mode. Odd time slots are all odd-numbered
slots (1, 3, 5, etc.). Time slots are numbered from zero to N-1, where N is the number of time slots in the
frame. RODF is set when the contents of the receive shift registers are transferred to the receive data
registers. RODF is cleared when the DSP reads all the enabled receive data registers or cleared by
hardware, software, ESAI individual, or STOP resets.
8.3.6.10
SAISR Transmit Frame Sync Flag (TFS) - Bit 13
When set, TFS indicates that a transmit frame sync occurred in the current time slot. TFS is set at the start
of the first time slot in the frame and cleared during all other time slots. Data written to a transmit data
register during the time slot when TFS is set is transmitted (in network mode), if the transmitter is enabled,
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-36
Freescale Semiconductor
ESAI Programming Model
during the second time slot in the frame. TFS is useful in network mode to identify the start of a frame.
TFS is cleared by hardware, software, ESAI individual, or STOP reset. TFS is valid only if at least one
transmitter is enabled (i.e. one or more of TE0, TE1, TE2, TE3, TE4 and TE5 are set).
NOTE
In normal mode, TFS always reads as a one when transmitting data because
there is only one time slot per frame – the “frame sync” time slot.
8.3.6.11
SAISR Transmit Underrun Error Flag (TUE) - Bit 14
TUE is set when at least one of the enabled serial transmit shift registers is empty (no new data to be
transmitted) and a transmit time slot occurs. When a transmit underrun error occurs, the previous data
(which is still present in the TX registers that were not written) is retransmitted. If TEIE is set, an ESAI
transmit data with exception (underrun error) interrupt request is issued when TUE is set. Hardware,
software, ESAI individual, and STOP reset clear TUE. TUE is also cleared by reading the SAISR with
TUE set, followed by writing to all the enabled transmit data registers or to TSR.
8.3.6.12
SAISR Transmit Data Register Empty (TDE) - Bit 15
TDE is set when the contents of the transmit data register of all the enabled transmitters are transferred to
the transmit shift registers; it is also set for a TSR disabled time slot period in network mode (as if data
were being transmitted after the TSR was written). When set, TDE indicates that data should be written to
all the TX registers of the enabled transmitters or to the time slot register (TSR). TDE is cleared when the
DSP writes to all the transmit data registers of the enabled transmitters, or when the DSP writes to the TSR
to disable transmission of the next time slot. If TIE is set, an ESAI transmit data interrupt request is issued
when TDE is set. Hardware, software, ESAI individual, and STOP reset clear TDE.
8.3.6.13
SAISR Transmit Even-Data Register Empty (TEDE) - Bit 16
When set, TEDE indicates that the enabled transmitter data registers became empty at the beginning of an
even time slot. Even time slots are all even-numbered slots (0, 2, 4, 6, etc.). Time slots are numbered from
zero to N-1, where N is the number of time slots in the frame. The zero time slot is considered even. This
flag is set when the contents of the transmit data register of all the enabled transmitters are transferred to
the transmit shift registers; it is also set for a TSR disabled time slot period in network mode (as if data
were being transmitted after the TSR was written). When set, TEDE indicates that data should be written
to all the TX registers of the enabled transmitters or to the time slot register (TSR). TEDE is cleared when
the DSP writes to all the transmit data registers of the enabled transmitters, or when the DSP writes to the
TSR to disable transmission of the next time slot. If TIE is set, an ESAI transmit data interrupt request is
issued when TEDE is set. Hardware, software, ESAI individual, and STOP reset clear TEDE.
8.3.6.14
SAISR Transmit Odd-Data Register Empty (TODE) - Bit 17
When set, TODE indicates that the enabled transmitter data registers became empty at the beginning of an
odd time slot. Odd time slots are all odd-numbered slots (1, 3, 5, etc.). Time slots are numbered from zero
to N-1, where N is the number of time slots in the frame. This flag is set when the contents of the transmit
data register of all the enabled transmitters are transferred to the transmit shift registers; it is also set for a
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-37
ESAI Programming Model
TSR disabled time slot period in network mode (as if data were being transmitted after the TSR was
written). When set, TODE indicates that data should be written to all the TX registers of the enabled
transmitters or to the time slot register (TSR). TODE is cleared when the DSP writes to all the transmit
data registers of the enabled transmitters, or when the DSP writes to the TSR to disable transmission of the
next time slot. If TIE is set, an ESAI transmit data interrupt request is issued when TODE is set. Hardware,
software, ESAI individual, and STOP reset clear TODE.
23 16 15870
ESAI RECEIVE DATA REGISTER
(READ ONLY)
RECEIVE HIGH BYTERECEIVE MIDDLE BYTERECEIVE LOW BYTE
7
0 7070
23 16 15870
SERIAL
RECEIVE
SHIFT
REGISTER
RECEIVE HIGH BYTERECEIVE MIDDLE BYTERECEIVE LOW BYTE
7
0 7070
24 BIT
20 BIT
16 BIT
SDI
12 BIT
8 BIT
MSB
LSB
8-BIT DATA
0
MSB
0
0
0
RSWS4RSWS0
LEAST SIGNIFICANT
ZERO FILL
LSB
12-BIT DATA
LSB
MSB
16-BIT DATA
MSB
LSB
20-BIT DATA
MSB
LSB
24-BIT DATA
NOTES:
1. Data is received MSB first if RSHFD=0.
2. 24-bit fractional format (ALC=0).
3. 32-bit mode is not shown.
(a) Receive Registers
23 16 15870
ESAI TRANSMIT DATA
REGISTER
(WRITE ONLY)
TRANSMIT HIGH BYTETRANSMIT MIDDLE BYTETRANSMIT LOW BYTE
7
0 7070
23 16 15870
ESAI TRANSMIT
SHIFT REGISTER
TRANSMIT HIGH BYTETRANSMIT MIDDLE BYTETRANSMIT LOW BYTE
SDO
7
0 7070
MSB
8-BIT DATA
LSB
*
MSB
*
*
*
* - LEAST SIGNIFICANT
BIT FILL
LSB
12-BIT DATA
LSB
MSB
16-BIT DATA
MSB
20-BIT DATA
MSB
24-BIT DATA
(b) Transmit Registers
LSB
LSB
NOTES:
1. Data is sent MSB first if TSHFD=0.
2. 24-bit fractional format (ALC=0).
3. 32-bit mode is not shown.
4, Data word is left-aligned
(TWA=0,PADC=0).
Figure 8-13 ESAI Data Path Programming Model ([R/T]SHFD=0)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-38
Freescale Semiconductor
ESAI Programming Model
23 16 15870
ESAI RECEIVE DATA REGISTER
(READ ONLY)
RECEIVE HIGH BYTERECEIVE MIDDLE BYTERECEIVE LOW BYTE
7
0 7070
23 16 15870
RECEIVE HIGH BYTERECEIVE MIDDLE BYTERECEIVE LOW BYTE
SDI
7
ESAI RECEIVE
SHIFT REGISTER
0 7070
MSB
LSB
8-BIT DATA
0
MSB
0
0
LEAST SIGNIFICANT
ZERO FILL
0
LSB
12-BIT DATA
LSB
MSB
16-BIT DATA
MSB
LSB
20-BIT DATA
MSB
LSB
24-BIT DATA
NOTES:
1. Data is received LSB first if RSHFD=1.
2. 24-bit fractional format (ALC=0).
3. 32-bit mode is not shown.
(a) Receive Registers
23 16 15870
TRANSMIT HIGH BYTETRANSMIT MIDDLE BYTETRANSMIT LOW BYTE
7
0 7070
ESAI TRANSMIT DATA
REGISTER
(WRITE ONLY)
ESAI TRANSMIT
SHIFT REGISTER
23 16 15870
TRANSMIT HIGH BYTETRANSMIT MIDDLE BYTETRANSMIT LOW BYTE
7
0 7070
24 BIT
20 BIT
16 BIT
12 BIT
SDO
8 BIT
MSB
LSB
8-BIT DATA
0
MSB
0
0
0
TSWS4TSWS0
LSB
12-BIT DATA
LSB
MSB
16-BIT DATA
MSB
20-BIT DATA
MSB
LSB
LSB
24-BIT DATA
(b) Transmit Registers
NOTES:
1. Data is sent LSB first if TSHFD=1.
2. 24-bit fractional format (ALC=0).
3. 32-bit mode is not shown.
4. Data word is left aligned (TWA=0,PADC=1).
Figure 8-14 ESAI Data Path Programming Model ([R/T]SHFD=1)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-39
ESAI Programming Model
8.3.7
ESAI Receive Shift Registers
The receive shift registers (see Figure 8-13 and Figure 8-14) receive the incoming data from the serial
receive data pins. Data is shifted in by the selected (internal/external) bit clock when the associated frame
sync I/O is asserted. Data is assumed to be received MSB first if RSHFD=0 and LSB first if RSHFD=1.
Data is transferred to the ESAI receive data registers after 8, 12, 16, 20, 24, or 32 serial clock cycles were
counted, depending on the slot length control bits in the RCR register.
8.3.8
ESAI Receive Data Registers (RX3, RX2, RX1, RX0)
RX3, RX2, RX1 and RX0 are 24-bit read-only registers that accept data from the receive shift registers
when they become full (see Figure 8-13 and Figure 8-14). The data occupies the most significant portion
of the receive data registers, according to the ALC control bit setting. The unused bits (least significant
portion, and 8 most significant bits when ALC=1) read as zeros. The DSP is interrupted whenever RXx
becomes full if the associated interrupt is enabled.
8.3.9
ESAI Transmit Shift Registers
The transmit shift registers contain the data being transmitted (see Figure 8-13 and Figure 8-14). Data is
shifted out to the serial transmit data pins by the selected (internal/external) bit clock when the associated
frame sync I/O is asserted. The number of bits shifted out before the shift registers are considered empty
and may be written to again can be 8, 12, 16, 20, 24 or 32 bits (determined by the slot length control bits
in the TCR register). Data is shifted out of these registers MSB first if TSHFD=0 and LSB first if
TSHFD=1.
8.3.10
ESAI Transmit Data Registers (TX5, TX4, TX3, TX2,TX1,TX0)
TX5, TX4, TX3, TX2, TX1 and TX0 are 24-bit write-only registers. Data to be transmitted is written into
these registers and is automatically transferred to the transmit shift registers (see Figure 8-13 and
Figure 8-14). The data written (8, 12, 16, 20 or 24 bits) should occupy the most significant portion of the
TXx according to the ALC control bit setting. The unused bits (least significant portion, and the 8 most
significant bits when ALC=1) of the TXx are don’t care bits. The DSP is interrupted whenever the TXx
becomes empty if the transmit data register empty interrupt has been enabled.
8.3.11
ESAI Time Slot Register (TSR)
The write-only Time Slot Register (TSR) is effectively a null data register that is used when the data is not
to be transmitted in the available transmit time slot. The transmit data pins of all the enabled transmitters
are in the high-impedance state for the respective time slot where TSR has been written. The Transmitter
External Buffer Enable pin (FSR pin when SYN=1, TEBE=1, RFSD=1) disables the external buffers
during the slot when the TSR register has been written.
8.3.12
Transmit Slot Mask Registers (TSMA, TSMB)
The Transmit Slot Mask Registers (TSMA and TSMB) are two read/write registers used by the
transmitters in network mode to determine for each slot whether to transmit a data word and generate a
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-40
Freescale Semiconductor
ESAI Programming Model
transmitter empty condition (TDE=1), or to tri-state the transmitter data pins. TSMA and TSMB should
each be considered as containing half a 32-bit register TSM. See Figure 8-15 and Figure 8-16. Bit number
N in TSM (TS**) is the enable/disable control bit for transmission in slot number N.
X:$FFFFB9
11
10
9
8
7
6
5
4
3
2
1
0
TS11
TS10
TS9
TS8
TS7
TS6
TS5
TS4
TS3
TS2
TS1
TS0
23
22
21
20
19
18
17
16
15
14
13
12
TS15
TS14
TS13
TS12
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 8-15 TSMA Register
X:$FFFFBA
11
10
9
8
7
6
5
4
3
2
1
0
TS27
TS26
TS25
TS24
TS23
TS22
TS21
TS20
TS19
TS18
TS17
TS16
23
22
21
20
19
18
17
16
15
14
13
12
TS31
TS30
TS29
TS28
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 8-16 TSMB Register
When bit number N in TSM is cleared, all the transmit data pins of the enabled transmitters are tri-stated
during transmit time slot number N. The data is still transferred from the transmit data registers to the
transmit shift registers but neither the TDE nor the TUE flags are set. This means that during a disabled
slot, no transmitter empty interrupt is generated. The DSP is interrupted only for enabled slots. Data that
is written to the transmit data registers when servicing this request is transmitted in the next enabled
transmit time slot.
When bit number N in TSM register is set, the transmit sequence is as usual: data is transferred from the
TX registers to the shift registers, transmitted during slot number N, and the TDE flag is set.
Using the slot mask in TSM does not conflict with using TSR. Even if a slot is enabled in TSM, the user
may chose to write to TSR instead of writing to the transmit data registers TXx. This causes all the transmit
data pins of the enabled transmitters to be tri-stated during the next slot.
Data written to the TSM affects the next frame transmission. The frame being transmitted is not affected
by this data and would comply to the last TSM setting. Data read from TSM returns the last written data.
After hardware or software reset, the TSM register is preset to $FFFFFFFF, which means that all 32
possible slots are enabled for data transmission.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-41
ESAI Programming Model
NOTE
When operating in normal mode, bit 0 of the mask register must be set,
otherwise no output is generated.
8.3.13
Receive Slot Mask Registers (RSMA, RSMB)
The Receive Slot Mask Registers (RSMA and RSMB) are two read/write registers used by the receiver in
network mode to determine for each slot whether to receive a data word and generate a receiver full
condition (RDF=1), or to ignore the received data. RSMA and RSMB should be considered as each
containing half of a 32-bit register RSM. See Figure 8-17 and Figure 8-18. Bit number N in RSM (RS**)
is an enable/disable control bit for receiving data in slot number N.
X:$FFFFBB
11
10
9
8
7
6
5
4
3
2
1
0
RS11
RS10
RS9
RS8
RS7
RS6
RS5
RS4
RS3
RS2
RS1
RS0
23
22
21
20
19
18
17
16
15
14
13
12
RS15
RS14
RS13
RS12
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 8-17 RSMA Register
X:$FFFFBC
11
10
9
8
7
6
5
4
3
2
1
0
RS27
RS26
RS25
RS24
RS23
RS22
RS21
RS20
RS19
RS18
RS17
RS16
23
22
21
20
19
18
17
16
15
14
13
12
RS31
RS30
RS29
RS28
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 8-18 RSMB Register
When bit number N in the RSM register is cleared, the data from the enabled receivers input pins are
shifted into their receive shift registers during slot number N. The data is not transferred from the receive
shift registers to the receive data registers, and neither the RDF nor the ROE flags are set. This means that
during a disabled slot, no receiver full interrupt is generated. The DSP is interrupted only for enabled slots.
When bit number N in the RSM is set, the receive sequence is as usual: data which is shifted into the
enabled receivers shift registers is transferred to the receive data registers and the RDF flag is set.
Data written to the RSM affects the next received frame. The frame being received is not affected by this
data and would comply to the last RSM setting. Data read from RSM returns the last written data.
After hardware or software reset, the RSM register is preset to $FFFFFFFF, which means that all 32
possible slots are enabled for data reception.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-42
Freescale Semiconductor
Operating Modes
NOTE
When operating in normal mode, bit 0 of the mask register must be set to
one, otherwise no input is received.
8.4
Operating Modes
ESAI operating mode are selected by the ESAI control registers (TCCR, TCR, RCCR, RCR and SAICR).
The main operating mode are described in the following paragraphs.
8.4.1
ESAI After Reset
Hardware or software reset clears the port control register bits and the port direction control register bits,
which configure all ESAI I/O pins as disconnected. The ESAI is in the individual reset state while all ESAI
pins are programmed as GPIO or disconnected, and is active only if at least one of the ESAI I/O pins is
programmed as an ESAI pin.
8.4.2
ESAI Initialization
The correct way to initialize the ESAI is as follows:
1. Hardware, software, ESAI individual, or STOP reset.
2. Program ESAI control and time slot registers.
3. Write data to all the enabled transmitters.
4. Configure at least one pin as ESAI pin.
During program execution, all ESAI pins may be defined as GPIO or disconnected, causing the ESAI to
stop serial activity and enter the individual reset state. All status bits of the interface are set to their reset
state; however, the control bits are not affected. This procedure allows the DSP programmer to reset the
ESAI separately from the other internal peripherals. During individual reset, internal DMA accesses to the
data registers of the ESAI are not valid and data read is undefined.
The DSP programmer must use an individual ESAI reset when changing the ESAI control registers (except
for TEIE, REIE, TLIE, RLIE, TIE, RIE, TE0-TE5, RE0-RE3) to ensure proper operation of the interface.
NOTE
If the ESAI receiver section is already operating with some of the receivers,
enabling additional receivers on the fly (i.e., without first putting the ESAI
receiver in the personal reset state) by setting their REx control bits will
result in erroneous data being received as the first data word for the newly
enabled receivers.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-43
Operating Modes
8.4.3
ESAI Interrupt Requests
The ESAI can generate eight different interrupt requests (ordered from the highest to the lowest priority):
1. ESAI Receive Data with Exception Status.
Occurs when the receive exception interrupt is enabled (REIE=1 in the RCR register), at least one
of the enabled receive data registers is full (RDF=1), and a receiver overrun error has occurred
(ROE=1 in the SAISR register). ROE is cleared by first reading the SAISR and then reading all the
enabled receive data registers.
2. ESAI Receive Even Data
Occurs when the receive even slot data interrupt is enabled (REDIE=1), at least one of the enabled
receive data registers is full (RDF=1), the data is from an even slot (REDF=1), and no exception
has occurred (ROE=0 or REIE=0).
Reading all enabled receiver data registers clears RDF and REDF.
3. ESAI Receive Data
Occurs when the receive interrupt is enabled (RIE=1), at least one of the enabled receive data
registers is full (RDF=1), no exception has occurred (ROE=0 or REIE=0), and no even slot
interrupt has occurred (REDF=0 or REDIE=0).
Reading all enabled receiver data registers clears RDF.
4. ESAI Receive Last Slot Interrupt
Occurs, if enabled (RLIE=1), after the last slot of the frame ended (in network mode only)
regardless of the receive mask register setting. The receive last slot interrupt may be used for
resetting the receive mask slot register, reconfiguring the DMA channels and reassigning data
memory pointers. Using the receive last slot interrupt guarantees that the previous frame was
serviced with the previous setting and the new frame is serviced with the new setting without
synchronization problems. Note that the maximum receive last slot interrupt service time should
not exceed N-1 ESAI bits service time (where N is the number of bits in a slot).
5. ESAI Transmit Data with Exception Status
Occurs when the transmit exception interrupt is enabled (TEIE=1), at least one transmit data
register of the enabled transmitters is empty (TDE=1), and a transmitter underrun error has
occurred (TUE=1). TUE is cleared by first reading the SAISR and then writing to all the enabled
transmit data registers, or to the TSR register.
6. ESAI Transmit Last Slot Interrupt
Occurs, if enabled (TLIE=1), at the start of the last slot of the frame in network mode regardless of
the transmit mask register setting. The transmit last slot interrupt may be used for resetting the
transmit mask slot register, reconfiguring the DMA channels and reassigning data memory
pointers. Using the transmit last slot interrupt guarantees that the previous frame was serviced with
the previous setting and the new frame is serviced with the new setting without synchronization
problems. Note that the maximum transmit last slot interrupt service time should not exceed N-1
ESAI bits service time (where N is the number of bits in a slot).
7. ESAI Transmit Even Data
Occurs when the transmit even slot data interrupt is enabled (TEDIE=1), at least one of the enabled
transmit data registers is empty (TDE=1), the slot is an even slot (TEDE=1), and no exception has
occurred (TUE=0 or TEIE=0).
Writing to all the TX registers of the enabled transmitters or to TSR clears this interrupt request.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-44
Freescale Semiconductor
Operating Modes
8. ESAI Transmit Data
Occurs when the transmit interrupt is enabled (TIE=1), at least one of the enabled transmit data
registers is empty (TDE=1), no exception has occurred (TUE=0 or TEIE=0), and no even slot
interrupt has occurred (TEDE=0 or TEDIE=0).
Writing to all the TX registers of the enabled transmitters, or to the TSR clears this interrupt
request.
8.4.4
Operating Modes – Normal, Network, and On-Demand
The ESAI has three basic operating modes and many data/operation formats.
8.4.4.1
Normal/Network/On-Demand Mode Selection
Selecting between the normal mode and network mode is accomplished by clearing or setting the
TMOD0-TMOD1 bits in the TCR register for the transmitter section, and in the RMOD0-RMOD1 bits in
the RCR register for the receiver section.
For normal mode, the ESAI functions with one data word of I/O per frame (per enabled transmitter or
receiver). The normal mode is typically used to transfer data to/from a single device.
For the network mode, 2 to 32 time slots per frame may be selected. During each frame, 0 to 32 data words
of I/O may be received/transmitted. In either case, the transfers are periodic. The frame sync signal
indicates the first time slot in the frame. Network mode is typically used in time division multiplexed
(TDM) networks of codecs, DSPs with multiple words per frame, or multi-channel devices.
Selecting the network mode and setting the frame rate divider to zero (DC=00000) selects the on-demand
mode. This special case does not generate a periodic frame sync. A frame sync pulse is generated only
when data is available to transmit. The on-demand mode requires that the transmit frame sync be internal
(output) and the receive frame sync be external (input). Therefore, for simplex operation, the synchronous
mode could be used; however, for full-duplex operation, the asynchronous mode must be used. Data
transmission that is data driven is enabled by writing data into each TX. Although the ESAI is double
buffered, only one word can be written to each TX, even if the transmit shift register is empty. The receive
and transmit interrupts function as usual using TDE and RDF; however, transmit underruns are impossible
for on-demand transmission and are disabled.
8.4.4.2
Synchronous/Asynchronous Operating Modes
The transmit and receive sections of the ESAI may be synchronous or asynchronous – i.e., the transmitter
and receiver sections may use common clock and synchronization signals (synchronous operating mode),
or they may have their own separate clock and sync signals (asynchronous operating mode). The SYN bit
in the SAICR register selects synchronous or asynchronous operation. Since the ESAI is designed to
operate either synchronously or asynchronously, separate receive and transmit interrupts are provided.
When SYN is cleared, the ESAI transmitter and receiver clocks and frame sync sources are independent.
If SYN is set, the ESAI transmitter and receiver clocks and frame sync come from the transmitter section
(either external or internal sources).
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-45
Operating Modes
Data clock and frame sync signals can be generated internally by the DSP or may be obtained from
external sources. If internally generated, the ESAI clock generator is used to derive high frequency clock,
bit clock and frame sync signals from the DSP internal system clock.
8.4.4.3
Frame Sync Selection
The frame sync can be either a bit-long or word-long signal. The transmitter frame format is defined by
the TFSL bit in the TCR register. The receiver frame format is defined by the RFSL bit in the RCR register.
1. In the word-long frame sync format, the frame sync signal is asserted during the entire word data
transfer period. This frame sync length is compatible with Freescale codecs, SPI serial peripherals,
serial A/D and D/A converters, shift registers, and telecommunication PCM serial I/O.
2. In the bit-long frame sync format, the frame sync signal is asserted for one bit clock immediately
before the data transfer period. This frame sync length is compatible with Intel and National
components, codecs, and telecommunication PCM serial I/O.
The relative timing of the word length frame sync as referred to the data word is specified by the TFSR bit
in the TCR register for the transmitter section, and by the RFSR bit in the RCR register for the receive
section. The word length frame sync may be generated (or expected) with the first bit of the data word, or
with the last bit of the previous word. TFSR and RFSR are ignored when a bit length frame sync is
selected.
Polarity of the frame sync signal may be defined as positive (asserted high) or negative (asserted low). The
TFSP bit in the TCCR register specifies the polarity of the frame sync for the transmitter section. The
RFSP bit in the RCCR register specifies the polarity of the frame sync for the receiver section.
The ESAI receiver looks for a receive frame sync leading edge (trailing edge if RFSP is set) only when the
previous frame is completed. If the frame sync goes high before the frame is completed (or before the last
bit of the frame is received in the case of a bit frame sync or a word length frame sync with RFSR set), the
current frame sync is not recognized, and the receiver is internally disabled until the next frame sync.
Frames do not have to be adjacent – i.e., a new frame sync does not have to immediately follow the
previous frame. Gaps of arbitrary periods can occur between frames. Enabled transmitters are tri-stated
during these gaps.
When operating in the synchronous mode (SYN=1), all clocks including the frame sync are generated by
the transmitter section.
8.4.4.4
Shift Direction Selection
Some data formats, such as those used by codecs, specify MSB first while other data formats, such as the
AES-EBU digital audio interface, specify LSB first. The MSB/LSB first selection is made by
programming RSHFD bit in the RCR register for the receiver section, and by programming the TSHFD
bit in the TCR register for the transmitter section.
8.4.5
Serial I/O Flags
Three ESAI pins (FSR, SCKR and HCKR) are available as serial I/O flags when the ESAI is operating in
the synchronous mode (SYN=1). Their operation is controlled by RCKD, RFSD, TEBE bits in the RCR,
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-46
Freescale Semiconductor
GPIO - Pins and Registers
RCCR and SAICR registers.The output data bits (OF2, OF1 and OF0) and the input data bits (IF2, IF1 and
IF0) are double buffered to/from the HCKR, FSR and SCKR pins. Double buffering the flags keeps them
in sync with the TX and RX data lines.
Each flag can be separately programmed. Flag 0 (SCKR pin) direction is selected by RCKD, RCKD=1 for
output and RCKD=0 for input. Flag 1 (FSR pin) is enabled when the pin is not configured as external
transmitter buffer enable (TEBE=0) and its direction is selected by RFSD, RFSD=1 for output and
RFSD=0 for input. Flag 2 (HCKR pin) direction is selected by RHCKD, RHCKD=1 for output and
RHCKD=0 for input.
When programmed as input flags, the SCKR, FSR and HCKR logic values, respectively, are latched at the
same time as the first bit of the receive data word is sampled. Because the input was latched, the signal on
the input flag pin (SCKR, FSR or HCKR) can change without affecting the input flag until the first bit of
the next receive data word. When the received data words are transferred to the receive data registers, the
input flag latched values are then transferred to the IF0, IF1 and IF2 bits in the SAISR register, where they
may be read by software.
When programmed as output flags, the SCKR, FSR and HCKR logic values are driven by the contents of
the OF0, OF1 and OF2 bits in the SAICR register respectively, and are driven when the transmit data
registers are transferred to the transmit shift registers. The value on SCKR, FSR and HCKR is stable from
the time the first bit of the transmit data word is transmitted until the first bit of the next transmit data word
is transmitted. Software may change the OF0-OF2 values thus controlling the SCKR, FSR and HCKR pin
values for each transmitted word. The normal sequence for setting output flags when transmitting data is
as follows: wait for TDE (transmitter empty) to be set, first write the flags, and then write the transmit data
to the transmit registers. OF0, OF1 and OF2 are double buffered so that the flag states appear on the pins
when the transmit data is transferred to the transmit shift register (i.e., the flags are synchronous with the
data).
8.5
GPIO - Pins and Registers
The GPIO functionality of the ESAI port is controlled by three registers: Port C control register (PCRC),
Port C direction register (PRRC) and Port C data register (PDRC).
8.5.1
Port C Control Register (PCRC)
The read/write 24-bit Port C Control Register (PCRC) in conjunction with the Port C Direction Register
(PRRC) controls the functionality of the ESAI GPIO pins. Each of the PC(11:0) bits controls the
functionality of the corresponding port pin. See Table 8-12 for the port pin configurations. Hardware and
software reset clear all PCRC bits.
8.5.2
Port C Direction Register (PRRC)
The read/write 24-bit Port C Direction Register (PRRC) in conjunction with the Port C Control Register
(PCRC) controls the functionality of the ESAI GPIO pins. Table 8-12 describes the port pin
configurations. Hardware and software reset clear all PRRC bits.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-47
GPIO - Pins and Registers
Table 8-12 PCRC and PRRC Bits Functionality
X:$FFFFBF
PDC[i]
PC[i]
Port Pin[i] Function
0
0
disconnected
0
1
GPIO input
1
0
GPIO output
1
1
ESAI
11
10
9
8
7
6
5
4
3
2
1
0
PC11
PC10
PC9
PC8
PC7
PC6
PC5
PC4
PC3
PC2
PC1
PC0
23
22
21
20
19
18
17
16
15
14
13
12
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 8-19 PCRC Register
11
X:$FFFFBE
10
PDC11 PDC10
23
22
9
8
7
6
5
4
3
2
1
0
PDC9
PDC8
PDC7
PDC6
PDC5
PDC4
PDC3
PDC2
PDC1
PDC0
21
20
19
18
17
16
15
14
13
12
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 8-20 PRRC Register
8.5.3
Port C Data register (PDRC)
The read/write 24-bit Port C Data Register (see Figure 8-21) is used to read or write data to/from ESAI
GPIO pins. Bits PD(11:0) are used to read or write data from/to the corresponding port pins if they are
configured as GPIO. If a port pin [i] is configured as a GPIO input, then the corresponding PD[i] bit
reflects the value present on this pin. If a port pin [i] is configured as a GPIO output, then the value written
into the corresponding PD[i] bit is reflected on this pin. If a port pin [i] is configured as disconnected, the
corresponding PD[i] bit is not reset and contains undefined data.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-48
Freescale Semiconductor
ESAI Initialization Examples
X:$FFFFBD
11
10
9
8
7
6
5
4
3
2
1
0
PD11
PD10
PD9
PD8
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PD0
23
22
21
20
19
18
17
16
15
14
13
12
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 8-21 PDRC Register
8.6
8.6.1
•
•
•
•
•
•
ESAI Initialization Examples
Initializing the ESAI Using Individual Reset
The ESAI should be in its individual reset state (PCRC = $000 and PRRC = $000). In the individual
reset state, both the transmitter and receiver sections of the ESAI are simultaneously reset. The
TPR bit in the TCR register may be used to reset just the transmitter section. The RPR bit in the
RCR register may be used to reset just the receiver section.
Configure the control registers (TCCR, TCR, RCCR, RCR) according to the operating mode, but
do not enable transmitters (TE5–TE0 = $0) or receivers (RE3–RE0 = $0). It is possible to set the
interrupt enable bits which are in use during the operation (no interrupt occurs).
Enable the ESAI by setting the PCRC register and PRRC register bits according to pins which are
in use during operation.
Write the first data to be transmitted to the transmitters which are in use during operation.
This step is needed even if DMA is used to service the transmitters.
Enable the transmitters and receivers.
From now on ESAI can be serviced either by polling, interrupts, or DMA.
Operation proceeds as follows:
• For internally generated clock and frame sync, these signals are active immediately after ESAI is
enabled (step 3 above).
• Data is received only when one of the receive enable (REx) bits is set and after the occurrence of
frame sync signal (either internally or externally generated).
• Data is transmitted only when the transmitter enable (TEx) bit is set and after the occurrence of
frame sync signal (either internally or externally generated). The transmitter outputs remain
tri-stated after TEx bit is set until the frame sync occurs.
8.6.2
•
•
Initializing Just the ESAI Transmitter Section
It is assumed that the ESAI is operational; that is, at least one pin is defined as an ESAI pin.
The transmitter section should be in its personal reset state (TPR = 1).
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
8-49
ESAI Initialization Examples
•
•
•
•
•
•
8.6.3
•
•
•
•
•
•
Configure the control registers TCCR and TCR according to the operating mode, making sure to
clear the transmitter enable bits (TE0 - TE5). TPR must remain set.
Take the transmitter section out of the personal reset state by clearing TPR.
Write first data to the transmitters which will be used during operation. This step is needed even if
DMA is used to service the transmitters.
Enable the transmitters by setting their TE bits.
Data is transmitted only when the transmitter enable (TEx) bit is set and after the occurrence of
frame sync signal (either internally or externally generated). The transmitter outputs remain
tri-stated after TEx bit is set until the frame sync occurs.
From now on the transmitters are operating and can be serviced either by polling, interrupts, or
DMA.
Initializing Just the ESAI Receiver Section
It is assumed that the ESAI is operational; that is, at least one pin is defined as an ESAI pin.
The receiver section should be in its personal reset state (RPR = 1).
Configure the control registers RCCR and RCR according to the operating mode, making sure to
clear the receiver enable bits (RE0 - RE3). RPR must remain set.
Take the receiver section out of the personal reset state by clearing RPR.
Enable the receivers by setting their RE bits.
From now on the receivers are operating and can be serviced either by polling, interrupts, or DMA.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
8-50
Freescale Semiconductor
9
9.1
Enhanced Serial Audio Interface 1 (ESAI_1)
Introduction
The Enhanced Serial Audio Interface I (ESAI_1) is the second ESAI peripheral in the DSP56366. It is
functionally identical to the ESAI peripheral described in Section 8, "Enhanced Serial AUDIO Interface
(ESAI)" except for minor differences described in this section. Refer to the ESAI section for functional
information about the ESAI_1, in addition to using the information in this section.
The ESAI_1 block diagram is shown in Figure 9-1. The ESAI_1 shares 4 pins with the ESAI. The ESAI_1
does not have the two high frequency clock pins but otherwise it is identical to the ESAI.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
9-1
Introduction
GDB
DDB
TX0_1
RSMA_1
RSMB_1
Shift Register
TSMA_1
TX1_1
TSMB_1
SDO0_1 [PE11]
(shared with SDO0 [PC11])
SDO1_1 [PE10]
(shared with SDO1 [PC10])
Shift Register
RCCR_1
TX2_1
RCR_1
SDO2_1/SDI3_1 [PE9]
(shared with SDO2/SDI3 [PC9])
Shift Register
TCCR_1
RX3_1
TCR_1
TX3_1
SAICR_1
Shift Register
SAISR_1
RX2_1
SDO3_1/SDI2_1 [PE8]
(shared with SDO3/SDI2 [PC8])
TX4_1
SDO4_1/SDI1_1 [PE7]
TSR_1
Shift Register
Clock / Frame Sync
Generators
and
Control Logic
RX1_1
TX5_1
RCLK
SDO5_1/SDI0_1 [PE6]
Shift Register
[PE1] FSR_1
[PE0] SCKR_1
[PE4] FST_1
[PE3] SCKT_1
TCLK
RX0_1
Figure 9-1 ESAI_1 Block Diagram
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
9-2
Freescale Semiconductor
ESAI_1 Data and Control Pins
9.2
ESAI_1 Data and Control Pins
The ESAI_1 has 6 dedicated pins and shares 4 pins with the ESAI. The pins are described in the following
sections.
9.2.1
Serial Transmit 0 Data Pin (SDO0_1)
SDO0_1 transmits data from the TX0_1 serial transmit shift register. It is shared with the ESAI SDO0
signal. The pin may be used as SDO0_1 if it is not defined as ESAI SDO0. The pin may be used as GPIO
PE11 if not used by the ESAI or ESAI_1. The ESAI_1 Multiplex Control Register (EMUXR) defines if
the pin belongs to the ESAI or to the ESAI_1.
9.2.2
Serial Transmit 1 Data Pin (SDO1_1)
SDO1_1 transmits data from the TX1_1 serial transmit shift register. It is shared with the ESAI SDO1
signal. The pin may be used as SDO1_1 if it is not defined as ESAI SDO1. The pin may be used as GPIO
PE10 if not used by the ESAI or ESAI_1. The ESAI_1 Multiplex Control Register (EMUXR) defines if
the pin belongs to the ESAI or to the ESAI_1.
9.2.3
Serial Transmit 2/Receive 3 Data Pin (SDO2_1/SDI3_1)
SDO2_1/SDI3_1 transmits data from the TX2_1 serial transmit shift register when programmed as a
transmitter pin, or receives serial data to the RX3_1 serial receive shift register when programmed as a
receiver pin. It is shared with the ESAI SDO2/SDI3 signal. The pin may be used as SDO2_1/SDI3_1 if it
is not defined as ESA I SDO2/SDI3. The pin may be used as GPIO PE9 if not used by the ESAI or ESAI_1.
The ESAI_1 Multiplex Control Register (EMUXR) defines if the pin belongs to the ESAI or to the
ESAI_1.
9.2.4
Serial Transmit 3/Receive 2 Data Pin (SDO3_1/SDI2_1)
SDO3_1/SDI2_1 transmits data from the TX3_1 serial transmit shift register when programmed as a
transmitter pin, or receives serial data to the RX2_1 serial receive shift register when programmed as a
receiver pin. It is shared with the ESAI SDO3/SDI2 signal. The pin may be used as SDO3_1/SDI2_1 if it
is not defined as ESAI SDO3/SDI2. The pin may be used as GPIO PE8 if not used by the ESAI or ESAI_1.
The ESAI_1 Multiplex Control Register (EMUXR) defines if the pin belongs to the ESAI or to the
ESAI_1.
9.2.5
Serial Transmit 4/Receive 1 Data Pin (SDO4_1/SDI1_1)
SDO4_1/SDI1_1 transmits data from the TX4_1 serial transmit shift register when programmed as a
transmitter pin, or receives serial data to the RX1_1 serial receive shift register when programmed as a
receiver pin. SDO4_1/SDI1_1 may be programmed as a general-purpose pin (PE7) when the ESAI_1
SDO4_1 and SDI1_1 functions are not being used.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
9-3
ESAI_1 Programming Model
9.2.6
Serial Transmit 5/Receive 0 Data Pin (SDO5_1/SDI0_1)
SDO5_1/SDI0_1 transmits data from the TX5_1 serial transmit shift register when programmed as
transmitter pin, or receives serial data to the RX0_1 serial shift register when programmed as a receiver
pin. SDO5_1/SDI0_1 may be programmed as a general-purpose pin (PE6) when the ESAI_1 SDO5_1 and
SDI0_1 functions are not being used.
9.2.7
Receiver Serial Clock (SCKR_1)
SCKR_1 is a bidirectional pin that provides the receivers serial bit clock for the ESAI_1 interface.
SCKR_1 may be programmed as a general-purpose I/O pin (PE0) when the ESAI_1 SCKR_1 function is
not being used.
9.2.8
Transmitter Serial Clock (SCKT_1)
SCKT_1 is a bidirectional pin that provides the transmitters serial bit clock for the ESAI_1 interface.
SCKT_1 may be programmed as a general-purpose I/O pin (PE3) when the ESAI_1 SCKT_1 function is
not being used.
9.2.9
Frame Sync for Receiver (FSR_1)
The FSR_1 pin is a bidirectional pin that provides the receivers frame sync signal for the ESAI_1 interface.
FSR_1 may be programmed as a general-purpose I/O pin (PE1) when the ESAI_1 FSR_1 function is not
being used.
9.2.10
Frame Sync for Transmitter (FST_1)
The FST_1 pin is a bidirectional pin that provides the transmitters frame sync signal for the ESAI_1
interface. FST_1 may be programmed as a general-purpose I/O pin (PE4) when the ESAI_1 FST_1
function is not being used.
9.3
ESAI_1 Programming Model
The ESAI_1 has the following registers:
• One multiplex control register
• Five control registers
• One status register
• Six transmit data registers
• Four receive data registers
• Two transmit slot mask registers
• Two receive slot mask registers
• One special-purpose time slot register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
9-4
Freescale Semiconductor
ESAI_1 Programming Model
The ESAI_1 also contains the GPIO Port E functionality, described in Section 9.5, "GPIO - Pins and
Registers". The following paragraphs give detailed descriptions of bits in the ESAI_1 registers that differ
in functionality from their descriptions in the ESAI Programming Model.
9.3.1
ESAI_1 Multiplex Control Register (EMUXR)
The read/write ESAI_1 Multiplex Control Register (EMUXR) controls which peripheral (ESAI or
ESAI_1) is using the shared pins.
11
10
9
8
7
6
5
4
3
Y:$FFFFAF
2
1
0
EMUX3 EMUX2 EMUX1 EMUX0
23
22
21
20
19
18
17
16
15
14
13
12
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 9-2 EMUXR Register
Hardware and software reset clear all the bits of the EMUXR register. The selection of ESAI/ESAI_1 pins
is shown in Table 9-1.
Table 9-1 EMUXR ESA/ESAI_1 Pin Selection
EMUXR bit
9.3.2
ESAI pin
ESAI_1 pin
EMUX0
0
SDO0 [PC11]
disconnected
EMUX0
1
disconnected
SDO0_1 [PE11]
EMUX1
0
SDO1[PC10]
disconnected
EMUX1
1
disconnected
SDO1_1 [PE10]
EMUX2
0
SDO2/SDI3 [PC9]
disconnected
EMUX2
1
disconnected
SDO2_1/SDI3_1 [PE9]
EMUX3
0
SDO3/SDI2 [PC8]
disconnected
EMUX3
1
disconnected
SDO3_1/SDI2_1 [PE8]
ESAI_1 Transmitter Clock Control Register (TCCR_1)
The read/write Transmitter Clock Control Register (TCCR_1) controls the ESAI_1 transmitter clock
generator bit and frame sync rates, the bit rate and high frequency clock sources and the directions of the
FST_1 and SCKT_1 signals. In synchronous mode, the bit clock defined for the transmitter determines the
receiver bit clock as well. TCCR_1 also controls the number of words per frame for the serial data.
Hardware and software reset clear all the bits of the TCCR_1 register.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
9-5
ESAI_1 Programming Model
Y:$FFFF96
11
10
9
8
7
6
5
4
3
2
1
0
TDC2
TDC1
TDC0
TPSR
TPM7
TPM6
TPM5
TPM4
TPM3
TPM2
TPM1
TPM0
23
22
21
20
19
18
17
16
15
14
13
12
TFSP
TCKP
TFP3
TFP2
TFP1
TFP0
TDC4
TDC3
THCKD TFSD
TCKD THCKP
Figure 9-3 TCCR_1 Register
9.3.2.1
TCCR_1 Tx High Freq. Clock Divider (TFP3-TFP0) - Bits 14–17
Since the ESAI_1 does not have the transmitter high frequency clock pin, the TFP3–TFP0 bits simply
specify an additional division ratio in the clock divider chain. See Figure 9-4.
9.3.2.2
TCCR_1 Tx High Freq. Clock Polarity (THCKP) - Bit 20
The ESAI_1 does not have the transmitter high frequency clock pin. It it recommended that THCKP
should be kept cleared.
9.3.2.3
TCCR_1 Tx High Freq. Clock Direction (THCKD) - Bit 23
The ESAI_1 does not have the transmitter high frequency clock pin. THCKD must be set for proper
ESAI_1 transmitter section operation.
Table 9-2 Transmitter Clock Sources
Transmitter
Bit Clock
Source
THCKD
TFSD
TCKD
OUTPUTS
0
X
X
1
0
0
SCKT_1
1
0
1
INT
1
1
0
SCKT_1
FST_1
1
1
1
INT
FST_1
Reserved
SCKT_1
SCKT_1
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
9-6
Freescale Semiconductor
ESAI_1 Programming Model
RHCKD=1
FOSC
DIVIDE
BY 2
FLAG0 OUT
(SYNC MODE)
PRESCALE
DIVIDE BY
1
OR
DIVIDER
DIVIDE BY
1
TO DIVIDE
DIVIDER
DIVIDE BY
1
TO DIVIDE
RPSR
RPM0 - RPM7
RFP0 - RFP3
FLAG0 IN
(SYNC MODE)
INTERNAL BIT CLOCK
RSWS4-RSWS0
RX WORD
LENGTH DIVIDER
SYN=1
RX WORD
CLOCK
SYN=0
SCKR_1
RX SHIFT REGISTER
RCLOCK
SYN=0
TSWS4-TSWS0
SYN=1
RCKD
TCLOCK
INTERNAL BIT CLOCK
SCKT_1
TX WORD
LENGTH DIVIDER
TX WORD
CLOCK
TCKD
TX SHIFT REGISTER
TPSR
DIVIDE
BY 2
FOSC
PRESCALE
DIVIDE BY
1
OR
TPM0 - TPM7
TFP0 - TFP3
DIVIDER
DIVIDE BY
1
TO DIVIDE
DIVIDER
DIVIDE BY
1
TO DIVIDE
THCKD=1
Notes:
1. FOSC is the DSP56300 Core internal clock frequency.
Figure 9-4 ESAI_1 Clock Generator Functional Block Diagram
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
9-7
ESAI_1 Programming Model
RX WORD
CLOCK
RDC0 - RDC4
RFSL
RECEIVER
FRAME RATE
DIVIDER
SYNC
TYPE
INTERNAL RX FRAME CLOCK
RFSD
SYN=0
RFSD=1
SYN=0
RECEIVE
CONTROL
LOGIC
FSR_1
RECEIVE
FRAME SYNC
RFSD=0
SYN=1
SYN=1
TDC0 - TDC4
FLAG1 IN
(SYNC MODE)
TFSL
FLAG1OUT
(SYNC MODE)
TFSD
TX WORD
CLOCK
TRANSMITTER
FRAME RATE
DIVIDER
TRANSMIT
CONTROL
LOGIC
INTERNAL TX FRAME CLOCK
SYNC
TYPE
FST_1
TRANSMIT
FRAME SYNC
Figure 9-5 ESAI_1 Frame Sync Generator Functional Block Diagram
9.3.3
ESAI_1 Transmit Control Register (TCR_1)
The read/write Transmit Control Register (TCR_1) controls the ESAI_1 transmitter section. Interrupt
enable bits for the transmitter section are provided in this control register. Operating modes are also
selected in this register.
11
Y:$FFFF95
10
9
8
TSWS1 TSWS0 TMOD1 TMOD0
7
6
5
4
3
2
1
0
TWA
TSHFD
TE5
TE4
TE3
TE2
TE1
TE0
18
17
16
15
14
13
12
PADC
TFSR
TFSL
23
22
21
20
19
TLIE
TIE
TEDIE
TEIE
TPR
TSWS4 TSWS3 TSWS2
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 9-6 TCR_1 Register
Hardware and software reset clear all the bits in the TCR_1 register.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
9-8
Freescale Semiconductor
ESAI_1 Programming Model
9.3.4
ESAI_1 Receive Clock Control Register (RCCR_1)
The read/write Receive Clock Control Register (RCCR_1) controls the ESAI_1 receiver clock generator
bit and frame sync rates, word length, and number of words per frame for the serial data.
Y:$FFFF98
11
10
9
8
7
6
5
4
3
2
1
0
RDC2
RDC1
RDC0
RPSR
RPM7
RPM6
RPM5
RPM4
RPM3
RPM2
RPM1
RPM0
23
22
21
20
19
18
17
16
15
14
13
12
RCKP
RFP3
RFP2
RFP1
RFP0
RDC4
RDC3
RHCKD RFSD
RCKD RHCKP RFSP
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 9-7 RCCR_1 Register
Hardware and software reset clear all the bits of the RCCR_1 register.
9.3.4.1
RCCR_1 Rx High Freq. Clock Divider (RFP3-RFP0) - Bits 14–17
Since the ESAI_1 does not have the receiver high frequency clock pin, the RFP3–RFP0 bits simply specify
an additional division ratio in the clock divider chain. See Figure 9-4.
9.3.4.2
RCCR_1 Rx High Freq. Clock Polarity (RHCKP) - Bit 20
The ESAI_1 does not have the receiver high frequency clock pin. It it recommended that RHCKP should
be kept cleared.
9.3.4.3
RCCR_1 Rx High Freq. Clock Direction (RHCKD) - Bit 23
The ESAI_1 does not have the receiver high frequency clock pin. RHCKD must be set for proper ESAI_1
receiver section operation.
Table 9-3 Receiver Clock Sources (asynchronous mode only)
Receiver
Bit Clock
Source
RHCKD
RFSD
RCKD
OUTPUTS
0
X
X
1
0
0
SCKR_1
1
0
1
INT
1
1
0
SCKR_1
FSR_1
1
1
1
INT
FSR_1
Reserved
SCKR_1
SCKR_1
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
9-9
ESAI_1 Programming Model
9.3.5
ESAI_1 Receive Control Register (RCR_1)
The read/write Receive Control Register (RCR_1) controls the ESAI_1 receiver section.
11
Y:$FFFF97
10
9
8
RSWS1 RSWS0 RMOD RMOD
7
6
RWA
RSHFD
18
23
22
21
20
19
RLIE
RIE
REDIE
REIE
RPR
5
17
4
16
RFSR
3
2
1
0
RE3
RE2
RE1
RE0
15
14
13
12
RFSL RSWS4 RSWS3 RSWS2
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 9-8 RCR_1 Register
Hardware and software reset clear all the bits in the RCR_1 register.
9.3.6
ESAI_1 Common Control Register (SAICR_1)
The read/write Common Control Register (SAICR_1) contains control bits for functions that use both the
receive and transmit sections of the ESAI_1.
11
10
9
Y:$FFFF94
23
22
21
8
7
6
ALC
TEBE
SYN
20
19
18
5
17
4
16
3
15
2
1
0
OF2
OF1
OF0
14
13
12
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 9-9 SAICR_1 Register
Hardware and software reset clear all the bits in the SAICR_1 register.
9.3.7
ESAI_1 Status Register (SAISR_1)
The Status Register (SAISR_1) is a read-only status register used by the DSP to read the status and serial
input flags of the ESAI_1.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
9-10
Freescale Semiconductor
ESAI_1 Programming Model
11
Y:$FFFF93
23
10
9
8
7
6
RODF
REDF
RDF
ROE
RFS
22
21
20
19
18
5
4
3
2
1
0
IF2
IF1
IF0
12
17
16
15
14
13
TODE
TEDE
TDE
TUE
TFS
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 9-10 SAISR_1 Register
9.3.8
ESAI_1 Receive Shift Registers
The receive shift registers receive the incoming data from the serial receive data pins. Data is shifted in by
the selected (internal/external) bit clock when the associated frame sync I/O is asserted. Data is assumed
to be received MSB first if RSHFD=0 and LSB first if RSHFD=1. Data is transferred to the ESAI_1
receive data registers after 8, 12, 16, 20, 24, or 32 serial clock cycles were counted, depending on the slot
length control bits in the RCR_1 register.
9.3.9
ESAI_1 Receive Data Registers
The Receive Data Registers RX3_1, RX2_1, RX1_1, and RX0_1 are 24-bit read-only registers that accept
data from the receive shift registers when they become full. The data occupies the most significant portion
of the receive data registers, according to the ALC control bit setting. The unused bits (least significant
portion, and 8 most significant bits when ALC=1) read as zeros. The DSP is interrupted whenever RXx_1
becomes full if the associated interrupt is enabled.
9.3.10
ESAI_1 Transmit Shift Registers
The Transmit Shift Registers contain the data being transmitted. Data is shifted out to the serial transmit
data pins by the selected (internal/external) bit clock when the associated frame sync I/O is asserted. The
number of bits shifted out before the shift registers are considered empty and may be written to again can
be 8, 12, 16, 20, 24 or 32 bits (determined by the slot length control bits in the TCR_1 register). Data is
shifted out of these registers MSB first if TSHFD=0 and LSB first if TSHFD=1.
9.3.11
ESAI_1 Transmit Data Registers
The Transmit Data registers TX5_1, TX4_1, TX3_1, TX2_1, TX1_1, and TX0_1 are 24-bit write-only
registers. Data to be transmitted is written into these registers and is automatically transferred to the
transmit shift registers. The data written (8, 12, 16, 20 or 24 bits) should occupy the most significant
portion of the TXx_1 according to the ALC control bit setting. The unused bits (least significant portion,
and the 8 most significant bits when ALC=1) of the TXx_1 are don’t care bits. The DSP is interrupted
whenever the TXx_1 becomes empty if the transmit data register empty interrupt has been enabled.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
9-11
ESAI_1 Programming Model
9.3.12
ESAI_1 Time Slot Register (TSR_1)
The write-only Time Slot Register (TSR_1) is effectively a null data register that is used when the data is
not to be transmitted in the available transmit time slot. The transmit data pins of all the enabled
transmitters are in the high-impedance state for the respective time slot where TSR_1 has been written.
The Transmitter External Buffer Enable pin (FSR_1 pin when SYN=1, TEBE=1, RFSD=1) disables the
external buffers during the slot when the TSR_1 register has been written.
9.3.13
Transmit Slot Mask Registers (TSMA_1, TSMB_1)
The Transmit Slot Mask Registers (TSMA_1 and TSMB_1) are two read/write registers used by the
transmitters in network mode to determine for each slot whether to transmit a data word and generate a
transmitter empty condition (TDE=1), or to tri-state the transmitter data pins. TSMA_1 and TSMB_1
should each be considered as containing half a 32-bit register TSM_1. See Figure 9-11 and Figure 9-12.
Bit number N in TSM_1 (TS**) is the enable/disable control bit for transmission in slot number N.
Y:$FFFF99
11
10
9
8
7
6
5
4
3
2
1
0
TS11
TS10
TS9
TS8
TS7
TS6
TS5
TS4
TS3
TS2
TS1
TS0
23
22
21
20
19
18
17
16
15
14
13
12
TS15
TS14
TS13
TS12
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 9-11 TSMA_1 Register
Y:$FFFF9A
11
10
9
8
7
6
5
4
3
2
1
0
TS27
TS26
TS25
TS24
TS23
TS22
TS21
TS20
TS19
TS18
TS17
TS16
23
22
21
20
19
18
17
16
15
14
13
12
TS31
TS30
TS29
TS28
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 9-12 TSMB_1 Register
9.3.14
Receive Slot Mask Registers (RSMA_1, RSMB_1)
The Receive Slot Mask Registers (RSMA_1 and RSMB_1) are two read/write registers used by the
receiver in network mode to determine for each slot whether to receive a data word and generate a receiver
full condition (RDF=1), or to ignore the received data. RSMA_1 and RSMB_1 should be considered as
each containing half of a 32-bit register RSM_1. See Figure 9-13 and Figure 9-14. Bit number N in
RSM_1 (RS**) is an enable/disable control bit for receiving data in slot number N.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
9-12
Freescale Semiconductor
Operating Modes
Y:$FFFF9B
11
10
9
8
7
6
5
4
3
2
1
0
RS11
RS10
RS9
RS8
RS7
RS6
RS5
RS4
RS3
RS2
RS1
RS0
23
22
21
20
19
18
17
16
15
14
13
12
RS15
RS14
RS13
RS12
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 9-13 RSMA_1 Register
Y:$FFFF9C
11
10
9
8
7
6
5
4
3
2
1
0
RS27
RS26
RS25
RS24
RS23
RS22
RS21
RS20
RS19
RS18
RS17
RS16
23
22
21
20
19
18
17
16
15
14
13
12
RS31
RS30
RS29
RS28
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 9-14 RSMB_1 Register
9.4
9.4.1
Operating Modes
ESAI_1 After Reset
Hardware or software reset clears the EMUXR register, the port E control register bits and the port E
direction control register bits, which configure all 6 ESAI_1 dedicated I/O pins as disconnected, and all 4
shared pins as belonging to the ESAI. The ESAI_1 is in the individual reset state while all ESAI_1 signals
are programmed as general-purpose I/O or disconnected, and is active only if at least one of the ESAI_1
I/O pins is programmed as belonging to the ESAI_1.
9.5
GPIO - Pins and Registers
The GPIO functionality of the ESAI_1 port is controlled by three registers: Port E Control register
(PCRE), Port E Direction register (PRRE) and Port E Data register (PDRE).
9.5.1
Port E Control Register (PCRE)
The read/write 24-bit Port E Control Register (PCRE) in conjunction with the Port E Direction Register
(PRRE) controls the functionality of the ESAI_1 GPIO pins. Each of the PE(11:0) bits controls the
functionality of the corresponding port pin. See Table 9-4 for the port pin configurations. Hardware and
software reset clear all PCRE bits.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
9-13
GPIO - Pins and Registers
9.5.2
Port E Direction Register (PRRE)
The read/write 24-bit Port E Direction Register (PRRE) in conjunction with the Port E Control Register
(PCRE) controls the functionality of the ESAI_1 GPIO pins. Table 9-4 describes the port pin
configurations. Hardware and software reset clear all PRRE bits.
Table 9-4 PCRE and PRRE Bits Functionality
Y:$FFFF9F
PDE[i]
PE[i]
Port Pin[i] Function
0
0
disconnected
0
1
GPIO input
1
0
GPIO output
1
1
ESAI_1
11
10
9
8
7
6
PE11
PE10
PE9
PE8
PE7
PE6
23
22
21
20
19
18
5
17
4
3
PE4
PE3
16
15
2
14
1
0
PE1
PE0
13
12
1
0
PDE1
PDE0
13
12
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 9-15 PCRE Register
11
Y:$FFFF9E
10
PDE11 PDE10
23
22
9
8
7
6
PDE9
PDE8
PDE7
PDE6
21
20
19
18
5
17
4
3
PDE4
PDE3
16
15
2
14
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 9-16 PRRE Register
9.5.3
Port E Data register (PDRE)
The read/write 24-bit Port E Data Register (see Figure 9-17) is used to read or write data to/from ESAI_1
GPIO pins. Bits PD(11:0) are used to read or write data from/to the corresponding port pins if they are
configured as GPIO. If a port pin [i] is configured as a GPIO input, then the corresponding PD[i] bit will
reflect the value present on this pin. If a port pin [i] is configured as a GPIO output, then the value written
into the corresponding PD[i] bit will be reflected on this pin. If a port pin [i] is configured as disconnected,
the corresponding PD[i] bit is not reset and contains undefined data.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
9-14
Freescale Semiconductor
GPIO - Pins and Registers
Y:$FFFF9D
11
10
9
8
7
6
PD11
PD10
PD9
PD8
PD7
PD6
23
22
21
20
19
18
5
17
4
3
PD4
PD3
16
15
2
14
1
0
PD1
PD0
13
12
Reserved bit - read as zero; should be written with zero for future compatibility.
Figure 9-17 PDRE Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
9-15
GPIO - Pins and Registers
NOTES
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
9-16
Freescale Semiconductor
10 Digital Audio Transmitter
10.1
Introduction
The Digital Audio Transmitter (DAX) is a serial audio interface module that outputs digital audio data in
the AES/EBU, CP-340 and IEC958 formats. Some of the key features of the DAX are listed below.
• Operates on a frame basis—The DAX can handle one frame (consisting of two subframes) of
audio and non-audio data at a time.
• Double-buffered audio and non-audio data—The DAX data path is double-buffered so the next
frame data can be stored in the DAX without affecting the frame currently being transmitted.
• Direct Memory Access—Audio data and non-audio data can be written to the DAX using DMA.
• Programmable clock source—Users can select the DAX clock source, and this selection
configures the DAX to operate in slave or master mode.
• Supports both master mode and slave mode in a digital audio network—If the user selects a
divided DSP core clock, the DAX will operate in the master mode. If the user selects an external
clock source, the DAX will operate in the slave mode.
• GPIO—Each of the two DAX pins can be configured as either GPIO or as specific DAX pin. Each
pin is independent of the other. However, at least one of the two pins must be selected as a DAX
pin to release the DAX from reset.
The accessible DAX registers are all mapped in the X I/O memory space. This allows programmers to
access the DAX using standard instructions and addressing modes. Interrupts generated by the DAX can
be handled with a fast interrupt for cases in which the non-audio data does not change from frame to frame.
When the DAX interrupts are disabled, they can still be served by DMA or by a “polling” technique. A
block diagram of the DAX is shown in Figure 10-1.
NOTE
The shaded registers in Figure 10-1 are directly accessible by DSP
instructions.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
10-1
DAX Signals
Global Data Bus
23
XSTR
0
23
0
XNADR
26
XNADBUF
MUX
0
XADBUFB
23
C-U-V
23
XCTR
XADR
XADBUFA
Upload
DMA Bus
0
XADSR
PRTYG
Biphase
Encoder
Preamble
Generator
MUX
0
MUX
23
ADO
ACI
DAX
State
Machine
Control
Signals
DAX
Clocks
DAX
Clock
MUX
DSP
Core Clock
Figure 10-1 Digital Audio Transmitter (DAX) Block Diagram
10.2
DAX Signals
The DAX has two signal lines:
• DAX Digital Audio Output (ADO/PD1)—The ADO pin sends audio and non-audio data in the
AES/EBU, CP340, and IEC958 formats in a biphase mark format. The ADO pin may also be used
as a GPIO pin PD1 if the DAX is not operational.
• DAX Clock Input (ACI/PD0)—When the DAX clock is configured to be supplied externally, the
external clock is applied to the ACI pin. The frequency of the external clock must be 256 times,
384 times, or 512 times the audio sampling frequency (256 × Fs, 384 × Fs, or 512 × Fs). The ACI
pin may also be used as a GPIO pin PD0 when the DAX is disabled or when operating from the
internal DSP clock.
10.3
DAX Functional Overview
The DAX consists of the following:
• Audio data register (XADR)
• Two audio data buffers (XADBUFA and XADBUFB)
• Non-audio data register (XNADR)
• Non-audio data buffer (XNADBUF)
• Audio and non-audio data shift register (XADSR)
• Control register (XCTR)
• Status register (XSTR)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
10-2
Freescale Semiconductor
DAX Programming Model
•
•
•
•
•
Parity generator (PRTYG)
Preamble generator
Biphase encoder
Clock multiplexer
Control state machine
XADR, XADBUFA, XADBUFB and XADSR creates a FIFO-like data path. Channel A is written to
XADR and moves to XADBUFA. Then channel B is written to XADR, and when XADBUFB empties
XADR moves into it. XADBUFA moves to the shift register XADSR when XADSR has shifted out its last
bit. After channel A audio and non-audio data has been shifted out, XADBUFB moves into XADSR, and
channel B audio and non audio shift begins.
The frame non-audio data (stored in XNADR) is transferred to the XADSR (for channel A) and to the
XNADBUF registers (for channel B) at the beginning of a frame transmission. This is called an “upload.”
The DAX audio data register empty (XADE) flag is set when XADR and XADBUFA are empty, and, if
the audio data register empty interrupt is enabled (XDIE=1), an interrupt request is sent to the DSP core.
The interrupt handling routine then sends the non-audio data bits to XNADR and the next frame of audio
data to XADR (two subframes).
At the beginning of a frame transmission, one of the 8-bit channel A preambles (Z-preamble for the first
subframe in a block, or X-preamble otherwise) is generated in the preamble generator, and then shifted out
to the ADO pin in the first eight time slots. The preamble is generated in biphase mark format. The
twenty-four audio and three non-audio data bits in the XADSR are shifted out to the biphase encoder,
which shifts them out through the ADO pin in the biphase mark format in the next 54 time slots. The parity
generator calculates an even parity over the 27 bits of audio and non-audio data, and then outputs the result
through the biphase encoder to the ADO pin at the last two time slots. This is the end of the first (channel
A) subframe transmission.
The second subframe transmission (channel B) starts with the preamble generator generating the channel
B preamble (Y-preamble). At the same time, channel B audio and non-audio data is transferred to the
XADSR shift-register from the XADBUFB and XNADBUF registers. The generated Y-preamble is output
immediately after the channel A parity and is followed by the audio and non-audio data in the XADSR,
which is in turn followed by the calculated parity for channel B. This completes a frame transmission.
When the channel B parity is sent, the audio data for the next frame, stored in XADBUFA and the
non-audio data bits from the XNADR, are uploaded to XADSR.
10.4
DAX Programming Model
The programmer-accessible DAX registers are shown in Figure 10-2. The registers are described in the
following subsections. The Interrupt Vector table for the DAX is shown in Table 10-1. The internal
interrupt priority is shown in Table 10-2.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
10-3
DAX Internal Architecture
Table 10-1 DAX Interrupt Vectors
Condition
Address
Description
XAUR
VBA:$28
DAX transmit underrun error
XADE & XBLK
VBA:$2A
DAX block transferred
XADE
VBA:$2E
DAX audio data register empty
Table 10-2 DAX Interrupt Priority
Priority
Interrupt
highest
DAX transmit underrun error
DAX block transferred
lowest
10.5
DAX audio data register empty
DAX Internal Architecture
Hardware components shown in Figure 10-1 are described in the following sections. The DAX
programming model is illustrated in Figure 10-2.
XCTR - Control Register - X:$FFFFD0
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
XSB XCS1 XCS0 XBIE XUIE XDIE
XNADR - Non-Audio Data Register - X:$FFFFD1
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
XCB XUB XVB XCA XUA XVA
XADRA - Audio Data Register A - X:$FFFFD2 and XADRB - Audio Data Register B -X:$FFFFD3
0
23
XSTR - Status Register - X:$FFFFD4
23 22 21 20 19 18 17 16 15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
XBLK XAUR XADE
Reserved bit
Figure 10-2 DAX Programming Model
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
10-4
Freescale Semiconductor
DAX Internal Architecture
10.5.1
DAX Audio Data Register (XADR)
XADR is a 24-bit write-only register. One frame of audio data, which is to be transmitted in the next frame
slot, is transferred to this register. Successive write accesses to this register will store channel A and
channel B alternately in XADBUFA and in XADBUFB respectively. When XADR and XADBUFA are
empty, XADE bit in the XSTR is set, and, if the audio data register empty interrupt is enabled (XDIE=1),
an interrupt request is sent to the DSP core. When channel B is transferred to XADR, the XADE bit in the
XSTR is cleared. XADR can also be accessed by DMA. When XADR and XADBUFA are empty, the
DAX sends a DMA request to the core. The DMA first transfers non-audio data bits to XNADR (optional),
then transfers channel A and channel B to XADR. The XADR can be accessed with two different
successive addresses. This feature supports sending non-audio data bits, channel A and channel B to the
DAX in three successive DMA transfers.
10.5.2
DAX Audio Data Buffers (XADBUFA / XADBUFB)
XADBUFA and XADBUFB are 24-bit registers that buffer XADR from XADSR, creating a FIFO-like
data path. These registers hold the next two subframes of audio data to be transmitted. Channel A audio
data is transferred from XADR to XADBUFA if XADBUFA is empty. Channel B audio data is transferred
from XADR to XADBUFB if XADBUFB is empty. Audio data is transferred from XADBUFA and
XADBUFB alternately to XADSR provided that XADSR shifted out all the audio and non-audio bits of
the currently transmitted channel. This buffering mechanism provides more cycles for writing the next
audio data to XADR. These registers are not directly accessible by DSP instructions.
10.5.3
DAX Audio Data Shift Register (XADSR)
The XADSR is a 27-bit shift register that shifts the 24-bit audio data and the 3-bit non-audio data for one
subframe. The contents of XADBUFA or XADBUFB are directly transferred to the XADSR at the
beginning of the subframe transmission. The channel A subframe is transferred to XADSR at the same
time that the three bits of non-audio data (V-bit, U-bit and C-bit) for channel A in the DAX non-audio data
register (XNADR) are transferred to the three highest-order bits of the XADSR. At the beginning of the
channel B transmission, audio and non-audio data for channel B are transferred from the XADBUFB and
the XNADBUF to the XADSR for shifting. The data in the XADSR is shifted toward the lowest-order bit
at the fifth to thirty-first bit slot of each subframe transmission. This register is not directly accessible by
DSP instructions.
10.5.4
DAX Non-Audio Data Register (XNADR)
The XNADR is a 24-bit write-only register. It holds the three bits of non-audio data for each subframe.
XNADR can be accessed by core instructions or by DMA. The contents of the XNADR are shown in
Figure 10-2. XNADR is not affected by any of the DAX reset states. The XNADR bits are described in
the following paragraphs.
10.5.4.1
DAX Channel A Validity (XVA)—Bit 10
The value of the XVA bit is transmitted as the twenty-ninth bit (Bit 28) of channel A subframe in the next
frame.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
10-5
DAX Internal Architecture
10.5.4.2
DAX Channel A User Data (XUA)—Bit 11
The value of the XUA bit is transmitted as the thirtieth bit (Bit 29) of the channel A subframe in the next
frame.
10.5.4.3
DAX Channel A Channel Status (XCA)—Bit 12
The value of the XCA bit is transmitted as the thirty-first bit (Bit 30) of the channel A subframe in the next
frame.
10.5.4.4
DAX Channel B Validity (XVB)—Bit 13
The value of the XVB bit is transmitted as the twenty-ninth bit (Bit 28) of the channel B subframe in the
next frame.
10.5.4.5
DAX Channel B User Data (XUB)—Bit 14
The value of the XUB bit is transmitted as the thirtieth bit (Bit 29) of the channel B subframe in the next
frame.
10.5.4.6
DAX Channel B Channel Status (XCB)—Bit 15
The value of the XCB bit is transmitted as the thirty-first bit (Bit 30) of the channel B subframe in the next
frame.
10.5.4.7
XNADR Reserved Bits—Bits 0-9, 16–23
These XNADR bits are reserved. They read as 0, and should be written with 0 to ensure compatibility with
future device versions.
10.5.5
DAX Non-Audio Data Buffer (XNADBUF)
The XNADBUF is a 3-bit register that temporarily holds channel B non-audio data (XVB, XUB and XCB)
for the current transmission while the channel A data is being transmitted. This mechanism provides
programmers more instruction cycles to store the next frame’s non-audio data to the XCB, XUB, XVB,
XCA, XUA and XVA bits in the XNADR. The data in the XNADBUF register is transferred to the
XADSR along with the contents of the XADBUF register at the beginning of channel B transmission.
NOTE
The XNADBUF register is not directly accessible by DSP instructions.
10.5.6
DAX Control Register (XCTR)
The XCTR is a 24-bit read/write register that controls the DAX operation. The contents of the XCTR are
shown in Figure 10-2. XCTR is cleared by software reset and hardware reset. The XCTR bits are described
in the following paragraphs.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
10-6
Freescale Semiconductor
DAX Internal Architecture
10.5.6.1
Audio Data Register Empty Interrupt Enable (XDIE)—Bit 0
When the XDIE bit is set, the audio data register empty interrupt is enabled and sends an interrupt request
signal to the DSP if the XADE status bit is set. When XDIE bit is cleared, this interrupt is disabled.
10.5.6.2
Underrun Error Interrupt Enable (XUIE)—Bit 1
When the XUIE bit is set, the underrun error interrupt is enabled and sends an interrupt request signal to
the DSP if the XAUR status bit is set. When XUIE bit is cleared, this interrupt is disabled.
10.5.6.3
Block Transferred Interrupt Enable (XBIE)—Bit 2
When the XBIE bit is set, the block transferred interrupt is enabled and sends an interrupt request signal
to the DSP if the XBLK and XADE status bits are set. When XBIE bit is cleared, this interrupt is disabled.
10.5.6.4
DAX Clock Input Select (XCS[1:0])—Bits 3–4
The XCS[1:0] bits select the source of the DAX clock and/or its frequency. Table 10-3 shows the
configurations selected by these bits. These bits should be changed only when the DAX is disabled.
Table 10-3 Clock Source Selection
10.5.6.5
XCS1
XCS0
DAX Clock Source
0
0
DSP Core Clock (f = 1024 x fs)
0
1
ACI Pin, f = 256 x fs
1
0
ACI Pin, f = 384 x fs
1
1
ACI Pin, f = 512 x fs
DAX Start Block (XSB)—Bit 5
The XSB bit forces the DAX to start a new block. When this bit is set, the next frame will start with “Z”
preamble and will start a new block even though the current block was not finished. This bit is cleared
when the new block starts.
10.5.6.6
XCTR Reserved Bits—Bits 6-23
These XCTR bits are reserved. They read as 0 and should be written with 0 for future compatibility.
10.5.7
DAX Status Register (XSTR)
The XSTR is a 24-bit read-only register that contains the DAX status flags. The contents of the XSTR are
shown in Figure 10-2. XSTR is cleared by software reset, hardware reset an by the stop state. The XSTR
bits are described in the following paragraphs.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
10-7
DAX Internal Architecture
10.5.7.1
DAX Audio Data Register Empty (XADE)—Bit 0
The XADE status flag indicates that the DAX audio data register XADR and the audio data buffer
XADBUFA are empty (and ready to receive the next frame’s audio data). This bit is set at the beginning
of every frame transmission (more precisely, when channel A audio data is transferred from XADBUFA
to XADSR). When XADE is set and the interrupt is enabled (XDIE = 1), an audio data register empty
interrupt request is sent to the DSP core. XADE is cleared by writing two channels of audio data to XADR.
10.5.7.2
DAX Transmit Underrun Error Flag (XAUR)—Bit 1
The XAUR status flag is set when the DAX audio data buffers XADBUFA or XADBUFB are empty and
the respective audio data upload occurs. When a DAX underrun error occurs, the previous frame data will
be retransmitted in both channels. When XAUR is set and the interrupt is enabled (XUIE = 1), an underrun
error interrupt request is sent to the DSP core. This allows programmers to write an exception handling
routine for this special case. The XAUR bit is cleared by reading the XSTR register with XAUR set,
followed by writing two channels of audio data to XADR.
10.5.7.3
DAX Block Transfer Flag (XBLK)—Bit 2
The XBLK flag indicates that the frame being transmitted is the last frame in a block. This bit is set at the
beginning of the transmission of the last frame (the 191st frame). This bit does not cause any interrupt.
However, if XBIE=1 it causes a change in the interrupt vector sent to DSP core in the event of an audio
data register empty interrupt, so that a different interrupt routine can be called (providing the next
non-audio data structures for the next block as well as storing audio data for the next frame). Writing two
channels of audio data to XADR clears this bit.
The relative timing of transmit frames and XADE and XBLK flags is shown in Figure 10-3.
Frame
#000 #001 #002 #003 #004 #005 #006 #007 #008 #009 #010 #011 #012 #013 #014 #015 #016 #017 #018 #019 #020 #021 #022 #023
XADE
XBLK
Frame
#024 #025 #026 #027 #028 #029 #030 #031 #032 #033 #034 #035 #036 #037 #038 #039 #040 #041 #042 #043 #044 #045 #046 #047
XADE
XBLK
Frame
#168 #169 #170 #171 #172 #173 #174 #175 #176 #177 #178 #179 #180 #181 #182 #183 #184 #185 #186 #187 #188 #189 #190 #191
XADE
XBLK
AA0608
Figure 10-3 DAX Relative Timing
10.5.7.4
XSTR Reserved Bits—Bits 3–23
These XSTR bits are reserved. They read as 0, and should be written with 0 to ensure compatibility with
future device versions.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
10-8
Freescale Semiconductor
DAX Internal Architecture
10.5.8
DAX Parity Generator (PRTYG)
The PRTYG generates the parity bit for the subframe being transmitted. The generated parity bit ensures
that subframe bits four to thirty-one will carry an even number of ones and zeroes.
10.5.9
DAX Biphase Encoder
The DAX biphase encoder encodes each audio and non-audio bit into its biphase mark format and shifts
this encoded data out to the ADO output pin synchronously to the biphase clock.
10.5.10 DAX Preamble Generator
The DAX preamble generator automatically generates one of three preambles in the 8-bit preamble shift
register at the beginning of each subframe transmission, and shifts it out. The generated preambles always
start with “0”. Bit patterns of preambles generated in the preamble generator are shown in Table 10-4. The
preamble bits are already in the biphase mark format.
Table 10-4 Preamble Bit Patterns
Preamble
Bit Pattern
Channel
X
00011101
A
Y
00011011
B
Z
00010111
A (first in block)
There is no programmable control for the preamble selection. The first subframe to be transmitted
(immediately after the DAX is enabled) is the beginning of a block, and therefore it has a “Z” preamble.
This is followed by the second subframe, which has an “Y” preamble. After that, “X” and “Y” preambles
are transmitted alternately until the end of the block transfer (192 frames transmitted). See Figure 10-4 for
an illustration of the preamble sequence.
DAX
Enabled
Here
Z
Y
X
Y
X
Y
X
Y
Z
First Block (384 subframes)
Y
X
Y
Second Block
AA0609k
Figure 10-4 Preamble sequence
10.5.11 DAX Clock Multiplexer
The DAX clock multiplexer selects one of the clock sources and generates the biphase clock (128 × Fs)
and shift clock (64 × Fs). The clock source can be selected from the following options (see also
Section 10.5.6.4, "DAX Clock Input Select (XCS[1:0])—Bits 3–4").
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
10-9
DAX Programming Considerations
•
•
•
•
The internal DSP core clock—assumes 1024 × Fs
DAX clock input pin (ACI)—512 × Fs
DAX clock input pin (ACI)—384 × Fs
DAX clock input pin (ACI)—256 × Fs
Figure 10-5 shows how each clock is divided to generate the biphase and bit shift clocks
DSP Core Clock
(1024 × Fs)
1/2
1
0
1
MUX
0
MUX
ACI Pin
{256,384,512} × Fs
MUX
1/4
1
0
(XCS1 or XCS0)
2/3
XCS1
Biphase
Clock
(128 × Fs)
1/2
1/2
Bit Shift
Clock
(64 × Fs)
XCS0
AA0610
Figure 10-5 Clock Multiplexer Diagram
NOTE
For proper operation of the DAX, the DSP core clock frequency must be at
least five times higher than the DAX bit shift clock frequency (64 × Fs).
10.5.12 DAX State Machine
The DAX state machine generates a set of sequencing signals used in the DAX.
10.6
DAX Programming Considerations
The following sections describe programming considerations for the DAX.
10.6.1
Initiating A Transmit Session
To initiate the DAX operation, follow this procedure:
1. Ensure that the DAX is disabled (PC1 and PC0 bits of port control register PCR are cleared)
2. Write the non-audio data to the corresponding bits in the XNADR register
3. Write the channel A and channel B audio data in the XADR register
4. Write the transmit mode to the XCTR register
5. Enable DAX by setting PC1 bit (and by setting PC0 bit if in slave mode) in the port control register
(PCR); transmission begins.
10.6.2
Audio Data Register Empty Interrupt Handling
When the XDIE bit is set and the DAX is active, an audio data register empty interrupt (XADE = 1) is
generated once at the beginning of every frame transmission. Typically, within an XADE interrupt, the
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
10-10
Freescale Semiconductor
DAX Programming Considerations
non-audio data bits of the next frame are stored in XNADR and one frame of audio data to be transmitted
in the next frame is stored in the FIFO by two consecutive MOVEP instructions to XADR. If the non-audio
bits are not changed from frame to frame, this procedure can be handled within a fast interrupt routine.
Storing the next frame’s audio data in the FIFO clears the XADE bit in the XSTR.
10.6.3
Block Transferred Interrupt Handling
An interrupt with the XBLK vector indicates the end of a block transmission and may require some
computation to provide the next non-audio data structures that are to be transmitted within the next block.
Within the routine, the next audio data can be stored in the FIFO by two consecutive MOVEP instructions
to XADR, and the next non-audio data can be stored in the XNADR. The XBLK interrupt occurs only if
the XBIE bit in XCTR is set. If XBIE is cleared, a XADE interrupt vector will take place.
10.6.4
DAX operation with DMA
During DMA transfers, the XDIE bit of the XCTR must be cleared to avoid XADE interrupt services by
the DSP core. The initialization appearing in Section 10.6.1, "Initiating A Transmit Session" is relevant
for DMA operation. DMA transfers can be performed with or without changing non-audio bits from frame
to frame. Table 10-5 describes two examples of DMA configuration.
Table 10-5 Examples of DMA configuration
Register
DCR2
Non-audio data bits change
Non-audio data bits do not change
DE=1; Enable DMA channel.
DE=1; Enable DMA channel.
DIE=1; Enable DMA interrupt.
DIE=1; Enable DMA interrupt.
DTM[2:0]=010; Line transfer mode.
DTM[2:0]=010; Line transfer mode.
D3D=0; Not 3D.
D3D=0; Not 3D.
DAM[5:3]=000; 2D mode.
DAM[5:3]=000; 2D mode.
DAM[2:0]=101; post increment by 1.
DAM[2:0]=101; post increment by 1.
DDS[1:0]=00; X memory space.
DDS[1:0]=00; X memory space.
DRS[4:0]=01010; DAX is DMA request source.
DRS[4:0]=01010; DAX is DMA request source.
Other bits are application dependent.
Other bits are application dependent.
DCOH=number of frames in block - 1
DCOH=number of frames in block - 1
DCOL=$002; 3 destination registers
DCOL=$001; 2 destination registers
DSR2
first memory address of the block
first memory address of the block
DDR2
XNADR address (base address + $1)
XADR address (base address + $2)
DOR0
$FFFFFE; offset=-2
$FFFFFF; offset=-1
DCO2
The memory organization employed for DMA transfers depends on whether or not non-audio data changes
from frame to frame as shown in Figure 10-6.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
10-11
GPIO (PORT D) - Pins and Registers
Channel B
$00000B
Channel B
$00000B
Channel A
$00000A
Channel A
$00000A
Non-Audio Data
$00009
Channel B
$000009
Channel B
$000008
Channel A
$000008
Channel A
$000007
Channel B
$000007
Non-Audio Data
$000006
Channel A
$000006
Channel B
$000005
Channel B
$000005
Channel A
$000004
Channel A
$000004
Non-Audio Data
$000003
Channel B
$000003
Channel A
$000002
$000001
Channel B
$000001
$000000
Channel A
$000000
$000002
Channel B
Channel A
Non-Audio Data
Non-audio data bits change from
frame to frame
Non-audio data bits do not
change from frame to frame
Figure 10-6 Examples of data organization in memory
10.6.5
DAX Operation During Stop
The DAX operation cannot continue when the DSP is in the stop state since no DSP clocks are active.
While the DSP is in the stop state, the DAX will remain in the individual reset state and the status flags
are initialized as described for resets. No DAX control bits are affected. The DAX should be disabled
before the DSP enters the stop state.
10.7
GPIO (PORT D) - Pins and Registers
The Port D GPIO functionality of the DAX is controlled by three registers: Port D Control Register
(PCRD), Port D Direction Register (PRRD) and Port D Data Register (PDRD).
10.7.1
Port D Control Register (PCRD)
The read/write 24-bit DAX Port D Control Register controls the functionality of the DAX GPIO pins. Each
of the PC[1:0] bits controls the functionality of the corresponding port pin. When a PC[i] bit is set, the
corresponding port pin is configured as a DAX pin. When a PC[i] bit is cleared, the corresponding port pin
is configured as GPIO pin. If both PC1 and PC0 are cleared, the DAX is disabled. Hardware and software
reset clear all PCRD bits.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
10-12
Freescale Semiconductor
GPIO (PORT D) - Pins and Registers
PCRD -Port D Control Register - X:$FFFFD7
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
PC1 PC0
read as zero, should be written with zero for future compatibility
10.7.2
Port D Direction Register (PRRD)
The read/write 24-bit Port D Direction Register controls the direction of the DAX GPIO pins. When port
pin[i] is configured as GPIO, PDC[i] controls the port pin direction. When PDC[i] is set, the GPIO port
pin[i] is configured as output. When PDC[i] is cleared the GPIO port pin[i] is configured as input.
Hardware and software reset clear all PRRD bits. Table 10-6 describes the port pin configurations.
PRRD - Port D Direction Register - X:$FFFFD6
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
PDC1 PDC0
read as zero, should be written with zero for future compatibility
Figure 10-7 Port D Direction Register (PRRD)
Table 10-6 DAX Port GPIO Control Register Functionality
PDC1
PC1
ADO/PD1 pin
PDC0
PC0
ACI/PD0 pin
DAX state
0
0
Disconnected
0
0
Disconnected
Personal Reset
0
0
Disconnected
0
1
PD0 Input
Personal Reset
0
0
Disconnected
1
0
PD0 Output
Personal Reset
0
0
Disconnected
1
1
ACI
Enabled
0
1
PD1 Input
0
0
Disconnected
Personal Reset
0
1
PD1 Input
0
1
PD0 Input
Personal Reset
0
1
PD1 Input
1
0
PD0 Output
Personal Reset
0
1
PD1 Input
1
1
ACI
Enabled
1
0
PD1 Output
0
0
Disconnected
Personal Reset
1
0
PD1 Output
0
1
PD0 Input
Personal Reset
1
0
PD1 Output
1
0
PD0 Output
Personal Reset
1
0
PD1 Output
1
1
ACI
Enabled
1
1
ADO
0
0
Disconnected
Enabled
1
1
ADO
0
1
PD0 Input
Enabled
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
10-13
GPIO (PORT D) - Pins and Registers
Table 10-6 DAX Port GPIO Control Register Functionality
10.7.3
PDC1
PC1
ADO/PD1 pin
PDC0
PC0
ACI/PD0 pin
DAX state
1
1
ADO
1
0
PD0 Output
Enabled
1
1
ADO
1
1
ACI
Enabled
Port D Data Register (PDRD)
The read/write 24-bit Port D Data Register is used to read or write data to/from the DAX GPIO pins. Bits
PD[1:0] are used to read or write data from/to the corresponding port pins if they are configured as GPIO.
If a port pin [i] is configured as a GPIO input, then the corresponding PD[i] bit will reflect the value present
on this pin. If a port pin [i] is configured as a GPIO output, then the value written into the corresponding
PD[i] bit will be reflected on the this pin. Hardware and software reset clear all PDRD bits.
PDRD - Port D Data Register - X:$FFFFD5
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
PD1 PD0
read as zero, should be written with zero for future compatibility
Figure 10-8 Port D Data Register (PDRD)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
10-14
Freescale Semiconductor
11 Timer/ Event Counter
11.1
Introduction
This section describes the internal timer/event counter in the DSP56366. Each of the three timers (timer 0,
1 and 2) can use internal clocking to interrupt the DSP56366 or trigger DMA transfers after a specified
number of events (clocks). In addition, timer 0 provides external access via the bidirectional signal TIO0.
When the TIO0 pin is configured as an input, timer 0 can count or capture events, or measure the width or
period of an external signal. When TIO0 is configured as an output, timer 0 can function as a timer, a
watchdog timer, or a pulse width modulator. TIO0 can also function as a GPIO signal.
11.2
Timer/Event Counter Architecture
The timer module is composed of a common 21-bit prescaler and three independent general purpose 24-bit
timer/event counters, each having its own register set.
11.2.1
Timer/Event Counter Block Diagram
Figure 11-1 shows a block diagram of the timer/event counter. This module includes a 24-bit timer
prescaler load register (TPLR), a 24-bit timer prescaler count register (TPCR), a 21-bit prescaler clock
counter, and three timers. Each of the three timers may use the prescaler clock as its clock source.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
11-1
Timer/Event Counter Architecture
GDB
24
24
24
TPLR
TPCR
Timer Prescaler
Load Register
Timer Prescaler
Count Register
24
Timer 0
21-bit Prescaler
Counter
Timer 1
Timer 2
CLK/2
TIO0
AA0673
Figure 11-1 Timer/Event Counter Block Diagram
11.2.2
Individual Timer Block Diagram
Figure 11-2 shows the structure of an individual timer module. The three timers are identical in structure,
but only timer 0 is externally accessible.
Each timer includes a 24-bit counter, a 24-bit read/write timer control and status register (TCSR), a 24-bit
read-only timer count register (TCR), a 24-bit write-only timer load register (TLR), a 24-bit read/write
timer compare register (TCPR), and logic for clock selection and interrupt/DMA trigger generation.
The timer mode is controlled by the TC[3:0] bits of the timer control/status register (TCSR). Timer modes
are described in Section 11.4, "Timer Modes of Operation".
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
11-2
Freescale Semiconductor
Timer/Event Counter Programming Model
GDB
24
24
24
TCSR
24
Load
Register
9
TCPR
TCR
TLR
Control/Status
Register
24
Count
Register
Compare
Register
24
24
24
2
24
Timer Control
Logic
Counter
=
Timer interrupt/
DMA request
TIO
CLK/2 prescaler CLK
(Timer 0
only)
AA0676
Figure 11-2 Timer Block Diagram
11.3
Timer/Event Counter Programming Model
The DSP56366 views each timer as a memory-mapped peripheral with four registers occupying four 24-bit
words in the X data memory space. Either standard polled or interrupt programming techniques can be
used to service the timers. The timer programming model is shown in Figure 11-3.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
11-3
Timer/Event Counter Programming Model
23
0
Timer Prescaler Load
Register (TPLR)
TPLR = $FFFF83
23
0
Timer Prescaler Count
Register (TPCR)
TPLR = $FFFF82
7
6
5
4
TC3
TC2 TC1 TC0
15
14
PCE
23
22
3
2
1
TCIE TOIE
13
12
11
DO
DI
DIR
21
20
19
10
9
0
TE
8
TRM INV
18
17
Timer Control/Status
Register (TCSR)
TCSR0 = $FFFF8F
TCSR1 = $FFFF8B
TCSR2 = $FFFF87
16
TCF TOF
23
0
Timer Load
Register (TLR)
TLR0 = $FFFF8E
TLR1 = $FFFF8A
TLR2 = $FFFF86
23
0
Timer Compare
Register (TCPR)
TCPR0 = $FFFF8D
TCPR1 = $FFFF89
TCPR2 = $FFFF85
23
0
Timer Count
Register (TCR)
TCR0 = $FFFF8C
TCR1 = $FFFF88
TCR2 = $FFFF84
- reserved, read as 0, should be written with 0 for future compatibility
Figure 11-3 Timer Module Programmer’s Model
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
11-4
Freescale Semiconductor
Timer/Event Counter Programming Model
11.3.1
Prescaler Counter
The prescaler counter is a 21-bit counter that is decremented on the rising edge of the prescaler input clock.
The counter is enabled when at least one of the three timers is enabled (i.e., one or more of the timer enable
(TE) bits are set) and is using the prescaler output as its source (i.e., one or more of the PCE bits are set).
11.3.2
Timer Prescaler Load Register (TPLR)
The TPLR is a 24-bit read/write register that controls the prescaler divide factor (i.e., the number that the
prescaler counter will load and begin counting from) and the source for the prescaler input clock. See
Figure 11-4.
22
21
20
19
18
17
16
15
14
13
12
PS1
PS0
PL20
PL19
PL18
PL17
PL16
PL15
PL14
PL13
PL12
11
10
9
8
7
6
5
4
3
2
1
0
PL11
PL10
PL9
PL8
PL7
PL6
PL5
PL4
PL3
PL2
PL1
PL0
23
— reserved, read as 0, should be written with 0 for future compatibility
Figure 11-4 Timer Prescaler Load Register (TPLR)
11.3.2.1
TPLR Prescaler Preload Value PL[20:0] Bits 20–0
These 21 bits contain the prescaler preload value. This value is loaded into the prescaler counter when the
counter value reaches zero or the counter switches state from disabled to enabled.
If PL[20:0] = N, then the prescaler counts N + 1 source clock cycles before generating a prescaler clock
pulse. Therefore, the prescaler divide factor = (preload value) + 1.
The PL[20:0] bits are cleared by the hardware RESET signal or the software RESET instruction.
11.3.2.2
TPLR Prescaler Source PS[1:0] Bits 22-21
The two prescaler source (PS) bits control the source of the prescaler clock. Table 9-1 summarizes PS bit
functionality. The prescaler’s use of the TIO0 signal is not affected by the TCSR settings of timer 0.
If the prescaler source clock is external, the prescaler counter is incremented by signal transitions on the
TIO0 signal. The external clock is internally synchronized to the internal clock. The external clock
frequency must be lower than the DSP56366 internal operating frequency divided by 4 (CLK/4).
The PS[1:0] bits are cleared by the hardware RESET signal or the software RESET instruction.
NOTE
To ensure proper operation, change the PS[1:0] bits only when the prescaler
counter is disabled. Disable the prescaler counter by clearing the TE bit in
the TCSR of each of three timers.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
11-5
Timer/Event Counter Programming Model
Table 11-1 Prescaler Source Selection
11.3.2.3
PS1
PS0
PRESCALER CLOCK SOURCE
0
0
Internal CLK/2
0
1
TIO0
1
0
Reserved
1
1
Reserved
TPLR Reserved Bit 23
This reserved bit is read as zero and should be written with zero for future compatibility.
11.3.3
Timer Prescaler Count Register (TPCR)
The TPCR is a 24-bit read-only register that reflects the current value in the prescaler counter. See
Figure 11-5.
23
22
21
20
19
18
17
16
15
14
13
12
PC20
PC19
PC18
PC17
PC16
PC15
PC14
PC13
PC12
11
10
9
8
7
6
5
4
3
2
1
0
PC11
PC10
PC9
PC8
PC7
PC6
PC5
PC4
PC3
PC2
PC1
PC0
— reserved, read as 0, should be written with 0 for future compatibility
Figure 11-5 Time Prescaler Count Register (TPCR)
11.3.3.1
TPCR Prescaler Counter Value PC[20:0] Bits 20–0
These 21 bits contain the current value of the prescaler counter.
11.3.3.2
TPCR Reserved Bits 23–21
These reserved bits are read as zero and should be written with zero for future compatibility.
11.3.4
Timer Control/Status Register (TCSR)
The TCSR is a 24-bit read/write register controlling the timer and reflecting its status.
11.3.4.1
TCSR Timer Enable (TE) Bit 0
The timer enable (TE) bit is used to enable or disable the timer. Setting TE enables the timer and clears the
timer counter. The counter starts counting according to the mode selected by the timer control (TC[3:0])
bit values.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
11-6
Freescale Semiconductor
Timer/Event Counter Programming Model
Clearing the TE bit disables the timer. The TE bit is cleared by the hardware RESET signal or the software
RESET instruction.
NOTE
When timer 0 is disabled and TIO0 is not in GPIO mode, the pin is tri-stated.
To prevent undesired spikes on TIO0 when Timer 0 is switched from
tri-state to an active state, TIO0 should be tied to the power supply with a
pullup or pulldown resistor.
11.3.4.2
TCSR Timer Overflow Interrupt Enable (TOIE) Bit 1
The TOIE bit is used to enable the timer overflow interrupts. Setting TOIE enables overflow interrupt
generation. The timer counter can hold a maximum value of $FFFFFF. When the counter value is at the
maximum value and a new event causes the counter to be incremented to $000000, the timer generates an
overflow interrupt.
Clearing the TOIE bit disables overflow interrupt generation. The TOIE bit is cleared by the hardware
RESET signal or the software RESET instruction.
11.3.4.3
TCSR Timer Compare Interrupt Enable (TCIE) Bit 2
The Timer Compare Interrupt Enable (TCIE) bit is used to enable or disable the timer compare interrupts.
Setting TCIE enables the compare interrupts. In the timer, PWM, or watchdog modes, a compare interrupt
is generated after the counter value matches the value of the TCPR. The counter will start counting up from
the number loaded from the TLR and if the TCPR value is N, an interrupt occurs after (N – M + 1) events,
where M is the value of TLR.
Clearing the TCIE bit disables the compare interrupts. The TCIE bit is cleared by the hardware RESET
signal or the software RESET instruction.
11.3.4.4
TCSR Timer Control (TC[3:0]) Bits 4–7
The four TC bits control the source of the timer clock, the behavior of the TIO0 signal, and the timer mode
of operation. Table 11-2 summarizes the TC bit functionality. A detailed description of the timer operating
modes is given in Section 11.4, "Timer Modes of Operation".
The TC bits are cleared by the hardware RESET signal or the software RESET instruction.
NOTE
If the clock is external, the counter is incremented by the transitions on the
TIO0 signal. The external clock is internally synchronized to the internal
clock, and its frequency should be lower than the internal operating
frequency divided by 4 (CLK/4).
To ensure proper operation, the TC[3:0] bits should be changed only when
the timer is disabled (when the TE bit in the TCSR has been cleared).
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
11-7
Timer/Event Counter Programming Model
Table 11-2 Timer Control Bits for Timer 0
Bit Settings
1
Mode Characteristics
TC3
TC2
TC1
TC0
Mode
Number
Mode Function
TIO0
Clock
0
0
0
0
0
Timer and GPIO
GPIO1
Internal
0
0
0
1
1
Timer pulse
Output
Internal
0
0
1
0
2
Timer toggle
Output
Internal
0
0
1
1
3
Event counter
Input
External
0
1
0
0
4
Input width measurement
Input
Internal
0
1
0
1
5
Input period measurement
Input
Internal
0
1
1
0
6
Capture event
Input
Internal
0
1
1
1
7
Pulse width modulation
Output
Internal
1
0
0
0
8
Reserved
—
—
1
0
0
1
9
Watchdog pulse
Output
Internal
1
0
1
0
10
Watchdog toggle
Output
Internal
1
0
1
1
11
Reserved
—
—
1
1
0
0
12
Reserved
—
—
1
1
0
1
13
Reserved
—
—
1
1
1
0
14
Reserved
—
—
1
1
1
1
15
Reserved
—
—
The GPIO function is enabled only if all of the TC[3:0] bits are zero.
Table 11-3 Timer Control Bits for Timers 1 and 2
TC3
TC2
TC1
TC0
Clock
Mode
0
0
0
0
Internal
Timer
0
0
0
1
—
Reserved
0
0
1
X
—
Reserved
0
1
X
X
—
Reserved
1
X
X
X
—
Reserved
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
11-8
Freescale Semiconductor
Timer/Event Counter Programming Model
11.3.4.5
TCSR Inverter (INV) Bit 8
The INV bit affects the polarity of the incoming signal on the TIO0 input signal and the polarity of the
output pulse generated on the TIO0 output signal. The effects of the INV bit are summarized in Table 11-4.
This bit is not in use for timers 1 and 2. It should be left cleared.
Table 11-4 Inverter (INV) Bit Operation
TIO0 Programmed as Input
TIO0 Programmed as Output
Mode
INV = 0
0
INV = 1
GPIO signal on the TIO0
signal read directly
GPIO signal on the TIO0
signal inverted
INV = 0
Bit written to GPIO put on
TIO0 signal directly
INV = 1
Bit written to GPIO
inverted and put on
TIO0 signal
1
Counter is incremented on Counter is incremented on —
the falling edge of the
the rising edge of the
signal from the TIO0 signal signal from the TIO0 signal
—
2
Counter is incremented on Counter is incremented on TCRx output put on TIO0
signal directly
the falling edge of the
the rising edge of the
signal from the TIO0 signal signal from the TIO0 signal
TCRx output inverted and
put on TIO0 signal
3
Counter is incremented on Counter is incremented on —
the falling edge of the
the rising edge of the
signal from the TIO0 signal signal from the TIO0 signal
—
4
Width of the high input
pulse is measured.
Width of the low input pulse —
is measured.
—
5
Period is measured
between the rising edges
of the input signal.
Period is measured
between the falling edges
of the input signal.
—
—
6
Event is captured on the
rising edge of the signal
from the TIO0 signal
Event is captured on the
falling edge of the signal
from the TIO0 signal
—
—
7
—
—
Pulse generated by the
timer has positive polarity
Pulse generated by the
timer has negative polarity
9
—
—
Pulse generated by the
timer has positive polarity
Pulse generated by the
timer has negative polarity
10
—
—
Pulse generated by the
timer has positive polarity
Pulse generated by the
timer has negative polarity
The INV bit is cleared by the hardware RESET signal or the software RESET instruction.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
11-9
Timer/Event Counter Programming Model
NOTE
The INV bit affects both the timer and GPIO modes of operation. To ensure
correct operation, this bit should be changed only when one or both of the
following conditions is true:
•
•
The timer has been disabled by clearing the TE bit in the TCSR.
The timer is in GPIO mode.
The INV bit does not affect the polarity of the prescaler source when TIO0 is used as input to the prescaler.
11.3.4.6
TCSR Timer Reload Mode (TRM) Bit 9
The TRM bit controls the counter preload operation.
In timer (0–3) and watchdog (9–10) modes, the counter is preloaded with the TLR value after the TE bit
is set and the first internal or external clock signal is received. If the TRM bit is set, the counter is reloaded
each time after it reaches the value contained by the TCR. In PWM mode (7), the counter is reloaded each
time counter overflow occurs. In measurement (4–5) modes, if the TRM and the TE bits are set, the counter
is preloaded with the TLR value on each appropriate edge of the input signal.
If the TRM bit is cleared, the counter operates as a free-running counter and is incremented on each
incoming event. The TRM bit is cleared by the hardware RESET signal or the software RESET instruction.
11.3.4.7
TCSR Direction (DIR) Bit 11
The DIR bit determines the behavior of the TIO0 signal when it is used as a GPIO pin. When the DIR bit
is set, the TIO0 signal is an output; when the DIR bit is cleared, the TIO0 signal is an input. The TIO0
signal can be used as a GPIO only when the TC[3:0] bits are all cleared. If any of the TC[3:0] bits are set,
then the GPIO mode is disabled and the DIR bit has no effect.
The DIR bit is cleared by the hardware RESET signal or the software RESET instruction.
This bit is not in use for timers 1 and 2. It should be left cleared.
11.3.4.8
TCSR Data Input (DI) Bit 12
The DI bit reflects the value of the TIO0 signal. If the INV bit is set, the value of the TIO0 signal is inverted
before it is written to the DI bit. If the INV bit is cleared, the value of the TIO0 signal is written directly
to the DI bit.
DI is cleared by the hardware RESET signal or the software RESET instruction.
11.3.4.9
TCSR Data Output (DO) Bit 13
The DO bit is the source of the TIO0 value when it is a data output signal. The TIO0 signal is data output
when the GPIO mode is enabled and DIR is set. A value written to the DO bit is written to the TIO0 signal.
If the INV bit is set, the value of the DO bit is inverted when written to the TIO0 signal. When the INV bit
is cleared, the value of the DO bit is written directly to the TIO0 signal. When GPIO mode is disabled,
writing the DO bit has no effect.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
11-10
Freescale Semiconductor
Timer/Event Counter Programming Model
The DO bit is cleared by the hardware RESET signal or the software RESET instruction.
This bit is not in use for timers 1 and 2. It should be left cleared.
11.3.4.10 TCSR Prescaler Clock Enable (PCE) Bit 15
The PCE bit is used to select the prescaler clock as the timer source clock. When the PCE bit is cleared,
the timer uses either an internal (CLK/2) signal or an external signal (TIO0) as its source clock. When the
PCE bit is set, the prescaler output is used as the timer source clock for the counter regardless of the timer
operating mode. To ensure proper operation, the PCE bit should be changed only when the timer is
disabled (when the TE bit is cleared). Which source clock is used for the prescaler is determined by the
PS[1:0] bits of the TPLR. Timers 1 and 2 can be clocked by the prescaler clock derived from TIO0.
11.3.4.11 TCSR Timer Overflow Flag (TOF) Bit 20
The TOF bit is set to indicate that counter overflow has occurred. This bit is cleared by writing a 1 to the
TOF bit. Writing a 0 to the TOF bit has no effect. The bit is also cleared when the timer overflow interrupt
is serviced.
The TOF bit is cleared by the hardware RESET signal, the software RESET instruction, the STOP
instruction, or by clearing the TE bit to disable the timer.
11.3.4.12 TCSR Timer Compare Flag (TCF) Bit 21
The TCF bit is set to indicate that the event count is complete. In the timer, PWM, and watchdog modes,
the TCF bit is set when (N – M + 1) events have been counted (N is the value in the compare register and
M is the TLR value). In the measurement modes, the TCF bit is set when the measurement has been
completed.
The TCF bit is cleared by writing a one into the TCF bit. Writing a zero into the TCF bit has no effect. The
bit is also cleared when the timer compare interrupt is serviced.
The TCF bit is cleared by the hardware RESET signal, the software RESET instruction, the STOP
instruction, or by clearing the TE bit to disable the timer.
NOTE
The TOF and TCF bits are cleared by writing a one to the specific bit. In
order to assure that only the desired bit is cleared, do not use the BSET
command. The proper way to clear these bits is to write (using a MOVEP
instruction) a one to the flag to be cleared and a zero to the other flag.
11.3.4.13 TCSR Reserved Bits (Bits 3, 10, 14, 16-19, 22, 23)
These reserved bits are read as zero and should be written with zero for future compatibility.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
11-11
Timer Modes of Operation
11.3.5
Timer Load Register (TLR)
The TLR is a 24-bit write-only register. In all modes, the counter is preloaded with the TLR value after the
TE bit in the TCSR is set and a first event occurs. The programmer must initialize the TLR to ensure
correct operation in the appropriate timer operating modes.
• In timer modes, if the timer reload mode (TRM) bit in the TCSR is set, the counter is reloaded each
time after it has reached the value contained by the timer compare register (TCR) and the new event
occurs.
• In measurement modes, if the TRM bit in the TCSR is set and the TE bit in the TCSR is set, the
counter is reloaded with the value in the TLR on each appropriate edge of the input signal.
• In PWM modes, if the TRM bit in the TCSR is set, the counter is reloaded each time after it has
overflowed and the new event occurs.
• In watchdog modes, if the TRM bit in the TCSR is set, the counter is reloaded each time after it
has reached the value contained by the TCR and the new event occurs. In this mode, the counter is
also reloaded whenever the TLR is written with a new value while the TE bit in the TCSR is set.
• In all modes, if the TRM bit in the TCSR is cleared (TRM = 0), the counter operates as a
free-running counter.
11.3.6
Timer Compare Register (TCPR)
The TCPR is a 24-bit read/write register that contains the value to be compared to the counter value. These
two values are compared every timer clock after the TE bit in the TCSR is set. When the values match, the
timer compare flag (TCF) bit is set and an interrupt is generated if interrupts are enabled (if the timer
compare interrupt enable (TCIE) bit in the TCSR is set). The programmer must initialize the TCPR to
ensure correct operation in the appropriate timer operating modes. The TCPR is ignored in measurement
modes.
11.3.7
Timer Count Register (TCR)
The TCR is a 24-bit read-only register. In timer and watchdog modes, the counter’s contents can be read
at any time by reading the TCR register. In measurement modes, the TCR is loaded with the current value
of the counter on the appropriate edge of the input signal, and its value can be read to determine the width,
period, or delay of the leading edge of the input signal. When the timer is in measurement modes, the TIO0
signal is used for the input signal.
11.4
Timer Modes of Operation
Each timer has various operational modes that meet a variety of system requirements. These modes are as
follows:
• Timer
— GPIO, mode 0: Internal timer interrupt generated by the internal clock
— Pulse, mode 1: External timer pulse generated by the internal clock
— Toggle, mode 2: Output timing signal toggled by the internal clock
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
11-12
Freescale Semiconductor
Timer Modes of Operation
•
•
•
— Event counter, mode 3: Internal timer interrupt generated by an external clock
Measurement
— Input width, mode 4: Input pulse width measurement
— Input pulse, mode 5: Input signal period measurement
— Capture, mode 6: Capture external signal
PWM, mode 7: Pulse Width Modulation
Watchdog
— Pulse, mode 9: Output pulse, internal clock
— Toggle, mode 10: Output toggle, internal clock
These modes are described in detail below. Timer modes are selected by setting the TC[3:0] bits in the
TCSR. Table 11-2 and Table 11-3 show how the different timer modes are selected by setting the bits in
the TCSR. Table 11-2 also shows the TIO0 signal direction and the clock source for each timer mode.
NOTE
To ensure proper operation, the TC[3:0] bits should be changed only when
the timer is disabled (i.e., when the TE bit in the TCSR is cleared).
11.4.1
Timer Modes
11.4.1.1
Timer GPIO (Mode 0)
Bit Settings
Mode Characteristics
TC3
TC2
TC1
TC0
TIO0
Clock
#
KIND
NAME
0
0
0
0
GPIO
Internal
0
Timer
GPIO
In this mode, the timer generates an internal interrupt when a counter value is reached (if the timer compare
interrupt is enabled). Note that any of the three timers can be placed in GPIO mode to generate internal
interrupts, but only timer 0 provides actual external GPIO access on the TIO0 signal.
Set the TE bit to clear the counter and enable the timer. Load the value the timer is to count into the TCPR.
The counter is loaded with the TLR value when the first timer clock signal is received. The timer clock
can be taken from either the DSP56366 clock divided by two (CLK/2) or from the prescaler clock output.
Each subsequent clock signal increments the counter.
When the counter equals the TCPR value, the TCF bit in TCSR is set, and a compare interrupt is generated
if the TCIE bit is set. If the TRM bit in the TCSR is set, the counter is reloaded with the TLR value at the
next timer clock and the count is resumed. If the TRM bit is cleared, the counter continues to be
incremented on each timer clock signal.
This process is repeated until the timer is disabled (i.e., TE is cleared).
If the counter overflows, the TOF bit is set, and if TOIE is set, an overflow interrupt is generated.
The counter contents can be read at any time by reading the TCR.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
11-13
Timer Modes of Operation
11.4.1.2
Timer Pulse (Mode 1)
Bit Settings
Mode Characteristics
TC3
TC2
TC1
TC0
TIO0
Clock
#
KIND
NAME
0
0
0
1
Output
Internal
1
Timer
Pulse
In this mode, the timer generates a compare interrupt when the timer count reaches a preset value. In
addition, timer 0 provides an external pulse on its TIO0 signal.
Set the TE bit to clear the counter and enable the timer. The value to which the timer is to count is loaded
into the TCPR. The counter is loaded with the TLR value when the first timer clock signal is received. The
TIO0 signal is loaded with the value of the INV bit. The timer clock signal can be taken from either the
DSP56366 clock divided by two (CLK/2) or from the prescaler clock output. Each subsequent clock signal
increments the counter.
When the counter matches the TCPR value, the TCF bit in TCSR is set and a compare interrupt is
generated if the TCIE bit is set. The polarity of the TIO0 signal is inverted for one timer clock period.
If the TRM bit is set, the counter is loaded with the TLR value on the next timer clock and the count is
resumed. If the TRM bit is cleared, the counter continues to be incremented on each timer clock.
This process is repeated until the TE bit is cleared (disabling the timer).
The value of the TLR sets the delay between starting the timer and the generation of the output pulse. To
generate successive output pulses with a delay of X clocks between signals, the TLR value should be set
to X/2 and the TRM bit should be set.
This process is repeated until the timer is disabled (i.e., TE is cleared).
If the counter overflows, the TOF bit is set, and if TOIE is set, an overflow interrupt is generated.
The counter contents can be read at any time by reading the TCR.
11.4.1.3
Timer Toggle (Mode 2)
Bit Settings
Mode Characteristics
TC3
TC2
TC1
TC0
TIO0
Clock
#
KIND
NAME
0
0
1
0
Output
Internal
0
Timer
Toggle
In this mode, the timer generates a periodic interrupt; timer 0 also toggles the polarity of the TIO0 signal.
Set the TE bit in the TCR to clear the counter and enable the timer. The value the timer is to count is loaded
into the TPCR. The counter is loaded with the TLR value when the first timer clock signal is received. The
TIO0 signal is loaded with the value of the INV bit. The timer clock signal can be taken from either the
DSP56366 clock divided by two (CLK/2) or from the prescaler clock output. Each subsequent clock signal
increments the counter.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
11-14
Freescale Semiconductor
Timer Modes of Operation
When the counter value matches the value in the TCPR, the polarity of the TIO0 output signal is inverted.
The TCF bit in the TCSR is set and a compare interrupt is generated if the TCIE bit is set.
If the TRM bit is set, the counter is loaded with the value of the TLR when the next timer clock is received,
and the count is resumed. If the TRM bit is cleared, the counter continues to be incremented on each timer
clock.
This process is repeated until the TE bit is cleared, disabling the timer.
The TLR value in the TCPR sets the delay between starting the timer and toggling the TIO0 signal. To
generate output signals with a delay of X clock cycles between toggles, the TLR value should be set to X/2
and the TRM bit should be set.
This process is repeated until the timer is disabled (i.e., TE is cleared). If the counter overflows, the TOF
bit is set, and if TOIE is set, an overflow interrupt is generated.
The counter contents can be read at any time by reading the TCR.
11.4.1.4
Timer Event Counter (Mode 3)
Bit Settings
Mode Characteristics
TC3
TC2
TC1
TC0
TIO0
Clock
#
KIND
NAME
0
0
1
1
Input
External
3
Timer
Event Counter
In this mode, the timer counts internal events and issues an interrupt when a preset number of events is
counted. Timer 0 can also count external events.
Set the TE bit to clear the counter and enable the timer. The number of events the timer is to count is loaded
into the TPCR. The counter is loaded with the TLR value when the first timer clock signal is received. The
timer clock signal is provided by the prescaler clock output. Timer 0 can be also be clocked from the TIO0
input signal. Each subsequent clock signal increments the counter. If an external clock is used, it must be
internally synchronized to the internal clock and its frequency must be less than the DSP56366 internal
operating frequency divided by 4.
The value of the INV bit in the TCSR determines whether low-to-high (0 to 1) transitions or high-to-low
(1 to 0) transitions increment the counter. If the INV bit is set, high-to-low transitions increment the
counter. If the INV bit is cleared, low-to-high transitions increment the counter.
When the counter matches the value contained in the TCPR, the TCF bit in the TCSR is set and a compare
interrupt is generated if the TCIE bit is set. If the TRM bit is set, the counter is loaded with the value of
the TLR when the next timer clock is received, and the count is resumed. If TRM bit is cleared, the counter
continues to be incremented on each timer clock.
This process is repeated until the timer is disabled (i.e., TE is cleared). If the counter overflows, the TOF
bit is set, and if TOIE is set, an overflow interrupt is generated.
The counter contents can be read at any time by reading the TCR.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
11-15
Timer Modes of Operation
11.4.2
Signal Measurement Modes
The following signal measurement modes are provided:
• Measurement input width
• Measurement input period
• Measurement capture
These functions are available only on timer 0.
11.4.2.1
Measurement Accuracy
The external signal is synchronized with the internal clock used to increment the counter. This
synchronization process can cause the number of clocks measured for the selected signal value to vary
from the actual signal value by plus or minus one counter clock cycle.
11.4.2.2
Measurement Input Width (Mode 4)
Bit Settings
Mode Characteristics
TC3
TC2
TC1
TC0
Mode
Name
Kind
TIO0
Clock
0
1
0
0
4
Input Width
Measurement
Input
Internal
In this mode, the timer 0 counts the number of clocks that occur between opposite edges of an input signal.
Set the TE bit to clear the counter and enable the timer. Load the timer’s count value into the TLR. After
the first appropriate transition (as determined by the INV bit) occurs on the TIO0 input pin, the counter is
loaded with the TLR value on the first timer clock signal received either from the DSP56366 clock divided
by two (CLK/2) or from the prescaler clock input. Each subsequent clock signal increments the counter.
If the INV bit is set, the timer starts on the first high-to-low (1 to 0) signal transition on the TIO0 signal.
If the INV bit is cleared, the timer starts on the first low-to-high (0 to 1) transition on the TIO0 signal.
When the first transition opposite in polarity to the INV bit setting occurs on the TIO0 signal, the counter
stops. The TCF bit in the TCSR is set and a compare interrupt is generated if the TCIE bit is set. The value
of the counter (which measures the width of the TIO0 pulse) is loaded into the TCR. The TCR can be read
to determine the external signal pulse width.
If the TRM bit is set, the counter is loaded with the TLR value on the first timer clock received following
the next valid transition occurring on the TIO0 input pin and the count is resumed. If the TRM bit is
cleared, the counter continues to be incremented on each timer clock.
This process is repeated until the timer is disabled (i.e., TE is cleared).
If the counter overflows, the TOF bit is set, and if TOIE is set, an overflow interrupt is generated.
The counter contents can be read at any time by reading the TCR.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
11-16
Freescale Semiconductor
Timer Modes of Operation
11.4.2.3
Measurement Input Period (Mode 5)
Bit Settings
Mode Characteristics
TC3
TC2
TC1
TC0
Mode
Name
Kind
TIO0
Clock
0
1
0
1
5
Input Period
Measurement
Input
Internal
In this mode, the timer counts the period between the reception of signal edges of the same polarity across
the TIO0 signal.
Set the TE bit to clear the counter and enable the timer. The value the timer is to count is loaded into the
TLR. The value of the INV bit determines whether the period is measured between consecutive
low-to-high (0 to 1) transitions of TIO0 or between consecutive high-to-low (1 to 0) transitions of TIO0.
If INV is set, high-to-low signal transitions are selected. If INV is cleared, low-to-high signal transitions
are selected.
After the first appropriate transition occurs on the TIO0 input pin, the counter is loaded with the TLR value
on the first timer clock signal received from either the DSP56366 clock divided by two (CLK/2) or the
prescaler clock output. Each subsequent clock signal increments the counter.
On the next signal transition of the same polarity that occurs on TIO0, the TCF bit in the TCSR is set and
a compare interrupt is generated if the TCIE bit is set. The contents of the counter are loaded into the TCR.
The TCR then contains the value of the time that elapsed between the two signal transitions on the TIO0
signal.
After the second signal transition, if the TRM bit is set, the TE bit is set to clear the counter and enable the
timer. The counter is repeatedly loaded and incremented until the timer is disabled. If the TRM bit is
cleared, the counter continues to be incremented until it overflows.
This process is repeated until the timer is disabled (i.e., TE is cleared).
If the counter overflows, the TOF bit is set, and if TOIE is set, an overflow interrupt is generated.
The counter contents can be read at any time by reading the TCR.
11.4.2.4
Measurement Capture (Mode 6)
Bit Settings
Mode Characteristics
TC3
TC2
TC1
TC0
Mode
Name
Kind
TIO0
Clock
0
1
1
0
6
Capture
Measurement
Input
Internal
In this mode, the timer counts the number of clocks that elapse between starting the timer and receiving
an external signal.
Set the TE bit to clear the counter and enable the timer. The value the timer is to count is loaded into the
TLR. When the first timer clock signal is received, the counter is loaded with the TLR value. The timer
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
11-17
Timer Modes of Operation
clock signal can be taken from either the DSP56366 clock divided by two (CLK/2) or from the prescaler
clock output. Each subsequent clock signal increments the counter.
At the first appropriate transition of the external clock detected on the TIO0 signal, the TCF bit in the
TCSR is set and, if the TCIE bit is set, a compare interrupt is generated. The counter halts. The contents
of the counter are loaded into the TCR. The value of the TCR represents the delay between the setting of
the TE bit and the detection of the first clock edge signal on the TIO0 signal.
If the INV bit is set, a high-to-low transition signals the end of the timing period. If INV is cleared, a
low-to-high transition signals the end of the timing period.
If the counter overflows, the TOF bit is set, and if TOIE is set, an overflow interrupt is generated.
The counter contents can be read at any time by reading the TCR.
11.4.3
Pulse Width Modulation (PWM, Mode 7)
Bit Settings
Mode Characteristics
TC3
TC2
TC1
TC0
Mode
Name
Kind
TIO0
Clock
0
1
1
1
7
Pulse Width Modulation
PWM
Output
Internal
In this mode, the timer generates periodic pulses of a preset width. This function is available only on
timer 0.
Set the TE bit to clear the counter and enable the timer. The value the timer is to count is loaded into the
TPCR. When first timer clock is received from either the DSP56366 internal clock divided by two (CLK/2)
or the prescaler clock output, the counter is loaded with the TLR value. Each subsequent timer clock
increments the counter.
When the counter equals the value in the TCPR, the TIO0 output pin is toggled and the TCF bit in the
TCSR is set. The contents of the counter are placed into the TCR. If the TCIE bit is set, a compare interrupt
is generated. The counter continues to be incremented on each timer clock.
If counter overflow has occurred, the TIO0 output pin is toggled, the TOF bit in TCSR is set, and an
overflow interrupt is generated if the TOIE bit is set. If the TRM bit is set, the counter is loaded with the
TLR value on the next timer clock and the count is resumed. If the TRM bit is cleared, the counter
continues to be incremented on each timer clock.
This process is repeated until the timer is disabled by clearing the TE bit.
TIO0 signal polarity is determined by the value of the INV bit. When the counter is started by setting the
TE bit, the TIO0 signal assumes the value of the INV bit. On each subsequent toggling of the TIO0 signal,
the polarity of the TIO0 signal is reversed. For example, if the INV bit is set, the TIO0 signal generates the
following signal: 1010. If the INV bit is cleared, the TIO0 signal generates the following signal: 0101.
The counter contents can be read at any time by reading the TCR.
The value of the TLR determines the output period ($FFFFFF − TLR + 1). The timer counter increments
the initial TLR value and toggles the TIO0 signal when the counter value exceeds $FFFFFF.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
11-18
Freescale Semiconductor
Timer Modes of Operation
The duty cycle of the TIO0 signal is determined by the value in the TCPR. When the value in the TLR is
incremented to a value equal to the value in the TCPR, the TIO0 signal is toggled. The duty cycle is equal
to ($FFFFFF – TCPR) divided by ($FFFFFF − TLR + 1). For a 50% duty cycle, the value of TCPR is equal
to ($FFFFFF + TLR + 1) / 2.
NOTE
The value in TCPR must be greater than the value in TLR.
11.4.4
Watchdog Modes
11.4.4.1
Watchdog Pulse (Mode 9)
Bit Settings
Mode Characteristics
TC3
TC2
TC1
TC0
Mode
Name
Kind
TIO0
Clock
1
0
0
1
9
Pulse
Watchdog
Output
Internal
In this mode, the timer generates an interrupt at a preset rate. Timer 0 also generates pulse on TIO0. The
signal period is equal to the period of one timer clock.
Set the TE bit to clear the counter and enable the timer. The value the timer is to count is loaded into the
TCPR. The counter is loaded with the TLR value on the first timer clock received from either the
DSP56366 internal clock divided by two (CLK/2) or the prescaler clock output. Each subsequent timer
clock increments the counter.
When the counter matches the value of the TCPR, the TCF bit in the TCSR is set and a compare interrupt
is generated if the TCIE bit is also set.
If the TRM bit is set, the counter is loaded with the TLR value on the next timer clock and the count is
resumed. If the TRM bit is cleared, the counter continues to be incremented on each subsequent timer
clock.
This process is repeated until the timer is disabled (i.e., TE is cleared).
If the counter overflows, the TOF bit is set, and if TOIE is set, an overflow interrupt is generated. Timer 0
also generates an output pulse on the TIO0 signal with a pulse width equal to the timer clock period. The
pulse polarity is determined by the value of the INV bit. If the INV bit is set, the pulse polarity is high
(logical 1). If the INV bit is cleared, the pulse polarity is low (logical 0).
The counter contents can be read at any time by reading the TCR.
The counter is reloaded whenever the TLR is written with a new value while the TE bit is set.
NOTE
In this mode, internal logic preserves the TIO0 value and direction for an
additional 2.5 internal clock cycles after the DSP56366 hardware RESET
signal is asserted. This ensures that a valid RESET signal is generated when
the TIO0 signal is used to reset the DSP56366.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
11-19
Timer Modes of Operation
11.4.4.2
Watchdog Toggle (Mode 10)
Bit Settings
Mode Characteristics
TC3
TC2
TC1
TC0
Mode
NAME
Kind
TIO0
Clock
1
0
1
0
10
Toggle
Watchdog
Output
Internal
In this mode, the timer generates an interrupt at a preset rate. Timer 0 also toggles the output on TIO0.
Set the TE bit to clear the counter and enable the timer. The value the timer is to count is loaded into the
TPCR. The counter is loaded with the TLR value on the first timer clock received from either the
DSP56366 internal clock divided by two (CLK/2) or the prescaler clock output. Each subsequent timer
clock increments the counter. The TIO0 signal is set to the value of the INV bit.
When the counter equals the value in the TCPR, the TCF bit in the TCSR is set, and a compare interrupt
is generated if the TCIE bit is also set. If the TRM bit is set, the counter is loaded with the TLR value on
the next timer clock and the count is resumed. If the TRM bit is cleared, the counter continues to be
incremented on each subsequent timer clock
When counter overflow has occurred, the polarity of the TIO0 output pin is inverted, the TOF bit in the
TCSR is set, and an overflow interrupt is generated if the TOIE bit is also set. The TIO0 polarity is
determined by the INV bit.
The counter is reloaded whenever the TLR is written with a new value while the TE bit is set. This process
is repeated until the timer is disabled by clearing the TE bit. The counter contents can be read at any time
by reading the TCR register.
NOTE
In this mode, internal logic preserves the TIO0 value and direction for an
additional 2.5 internal clock cycles after the DSP56366 hardware RESET
signal is asserted. This ensures that a valid RESET signal is generated when
the TIO0 signal is used to reset the DSP56366.
11.4.5
Reserved Modes
Modes 8, 11, 12, 13, 14, and 15 are reserved.
11.4.6
Special Cases
The following special cases apply during wait and stop state.
11.4.6.1
Timer Behavior during Wait
Timer clocks are active during the execution of the WAIT instruction and timer activity is undisturbed. If
a timer interrupt is generated, the DSP56366 leaves the wait state and services the interrupt.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
11-20
Freescale Semiconductor
Timer Modes of Operation
11.4.6.2
Timer Behavior during Stop
During the execution of the STOP instruction, the timer clocks are disabled, timer activity is stopped, and
the TIO0 signal is disconnected. Any external changes that happen to the TIO0 signal is ignored when the
DSP56366 is the stop state. To ensure correct operation, the timers should be disabled before the
DSP56366 is placed into the stop state.
11.4.7
DMA Trigger
Each timer can also be used to trigger DMA transfers. For this to occur, a DMA channel must be
programmed to be triggered by a timer event. The timer issues a DMA trigger on every event in all modes
of operation. The DMA channel does not have the capability to save multiple DMA triggers generated by
the timer. To ensure that all DMA triggers are serviced, the user must provide for the preceding DMA
trigger to be serviced before the next trigger is received by the DMA channel.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
11-21
Timer Modes of Operation
NOTES
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
11-22
Freescale Semiconductor
Appendix A Bootstrap ROM Contents
A.1
DSP56366 Bootstrap Program
; BOOTSTRAP CODE FOR DSP56366 Rev. 0 silicon - (C) Copyright 1999 Motorola Inc.
;
;
; Revision 0.0 1999/JAN/26 - Modified from 56362_RevA_regular_boot_rev01.asm:
;
- Change the length of xram and the length of yram
;
in burn-in code
;
- Change the address of the reserved area in the
;
Program ROM to $FFAF80 - $FFAFFF
;
; Revision 0.1 1999/MAR/29 - Enabled 100ns I2C filter in bootstrap
;
mode 0110.
;
- Added 5 NOP instructions after OnCE enable.
;
; This is the Bootstrap program contained in the DSP56366 192-word Boot
; ROM. This program can load any program RAM segment from an external
; EPROM, from the Host Interface or from the SHI serial interface.
;
;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; If MD:MC:MB:MA=x000, then the Boot ROM is bypassed and the DSP56366
; will start fetching instructions beginning with address $C00000 (MD=0)
; or $008000 (MD=1) assuming that an external memory of SRAM type is
; used. The accesses will be performed using 31 wait states with no
; address attributes selected (default area).
;
;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; If MD:MC:MB:MA=0001, then it loads a program RAM segment from consecutive
; byte-wide P memory locations, starting at P:$D00000 (bits 7-0).
; The memory is selected by the Address Attribute AA1 and is accessed with
; 31 wait states.
; The EPROM bootstrap code expects to read 3 bytes
; specifying the number of program words, 3 bytes specifying the address
; to start loading the program words and then 3 bytes for each program
; word to be loaded. The number of words, the starting address and the
; program words are read least significant byte first followed by the
; mid and then by the most significant byte.
; The program words will be condensed into 24-bit words and stored in
; contiguous PRAM memory locations starting at the specified starting address.
; After reading the program words, program execution starts from the same
; address where loading started.
;
;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; If MD:MC:MB:MA=0010, then the bootstrap code jumps to the internal
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
A-1
DSP56366 Bootstrap Program
; Program ROM, without loading the Program RAM.
;
;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; Operation mode MD:MC:MB:MA=0011 is reserved.
;
;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; If MD:MC:MB:MA=01xx, then the Program RAM is loaded from the SHI.
;
;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; Operation mode MD:MC:MB:MA=1001 is used for burn-in testing.
;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; Operation mode MD:MC:MB:MA=1010 is reserved
; Operation mode MD:MC:MB:MA=1011 is reserved
;
;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; If MD:MC:MB:MA=1100, then it loads the program RAM from the Host
; Interface programmed to operate in the ISA mode.
; The HOST ISA bootstrap code expects to read a 24-bit word
; specifying the number of program words, a 24-bit word specifying the address
; to start loading the program words and then a 24-bit word for each program
; word to be loaded. The program words will be stored in
; contiguous PRAM memory locations starting at the specified starting address.
; After reading the program words, program execution starts from the same
; address where loading started.
; The Host Interface bootstrap load program may be stopped by
; setting the Host Flag 0 (HF0). This will start execution of the loaded
; program from the specified starting address.
;
;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; If MD:MC:MB:MA=1101, then it loads the program RAM from the Host
; Interface programmed to operate in the HC11 non multiplexed mode.
;
; The HOST HC11 bootstrap code expects to read a 24-bit word
; specifying the number of program words, a 24-bit word specifying the address
; to start loading the program words and then a 24-bit word for each program
; word to be loaded. The program words will be stored in
; contiguous PRAM memory locations starting at the specified starting address.
; After reading the program words, program execution starts from the same
; address where loading started.
; The Host Interface bootstrap load program may be stopped by
; setting the Host Flag 0 (HF0). This will start execution of the loaded
; program from the specified starting address.
;
;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; If MD:MC:MB:MA=1110, then it loads the program RAM from the Host
; Interface programmed to operate in the 8051 multiplexed bus mode,
; in double-strob pin configuration.
; The HOST 8051 bootstrap code expects accesses that are byte wide.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
A-2
Freescale Semiconductor
DSP56366 Bootstrap Program
; The HOST 8051 bootstrap code expects to read 3 bytes forming a 24-bit word
; specifying the number of program words, 3 bytes forming a 24-bit word
; specifying the address to start loading the program words and then 3 bytes
; forming 24-bit words for each program word to be loaded.
; The program words will be stored in contiguous PRAM memory locations
; starting at the specified starting address.
; After reading the program words, program execution starts from the same
; address where loading started.
; The Host Interface bootstrap load program may be stopped by setting the
; Host Flag 0 (HF0). This will start execution of the loaded program from
; the specified starting address.
;
; The base address of the HDI08 in multiplexed mode is 0x80 and is not
; modified by the bootstrap code. All the address lines are enabled
; and should be connected accordingly.
;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; If MD:MC:MB:MA=1111, then it loads the program RAM from the Host
; Interface programmed to operate in the MC68302 (IMP) bus mode,
; in single-strob pin configuration.
; The HOST MC68302 bootstrap code expects accesses that are byte wide.
; The HOST MC68302 bootstrap code expects to read 3 bytes forming a 24-bit word
; specifying the number of program words, 3 bytes forming a 24-bit word
; specifying the address to start loading the program words and then 3 bytes
; forming 24-bit words for each program word to be loaded.
; The program words will be stored in contiguous PRAM memory locations
; starting at the specified starting address.
; After reading the program words, program execution starts from the same
; address where loading started.
; The Host Interface bootstrap load program may be stopped by setting the
; Host Flag 0 (HF0). This will start execution of the loaded program from
; the specified starting address.
;
page
132,55,0,0,0
opt
cex,mex,mu
;;
;;;;;;;;;;;;;;;;;;;; GENERAL EQUATES ;;;;;;;;;;;;;;;;;;;;;;;;
;;
BOOT
equ
$D00000
; this is the location in P memory
; on the external memory bus
; where the external byte-wide
; EPROM is located
AARV
equ
$D00409
; AAR1 selects the EPROM as CE~
; mapped as P from $D00000 to
; $DFFFFF, active low
PROMADDR equ
$FF1000
; Starting PROM address
MA
MB
MC
MD
EQU
EQU
EQU
EQU
0
1
2
3
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
A-3
DSP56366 Bootstrap Program
;;
;;;;;;;;;;;;;;;;;;;; DSP I/O REGISTERS ;;;;;;;;;;;;;;;;;;;;;;;;
;;
M_AAR1
EQU
$FFFFF8
; Address Attribute Register 1
M_OGDB
EQU
$FFFFFC
; OnCE GDB Register
M_HPCR
M_HSR
M_HORX
HRDF
HF0
HEN
EQU
EQU
EQU
EQU
EQU
EQU
$FFFFC4
$FFFFC3
$FFFFC6
$0
$3
$6
;
;
;
;
;
;
Host
Host
Host
Host
Host
Host
M_HRX
M_HCSR
M_HCKR
HRNE
HI2C
HCKFR
HFM0
HFM1
EQU
EQU
EQU
EQU
EQU
EQU
EQU
EQU
$FFFF94
$FFFF91
$FFFF90
17
1
4
12
13
;
;
;
;
;
;
;
;
SHI
SHI
SHI
SHI
SHI
SHI
SHI
SHI
ORG PL:$ff0000,PL:$ff0000
Polarity Control Register
Status Register
Receive Register
Receive Data Full
Flag 0
Enable
Receive FIFO
Control/Status Register
Clock Control Register
FIFO Not Empty flag
I2C Enable Control Bit
I2C Clock Freeze Control Bit
I2C Filter Mode Bit 0
I2C Filter Mode Bit 1
; bootstrap code starts at $ff0000
START
movep #$0,X:M_OGDB
nop
nop
nop
nop
nop
clr a #$0,r5
jset #MD,omr,OMR1XXX
jset #MC,omr,SHILD
jclr #MB,omr,EPROMLD
jset #MA,omr,RESERVED
; enable OnCE
; 5 NOP instructions, needed for test procedure
;
;
;
;
;
clear a and init R5 with 0
If MD:MC:MB:MA=1xxx go to OMR1XXX
If MD:MC:MB:MA=01xx, go load from SHI
If MD:MC:MB:MA=0001, go load from EPROM
If MD:MC:MB:MA=0011, go to RESERVED
;========================================================================
; This is the routine that jumps to the internal Program ROM.
; MD:MC:MB:MA=0010
move #PROMADDR,r1
bra
; store starting PROM address in r1
<FINISH
;========================================================================
; This is the routine that loads from SHI.
; MD:MC:MB:MA=0100 - reserved for SHI
; MD:MC:MB:MA=0101 - Bootstrap from SHI (SPI slave)
; MD:MC:MB:MA=0110 - Bootstrap from SHI (I2C slave, HCKFR=1,100ns filter)
; MD:MC:MB:MA=0111 - Bootstrap from SHI (I2C slave, HCKFR=0)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
A-4
Freescale Semiconductor
DSP56366 Bootstrap Program
SHILD
;
;
;
;
;
;
;
;
;
;
;
;
;
;
This is the routine which loads a program through the SHI port.
The SHI operates in the slave
mode, with the 10-word FIFO enabled, and with the HREQ pin enabled for
receive operation. The word size for transfer is 24 bits. The SHI
operates in the SPI or in the I2C mode, according to the bootstrap mode.
The program is downloaded according to the following rules:
1) 3 bytes - Define the program length.
2) 3 bytes - Define the address to which to start loading the program to.
3) 3n bytes (while n is the program length defined by the first 3 bytes)
The program words will be stored in contiguous PRAM memory locations starting
at the specified starting address.
After storing the program words, program execution starts from the same
address where loading started.
move
#$A9,r1
; prepare SHI control value in r1
; HEN=1, HI2C=0, HM1-HM0=10, HCKFR=0, HFIFO=1, HMST=0,
; HRQE1-HRQE0=01, HIDLE=0, HBIE=0, HTIE=0, HRIE1-HRIE0=00
shi_loop
jclr
#MA,omr,SHI_CF
; If MD:MC:MB:MA=01x0, go to SHI clock freeze
jclr
#MB,omr,shi_loop
; If MD:MC:MB:MA=0101, select SPI mode
bset
#HI2C,r1
; otherwise select I2C mode.
movep
r1,x:M_HCSR
; enable SHI
jclr
movep
#HRNE,x:M_HCSR,*
x:M_HRX,a0
; wait for no. of words
jclr
movep
move
#HRNE,x:M_HCSR,*
x:M_HRX,r0
r0,r1
; wait for starting address
do
jclr
movep
nop
a0,_LOOP2
#HRNE,x:M_HCSR,*
x:M_HRX,p:(r0)+
bra
<FINISH
; wait for HRX not empty
; store in Program RAM
; req. because of restriction
_LOOP2
SHI_CF
bset
bset
bset
bset
jset
bra
#HI2C,r1
#HCKFR,r1
#HFM0,x:M_HCKR
#HFM1,x:M_HCKR
#MB,omr,shi_loop
<RESERVED
;
;
;
;
;
;
select I2C mode.
enable clock freeze in I2C mode.
enable 100ns noise filter
enable 100ns noise filter
If MD:MC:MB:MA=0110, go to I2C load
If MD:MC:MB:MA=0100, go to reserved
;========================================================================
; This is the routine that loads from external EPROM.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
A-5
DSP56366 Bootstrap Program
; MD:MC:MB:MA=0001
EPROMLD
move #BOOT,r2
movep #AARV,X:M_AAR1
do #6,_LOOP9
movem p:(r2)+,a2
asr #8,a,a
_LOOP9
move a1,r0
move a1,r1
do a0,_LOOP10
do #3,_LOOP11
movem p:(r2)+,a2
asr #8,a,a
_LOOP11
movem a1,p:(r0)+
nop
_LOOP10
bra
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
r2 = address of external EPROM
aar1 configured for SRAM types of access
read number of words and starting address
Get the 8 LSB from ext. P mem.
Shift 8 bit data into A1
starting address for load
save it in r1
a0 holds the number of words
read program words
Each instruction has 3 bytes
Get the 8 LSB from ext. P mem.
Shift 8 bit data into A1
Go get another byte.
Store 24-bit result in P mem.
pipeline delay
and go get another 24-bit word.
Boot from EPROM done
<FINISH
OMR1XXX
jclr #MC,omr,BURN_RESER
;
;
jclr #MB,omr,OMR1IS0
;
jclr #MA,omr,I8051HOSTLD ;
;
IF
IF
IF
If
If
MD:MC:MB:MA=101x,
MD:MC:MB:MA=1001,
MD:MC:MB:MA=110x,
MD:MC:MB:MA=1110,
MD:MC:MB:MA=1111,
go
go
go
go
go
to RESERVED
to BURN
to look for ISA/HC11
load from 8051 Host
load from MC68302 Host
;========================================================================
; This is the routine which loads a program through the HDI08 host port
; The program is downloaded from the host MCU with the following rules:
; 1) 3 bytes - Define the program length.
; 2) 3 bytes - Define the address to which to start loading the program to.
; 3) 3n bytes (while n is the program length defined by the 3 first bytes)
; The program words will be stored in contiguous PRAM memory locations starting
; at the specified starting address.
; After reading the program words, program execution starts from the same
; address where loading started.
; The host MCU may terminate the loading process by setting the HF1=0 and HF0=1.
; When the downloading is terminated, the program will start execution of the
; loaded program from the specified starting address.
; The HDI08 boot ROM program enables the following busses to download programs
; through the HDI08 port:
;
; C - ISA
- Dual strobes non-multiplexed bus with negative strobe
;
pulses dual positive request
; D - HC11
- Single strobe non-multiplexed bus with positive strobe
;
pulse single negative request.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
A-6
Freescale Semiconductor
DSP56366 Bootstrap Program
; E - i8051
- Dual strobes multiplexed bus with negative strobe pulses
;
dual negative request.
; F - MC68302
- Single strobe non-multiplexed bus with negative strobe
;
pulse single negative request.
;========================================================================
MC68302HOSTLD
movep
#%0000000000111000,x:M_HPCR
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
bra
Configure
HAP
= 0
HRP
= 0
HCSP = 0
HDDS = 0
HMUX = 0
HASP = 0
HDSP = 0
HROD = 0
spare = 0
HEN
= 0
HAEN
HREN
HCSEN
HA9EN
=
=
=
=
1
1
1
0
HA8EN = 0
HGEN
= 0
the following conditions:
Negative host acknowledge
Negative host request
Negatice chip select input
Single strobe bus (R/W~ and DS)
Non multiplexed bus
(address strobe polarity has no
meaning in non-multiplexed bus)
Negative data stobes polarity
Host request is active when enabled
This bit should be set to 0 for
future compatability
When the HPCR register is modified
HEN should be cleared
Host acknowledge is enabled
Host requests are enabled
Host chip select input enabled
(address 9 enable bit has no
meaning in non-multiplexed bus)
(address 8 enable bit has no
meaning in non-multiplexed bus)
Host GPIO pins are disabled
<HDI08CONT
OMR1IS0
jset #MA,omr,HC11HOSTLD ; If MD:MC:MB:MA=1101, go load from HC11 Host
; If MD:MC:MB:MA=1100, go load from ISA HOST
ISAHOSTLD
movep
#%0101000000011000,x:M_HPCR
;
;
;
;
;
;
;
;
;
;
;
Configure
HAP
= 0
HRP
= 1
HCSP = 0
HDDS = 1
HMUX = 0
HASP = 0
the following conditions:
Negative host acknowledge
Positive host request
Negatice chip select input
Dual strobes bus (RD and WR)
Non multiplexed bus
(address strobe polarity has no
meaning in non-multiplexed bus)
HDSP = 0 Negative data stobes polarity
HROD = 0 Host request is active when enabled
spare = 0 This bit should be set to 0 for
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
A-7
DSP56366 Bootstrap Program
;
;
;
;
;
;
;
;
;
;
;
bra
future compatability
= 0 When the HPCR register is modified
HEN should be cleared
HAEN = 0 Host acknowledge is disabled
HREN = 1 Host requests are enabled
HCSEN = 1 Host chip select input enabled
HA9EN = 0 (address 9 enable bit has no
meaning in non-multiplexed bus)
HA8EN = 0 (address 8 enable bit has no
meaning non-multiplexed bus)
HGEN = 0 Host GPIO pins are disabled
HEN
<HDI08CONT
HC11HOSTLD
movep
#%0000001000011000,x:M_HPCR
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
bra
Configure
HAP
= 0
HRP
= 0
HCSP = 0
HDDS = 0
HMUX = 0
HASP = 0
HDSP = 1
HROD = 0
spare = 0
HEN
= 0
HAEN
HREN
HCSEN
HA9EN
=
=
=
=
0
1
1
0
HA8EN = 0
HGEN
= 0
the following conditions:
Negative host acknowledge
Negative host request
Negatice chip select input
Single strobe bus (R/W~ and DS)
Non multiplexed bus
(address strobe polarity has no
meaning in non-multiplexed bus)
Negative data stobes polarity
Host request is active when enabled
This bit should be set to 0 for
future compatability
When the HPCR register is modified
HEN should be cleared
Host acknowledge is disabled
Host requests are enabled
Host chip select input enabled
(address 9 enable bit has no
meaning in non-multiplexed bus)
(address 8 enable bit has no
meaning in non-multiplexed bus)
Host GPIO pins are disabled
<HDI08CONT
I8051HOSTLD
movep
#%0001110000011110,x:M_HPCR
;
;
;
;
;
;
;
;
Configure
HAP
= 0
HRP
= 0
HCSP = 0
HDDS = 1
HMUX = 1
HASP = 1
HDSP = 0
the following conditions:
Negative host acknowledge
Negatice host request
Negatice chip select input
Dual strobes bus (RD and WR)
Multiplexed bus
Positive address strobe polarity
Negative data stobes polarity
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
A-8
Freescale Semiconductor
DSP56366 Bootstrap Program
;
;
;
;
;
;
;
;
;
;
;
HROD = 0 Host request is active when enabled
spare = 0 This bit should be set to 0 for
future compatability
HEN
= 0 When the HPCR register is modified
HEN should be cleared
HAEN = 0 Host acknowledge is disabled
HREN = 1 Host requests are enabled
HCSEN = 1 Host chip select input enabled
HA9EN = 1 Enable address 9 input
HA8EN = 1 Enable address 8 input
HGEN = 0 Host GPIO pins are disabled
HDI08CONT
bset
#HEN,x:M_HPCR
;
;
;
;
jclr
#HRDF,x:M_HSR,*
movep
x:M_HORX,a0
jclr
#HRDF,x:M_HSR,*
movep
move
x:M_HORX,r0
r0,r1
do
a0,HDI08LOOP
jset
#HRDF,x:M_HSR,HDI08NW
jclr
#HF0,x:M_HSR,HDI08LL
Enable the HDI08 to operate as host
interface (set HEN=1)
wait for the program length to be
written
; wait for the program starting address
; to be written
; set a loop with the downloaded length
HDI08LL
enddo
bra
<HDI08LOOP
movep
x:M_HORX,p:(r0)+
; If new word was loaded then jump to
; read that word
; If HF0=0 then continue with the
; downloading
; Must terminate the do loop
HDI08NW
nop
; Move the new word into its destination
; location in the program RAM
; pipeline delay
HDI08LOOP
;========================================================================
; This is the exit handler that returns execution to normal
; expanded mode and jumps to the RESET vector.
FINISH
andi #$0,ccr
jmp (r1)
; Clear CCR as if RESET to 0.
; Then go to starting Prog addr.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
A-9
DSP56366 Bootstrap Program
;========================================================================
; MD:MC:MB:MA=1001 is used for Burn-in code
BURN_RESER
jclr #MB,omr,BURN
; IF MD:MC:MB:MA=1001, go to BURN
;========================================================================
; The following modes are reserved, some of which are used for internal testing
; MD:MC:MB:MA=0011 is reserved
; MD:MC:MB:MA=1010 is reserved
; MD:MC:MB:MA=1011 is reserved
RESERVED
bra
<*
;========================================================================
; Code for burn-in
;========================================================================
M_PCRC
M_PDRC
M_PRRC
SCKT
EQU
EQU
EQU
EQU
$FFFFBF
$FFFFBD
$FFFFBE
$3
;;
;;
;;
;;
0
Port
Port
Port
SCKT
C GPIO Control Register
C GPIO Data Register
C Direction Register
is GPIO bit #3 in ESAI (Port C)
EQUALDATA
equ
;; 1 if xram and yram are of equal
;; size and addresses, 0 otherwise.
if
start_dram
length_dram
else
start_xram
length_xram
start_yram
length_yram
endif
(EQUALDATA)
equ
0
equ
$1600
equ
equ
equ
equ
0
$3400
0
$1c00
;; 13k XRAM
start_pram
length_pram
equ
equ
0
$C00
;; 3k PRAM
;;
;; same addresses
;; 7k YRAM
BURN
;; get PATTERN pointer
clr b
#PATTERNS,r6
move
#<(NUM_PATTERNS-1),m6
;; b is the error accumulator
;; program runs forever in
;; cyclic form
;; configure SCKT as gpio output.
movep
b,x:M_PDRC
;; clear GPIO data register
bclr
#SCKT,x:M_PCRC
;; Define SCKT as output GPIO pin
bset
#SCKT,x:M_PRRC
;; SCKT toggles means test pass
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
A-10
Freescale Semiconductor
DSP56366 Bootstrap Program
lua
(r5)-,r7
;; r5 = test fail flag = $000000
;; r7 = test pass flag = $FFFFFF
burnin_loop
do #9,burn1
;;---------------------------;; test RAM
;; each pass checks 1 pattern
;;---------------------------move
p:(r6)+,x1
move
p:(r6)+,x0
move
p:(r6)+,y0
;; pattern for x memory
;; pattern for y memory
;; pattern for p memory
;; write pattern to all memory locations
if
(EQUALDATA)
;; write x and y memory
clr a
#start_dram,r0
move
#>length_dram,n0
rep
n0
mac x0,x1,a x,l:(r0)+
else
;; x/y ram symmetrical
;; start of x/y ram
;; length of x/y ram
;; exercise mac, write x/y ram
;; x/y ram not symmetrical
;; write x memory
clr a
#start_xram,r0
move
#>length_xram,n0
rep
n0
mac x0,y0,a x1,x:(r0)+
;; write y memory
clr a
#start_yram,r1
move
#>length_yram,n1
rep
n1
mac x1,y0,a x0,y:(r1)+
;; start of xram
;; length of xram
;; exercise mac, write xram
;; start of yram
;; length of yram
;; exercise mac, write yram
endif
;; write p memory
clr a
#start_pram,r2
move
#>length_pram,n2
rep
n2
move
y0,p:(r2)+
;; start of pram
;; length of pram
;; write pram
;; check memory contents
if
(EQUALDATA)
;; check dram
clr a
#start_dram,r0
do
n0,_loopd
move
x:(r0),a1
eor
x1,a
add
a,b
;; x/y ram symmetrical
;; restore pointer, clear a
;; a0=a2=0
;; accumulate error in b
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
A-11
DSP56366 Bootstrap Program
move
eor
add
y:(r0)+,a1
x0,a
a,b
;; a0=a2=0
;; accumulate error in b
_loopd
else
;; x/y ram not symmetrical
;; check xram
clr a
#start_xram,r0
do
n0,_loopx
move
x:(r0)+,a1
eor
x1,a
add
a,b
;; restore pointer, clear a
;; a0=a2=0
;; accumulate error in b
_loopx
;; check yram
clr a
#start_yram,r1
do
n1,_loopy
move
y:(r1)+,a1
eor
x0,a
add
a,b
;; restore pointer, clear a
;; a0=a2=0
;; accumulate error in b
_loopy
endif
;; check pram
clr a
#start_pram,r2
do
n2,_loopp
move
p:(r2)+,a1
eor
y0,a
add
a,b
;; restore pointer, clear a
;; a0=a2=0
;; accumulate error in b
_loopp
label1
;;--------------------------------------------------;; toggle pin if no errors, stop execution otherwise.
;;--------------------------------------------------;; if error
tne
r5,r7
;; r7=$FFFFFF as long as test pass
;; condition codes preserved
;; this instr can be removed in case of shortage
movep
r7,x:M_OGDB
;; write pass/fail flag to OnCE
;; condition codes preserved
;; this instr can be removed in case of shortage
beq
label1
bclr
#SCKT,x:M_PDRC
;; clear SCKT if error,
enddo
;; terminate the loop normally
;; this instr can be removed in case of shortage
bra
<burn1
;; and stop execution
;; if no error
bchg
#SCKT,x:M_PDRC
;; toggle pin and keep on looping
burn1
debug
wait
;;
;;
;;
;;
test completion
enter debug mode if OnCE port enabled
this instr can be removed in case of shortage
enter wait otherwise (OnCE port disabled)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
A-12
Freescale Semiconductor
DSP56366 Bootstrap Program
BURN_END
PATTERNS
ORG PL:,PL:
dsm
4
ORG
PL:BURN_END,PL:BURN_END
dup PATTERNS-*
dc *
endm
NUM_PATTERNS
;; align for correct modulo addressing
; write address in unused Boot ROM location
ORG
PL:PATTERNS,PL:PATTERNS ;; Each value is written to all memories
dc
dc
dc
dc
$555555
$AAAAAA
$333333
$F0F0F0
equ
*-PATTERNS
;========================================================================
; This code fills the unused bootstrap rom locations with their address
dup $FF00C0-*
dc *
endm
;========================================================================
; Reserved Area in the Program ROM: upper 128 words.
; Address range: $FFAF80 - $FFAFFF
;========================================================================
ORG PL:$FFAF80,PL:$FFAF80
; This code fills the unused rom locations with their address
dup $FFB000-$14-*
dc *
endm
; Code segment for testing of ROM Patch
; This code segment is located in the uppermost addresses of the Program ROM
ORG PL:$FFB000-$14,PL:$FFB000-$14
move
move
#$80000,r0
#$0,x0
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
A-13
DSP56366 Bootstrap Program
move
move
move
move
move
move
move
move
move
move
move
move
move
move
move
move
move
x0,x:(r0)+
#$1,x0
x0,x:(r0)+
#$2,x0
x0,x:(r0)+
#$3,x0
x0,x:(r0)+
#$4,x0
x0,x:(r0)+
#$5,x0
x0,x:(r0)+
#$6,x0
x0,x:(r0)+
#$7,x0
x0,x:(r0)+
#$8,x0
x0,x:(r0)+
end
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
A-14
Freescale Semiconductor
Appendix B Equates
;*********************************************************************************
;
EQUATES for DSP56366 interrupts
;
Last update: April 24, 2000
;
;*********************************************************************************
page
132,55,0,0,0
opt
intequ
mex
ident
if
1,0
@DEF(I_VEC)
;leave user definition as is.
else
I_VEC
equ
$0
endif
;-----------------------------------------------------------------------; Non-Maskable interrupts
;-----------------------------------------------------------------------I_RESET
EQU
I_VEC+$00
; Hardware RESET
I_STACK
EQU
I_VEC+$02
; Stack Error
I_ILL
EQU
I_VEC+$04
; Illegal Instruction
I_IINST
EQU
I_VEC+$04
; Illegal Instruction
I_DBG
EQU
I_VEC+$06
; Debug Request
I_TRAP
EQU
I_VEC+$08
; Trap
I_NMI
EQU
I_VEC+$0A
; Non Maskable Interrupt
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-1
Equates
;-----------------------------------------------------------------------; Interrupt Request Pins
;-----------------------------------------------------------------------I_IRQA
EQU
I_VEC+$10
; IRQA
I_IRQB
EQU
I_VEC+$12
; IRQB
I_IRQC
EQU
I_VEC+$14
; IRQC
I_IRQD
EQU
I_VEC+$16
; IRQD
;-----------------------------------------------------------------------; DMA Interrupts
;-----------------------------------------------------------------------I_DMA0
EQU
I_VEC+$18
; DMA Channel 0
I_DMA1
EQU
I_VEC+$1A
; DMA Channel 1
I_DMA2
EQU
I_VEC+$1C
; DMA Channel 2
I_DMA3
EQU
I_VEC+$1E
; DMA Channel 3
I_DMA4
EQU
I_VEC+$20
; DMA Channel 4
I_DMA5
EQU
I_VEC+$22
; DMA Channel 5
;-----------------------------------------------------------------------; DAX Interrupts
;-----------------------------------------------------------------------I_DAXTUE
EQU
I_VEC+$28
; DAX Underrun Error
I_DAXBLK
EQU
I_VEC+$2A
; DAX Block Transferred
I_DAXTD
EQU
I_VEC+$2E
; DAX Audio Data Empty
;-----------------------------------------------------------------------; ESAI Interrupts
;-----------------------------------------------------------------------I_ESAIRD
EQU
I_VEC+$30
; ESAI Receive Data
I_ESAIRED
EQU
I_VEC+$32
; ESAI Receive Even Data
I_ESAIRDE
EQU
I_VEC+$34
; ESAI Receive Data With Exception Status
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-2
Freescale Semiconductor
Equates
I_ESAIRLS
EQU
I_VEC+$36
; ESAI Receive Last Slot
I_ESAITD
EQU
I_VEC+$38
; ESAI Transmit Data
I_ESAITED
EQU
I_VEC+$3A
; ESAI Transmit Even Data
I_ESAITDE
EQU
I_VEC+$3C
; ESAI Transmit Data With Exception Status
I_ESAITLS
EQU
I_VEC+$3E
; ESAI Transmit Last Slot
;-----------------------------------------------------------------------; SHI Interrupts
;-----------------------------------------------------------------------I_SHITD
EQU
I_VEC+$40
; SHI Transmit Data
I_SHITUE
EQU
I_VEC+$42
; SHI Transmit Underrun Error
I_SHIRNE
EQU
I_VEC+$44
; SHI Receive FIFO Not Empty
I_SHIRFF
EQU
I_VEC+$48
; SHI Receive FIFO Full
I_SHIROE
EQU
I_VEC+$4A
; SHI Receive Overrun Error
I_SHIBER
EQU
I_VEC+$4C
; SHI Bus Error
;-----------------------------------------------------------------------; Timer Interrupts
;-----------------------------------------------------------------------I_TIM0C
EQU
I_VEC+$54
; TIMER 0 compare
I_TIM0OF EQU
I_VEC+$56
; TIMER 0 overflow
I_TIM1C
EQU
I_VEC+$58
; TIMER 1 compare
I_TIM1OF EQU
I_VEC+$5A
; TIMER 1 overflow
I_TIM2C
EQU
I_VEC+$5C
; TIMER 2 compare
I_TIM2OF EQU
I_VEC+$5E
; TIMER 2 overflow
;-----------------------------------------------------------------------; HDI08 Interrupts
;-----------------------------------------------------------------------I_HI08RX EQU
I_VEC+$60
; Host Receive Data Full
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-3
Equates
I_HI08TX EQU
I_VEC+$62
; Host Transmit Data Empty
I_HI08CM EQU
I_VEC+$64
; Host Command (Default)
;-----------------------------------------------------------------------; ESAI_1 Interrupts
;-----------------------------------------------------------------------I_ESAI1RD
EQU
I_VEC+$70
; ESAI_1 Receive Data
I_ESAI1RED
EQU
I_VEC+$72
; ESAI_1 Receive Even Data
I_ESAI1RDE
EQU
I_VEC+$74
; ESAI_1 Receive Data With Exception Status
I_ESAI1RLS
EQU
I_VEC+$76
; ESAI_1 Receive Last Slot
I_ESAI1TD
EQU
I_VEC+$78
; ESAI_1 Transmit Data
I_ESAI1TED
EQU
I_VEC+$7A
; ESAI_1 Transmit Even Data
I_ESAI1TDE
EQU
I_VEC+$7C
; ESAI_1 Transmit Data With Exception Status
I_ESAI1TLS
EQU
I_VEC+$7E
; ESAI_1 Transmit Last Slot
;-----------------------------------------------------------------------; INTERRUPT ENDING ADDRESS
;-----------------------------------------------------------------------I_INTEND EQU
I_VEC+$FF
; last address of interrupt vector space
;------------------ end of intequ.asm -----------------------;*********************************************************************************
;
EQUATES for DSP56366 I/O registers and ports
;
Last update: August 23, 2000
;
;*********************************************************************************
page
opt
ioequ
132,55,0,0,0
mex
ident
1,0
;------------------------------------------------------------------------
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-4
Freescale Semiconductor
Equates
;
;
EQUATES for I/O Port Programming
;
;-----------------------------------------------------------------------;
Register Addresses
M_HDR
EQU
$FFFFC9
; Host port GPIO data Register
M_HDDR
EQU
$FFFFC8
; Host port GPIO direction Register
M_PCRC
EQU
$FFFFBF
; Port C Control Register
M_PRRC
EQU
$FFFFBE
; Port C Direction Register
M_PDRC
EQU
$FFFFBD
; Port C GPIO Data Register
M_PCRD
EQU
$FFFFD7
; Port D Control register
M_PRRD
EQU
$FFFFD6
; Port D Direction Data Register
M_PDRD
EQU
$FFFFD5
; Port D GPIO Data Register
M_PCRE
EQU
$FFFF9F
; Port E Control register
M_PRRE
EQU
$FFFF9E
; Port E Direction Data Register
M_PDRE
EQU
$FFFF9D
; Port E GPIO Data Register
M_OGDB
EQU
$FFFFFC
; OnCE GDB Register
;-----------------------------------------------------------------------;
;
EQUATES for Exception Processing
;
;-----------------------------------------------------------------------;
Register Addresses
M_IPRC
EQU
$FFFFFF
; Interrupt Priority Register Core
M_IPRP
EQU
$FFFFFE
; Interrupt Priority Register Peripheral
;
Interrupt Priority Register Core (IPRC)
M_IAL
EQU
$7
; IRQA Mode Mask
M_IAL0
EQU
0
; IRQA Mode Interrupt Priority Level (low)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-5
Equates
M_IAL1
EQU
1
; IRQA Mode Interrupt Priority Level (high)
M_IAL2
EQU
2
; IRQA Mode Trigger Mode
M_IBL
EQU
$38
; IRQB Mode Mask
M_IBL0
EQU
3
; IRQB Mode Interrupt Priority Level (low)
M_IBL1
EQU
4
; IRQB Mode Interrupt Priority Level (high)
M_IBL2
EQU
5
; IRQB Mode Trigger Mode
M_ICL
EQU
$1C0
; IRQC Mode Mask
M_ICL0
EQU
6
; IRQC Mode Interrupt Priority Level (low)
M_ICL1
EQU
7
; IRQC Mode Interrupt Priority Level (high)
M_ICL2
EQU
8
; IRQC Mode Trigger Mode
M_IDL
EQU
$E00
; IRQD Mode Mask
M_IDL0
EQU
9
; IRQD Mode Interrupt Priority Level (low)
M_IDL1
EQU
10
; IRQD Mode Interrupt Priority Level (high)
M_IDL2
EQU
11
; IRQD Mode Trigger Mode
M_D0L
EQU
$3000
; DMA0 Interrupt priority Level Mask
M_D0L0
EQU
12
; DMA0 Interrupt Priority Level (low)
M_D0L1
EQU
13
; DMA0 Interrupt Priority Level (high)
M_D1L
EQU
$C000
; DMA1 Interrupt Priority Level Mask
M_D1L0
EQU
14
; DMA1 Interrupt Priority Level (low)
M_D1L1
EQU
15
; DMA1 Interrupt Priority Level (high)
M_D2L
EQU
$30000
; DMA2 Interrupt priority Level Mask
M_D2L0
EQU
16
; DMA2 Interrupt Priority Level (low)
M_D2L1
EQU
17
; DMA2 Interrupt Priority Level (high)
M_D3L
EQU
$C0000
; DMA3 Interrupt Priority Level Mask
M_D3L0
EQU
18
; DMA3 Interrupt Priority Level (low)
M_D3L1
EQU
19
; DMA3 Interrupt Priority Level (high)
M_D4L
EQU
$300000
; DMA4 Interrupt priority Level Mask
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-6
Freescale Semiconductor
Equates
M_D4L0
EQU
20
; DMA4 Interrupt Priority Level (low)
M_D4L1
EQU
21
; DMA4 Interrupt Priority Level (high)
M_D5L
EQU
$C00000
; DMA5 Interrupt priority Level Mask
M_D5L0
EQU
22
; DMA5 Interrupt Priority Level (low)
M_D5L1
EQU
23
; DMA5 Interrupt Priority Level (high)
;
Interrupt Priority Register Peripheral (IPRP)
M_ESL
EQU
$3
; ESAI Interrupt Priority Level Mask
M_ESL0
EQU
0
; ESAI Interrupt Priority Level (low)
M_ESL1
EQU
1
; ESAI Interrupt Priority Level (high)
M_SHL
EQU
$C
; SHI Interrupt Priority Level Mask
M_SHL0
EQU
2
; SHI Interrupt Priority Level (low)
M_SHL1
EQU
3
; SHI Interrupt Priority Level (high)
M_HDL
EQU
$30
; HDI08 Interrupt Priority Level Mask
M_HDL0
EQU
4
; HDI08 Interrupt Priority Level (low)
M_HDL1
EQU
5
; HDI08 Interrupt Priority Level (high)
M_DAL
EQU
$C0
; DAX Interrupt Priority Level
Mask
M_DAL0
EQU
6
; DAX Interrupt Priority Level
(low)
M_DAL1
EQU
7
; DAX Interrupt Priority Level
(high)
M_TAL
EQU
$300
;Timer Interrupt Priority Level Mask
M_TAL0
EQU
8
;Timer Interrupt Priority Level (low)
M_TAL1
EQU
9
;Timer Interrupt Priority Level (high)
M_ES1L
EQU
$C00
; ESAI_1 Interrupt Priority Level Mask
M_ESL10
EQU
0
; ESAI_1 Interrupt Priority Level (low)
M_ESL11
EQU
1
; ESAI_1 Interrupt Priority Level (high)
;-----------------------------------------------------------------------;
;
EQUATES for Direct Memory Access (DMA)
;
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-7
Equates
;-----------------------------------------------------------------------;
Register Addresses Of DMA
M_DSTR
EQU
$FFFFF4
; DMA Status Register
M_DOR0
EQU
$FFFFF3
; DMA Offset Register 0
M_DOR1
EQU
$FFFFF2
; DMA Offset Register 1
M_DOR2
EQU
$FFFFF1
; DMA Offset Register 2
M_DOR3
EQU
$FFFFF0
; DMA Offset Register 3
;
Register Addresses Of DMA0
M_DSR0
EQU
$FFFFEF
; DMA0 Source Address Register
M_DDR0
EQU
$FFFFEE
; DMA0 Destination Address Register
M_DCO0
EQU
$FFFFED
; DMA0 Counter
M_DCR0
EQU
$FFFFEC
; DMA0 Control Register
;
Register Addresses Of DMA1
M_DSR1
EQU
$FFFFEB
; DMA1 Source Address Register
M_DDR1
EQU
$FFFFEA
; DMA1 Destination Address Register
M_DCO1
EQU
$FFFFE9
; DMA1 Counter
M_DCR1
EQU
$FFFFE8
; DMA1 Control Register
;
Register Addresses Of DMA2
M_DSR2
EQU
$FFFFE7
; DMA2 Source Address Register
M_DDR2
EQU
$FFFFE6
; DMA2 Destination Address Register
M_DCO2
EQU
$FFFFE5
; DMA2 Counter
M_DCR2
EQU
$FFFFE4
; DMA2 Control Register
;
Register Addresses Of DMA3
M_DSR3
EQU
$FFFFE3
; DMA3 Source Address Register
M_DDR3
EQU
$FFFFE2
; DMA3 Destination Address Register
M_DCO3
EQU
$FFFFE1
; DMA3 Counter
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-8
Freescale Semiconductor
Equates
M_DCR3
;
EQU
$FFFFE0
; DMA3 Control Register
Register Addresses Of DMA4
M_DSR4
EQU
$FFFFDF
; DMA4 Source Address Register
M_DDR4
EQU
$FFFFDE
; DMA4 Destination Address Register
M_DCO4
EQU
$FFFFDD
; DMA4 Counter
M_DCR4
EQU
$FFFFDC
; DMA4 Control Register
;
Register Addresses Of DMA5
M_DSR5
EQU
$FFFFDB
; DMA5 Source Address Register
M_DDR5
EQU
$FFFFDA
; DMA5 Destination Address Register
M_DCO5
EQU
$FFFFD9
; DMA5 Counter
M_DCR5
EQU
$FFFFD8
; DMA5 Control Register
;
DMA Control Register
M_DSS
EQU
$3
; DMA Source Space Mask (DSS0-Dss1)
M_DSS0
EQU
0
; DMA Source Memory space 0
M_DSS1
EQU
1
; DMA Source Memory space 1
M_DDS
EQU
$C
; DMA Destination Space Mask (DDS-DDS1)
M_DDS0
EQU
2
; DMA Destination Memory Space 0
M_DDS1
EQU
3
; DMA Destination Memory Space 1
M_DAM
EQU
$3f0
; DMA Address Mode Mask (DAM5-DAM0)
M_DAM0
EQU
4
; DMA Address Mode 0
M_DAM1
EQU
5
; DMA Address Mode 1
M_DAM2
EQU
6
; DMA Address Mode 2
M_DAM3
EQU
7
; DMA Address Mode 3
M_DAM4
EQU
8
; DMA Address Mode 4
M_DAM5
EQU
9
; DMA Address Mode 5
M_D3D
EQU
10
; DMA Three Dimensional Mode
M_DRS
EQU
$F800
; DMA Request Source Mask (DRS0-DRS4)
M_DRS0
EQU
11
;DMA Request Source bit 0
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-9
Equates
M_DRS1
EQU
12
;DMA Request Source bit 1
M_DRS2
EQU
13
;DMA Request Source bit 2
M_DRS3
EQU
14
;DMA Request Source bit 3
M_DRS4
EQU
15
;DMA Request Source bit 4
M_DCON
EQU
16
; DMA Continuous Mode
M_DPR
EQU
$60000
; DMA Channel Priority
M_DPR0
EQU
17
; DMA Channel Priority Level (low)
M_DPR1
EQU
18
; DMA Channel Priority Level (high)
M_DTM
EQU
$380000
; DMA Transfer Mode Mask (DTM2-DTM0)
M_DTM0
EQU
19
; DMA Transfer Mode 0
M_DTM1
EQU
20
; DMA Transfer Mode 1
M_DTM2
EQU
21
; DMA Transfer Mode 2
M_DIE
EQU
22
; DMA Interrupt Enable bit
M_DE
EQU
23
; DMA Channel Enable bit
;
DMA Status Register
M_DTD
EQU
$3F
; Channel Transfer Done Status MASK (DTD0-DTD5)
M_DTD0
EQU
0
; DMA Channel Transfer Done Status 0
M_DTD1
EQU
1
; DMA Channel Transfer Done Status 1
M_DTD2
EQU
2
; DMA Channel Transfer Done Status 2
M_DTD3
EQU
3
; DMA Channel Transfer Done Status 3
M_DTD4
EQU
4
; DMA Channel Transfer Done Status 4
M_DTD5
EQU
5
; DMA Channel Transfer Done Status 5
M_DACT
EQU
8
; DMA Active State
M_DCH
EQU
$E00
; DMA Active Channel Mask (DCH0-DCH2)
M_DCH0
EQU
9
; DMA Active Channel 0
M_DCH1
EQU
10
; DMA Active Channel 1
M_DCH2
EQU
11
; DMA Active Channel 2
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-10
Freescale Semiconductor
Equates
;-----------------------------------------------------------------------;
;
EQUATES for Phase Locked Loop (PLL)
;
;-----------------------------------------------------------------------;
M_PCTL
;
Register Addresses Of PLL
EQU
$FFFFFD
; PLL Control Register
PLL Control Register
M_MF
EQU
$FFF
; Multiplication Factor Bits Mask (MF0-MF11)
M_MF0
EQU
0
;Multiplication Factor bit 0
M_MF1
EQU
1
;Multiplication Factor bit 1
M_MF2
EQU
2
;Multiplication Factor bit 2
M_MF3
EQU
3
;Multiplication Factor bit 3
M_MF4
EQU
4
;Multiplication Factor bit 4
M_MF5
EQU
5
;Multiplication Factor bit 5
M_MF6
EQU
6
;Multiplication Factor bit 6
M_MF7
EQU
7
;Multiplication Factor bit 7
M_MF8
EQU
8
;Multiplication Factor bit 8
M_MF9
EQU
9
;Multiplication Factor bit 9
M_MF10
EQU
10
;Multiplication Factor bit 10
M_MF11
EQU
11
;Multiplication Factor bit 11
M_DF
EQU
$7000
; Division Factor Bits Mask (DF0-DF2)
M_DF0
EQU
12
;Division Factor bit 0
M_DF1
EQU
13
;Division Factor bit 1
M_DF2
EQU
14
;Division Factor bit 2
M_XTLR
EQU
15
; XTAL Range select bit
M_XTLD
EQU
16
; XTAL Disable Bit
M_PSTP
EQU
17
; STOP Processing State Bit
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-11
Equates
M_PEN
M_COD
EQU
EQU
18
; PLL Enable Bit
19
; PLL Clock Output Disable Bit
M_PD
EQU
$F00000
; PreDivider Factor Bits Mask (PD0-PD3)
M_PD0
EQU
20
;PreDivider Factor bit 0
M_PD1
EQU
21
;PreDivider Factor bit 1
M_PD2
EQU
22
;PreDivider Factor bit 2
M_PD3
EQU
23
;PreDivider Factor bit 3
;-----------------------------------------------------------------------;
;
EQUATES for BIU
;
;-----------------------------------------------------------------------;
Register Addresses Of BIU
M_BCR
EQU
$FFFFFB
; Bus Control Register
M_DCR
EQU
$FFFFFA
; DRAM Control Register
M_AAR0
EQU
$FFFFF9
; Address Attribute Register 0
M_AAR1
EQU
$FFFFF8
; Address Attribute Register 1
M_AAR2
EQU
$FFFFF7
; Address Attribute Register 2
M_AAR3
EQU
$FFFFF6
; Address Attribute Register 3
M_IDR
EQU
$FFFFF5
; ID Register
;
M_BA0W
Bus Control Register
EQU
$1F
; Area 0 Wait Control Mask (BA0W0-BA0W4)
M_BA0W0
EQU
0
;Area 0 Wait Control Bit 0
M_BA0W1
EQU
1
;Area 0 Wait Control Bit 1
M_BA0W2
EQU
2
;Area 0 Wait Control Bit 2
M_BA0W3
EQU
3
;Area 0 Wait Control Bit 3
M_BA0W4
EQU
4
;Area 0 Wait Control Bit 4
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-12
Freescale Semiconductor
Equates
M_BA1W
EQU
$3E0
; Area 1 Wait Control Mask (BA1W0-BA14)
M_BA1W0
EQU
5
M_BA1W1
EQU
6
M_BA1W2
EQU
7
;Area 1 Wait Control Bit 2
M_BA1W3
EQU
8
;Area 1 Wait Control Bit 3
M_BA1W4
EQU
9
;Area 1 Wait Control Bit 4
M_BA2W
EQU
;Area 1 Wait Control Bit 0
;Area 1 Wait Control Bit 1
$1C00
; Area 2 Wait Control Mask (BA2W0-BA2W2)
M_BA2W0
EQU
10
;Area 2 Wait Control Bit 0
M_BA2W1
EQU
11
;Area 2 Wait Control Bit 1
M_BA2W2
EQU
12
;Area 2 Wait Control Bit 2
M_BA3W
EQU
$E000
; Area 3 Wait Control Mask (BA3W0-BA3W3)
M_BA3W0
EQU
13
;Area 3 Wait Control Bit 0
M_BA3W1
EQU
14
;Area 3 Wait Control Bit 1
M_BA3W2
EQU
15
;Area 3 Wait Control Bit 2
M_BDFW
EQU
$1F0000
; Default Area Wait Control Mask (BDFW0-BDFW4)
M_BDFW0
EQU
16
;Default Area Wait Control bit 0
M_BDFW1
EQU
17
;Default Area Wait Control bit 1
M_BDFW2
EQU
18
;Default Area Wait Control bit 2
M_BDFW3
EQU
19
;Default Area Wait Control bit 3
M_BDFW4
EQU
20
;Default Area Wait Control bit 4
M_BBS
EQU
21
; Bus State
M_BLH
EQU
22
; Bus Lock Hold
M_BRH
EQU
23
; Bus Request Hold
;
M_BCW
M_BCW0
DRAM Control Register
EQU
EQU
$3
0
M_BCW1
EQU
1
M_BRW
EQU
$C
; In Page Wait States Bits Mask (BCW0-BCW1)
; In Page Wait States Bit 0
; In Page Wait States Bit 1
; Out Of Page Wait States Bits Mask (BRW0-BRW1)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-13
Equates
M_BRW0
EQU
2
;Out of Page Wait States bit 0
M_BRW1
EQU
3
; Out of Page Wait States bit 1
M_BPS
EQU
$300
; DRAM Page Size Bits Mask (BPS0-BPS1)
M_BPS0
EQU
4
; DRAM Page Size Bits 0
M_BPS1
EQU
5
; DRAM Page Size Bits 1
M_BPLE
EQU
11
; Page Logic Enable
M_BME
EQU
12
; Mastership Enable
M_BRE
EQU
13
; Refresh Enable
M_BSTR
EQU
14
; Software Triggered Refresh
M_BRF
EQU
$7F8000
; Refresh Rate Bits Mask (BRF0-BRF7)
M_BRF0
EQU
15
; Refresh Rate Bit 0
M_BRF1
EQU
16
; Refresh Rate Bit 1
M_BRF2
EQU
17
; Refresh Rate Bit 2
M_BRF3
EQU
18
; Refresh Rate Bit 3
M_BRF4
EQU
19
; Refresh Rate Bit 4
M_BRF5
EQU
20
; Refresh Rate Bit 5
M_BRF6
EQU
21
; Refresh Rate Bit 6
M_BRF7
EQU
22
; Refresh Rate Bit 7
M_BRP
;
M_BAT
EQU
23
; Refresh prescaler
Address Attribute Registers
EQU
$3
; External Access Type and Pin Definition Bits Mask (BAT0-BAT1)
M_BAT0
EQU
0
; External Access Type and Pin Definition Bits 0
M_BAT1
EQU
1
; External Access Type and Pin Definition Bits 1
M_BAAP
EQU
2
; Address Attribute Pin Polarity
M_BPEN
EQU
3
; Program Space Enable
M_BXEN
EQU
4
; X Data Space Enable
M_BYEN
EQU
5
; Y Data Space Enable
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-14
Freescale Semiconductor
Equates
M_BAM
EQU
6
; Address Muxing
M_BPAC
EQU
7
; Packing Enable
M_BNC
EQU
$F00
; Number of Address Bits to Compare Mask (BNC0-BNC3)
M_BNC0
EQU
8
; Number of Address Bits to Compare 0
M_BNC1
EQU
9
; Number of Address Bits to Compare 1
M_BNC2
EQU
10
; Number of Address Bits to Compare 2
M_BNC3
EQU
11
; Number of Address Bits to Compare 3
M_BAC
EQU
$FFF000
; Address to Compare Bits Mask (BAC0-BAC11)
M_BAC0
EQU
12
; Address to Compare Bits 0
M_BAC1
EQU
13
; Address to Compare Bits 1
M_BAC2
EQU
14
M_BAC3
EQU
15
; Address to Compare Bits 3
M_BAC4
EQU
16
; Address to Compare Bits 4
M_BAC5
EQU
17
; Address to Compare Bits 5
M_BAC6
EQU
18
; Address to Compare Bits 6
M_BAC7
EQU
19
; Address to Compare Bits 7
M_BAC8
EQU
20
; Address to Compare Bits 8
M_BAC9
EQU
21
; Address to Compare Bits 9
; Address to Compare Bits 2
M_BAC10
EQU
22
; Address to Compare Bits 10
M_BAC11
EQU
23
; Address to Compare Bits 11
;
control and status bits in SR
M_C
EQU
0
; Carry
M_V
EQU
1
; Overflow
M_Z
EQU
2
; Zero
M_N
EQU
3
; Negative
M_U
EQU
4
; Unnormalized
M_E
EQU
5
; Extension
M_L
EQU
6
; Limit
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-15
Equates
M_S
EQU
7
; Scaling Bit
M_I0
EQU
8
; Interupt Mask Bit 0
M_I1
EQU
9
; Interupt Mask Bit 1
M_S0
EQU
10
; Scaling Mode Bit 0
M_S1
EQU
11
; Scaling Mode Bit 1
M_SC
EQU
13
; Sixteen_Bit Compatibility
M_DM
EQU
14
; Double Precision Multiply
M_LF
EQU
15
; DO-Loop Flag
M_FV
EQU
16
; DO-Forever Flag
M_SA
EQU
17
; Sixteen-Bit Arithmetic
M_CE
EQU
19
; Instruction Cache Enable
M_SM
EQU
20
; Arithmetic Saturation
M_RM
EQU
21
; Rounding Mode
M_CP
EQU
$c00000
; mask for CORE-DMA priority bits in SR
M_CP0
EQU
22
; bit 0 of priority bits in SR
M_CP1
EQU
23
; bit 1 of priority bits in SR
;
control and status bits in OMR
M_MA
EQU
0
; Operating Mode A
M_MB
EQU
1
; Operating Mode B
M_MC
EQU
2
; Operating Mode C
M_MD
EQU
3
; Operating Mode D
M_EBD
EQU
4
; External Bus Disable bit in OMR
M_SD
EQU
6
; Stop Delay
M_MS
EQU
7
M_CDP
EQU
$300
; mask for CORE-DMA priority bits in OMR
M_CDP0
EQU
8
; bit 0 of priority bits in OMR Core DMA
M_CDP1
EQU
9
; bit 1 of priority bits in OMR Core DMA
;Memory Switch Mode
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-16
Freescale Semiconductor
Equates
M_BE
EQU
10
; Burst Enable
M_TAS
EQU
11
; TA Synchronize Select
M_BRT
EQU
12
; Bus Release Timing
M_ABE
EQU
13
;Async. Bus Arbitration Enable
M_APD
EQU
14
;Addess Priority Disable
M_ATE
EQU
15
;Address Tracing Enable
M_XYS
EQU
16
; Stack Extension space select bit in OMR.
M_EUN
EQU
17
; Extensed stack UNderflow flag in OMR.
M_EOV
EQU
18
; Extended stack OVerflow flag in OMR.
M_WRP
EQU
19
; Extended WRaP flag in OMR.
M_SEN
EQU
20
; Stack Extension Enable bit in OMR.
M_PAEN
EQU
23
; Patch Enable
;-----------------------------------------------------------------------;
;
EQUATES for DAX (SPDIF Tx)
;
;-----------------------------------------------------------------------;
Register Addresses
M_XSTR
EQU
$FFFFD4
; DAX Status Register (XSTR)
M_XADRB
EQU
$FFFFD3
; DAX Audio Data Register B (XADRB)
M_XADR
EQU
$FFFFD2
;DAX Audio Data Register (XADR)
M_XADRA
EQU
$FFFFD2
; DAX Audio Data Register A (XADRA)
M_XNADR
EQU
$FFFFD1
; DAX Non-Audio Data Register (XNADR)
M_XCTR
EQU
$FFFFD0
; DAX Control Register (XCTR)
;
status bits in XSTR
M_XADE
EQU
0
; DAX Audio Data Register Empty (XADE)
M_XAUR
EQU
1
; DAX Trasmit Underrun Error Flag (XAUR)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-17
Equates
M_XBLK
;
EQU
2
; DAX Block Transferred (XBLK)
non-audio bits in XNADR
M_XVA
EQU
10
; DAX Channel A Validity (XVA)
M_XUA
EQU
11
; DAX Channel A User Data (XUA)
M_XCA
EQU
12
; DAX Channel A Channel Status (XCA)
M_XVB
EQU
13
; DAX Channel B Validity (XVB)
M_XUB
EQU
14
; DAX Channel B User Data (XUB)
M_XCB
EQU
15
; DAX Channel B Channel Status (XCB)
;
control bits in XCTR
M_XDIE
EQU
0
; DAX Audio Data Register Empty Interrupt Enable (XDIE)
M_XUIE
EQU
1
; DAX Underrun Error Interrupt Enable (XUIE)
M_XBIE
EQU
2
; DAX Block Transferred Interrupt Enable (XBIE)
M_XCS0
EQU
3
; DAX Clock Input Select 0 (XCS0)
M_XCS1
EQU
4
; DAX Clock Input Select 1 (XCS1)
M_XSB
EQU
5
; DAX Start Block (XSB)
;-----------------------------------------------------------------------;
;
EQUATES for SHI
;
;-----------------------------------------------------------------------;
Register Addresses
M_HRX
EQU
$FFFF94
; SHI Receive FIFO (HRX)
M_HTX
EQU
$FFFF93
; SHI Transmit Register (HTX)
M_HSAR
EQU
$FFFF92
; SHI I2C Slave Address Register (HSAR)
M_HCSR
EQU
$FFFF91
; SHI Control/Status Register (HCSR)
M_HCKR
EQU
$FFFF90
; SHI Clock Control Register (HCKR)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-18
Freescale Semiconductor
Equates
;
HSAR bits
M_HA6
EQU
23
; SHI I2C Slave Address (HA6)
M_HA5
EQU
22
; SHI I2C Slave Address (HA5)
M_HA4
EQU
21
; SHI I2C Slave Address (HA4)
M_HA3
EQU
20
; SHI I2C Slave Address (HA3)
M_HA1
EQU
18
; SHI I2C Slave Address (HA1)
;
control and status bits in HCSR
M_HBUSY
EQU
22
; SHI Host Busy (HBUSY)
M_HBER
EQU
21
; SHI Bus Error (HBER)
M_HROE
EQU
20
; SHI Receive Overrun Error (HROE)
M_HRFF
EQU
19
; SHI Receivr FIFO Full (HRFF)
M_HRNE
EQU
17
; SHI Receive FIFO Not Empty (HRNE)
M_HTDE
EQU
15
; SHI Host Transmit data Empty (HTDE)
M_HTUE
EQU
14
; SHI Host Transmit Underrun Error (HTUE)
M_HRIE1
EQU
13
; SHI Receive Interrupt Enable (HRIE1)
M_HRIE0
EQU
12
; SHI Receive Interrupt Enable (HRIE0)
M_HTIE
EQU
11
; SHI Transmit Interrupt Enable (HTIE)
M_HBIE
EQU
10
; SHI Bus-Error Interrupt Enable (HBIE)
M_HIDLE
EQU
9
; SHI Idle (HIDLE)
M_HRQE1
EQU
8
; SHI Host Request Enable (HRQE1)
M_HRQE0
EQU
7
; SHI Host Request Enable (HRQE0)
M_HMST
EQU
6
; SHI Master Mode (HMST)
M_HFIFO
EQU
5
; SHI FIFO Enable Control (HFIFO)
M_HCKFR
EQU
4
; SHI Clock Freeze (HCKFR)
M_HM1
EQU
3
; SHI Serial Host Interface Mode (HM1)
M_HM0
EQU
2
; SHI Serial Host Interface Mode (HM0)
M_HI2C
EQU
1
; SHI I2c/SPI Selection (HI2C)
M_HEN
EQU
0
; SHI Host Enable (HEN)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-19
Equates
;
control bits in HCKR
M_HFM1
EQU
13
; SHI Filter Model (HFM1)
M_HFM0
EQU
12
; SHI Filter Model (HFM0)
M_HDM7
EQU
10
M_HDM6
EQU
9
; SHI Divider Modulus Select (HDM6)
M_HDM5
EQU
8
; SHI Divider Modulus Select (HDM5)
M_HDM4
EQU
7
; SHI Divider Modulus Select (HDM4)
M_HDM3
EQU
6
; SHI Divider Modulus Select (HDM3)
M_HDM2
EQU
5
; SHI Divider Modulus Select (HDM2)
M_HDM1
EQU
4
; SHI Divider Modulus Select (HDM1)
M_HDM0
EQU
3
; SHI Divider Modulus Select (HDM0)
M_HRS
EQU
2
; SHI Prescalar Rate Select (HRS)
M_CPOL
EQU
1
; SHI Clock Polarity (CPOL)
M_CPHA
EQU
0
; SHI Clock Phase (CPHA)
; SHI Divider Modulus Select (HDM7)
;-----------------------------------------------------------------------;
;
EQUATES for ESAI_1 Registers
; register bit equates can be the same as for the ESAI register bit equates.
;-----------------------------------------------------------------------;
M_EMUXR
Register Addresses
EQU
$FFFFAF
; MUX PIN CONTROL REGISTER (EMUXR)
M_RSMB_1 EQU
$FFFF9C
; ESAI_1 Receive Slot Mask Register B (RSMB_1)
M_RSMA_1 EQU
$FFFF9B
; ESAI_1 Receive Slot Mask Register A (RSMA_1)
M_TSMB_1 EQU
$FFFF9A
; ESAI_1 Transmit Slot Mask Register B (TSMB_1)
M_TSMA_1 EQU
$FFFF99
; ESAI_1 Transmit Slot Mask Register A (TSMA_1)
M_RCCR_1 EQU
$FFFF98
; ESAI_1 Receive Clock Control Register (RCCR_1)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-20
Freescale Semiconductor
Equates
M_RCR_1
EQU
$FFFF97
; ESAI_1 Receive Control Register (RCR_1)
M_TCCR_1 EQU
$FFFF96
; ESAI_1 Transmit Clock Control Register (TCCR_1)
M_TCR_1
$FFFF95
; ESAI_1 Transmit Control Register (TCR_1)
$FFFF94
; ESAI_1 Control Register (SAICR_1)
EQU
M_SAICR_1 EQU
M_SAISR_1 EQU
$FFFF93
; ESAI_1 Status Register (SAISR_1)
M_RX3_1 EQU
$FFFF8B
; ESAI_1 Receive Data Register 3 (RX3_1)
M_RX2_1 EQU
$FFFF8A
; ESAI_1 Receive Data Register 2 (RX2_1)
M_RX1_1 EQU
$FFFF89
; ESAI_1 Receive Data Register 1 (RX1_1)
M_RX0_1 EQU
$FFFF88
; ESAI_1 Receive Data Register 0 (RX0_1)
M_TSR_1 EQU
$FFFF86
; ESAI_1 Time Slot Register (TSR_1)
M_TX5_1 EQU
$FFFF85
; ESAI_1 Transmit Data Register 5 (TX5_1)
M_TX4_1 EQU
$FFFF84
; ESAI_1 Transmit Data Register 4 (TX4_1)
M_TX3_1 EQU
$FFFF83
; ESAI_1 Transmit Data Register 3 (TX3_1)
M_TX2_1 EQU
$FFFF82
; ESAI_1 Transmit Data Register 2 (TX2_1)
M_TX1_1 EQU
$FFFF81
; ESAI_1 Transmit Data Register 1 (TX1_1)
M_TX0_1 EQU
$FFFF80
; ESAI_1 Transmit Data Register 0 (TX0_1)
;-----------------------------------------------------------------------;
;
EQUATES for ESAI
;
;-----------------------------------------------------------------------;
Register Addresses
M_RSMB
EQU
$FFFFBC
; ESAI Receive Slot Mask Register B (RSMB)
M_RSMA
EQU
$FFFFBB
; ESAI Receive Slot Mask Register A (RSMA)
M_TSMB
EQU
$FFFFBA
; ESAI Transmit Slot Mask Register B (TSMB)
M_TSMA
EQU
$FFFFB9
; ESAI Transmit Slot Mask Register A (TSMA)
M_RCCR
EQU
$FFFFB8
; ESAI Receive Clock Control Register (RCCR)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-21
Equates
M_RCR
EQU
$FFFFB7
; ESAI Receive Control Register (RCR)
M_TCCR
EQU
$FFFFB6
; ESAI Transmit Clock Control Register (TCCR)
M_TCR
EQU
$FFFFB5
; ESAI Transmit Control Register (TCR)
M_SAICR
EQU
$FFFFB4
; ESAI Control Register (SAICR)
M_SAISR
EQU
$FFFFB3
; ESAI Status Register (SAISR)
M_RX3
EQU
$FFFFAB
; ESAI Receive Data Register 3 (RX3)
M_RX2
EQU
$FFFFAA
; ESAI Receive Data Register 2 (RX2)
M_RX1
EQU
$FFFFA9
; ESAI Receive Data Register 1 (RX1)
M_RX0
EQU
$FFFFA8
; ESAI Receive Data Register 0 (RX0)
M_TSR
EQU
$FFFFA6
; ESAI Time Slot Register (TSR)
M_TX5
EQU
$FFFFA5
; ESAI Transmit Data Register 5 (TX5)
M_TX4
EQU
$FFFFA4
; ESAI Transmit Data Register 4 (TX4)
M_TX3
EQU
$FFFFA3
; ESAI Transmit Data Register 3 (TX3)
M_TX2
EQU
$FFFFA2
; ESAI Transmit Data Register 2 (TX2)
M_TX1
EQU
$FFFFA1
; ESAI Transmit Data Register 1 (TX1)
M_TX0
EQU
$FFFFA0
; ESAI Transmit Data Register 0 (TX0)
;
RSMB Register bits
M_RS31
EQU
15
; ESAI
M_RS30
EQU
14
; ESAI
M_RS29
EQU
13
; ESAI
M_RS28
EQU
12
; ESAI
M_RS27
EQU
11
; ESAI
M_RS26
EQU
10
; ESAI
M_RS25
EQU
9
; ESAI
M_RS24
EQU
8
; ESAI
M_RS23
EQU
7
; ESAI
M_RS22
EQU
6
; ESAI
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-22
Freescale Semiconductor
Equates
M_RS21
EQU
5
; ESAI
M_RS20
EQU
4
; ESAI
M_RS19
EQU
3
; ESAI
M_RS18
EQU
2
; ESAI
M_RS17
EQU
1
; ESAI
M_RS16
EQU
0
; ESAI
;
RSMA Register bits
M_RS15
EQU
15
; ESAI
M_RS14
EQU
14
; ESAI
M_RS13
EQU
13
; ESAI
M_RS12
EQU
12
; ESAI
M_RS11
EQU
11
; ESAI
M_RS10
EQU
10
; ESAI
M_RS9
EQU
9
; ESAI
M_RS8
EQU
8
; ESAI
M_RS7
EQU
7
; ESAI
M_RS6
EQU
6
; ESAI
M_RS5
EQU
5
; ESAI
M_RS4
EQU
4
; ESAI
M_RS3
EQU
3
; ESAI
M_RS2
EQU
2
; ESAI
M_RS1
EQU
1
; ESAI
M_RS0
EQU
0
; ESAI
;
TSMB Register bits
M_TS31
EQU
15
; ESAI
M_TS30
EQU
14
; ESAI
M_TS29
EQU
13
; ESAI
M_TS28
EQU
12
; ESAI
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-23
Equates
M_TS27
EQU
11
; ESAI
M_TS26
EQU
10
; ESAI
M_TS25
EQU
9
; ESAI
M_TS24
EQU
8
; ESAI
M_TS23
EQU
7
; ESAI
M_TS22
EQU
6
; ESAI
M_TS21
EQU
5
; ESAI
M_TS20
EQU
4
; ESAI
M_TS19
EQU
3
; ESAI
M_TS18
EQU
2
; ESAI
M_TS17
EQU
1
; ESAI
M_TS16
EQU
0
; ESAI
;
TSMA Register bits
M_TS15
EQU
15
; ESAI
M_TS14
EQU
14
; ESAI
M_TS13
EQU
13
; ESAI
M_TS12
EQU
12
; ESAI
M_TS11
EQU
11
; ESAI
M_TS10
EQU
10
; ESAI
M_TS9
EQU
9
; ESAI
M_TS8
EQU
8
; ESAI
M_TS7
EQU
7
; ESAI
M_TS6
EQU
6
; ESAI
M_TS5
EQU
5
; ESAI
M_TS4
EQU
4
; ESAI
M_TS3
EQU
3
; ESAI
M_TS2
EQU
2
; ESAI
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-24
Freescale Semiconductor
Equates
M_TS1
EQU
1
; ESAI
M_TS0
EQU
0
; ESAI
;
RCCR Register bits
M_RHCKD
EQU
23
; ESAI
M_RFSD
EQU
22
; ESAI
M_RCKD
EQU
21
; ESAI
M_RHCKP
EQU
20
;ESAI
M_RFSP
EQU
19
; ESAI
M_RCKP
EQU
18
;ESAI
M_RFP
EQU
$3C000
;ESAI MASK
M_RFP3
EQU
17
; ESAI
M_RFP2
EQU
16
; ESAI
M_RFP1
EQU
15
; ESAI
M_RFP0
EQU
14
; ESAI
M_RDC
EQU
$3E00
;ESAI MASK
M_RDC4
EQU
13
; ESAI
M_RDC3
EQU
12
; ESAI
M_RDC2
EQU
11
; ESAI
M_RDC1
EQU
10
; ESAI
M_RDC0
EQU
9
M_RPSR
EQU
8
M_RPM
EQU
; ESAI
; ESAI
$FF
M_RPM7
EQU
7
; ESAI
M_RPM6
EQU
6
; ESAI
M_RPM5
EQU
5
; ESAI
M_RPM4
EQU
4
; ESAI
M_RPM3
EQU
3
; ESAI
M_RPM2
EQU
2
; ESAI
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-25
Equates
M_RPM1
EQU
1
; ESAI
M_RPM0
EQU
0
; ESAI
;
RCR Register bits
M_RLIE
EQU
23
; ESAI
M_RIE
EQU
22
; ESAI
M_REDIE
EQU
21
; ESAI
M_REIE
EQU
20
; ESAI
M_RPR
EQU
19
;
ESAI
M_RFSR
EQU
16
; ESAI
M_RFSL
EQU
15
; ESAI
M_RSWS
EQU
M_RSWS4
EQU
14
; ESAI
M_RSWS3
EQU
13
; ESAI
M_RSWS2
EQU
12
; ESAI
M_RSWS1
EQU
11
; ESAI
M_RSWS0
EQU
10
; ESAI
M_RMOD
$7C00
EQU
;ESAI MASK
$300
M_RMOD1
EQU
9
; ESAI
M_RMOD0
EQU
8
; ESAI
M_RWA
M_RSHFD
M_RE
EQU
EQU
7
; ESAI
6
EQU
; ESAI
$F
M_RE3
EQU
3
; ESAI
M_RE2
EQU
2
; ESAI
M_RE1
EQU
1
; ESAI
M_RE0
EQU
0
; ESAI
;
TCCR Register bits
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-26
Freescale Semiconductor
Equates
M_THCKD
EQU
23
; ESAI
M_TFSD
EQU
22
; ESAI
M_TCKD
EQU
21
; ESAI
M_THCKP
EQU
20
;ESAI
M_TFSP
EQU
19
; ESAI
M_TCKP
EQU
18
; ESAI
M_TFP
EQU
M_TFP3
EQU
17
; ESAI
M_TFP2
EQU
16
; ESAI
M_TFP1
EQU
15
; ESAI
M_TFP0
EQU
14
; ESAI
M_TDC
EQU
$3C000
$3E00
;
M_TDC4
EQU
13
; ESAI
M_TDC3
EQU
12
; ESAI
M_TDC2
EQU
11
; ESAI
M_TDC1
EQU
10
; ESAI
M_TDC0
EQU
9
M_TPSR
EQU
8
M_TPM
EQU
; ESAI
; ESAI
$FF
;
M_TPM7
EQU
7
; ESAI
M_TPM6
EQU
6
; ESAI
M_TPM5
EQU
5
; ESAI
M_TPM4
EQU
4
; ESAI
M_TPM3
EQU
3
; ESAI
M_TPM2
EQU
2
; ESAI
M_TPM1
EQU
1
; ESAI
M_TPM0
EQU
0
; ESAI
;
TCR Register bits
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-27
Equates
M_TLIE
EQU
23
; ESAI
M_TIE
EQU
22
; ESAI
M_TEDIE
EQU
21
; ESAI
M_TEIE
EQU
20
; ESAI
M_TPR
EQU
19
;
ESAI
M_PADC
EQU
17
;
ESAI
M_TFSR
EQU
16
; ESAI
M_TFSL
EQU
15
; ESAI
M_TSWS
EQU
$7C00
M_TSWS4
EQU
14
; ESAI
M_TSWS3
EQU
13
; ESAI
M_TSWS2
EQU
12
; ESAI
M_TSWS1
EQU
11
; ESAI
M_TSWS0
EQU
10
; ESAI
M_TMOD
EQU
$300
M_TMOD1
EQU
9
; ESAI
M_TMOD0
EQU
8
; ESAI
M_TWA
M_TSHFD
M_TEM
EQU
7
EQU
; ESAI
6
EQU
; ESAI
$3F
M_TE5
EQU
5
; ESAI
M_TE4
EQU
4
; ESAI
M_TE3
EQU
3
; ESAI
M_TE2
EQU
2
; ESAI
M_TE1
EQU
1
; ESAI
M_TE0
EQU
0
; ESAI
;
control bits of SAICR
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-28
Freescale Semiconductor
Equates
M_ALC
EQU
8
;ESAI
M_TEBE
EQU
7
; ESAI
M_SYN
EQU
6
; ESAI
M_OF2
EQU
2
; ESAI
M_OF1
EQU
1
; ESAI
M_OF0
EQU
0
; ESAI
;
status bits of SAISR
M_TODE
EQU
17
; ESAI
M_TEDE
EQU
16
; ESAI
M_TDE
EQU
15
; ESAI
M_TUE
EQU
14
; ESAI
M_TFS
EQU
13
; ESAI
M_RODF
EQU
10
; ESAI
M_REDF
EQU
9
; ESAI
M_RDF
EQU
8
; ESAI
M_ROE
EQU
7
; ESAI
M_RFS
EQU
6
; ESAI
M_IF2
EQU
2
; ESAI
M_IF1
EQU
1
; ESAI
M_IF0
EQU
0
; ESAI
;-----------------------------------------------------------------------;
;
EQUATES for HDI08
;
;-----------------------------------------------------------------------;
M_HOTX
Register Addresses
EQU
$FFFFC7
; HOST Transmit Register (HOTX)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-29
Equates
M_HORX
EQU
$FFFFC6
; HOST Receive Register (HORX)
M_HBAR
EQU
$FFFFC5
; HOST Base Address Register (HBAR)
M_HPCR
EQU
$FFFFC4
; HOST Port Control Register (HPCR)
M_HSR
EQU
$FFFFC3
; HOST Status Register (HSR)
M_HCR
EQU
$FFFFC2
; HOST Control Register (HCR)
$0
; HOST Receive interrupts Enable
;
M_HRIE
M_HOTIE
HCR bits
EQU
EQU
$1
; HOST Transmit Interrupt Enable
M_HCIE
EQU
$2
; HOST Command Interrupt Enable
M_HF2
EQU
$3
; HOST Flag 2
M_HF3
EQU
$4
; HOST Flag 3
M_HODM0
EQU
$5
; HOST DMA Mode Control Bit 0
M_HODM1
EQU
$6
; HOST DMA Mode Control Bit 1
M_HODM2
EQU
$7
; HOST DMA Mode Control Bit 2
;
M_HRDF
M_HOTDE
HSR bits
EQU
$0
EQU
$1
; HOST Receive Data Full
; HOST Receive Data Emptiy
M_HCP
EQU
$2
; HOST Command Pending
M_HF0
EQU
$3
; HOST Flag 0
M_HF1
EQU
$4
; HOST Flag 1
M_DMA
EQU
$7
; HOST DMA Status
;
HPCR bits
M_HGEN
EQU
$0
; HOST Port Enable
M_HA8EN
EQU
$1
; HOST Address 8 Enable
M_HA9EN
EQU
$2
; HOST Address 9 Enable
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-30
Freescale Semiconductor
Equates
M_HCSEN
EQU
$3
; HOST Chip Select Enable
M_HREN
EQU
$4
; HOST Request Enable
M_HAEN
EQU
$5
; HOST Acknowledge Enable
M_HOEN
EQU
$6
; HOST Enable
M_HROD
EQU
$8
; HOST Request Open Dranin mode
M_HDSP
EQU
$9
; HOST Data Strobe Polarity
M_HASP
EQU
$a
; HOST Address Strobe Polarity
M_HMUX
EQU
$b
; HOST Multiplexed bus select
M_HDDS
EQU
$c
; HOST Double/Single Strobe select
M_HCSP
EQU
$d
; HOST Chip Select Polarity
M_HRP
EQU
$e
; HOST Request Polarity
M_HAP
EQU
$f
; HOST Acknowledge Polarity
;
M_BA
M_BA10
HBAR
EQU
EQU
BITS
$FF
7
M_BA9
EQU
6
M_BA8
EQU
5
M_BA7
EQU
4
M_BA6
EQU
3
M_BA5
EQU
2
M_BA4
EQU
1
M_BA3
EQU
0
;----------------------------------------------------------------------;
;
EQUATES for TIMER
;
;-----------------------------------------------------------------------;
Register Addresses Of TIMER0
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-31
Equates
M_TCSR0
EQU
$FFFF8F
M_TLR0
EQU
$FFFF8E
M_TCPR0
EQU
$FFFF8D
M_TCR0
EQU
$FFFF8C
;
; TIMER0 Load Reg
; TIMER0 Compare Register
; TIMER0 Count Register
Register Addresses Of TIMER1
M_TCSR1
EQU
$FFFF8B
M_TLR1
EQU
$FFFF8A
M_TCPR1
EQU
$FFFF89
M_TCR1
EQU
$FFFF88
;
; TIMER0 Control/Status Register
; TIMER1 Control/Status Register
; TIMER1 Load Reg
; TIMER1 Compare Register
; TIMER1 Count Register
Register Addresses Of TIMER2
M_TCSR2
EQU
$FFFF87
M_TLR2
EQU
$FFFF86
M_TCPR2
EQU
$FFFF85
M_TCR2
EQU
$FFFF84
; TIMER2 Count Register
M_TPLR
EQU
$FFFF83
; TIMER Prescaler Load Register
M_TPCR
EQU
$FFFF82
; TIMER Prescalar Count Register
;
; TIMER2 Control/Status Register
; TIMER2 Load Reg
; TIMER2 Compare Register
Timer Control/Status Register Bit Flags
M_TE
EQU
0
; Timer Enable
M_TOIE
EQU
1
; Timer Overflow Interrupt Enable
M_TCIE
EQU
2
; Timer Compare Interrupt Enable
M_TC
EQU
$F0
; Timer Control Mask (TC0-TC3)
M_INV
EQU
8
; Inverter Bit
M_TRM
EQU
9
; Timer Restart Mode
M_DIR
EQU
11
; Direction Bit
M_DI
EQU
12
; Data Input
M_DO
EQU
13
; Data Output
M_PCE
EQU
15
; Prescaled Clock Enable
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-32
Freescale Semiconductor
Equates
M_TOF
EQU
20
; Timer Overflow Flag
M_TCF
EQU
21
; Timer Compare Flag
;
Timer Prescaler Register Bit Flags
M_PS
EQU
$600000
M_PS0
EQU
21
M_PS1
EQU
22
;
; Prescaler Source Mask
Timer Control Bits
M_TC0
EQU
4
; Timer Control 0
M_TC1
EQU
5
; Timer Control 1
M_TC2
EQU
6
; Timer Control 2
M_TC3
EQU
7
; Timer Control 3
;------------------ end of ioequ.asm ------------------------
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
B-33
Equates
NOTES
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
B-34
Freescale Semiconductor
Appendix C JTAG BSDL
--------
FILENAME : 56366TQFP_revA.bsdl
M O T O R O L A
S S D T
J T A G
S O F T W A R E
BSDL File Generated: Mon Jan 18 10:13:53 1999
Revision History:
entity DSP56366 is
generic (PHYSICAL_PIN_MAP : string := "TQFP144");
port (
TDO:out
TDI:in
TMS:in
TCK:in
SCK:inout
SDO0:inout
SDO1:inout
SDOI23:inout
PINIT:in
SDOI32:inout
SVCC:linkage
SGND:linkage
SDOI41:inout
SDOI50:inout
FST:inout
FSR:inout
SCKT:inout
SCKR:inout
HSCKT:inout
HSCKR:inout
QVCC:linkage
QGND:linkage
QVCCH:linkage
HP:inout
ADO:inout
ACI:inout
TIO:inout
HVCC:linkage
HGND:linkage
SS_:in
HREQ_:inout
RESET_:in
PVCC:linkage
PCAP:linkage
PGND:linkage
AA:out
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit_vector(0
bit_vector(0
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit_vector(0
bit_vector(0
bit_vector(0
bit_vector(0
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit_vector(0
to 1);
to 1);
to
to
to
to
3);
3);
2);
15);
to 2);
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
C-1
JTAG BSDL
CAS_:out
EXTAL:in
CVCC:linkage
CGND:linkage
TA_:in
BR_:buffer
BB_:inout
WR_:out
RD_:out
BG_:in
A:out
AVCC:linkage
AGND:linkage
D:inout
DVCC:linkage
DGND:linkage
MODD:in
MODC:in
MODB:in
MODA:in
MOSI:inout
SDA:inout
SDO41_1:inout
SDO50_1:inout
FST_1:inout
FSR_1:inout
SCKR_1:inout
SCKT_1:inout
bit;
bit;
bit_vector(0
bit_vector(0
bit;
bit;
bit;
bit;
bit;
bit;
bit_vector(0
bit_vector(0
bit_vector(0
bit_vector(0
bit_vector(0
bit_vector(0
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit;
bit);
to 1);
to 1);
to
to
to
to
to
to
17);
2);
3);
23);
3);
3);
use STD_1149_1_1994.all;
attribute COMPONENT_CONFORMANCE of DSP56366 : entity is "STD_1149_1_1993";
attribute PIN_MAP of DSP56366 : entity is PHYSICAL_PIN_MAP;
constant TQFP144 : PIN_MAP_STRING :=
"SCK:
1, " &
"SS_:
2, " &
"HREQ_:
3, " &
"SDO0:
4, " &
"SDO1:
5, " &
"SDOI23:
6, " &
"SDOI32:
7, " &
"SVCC:
(8, 25), " &
"SGND:
(9, 26), " &
"SDOI41:
10, " &
"SDOI50:
11, " &
"FST:
12, " &
"FSR:
13, " &
"SCKT:
14, " &
"SCKR:
15, " &
"HSCKT:
16, " &
"HSCKR:
17, " &
"QVCC:
(18, 56, 91, 126), " &
"QGND:
(19, 54, 90, 127), " &
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
C-2
Freescale Semiconductor
JTAG BSDL
"QVCCH:
(20, 49, 95), " &
"HP:
(43, 42, 41, 40, 37, 36, 35, 34, 33, 32, 31, 22, 21, 30, 24, 23), " &
"ADO:
27, " &
"ACI:
28, " &
"TIO:
29, " &
"HVCC:
38, " &
"HGND:
39, " &
"RESET_:
44, " &
"PVCC:
45, " &
"PCAP:
46, " &
"PGND:
47, " &
"SDO50_1:
48, " &
"FST_1:
50, " &
"AA:
(70, 69, 51), " &
"CAS_:
52, " &
"SCKT_1:
53, " &
"EXTAL:
55, " &
"CVCC:
(57, 65), " &
"CGND:
(58, 66), " &
"FSR_1:
59, " &
"SCKR_1:
60, " &
"PINIT:
61, " &
"TA_:
62, " &
"BR_:
63, " &
"BB_:
64, " &
"WR_:
67, " &
"RD_:
68, " &
"BG_:
71, " &
"A:
(72, 73, 76, 77, 78, 79, 82, 83, 84, 85, 88, 89, 92, 93, 94, 97, 98, 99), " &
"AVCC:
(74, 80, 86), " &
"AGND:
(75, 81, 87, 96), " &
"D:
(100, 101, 102, 105, 106, 107, 108, 109, 110, 113, 114, 115, 116, 117, 118,
121,
" &
"DVCC:
"DGND:
"MODD:
"MODC:
"MODB:
"MODA:
"SDO41_1:
"TDO:
"TDI:
"TCK:
"TMS:
"MOSI:
"SDA:
attribute
attribute
attribute
attribute
"122, 123, 124, 125, 128, 131, 132, 133), " &
(103, 111, 119, 129), " &
(104, 112, 120, 130), " &
134, " &
135, " &
136, " &
137, " &
138, " &
139, " &
140, " &
141, " &
142, " &
143, " &
144 ";
TAP_SCAN_IN
TAP_SCAN_OUT
TAP_SCAN_MODE
TAP_SCAN_CLOCK
of
of
of
of
TDI
TDO
TMS
TCK
:
:
:
:
signal
signal
signal
signal
is
is
is
is
true;
true;
true;
(20.0e6, BOTH);
attribute INSTRUCTION_LENGTH of DSP56366 : entity is 4;
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
C-3
JTAG BSDL
attribute INSTRUCTION_OPCODE of DSP56366 : entity is
"EXTEST
(0000)," &
"SAMPLE
(0001)," &
"IDCODE
(0010)," &
"CLAMP
(0101)," &
"HIGHZ
(0100)," &
"ENABLE_ONCE (0110)," &
"DEBUG_REQUEST(0111)," &
"BYPASS
(1111)";
attribute INSTRUCTION_CAPTURE of DSP56366 : entity is "0001";
attribute IDCODE_REGISTER
of DSP56366 : entity is
"0000"
& -- version
"000111"
& -- manufacturer's use
"0001001111"
& -- sequence number
"00000001110"
& -- manufacturer identity
"1";
-- 1149.1 requirement
attribute REGISTER_ACCESS of DSP56366 : entity is
"ONCE[8]
(ENABLE_ONCE,DEBUG_REQUEST)" ;
attribute BOUNDARY_LENGTH of DSP56366 : entity is 152;
attribute
-- num
"0
"1
"2
"3
"4
"5
"6
"7
"8
"9
"10
"11
"12
"13
"14
"15
"16
"17
"18
"19
-- num
"20
"21
"22
"23
"24
"25
"26
"27
BOUNDARY_REGISTER of DSP56366 : entity is
cell
port
func
safe [ccell dis rslt]
(BC_1, *,
control,
1)," &
(BC_6, SDO41_1, bidir,
X,
0,
1,
Z),"
(BC_1, MODA,
input,
X)," &
(BC_1, MODB,
input,
X)," &
(BC_1, MODC,
input,
X)," &
(BC_1, MODD,
input,
X)," &
(BC_6, D(23),
bidir,
1,
15,
1,
Z),"
(BC_6, D(22),
bidir,
X,
15,
1,
Z),"
(BC_6, D(21),
bidir,
X,
15,
1,
Z),"
(BC_6, D(20),
bidir,
X,
15,
1,
Z),"
(BC_6, D(19),
bidir,
X,
15,
1,
Z),"
(BC_6, D(18),
bidir,
X,
15,
1,
Z),"
(BC_6, D(17),
bidir,
X,
15,
1,
Z),"
(BC_6, D(16),
bidir,
X,
15,
1,
Z),"
(BC_6, D(15),
bidir,
X,
15,
1,
Z),"
(BC_1, *,
control,
1)," &
(BC_6, D(14),
bidir,
X,
15,
1,
Z),"
(BC_6, D(13),
bidir,
X,
15,
1,
Z),"
(BC_6, D(12),
bidir,
X,
15,
1,
Z),"
(BC_6, D(11),
bidir,
X,
28,
1,
Z),"
cell
port
func
safe [ccell dis rslt]
(BC_6, D(10),
bidir,
X,
28,
1,
Z),"
(BC_6, D(9),
bidir,
X,
28,
1,
Z),"
(BC_6, D(8),
bidir,
X,
28,
1,
Z),"
(BC_6, D(7),
bidir,
X,
28,
1,
Z),"
(BC_6, D(6),
bidir,
X,
28,
1,
Z),"
(BC_6, D(5),
bidir,
X,
28,
1,
Z),"
(BC_6, D(4),
bidir,
X,
28,
1,
Z),"
(BC_6, D(3),
bidir,
X,
28,
1,
Z),"
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
C-4
Freescale Semiconductor
JTAG BSDL
"28
"29
"30
"31
"32
"33
"34
"35
"36
"37
"38
"39
-- num
"40
"41
"42
"43
"44
"45
"46
"47
"48
"49
"50
"51
"52
"53
"54
"55
"56
"57
"58
"59
-- num
"60
"61
"62
"63
"64
"65
"66
"67
"68
"69
"70
"71
"72
"73
"74
"75
"76
"77
"78
"79
-- num
(BC_1,
(BC_6,
(BC_6,
(BC_6,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
cell
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
cell
(BC_6,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_1,
(BC_1,
(BC_6,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
cell
*,
control,
D(2),
bidir,
D(1),
bidir,
D(0),
bidir,
A(17),
output3,
A(16),
output3,
A(15),
output3,
*,
control,
A(14),
output3,
A(13),
output3,
A(12),
output3,
A(11),
output3,
port
func
A(10),
output3,
A(9),
output3,
A(8),
output3,
A(7),
output3,
A(6),
output3,
*,
control,
A(5),
output3,
A(4),
output3,
A(3),
output3,
A(2),
output3,
A(1),
output3,
A(0),
output3,
BG_,
input,
*,
control,
AA(0),
output3,
*,
control,
AA(1),
output3,
RD_,
output3,
WR_,
output3,
*,
control,
port
func
BB_,
bidir,
BR_,
output2,
TA_,
input,
PINIT,
input,
*,
control,
SCKR_1,
bidir,
*,
control,
FSR_1,
bidir,
*,
control,
EXTAL,
input,
*,
control,
SCKT_1,
bidir,
*,
control,
CAS_,
output3,
*,
control,
AA(2),
output3,
*,
control,
FST_1,
bidir,
*,
control,
SDO50_1, bidir,
port
func
1)," &
X,
28,
1,
Z),"
X,
28,
1,
Z),"
X,
28,
1,
Z),"
X,
35,
1,
Z),"
X,
35,
1,
Z),"
X,
35,
1,
Z),"
1)," &
X,
35,
1,
Z),"
X,
35,
1,
Z),"
X,
35,
1,
Z),"
X,
35,
1,
Z),"
safe [ccell dis rslt]
X,
35,
1,
Z),"
X,
35,
1,
Z),"
X,
45,
1,
Z),"
X,
45,
1,
Z),"
X,
45,
1,
Z),"
1)," &
X,
45,
1,
Z),"
X,
45,
1,
Z),"
X,
45,
1,
Z),"
X,
45,
1,
Z),"
X,
45,
1,
Z),"
X,
45,
1,
Z),"
X)," &
1)," &
X,
53,
1,
Z),"
1)," &
X,
55,
1,
Z),"
X,
68,
1,
Z),"
X,
68,
1,
Z),"
1)," &
safe [ccell dis rslt]
X,
59,
1,
Z),"
X)," &
X)," &
X)," &
1)," &
X,
64,
1,
Z),"
1)," &
X,
66,
1,
Z),"
1)," &
X)," &
1)," &
X,
70,
1,
Z),"
1)," &
X,
72,
1,
Z),"
1)," &
X,
74,
1,
Z),"
1)," &
X,
76,
1,
Z),"
1)," &
X,
78,
1,
Z),"
safe [ccell dis rslt]
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
C-5
JTAG BSDL
"80
"81
"82
"83
"84
"85
"86
"87
"88
"89
"90
"91
"92
"93
"94
"95
"96
"97
"98
"99
-- num
"100
"101
"102
"103
"104
"105
"106
"107
"108
"109
"110
"111
"112
"113
"114
"115
"116
"117
"118
"119
-- num
"120
"121
"122
"123
"124
"125
"126
"127
"128
"129
"130
"131
"132
(BC_1,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
cell
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
cell
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
RESET_,
input,
*,
control,
HP(0),
bidir,
*,
control,
HP(1),
bidir,
*,
control,
HP(2),
bidir,
*,
control,
HP(3),
bidir,
*,
control,
HP(4),
bidir,
*,
control,
HP(5),
bidir,
*,
control,
HP(6),
bidir,
*,
control,
HP(7),
bidir,
*,
control,
HP(8),
bidir,
*,
control,
port
func
HP(9),
bidir,
*,
control,
HP(10),
bidir,
*,
control,
HP(13),
bidir,
*,
control,
TIO,
bidir,
*,
control,
ACI,
bidir,
*,
control,
ADO,
bidir,
*,
control,
HP(14),
bidir,
*,
control,
HP(15),
bidir,
*,
control,
HP(11),
bidir,
*,
control,
HP(12),
bidir,
*,
control,
port
func
HSCKR,
bidir,
*,
control,
HSCKT,
bidir,
*,
control,
SCKR,
bidir,
*,
control,
SCKT,
bidir,
*,
control,
FSR,
bidir,
*,
control,
FST,
bidir,
*,
control,
SDOI50,
bidir,
X)," &
1)," &
X,
81,
1,
Z),"
1)," &
X,
83,
1,
Z),"
1)," &
X,
85,
1,
Z),"
1)," &
X,
87,
1,
Z),"
1)," &
X,
89,
1,
Z),"
1)," &
X,
91,
1,
Z),"
1)," &
X,
93,
1,
Z),"
1)," &
X,
95,
1,
Z),"
1)," &
X,
97,
1,
Z),"
1)," &
safe [ccell dis rslt]
X,
99,
1,
Z),"
1)," &
X,
101,
1,
Z),"
1)," &
X,
103,
1,
Z),"
1)," &
X,
105,
1,
Z),"
1)," &
X,
107,
1,
Z),"
1)," &
X,
109,
1,
Z),"
1)," &
X,
111,
1,
Z),"
1)," &
X,
113,
1,
Z),"
1)," &
X,
115,
1,
Z),"
1)," &
X,
117,
1,
Z),"
1)," &
safe [ccell dis rslt]
X,
119,
1,
Z),"
1)," &
X,
121,
1,
Z),"
1)," &
X,
123,
1,
Z),"
1)," &
X,
125,
1,
Z),"
1)," &
X,
127,
1,
Z),"
1)," &
X,
129,
1,
Z),"
1)," &
X,
131,
1,
Z),"
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
C-6
Freescale Semiconductor
JTAG BSDL
"133
"134
"135
"136
"137
"138
"139
-- num
"140
"141
"142
"143
"144
"145
"146
"147
"148
"149
"150
"151
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
cell
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
(BC_1,
(BC_6,
*,
control,
SDOI41,
bidir,
*,
control,
SDOI32,
bidir,
*,
control,
SDOI23,
bidir,
*,
control,
port
func
SDO1,
bidir,
*,
control,
SDO0,
bidir,
*,
control,
HREQ_,
bidir,
SS_,
input,
*,
control,
SCK,
bidir,
*,
control,
SDA,
bidir,
*,
control,
MOSI,
bidir,
1)," &
X,
133,
1,
Z),"
1)," &
X,
135,
1,
Z),"
1)," &
X,
137,
1,
Z),"
1)," &
safe [ccell dis rslt]
X,
139,
1,
Z),"
1)," &
X,
141,
1,
Z),"
1)," &
X,
143,
1,
Z),"
X)," &
1)," &
X,
146,
1,
Z),"
1)," &
X,
148,
1,
Z),"
1)," &
X,
150,
1,
Z)";
&
&
&
&
&
&
&
&
end DSP56366;
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
C-7
JTAG BSDL
NOTES
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
C-8
Freescale Semiconductor
Appendix D Programmer’s Reference
D.1
Introduction
This section has been compiled as a reference for programmers. It contains a table showing the addresses
of all the DSPs memory-mapped peripherals, an interrupt address table, an interrupt exception priority
table, a quick reference to the host interface, and programming sheets for the major programmable
registers on the DSP.
D.1.1
Peripheral Addresses
Table D-1 lists the memory addresses of all on-chip peripherals.
D.1.2
Interrupt Addresses
Table D-2 lists the interrupt starting addresses and sources.
D.1.3
Interrupt Priorities
Table D-3 lists the priorities of specific interrupts within interrupt priority levels.
D.1.4
Host Interface Quick Reference
Table D-4 is a quick reference guide to the host interface (HDI08).
D.1.5
Programming Sheets
The remaining figures describe major programmable registers on the DSP56366.
D.2
Internal I/O Memory Map
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-1
Internal I/O Memory Map
Table D-1. Internal I/O Memory Map
Peripheral
Address
IPR
X:$FFFFFF
INTERRUPT PRIORITY REGISTER CORE (IPR-C)
X:$FFFFFE
INTERRUPT PRIORITY REGISTER PERIPHERAL (IPR-P)
PLL
X:$FFFFFD
PLL CONTROL REGISTER (PCTL)
ONCE
X:$FFFFFC
ONCE GDB REGISTER (OGDB)
BIU
X:$FFFFFB
BUS CONTROL REGISTER (BCR)
X:$FFFFFA
DRAM CONTROL REGISTER (DCR)
X:$FFFFF9
ADDRESS ATTRIBUTE REGISTER 0 (AAR0)
X:$FFFFF8
ADDRESS ATTRIBUTE REGISTER 1 (AAR1)
X:$FFFFF7
ADDRESS ATTRIBUTE REGISTER 2 (AAR2)
X:$FFFFF6
ADDRESS ATTRIBUTE REGISTER 3 (AAR3) [pin not available]
X:$FFFFF5
ID REGISTER (IDR)
X:$FFFFF4
DMA STATUS REGISTER (DSTR)
X:$FFFFF3
DMA OFFSET REGISTER 0 (DOR0)
X:$FFFFF2
DMA OFFSET REGISTER 1 (DOR1)
X:$FFFFF1
DMA OFFSET REGISTER 2 (DOR2)
X:$FFFFF0
DMA OFFSET REGISTER 3 (DOR3)
X:$FFFFEF
DMA SOURCE ADDRESS REGISTER (DSR0)
X:$FFFFEE
DMA DESTINATION ADDRESS REGISTER (DDR0)
X:$FFFFED
DMA COUNTER (DCO0)
X:$FFFFEC
DMA CONTROL REGISTER (DCR0)
X:$FFFFEB
DMA SOURCE ADDRESS REGISTER (DSR1)
X:$FFFFEA
DMA DESTINATION ADDRESS REGISTER (DDR1)
X:$FFFFE9
DMA COUNTER (DCO1)
X:$FFFFE8
DMA CONTROL REGISTER (DCR1)
X:$FFFFE7
DMA SOURCE ADDRESS REGISTER (DSR2)
X:$FFFFE6
DMA DESTINATION ADDRESS REGISTER (DDR2)
X:$FFFFE5
DMA COUNTER (DCO2)
X:$FFFFE4
DMA CONTROL REGISTER (DCR2)
X:$FFFFE3
DMA SOURCE ADDRESS REGISTER (DSR3)
X:$FFFFE2
DMA DESTINATION ADDRESS REGISTER (DDR3)
X:$FFFFE1
DMA COUNTER (DCO3)
X:$FFFFE0
DMA CONTROL REGISTER (DCR3)
DMA
DMA0
DMA1
DMA2
DMA3
Register Name
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-2
Freescale Semiconductor
Internal I/O Memory Map
Table D-1. Internal I/O Memory Map (continued)
Peripheral
Address
DMA4
X:$FFFFDF
DMA SOURCE ADDRESS REGISTER (DSR4)
X:$FFFFDE
DMA DESTINATION ADDRESS REGISTER (DDR4)
X:$FFFFDD
DMA COUNTER (DCO4)
X:$FFFFDC
DMA CONTROL REGISTER (DCR4)
X:$FFFFDB
DMA SOURCE ADDRESS REGISTER (DSR5)
X:$FFFFDA
DMA DESTINATION ADDRESS REGISTER (DDR5)
X:$FFFFD9
DMA COUNTER (DCO5)
X:$FFFFD8
DMA CONTROL REGISTER (DCR5)
X:$FFFFD7
PORT D CONTROL REGISTER (PCRD)
X:$FFFFD6
PORT D DIRECTION REGISTER (PRRD)
X:$FFFFD5
PORT D DATA REGISTER (PDRD)
X:$FFFFD4
DAX STATUS REGISTER (XSTR)
X:$FFFFD3
DAX AUDIO DATA REGISTER B (XADRB)
X:$FFFFD2
DAX AUDIO DATA REGISTER A (XADRA)
X:$FFFFD1
DAX NON-AUDIO DATA REGISTER (XNADR)
X:$FFFFD0
DAX CONTROL REGISTER (XCTR)
X:$FFFFCF
Reserved
X:$FFFFCE
Reserved
X:$FFFFCD
Reserved
X:$FFFFCC
Reserved
X:$FFFFCB
Reserved
X:$FFFFCA
Reserved
X:$FFFFC9
HOST PORT GPIO DATA REGISTER (HDR)
X:$FFFFC8
HOST PORT GPIO DIRECTION REGISTER (HDDR)
X:$FFFFC7
HOST TRANSMIT REGISTER (HOTX)
X:$FFFFC6
HOST RECEIVE REGISTER (HORX)
X:$FFFFC5
HOST BASE ADDRESS REGISTER (HBAR)
X:$FFFFC4
HOST PORT CONTROL REGISTER (HPCR)
X:$FFFFC3
HOST STATUS REGISTER (HSR)
X:$FFFFC2
HOST CONTROL REGISTER (HCR)
X:$FFFFC1
Reserved
X:$FFFFC0
Reserved
X:$FFFFBF
PORT C CONTROL REGISTER (PCRC)
X:$FFFFBE
PORT C DIRECTION REGISTER (PRRC)
X:$FFFFBD
PORT C GPIO DATA REGISTER (PDRC)
DMA5
PORT D
DAX
PORT B
HDI08
PORT C
Register Name
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-3
Internal I/O Memory Map
Table D-1. Internal I/O Memory Map (continued)
Peripheral
Address
Register Name
ESAI
X:$FFFFBC
ESAI RECEIVE SLOT MASK REGISTER B (RSMB)
X:$FFFFBB
ESAI RECEIVE SLOT MASK REGISTER A (RSMA)
X:$FFFFBA
ESAI TRANSMIT SLOT MASK REGISTER B (TSMB)
X:$FFFFB9
ESAI TRANSMIT SLOT MASK REGISTER A (TSMA)
X:$FFFFB8
ESAI RECEIVE CLOCK CONTROL REGISTER (RCCR)
X:$FFFFB7
ESAI RECEIVE CONTROL REGISTER (RCR)
X:$FFFFB6
ESAI TRANSMIT CLOCK CONTROL REGISTER (TCCR)
X:$FFFFB5
ESAI TRANSMIT CONTROL REGISTER (TCR)
X:$FFFFB4
ESAI COMMON CONTROL REGISTER (SAICR)
X:$FFFFB3
ESAI STATUS REGISTER (SAISR)
X:$FFFFB2
Reserved
X:$FFFFB1
Reserved
X:$FFFFB0
Reserved
X:$FFFFAF
Reserved
X:$FFFFAE
Reserved
X:$FFFFAD
Reserved
X:$FFFFAC
Reserved
X:$FFFFAB
ESAI RECEIVE DATA REGISTER 3 (RX3)
X:$FFFFAA
ESAI RECEIVE DATA REGISTER 2 (RX2)
X:$FFFFA9
ESAI RECEIVE DATA REGISTER 1 (RX1)
X:$FFFFA8
ESAI RECEIVE DATA REGISTER 0 (RX0)
X:$FFFFA7
Reserved
X:$FFFFA6
ESAI TIME SLOT REGISTER (TSR)
X:$FFFFA5
ESAI TRANSMIT DATA REGISTER 5 (TX5)
X:$FFFFA4
ESAI TRANSMIT DATA REGISTER 4 (TX4)
X:$FFFFA3
ESAI TRANSMIT DATA REGISTER 3 (TX3)
X:$FFFFA2
ESAI TRANSMIT DATA REGISTER 2 (TX2)
X:$FFFFA1
ESAI TRANSMIT DATA REGISTER 1 (TX1)
X:$FFFFA0
ESAI TRANSMIT DATA REGISTER 0 (TX0)
X:$FFFF9F
Reserved
X:$FFFF9E
Reserved
X:$FFFF9D
Reserved
X:$FFFF9C
Reserved
X:$FFFF9B
Reserved
X:$FFFF9A
Reserved
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-4
Freescale Semiconductor
Internal I/O Memory Map
Table D-1. Internal I/O Memory Map (continued)
Peripheral
SHI
TRIPLE TIMER
ESAI MUX PIN
CONTROL
Address
Register Name
X:$FFFF99
Reserved
X:$FFFF98
Reserved
X:$FFFF97
Reserved
X:$FFFF96
Reserved
X:$FFFF95
Reserved
X:$FFFF94
SHI RECEIVE FIFO (HRX)
X:$FFFF93
SHI TRANSMIT REGISTER (HTX)
X:$FFFF92
SHI I2C SLAVE ADDRESS REGISTER (HSAR)
X:$FFFF91
SHI CONTROL/STATUS REGISTER (HCSR)
X:$FFFF90
SHI CLOCK CONTROL REGISTER (HCKR)
X:$FFFF8F
TIMER 0 CONTROL/STATUS REGISTER (TCSR0)
X:$FFFF8E
TIMER 0 LOAD REGISTER (TLR0)
X:$FFFF8D
TIMER 0 COMPARE REGISTER (TCPR0)
X:$FFFF8C
TIMER 0 COUNT REGISTER (TCR0)
X:$FFFF8B
TIMER 1 CONTROL/STATUS REGISTER (TCSR1)
X:$FFFF8A
TIMER 1 LOAD REGISTER (TLR1)
X:$FFFF89
TIMER 1 COMPARE REGISTER (TCPR1)
X:$FFFF88
TIMER 1 COUNT REGISTER (TCR1)
X:$FFFF87
TIMER 2 CONTROL/STATUS REGISTER (TCSR2)
X:$FFFF86
TIMER 2 LOAD REGISTER (TLR2)
X:$FFFF85
TIMER 2 COMPARE REGISTER (TCPR2)
X:$FFFF84
TIMER 2 COUNT REGISTER (TCR2)
X:$FFFF83
TIMER PRESCALER LOAD REGISTER (TPLR)
X:$FFFF82
TIMER PRESCALER COUNT REGISTER (TPCR)
X:$FFFF81
Reserved
X:$FFFF80
Reserved
Y:$FFFFAF
ESAI MUX PIN CONTROL REGISTER (EMUXR)
Y:$FFFFAE
Reserved
Y:$FFFFAD
Reserved
Y:$FFFFAC
Reserved
Y:$FFFFAB
Reserved
Y:$FFFFAA
Reserved
Y:$FFFFA9
Reserved
Y:$FFFFA8
Reserved
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-5
Internal I/O Memory Map
Table D-1. Internal I/O Memory Map (continued)
Peripheral
PORT E
Address
Register Name
Y:$FFFFA7
Reserved
Y:$FFFFA6
Reserved
Y:$FFFFA5
Reserved
Y:$FFFFA4
Reserved
Y:$FFFFA3
Reserved
Y:$FFFFA2
Reserved
Y:$FFFFA1
Reserved
Y:$FFFFA0
Reserved
Y:$FFFF9F
PORT E CONTROL REGISTER (PCRE)
Y:$FFFF9E
PORT E DIRECTION REGISTER(PRRE)
Y:$FFFF9D
PORT E GPIO DATA REGISTER(PDRE)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-6
Freescale Semiconductor
Internal I/O Memory Map
Table D-1. Internal I/O Memory Map (continued)
Peripheral
Address
Register Name
ESAI_1
Y:$FFFF9C
ESAI_1 RECEIVE SLOT MASK REGISTER B (RSMB_1)
Y:$FFFF9B
ESAI_1 RECEIVE SLOT MASK REGISTER A (RSMA_1)
Y:$FFFF9A
ESAI_1 TRANSMIT SLOT MASK REGISTER B (TSMB_1)
Y:$FFFF99
ESAI_1 TRANSMIT SLOT MASK REGISTER A (TSMA_1)
Y:$FFFF98
ESAI_1 RECEIVE CLOCK CONTROL REGISTER (RCCR_1)
Y:$FFFF97
ESAI_1 RECEIVE CONTROL REGISTER (RCR_1)
Y:$FFFF96
ESAI_1 TRANSMIT CLOCK CONTROL REGISTER (TCCR_1)
Y:$FFFF95
ESAI_1 TRANSMIT CONTROL REGISTER (TCR_1)
Y:$FFFF94
ESAI_1 COMMON CONTROL REGISTER (SAICR_1)
Y:$FFFF93
ESAI_1 STATUS REGISTER (SAISR_1)
Y:$FFFF92
Reserved
Y:$FFFF91
Reserved
Y:$FFFF90
Reserved
Y:$FFFF8F
Reserved
Y:$FFFF8E
Reserved
Y:$FFFF8D
Reserved
Y:$FFFF8C
Reserved
Y:$FFFF8B
ESAI_1 RECEIVE DATA REGISTER 3 (RX3_1)
Y:$FFFF8A
ESAI_1 RECEIVE DATA REGISTER 2 (RX2_1)
Y:$FFFF89
ESAI_1 RECEIVE DATA REGISTER 1 (RX1_1)
Y:$FFFF88
ESAI_1 RECEIVE DATA REGISTER 0 (RX0_1)
Y:$FFFF87
Reserved
Y:$FFFF86
ESAI_1 TIME SLOT REGISTER (TSR_1)
Y:$FFFF85
ESAI_1 TRANSMIT DATA REGISTER 5 (TX5_1)
Y:$FFFF84
ESAI_1 TRANSMIT DATA REGISTER 4 (TX4_1)
Y:$FFFF83
ESAI_1 TRANSMIT DATA REGISTER 3 (TX3_1)
Y:$FFFF82
ESAI_1 TRANSMIT DATA REGISTER 2 (TX2_1)
Y:$FFFF81
ESAI_1 TRANSMIT DATA REGISTER 1 (TX1_1)
Y:$FFFF80
ESAI_1 TRANSMIT DATA REGISTER 0 (TX0_1)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-7
Interrupt Vector Addresses
D.3
Interrupt Vector Addresses
Table D-2. DSP56366 Interrupt Vectors
Interrupt
Starting Address
Interrupt Priority
Level Range
VBA:$00
3
Hardware RESET
VBA:$02
3
Stack Error
VBA:$04
3
Illegal Instruction
VBA:$06
3
Debug Request Interrupt
VBA:$08
3
Trap
VBA:$0A
3
Non-Maskable Interrupt (NMI)
VBA:$0C
3
Reserved For Future Level-3 Interrupt Source
VBA:$0E
3
Reserved For Future Level-3 Interrupt Source
VBA:$10
0-2
IRQA
VBA:$12
0-2
IRQB
VBA:$14
0-2
IRQC
VBA:$16
0-2
IRQD
VBA:$18
0-2
DMA Channel 0
VBA:$1A
0-2
DMA Channel 1
VBA:$1C
0-2
DMA Channel 2
VBA:$1E
0-2
DMA Channel 3
VBA:$20
0-2
DMA Channel 4
VBA:$22
0-2
DMA Channel 5
VBA:$24
0-2
Reserved
VBA:$26
0-2
Reserved
VBA:$28
0-2
DAX Underrun Error
VBA:$2A
0-2
DAX Block Transferred
VBA:$2C
0-2
Reserved
VBA:$2E
0-2
DAX Audio Data Empty
VBA:$30
0-2
ESAI Receive Data
VBA:$32
0-2
ESAI Receive Even Data
VBA:$34
0-2
ESAI Receive Data With Exception Status
VBA:$36
0-2
ESAI Receive Last Slot
VBA:$38
0-2
ESAI Transmit Data
VBA:$3A
0-2
ESAI Transmit Even Data
VBA:$3C
0-2
ESAI Transmit Data with Exception Status
VBA:$3E
0-2
ESAI Transmit Last Slot
VBA:$40
0-2
SHI Transmit Data
Interrupt Source
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-8
Freescale Semiconductor
Interrupt Vector Addresses
Table D-2. DSP56366 Interrupt Vectors (continued)
Interrupt
Starting Address
Interrupt Priority
Level Range
VBA:$42
0-2
SHI Transmit Underrun Error
VBA:$44
0-2
SHI Receive FIFO Not Empty
VBA:$46
0-2
Reserved
VBA:$48
0-2
SHI Receive FIFO Full
VBA:$4A
0-2
SHI Receive Overrun Error
VBA:$4C
0-2
SHI Bus Error
VBA:$4E
0-2
Reserved
VBA:$50
0-2
Reserved
VBA:$52
0-2
Reserved
VBA:$54
0-2
TIMER0 Compare
VBA:$56
0-2
TIMER0 Overflow
VBA:$58
0-2
TIMER1 Compare
VBA:$5A
0-2
TIMER1 Overflow
VBA:$5C
0-2
TIMER2 Compare
VBA:$5E
0-2
TIMER2 Overflow
VBA:$60
0-2
Host Receive Data Full
VBA:$62
0-2
Host Transmit Data Empty
VBA:$64
0-2
Host Command (Default)
VBA:$66
0-2
Reserved
VBA:$68
0-2
Reserved
VBA:$6A
0-2
Reserved
VBA:$6C
0-2
Reserved
VBA:$6E
0-2
Reserved
VBA:$70
0-2
ESAI_1 Receive Data
VBA:$72
0-2
ESAI_1 Receive Even Data
VBA:$74
0-2
ESAI_1 Receive Data With Exception Status
VBA:$76
0-2
ESAI_1 Receive Last Slot
VBA:$78
0-2
ESAI_1 Transmit Data
VBA:$7A
0-2
ESAI_1 Transmit Even Data
VBA:$7C
0-2
ESAI_1 Transmit Data with Exception Status
VBA:$7E
0-2
ESAI_1 Transmit Last Slot
VBA:$80
0-2
Reserved
:
:
VBA:$FE
0-2
Interrupt Source
:
Reserved
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-9
Interrupt Source Priorities (within an IPL)
D.4
Interrupt Source Priorities (within an IPL)
Table D-3. Interrupt Sources Priorities Within an IPL
Priority
Interrupt Source
Level 3 (Nonmaskable)
Highest
Hardware RESET
Stack Error
Illegal Instruction
Debug Request Interrupt
Trap
Lowest
Non-Maskable Interrupt
Levels 0, 1, 2 (Maskable)
Highest
IRQA (External Interrupt)
IRQB (External Interrupt)
IRQC (External Interrupt)
IRQD (External Interrupt)
DMA Channel 0 Interrupt
DMA Channel 1 Interrupt
DMA Channel 2 Interrupt
DMA Channel 3 Interrupt
DMA Channel 4 Interrupt
DMA Channel 5 Interrupt
ESAI Receive Data with Exception Status
ESAI Receive Even Data
ESAI Receive Data
ESAI Receive Last Slot
ESAI Transmit Data with Exception Status
ESAI Transmit Last Slot
ESAI Transmit Even Data
ESAI Transmit Data
SHI Bus Error
SHI Receive Overrun Error
SHI Transmit Underrun Error
SHI Receive FIFO Full
SHI Transmit Data
SHI Receive FIFO Not Empty
HOST Command Interrupt
HOST Receive Data Interrupt
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-10
Freescale Semiconductor
Interrupt Source Priorities (within an IPL)
Table D-3. Interrupt Sources Priorities Within an IPL (continued)
Priority
Interrupt Source
HOST Transmit Data Interrupt
DAX Transmit Underrun Error
DAX Block Transferred
DAX Transmit Register Empty
TIMER0 Overflow Interrupt
TIMER0 Compare Interrupt
TIMER1 Overflow Interrupt
TIMER1 Compare Interrupt
TIMER2 Overflow Interrupt
TIMER2 Compare Interrupt
ESAI_1 Receive Data with Exception Status
ESAI_1 Receive Even Data
ESAI_1 Receive Data
ESAI_1 Receive Last Slot
ESAI_1 Transmit Data with Exception Status
ESAI_1 Transmit Last Slot
ESAI_1 Transmit Even Data
Lowest
ESAI_1 Transmit Data
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-11
Host Interface—Quick Reference
D.5
Host Interface—Quick Reference
Table D-4. HDI08 Programming Model
Bit
Reg
Num
Mnemonic
Name
Reset Type
Val
Function
Comments
HW /
SW
IR
ST
0
-
-
0
-
-
0
-
-
-
-
DSP SIDE
HCR
0
1
2
HRIE
HTIE
HCIE
Receive Interrupt Enable
Transmit Interrupt Enable
Host Command Interrupt
Enable
0
HRRQ interrupt disabled
1
HRRQ interrupt enabled
0
HTRQ interrupt disabled
1
HTRQ interrupt enabled
0
HCP interrupt disabled
1
HCP interrupt enabled
3
HF2
Host Flag 2
0
4
HF3
Host Flag 3
0
7-5
HDM[2:0]
Host DMA Mode
000
DMA operation disabled
100
DMA operation enabled
001
24-bit host-to-DSP DMA enabled
010
16-bit host-to-DSP DMA enabled
011
8-bit host-to-DSP DMA enabled
101
24-bit DSP-to-host DMA enabled
110
16-bit DSP-to-host DMA enabled
111
8-bit DSP-to-host DMA enabled
000
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-12
Freescale Semiconductor
Host Interface—Quick Reference
Table D-4. HDI08 Programming Model (continued)
Bit
Reg
HPCR
Num
Mnemonic
0
HGEN
1
2
3
4
HA8EN
HA9EN
HCSEN
HREN
Name
Host GPIO Enable
Host Address Line 8
Enable
Host Address Line 9
Enable
Host Chip Select Enable
Host Request Enable
Reset Type
Val
Function
0
GPIO pin disconnected
1
GPIO pins active
0
HA8/HA1 = GPIO
1
HA8/HA1 = HA8/HA1
0
HA9/HA2 = GPIO
1
HA9/HA2 = HA9/HA2
0
HCS/HA10 = GPIO
1
HCS/HA10 = HCS/HA10
0
HOREQ/HTRQ = GPIO
HACK/HRRQ=GPIO
1
Comments
HW /
SW
IR
ST
0
-
-
0
-
-
0
-
-
this bit is treated
as 0 if HEN=0
0
-
-
this bit is treated
as 0 if HEN=0
0
-
-
this bit is ignored if
HDRQ=1
0
-
-
0
-
-
this bit is treated
as 1 if HMUX=0
this bit is treated
as 0 if HEN=0
this bit is treated
as 1 if HMUX=0
this bit is treated
as 0 if HEN=0
HOREQ/HTRQ=HOREQ/HTRQ
HACK/HRRQ=HACK/HRRQ
5
HAEN
Host Acknowledge Enable
0
HACK/HRRQ = GPIO
this bit is treated
as 0 if HREN=0
6
8
9
10
11
12
13
14
15
HEN
HROD
HDSP
HASP
HMUX
HDDS
HCSP
HRP
HAP
Host Enable
Host Request Open Drain
Host Data Strobe Polarity
Host Address Strobe
Polarity
Host Multiplxed Bus
Host Dual Data Strobe
Host Chip Select Polarity
Host Request polarity
Host Acknowledge Polarity
1
HACK/HRRQ= HACK
0
Host Port=GPIO
1
Host Port Active
0
HOREQ/HTRQ/HRRQ=driven
this bit is treated
as 0 if HEN=0
this bit is ignored if
HOREQ/HTRQ/HRRQ=open drain HEN=0
0
-
-
1
0
HDS/HRD/HWR active low
-
-
HDS/HRD/HWR active high
this bit is ignored if
HEN=0
0
1
0
HAS active low
-
-
HAS active high
this bit is ignored if
HEN=0
0
1
this bit is ignored if
HEN=0
0
-
-
this bit is ignored if
HEN=0
0
-
-
this bit is ignored if
HEN=0
0
-
-
this bit is ignored if
HEN=0
0
-
-
this bit is ignored if
HEN=0
0
-
-
0
Separate address and data lines
1
Multiplexed address/data
0
Single Data Strobe (HDS)
1
Double Data Strobe (HWR, HRD)
0
HCS active low
1
HCS active high
0
HOREQ/HTRQ/HRRQ active low
1
HOREQ/HTRQ/HRRQ active high
0
HACK active low
1
HACK active high
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-13
Host Interface—Quick Reference
Table D-4. HDI08 Programming Model (continued)
Bit
Reg
HSR
Num
Mnemonic
0
HRDF
1
2
HTDE
HCP
Name
Host Receive Data Full
Host Transmit Data Empty
Host Command Pending
Reset Type
Val
Function
0
no receive data to be read
1
receive data register is full
1
0
transmit data register empty
0
no host command pending
1
host command pending
Comments
HW /
SW
IR
ST
0
0
0
1
1
1
0
0
0
transmit data reg. not empty
3
HF0
Host Flag0
0
-
-
4
HF1
Host Flag1
0
-
-
7
DMA
DMA Status
0
-
-
BA10-BA3
0
DMA mode disabled
1
DMA mode enabled
HBAR
7-0
Host base Address
Register
$80
HORX
23-0
DSP Receive Data
Register
empty
HOTX
23-0
DSP Transmit Data
Register
empty
HDR
15-0
D15-D0
HDDR
15-0
DR15-DR0
GPIO Pin Data
GPIO Pin Direction
0
Input
1
Output
$000
0
-
-
$000
0
-
-
0
-
-
0
-
-
0
-
-
Host Side
ICR
0
1
2
RREQ
TREQ
HDRQ
Receive Request Enable
Transmit Request Enable
Double Host Request
0
HRRQ interrupt disabled
1
HRRQ interrupt enabled
0
HTRQ interrupt disabled
1
HTRQ interrupt enabled
0
HOREQ/HTRQ=HOREQ,
HACK/HRRQ=HACK
1
HOREQ/HTRQ=HTRQ,
HACK/HRRQ=HRRQ
available if
HDM2-HDM0=000
3
HF0
Host Flag 0
0
-
-
4
HF1
Host Flag 1
0
-
-
5
HLEND
available if
HDM2-HDM0=000
0
-
-
6-5
HM1-HM0
7
INIT
Host Little Endian
0
“Big Endian” order
1
“Little Endian” order
Host Mode Control
00
01
10
11
Interrupt Mode
24-bit DMA enabled
16-bit DMA enabled
8-bit DMA enabled
available if
HDM2-HDM0=100
00
-
-
Initialize
1
Reset data paths according to
TREQ and RREQ
cleared by HDI08
hardware
0
-
-
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-14
Freescale Semiconductor
Programming Sheets
Table D-4. HDI08 Programming Model (continued)
Bit
Reg
ISR
Reset Type
HW /
SW
IR
ST
0
0
0
host transmit register empty
host transmit register full
1
1
1
transmit FIF O (6 deep) is empty
1
1
1
Num
Mnemonic
Name
Val
0
RXDF
Receive Data Register Full
0
host receive register is empty
1
host receive register is full
Transmit Data Register
Empty
1
0
Transmitter Ready
1
1
2
TXDE
TRDY
Comments
Function
transmit FIFO is not empty
0
CVR
3
HF2
Host Flag2
0
-
-
4
HF3
Host Flag3
0
-
-
7
HREQ
0
0
0
$2A
-
-
0
0
0
6-0
HV6-HV0
7
HC
Host Request
0
HOREQ pin is deasserted
1
HOREQ pin is asserted (if enabled)
Host Command Vector
Host Command
default vector
0
no host command pending
1
host command pending
cleared by HDI08
hardware when
the HC int. req. is
serviced
RXH/M/L
7-0
Host Receive Data
Register
empty
TXH/M/L
7-0
Host Transmit Data
Register
empty
IVR
7-0
D.6
IV7-IV0
Interrupt Register
68000 family vector register
$0F
-
-
Programming Sheets
The worksheets shown on the following pages contain listings of major programmable registers for the
DSP56366. The programming sheets are grouped into the following order:
• Central Processor
• Host Interface (HDI08)
• Serial Host Interface (SHI)
• Two Enhanced Serial Audio Interfaces (ESAI and ESAI_1)
• Digital Audio Interface (DAX)
• Timer/Event Controller (TEC)
• GPIO (Ports B-E)
Each sheet provides room to write in the value of each bit and the hexadecimal value for each register.
Programmers can photocopy these sheets and reuse them for each application development project.
For details on the instruction set of the DSP56300 family chips, see the DSP56300 Family Manual.
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-15
Programming Sheets
Date:
Programmer:
Application:
Sheet 1 of 5
Carry
Overfow
Zero
Negative
Central Processor
Unnormalized ( U = Acc(47) xnor Acc(46) )
Extension
Limit
FFT Scaling ( S = Acc(46) xor Acc(45) )
I(1:0)
00
01
10
11
Scaling Mode
S(1:0) Scaling Mode
00
No scaling
01
Scale down
10
Scale up
11
Reserved
Interrupt Mask
Exceptions Masked
None
IPL 0
IPL 0, 1
IPL 0, 1, 2
Reserved
Sixteen-Bit Compatibilitity
Double Precision Multiply Mode
Loop Flag
DO-Forever Flag
Sixteenth-Bit Arithmetic
Reserved
Instruction Cache Enable
Arithmetic Saturation
Rounding Mode
Core Priority
CP(1:0) Core Priority
0 (lowest)
00
1
01
2
10
3 (highest)
11
23 22
21 20 19 18 17 16 15 14 13 12
CP1 CP0 RM SM
CE
*0
SA
FV
Extended Mode Register (MR)
Status Register (SR)
LF
DM
SC
*0
11 10
9
8
7
6
5
4
3
2
1
0
S1
I1
I0
S
L
E
U
N
Z
V
C
S0
Mode Register (MR)
Read/Write
Reset = $C00300
Condition Code Register (CCR)
* = Reserved, Program as 0
Figure D-1. Status Register (SR)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-16
Freescale Semiconductor
Programming Sheets
Date:
Application:
Programmer:
Sheet 2 of 5
Central Processor
Chip Operating Modes
MOD(D:A) Reset Vector
Description
See Core Configuration Section.
External Bus Disable
Stop Delay
Memory Switch Mode
CDP(1:0)
00
01
10
11
Core-DMA Priority
Core-DMA Priority
Core vs DMA Priority
DMA accesses > Core
DMA accesses = Core
DMA accesses < Core
Burst Mode Enable
TA Synchronize Select
Bus Release Timing
Asynchronous Bus Arbitration Enable
Address Priority Disable
Address Tracing Enable
Stack Extension Space Select
Extended Stack Underflow Flag
Extended Stack Overflow Flag
Extended Stack Wrap Flag
Stack Extension Enable
Memory Switch Mode
Patch Enable
23 22
PEN
21 20 19 18 17 16 15 14 13 12 11 10
MSW1 MSW0
9
8
7
SEN WRP EOV EUN XYS ATE APD ABE BRT TAS BE CDP1CDP0 MS
System Stack Control
Status Register (SCS)
Operating Mode Register (OMR)
Extended Chip Operating
Mode Register (COM)
Read/Write Reset = $00030X
6
SD
5
*0
4
3
2
1
EBD MD MC MB
0
MA
Chip Operating Mode
Register (COM)
* = Reserved, Program as 0
Figure D-2. Operating Mode Register (OMR)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-17
D-18
IDL1
0
0
1
1
IDL0
0
1
0
1
Enabled
No
Yes
Yes
Yes
ICL0
0
1
0
1
IPL
—
0
1
2
Enabled
No
Yes
Yes
Yes
IPL
—
0
1
2
IBL2
0
1
IAL1
0
0
1
1
8
7
6
IBL0
0
1
0
1
5
4
Enabled
No
Yes
Yes
Yes
3
2
IPL
—
0
1
2
Enabled
No
Yes
Yes
Yes
1
IPL
—
0
1
2
0
D5L1 D5L0 D4L1 D4L0 D3L1 D3L0 D2L1 D2L0 D1L1 D1L0 D0L1D0L0 IDL2 IDL1 IDL0 ICL2 ICL1 ICL0 IBL2 IBL1 IBL0 IAL2 IAL1 IAL0
9
IBL1
0
0
1
1
IAL0
0
1
0
1
IRQA Mode
IRQB Mode
Trigger
Level
Neg. Edge
Trigger
Level
Neg. Edge
IAL2
0
1
23 22 21 20 19 18 17 16 15 14 13 12 11 10
Trigger
Level
Neg. Edge
ICL1
0
0
1
1
IRQC Mode
IRQD Mode
Trigger
Level
Neg. Edge
Application:
Interrupt Priority
Register (IPR–C)
X:$FFFFFF R/W
Reset = $000000
IDL2
0
1
ICL2
0
1
CENTRAL PROCESSOR
Programming Sheets
Date:
Programmer:
Sheet 3 of 5
Figure D-3. Interrupt Priority Register–Core (IPR–C)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
Freescale Semiconductor
IPL
—
0
1
2
DAL1
0
0
1
1
Enabled
No
Yes
Yes
Yes
DAX IPL
DAL0
0
1
0
1
IPL
—
0
1
2
IPL
—
0
1
2
$0
* = Reserved, Program as 0
$0
$0
*0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0
9
8
ESAI IPL
7
6
5
4
3
SHL1 SHL0 Enabled
0
0
No
0
1
Yes
1
0
Yes
1
1
Yes
SHI IPL
2
IPL
—
0
1
2
ESL1 ESL0 Enabled
0
0
No
0
1
Yes
1
0
Yes
1
1
Yes
1
IPL
—
0
1
2
0
ESL11 ESL10 TAL1 TAL0 DAL1 DAL0 HDL1 HDL0 SHL1 SHL0 ESL1 ESL0
23 22 21 20 19 18 17 16 15 14 13 12 11 10
Enabled
No
Yes
Yes
Yes
TEC IPL
TAL0
0
1
0
1
IPL
—
0
1
2
HDI08 IPL
HDL1 HDL0 Enabled
0
0
No
0
1
Yes
1
0
Yes
1
1
Yes
Application:
Interrupt Priority
Register (IPR–P)
X:$FFFFFE R/W
Reset = $000000
TAL1
0
0
1
1
ESL1 ESL0 Enabled
0
0
No
0
1
Yes
1
0
Yes
1
1
Yes
ESAI_1 IPL
CENTRAL PROCESSOR
Programming Sheets
Date:
Programmer:
Sheet 4 of 5
Figure D-4. Interrupt Priority Register – Peripherals (IPR–P)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-19
D-20
0
1
1
PLL Control
Register (PCTL)
X:$FFFFFD Read/Write
Reset = $010005
PD3 PD2
PD1
PD0 COD PEN PSTP XTLD XTLR DF2
DF1
9
8
DF0 MF11 MF10 MF9 MF8
23 22 21 20 19 18 17 16 15 14 13 12 11 10
on DSP56366 operation
6
5
4
3
2
MF7 MF6 MF5 MF4 MF3 MF2
7
Division Factor Bits (DF0 – DF2)
DF2 – DF0
Division Factor DF
20
$0
$1
21
$2
22
•
•
•
•
•
•
$7
27
1 = External Xtal Freq <200KHz
0
MF1 MF0
1
Multiplication Factor Bits MF0 – MF11
MF11 – MF0 Multiplication Factor MF
1
$000
2
$001
3
$002
•
•
•
•
•
•
4095
$FFE
4096
$FFF
Application:
Note that bits XTLR, COD
and XTLD have no effect
Minimal
Lower
Higher
Power Consumption
during STOP
Crystal Range Bit (XTLR)
0 = External Xtal Freq >200KHz
1 = EXTAL Driven From
An External Source
0 = Enable Xtal Oscillator
XTAL Disable Bit (XTLD)
PSTP and PEN Relationship
Operation During STOP Recovery Time
for STOP
PLL
Oscillator
Disabled
Disabled
Long
Disabled
Enabled
Short
Enabled
Enabled
Short
Predivision Factor Bits (PD0 – PD3)
PD3 – PD0 Predivision Factor PDF
1
$0
2
$1
3
$2
•
•
•
•
•
•
16
$F
x
0
1
PSTP PEN
Clock Output Disable (COD)
0 = 50% Duty Cycle Clock
1 = Pin Held In High State
PLL
Programming Sheets
Date:
Programmer:
Sheet 5 of 5
Figure D-5. Phase Lock Loop Control Register (PCTL)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
Programming Sheets
Date:
Application:
Programmer:
Sheet 1 of 6
HOST (HDI08)
DSP Side
Host Receive Data (usually read by program)
23 22
21 20 19 18 17 16 15 14 13 12
Receive High Byte
11 10
9
8
7
6
Receive Middle Byte
5
4
3
2
1
0
1
0
Receive Low Byte
Host Receive Register (HORX)
X:$FFFEC6 Read Only
Reset = empty
Host Transmit Data (usually loaded by program)
23 22
21 20 19 18 17 16 15 14 13 12
Transmit High Byte
11 10
Transmit Middle Byte
9
8
7
6
5
4
3
2
Transmit Low Byte
Host Transmit Register (HOTX)
X:$FFFEC7 Write Only
Reset = empty
Figure D-6. Host Receive and Host Transmit Data Registers
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-21
Programming Sheets
Date:
Application:
Programmer:
Sheet 2 of 6
HOST
(HDI08)
Host Receive Interrupt Enable
0 = Disable 1 = Enable if HRDF = 1
Host Transmit Interrupt Enable
0 = Disable 1 = Enable if HTDE = 1
Host Command Interrupt Enable
0 = Disable 1 = Enable if HCP = 1
Host Flag 2
Host Flag 3
Host DMA Control Bits
See Table 6-5 in Section 6
Host Control Register (HCR)
X:$FFFFC2 Read /Write
Reset = $0
15
8
*0 *0
DSP Side
7
6
5
4
HDM2 HDM1 HDM0 HF3
3
HF2
2
1
0
HCIE HTIE HRIE
* = Reserved, Program as 0
Host Receive Data Full
0 = Wait
1 = Read
Host Transmit Data Empty
0 = Wait
1 = Write
Host Command Pending
0 = Wait
1 = Ready
Host Flags
Read Only
DMA status
0 = DMA Mode Disabled
1 = DMA Mode Enabled
Host Status Register (HSR)
X:$FFFFC3
Reset = $2
15
8 7
*0 *0
DMA
6
5
*0 *0
4
3
HF1
HF0
2
1
0
HCP HTDE HRDF
* = Reserved, Program as 0
Figure D-7. Host Control and Status Registers
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-22
Freescale Semiconductor
Programming Sheets
Date:
Application:
Programmer:
Sheet 3 of 6
DSP Side
HOST (HDI08)
15
8
7
*0 *0
Host Base Address Register (HBAR)
X:$FFFFC5
Reset = $80
BA9
5
4
3
2
1
0
BA8
BA7
BA6
BA5
BA4
BA3
Host GPIO Port Enable
0 = GPIO Pins Disconnected
1 = GPIO Pin Enable
Host Request Open Drain
HDRQ
HROD
HREN/HEW
1
0
0
1
1
0
1
0
1
1
1
1
Host Address Line 8 Enable
0 Æ HA8 = GPIO, 1 Æ HA8 = HA8
Host Address Line 9 Enable
0 Æ HA9 = GPIO, 1 Æ HA9 = HA9
Host Data Strobe Polarity
0 = Strobe Active Low, 1 = Strobe Active High
Host Chip Select Enable
0 Æ HCS/HAI0 = GPIO,
1 Æ HCS/HA10 = HCS, if HMUX = 0
1 Æ HCS/HA10 = HC10, if HMUX = 1
Host Address Strobe Polarity
0 = Strobe Active Low, 1 = Strobe Active High
Host Multiplexed Bus
0 = Nonmultiplexed, 1 = Multiplexed
Host Request Enable
0 Æ HOREQ/HACK = GPIO,
1 Æ HOREQ = HOREQ,
if HDRQ = 0
Host Dual Data Strobe
0 = Single Strobe, 1 = Dual Strobe
Host Chip Select Polarity
0 = HCS Active Low
HTRQ & HRRQ Enable
1 = HCS Active High
HDRQ
0
0
1
1
6
BA10
Host Acknowledge Enable
0 Æ HACK = GPIO
If HDRQ & HREN = 1,
HACK = HACK
Host Request Polarity
HRP
HOREQ Active Low
0
HOREQ Active High
1
HTRQ,HRRQ Active Low
0
HTRQ,HRRQ Active High
1
Host Enable
0 Æ HDI08 Disable
Pins = GPIO
1 Æ HDI08 Enable
Host Acknowledge Polarity
0 = HACK Active Low, 1 = HACK Active High
15
Host Port Control
Register (HPCR)
X:$FFFFC4
Read/Write
Reset = $0
HAP
14
13
12
HRP
HCSP
HDDS HMUX
11
10
9
8
7
6
5
HASP
HDSP
HROD
*0
HEN
HAEN
4
3
2
1
0
HREN HCSEN HA9EN HA8EN HGEN
* = Reserved, Program as 0
Figure D-8. Host Base Address and Host Port Control
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-23
Programming Sheets
Date:
Application:
Programmer:
Sheet 4 of 6
HOST (HDI08)
Processor Side
Receive Request Enable
DMA Off
0 = Interrupts Disabled
DMA On
0 = Host -> DSP
1 = Interrupts Enabled
1 = DSP -> Host
Transmit Request Enable
DMA Off
0 = Interrupts Disabled
DMA On
0 = DSP -> Host
1 = Interrupts Enabled
1 = Host -> DSP
HDRQ
0
1
HOREQ/HTRQ
HOREQ
HTRQ
HACK/HRRQ
HACK
HRRQ
Host Flags
Write Only
Host Little Endian
Initialize (Write Only)
0 = No Action
1 = Initialize DMA
HDM[2:0] = 000
For HM[1:0] bits, see
Table 6-12 in Section 6
7
6
5
4
3
INIT
0*
HLEND
HF1
HF0
HM1
HM0
HDM[2:0] = 100
HDM1 and/or HDM0 = 1
INIT
INIT
HF1
(HDM1) (HDM0) HF1
HF0
HF0
2
1
0
HDRQ TREQ RREQ
0*
0*
TREQ RREQ
TREQ
RREQ
Interrupt Control Register (ICR)
$0 R/W
Reset = $0
Receive Data Register Full
0 = Wait
1 = Read
Transmit Data Register Empty
0 = Wait
1 = Write
Transmitter Ready
0 = Data in HI 1 = Data Not in HI
Host Flags
Read Only
Host Request
0 = HOREQ Deasserted 1 = HOREQ Asserted
7
HREQ
Interrupt Status Register (ISR)
$2 R/W
Reset = $0
6
5
*0 *0
4
3
HF3
HF2
2
1
TRDY TXDE
0
RXDF
* = Reserved, Program as 0
Figure D-9. Host Interrupt Control and Interrupt Status
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-24
Freescale Semiconductor
Programming Sheets
Date:
Application:
Programmer:
Sheet 5 of 6
Processor Side
HOST (HDI08)
7
6
5
4
3
2
1
0
IV7
IV6
IV5
IV4
IV3
IV2
IV1
IV0
Interrupt Vector Register (IVR)
$3 R/W
Reset = $0F
Contains the interrupt vector or number
Host Vector
Contains Host Command Interrupt Address ÷ 2
Host Command
Handshakes Executing Host Command Interrupts
7
6
5
4
3
2
1
0
HC
HV6
HV5
HV4
HV3
HV2
HV1
HV0
Command Vector Register (CVR)
$1 R/W
Reset = $32
Contains the host command interrupt address
Figure D-10. Host Interrupt Vector and Command Vector
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-25
Programming Sheets
Date:
Application:
Programmer:
Sheet 6 of 6
HOST (HDI08)
Processor Side
Host Receive Data (HLEND = 0)
7
0 7
Receive Low Byte
0 7
Receive Middle Byte
0 7
Not Used
0
$7
0
Receive High Byte
$6
0
0
0
$5
0
0
0
0
$4
Host Receive Data (HLEND = 1)
7
0 7
Receive Low Byte
0 7
Receive Middle Byte
0 7
Not Used
0
$5
$6
Receive Byte Registers
$7, $6, $5, $4 Read Only
Reset = Empty
0
Receive High Byte
0
0
0
$7
0
0
0
0
$4
Receive Byte Registers
Host Transmit Data (HLEND = 0)
7
0 7
Transmit Low Byte
0 7
Transmit Middle Byte
0 7
Not Used
0
$7
0
Transmit High Byte
$6
0
0
0
$5
0
0
0
0
$4
Host Transmit Data (HLEND = 1)
7
0 7
Transmit Low Byte
0 7
Transmit Middle Byte
0 7
Not Used
0
$5
$6
Transmit Byte Registers
$7, $6, $5, $4 Write Only
Reset = Empty
0
Transmit High Byte
0
$7
0
0
0
0
0
0
$4
Transmit Byte Registers
Figure D-11. Host Receive and Transmit Byte Registers
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-26
Freescale Semiconductor
Freescale Semiconductor
HA6 HA5 HA4 HA3
0
9
8
7
6
5
4
3
2
1
0
0
*0
11
HDM7
10
0
8
7
6
5
4
3
2
1
0
HDM6HDM5HDM4HDM3HDM2HDM1HDM0 HRS CPOLCPHA
9
HCKR Divider Modulus
as 0
*= Reserved, writeSHI
Clock Control Register (HCKR)
0
0
CPOL CPHA
Result
0
0
SCK active low, strobe on rising edge
0
1
SCK active low, strobe on falling edge
1
0
SCK active high, strobe on falling edge
1
1
SCK active high, strobe on rising edge
HRS
Result
0
Prescaler operational
1
Prescaler bypassed
HFM1HFM0
15 14 13 12
*0 *0 *0 *0 *0 *0 *0 *0 *0 *0
23 22 21 20 19 18 17 16
0
11 10
Application:
SHI Clock Control
Register (HCKR)
X:$FFFF90
Reset = $000001
15 14 13 12
SHI Slave Address Register (HSAR)
HA1
*0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0
23 22 21 20 19 18 17 16
HSAR I2C Slave Address
Slave address = Bits HA6-HA3, HA1 and external pins HA2, HA0
Slave address after reset = 1011[HA2]0[HA0]
HFM1 HFM0 SHI Noise Reduction Filter Mode
0
0
Bypassed (Filter disabled)
0
1
Reserved
1
0
Narrow spike tolerance
1
1
Wide spike tolerance
SHI Slave Address
Register (HSAR)
X:$FFFF92
Reset = $Bx0000
SHI
Programming Sheets
Date:
Programmer:
Sheet 1 of 3
Figure D-12. SHI Slave Address and Clock Control Registers
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-27
D-28
SHI Host Receive 23
Data Register (HRX)
X:$FFFF94 Read Only
Reset = $xxxxxx
SHI Host Transmit 23
Data Register (HTX)
X:$FFFF93 Write Only
Reset = $xxxxxx
SHI
15 14 13 12 11 10
8
15 14 13 12 11 10
9
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
0
0
Application:
SHI Host Receive Data Register (HRX) (FIFO) 10 words deep
22 21 20 19 18 17 16
9
Host Receive Data Register Contents
SHI Host Transmit Data Register (HTX)
22 21 20 19 18 17 16
Host Transmit Data Register Contents
Programming Sheets
Date:
Programmer:
Sheet 2 of 3
Figure D-13. SHI Transmit and Receive Data Registers
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
Freescale Semiconductor
** = Reserved, write as 0
*0
21 20
19
HBUSY HBER HROE HRFF
23 22
SPI Mode
Not Busy
SS detected
(Slave)
-ORHTX/IOSR not
empty (master)
*0
18
17
HRNE
*0
16
14
13
12
11
10
9
8
7
6
5
Slave mode
Master mode
4
3 2
1
HI2C Result
0 SPI mode
1 I2C mode
0
HEN Description
0 SHI disabled
1 SHI enabled
Description
I2C Slave Clock
Freeze Disabled
I2C Slave Clock
Freeze Enabled
HTDE HTUEHRIE1HRIE0 HTIE HBIE HIDLE HRQE1 HRQE0 HMSTHFIF0HCKFR HM1 HM0 HI2C HEN
15
0
1
HMST Result
1
HCKFR
0
Description
8 bit data
16 bit data
24 bit data
Reserved
HFIFO Description
0
1 level FIFO
1
10 level
HM1 HM0
0
0
0
1
1
0
1
1
Date:
Programmer:
SHI Control/Status
Register (HCSR)
X:$FFFF91
Reset = $008200
I2 C
Stop event
SHI detects
Start
HTIE Description
0
Transmit Interrupt disabled
1
Transmit Interrupt activated
HBIE Description
0
Bus Error Interrupt disabled
1
Bus Error Interrupt enabled
HIDLE Description
0
Bus busy
1
Stop event
Condition
n.a.
HRNE=1 & HROE=0
HROE=1
n.a.
HRFF=1 & HROE=0
HROE=1
HRQE1 HRQE0 HREQ Pin Operation
0
0
High impedance
0
1
Asserted if IOSR ready to receive new word
1
0
Asserted if IOSR ready to transmit new word
1
1
I2C: Asserted if IOSR ready to transmit or receive
SPI: Asserted if OISR ready to transmit and receive
Application:
HBUSY
0
1
HBER
I 2C
SPI Mode
0
No error
No error
1
No acknowledge SS asserted
Host Receive Overrun Error
Read Only Status Bit
Host Receive FIFO Full
Read Only Status Bit
Host Receive FIFO Not Empty
Read Only Status Bit
Host Transfer Data Empty
Read Only Status Bit
Host Transmit Underrun Error
Read Only Status Bit
HRIE1 HRIE0
Interrupt
disabled
0
0
Receive FIFO not empty
1
0
Receive Overrun Error
0
reserved
1
1
Receive FIFO full
1
Receive Overrun Error
SHI
Programming Sheets
Sheet 3 of 3
Figure D-14. SHI Host Control/Status Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-29
D-30
0
22
TFSD
THCKD
TCKD
21
20
Description
TFSP
19
TCKP
18
TFP3
17
15
TFP2 TFP1
16
TFP0
14
TDC4
13
TDC3
12
TDC2
11
TDC1
10
Transmitter Clock Polarity set to clockout on rising edge of
transmit clock, latch in on falling edge of transmit clock.
Transmitter Clock Polarity set to clockout on falling edge of
transmit clock, latch in on rising edge of transmit clock
THCKP
1
0
TCKP
Frame sync polarity negative
Frame sync polarity positive
TDC0
9
TPSR
8
Description
6
TPM7 TPM6
7
TPM5
5
TPM4
4
TPM3
3
TPM2
2
0
AA1777
TPM1 TPM0
1
Specifies the prescaler divide rate is
for the transmitter clock generator
Range from $00 - $FF (1 - 256).
See 8.3.1.1
Description
Divide by 8 prescaler bypassed
Divide by 8 prescaler operational
TPM [7:0]
0
1
Description
Divider control. Range $00 - $FF (1 - 32)
See 8.3.1.3
TPSR
TDC [4:0]
Sets divide rate for transmission
high frequency clock
Range $0 - $F (1 -16). See 8.3.1.4
Description
ESAI
Application:
23
0
1
Description
1
TFSP
Transmitter High Frequency Clock Polarity set to clockout
on falling edge of transmit clock, latch in on rising edge
0
TFP [3:0]
TCCR - ESAI Transmit Clock Control Register
X: $FFFFB6 Reset: $000000
Transmitter High Frequency Clock Polarity set to clockout
on rising edge of transmit clock, latch in on falling edge
THCKP
Description
External clock source used
0
1
Internal clock source
Description
FST is output
FST is input
Description
HCKT is output
HCKT is input
Description
TCKD
0
1
TFSD
1
THCKD
Programming Sheets
Date:
Programmer:
Figure D-15. ESAI Transmit Clock Control Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
Description
Freescale Semiconductor
22
TIE
23
0
1
Description
21
0
1
Transmitter Normal Operation
0
1
0
1
20
Zero Padding disabled
18
*
19
0
Description
16
15
14
13
12
11
10
9
0
1
8
Data shifted out MSB first
0
1
7
TE5
TE4
4
TE3
3
TE2
2
1
5
Transmitter disabled
Transmitter enabled
Description
0
6
TE [0:5]
Data shifted out LSB first
Description
Data right aligned
Data left aligned
Description
AC97
Reserved
Network mode
TSHFD
0
1
TWA
1
0
1
0
0
Network Mode
Normal mode
Defines slot and data word length
See 8.3.2.10 and table 8-5
TMOD1 TMOD0
1
TE1
1
ESAI
Description
1-bit clock period frame sync
PADC TFSR TFSL TSWS4 TSWS3 TSWS2 TSWS1 TSWS0 TMOD1 TMOD0 TWA TSHFD
17
Word-length frame sync synchronous to
beginning of data word first slot
Word-length frame sync 1 clock before
beginning of data word first slot
TPR
1
0
TFSR
Zero Padding enabled
Description
PADC
Transmitter Personal Reset
Description
Transmit Exception Interrupt enabled
Transmit Exception Interrupt disabled
Description
TPR
TEIE
Transmit Even Slot Data Interrupt enabled
Description
Word length frame sync
TSWS [0:4]
0
1
TFSL
TCR - ESAI Transmit Control Register
X: $FFFFB5 Reset: $000000
Transmit Even Slot Data Interrupt disabled
TEDIE TEIE
TEDIE
Transmit Interrupt enabled
Transmit Interrupt disabled
Description
Transmit Last Slot Interrupt enabled
Transmit Last Slot Interrupt disabled
0
TE0
Application:
TLIE
0
1
TIE
0
1
TLIE
Programming Sheets
Date:
Programmer:
Figure D-16. ESAI Transmit Control Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-31
D-32
23
21
20
RHCKP
1
0
RFSP
19
RFSP
1
0
Description
RCKP
18
16
15
RFP3 RFP2 RFP1
17
RFP0
14
RDC4
13
RDC3
12
11
RDC2
Clockout on rising edge of receive clock,
latch in on falling edge of receive clock
Clockout on falling edge of receive clock,
latch in on rising edge of receive clock
Description
Frame sync polarity negative
Frame sync polarity positive
RCKP
0
1
Description
Clockout on rising edge of receive clock,
latch in on falling edge of receive clock
Clockout on falling edge of receive clock,
latch in on rising edge of receive clock
Internal clock source
RHCKP
0
1
10
9
RDC1 RDC0
Description
ESAI
8
RPSR
0
1
Description
6
5
4
3
2
RPM7 RPM6 RPM5 RPM4 RPM3 RPM2
7
0
RPM1 RPM0
1
Specifies prescaler ratio for the
receive clock generator
Range from $00 - $FF (1 - 256).
See 8.3.3.1
Description
Divide by 8 prescaler bypassed
Divide by 8 prescaler operational
RPM [7:0]
RPSR
Controls frame rate dividers
Range 00000 - 11111 (1-32) See 8.3.3.2
Description
Sets divide rate for receiver high frequency clock
Range $0 - $F (1 -16). See 8.3.3.4
RDC [4:0]
RFP [3:0]
RCCR - ESAI Receive Clock Control Register
X: $FFFFB8 Reset: $000000
External clock source used
FSR is output
Description
Description
FSR is input
RCKD
RFSD RCKD
22
0
1
RFSD
HCKR is output
HCKR is input
Description
Application:
RHCKD
0
1
RHCKD
Programming Sheets
Date:
Programmer:
Figure D-17. ESAI Receive Clock Control Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
Freescale Semiconductor
22
21
20
19
18
16
RFSL
15
RSWS4
14
12
RSWS3 RSWS2
13
10
9
8
0
1
1
1
7
1
0
1
0
Network Mode
Description
6
Rsvd
Rsvd
4
RE3
3
0
RE0
1
RE1
2
RE2
Receiver enabled
1
5
Receiver disabled
0
Description
Data shifted in LSB first
1
RE [0:3]
Description
Data shifted in MSB first
0
Data right aligned
Data left aligned
AC97
Reserved
Network mode
Normal mode
RSHFD
RWA
0
0
RMOD1 RMOD0
RSWS1 RSWS0 RMOD1 RMOD0 RWA RSHFD
11
1
17
Word-length frame sync 1 clock before
beginning of data word first slot
0
Description
Defines slot and data word length
See 8.3.4.9 and table 8-8
ESAI
Application:
RLIE RIE REDIE REIE RPR Rsvd Rsvd RFSR
23
Description
Receiver Personal Reset
1
Word-length frame sync synchronous to
beginning of data word first slot
Receiver Normal Operation
0
RFSR
Description
Receive Exception Interrupt enabled
1
RPR
Receive Exception Interrupt disabled
0
Description
Receive Even Slot Data Interrupt enabled
REIE
Receive Even Slot Data Interrupt disabled
1
RSWS [0:4]
Word length frame sync
1-bit clock period frame sync
1
Description
0
RFSL
RCR - ESAI Receive Control Register
X: $FFFFB7 Reset: $000000
0
Description
Receive interrupt enabled
1
REDIE
Receive Interrupt disabled
0
Description
Receive Last Slot interrupt enabled
1
RIE
Receive Last Slot Interrupt disabled
Description
0
RLIE
Programming Sheets
Date:
Programmer:
Figure D-18. ESAI Receive Control Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-33
D-34
23
22
20
19
18
17
16
15
14
13
12
11
10
9
Description
7
TEBE
ALC
OF(2:0)
SYN
6
Description
5
4
3
0
OF0
1
OF1
2
OF2
Holds data to send to OFn pin.
See 8.3.5.1 to .3
Reserved
Description
Synchronous mode
Asynchronous mode
8
0
1
Description
Controls FSR pin.
See 8.3.5.6 and table 8-9
SYN
TEBE
ESAI
Application:
21
Reserved
Description
0
1
Data left aligned to bit 15
Description
Data left aligned to bit 23
ALC
SAICR - ESAI Common Control Register
X: $FFFFB4 Reset: $000000
Programming Sheets
Date:
Programmer:
Figure D-19. ESAI Common Control Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
Freescale Semiconductor
Description
23
22
Reserved
21
20
Description
19
18
16
TEDE
17
TODE
Transmit odd-data register empty
Transmit odd-data register not empty
Description
15
TDE
14
TUE
13
TFS
11
10
9
RODF REDF
8
Description
7
6
RFS
5
2
1
0
Description
4
3
0
IF0
1
IF1
2
IF2
Holds data sent from SCKR pin.
See 8.3.6.1
Holds data sent from FSR pin.
See 8.3.6.2
Holds data sent from HCKR pin.
See 8.3.6.3
Description
Reserved
Description
Receive frame sync did not occur
during word reception
Receive frame sync did occur
during word reception
IF [0:2]
1
0
RFS
0 No receiver overrun error
1 Receiver overrun error
Description
Receive data register full
Receive data register empty
ROE
ROE
0
1
Description
Receive even-data register full
Receive even-data register empty
RDF
RDF
0
1
REDF
ESAI
Application:
0
1
TODE
Transmit even-data registers not empty
0
1
Transmit even-data registers empty
Description
Transmit data registers empty
Transmit data registers not empty
Description
TEDE
0
1
TDE
Transmit underrun error
No transmit underrun error
0
1
Transmit frame sync occurred during word transmission
1
Description
Transmit Frame sync did not occur during word transmission
0
TUE
Description
TFS
12
Receive odd-data register full
Receive odd-data register empty
Description
Reserved
0
1
RODF
SAISR - ESAI Status Register
X: $FFFFB3 Reset $000000
Programming Sheets
Date:
Programmer:
Figure D-20. ESAI Status Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-35
D-36
23
22
21
20
18
17
16
15
14
13
1
0
1
0
1
EMUX1
EMUX2
EMUX2
EMUX3
EMUX3
10
0
EMUX1
11
1
EMUX0
12
0
EMUX0
EMUXR bit
9
8
7
6
disconnected
5
SDO3/SDI2 [PC8]
disconnected
SDO2/SDI3 [PC9]
disconnected
SDO1[PC10]
disconnected
SDO0 [PC11]
ESAI pin
4
2
1
0
EMUX3 EMUX2 EMUX1 EMUX0
3
SDO3_1/SDI2_1 [PE8]
disconnected
SDO2_1/SDI3_1 [PE9]
disconnected
SDO1_1 [PE10]
disconnected
SDO0_1 [PE11]
disconnected
ESAI_1 pin
Application:
19
Reserved
Description
ESAI_1
EMUXR ESAI/ESAI_1 Pin Selection
EMUXR - ESAI_1 Multiplex Control Register
Y: $FFFFAF Reset: $000000
Programming Sheets
Date:
Programmer:
Figure D-21. ESAI_1 Multiplex Control Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
0
Freescale Semiconductor
22
TFSD
THCKD
20
THCKP
1
0
TFSP
19
TCKP
18
TFP3
17
15
TFP2 TFP1
16
TFP0
14
TDC4
13
TDC3
12
TDC2
11
TDC1
10
Transmitter Clock Polarity set to clockout on rising edge of
transmit clock, latch in on falling edge of transmit clock.
Transmitter Clock Polarity set to clockout on falling edge of
transmit clock, latch in on rising edge of transmit clock
Description
Frame sync polarity negative
TCKP
TCKD
21
Description
TDC0
9
TPSR
8
Description
6
TPM7 TPM6
7
TPM5
5
TPM4
4
TPM3
3
TPM2
2
0
AA1777
TPM1 TPM0
1
Specifies the prescaler divide rate is
for the transmitter clock generator
Range from $00 - $FF (1 - 256).
Description
Divide by 8 prescaler bypassed
Divide by 8 prescaler operational
TPM [7:0]
0
1
Description
Divider control. Range $00 - $FF (1 - 32)
TPSR
TDC [4:0]
Range $0 - $F (1 -16).
Divider control.
Description
Application:
23
0
1
Frame sync polarity positive
Reserved
Keep cleared for proper operation
TFSP
1
0
THCKP
TFP [3:0]
ESAI_1
TCCR_1 - ESAI_1 Transmit Clock Control Register
Y: $FFFF96 Reset: $000000
Description
External clock source used
0
1
Internal clock source
Description
FST_1 is output
FST_1 is input
Description
Must be set for proper operation
Reserved
Description
TCKD
0
1
TFSD
1
THCKD
Programming Sheets
Date:
Programmer:
Figure D-22. ESAI_1 Transmit Clock Control Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-37
D-38
Description
22
TIE
23
0
1
Description
21
0
1
Transmitter Normal Operation
0
1
20
Zero Padding disabled
0
1
18
*
19
0
Description
16
15
14
13
12
11
10
9
8
7
TE5
TE4
4
TE3
3
TE2
2
Transmitter enabled
1
5
Transmitter disabled
Description
0
6
TE [0:5]
Data shifted out LSB first
Description
Data shifted out MSB first
0
1
Data right aligned
Data left aligned
Description
AC97
Reserved
Network mode
TSHFD
0
1
TWA
0
1
1
0
1
0
0
Network Mode
Normal mode
Defines slot and data word length
TMOD1 TMOD0
1
TE1
1
TE0
0
ESAI_1
Description
1-bit clock period frame sync
PADC TFSR TFSL TSWS4 TSWS3 TSWS2 TSWS1 TSWS0 TMOD1 TMOD0 TWA TSHFD
17
Word-length frame sync synchronous to
beginning of data word first slot
Word-length frame sync 1 clock before
beginning of data word first slot
TPR
1
0
TFSR
Zero Padding enabled
Description
PADC
Transmitter Personal Reset
Description
Transmit Exception Interrupt enabled
Transmit Exception Interrupt disabled
Description
TPR
TEIE
Transmit Even Slot Data Interrupt enabled
Description
Word length frame sync
TSWS [0:4]
0
1
TFSL
TCR_1 - ESAI_1 Transmit Control Register
Y: $FFFF95 Reset: $000000
Transmit Even Slot Data Interrupt disabled
TEDIE TEIE
TEDIE
Transmit Interrupt enabled
Transmit Interrupt disabled
Description
Transmit Last Slot Interrupt enabled
Transmit Last Slot Interrupt disabled
Application:
TLIE
0
1
TIE
0
1
TLIE
Programming Sheets
Date:
Programmer:
Figure D-23. ESAI_1 Transmit Control Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
Freescale Semiconductor
23
RFSD RCKD
20
RHCKP
1
0
19
RFSP
1
RCKP
18
16
15
RFP3 RFP2 RFP1
17
RFP0
14
RDC4
13
RDC3
12
11
RDC2
Clockout on rising edge of receive clock,
latch in on falling edge of receive clock
Clockout on falling edge of receive clock,
latch in on rising edge of receive clock
Description
Frame sync polarity negative
RCKP
0
Description
Frame sync polarity positive
Reserved
RFSP
0
1
Description
Keep cleared for proper operation
Internal clock source
RHCKP
0
1
10
9
RDC1 RDC0
8
RPSR
0
1
Description
6
5
4
3
2
RPM7 RPM6 RPM5 RPM4 RPM3 RPM2
7
0
RPM1 RPM0
1
Specifies prescaler ratio for the
receive clock generator
Range from $00 - $FF (1 - 256).
Description
Divide by 8 prescaler bypassed
Divide by 8 prescaler operational
RPM [7:0]
RPSR
Controls frame rate dividers
Range 00000 - 11111 (1-32)
Description
Description
Sets divide rate
Range $0 - $F (1 -16).
RDC [4:0]
RFP [3:0]
ESAI_1
RCCR_1 - ESAI_1 Receive Clock Control Register
Y: $FFFF98 Reset: $000000
External clock source used
Description
FSR_1 is output
FSR_1 is input
RCKD
21
0
1
Description
Must be set for proper operation
RFSD
22
Description
Reserved
Application:
RHCKD
0
1
RHCKD
Programming Sheets
Date:
Programmer:
Figure D-24. ESAI_1 Receive Clock Control Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-39
D-40
22
21
20
19
18
17
16
RFSL
15
RSWS4
14
12
RSWS3 RSWS2
13
10
9
8
1
1
7
0
1
1
0
Description
6
Rsvd
Rsvd
4
RE3
3
0
RE0
1
RE1
2
RE2
1
5
Receiver disabled
Receiver enabled
0
Description
Data shifted in LSB first
1
RE [0:3]
Description
Data shifted in MSB first
0
Data right aligned
Data left aligned
AC97
Reserved
Network mode
Normal mode
Network Mode
RSHFD
RSWS1 RSWS0 RMOD1 RMOD0 RWA RSHFD
11
Word-length frame sync 1 clock before
beginning of data word first slot
1
1
0
RWA
0
0
RMOD1 RMOD0
Defines slot and data word length
Description
ESAI_1
Application:
RLIE RIE REDIE REIE RPR Rsvd Rsvd RFSR
23
Word-length frame sync synchronous to
beginning of data word first slot
0
Receiver Personal Reset
1
Description
Receiver Normal Operation
0
RFSR
Description
Receive Exception Interrupt enabled
1
RPR
Receive Exception Interrupt disabled
0
Description
Receive Even Slot Data Interrupt enabled
REIE
Receive Even Slot Data Interrupt disabled
1
RSWS [0:4]
1-bit clock period frame sync
1
Description
Word length frame sync
0
RFSL
RCR_1 - ESAI_1 Receive Control Register
Y: $FFFF97 Reset: $000000
0
Description
Receive interrupt enabled
1
REDIE
Receive Interrupt disabled
0
Description
Receive Last Slot interrupt enabled
1
RIE
Receive Last Slot Interrupt disabled
Description
0
RLIE
Programming Sheets
Date:
Programmer:
Figure D-25. ESAI_1 Receive Control Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
Freescale Semiconductor
23
22
20
19
18
17
16
15
14
13
12
11
10
9
Description
7
TEBE
ALC
OF(2:0)
SYN
6
Description
5
4
3
0
OF0
1
OF1
2
OF2
Holds data to send to OFn pin.
Reserved
Description
Synchronous mode
Asynchronous mode
8
0
1
Description
Controls FSR_1 pin.
SYN
TEBE
ESAI_1
Application:
21
Reserved
Description
0
1
Data left aligned to bit 15
Description
Data left aligned to bit 23
ALC
SAICR_1 - ESAI_1 Common Control Register
Y: $FFFF94 Reset: $000000
Programming Sheets
Date:
Programmer:
Figure D-26. ESAI_1 Common Control Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-41
D-42
Description
23
22
Reserved
21
20
Description
19
18
16
TEDE
17
TODE
Transmit odd-data register empty
Transmit odd-data register not empty
Description
15
TDE
14
TUE
13
TFS
11
10
9
RODF REDF
Description
No receiver overrun error
6
RFS
7
ROE
5
3
0
IF0
1
IF1
2
IF2
Holds data sent from HCKR_1 pin.
2
4
Holds data sent from FSR_1 pin.
Holds data sent from SCKR_1 pin.
Description
Reserved
Description
1
0
Description
Receive frame sync did not occur
during word reception
Receive frame sync did occur
during word reception
IF [0:2]
1
0
RFS
0
1 Receiver overrun error
ROE
Receive data register full
Receive data register empty
Description
8
0
1
RDF
Receive even-data register full
Receive even-data register empty
Description
RDF
0
1
REDF
Application:
0
1
TODE
Transmit even-data registers not empty
0
1
Transmit even-data registers empty
Description
Transmit data registers empty
Transmit data registers not empty
Description
TEDE
0
1
TDE
Transmit underrun error
No transmit underrun error
0
1
Transmit frame sync occurred during word transmission
1
Description
Transmit Frame sync did not occur during word transmission
0
TUE
Description
12
Receive odd-data register full
Receive odd-data register empty
Description
Reserved
0
1
RODF
TFS
ESAI_1
SAISR_1 - ESAI_1 Status Register
Y: $FFFF93 Reset $000000
Programming Sheets
Date:
Programmer:
Figure D-27. ESAI_1 Status Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
Freescale Semiconductor
*0 *0 *0 *0 *0 *0 *0 *0
XCB XUB XVB XCA XUA XVA
8
7
6
5
4 3 2 1 0
*
0 *
*0 *0 *0 *0 *0 0 *0 *0 *0
23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
Channel B Validity (XVB)
Channel B User Data
(XUB)
Channel A Validity (XVA)
Channel A User Data
(XUA)
DAX Non-Audio Data
Register (XNADR)
X:$FFFFD1
Reset = $00XX00
DAX
Programming Sheets
Application:
Date:
Programmer:
Sheet 1 of 2
Figure D-28. DAX Non-Audio Data Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-43
D-44
1
0
1
1
1
6
8
5
4
3
* = Reserved; write as 0
2
7
1
5
4
3
2
0
XBLK XAURXADE
1
XADE DAX Audio Data Empty
0
Register(s) full
1
Register(s) empty
6
0
XSB XCS1 XCS0 XBIE XUIE XDIE
XAUR DAX Underrun error
0
No error
1
Underrun error
7
*0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0
23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
XBLK DAX Block transfer
0
not last frame
1
191st frame transmission
8
ACI Pin, f = 512 x fs
ACI Pin, f = 384 x fs
ACI Pin, f = 256 x fs
DSP Core Clock (f = 1024 x fs)
XDIE Aud. Dat. Reg. Emp. Int. En.
0
Disabled
1
Enabled
*0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0 *0
0
0
XCS0 DAX Clock Source
0
XCS1
XUIE DAX Underrun Int. Enable
0
Disabled
1
Enabled
23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
XSB DAX Start Block
0
Disabled
1
Force Block Start
XBIE DAX Block Trans. Int. Enable
0
Disabled
1
Enabled
Application:
DAX Status
Register (XSTR)
X:$FFFFD4
Reset = $000000
DAX Control
Register (XCTR)
X:$FFFFD0
Reset = $000000
DAX
Programming Sheets
Date:
Programmer:
Figure D-29. DAX Control and Status Registers
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
Programming Sheets
Date:
Application:
Programmer:
Sheet 1 of 3
TEC
PS (1:0)
00
01
10
11
Prescaler Clock Source
Internal CLK/2
TIO0
Reserved
Reserved
23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
*0
PS1
PS0
8
7
6
5
4
3
2
1
0
Prescaler Preload Value (PL [0:20])
* = Reserved, Program as 0
Timer Prescaler Load Register
TPLR:$FFFF83 Read/Write
Reset = $000000
23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
*0 *0 *0
8
7
6
5
4
3
2
1
0
Current Value of Prescaler Counter (PC [0:20])
Timer Prescaler Count Register
TPCR:$FFFF82 Read Only
Reset = $000000
*= Reserved, Program as 0
Figure D-30. Timer Prescaler Load and Prescaler Count Registers (TPLR, TPCR)
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-45
Programming Sheets
Date:
Application:
Programmer:
Sheet 2 of 3
TEC
Inverter Bit 8
0 = 0- to-1 transitions on TIO input increment the counter,
or high pulse width measured, or high pulse output on TIO
1 = 1-to-0 transitions on TIO input increment the counter,
or low pulse width measured, or low pulse output on TIO
Timer Reload Mode Bit 9
0 = Timer operates as a free
running counter
TC (3:0)
0000
0001
0010
0011
0100
0101
0110
0111
1000
1001
1010
1011
1100
1101
1110
1111
1 = Timer is reloaded when
selected condition occurs
Direction Bit 11
0 = TIO pin is input
1 = TIO pin is output
Data Input Bit 12
0 = Zero read on TIO pin
1 = One read on TIO pin
Data Output Bit 13
0 = Zero written to TIO pin
1 = One written to TIO pin
Timer Control Bits 4 – 7 (TC0 – TC3)
TIO
Clock
Mode
GPIO Internal Timer
Output Internal Timer Pulse
Output Internal Timer Toggle
Input External Event Counter
Internal Input Width
Input
Internal Input Period
Input
Internal Capture
Input
Output Internal Pulse Width Modulation
Reserved
–
–
Output Internal Watchdog Pulse
Output Internal Watchdog Toggle
Reserved
–
–
Reserved
–
–
Reserved
–
–
Reserved
–
–
Reserved
–
–
Timer Enable Bit 0
0 = Timer Disabled
1 = Timer Enabled
Prescaled Clock Enable Bit 15
0 = Clock source is CLK/2 or TIO
1 = Clock source is prescaler output
Timer Overflow Interrupt Enable Bit 1
0 = Overflow Interrupts Disabled
1 = Overflow Interrupts Enabled
Timer Compare Flag Bit 21
0 = “1” has been written to TCSR(TCF),
or timer compare interrupt serviced
Timer Compare Interrupt Enable Bit 2
0 = Compare Interrupts Disabled
1 = Compare Interrupts Enabled
1 = Timer Compare has occurred
Timer Overflow Flag Bit 20
0 = “1” has been written to TCSR(TOF),
or timer Overflow interrupt serviced
1 = Counter wraparound has occurred
23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
*0 *0
TCF
TOF
*0 *0 *0 *0
Timer Control/Status Register
TCSR0:$FFFF8F Read/Write
TCSR1:$FFFF8B Read/Write
TCSR2:$FFFF87 Read/Write
Reset = $000000
PCE
*0
DO
DI
DIR
*0
8
TRM INV
7
6
5
4
TC3
TC2
TC1
TC0
3
*0
2
1
TCIE TOIE
0
TE
* = Reserved, Program as 0
Note that for Timers 1 and 2, TC (3:0) = 0000 is the only valid combination.
All other combinations are reserved.
Figure D-31. Timer Control/Status Register
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-46
Freescale Semiconductor
Programming Sheets
Date:
Application:
Programmer:
Sheet 3 of 3
TEC
23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
8
7
6
5
4
3
2
1
0
8
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Timer Reload Value
Timer Load Register
TLR0:$FFFF8E Write Only
TLR1:$FFFF8A Write Only
TLR2:$FFFF86 Write Only
Reset = $XXXXXX
23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
Value Compared to Counter Value
Timer Compare Register
TCPR0:$FFFF8D Read/Write
TCPR1:$FFFF89 Read/Write
TCPR2:$FFFF85 Read/Write
Reset = $XXXXXX
23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
8
Timer Count Value
Timer Count Register
TCR0:$FFFF8C Read Only
TCR1:$FFFF88 Read Only
TCR2:$FFFF84 Read Only
Reset = $000000
Figure D-32. Timer Load, Compare and Count Registers
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-47
Programming Sheets
Date:
Application:
Programmer:
Sheet 1 of 4
GPIO
Host Data
Direction Register
(HDDR)
Port B (HDI08)
15
DR15
14
13
12
11
10
DR14
DR13
DR12
DR11
DR10
9
8
7
6
5
4
3
2
1
0
DR9
DR8
DR7
DR6
DR5
DR4
DR3
DR2
DR1
DR0
X:$FFFFC8
Read/Write
Reset = $0
DRx = 1 → PBx is Output
Host Data
Register
(HDR)
DRx = 0 → PBx is Input
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
X:$FFFFC9
Read/Write
Reset = Undefined
Dx holds value of corresponding HDI08 GPIO pin.
Function depends on HDDR.
See the HDI08 HPCR Register (Figure D-8) for additional Port B GPIO control bits.
Figure D-33. GPIO Port B
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-48
Freescale Semiconductor
Programming Sheets
Date:
Application:
Programmer:
Sheet 2 of 4
GPIO
Port C (ESAI)
Port C Control Register
(PCRC)
X:$FFFFBF
Read/Write
Reset = $0
Port C Direction Register
(PRRC)
X:$FFFFBE
Read/Write
Reset = $0
23
*0
3
11 10
9
8
7
6
5
4
PC11 PC10
PC9
PC8
PC7
PC6
PC5
PC4
2
1
PC3 PC2 PC1
0
PC0
* = Reserved, Program as 0
23
*0
11
10
9
PDC11 PDC10 PDC9
8
7
6
5
PDC8
PDC7
PDC6
PDC5
4
3
2 1
0
PDC4 PDC3 PDC2
PDC1 PDC0
* = Reserved, Program as 0
PCn = 0 & PDCn = 0 -> Port pin PCn disconnected
PCn = 1 & PDCn = 0 -> Port pin PCn configured as input
PCn = 0 & PDCn = 1 -> Port pin PCn configured as output
PCn = 1 & PDCn = 1 -> Port pin configured as ESAI
Port C GPIO Data Register
(PDRC)
X:$FFFFBD
Read/Write
Reset = undefined
23
*0
11 10
9
8
PD11 PD10
PD9
PD8
7
6
PD7 PD6
5
4
3
PD5
PD4
PD3
2
1
PD2 PD1
0
PD0
* = Reserved, Program as 0
If port pin n is GPIO input, then PDn reflects the value on port pin n
if port pin n is GPIO output, then value written to PDn is reflected on port pin n
Figure D-34. GPIO Port C
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-49
Programming Sheets
Date:
Application:
Programmer:
Sheet 3 of 4
GPIO
Port D (DAX)
Port D Control Register
(PCRD)
X:$FFFFD7
Read/Write
Reset = $0
23
6
5
4
3
2
*0 *0 *0 *0 *0 *0
1
0
PC1
PC0
1
0
* = Reserved, Program as 0
Port D Direction Register
(PRRD)
X:$FFFFD6
Read/Write
Reset = $0
23
6
5
4
3
2
*0 *0 *0 *0 *0 *0
PDC1 PDC0
* = Reserved, Program as 0
PCn = 0 & PDCn = 0 -> Port pin PDn disconnected
PCn = 1 & PDCn = 0 -> Port pin PDn configured as input
PCn = 0 & PDCn = 1 -> Port pin PDn configured as output
PCn = 1 & PDCn = 1 -> Port pin configured as DAX
Port D GPIO Data Register
(PDRD)
X:$FFFFD5
Read/Write
Reset = $0
23
6
5
4
3
2
*0 *0 *0 *0 *0 *0
1
0
PD1
PD0
* = Reserved, Program as 0
If port pin n is GPIO input, then PDn reflects the value on port pin n
if port pin n is GPIO output, then value written to PDn is reflected on port pin n
Figure D-35. GPIO Port D
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-50
Freescale Semiconductor
Programming Sheets
Date:
Application:
Programmer:
Sheet 4 of 4
GPIO
Port E (ESAI_1)
Port E Control Register
(PCRE)
Y:$FFFF9F
Read/Write
Reset = $0
Port E Direction Register
(PRRE)
Y:$FFFF9E
Read/Write
Reset = $0
23
*0
11 10
9
8
7
6
PC11 PC10
PC9
PC8
PC7
PC6
5
3
4
*0
PC4
2
*0
PC3
1
PC1
0
PC0
* = Reserved, Program as 0
23
*0
11
PDC11
10
PDC10
9
8
PDC9
PDC8
7
PDC7
6
5
4
*0
PDC6
3
PDC4 PDC3
2 1
*0
0
PDC1 PDC0
* = Reserved, Program as 0
PCn = 0 & PDCn = 0 -> Port pin PEn disconnected
PCn = 1 & PDCn = 0 -> Port pin PEn configured as input
PCn = 0 & PDCn = 1 -> Port pin PEn configured as output
PCn = 1 & PDCn = 1 -> Port pin configured as ESAI_1
Port E GPIO Data Register
(PDRE)
Y:$FFFF9D
Read/Write
Reset = undefined
23
*0
11 10
9
PD11 PD10 PD9
8
PD8
7
6
PD7 PD6
5
*0
4
3
PD4
PD3
2
*0
1
0
PD0
PD1
* = Reserved, Program as 0
If port pin n is GPIO input, then PDn reflects the value on port pin n
if port pin n is GPIO output, then value written to PDn is reflected on port pin n
Figure D-36. GPIO Port E
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
Freescale Semiconductor
D-51
Programming Sheets
NOTES
DSP56366 24-Bit Digital Signal Processor User Manual, Rev. 4
D-52
Freescale Semiconductor
Index
Numerics
5 V tolerance 1
A
adder
modulo 5
offset 5
reverse-carry 5
address bus 1
Address Generation Unit 5
addressing modes 5
AES/EBU 10, 1
AGU 5
B
barrel shifter 4
bus
external address 5
external data 5
bus control 1
buses
internal 6
C
Central Processing Unit (CPU) i
CLKGEN 7
Clock 4
clock 1
Clock divider 11
Clock Generator (CLKGEN) 7
CP-340 10, 1
CPHA and CPOL (HCKR Clock Phase and Polarity Controls) 7
D
data ALU 4
registers 4
data bus 1
Data Output bit (DO) 10
DAX 1, 21
Block Transferred Interrupt Handling 11
Initiating A Transmit Session 10
Transmit Register Empty Interrupt Handling
10
DAX Audio Data register Empty (XADE) status
flag 8
DAX Audio Data Registers (XADRA/XADRB) 5
DAX Audio Data Shift Register (XADSR) 5
DAX biphase encoder 9
DAX Block transfer (XBLK) flag 8
DAX Channel A Channel status (XCA) bit 6
DAX Channel A User data (XUA) bit 6
DAX Channel A Validity (XVA) bit 5
DAX Channel B Channel Status (XCB) bit 6
DAX Channel B User Data (XUB) bit 6
DAX Channel B Validity (XVB) bit 6
DAX Clock input Select bits 7
DAX clock multiplexer 9
DAX clock selection 7
DAX Control Register (XCTR) 6
DAX internal architecture 4
DAX Interrupt Enable (XIEN) bit 7
DAX Non-Audio Data Buffer (XNADBUF) 6
DAX Operation During Stop 12
DAX Parity Generator (PRTYG) 9
DAX preamble generator 9
DAX Preamble sequence 9, 12
DAX Programming Considerations 10
DAX programming model 3
DAX Status Register (XSTR) 7
DAX Transmit Underrun error (XAUR) status flag
8
DI 10
Digital Audio Transmitter 1, 21
Digital Audio Transmitter (DAX) 10, 1
DIR 10
Divide Factor (DF) 7
DMA 6
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Freescale Semiconductor
Index-1
triggered by timer 21
DO bit 10
DO loop 6
DRAM 8
DSP56300 core 2
DSP56300 Family Manual i, 2
DSP56303 Technical Data i
E
Enhanced Serial Audio Interface 15, 19
Enhanced Synchronous Audio Interface 1
ESAI 1, 15, 19
ESAI block diagram 1
ESSI0 (GPIO) 1, 2
ESSI1 (GPIO) 1
external address bus 5
external bus control 5, 6, 7
external data bus 5
External Memory Expansion Port 5
F
functional signal groups 1
G
Global Data Bus 6
GPIO 9, 22
GPIO (ESSI0, Port C) 1, 2
GPIO (ESSI1, Port D) 1
GPIO (HI08, Port B) 1
GPIO (Timer) 2
Ground 3
ground 1
HCSR
Receive Interrupt Enable Bits 14
SHI Control/Status Register 10
HDI08 1, 9, 11, 12
HDM0-HDM5 (HCKR Divider Modulus Select) 9
HEN (HCSR SHI Enable) 10
HFIFO (HCSR FIFO Enable Control) 12
HFM0-HFM1 (HCKR Filter Mode) 9
HI08 9
(GPIO) 1
HI2C (HCSR Serial Host Interface I2C/SPI Selection) 11
HIDLE (HCSR Idle) 13
HM0-HM1 (HCSR Serial Host Interface Mode) 11
HMST (HCSR Master Mode) 12
Host
Receive Data FIFO (HRX) 6
Receive Data FIFO—DSP Side 6
Transmit Data Register (HTX) 6
Transmit Data Register—DSP Side 6
Host Interface 9, 1, 9, 11, 12
HREQ Function In SHI Slave Modes 12
HRFF (HCSR Host Receive FIFO Full) 15
HRIE0-HRIE1 (HCSR Receive Interrupt Enable)
14
HRNE (HCSR Host Receive FIFO Not Empty) 15
HROE (HCSR Host Receive Overrun Error) 15
HRQE0-HRQE1 (HCSR Host Request Enable) 12
HTDE (HCSR Host Transmit Data Empty) 15
HTIE (HCSR Transmit Interrupt Enable) 13
HTUE (HCSR Host Transmit Underrun Error) 14
I
H
HA1, HA3-HA6 (HSAR I2C Slave Address) 7
hardware stack 5
HBER (HCSR Bus Error) 16
HBIE (HCSR Bus Error Interrupt Enable) 13
HBUSY (HCSR Host Busy) 16
HCKR (SHI Clock Control Register) 7
I2C 10, 1, 16
Bit Transfer 17
Bus Protocol For Host Read Cycle 19
Bus Protocol For Host Write Cycle 18
Data Transfer Formats 18
Master Mode 23
Protocol for Host Write Cycle 18
Receive Data In Master Mode 24
Receive Data In Slave Mode 21
Slave Mode 21
Start and Stop Events 17
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Index-2
Freescale Semiconductor
Transmit Data In Master Mode 24
Transmit Data In Slave Mode 22
I2C Bus Acknowledgment 18
I2C Mode 1
IEC958 10, 1
Inter Integrated Circuit Bus 10, 1
internal buses 6
Internal Exception Priorities
SHI 5
interrupt 6
interrupt and mode control 1, 7, 8
interrupt control 7, 8
Interrupt Vectors
SHI 5
INV 9
J
JTAG 7, 22
JTAG/OnCE port 1
L
LA register 6
LC register 6
Loop Address register (LA) 6
Loop Counter register (LC) 6
M
MAC 4
Manual Conventions ii
memory
expansion 8
external expansion port 8
off-chip 8
on-chip 7
mode control 7, 8
modulo adder 5
multiplier-accumulator (MAC) 4
O
OMR register 6
OnCE module 7, 22
On-Chip Emulation (OnCE) module 7
on-chip memory 7
Operating Mode Register (OMR) 6
P
PAB 6
PAG 5
PC register 6
PC0-PC20 bits 6
PCE 11
PCU 5
PDB 6
PDC 5
Peripheral I/O Expansion Bus 6
PIC 5
PL0-PL20 bits 5
PL21-PL22 bits 5
PLL 7, 1, 4
Port A 1, 5
Port B 1, 9, 10, 11, 12, 1
Port C 1, 15, 19, 1, 2
Port D 21, 1
Power 2
power 1
Prescaler Counter 5
Prescaler Counter Value bits (PC0-PC20) 6
Prescaler Load Value bits (PL0-PL20) 5
Prescaler Source bits (PL21-PL22) 5
Program Address Bus (PAB) 6
Program Address Generator (PAG) 5
Program Control Unit (PCU) 5
Program Counter register (PC) 6
Program Data Bus (PDB) 6
Program Decode Controller (PDC) 5
Program Interrupt Controller (PIC) 5
Program Memory Expansion Bus 6
Programming Model
SHI—DSP Side 4
SHI—Host Side 3
offset adder 5
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Freescale Semiconductor
Index-3
R
reserved bits
in TCSR register
bits 3, 10, 14, 16–19, 22, 23 11
in TPCR 6
in TPLR 6
RESET 8
reverse-carry adder 5
S
SC register 6
Serial Host Interface 1, 12
Serial Host Interface (SHI) 10, 1
Serial Peripheral Interface Bus 10, 1
SHI 10, 1, 12, 1
Block Diagram 2
Clock Control Register—DSP Side 7
Clock Generator 2, 3
Control/Status Register—DSP Side 10
Data Size 11
Exception Priorities 5
HCKR
Clock Phase and Polarity Controls 7
Divider Modulus Select 9
Prescaler Rate Select 9
HCKR Filter Mode 9
HCSR
Bus Error Interrupt Enable 13
FIFO Enable Control 12
Host Request Enable 12
Idle 13
Master Mode 12
Serial Host Interface I2C/SPI Selection 11
Serial Host Interface Mode 11
SHI Enable 10
Host Receive Data FIFO—DSP Side 6
Host Transmit Data Register—DSP Side 6
HREQ
Function In SHI Slave Modes 12
HSAR
I2C Slave Address 7
Slave Address Register 6
I/O Shift Register 6
Input/Output Shift Register—Host Side 5
Internal Architecture 2
Internal Interrupt Priorities 5
Interrupt Vectors 5
Introduction 1
Operation During Stop 25
Programming Considerations 19
Programming Model 3
Programming Model—DSP Side 4
Programming Model—Host Side 3
Slave Address Register—DSP Side 6
SHI Noise Reduction Filter Mode 10
signal groupings 1
signals 1
Size register (SZ) 6
SP 6
SPI 10, 1
HCSR
Bus Error 16
Host Busy 16
Host Receive FIFO Full 15
Host Receive FIFO Not Empty 15
Host Receive Overrun Error 15
Host Transmit Data Empty 15
Host Transmit Underrun Error 14
Receive Interrupt Enable 13, 14
Master Mode 20
Slave Mode 19
SPI Data-To-Clock Timing 8
SPI Data-To-Clock Timing Diagram 8
SPI Mode 1
SR register 6
SRAM
interfacing 8
SS 6
Stack Counter register (SC) 6
Stack Pointer (SP) 6
Status Register (SR) 6
System Stack (SS) 6
SZ register 6
T
TAP 7
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Index-4
Freescale Semiconductor
TC0–TC3 bits 7
TCF 11
TCIE bit 7
TCPR 12
TCR 12
TCSR register 6
bit 0—Timer Enable bit (TE) 6
bit 2—Timer Compare Interrupt Enable bit
(TCIE) 7
bits 4–7—Timer Control bits (TC0–TC3) 7
bit 13—Data Output bit (DO) 10
reserved bits—bits 3, 10, 14, 16–19, 22, 23 11
TE bit 6
Test Access Port (TAP) 7
Timer 1, 22
timer
special cases 20
Timer (GPIO) 2
Timer Compare Interrupt Enable bit (TCIE) 7
Timer Control bits (TC0–TC3) 7
Timer Control/Status Register (TCSR) 6
Timer Enable bit (TE) 6
timer mode
mode 0—GPIO 13
mode 1—timer pulse 14
mode 2—timer toggle 14
mode 3—timer event counter 15
mode 4—measurement input width 16
mode 5—measurement input period 17
mode 6—measurement capture 17
mode 7—pulse width modulation 18
mode 8—reserved 19
mode 9—watchdog pulse 19, 20
modes 11–15—reserved 20
Timer module
architecture 1
Timer Prescaler Count Register (TPCR) 6
Timer Prescaler Load Register (TPLR) 5
TLR 12
TOF 11
TOIE 7
TPCR register 6
bits 0-20—Prescaler Counter Value bits
(PC0-PC20) 6
bit 21-23—reserved bits 6
reserved bits—bits 21-23 6
TPLR register 5
bits 0-20—Prescaler Load Value bits
(PL0-PL20) 5
bits 21-22—Prescaler Source bits (PL0-PL20)
5
bit 23—reserved bit 6
reserved bit—bit 23 6
Transmitter High Frequency Clock Divider 11
TRM 10
V
VBA register 6
Vector Base Address register (VBA) 6
X
X Memory Address Bus (XAB) 6
X Memory Data Bus (XDB) 6
X Memory Expansion Bus 6
XAB 6
XDB 6
Y
Y Memory Address Bus (YAB) 6
Y Memory Data Bus (YDB) 6
Y Memory Expansion Bus 6
YAB 6
YDB 6
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Freescale Semiconductor
Index-5
DSP56366 24-Bit Digital Signal Processor, Rev. 4
Index-6
Freescale Semiconductor
