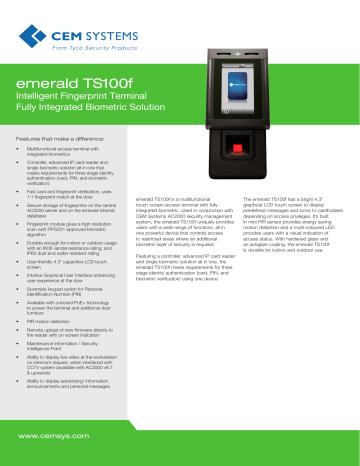

emerald TS100f
emerald TS100f
Intelligent Fingerprint Terminal
Fully Integrated Biometric Solution
Features that make a difference:
•
Multifunctional access terminal with
integrated biometrics
•
Controller, advanced IP card reader and
single biometric solution all in one that
meets requirements for three stage identity
authentication (card, PIN, and biometric
verification)
•
Fast card and fingerprint verification, uses
1:1 fingerprint match at the door
•
Secure storage of fingerprints on the central
AC2000 server and on the emerald internal
database
•
Fingerprint module gives a high resolution
scan with FIPS201 approved biometric
algorithm
•
Durable enough for indoor or outdoor usage
with an IK06 vandal resistance rating, and
IP65 dust and water resistant rating
•
User-friendly 4.3” capacitive LCD touch
screen
•
Intuitive Graphical User Interface enhancing
user experience at the door
•
Scramble keypad option for Personal
Identification Number (PIN)
•
Available with onboard PoE+ technology
to power the terminal and additional door
furniture
•
PIR motion detection
•
Remote upload of new firmware directly to
the reader with on-screen indication
•
Maintenance Information / Security
Intelligence Point
•
Ability to display live video at the workstation
on intercom request, when interfaced with
CCTV system (available with AC2000 v6.7
& upwards)
•
Ability to display advertising/ information
announcements and personal messages
www.cemsys.com
emerald TS100f is a multifunctional touch screen access terminal with fully integrated biometric. Used in conjunction with CEM Systems AC2000 security management
system, the emerald TS100f uniquely provides
users with a wide range of functions, all in
one powerful device that controls access
to restricted areas where an additional
biometric layer of security is required.
Featuring a controller, advanced IP card reader
and single biometric solution all in one, the
emerald TS100f meets requirements for three
stage identity authentication (card, PIN, and
biometric verification) using one device.
The emerald TS100f has a bright 4.3”
graphical LCD touch screen to display
predefined messages and icons to cardholders
depending on access privileges. It’s built
in mini PIR sensor provides energy saving
motion detection and a multi-coloured LED
provides users with a visual indication of
access status. With hardened glass and
an antiglare coating, the emerald TS100f
is durable for indoor and outdoor use.
Off-Line Card Validation
The emerald TS100f has a large internal database that
enables it to operate in off-line mode. In off-line mode
the terminal can hold up to 123,000 card holder records
with 2 fingerprint templates for each card holder.
PIN & Fingerprint
This special emerald enhancement allows using emerald
TS100f terminal without a card, where the user must enter their
special designated 6-digit PIN number followed by a fingerprint
verification. Where necessary, this removes the need for a physical
card while maintaining a high level of security at the door.
Fully integrated biometrics &
access control solution
The emerald TS100f features a controller, advanced IP
card reader and fingerprint module all in one device.
Single process & network solution
Fingerprint enrolment is captured and stored via the AC2000
access control system at the same time as cardholder
enrolment. This offers clients a single solution and eradicates
the requirement to purchase a separate biometric reader and
software application to link to the access control system.
Power over Ethernet Plus
The emerald TS100f is available with onboard Power over Ethernet
Plus (PoE+) technology allowing the terminal and additional door
furniture* to be powered using a single Cat 5e/6 cable at the door.
Multi Date Check
As an additional safety and security layer applied on top of system card
validity checks, this mode allows the emerald to check the validity of
any additional criteria such as training certificates or contracts that might
be required at the site. System administrators can easily configure Multi
Date Check using the dedicated intuitive AC2000 Web interface and
run detailed reports on the configured Multi Date Check criteria and
expiry dates, to ensure that personnel’s certificates and permissions
stay up to date. Whether it’s applied for an individual cardholder or
company-wide, additional date checks will take place after a valid
transaction and a detailed result message will be displayed on emerald
screen. This feature is only available with AC2000 v7.0 and above.
Time & Attendance
In T&A mode, the emerald allows users to select either the IN or OUT
transaction on a single terminal, before swiping their cards. Depending
on the selection, the emerald will allocate valid transactions against
either the IN or OUT swipe. System administrators can then easily
report on the T&A activity using AC2000 Time and Attendance module
or system reports. For highly secure locations, Time & Attendance
mode can work in conjunction with Fingerprint verification and other
modes such as PIN or Image on Swipe. (T&A is a dedicated door
mode. emerald will not control door access when in T&A mode.)
PIN as Card
PIN as Card is a special emerald feature, offering cardless
verification using a unique 6 digit PIN to verify transactions.
Where necessary, this removes the need for a physical
card while maintaining security at the door.
Requirements
•
•
•
•
•
AC2000 Airport v7.0 and upwards
AC2000 v7.0 and upwards
AC2000 Lite v7.0 and upwards
CEM S610f Validation Reader
RTC Ethernet Reader Controller
Specification
Physical
Size . . . . . . . . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . .
Housing . . . . . . . . . . . . . . . . .
LCD . . . . . . . . . . . . . . . . . . . .
LED Indicator . . . . . . . . . . . . .
Colour . . . . . . . . . . . . . . . . . .
Voltage . . . . . . . . . . . . . . . . . .
PoE Version . . . . . . . . . . . . .
Current . . . . . . . . . . . . . . . . . .
Current available to power door furniture . . . . . . . .
240 x 108 x 49mm (At widest point)
600g (approx.)
Flame retardant polycarbonate,
with UV stabilisation. RoHS compliant, and PBE/ PBDE free flame retardant system
Capacitive, light touch, 4.3˝ Diagonal,
480 * 272 square pixel 16 bit colour
High Intensity multi-colour LED indicator
Black
10-14V DC
when powered from IEEE802.af
compliant source
350 - 550mA (Typical) 860mA (Peak)
None
PoE+ Version . . . . . . . . . . . . when powered from IEEE802.at source
Current . . . . . . . . . . . . . . . . . . 350 - 550mA (Typical) 860mA (Peak)
Current available to power door furniture . . . . . . . . 650mA @12V*
Environmental
IP Rating . . . . . . . . . . . . . . . . IP65
IK Rating . . . . . . . . . . . . . . . . IK06
Temperature . . . . . . . . . . . . . . -15° to 50°C **
Fingerprint***
Type . . . . . . . . . . . . . . . . . . . .
Resolution . . . . . . . . . . . . . . .
Sensing area . . . . . . . . . . . . .
Image size (pixels) . . . . . . . . .
EER . . . . . . . . . . . . . . . . . . . .
Optical
500 dpi
16mm x 19.0mm
272x320
< 0.1%
Functionality
Inputs . . . . . . . . . . . . . . . . . . . Four analog inputs – voltage provided
Outputs . . . . . . . . . . . . . . . . . 2 relays volt free contacts (dry contact)
Switchable wet outputs
Rating . . . . . . . . . . . . . . . . . . . Internal : Internal: 12Vdc @ 1.3A
External: Up to 30Vdc @ 2A (60W)
Memory . . . . . . . . . . . . . . . . . 128 MB RAM, 256MB NAND Flash
Expansion . . . . . . . . . . . . . . . Micro SD slot for optional memory expansion.
Micro SD card fitted.
RTC Battery Backup . . . . . . 3.0V rechargeable Lithium-ion
Off-line Database
Cardholders . . . . . . . . . . . . . .
Transactions . . . . . . . . . . . . . .
Card technologies . . . . . . . . .
123,000 ( two fingerprint templates per cardholder )
50,000 min
MiFare (CSN), DESFire (CSN),
CEM DESFire 3DES, CEM DESFire AES,
iClass, iClass SE, Picopass
Communication Interface
To Exit Reader . . . . . . . . . . . .
Cable Connection . . . . . . . . . .
To System Host . . . . . . . . . . .
Cable Connection . . . . . . . . . .
Operating Modes . . . . . . . . . .
Special Features . . . . . . . . . . .
Verification time (1:1) . . . . . . .
RS485 (CEM S610 Exit Reader)
Wiegand (3rd party read heads)
M3 Screw terminals
10/100 Base-T TCP/IP using CAT5e Unshielded twisted pair cable
RJ45
Door Mode, Interlock, Control Post, Passenger,
Multi-swipe, Global PIN, Entry Checklist Mode
533 MHz DSP
FIPS201 approved algorithm
Robust optical Solid and scratch-free sensor surface Reliable high quality fingerprint image for wet & dry fingers Sensor automatically optimises fingerprint image
< 0.55 sec
* Only PoE+ IEEE802.at provides power for both the terminal and additional door furniture (current
available to power door furniture: 650mA). Power requirements beyond this limit will require the DIU230
** Biometric verification performance and accuracy can vary, subject to environmental conditions such
as ice, snow etc.
*** Equal Error Rate. Manufacturer’s data related to fingerprint match only. EER is dependent on
databases
Ordering Information
Product Code
Description
TSR/100/115
emerald TS100f Intelligent Fingerprint Terminal (Mifare CSN/DESFire CSN/CEM DESFire)
TSR/100/118
emerald TS100f Intelligent Fingerprint Terminal (iClass / iClass SE)
To order contact [email protected] or call +44(0) 2890 456 767
Related Products
AC2000
AC2000 Airport
AC2000 Lite
Approvals
FCC approval pending
www.cemsys.com
© 2017 Tyco Security Products. All Rights Reserved. CEM/B/380
Tyco and the product names listed above are marks and/or registered marks. Unauthorized use is strictly prohibited.
Product offerings and specifications are subject to change without notice. Actual products may vary from photos. Not all products include all features. Availability varies by region; contact your sales representative.
