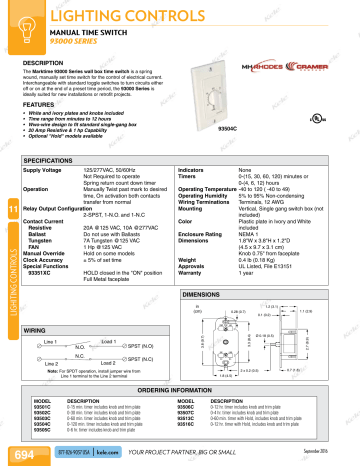

lighting controls
NEW!
LIGHTING CONTROLS
MANUAL TIME SWITCH
93000 SERIES
DESCRIPTION
The Marktime 93000 Series wall box time switch is a spring
wound, manually set time switch for the control of electrical current.
Interchangeable with standard toggle switches to turn circuits either
off or on at the end of a preset time period, the 93000 Series is
ideally suited for new installations or retrofit projects.
FEATURES
•
•
•
•
•
White and ivory plates and knobs included
Time range from minutes to 12 hours
Wwo-wire design to fit standard single-gang box
20 Amp Resistive & 1 hp Capability
Optional "Hold" models available
93504C
SPECIFICATIONS
Supply Voltage
Operation
Indicators
None
Timers
0-(15, 30, 60, 120) minutes or
0-(4, 6, 12) hours
Operating Temperature-40 to 120 ( -40 to 49)
Operating Humidity
5% to 95% Non-condensing
Wiring Terminations Terminals, 12 AWG
Mounting
Vertical, Single gang switch box (not
included)
Color
Plastic plate in Ivory and White
included
Enclosure Rating
NEMA 1
Dimensions
1.8"W x 3.8"H x 1.2"D
(4.5 x 9.7 x 3.1 cm)
Knob 0.75" from faceplate
Weight
0.4 lb (0.18 Kg)
Approvals
UL Listed, File E13151
Warranty
1 year
DIMENSIONS
in
(cm)
1.2 (3.1)
0.28 (0.7)
N.O.
N.C.
Load 2
Line 2
3.8 (9.7)
Load 1
3.3 (8.4)
WIRING
Line 1
SPST (N.O)
1.1 (2.9)
0.1 (0.2)
Ø 0.18 (0.5)
2.7 (6.9)
LIGHITING CONTROLS
11
125/277VAC, 50/60Hz
Not Required to operate
Spring return count down timer
Manually Twist past mark to desired
time, On activation both contacts
transfer from normal
Relay Output Configuration
2-SPST, 1-N.O. and 1-N.C
Contact Current
Resistive
20A @125 VAC, 10A @277VAC
Ballast
Do not use with Ballasts
Tungsten
7A Tungsten @125 VAC
FAN
1 Hp @125 VAC
Manual Override
Hold on some models
Clock Accuracy
± 5% of set time
Special Functions
93351XC
HOLD closed in the "ON" position
Full Metal faceplate
SPST (N.C)
Note: For SPDT operation, install jumper wire from
Line 1 terminal to the Line 2 terminal
2 x 0.2 (0.5)
0.7 (1.8)
1.8 (4.5)
ORDERING INFORMATION
MODEL
93501C
93502C
93503C
93504C
93505C
694
DESCRIPTION
0-15 min. timer includes knob and trim plate
0-30 min. timer includes knob and trim plate
0-60 min. timer includes knob and trim plate
0-120 min. timer includes knob and trim plate
0-6 hr. timer includes knob and trim plate
877-826-9037 USA
kele.com
MODEL
93506C
93507C
93513C
93516C
DESCRIPTION
0-12 hr. timer includes knob and trim plate
0-4 hr. timer includes knob and trim plate
0-60 min. timer with Hold, includes knob and trim plate
0-12 hr. timer with Hold, includes knob and trim plate
YOUR PROJECT PARTNER, BIG OR SMALL
September 2016
